This document describes a high low temperature test chamber manufactured by Technocracy Pvt. Ltd. It can accurately simulate different climate conditions and test components, materials and systems. The chamber features a temperature range of -70°C to +180°C and humidity range of 5% to 95% RH. It has a precise temperature control system and insulation to maintain uniformity within 2°C. The chamber is used for testing electronics, chemicals and more in various industries.

1. TECHNOCRACY PVT. LTD.
HIGH LOW TEMPERATURE
TEST CHAMBER
MODEL NO. - ACM- 121400-HL
R

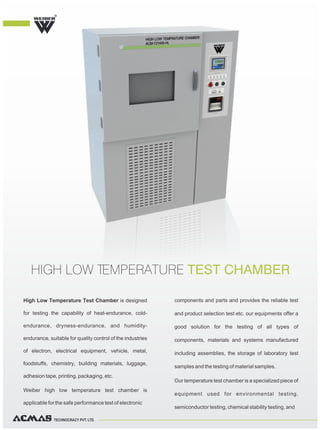

2. TECHNOCRACY PVT. LTD.
High Low Temperature Test Chamber is designed
for testing the capability of heat-endurance, cold-
endurance, dryness-endurance, and humidity-
endurance, suitable for quality control of the industries
of electron, electrical equipment, vehicle, metal,
foodstuffs, chemistry, building materials, luggage,
adhesion tape, printing, packaging, etc.
Weiber high low temperature test chamber is
applicable for the safe performance test of electronic
components and parts and provides the reliable test
and product selection test etc. our equipments offer a
good solution for the testing of all types of
components, materials and systems manufactured
including assemblies, the storage of laboratory test
samples and the testing of material samples.
Our temperature test chamber is a specialized piece of
equipment used for environmental testing,
semiconductor testing, chemical stability testing, and
HIGH LOW TEMPERATURE TEST CHAMBER
R

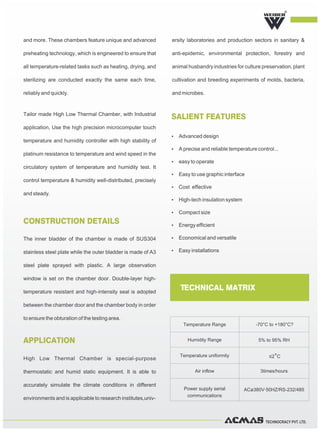

3. TECHNOCRACY PVT. LTD.
The inner bladder of the chamber is made of SUS304
stainless steel plate while the outer bladder is made of A3
steel plate sprayed with plastic. A large observation
window is set on the chamber door. Double-layer high-
temperature resistant and high-intensity seal is adopted
between the chamber door and the chamber body in order
to ensure the obturation of the testing area.
High Low Thermal Chamber is special-purpose
thermostatic and humid static equipment. It is able to
accurately simulate the climate conditions in different
environments and is applicable to research institutes,univ-
ersity laboratories and production sectors in sanitary &
anti-epidemic, environmental protection, forestry and
animal husbandry industries for culture preservation, plant
cultivation and breeding experiments of molds, bacteria,
and microbes.
CONSTRUCTION DETAILS
APPLICATION
SALIENT FEATURES
and more. These chambers feature unique and advanced
preheating technology, which is engineered to ensure that
all temperature-related tasks such as heating, drying, and
sterilizing are conducted exactly the same each time,
reliably and quickly.
Tailor made High Low Thermal Chamber, with Industrial
application, Use the high precision microcomputer touch
temperature and humidity controller with high stability of
platinum resistance to temperature and wind speed in the
circulatory system of temperature and humidity test. It
control temperature & humidity well-distributed, precisely
and steady.
R
TECHNICAL MATRIX
Temperature Range -70°C to +180°C?
Humidity Range 5% to 95% RH
Temperature uniformity ≤2°C
Air inflow 3times/hours
Power supply serial
communications
ACø380V·50HZ/RS-232/485
Ÿ Advanced design
Ÿ A precise and reliable temperature control...
Ÿ easy to operate
Ÿ Easy to use graphic interface
Ÿ Cost effective
Ÿ High-tech insulation system
Ÿ Compact size
Ÿ Energy efficient
Ÿ Economical and versatile
Ÿ Easy installations

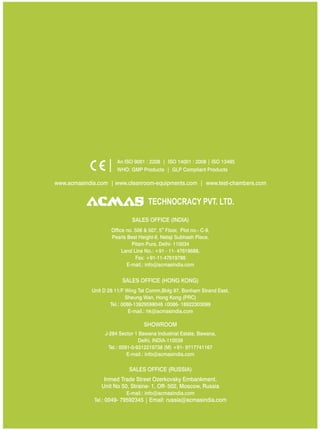

4. SALES OFFICE (HONG KONG)
