The document describes an ozone climatic test chamber manufactured by Technocracy Pvt. Ltd. The test chamber can be used to test rubber and plastic products by simulating high ozone concentration levels along with temperature and humidity settings to evaluate the products' resistance to ozone degradation over time. Key features include a temperature range of 0-70°C, humidity of at least 65% RH, and adjustable ozone density of 50-1000pphm. The chamber uses imported components and meets various industry and regulatory standards.

1. TECHNOCRACY PVT. LTD.
OZONE CLIMATIC
TEST CHAMBER
MODEL NO. - ACM- 334330-OC
R

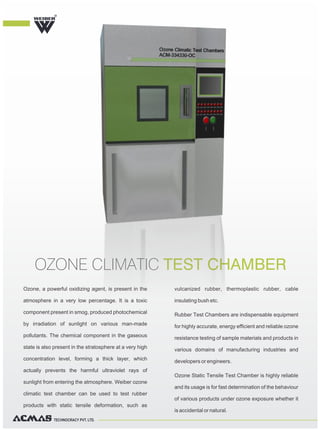

2. TECHNOCRACY PVT. LTD.
Ozone, a powerful oxidizing agent, is present in the
atmosphere in a very low percentage. It is a toxic
component present in smog, produced photochemical
by irradiation of sunlight on various man-made
pollutants. The chemical component in the gaseous
state is also present in the stratosphere at a very high
concentration level, forming a thick layer, which
actually prevents the harmful ultraviolet rays of
sunlight from entering the atmosphere. Weiber ozone
climatic test chamber can be used to test rubber
products with static tensile deformation, such as
vulcanized rubber, thermoplastic rubber, cable
insulating bush etc.
Rubber Test Chambers are indispensable equipment
for highly accurate, energy efficient and reliable ozone
resistance testing of sample materials and products in
various domains of manufacturing industries and
developers or engineers.
Ozone Static Tensile Test Chamber is highly reliable
and its usage is for fast determination of the behaviour
of various products under ozone exposure whether it
is accidental or natural.
OZONE CLIMATIC TEST CHAMBER
R

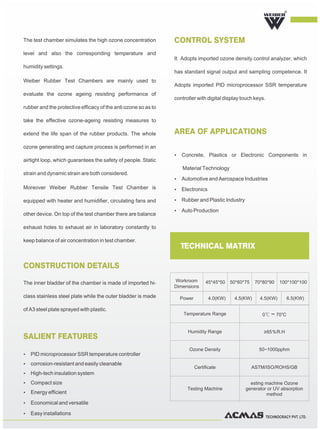

3. TECHNOCRACY PVT. LTD.
The test chamber simulates the high ozone concentration
level and also the corresponding temperature and
humidity settings.
Weiber Rubber Test Chambers are mainly used to
evaluate the ozone ageing resisting performance of
rubber and the protective efficacy of the anti ozone so as to
take the effective ozone-ageing resisting measures to
extend the life span of the rubber products. The whole
ozone generating and capture process is performed in an
airtight loop, which guarantees the safety of people. Static
strain and dynamic strain are both considered.
Moreover Weiber Rubber Tensile Test Chamber is
equipped with heater and humidifier, circulating fans and
other device. On top of the test chamber there are balance
exhaust holes to exhaust air in laboratory constantly to
keep balance of air concentration in test chamber.
The inner bladder of the chamber is made of imported hi-
class stainless steel plate while the outer bladder is made
of A3 steel plate sprayed with plastic.
CONSTRUCTION DETAILS
CONTROL SYSTEM
AREA OF APPLICATIONS
SALIENT FEATURES
It Adopts imported ozone density control analyzer, which
has standard signal output and sampling competence. It
Adopts imported PID microprocessor SSR temperature
controller with digital display touch keys.
Ÿ Concrete, Plastics or Electronic Components in
Material Technology
Ÿ Automotive and Aerospace Industries
Ÿ Electronics
Ÿ Rubber and Plastic Industry
Ÿ Auto Production
R
TECHNICAL MATRIX
Temperature Range 0℃～70℃
Humidity Range ≥65％R.H
Ozone Density 50~1000pphm
Certificate ASTM/ISO/ROHS/GB
Testing Machine
esting machine Ozone
generator or UV absorption
method
Workroom
Dimensions
45*45*50 50*60*75 70*80*90 100*100*100
Power 4.0(KW) 4.5(KW) 4.5(KW) 6.5(KW)
Ÿ PID microprocessor SSR temperature controller
Ÿ corrosion-resistant and easily cleanable
Ÿ High-tech insulation system
Ÿ Compact size
Ÿ Energy efficient
Ÿ Economical and versatile
Ÿ Easy installations

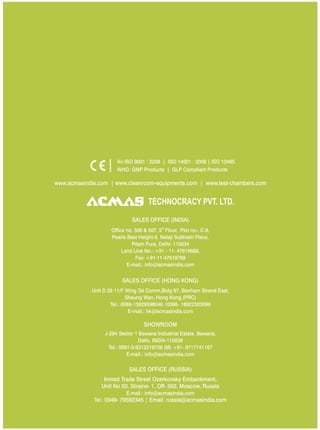

4. SALES OFFICE (HONG KONG)
