This document describes a sulfur dioxide test chamber manufactured by Technocracy Pvt. Ltd. The chamber is used to simulate corrosion conditions and test the corrosion resistance of metal parts, components, and other materials and products. It has a microprocessor controller, transparent chamber to view samples, and precision controls for parameters like temperature, humidity, and sulfur dioxide gas concentration. The chamber allows customizable corrosion testing to evaluate corrosion protection for industrial and electronic parts and materials.

1. TECHNOCRACY PVT. LTD.
SULFUR DIOXIDE
TEST CHAMBER
MODEL NO. - ACM- 11436-DO
R

2. TECHNOCRACY PVT. LTD.
Weiber Sulphur Dioxide Test Chamber / SO2 Test
Chamber are mainly used to execute the accelerated
corrosion test for metal protection layer, components,
electronic and industrial parts. Easily and conveniently
simulate the corrosion condition for coating and metal
parts surface. This Corrosion test chamber is
applicable for the corrosive gas test for the protection
layer of components, parts, electronic and electrical
parts, metal materials and industrial products.
Moreover our equipment has microprocessor
integrated controller with LED digital display and
adopts multi-system protection ensuring reliable and
safe use. The Gas is produced with gas cylinder
method or titration method. The chamber cover is
made of transparent materials so that the operator can
see the tested sample in the chamber and the spraying
situation of the tested sample.
So2 Salt Spray Test Chamber is welded under high
temperature condition, anti-corrosion, easy cleaning,
and without leakage. Adopt water-proof structure for
SULFUR DIOXIDE TEST CHAMBER
R

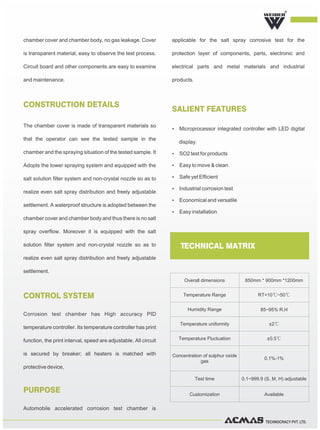

3. TECHNOCRACY PVT. LTD.
chamber cover and chamber body, no gas leakage. Cover
is transparent material, easy to observe the test process.
Circuit board and other components are easy to examine
and maintenance.
The chamber cover is made of transparent materials so
that the operator can see the tested sample in the
chamber and the spraying situation of the tested sample. It
Adopts the tower spraying system and equipped with the
salt solution filter system and non-crystal nozzle so as to
realize even salt spray distribution and freely adjustable
settlement. A waterproof structure is adopted between the
chamber cover and chamber body and thus there is no salt
spray overflow. Moreover it is equipped with the salt
solution filter system and non-crystal nozzle so as to
realize even salt spray distribution and freely adjustable
settlement.
CONSTRUCTION DETAILS
CONTROL SYSTEM
PURPOSE
SALIENT FEATURES
Corrosion test chamber has High accuracy PID
temperature controller. Its temperature controller has print
function, the print interval, speed are adjustable. All circuit
is secured by breaker; all heaters is matched with
protective device,
Automobile accelerated corrosion test chamber is
applicable for the salt spray corrosive test for the
protection layer of components, parts, electronic and
electrical parts and metal materials and industrial
products.
R
TECHNICAL MATRIX
Overall dimensions 850mm * 900mm *1200mm
Temperature Range RT+10℃~50℃
Humidity Range 85~95% R.H
Temperature uniformity ±2℃
Temperature Fluctuation ±0.5℃
Concentration of sulphur oxide
gas
0.1%-1%
Test time 0.1~999.9 (S, M, H) adjustable
Customization Available
Ÿ Microprocessor integrated controller with LED digital
display.
Ÿ SO2 test for products
Ÿ Easy to move & clean
Ÿ Safe yet Efficient
Ÿ Industrial corrosion test
Ÿ Economical and versatile
Ÿ Easy installation

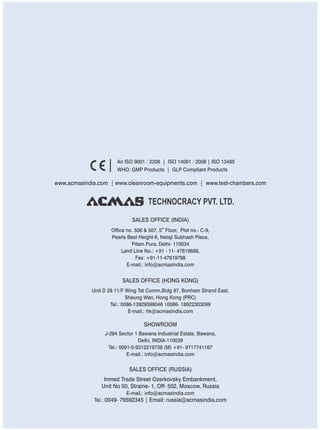

4. SALES OFFICE (HONG KONG)
