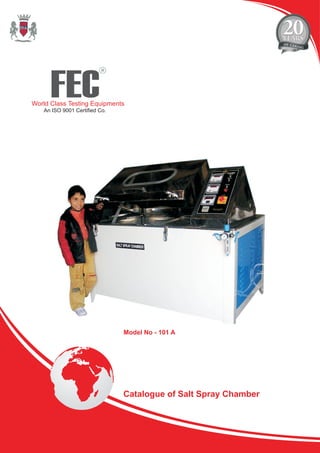

1. FEC
R
World Class Testing Equipments
An ISO 9001 Certified Co.
Model No - 101 A
Catalogue of Salt Spray Chamber

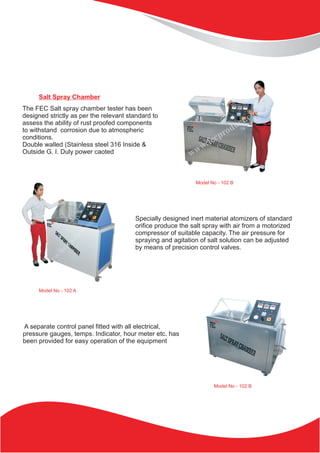

2. Salt Spray Chamber
The FEC Salt spray chamber tester has been
designed strictly as per the relevant standard to
assess the ability of rust proofed components
to withstand corrosion due to atmospheric
conditions.
Double walled (Stainless steel 316 Inside &
Outside G. I. Duly power caoted
A separate control panel fitted with all electrical,
pressure gauges, temps. Indicator, hour meter etc. has
been provided for easy operation of the equipment
Specially designed inert material atomizers of standard
orifice produce the salt spray with air from a motorized
compressor of suitable capacity. The air pressure for
spraying and agitation of salt solution can be adjusted
by means of precision control valves.
Model No - 102 B
Model No - 102 A
Model No - 102 B

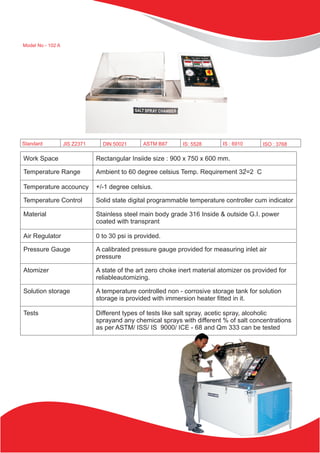

3. Standard JIS Z2371 DIN 50021 ASTM BII7 IS: 5528 IS : 6910 ISO : 3768
Work Space Rectangular Insiide size : 900 x 750 x 600 mm.
Temperature Range Ambient to 60 degree celsius Temp. Requirement 32=2 C
Temperature accouncy +/-1 degree celsius.
Temperature Control Solid state digital programmable temperature controller cum indicator
Material Stainless steel main body grade 316 Inside & outside G.I. power
coated with transprant
Air Regulator 0 to 30 psi is provided.
Pressure Gauge A calibrated pressure gauge provided for measuring inlet air
pressure
Atomizer A state of the art zero choke inert material atomizer os provided for
reliableautomizing.
Solution storage A temperature controlled non - corrosive storage tank for solution
storage is provided with immersion heater fitted in it.
Tests Different types of tests like salt spray, acetic spray, alcoholic
sprayand any chemical sprays with different % of salt concentrations
as per ASTM/ ISS/ IS 9000/ ICE - 68 and Qm 333 can be tested
0
Model No - 102 A

4. Panel ?A separate user friendly panel is provided with following controls:
?Solid state digital programmable temperature indicator cum
controllers with auto cut off facility for the main chamber and the
reservoir
?Digital preset timer with memory backup and automatic shut off
after pre- set duration for setting test duration up to 999 Hrs.
?Imported hour meter for recording total (cumulative) hours of
chamber run since installation / difference time log.
?Light indicating ON / OFF mains.
?Mounted pressure gauge, regulator valve and air filter.
?
Celibration
Electrical Requirement Single phesh 220 Volt 50Hz 3KW approx.
Air saturation system available as an optional accessory.
Exclusive spares supplied complimentary
?Reservoir : with stand
?PH paper pack : for checking
ph of salt solution
?Lab grade salt for solution : for
preparing in tial salt solution
?Sample hanging rods : 2 nos
?Sample hokling Thread : 2
meters for hanging samples
?Cleaning scrub : chemo is for effective cleaning
of chamber
?PVC pipe : 1M
?Instruction manual
?Jet cleaning pin ( wire 0.6 mm )
?Calibration certificates

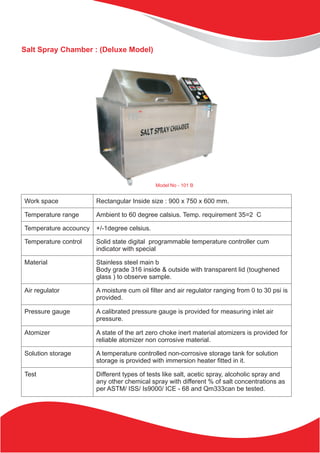

5. Salt Spray Chamber : (Deluxe Model)
Work space Rectangular Inside size : 900 x 750 x 600 mm.
Temperature range Ambient to 60 degree calsius. Temp. requirement 35=2 C
Temperature accouncy +/-1degree celsius.
Temperature control Solid state digital programmable temperature controller cum
indicator with special
Material Stainless steel main b
Body grade 316 inside & outside with transparent lid (toughened
glass ) to observe sample.
Air regulator A moisture cum oil filter and air regulator ranging from 0 to 30 psi is
provided.
Pressure gauge A calibrated pressure gauge is provided for measuring inlet air
pressure.
Atomizer A state of the art zero choke inert material atomizers is provided for
reliable atomizer non corrosive material.
Solution storage A temperature controlled non-corrosive storage tank for solution
storage is provided with immersion heater fitted in it.
Test Different types of tests like salt, acetic spray, alcoholic spray and
any other chemical spray with different % of salt concentrations as
per ASTM/ ISS/ Is9000/ ICE - 68 and Qm333can be tested.
Model No - 101 B

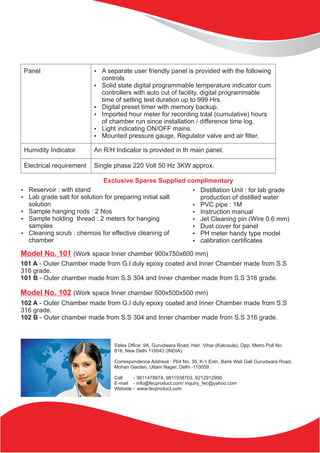

6. Panel ?A separate user friendly panel is provided with the following
controls
?Solid state digital programmable temperature indicator cum
controllers with auto cut of facility. digital programmable
time of setting test duration up to 999 Hrs.
?Digital preset timer with memory backup.
?Imported hour meter for recording total (cumulative) hours
of chamber run since installation / difference time log.
?Light indicating ON/OFF mains.
?Mounted pressure gauge, Regulator valve and air filter.
Humidity Indicator An R/H Indicator is provided in th main panel.
Electrical requirement Single phase 220 Volt 50 Hz 3KW approx.
Exclusive Spares Supplied complimentary
?Reservoir : with stand
?Lab grade salt for solution for preparing initial salt
solution
?Sample hanging rods : 2 Nos
?Sample holding thread : 2 meters for hanging
samples
?Cleaning scrub : chemois for effective cleaning of
chamber
?Distillation Unit : for lab grade
production of distilled water
?PVC pipe : 1M
?Instruction manual
?Jet Cleaning pin (Wire 0.6 mm)
?Dust cover for panel
?PH meter handy type model
?calibration certificates
Model No. 101 (Work space Inner chamber 900x750x600 mm)
101 A - Outer Chamber made from G.I duly epoxy coated and Inner Chamber made from S.S
316 grade.
101 B - Outer chamber made from S.S 304 and Inner chamber made from S.S 316 grade.
Model No. 102 (Work space Inner chamber 500x500x500 mm)
102 A - Outer Chamber made from G.I duly epoxy coated and Inner Chamber made from S.S
316 grade.
102 B - Outer chamber made from S.S 304 and Inner chamber made from S.S 316 grade.
Sales Office: 9A, Gurudwara Road, Hari Vihar (Kakraula), Opp. Metro Poll No.
816, New Delhi 110043 (INDIA).
Correspondence Address : Plot No. 35, K-1 Extn, Bank Wali Gali Gurudwara Road,
Mohan Garden, Uttam Nager, Delhi -110059.
Cell - 9811478874, 9811938703, 9212912990
E-mail - info@fecproduct.com/ inquiry_fec@yahoo.com
Website - www.fecproduct.com
