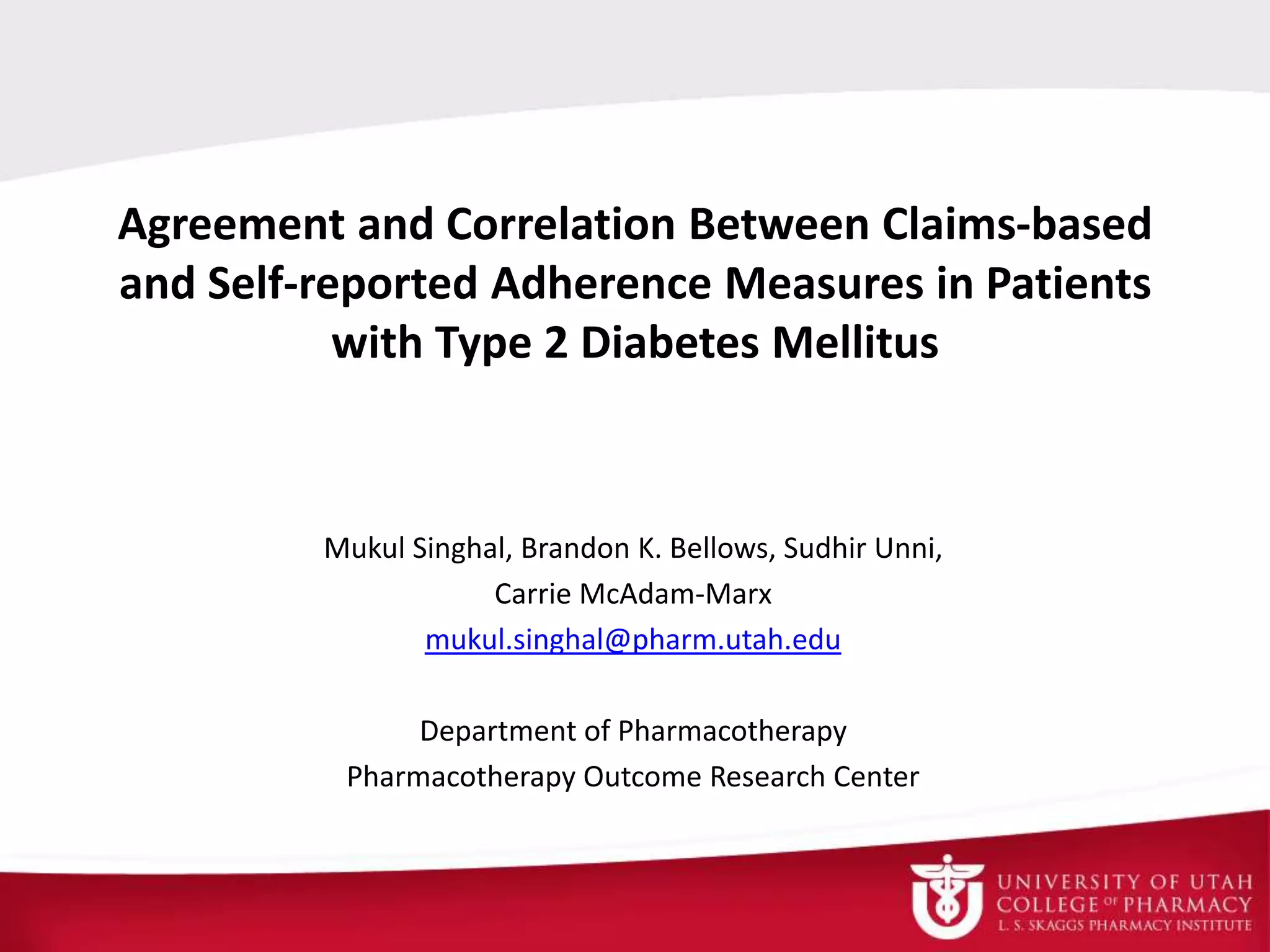

1. Agreement and Correlation Between Claims-based
and Self-reported Adherence Measures in Patients
with Type 2 Diabetes Mellitus
Mukul Singhal, Brandon K. Bellows, Sudhir Unni,
Carrie McAdam-Marx
mukul.singhal@pharm.utah.edu
Department of Pharmacotherapy
Pharmacotherapy Outcome Research Center

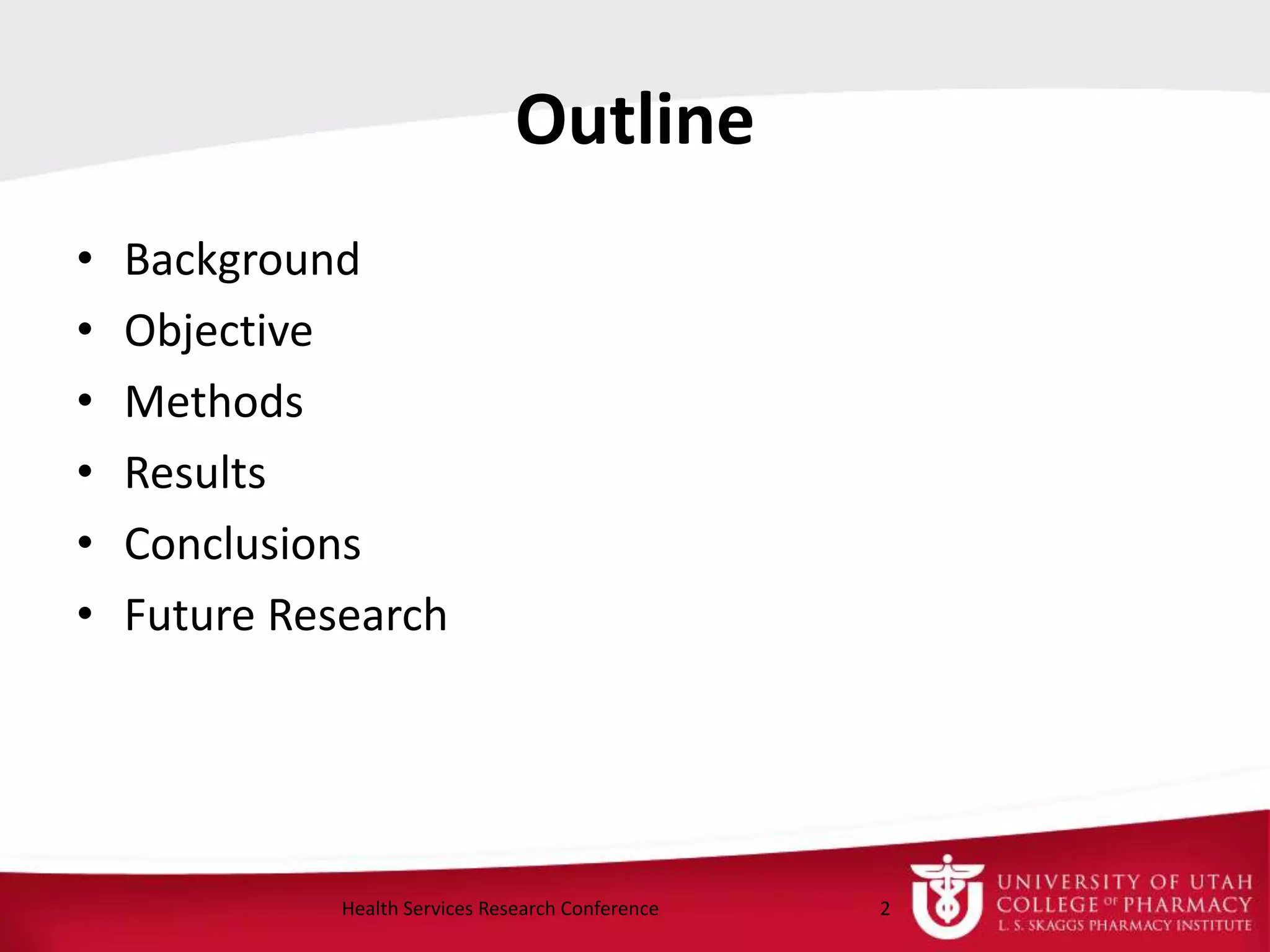

2. Outline
• Background
• Objective
• Methods
• Results
• Conclusions
• Future Research
2Health Services Research Conference

3. Background
• Medication non-adherence is a complex issue
driven by many factors such as cost, perception of
benefit, forgetfulness, and side effects1
• In type 2 diabetes mellitus (T2DM), adherence to
oral medications varies from 36%-93%2
• Medication adherence is clinically important as
good adherence is associated with improved
outcomes in T2DM1
3Health Services Research Conference
1.Dunbar, et al. J Clin Epidemiol. 2001;54:S57–S60.
2.Cramer, et al. Diabetes care. 2004;27(5):1218-1224.

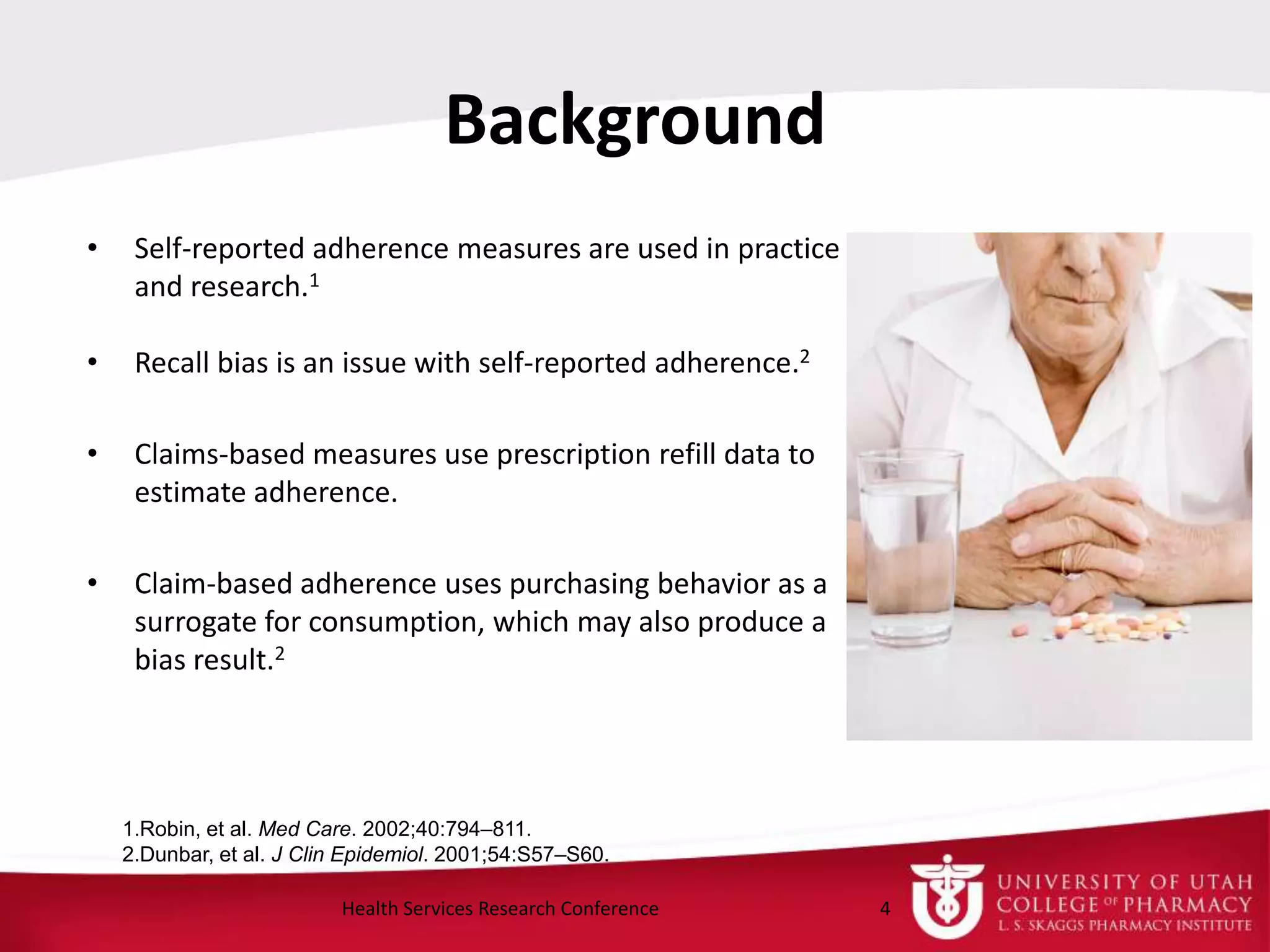

4. Background
• Self-reported adherence measures are used in practice
and research.1
• Recall bias is an issue with self-reported adherence.2
• Claims-based measures use prescription refill data to
estimate adherence.
• Claim-based adherence uses purchasing behavior as a
surrogate for consumption, which may also produce a
bias result.2
4Health Services Research Conference
1.Robin, et al. Med Care. 2002;40:794–811.
2.Dunbar, et al. J Clin Epidemiol. 2001;54:S57–S60.

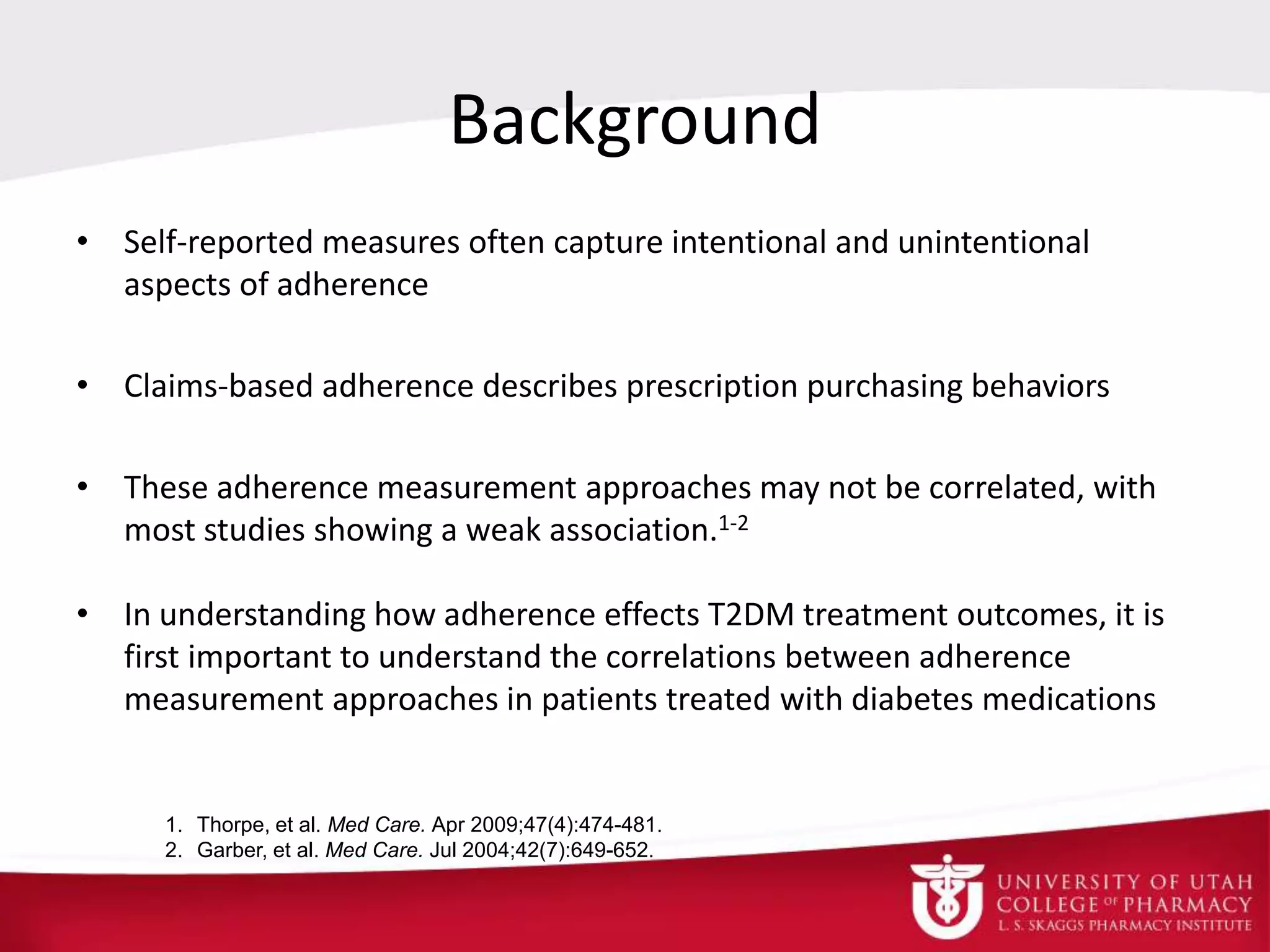

5. Background
• Self-reported measures often capture intentional and unintentional
aspects of adherence
• Claims-based adherence describes prescription purchasing behaviors
• These adherence measurement approaches may not be correlated, with
most studies showing a weak association.1-2
• In understanding how adherence effects T2DM treatment outcomes, it is
first important to understand the correlations between adherence
measurement approaches in patients treated with diabetes medications
1. Thorpe, et al. Med Care. Apr 2009;47(4):474-481.
2. Garber, et al. Med Care. Jul 2004;42(7):649-652.

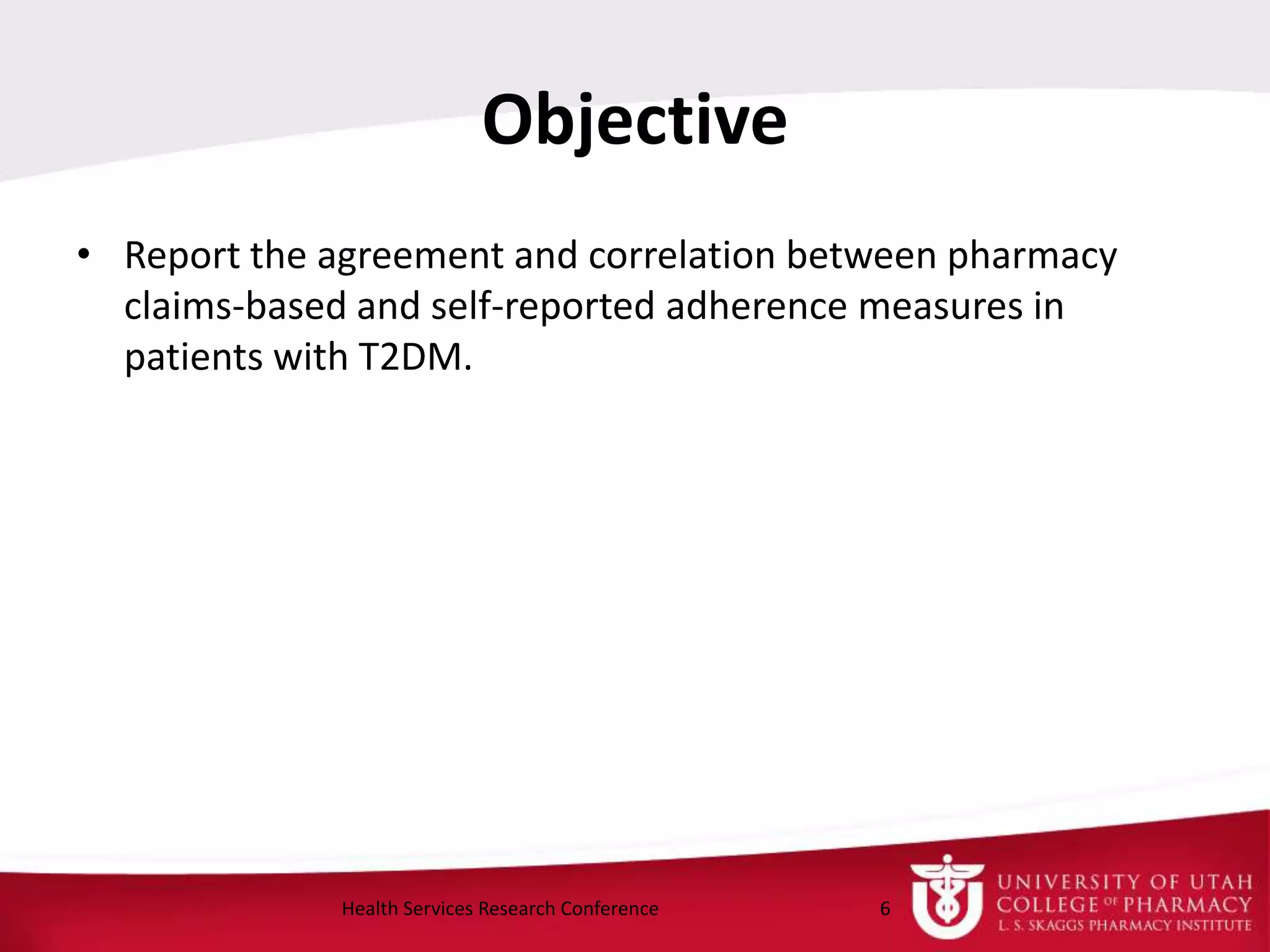

6. Objective
• Report the agreement and correlation between pharmacy
claims-based and self-reported adherence measures in
patients with T2DM.
6Health Services Research Conference

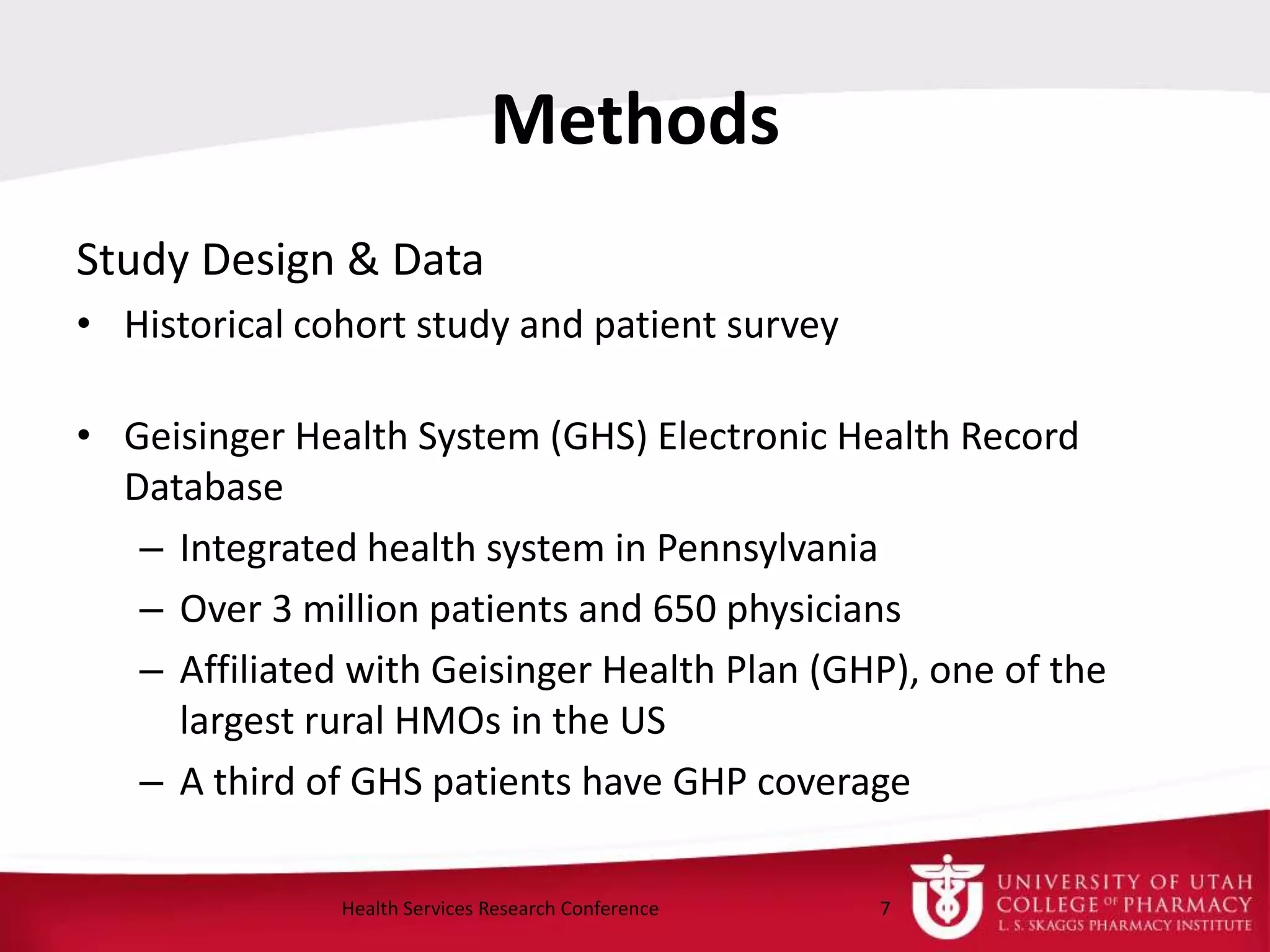

7. Methods
Study Design & Data
• Historical cohort study and patient survey
• Geisinger Health System (GHS) Electronic Health Record
Database
– Integrated health system in Pennsylvania
– Over 3 million patients and 650 physicians
– Affiliated with Geisinger Health Plan (GHP), one of the
largest rural HMOs in the US
– A third of GHS patients have GHP coverage
7Health Services Research Conference

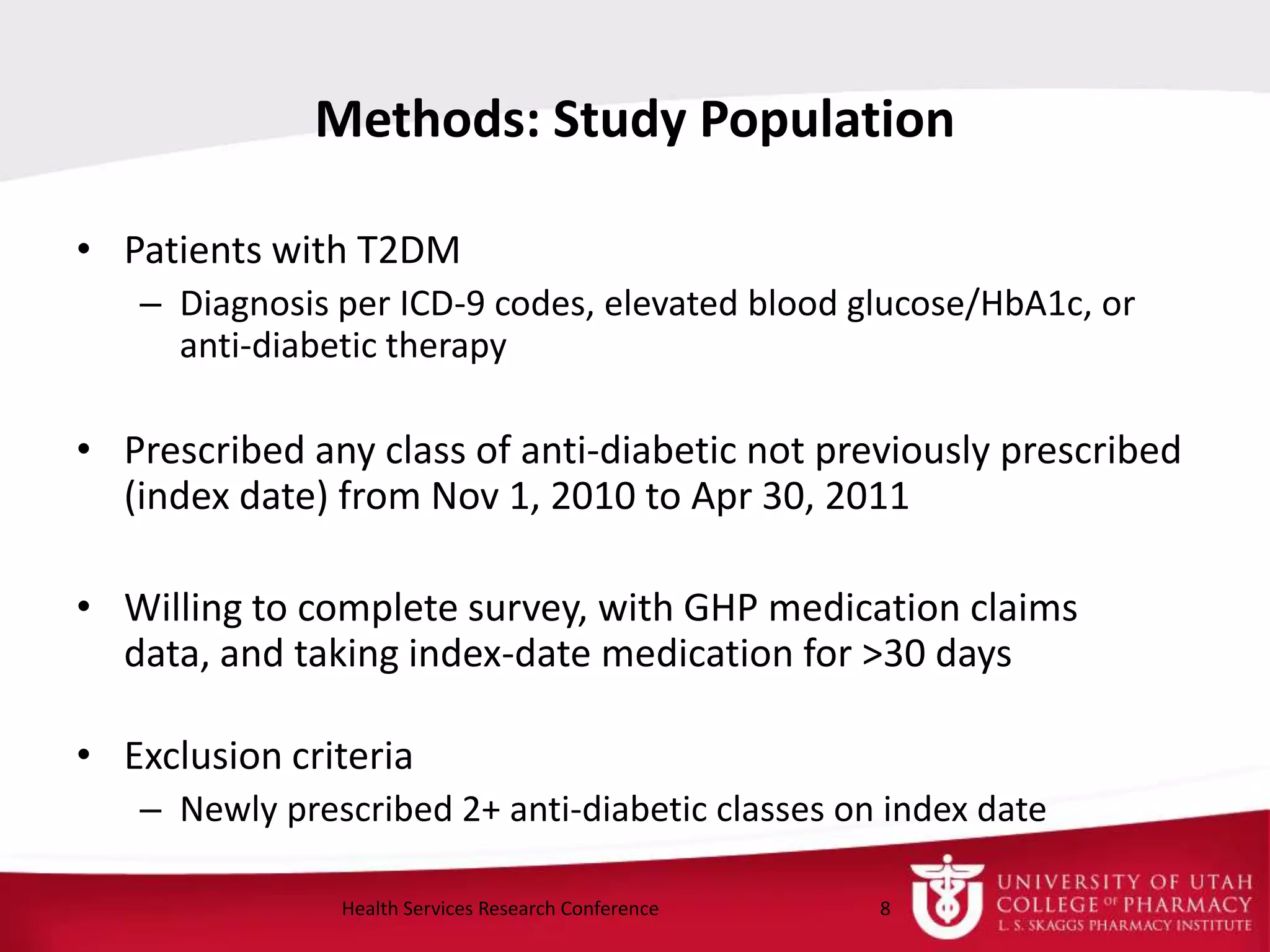

8. • Patients with T2DM
– Diagnosis per ICD-9 codes, elevated blood glucose/HbA1c, or
anti-diabetic therapy
• Prescribed any class of anti-diabetic not previously prescribed
(index date) from Nov 1, 2010 to Apr 30, 2011
• Willing to complete survey, with GHP medication claims
data, and taking index-date medication for >30 days
• Exclusion criteria
– Newly prescribed 2+ anti-diabetic classes on index date
Methods: Study Population
8Health Services Research Conference

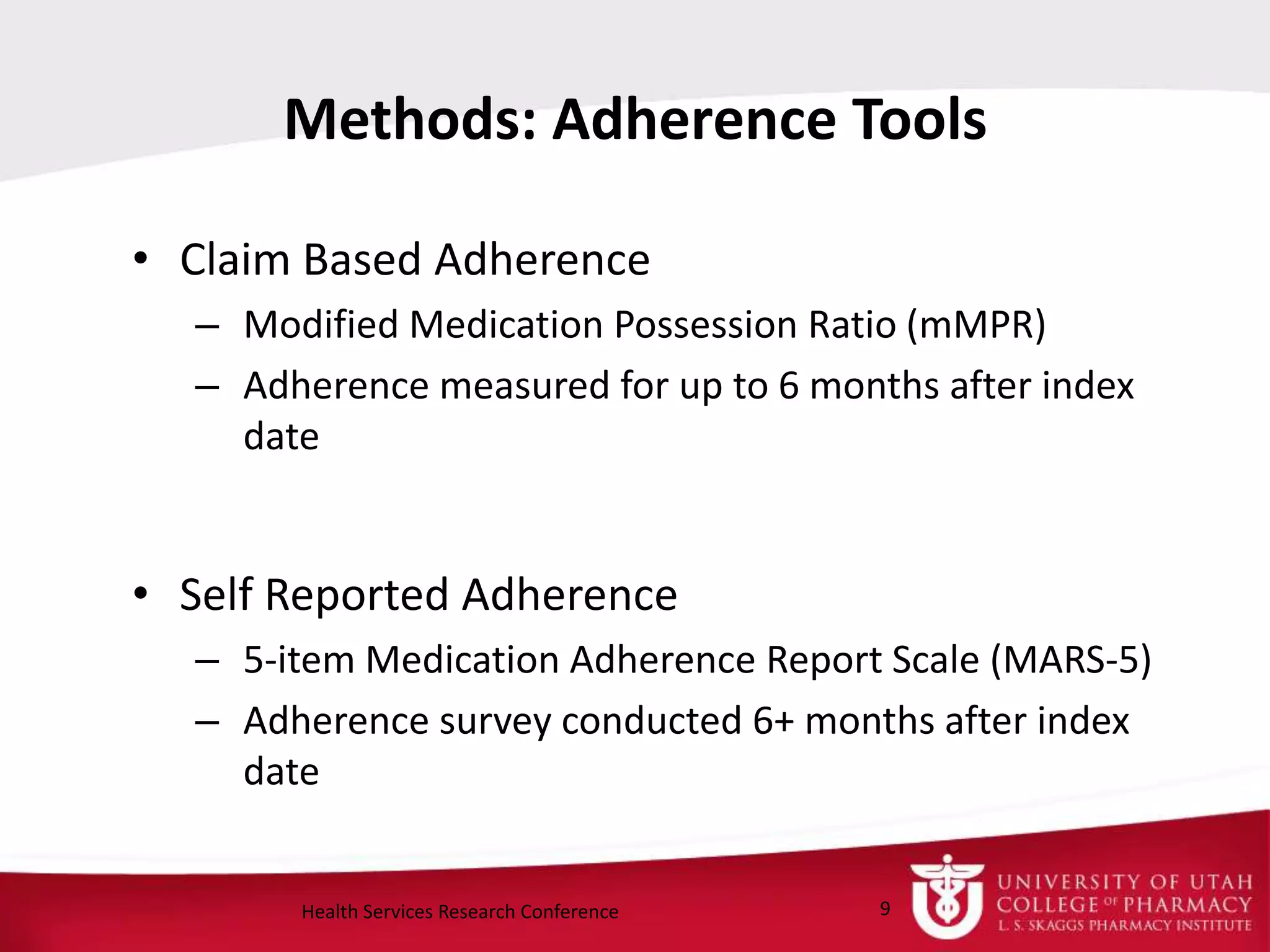

9. Methods: Adherence Tools
• Claim Based Adherence
– Modified Medication Possession Ratio (mMPR)
– Adherence measured for up to 6 months after index
date
• Self Reported Adherence
– 5-item Medication Adherence Report Scale (MARS-5)
– Adherence survey conducted 6+ months after index
date
9Health Services Research Conference

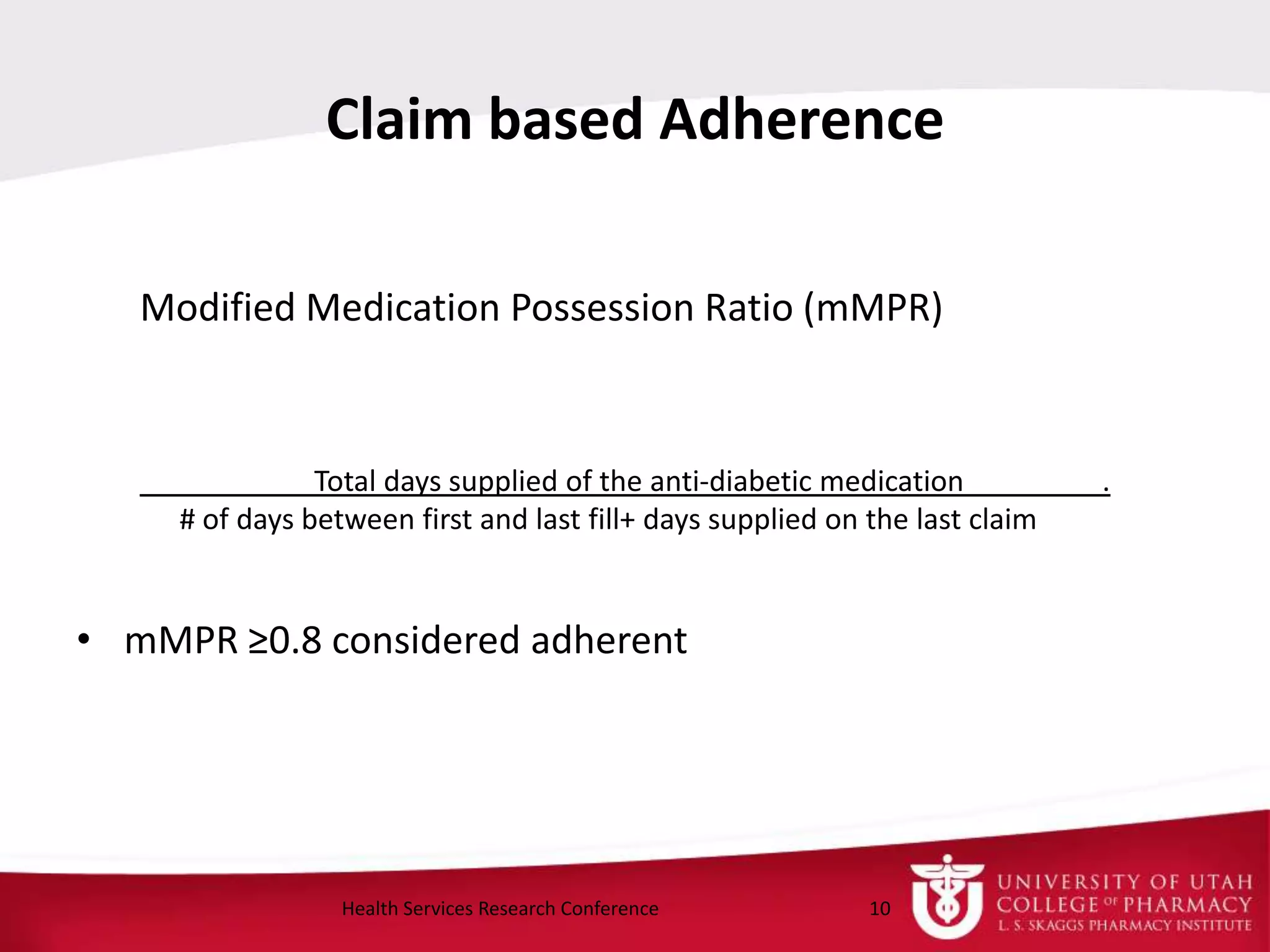

10. Claim based Adherence
Modified Medication Possession Ratio (mMPR)
Total days supplied of the anti-diabetic medication .
# of days between first and last fill+ days supplied on the last claim
• mMPR ≥0.8 considered adherent
10Health Services Research Conference

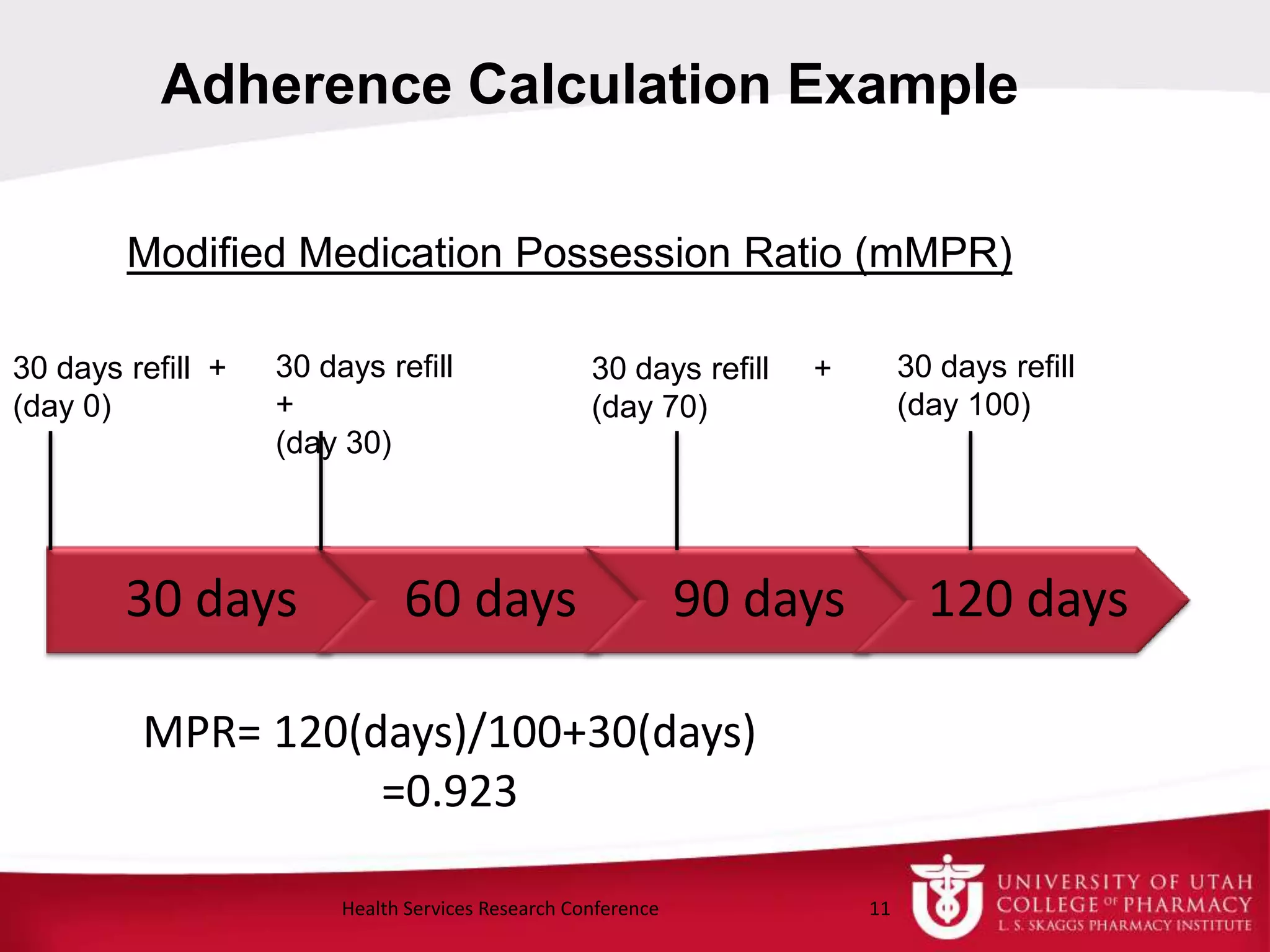

11. 30 days 60 days 90 days 120 days
30 days refill +
(day 0)
30 days refill
+
(day 30)
30 days refill +
(day 70)
30 days refill
(day 100)
MPR= 120(days)/100+30(days)
=0.923
Adherence Calculation Example
11Health Services Research Conference
Modified Medication Possession Ratio (mMPR)

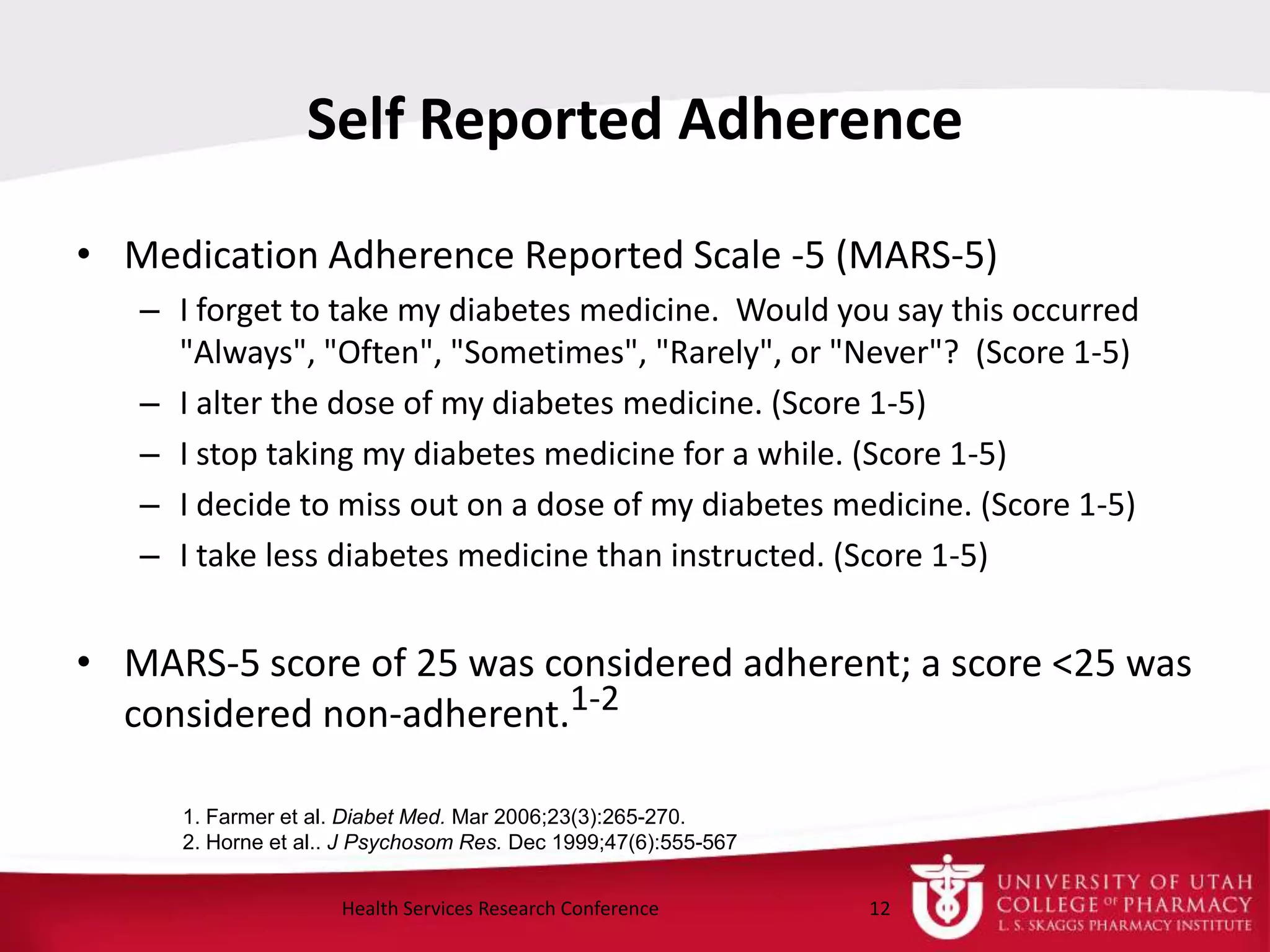

12. Self Reported Adherence
• Medication Adherence Reported Scale -5 (MARS-5)
– I forget to take my diabetes medicine. Would you say this occurred
"Always", "Often", "Sometimes", "Rarely", or "Never"? (Score 1-5)
– I alter the dose of my diabetes medicine. (Score 1-5)
– I stop taking my diabetes medicine for a while. (Score 1-5)
– I decide to miss out on a dose of my diabetes medicine. (Score 1-5)
– I take less diabetes medicine than instructed. (Score 1-5)
• MARS-5 score of 25 was considered adherent; a score <25 was
considered non-adherent.1-2
12Health Services Research Conference
1. Farmer et al. Diabet Med. Mar 2006;23(3):265-270.
2. Horne et al.. J Psychosom Res. Dec 1999;47(6):555-567

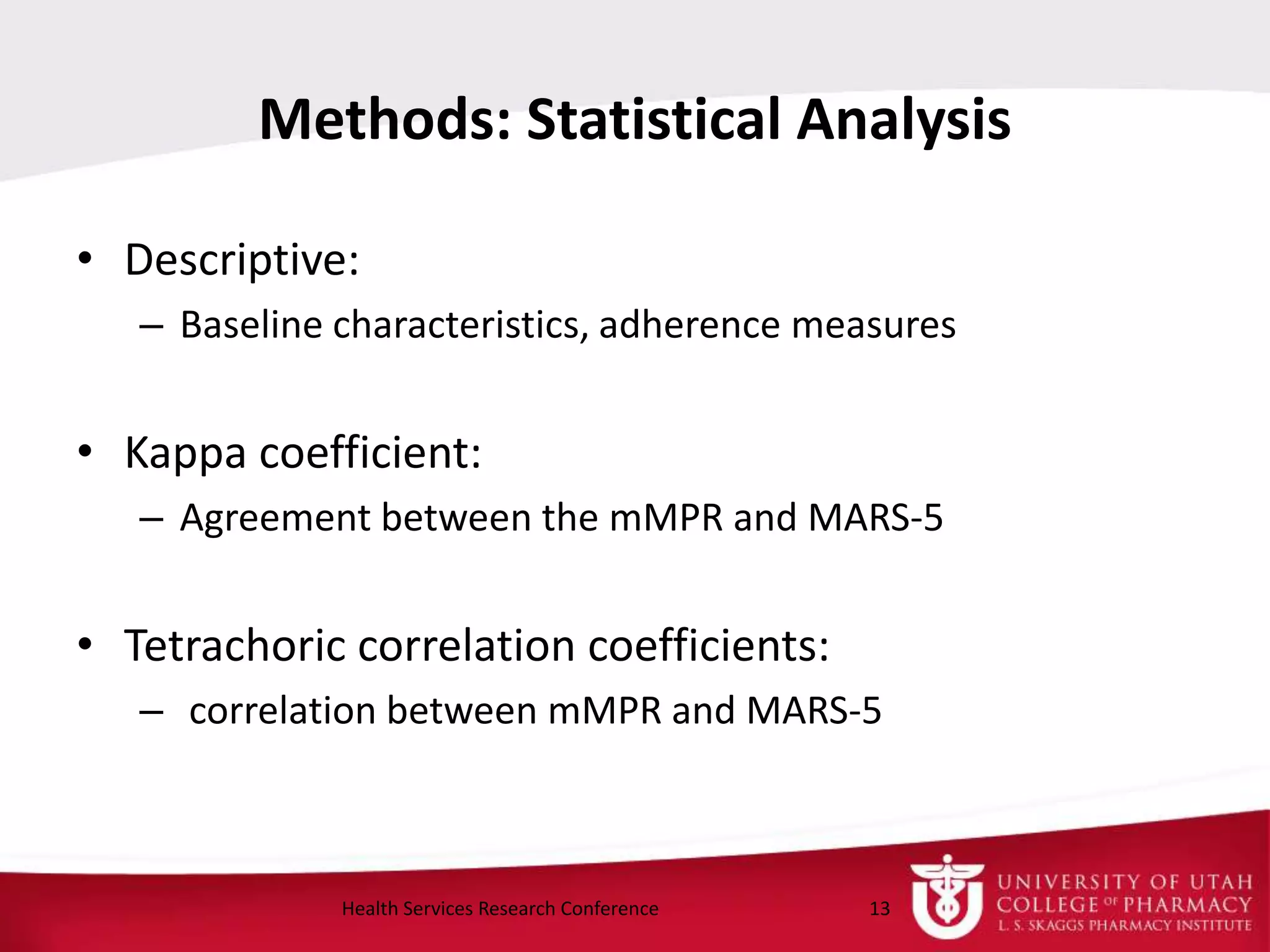

13. Methods: Statistical Analysis
• Descriptive:
– Baseline characteristics, adherence measures
• Kappa coefficient:
– Agreement between the mMPR and MARS-5
• Tetrachoric correlation coefficients:
– correlation between mMPR and MARS-5
13Health Services Research Conference

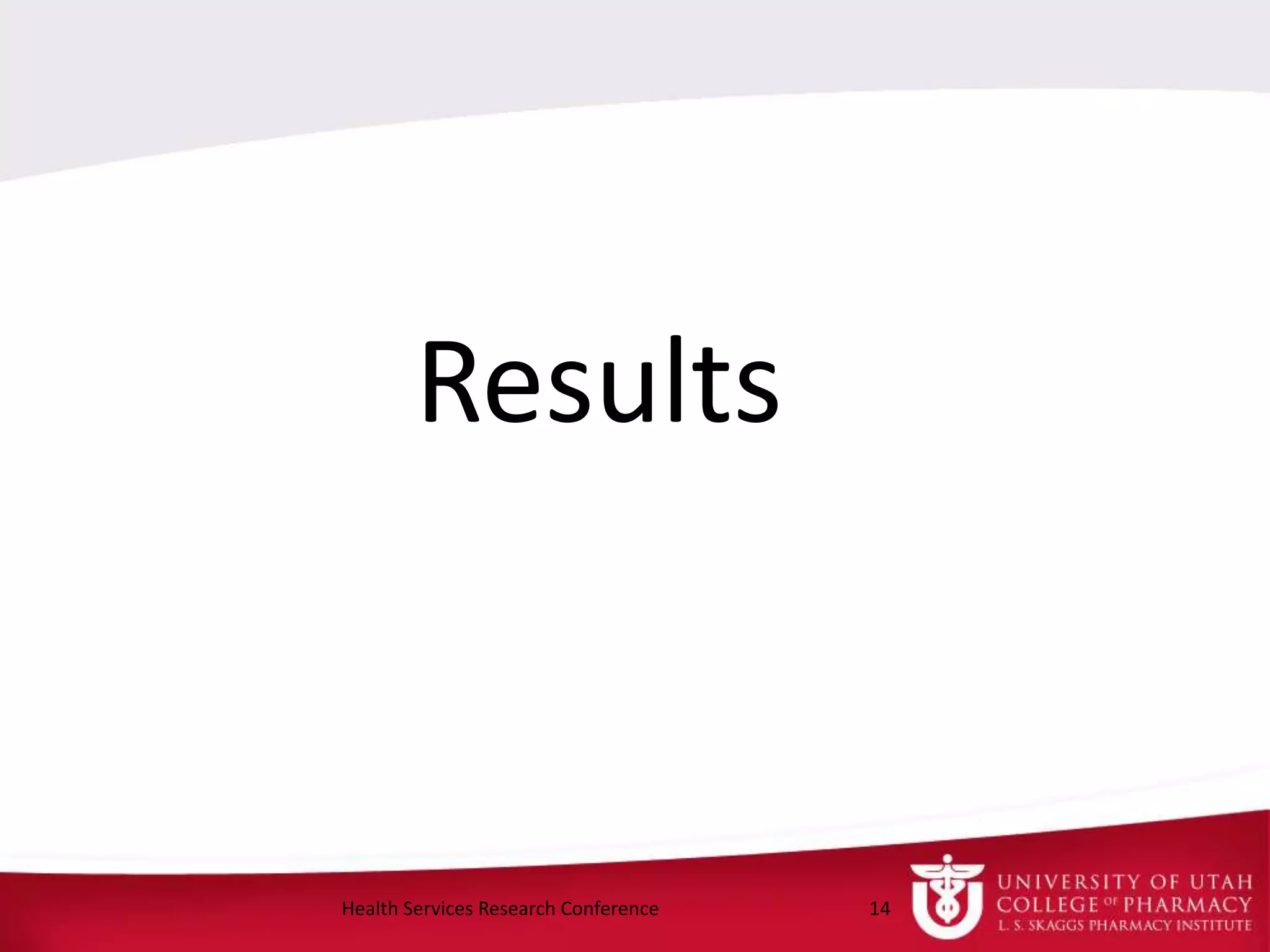

14. Results
14Health Services Research Conference

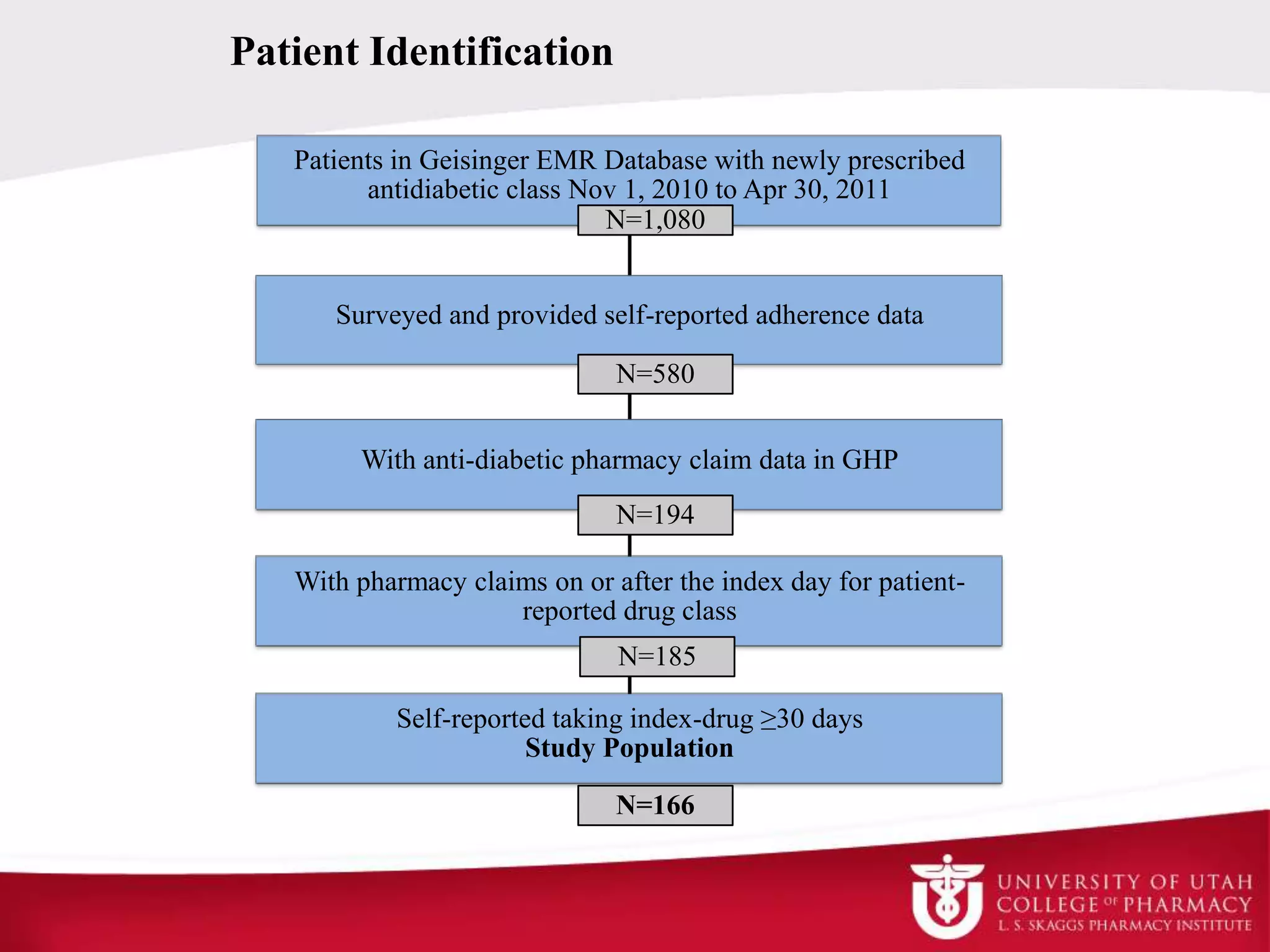

15. Patients in Geisinger EMR Database with newly prescribed
antidiabetic class Nov 1, 2010 to Apr 30, 2011
N=1,080
Surveyed and provided self-reported adherence data
N=580
With anti-diabetic pharmacy claim data in GHP
N=194
With pharmacy claims on or after the index day for patient-
reported drug class
N=185
Self-reported taking index-drug ≥30 days
Study Population
N=166
Patient Identification

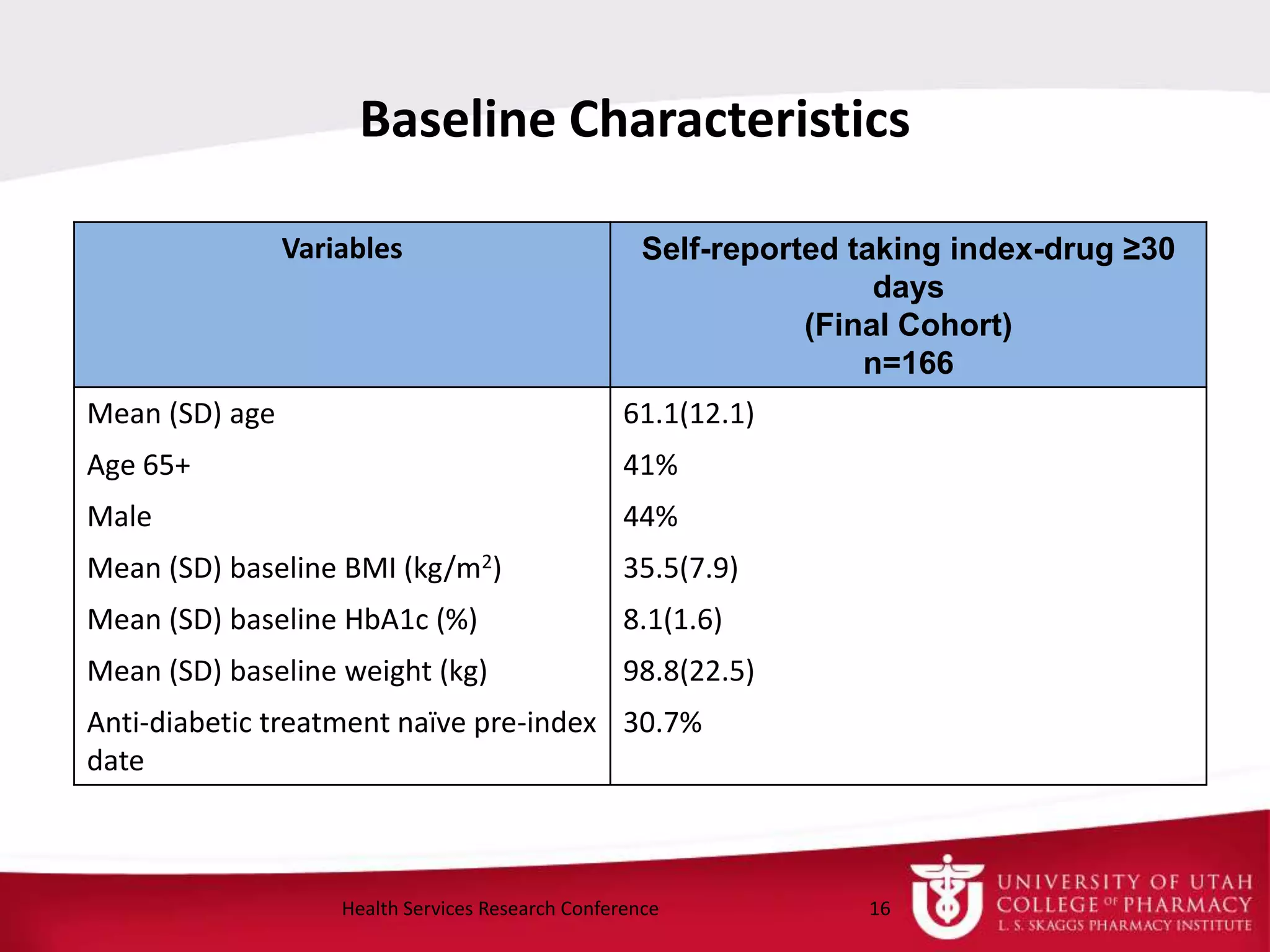

16. Baseline Characteristics
Variables Self-reported taking index-drug ≥30
days
(Final Cohort)
n=166
Mean (SD) age 61.1(12.1)
Age 65+ 41%
Male 44%
Mean (SD) baseline BMI (kg/m2) 35.5(7.9)
Mean (SD) baseline HbA1c (%) 8.1(1.6)
Mean (SD) baseline weight (kg) 98.8(22.5)
Anti-diabetic treatment naïve pre-index
date
30.7%
16Health Services Research Conference

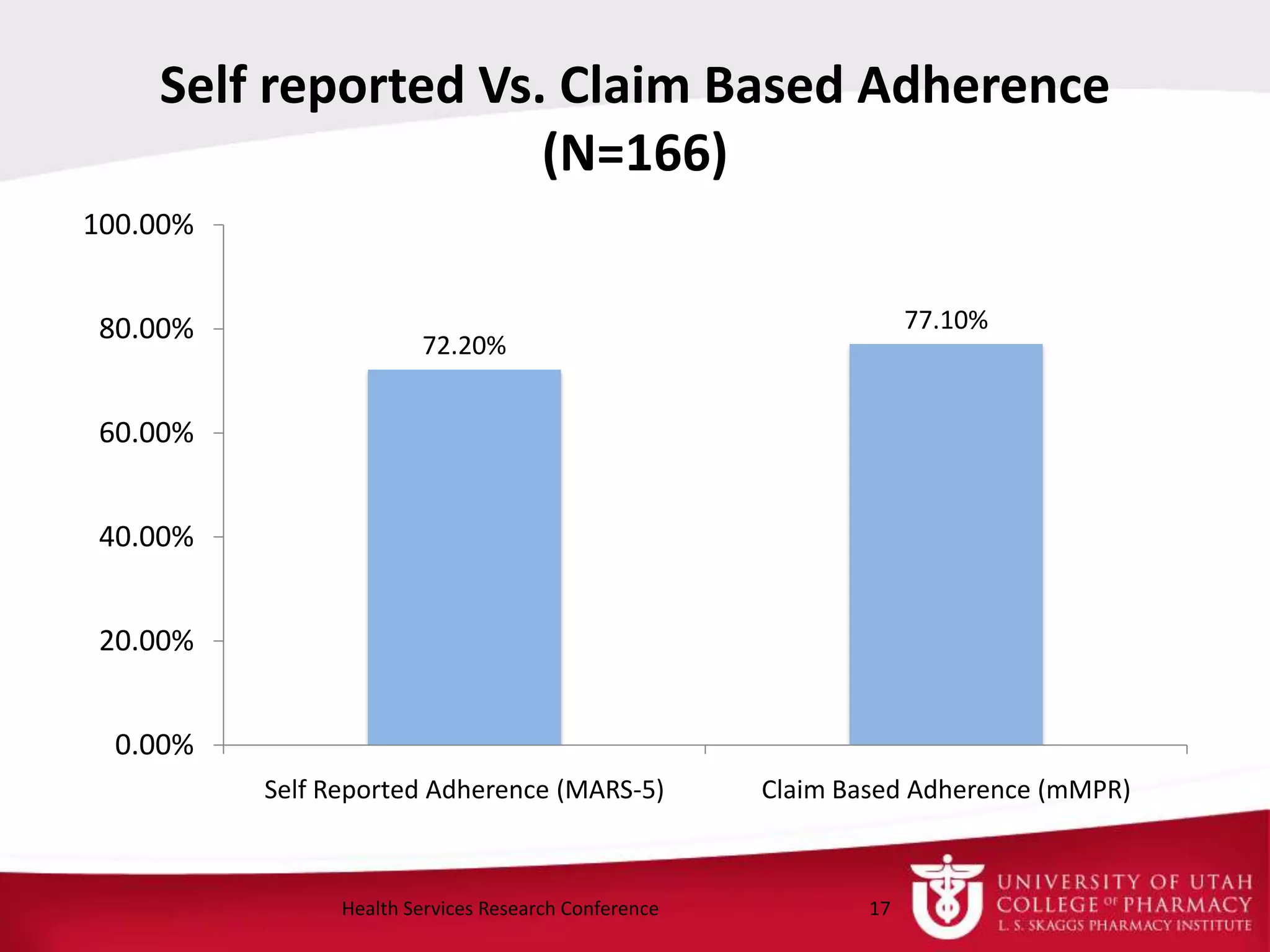

17. Self reported Vs. Claim Based Adherence
(N=166)
17Health Services Research Conference
72.20%
77.10%
0.00%
20.00%
40.00%
60.00%
80.00%
100.00%
Self Reported Adherence (MARS-5) Claim Based Adherence (mMPR)

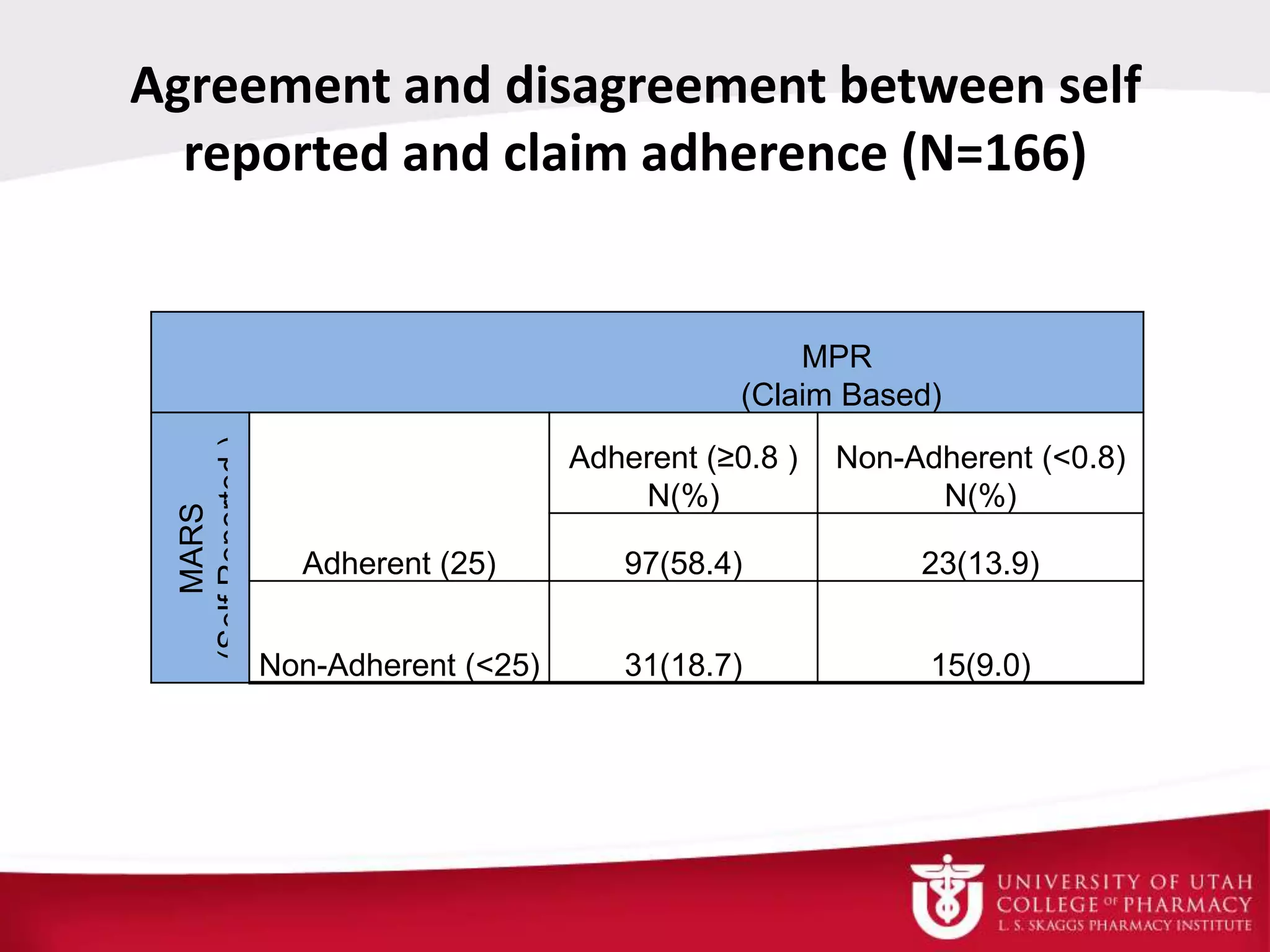

18. Agreement and disagreement between self
reported and claim adherence (N=166)
MPR
(Claim Based)
MARS
(SelfReported)
Adherent (≥0.8 )
N(%)
Non-Adherent (<0.8)
N(%)
Adherent (25) 97(58.4) 23(13.9)
Non-Adherent (<25) 31(18.7) 15(9.0)

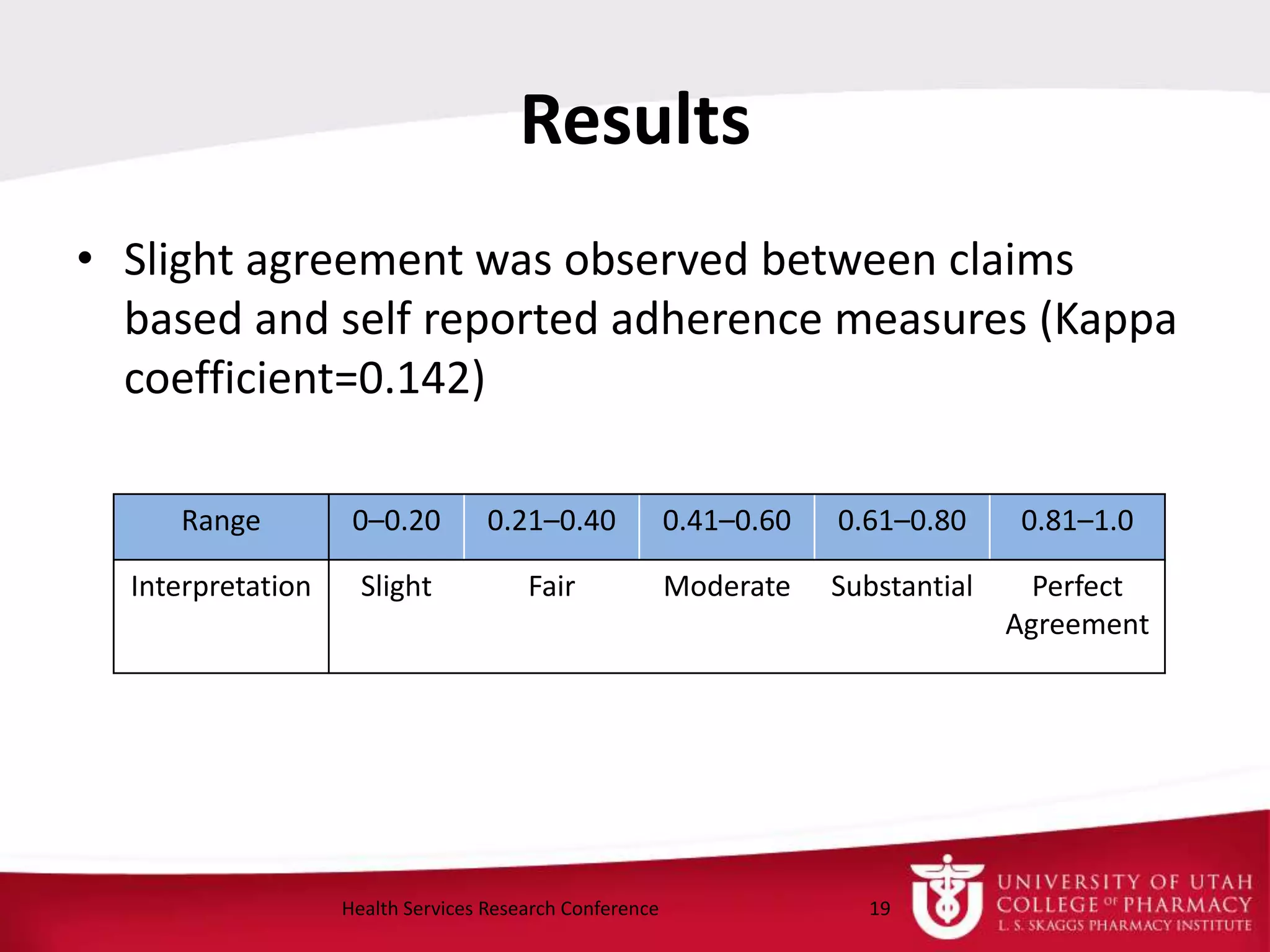

19. Results
• Slight agreement was observed between claims
based and self reported adherence measures (Kappa
coefficient=0.142)
19Health Services Research Conference
Range 0–0.20 0.21–0.40 0.41–0.60 0.61–0.80 0.81–1.0
Interpretation Slight Fair Moderate Substantial Perfect
Agreement

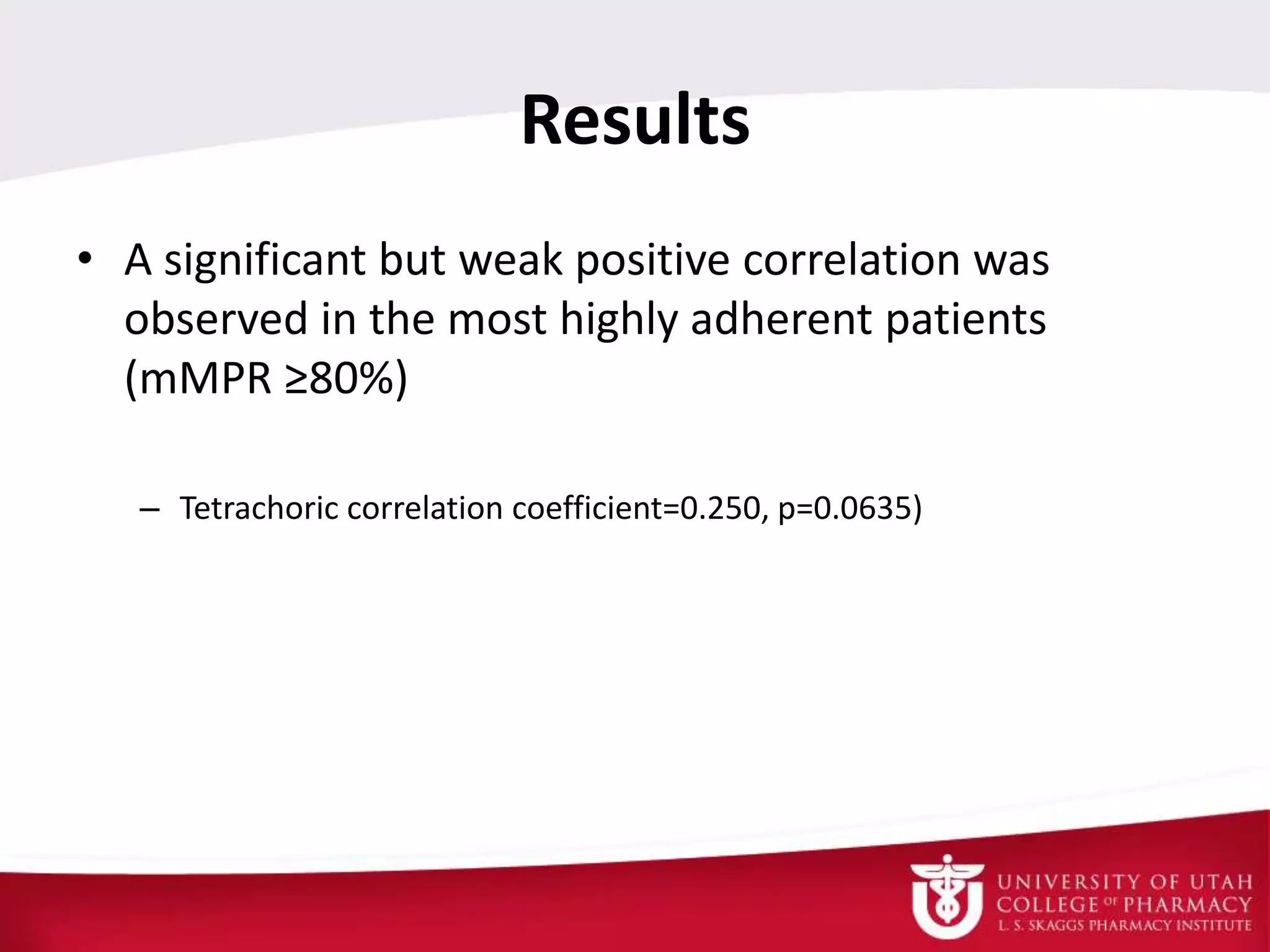

20. Results
• A significant but weak positive correlation was
observed in the most highly adherent patients
(mMPR ≥80%)
– Tetrachoric correlation coefficient=0.250, p=0.0635)

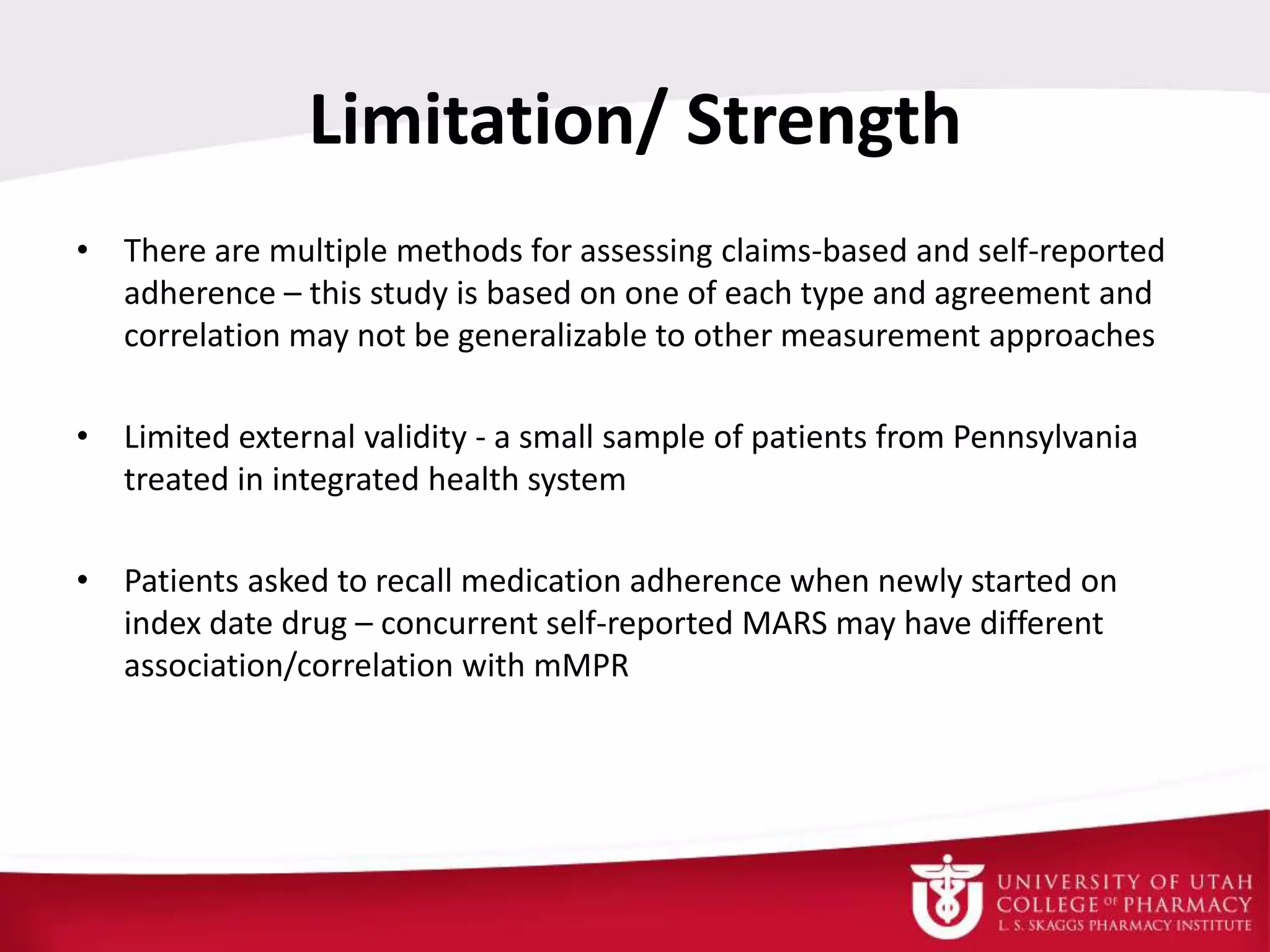

21. Limitation/ Strength
• There are multiple methods for assessing claims-based and self-reported
adherence – this study is based on one of each type and agreement and
correlation may not be generalizable to other measurement approaches
• Limited external validity - a small sample of patients from Pennsylvania
treated in integrated health system
• Patients asked to recall medication adherence when newly started on
index date drug – concurrent self-reported MARS may have different
association/correlation with mMPR

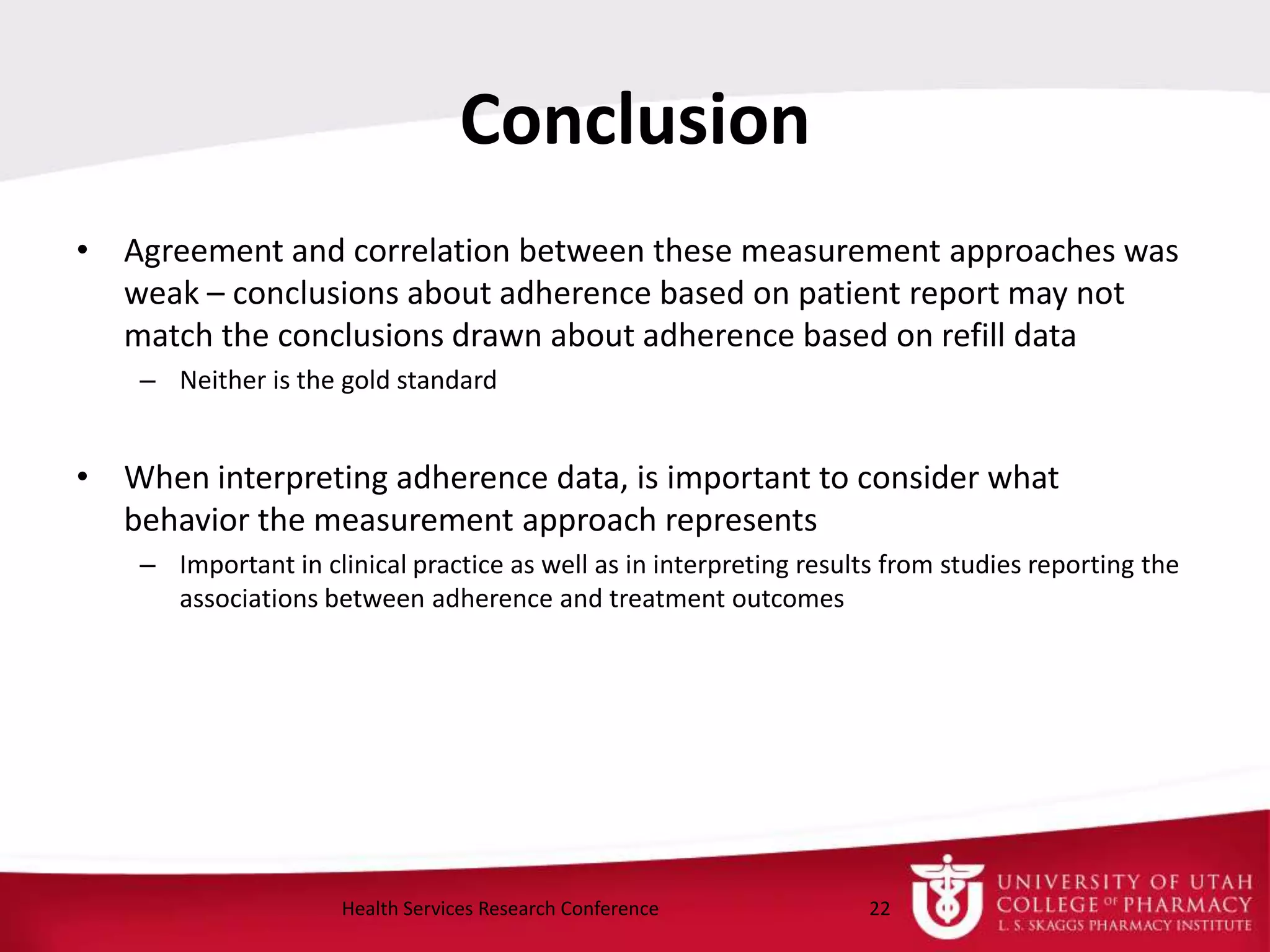

22. Conclusion
• Agreement and correlation between these measurement approaches was
weak – conclusions about adherence based on patient report may not
match the conclusions drawn about adherence based on refill data
– Neither is the gold standard
• When interpreting adherence data, is important to consider what
behavior the measurement approach represents
– Important in clinical practice as well as in interpreting results from studies reporting the
associations between adherence and treatment outcomes
22Health Services Research Conference

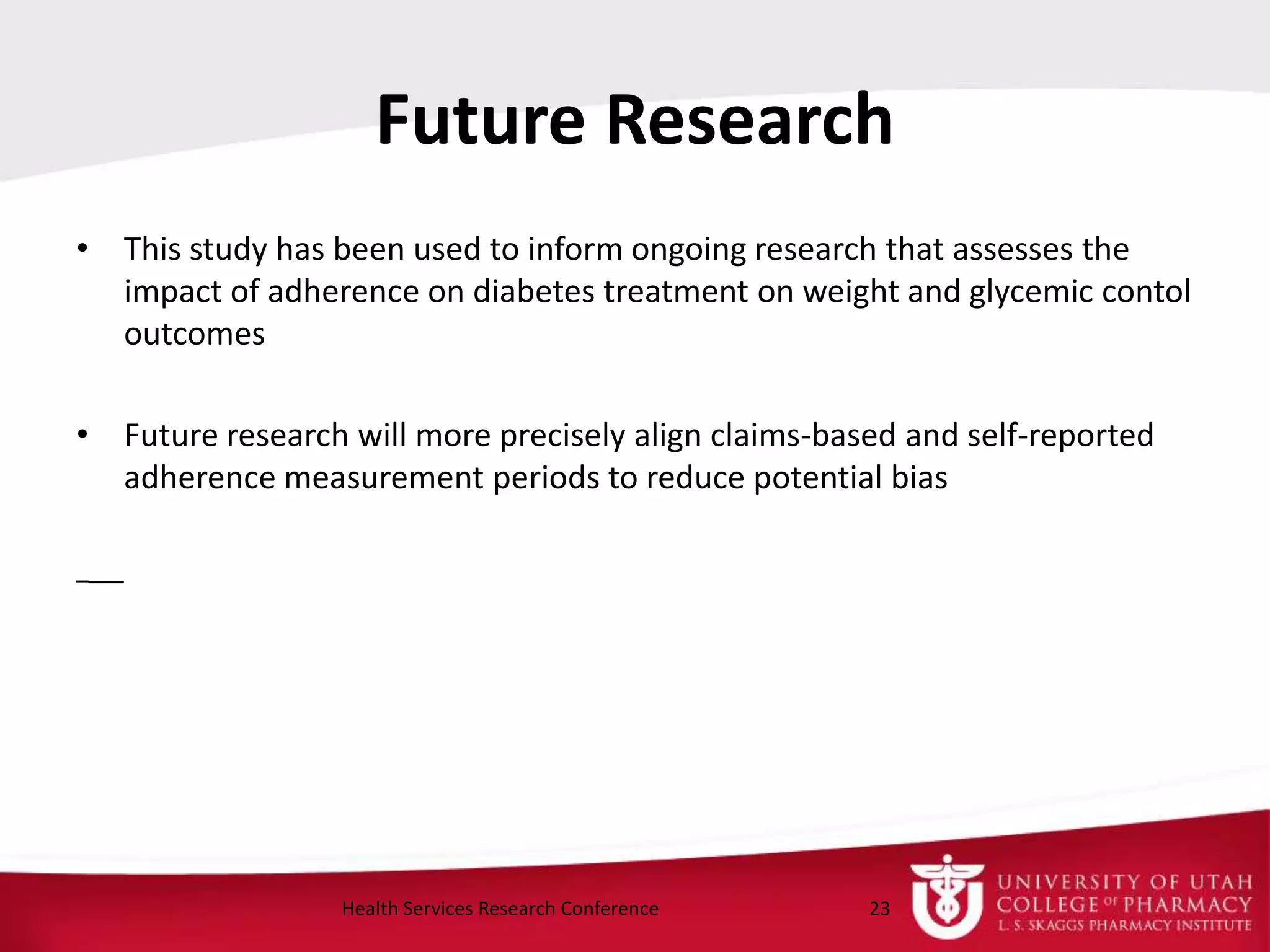

23. Future Research
• This study has been used to inform ongoing research that assesses the
impact of adherence on diabetes treatment on weight and glycemic contol
outcomes
• Future research will more precisely align claims-based and self-reported
adherence measurement periods to reduce potential bias
23Health Services Research Conference

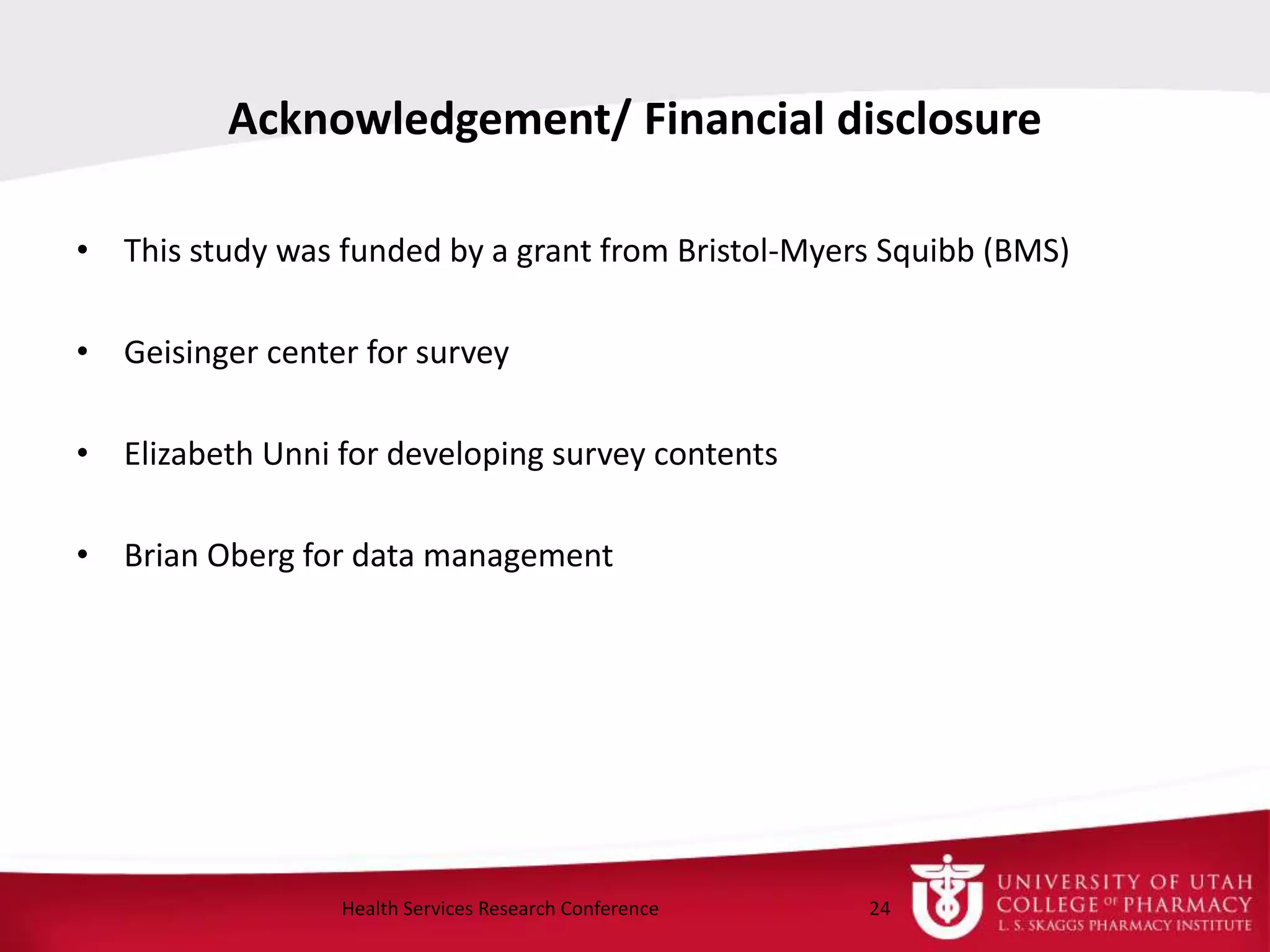

24. Acknowledgement/ Financial disclosure
• This study was funded by a grant from Bristol-Myers Squibb (BMS)
• Geisinger center for survey
• Elizabeth Unni for developing survey contents
• Brian Oberg for data management
24Health Services Research Conference

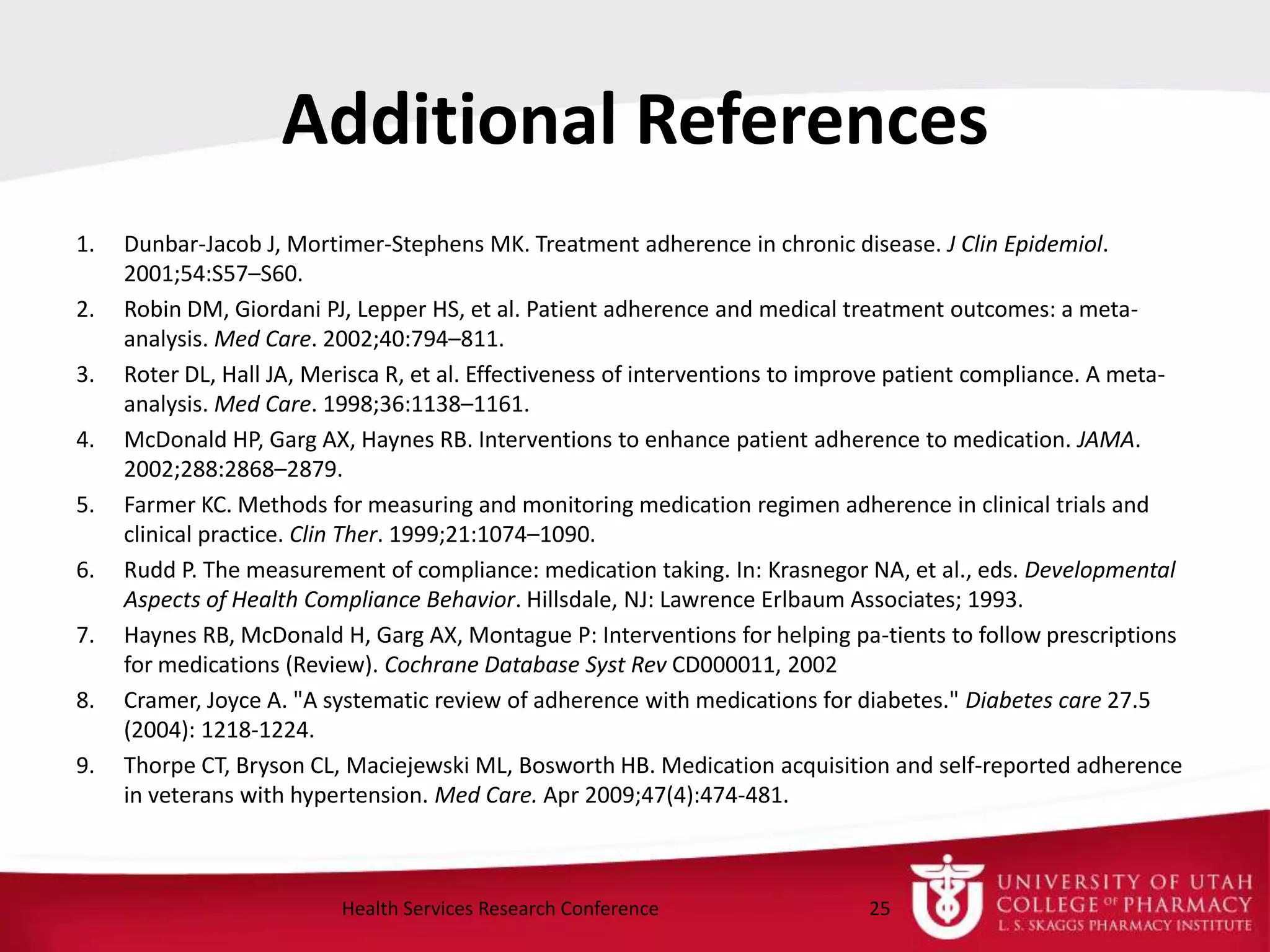

25. Additional References
1. Dunbar-Jacob J, Mortimer-Stephens MK. Treatment adherence in chronic disease. J Clin Epidemiol.
2001;54:S57–S60.
2. Robin DM, Giordani PJ, Lepper HS, et al. Patient adherence and medical treatment outcomes: a meta-
analysis. Med Care. 2002;40:794–811.
3. Roter DL, Hall JA, Merisca R, et al. Effectiveness of interventions to improve patient compliance. A meta-
analysis. Med Care. 1998;36:1138–1161.
4. McDonald HP, Garg AX, Haynes RB. Interventions to enhance patient adherence to medication. JAMA.
2002;288:2868–2879.
5. Farmer KC. Methods for measuring and monitoring medication regimen adherence in clinical trials and
clinical practice. Clin Ther. 1999;21:1074–1090.
6. Rudd P. The measurement of compliance: medication taking. In: Krasnegor NA, et al., eds. Developmental
Aspects of Health Compliance Behavior. Hillsdale, NJ: Lawrence Erlbaum Associates; 1993.
7. Haynes RB, McDonald H, Garg AX, Montague P: Interventions for helping pa-tients to follow prescriptions
for medications (Review). Cochrane Database Syst Rev CD000011, 2002
8. Cramer, Joyce A. "A systematic review of adherence with medications for diabetes." Diabetes care 27.5
(2004): 1218-1224.
9. Thorpe CT, Bryson CL, Maciejewski ML, Bosworth HB. Medication acquisition and self-reported adherence
in veterans with hypertension. Med Care. Apr 2009;47(4):474-481.
25Health Services Research Conference

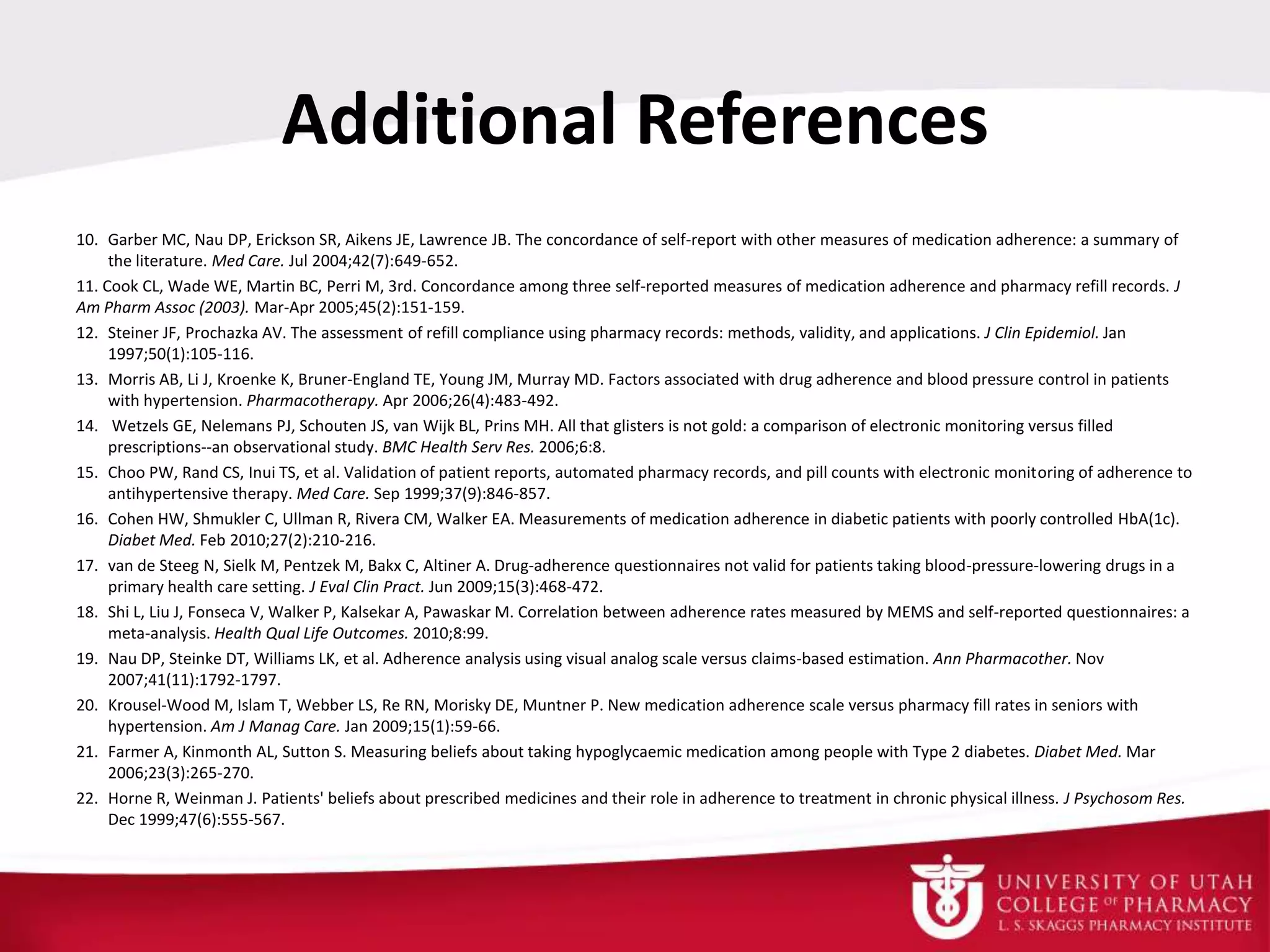

26. Additional References
