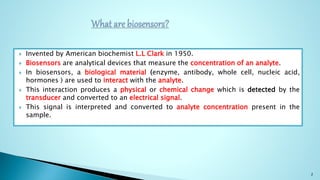

 Invented by American biochemist L.L Clark in 1950.
 Biosensors are analytical devices that measure the concentration of an analyte.
 In biosensors, a biological material (enzyme, antibody, whole cell, nucleic acid,
hormones ) are used to interact with the analyte.
 This interaction produces a physical or chemical change which is detected by the
transducer and converted to an electrical signal.
 This signal is interpreted and converted to analyte concentration present in the
sample.
2

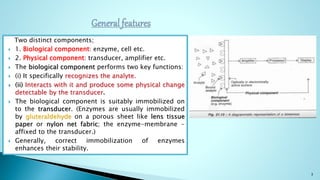

Two distinct components;
 1. Biological component: enzyme, cell etc.
 2. Physical component: transducer, amplifier etc.
 The biological component performs two key functions:
 (i) It specifically recognizes the analyte.
 (ii) Interacts with it and produce some physical change
detectable by the transducer.
 The biological component is suitably immobilized on
to the transducer. (Enzymes are usually immobilized
by gluteraldehyde on a porous sheet like lens tissue
paper or nylon net fabric; the enzyme-membrane -
affixed to the transducer.)
 Generally, correct immobilization of enzymes
enhances their stability.
3
4

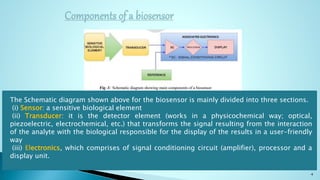

The Schematic diagram shown above for the biosensor is mainly divided into three sections.
(i) Sensor: a sensitive biological element
(ii) Transducer: it is the detector element (works in a physicochemical way; optical,
piezoelectric, electrochemical, etc.) that transforms the signal resulting from the interaction
of the analyte with the biological responsible for the display of the results in a user-friendly
way
(iii) Electronics, which comprises of signal conditioning circuit (amplifier), processor and a
display unit.
5

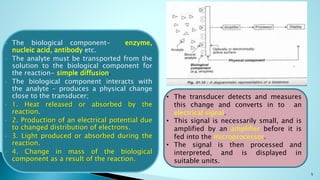

 The biological component- enzyme,
nucleic acid, antibody etc.
 The analyte must be transported from the
solution to the biological component for
the reaction- simple diffusion.
 The biological component interacts with
the analyte – produces a physical change
close to the transducer;
 1. Heat released or absorbed by the
reaction.
 2. Production of an electrical potential due
to changed distribution of electrons.
 3. Light produced or absorbed during the
reaction.
 4. Change in mass of the biological
component as a result of the reaction.
• The transducer detects and measures
this change and converts in to an
electrical signal.
• This signal is necessarily small, and is
amplified by an amplifier before it is
fed into the microprocessor.
• The signal is then processed and
interpreted, and is displayed in
suitable units.

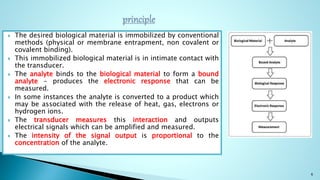

 The desired biological material is immobilized by conventional
methods (physical or membrane entrapment, non covalent or
covalent binding).
 This immobilized biological material is in intimate contact with
the transducer.
 The analyte binds to the biological material to form a bound
analyte - produces the electronic response that can be
measured.
 In some instances the analyte is converted to a product which
may be associated with the release of heat, gas, electrons or
hydrogen ions.
 The transducer measures this interaction and outputs
electrical signals which can be amplified and measured.
 The intensity of the signal output is proportional to the
concentration of the analyte.
6
 Highly specific for the analyte in the presence of other interfering chemicals or
foreign materials.
 The reaction used should be independent of factors like pH, temperature, stirring
etc.
 The response should be linear over a useful range of analyte concentrations.
 The device should be small and biocompatible in case it is to be used for analysis
within the body.
 Sensitivity : should detect even low concentration of analyte.
 It should be of low cost, small and easy to use.
 Assay cost should be lower than conventional tests.
 Assay should be fast, reliable and repeatable.
 Reusable.
 Stability: should give maximum response over a period of time.
7
8
 On the basis of the transducer used, biosensors can be;
 Amperometric biosensors.
 Optical biosensors.
 Potentiometric biosensors.
 Calorimetric biosensors.
 Piezoelectric biosensors.
9

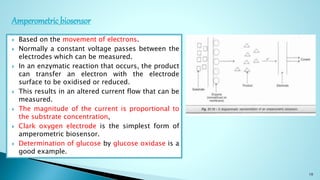

 Based on the movement of electrons.
 Normally a constant voltage passes between the
electrodes which can be measured.
 In an enzymatic reaction that occurs, the product
can transfer an electron with the electrode
surface to be oxidised or reduced.
 This results in an altered current flow that can be
measured.
 The magnitude of the current is proportional to
the substrate concentration,
 Clark oxygen electrode is the simplest form of
amperometric biosensor.
 Determination of glucose by glucose oxidase is a
good example.
10
Amperometric biosensor

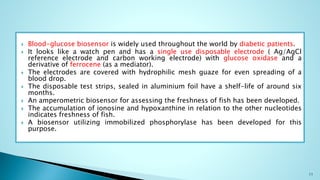

 Blood-glucose biosensor is widely used throughout the world by diabetic patients.
 It looks like a watch pen and has a single use disposable electrode ( Ag/AgCl
reference electrode and carbon working electrode) with glucose oxidase and a
derivative of ferrocene (as a mediator).
 The electrodes are covered with hydrophilic mesh guaze for even spreading of a
blood drop.
 The disposable test strips, sealed in aluminium foil have a shelf-life of around six
months.
 An amperometric biosensor for assessing the freshness of fish has been developed.
 The accumulation of ionosine and hypoxanthine in relation to the other nucleotides
indicates freshness of fish.
 A biosensor utilizing immobilized phosphorylase has been developed for this
purpose.
11

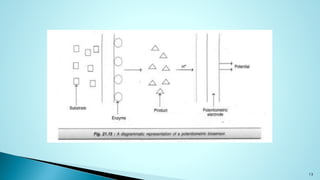

 In these biosensors, changes in ionic concentrations are determined by use of ion
selective electrodes.
 pH electrode -commonly used ion-selective electrode, since many enzymatic reactions
involve the release or absorption of hydrogen ions.
 Other electrodes - ammonia-selective and CO selective electrodes.
 The potential difference obtained between the potentiometric electrode and the
reference electrode can be measured-proportional to the concentration of the substrate.
 lon-selective field effect transistors (ISFET) are the low cost devices that can be used for
miniaturization of potentiometric biosensors.
 A good example is an ISFET biosensor used to monitor intramyocardial pH during open-
heart surgery.
12
13

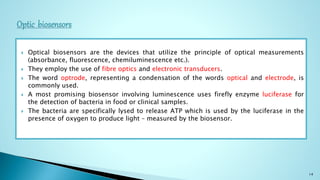

 Optical biosensors are the devices that utilize the principle of optical measurements
(absorbance, fluorescence, chemiluminescence etc.).
 They employ the use of fibre optics and electronic transducers.
 The word optrode, representing a condensation of the words optical and electrode, is
commonly used.
 A most promising biosensor involving luminescence uses firefly enzyme luciferase for
the detection of bacteria in food or clinical samples.
 The bacteria are specifically lysed to release ATP which is used by the luciferase in the
presence of oxygen to produce light – measured by the biosensor.
14

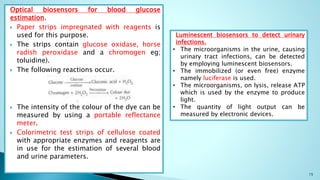

Optical biosensors for blood glucose
estimation.
 Paper strips impregnated with reagents is
used for this purpose.
 The strips contain glucose oxidase, horse
radish peroxidase and a chromogen eg;
toluidine).
 The following reactions occur.
 The intensity of the colour of the dye can be
measured by using a portable reflectance
meter.
 Colorimetric test strips of cellulose coated
with appropriate enzymes and reagents are
in use for the estimation of several blood
and urine parameters.
15
Luminescent biosensors to detect urinary
infections.
• The microorganisms in the urine, causing
urinary tract infections, can be detected
by employing luminescent biosensors.
• The immobilized (or even free) enzyme
namely luciferase is used.
• The microorganisms, on lysis, release ATP
which is used by the enzyme to produce
light.
• The quantity of light output can be
measured by electronic devices.

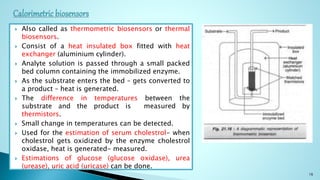

 Also called as thermometric biosensors or thermal
biosensors.
 Consist of a heat insulated box fitted with heat
exchanger (aluminium cylinder).
 Analyte solution is passed through a small packed
bed column containing the immobilized enzyme.
 As the substrate enters the bed – gets converted to
a product – heat is generated.
 The difference in temperatures between the
substrate and the product is measured by
thermistors.
 Small change in temperatures can be detected.
 Used for the estimation of serum cholestrol- when
cholestrol gets oxidized by the enzyme cholestrol
oxidase, heat is generated- measured.
 Estimations of glucose (glucose oxidase), urea
(urease), uric acid (uricase) can be done.
16

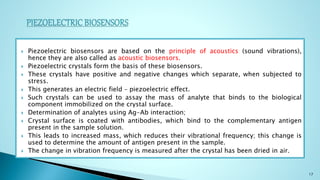

 Piezoelectric biosensors are based on the principle of acoustics (sound vibrations),
hence they are also called as acoustic biosensors.
 Piezoelectric crystals form the basis of these biosensors.
 These crystals have positive and negative changes which separate, when subjected to
stress.
 This generates an electric field – piezoelectric effect.
 Such crystals can be used to assay the mass of analyte that binds to the biological
component immobilized on the crystal surface.
 Determination of analytes using Ag-Ab interaction;
 Crystal surface is coated with antibodies, which bind to the complementary antigen
present in the sample solution.
 This leads to increased mass, which reduces their vibrational frequency; this change is
used to determine the amount of antigen present in the sample.
 The change in vibration frequency is measured after the crystal has been dried in air.
17

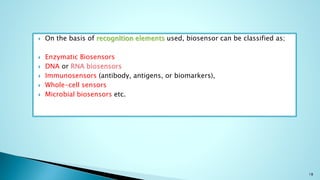

 On the basis of recognition elements used, biosensor can be classified as;
 Enzymatic Biosensors
 DNA or RNA biosensors
 Immunosensors (antibody, antigens, or biomarkers),
 Whole-cell sensors
 Microbial biosensors etc.
18
Whole cell biosensor:
 Live or dead microbial cells can be used as the biological component of the
biosensor in the place of the usual enzymes.
 The cells are cheaper, have longer active lifetime and are less sensitive to inhibition,
pH and temperature variations than are isolated enzymes.
 Particularly useful when co-enzyme reactions are necessary.
 Eg ; potentiometric biosensor for nicotinic acid uses whole cells of Lactobacillus
arabinosus as the biological component.
19
Enzyme biosensor:
• Enzyme are used as recognition elements.
• Devised on immobilization methods, i.e. adsorption of enzymes by van der Waals
forces, ionic bonding or covalent bonding.
• The commonly used enzymes for this purpose are oxidoreductases, polyphenol
oxidases, peroxidases and amino oxidases.

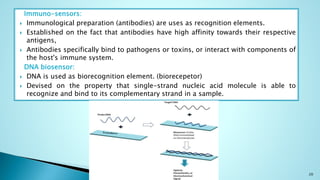

Immuno-sensors:
 Immunological preparation (antibodies) are uses as recognition elements.
 Established on the fact that antibodies have high affinity towards their respective
antigens,
 Antibodies specifically bind to pathogens or toxins, or interact with components of
the host's immune system.
DNA biosensor:
 DNA is used as biorecognition element. (biorecepetor)
 Devised on the property that single-strand nucleic acid molecule is able to
recognize and bind to its complementary strand in a sample.
20
21

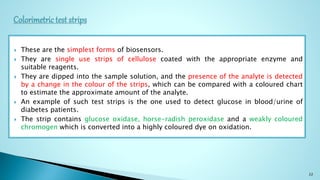

 These are the simplest forms of biosensors.
 They are single use strips of cellulose coated with the appropriate enzyme and
suitable reagents.
 They are dipped into the sample solution, and the presence of the analyte is detected
by a change in the colour of the strips, which can be compared with a coloured chart
to estimate the approximate amount of the analyte.
 An example of such test strips is the one used to detect glucose in blood/urine of
diabetes patients.
 The strip contains glucose oxidase, horse-radish peroxidase and a weakly coloured
chromogen which is converted into a highly coloured dye on oxidation.
22
23

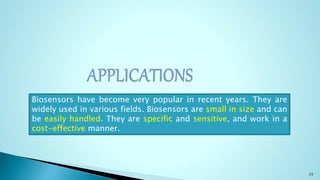

Biosensors have become very popular in recent years. They are
widely used in various fields. Biosensors are small in size and can
be easily handled. They are specific and sensitive, and work in a
cost-effective manner.
 Biosensors are successfully used for the quantitative estimation of several
biologically important substances in body fluids e.g. glucose, cholesterol,
urea.
 Glucose biosensor - regular monitoring of blood glucose.
 Blood gas monitoring - critical care and surgical monitoring of patients.
 Mutagenicity of several chemicals can be determined by using
biosensors.
 Several toxic compounds produced in the body can be detected.
 A promising biosensor technology for urinary tract infection (UTI)
diagnosis along with pathogen identification and antimicrobial
susceptibility is under study.
24

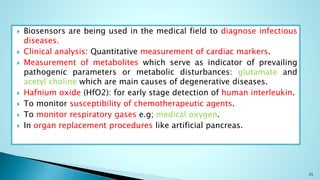

 Biosensors are being used in the medical field to diagnose infectious
diseases.
 Clinical analysis: Quantitative measurement of cardiac markers.
 Measurement of metabolites which serve as indicator of prevailing
pathogenic parameters or metabolic disturbances: glutamate and
acetyl choline which are main causes of degenerative diseases.
 Hafnium oxide (HfO2): for early stage detection of human interleukin.
 To monitor susceptibility of chemotherapeutic agents.
 To monitor respiratory gases e.g; medical oxygen.
 In organ replacement procedures like artificial pancreas.
25

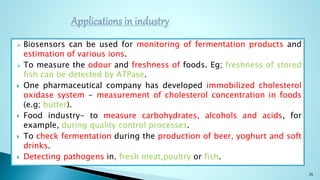

 Biosensors can be used for monitoring of fermentation products and
estimation of various ions.
 To measure the odour and freshness of foods. Eg; freshness of stored
fish can be detected by ATPase.
 One pharmaceutical company has developed immobilized cholesterol
oxidase system - measurement of cholesterol concentration in foods
(e.g; butter).
 Food industry- to measure carbohydrates, alcohols and acids, for
example, during quality control processes.
 To check fermentation during the production of beer, yoghurt and soft
drinks.
 Detecting pathogens in, fresh meat,poultry or fish.
26

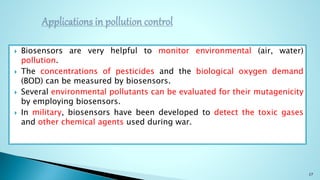

 Biosensors are very helpful to monitor environmental (air, water)
pollution.
 The concentrations of pesticides and the biological oxygen demand
(BOD) can be measured by biosensors.
 Several environmental pollutants can be evaluated for their mutagenicity
by employing biosensors.
 In military, biosensors have been developed to detect the toxic gases
and other chemical agents used during war.
27

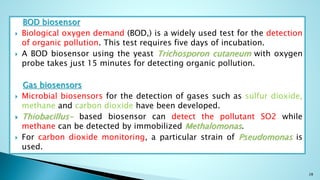

BOD biosensor
 Biological oxygen demand (BOD,) is a widely used test for the detection
of organic pollution. This test requires five days of incubation.
 A BOD biosensor using the yeast Trichosporon cutaneum with oxygen
probe takes just 15 minutes for detecting organic pollution.
Gas biosensors
 Microbial biosensors for the detection of gases such as sulfur dioxide,
methane and carbon dioxide have been developed.
 Thiobacillus- based biosensor can detect the pollutant SO2 while
methane can be detected by immobilized Methalomonas.
 For carbon dioxide monitoring, a particular strain of Pseudomonas is
used.
28
29
Immunoassay biosensors
• Immunoelectrodes as biosensors are
useful for the detection of low
concentrations of pollutants.
• Pesticide specific antibodies can detect
the presence of low concentrations of
triazines, malathion and carbamates, by
employing immunoassays.

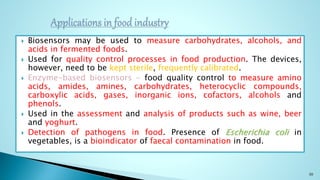

 Biosensors may be used to measure carbohydrates, alcohols, and
acids in fermented foods.
 Used for quality control processes in food production. The devices,
however, need to be kept sterile, frequently calibrated.
 Enzyme-based biosensors - food quality control to measure amino
acids, amides, amines, carbohydrates, heterocyclic compounds,
carboxylic acids, gases, inorganic ions, cofactors, alcohols and
phenols.
 Used in the assessment and analysis of products such as wine, beer
and yoghurt.
 Detection of pathogens in food. Presence of Escherichia coli in
vegetables, is a bioindicator of faecal contamination in food.
30
 E. coli has been measured by detecting variation in pH caused by
ammonia using potentiometric alternating biosensing systems.
 Optical biosensor detects the presence of Salmonella and Typhimurium in
milk and apple juice.
 Electrochemical magnetic biosensors are used for detecting salmonella
bacteria in milk.
 Fluorometric biosensor detects and quantifies aflatoxins (agricultural
products).
 Electrochemical antibody/enzyme detects aflatoxins B1 in spices and
olive oil, aflatoxin M1 in milk.
 Electrochemiluminescent aptamer biosensor detects the presence of
Ochratoxin A in beer and coffee samples.
31

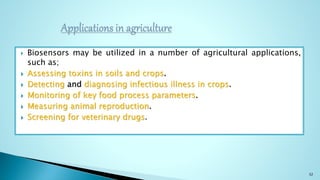

 Biosensors may be utilized in a number of agricultural applications,
such as;
 Assessing toxins in soils and crops.
 Detecting and diagnosing infectious illness in crops.
 Monitoring of key food process parameters.
 Measuring animal reproduction.
 Screening for veterinary drugs.
32
 QCM (Quartz crystalline Micro balancer) biosensor or Acoustic-based
biosensor detects plant pathogens like Ralstonia solanacearum,
Pseudomonas syringae pv. and Xanthomonas campestris.
 High density microelectrode array biosensor detects E. coli bacteria in
lettuce.
 The fabricated biosensor can detect the Cucumber mosaic virus (CMV).
 Electrochemical biosensors are used to obtain crop output yields, tests pH
or nutrient content and in soil experiments.
 Electronic nose biosensor; implemented successfully for the fruit ripeness
determination, detection of soil borne pathogens and insect infestations
etc.
 Play a major role in detecting and monitoring organophosphorus levels in
the soil and groundwater.
33

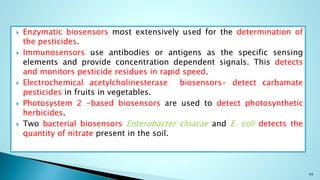

 Enzymatic biosensors most extensively used for the determination of
the pesticides.
 Immunosensors use antibodies or antigens as the specific sensing
elements and provide concentration dependent signals. This detects
and monitors pesticide residues in rapid speed.
 Electrochemical acetylcholinesterase biosensors- detect carbamate
pesticides in fruits in vegetables.
 Photosystem 2 -based biosensors are used to detect photosynthetic
herbicides.
 Two bacterial biosensors Enterobacter cloacae and E. coli detects the
quantity of nitrate present in the soil.
34

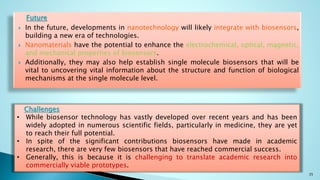

Future
 In the future, developments in nanotechnology will likely integrate with biosensors,
building a new era of technologies.
 Nanomaterials have the potential to enhance the electrochemical, optical, magnetic,
and mechanical properties of biosensors.
 Additionally, they may also help establish single molecule biosensors that will be
vital to uncovering vital information about the structure and function of biological
mechanisms at the single molecule level.
35
Challenges
• While biosensor technology has vastly developed over recent years and has been
widely adopted in numerous scientific fields, particularly in medicine, they are yet
to reach their full potential.
• In spite of the significant contributions biosensors have made in academic
research, there are very few biosensors that have reached commercial success.
• Generally, this is because it is challenging to translate academic research into
commercially viable prototypes.

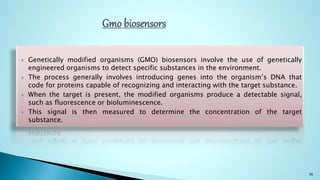

 Genetically modified organisms (GMO) biosensors involve the use of genetically
engineered organisms to detect specific substances in the environment.
 The process generally involves introducing genes into the organism’s DNA that
code for proteins capable of recognizing and interacting with the target substance.
 When the target is present, the modified organisms produce a detectable signal,
such as fluorescence or bioluminescence.
 This signal is then measured to determine the concentration of the target
substance.
36

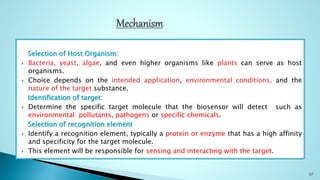

Selection of Host Organism:
 Bacteria, yeast, algae, and even higher organisms like plants can serve as host
organisms.
 Choice depends on the intended application, environmental conditions, and the
nature of the target substance.
Identification of target:
 Determine the specific target molecule that the biosensor will detect such as
environmental pollutants, pathogens or specific chemicals.
Selection of recognition element
 Identify a recognition element, typically a protein or enzyme that has a high affinity
and specificity for the target molecule.
 This element will be responsible for sensing and interacting with the target.
37
Integration of Genes:
 Introduce the genes encoding the recognition element into the DNA of the host
organism.
 utilizing rDNA technology.
Expression of genes
 The introduced genes are expressed within the host organism, leading to the
production of the recognition element.
Signal transduction
 Design the biosensor to generate a measurable signal in response to the interaction
between the recognition element and the target molecule.
 Common signals include fluorescence, bioluminescence or electrochemical signals.
38
Response activation;
 The engineered organism senses the environment for the target substance.
 Interaction between the target substance and the engineered genes triggers a
response.
Signal Output:
 The activated response produces a detectable signal, such as fluorescence,
bioluminescence, or the release of a specific enzyme.
Detection System:
 The detection system includes instruments or methods to capture and quantify the
signals produced.
 Fluorimeters, luminometers, or imaging systems are commonly used depending on
the nature of the biosensor.
Data interpretation
 Translate the measured signal into meaningful data, indicating the presence and
concentration of the target molecule.
39

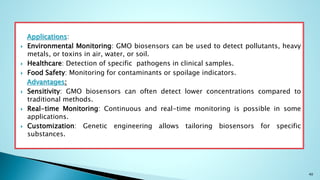

Applications:
 Environmental Monitoring: GMO biosensors can be used to detect pollutants, heavy
metals, or toxins in air, water, or soil.
 Healthcare: Detection of specific pathogens in clinical samples.
 Food Safety: Monitoring for contaminants or spoilage indicators.
Advantages:
 Sensitivity: GMO biosensors can often detect lower concentrations compared to
traditional methods.
 Real-time Monitoring: Continuous and real-time monitoring is possible in some
applications.
 Customization: Genetic engineering allows tailoring biosensors for specific
substances.
40

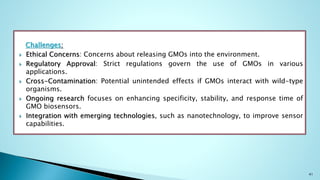

Challenges:
 Ethical Concerns: Concerns about releasing GMOs into the environment.
 Regulatory Approval: Strict regulations govern the use of GMOs in various
applications.
 Cross-Contamination: Potential unintended effects if GMOs interact with wild-type
organisms.
 Ongoing research focuses on enhancing specificity, stability, and response time of
GMO biosensors.
 Integration with emerging technologies, such as nanotechnology, to improve sensor
capabilities.
41

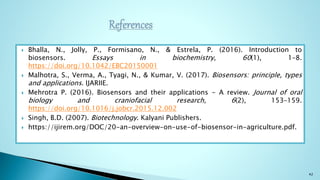

 Bhalla, N., Jolly, P., Formisano, N., & Estrela, P. (2016). Introduction to
biosensors. Essays in biochemistry, 60(1), 1–8.
https://doi.org/10.1042/EBC20150001
 Malhotra, S., Verma, A., Tyagi, N., & Kumar, V. (2017). Biosensors: principle, types
and applications. IJARIIE.
 Mehrotra P. (2016). Biosensors and their applications - A review. Journal of oral
biology and craniofacial research, 6(2), 153–159.
https://doi.org/10.1016/j.jobcr.2015.12.002
 Singh, B.D. (2007). Biotechnology. Kalyani Publishers.
 https://ijirem.org/DOC/20-an-overview-on-use-of-biosensor-in-agriculture.pdf.
42
43

More Related Content

Similar to biosensors;components,types , applications and GMO biosensors

Similar to biosensors;components,types , applications and GMO biosensors (20)

Biosensor and its Applications
Biosensor and its ApplicationsBiosensor and its Applications
Biosensor and its Applications

Biosensor
BiosensorBiosensor
Biosensor

Biosensors
BiosensorsBiosensors
Biosensors

Biosensors
BiosensorsBiosensors
Biosensors

Biosensor
BiosensorBiosensor
Biosensor

Prabhakar singh ii sem-paper v-biosensor
Prabhakar singh  ii sem-paper v-biosensorPrabhakar singh  ii sem-paper v-biosensor
Prabhakar singh ii sem-paper v-biosensor

Basic concepts and principles of biosensors
Basic concepts and principles of biosensorsBasic concepts and principles of biosensors
Basic concepts and principles of biosensors

Biosensors
BiosensorsBiosensors
Biosensors

intro to biosensor
intro to biosensorintro to biosensor
intro to biosensor

biosensors.pptx
biosensors.pptxbiosensors.pptx
biosensors.pptx

Bio-SENSORS.pptx
Bio-SENSORS.pptxBio-SENSORS.pptx
Bio-SENSORS.pptx

Biosensors ppt
Biosensors pptBiosensors ppt
Biosensors ppt

Biosensors
BiosensorsBiosensors
Biosensors

biosensors
biosensorsbiosensors
biosensors

Biosensors of modern era
Biosensors of modern eraBiosensors of modern era
Biosensors of modern era

Biosensors.pptx
Biosensors.pptxBiosensors.pptx
Biosensors.pptx

Biosensors.pdf
Biosensors.pdfBiosensors.pdf
Biosensors.pdf

biosensor and its utilization in environment
biosensor and its utilization in environmentbiosensor and its utilization in environment
biosensor and its utilization in environment

Biosensors
BiosensorsBiosensors
Biosensors

Biosensors An analytical Device
Biosensors An analytical Device Biosensors An analytical Device
Biosensors An analytical Device


More from Cherry

Mitosis...............................pptx
Mitosis...............................pptxMitosis...............................pptx
Mitosis...............................pptx
Cherry

DATABASES...............................pptx
DATABASES...............................pptxDATABASES...............................pptx
DATABASES...............................pptx
Cherry


More from Cherry (20)

RETROGRESSIVE CHANGES, CONCEPT OF CLIMAX COMMUNITIES AND RESILIENCE OF COMMU...
RETROGRESSIVE CHANGES, CONCEPT OF  CLIMAX COMMUNITIES AND RESILIENCE OF COMMU...RETROGRESSIVE CHANGES, CONCEPT OF  CLIMAX COMMUNITIES AND RESILIENCE OF COMMU...
RETROGRESSIVE CHANGES, CONCEPT OF CLIMAX COMMUNITIES AND RESILIENCE OF COMMU...

COMMUNITY DYNAMICS CHARACTERISTICS- CYCLIC AND NON-CYCLIC REPLACEMENT CHANGES...
COMMUNITY DYNAMICS CHARACTERISTICS- CYCLIC AND NON-CYCLIC REPLACEMENT CHANGES...COMMUNITY DYNAMICS CHARACTERISTICS- CYCLIC AND NON-CYCLIC REPLACEMENT CHANGES...
COMMUNITY DYNAMICS CHARACTERISTICS- CYCLIC AND NON-CYCLIC REPLACEMENT CHANGES...

Remote sensing.......................pptx
Remote sensing.......................pptxRemote sensing.......................pptx
Remote sensing.......................pptx

METHODS OF TRANSCRIPTOME ANALYSIS....pptx
METHODS OF TRANSCRIPTOME ANALYSIS....pptxMETHODS OF TRANSCRIPTOME ANALYSIS....pptx
METHODS OF TRANSCRIPTOME ANALYSIS....pptx

AIZOACEAE............................pptx
AIZOACEAE............................pptxAIZOACEAE............................pptx
AIZOACEAE............................pptx

Cryoprervation techniques.............pptx
Cryoprervation techniques.............pptxCryoprervation techniques.............pptx
Cryoprervation techniques.............pptx

APPLICATIONS OF GM ANIMALS...........pptx
APPLICATIONS OF GM ANIMALS...........pptxAPPLICATIONS OF GM ANIMALS...........pptx
APPLICATIONS OF GM ANIMALS...........pptx

Tropical coastal ecosystems...........pptx
Tropical coastal ecosystems...........pptxTropical coastal ecosystems...........pptx
Tropical coastal ecosystems...........pptx

Phytogeography........................pptx
Phytogeography........................pptxPhytogeography........................pptx
Phytogeography........................pptx

Structural annotation................pptx
Structural annotation................pptxStructural annotation................pptx
Structural annotation................pptx

Adventitious shoot regeneration.....pptx
Adventitious shoot regeneration.....pptxAdventitious shoot regeneration.....pptx
Adventitious shoot regeneration.....pptx

Tissue engineering......................pptx
Tissue engineering......................pptxTissue engineering......................pptx
Tissue engineering......................pptx

Triploidy ...............................pptx
Triploidy ...............................pptxTriploidy ...............................pptx
Triploidy ...............................pptx

SYNTHETIC SEED PRODUCTION.............pptx
SYNTHETIC SEED PRODUCTION.............pptxSYNTHETIC SEED PRODUCTION.............pptx
SYNTHETIC SEED PRODUCTION.............pptx

Reporter genes.......................pptx
Reporter genes.......................pptxReporter genes.......................pptx
Reporter genes.......................pptx

Somaclonal Variation.....................pptx
Somaclonal Variation.....................pptxSomaclonal Variation.....................pptx
Somaclonal Variation.....................pptx

INSERTIONAL INACTIVATION AND COMPLEMENTATION OF DEFINED MUTATION (1).pptx
INSERTIONAL INACTIVATION AND COMPLEMENTATION OF DEFINED MUTATION (1).pptxINSERTIONAL INACTIVATION AND COMPLEMENTATION OF DEFINED MUTATION (1).pptx
INSERTIONAL INACTIVATION AND COMPLEMENTATION OF DEFINED MUTATION (1).pptx

IN-VITRO GERMPLASM CONSERVATION [Autosaved].pptx
IN-VITRO GERMPLASM CONSERVATION [Autosaved].pptxIN-VITRO GERMPLASM CONSERVATION [Autosaved].pptx
IN-VITRO GERMPLASM CONSERVATION [Autosaved].pptx

Mitosis...............................pptx
Mitosis...............................pptxMitosis...............................pptx
Mitosis...............................pptx

DATABASES...............................pptx
DATABASES...............................pptxDATABASES...............................pptx
DATABASES...............................pptx


Recently uploaded

HIV AND INFULENZA VIRUS PPT HIV PPT INFULENZA VIRUS PPT
HIV AND INFULENZA VIRUS PPT HIV PPT  INFULENZA VIRUS PPTHIV AND INFULENZA VIRUS PPT HIV PPT  INFULENZA VIRUS PPT
Heat Units in plant physiology and the importance of Growing Degree days
Heat Units in plant physiology and the importance of Growing Degree daysHeat Units in plant physiology and the importance of Growing Degree days
Heat Units in plant physiology and the importance of Growing Degree days
Brahmesh Reddy B R

Isolation of AMF by wet sieving and decantation method pptx
Isolation of AMF by wet sieving and decantation method pptxIsolation of AMF by wet sieving and decantation method pptx
Isolation of AMF by wet sieving and decantation method pptx
GOWTHAMIM22

Chemistry Data Delivery from the US-EPA Center for Computational Toxicology a...
Chemistry Data Delivery from the US-EPA Center for Computational Toxicology a...Chemistry Data Delivery from the US-EPA Center for Computational Toxicology a...
Chemistry Data Delivery from the US-EPA Center for Computational Toxicology a...
US Environmental Protection Agency (EPA), Center for Computational Toxicology and Exposure


Recently uploaded (20)

HIV AND INFULENZA VIRUS PPT HIV PPT INFULENZA VIRUS PPT
HIV AND INFULENZA VIRUS PPT HIV PPT  INFULENZA VIRUS PPTHIV AND INFULENZA VIRUS PPT HIV PPT  INFULENZA VIRUS PPT
HIV AND INFULENZA VIRUS PPT HIV PPT INFULENZA VIRUS PPT

SaffronCrocusGenomicsThessalonikiOnlineMay2024TalkOnline.pptx
SaffronCrocusGenomicsThessalonikiOnlineMay2024TalkOnline.pptxSaffronCrocusGenomicsThessalonikiOnlineMay2024TalkOnline.pptx
SaffronCrocusGenomicsThessalonikiOnlineMay2024TalkOnline.pptx

Heat Units in plant physiology and the importance of Growing Degree days
Heat Units in plant physiology and the importance of Growing Degree daysHeat Units in plant physiology and the importance of Growing Degree days
Heat Units in plant physiology and the importance of Growing Degree days

EU START PROJECT. START-Newsletter_Issue_4.pdf
EU START PROJECT. START-Newsletter_Issue_4.pdfEU START PROJECT. START-Newsletter_Issue_4.pdf
EU START PROJECT. START-Newsletter_Issue_4.pdf

Introduction and significance of Symbiotic algae
Introduction and significance of  Symbiotic algaeIntroduction and significance of  Symbiotic algae
Introduction and significance of Symbiotic algae

Soil and Water Conservation Engineering (SWCE) is a specialized field of stud...
Soil and Water Conservation Engineering (SWCE) is a specialized field of stud...Soil and Water Conservation Engineering (SWCE) is a specialized field of stud...
Soil and Water Conservation Engineering (SWCE) is a specialized field of stud...

Abortion uae unmarried price +27791653574 Contact Us Dubai Abu Dhabi Sharjah ...
Abortion uae unmarried price +27791653574 Contact Us Dubai Abu Dhabi Sharjah ...Abortion uae unmarried price +27791653574 Contact Us Dubai Abu Dhabi Sharjah ...
Abortion uae unmarried price +27791653574 Contact Us Dubai Abu Dhabi Sharjah ...

POST TRANSCRIPTIONAL GENE SILENCING-AN INTRODUCTION.pptx
POST TRANSCRIPTIONAL GENE SILENCING-AN INTRODUCTION.pptxPOST TRANSCRIPTIONAL GENE SILENCING-AN INTRODUCTION.pptx
POST TRANSCRIPTIONAL GENE SILENCING-AN INTRODUCTION.pptx

GBSN - Biochemistry (Unit 8) Enzymology
GBSN - Biochemistry (Unit 8) EnzymologyGBSN - Biochemistry (Unit 8) Enzymology
GBSN - Biochemistry (Unit 8) Enzymology

Isolation of AMF by wet sieving and decantation method pptx
Isolation of AMF by wet sieving and decantation method pptxIsolation of AMF by wet sieving and decantation method pptx
Isolation of AMF by wet sieving and decantation method pptx

Manganese‐RichSandstonesasanIndicatorofAncientOxic LakeWaterConditionsinGale...
Manganese‐RichSandstonesasanIndicatorofAncientOxic  LakeWaterConditionsinGale...Manganese‐RichSandstonesasanIndicatorofAncientOxic  LakeWaterConditionsinGale...
Manganese‐RichSandstonesasanIndicatorofAncientOxic LakeWaterConditionsinGale...

NuGOweek 2024 programme final FLYER short.pdf
NuGOweek 2024 programme final FLYER short.pdfNuGOweek 2024 programme final FLYER short.pdf
NuGOweek 2024 programme final FLYER short.pdf

In-pond Race way systems for Aquaculture (IPRS).pptx
In-pond Race way systems for Aquaculture (IPRS).pptxIn-pond Race way systems for Aquaculture (IPRS).pptx
In-pond Race way systems for Aquaculture (IPRS).pptx

MODERN PHYSICS_REPORTING_QUANTA_.....pdf
MODERN PHYSICS_REPORTING_QUANTA_.....pdfMODERN PHYSICS_REPORTING_QUANTA_.....pdf
MODERN PHYSICS_REPORTING_QUANTA_.....pdf

RACEMIzATION AND ISOMERISATION completed.pptx
RACEMIzATION AND ISOMERISATION completed.pptxRACEMIzATION AND ISOMERISATION completed.pptx
RACEMIzATION AND ISOMERISATION completed.pptx

Efficient spin-up of Earth System Models usingsequence acceleration
Efficient spin-up of Earth System Models usingsequence accelerationEfficient spin-up of Earth System Models usingsequence acceleration
Efficient spin-up of Earth System Models usingsequence acceleration

Adaptive Restore algorithm & importance Monte Carlo
Adaptive Restore algorithm & importance Monte CarloAdaptive Restore algorithm & importance Monte Carlo
Adaptive Restore algorithm & importance Monte Carlo

GBSN - Microbiology (Unit 4) Concept of Asepsis
GBSN - Microbiology (Unit 4) Concept of AsepsisGBSN - Microbiology (Unit 4) Concept of Asepsis
GBSN - Microbiology (Unit 4) Concept of Asepsis

Chemistry Data Delivery from the US-EPA Center for Computational Toxicology a...
Chemistry Data Delivery from the US-EPA Center for Computational Toxicology a...Chemistry Data Delivery from the US-EPA Center for Computational Toxicology a...
Chemistry Data Delivery from the US-EPA Center for Computational Toxicology a...

GBSN - Microbiology (Unit 7) Microbiology in Everyday Life
GBSN - Microbiology (Unit 7) Microbiology in Everyday LifeGBSN - Microbiology (Unit 7) Microbiology in Everyday Life
GBSN - Microbiology (Unit 7) Microbiology in Everyday Life


biosensors;components,types , applications and GMO biosensors

  • 1. 1 Submitted to, Dr. Aghil Soorya A Assistant Professor Dept. of Botany St. Teresa’s college Ernakulam Submitted by, Silpa Selvaraj Roll no: 13 II M.Sc. Botany St. Teresa’s college Ernakulam
  • 2.  Invented by American biochemist L.L Clark in 1950.  Biosensors are analytical devices that measure the concentration of an analyte.  In biosensors, a biological material (enzyme, antibody, whole cell, nucleic acid, hormones ) are used to interact with the analyte.  This interaction produces a physical or chemical change which is detected by the transducer and converted to an electrical signal.  This signal is interpreted and converted to analyte concentration present in the sample. 2
  • 3. Two distinct components;  1. Biological component: enzyme, cell etc.  2. Physical component: transducer, amplifier etc.  The biological component performs two key functions:  (i) It specifically recognizes the analyte.  (ii) Interacts with it and produce some physical change detectable by the transducer.  The biological component is suitably immobilized on to the transducer. (Enzymes are usually immobilized by gluteraldehyde on a porous sheet like lens tissue paper or nylon net fabric; the enzyme-membrane - affixed to the transducer.)  Generally, correct immobilization of enzymes enhances their stability. 3
  • 4. 4 The Schematic diagram shown above for the biosensor is mainly divided into three sections. (i) Sensor: a sensitive biological element (ii) Transducer: it is the detector element (works in a physicochemical way; optical, piezoelectric, electrochemical, etc.) that transforms the signal resulting from the interaction of the analyte with the biological responsible for the display of the results in a user-friendly way (iii) Electronics, which comprises of signal conditioning circuit (amplifier), processor and a display unit.
  • 5. 5  The biological component- enzyme, nucleic acid, antibody etc.  The analyte must be transported from the solution to the biological component for the reaction- simple diffusion.  The biological component interacts with the analyte – produces a physical change close to the transducer;  1. Heat released or absorbed by the reaction.  2. Production of an electrical potential due to changed distribution of electrons.  3. Light produced or absorbed during the reaction.  4. Change in mass of the biological component as a result of the reaction. • The transducer detects and measures this change and converts in to an electrical signal. • This signal is necessarily small, and is amplified by an amplifier before it is fed into the microprocessor. • The signal is then processed and interpreted, and is displayed in suitable units.
  • 6.  The desired biological material is immobilized by conventional methods (physical or membrane entrapment, non covalent or covalent binding).  This immobilized biological material is in intimate contact with the transducer.  The analyte binds to the biological material to form a bound analyte - produces the electronic response that can be measured.  In some instances the analyte is converted to a product which may be associated with the release of heat, gas, electrons or hydrogen ions.  The transducer measures this interaction and outputs electrical signals which can be amplified and measured.  The intensity of the signal output is proportional to the concentration of the analyte. 6
  • 7.  Highly specific for the analyte in the presence of other interfering chemicals or foreign materials.  The reaction used should be independent of factors like pH, temperature, stirring etc.  The response should be linear over a useful range of analyte concentrations.  The device should be small and biocompatible in case it is to be used for analysis within the body.  Sensitivity : should detect even low concentration of analyte.  It should be of low cost, small and easy to use.  Assay cost should be lower than conventional tests.  Assay should be fast, reliable and repeatable.  Reusable.  Stability: should give maximum response over a period of time. 7
  • 8. 8
  • 9.  On the basis of the transducer used, biosensors can be;  Amperometric biosensors.  Optical biosensors.  Potentiometric biosensors.  Calorimetric biosensors.  Piezoelectric biosensors. 9
  • 10.  Based on the movement of electrons.  Normally a constant voltage passes between the electrodes which can be measured.  In an enzymatic reaction that occurs, the product can transfer an electron with the electrode surface to be oxidised or reduced.  This results in an altered current flow that can be measured.  The magnitude of the current is proportional to the substrate concentration,  Clark oxygen electrode is the simplest form of amperometric biosensor.  Determination of glucose by glucose oxidase is a good example. 10 Amperometric biosensor
  • 11.  Blood-glucose biosensor is widely used throughout the world by diabetic patients.  It looks like a watch pen and has a single use disposable electrode ( Ag/AgCl reference electrode and carbon working electrode) with glucose oxidase and a derivative of ferrocene (as a mediator).  The electrodes are covered with hydrophilic mesh guaze for even spreading of a blood drop.  The disposable test strips, sealed in aluminium foil have a shelf-life of around six months.  An amperometric biosensor for assessing the freshness of fish has been developed.  The accumulation of ionosine and hypoxanthine in relation to the other nucleotides indicates freshness of fish.  A biosensor utilizing immobilized phosphorylase has been developed for this purpose. 11
  • 12.  In these biosensors, changes in ionic concentrations are determined by use of ion selective electrodes.  pH electrode -commonly used ion-selective electrode, since many enzymatic reactions involve the release or absorption of hydrogen ions.  Other electrodes - ammonia-selective and CO selective electrodes.  The potential difference obtained between the potentiometric electrode and the reference electrode can be measured-proportional to the concentration of the substrate.  lon-selective field effect transistors (ISFET) are the low cost devices that can be used for miniaturization of potentiometric biosensors.  A good example is an ISFET biosensor used to monitor intramyocardial pH during open- heart surgery. 12
  • 13. 13
  • 14.  Optical biosensors are the devices that utilize the principle of optical measurements (absorbance, fluorescence, chemiluminescence etc.).  They employ the use of fibre optics and electronic transducers.  The word optrode, representing a condensation of the words optical and electrode, is commonly used.  A most promising biosensor involving luminescence uses firefly enzyme luciferase for the detection of bacteria in food or clinical samples.  The bacteria are specifically lysed to release ATP which is used by the luciferase in the presence of oxygen to produce light – measured by the biosensor. 14
  • 15. Optical biosensors for blood glucose estimation.  Paper strips impregnated with reagents is used for this purpose.  The strips contain glucose oxidase, horse radish peroxidase and a chromogen eg; toluidine).  The following reactions occur.  The intensity of the colour of the dye can be measured by using a portable reflectance meter.  Colorimetric test strips of cellulose coated with appropriate enzymes and reagents are in use for the estimation of several blood and urine parameters. 15 Luminescent biosensors to detect urinary infections. • The microorganisms in the urine, causing urinary tract infections, can be detected by employing luminescent biosensors. • The immobilized (or even free) enzyme namely luciferase is used. • The microorganisms, on lysis, release ATP which is used by the enzyme to produce light. • The quantity of light output can be measured by electronic devices.
  • 16.  Also called as thermometric biosensors or thermal biosensors.  Consist of a heat insulated box fitted with heat exchanger (aluminium cylinder).  Analyte solution is passed through a small packed bed column containing the immobilized enzyme.  As the substrate enters the bed – gets converted to a product – heat is generated.  The difference in temperatures between the substrate and the product is measured by thermistors.  Small change in temperatures can be detected.  Used for the estimation of serum cholestrol- when cholestrol gets oxidized by the enzyme cholestrol oxidase, heat is generated- measured.  Estimations of glucose (glucose oxidase), urea (urease), uric acid (uricase) can be done. 16
  • 17.  Piezoelectric biosensors are based on the principle of acoustics (sound vibrations), hence they are also called as acoustic biosensors.  Piezoelectric crystals form the basis of these biosensors.  These crystals have positive and negative changes which separate, when subjected to stress.  This generates an electric field – piezoelectric effect.  Such crystals can be used to assay the mass of analyte that binds to the biological component immobilized on the crystal surface.  Determination of analytes using Ag-Ab interaction;  Crystal surface is coated with antibodies, which bind to the complementary antigen present in the sample solution.  This leads to increased mass, which reduces their vibrational frequency; this change is used to determine the amount of antigen present in the sample.  The change in vibration frequency is measured after the crystal has been dried in air. 17
  • 18.  On the basis of recognition elements used, biosensor can be classified as;  Enzymatic Biosensors  DNA or RNA biosensors  Immunosensors (antibody, antigens, or biomarkers),  Whole-cell sensors  Microbial biosensors etc. 18
  • 19. Whole cell biosensor:  Live or dead microbial cells can be used as the biological component of the biosensor in the place of the usual enzymes.  The cells are cheaper, have longer active lifetime and are less sensitive to inhibition, pH and temperature variations than are isolated enzymes.  Particularly useful when co-enzyme reactions are necessary.  Eg ; potentiometric biosensor for nicotinic acid uses whole cells of Lactobacillus arabinosus as the biological component. 19 Enzyme biosensor: • Enzyme are used as recognition elements. • Devised on immobilization methods, i.e. adsorption of enzymes by van der Waals forces, ionic bonding or covalent bonding. • The commonly used enzymes for this purpose are oxidoreductases, polyphenol oxidases, peroxidases and amino oxidases.
  • 20. Immuno-sensors:  Immunological preparation (antibodies) are uses as recognition elements.  Established on the fact that antibodies have high affinity towards their respective antigens,  Antibodies specifically bind to pathogens or toxins, or interact with components of the host's immune system. DNA biosensor:  DNA is used as biorecognition element. (biorecepetor)  Devised on the property that single-strand nucleic acid molecule is able to recognize and bind to its complementary strand in a sample. 20

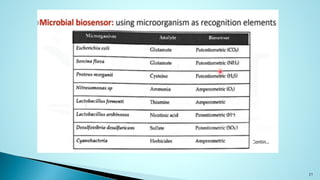

  • 21. 21
  • 22.  These are the simplest forms of biosensors.  They are single use strips of cellulose coated with the appropriate enzyme and suitable reagents.  They are dipped into the sample solution, and the presence of the analyte is detected by a change in the colour of the strips, which can be compared with a coloured chart to estimate the approximate amount of the analyte.  An example of such test strips is the one used to detect glucose in blood/urine of diabetes patients.  The strip contains glucose oxidase, horse-radish peroxidase and a weakly coloured chromogen which is converted into a highly coloured dye on oxidation. 22
  • 23. 23 Biosensors have become very popular in recent years. They are widely used in various fields. Biosensors are small in size and can be easily handled. They are specific and sensitive, and work in a cost-effective manner.
  • 24.  Biosensors are successfully used for the quantitative estimation of several biologically important substances in body fluids e.g. glucose, cholesterol, urea.  Glucose biosensor - regular monitoring of blood glucose.  Blood gas monitoring - critical care and surgical monitoring of patients.  Mutagenicity of several chemicals can be determined by using biosensors.  Several toxic compounds produced in the body can be detected.  A promising biosensor technology for urinary tract infection (UTI) diagnosis along with pathogen identification and antimicrobial susceptibility is under study. 24
  • 25.  Biosensors are being used in the medical field to diagnose infectious diseases.  Clinical analysis: Quantitative measurement of cardiac markers.  Measurement of metabolites which serve as indicator of prevailing pathogenic parameters or metabolic disturbances: glutamate and acetyl choline which are main causes of degenerative diseases.  Hafnium oxide (HfO2): for early stage detection of human interleukin.  To monitor susceptibility of chemotherapeutic agents.  To monitor respiratory gases e.g; medical oxygen.  In organ replacement procedures like artificial pancreas. 25
  • 26.  Biosensors can be used for monitoring of fermentation products and estimation of various ions.  To measure the odour and freshness of foods. Eg; freshness of stored fish can be detected by ATPase.  One pharmaceutical company has developed immobilized cholesterol oxidase system - measurement of cholesterol concentration in foods (e.g; butter).  Food industry- to measure carbohydrates, alcohols and acids, for example, during quality control processes.  To check fermentation during the production of beer, yoghurt and soft drinks.  Detecting pathogens in, fresh meat,poultry or fish. 26
  • 27.  Biosensors are very helpful to monitor environmental (air, water) pollution.  The concentrations of pesticides and the biological oxygen demand (BOD) can be measured by biosensors.  Several environmental pollutants can be evaluated for their mutagenicity by employing biosensors.  In military, biosensors have been developed to detect the toxic gases and other chemical agents used during war. 27
  • 28. BOD biosensor  Biological oxygen demand (BOD,) is a widely used test for the detection of organic pollution. This test requires five days of incubation.  A BOD biosensor using the yeast Trichosporon cutaneum with oxygen probe takes just 15 minutes for detecting organic pollution. Gas biosensors  Microbial biosensors for the detection of gases such as sulfur dioxide, methane and carbon dioxide have been developed.  Thiobacillus- based biosensor can detect the pollutant SO2 while methane can be detected by immobilized Methalomonas.  For carbon dioxide monitoring, a particular strain of Pseudomonas is used. 28
  • 29. 29 Immunoassay biosensors • Immunoelectrodes as biosensors are useful for the detection of low concentrations of pollutants. • Pesticide specific antibodies can detect the presence of low concentrations of triazines, malathion and carbamates, by employing immunoassays.
  • 30.  Biosensors may be used to measure carbohydrates, alcohols, and acids in fermented foods.  Used for quality control processes in food production. The devices, however, need to be kept sterile, frequently calibrated.  Enzyme-based biosensors - food quality control to measure amino acids, amides, amines, carbohydrates, heterocyclic compounds, carboxylic acids, gases, inorganic ions, cofactors, alcohols and phenols.  Used in the assessment and analysis of products such as wine, beer and yoghurt.  Detection of pathogens in food. Presence of Escherichia coli in vegetables, is a bioindicator of faecal contamination in food. 30
  • 31.  E. coli has been measured by detecting variation in pH caused by ammonia using potentiometric alternating biosensing systems.  Optical biosensor detects the presence of Salmonella and Typhimurium in milk and apple juice.  Electrochemical magnetic biosensors are used for detecting salmonella bacteria in milk.  Fluorometric biosensor detects and quantifies aflatoxins (agricultural products).  Electrochemical antibody/enzyme detects aflatoxins B1 in spices and olive oil, aflatoxin M1 in milk.  Electrochemiluminescent aptamer biosensor detects the presence of Ochratoxin A in beer and coffee samples. 31
  • 32.  Biosensors may be utilized in a number of agricultural applications, such as;  Assessing toxins in soils and crops.  Detecting and diagnosing infectious illness in crops.  Monitoring of key food process parameters.  Measuring animal reproduction.  Screening for veterinary drugs. 32
  • 33.  QCM (Quartz crystalline Micro balancer) biosensor or Acoustic-based biosensor detects plant pathogens like Ralstonia solanacearum, Pseudomonas syringae pv. and Xanthomonas campestris.  High density microelectrode array biosensor detects E. coli bacteria in lettuce.  The fabricated biosensor can detect the Cucumber mosaic virus (CMV).  Electrochemical biosensors are used to obtain crop output yields, tests pH or nutrient content and in soil experiments.  Electronic nose biosensor; implemented successfully for the fruit ripeness determination, detection of soil borne pathogens and insect infestations etc.  Play a major role in detecting and monitoring organophosphorus levels in the soil and groundwater. 33
  • 34.  Enzymatic biosensors most extensively used for the determination of the pesticides.  Immunosensors use antibodies or antigens as the specific sensing elements and provide concentration dependent signals. This detects and monitors pesticide residues in rapid speed.  Electrochemical acetylcholinesterase biosensors- detect carbamate pesticides in fruits in vegetables.  Photosystem 2 -based biosensors are used to detect photosynthetic herbicides.  Two bacterial biosensors Enterobacter cloacae and E. coli detects the quantity of nitrate present in the soil. 34
  • 35. Future  In the future, developments in nanotechnology will likely integrate with biosensors, building a new era of technologies.  Nanomaterials have the potential to enhance the electrochemical, optical, magnetic, and mechanical properties of biosensors.  Additionally, they may also help establish single molecule biosensors that will be vital to uncovering vital information about the structure and function of biological mechanisms at the single molecule level. 35 Challenges • While biosensor technology has vastly developed over recent years and has been widely adopted in numerous scientific fields, particularly in medicine, they are yet to reach their full potential. • In spite of the significant contributions biosensors have made in academic research, there are very few biosensors that have reached commercial success. • Generally, this is because it is challenging to translate academic research into commercially viable prototypes.
  • 36.  Genetically modified organisms (GMO) biosensors involve the use of genetically engineered organisms to detect specific substances in the environment.  The process generally involves introducing genes into the organism’s DNA that code for proteins capable of recognizing and interacting with the target substance.  When the target is present, the modified organisms produce a detectable signal, such as fluorescence or bioluminescence.  This signal is then measured to determine the concentration of the target substance. 36
  • 37. Selection of Host Organism:  Bacteria, yeast, algae, and even higher organisms like plants can serve as host organisms.  Choice depends on the intended application, environmental conditions, and the nature of the target substance. Identification of target:  Determine the specific target molecule that the biosensor will detect such as environmental pollutants, pathogens or specific chemicals. Selection of recognition element  Identify a recognition element, typically a protein or enzyme that has a high affinity and specificity for the target molecule.  This element will be responsible for sensing and interacting with the target. 37
  • 38. Integration of Genes:  Introduce the genes encoding the recognition element into the DNA of the host organism.  utilizing rDNA technology. Expression of genes  The introduced genes are expressed within the host organism, leading to the production of the recognition element. Signal transduction  Design the biosensor to generate a measurable signal in response to the interaction between the recognition element and the target molecule.  Common signals include fluorescence, bioluminescence or electrochemical signals. 38
  • 39. Response activation;  The engineered organism senses the environment for the target substance.  Interaction between the target substance and the engineered genes triggers a response. Signal Output:  The activated response produces a detectable signal, such as fluorescence, bioluminescence, or the release of a specific enzyme. Detection System:  The detection system includes instruments or methods to capture and quantify the signals produced.  Fluorimeters, luminometers, or imaging systems are commonly used depending on the nature of the biosensor. Data interpretation  Translate the measured signal into meaningful data, indicating the presence and concentration of the target molecule. 39
  • 40. Applications:  Environmental Monitoring: GMO biosensors can be used to detect pollutants, heavy metals, or toxins in air, water, or soil.  Healthcare: Detection of specific pathogens in clinical samples.  Food Safety: Monitoring for contaminants or spoilage indicators. Advantages:  Sensitivity: GMO biosensors can often detect lower concentrations compared to traditional methods.  Real-time Monitoring: Continuous and real-time monitoring is possible in some applications.  Customization: Genetic engineering allows tailoring biosensors for specific substances. 40
  • 41. Challenges:  Ethical Concerns: Concerns about releasing GMOs into the environment.  Regulatory Approval: Strict regulations govern the use of GMOs in various applications.  Cross-Contamination: Potential unintended effects if GMOs interact with wild-type organisms.  Ongoing research focuses on enhancing specificity, stability, and response time of GMO biosensors.  Integration with emerging technologies, such as nanotechnology, to improve sensor capabilities. 41
  • 42.  Bhalla, N., Jolly, P., Formisano, N., & Estrela, P. (2016). Introduction to biosensors. Essays in biochemistry, 60(1), 1–8. https://doi.org/10.1042/EBC20150001  Malhotra, S., Verma, A., Tyagi, N., & Kumar, V. (2017). Biosensors: principle, types and applications. IJARIIE.  Mehrotra P. (2016). Biosensors and their applications - A review. Journal of oral biology and craniofacial research, 6(2), 153–159. https://doi.org/10.1016/j.jobcr.2015.12.002  Singh, B.D. (2007). Biotechnology. Kalyani Publishers.  https://ijirem.org/DOC/20-an-overview-on-use-of-biosensor-in-agriculture.pdf. 42
  • 43. 43
