Presentation

1. Biomimetics: Nature-
Inspired Innovation
Presented by-
Samit Hasan
ECE 6502
Course Instructor-
Prof. Kyusang Lee

2. Agenda
Introduction to Biomimetics
Historical background
Examples in industry
Biomimetics in Automobiles
Artificial Eye & Skin
Design Approaches and Future Directions
Conclusion
Wednesday, September 27,
2023
ECE 6502
2

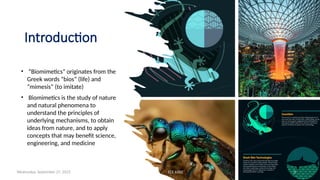

3. Introduction
• “Biomimetics” originates from the
Greek words “bios” (life) and
“mimesis” (to imitate)
• Biomimetics is the study of nature
and natural phenomena to
understand the principles of
underlying mechanisms, to obtain
ideas from nature, and to apply
concepts that may benefit science,
engineering, and medicine
Wednesday, September 27, 2023 ECE 6502 3

4. Wednesday, September 27, 2023 ECE 6502 4
Wednesday, September 27, 2023 ECE 6502 4

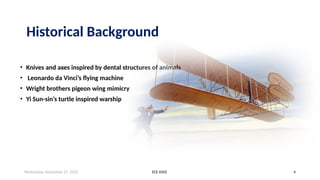

Historical Background
• Knives and axes inspired by dental structures of animals
• Leonardo da Vinci’s flying machine
• Wright brothers pigeon wing mimicry
• Yi Sun-sin’s turtle inspired warship

5. Research Methods
and Fields
Wednesday, September 27, 2023 ECE 6502 5
ECE 6502
5
[1] Hwang J, Jeong Y, Park JM, Lee KH, Hong JW, Choi J. Biomimetics: forecasting the future of science, engineering, and medicine. Int J Nanomedicine. 2015 Sep 8;10:5701-
13. doi: 10.2147/IJN.S83642. PMID: 26388692; PMCID: PMC4572716.
[1]

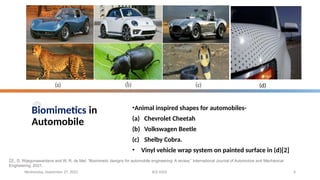

6. Biomimetics in
Automobile
•Animal inspired shapes for automobiles-
(a) Chevrolet Cheetah
(b) Volkswagen Beetle
(c) Shelby Cobra.
• Vinyl vehicle wrap system on painted surface in (d)[2]
Wednesday, September 27, 2023 ECE 6502 6
[2] . D. Wijegunawardana and W. R. de Mel, “Biomimetic designs for automobile engineering: A review,” International Journal of Automotive and Mechanical
Engineering, 2021.
(d)

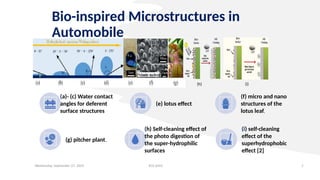

7. Bio-inspired Microstructures in
Automobile
Wednesday, September 27, 2023 ECE 6502 7
(h) (i)
(a)- (c) Water contact
angles for deferent
surface structures
(e) lotus effect
(f) micro and nano
structures of the
lotus leaf,
(g) pitcher plant.
(h) Self-cleaning effect of
the photo digestion of
the super-hydrophilic
surfaces
(i) self-cleaning
effect of the
superhydrophobic
effect [2]

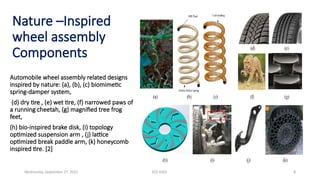

8. ECE 6502 8
Nature –Inspired
wheel assembly
Components
Automobile wheel assembly related designs
inspired by nature: (a), (b), (c) biomimetic
spring-damper system,
(d) dry tire , (e) wet tire, (f) narrowed paws of
a running cheetah, (g) magnified tree frog
feet,
(h) bio-inspired brake disk, (i) topology
optimized suspension arm , (j) lattice
optimized break paddle arm, (k) honeycomb
inspired tire. [2]
Wednesday, September 27, 2023

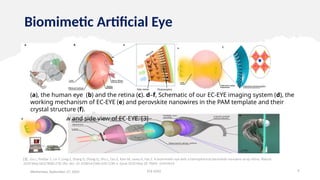

9. Biomimetic Artificial Eye
Wednesday, September 27, 2023 ECE 6502 9
(a), the human eye (b) and the retina (c). d–f, Schematic of our EC-EYE imaging system (d), the
working mechanism of EC-EYE (e) and perovskite nanowires in the PAM template and their
crystal structure (f).
Exploded view and side view of EC-EYE. [3]
[3] . Gu L, Poddar S, Lin Y, Long Z, Zhang D, Zhang Q, Shu L, Qiu X, Kam M, Javey A, Fan Z. A biomimetic eye with a hemispherical perovskite nanowire array retina. Nature.
2020 May;581(7808):278-282. doi: 10.1038/s41586-020-2285-x. Epub 2020 May 20. PMID: 32433619.

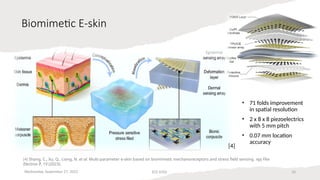

10. Biomimetic E-skin
• 71 folds improvement
in spatial resolution
• 2 x 8 x 8 piezoelectrics
with 5 mm pitch
• 0.07 mm location
accuracy
Wednesday, September 27, 2023 ECE 6502 10
[4] Shang, C., Xu, Q., Liang, N. et al. Multi-parameter e-skin based on biomimetic mechanoreceptors and stress field sensing. npj Flex
Electron 7, 19 (2023).
[4]

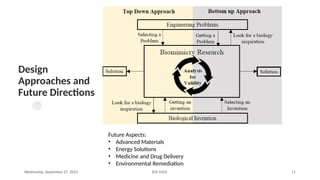

11. Design
Approaches and
Future Directions
Wednesday, September 27, 2023 ECE 6502 11
Future Aspects:
• Advanced Materials
• Energy Solutions
• Medicine and Drug Delivery
• Environmental Remediation

12. ECE 6502 12
Conclusion • Solutions to lack of resources and survival problems
• Efficiency and Resilience
• Reduced Environmental impact
Wednesday, September 27, 2023

13. Thank You
Samit Hasan
qcf9fw@virginia.edu
Wednesday, September 27, 2023 ECE 6502 13
