A binary multiplier is an electronic circuit that uses binary adders to multiply two binary numbers. It implements multiplication of binary numbers in the same way decimal numbers are multiplied. For a 2-bit binary multiplier, the multiplicand bits are B1 and B0, the multiplier bits are A1 and A0, and the 4-bit product is C3, C2, C1, and C0. A 4-bit binary multiplier takes two 4-bit inputs and provides an 8-bit output, with internal carries not forwarded between stages, resulting in a 7-bit output.

1. BINARY MULTIPLIERS
PRESENTEd To:- MR. SANdEEP SUNoRI
PRESENTEd BY:- PAPU KUMAR
SEcTIoN:- B
RoLL No.:- 2061424(47)
SEMESTER:- III

2. BINARY MULTIPLIERS
• A binary multiplier is an electronic circuit used in digital electronics,
such as a computer, to multiply two binary numbers.
• It is built using binary adders.
• A variety of computer arithmetic techniques can be used to
implement a digital multiplier.

3. 2-BIT BINARY-MULTIPLIER
 The multiplication of binary numbers is performed in the
same way as multiplication of decimal numbers .
 If we take the multiplication of 2-bit numbers . The
multiplicand bits are B1 & B0 , the multiplier bits are A1 & A0
and the product is C3,C2,C1,C0 .

4. 2-BIT BY 2-BIT MULTIPLIER CIRCUIT

5. It is a 4-bit multiplier
Takes two four inputs
Each input is 4-bit signed form and gives an 8-bit output
Special Characteristic of Binary multiplier:
Internal carry will not be forwarded to next stage
So,number of outputs obtained here is seven only
4-BIT Binary Multiplier

6. Block Diagram Of 4-Bit Binary Multiplier

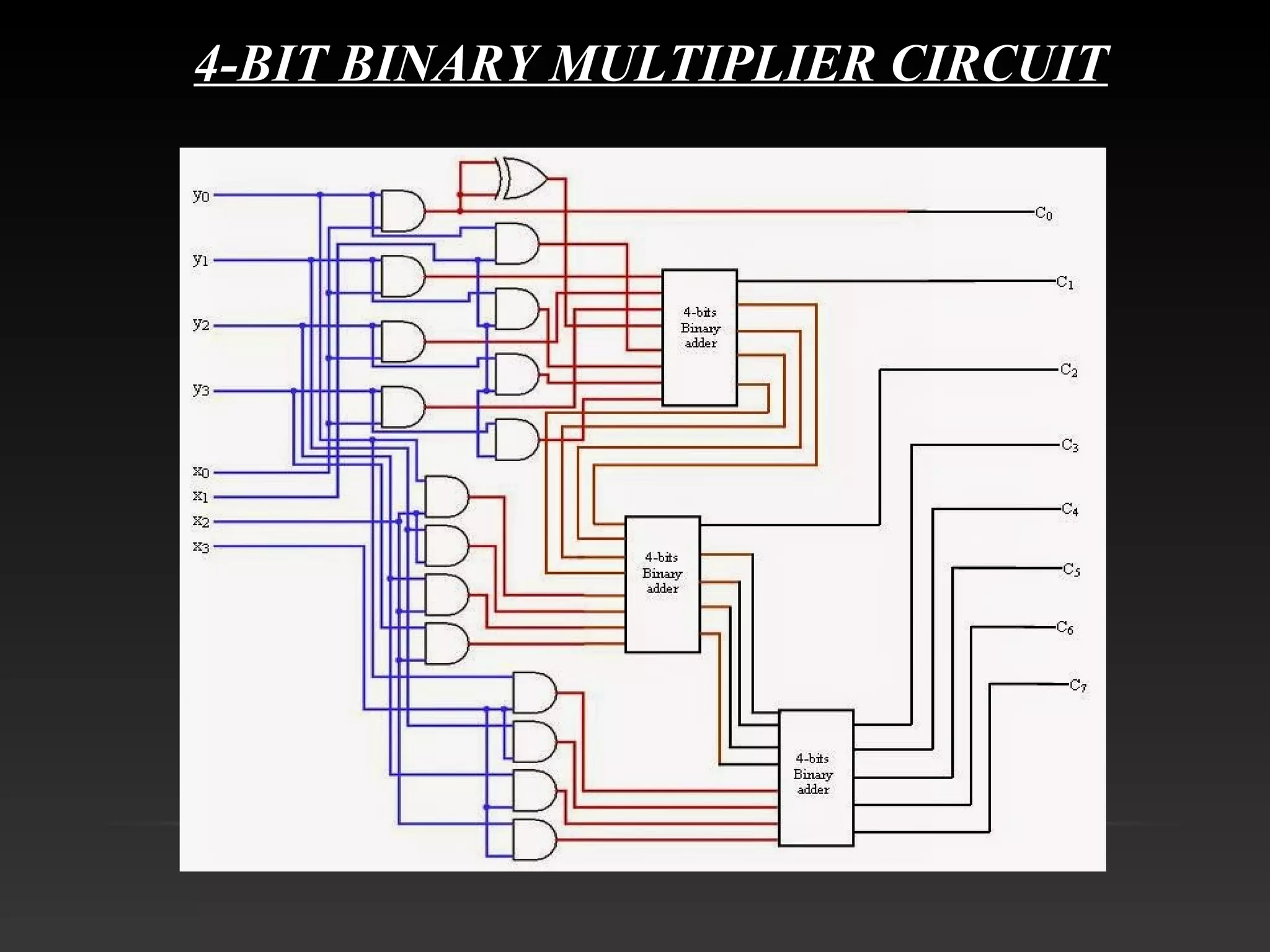

7. 4-BIT BINARY MULTIPLIER CIRCUIT
