Kritis is an open-source solution for securing your software supply chain for Kubernetes applications. Kritis enforces deploy-time security policies that ensures only trusted container images are deployed on kubernetes to your cluster. With Kritis, you can require images to be signed by trusted authorities during the development process and then enforce signature validation when deploying. Kritis enables tighter control over your container environment by ensuring only verified images are integrated into production. Talk outline: - Introduction to the concept of binary authorization - Live demo of using Kritis and Grafeas for deploying images with confidence in Kubernetes - Grafeas and Kritis roadmap At the end, attendees will gain solid understanding on the process of binary authorization and how to incorporate it in their build and deployment pipelines

2. Aysylu Greenberg, Google
Liron Levin, Palo Alto Networks
Binary Authorization in
Kubernetes

3. Who are we
Aysylu Greenberg
Sr Software Engineer @ Google
Eng Lead of open-source Grafeas and Kritis
@aysylu22
Liron Levin
Chief software architect @ Prisma Cloud Compute
Grafeas and Kritis contributor

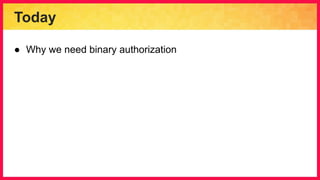

4. Today
● Why we need binary authorization

5. Today
● Why we need binary authorization
● Improve the security posture of your k8s cluster

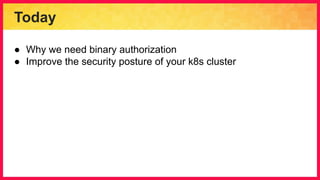

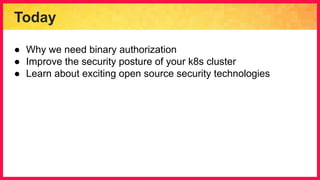

6. Today
● Why we need binary authorization
● Improve the security posture of your k8s cluster
● Learn about exciting open source security technologies

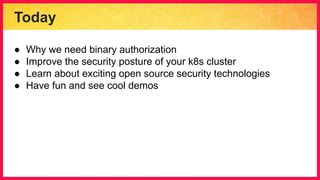

7. Today
● Why we need binary authorization
● Improve the security posture of your k8s cluster
● Learn about exciting open source security technologies
● Have fun and see cool demos

8. Software supply chain
Code

9. Software supply chain
Build &
Test
(CI/CD)
Code

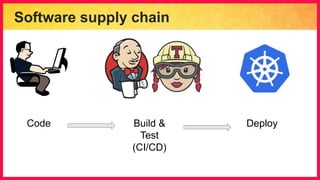

10. Software supply chain
Build &
Test
(CI/CD)
Code Deploy

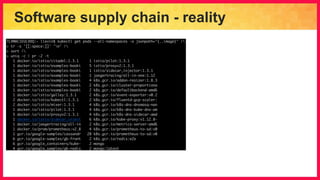

11. Software supply chain - reality

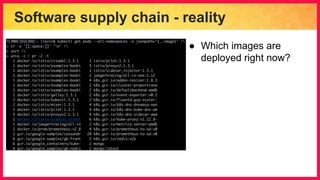

12. Software supply chain - reality
● Which images are
deployed right now?

13. Software supply chain - reality
● Which images are
deployed right now?
● Did all deployed
images pass required
QA tests

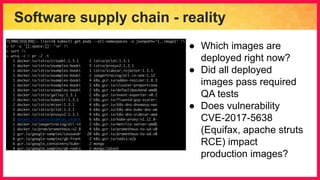

14. Software supply chain - reality
● Which images are
deployed right now?
● Did all deployed
images pass required
QA tests
● Does vulnerability
CVE-2017-5638
(Equifax, apache struts
RCE) impact
production images?

15. Software supply chain
Build &
Test
(CI/CD)
Code Deploy

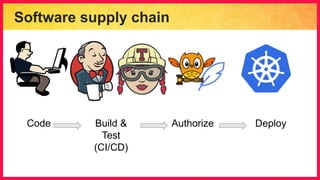

16. Software supply chain
Build &
Test
(CI/CD)
Code DeployAuthorize

17. Binary authorization - use cases
● Require images to be signed by trusted authorities:
○ QA
○ DevOps
○ Security tools
https://github.com/grafeas/kritis/blob/master/docs/binary-authorization.md

18. Binary authorization - use cases
● Require images to be signed by trusted authorities:
○ QA
○ DevOps
○ Security tools
● Require images to pass some restrictive security criteria
(e.g., no critical severity unpatched vulnerabilities)
https://github.com/grafeas/kritis/blob/master/docs/binary-authorization.md

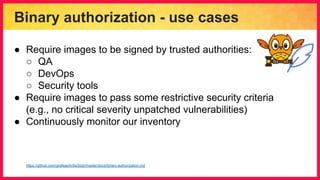

19. Binary authorization - use cases
● Require images to be signed by trusted authorities:
○ QA
○ DevOps
○ Security tools
● Require images to pass some restrictive security criteria
(e.g., no critical severity unpatched vulnerabilities)
● Continuously monitor our inventory
https://github.com/grafeas/kritis/blob/master/docs/binary-authorization.md

20. Open source

21. Open source

22. Open source

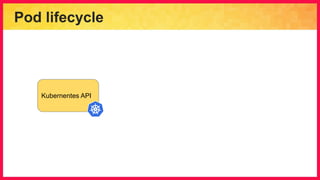

23. Pod lifecycle
Kubernentes API

24. Pod lifecycle
Kubernentes API
Create a pod

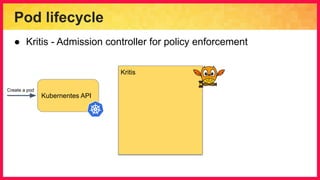

25. Pod lifecycle
● Kritis - Admission controller for policy enforcement
Kubernentes API
Kritis
Create a pod

26. Pod lifecycle
● Kritis - Admission controller for policy enforcement
Kubernentes API
Validation
webhook
Kritis
Create a pod
Validate
pod
Admission webhooks
receive admission
requests and
do something with them.

27. Pod lifecycle
● Kritis - Admission controller for policy enforcement
Kubernentes API
Validation
webhook
Image security
validator
Kritis
Create a pod
Validate
pod

28. Pod lifecycle
● Kritis - Admission controller for policy enforcement
Kubernentes API
Validation
webhook
Image security
validator
Kritis
Fetch policy
(CRD)
Create a pod
Validate
pod

29. Pod lifecycle
● Kritis - Admission controller for policy enforcement
Kubernentes API
Validation
webhook
Image security
validator
Kritis
Fetch policy
(CRD)
Create a pod
Validate
pod
Kritis policy is a CRD.

30. Example policy
apiVersion: kritis.grafeas.io/v1beta1
kind: ImageSecurityPolicy
metadata:
name: my-isp
namespace: default
spec:
attestationAuthorityNames:
- kritis-authority
imageAllowlist:
- gcr.io/my/image
packageVulnerabilityRequirements:
maximumSeverity: HIGH # LOW|MEDIUM|HIGH|CRITICAL|BLOCK_ALL|ALLOW_ALL
maximumFixUnavailableSeverity: ALLOW_ALL #
LOW|MEDIUM|HIGH|CRITICAL|BLOCK_ALL|ALLOW_ALL
allowlistCVEs:
- providers/goog-vulnz/notes/CVE-2017-1000082
- providers/goog-vulnz/notes/CVE-2017-1000081

31. Example policy
apiVersion: kritis.grafeas.io/v1beta1
kind: ImageSecurityPolicy
metadata:
name: my-isp
namespace: default
spec:
attestationAuthorityNames:
- kritis-authority
imageAllowlist:
- gcr.io/my/image
packageVulnerabilityRequirements:
maximumSeverity: HIGH # LOW|MEDIUM|HIGH|CRITICAL|BLOCK_ALL|ALLOW_ALL
maximumFixUnavailableSeverity: ALLOW_ALL #
LOW|MEDIUM|HIGH|CRITICAL|BLOCK_ALL|ALLOW_ALL
allowlistCVEs:
- providers/goog-vulnz/notes/CVE-2017-1000082
- providers/goog-vulnz/notes/CVE-2017-1000081
The Custom Resource
Definition.
Supported values:
ImageSecurityPolicy
GenericAttestationPolicy

32. Example policy
apiVersion: kritis.grafeas.io/v1beta1
kind: ImageSecurityPolicy
metadata:
name: my-isp
namespace: default
spec:
attestationAuthorityNames:
- kritis-authority
imageAllowlist:
- gcr.io/my/image
packageVulnerabilityRequirements:
maximumSeverity: HIGH # LOW|MEDIUM|HIGH|CRITICAL|BLOCK_ALL|ALLOW_ALL
maximumFixUnavailableSeverity: ALLOW_ALL #
LOW|MEDIUM|HIGH|CRITICAL|BLOCK_ALL|ALLOW_ALL
allowlistCVEs:
- providers/goog-vulnz/notes/CVE-2017-1000082
- providers/goog-vulnz/notes/CVE-2017-1000081
Allow deploying images
signed by ‘kritis-authority’
to allow previously
admitted images be
re-admitted on pod restart

33. Example policy
apiVersion: kritis.grafeas.io/v1beta1
kind: ImageSecurityPolicy
metadata:
name: my-isp
namespace: default
spec:
attestationAuthorityNames:
- kritis-authority
imageAllowlist:
- gcr.io/my/image
packageVulnerabilityRequirements:
maximumSeverity: HIGH # LOW|MEDIUM|HIGH|CRITICAL|BLOCK_ALL|ALLOW_ALL
maximumFixUnavailableSeverity: ALLOW_ALL #
LOW|MEDIUM|HIGH|CRITICAL|BLOCK_ALL|ALLOW_ALL
allowlistCVEs:
- providers/goog-vulnz/notes/CVE-2017-1000082
- providers/goog-vulnz/notes/CVE-2017-1000081
Allow specific
external/infrastructure
images

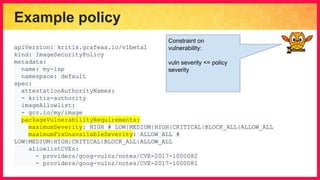

34. Example policy
apiVersion: kritis.grafeas.io/v1beta1
kind: ImageSecurityPolicy
metadata:
name: my-isp
namespace: default
spec:
attestationAuthorityNames:
- kritis-authority
imageAllowlist:
- gcr.io/my/image
packageVulnerabilityRequirements:
maximumSeverity: HIGH # LOW|MEDIUM|HIGH|CRITICAL|BLOCK_ALL|ALLOW_ALL
maximumFixUnavailableSeverity: ALLOW_ALL #
LOW|MEDIUM|HIGH|CRITICAL|BLOCK_ALL|ALLOW_ALL
allowlistCVEs:
- providers/goog-vulnz/notes/CVE-2017-1000082
- providers/goog-vulnz/notes/CVE-2017-1000081
Constraint on
vulnerability:
vuln severity <= policy
severity

35. Example policy
apiVersion: kritis.grafeas.io/v1beta1
kind: ImageSecurityPolicy
metadata:
name: my-isp
namespace: default
spec:
attestationAuthorityNames:
- kritis-authority
imageAllowlist:
- gcr.io/my/image
packageVulnerabilityRequirements:
maximumSeverity: HIGH # LOW|MEDIUM|HIGH|CRITICAL|BLOCK_ALL|ALLOW_ALL
maximumFixUnavailableSeverity: ALLOW_ALL #
LOW|MEDIUM|HIGH|CRITICAL|BLOCK_ALL|ALLOW_ALL
allowlistCVEs:
- providers/goog-vulnz/notes/CVE-2017-1000082
- providers/goog-vulnz/notes/CVE-2017-1000081
Carefully whitelist specific
vulnerabilities

36. Pod lifecycle
Kubernentes API
Validation
webhook
Image security
validator
Kritis
Fetch policy
(CRD)
Create a pod
Validate
pod

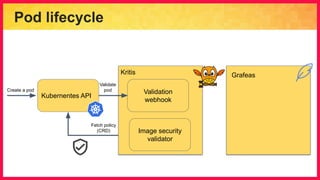

37. Pod lifecycle
Kubernentes API
Validation
webhook
Image security
validator
Kritis
Fetch policy
(CRD)
Create a pod
Validate
pod
Grafeas

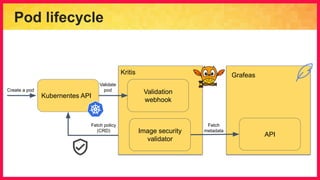

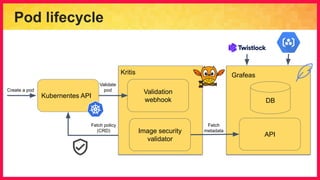

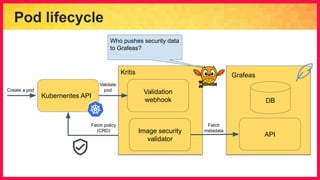

38. Pod lifecycle
Kubernentes API
Validation
webhook
Image security
validator
Kritis
Fetch policy
(CRD)
Create a pod
Validate
pod
Grafeas
Uniform way to audit your
software supply chain

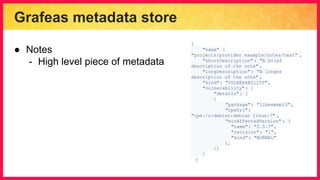

39. Grafeas metadata store
● Notes
- High level piece of metadata
{
"name" :
"projects/provider_example/notes/test" ,
"shortDescription" : "A brief
description of the note" ,
"longDescription" : "A longer
description of the note" ,
"kind": "VULNERABILITY" ,
"vulnerability" : {
"details": [
{
"package": "libexempi3",
"cpeUri":
"cpe:/o:debian:debian_linux:7" ,
"minAffectedVersion" : {
"name": "2.5.7",
"revision": "1",
"kind": "NORMAL"
},
}]
}
}

40. Grafeas metadata store
{
"name" :
"projects/provider_example/notes/test" ,
"shortDescription" : "A brief
description of the note" ,
"longDescription" : "A longer
description of the note" ,
"kind": "VULNERABILITY" ,
"vulnerability" : {
"details": [
{
"package": "libexempi3",
"cpeUri":
"cpe:/o:debian:debian_linux:7" ,
"minAffectedVersion" : {
"name": "2.5.7",
"revision": "1",
"kind": "NORMAL"
},
}]
}
}
● Notes
- High level piece of metadata
- Vulnerability: CVE description

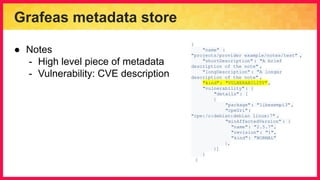

41. Grafeas metadata store
{
"name" :
"projects/provider_example/notes/test" ,
"shortDescription" : "A brief
description of the note" ,
"longDescription" : "A longer
description of the note" ,
"kind": "VULNERABILITY" ,
"vulnerability" : {
"details": [
{
"package": "libexempi3",
"cpeUri":
"cpe:/o:debian:debian_linux:7" ,
"minAffectedVersion" : {
"name": "2.5.7",
"revision": "1",
"kind": "NORMAL"
},
}]
}
}
● Notes
- High level piece of metadata
- Vulnerability: CVE description
& details

42. Grafeas metadata store
{
"name" :
"projects/provider_example/notes/test" ,
"shortDescription" : "A brief
description of the note" ,
"longDescription" : "A longer
description of the note" ,
"kind": "VULNERABILITY" ,
"vulnerability" : {
"details": [
{
"package": "libexempi3",
"cpeUri":
"cpe:/o:debian:debian_linux:7" ,
"minAffectedVersion" : {
"name": "2.5.7",
"revision": "1",
"kind": "NORMAL"
},
}]
}
}
● Notes
- High level piece of metadata
- Vulnerability: CVE description
& details

43. Grafeas metadata store
{
"name":
"projects/image-signing/notes/product
ion",
"shortDescription": "Production
image signer",
"longDescription": "Production
image signer",
"kind": "ATTESTATION_AUTHORITY" ,
"attestationAuthority": {
"hint": {
"humanReadableName":
"production"
}
}
}
● Notes
- High level piece of metadata
- Vulnerability: CVE description
& details
- Attestation: attestation authority

44. Grafeas metadata store
{
"name" :
"projects/provider_example/notes/test" ,
"shortDescription" : "A brief
description of the note" ,
"longDescription" : "A longer
description of the note" ,
"kind": "VULNERABILITY" ,
"vulnerability" : {
"details": [
{
"package": "libexempi3",
"cpeUri":
"cpe:/o:debian:debian_linux:7" ,
"minAffectedVersion" : {
"name": "2.5.7",
"revision": "1",
"kind": "NORMAL"
},
}]
}
}
● Notes
- High level piece of metadata
- Vulnerability: CVE description
& details
- Attestation: attestation authority
- Deployment
- Build history
- And more!

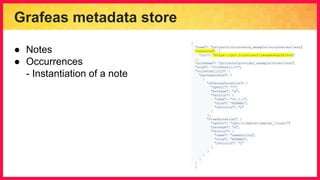

45. Grafeas metadata store
● Notes
● Occurrences
- Instantiation of a note
{
"name": "projects/occurrence_example/occurrences/test",
"resource": {
"uri": "https://gcr.io/project/image@sha256:foo",
},
"noteName": "projects/provider_example/notes/test",
"kind": "VULNERABILITY",
"vulnerability": {
"packageIssue": [
{
"affectedLocation": {
"cpeUri": "7",
"package": "a",
"version": {
"name": "v1.1.1",
"kind": "NORMAL",
"revision": "r"
}
},
"fixedLocation": {
"cpeUri": "cpe:/o:debian:debian_linux:7",
"package": "a",
"version": {
"name": "namestring",
"kind": "NORMAL",
"revision": "1"
}
}
}
]
}
}

46. Grafeas metadata store
{
"name": "projects/occurrence_example/occurrences/test",
"resource": {
"uri": "https://gcr.io/project/image@sha256:foo",
},
"noteName": "projects/provider_example/notes/test",
"kind": "VULNERABILITY",
"vulnerability": {
"packageIssue": [
{
"affectedLocation": {
"cpeUri": "7",
"package": "a",
"version": {
"name": "v1.1.1",
"kind": "NORMAL",
"revision": "r"
}
},
"fixedLocation": {
"cpeUri": "cpe:/o:debian:debian_linux:7",
"package": "a",
"version": {
"name": "namestring",
"kind": "NORMAL",
"revision": "1"
}
}
}
]
}
}
● Notes
● Occurrences
- Instantiation of a note

47. Grafeas metadata store
{
"name": "projects/occurrence_example/occurrences/test",
"resource": {
"uri": "https://gcr.io/project/image@sha256:foo",
},
"noteName": "projects/provider_example/notes/test",
"kind": "VULNERABILITY",
"vulnerability": {
"packageIssue": [
{
"affectedLocation": {
"cpeUri": "7",
"package": "a",
"version": {
"name": "v1.1.1",
"kind": "NORMAL",
"revision": "r"
}
},
"fixedLocation": {
"cpeUri": "cpe:/o:debian:debian_linux:7",
"package": "a",
"version": {
"name": "namestring",
"kind": "NORMAL",
"revision": "1"
}
}
}
]
}
}
● Notes
● Occurrences
- Instantiation of a note

48. Grafeas metadata store
{
"name": "projects/occurrence_example/occurrences/test",
"resource": {
"uri": "https://gcr.io/project/image@sha256:foo",
},
"noteName": "projects/provider_example/notes/test",
"kind": "VULNERABILITY",
"vulnerability": {
"packageIssue": [
{
"affectedLocation": {
"cpeUri": "7",
"package": "a",
"version": {
"name": "v1.1.1",
"kind": "NORMAL",
"revision": "r"
}
},
"fixedLocation": {
"cpeUri": "cpe:/o:debian:debian_linux:7",
"package": "a",
"version": {
"name": "namestring",
"kind": "NORMAL",
"revision": "1"
}
}
}
]
}
}
● Notes
● Occurrences
- Instantiation of a note
- Package where vulnerability was
found

49. Grafeas metadata store
{
"name": "projects/occurrence_example/occurrences/test",
"resource": {
"uri": "https://gcr.io/project/image@sha256:foo",
},
"noteName": "projects/provider_example/notes/test",
"kind": "VULNERABILITY",
"vulnerability": {
"packageIssue": [
{
"affectedLocation": {
"cpeUri": "7",
"package": "a",
"version": {
"name": "v1.1.1",
"kind": "NORMAL",
"revision": "r"
}
},
"fixedLocation": {
"cpeUri": "cpe:/o:debian:debian_linux:7",
"package": "a",
"version": {
"name": "namestring",
"kind": "NORMAL",
"revision": "1"
}
}
}
]
}
}
● Notes
● Occurrences
- Instantiation of a note
- Package where vulnerability was
found
- Remediation

50. Pod lifecycle
Kubernentes API
Validation
webhook
Image security
validator
Kritis
Fetch policy
(CRD)
Create a pod
Validate
pod
Grafeas
Image security
validator
Fetch
metadata
API

51. Pod lifecycle
Kubernentes API
Validation
webhook
Image security
validator
Kritis
Fetch policy
(CRD)
Create a pod
Validate
pod
Grafeas
Image security
validator
Fetch
metadata
API
DB

52. Pod lifecycle
Kubernentes API
Validation
webhook
Image security
validator
Kritis
Fetch policy
(CRD)
Create a pod
Validate
pod
Grafeas
Image security
validator
Fetch
metadata
API
DB
Who pushes security data
to Grafeas?

53. Pod lifecycle
Kubernentes API
Validation
webhook
Image security
validator
Kritis
Fetch policy
(CRD)
Create a pod
Validate
pod
Grafeas
Image security
validator
Fetch
metadata
API
DB

54. Demo
https://github.com/grafeas/kritis/tree/master/docs/st
andalone

55. Roadmap
● Grafeas

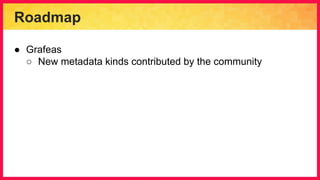

56. Roadmap
● Grafeas
○ New metadata kinds contributed by the community

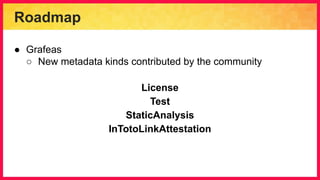

57. Roadmap
● Grafeas
○ New metadata kinds contributed by the community
License
Test
StaticAnalysis
InTotoLinkAttestation

58. Roadmap
● Grafeas
○ New metadata kinds contributed by the community
○ Server v1.0

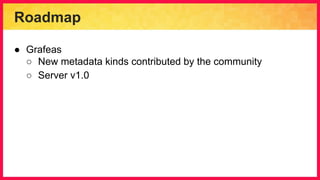

59. Roadmap
● Grafeas
○ New metadata kinds contributed by the community
○ Server v1.0
○ Move towards larger community ownership

60. Roadmap
● Grafeas
○ New metadata kinds contributed by the community
○ Server v1.0
○ Move towards larger community ownership
■ Designate client owners for each language

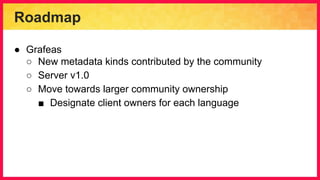

61. Roadmap
● Grafeas
○ New metadata kinds contributed by the community
○ Server v1.0
○ Move towards larger community ownership
■ Designate client owners for each language
■ Maintenance of the reference server v1.0

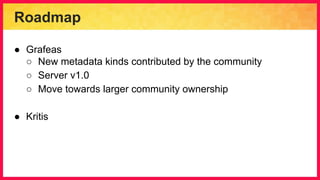

62. Roadmap
● Grafeas
○ New metadata kinds contributed by the community
○ Server v1.0
○ Move towards larger community ownership
● Kritis

63. Roadmap
● Grafeas
○ New metadata kinds contributed by the community
○ Server v1.0
○ Move towards larger community ownership
● Kritis
○ Production-ready, high-availability Kritis

64. Roadmap
● Grafeas
○ New metadata kinds contributed by the community
○ Server v1.0
○ Move towards larger community ownership
● Kritis
○ Production-ready, high-availability Kritis
○ Interoperability between BinAuthz and Kritis

65. Roadmap
● Grafeas
○ New metadata kinds contributed by the community
○ Server v1.0
○ Move towards larger community ownership
● Kritis
○ Production-ready, high-availability Kritis
○ Interoperability between BinAuthz and Kritis
○ More expressive policies based on stored metadata

66. References
● Deploy standalone Kritis + Grafeas in GKE
● Grafeas: github.com/grafeas/grafeas
● Kritis github repo: github.com/grafeas/kritis
● Mailing lists @googlegroups.com:
○ grafeas-users
○ grafeas-dev
○ kritis-users
● @Grafeasio
