Bigtable is a distributed storage system developed at Google to manage large amounts of structured data across thousands of servers. It provides a flexible data model with rows and columns that can be queried and modified in real time. Bigtable was designed as Google needed a system that could scale enormously without compromising performance. It has been successfully used in many Google products and services that require high performance on very large datasets, such as web search indexing, Google Maps, and Google Analytics.

1. Bigtable: A Distributed Storage System
Presenter: Ku. Devyani B.Vaidya

2. Dec 8th , 2011Dec 8th , 2011
Bigtable: A Distributed Storage System
1. Introduction
2. What is a Bigtable?
3. Why not A DBMS?
4. Data model: Row
Column
Timestamps
5. APIs
6. Building Blocks
8. Conclusion
7.Real Applications

3. Dec 8th , 2011Dec 8th , 2011
Introduction
• BigTable is a distributed storage system
for managing structured data.
• Designed to scale to a very large size
- Petabytes of data across thousands of
servers
• Used for many Google projects
- Web indexing, Personalized Search, Google
Earth, Google Analytics, Google Finance, …
• Flexible, high-performance solution for
all of Google’s products

4. Dec 8th , 2011Dec 8th , 2011

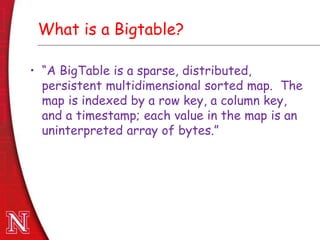

What is a Bigtable?
• “A BigTable is a sparse, distributed,
persistent multidimensional sorted map. The
map is indexed by a row key, a column key,
and a timestamp; each value in the map is an
uninterpreted array of bytes.”

5. Dec 8th , 2011Dec 8th , 2011
Why not A DBMS?
• Few DBMS’s support the requisite scale
– Required DB with wide scalability, wide
applicability, high performance and high
availability
• Couldn’t afford it if there was one
– Most DBMSs require very expensive
infrastructure
• DBMSs provide more than Google needs
– E.g., full transactions, SQL
• Google has highly optimized lower-level systems
that could be exploited
– GFS, Chubby, MapReduce, Job scheduling

6. Dec 8th , 2011Dec 8th , 2011
Data model: Row
• Row keys are arbitrary strings
• Row is the unit of transactional consistency
• Data is maintained in lexicographic order by row
key
• Rows with consecutive keys (Row Range) are
grouped together as “tablets”.

7. Dec 8th , 2011Dec 8th , 2011
Data model: Column
• Column keys are grouped into sets called “column
families”, which form the unit of access control.
• Column key is named using the following syntax:
family :qualifier
• Access control and disk/memory accounting are
performed at column family level

8. Dec 8th , 2011Dec 8th , 2011
Data model: timestamps
• Each cell in Bigtable can contain multiple versions
of data, each indexed by timestamp
• Timestamps are 64-bit integers
• Assigned by:
– Bigtable
– Client application
• Data is stored in decreasing timestamp order, so
that most recent data is easily accessed
– Application specifies how many versions (n) of data items
are maintained in a cell
- Bigtable garbage-collects cell versions automatically.

9. Dec 8th , 2011Dec 8th , 2011
Data Model
Example: Web Indexing

10. Dec 8th , 2011Dec 8th , 2011
Data Model

11. Dec 8th , 2011Dec 8th , 2011
Data Model
Row

12. Dec 8th , 2011Dec 8th , 2011
Data Model
Columns

13. Dec 8th , 2011Dec 8th , 2011

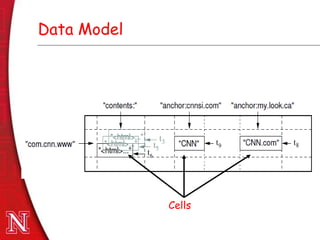

Data Model
Cells

14. Dec 8th , 2011Dec 8th , 2011
Data Model
timestamps

15. Dec 8th , 2011Dec 8th , 2011
Data Model
Column family

16. Dec 8th , 2011Dec 8th , 2011
Data Model
Column family
family: qualifier

17. Dec 8th , 2011Dec 8th , 2011

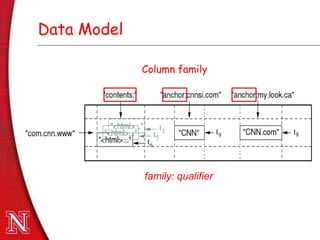

Data Model
Column family
family: qualifier

18. Dec 8th , 2011Dec 8th , 2011
APIs
•The Bigtable API provides functions :
- Creating and deleting tables and column families.
-Changing cluster , table and column family
metadata.
-Support for single row transactions
-Allows cells to be used as integer counters

19. Dec 8th , 2011Dec 8th , 2011
Building Blocks
. Bigtable uses the distributed Google File
System (GFS) to store log and data files
• The Google SSTable file format is used
internally to store Bigtable data
• An SSTable provides a persistent , ordered
immutable map from keys to values

20. Dec 8th , 2011Dec 8th , 2011

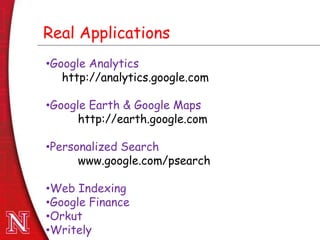

Real Applications
•Google Analytics
http://analytics.google.com
•Google Earth & Google Maps
http://earth.google.com
•Personalized Search
www.google.com/psearch
•Web Indexing
•Google Finance
•Orkut
•Writely

21. Dec 8th , 2011Dec 8th , 2011

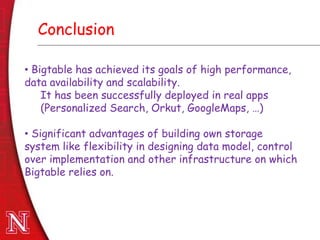

Conclusion
• Bigtable has achieved its goals of high performance,
data availability and scalability.
It has been successfully deployed in real apps
(Personalized Search, Orkut, GoogleMaps, …)
• Significant advantages of building own storage
system like flexibility in designing data model, control
over implementation and other infrastructure on which
Bigtable relies on.

22. Dec 8th , 2011Dec 8th , 2011
Source
1. www.google.com
2. www.studymafia.org

23. Dec 8th , 2011
©2007 The Board of Regents of the University of Nebraska. All rights reserved.
Thanks
