1. Big Data with Semantics
Alex Miller
@puredanger
picture: http://bit.ly/MLUIon

2. Hadoop for Data Integration
• Companies are flocking
to Hadoop right now,
mostly for ETL/analysis
• Starting to also use it for data integration
• Traditionally the domain of data
warehouses
2

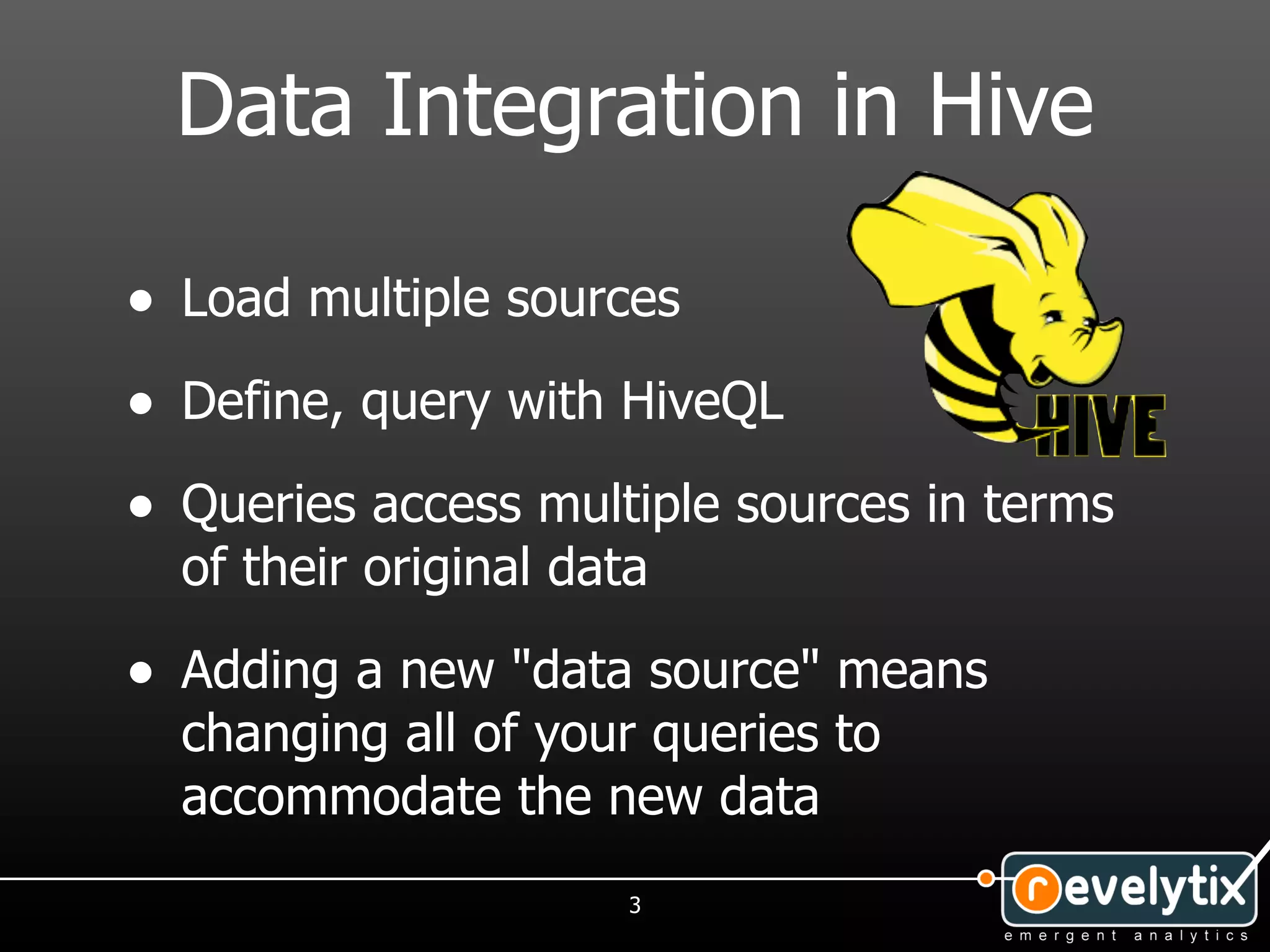

3. Data Integration in Hive
• Load multiple sources
• Define, query with HiveQL
• Queries access multiple sources in terms
of their original data
• Adding a new "data source" means
changing all of your queries to
accommodate the new data
3

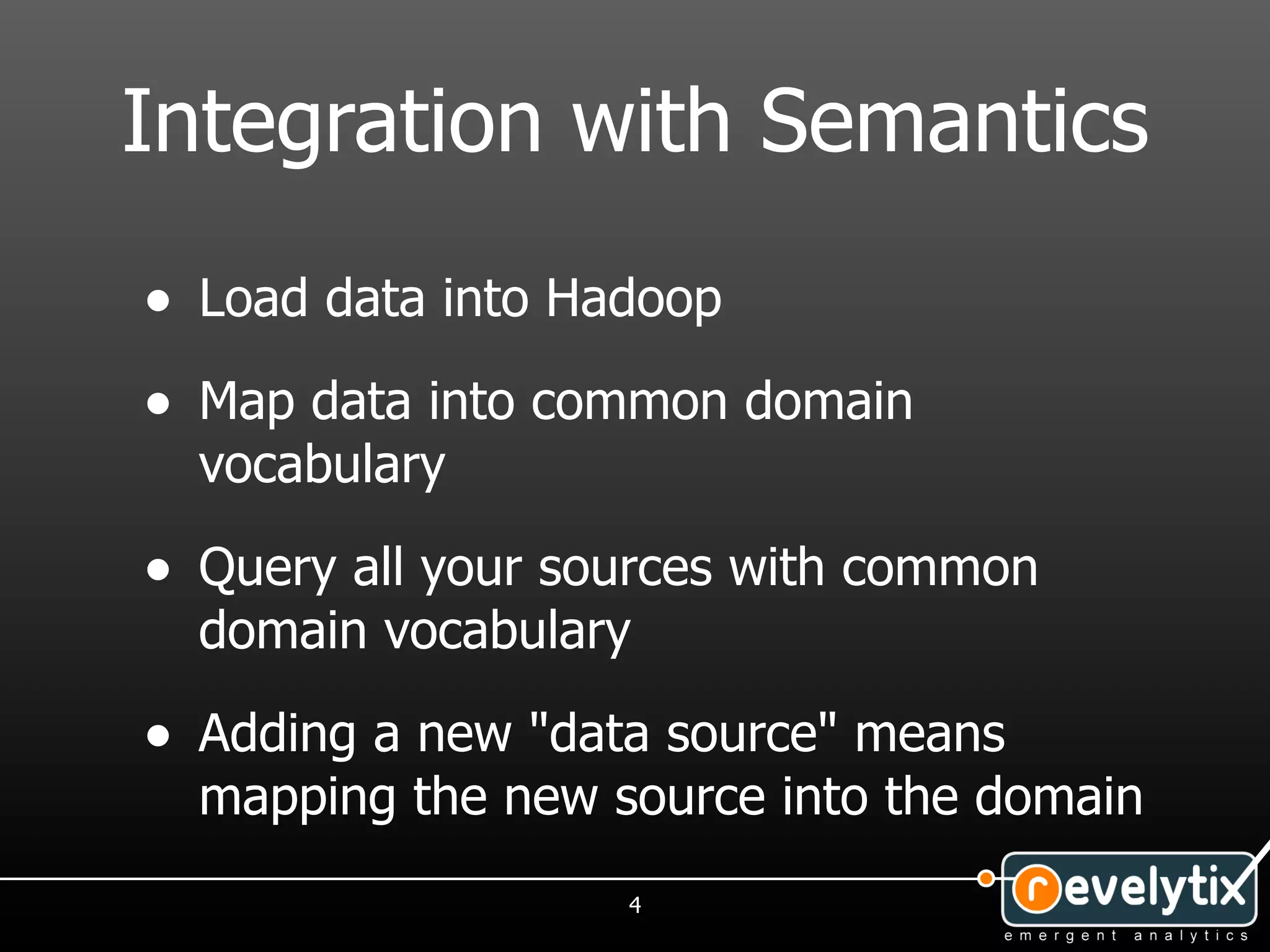

4. Integration with Semantics
• Load data into Hadoop
• Map data into common domain
vocabulary
• Query all your sources with common
domain vocabulary
• Adding a new "data source" means
mapping the new source into the domain
4

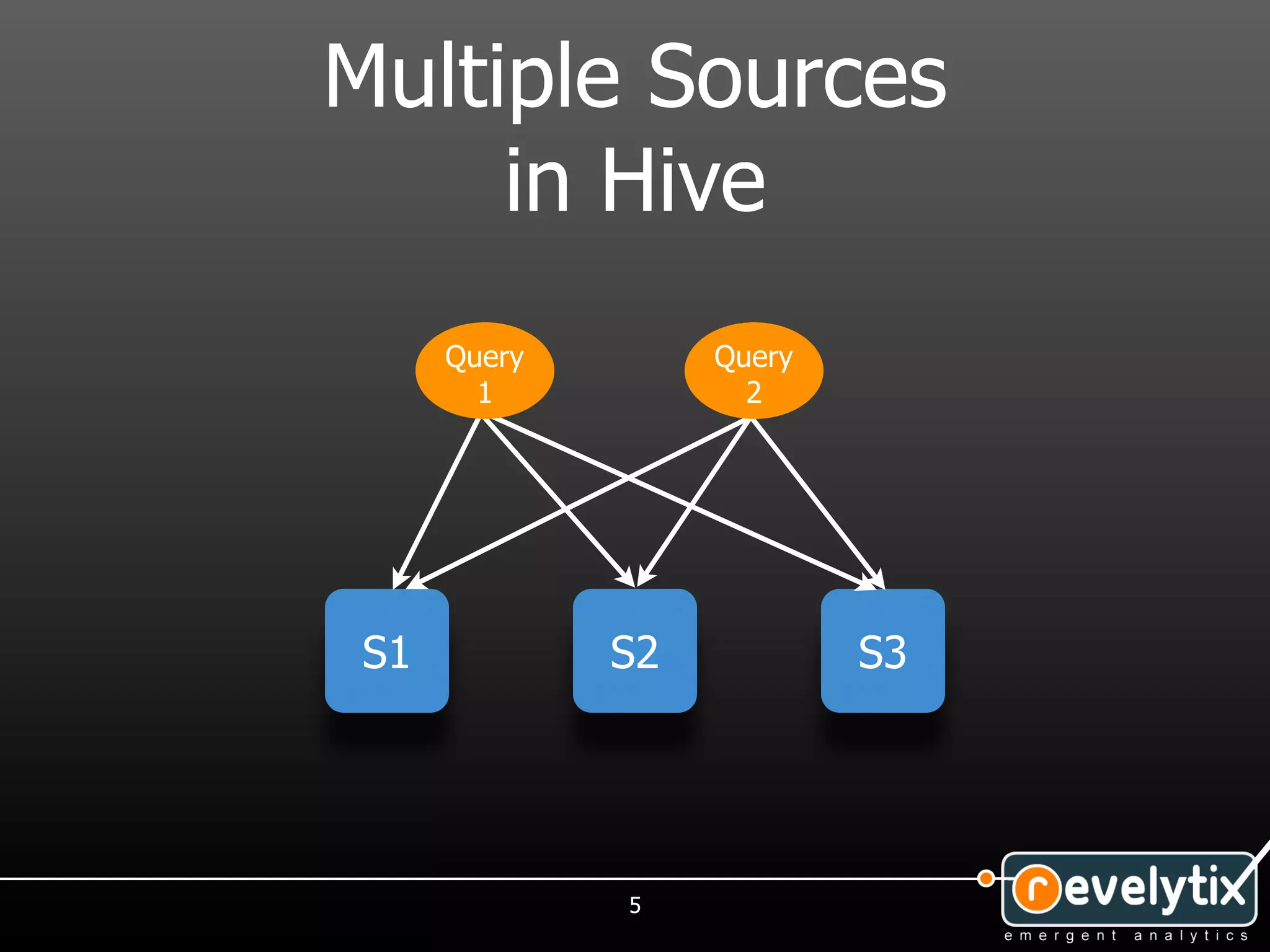

5. Multiple Sources
in Hive
Query Query
1 2
S1 S2 S3
5

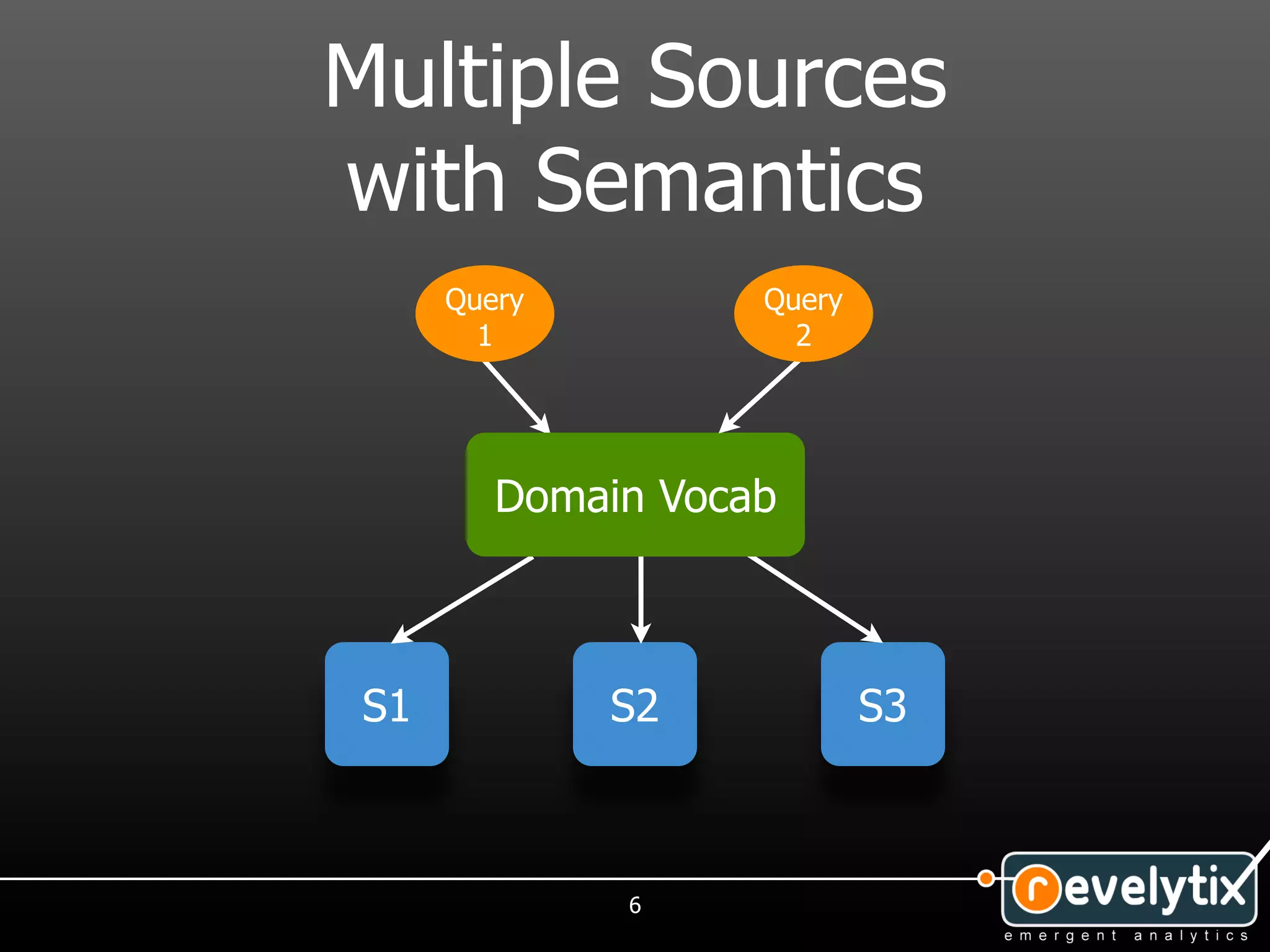

6. Multiple Sources
with Semantics
Query Query
1 2
Domain Vocab
S1 S2 S3
6

7. Key Technologies
• RDF - data model
• RDFS - schema definition
• SPARQL - query language
• R2RML - relational to RDF mapping
7

8. RDF
"Resource Description Framework"
8

9. There are things we wish
to describe.
9

10. We need some way to
identify each thing.
10

11. A URI is abo ut
"identifying" things,
not
"locating" things (a
URL).
On the web, we identify
things with a URI.
11

12. dbp:Chicago_(band)
dbp:Wrigley_Field
dbp:The_Blues_Brothers_(film)
dbp:Chicago
dbp:Chicago_Cubs dbp:Barack_Obama
dbp:Pizza
dbp: http://dbpedia.org/resource/
12

13. Things are more
interesting if we relate
them.
Relationships are also
described by a URI.
13

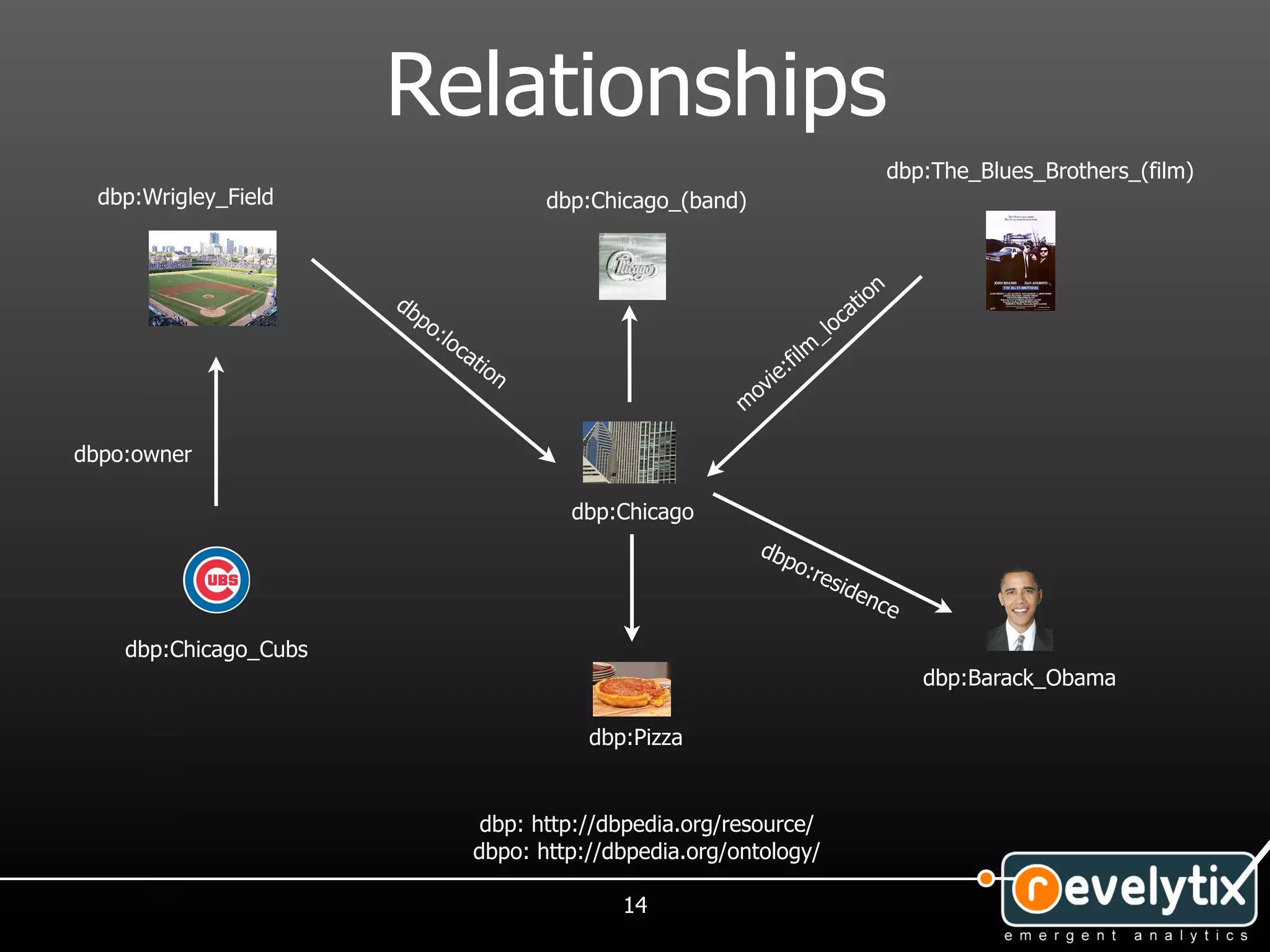

14. Relationships
dbp:The_Blues_Brothers_(film)
dbp:Wrigley_Field dbp:Chicago_(band)
n
db tio
po oca
:lo
c _l
m
at
ion :fil
ie
ov
m
dbpo:owner
dbp:Chicago
dbp
o:r
e si
den
c e
dbp:Chicago_Cubs
dbp:Barack_Obama
dbp:Pizza
dbp: http://dbpedia.org/resource/
dbpo: http://dbpedia.org/ontology/
14

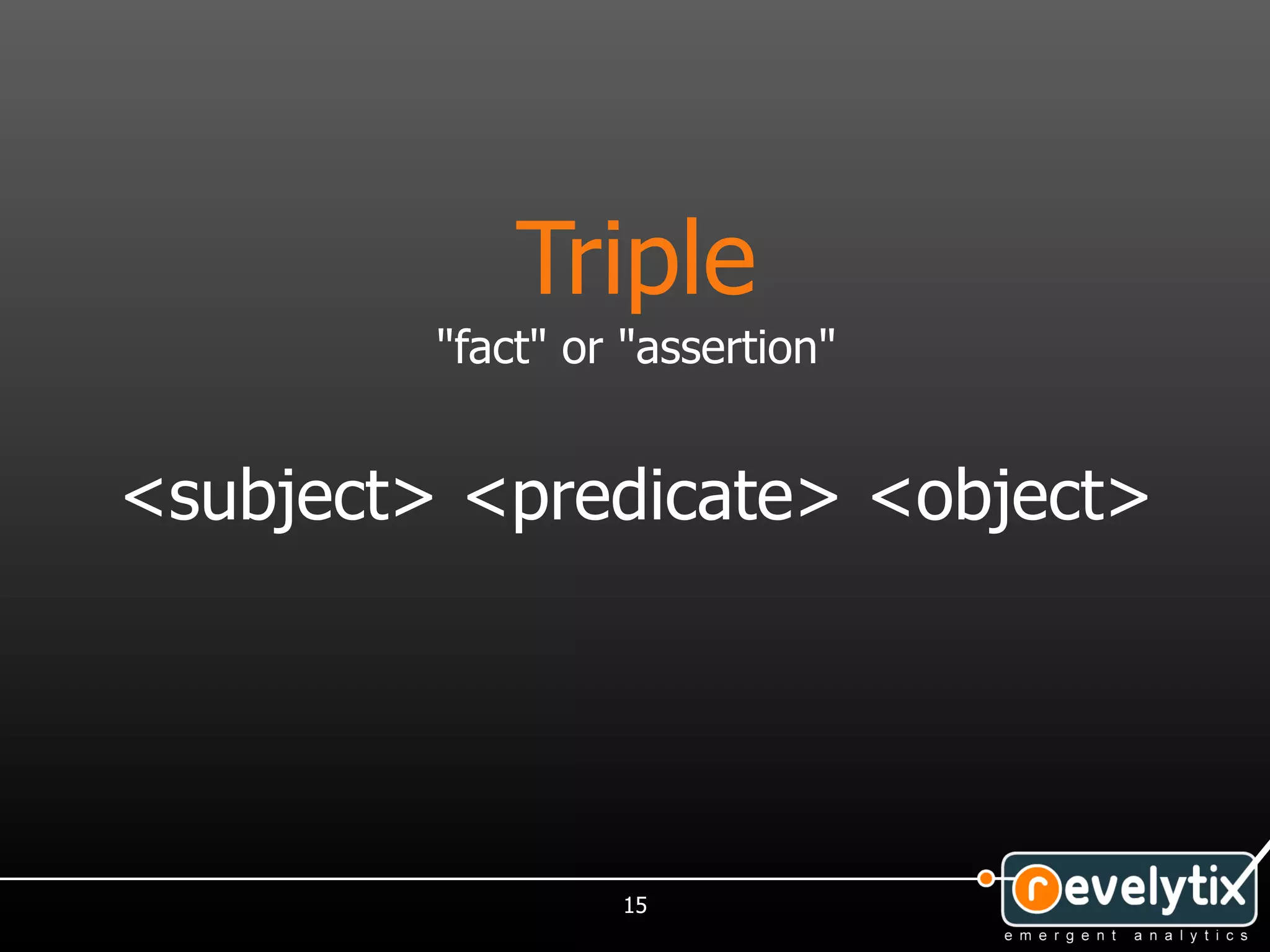

15. Triple
"fact" or "assertion"
<subject> <predicate> <object>
15

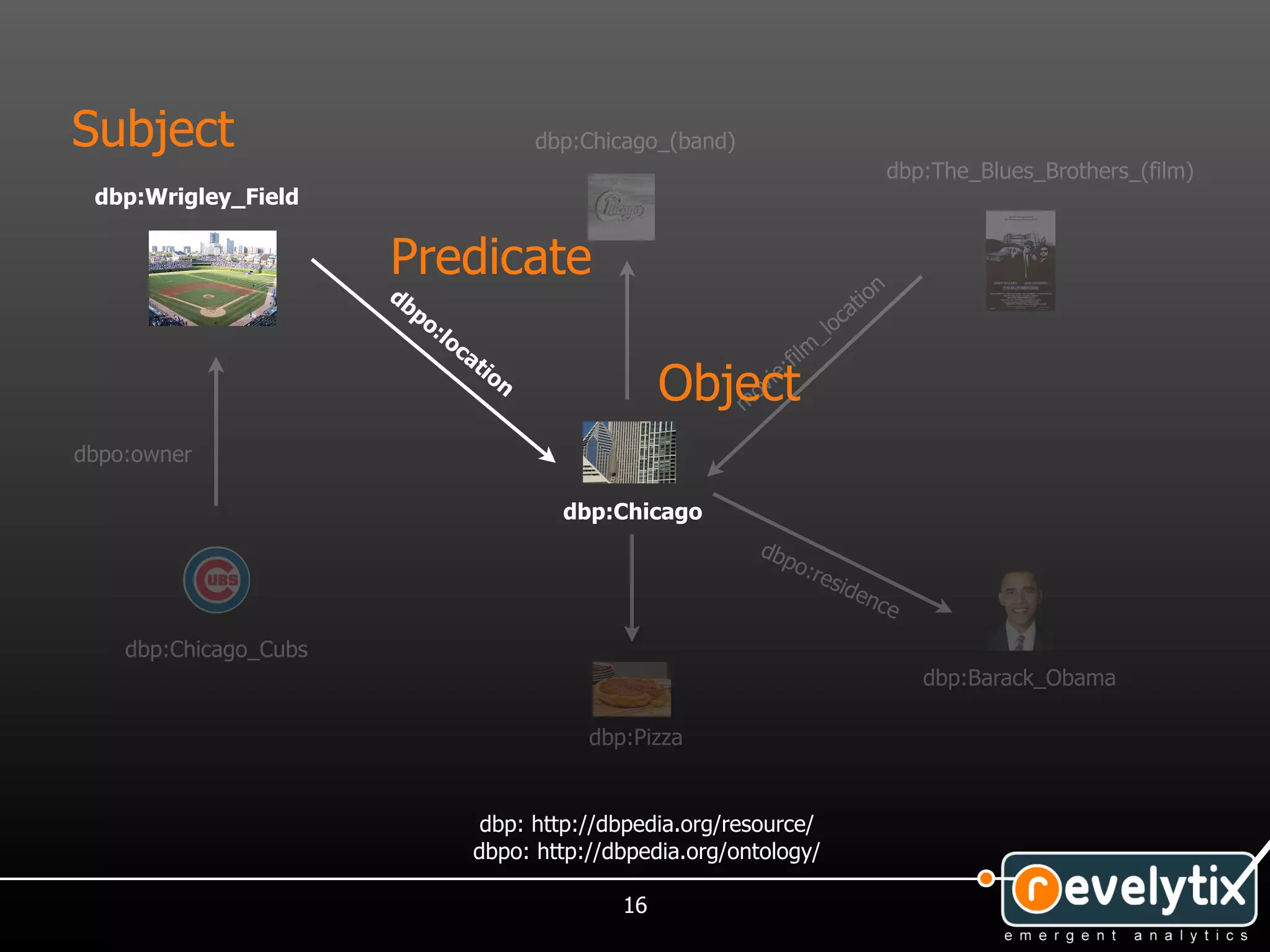

16. Subject dbp:Chicago_(band)
dbp:The_Blues_Brothers_(film)
dbp:Wrigley_Field
Predicate n
db tio
po ca
:lo o
ca _l
m
tio fil
Object
:
n ie
ov
m
dbpo:owner
dbp:Chicago
dbp
o:r
e si
den
c e
dbp:Chicago_Cubs
dbp:Barack_Obama
dbp:Pizza
dbp: http://dbpedia.org/resource/
dbpo: http://dbpedia.org/ontology/
16

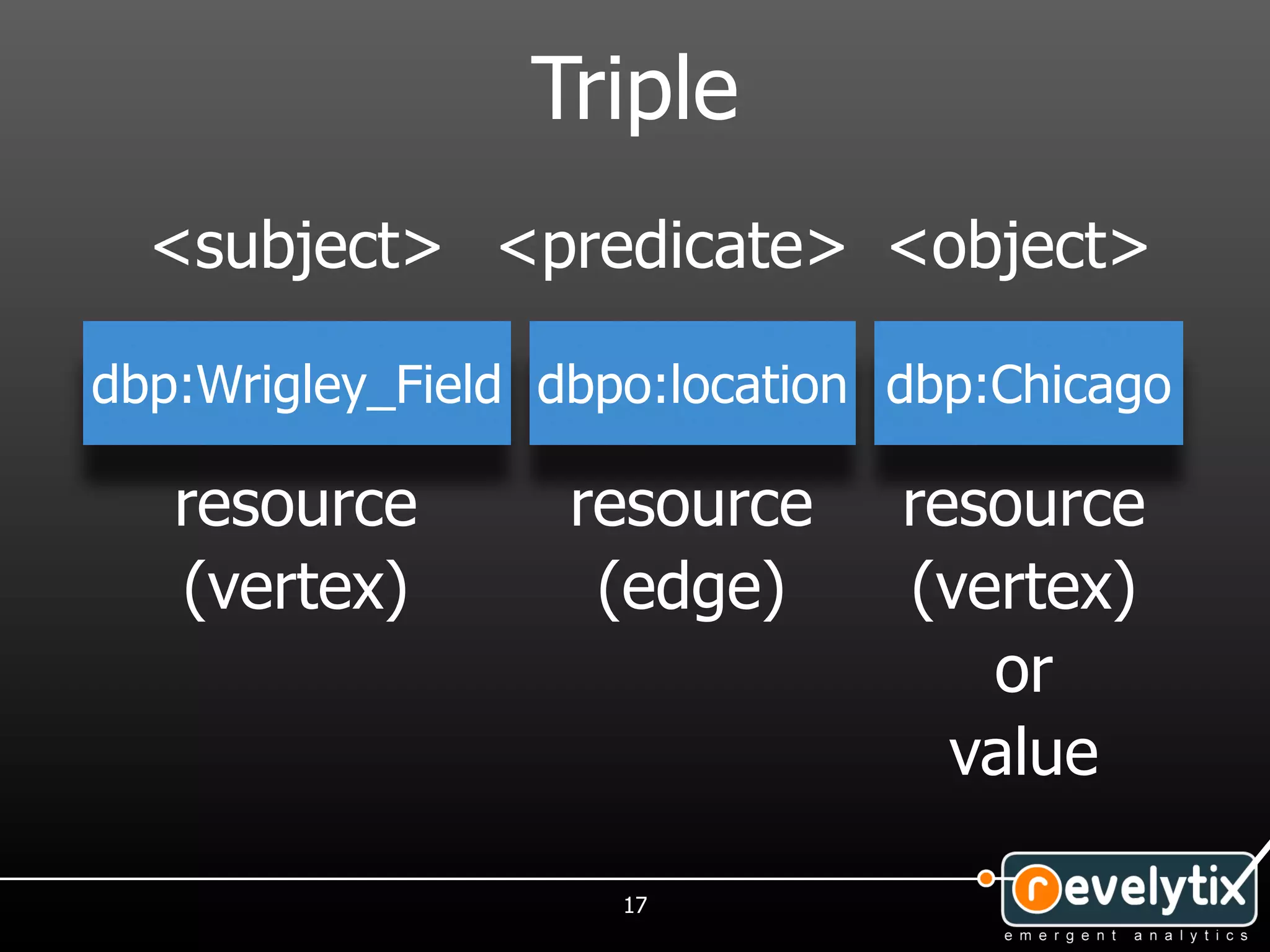

17. Triple
<subject> <predicate> <object>
dbp:Wrigley_Field dbpo:location dbp:Chicago
resource resource resource
(vertex) (edge) (vertex)
or
value
17

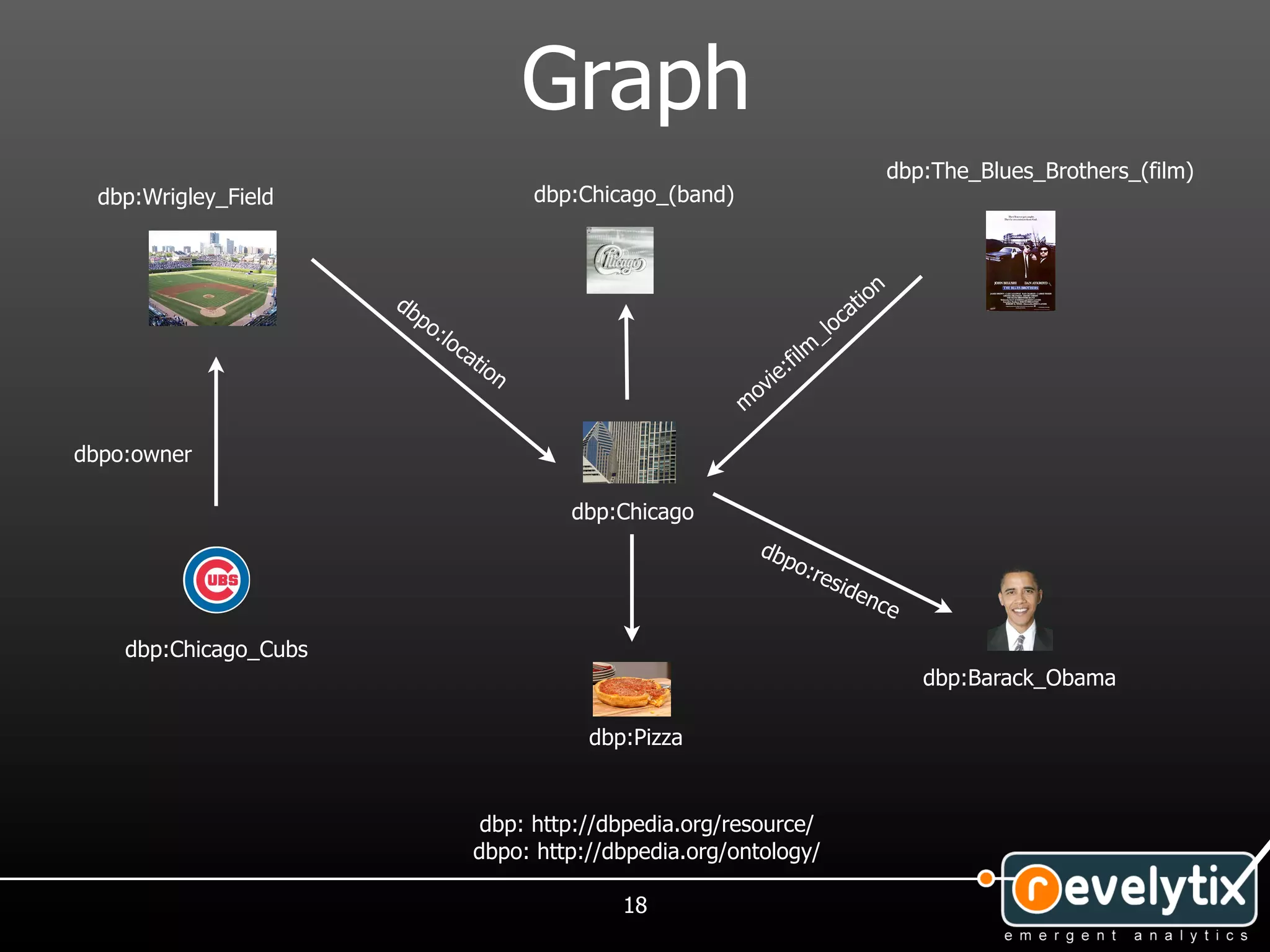

18. Graph
dbp:The_Blues_Brothers_(film)
dbp:Wrigley_Field dbp:Chicago_(band)
n
db tio
po oca
:lo
c _l
m
at
ion :fil
ie
ov
m
dbpo:owner
dbp:Chicago
dbp
o:r
e si
den
c e
dbp:Chicago_Cubs
dbp:Barack_Obama
dbp:Pizza
dbp: http://dbpedia.org/resource/
dbpo: http://dbpedia.org/ontology/
18

19. If things and relationships
can be defined by any
URI, how do we know
what we're talking about?
19

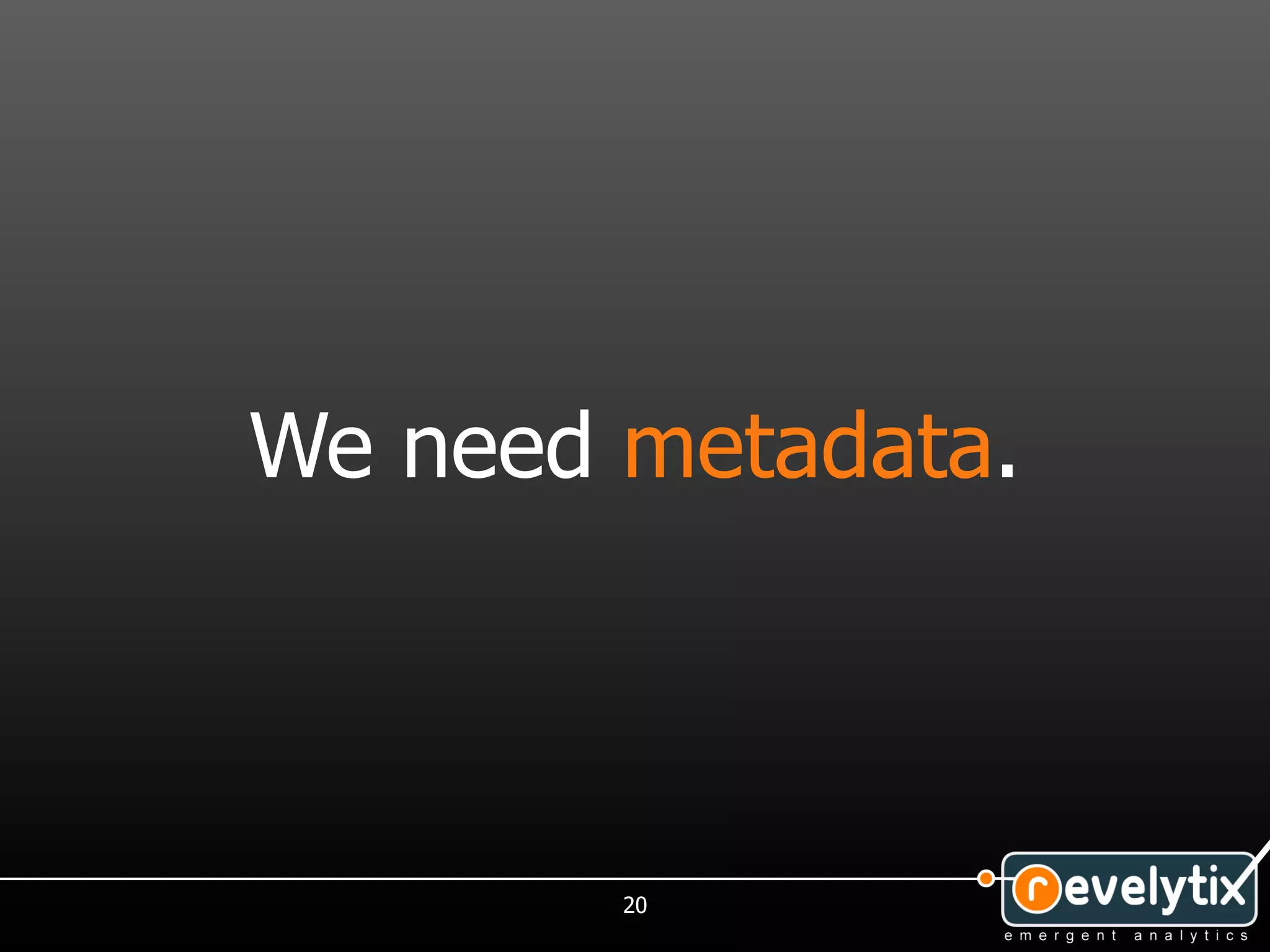

20. We need metadata.
20

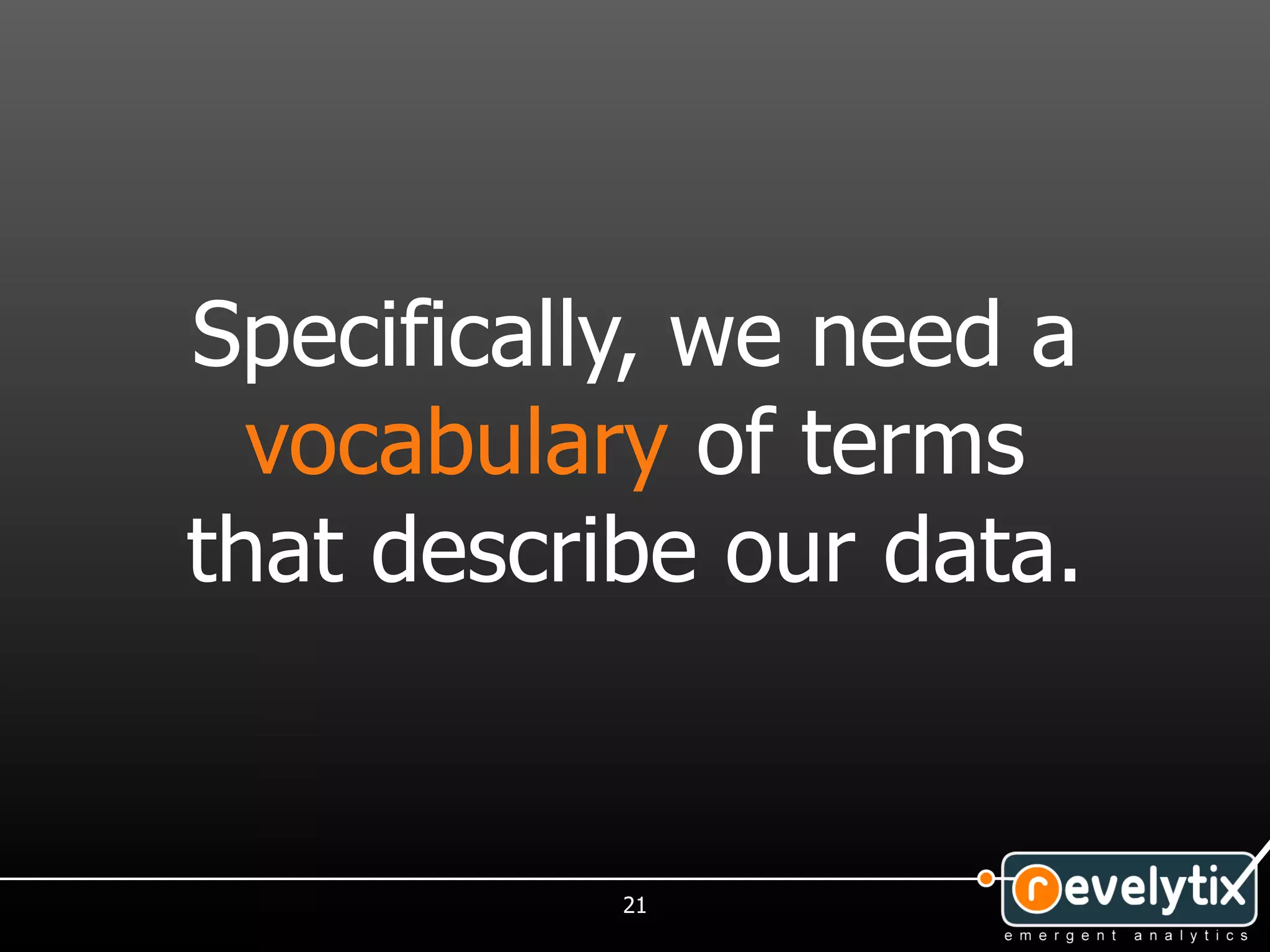

21. Specifically, we need a
vocabulary of terms
that describe our data.
21

22. A class describes a
group of things that
share common
properties.
22

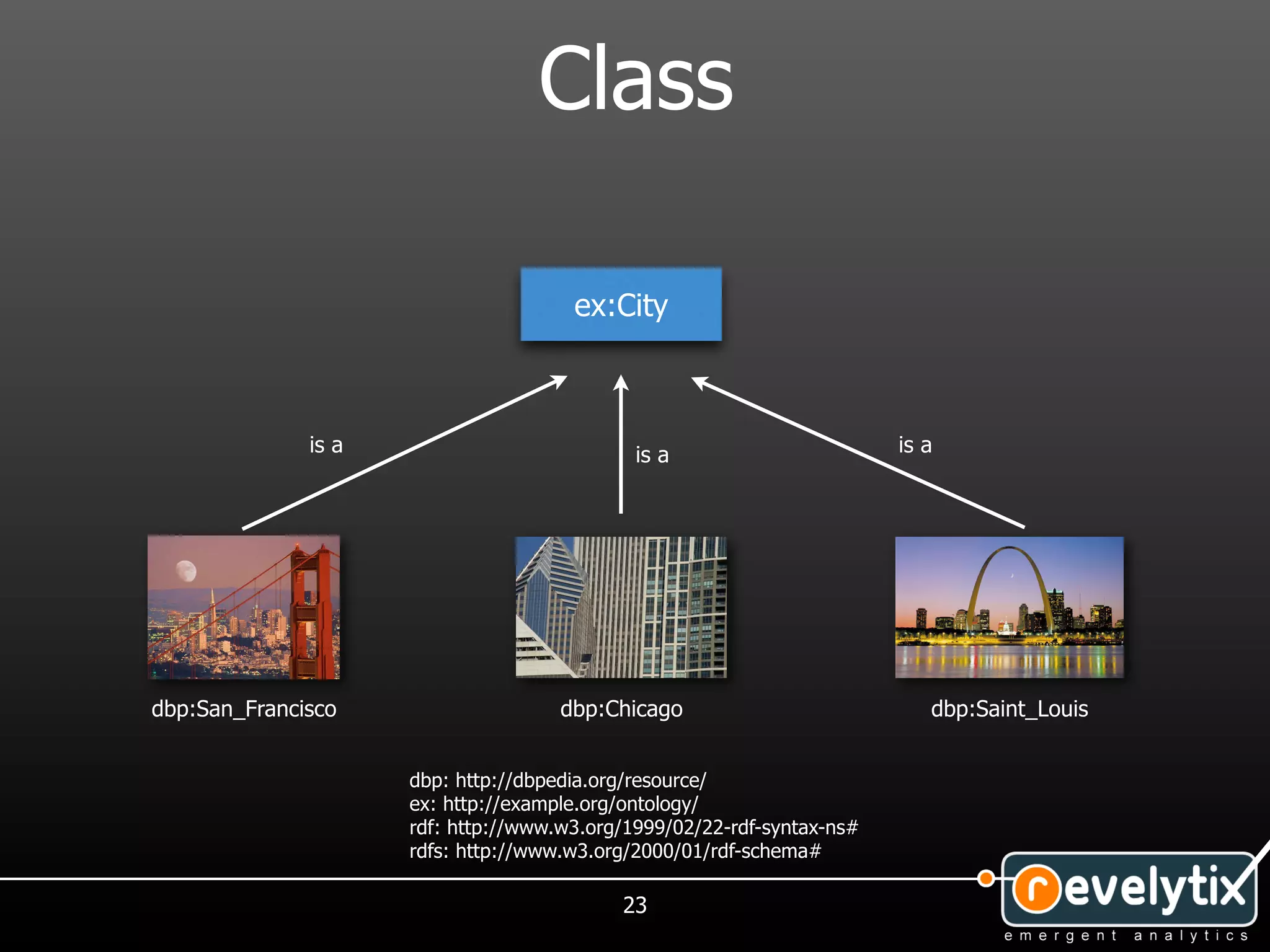

23. Class
ex:City
is a is a is a
dbp:San_Francisco dbp:Chicago dbp:Saint_Louis
dbp: http://dbpedia.org/resource/
ex: http://example.org/ontology/
rdf: http://www.w3.org/1999/02/22-rdf-syntax-ns#
rdfs: http://www.w3.org/2000/01/rdf-schema#
23

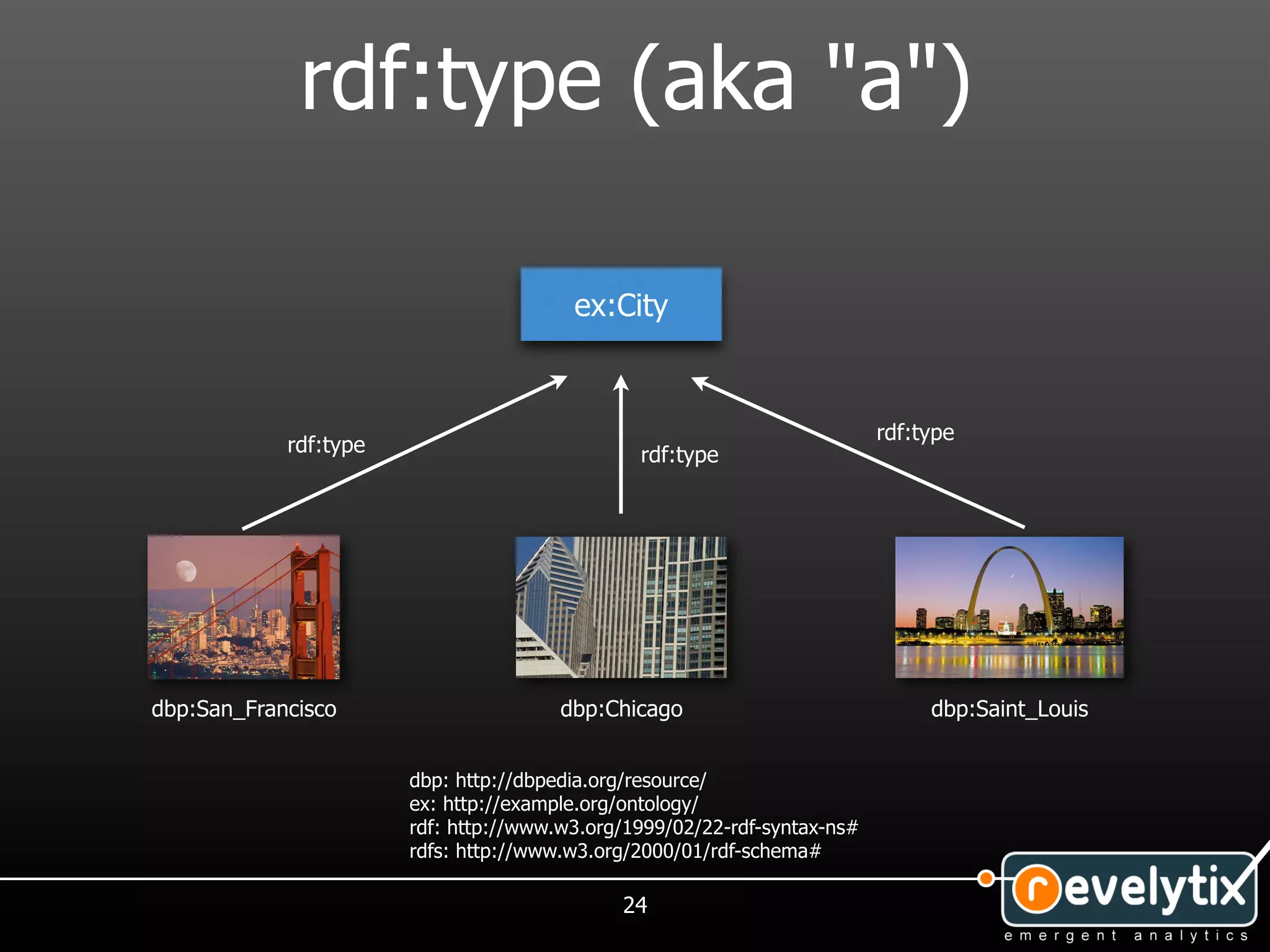

24. rdf:type (aka "a")
ex:City
rdf:type
rdf:type rdf:type
dbp:San_Francisco dbp:Chicago dbp:Saint_Louis
dbp: http://dbpedia.org/resource/
ex: http://example.org/ontology/
rdf: http://www.w3.org/1999/02/22-rdf-syntax-ns#
rdfs: http://www.w3.org/2000/01/rdf-schema#
24

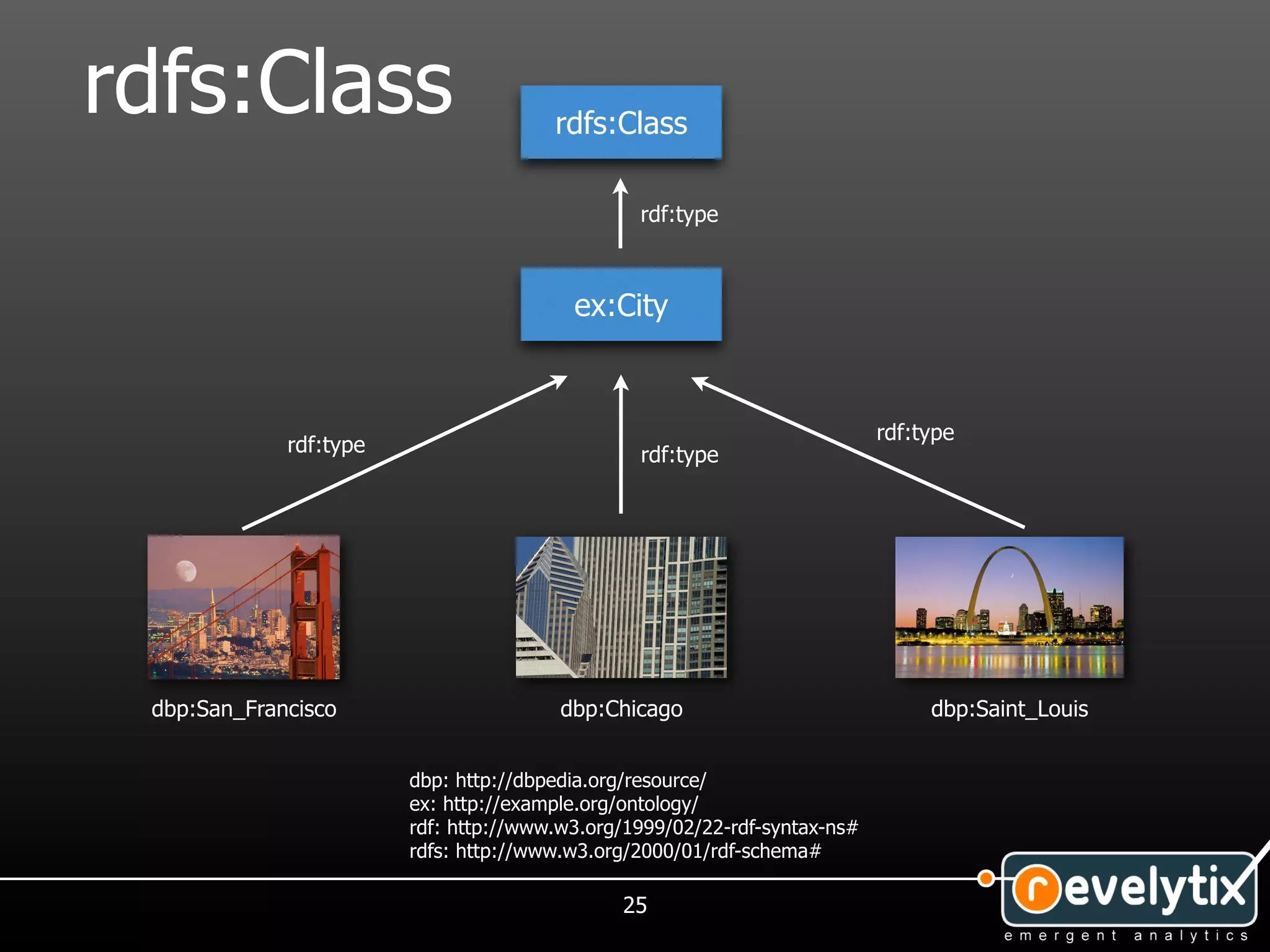

25. rdfs:Class rdfs:Class
rdf:type
ex:City
rdf:type
rdf:type rdf:type
dbp:San_Francisco dbp:Chicago dbp:Saint_Louis
dbp: http://dbpedia.org/resource/
ex: http://example.org/ontology/
rdf: http://www.w3.org/1999/02/22-rdf-syntax-ns#
rdfs: http://www.w3.org/2000/01/rdf-schema#
25

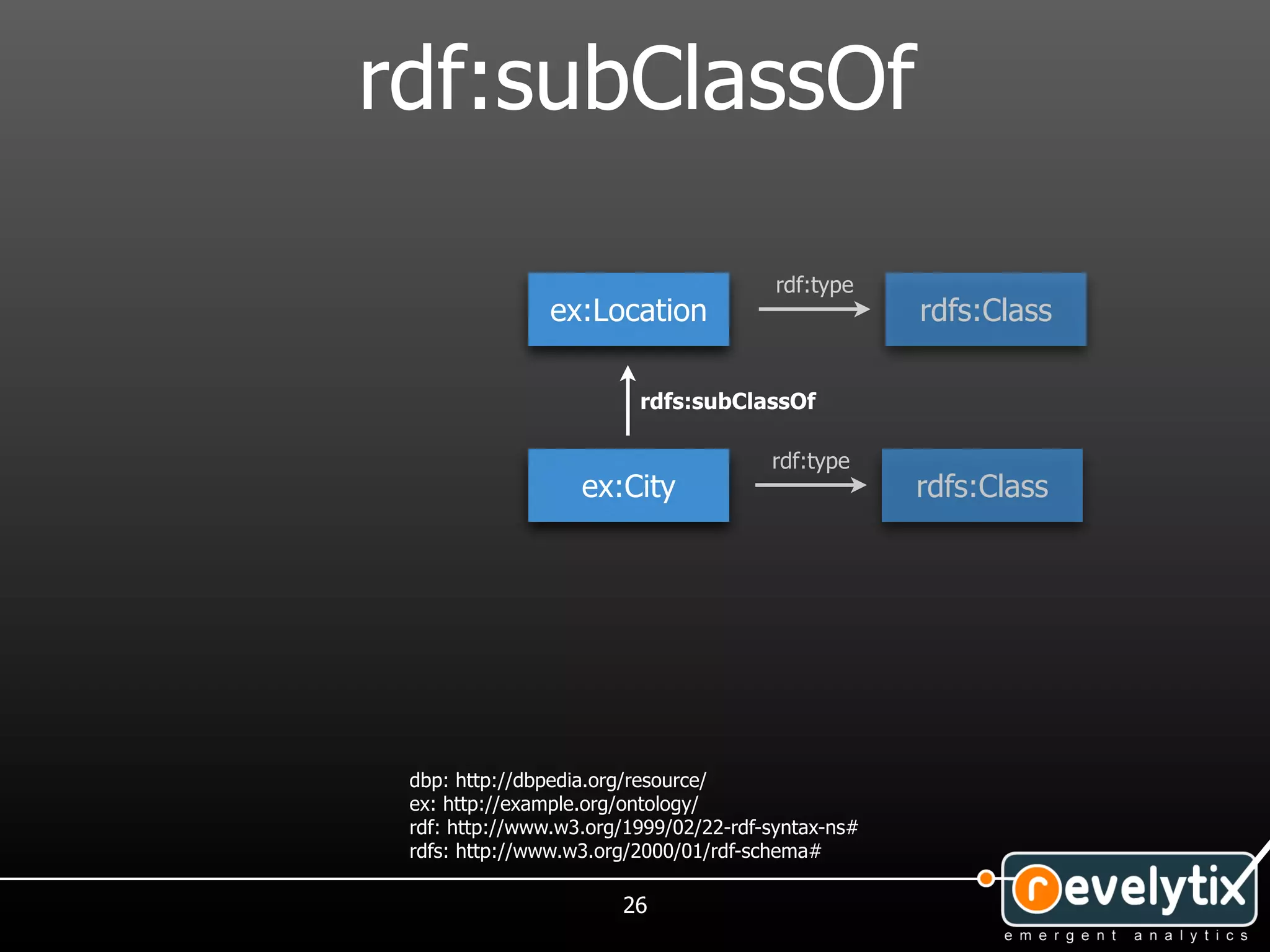

26. rdf:subClassOf
rdf:type
ex:Location rdfs:Class
rdfs:subClassOf
rdf:type
ex:City rdfs:Class
dbp: http://dbpedia.org/resource/
ex: http://example.org/ontology/
rdf: http://www.w3.org/1999/02/22-rdf-syntax-ns#
rdfs: http://www.w3.org/2000/01/rdf-schema#
26

27. Classes let us talk about
kinds of things. Now we
need some way to
describe attributes.
27

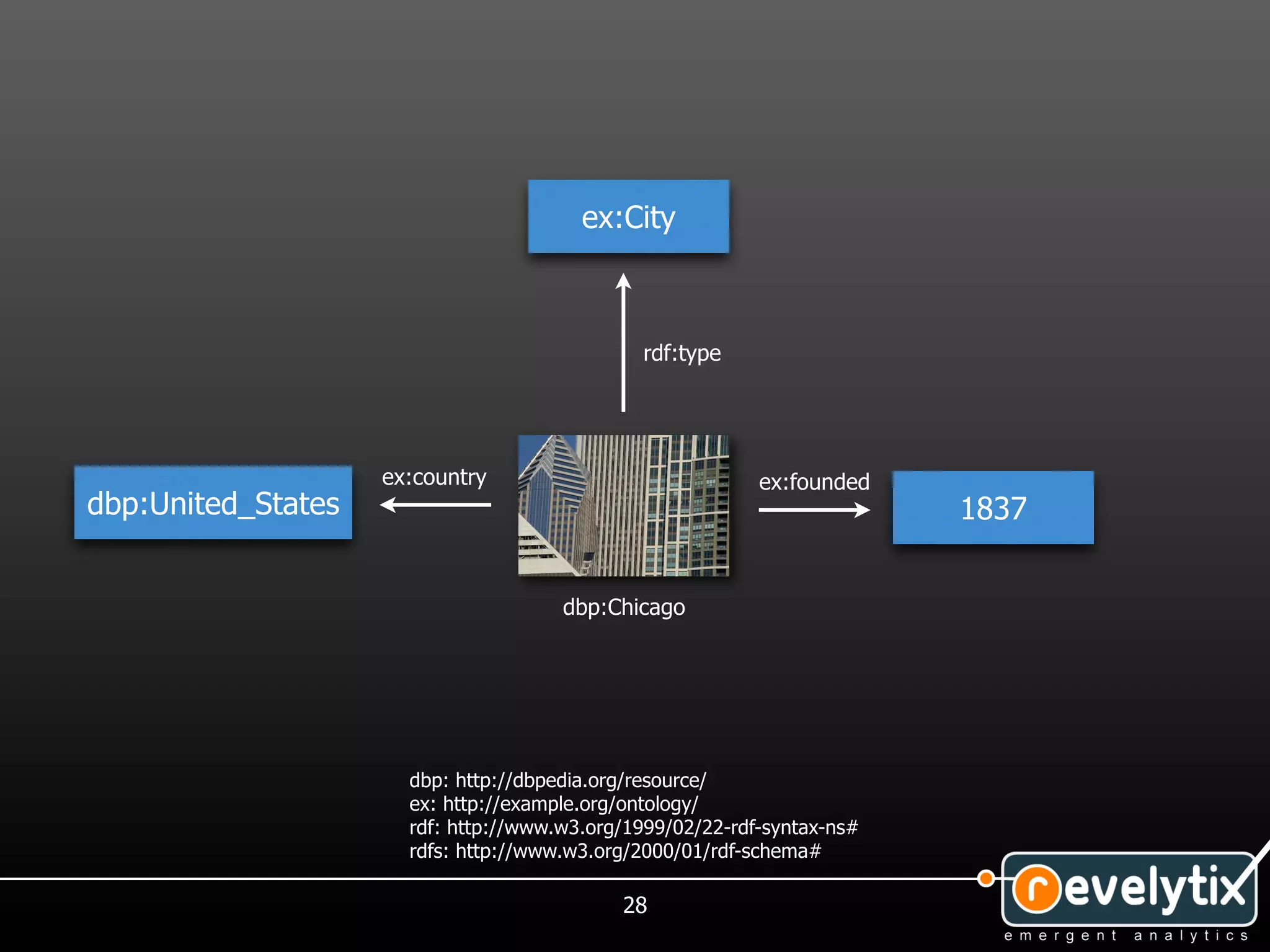

28. ex:City
rdf:type
ex:country ex:founded
dbp:United_States 1837
dbp:Chicago
dbp: http://dbpedia.org/resource/
ex: http://example.org/ontology/
rdf: http://www.w3.org/1999/02/22-rdf-syntax-ns#
rdfs: http://www.w3.org/2000/01/rdf-schema#
28

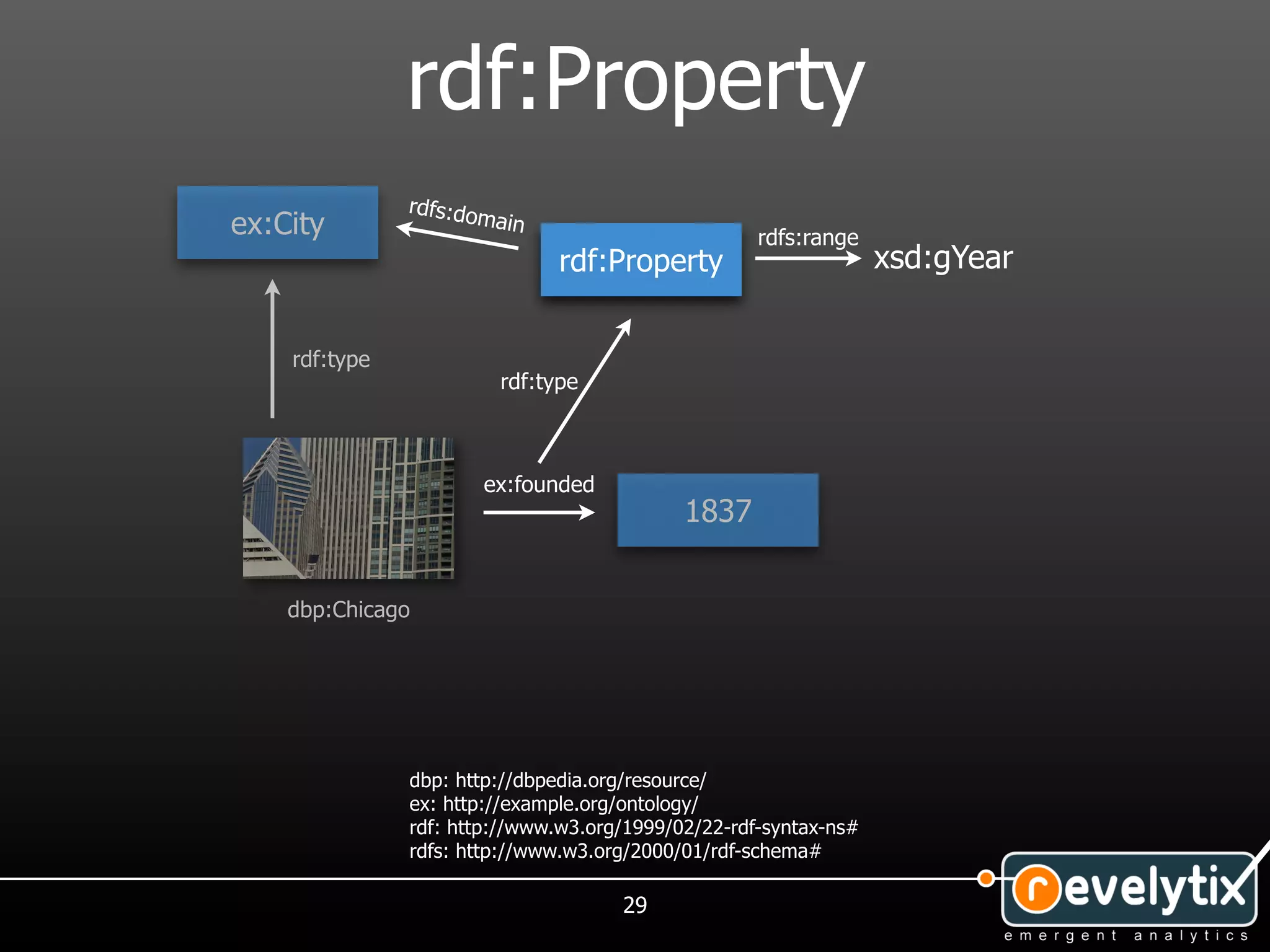

29. rdf:Property
rdfs:do
ex:City main
rdfs:range
rdf:Property xsd:gYear
rdf:type
rdf:type
ex:founded
1837
dbp:Chicago
dbp: http://dbpedia.org/resource/
ex: http://example.org/ontology/
rdf: http://www.w3.org/1999/02/22-rdf-syntax-ns#
rdfs: http://www.w3.org/2000/01/rdf-schema#
29

30. How do we query stuff in
this data?
SPARQL
30

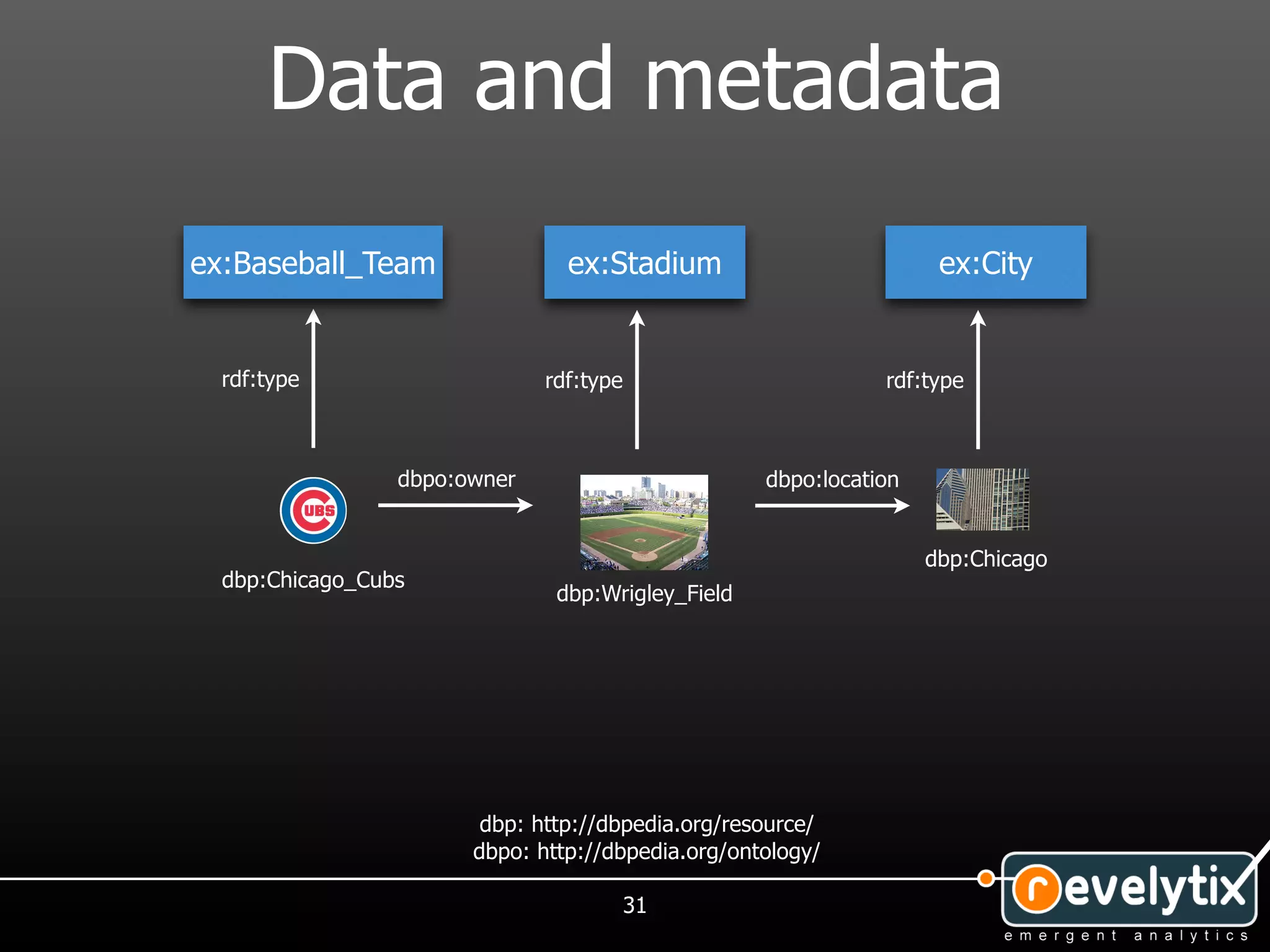

31. Data and metadata
ex:Baseball_Team ex:Stadium ex:City
rdf:type rdf:type rdf:type
dbpo:owner dbpo:location
dbp:Chicago
dbp:Chicago_Cubs
dbp:Wrigley_Field
dbp: http://dbpedia.org/resource/
dbpo: http://dbpedia.org/ontology/
31

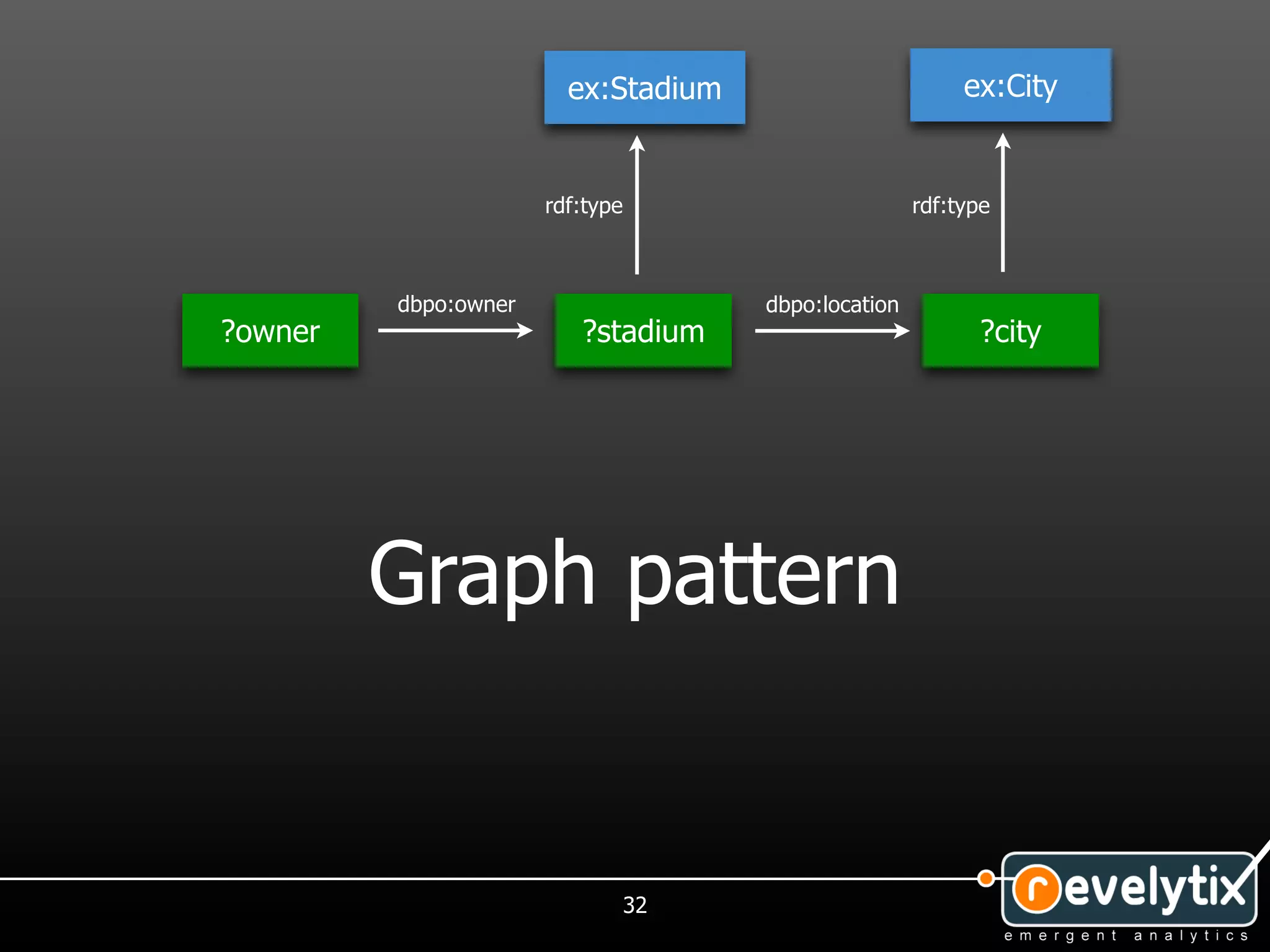

32. ex:Stadium ex:City
rdf:type rdf:type
dbpo:owner dbpo:location
?owner ?stadium ?city
Graph pattern
32

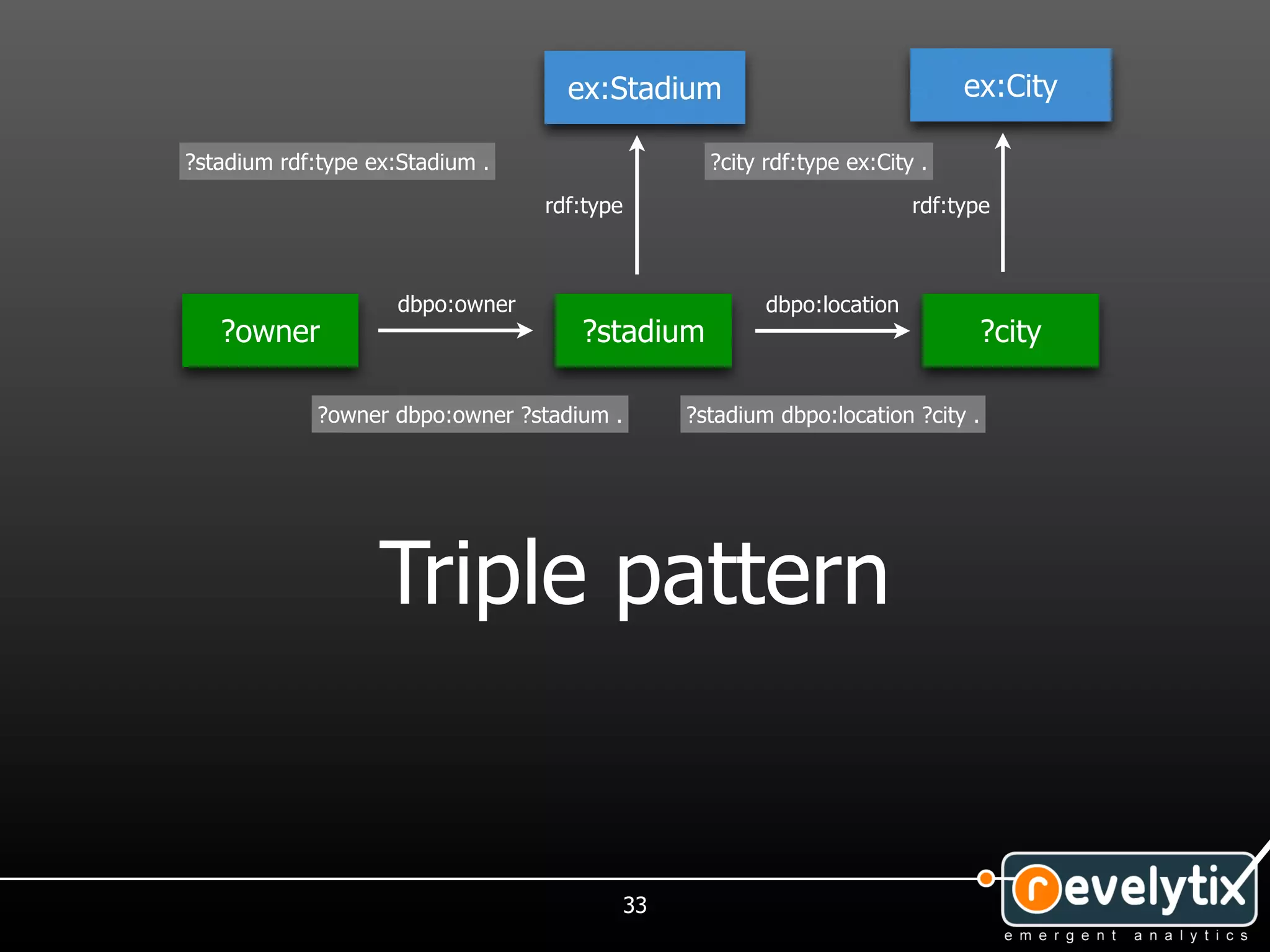

33. ex:Stadium ex:City
?stadium rdf:type ex:Stadium . ?city rdf:type ex:City .
rdf:type rdf:type
dbpo:owner dbpo:location
?owner ?stadium ?city
?owner dbpo:owner ?stadium . ?stadium dbpo:location ?city .
Triple pattern
33

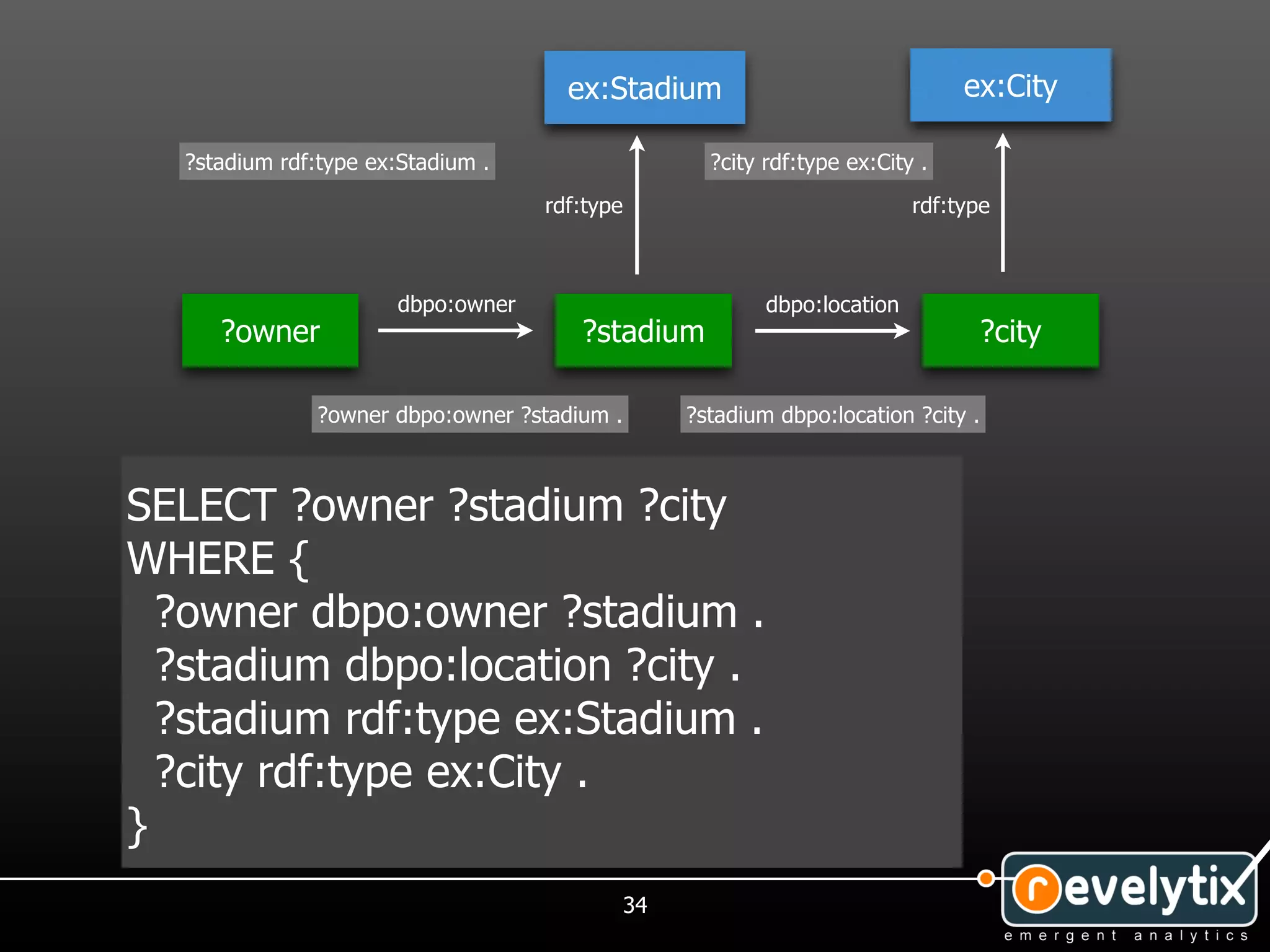

34. ex:Stadium ex:City
?stadium rdf:type ex:Stadium . ?city rdf:type ex:City .
rdf:type rdf:type
dbpo:owner dbpo:location
?owner ?stadium ?city
?owner dbpo:owner ?stadium . ?stadium dbpo:location ?city .
SELECT ?owner ?stadium ?city
WHERE {
?owner dbpo:owner ?stadium .
?stadium dbpo:location ?city .
?stadium rdf:type ex:Stadium .
?city rdf:type ex:City .
}
34

35. Unions
Joins SPARQL
Outer joins
Filter with criteria
Project expressions
Sort
Duplicate removal
Slice (limit / offset)
Aggregates (grouping, etc)
Subqueries
22
35

36. Sounds interesting.
But I don't have triples!
36

37. How do we map tables
(text or sequence file)
to triples?
37

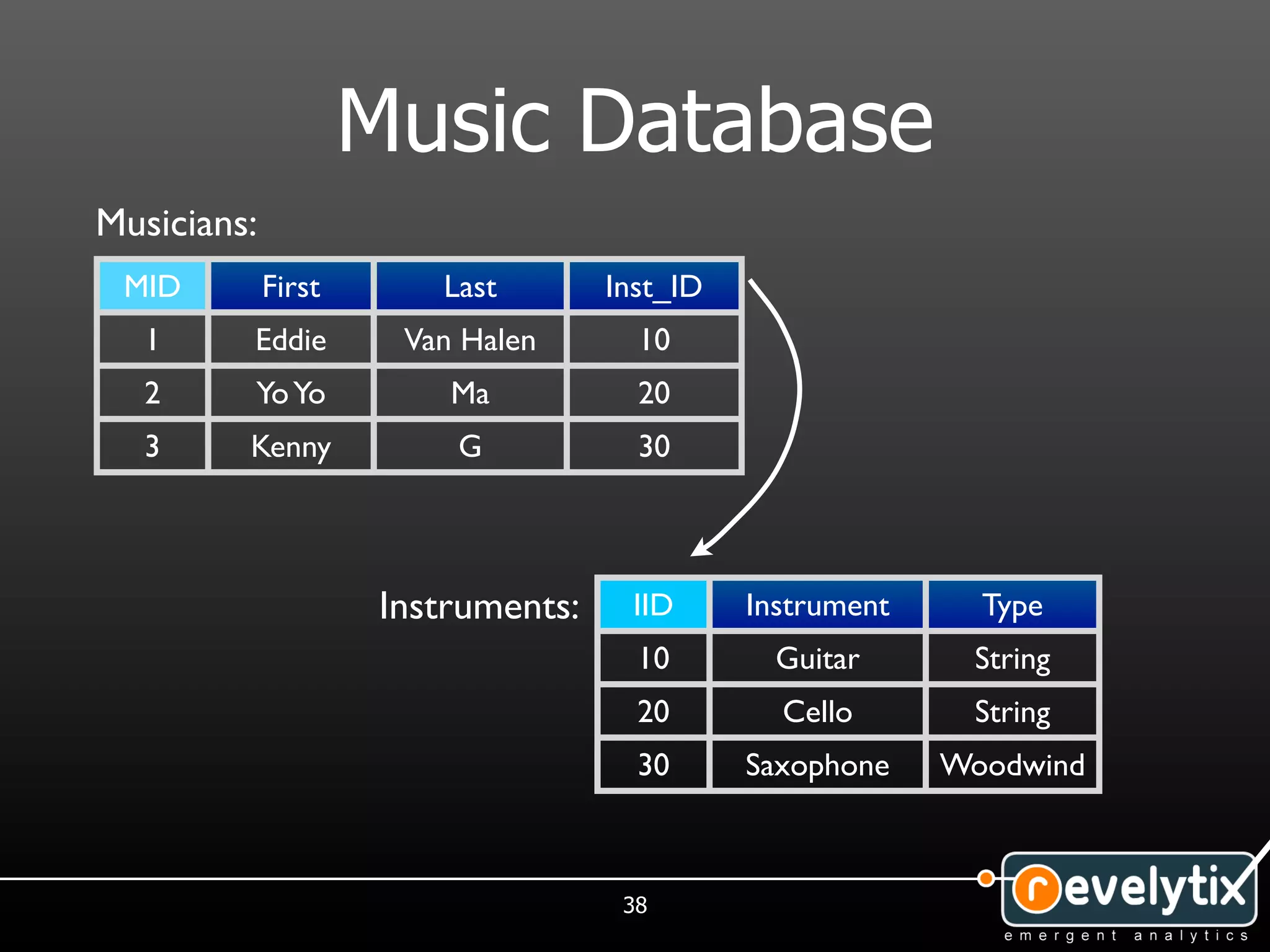

38. Music Database
Musicians:
MID First Last Inst_ID
1 Eddie Van Halen 10
2 Yo Yo Ma 20
3 Kenny G 30
Instruments: IID Instrument Type
10 Guitar String
20 Cello String
30 Saxophone Woodwind
38

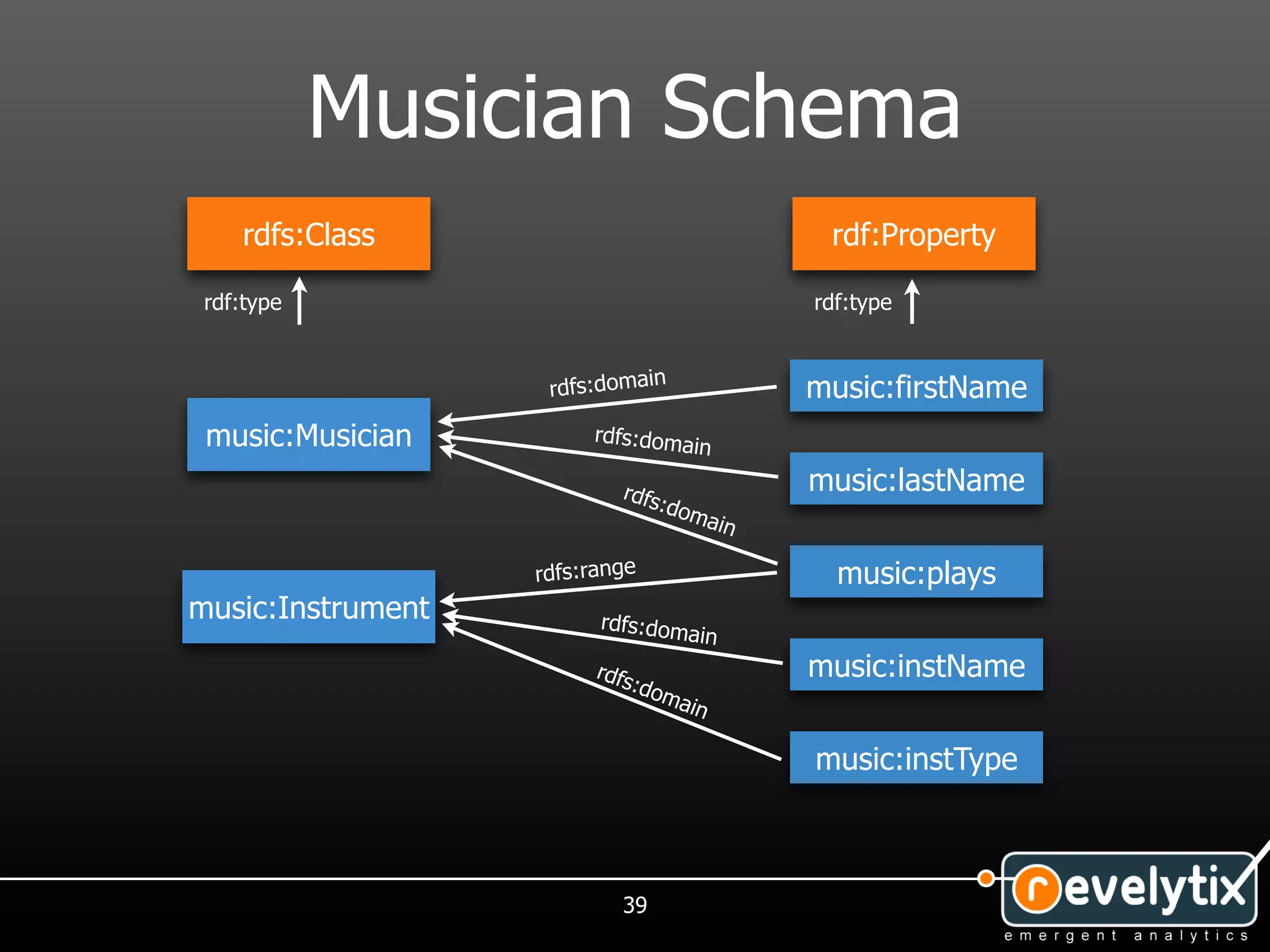

39. Musician Schema
rdfs:Class rdf:Property
rdf:type rdf:type
rdfs:domain music:firstName
music:Musician rdfs:doma
in
rdfs music:lastName
:dom
ain
rdfs:range music:plays
music:Instrument rdfs:dom
ain
rdfs
:do
music:instName
mai
n
music:instType
39

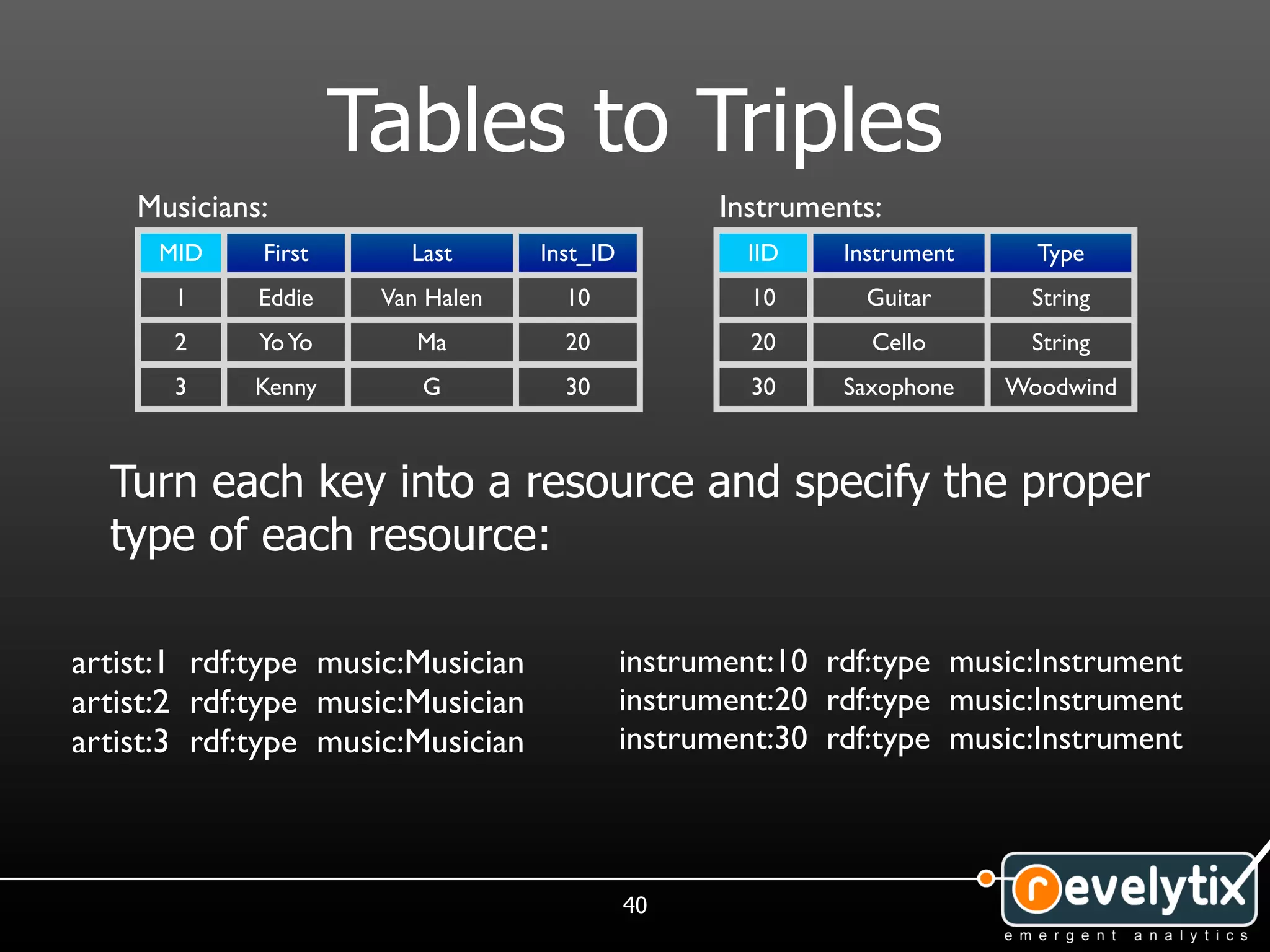

40. Tables to Triples
Musicians: Instruments:
MID First Last Inst_ID IID Instrument Type
1 Eddie Van Halen 10 10 Guitar String
2 Yo Yo Ma 20 20 Cello String
3 Kenny G 30 30 Saxophone Woodwind
Turn each key into a resource and specify the proper
type of each resource:
artist:1 rdf:type music:Musician instrument:10 rdf:type music:Instrument
artist:2 rdf:type music:Musician instrument:20 rdf:type music:Instrument
artist:3 rdf:type music:Musician instrument:30 rdf:type music:Instrument
40

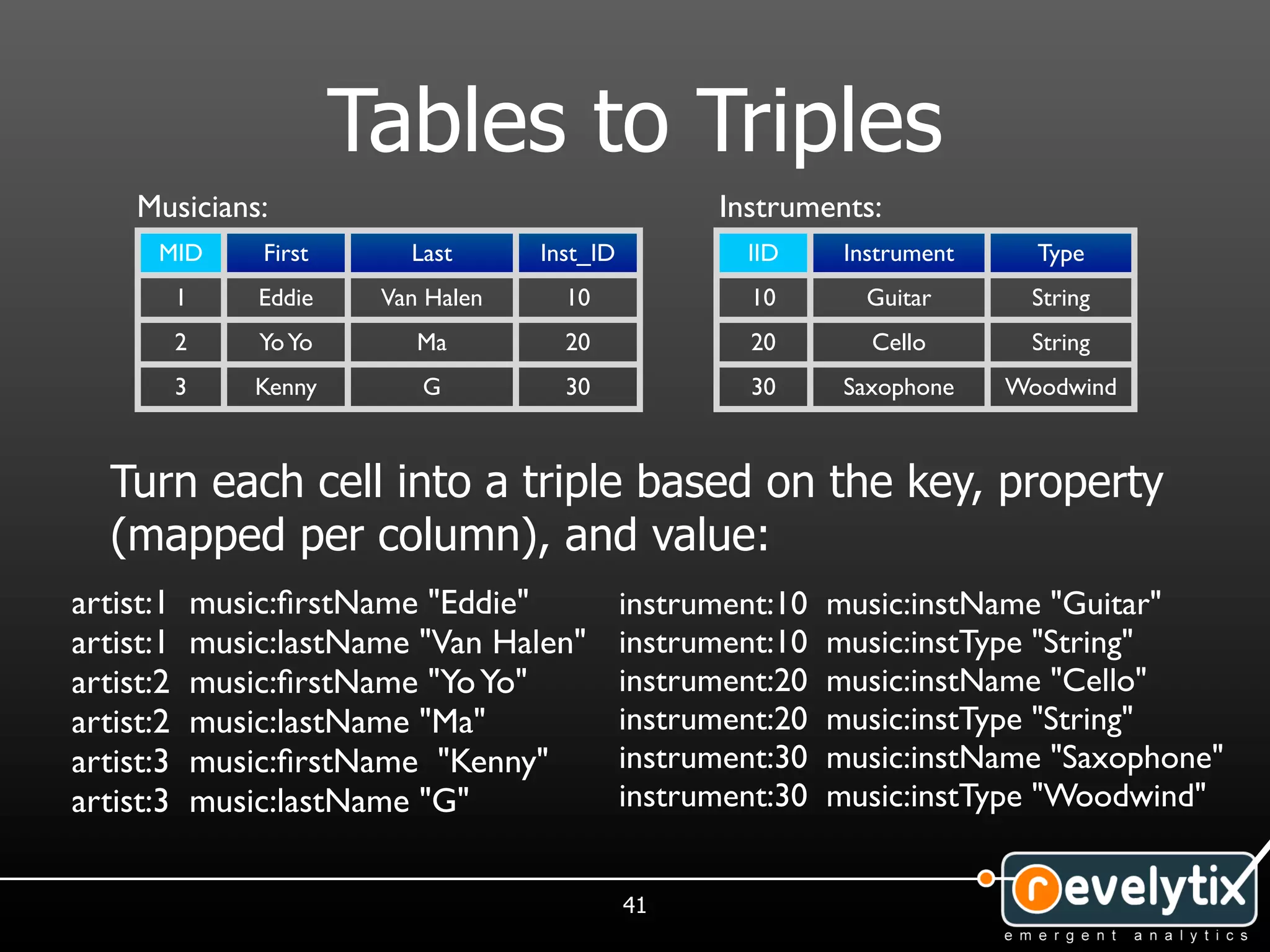

41. Tables to Triples
Musicians: Instruments:
MID First Last Inst_ID IID Instrument Type
1 Eddie Van Halen 10 10 Guitar String
2 Yo Yo Ma 20 20 Cello String
3 Kenny G 30 30 Saxophone Woodwind
Turn each cell into a triple based on the key, property
(mapped per column), and value:
artist:1 music:firstName "Eddie" instrument:10 music:instName "Guitar"
artist:1 music:lastName "Van Halen" instrument:10 music:instType "String"
artist:2 music:firstName "Yo Yo" instrument:20 music:instName "Cello"
artist:2 music:lastName "Ma" instrument:20 music:instType "String"
artist:3 music:firstName "Kenny" instrument:30 music:instName "Saxophone"
artist:3 music:lastName "G" instrument:30 music:instType "Woodwind"
41

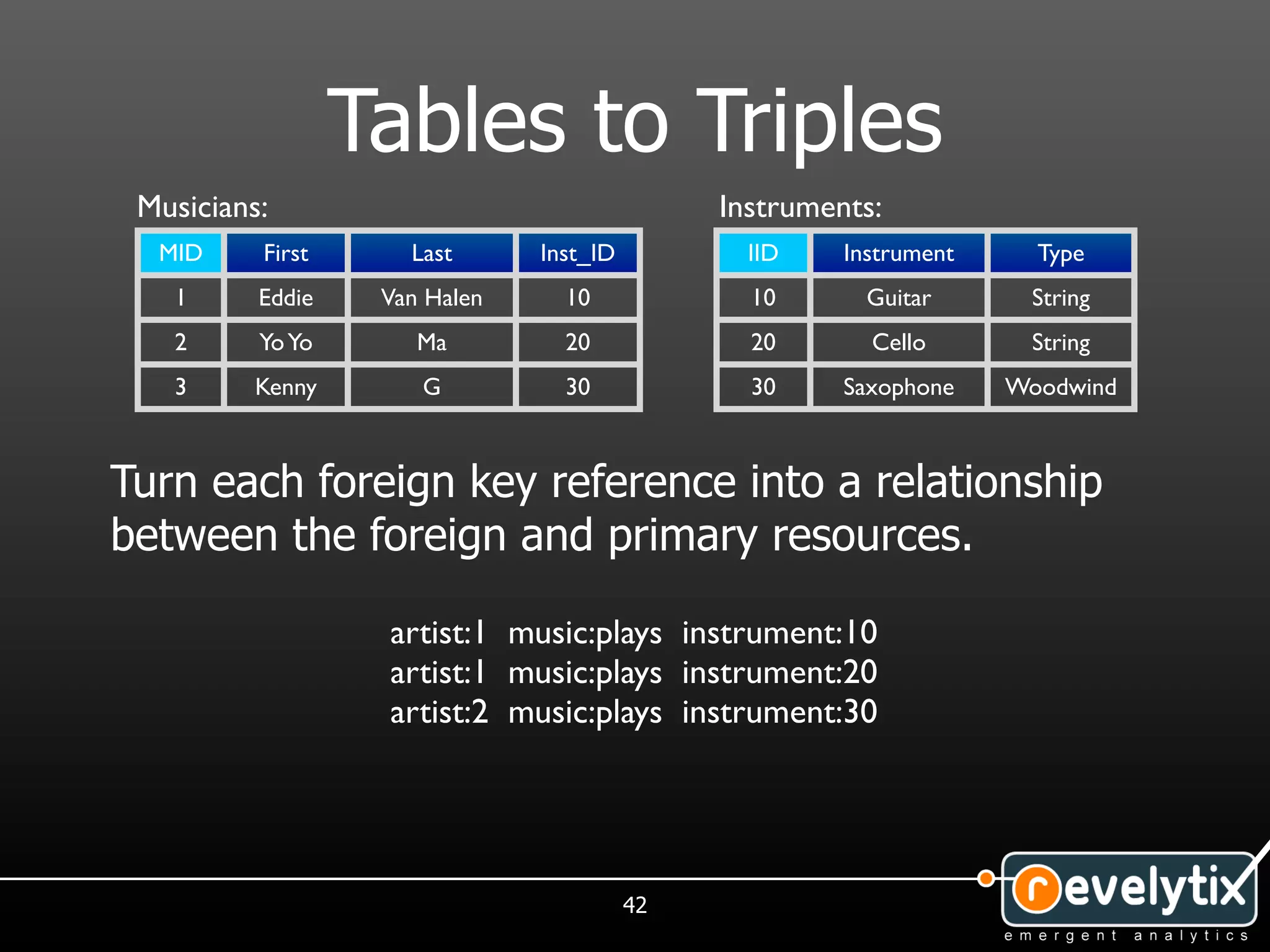

42. Tables to Triples
Musicians: Instruments:
MID First Last Inst_ID IID Instrument Type
1 Eddie Van Halen 10 10 Guitar String
2 Yo Yo Ma 20 20 Cello String
3 Kenny G 30 30 Saxophone Woodwind
Turn each foreign key reference into a relationship
between the foreign and primary resources.
artist:1 music:plays instrument:10
artist:1 music:plays instrument:20
artist:2 music:plays instrument:30
42

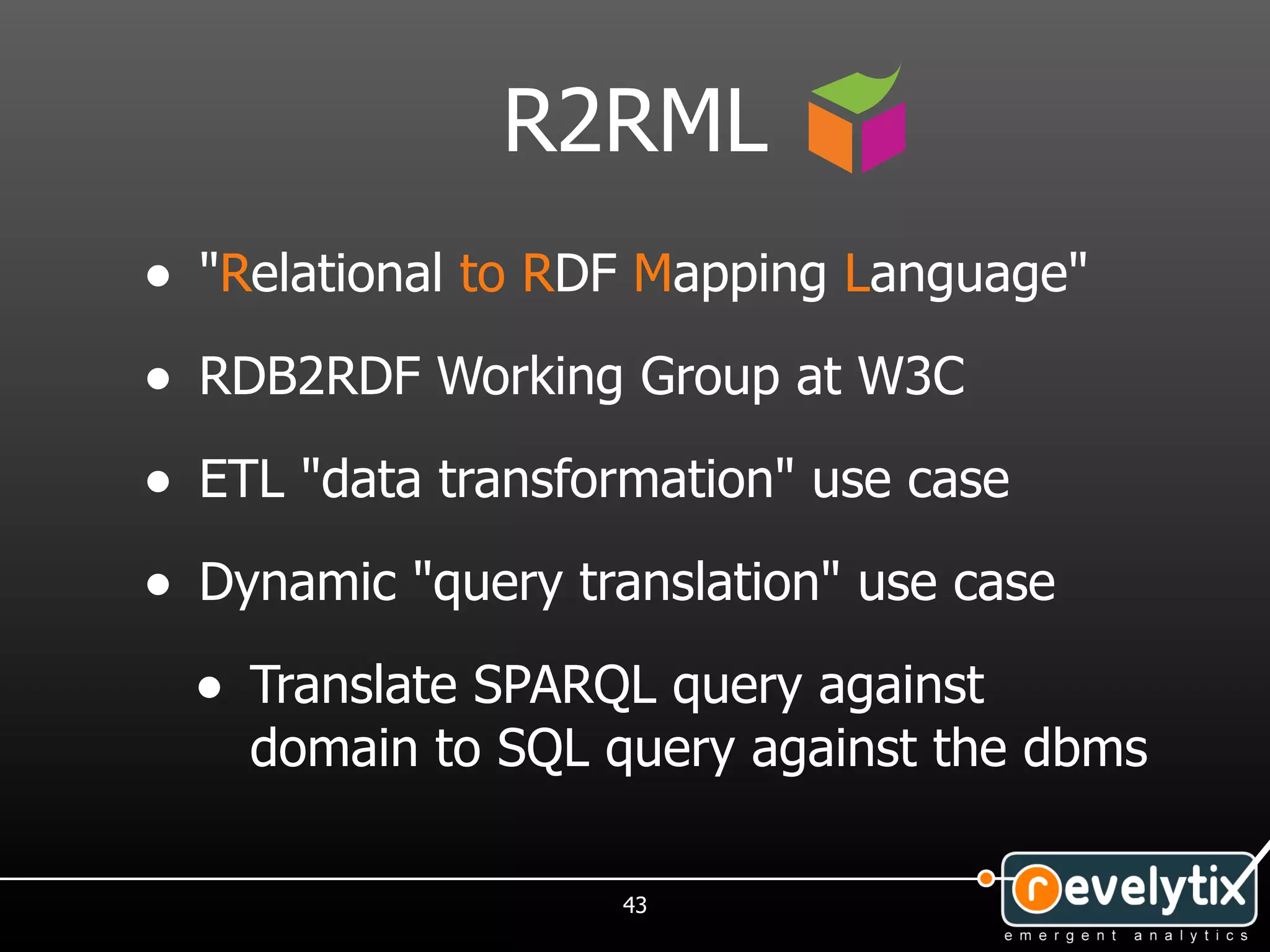

43. R2RML
• "Relational to RDF Mapping Language"
• RDB2RDF Working Group at W3C
• ETL "data transformation" use case
• Dynamic "query translation" use case
• Translate SPARQL query against
domain to SQL query against the dbms
43

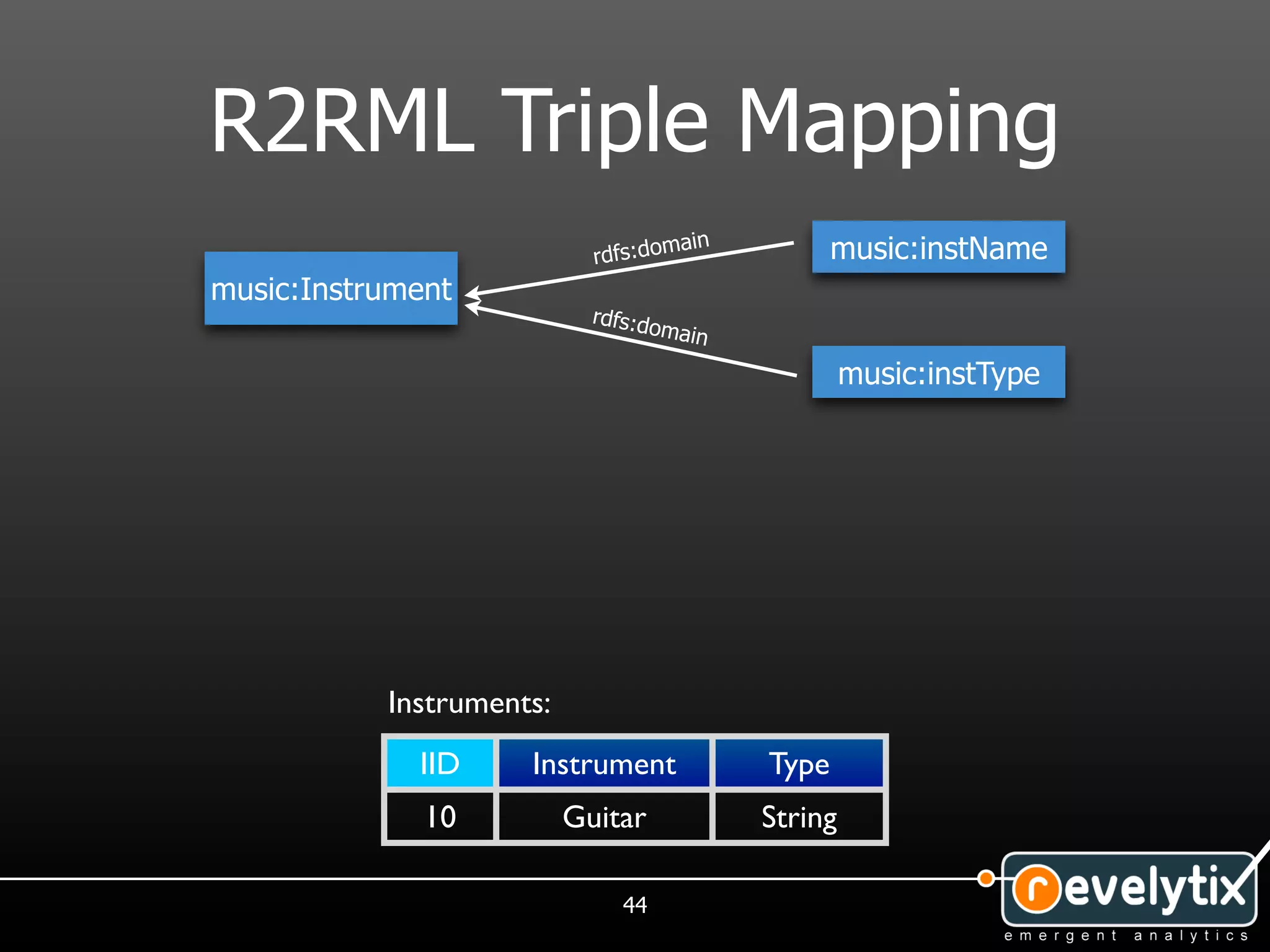

44. R2RML Triple Mapping
ain music:instName
rdfs:dom
music:Instrument
rdfs:d
omain
music:instType
Instruments:
IID Instrument Type
10 Guitar String
44

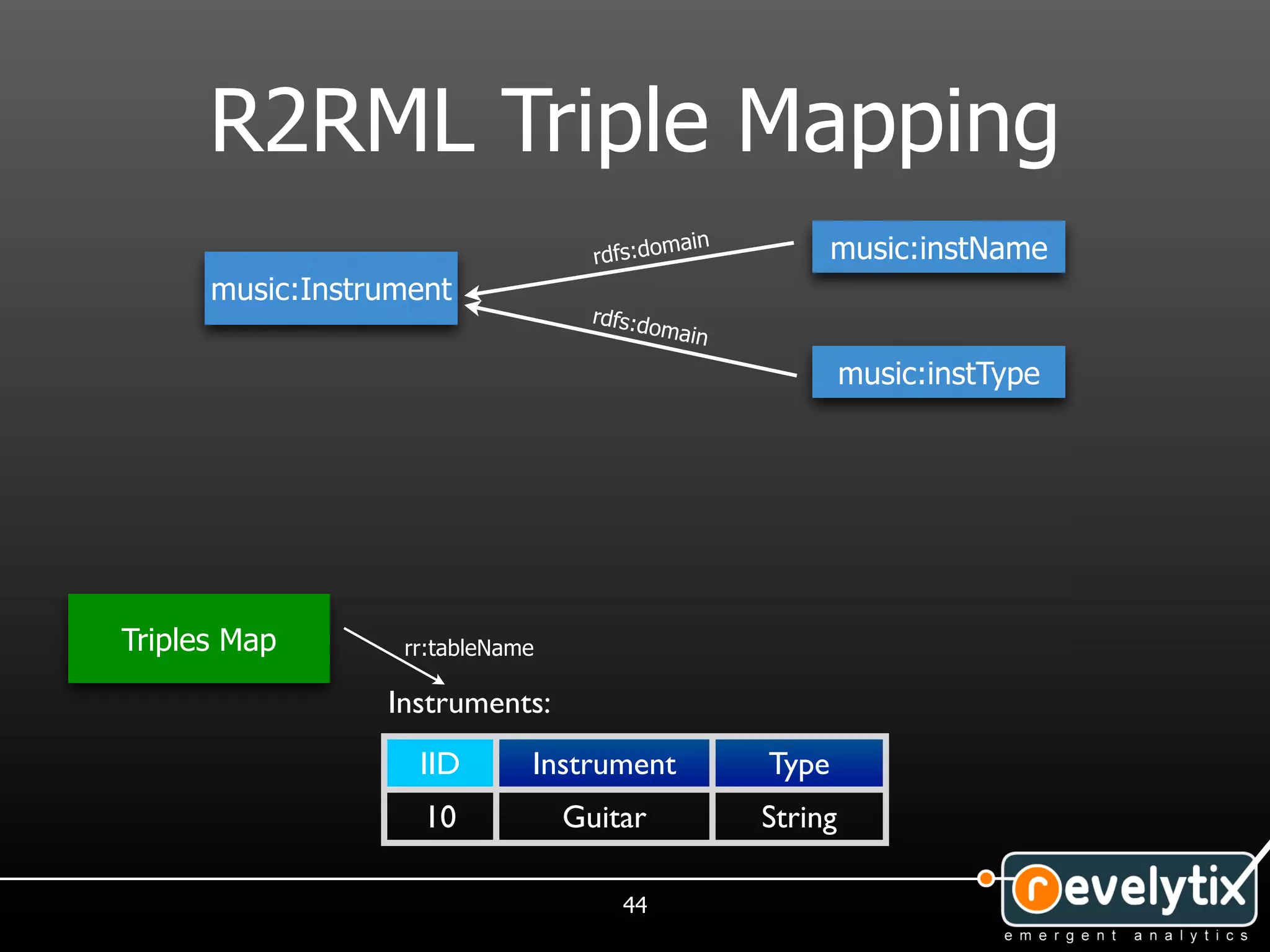

45. R2RML Triple Mapping
ain music:instName
rdfs:dom
music:Instrument
rdfs:d
omain
music:instType
Triples Map rr:tableName
Instruments:
IID Instrument Type
10 Guitar String
44

46. R2RML Triple Mapping
ain music:instName
rdfs:dom
music:Instrument
rdfs:d
omain
rr:class music:instType
Subject Map
"http://example.com/music/
Inst-{iid}"
Triples Map rr:tableName
Instruments:
IID Instrument Type
10 Guitar String
44

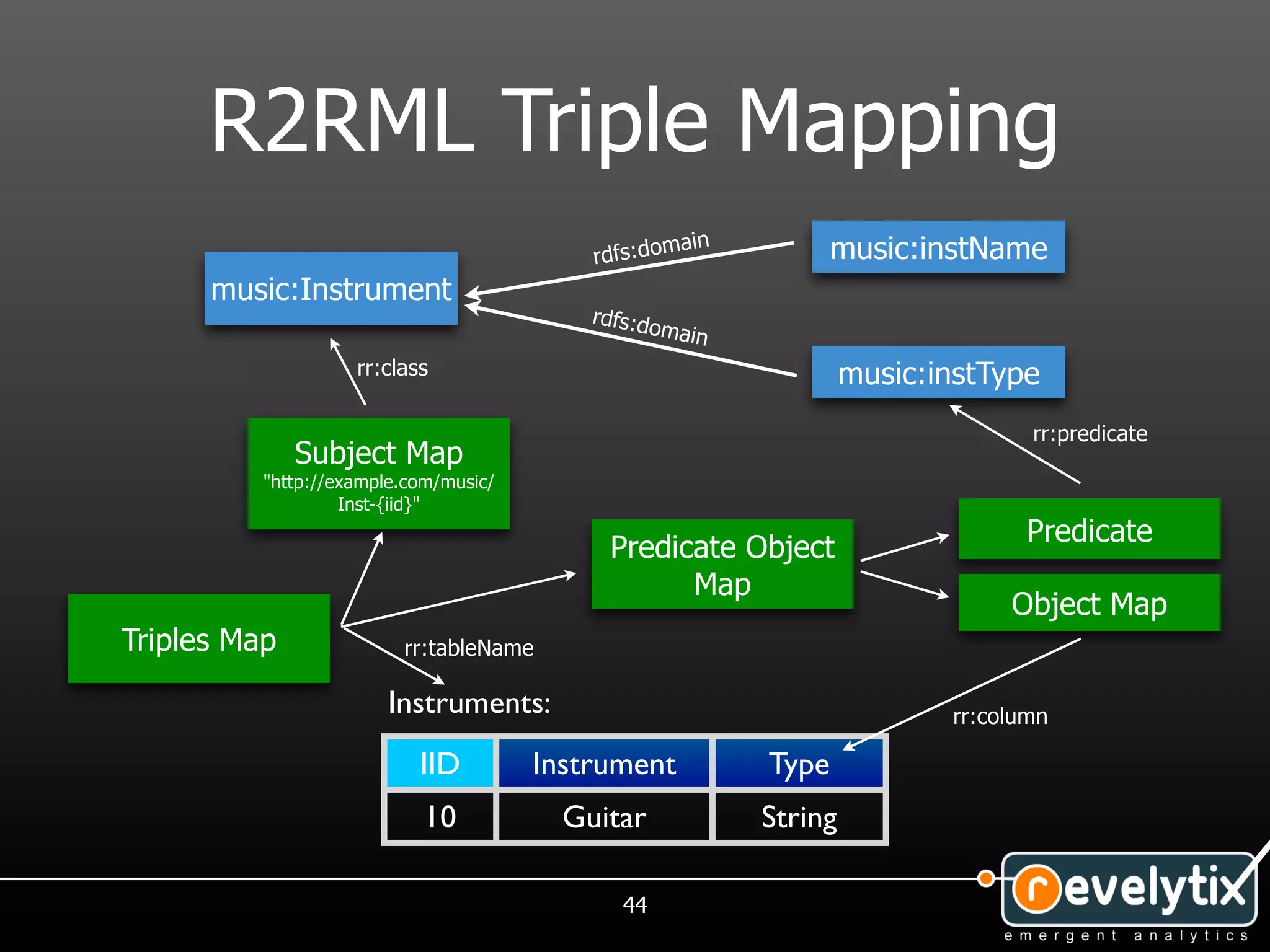

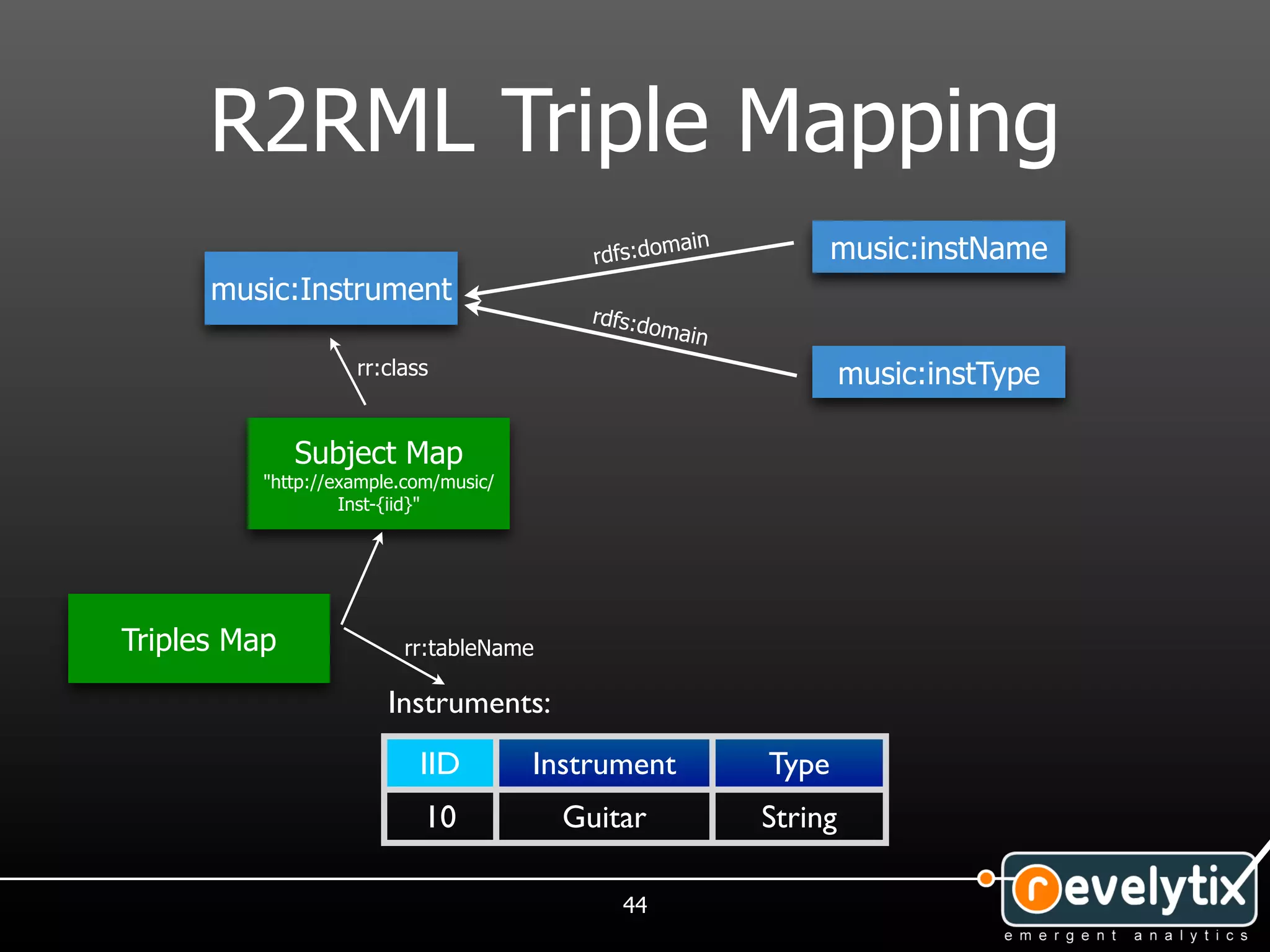

47. R2RML Triple Mapping
ain music:instName
rdfs:dom
music:Instrument
rdfs:d
omain
rr:class music:instType
rr:predicate
Subject Map
"http://example.com/music/
Inst-{iid}"
Predicate
Predicate Object
Map
Object Map
Triples Map rr:tableName
Instruments: rr:column
IID Instrument Type
10 Guitar String
44

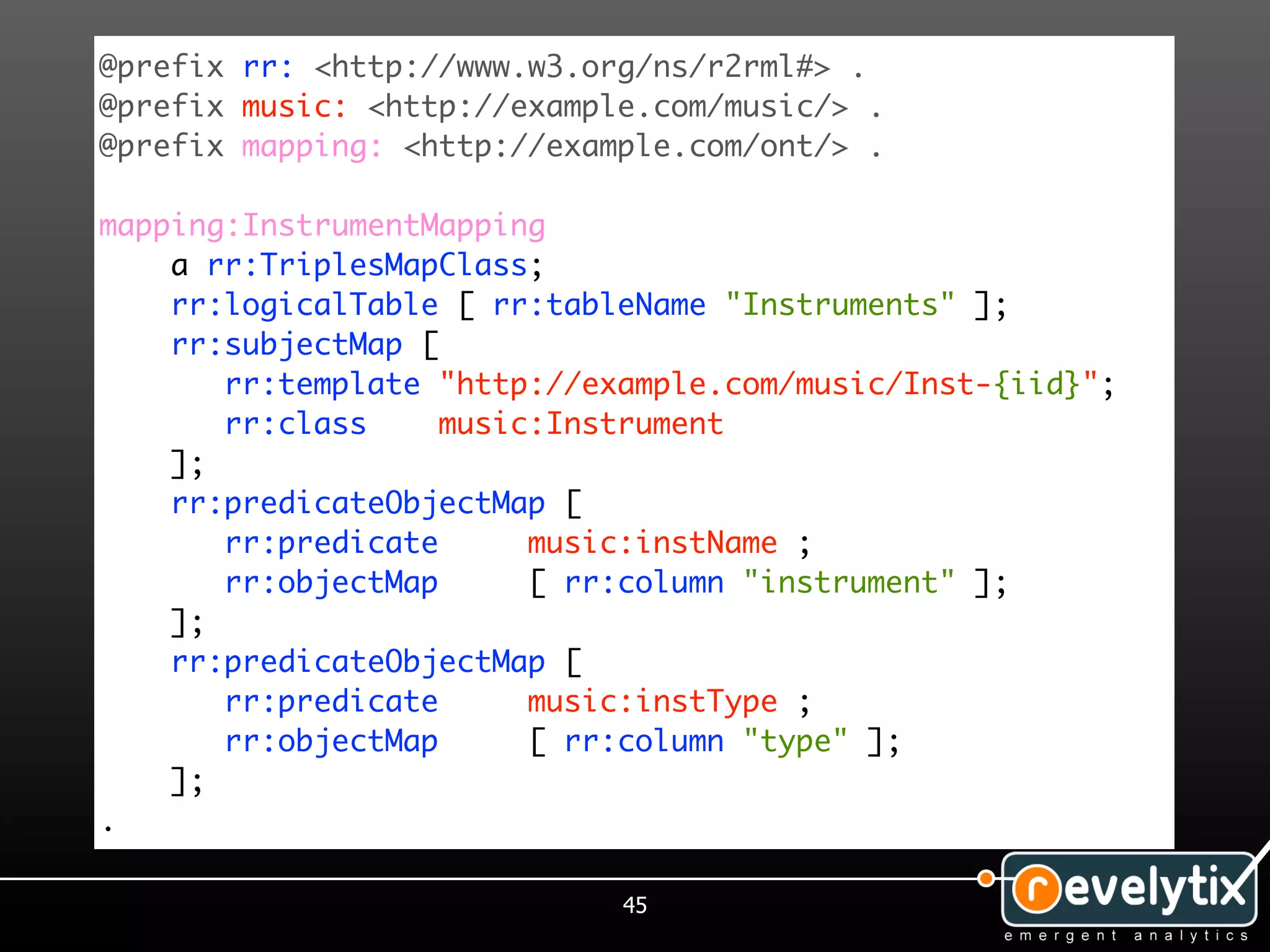

48. @prefix rr: <http://www.w3.org/ns/r2rml#> .
@prefix music: <http://example.com/music/> .
@prefix mapping: <http://example.com/ont/> .
mapping:InstrumentMapping
a rr:TriplesMapClass;
rr:logicalTable [ rr:tableName "Instruments" ];
rr:subjectMap [
rr:template "http://example.com/music/Inst-{iid}";
rr:class music:Instrument
];
rr:predicateObjectMap [
rr:predicate music:instName ;
rr:objectMap [ rr:column "instrument" ];
];
rr:predicateObjectMap [
rr:predicate music:instType ;
rr:objectMap [ rr:column "type" ];
];
.
45

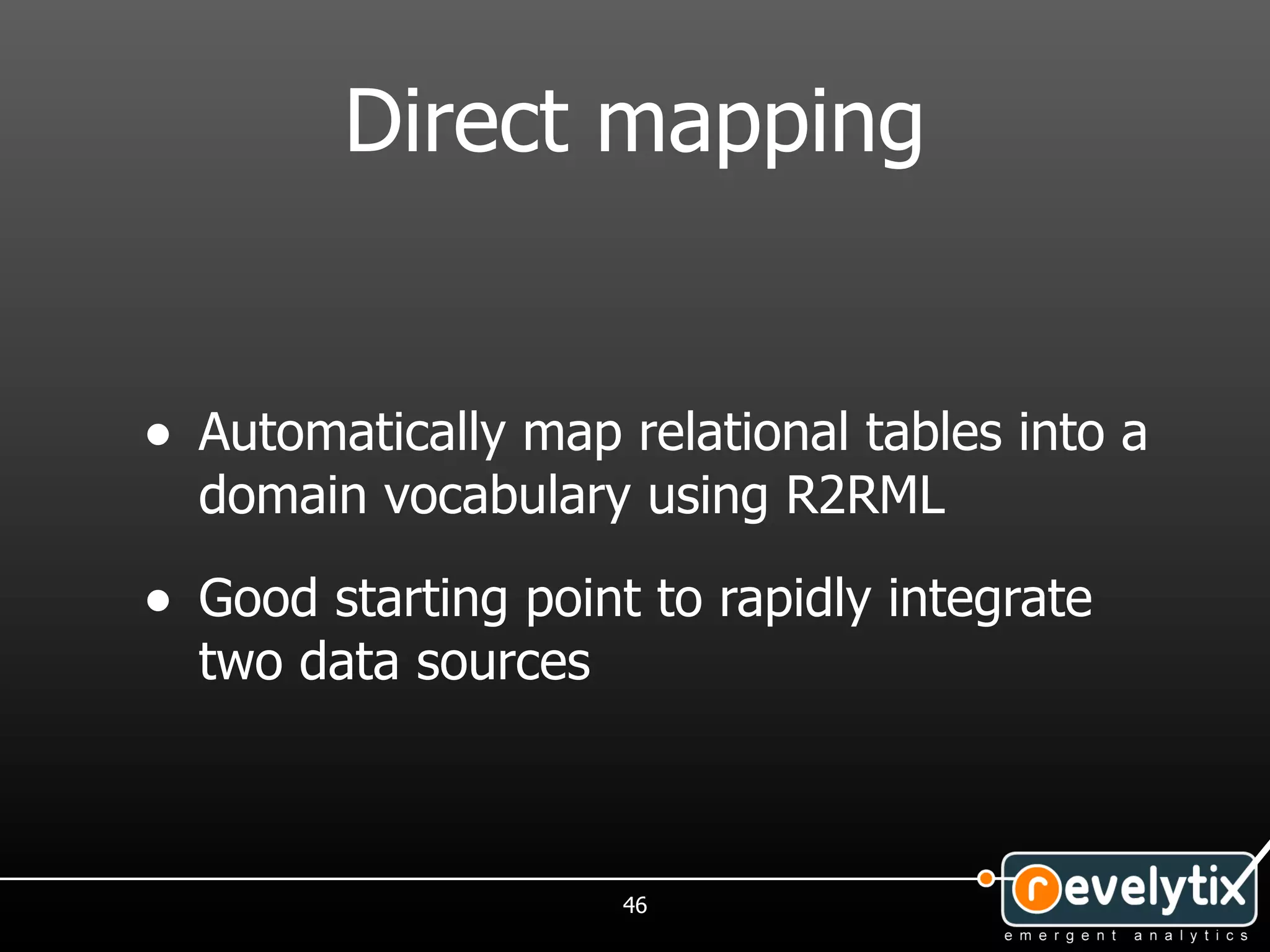

49. Direct mapping
• Automatically map relational tables into a
domain vocabulary using R2RML
• Good starting point to rapidly integrate
two data sources
46

50. So what about big data?
47

51. Triple data in Hadoop
• n-triple files
• standard line format for RDF data
• indexed triple format
• triples in Thrift representing RDF terms
• text / sequence files as tabular sources
48

52. SPARQL in Hadoop
• Compile SPARQL to map-reduce jobs
against triple (or tuple) data
• Results materialized back into Hadoop
files
• Similar to HiveQL compiling SQL to map-
reduce against tabular data
49

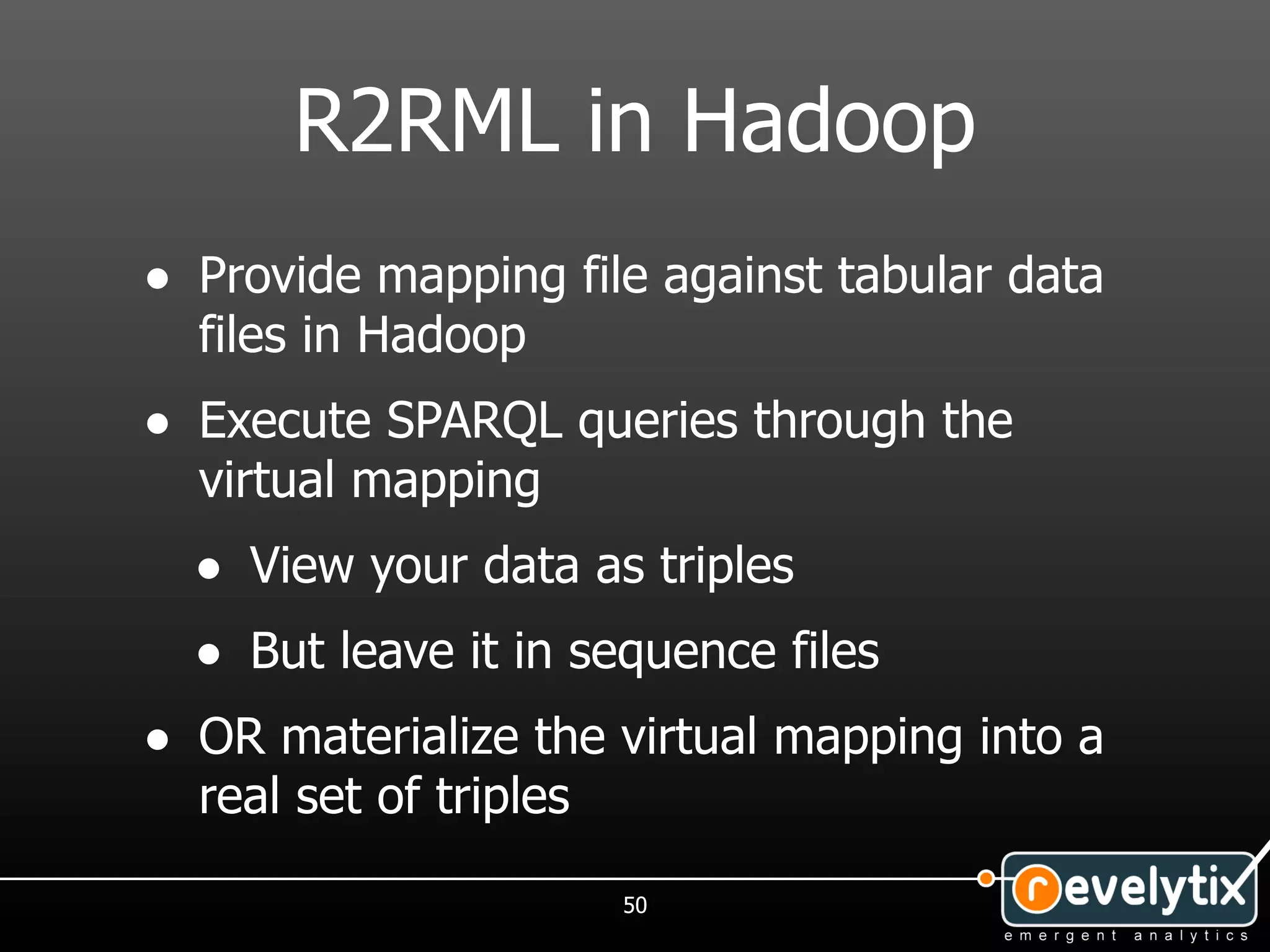

53. R2RML in Hadoop
• Provide mapping file against tabular data
files in Hadoop
• Execute SPARQL queries through the
virtual mapping
• View your data as triples
• But leave it in sequence files
• OR materialize the virtual mapping into a
real set of triples
50

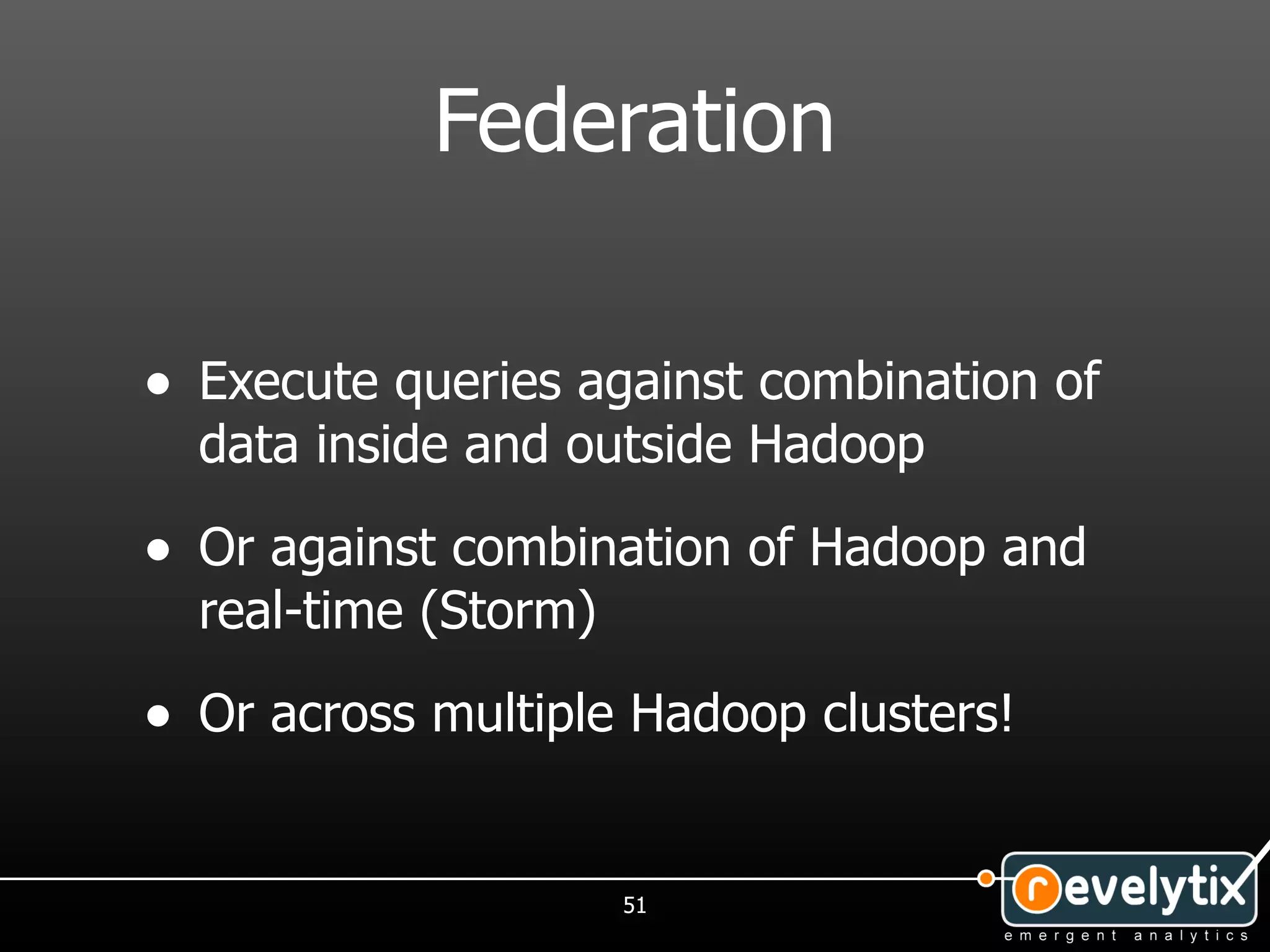

54. Federation
• Execute queries against combination of
data inside and outside Hadoop
• Or against combination of Hadoop and
real-time (Storm)
• Or across multiple Hadoop clusters!
51

55. Additional capabilities
• SQL queries against tabular data
• Metadata registry
• Workflow design and execution
52

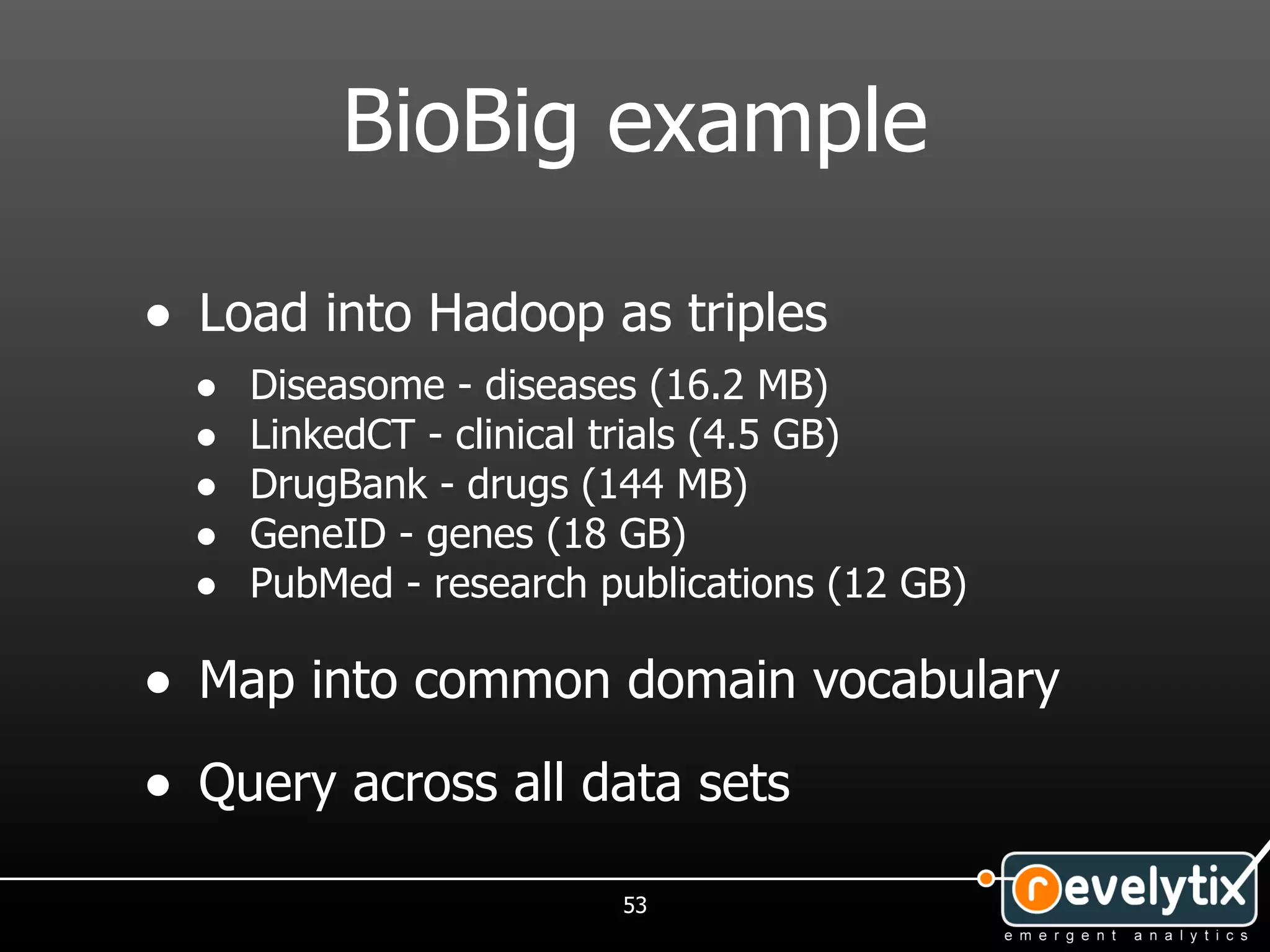

56. BioBig example
• Load into Hadoop as triples
• Diseasome - diseases (16.2 MB)
• LinkedCT - clinical trials (4.5 GB)
• DrugBank - drugs (144 MB)
• GeneID - genes (18 GB)
• PubMed - research publications (12 GB)
• Map into common domain vocabulary
• Query across all data sets
53

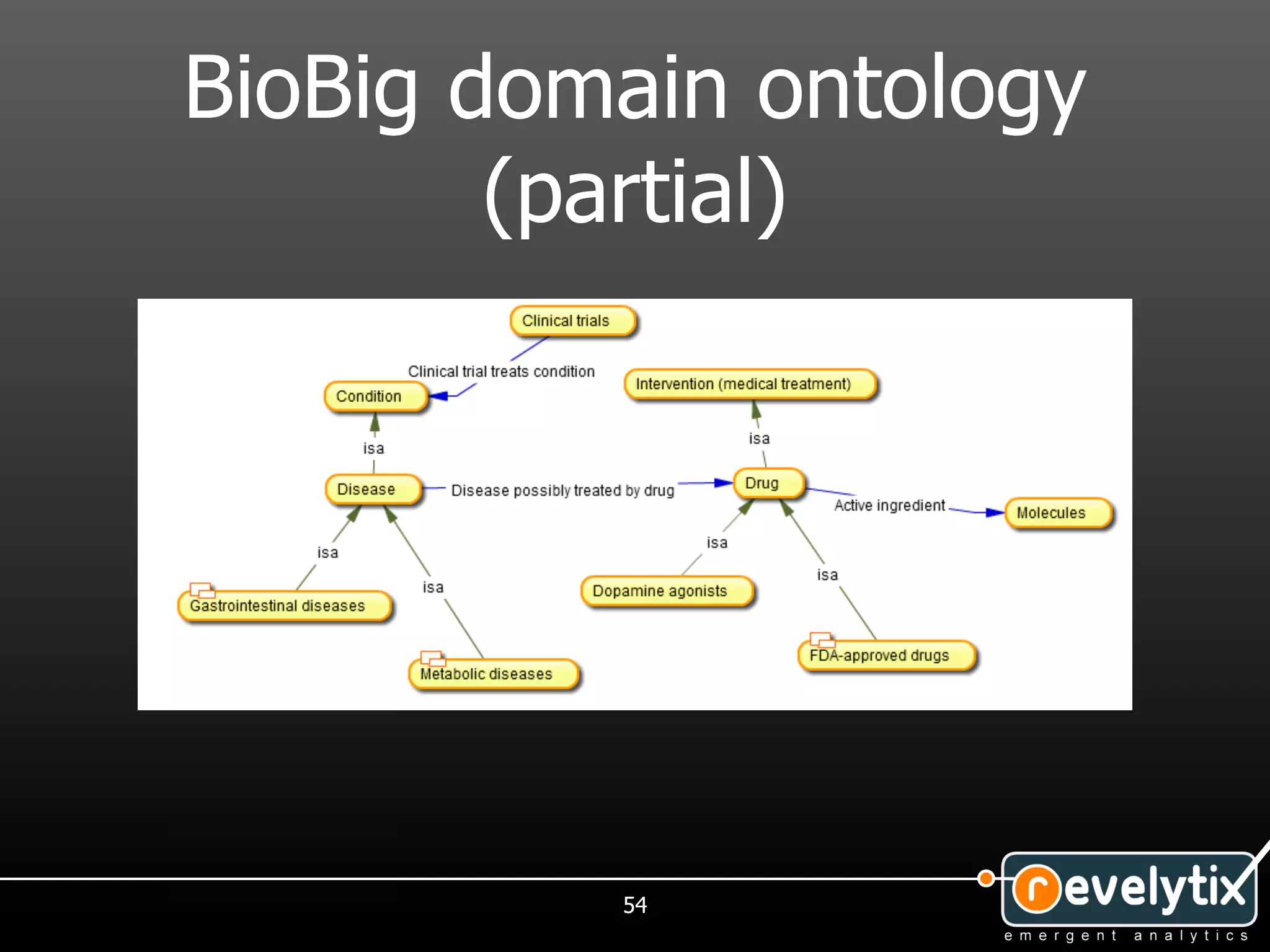

57. BioBig domain ontology
(partial)
54

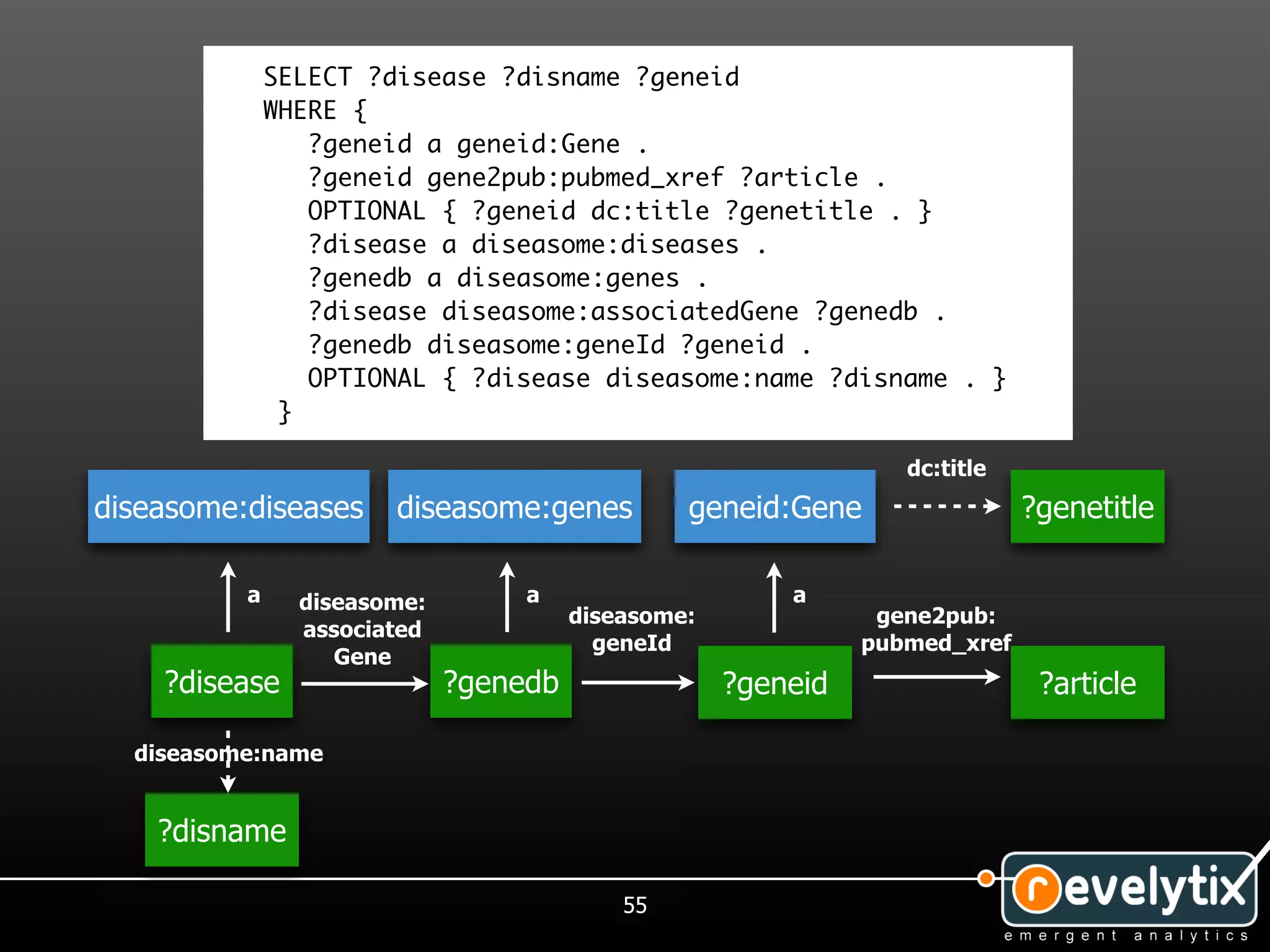

58. SELECT ?disease ?disname ?geneid
WHERE {
?geneid a geneid:Gene .
?geneid gene2pub:pubmed_xref ?article .
OPTIONAL { ?geneid dc:title ?genetitle . }
?disease a diseasome:diseases .
?genedb a diseasome:genes .
?disease diseasome:associatedGene ?genedb .
?genedb diseasome:geneId ?geneid .
OPTIONAL { ?disease diseasome:name ?disname . }
}
dc:title
diseasome:diseases diseasome:genes geneid:Gene ?genetitle
a diseasome: a a
diseasome: gene2pub:
associated
geneId pubmed_xref
Gene
?disease ?genedb ?geneid ?article
diseasome:name
?disname
55

59. Thanks!
