This document describes Hopsworks, an end-to-end data platform for analytics and machine learning built by KTH and RISE SICS. It provides data ingestion, preparation, experimentation, model training, and deployment capabilities. The platform is built on Apache technologies like Apache Beam, Spark, Flink, Kafka, and uses Kubernetes for orchestration. It also includes a feature store for ML features. The document then discusses Apache Flink and its use for stream processing applications. It provides examples of using Flink's APIs like SQL, CEP, and machine learning. Finally, it introduces the concept of continuous deep analytics and the Arcon framework for unified analytics across streams, tensors, graphs and more through an intermediate

1. Seif Haridi KTH/RISE
AI @ RISE
Hopsworks, Apache Flink and Beyond
Big Data Analytics Platforms
By KTH and RISE SICS

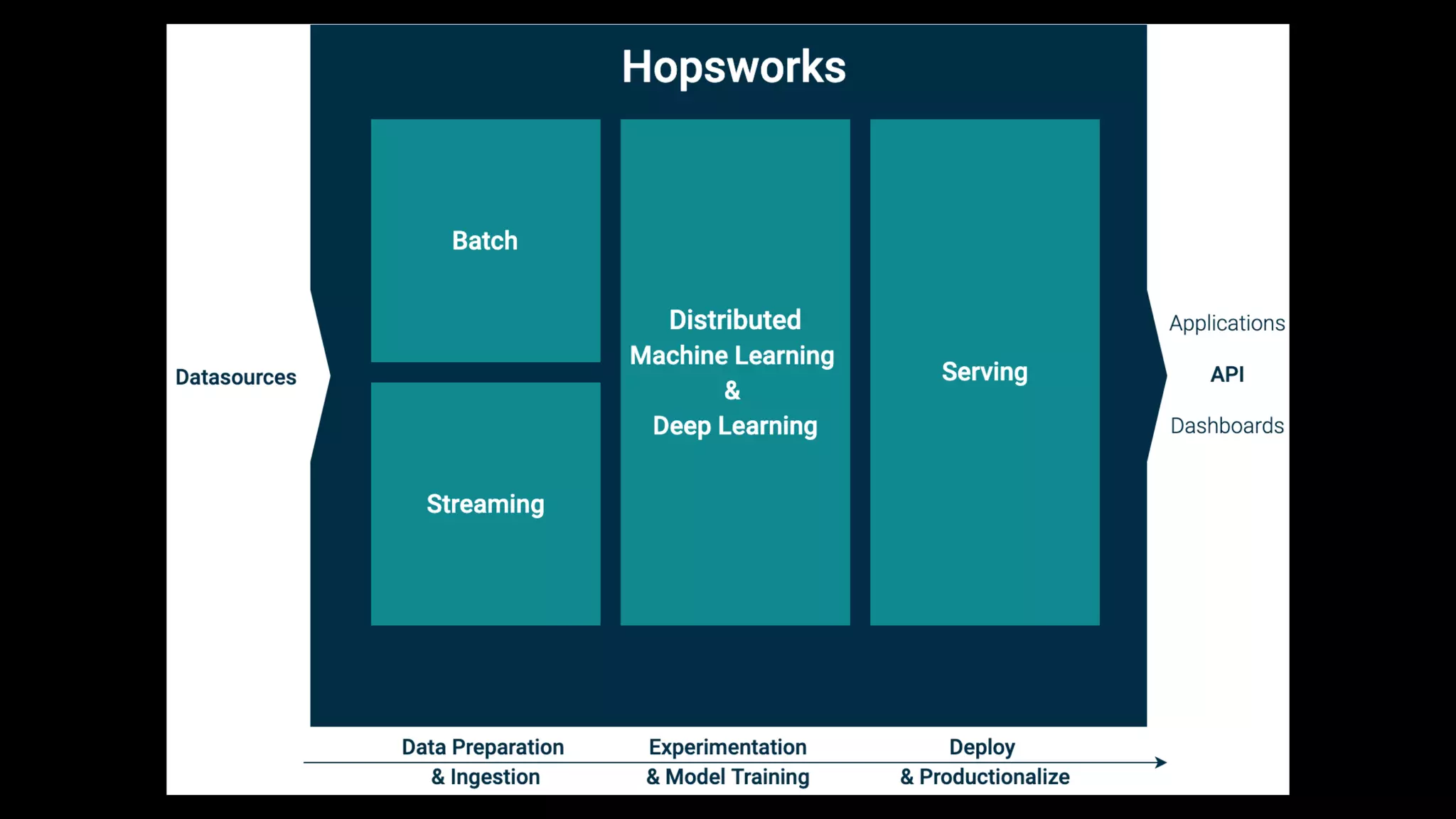

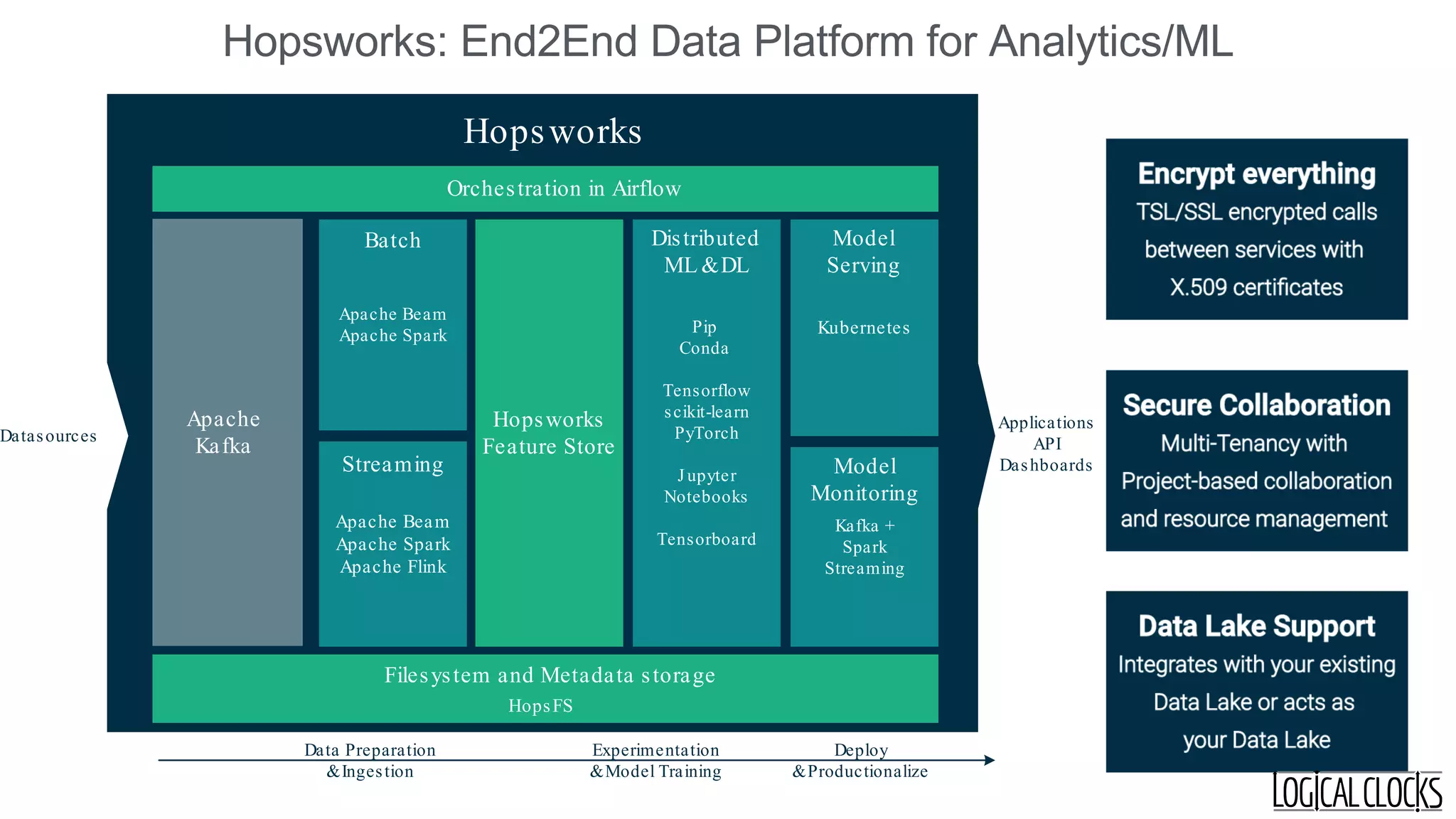

3. Hopsworks: End2End Data Platform for Analytics/ML
Datasources
Applications
API
Dashboards
Hopsworks
Apache Beam
Apache Spark Pip
Conda
Tensorflow
scikit-learn
PyTorch
J upyter
Notebooks
Tensorboard
Apache Beam
Apache Spark
Apache Flink
Kubernetes
Batch Distributed
ML &DL
Model
Serving
Hopsworks
Feature Store
Kafka +
Spark
Streaming
Model
Monitoring
Orchestration in Airflow
Data Preparation
&Ingestion
Experimentation
&Model Training
Deploy
&Productionalize
Streaming
Filesystem and Metadata storage
HopsFS
Apache
Kafka
Datasources

4. Logical Clocks was founded by
the team that created and
continues to drive
Hopsworks a Data-Intensive AI
platform, and its Feature Store,
a warehouse for machine
learning features.
Logical Clocks’ vision is to
simplify the process of
refining data into intelligence
at scale

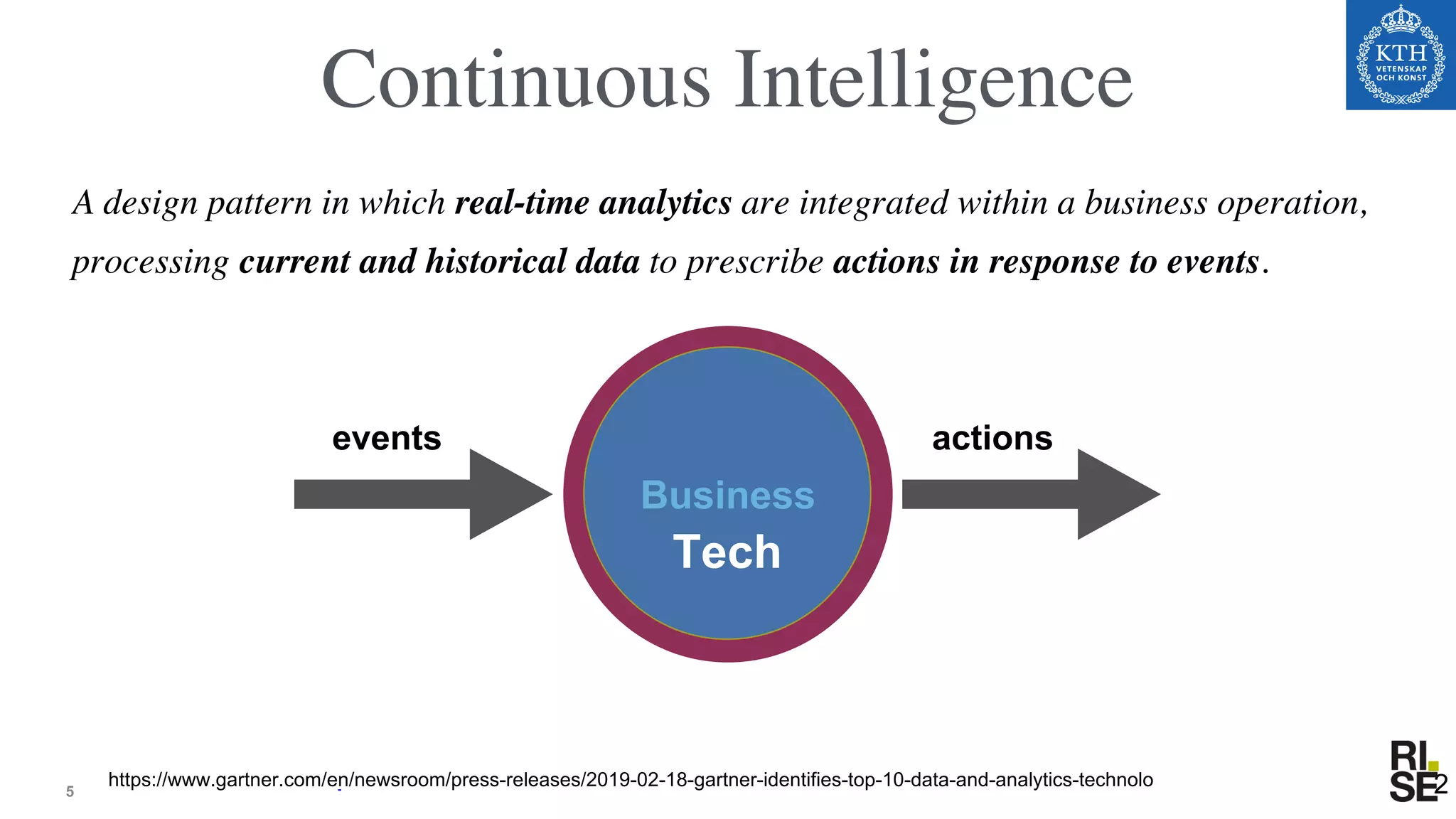

5. 25
Continuous Intelligence
A design pattern in which real-time analytics are integrated within a business operation,
processing current and historical data to prescribe actions in response to events.
Business
Tech
https://www.gartner.com/en/newsroom/press-releases/2019-02-18-gartner-identifies-top-10-data-and-analytics-technolo
events actions

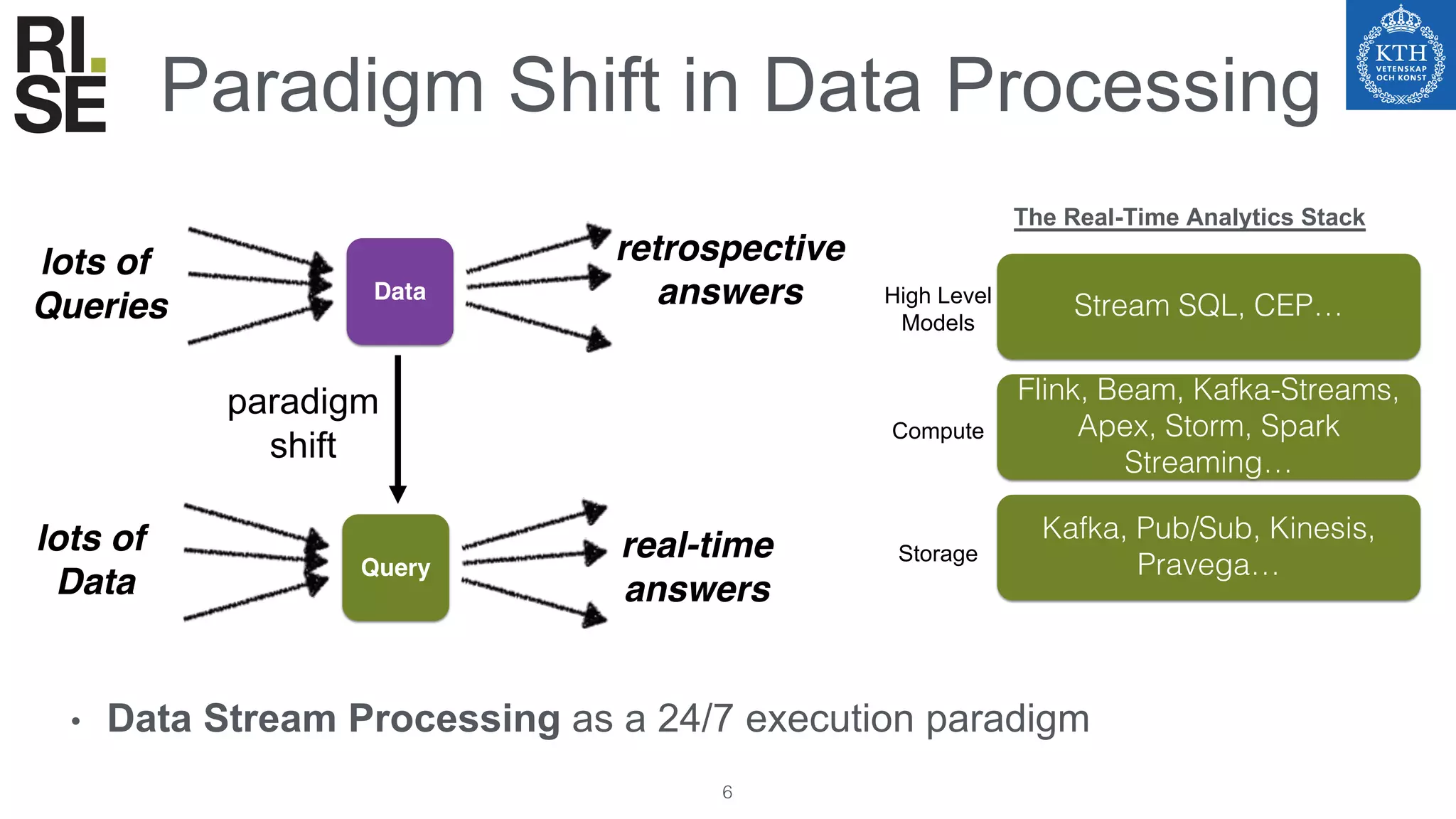

6. Paradigm Shift in Data Processing
Data
lots of
Queries
retrospective
answers
Query
lots of
Data
real-time
answers
• Data Stream Processing as a 24/7 execution paradigm
paradigm
shift
6
Stream SQL, CEP…
Kafka, Pub/Sub, Kinesis,
Pravega…
Flink, Beam, Kafka-Streams,
Apex, Storm, Spark
Streaming…
Storage
Compute
High Level
Models
The Real-Time Analytics Stack

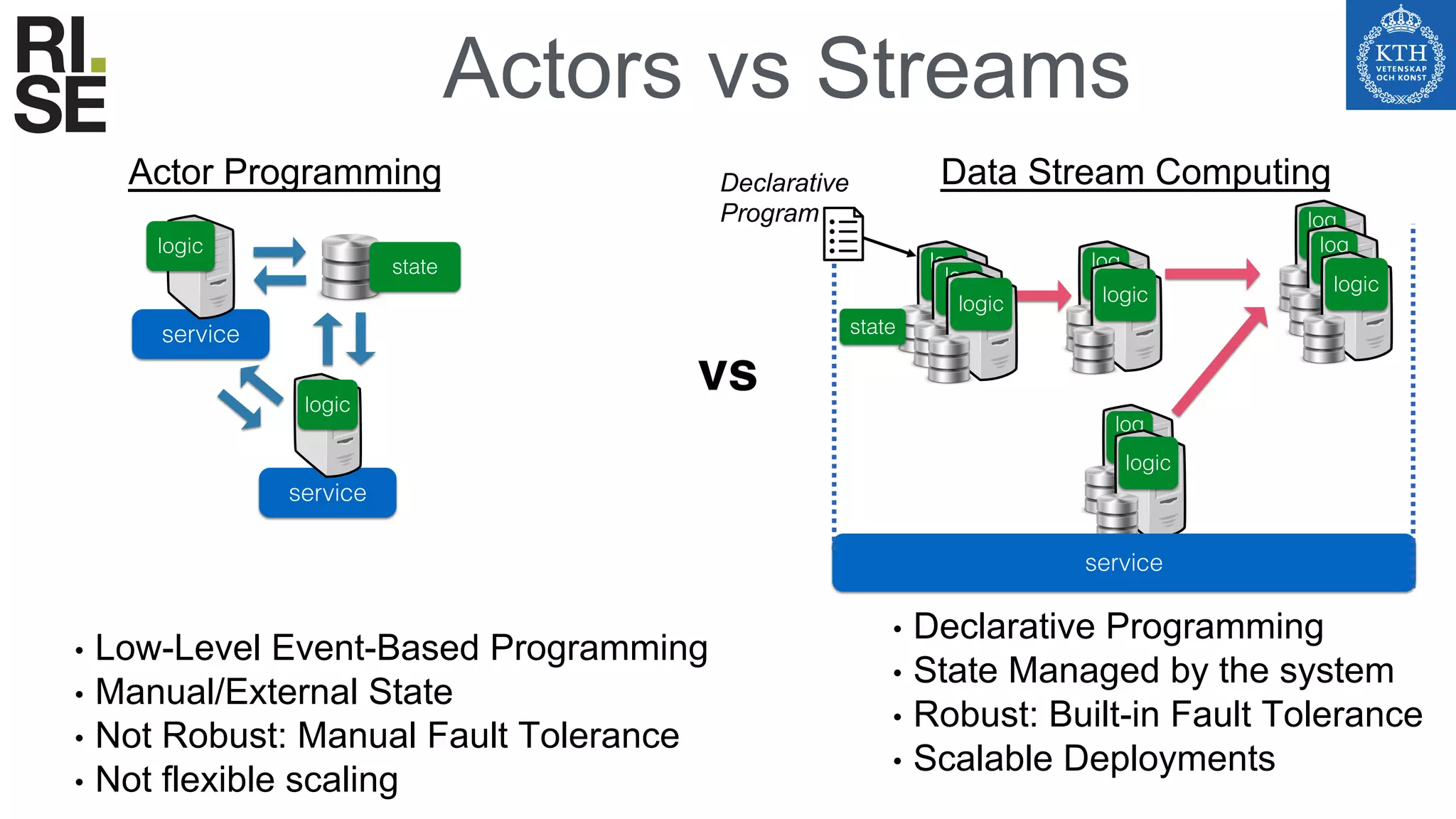

7. Actors vs Streams
vs
Data Stream ComputingActor Programming
• Declarative Programming
• State Managed by the system
• Robust: Built-in Fault Tolerance
• Scalable Deployments
service
logic
service
logic
state log
ic
log
ic
log
ic
log
ic
log
iclogic logic
logic
log
ic
logic
state
• Low-Level Event-Based Programming
• Manual/External State
• Not Robust: Manual Fault Tolerance
• Not flexible scaling
Declarative
Program
service

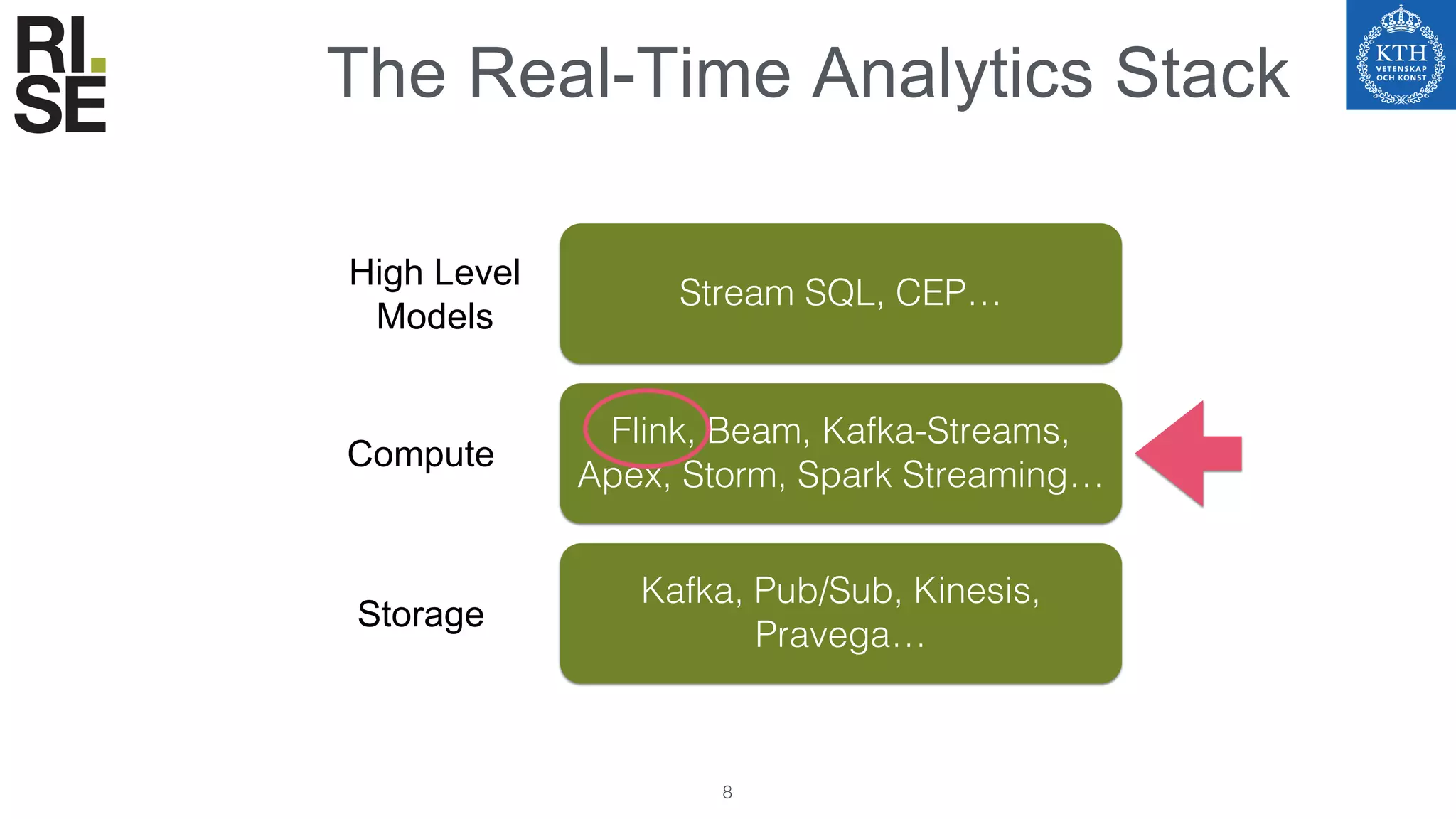

8. Stream SQL, CEP…
Kafka, Pub/Sub, Kinesis,
Pravega…
Flink, Beam, Kafka-Streams,
Apex, Storm, Spark Streaming…
Storage
Compute
High Level
Models
8
The Real-Time Analytics Stack

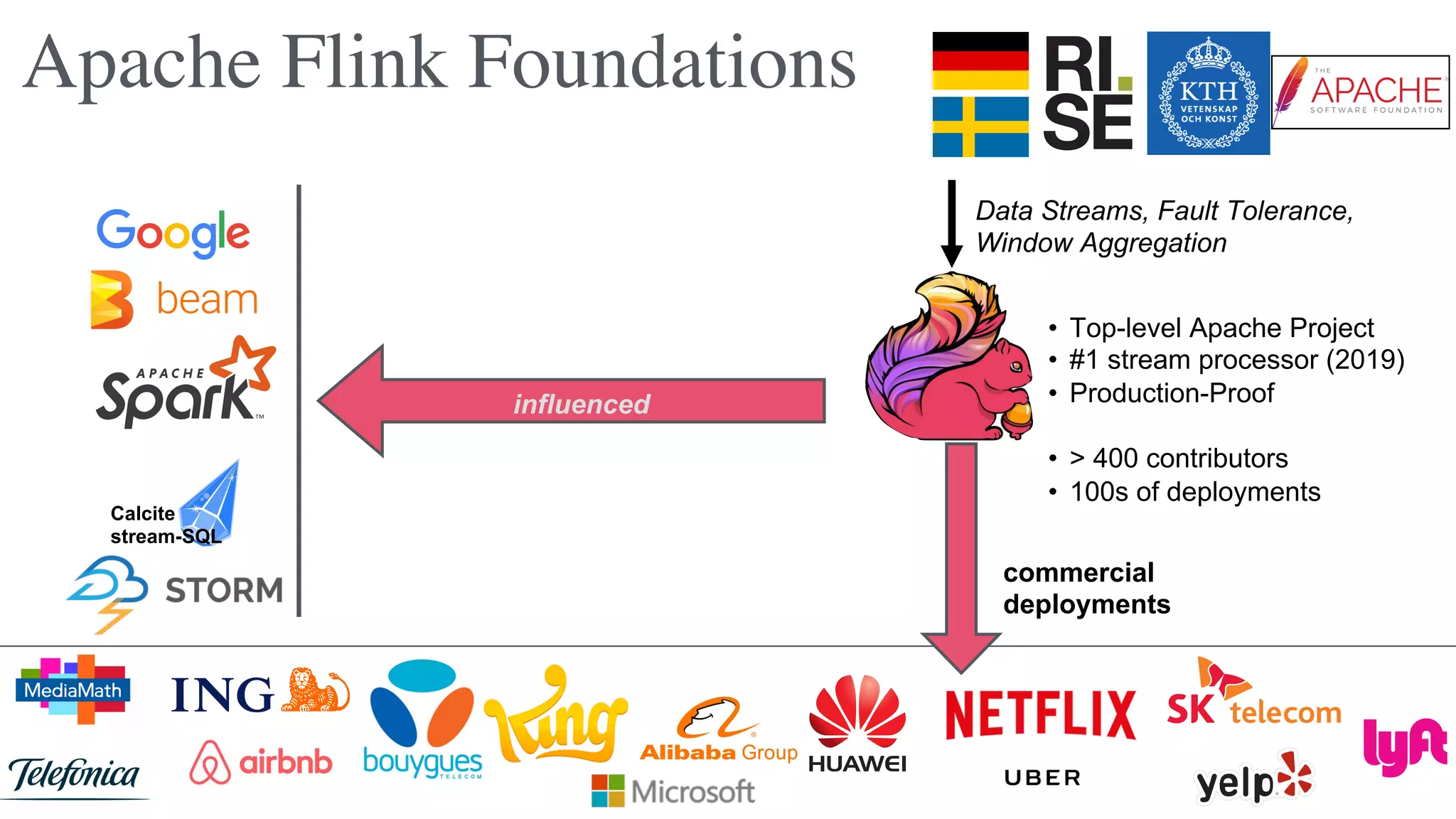

9. 9
Apache Flink Foundations
commercial
deployments
• Top-level Apache Project
• #1 stream processor (2019)
• Production-Proof
• > 400 contributors
• 100s of deployments
Data Streams, Fault Tolerance,
Window Aggregation
Calcite
stream-SQL
influenced

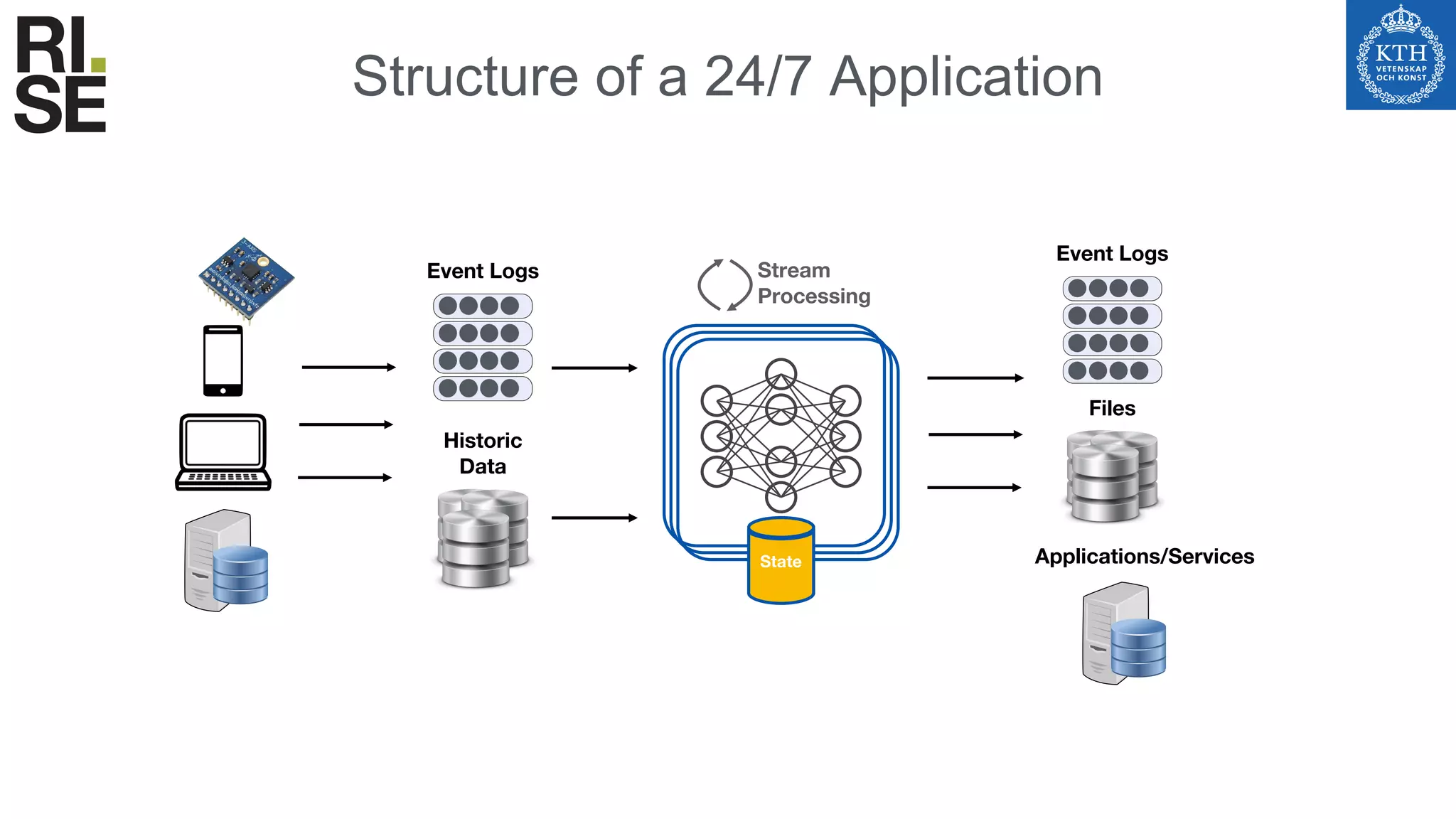

10. Structure of a 24/7 Application
Event Logs
Historic
Data
Event Logs
Files
Applications/Services
Stream
Processing
State

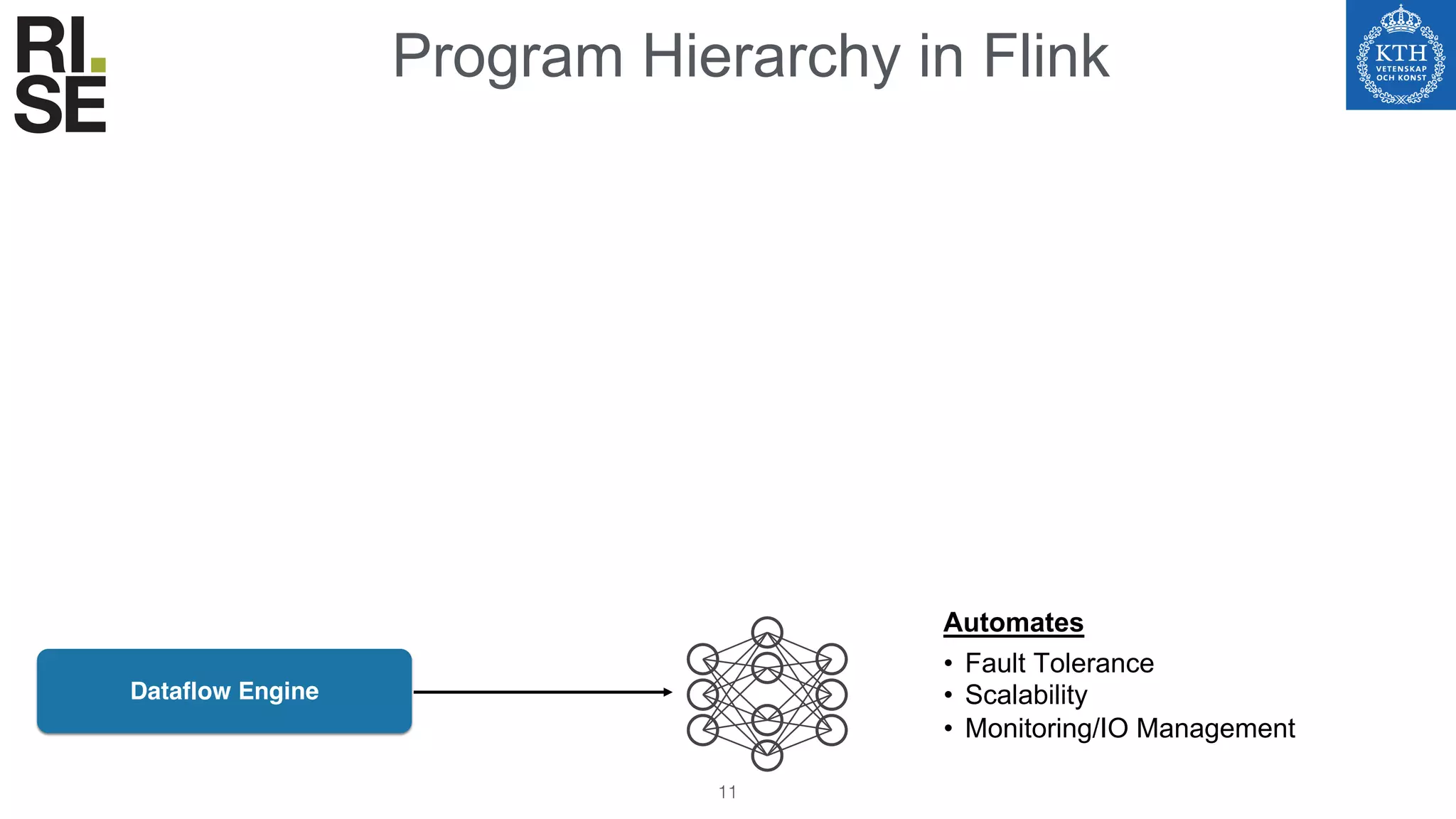

11. Program Hierarchy in Flink
11
Dataflow Engine
• Fault Tolerance
• Scalability
• Monitoring/IO Management
Automates

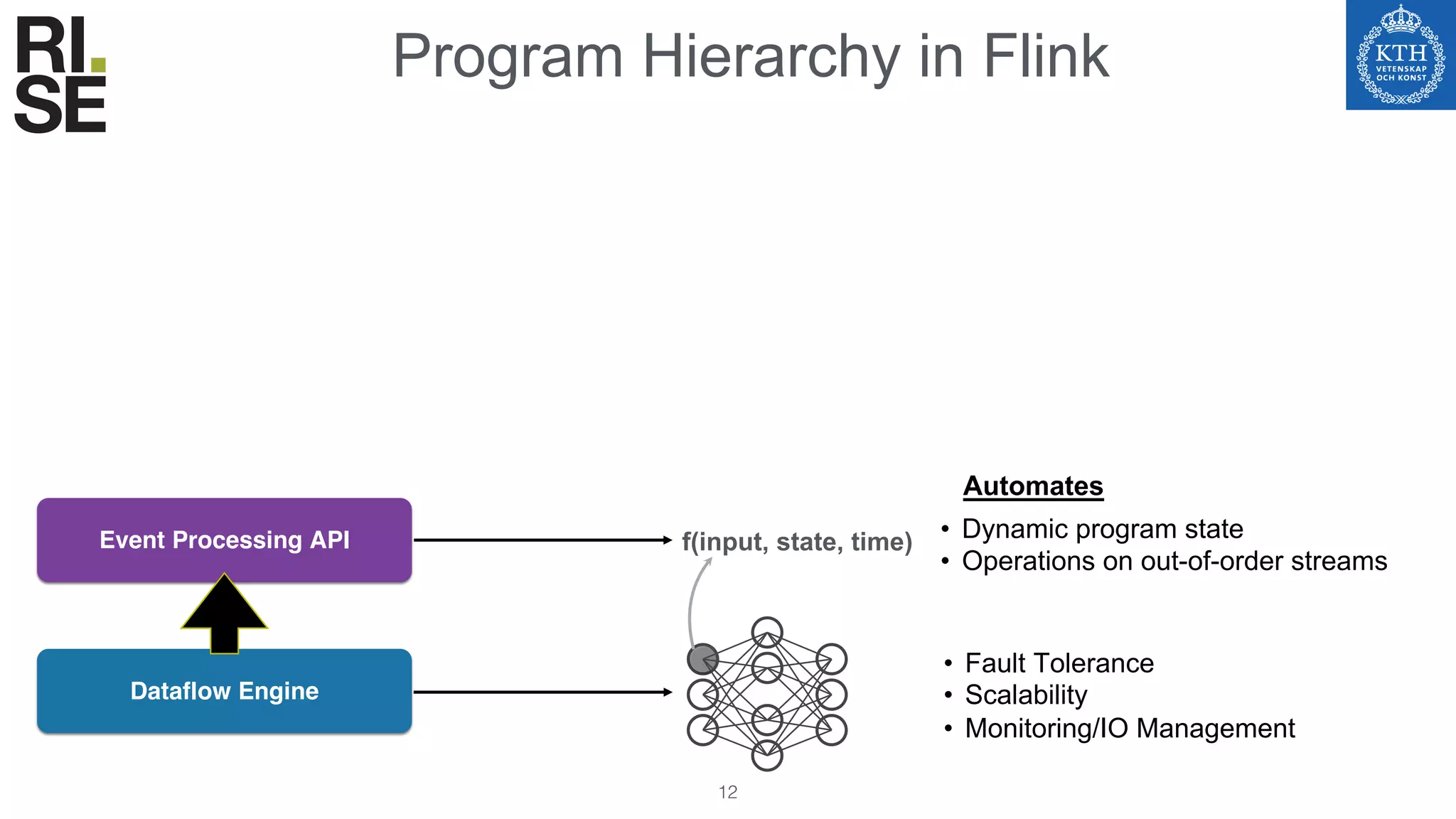

12. Program Hierarchy in Flink
12
Dataflow Engine
• Fault Tolerance
• Scalability
• Monitoring/IO Management
• Dynamic program state
• Operations on out-of-order streams
Event Processing API f(input, state, time)
Automates

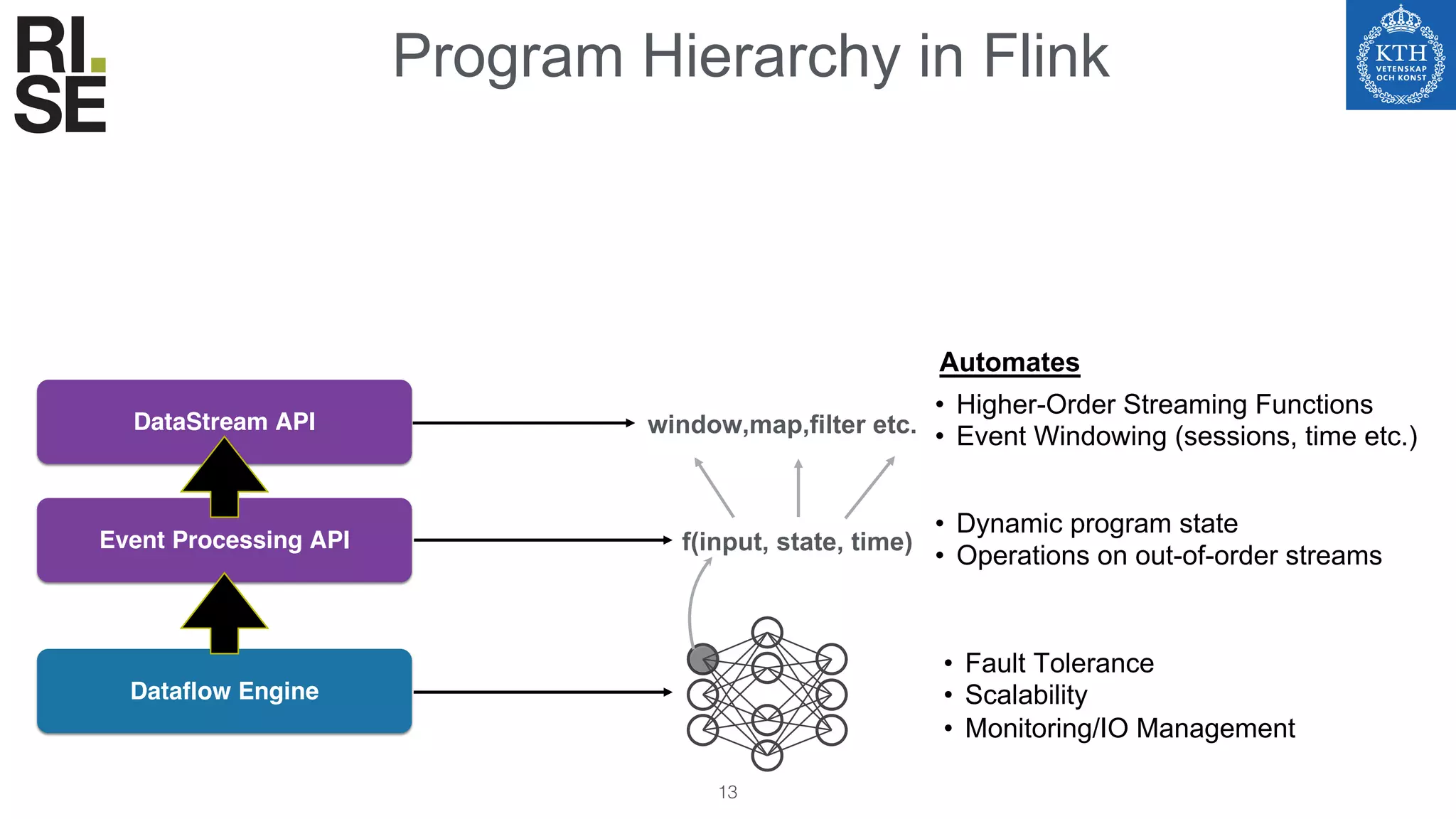

13. Program Hierarchy in Flink
13
Dataflow Engine
• Fault Tolerance
• Scalability
• Monitoring/IO Management
• Dynamic program state
• Operations on out-of-order streams
Event Processing API f(input, state, time)
DataStream API window,map,filter etc.
• Higher-Order Streaming Functions
• Event Windowing (sessions, time etc.)
Automates

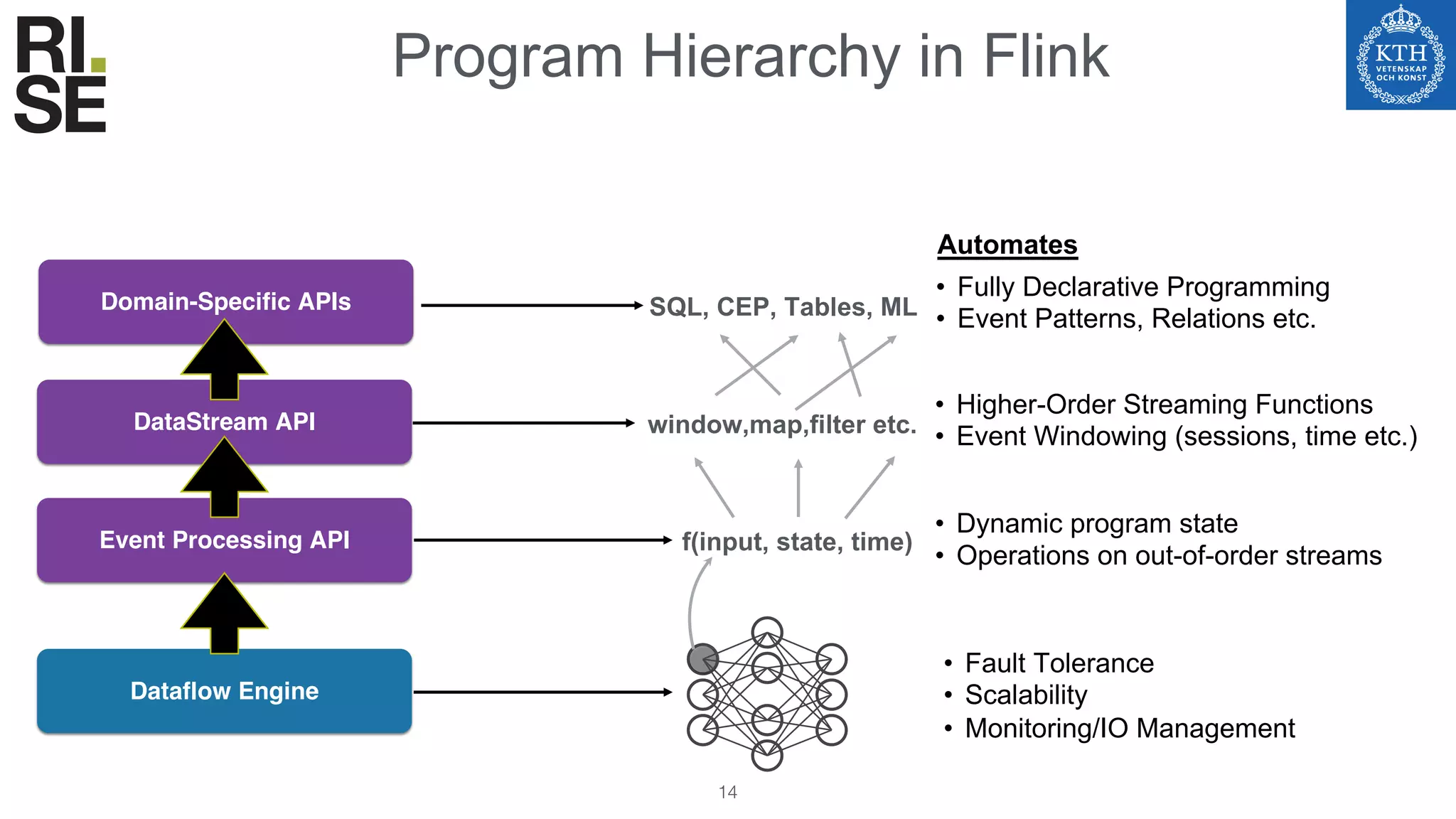

14. Program Hierarchy in Flink
14
Dataflow Engine
• Fault Tolerance
• Scalability
• Monitoring/IO Management
• Dynamic program state
• Operations on out-of-order streams
Event Processing API f(input, state, time)
DataStream API window,map,filter etc.
• Higher-Order Streaming Functions
• Event Windowing (sessions, time etc.)
SQL, CEP, Tables, ML
• Fully Declarative Programming
• Event Patterns, Relations etc.
Automates
Domain-Specific APIs

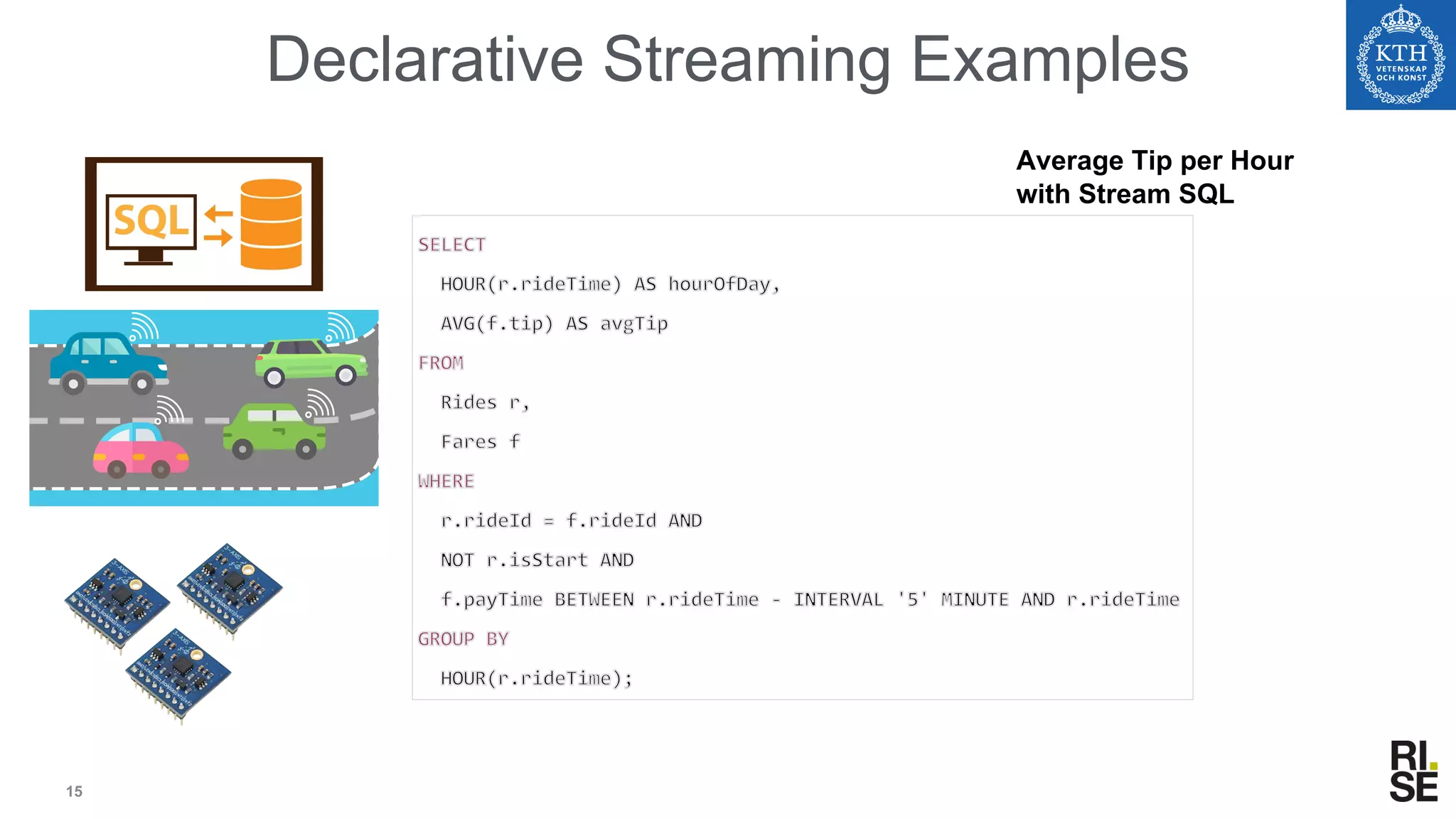

15. 15
Declarative Streaming Examples
Average Tip per Hour
with Stream SQL

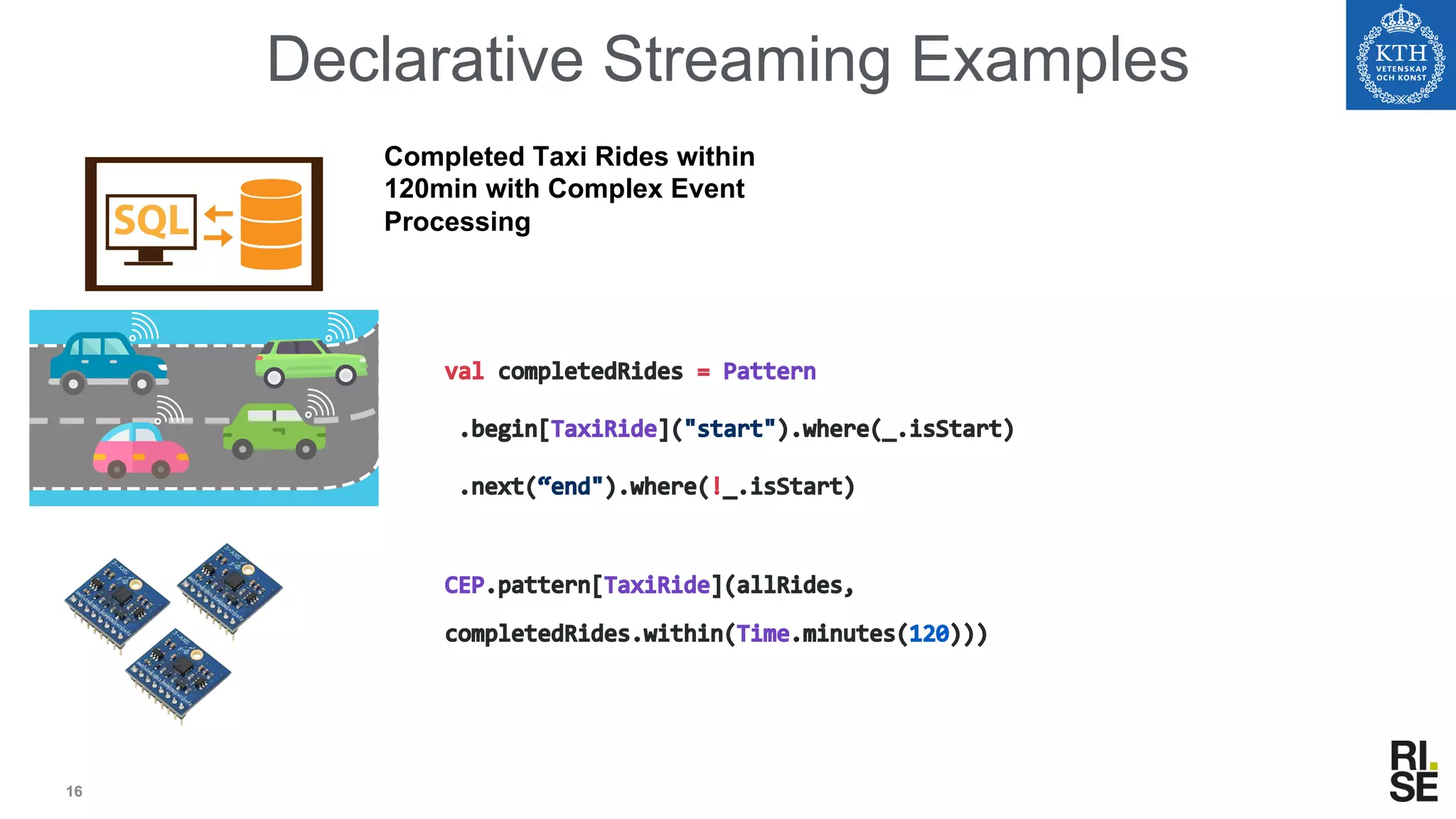

16. 16
Declarative Streaming Examples
Completed Taxi Rides within
120min with Complex Event
Processing

17. Example Use Cases
Real-Time Analytics in Action
https://flink.apache.org/poweredby.html
https://www.flink-forward.org/

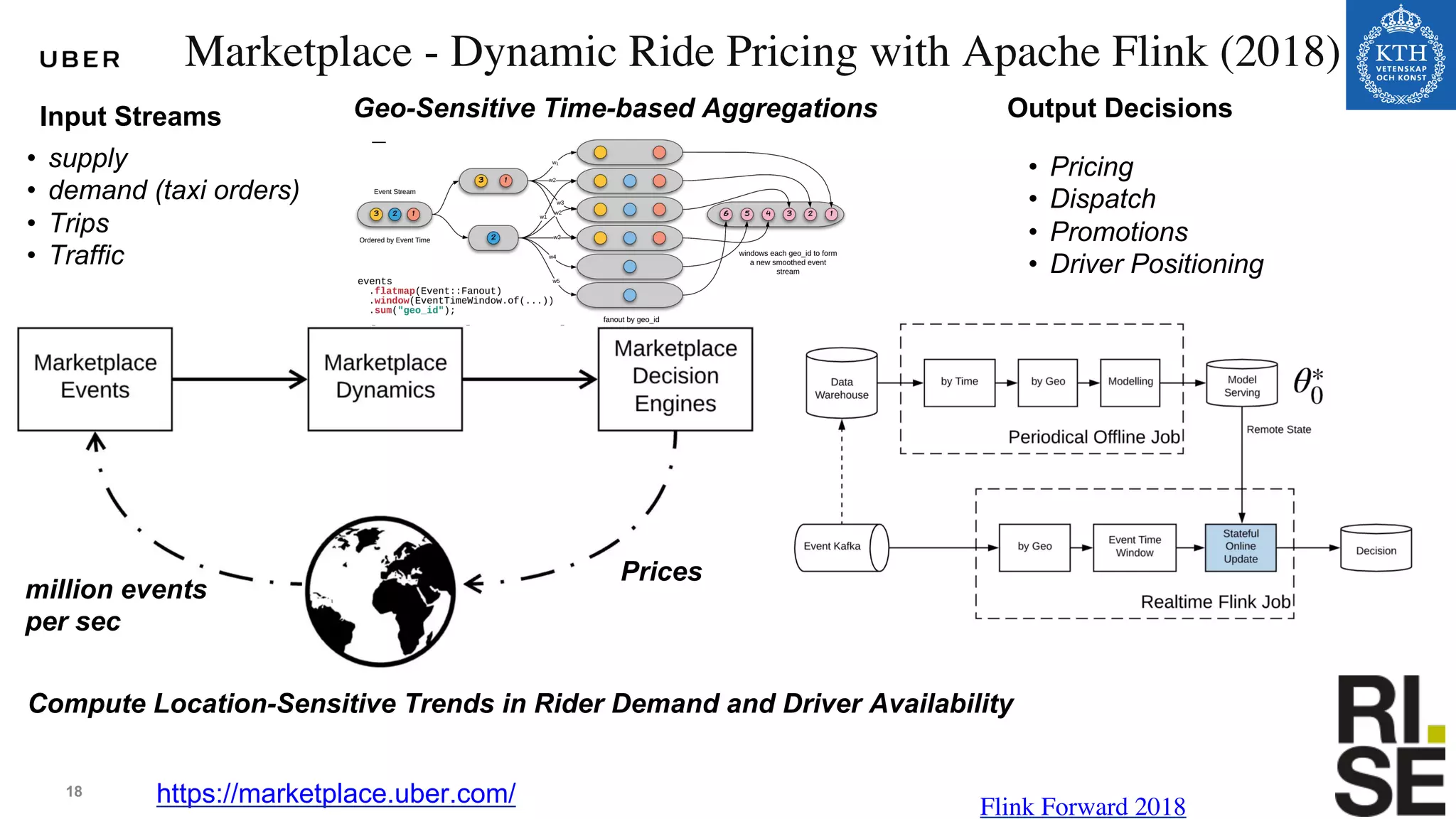

18. 18
Marketplace - Dynamic Ride Pricing with Apache Flink (2018)
https://marketplace.uber.com/ Flink Forward 2018
• supply
• demand (taxi orders)
• Trips
• Traffic
Compute Location-Sensitive Trends in Rider Demand and Driver Availability
Prices
• Pricing
• Dispatch
• Promotions
• Driver Positioning
Geo-Sensitive Time-based Aggregations
million events
per sec
Input Streams Output Decisions

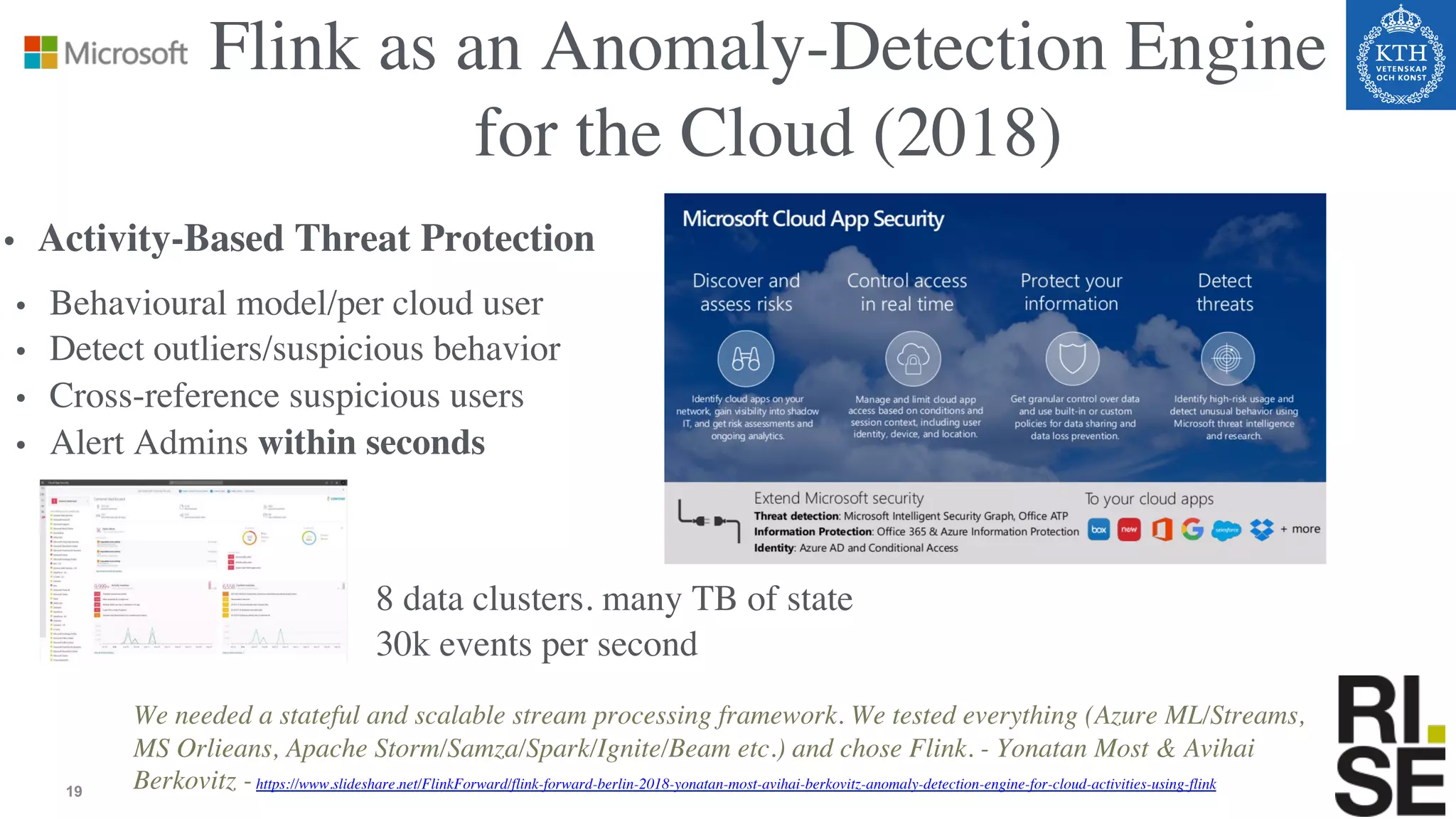

19. 19
Flink as an Anomaly-Detection Engine
for the Cloud (2018)
• Activity-Based Threat Protection
• Behavioural model/per cloud user
• Detect outliers/suspicious behavior
• Cross-reference suspicious users
• Alert Admins within seconds
We needed a stateful and scalable stream processing framework. We tested everything (Azure ML/Streams,
MS Orlieans, Apache Storm/Samza/Spark/Ignite/Beam etc.) and chose Flink. - Yonatan Most & Avihai
Berkovitz -https://www.slideshare.net/FlinkForward/flink-forward-berlin-2018-yonatan-most-avihai-berkovitz-anomaly-detection-engine-for-cloud-activities-using-flink
8 data clusters. many TB of state
30k events per second

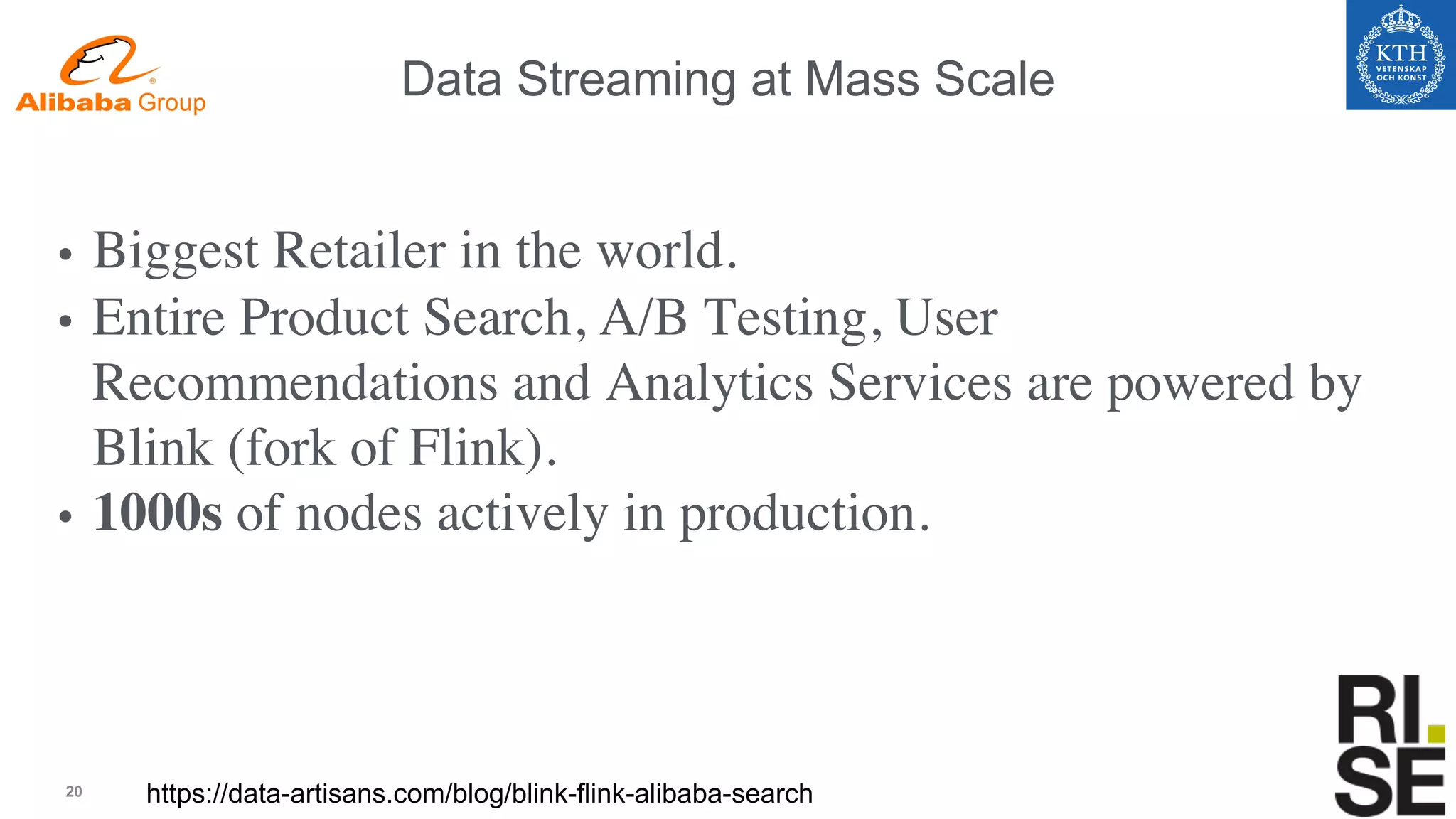

20. 20
Data Streaming at Mass Scale
https://data-artisans.com/blog/blink-flink-alibaba-search
• Biggest Retailer in the world.
• Entire Product Search, A/B Testing, User
Recommendations and Analytics Services are powered by
Blink (fork of Flink).
• 1000s of nodes actively in production.

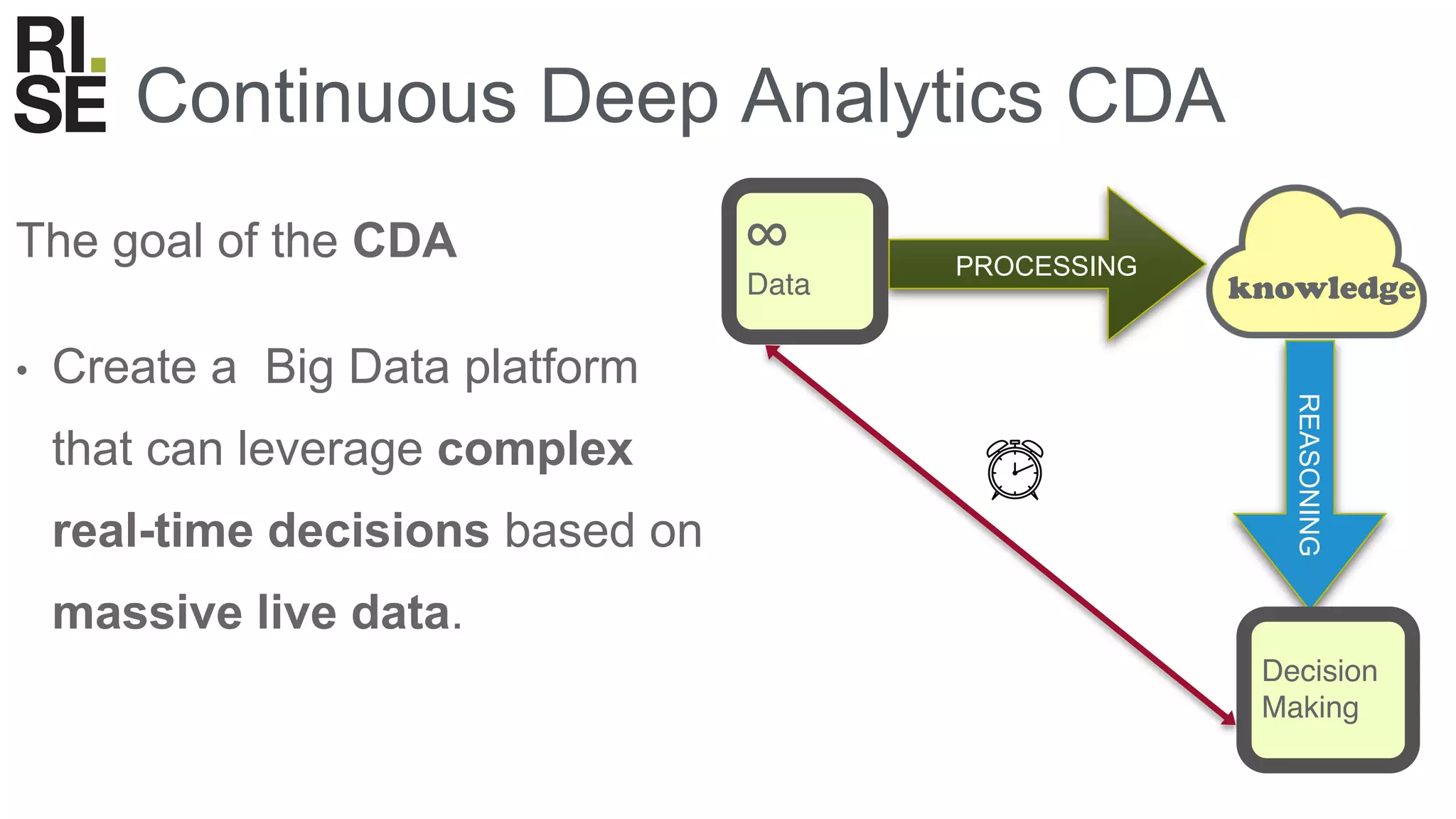

21. Continuous Deep Analytics CDA
knowledge
PROCESSING
∞
Data
REASONING
Decision
Making
The goal of the CDA
• Create a Big Data platform
that can leverage complex
real-time decisions based on
massive live data.

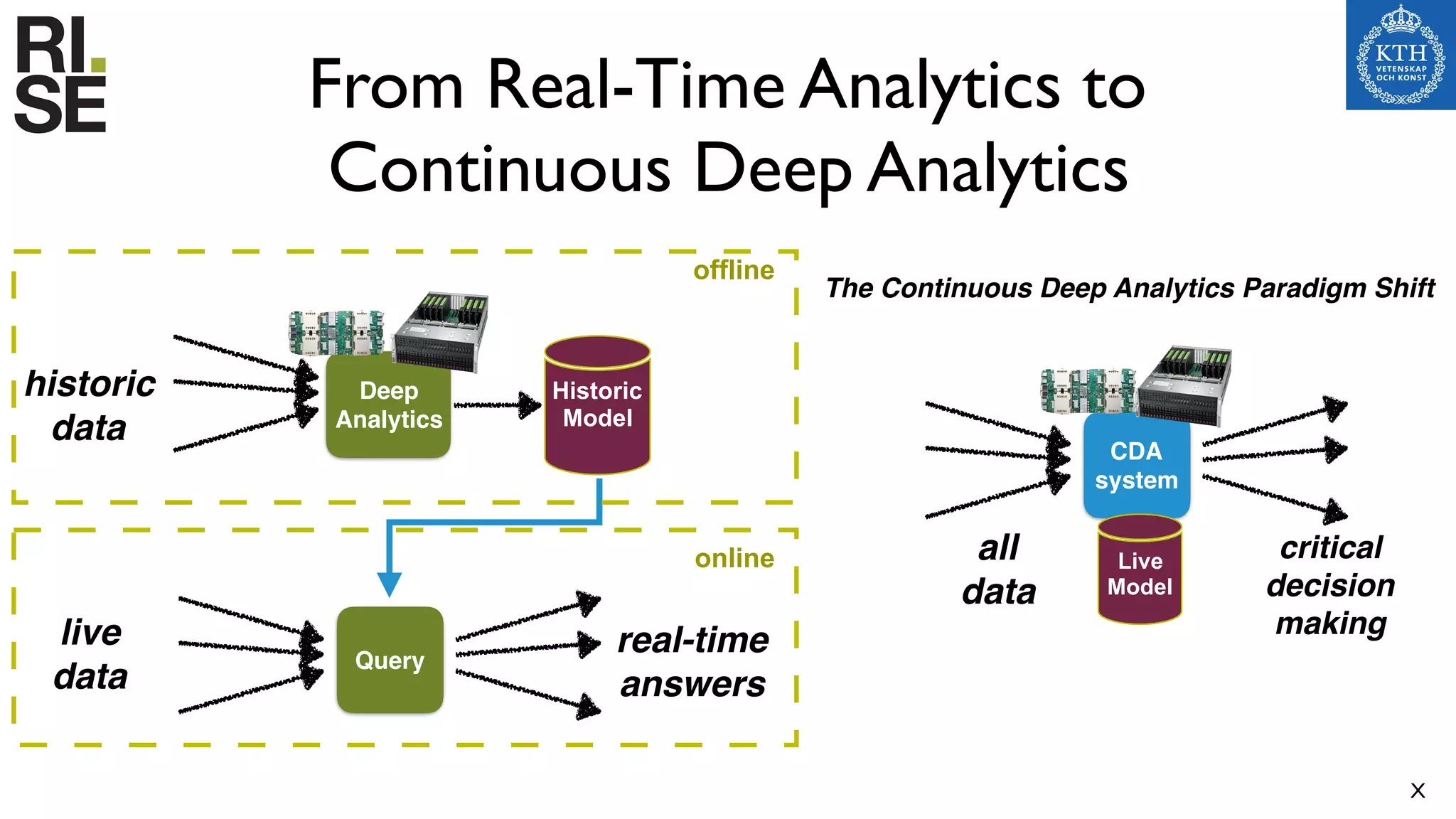

22. Real-Time and Deep Analytics
for Central & Edge Clouds
Our promise and vision
From Real-Time Analytics to
Continuous Deep Analytics
X
Query
live
data
real-time
answers
Deep
Analytics
Historic
Model
historic
data
CDA
system
all
data
critical
decision
making
Live
Model
online
offline
The Continuous Deep Analytics Paradigm Shift

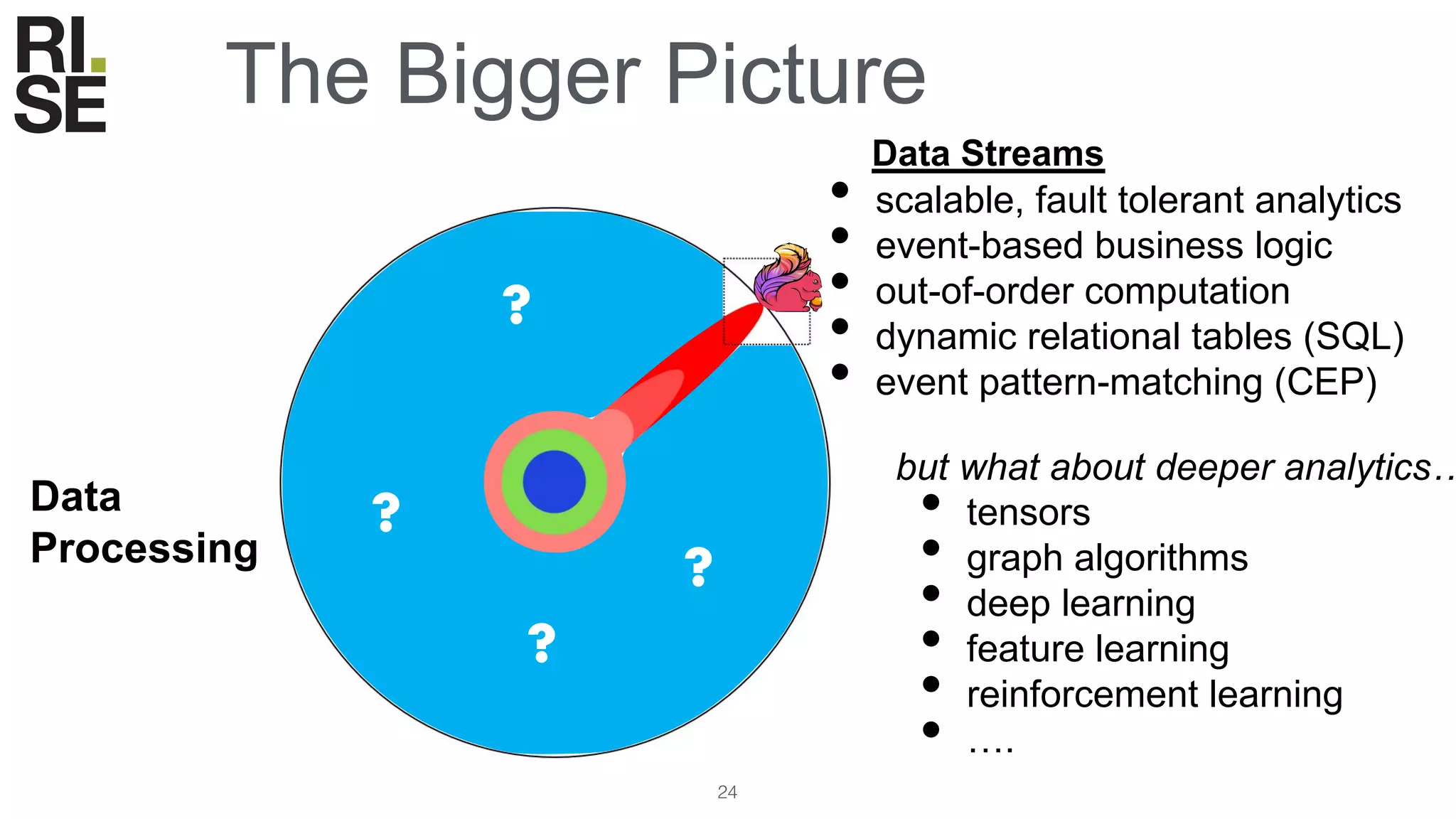

23. ?
?
?
?
The Bigger Picture
24
Data
Processing
• scalable, fault tolerant analytics
• event-based business logic
• out-of-order computation
• dynamic relational tables (SQL)
• event pattern-matching (CEP)
Data Streams
• tensors
• graph algorithms
• deep learning
• feature learning
• reinforcement learning
• ….
but what about deeper analytics…

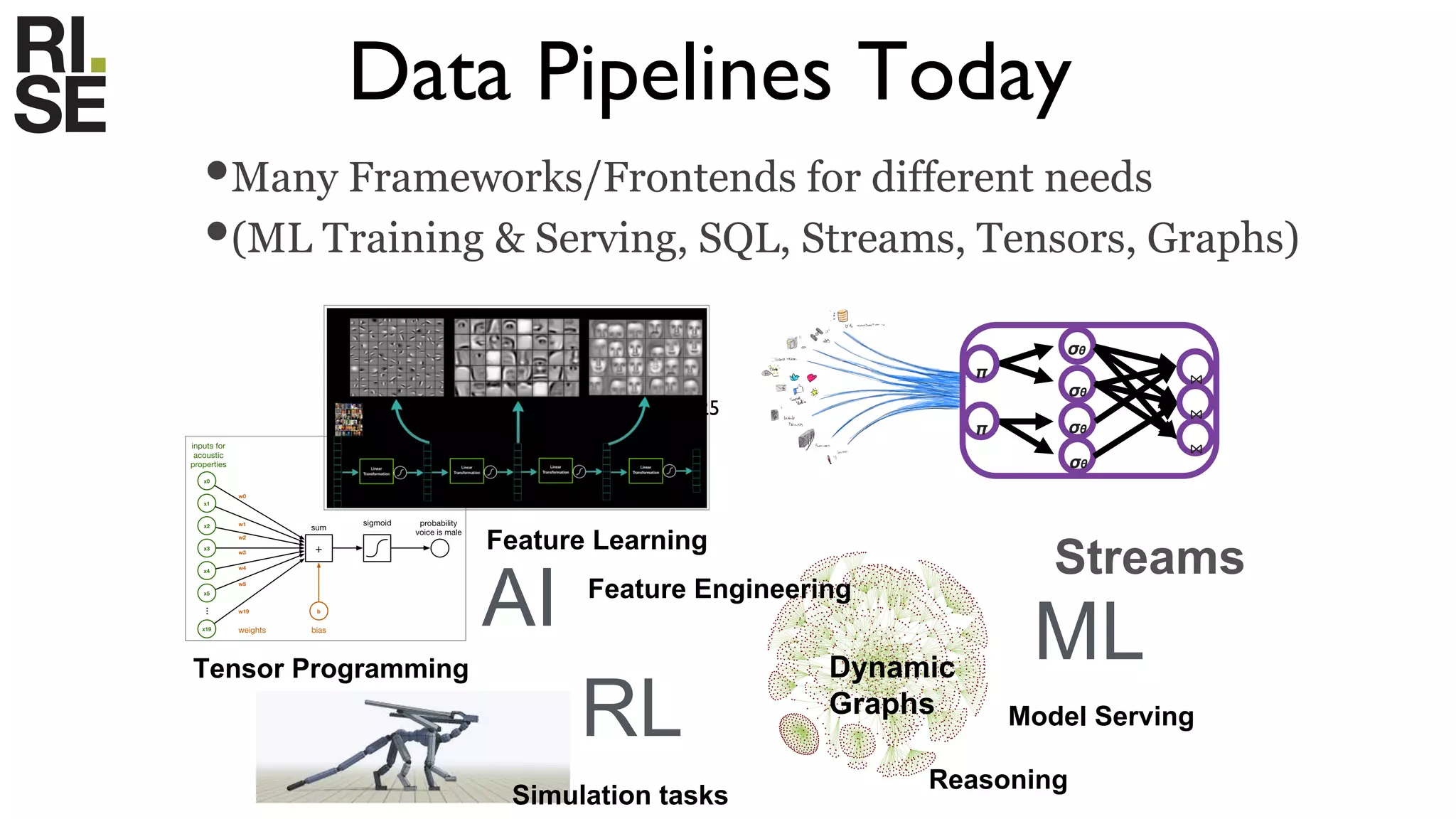

24. Data Pipelines Today
•Many Frameworks/Frontends for different needs
•(ML Training & Serving, SQL, Streams, Tensors, Graphs)
25 ⋈
⋈
⋈
σθ
σθ
σθ
σθ
π
π
Streams
Feature Learning
Tensor Programming Dynamic
Graphs
AI ML
RL
Simulation tasks
Reasoning
Feature Engineering
Model Serving

25. 26

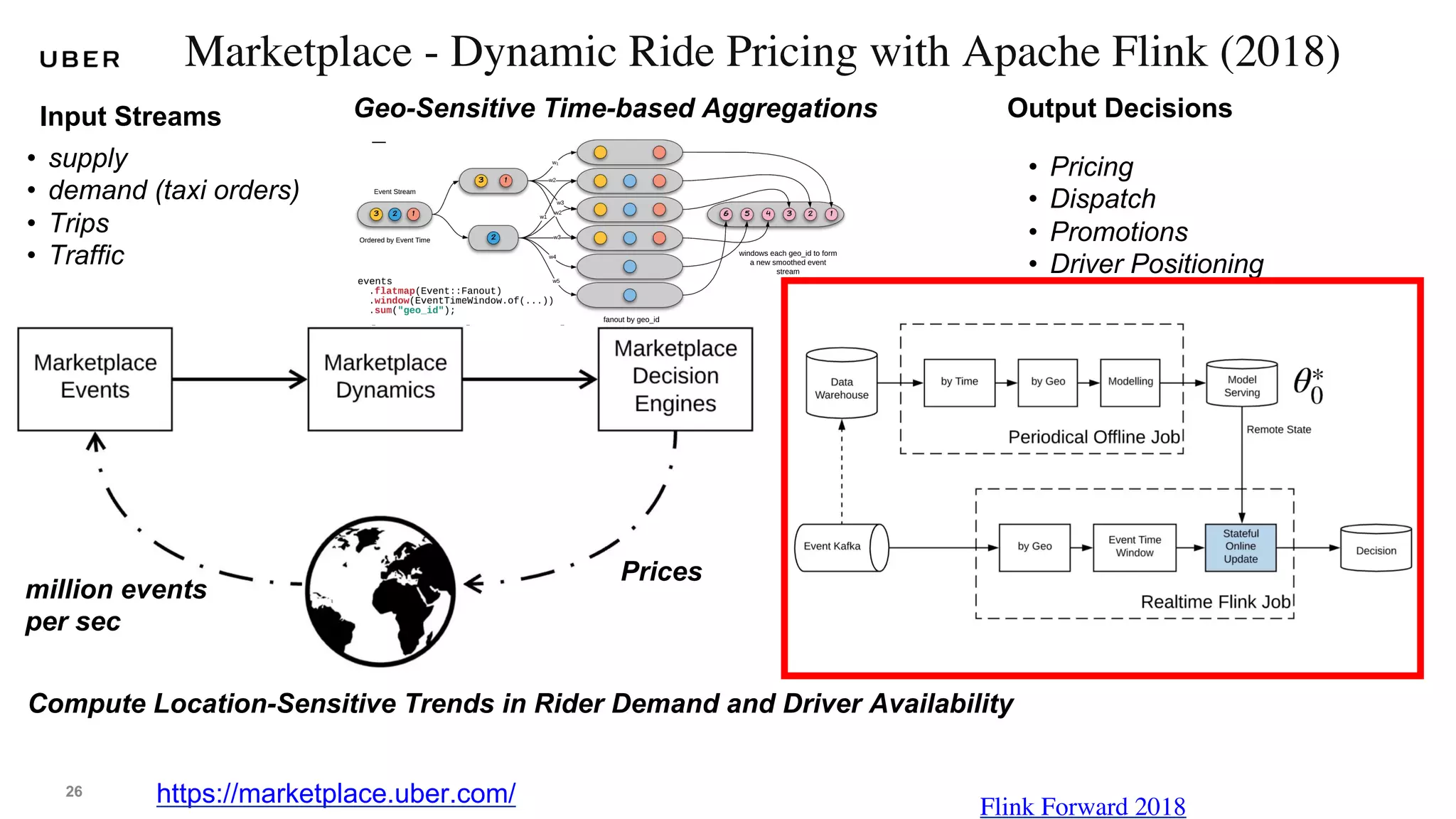

Marketplace - Dynamic Ride Pricing with Apache Flink (2018)
https://marketplace.uber.com/ Flink Forward 2018
• supply
• demand (taxi orders)
• Trips
• Traffic
Compute Location-Sensitive Trends in Rider Demand and Driver Availability
Prices
• Pricing
• Dispatch
• Promotions
• Driver Positioning
Geo-Sensitive Time-based Aggregations
million events
per sec
Input Streams Output Decisions

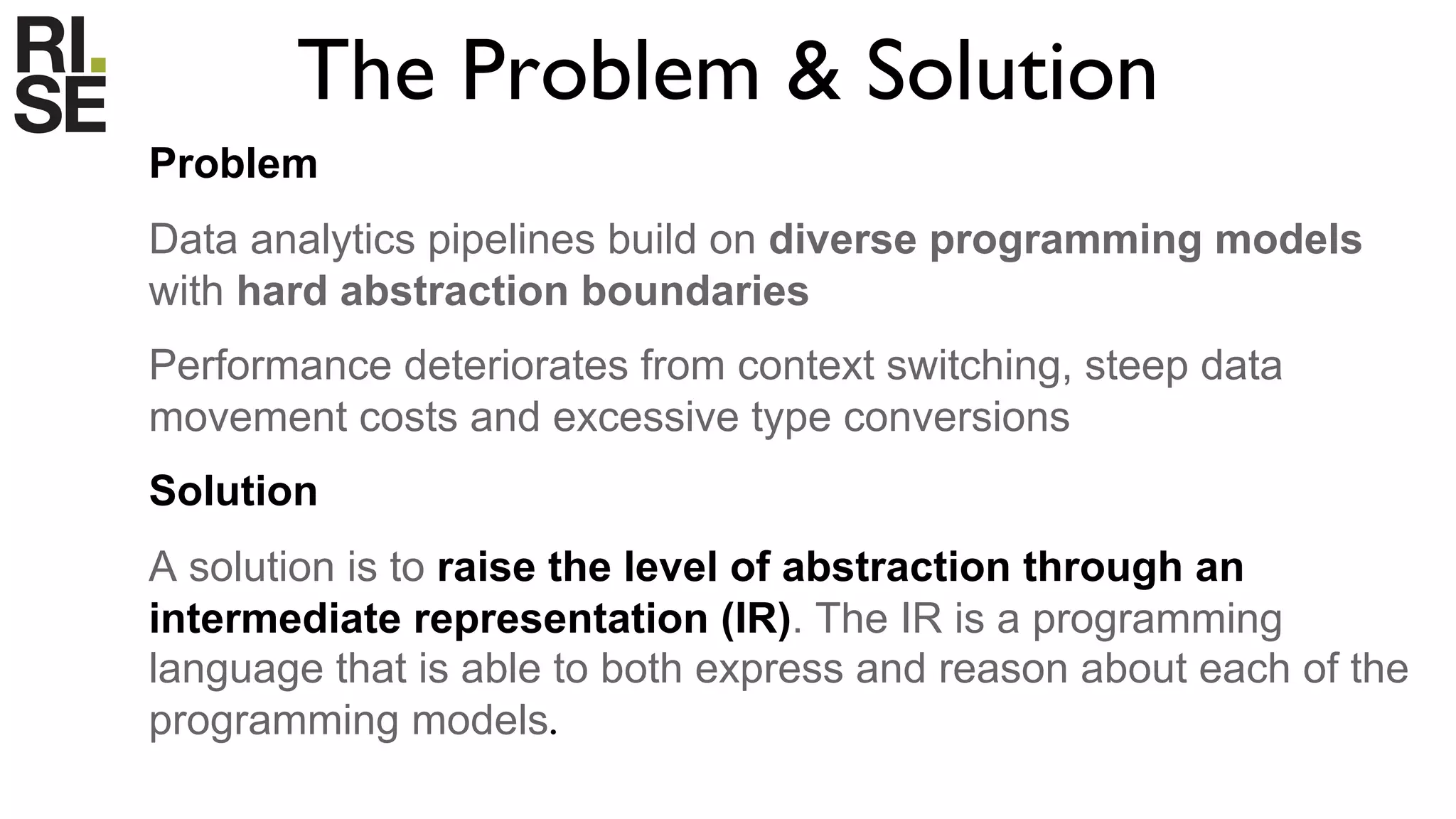

26. The Problem & Solution
Problem
Data analytics pipelines build on diverse programming models
with hard abstraction boundaries
Performance deteriorates from context switching, steep data
movement costs and excessive type conversions
Solution
A solution is to raise the level of abstraction through an
intermediate representation (IR). The IR is a programming
language that is able to both express and reason about each of the
programming models.

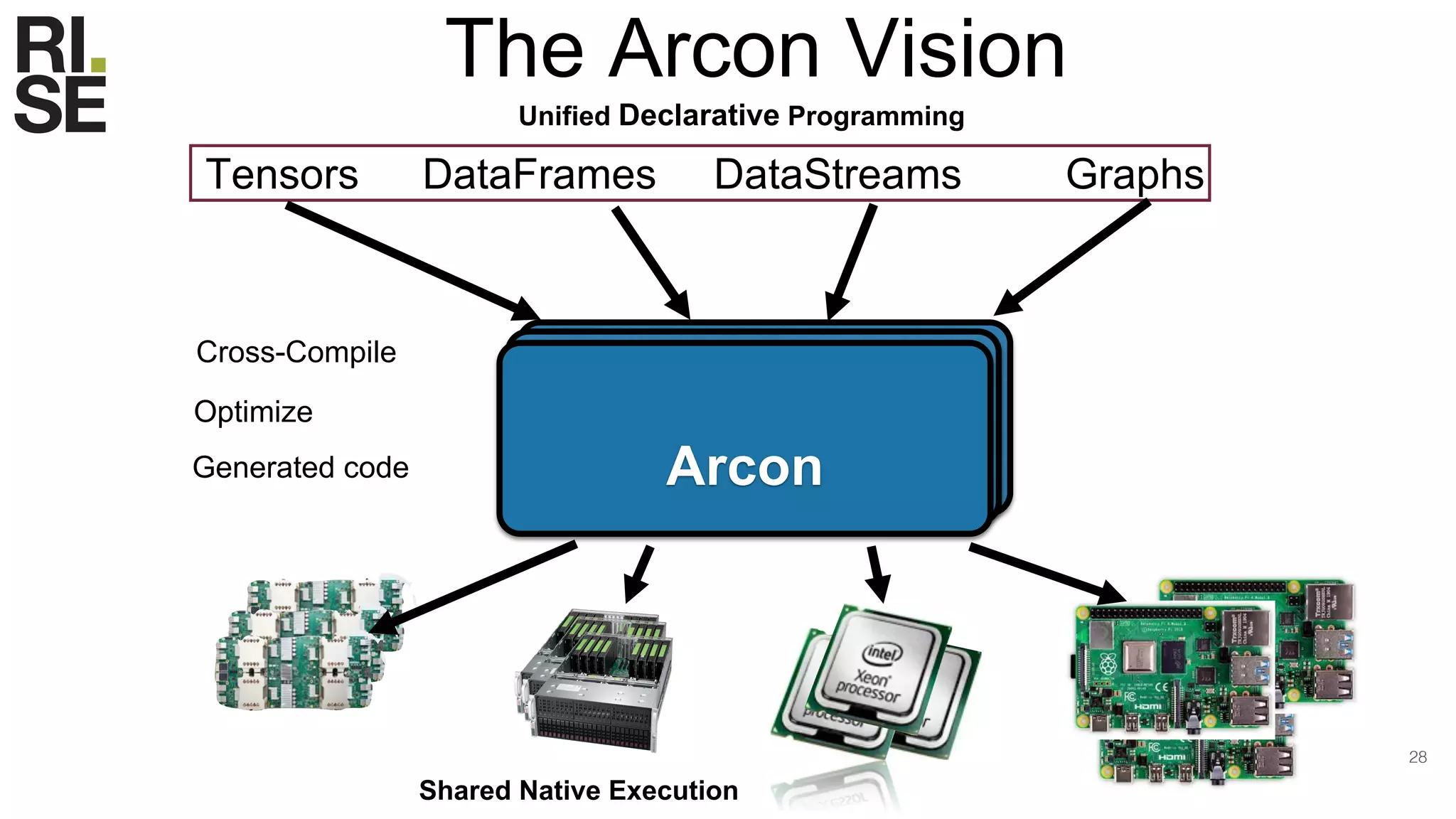

27. ArconArcon
Arcon
28
The Arcon Vision
Tensors DataFrames DataStreams Graphs
Unified Declarative Programming
Shared Native Execution
Cross-Compile
Optimize
Generated code

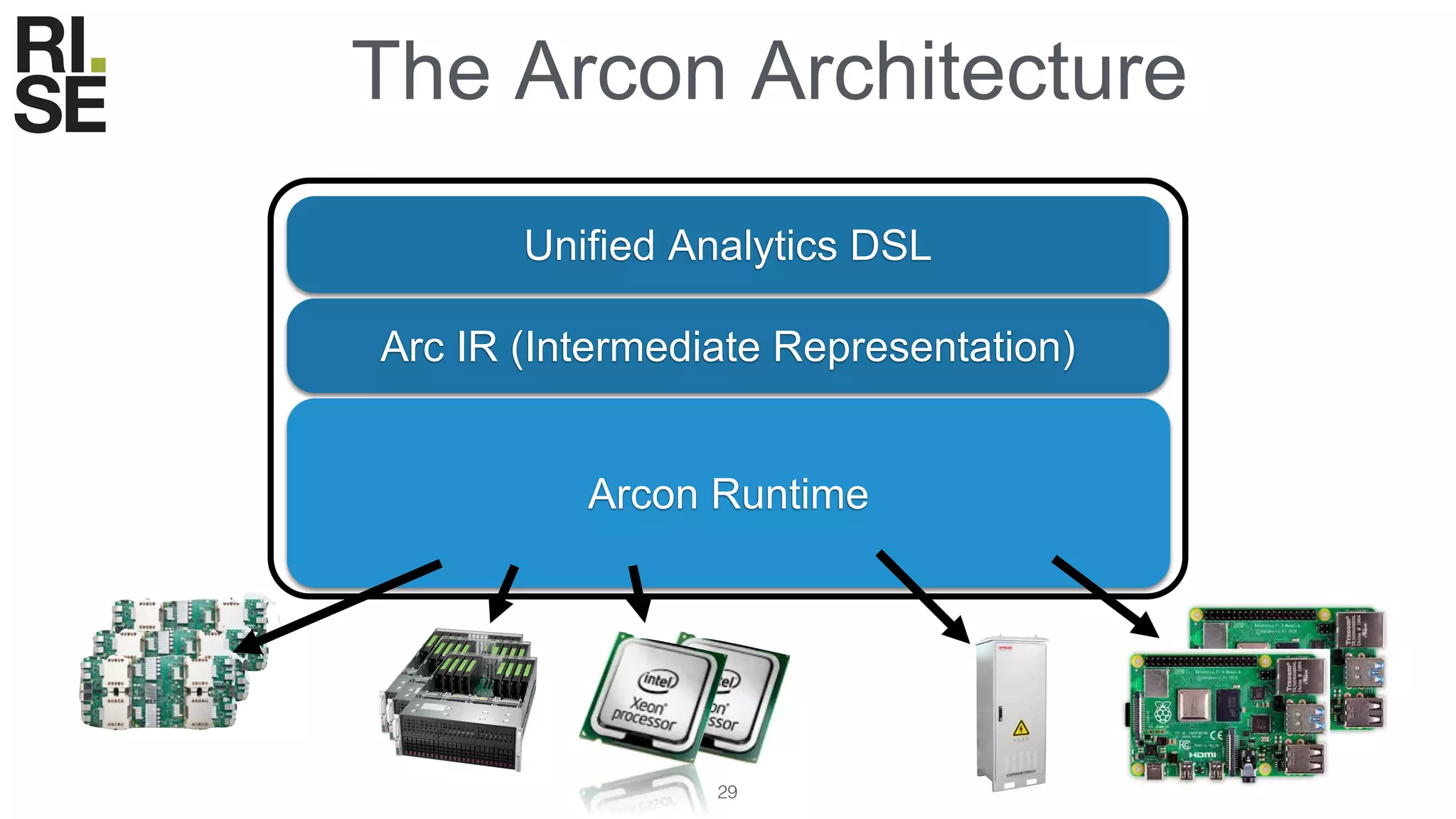

28. The Arcon Architecture
29
Unified Analytics DSL
Arcon Runtime
Arc IR (Intermediate Representation)

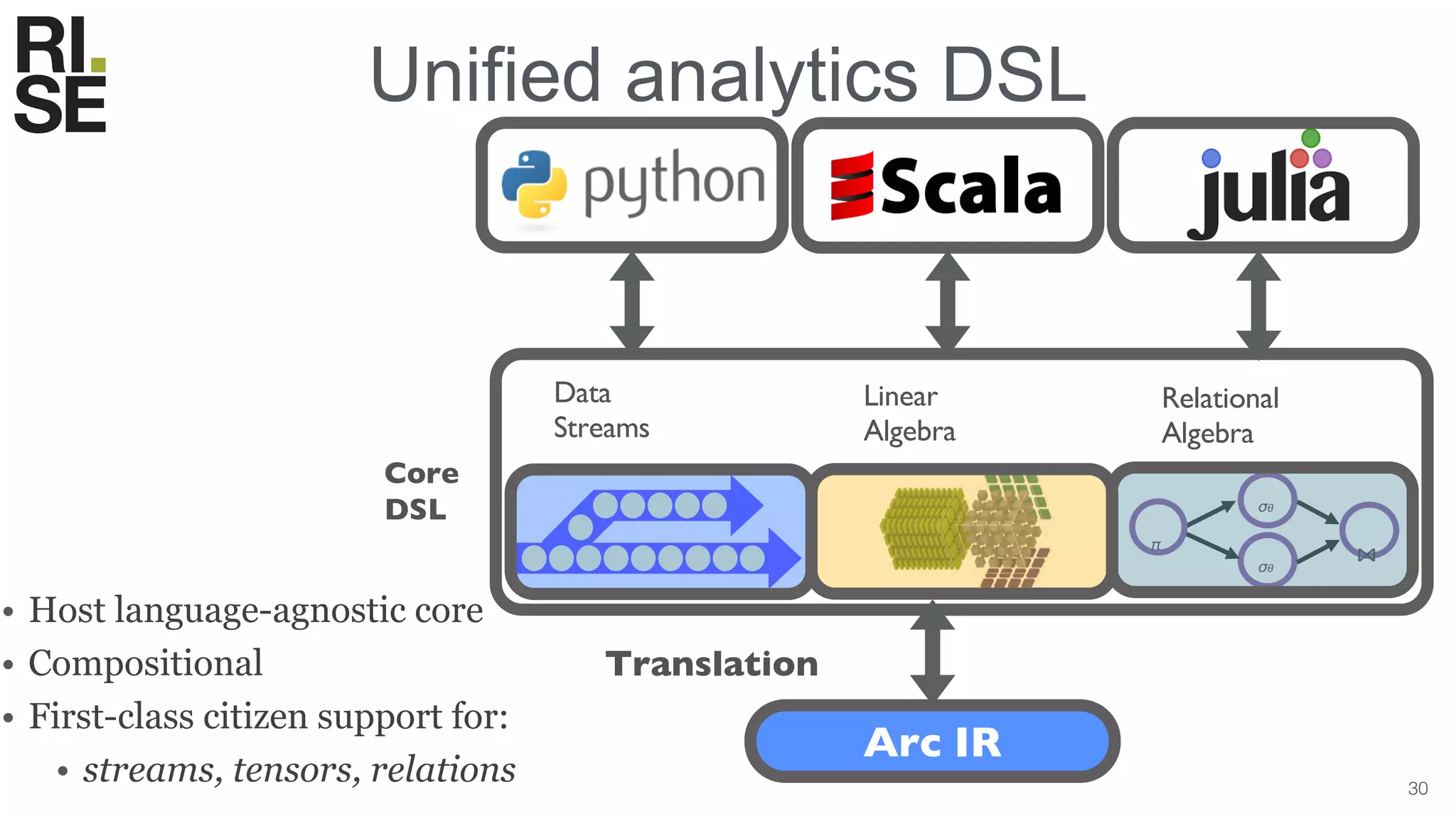

29. 30
Arc IR
Translation
Data
Streams
Linear
Algebra
Relational
Algebra
σθ
σθ
π
⋈
Core
DSL
Unified analytics DSL
• Host language-agnostic core
• Compositional
• First-class citizen support for:
• streams, tensors, relations

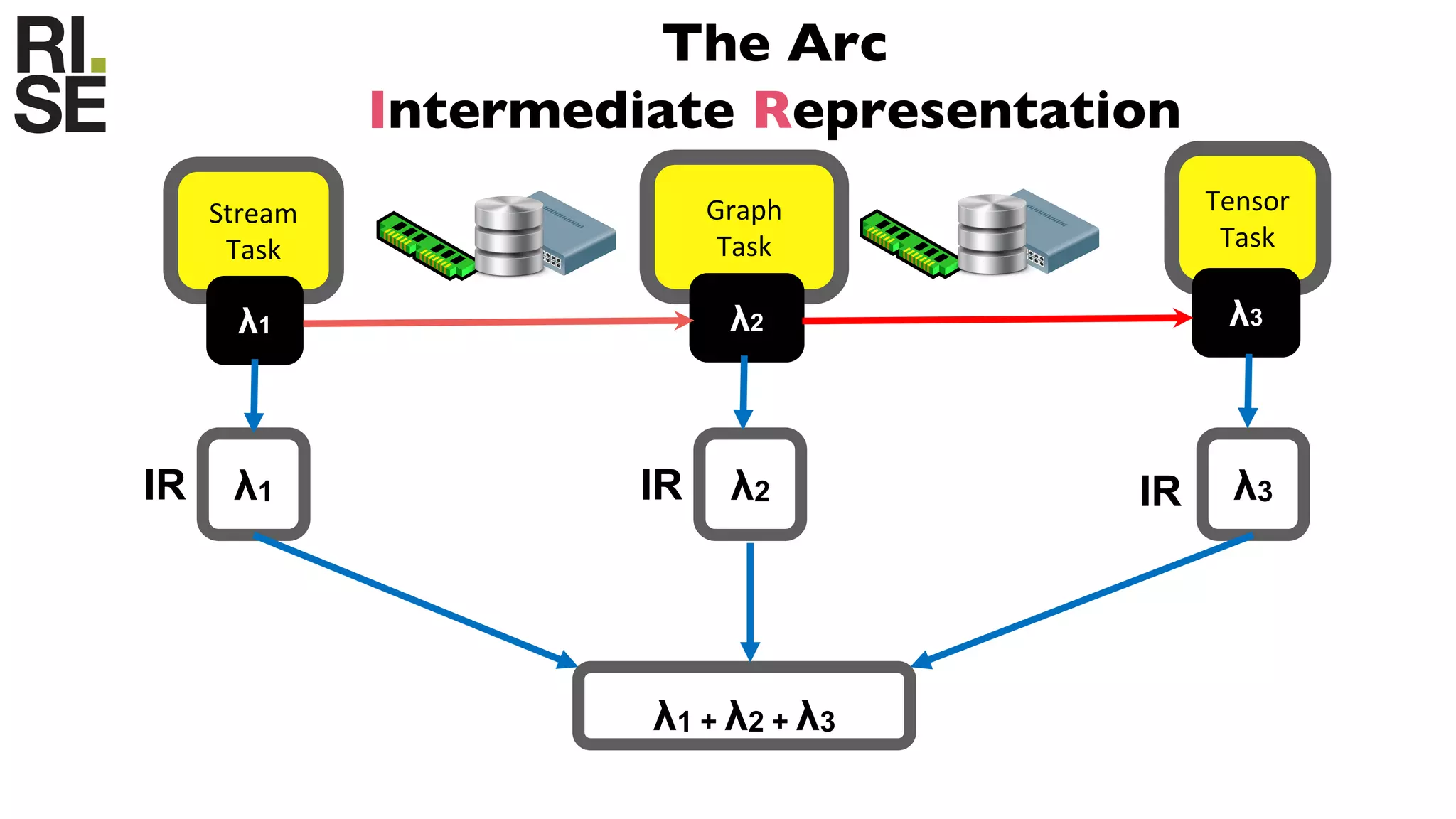

30. Stream
Task
The Arc
Intermediate Representation
Graph
Task
Tensor
Task
λ2 λ3λ1
λ1IR λ2IR λ3IR
λ1 + λ2 + λ3

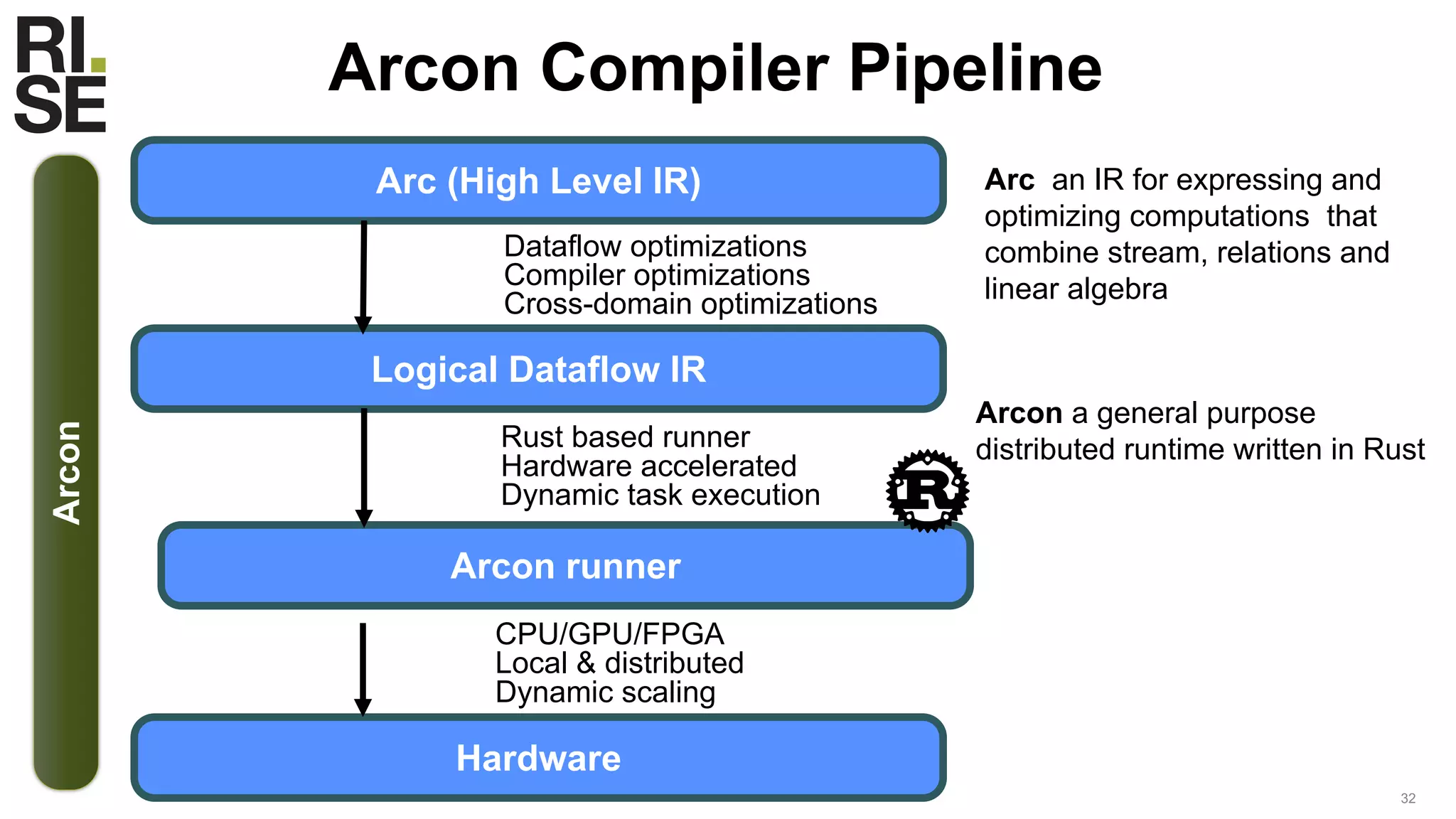

31. 32
Arcon
Arc (High Level IR)
Logical Dataflow IR
Arcon runner
Hardware
Arcon Compiler Pipeline
Dataflow optimizations
Compiler optimizations
Cross-domain optimizations
Rust based runner
Hardware accelerated
Dynamic task execution
CPU/GPU/FPGA
Local & distributed
Dynamic scaling
Arc an IR for expressing and
optimizing computations that
combine stream, relations and
linear algebra
Arcon a general purpose
distributed runtime written in Rust

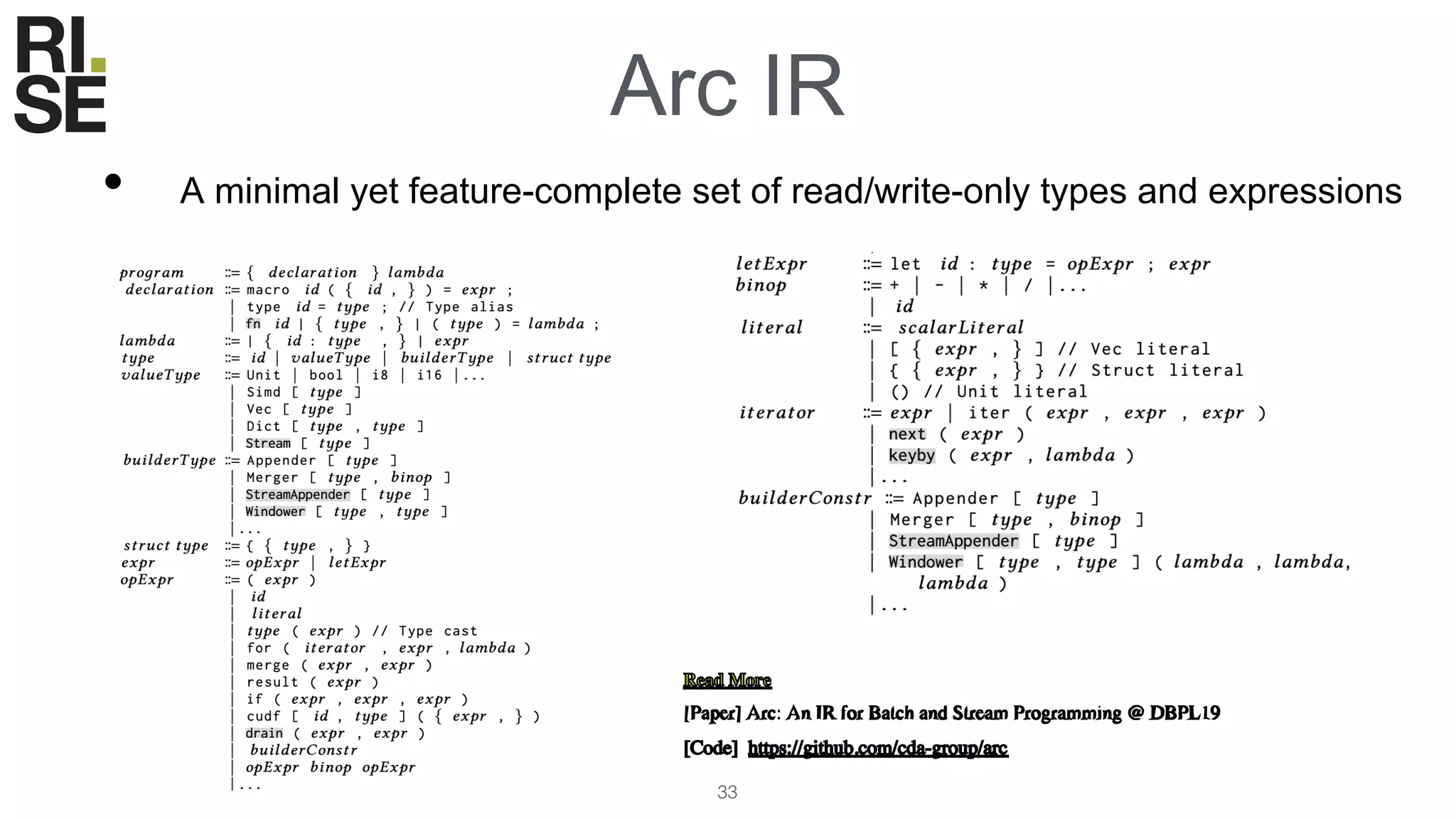

32. Arc IR
33
• A minimal yet feature-complete set of read/write-only types and expressions

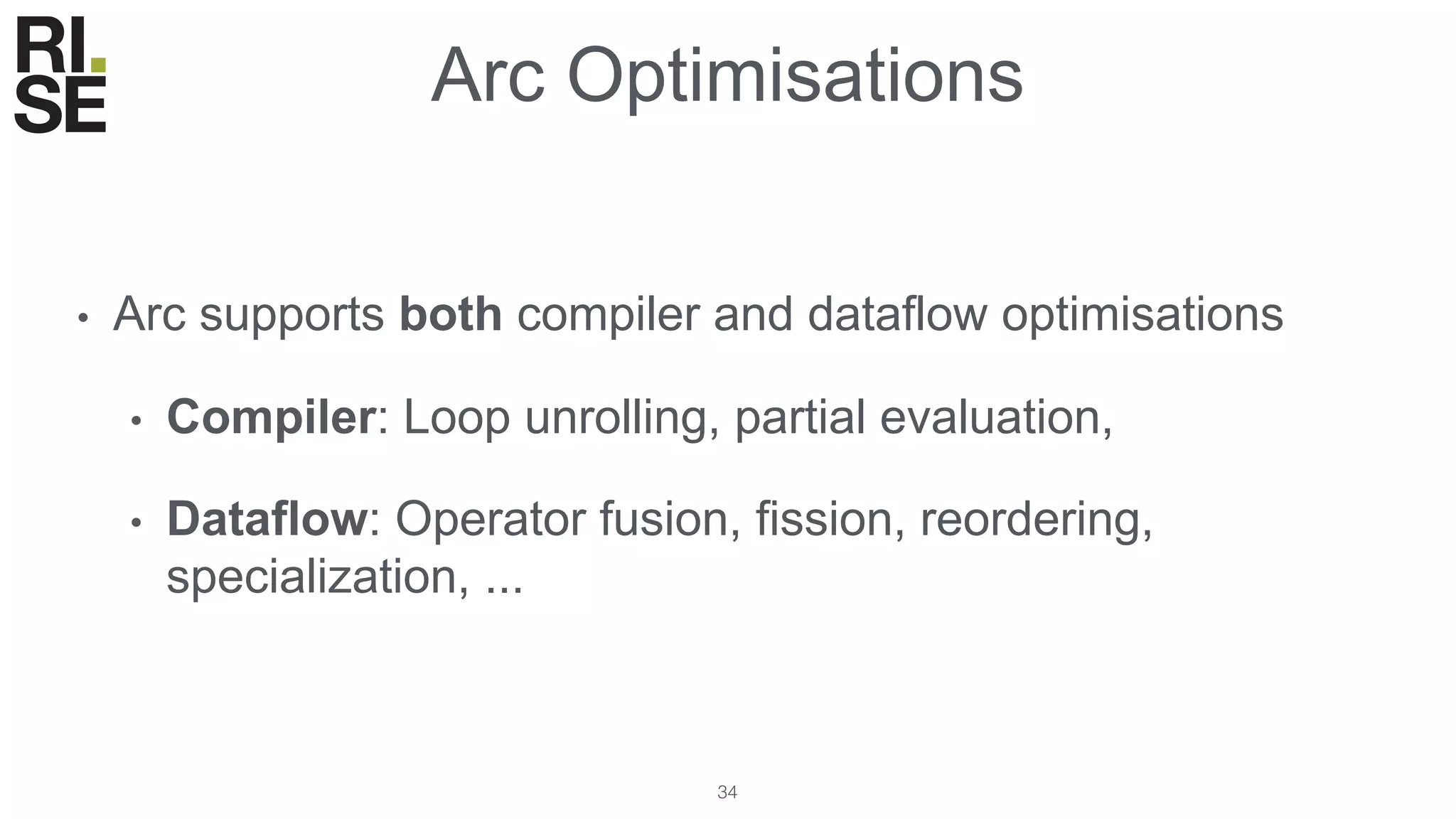

33. Arc Optimisations
• Arc supports both compiler and dataflow optimisations
• Compiler: Loop unrolling, partial evaluation,
• Dataflow: Operator fusion, fission, reordering,
specialization, ...
34

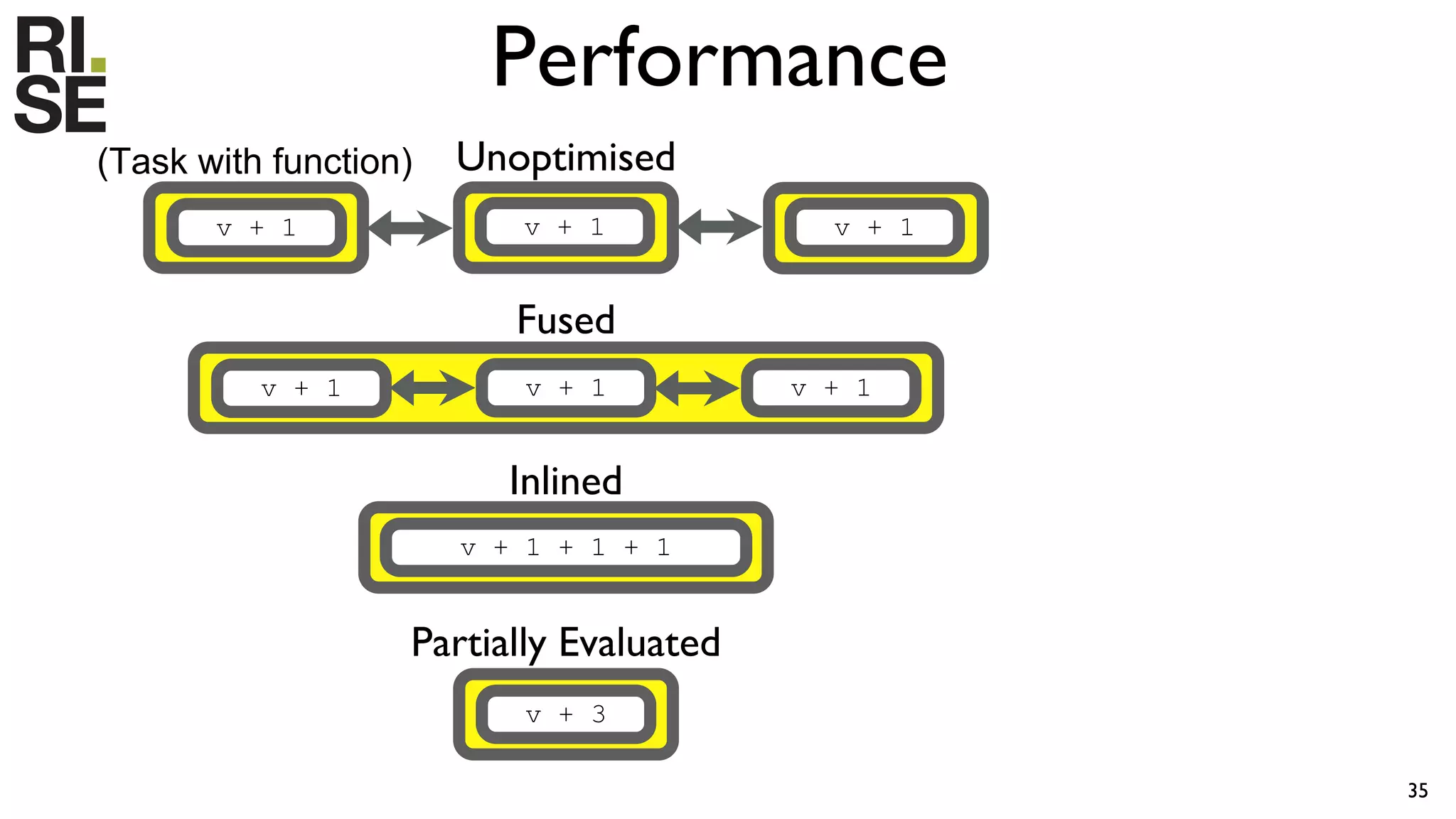

34. Performance
35
v + 3
v + 1 + 1 + 1
v + 1 v + 1 v + 1
v + 1 v + 1 v + 1
Unoptimised
Fused
Partially Evaluated
Inlined
(Task with function)

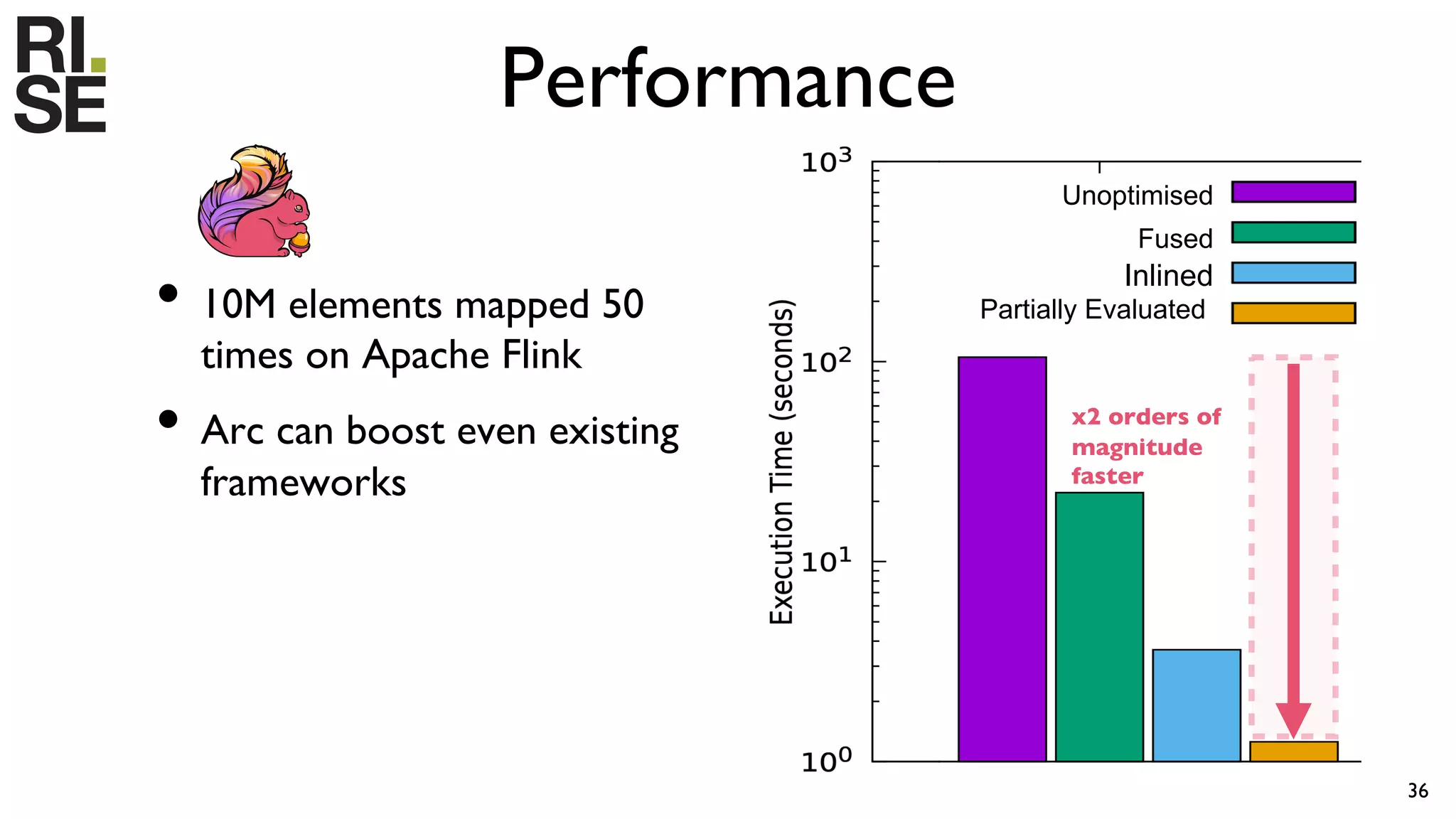

35. Performance
36
x2 orders of
magnitude
faster
Unoptimised
Partially Evaluated
Fused
Inlined
• 10M elements mapped 50
times on Apache Flink
• Arc can boost even existing
frameworks

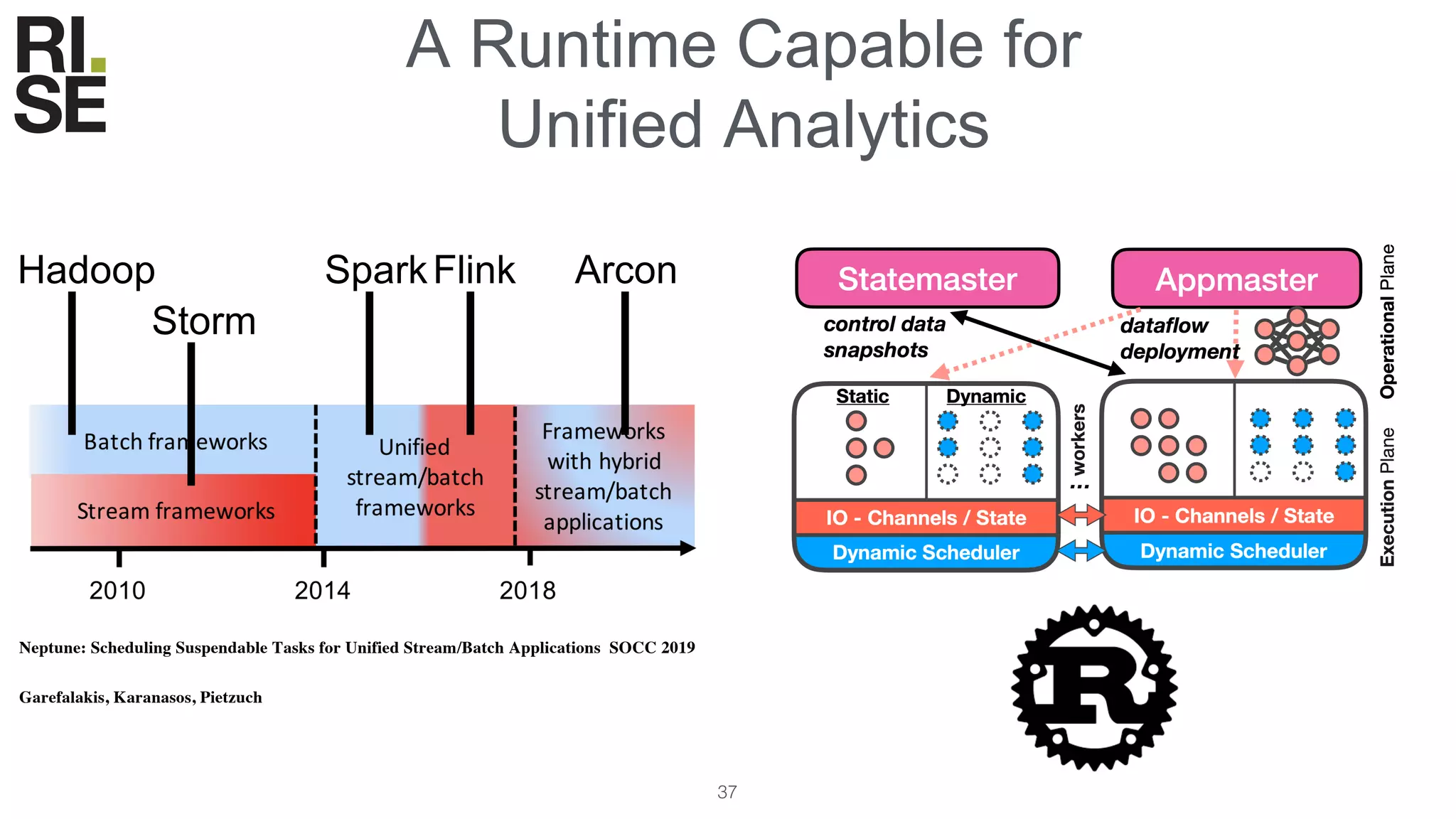

36. A Runtime Capable for
Unified Analytics
37
Neptune: Scheduling Suspendable Tasks for Unified Stream/Batch Applications SOCC 2019
Garefalakis, Karanasos, Pietzuch
Hadoop SparkFlink Arcon
Storm

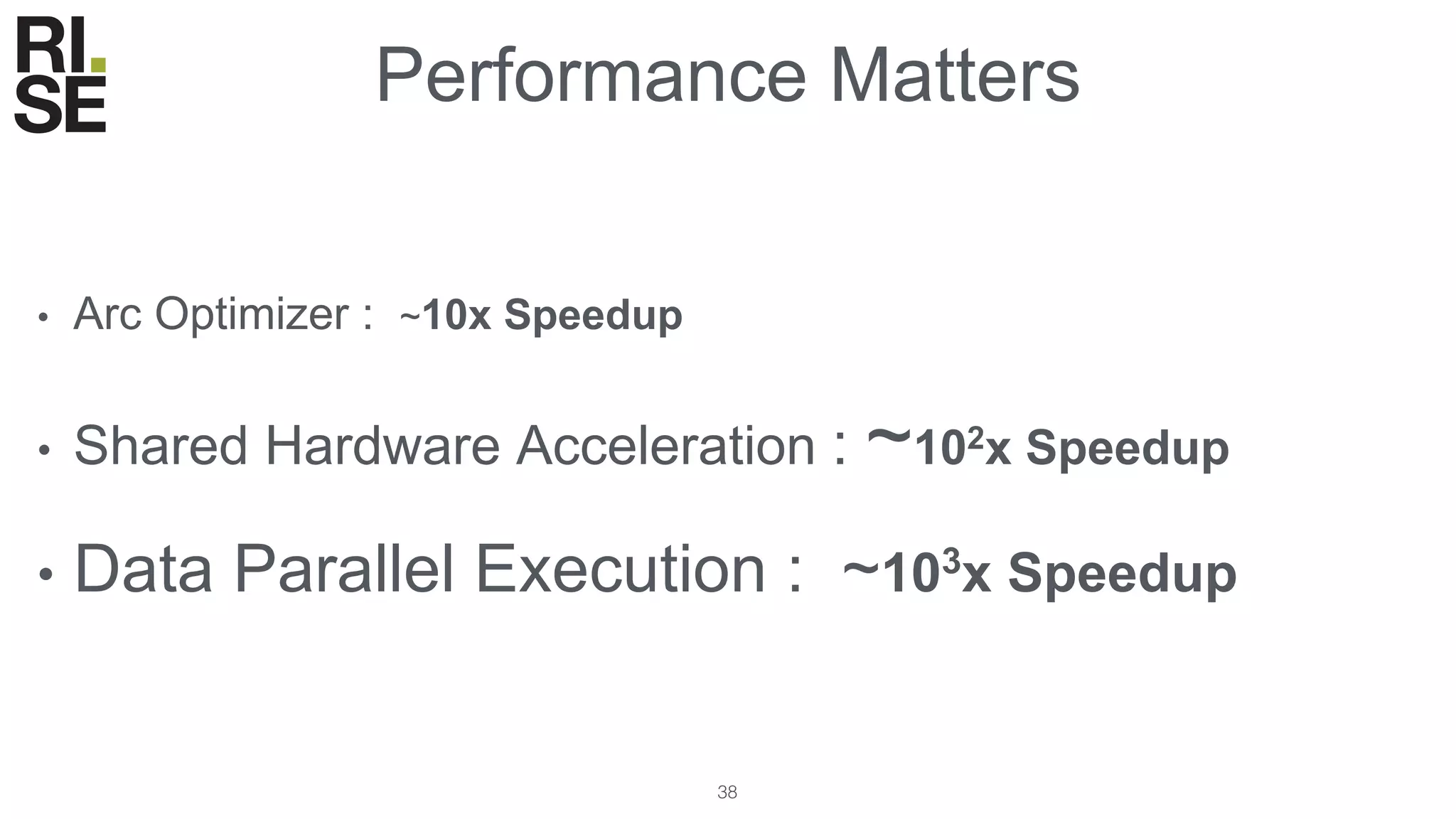

37. Performance Matters
• Arc Optimizer : ~10x Speedup
• Shared Hardware Acceleration : ~102x Speedup
• Data Parallel Execution : ~103x Speedup
38

38. Thanks
• To the CDA and HOPS teams and in general to the
distributed computing group at KTH and RISE SICS
• Please Visit
• DC@KTH https://dcatkth.github.io/
• HOPS https://www.hops.io/
• LogicalClocks https://www.logicalclocks.com/
