1. Best Practices for Achieving Return on
Investment through Energy Efficient
Computing
March 2, 2010
CeBIT Green IT Forum
Presented by Dr. Bernd Kosch, Climate Savers Computing,
Head of Environmental Technology at Fujitsu

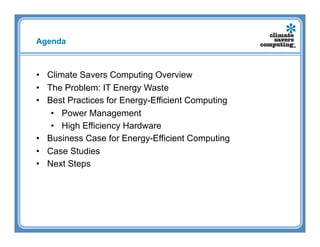

2. Agenda
• Climate Savers Computing Overview
• The Problem: IT Energy Waste
• Best Practices for Energy-Efficient Computing
• Power Management
• High Efficiency Hardware
• Business Case for Energy-Efficient Computing
• Case Studies
• Next Steps

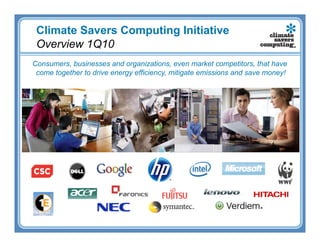

3. Climate Savers Computing Initiative
Overview 1Q10
Consumers, businesses and organizations, even market competitors, that have
come together to drive energy efficiency, mitigate emissions and save money!

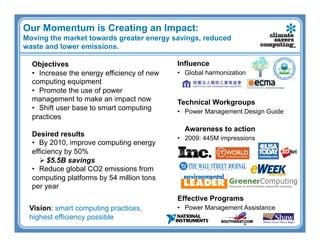

4. Our Momentum is Creating an Impact:
Moving the market towards greater energy savings, reduced
waste and lower emissions.
Objectives Influence
• Increase the energy efficiency of new • Global harmonization
computing equipment
• Promote the use of power
management to make an impact now Technical Workgroups
• Shift user base to smart computing • Power Management Design Guide
practices
Awareness to action
Desired results
• 2009: 445M impressions
• By 2010, improve computing energy
efficiency by 50%
 $5.5B savings
• Reduce global CO2 emissions from
computing platforms by 54 million tons
per year
Effective Programs
Vision: smart computing practices, • Power Management Assistance
highest efficiency possible

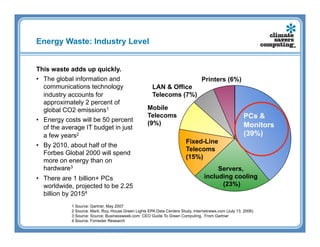

5. Energy Waste: Industry Level
This waste adds up quickly.
• The global information and Printers (6%)
communications technology LAN & Office
industry accounts for Telecoms (7%)
approximately 2 percent of
global CO2 emissions1 Mobile
Telecoms PCs &
• Energy costs will be 50 percent
(9%) Monitors
of the average IT budget in just
a few years2 (39%)
Fixed-Line
• By 2010, about half of the
Telecoms
Forbes Global 2000 will spend
(15%)
more on energy than on
hardware3 Servers,
• There are 1 billion+ PCs including cooling
worldwide, projected to be 2.25 (23%)
billion by 20154
1 Source: Gartner, May 2007
2 Source: Mark, Roy, House Green Lights EPA Data Centers Study, Internetnews.com (July 13, 2006)
3 Source: Source: Businessweek.com: CEO Guide To Green Computing. From Gartner
4 Source: Forrester Research

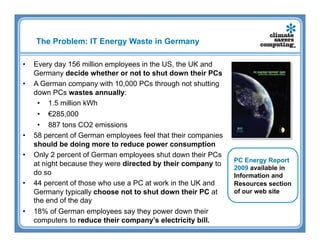

6. The Problem: IT Energy Waste in Germany
• Every day 156 million employees in the US, the UK and
Germany decide whether or not to shut down their PCs
• A German company with 10,000 PCs through not shutting
down PCs wastes annually:
• 1.5 million kWh
• €285,000
• 887 tons CO2 emissions
• 58 percent of German employees feel that their companies
should be doing more to reduce power consumption
• Only 2 percent of German employees shut down their PCs
PC Energy Report
at night because they were directed by their company to
2009 available in
do so Information and
• 44 percent of those who use a PC at work in the UK and Resources section
Germany typically choose not to shut down their PC at of our web site
the end of the day
• 18% of German employees say they power down their
computers to reduce their company’s electricity bill.

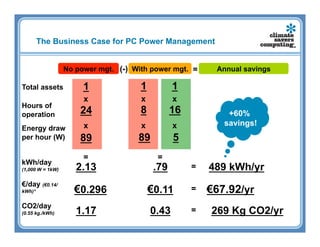

7. The Business Case for PC Power Management
No power mgt. (-) With power mgt. = Annual savings
Total assets 1 1 1
x x x
Hours of
operation 24 8 16 +60%
x x x savings!
Energy draw
per hour (W) 89 89 5
= =
kWh/day
(1,000 W = 1kW) 2.13 .79 = 489 kWh/yr
€/day (€0.14/
kWh)* €0.296 €0.11 = €67.92/yr
CO2/day
(0.55 kg./kWh) 1.17 0.43 = 269 Kg CO2/yr

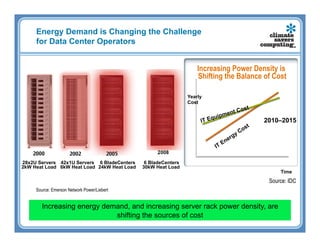

8. Energy Demand is Changing the Challenge
for Data Center Operators
Increasing Power Density is
Shifting the Balance of Cost
Yearly
Cost
ost
me nt C
quip
IT E 2010–2015
28x2U Servers 42x1U Servers 6 BladeCenters 6 BladeCenters
2kW Heat Load 6kW Heat Load 24kW Heat Load 30kW Heat Load
Time
Source: IDC
Source: Emerson Network Power/Liebert
Increasing energy demand, and increasing server rack power density, are
shifting the sources of cost

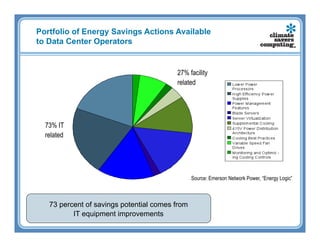

9. Portfolio of Energy Savings Actions Available
to Data Center Operators
27% facility
related
73% IT
related
Source: Emerson Network Power, “Energy Logic”
73 percent of savings potential comes from
IT equipment improvements

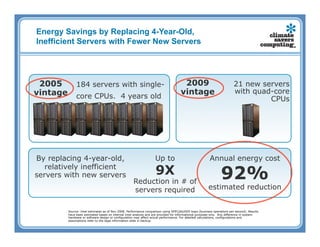

10. Energy Savings by Replacing 4-Year-Old,
Inefficient Servers with Fewer New Servers
2005 184 servers with single- 2009 21 new servers
vintage vintage with quad-core
core CPUs. 4 years old CPUs
By replacing 4-year-old, Up to Annual energy cost
9X 92%
relatively inefficient
servers with new servers
Reduction in # of
servers required estimated reduction
Source: Intel estimates as of Nov 2008. Performance comparison using SPECjbb2005 bops (business operations per second). Results
have been estimated based on internal Intel analysis and are provided for informational purposes only. Any difference in system
hardware or software design or configuration may affect actual performance. For detailed calculations, configurations and
assumptions refer to the legal information slide in backup.

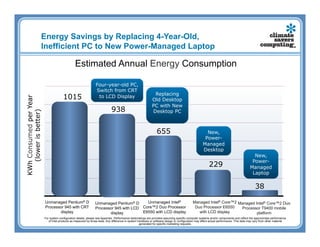

11. Energy Savings by Replacing 4-Year-Old,
Inefficient PC to New Power-Managed Laptop
Estimated Annual Energy Consumption
Four-year-old PC,
Switch from CRT
Replacing
1015 to LCD Display
KWh Consumed per Year
Old Desktop
PC with New
938 Desktop PC
(lower is better)
655 New,
Power-
Managed
Desktop
New,
Power-
229 Managed
Laptop
38
Unmanaged Pentium® D Unmanaged Pentium® D Unmanaged Intel® Managed Intel® Core™2 Managed Intel® Core™2 Duo
Processor 945 with CRT Processor 945 with LCD Core™2 Duo Processor Duo Processor E6550 Processor T9400 mobile
display display E6550 with LCD display with LCD display platform
For system configuration details, please see Appendix. Performance tests/ratings are provided assuming specific computer systems and/or components and reflect the approximate performance
of Intel products as measured by those tests. Any difference in system hardware or software design or configuration may affect actual performance. This data may vary from other material
generated for specific marketing requests.

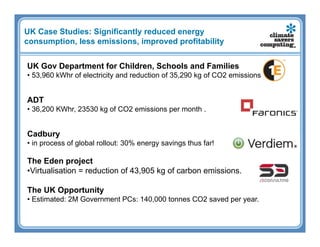

12. UK Case Studies: Significantly reduced energy
consumption, less emissions, improved profitability
UK Gov Department for Children, Schools and Families
• 53,960 kWhr of electricity and reduction of 35,290 kg of CO2 emissions
ADT
• 36,200 KWhr, 23530 kg of CO2 emissions per month .
Cadbury
• in process of global rollout: 30% energy savings thus far!
The Eden project
• Virtualisation = reduction of 43,905 kg of carbon emissions.
The UK Opportunity
• Estimated: 2M Government PCs: 140,000 tonnes CO2 saved per year.

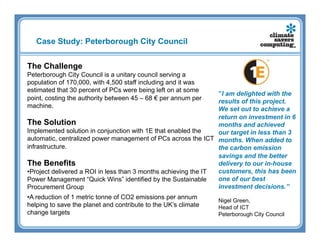

13. Case Study: Peterborough City Council
The Challenge
Peterborough City Council is a unitary council serving a
population of 170,000, with 4,500 staff including and it was
estimated that 30 percent of PCs were being left on at some
”I am delighted with the
point, costing the authority between 45 – 68 € per annum per results of this project.
machine. We set out to achieve a
return on investment in 6
The Solution months and achieved
Implemented solution in conjunction with 1E that enabled the our target in less than 3
automatic, centralized power management of PCs across the ICT months. When added to
infrastructure. the carbon emission
savings and the better
The Benefits delivery to our in-house
• Project delivered a ROI in less than 3 months achieving the IT customers, this has been
Power Management “Quick Wins” identified by the Sustainable one of our best
Procurement Group investment decisions.”
• A reduction of 1 metric tonne of CO2 emissions per annum Nigel Green,
helping to save the planet and contribute to the UK’s climate Head of ICT
change targets Peterborough City Council

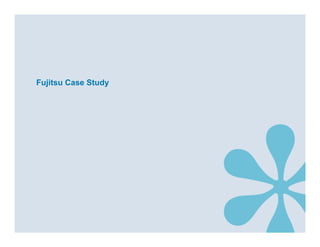

14. Fujitsu Case Study

15. Case Study: Südwestrundfunk (SWR)
Südwestrundfunk (SWR) is a public broadcasting
institution for the regions of Baden-Württemberg
and Rhineland-Palatinate. 14.7 million people live
in its coverage area. SWR is the second largest
public broadcasting institution in Germany.
In order to further optimize energy-efficiency in IT
and to contribute to climate protection, SWR has
decided to iinstall 3500 FUJITSU ESPRIMO 0-
Watt PC-systems over the next 2 years.
FUJITSU estimates that these new systems will
generate annual power-savings of approximately
310 MWh, which translates into 46.450 € annual
energy-cost savings and a CO2-reduction of 192 t.

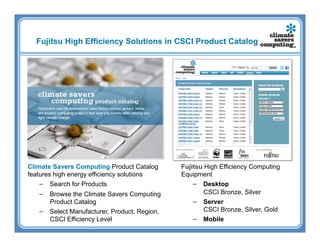

16. Fujitsu High Efficiency Solutions in CSCI Product Catalog
Climate Savers Computing Product Catalog Fujitsu High Efficiency Computing
features high energy efficiency solutions Equipment
− Search for Products − Desktop
− Browse the Climate Savers Computing CSCI Bronze, Silver
Product Catalog − Server
− Select Manufacturer, Product, Region, CSCI Bronze, Silver, Gold
CSCI Efficiency Level − Mobile

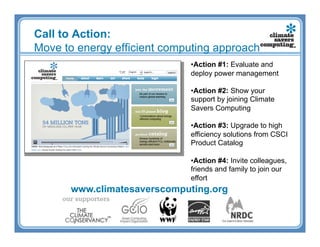

17. Call to Action:
Move to energy efficient computing approach
• Action #1: Evaluate and
deploy power management
• Action #2: Show your
support by joining Climate
Savers Computing
• Action #3: Upgrade to high
efficiency solutions from CSCI
Product Catalog
• Action #4: Invite colleagues,
friends and family to join our
effort
www.climatesaverscomputing.org

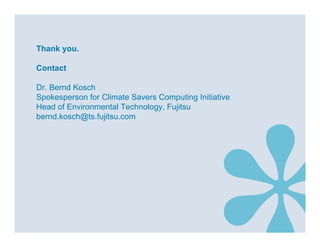

18. Thank you.
Contact
Dr. Bernd Kosch
Spokesperson for Climate Savers Computing Initiative
Head of Environmental Technology, Fujitsu
bernd.kosch@ts.fujitsu.com
