1. Beginning Native Android Apps
Gil Irizarry
Conoa, Inc.
Your logo on white
centered in this space

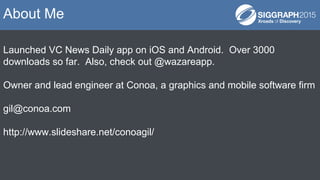

2. Launched VC News Daily app on iOS and Android. Over 3000
downloads so far. Also, check out @wazareapp.
Owner and lead engineer at Conoa, a graphics and mobile software firm
gil@conoa.com
http://www.slideshare.net/conoagil/
About Me

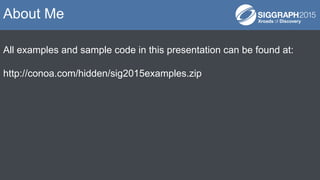

3. All examples and sample code in this presentation can be found at:
http://conoa.com/hidden/sig2015examples.zip
About Me

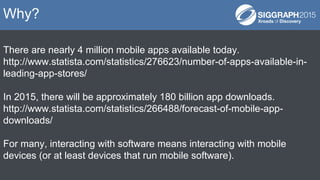

4. There are nearly 4 million mobile apps available today.
http://www.statista.com/statistics/276623/number-of-apps-available-in-
leading-app-stores/
In 2015, there will be approximately 180 billion app downloads.
http://www.statista.com/statistics/266488/forecast-of-mobile-app-
downloads/
For many, interacting with software means interacting with mobile
devices (or at least devices that run mobile software).
Why?

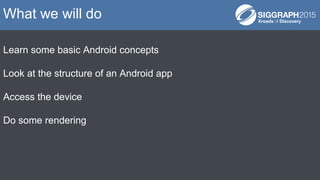

5. Learn some basic Android concepts
Look at the structure of an Android app
Access the device
Do some rendering
What we will do

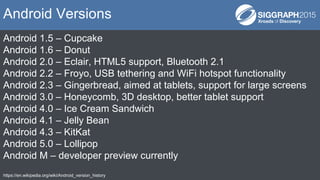

6. Android 1.5 – Cupcake
Android 1.6 – Donut
Android 2.0 – Eclair, HTML5 support, Bluetooth 2.1
Android 2.2 – Froyo, USB tethering and WiFi hotspot functionality
Android 2.3 – Gingerbread, aimed at tablets, support for large screens
Android 3.0 – Honeycomb, 3D desktop, better tablet support
Android 4.0 – Ice Cream Sandwich
Android 4.1 – Jelly Bean
Android 4.3 – KitKat
Android 5.0 – Lollipop
Android M – developer preview currently
https://en.wikipedia.org/wiki/Android_version_history
Android Versions

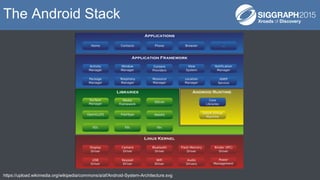

7. https://upload.wikimedia.org/wikipedia/commons/a/af/Android-System-Architecture.svg
The Android Stack

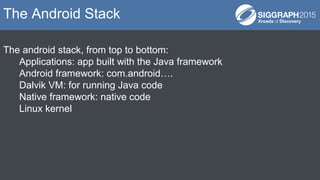

8. The android stack, from top to bottom:
Applications: app built with the Java framework
Android framework: com.android….
Dalvik VM: for running Java code
Native framework: native code
Linux kernel
The Android Stack

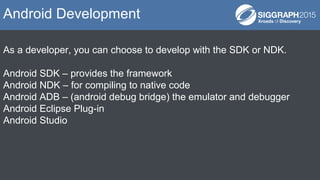

9. As a developer, you can choose to develop with the SDK or NDK.
Android SDK – provides the framework
Android NDK – for compiling to native code
Android ADB – (android debug bridge) the emulator and debugger
Android Eclipse Plug-in
Android Studio
Android Development

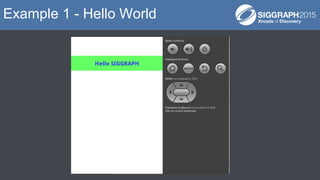

10. Example 1 - Hello World

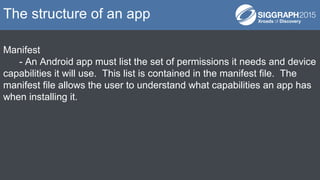

11. Manifest
- An Android app must list the set of permissions it needs and device
capabilities it will use. This list is contained in the manifest file. The
manifest file allows the user to understand what capabilities an app has
when installing it.
The structure of an app

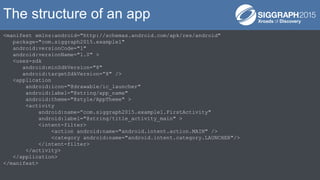

12. <manifest xmlns:android="http://schemas.android.com/apk/res/android"
package="com.siggraph2015.example1"
android:versionCode="1"
android:versionName="1.0" >
<uses-sdk
android:minSdkVersion="8"
android:targetSdkVersion=”8" />
<application
android:icon="@drawable/ic_launcher"
android:label="@string/app_name"
android:theme="@style/AppTheme" >
<activity
android:name=”com.siggraph2015.example1.FirstActivity"
android:label="@string/title_activity_main" >
<intent-filter>
<action android:name="android.intent.action.MAIN" />
<category android:name="android.intent.category.LAUNCHER"/>
</intent-filter>
</activity>
</application>
</manifest>
The structure of an app

13. Activities and intents
- An Android activity maps to a user screen. If you had an app with
a splash screen, a menu and news reader, that app would have 3
activities. An activity is a class that you subclass to modify.
- Intents connect activities. They allow control to flow from one
screen to another.
The structure of an app

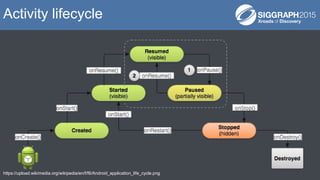

14. https://upload.wikimedia.org/wikipedia/en/f/f6/Android_application_life_cycle.png
Activity lifecycle

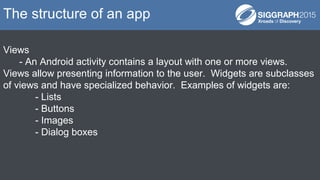

15. Views
- An Android activity contains a layout with one or more views.
Views allow presenting information to the user. Widgets are subclasses
of views and have specialized behavior. Examples of widgets are:
- Lists
- Buttons
- Images
- Dialog boxes
The structure of an app

16. Example 2 - Layouts

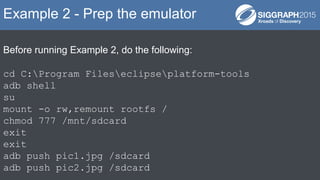

17. Before running Example 2, do the following:
cd C:Program Fileseclipseplatform-tools
adb shell
su
mount -o rw,remount rootfs /
chmod 777 /mnt/sdcard
exit
exit
adb push pic1.jpg /sdcard
adb push pic2.jpg /sdcard
Example 2 - Prep the emulator

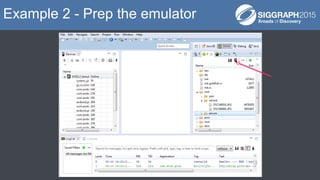

18. Example 2 - Prep the emulator

19. Views allow drawing and event handling for a region of the screen.
Groups are a subclass of a View that allows organization of Views.
Layouts are subclasses of Groups that add properties to Groups.
Layouts may contain other layouts.
Layouts

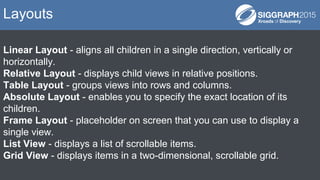

20. Linear Layout - aligns all children in a single direction, vertically or
horizontally.
Relative Layout - displays child views in relative positions.
Table Layout - groups views into rows and columns.
Absolute Layout - enables you to specify the exact location of its
children.
Frame Layout - placeholder on screen that you can use to display a
single view.
List View - displays a list of scrollable items.
Grid View - displays items in a two-dimensional, scrollable grid.
Layouts

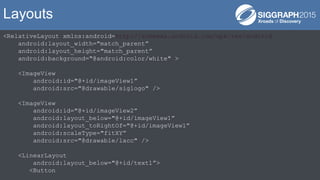

21. <RelativeLayout xmlns:android=http://schemas.android.com/apk/res/android
android:layout_width="match_parent”
android:layout_height="match_parent”
android:background="@android:color/white" >
<ImageView
android:id="@+id/imageView1”
android:src="@drawable/siglogo" />
<ImageView
android:id="@+id/imageView2”
android:layout_below="@+id/imageView1”
android:layout_toRightOf="@+id/imageView1”
android:scaleType="fitXY”
android:src="@drawable/lacc" />
<LinearLayout
android:layout_below="@+id/text1”>
<Button
Layouts

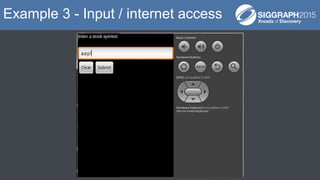

22. Example 3 - Input / internet access

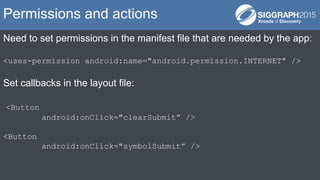

23. Need to set permissions in the manifest file that are needed by the app:
<uses-permission android:name="android.permission.INTERNET" />
Set callbacks in the layout file:
<Button
android:onClick="clearSubmit” />
<Button
android:onClick="symbolSubmit” />
Permissions and actions

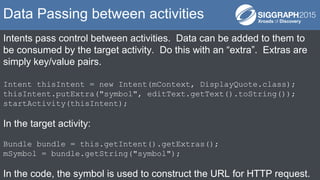

24. Intents pass control between activities. Data can be added to them to
be consumed by the target activity. Do this with an “extra”. Extras are
simply key/value pairs.
Intent thisIntent = new Intent(mContext, DisplayQuote.class);
thisIntent.putExtra("symbol", editText.getText().toString());
startActivity(thisIntent);
In the target activity:
Bundle bundle = this.getIntent().getExtras();
mSymbol = bundle.getString("symbol");
In the code, the symbol is used to construct the URL for HTTP request.
Data Passing between activities

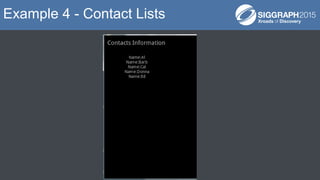

25. Example 4 - Contact Lists

26. Make sure to add some contacts to the emulator.
Example 4 - Prep the emulator

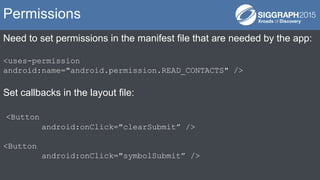

27. Need to set permissions in the manifest file that are needed by the app:
<uses-permission
android:name="android.permission.READ_CONTACTS" />
Set callbacks in the layout file:
<Button
android:onClick="clearSubmit” />
<Button
android:onClick="symbolSubmit” />
Permissions

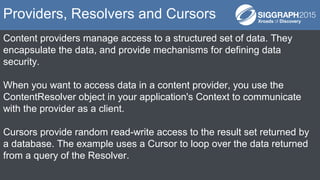

28. Content providers manage access to a structured set of data. They
encapsulate the data, and provide mechanisms for defining data
security.
When you want to access data in a content provider, you use the
ContentResolver object in your application's Context to communicate
with the provider as a client.
Cursors provide random read-write access to the result set returned by
a database. The example uses a Cursor to loop over the data returned
from a query of the Resolver.
Providers, Resolvers and Cursors

29. Example 5 - Scrollable lists

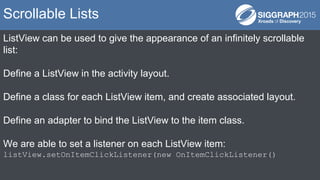

30. ListView can be used to give the appearance of an infinitely scrollable
list:
Define a ListView in the activity layout.
Define a class for each ListView item, and create associated layout.
Define an adapter to bind the ListView to the item class.
We are able to set a listener on each ListView item:
listView.setOnItemClickListener(new OnItemClickListener()
Scrollable Lists

31. In addition to ListView, there is also ExpandableListView.
In ExpandableListView, each list item will open to reveal a larger layout
when touched.
Expandable List Items

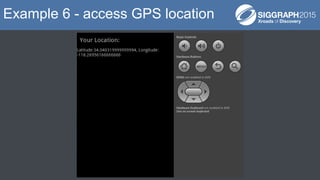

32. Example 6 - access GPS location

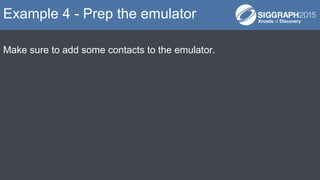

33. Make sure to add some contacts to the emulator.
Example 4 - Prep the emulator

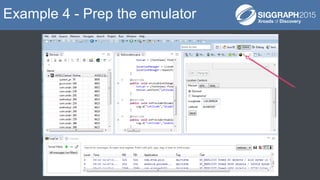

34. Example 4 - Prep the emulator

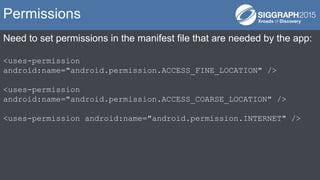

35. Need to set permissions in the manifest file that are needed by the app:
<uses-permission
android:name="android.permission.ACCESS_FINE_LOCATION" />
<uses-permission
android:name="android.permission.ACCESS_COARSE_LOCATION" />
<uses-permission android:name="android.permission.INTERNET" />
Permissions

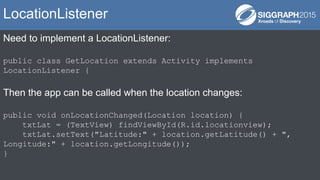

36. Need to implement a LocationListener:
public class GetLocation extends Activity implements
LocationListener {
Then the app can be called when the location changes:
public void onLocationChanged(Location location) {
txtLat = (TextView) findViewById(R.id.locationview);
txtLat.setText("Latitude:" + location.getLatitude() + ",
Longitude:" + location.getLongitude());
}
LocationListener

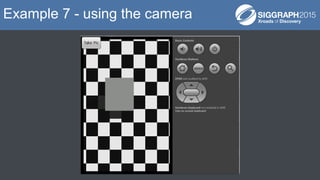

37. Example 7 - using the camera

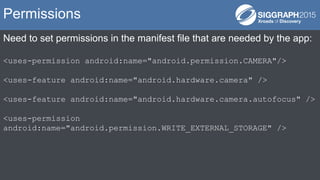

38. Need to set permissions in the manifest file that are needed by the app:
<uses-permission android:name="android.permission.CAMERA"/>
<uses-feature android:name="android.hardware.camera" />
<uses-feature android:name="android.hardware.camera.autofocus" />
<uses-permission
android:name="android.permission.WRITE_EXTERNAL_STORAGE" />
Permissions

39. A subclass of SurfaceView gets the camera and starts previewing.
The activity binds that SurfaceView to the FrameLayout defined in the
layout file.
In the example, the listener on the button forces the camera to take a
picture, calling the camera callback method for taking a picture. Here
we can get the raw bitmap of the image.
What if we wanted to do image processing on preview?
Previewing the Camera

40. Example 8 - OpenGL rendering

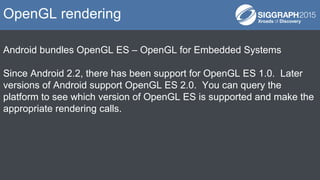

41. Android bundles OpenGL ES – OpenGL for Embedded Systems
Since Android 2.2, there has been support for OpenGL ES 1.0. Later
versions of Android support OpenGL ES 2.0. You can query the
platform to see which version of OpenGL ES is supported and make the
appropriate rendering calls.
OpenGL rendering

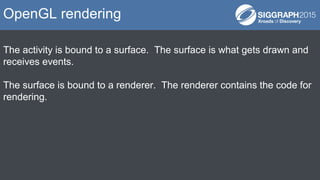

42. The activity is bound to a surface. The surface is what gets drawn and
receives events.
The surface is bound to a renderer. The renderer contains the code for
rendering.
OpenGL rendering

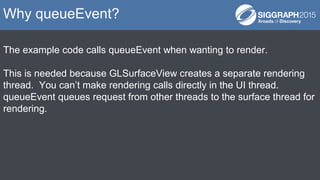

43. The example code calls queueEvent when wanting to render.
This is needed because GLSurfaceView creates a separate rendering
thread. You can’t make rendering calls directly in the UI thread.
queueEvent queues request from other threads to the surface thread for
rendering.
Why queueEvent?

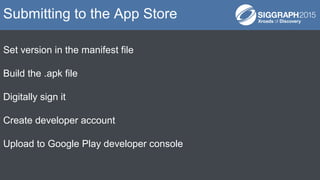

44. Set version in the manifest file
Build the .apk file
Digitally sign it
Create developer account
Upload to Google Play developer console
Submitting to the App Store
