Barauni Thermal Power Station (BTPS) is a 320 megawatt coal-fired power plant in Begusarai, Bihar, India. It was established in 1962 through Russian collaboration. BTPS currently has 7 generating units, with 2 operating and producing 220 MW total, while units 5 and 7 undergo renovation. Coal is supplied from local mines and the plant is expanding to increase capacity to 500 MW in the next 5 years. BTPS converts the chemical energy of coal into electrical energy through steam turbines, and generates power for distribution in North Bihar.

1. Presentation
on
barauni thermal power station
GULSHAN KUMAR NIRALA
BRCM CET, BAHAL
Geu

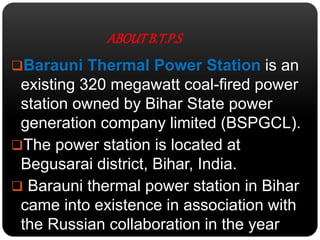

2. ABOUT B.T.P.S
Barauni Thermal Power Station is an
existing 320 megawatt coal-fired power
station owned by Bihar State power
generation company limited (BSPGCL).
The power station is located at
Begusarai district, Bihar, India.
 Barauni thermal power station in Bihar
came into existence in association with
the Russian collaboration in the year
1962.

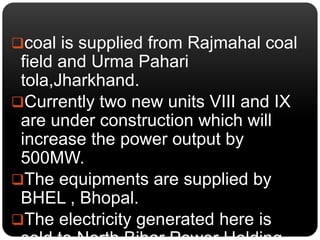

3. coal is supplied from Rajmahal coal
field and Urma Pahari
tola,Jharkhand.
Currently two new units VIII and IX
are under construction which will
increase the power output by
500MW.
The equipments are supplied by
BHEL , Bhopal.
The electricity generated here is
sold to North Bihar Power Holding

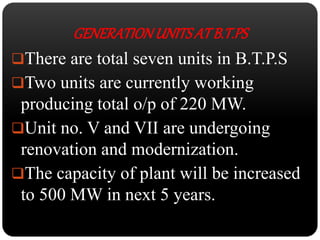

4. GENERATION UNITS AT B.T.PS
There are total seven units in B.T.P.S
Two units are currently working
producing total o/p of 220 MW.
Unit no. V and VII are undergoing
renovation and modernization.
The capacity of plant will be increased
to 500 MW in next 5 years.

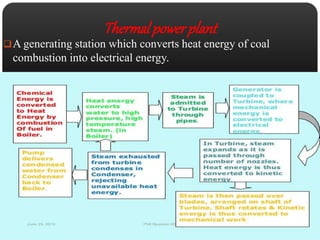

5. Thermal power plant
A generating station which converts heat energy of coal
combustion into electrical energy.

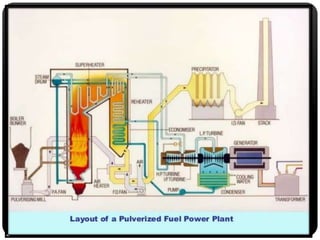

7. Working principle

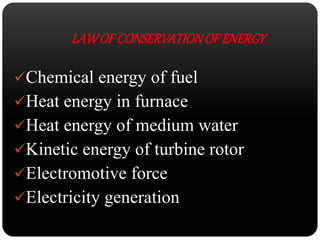

8. LAW OF CONSERVATION OF ENERGY
Chemical energy of fuel
Heat energy in furnace
Heat energy of medium water
Kinetic energy of turbine rotor
Electromotive force
Electricity generation

9. Division of a thermal power plant
Coal Handling Plant
Water Treatment Plant
Fuel and Ash Plant
Feed Water and Steam Plant
Cooling Water Plant

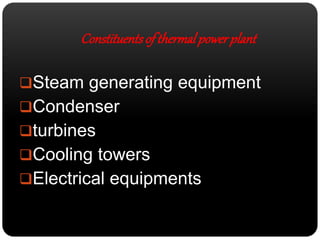

10. Constituents of thermal power plant
Steam generating equipment
Condenser
turbines
Cooling towers
Electrical equipments

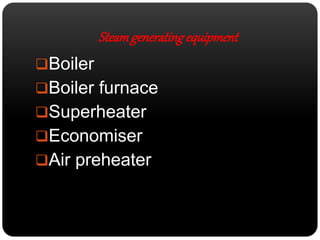

11. Steam generating equipment
Boiler
Boiler furnace
Superheater
Economiser
Air preheater

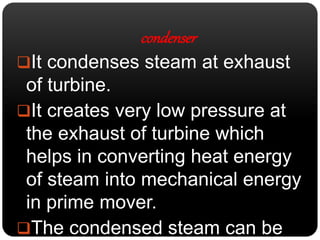

12. condenser
It condenses steam at exhaust
of turbine.
It creates very low pressure at
the exhaust of turbine which
helps in converting heat energy
of steam into mechanical energy
in prime mover.
The condensed steam can be

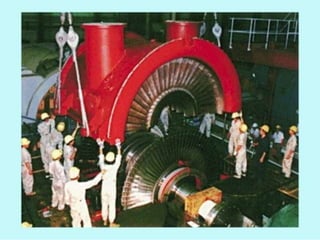

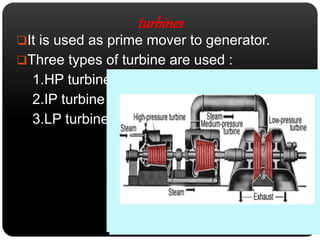

13. turbines
It is used as prime mover to generator.
Three types of turbine are used :
1.HP turbine
2.IP turbine
3.LP turbine

15. Electrical equipments
Generator : To generate electricity
Transformer : For required voltage
Switch yard : Onward transmission of
powers

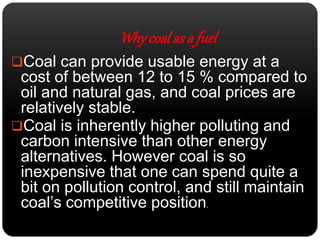

16. Why coal as a fuel
Coal can provide usable energy at a
cost of between 12 to 15 % compared to
oil and natural gas, and coal prices are
relatively stable.
Coal is inherently higher polluting and
carbon intensive than other energy
alternatives. However coal is so
inexpensive that one can spend quite a
bit on pollution control, and still maintain
coal’s competitive position.

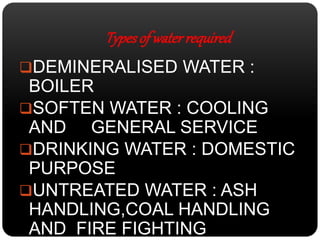

17. Types of water required
DEMINERALISED WATER :
BOILER
SOFTEN WATER : COOLING
AND GENERAL SERVICE
DRINKING WATER : DOMESTIC
PURPOSE
UNTREATED WATER : ASH
HANDLING,COAL HANDLING
AND FIRE FIGHTING

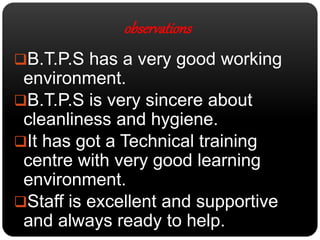

18. observations
B.T.P.S has a very good working
environment.
B.T.P.S is very sincere about
cleanliness and hygiene.
It has got a Technical training
centre with very good learning
environment.
Staff is excellent and supportive
and always ready to help.

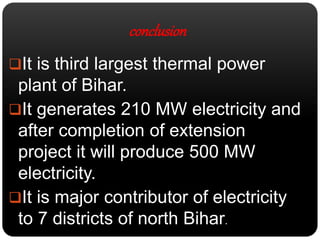

19. conclusion
It is third largest thermal power
plant of Bihar.
It generates 210 MW electricity and
after completion of extension
project it will produce 500 MW
electricity.
It is major contributor of electricity
to 7 districts of north Bihar.

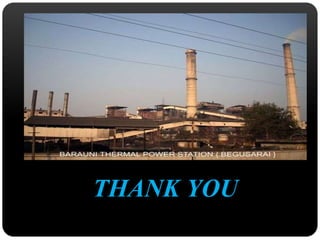

20. THANK YOU
