Baldwin's rules outline guidelines for ring closure reactions in alicyclic compounds. They classify ring closures based on the number of atoms in the newly formed ring, whether the bond broken is inside or outside the ring (endo or exo), and the geometry of the atom being attacked (tetrahedral, trigonal, or digonal). Baldwin discovered that orbital overlap requirements favor certain combinations of these parameters. Exceptions can occur for reactions involving cations or third-row atoms. The rules help determine the relative rates and favorability of different ring closure reactions.

1. 3/25/2015 Baldwin's rules ­ Wikipedia, the free encyclopedia
http://en.wikipedia.org/wiki/Baldwin's_rules 1/5

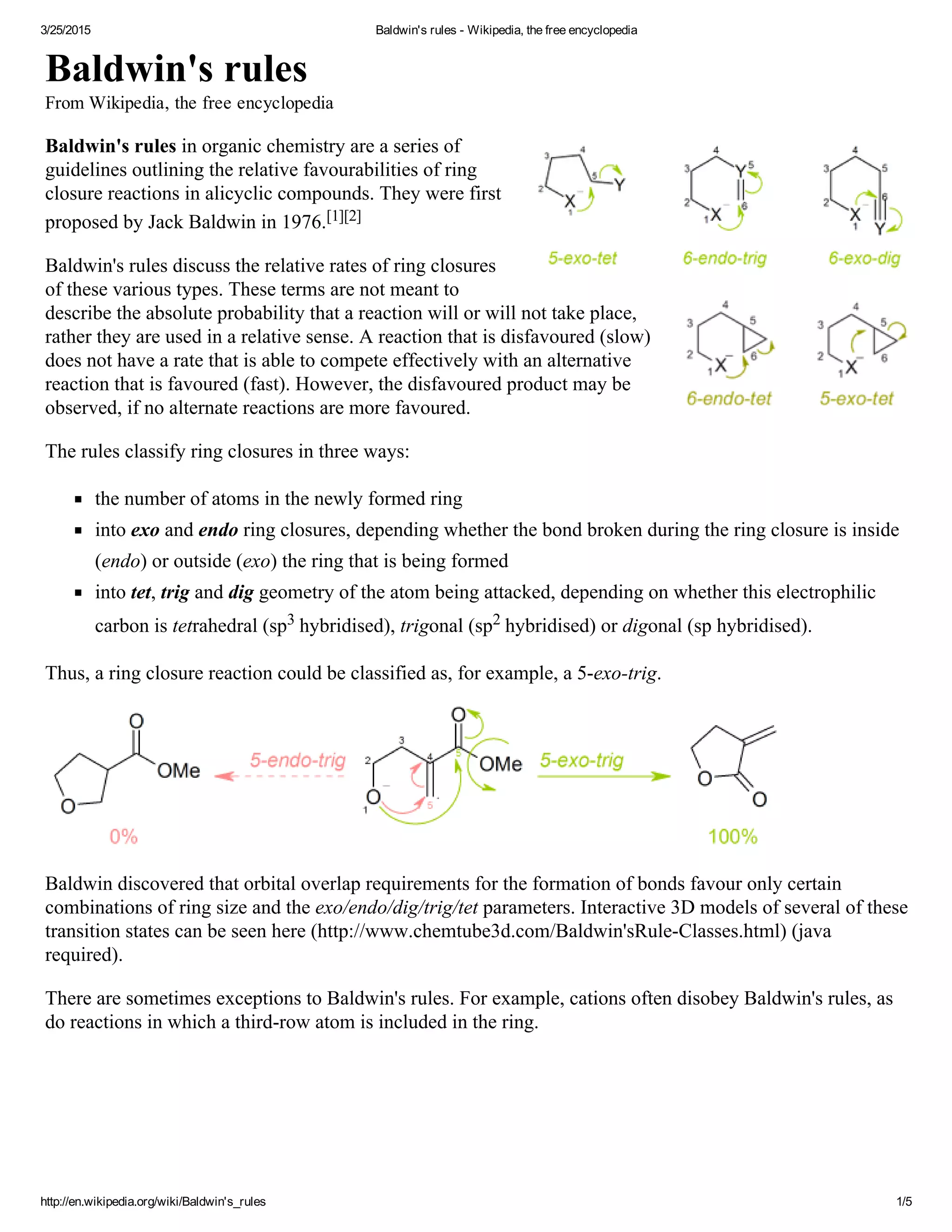

Baldwin's rules
From Wikipedia, the free encyclopedia
Baldwin's rules in organic chemistry are a series of
guidelines outlining the relative favourabilities of ring
closure reactions in alicyclic compounds. They were first
proposed by Jack Baldwin in 1976.[1][2]
Baldwin's rules discuss the relative rates of ring closures
of these various types. These terms are not meant to
describe the absolute probability that a reaction will or will not take place,
rather they are used in a relative sense. A reaction that is disfavoured (slow)
does not have a rate that is able to compete effectively with an alternative
reaction that is favoured (fast). However, the disfavoured product may be
observed, if no alternate reactions are more favoured.
The rules classify ring closures in three ways:
the number of atoms in the newly formed ring
into exo and endo ring closures, depending whether the bond broken during the ring closure is inside
(endo) or outside (exo) the ring that is being formed
into tet, trig and dig geometry of the atom being attacked, depending on whether this electrophilic
carbon is tetrahedral (sp3 hybridised), trigonal (sp2 hybridised) or digonal (sp hybridised).
Thus, a ring closure reaction could be classified as, for example, a 5­exo­trig.
Baldwin discovered that orbital overlap requirements for the formation of bonds favour only certain
combinations of ring size and the exo/endo/dig/trig/tet parameters. Interactive 3D models of several of these
transition states can be seen here (http://www.chemtube3d.com/Baldwin'sRule­Classes.html) (java
required).
There are sometimes exceptions to Baldwin's rules. For example, cations often disobey Baldwin's rules, as
do reactions in which a third­row atom is included in the ring.

2. 3/25/2015 Baldwin's rules ­ Wikipedia, the free encyclopedia
http://en.wikipedia.org/wiki/Baldwin's_rules 2/5

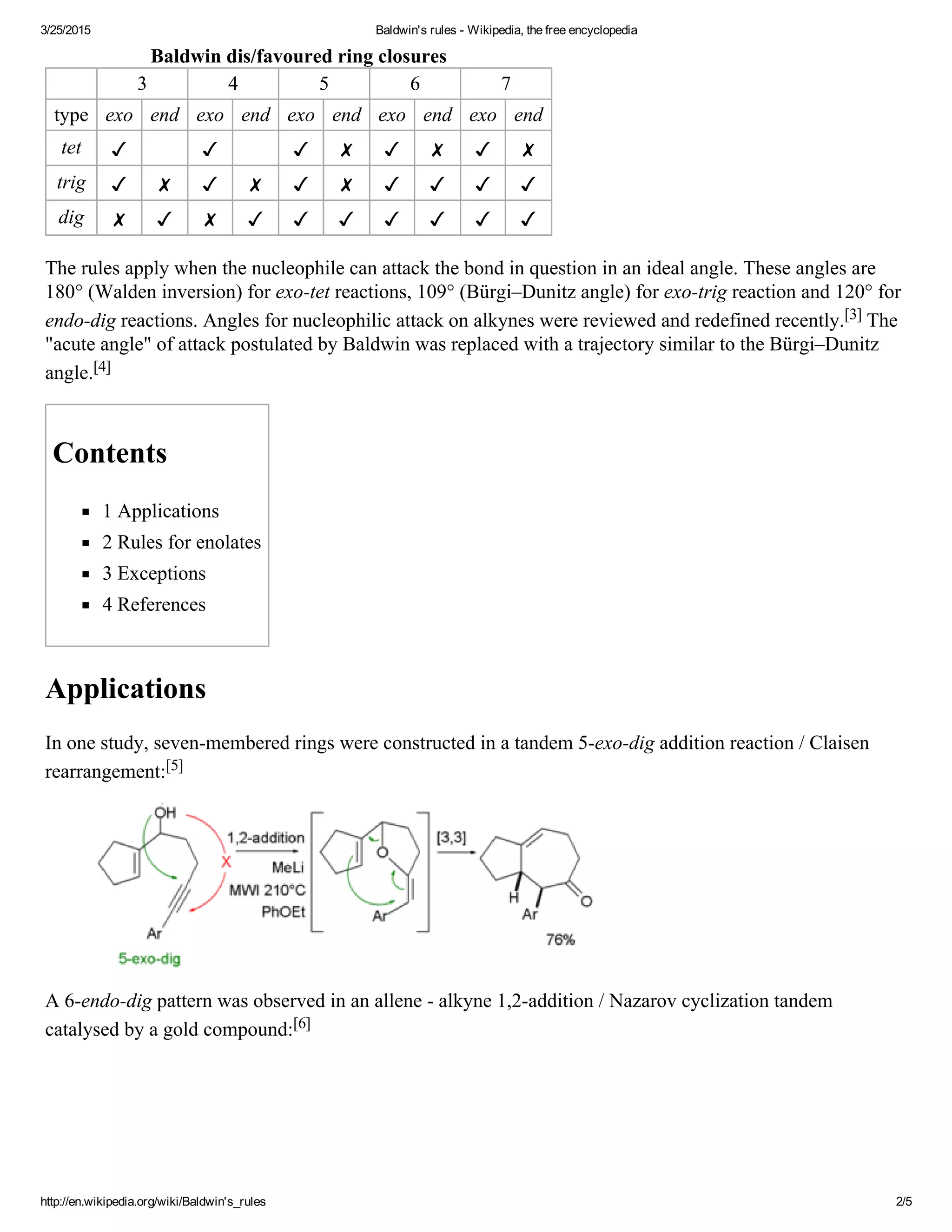

Baldwin dis/favoured ring closures
3 4 5 6 7
type exo end exo end exo end exo end exo end
tet ✓ ✓ ✓ ✗ ✓ ✗ ✓ ✗
trig ✓ ✗ ✓ ✗ ✓ ✗ ✓ ✓ ✓ ✓
dig ✗ ✓ ✗ ✓ ✓ ✓ ✓ ✓ ✓ ✓
The rules apply when the nucleophile can attack the bond in question in an ideal angle. These angles are
180° (Walden inversion) for exo­tet reactions, 109° (Bürgi–Dunitz angle) for exo­trig reaction and 120° for
endo­dig reactions. Angles for nucleophilic attack on alkynes were reviewed and redefined recently.[3] The
"acute angle" of attack postulated by Baldwin was replaced with a trajectory similar to the Bürgi–Dunitz
angle.[4]
Contents
1 Applications
2 Rules for enolates
3 Exceptions
4 References
Applications
In one study, seven­membered rings were constructed in a tandem 5­exo­dig addition reaction / Claisen
rearrangement:[5]
A 6­endo­dig pattern was observed in an allene ­ alkyne 1,2­addition / Nazarov cyclization tandem
catalysed by a gold compound:[6]

3. 3/25/2015 Baldwin's rules ­ Wikipedia, the free encyclopedia
http://en.wikipedia.org/wiki/Baldwin's_rules 3/5

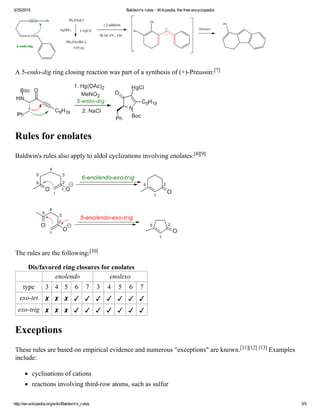

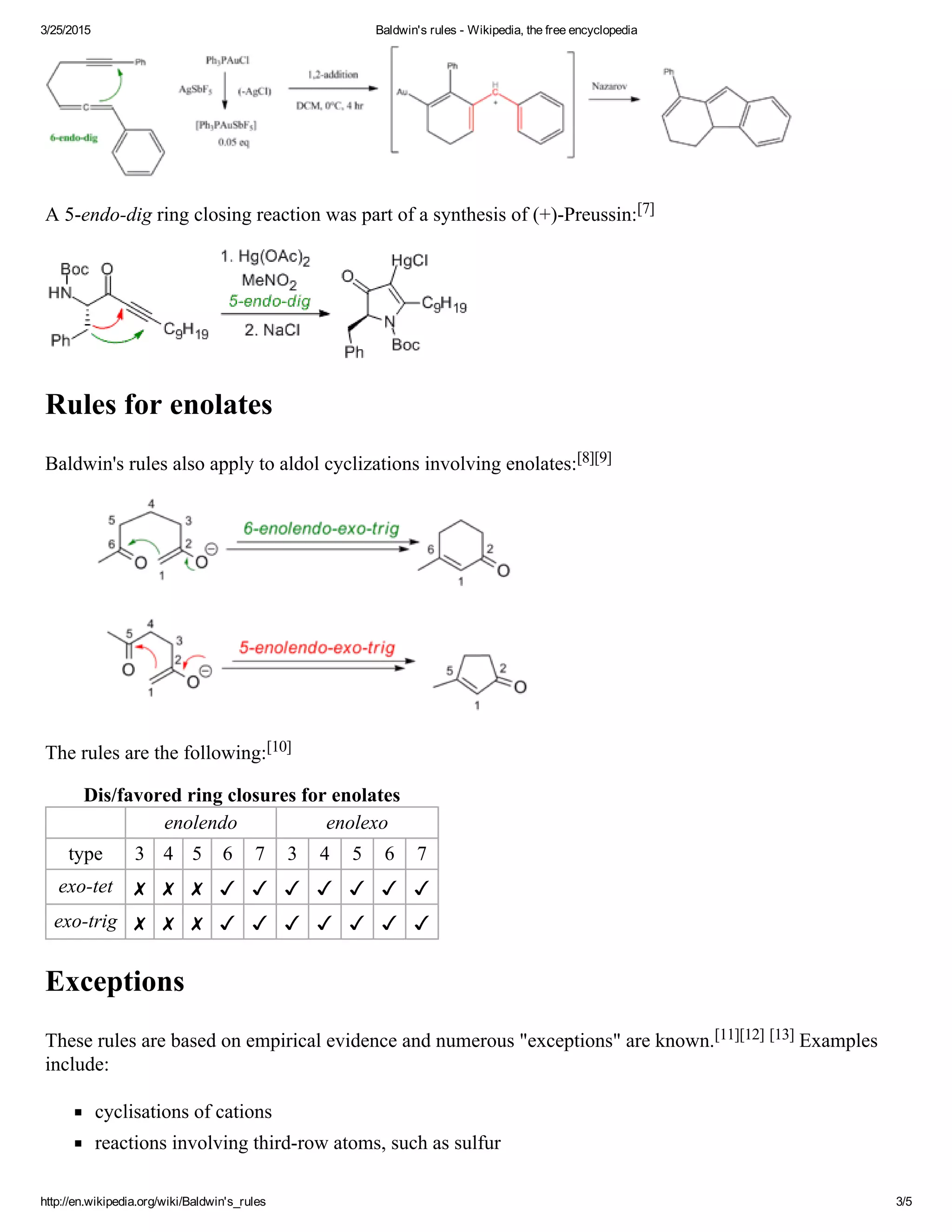

A 5­endo­dig ring closing reaction was part of a synthesis of (+)­Preussin:[7]
Rules for enolates
Baldwin's rules also apply to aldol cyclizations involving enolates:[8][9]
The rules are the following:[10]
Dis/favored ring closures for enolates
enolendo enolexo
type 3 4 5 6 7 3 4 5 6 7
exo­tet ✗ ✗ ✗ ✓ ✓ ✓ ✓ ✓ ✓ ✓
exo­trig ✗ ✗ ✗ ✓ ✓ ✓ ✓ ✓ ✓ ✓
Exceptions
These rules are based on empirical evidence and numerous "exceptions" are known.[11][12] [13] Examples
include:
cyclisations of cations
reactions involving third­row atoms, such as sulfur

4. 3/25/2015 Baldwin's rules ­ Wikipedia, the free encyclopedia
http://en.wikipedia.org/wiki/Baldwin's_rules 4/5

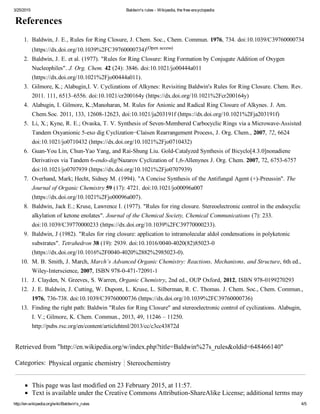

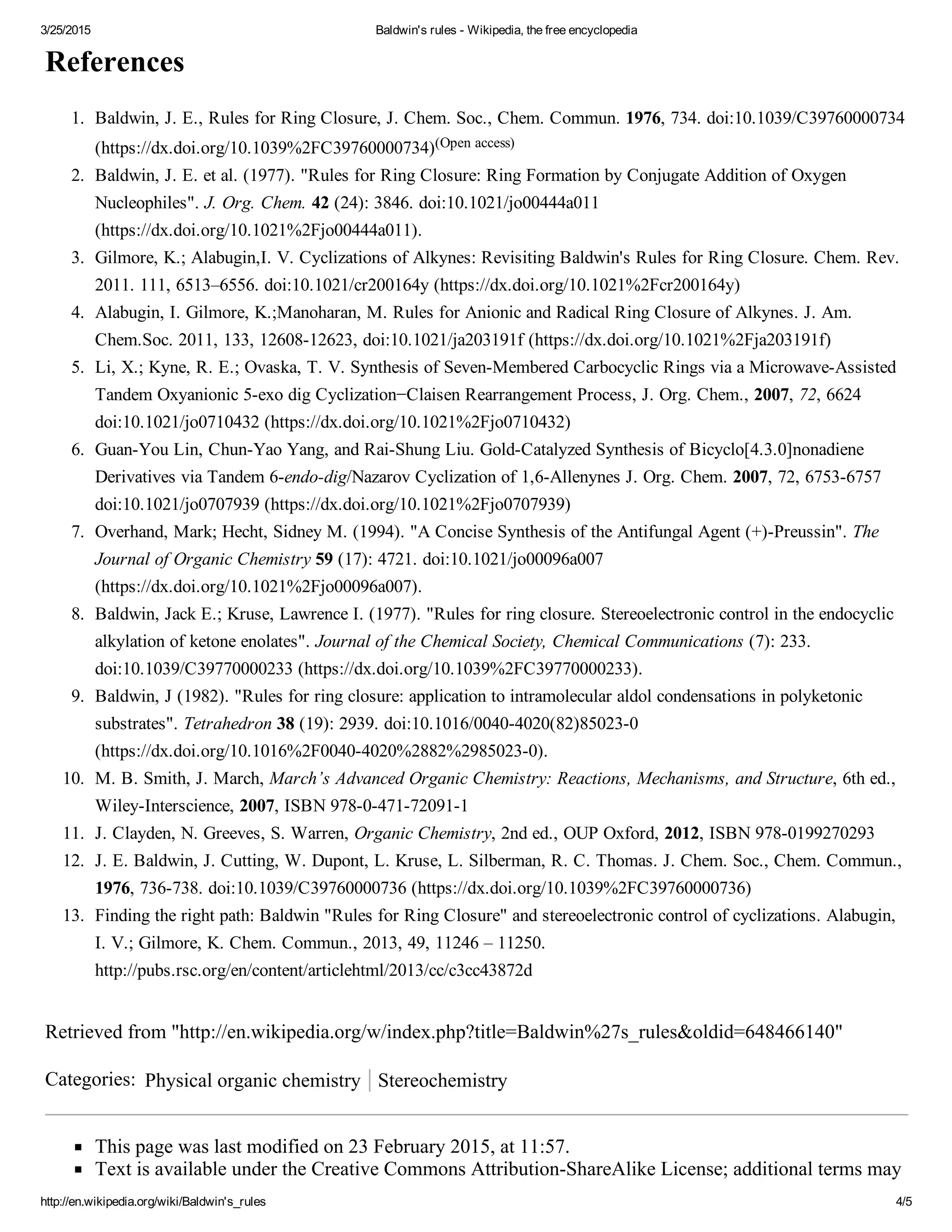

References
Retrieved from "http://en.wikipedia.org/w/index.php?title=Baldwin%27s_rules&oldid=648466140"
Categories: Physical organic chemistry Stereochemistry
This page was last modified on 23 February 2015, at 11:57.
Text is available under the Creative Commons Attribution­ShareAlike License; additional terms may
1. Baldwin, J. E., Rules for Ring Closure, J. Chem. Soc., Chem. Commun. 1976, 734. doi:10.1039/C39760000734
(https://dx.doi.org/10.1039%2FC39760000734)(Open access)
2. Baldwin, J. E. et al. (1977). "Rules for Ring Closure: Ring Formation by Conjugate Addition of Oxygen
Nucleophiles". J. Org. Chem. 42 (24): 3846. doi:10.1021/jo00444a011
(https://dx.doi.org/10.1021%2Fjo00444a011).
3. Gilmore, K.; Alabugin,I. V. Cyclizations of Alkynes: Revisiting Baldwin's Rules for Ring Closure. Chem. Rev.
2011. 111, 6513–6556. doi:10.1021/cr200164y (https://dx.doi.org/10.1021%2Fcr200164y)
4. Alabugin, I. Gilmore, K.;Manoharan, M. Rules for Anionic and Radical Ring Closure of Alkynes. J. Am.
Chem.Soc. 2011, 133, 12608­12623, doi:10.1021/ja203191f (https://dx.doi.org/10.1021%2Fja203191f)
5. Li, X.; Kyne, R. E.; Ovaska, T. V. Synthesis of Seven­Membered Carbocyclic Rings via a Microwave­Assisted
Tandem Oxyanionic 5­exo dig Cyclization−Claisen Rearrangement Process, J. Org. Chem., 2007, 72, 6624
doi:10.1021/jo0710432 (https://dx.doi.org/10.1021%2Fjo0710432)
6. Guan­You Lin, Chun­Yao Yang, and Rai­Shung Liu. Gold­Catalyzed Synthesis of Bicyclo[4.3.0]nonadiene
Derivatives via Tandem 6­endo­dig/Nazarov Cyclization of 1,6­Allenynes J. Org. Chem. 2007, 72, 6753­6757
doi:10.1021/jo0707939 (https://dx.doi.org/10.1021%2Fjo0707939)
7. Overhand, Mark; Hecht, Sidney M. (1994). "A Concise Synthesis of the Antifungal Agent (+)­Preussin". The
Journal of Organic Chemistry 59 (17): 4721. doi:10.1021/jo00096a007
(https://dx.doi.org/10.1021%2Fjo00096a007).
8. Baldwin, Jack E.; Kruse, Lawrence I. (1977). "Rules for ring closure. Stereoelectronic control in the endocyclic
alkylation of ketone enolates". Journal of the Chemical Society, Chemical Communications (7): 233.
doi:10.1039/C39770000233 (https://dx.doi.org/10.1039%2FC39770000233).
9. Baldwin, J (1982). "Rules for ring closure: application to intramolecular aldol condensations in polyketonic
substrates". Tetrahedron 38 (19): 2939. doi:10.1016/0040­4020(82)85023­0
(https://dx.doi.org/10.1016%2F0040­4020%2882%2985023­0).
10. M. B. Smith, J. March, March’s Advanced Organic Chemistry: Reactions, Mechanisms, and Structure, 6th ed.,
Wiley­Interscience, 2007, ISBN 978­0­471­72091­1
11. J. Clayden, N. Greeves, S. Warren, Organic Chemistry, 2nd ed., OUP Oxford, 2012, ISBN 978­0199270293
12. J. E. Baldwin, J. Cutting, W. Dupont, L. Kruse, L. Silberman, R. C. Thomas. J. Chem. Soc., Chem. Commun.,
1976, 736­738. doi:10.1039/C39760000736 (https://dx.doi.org/10.1039%2FC39760000736)
13. Finding the right path: Baldwin "Rules for Ring Closure" and stereoelectronic control of cyclizations. Alabugin,
I. V.; Gilmore, K. Chem. Commun., 2013, 49, 11246 – 11250.
http://pubs.rsc.org/en/content/articlehtml/2013/cc/c3cc43872d
