1. Auth as a Microservice
How I learned to stop worrying and love JWT

2. In the Beginning

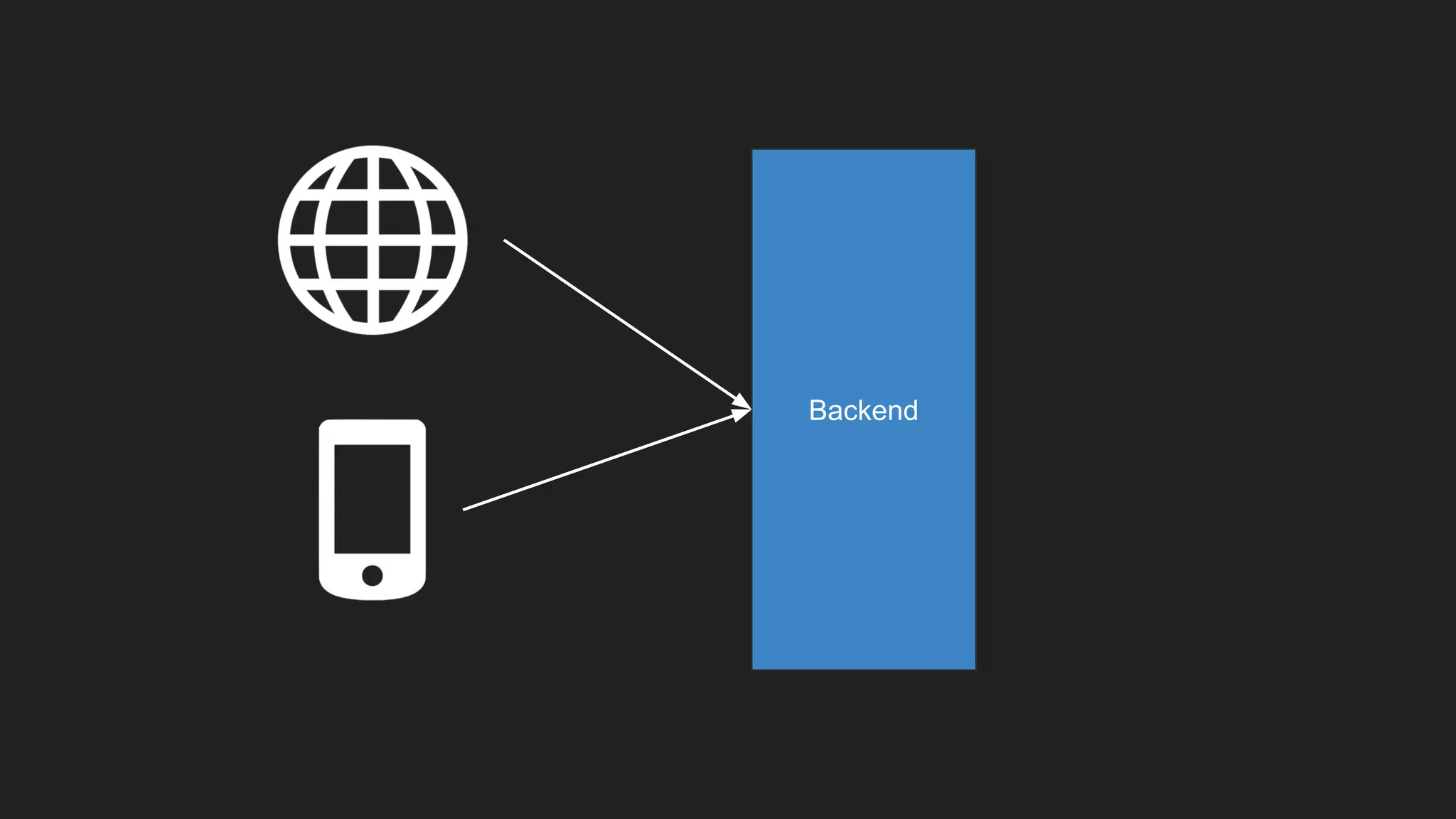

3. Backend

4. Backend users user_roles roles
todos

5. CREATE TABLE todos (
id INT NOT NULL,
text TEXT NOT NULL,
user_id INT NOT NULL,
PRIMARY KEY (id),
CONSTRAINT todos_fk_1 FOREIGN KEY (user_id)
REFERENCES users(id) ON DELETE CASCADE
);

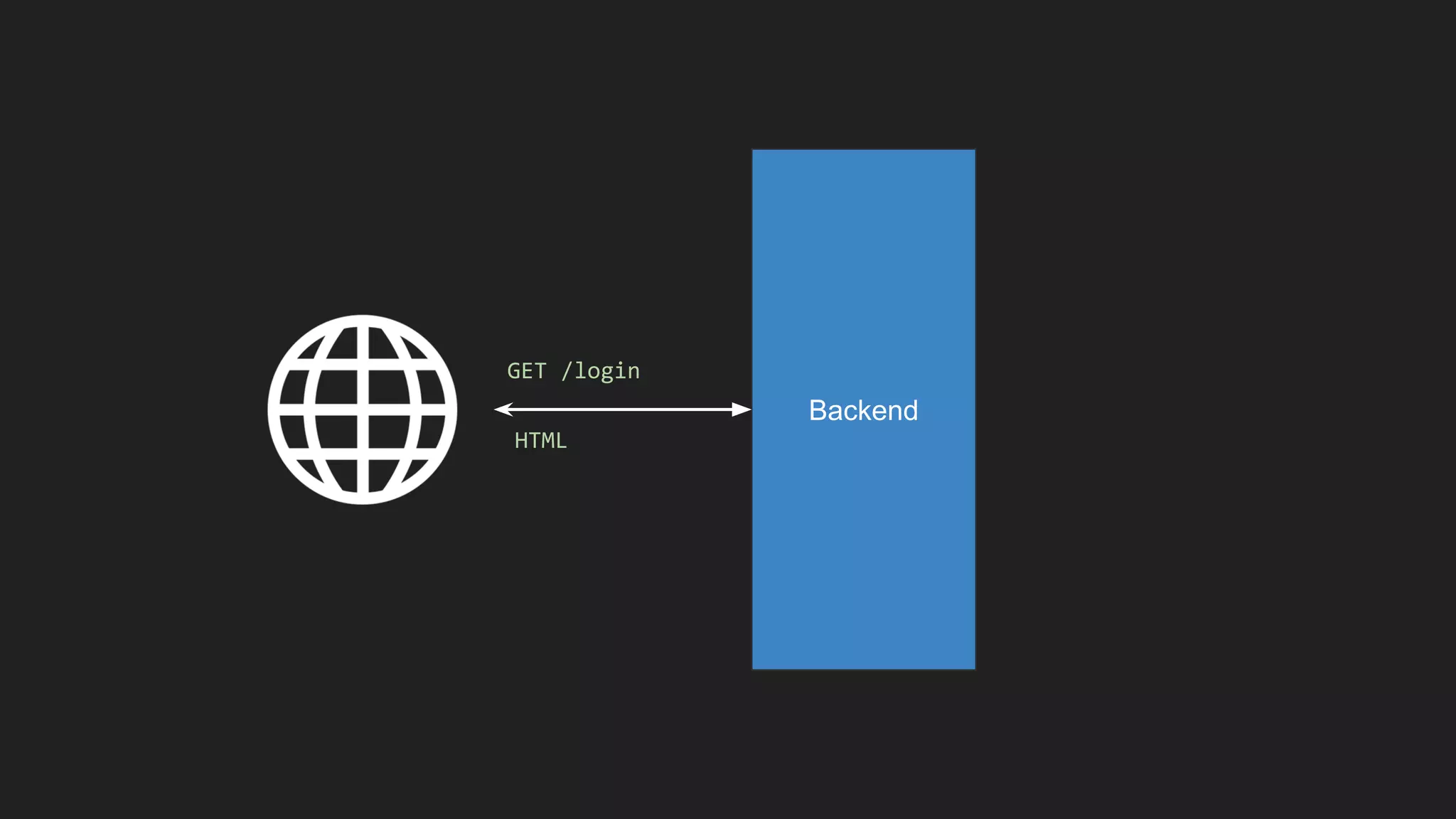

6. Backend
GET /login
HTML

7. Backend
POST /login
302 + Session
ID
Session
user
42
users

8. Backend
GET /todos +
Session ID
HTML
Session
user
42
todos

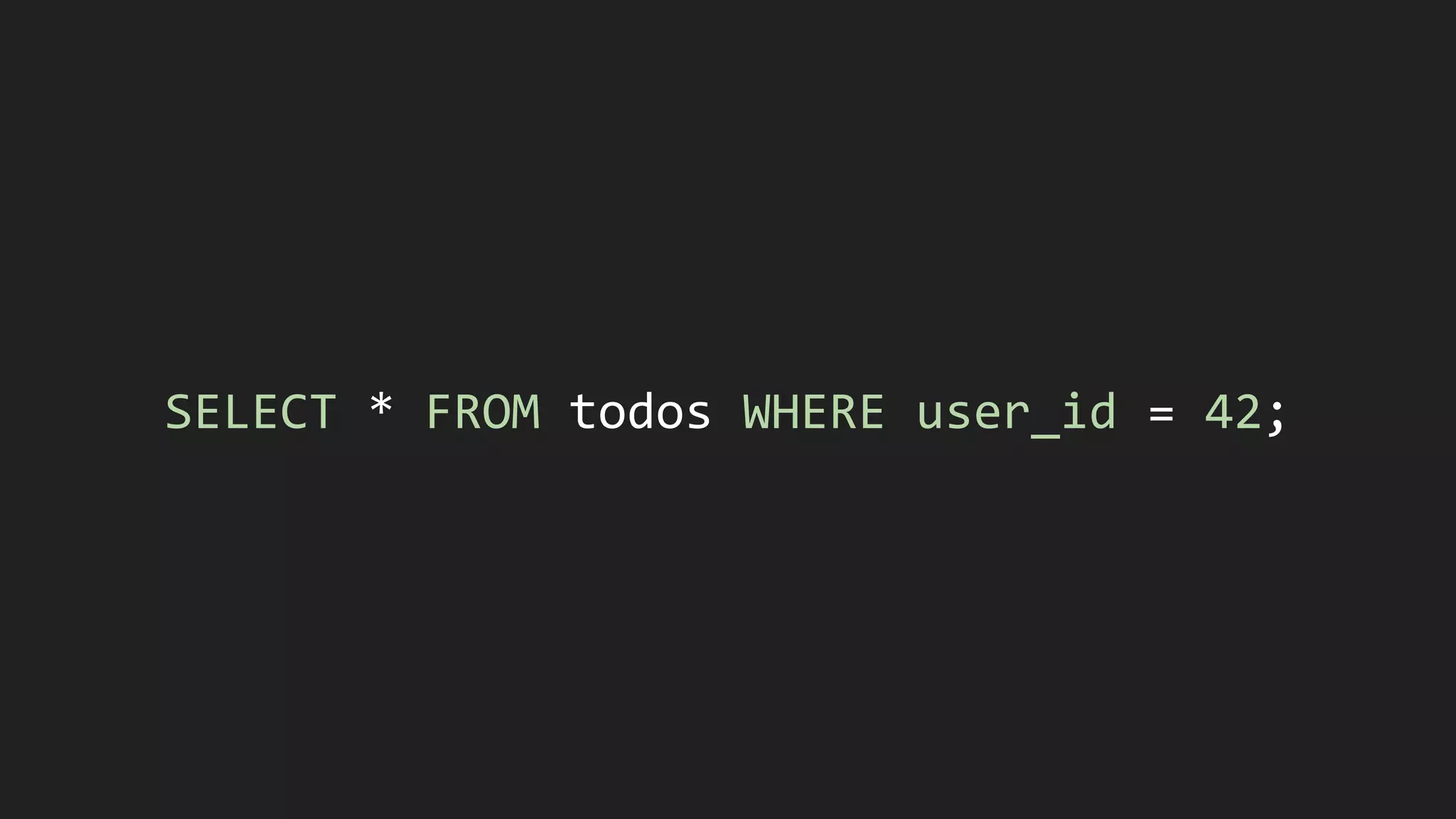

9. SELECT * FROM todos WHERE user_id = 42;

10. What about everything else?
● Works on SPAs and Mobile
● Session ID is the user identifier
● Generally hard to steal or forge
● Uses simple HTTP cookies

11. The Pain
● Stateful
● Potentially requires session replication
● Session pinning
● Harder to scale since every instance runs everything
● One big database

12. User API
Todo API

13. User API
Todo API
users
todos

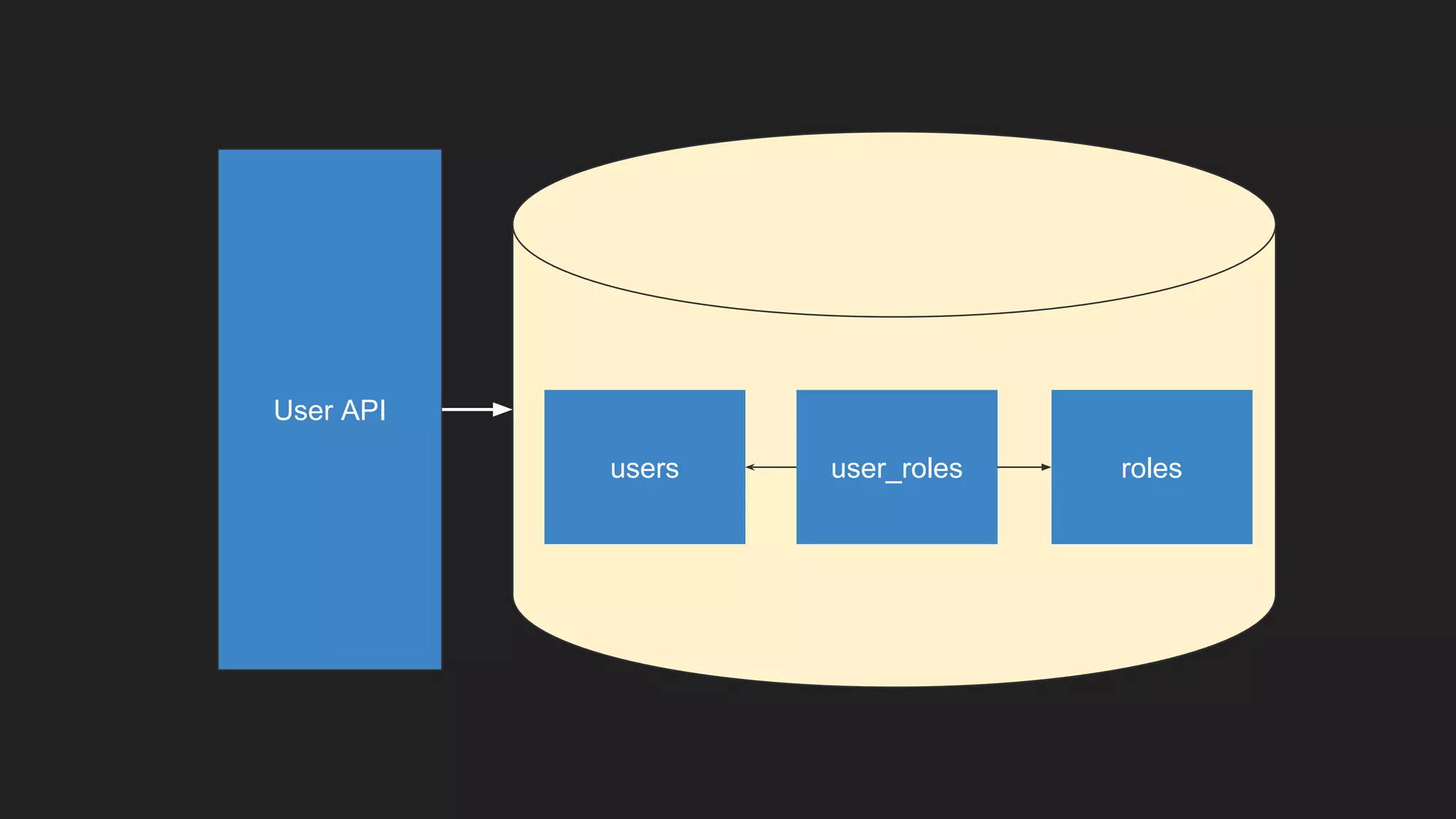

14. User API
users user_roles roles

15. Todo API
todos

16. CREATE TABLE todos (
id INT NOT NULL,
text TEXT NOT NULL,
user_id INT NOT NULL,
PRIMARY KEY (id)
);

17. User API
POST /login
???

18. User API
POST /login
???
user
42
users

19. User API
POST /login
User as JSON
user
42
users

20. {
"user": {
"id": 42,
"name": "Brian Pontarelli",
"email": "brian@inversoft.com",
"roles": ["admin"]
}
}

21. user
42 Todo API
GET /todos?user_id=42
JSON todos

22. Danger Will Robinson!

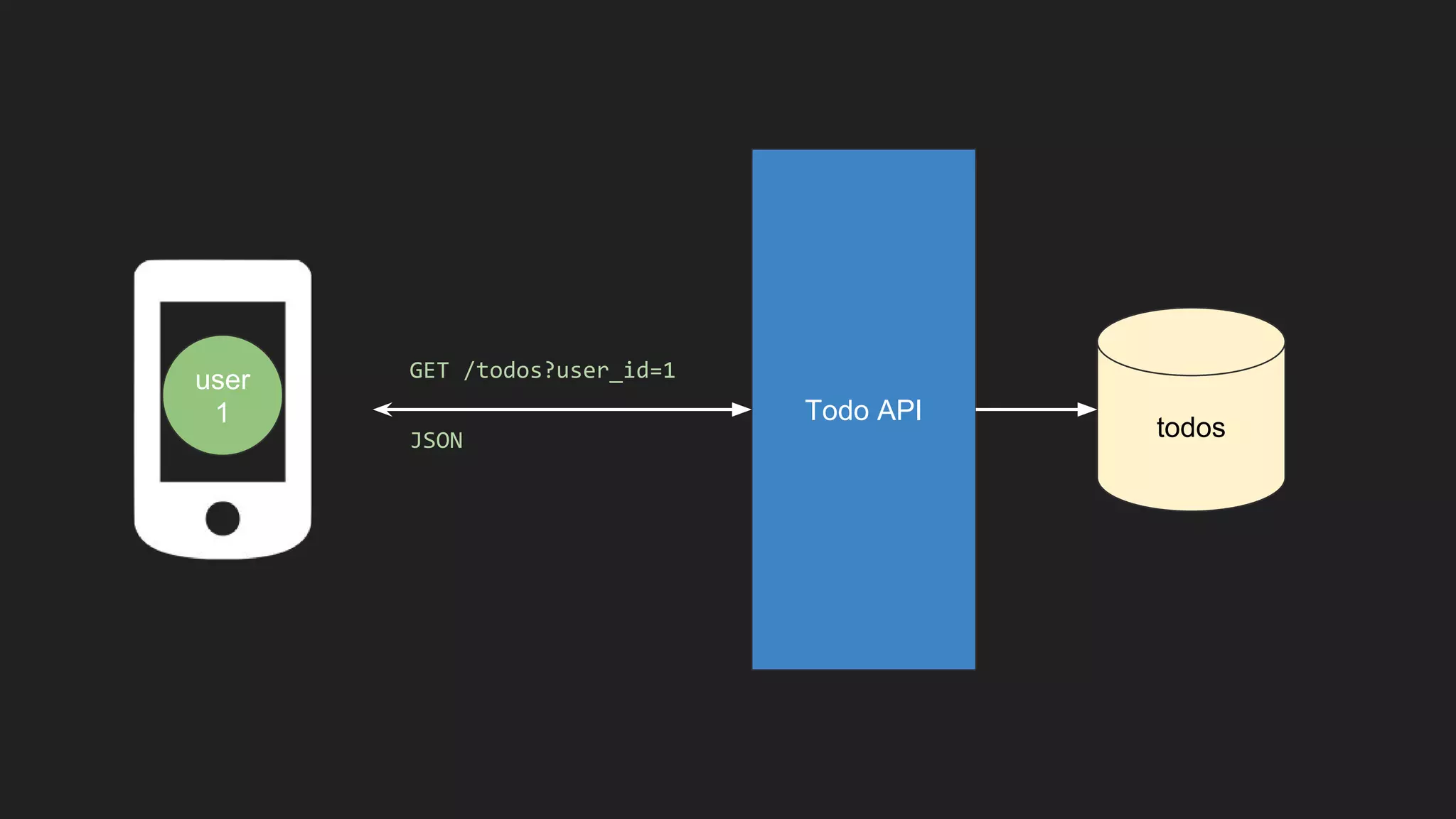

23. user
1 Todo API
GET /todos?user_id=1
JSON todos

24. X Get milk

25. Haha - His wife is gonna be pissed

26. Haha - Her husband is gonna be pissed

27. User API
Todo API
users
todos
user
user
T
T
T

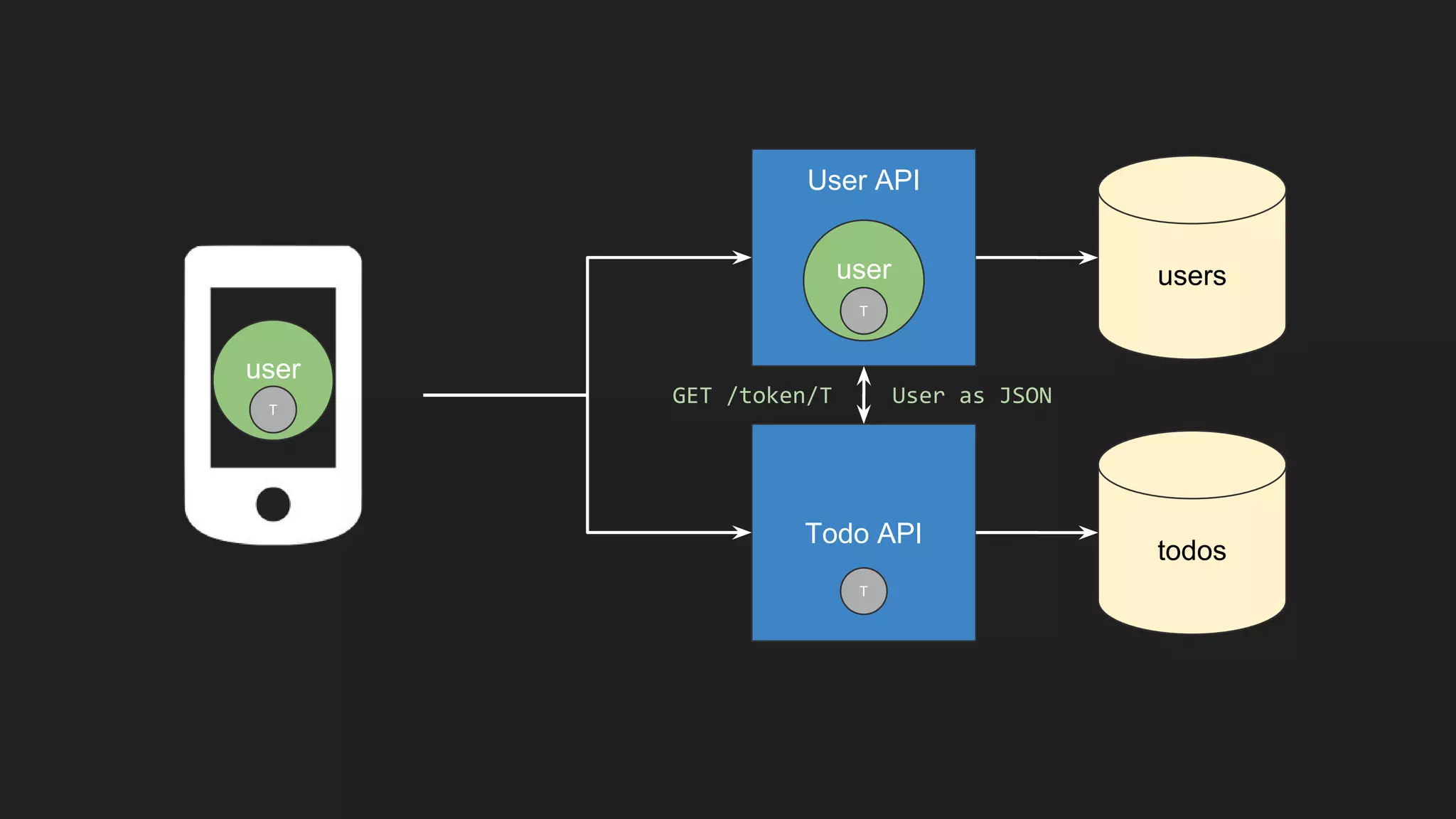

28. User API
Todo API
users
todos
user
user
T
T
T
GET /token/T User as JSON

29. Tokens
● There must be a User -> Token mapping
● In memory or in database
● Makes the User API slightly stateful
● Can be very chatty
● Couples the User API to EVERYTHING (almost)

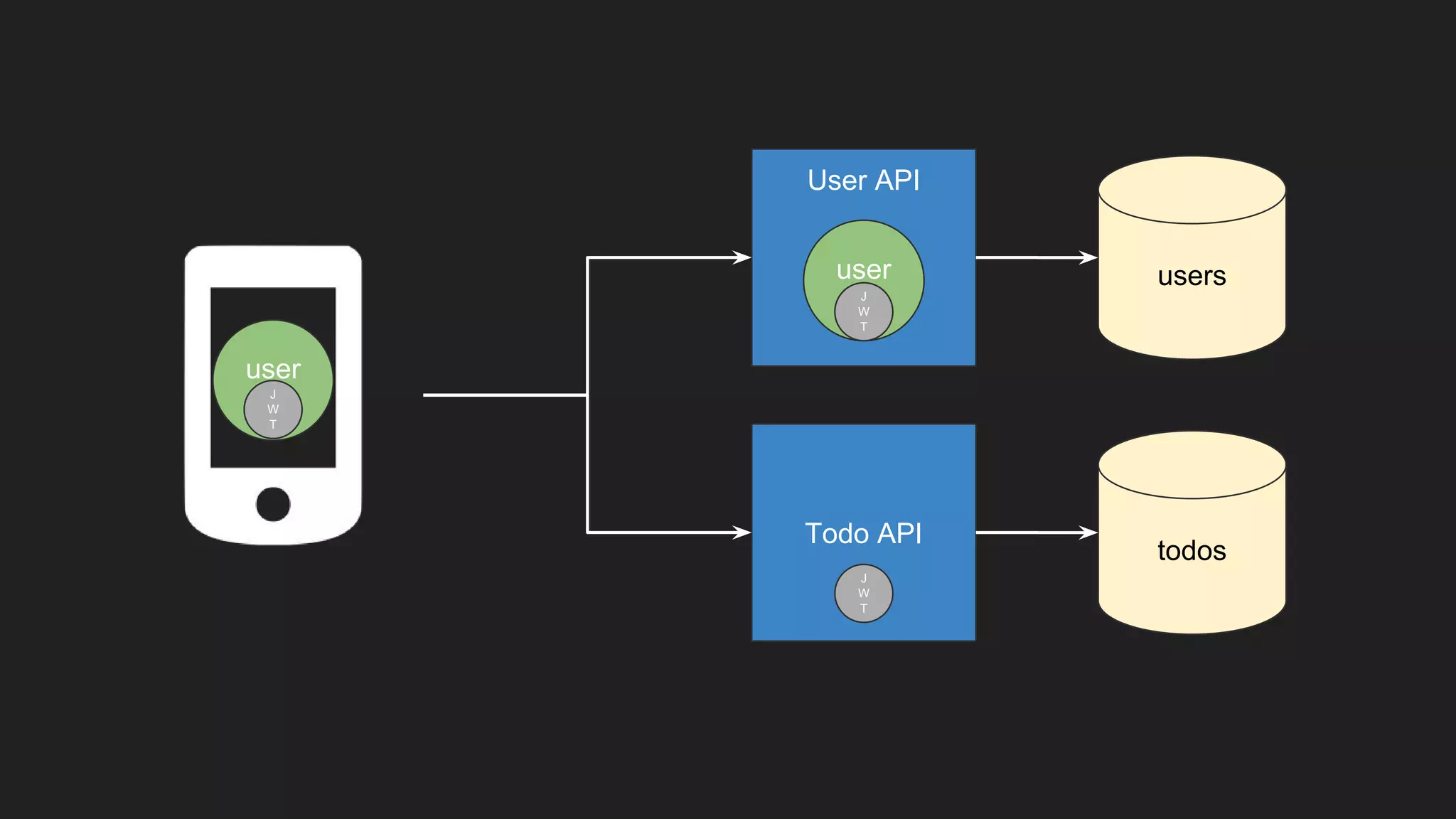

30. User API
Todo API
users
todos
user
user
J
W
T
J
W
T
J
W
T

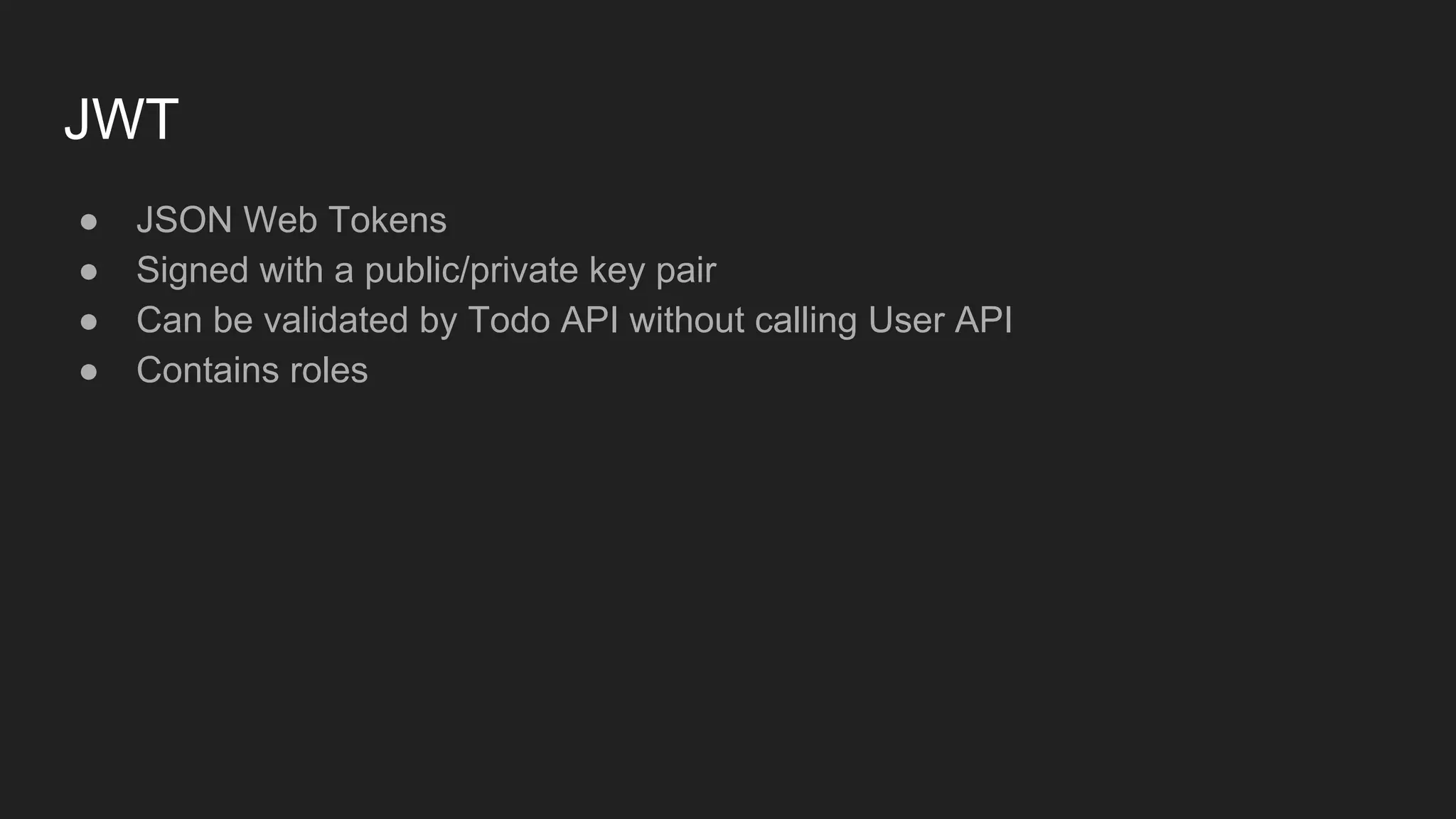

31. JWT
● JSON Web Tokens
● Signed with a public/private key pair
● Can be validated by Todo API without calling User API
● Contains roles

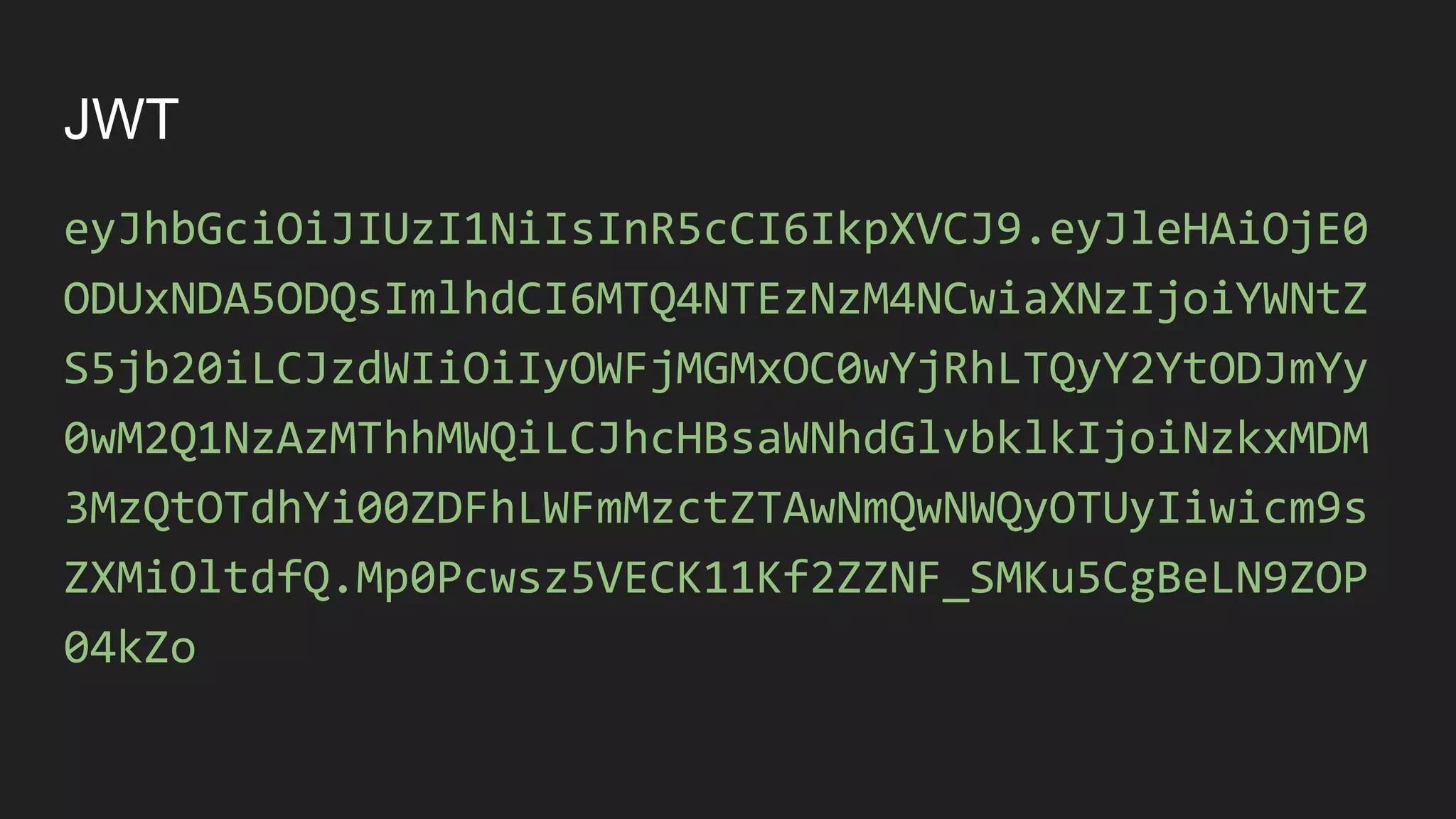

32. JWT
eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9.eyJleHAiOjE0
ODUxNDA5ODQsImlhdCI6MTQ4NTEzNzM4NCwiaXNzIjoiYWNtZ
S5jb20iLCJzdWIiOiIyOWFjMGMxOC0wYjRhLTQyY2YtODJmYy
0wM2Q1NzAzMThhMWQiLCJhcHBsaWNhdGlvbklkIjoiNzkxMDM
3MzQtOTdhYi00ZDFhLWFmMzctZTAwNmQwNWQyOTUyIiwicm9s
ZXMiOltdfQ.Mp0Pcwsz5VECK11Kf2ZZNF_SMKu5CgBeLN9ZOP
04kZo

33. JWT Header
{
"typ": "JWT",
"alg": "RS256"
}

34. JWT Body
{
"iss": "inversoft.io",
"exp": 1300819380,
"sub": "19016b73-3ffa-4b26-80d8-aa9287738677",
"name": "Brian Pontarelli",
"roles": ["RETRIEVE_TODOS"]
}

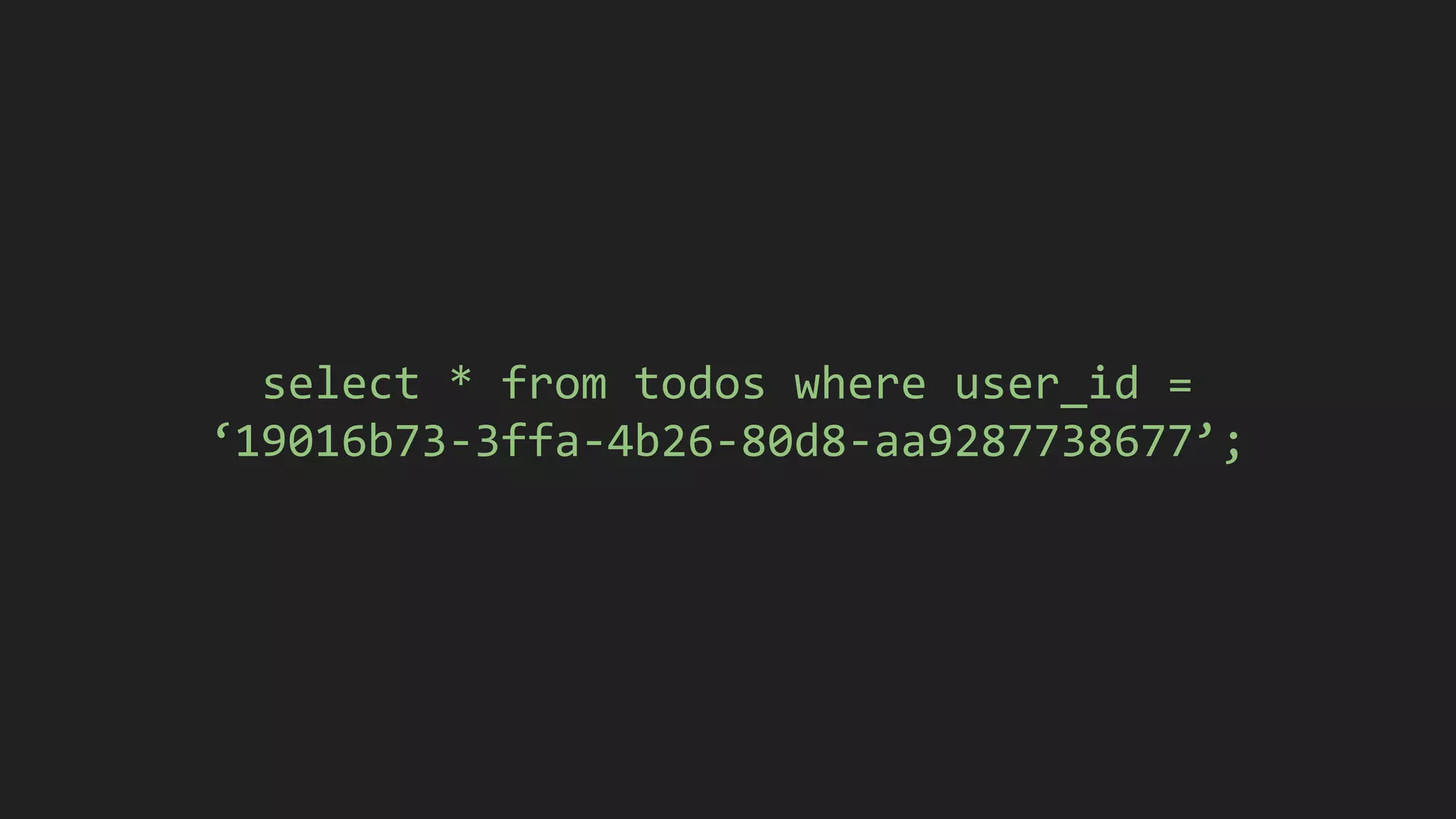

35. select * from todos where user_id =
‘19016b73-3ffa-4b26-80d8-aa9287738677’;

36. Code!

37. Deleting Users?

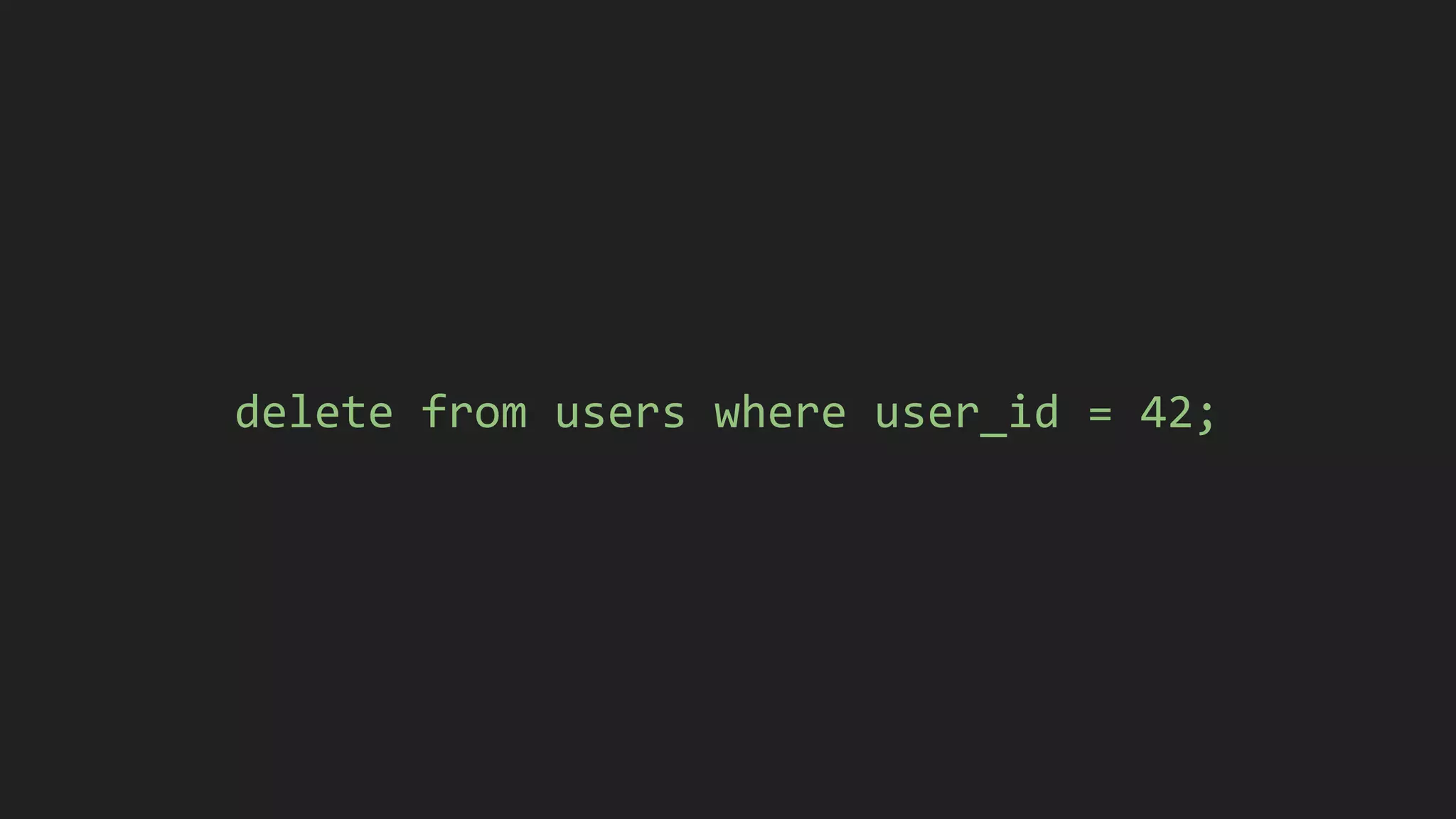

38. delete from users where user_id = 42;

39. Oops! No ON DELETE CASCADE

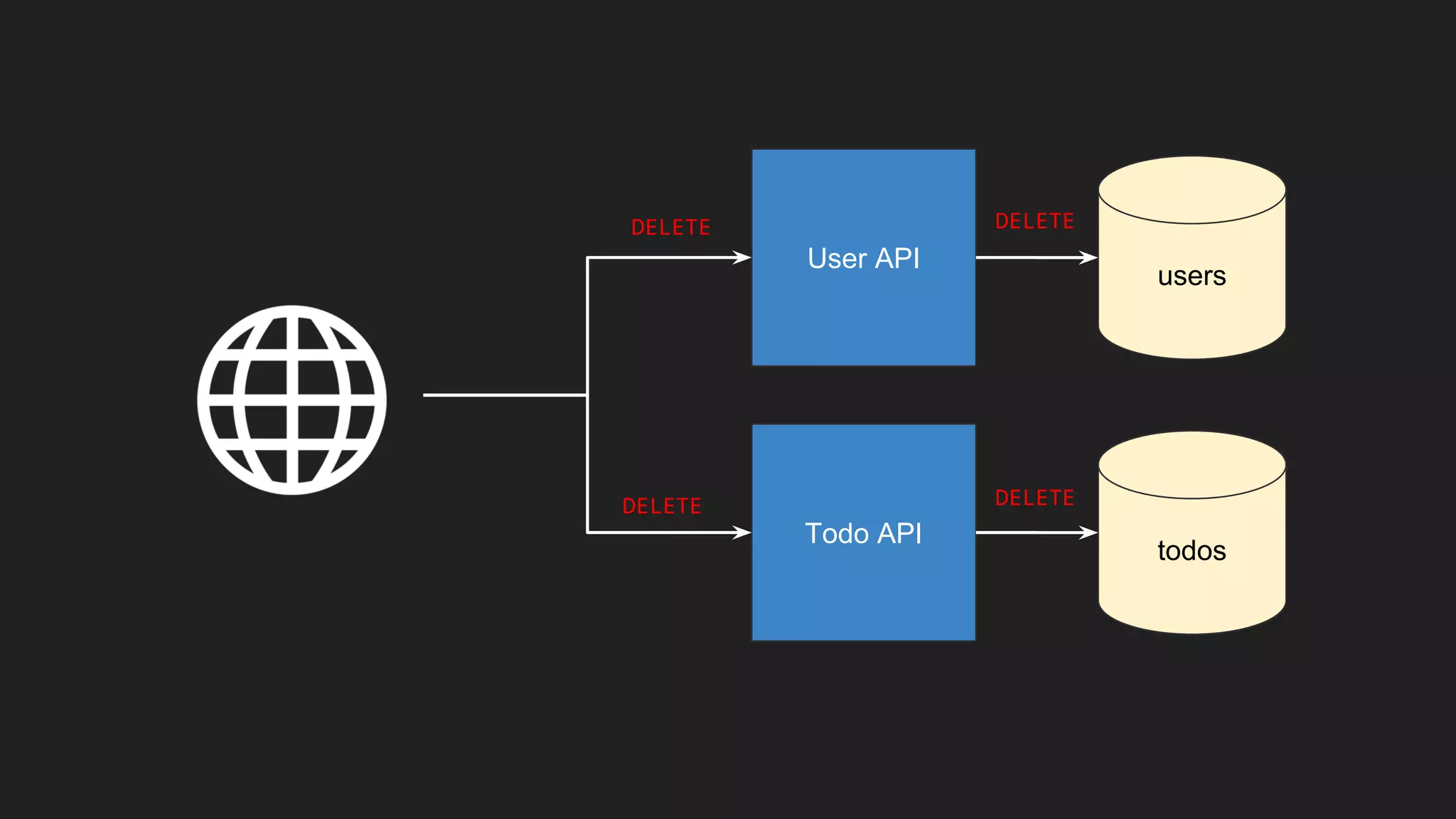

40. User API
Todo API
users
todos
DELETE
DELETE
DELETE
DELETE

41. User API
Todo API
users
todos
DELETE DELETE
Event
Webhook
DELETE

42. Code!
