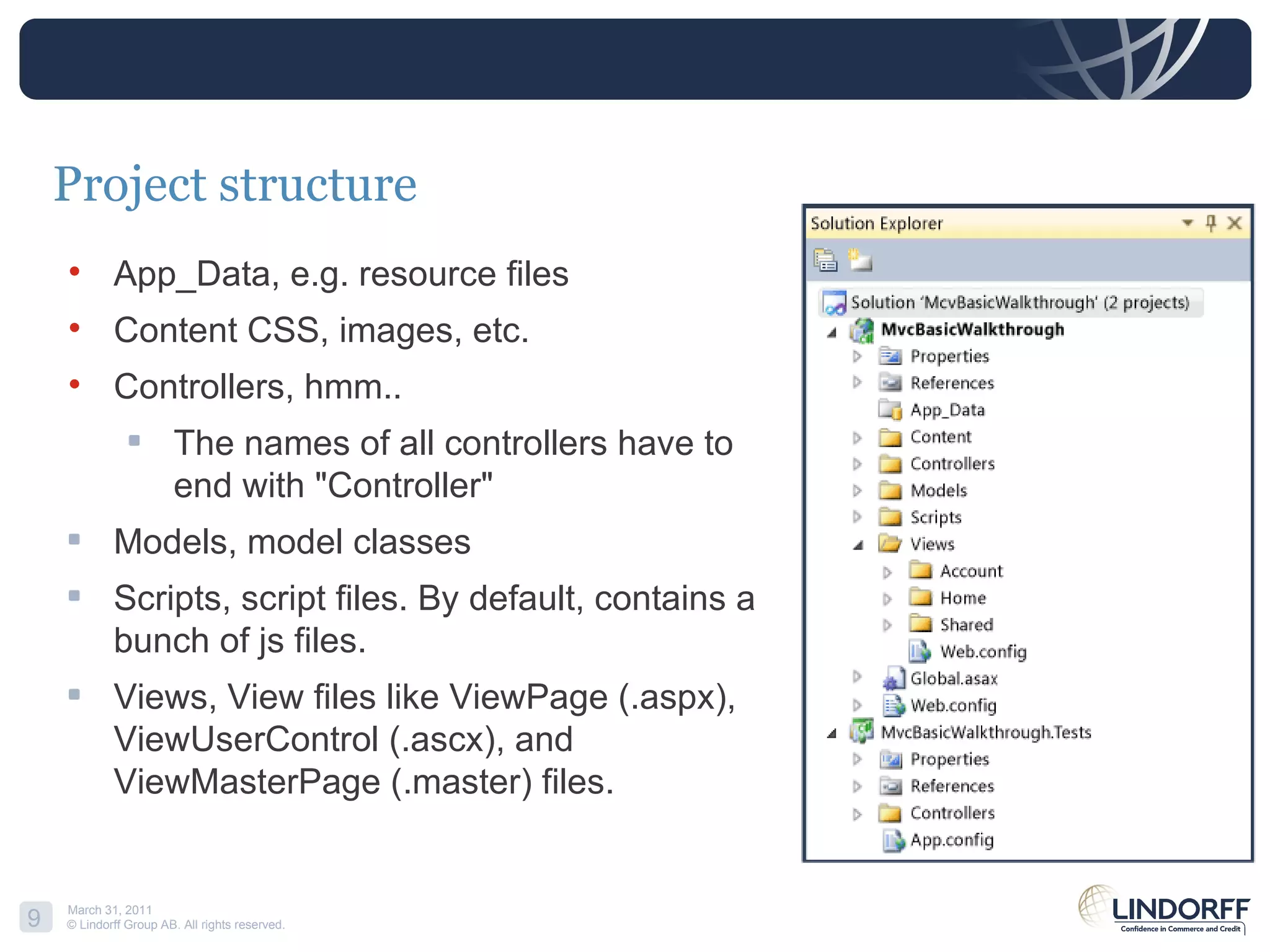

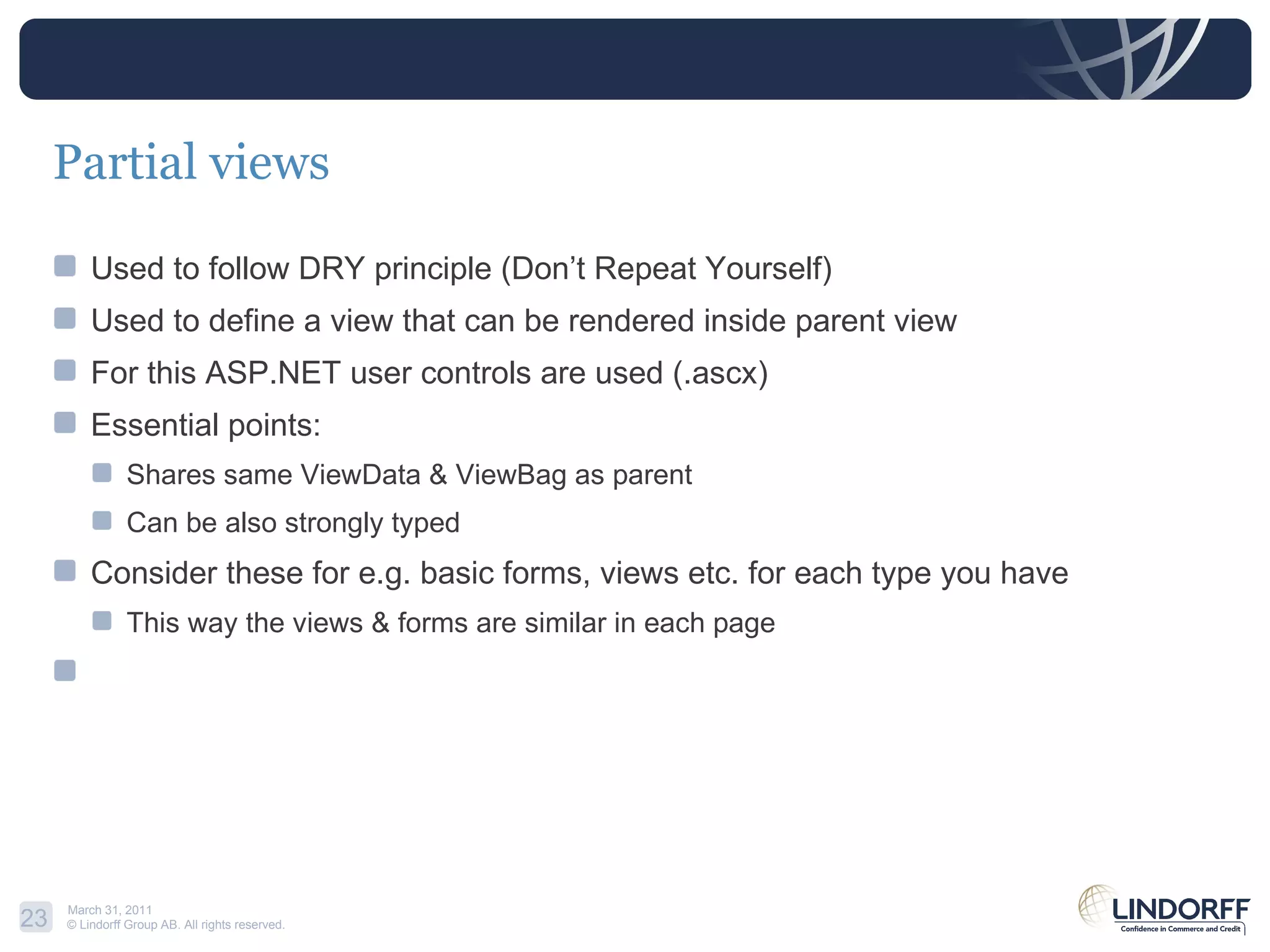

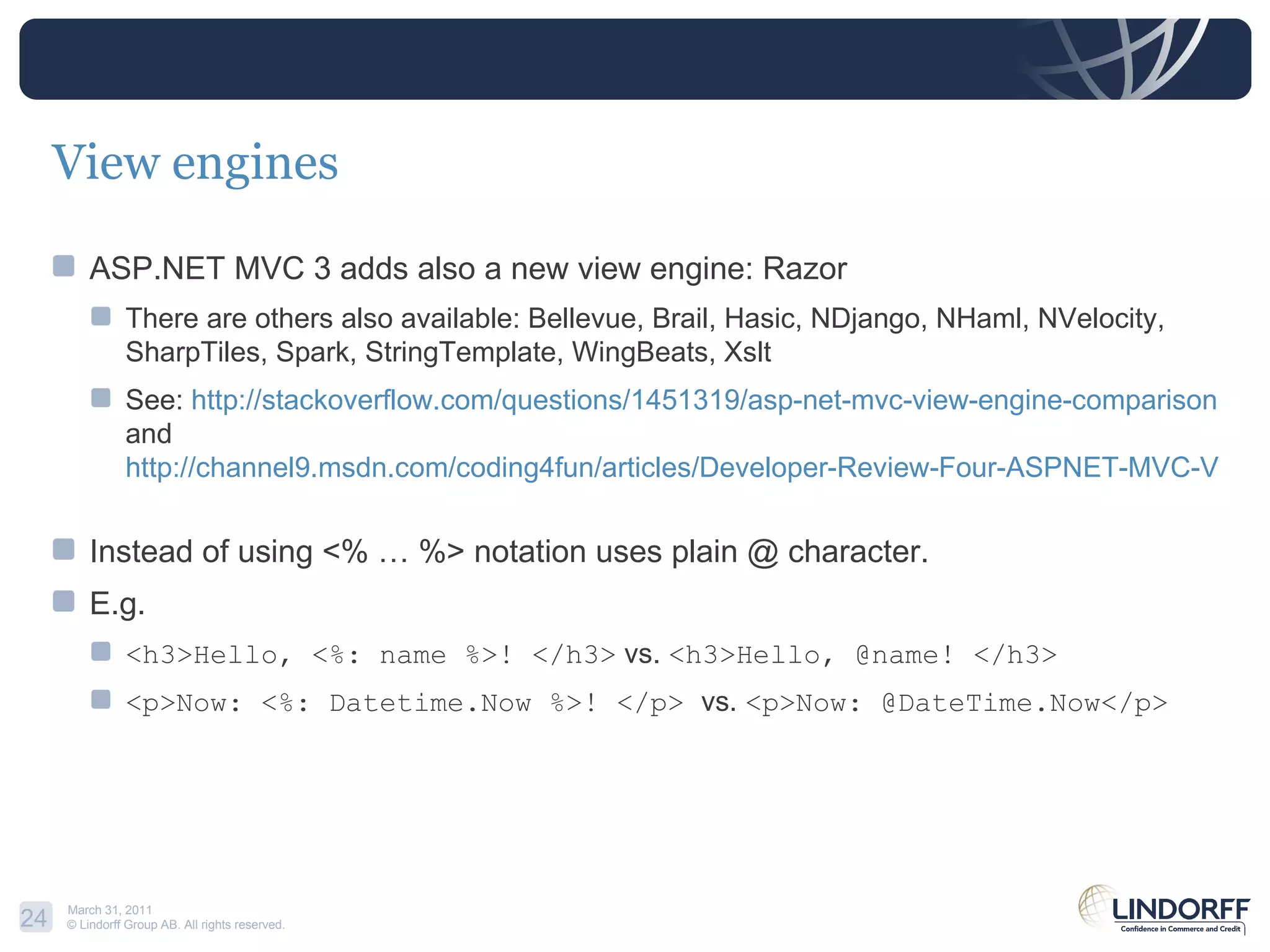

The document provides an introduction and overview of ASP.NET MVC, covering topics such as routing, controllers, actions, views, and passing data between controllers and views. It compares ASP.NET MVC to traditional ASP.NET WebForms, outlines the MVC architecture and project structure, and describes how routing maps URLs to controller actions. Key aspects of controllers, views, partial views, HTML helpers, and view engines are also summarized.

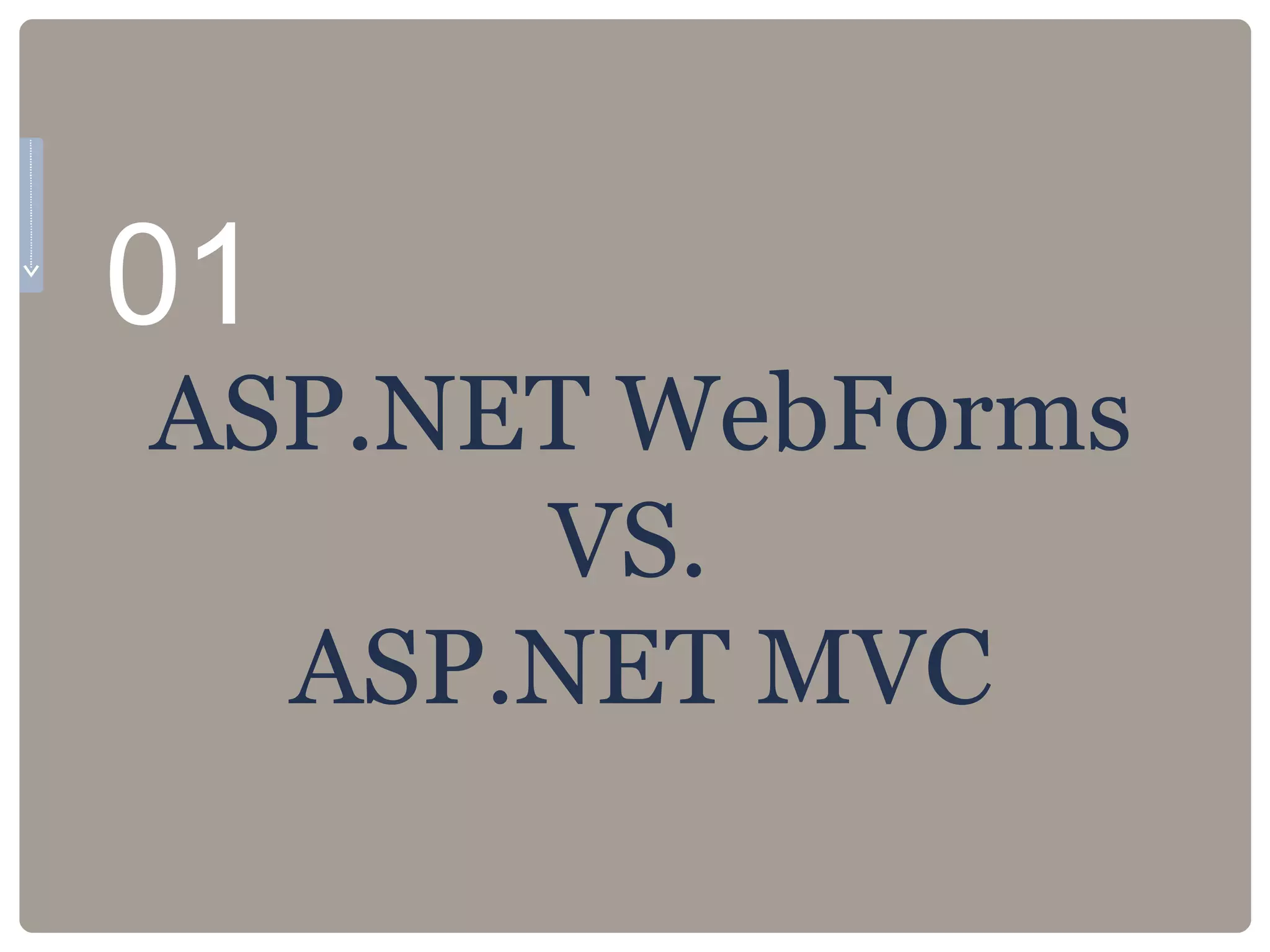

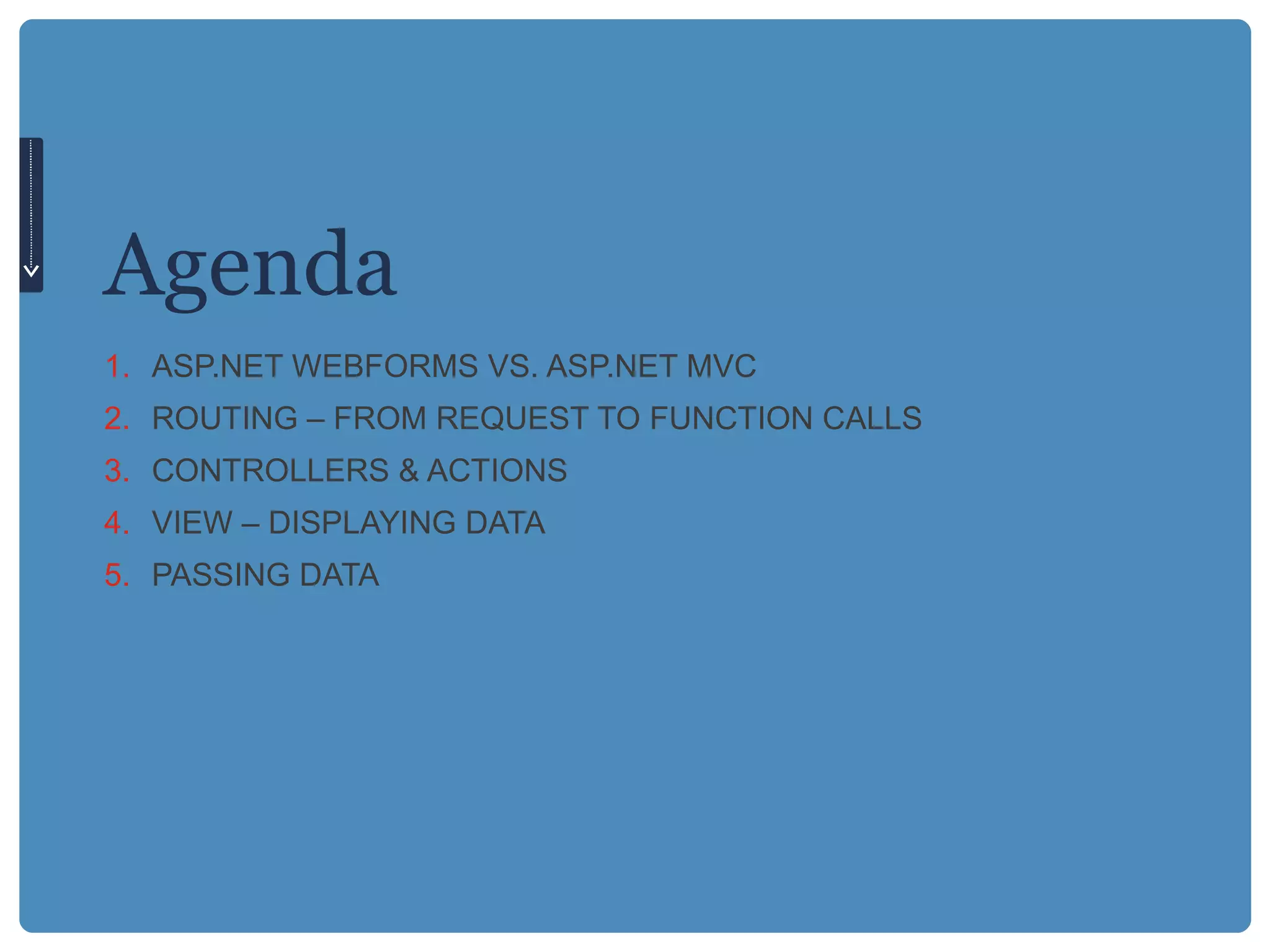

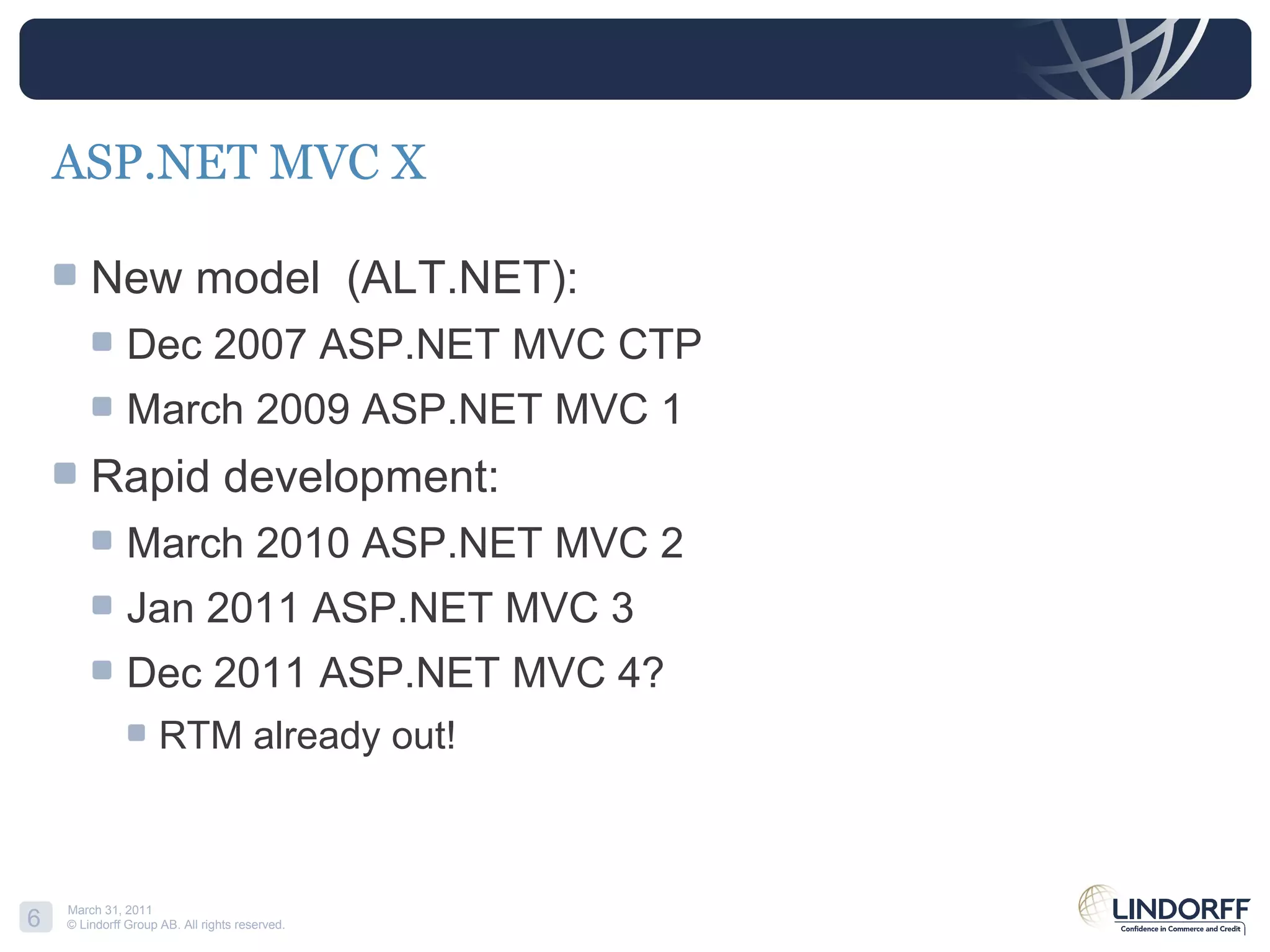

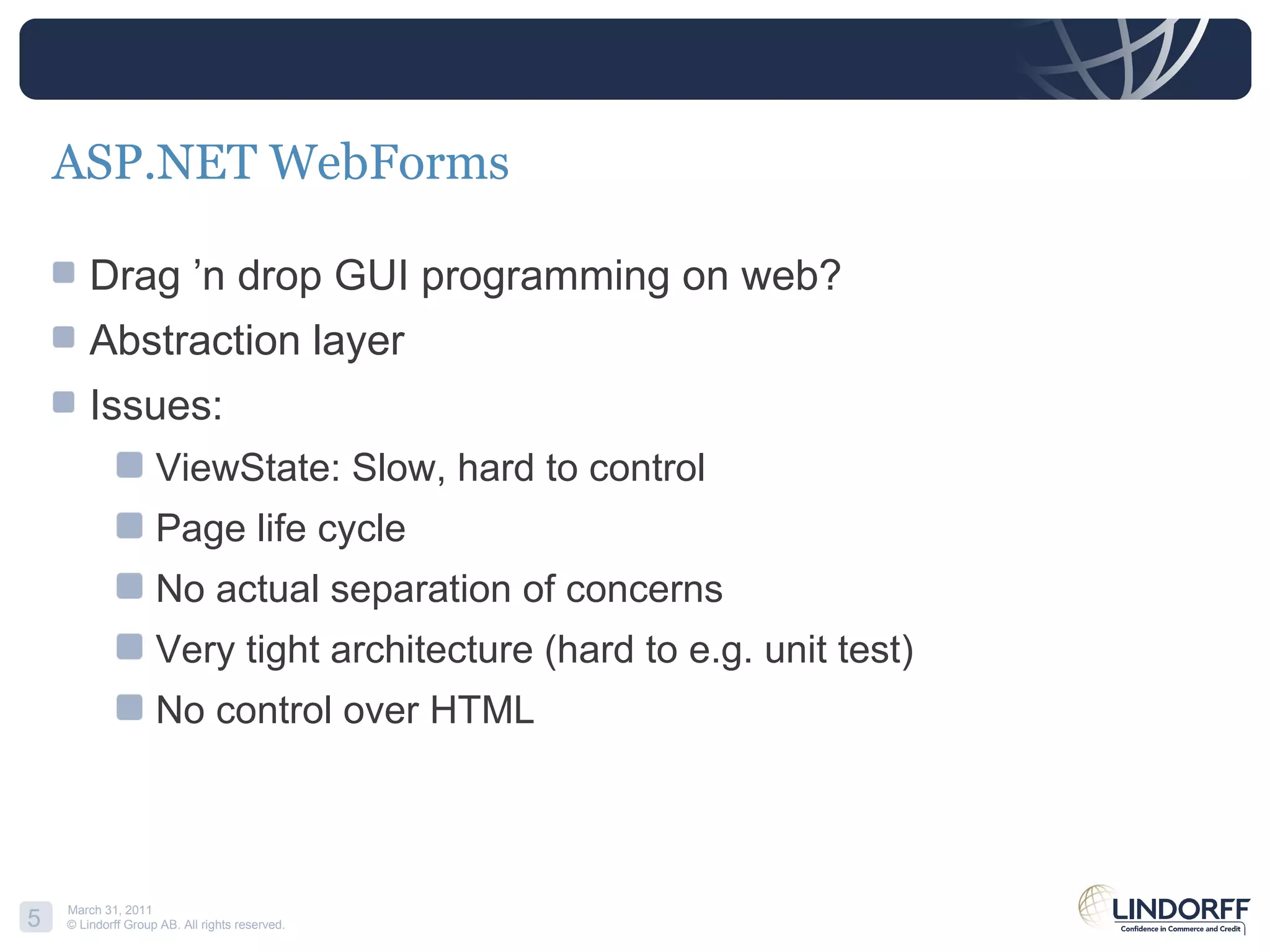

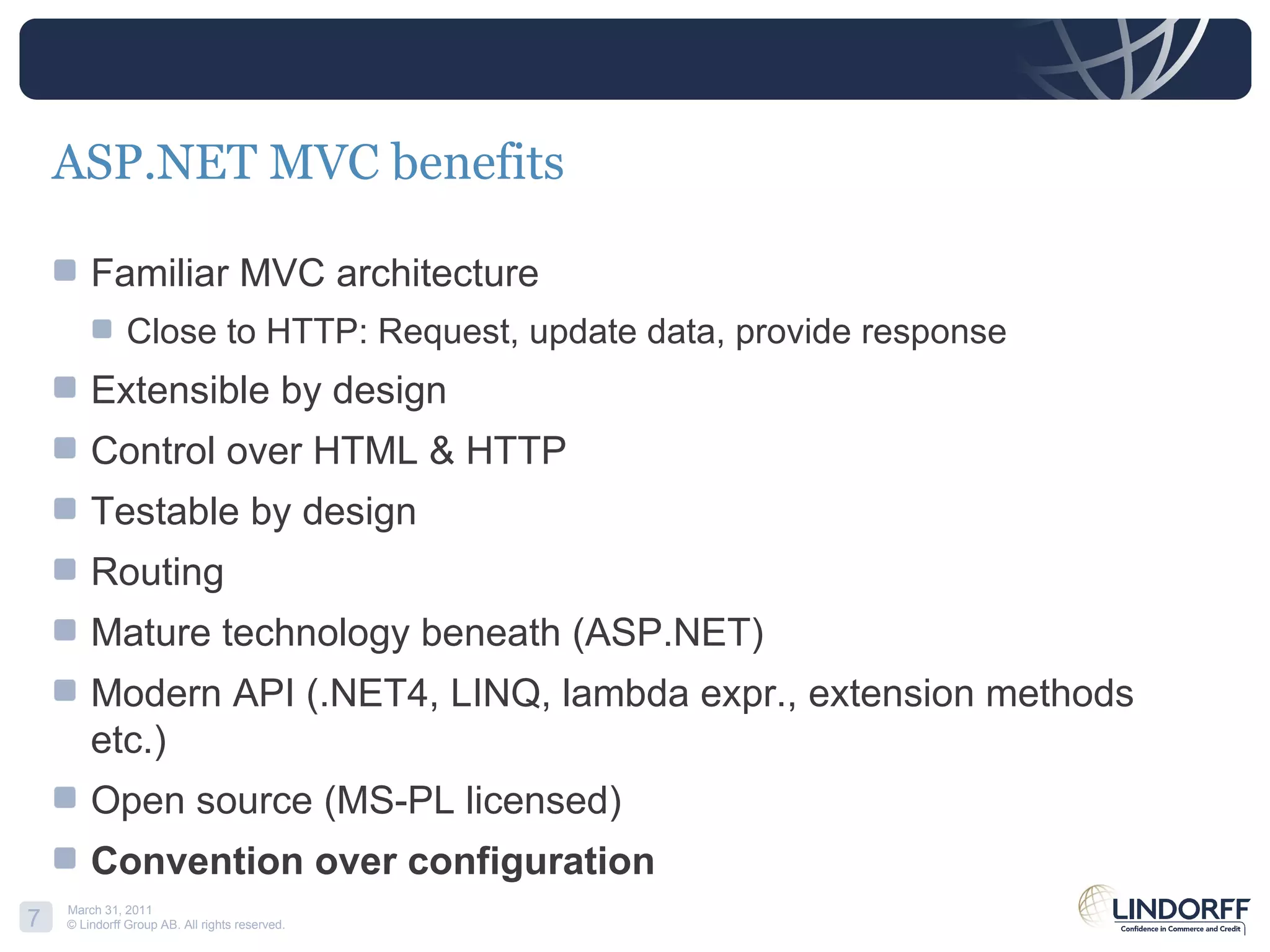

4. ASP.NET WebForms VS. ASP.NET MVC 01

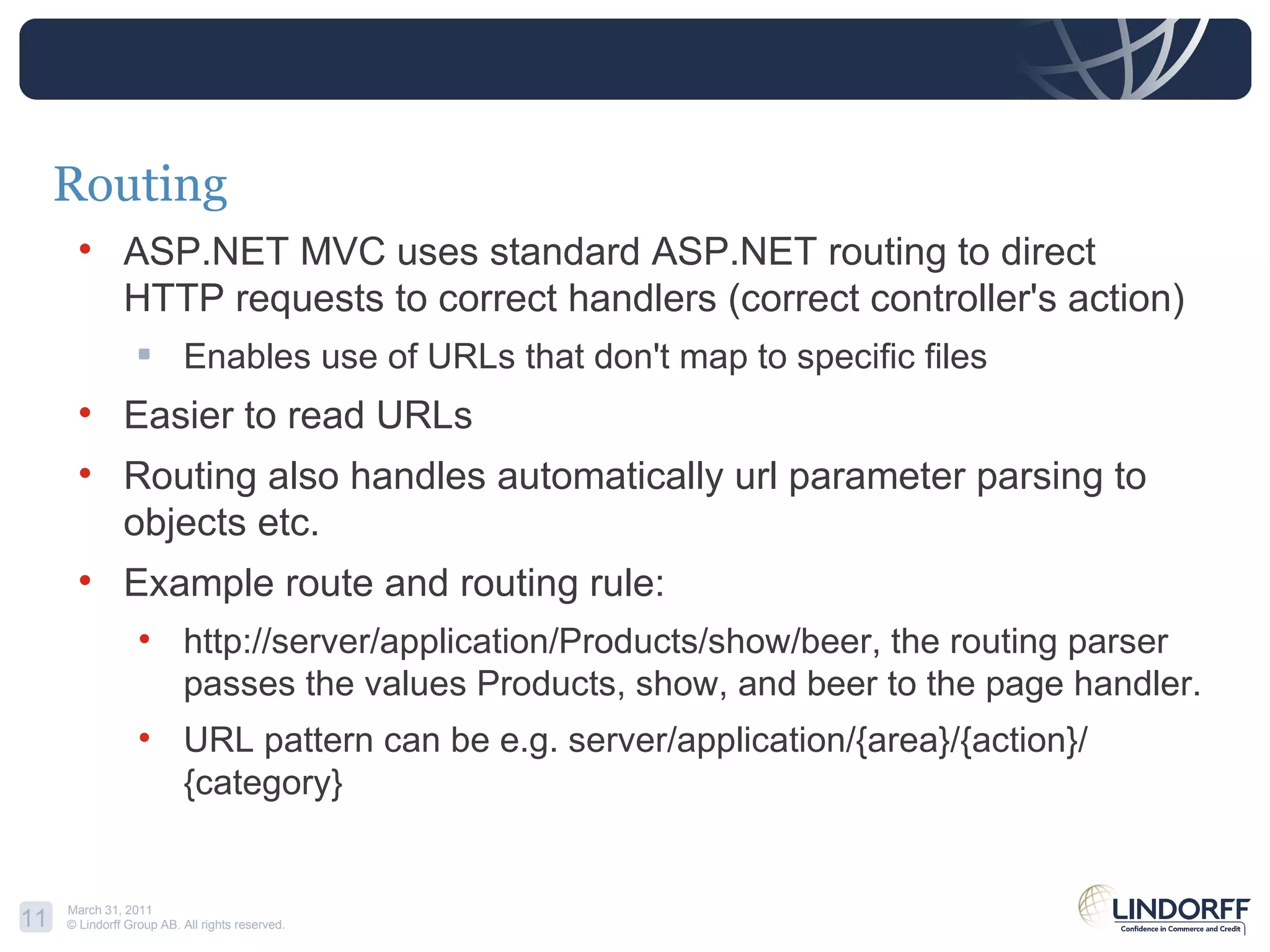

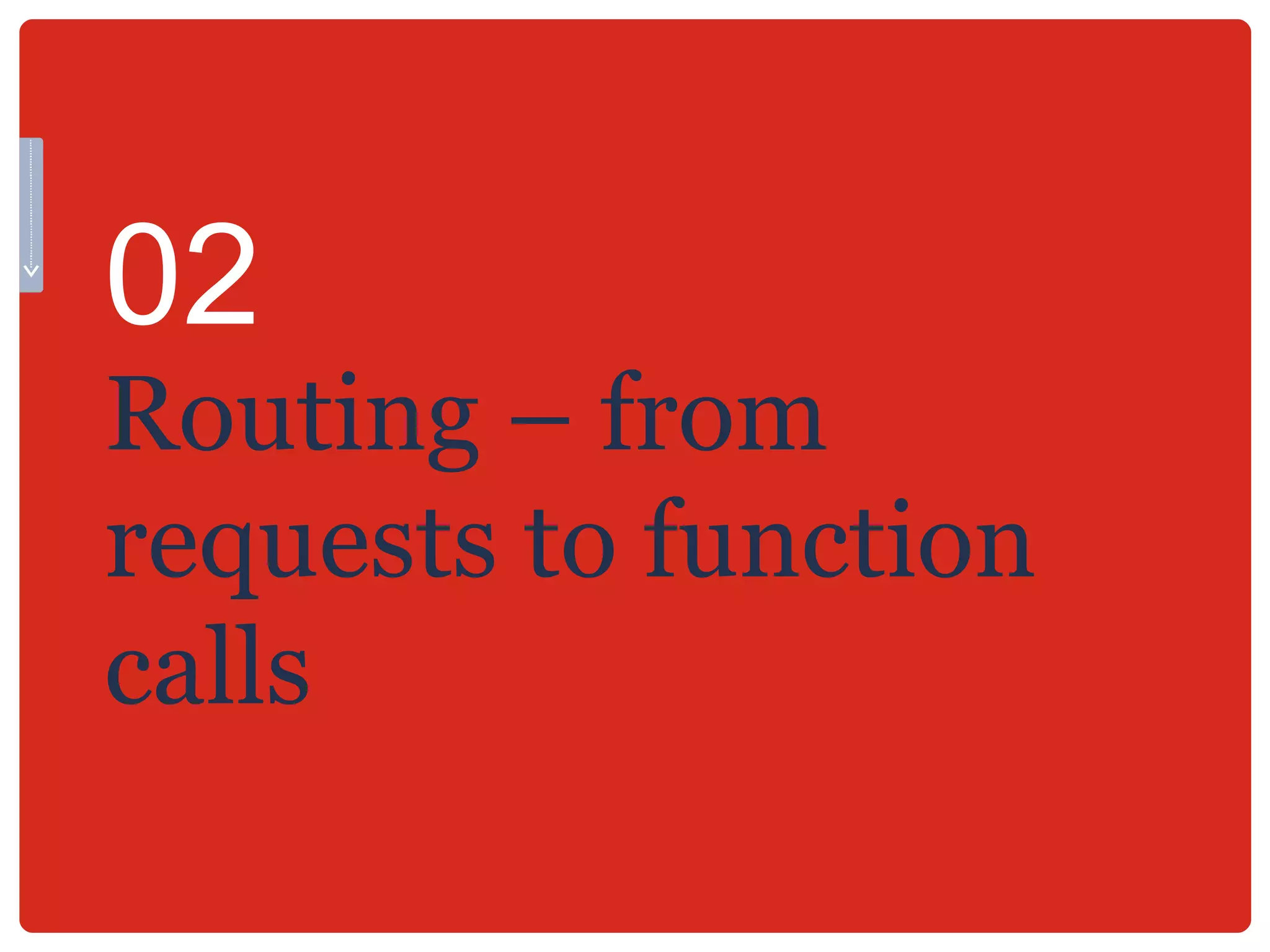

10. Routing – from requests to function calls 02

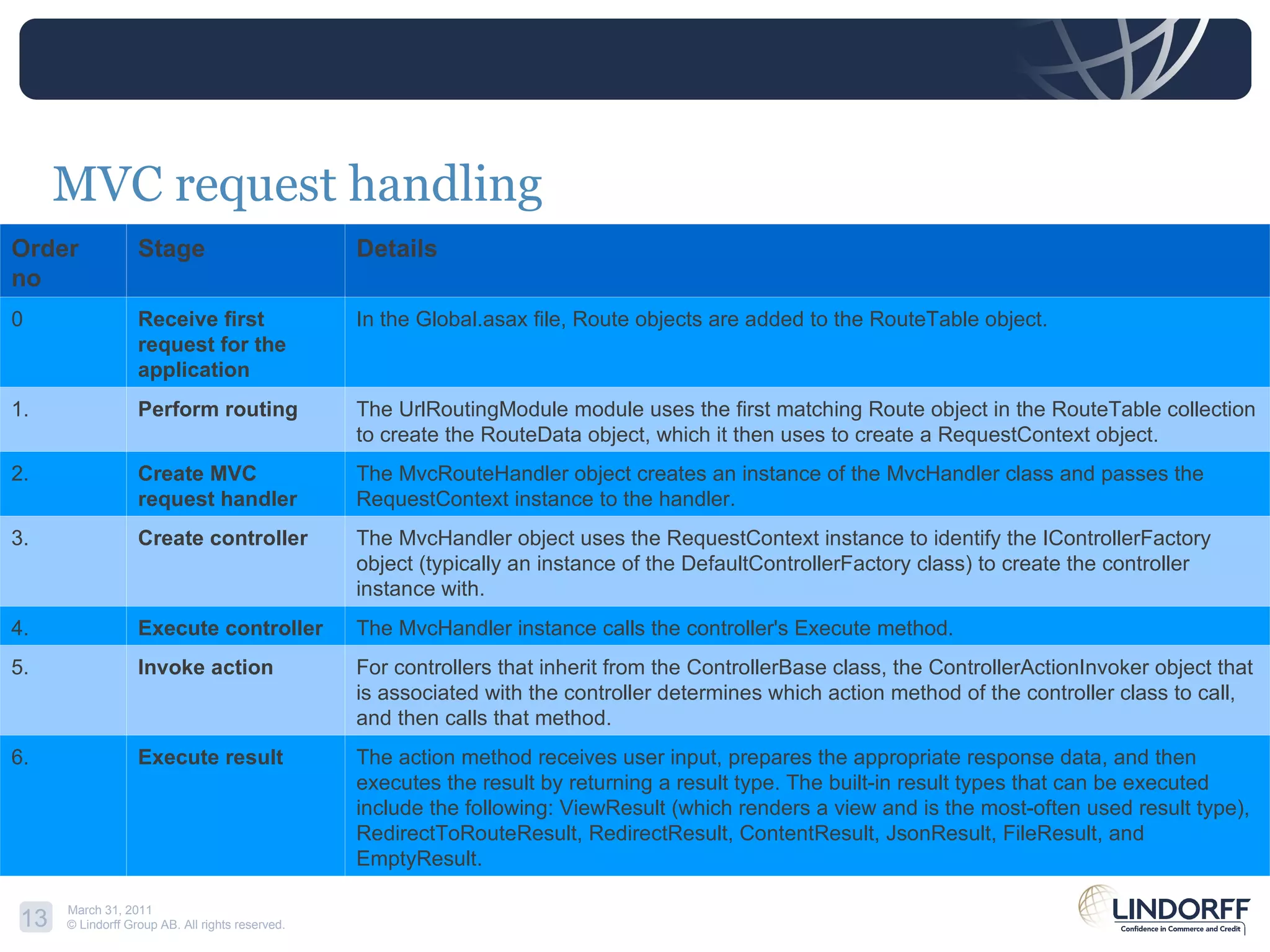

13. MVC request handling Order no Stage Details 0 Receive first request for the application In the Global.asax file, Route objects are added to the RouteTable object. 1. Perform routing The UrlRoutingModule module uses the first matching Route object in the RouteTable collection to create the RouteData object, which it then uses to create a RequestContext object. 2. Create MVC request handler The MvcRouteHandler object creates an instance of the MvcHandler class and passes the RequestContext instance to the handler. 3. Create controller The MvcHandler object uses the RequestContext instance to identify the IControllerFactory object (typically an instance of the DefaultControllerFactory class) to create the controller instance with. 4. Execute controller The MvcHandler instance calls the controller's Execute method. 5. Invoke action For controllers that inherit from the ControllerBase class, the ControllerActionInvoker object that is associated with the controller determines which action method of the controller class to call, and then calls that method. 6. Execute result The action method receives user input, prepares the appropriate response data, and then executes the result by returning a result type. The built-in result types that can be executed include the following: ViewResult (which renders a view and is the most-often used result type), RedirectToRouteResult, RedirectResult, ContentResult, JsonResult, FileResult, and EmptyResult.

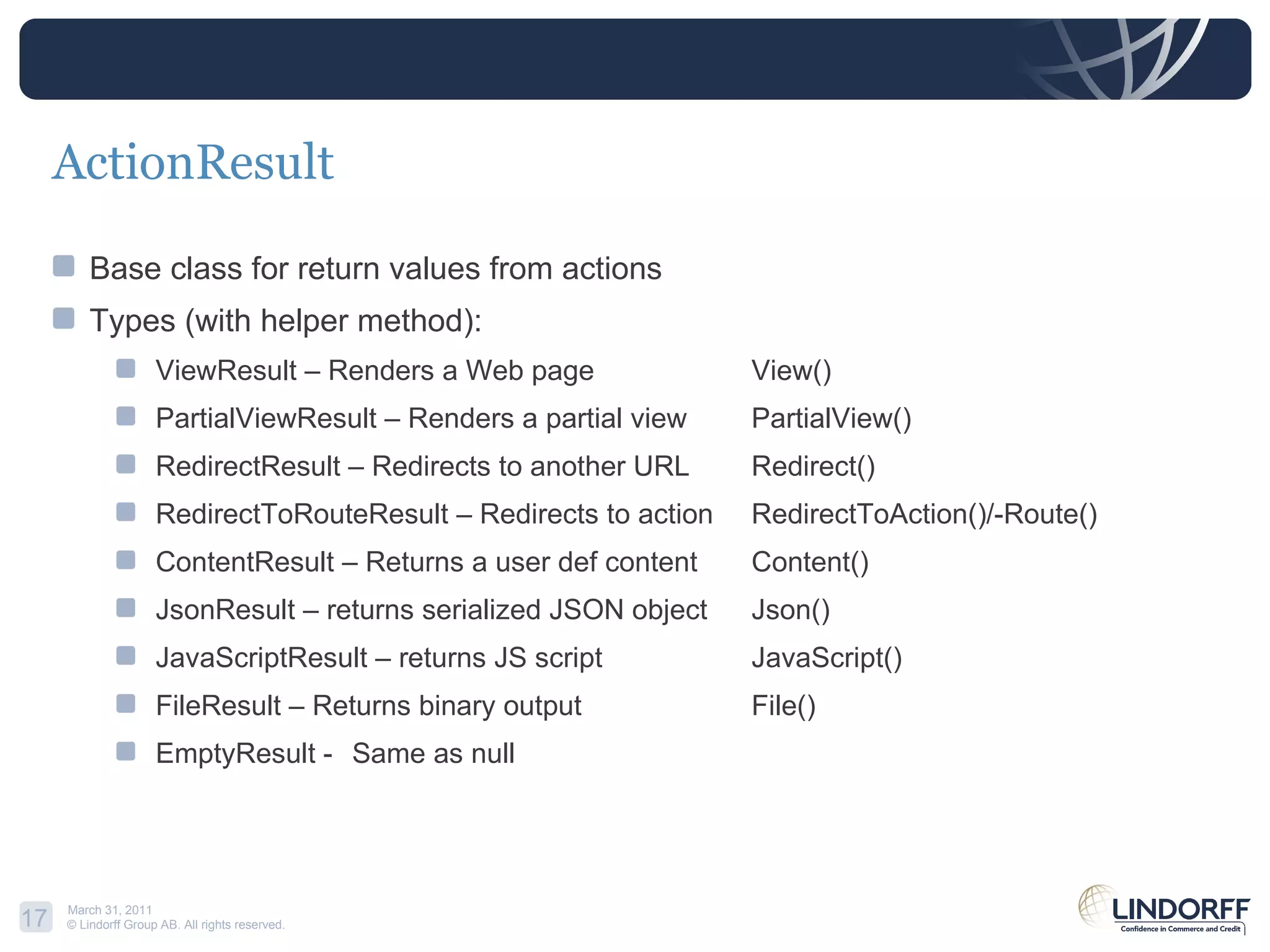

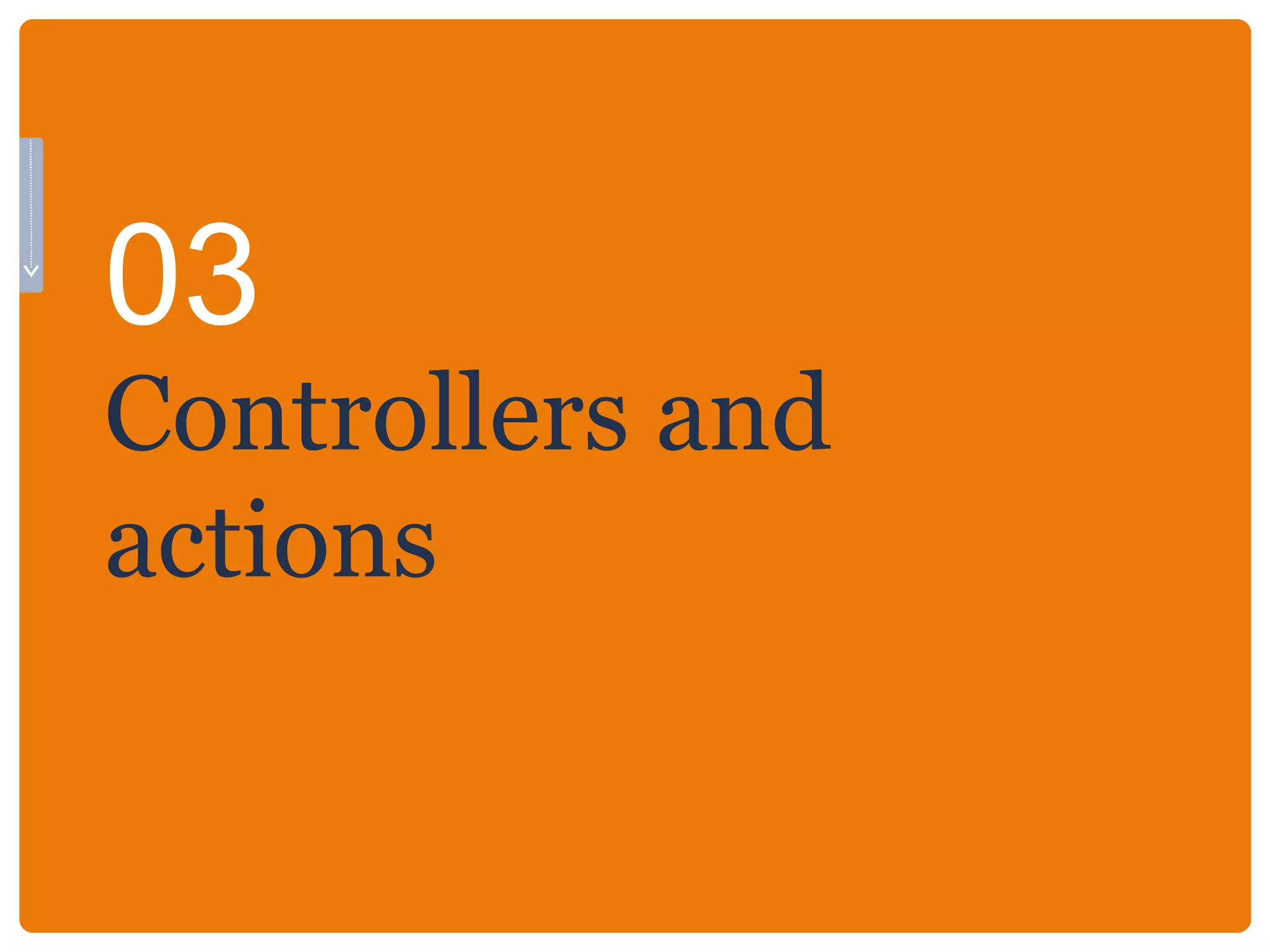

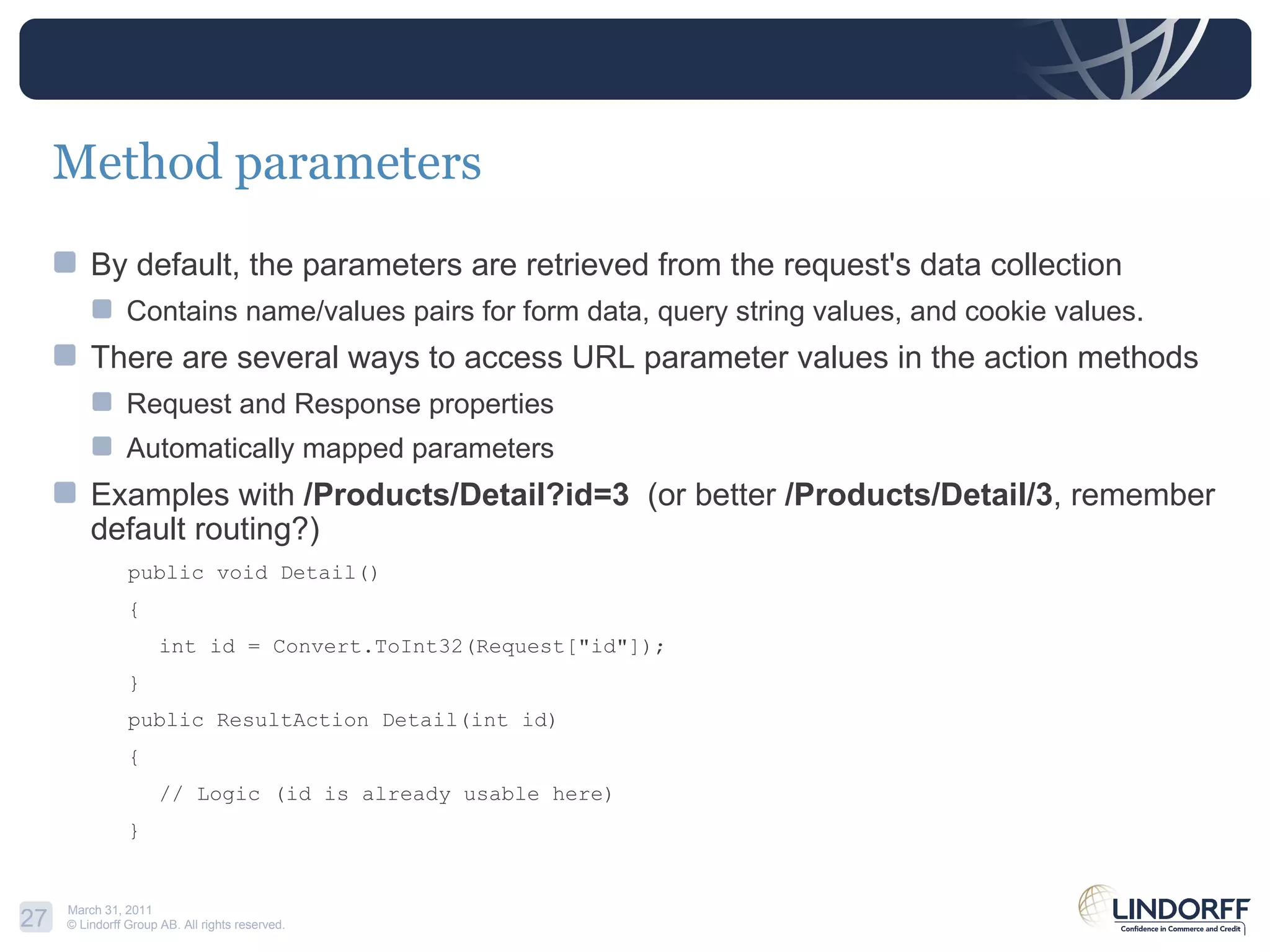

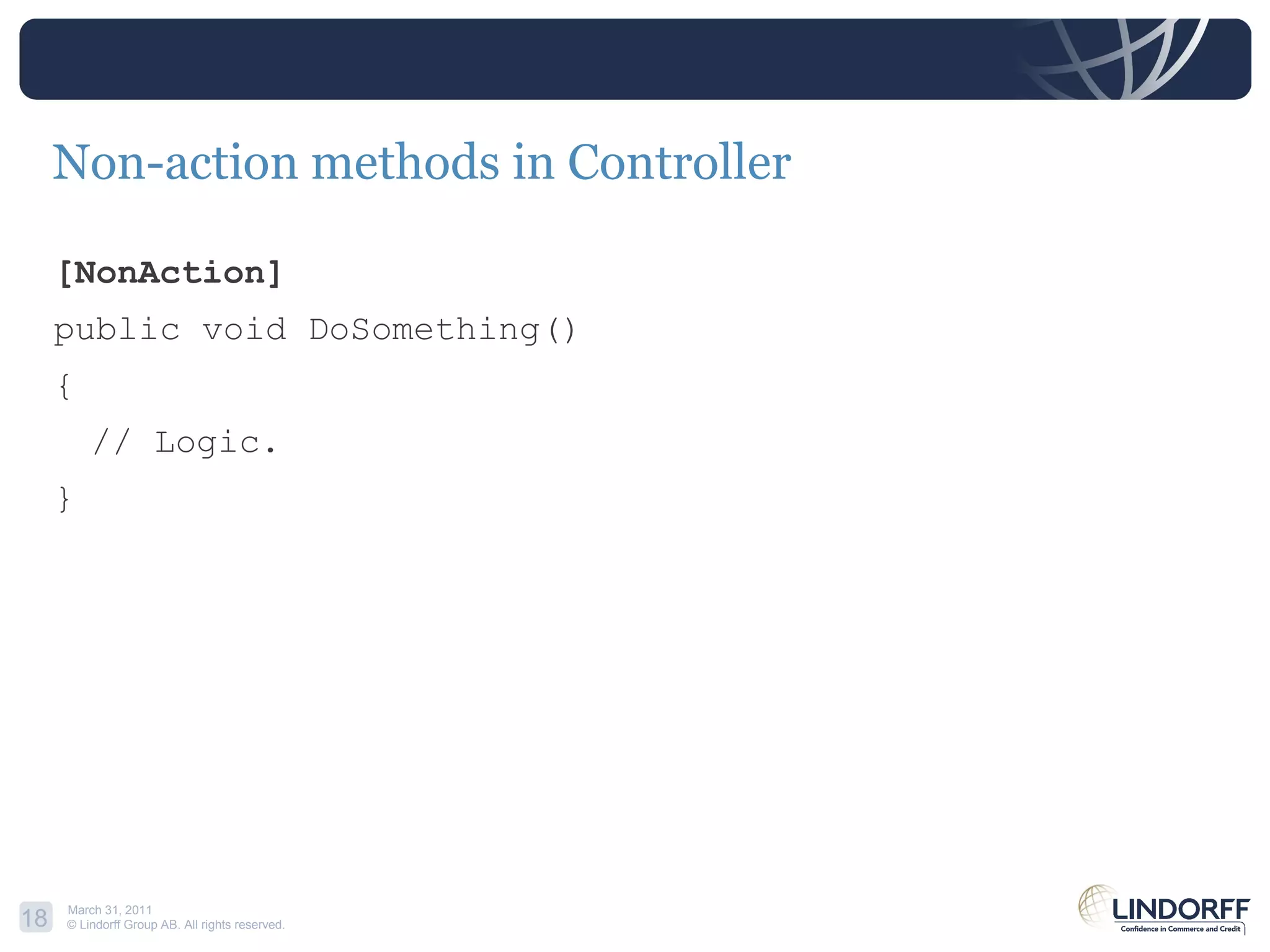

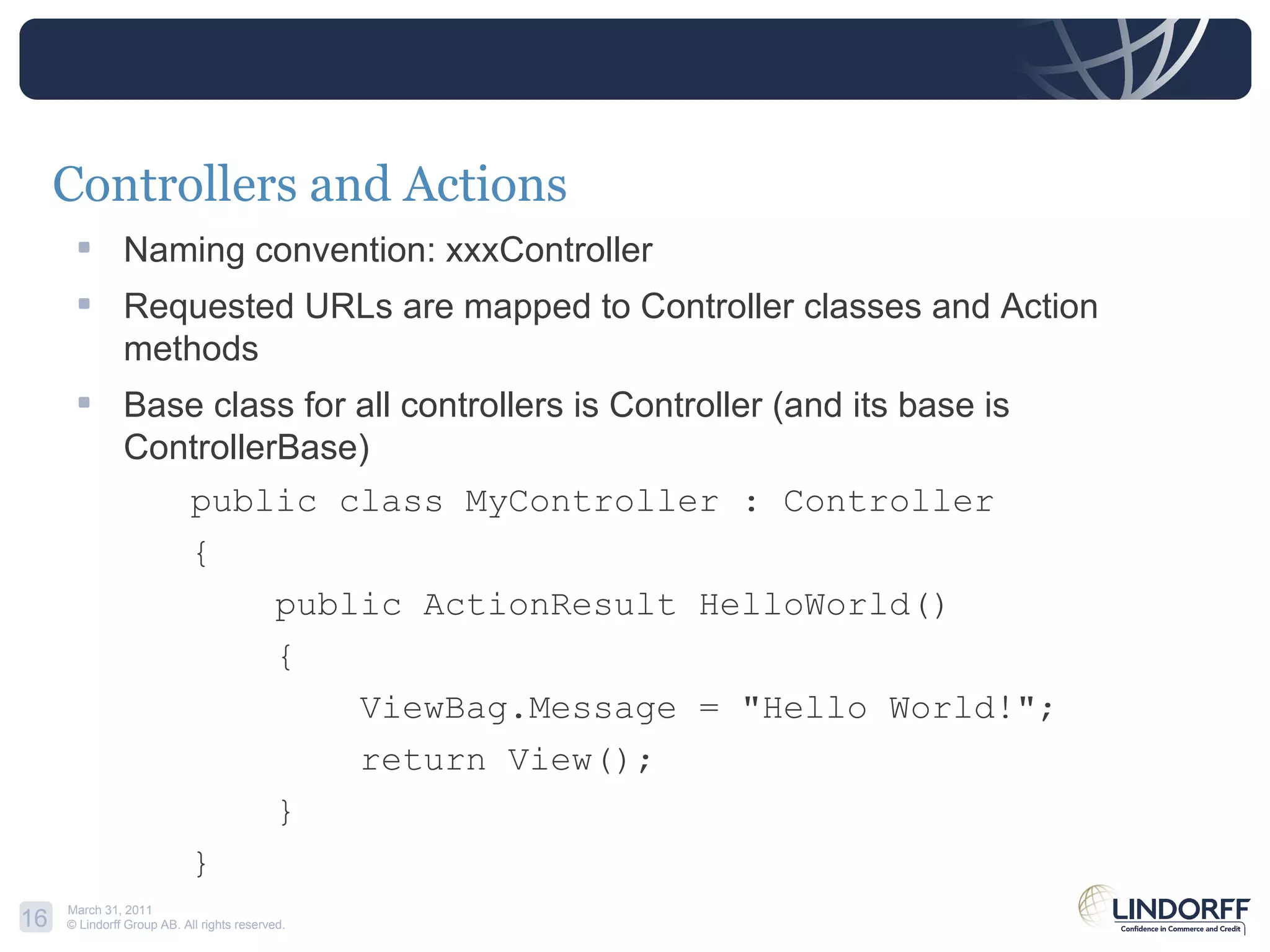

15. Controllers and actions 03

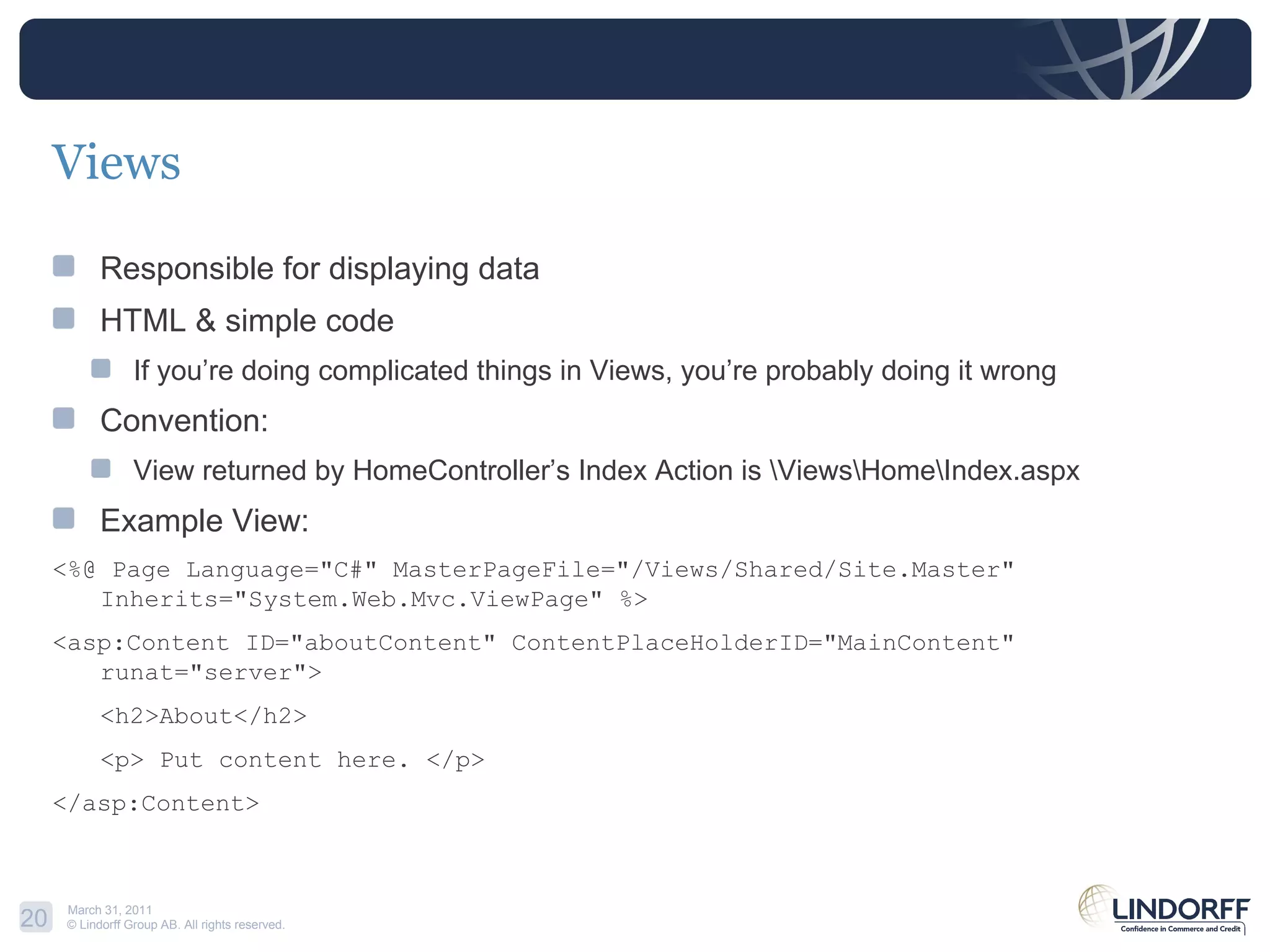

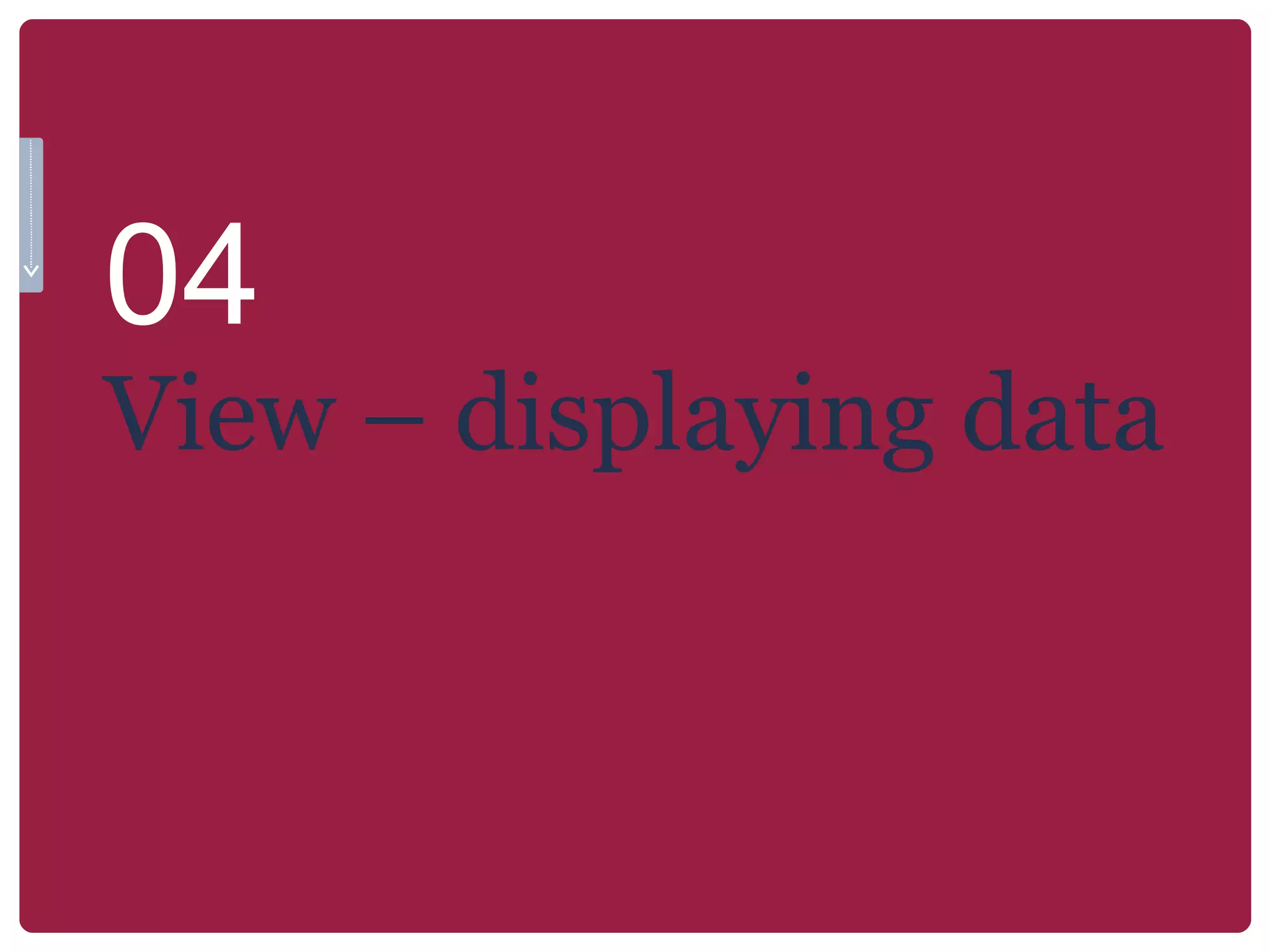

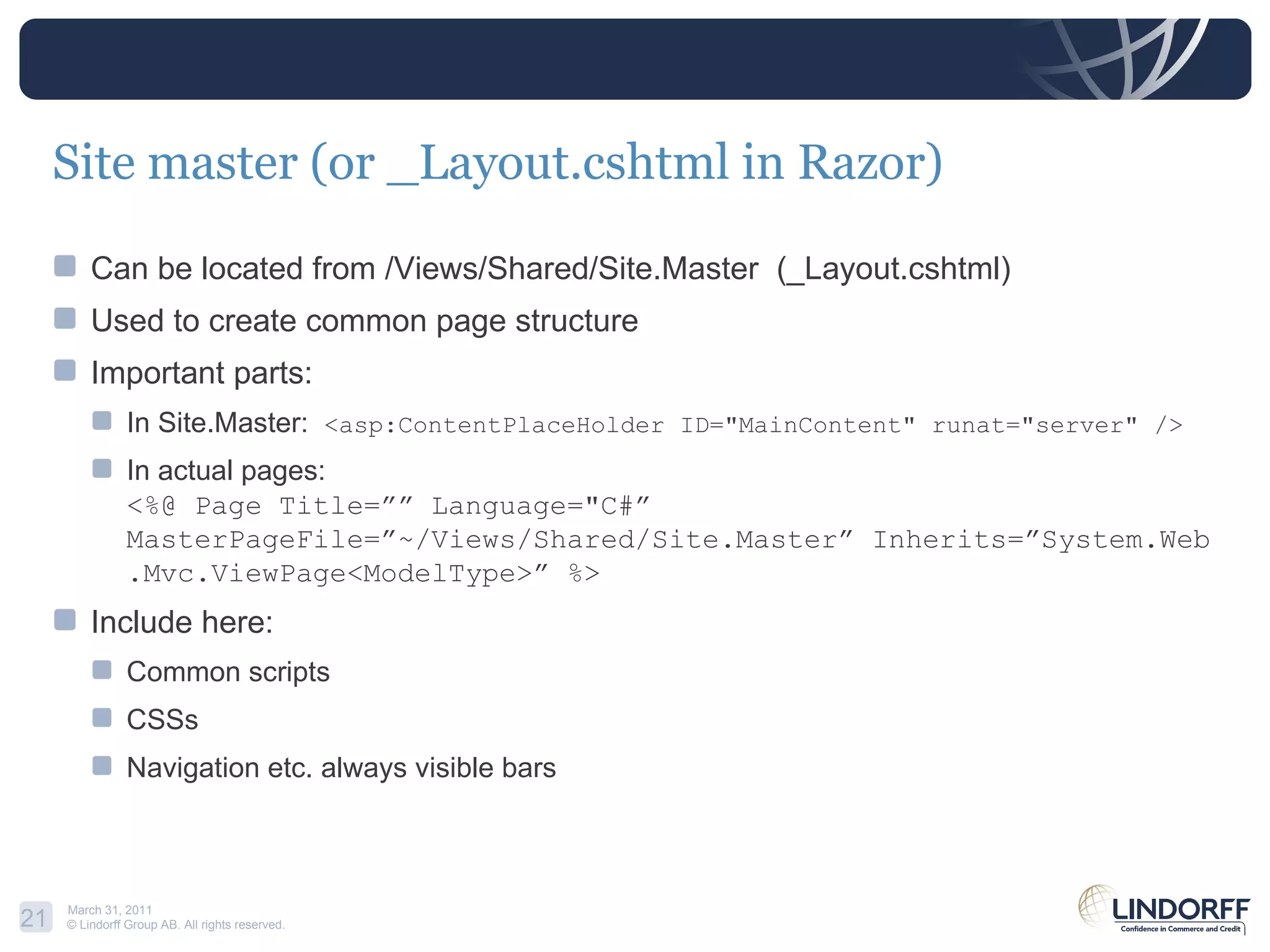

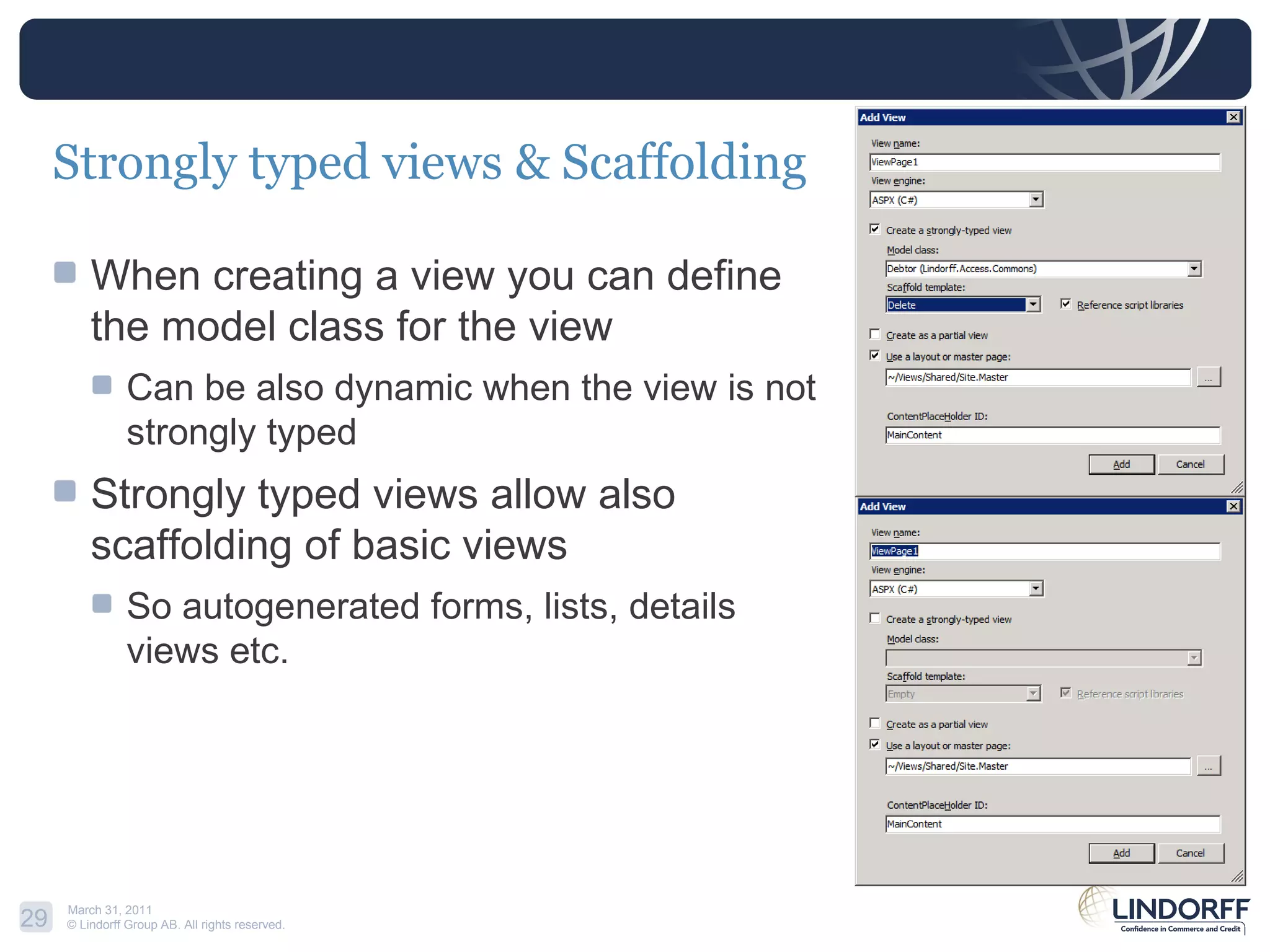

19. View – displaying data 04

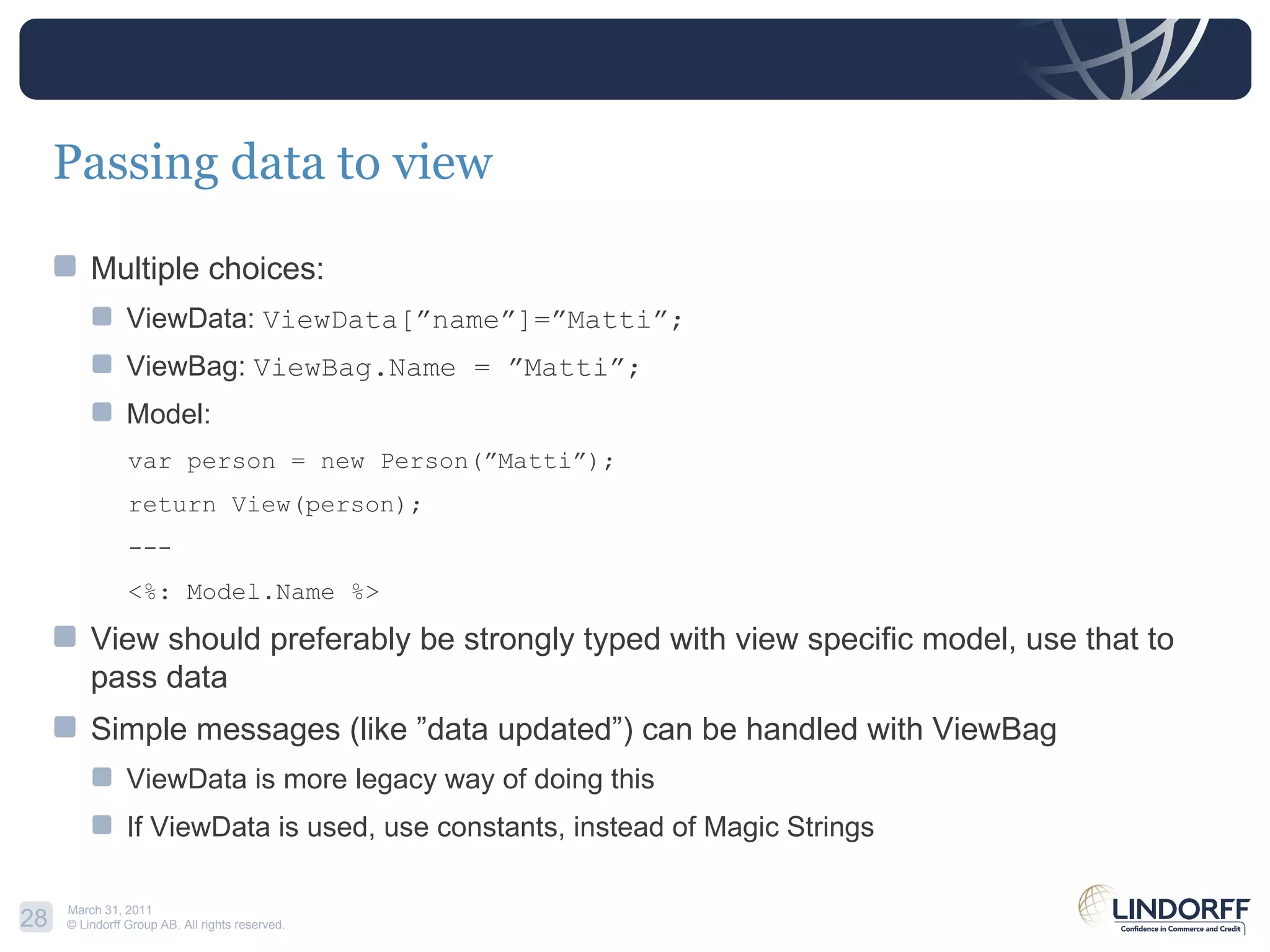

26. Passing data 05

37. www.lindorff.fi Thanks! Tomi Juhola Development Lead Puh: 010 2700 00, Faksi: 010 2700 100 GSM: 044 033 8639 [email_address] www.lindorff.fi Joukahaisenkatu 2 FI-20100 Turku
