- ASP.NET MVC is a framework that enables building web applications using the Model-View-Controller pattern. It provides clear separation of concerns, testability, and fine-grained control over HTML and JavaScript. - The key components of MVC are models (the data), views (the presentation), and controllers (which handle requests and respond by rendering a view). Controllers retrieve data from models and pass them to views to generate the response. - ASP.NET MVC supports features like routing, dependency injection, and unit testing to build robust and maintainable web applications. It also maintains backward compatibility with existing ASP.NET technologies.

1. Introduction to ASP.NET MVC Adnan Masood Volkan Uzun www.CodePlex.com/YABE

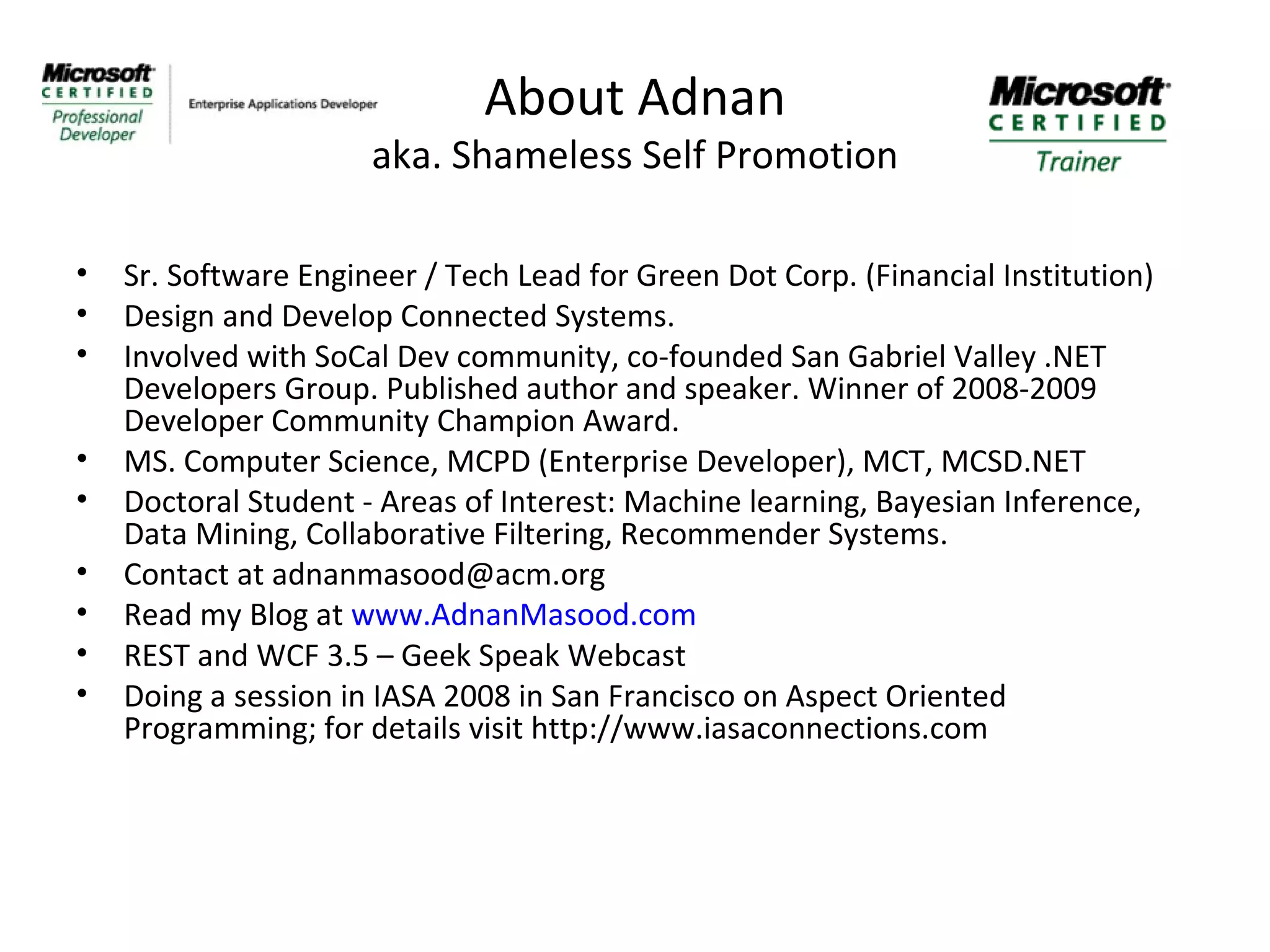

2. About Adnan aka. Shameless Self Promotion Sr. Software Engineer / Tech Lead for Green Dot Corp. (Financial Institution) Design and Develop Connected Systems. Involved with SoCal Dev community, co-founded San Gabriel Valley .NET Developers Group. Published author and speaker. Winner of 2008-2009 Developer Community Champion Award. MS. Computer Science, MCPD (Enterprise Developer), MCT, MCSD.NET Doctoral Student - Areas of Interest: Machine learning, Bayesian Inference, Data Mining, Collaborative Filtering, Recommender Systems. Contact at adnanmasood@acm.org Read my Blog at www.AdnanMasood.com REST and WCF 3.5 – Geek Speak Webcast Doing a session in IASA 2008 in San Francisco on Aspect Oriented Programming; for details visit http://www.iasaconnections.com

3. About Me Web Developer at California State University, San Bernardino Developing campus web sites, online courses, databases, securing the systems, making the sites accessible according 508 Guidelines Active member of Inland Empire .NET user group User group freak, attending average 5/6 users groups a month, driving 1000 miles average extra. MS Computer Science, MCTS Sql Server 2005, MCP ASP.NET 2.0 2007-2008 Most Valuable member of Inland Empire .NET user group Not so active blog: http://msnetprogrammer.net/blog Trying to write better code by applying TDD (newbie!), reading other developers’ code (Scott Hanselman’s idea) Lifetime learner Email: volkan.uzun@gmail.com

4. Agenda 1. Introduction to MVC 2. Building your first MVC application (demo) 3. Understanding Controllers, Controller Actions, and Action Results 4. Understanding Models, Views, and Controllers 5. How to do Routing (demo) 6. How to do unit testing (demo) 7. How does YABE work (code walkthrough and demo) 8. Brief discussion of dependency injection et al

5. Top 5 MVC Resources ASP.NET MVC Home ( www.asp.net/mvc ) Scott Guthrie’s Weblog (www.weblogs.asp.net/Scottgu) Scott Hanselman’s Blog ( http://www.hanselman.com/blog/ ) Phil Haack ( http://haacked.com/Tags/aspnetmvc/default.aspx ) ASP.NET Quick Start (http://quickstarts.asp.net/3-5-extensions/mvc/default.aspx)

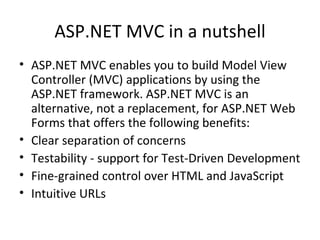

6. ASP.NET MVC in a nutshell ASP.NET MVC enables you to build Model View Controller (MVC) applications by using the ASP.NET framework. ASP.NET MVC is an alternative, not a replacement, for ASP.NET Web Forms that offers the following benefits: Clear separation of concerns Testability - support for Test-Driven Development Fine-grained control over HTML and JavaScript Intuitive URLs

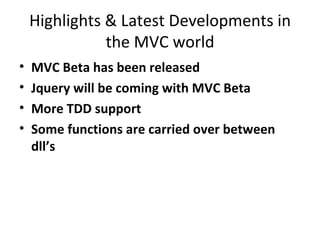

7. Highlights & Latest Developments in the MVC world MVC Beta has been released Jquery will be coming with MVC Beta More TDD support Some functions are carried over between dll’s

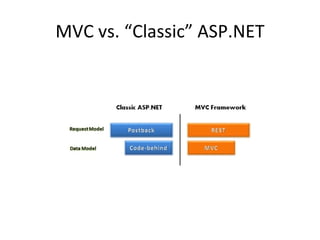

8. MVC vs. “Classic” ASP.NET

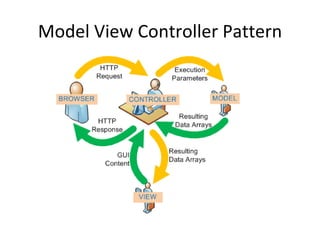

9. Model View Controller Pattern

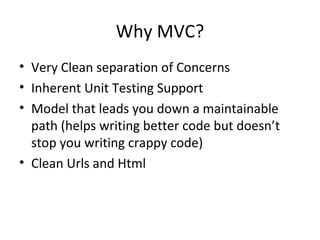

10. Why MVC? Very Clean separation of Concerns Inherent Unit Testing Support Model that leads you down a maintainable path (helps writing better code but doesn’t stop you writing crappy code) Clean Urls and Html

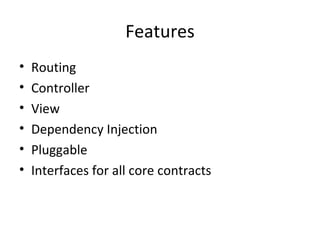

11. Features Routing Controller View Dependency Injection Pluggable Interfaces for all core contracts

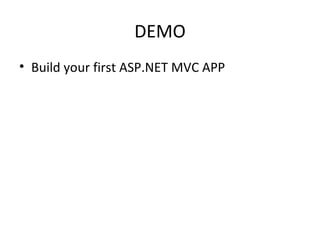

12. DEMO Build your first ASP.NET MVC APP

13. MVC? A very brief explanation is: Model: Your data source; database, text file, web services etc View: Html page, what client sees Controller: CPU of the mechanism, gets request from web server, communicates with Model to get data, returns a view to the requestor. A url request is a function inside controller class

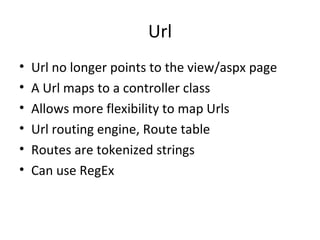

14. Url Url no longer points to the view/aspx page A Url maps to a controller class Allows more flexibility to map Urls Url routing engine, Route table Routes are tokenized strings Can use RegEx

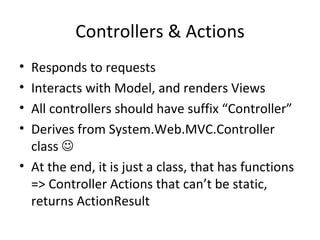

15. Controllers & Actions Responds to requests Interacts with Model, and renders Views All controllers should have suffix “Controller” Derives from System.Web.MVC.Controller class  At the end, it is just a class, that has functions => Controller Actions that can’t be static, returns ActionResult

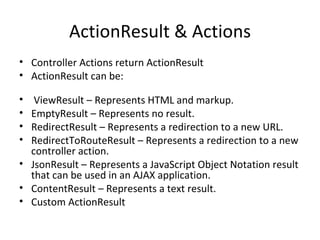

16. ActionResult & Actions Controller Actions return ActionResult ActionResult can be: ViewResult – Represents HTML and markup. EmptyResult – Represents no result. RedirectResult – Represents a redirection to a new URL. RedirectToRouteResult – Represents a redirection to a new controller action. JsonResult – Represents a JavaScript Object Notation result that can be used in an AJAX application. ContentResult – Represents a text result. Custom ActionResult

17. Model, View, Controller Controller: Gets the request from the requestor, (route mapping happens here), fires the action depending on the request ActionMethod: communicates with Model to get the data returns ActionResult ActionMethod can use ViewData, ViewData.Model or TempData to send data to View View generates the markup language for the requestor. View can use strongly typed Model

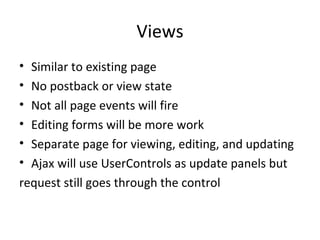

18. Views Similar to existing page No postback or view state Not all page events will fire Editing forms will be more work Separate page for viewing, editing, and updating Ajax will use UserControls as update panels but request still goes through the control

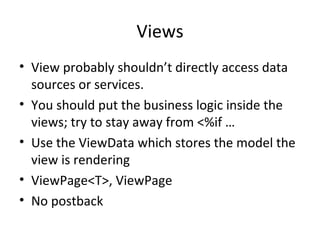

19. Views View probably shouldn’t directly access data sources or services. You should put the business logic inside the views; try to stay away from <%if … Use the ViewData which stores the model the view is rendering ViewPage<T>, ViewPage No postback

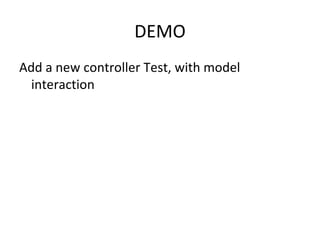

20. DEMO Add a new controller Test, with model interaction

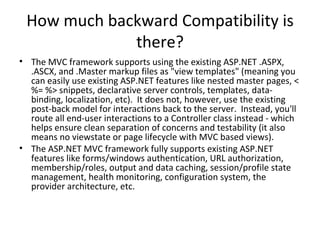

21. How much backward Compatibility is there? The MVC framework supports using the existing ASP.NET .ASPX, .ASCX, and .Master markup files as &quot;view templates&quot; (meaning you can easily use existing ASP.NET features like nested master pages, <%= %> snippets, declarative server controls, templates, data-binding, localization, etc). It does not, however, use the existing post-back model for interactions back to the server. Instead, you'll route all end-user interactions to a Controller class instead - which helps ensure clean separation of concerns and testability (it also means no viewstate or page lifecycle with MVC based views). The ASP.NET MVC framework fully supports existing ASP.NET features like forms/windows authentication, URL authorization, membership/roles, output and data caching, session/profile state management, health monitoring, configuration system, the provider architecture, etc.

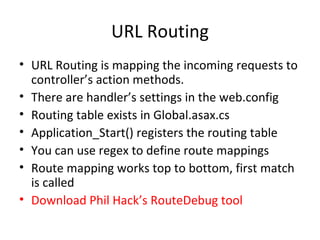

22. URL Routing URL Routing is mapping the incoming requests to controller’s action methods. There are handler’s settings in the web.config Routing table exists in Global.asax.cs Application_Start() registers the routing table You can use regex to define route mappings Route mapping works top to bottom, first match is called Download Phil Hack’s RouteDebug tool

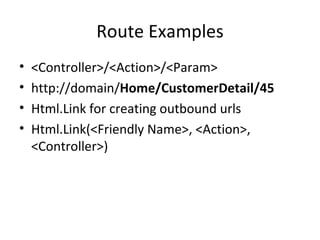

23. Route Examples <Controller>/<Action>/<Param> http://domain/ Home/CustomerDetail/45 Html.Link for creating outbound urls Html.Link(<Friendly Name>, <Action>, <Controller>)

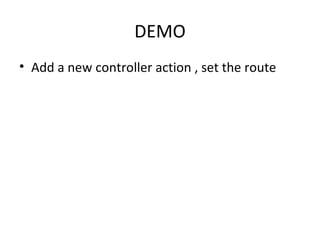

24. DEMO Add a new controller action , set the route

25. Unit Testing Mock Objects to simulate responses. Don’t have to go through a page or view Red/Green Testing Create instance of controller Uses Mock Objects You will need depedency injection down the road

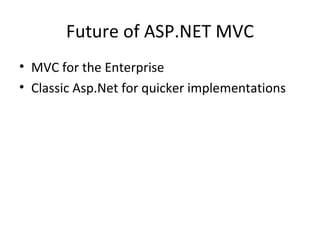

26. Future of ASP.NET MVC MVC for the Enterprise Classic Asp.Net for quicker implementations

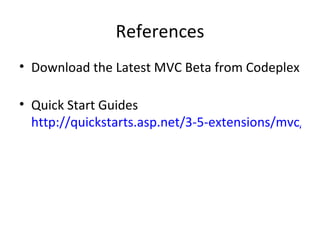

27. References Download the Latest MVC Beta from Codeplex Quick Start Guides http://quickstarts.asp.net/3-5-extensions/mvc/default.aspx

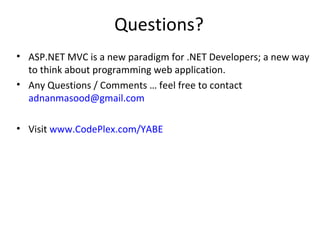

28. Questions? ASP.NET MVC is a new paradigm for .NET Developers; a new way to think about programming web application. Any Questions / Comments … feel free to contact [email_address] Visit www.CodePlex.com/YABE
