asic computer is an electronic device that can receive, store, process, and output data.

1

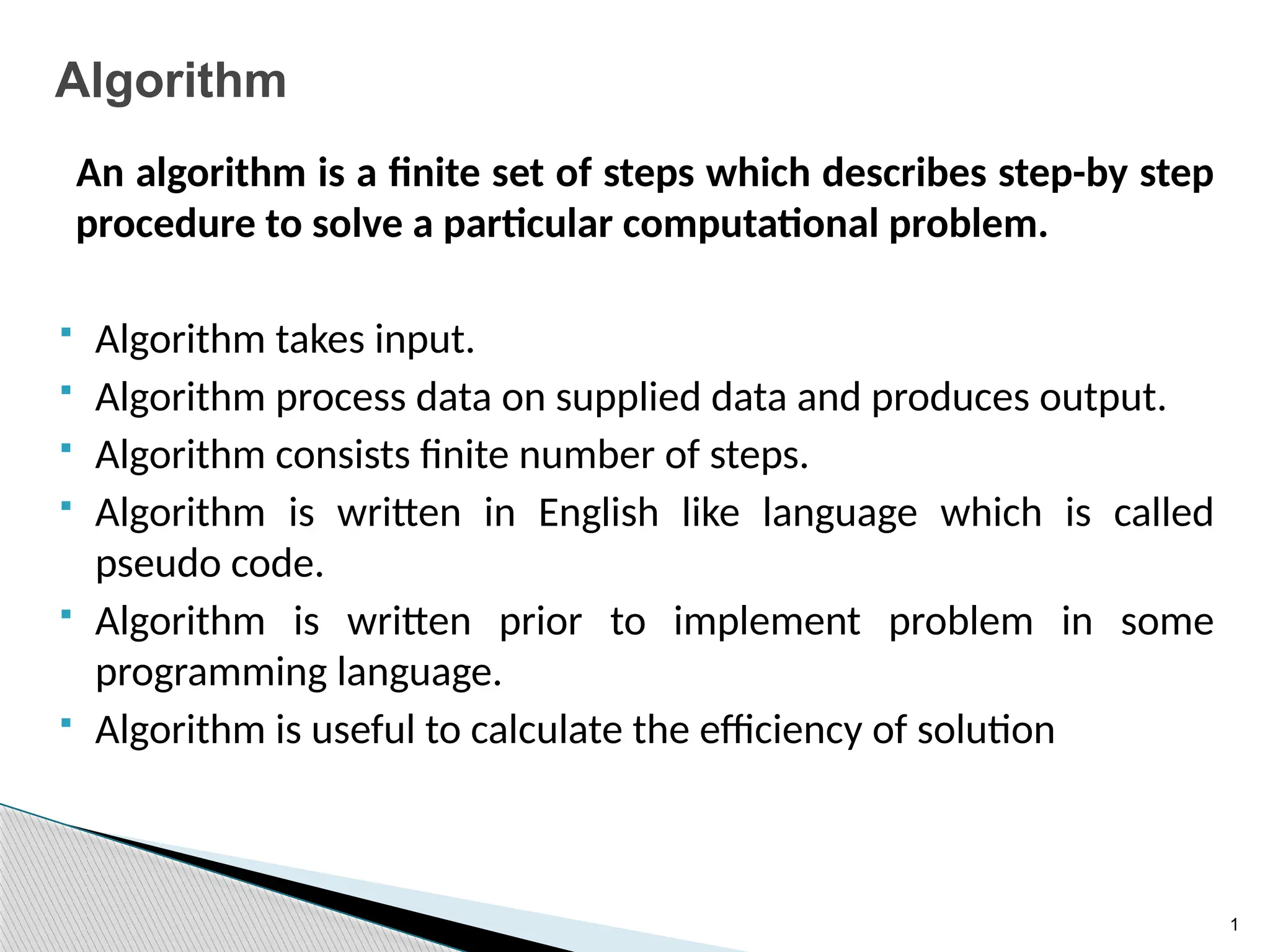

Algorithm
An algorithm is a finite set of steps which describes step-by step
procedure to solve a particular computational problem.
 Algorithm takes input.
 Algorithm process data on supplied data and produces output.
 Algorithm consists finite number of steps.
 Algorithm is written in English like language which is called
pseudo code.
 Algorithm is written prior to implement problem in some
programming language.
 Algorithm is useful to calculate the efficiency of solution

2

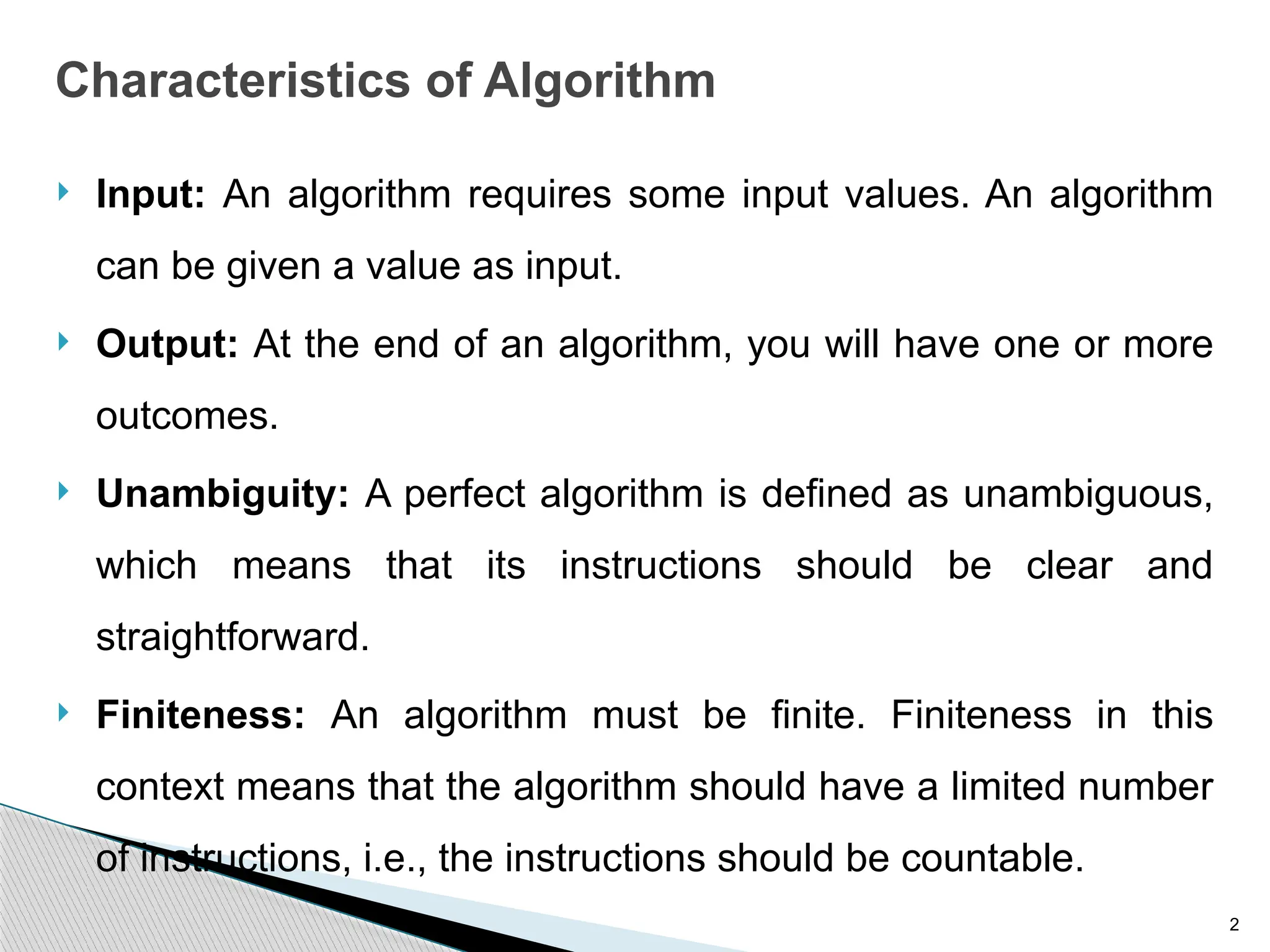

Characteristics of Algorithm
 Input: An algorithm requires some input values. An algorithm
can be given a value as input.
 Output: At the end of an algorithm, you will have one or more
outcomes.
 Unambiguity: A perfect algorithm is defined as unambiguous,
which means that its instructions should be clear and
straightforward.
 Finiteness: An algorithm must be finite. Finiteness in this
context means that the algorithm should have a limited number
of instructions, i.e., the instructions should be countable.

3

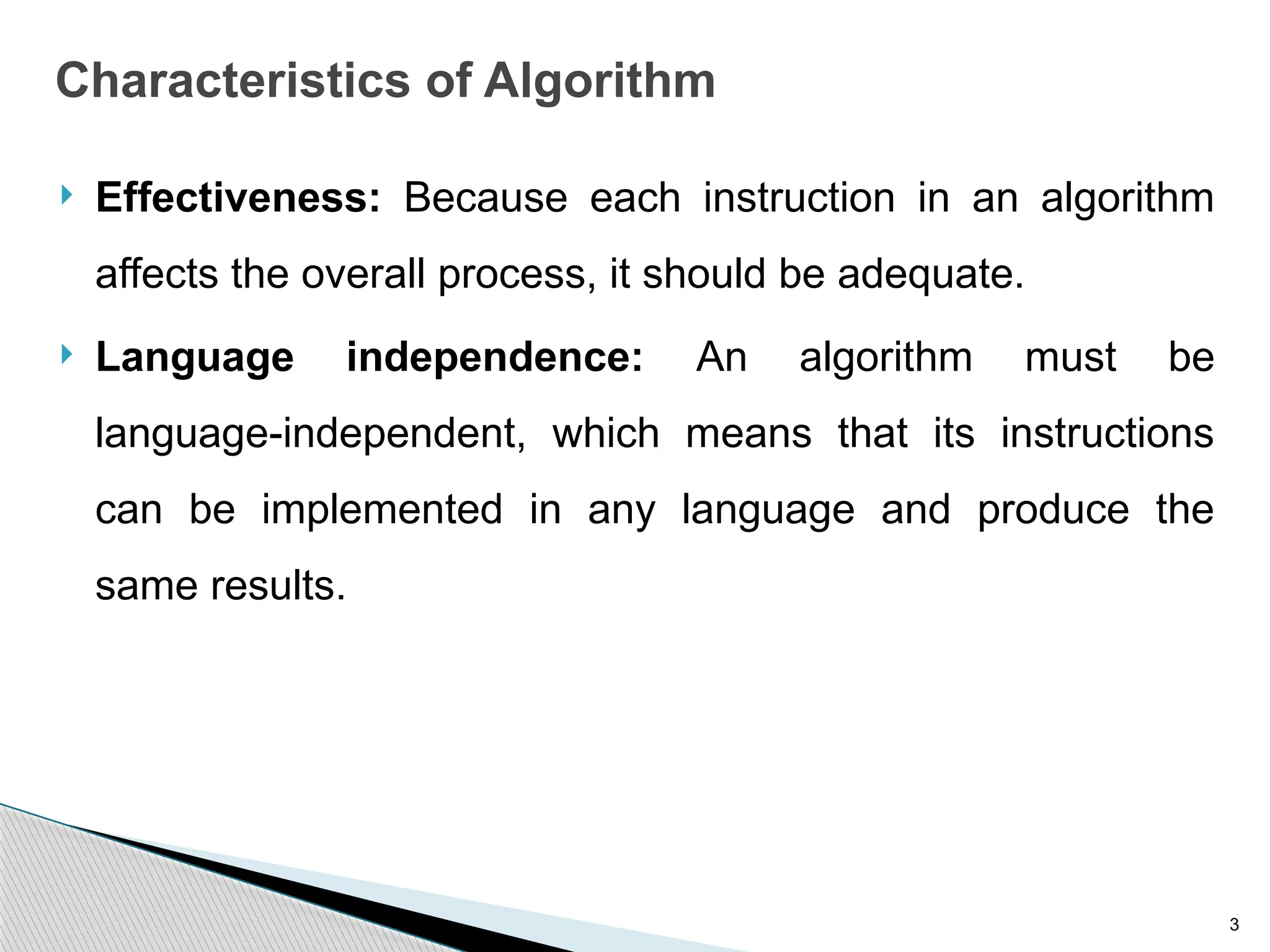

Characteristics of Algorithm
 Effectiveness: Because each instruction in an algorithm
affects the overall process, it should be adequate.
 Language independence: An algorithm must be
language-independent, which means that its instructions
can be implemented in any language and produce the
same results.

4

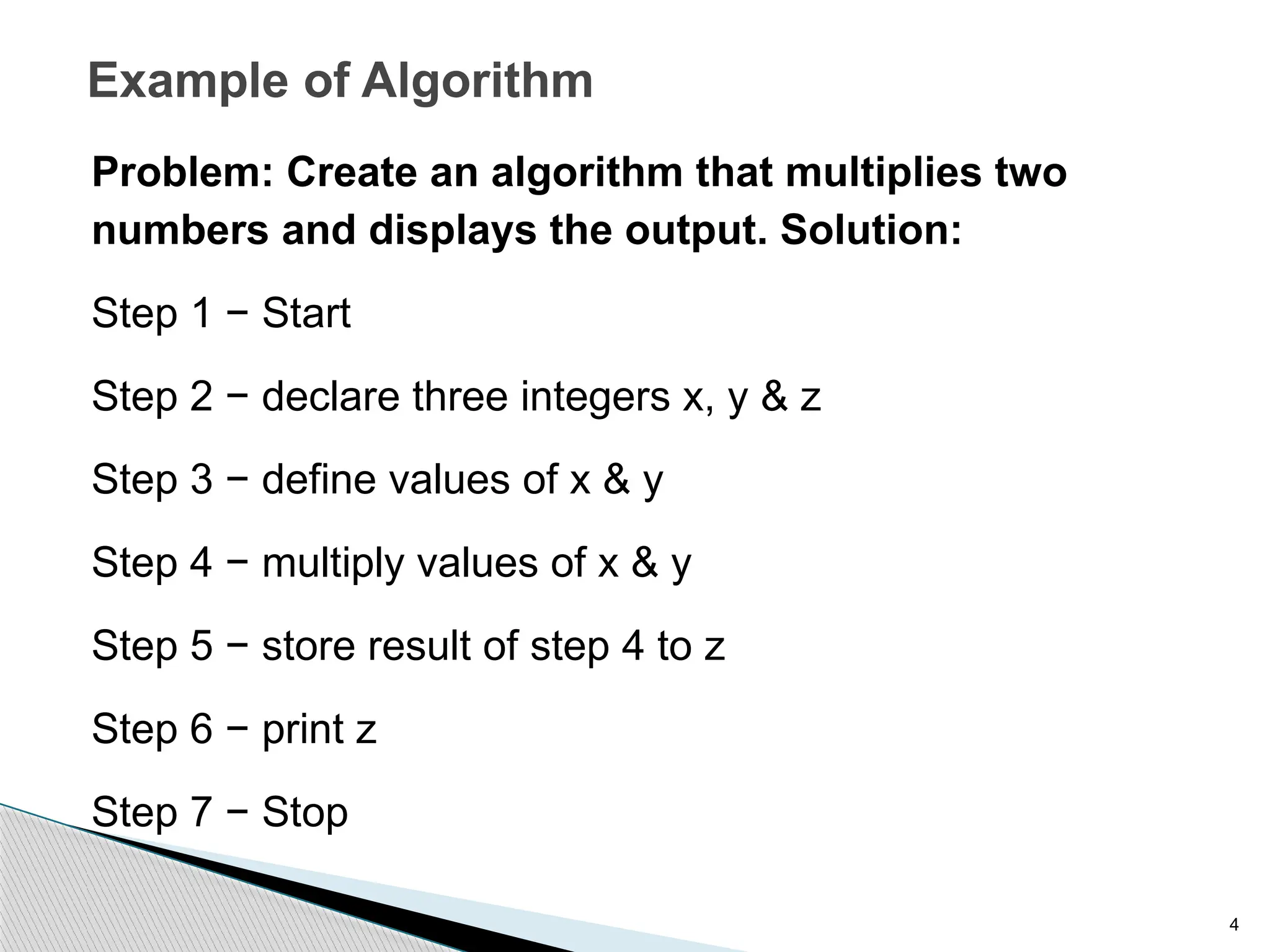

Example of Algorithm
Problem: Create an algorithm that multiplies two
numbers and displays the output. Solution:
Step 1 − Start
Step 2 − declare three integers x, y & z
Step 3 − define values of x & y
Step 4 − multiply values of x & y
Step 5 − store result of step 4 to z
Step 6 − print z
Step 7 − Stop

5

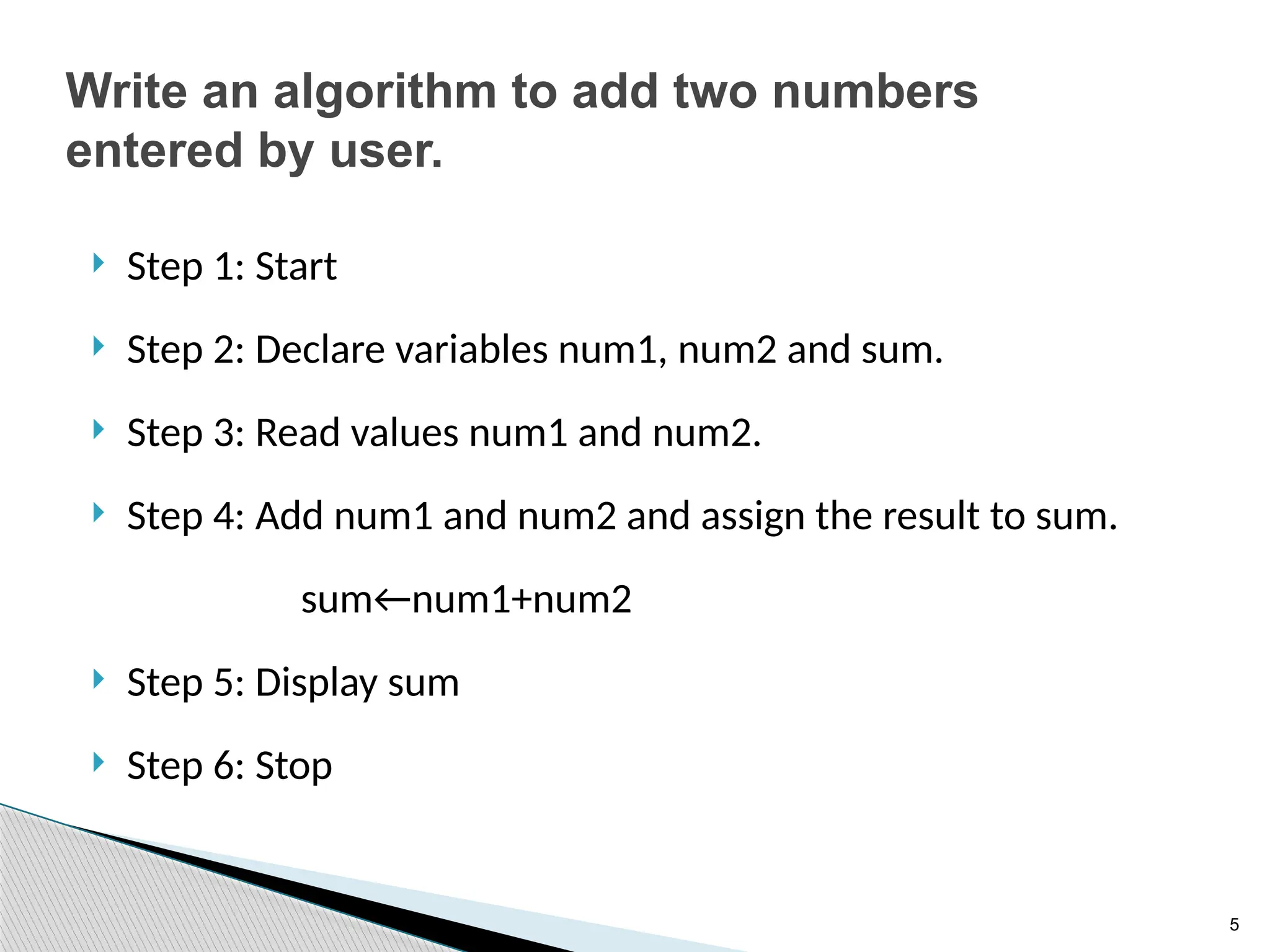

Write an algorithm to add two numbers
entered by user.
 Step 1: Start
 Step 2: Declare variables num1, num2 and sum.
 Step 3: Read values num1 and num2.
 Step 4: Add num1 and num2 and assign the result to sum.
sum←num1+num2
 Step 5: Display sum
 Step 6: Stop

6
Write an algorithm to add two numbers
entered by user.
 Step 1: Start
 Step 2: Declare variables num1, num2 and sum.
 Step 3: Read values num1 and num2.
 Step 4: Add num1 and num2 and assign the result to sum.
sum←num1+num2
 Step 5: Display sum
 Step 6: Stop

7

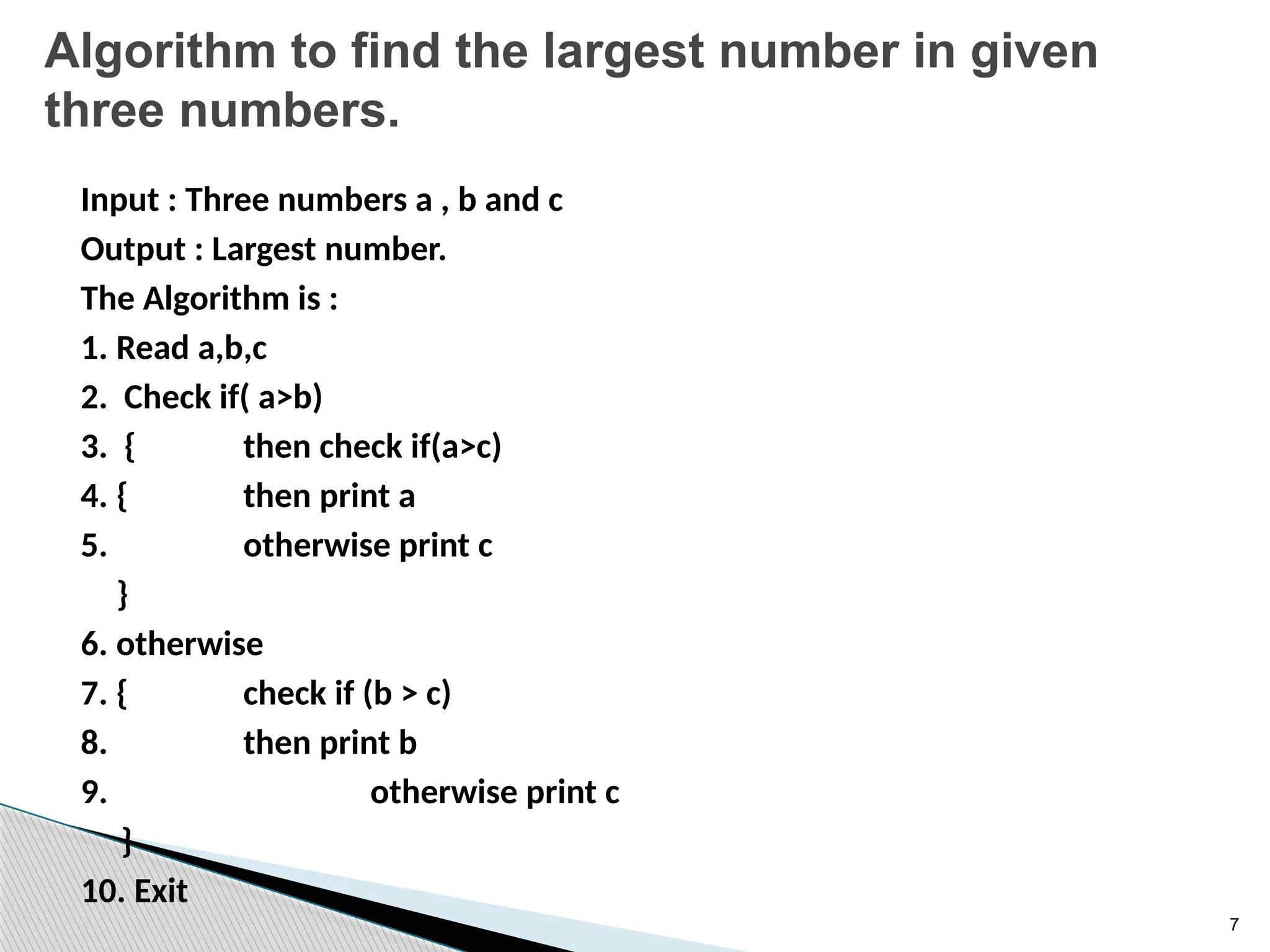

Algorithm to find the largest number in given
three numbers.
Input : Three numbers a , b and c
Output : Largest number.
The Algorithm is :
1. Read a,b,c
2. Check if( a>b)
3. { then check if(a>c)
4. { then print a
5. otherwise print c
}
6. otherwise
7. { check if (b > c)
8. then print b
9. otherwise print c
}
10. Exit

8

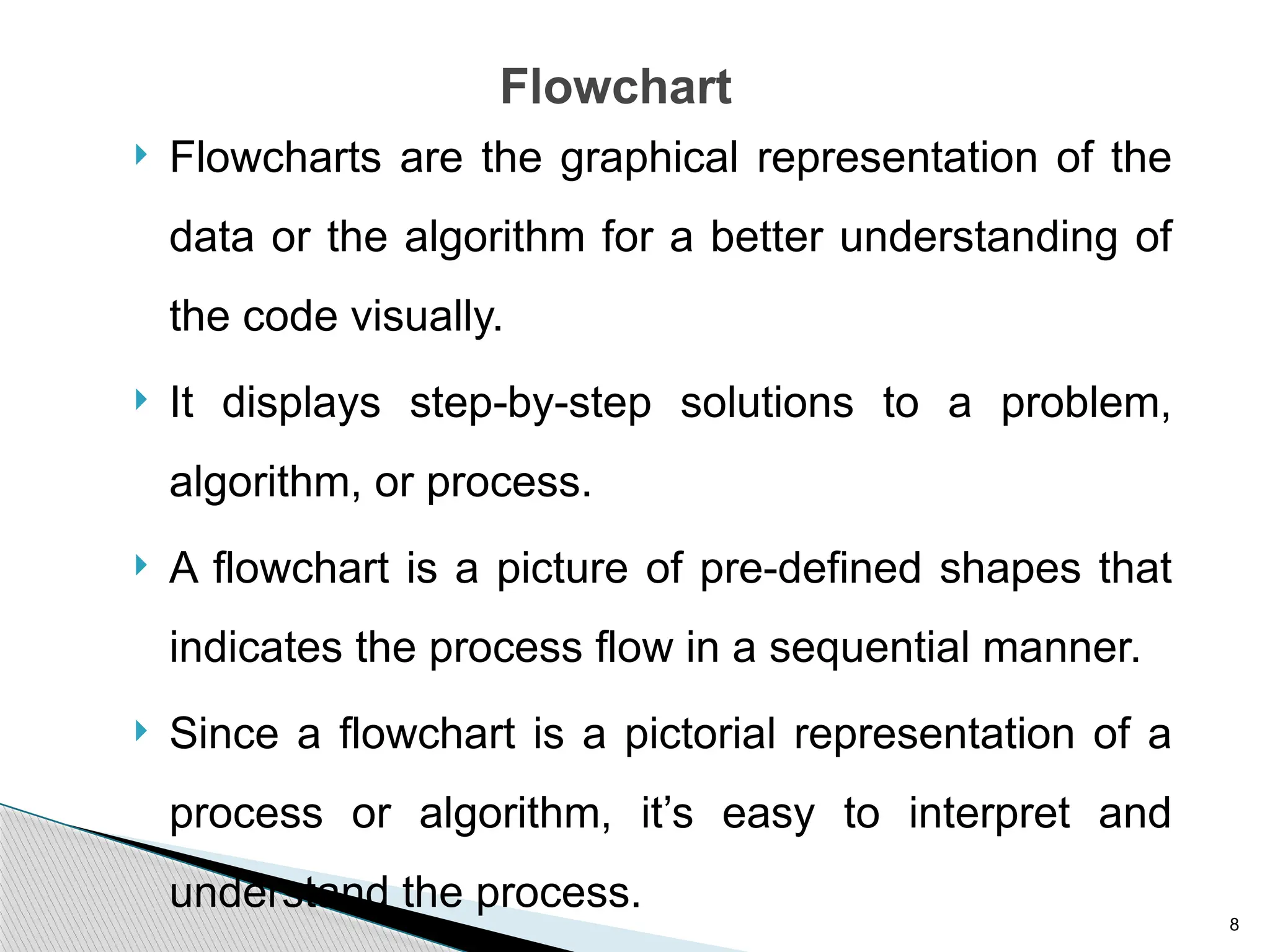

Flowchart
 Flowcharts are the graphical representation of the
data or the algorithm for a better understanding of
the code visually.
 It displays step-by-step solutions to a problem,
algorithm, or process.
 A flowchart is a picture of pre-defined shapes that
indicates the process flow in a sequential manner.
 Since a flowchart is a pictorial representation of a
process or algorithm, it’s easy to interpret and
understand the process.

9

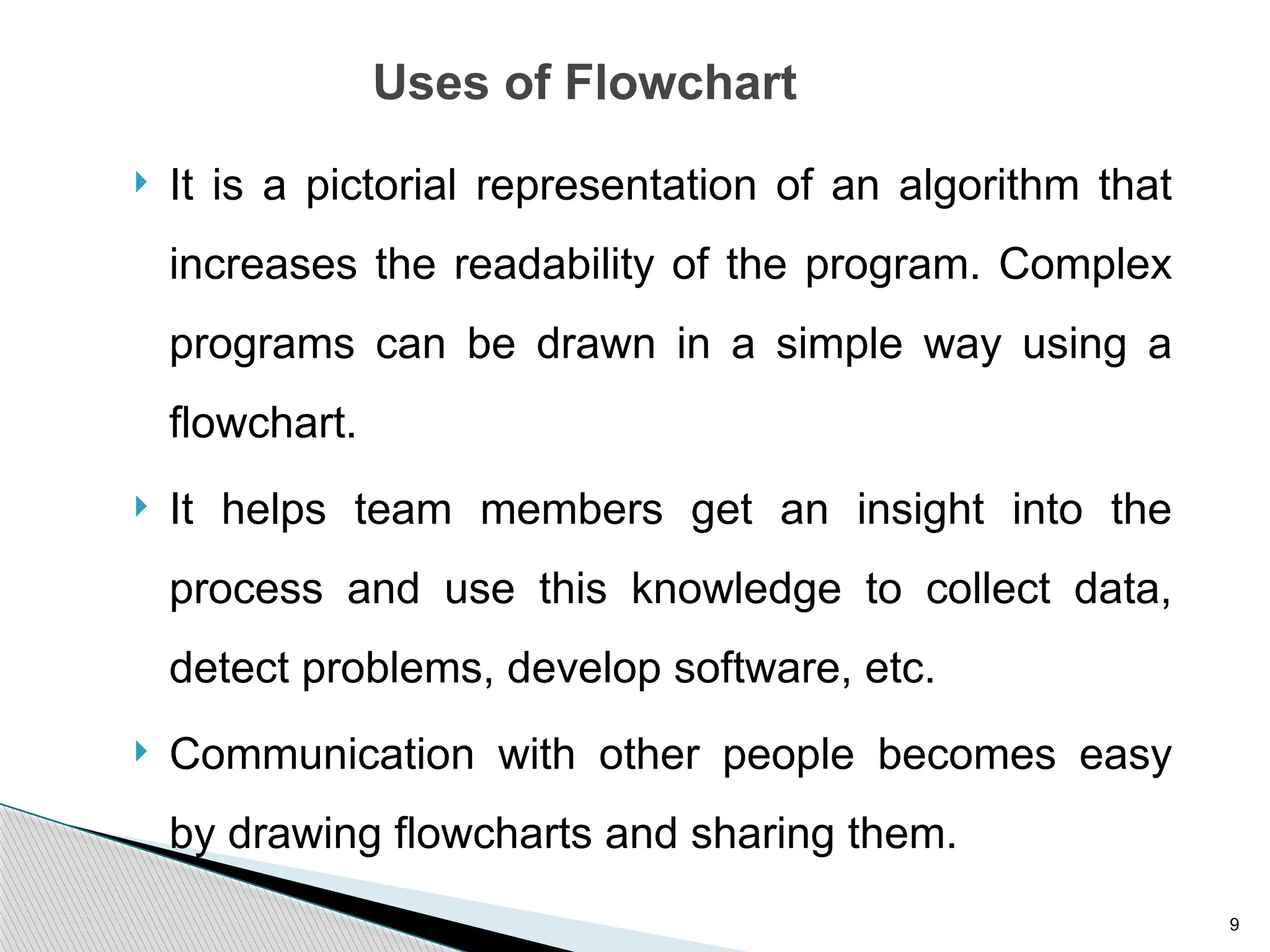

Uses of Flowchart
 It is a pictorial representation of an algorithm that
increases the readability of the program. Complex
programs can be drawn in a simple way using a
flowchart.
 It helps team members get an insight into the
process and use this knowledge to collect data,
detect problems, develop software, etc.
 Communication with other people becomes easy
by drawing flowcharts and sharing them.

10

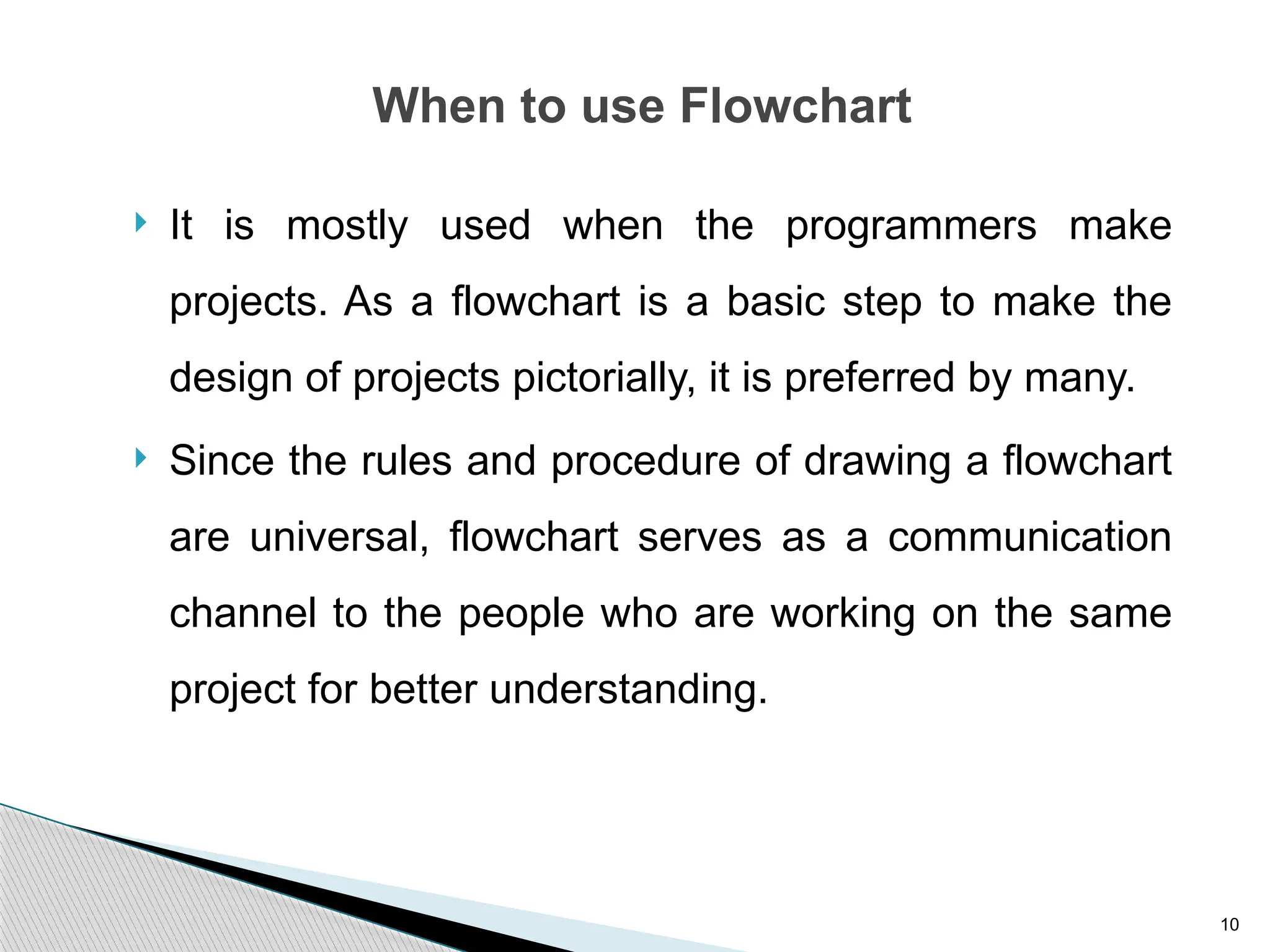

When to use Flowchart
 It is mostly used when the programmers make
projects. As a flowchart is a basic step to make the
design of projects pictorially, it is preferred by many.
 Since the rules and procedure of drawing a flowchart
are universal, flowchart serves as a communication
channel to the people who are working on the same
project for better understanding.

11

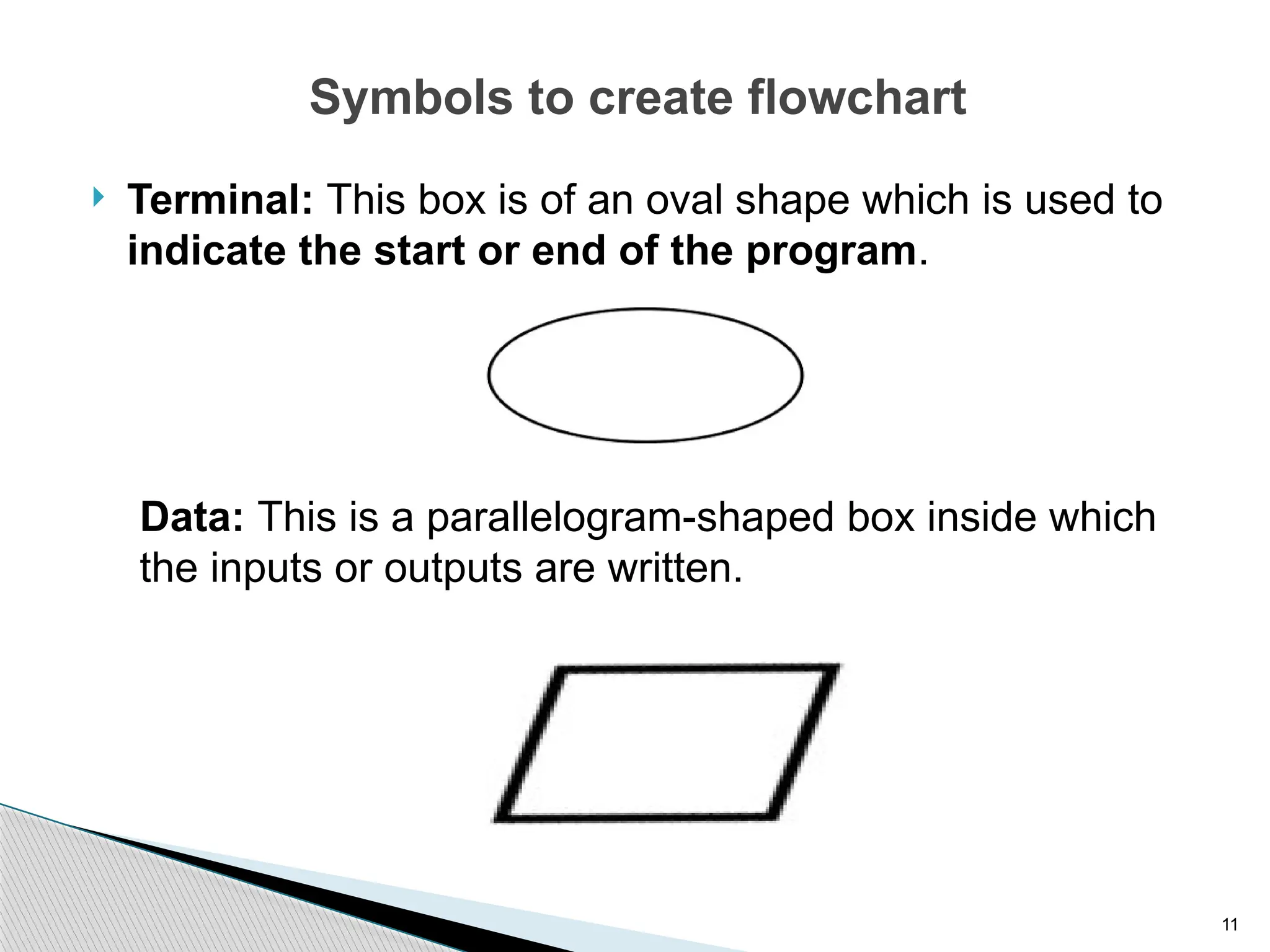

Symbols to create flowchart
 Terminal: This box is of an oval shape which is used to
indicate the start or end of the program.
Data: This is a parallelogram-shaped box inside which
the inputs or outputs are written.

12

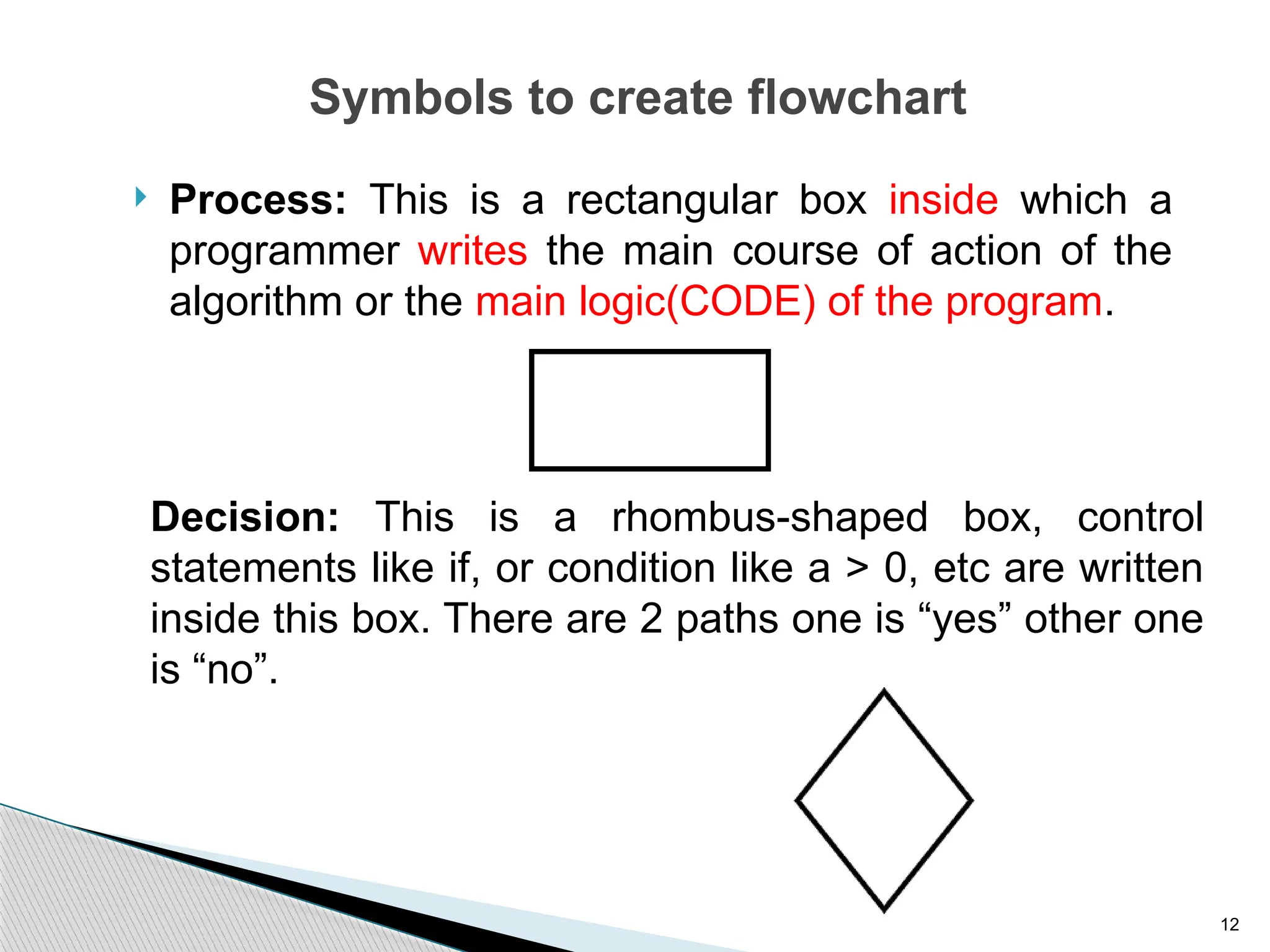

 Process: This is a rectangular box inside which a
programmer writes the main course of action of the
algorithm or the main logic(CODE) of the program.
Decision: This is a rhombus-shaped box, control
statements like if, or condition like a > 0, etc are written
inside this box. There are 2 paths one is “yes” other one
is “no”.

13

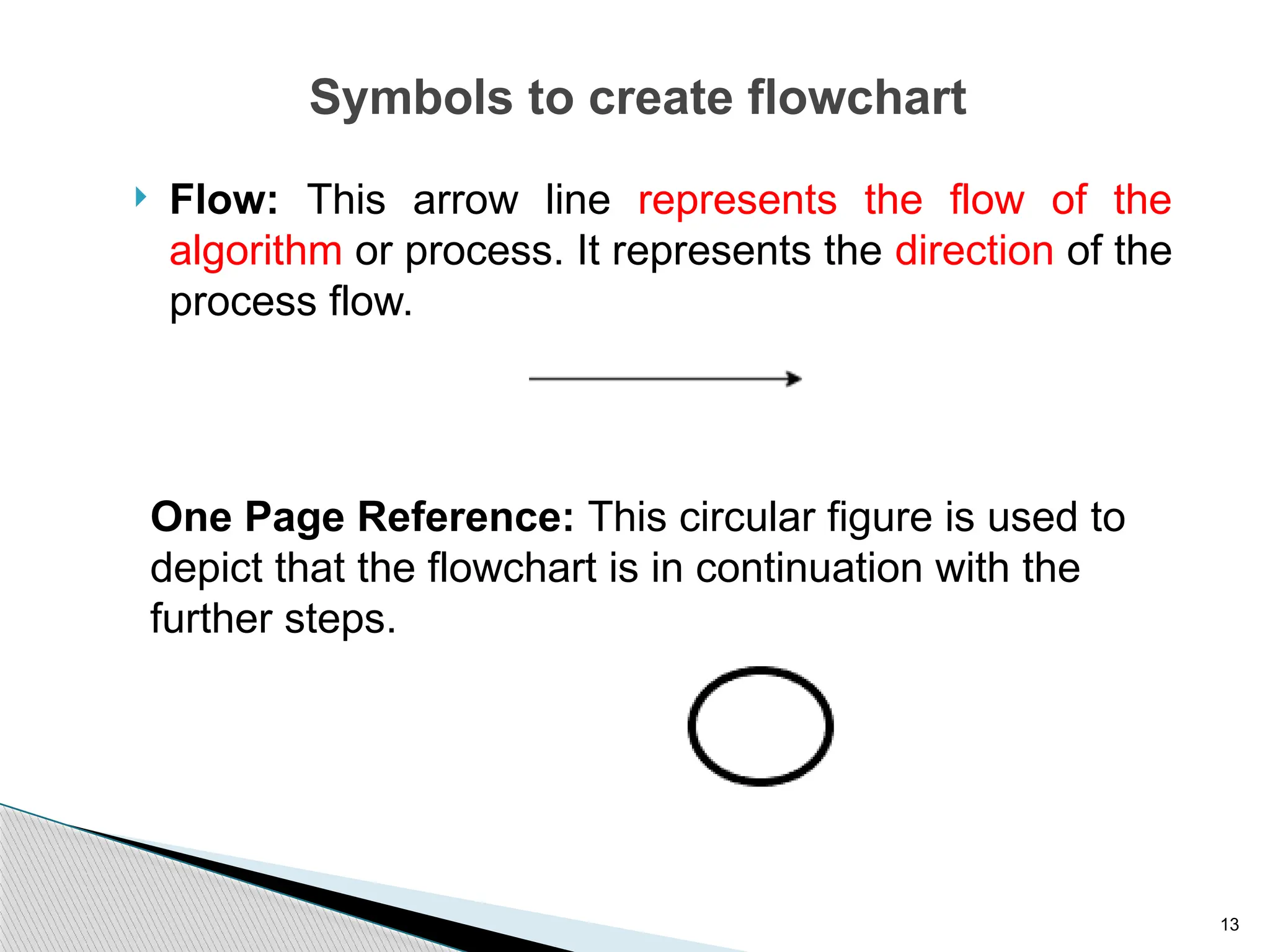

 Flow: This arrow line represents the flow of the
algorithm or process. It represents the direction of the
process flow.
One Page Reference: This circular figure is used to
depict that the flowchart is in continuation with the
further steps.

14

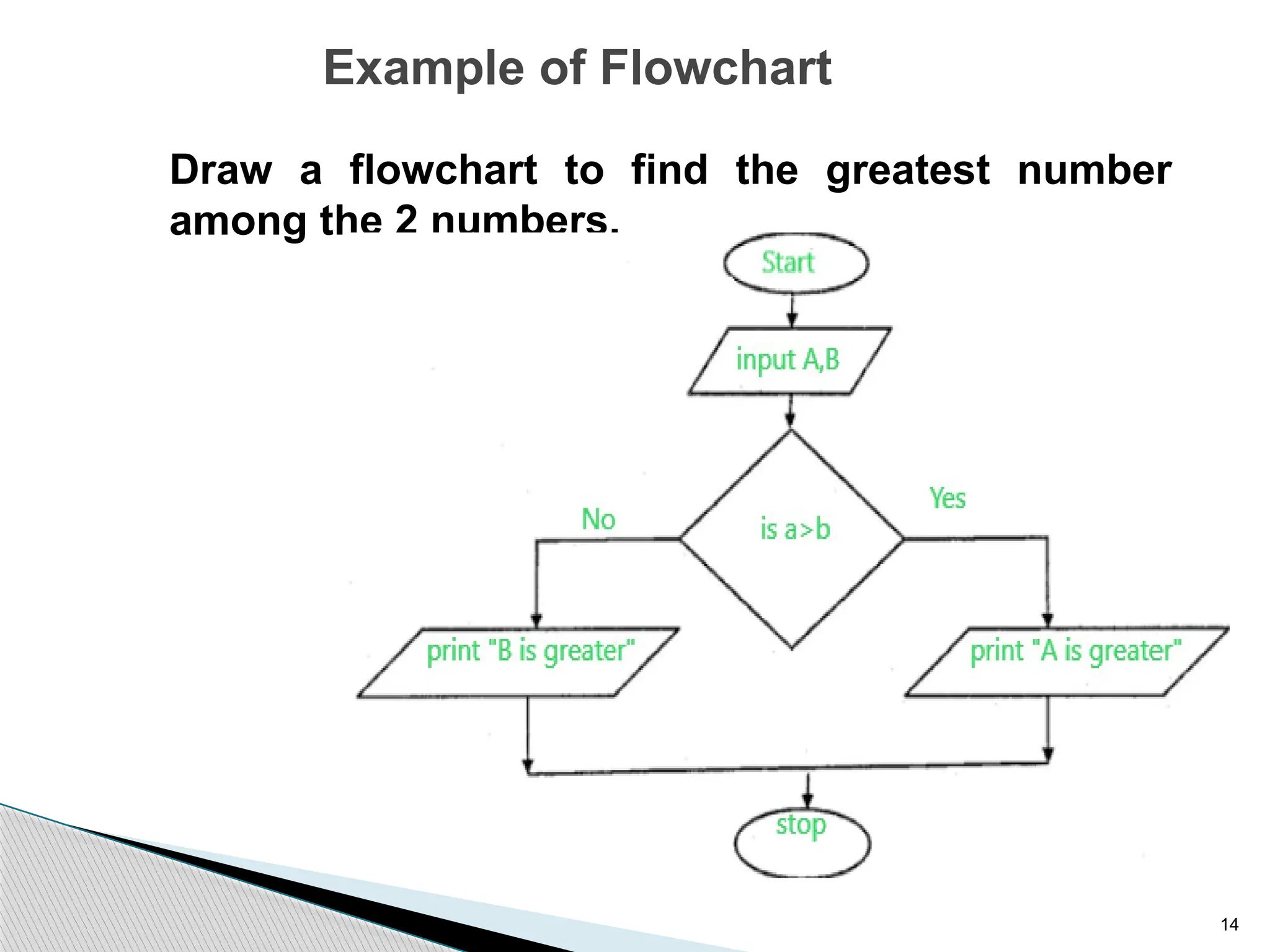

Example of Flowchart
Draw a flowchart to find the greatest number
among the 2 numbers.

15

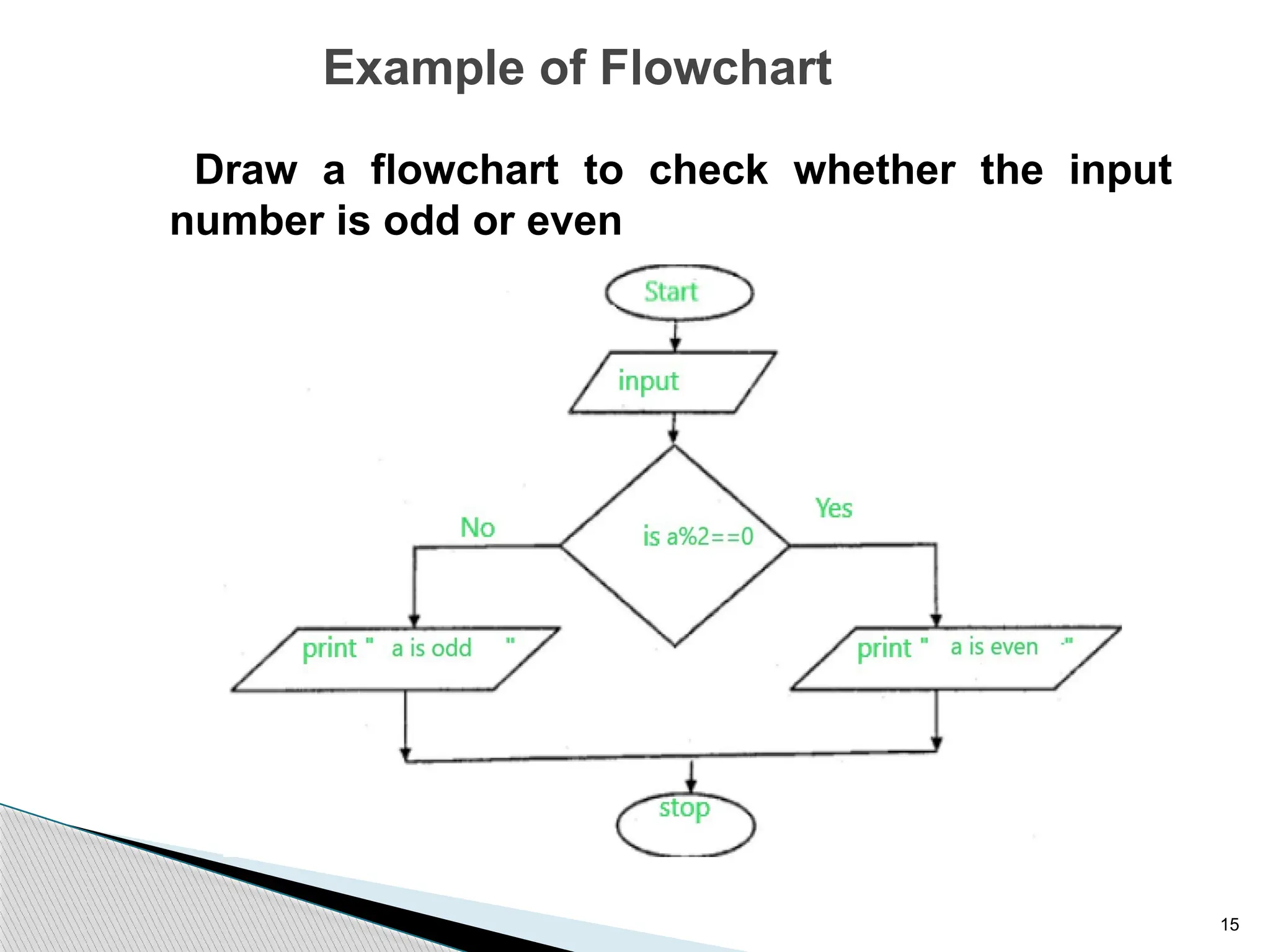

Example of Flowchart
Draw a flowchart to check whether the input
number is odd or even

16

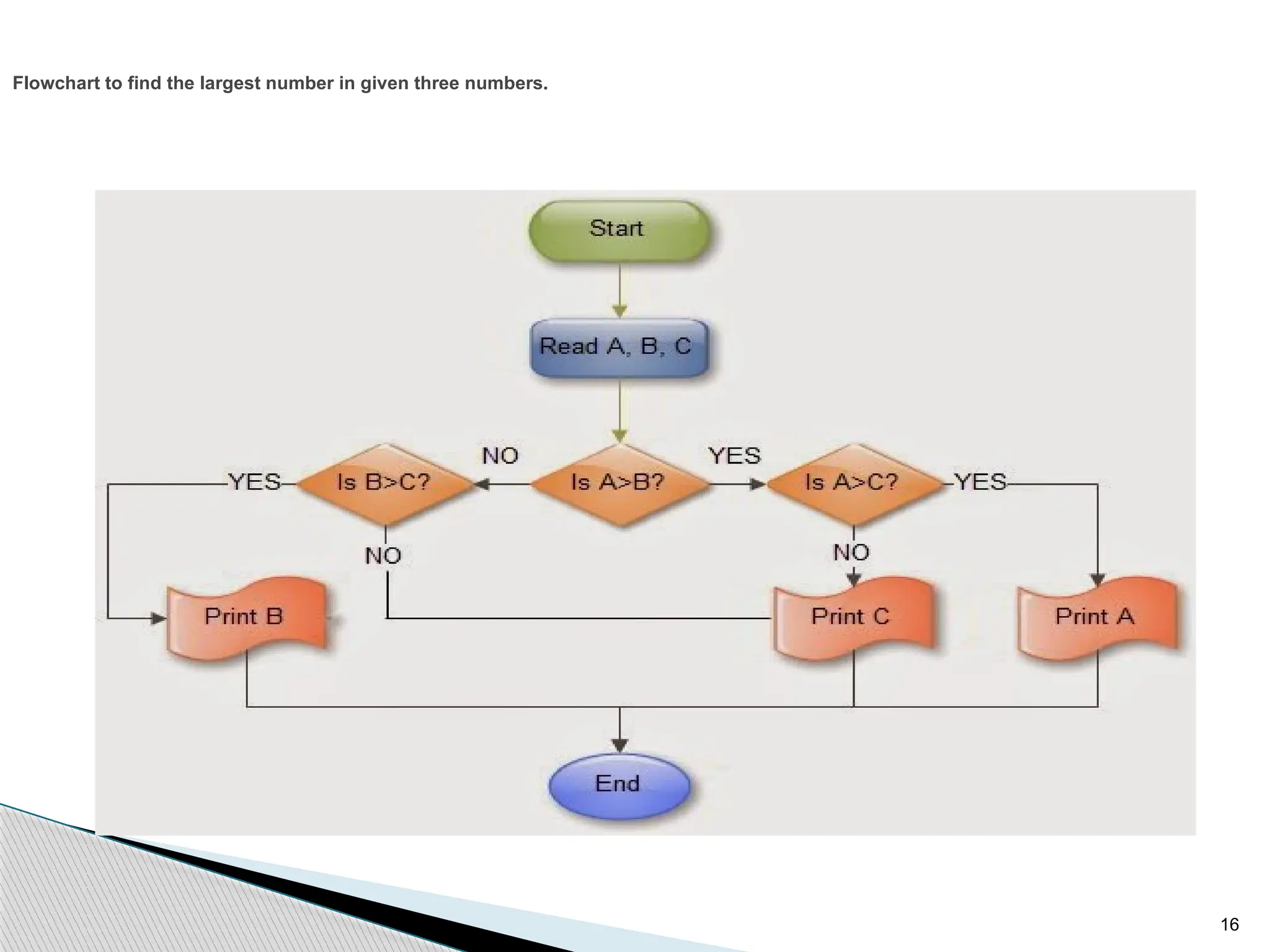

Flowchart to find the largest number in given three numbers.

17

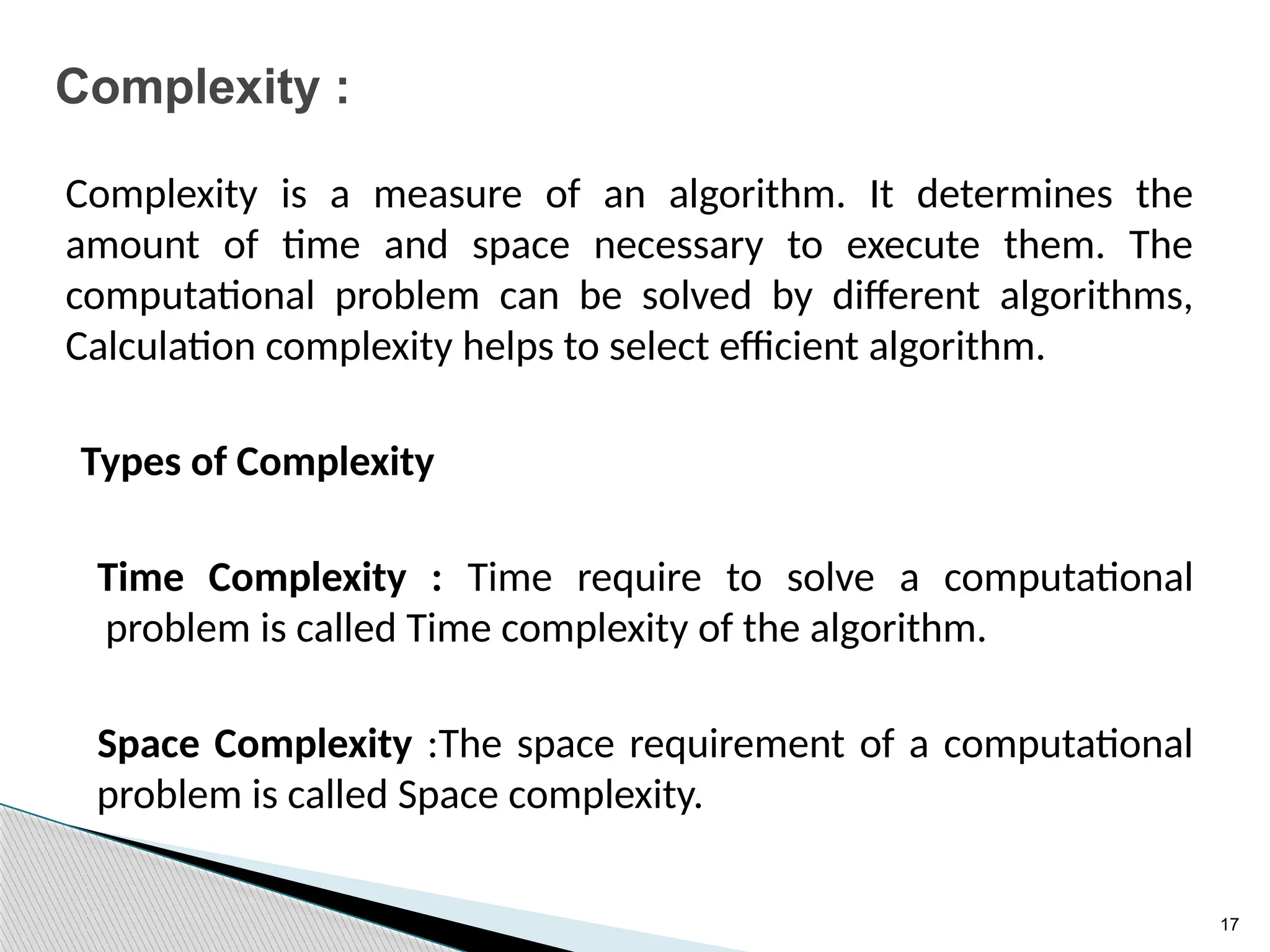

Complexity :
Complexity is a measure of an algorithm. It determines the
amount of time and space necessary to execute them. The
computational problem can be solved by different algorithms,
Calculation complexity helps to select efficient algorithm.
Types of Complexity
Time Complexity : Time require to solve a computational
problem is called Time complexity of the algorithm.
Space Complexity :The space requirement of a computational
problem is called Space complexity.

18

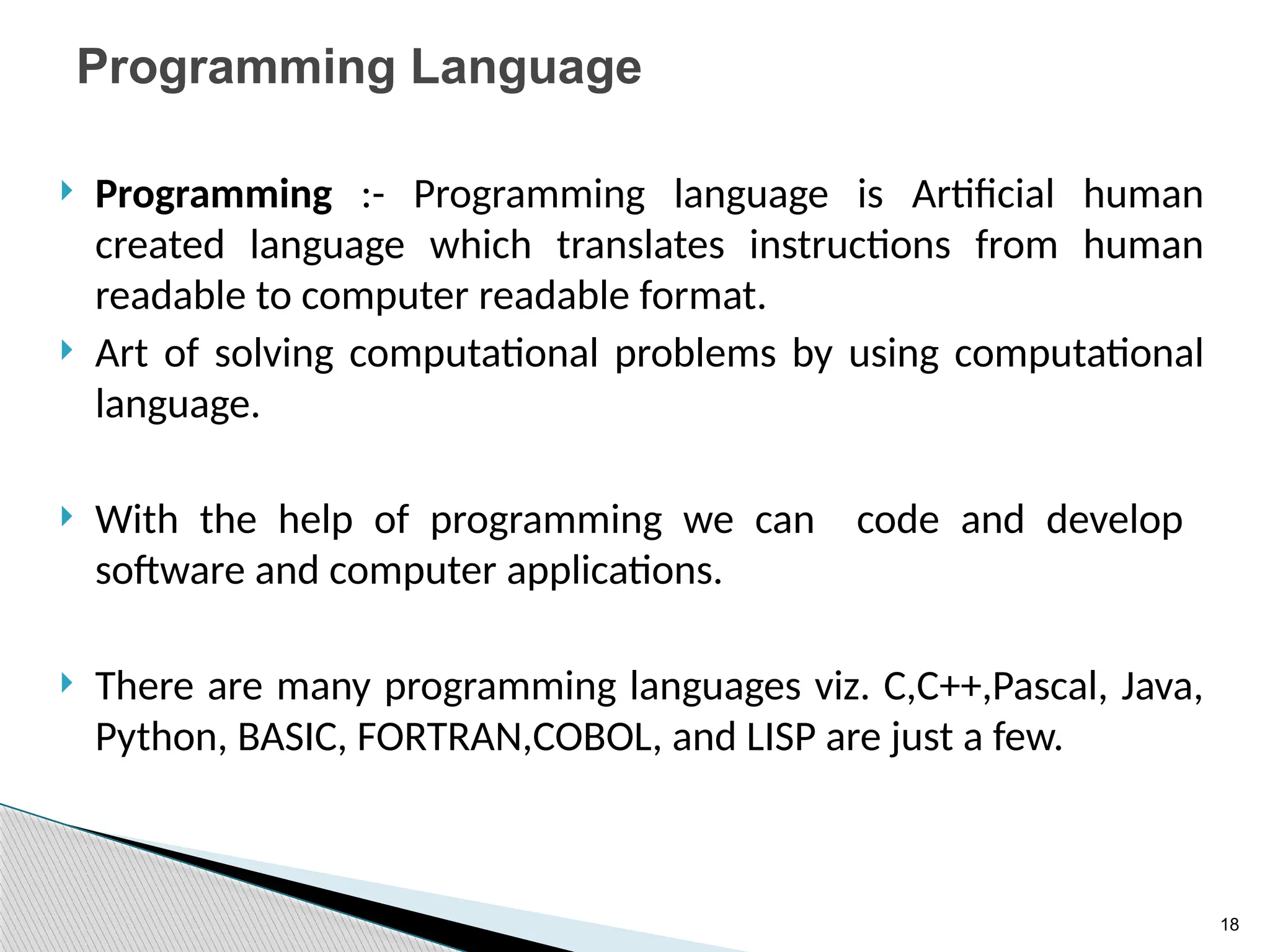

Programming Language
 Programming :- Programming language is Artificial human
created language which translates instructions from human
readable to computer readable format.
 Art of solving computational problems by using computational
language.
 With the help of programming we can code and develop
software and computer applications.
 There are many programming languages viz. C,C++,Pascal, Java,
Python, BASIC, FORTRAN,COBOL, and LISP are just a few.

19

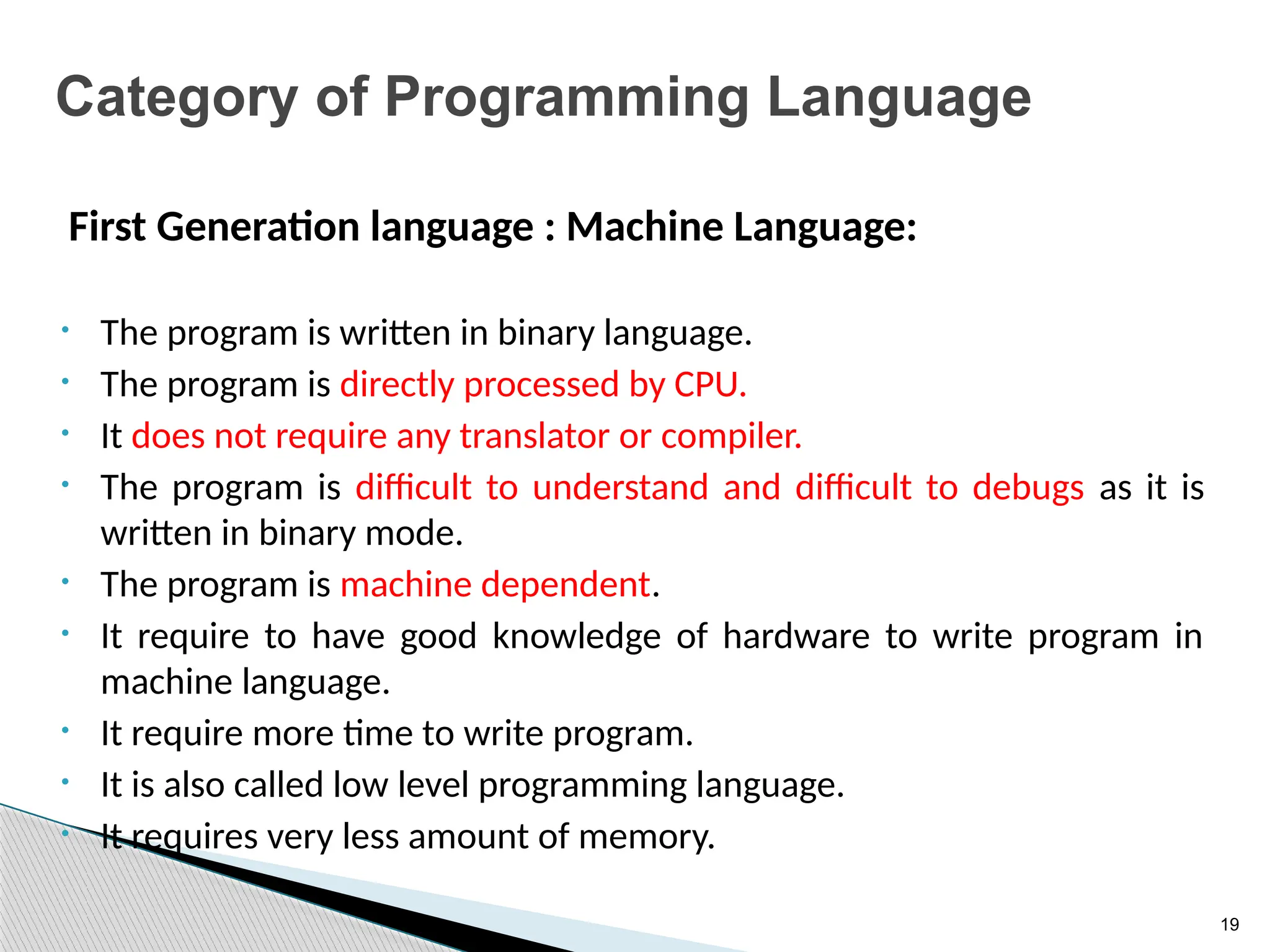

Category of Programming Language
First Generation language : Machine Language:
• The program is written in binary language.
• The program is directly processed by CPU.
• It does not require any translator or compiler.
• The program is difficult to understand and difficult to debugs as it is
written in binary mode.
• The program is machine dependent.
• It require to have good knowledge of hardware to write program in
machine language.
• It require more time to write program.
• It is also called low level programming language.
• It requires very less amount of memory.

20

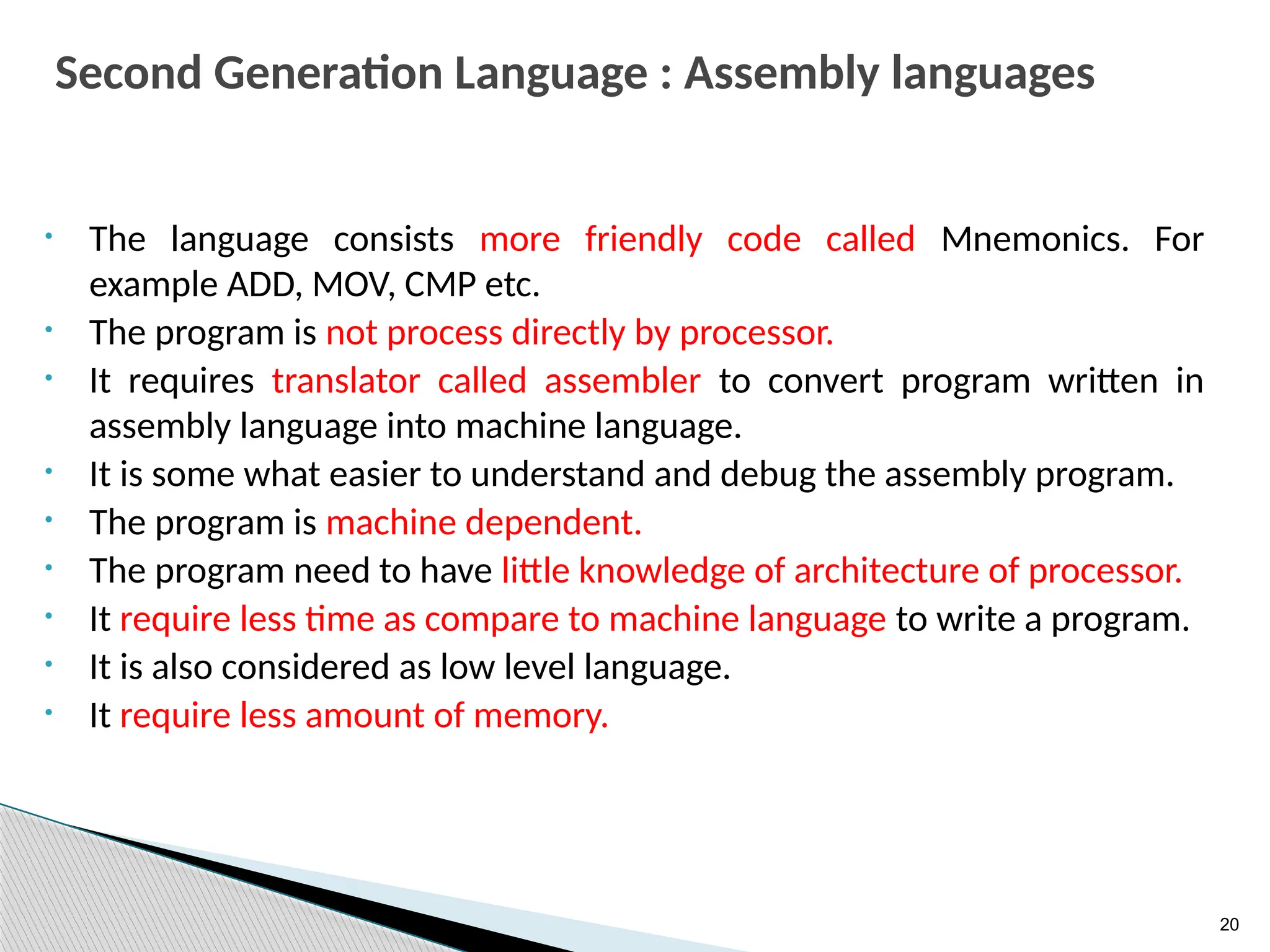

Second Generation Language : Assembly languages
• The language consists more friendly code called Mnemonics. For
example ADD, MOV, CMP etc.
• The program is not process directly by processor.
• It requires translator called assembler to convert program written in
assembly language into machine language.
• It is some what easier to understand and debug the assembly program.
• The program is machine dependent.
• The program need to have little knowledge of architecture of processor.
• It require less time as compare to machine language to write a program.
• It is also considered as low level language.
• It require less amount of memory.

21

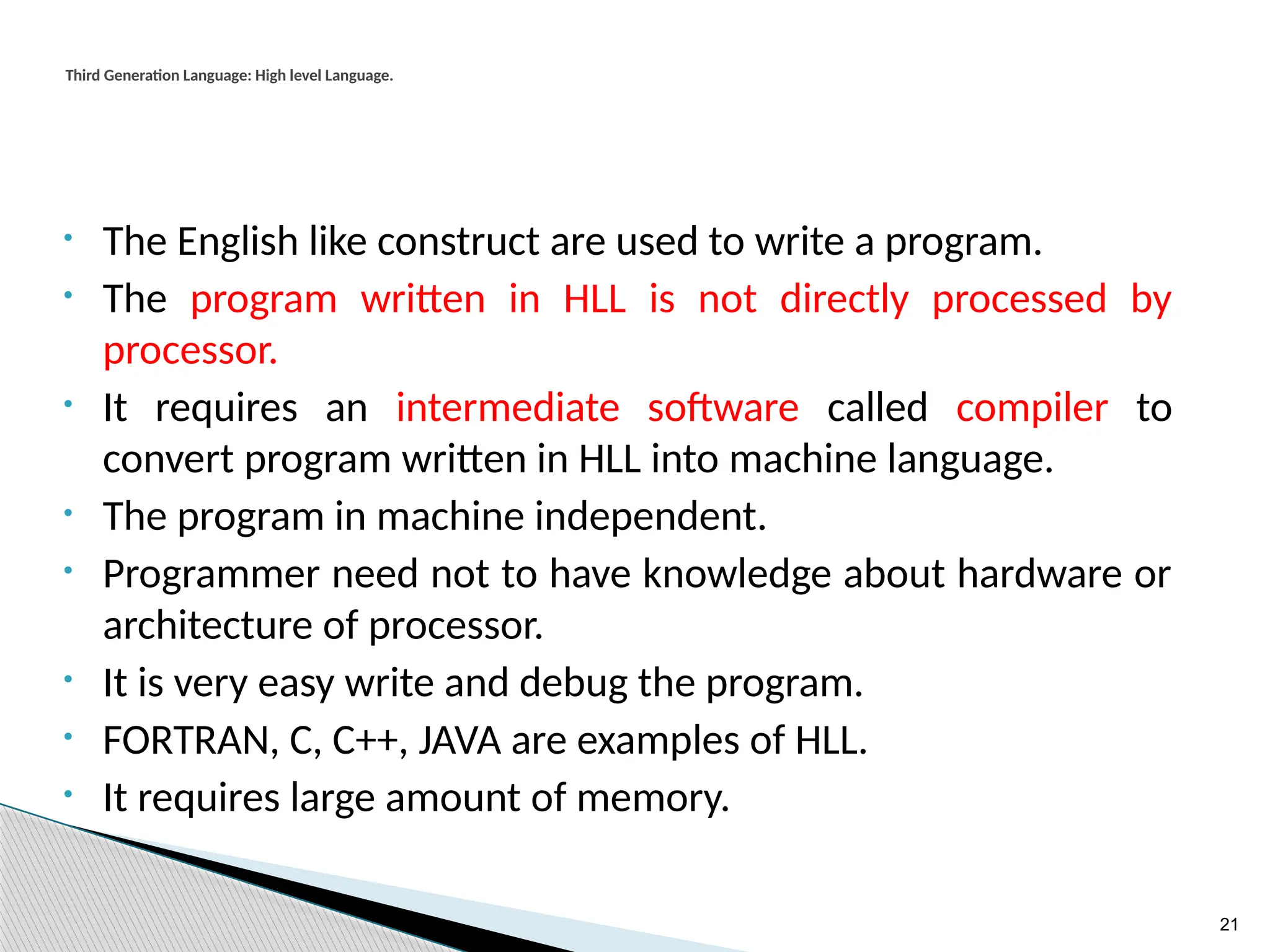

Third Generation Language: High level Language.
• The English like construct are used to write a program.
• The program written in HLL is not directly processed by
processor.
• It requires an intermediate software called compiler to
convert program written in HLL into machine language.
• The program in machine independent.
• Programmer need not to have knowledge about hardware or
architecture of processor.
• It is very easy write and debug the program.
• FORTRAN, C, C++, JAVA are examples of HLL.
• It requires large amount of memory.

22

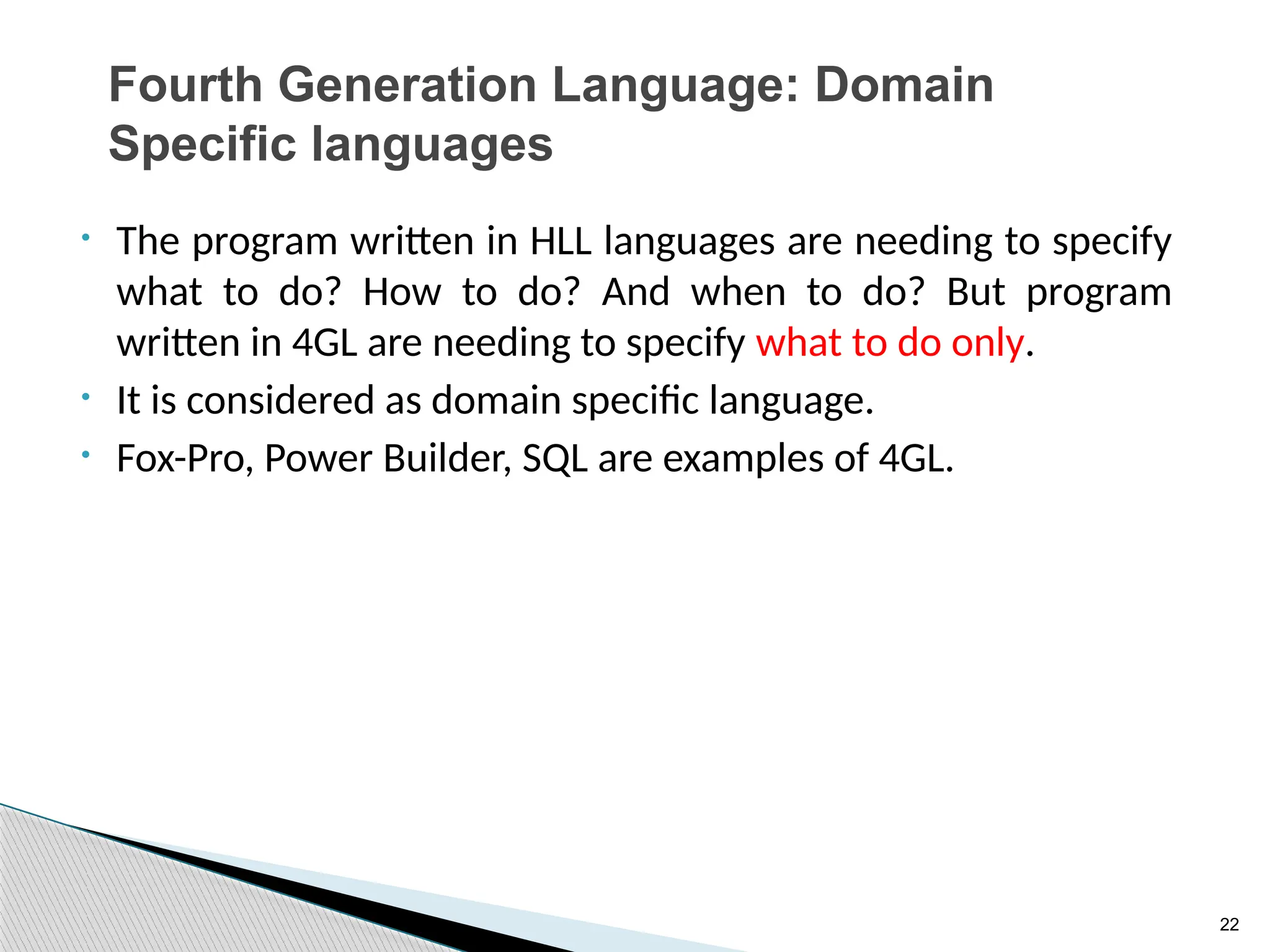

Fourth Generation Language: Domain
Specific languages
• The program written in HLL languages are needing to specify
what to do? How to do? And when to do? But program
written in 4GL are needing to specify what to do only.
• It is considered as domain specific language.
• Fox-Pro, Power Builder, SQL are examples of 4GL.

23

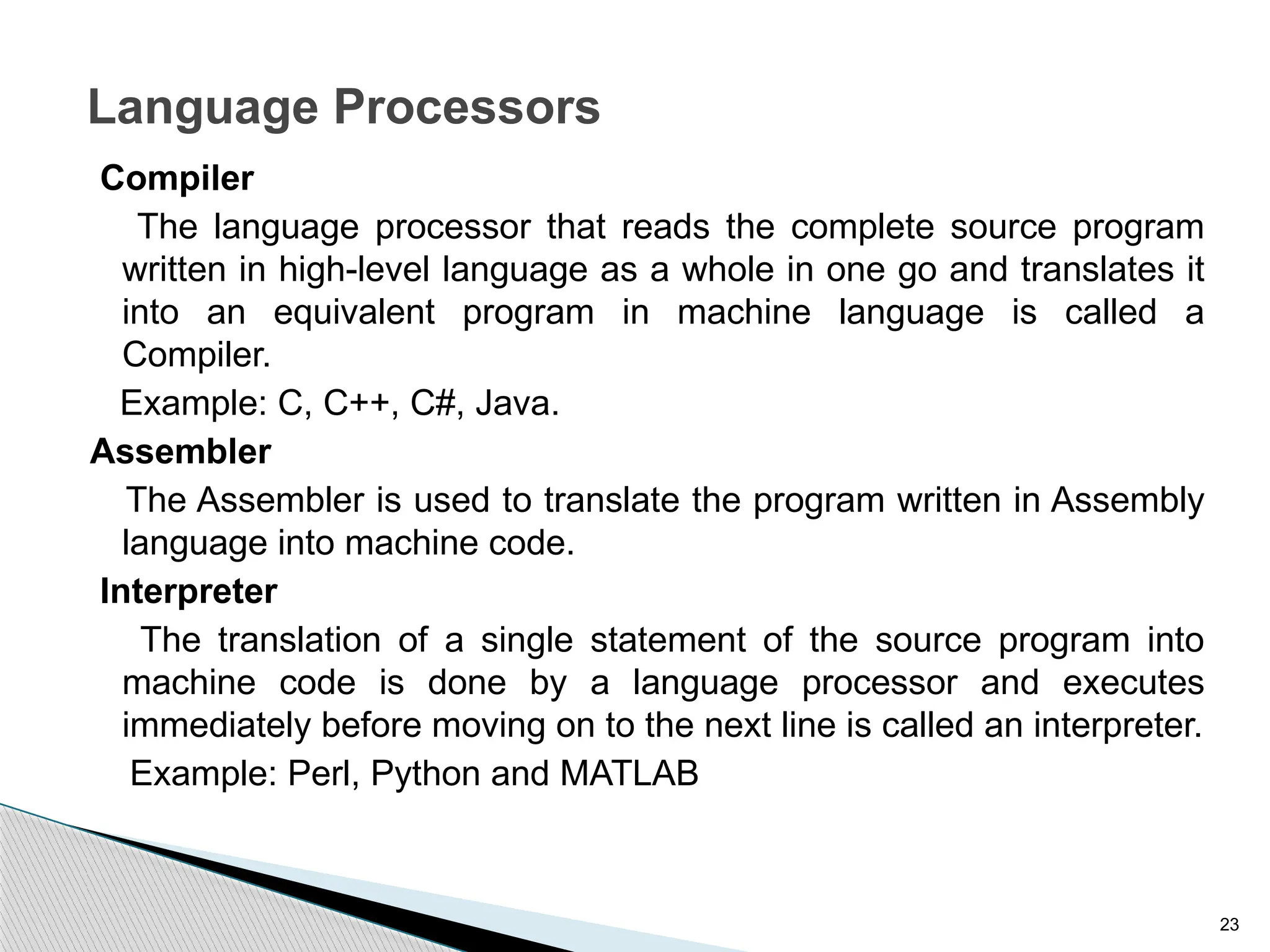

Language Processors
Compiler
The language processor that reads the complete source program
written in high-level language as a whole in one go and translates it
into an equivalent program in machine language is called a
Compiler.
Example: C, C++, C#, Java.
Assembler
The Assembler is used to translate the program written in Assembly
language into machine code.
Interpreter
The translation of a single statement of the source program into
machine code is done by a language processor and executes
immediately before moving on to the next line is called an interpreter.
Example: Perl, Python and MATLAB

24

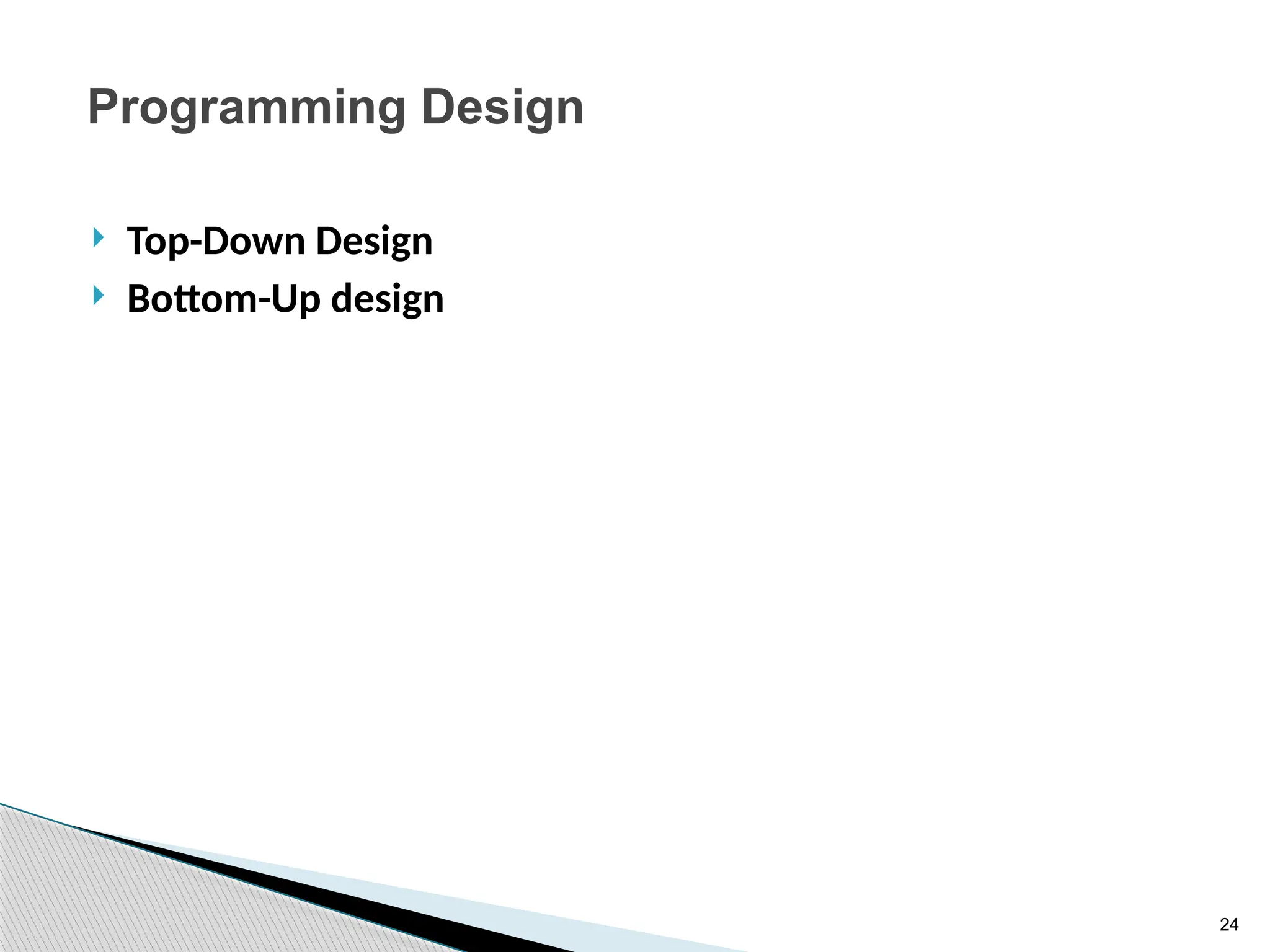

Programming Design
 Top-Down Design
 Bottom-Up design

25

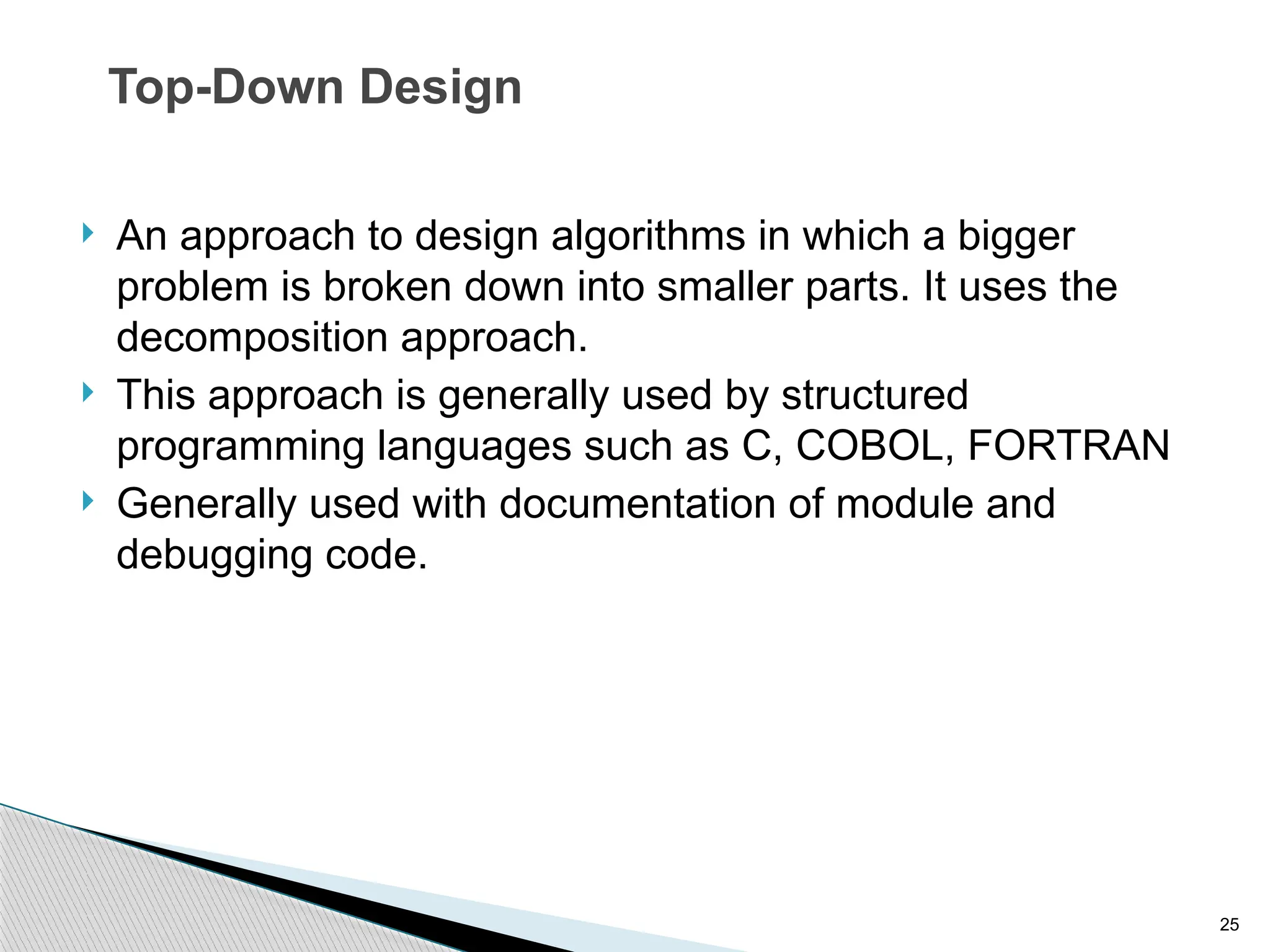

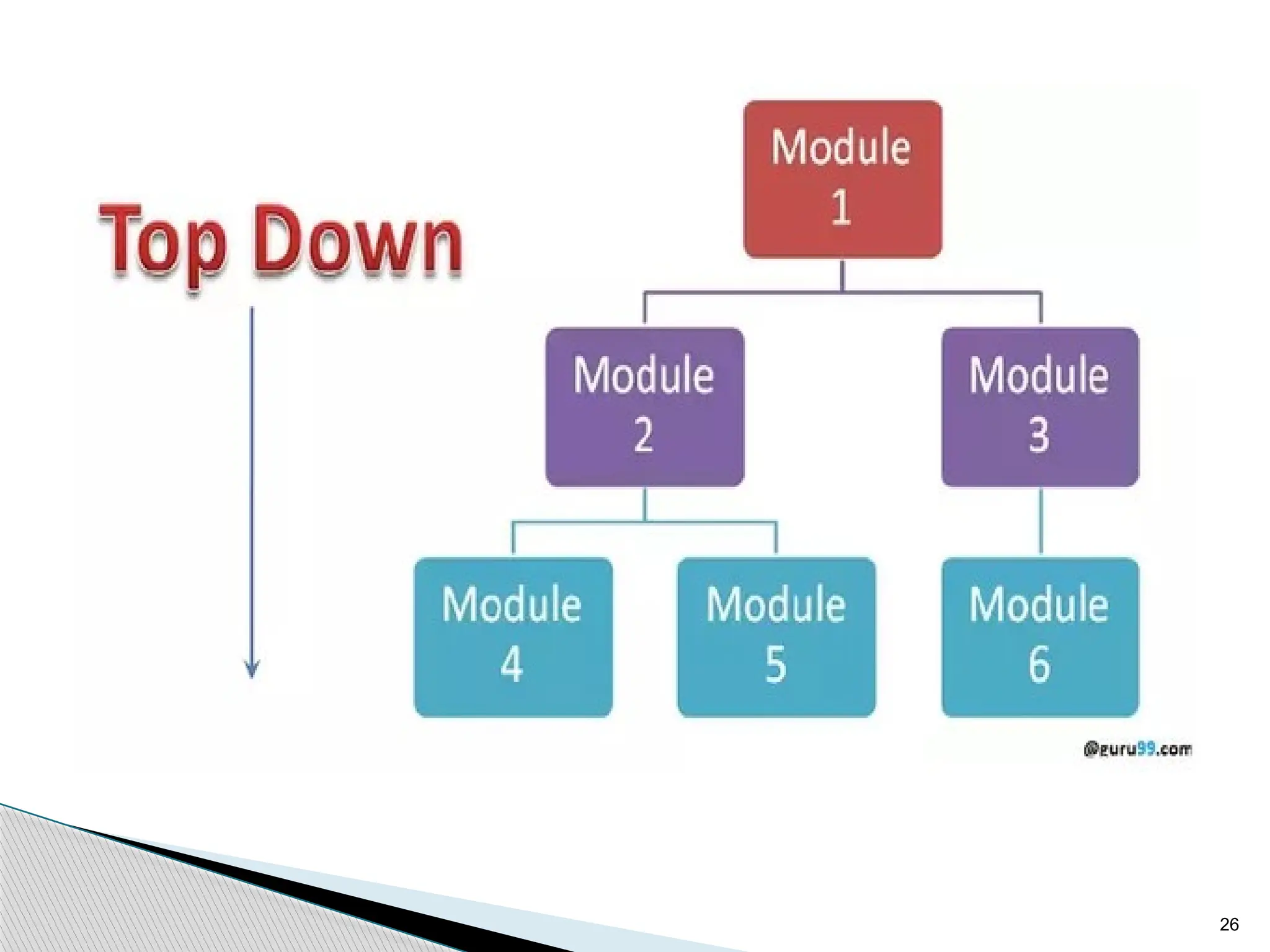

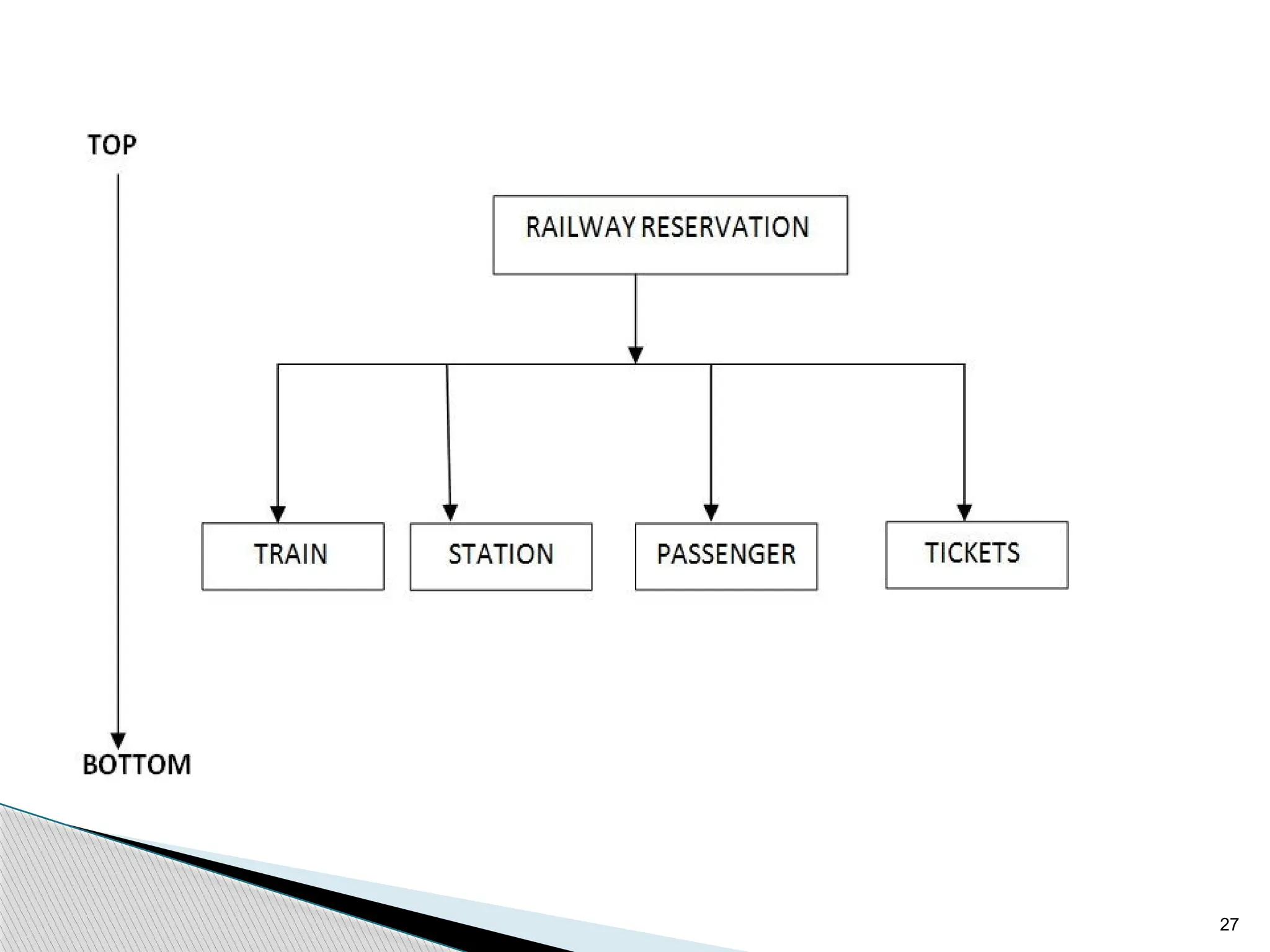

Top-Down Design
 An approach to design algorithms in which a bigger
problem is broken down into smaller parts. It uses the
decomposition approach.
 This approach is generally used by structured
programming languages such as C, COBOL, FORTRAN
 Generally used with documentation of module and
debugging code.

29

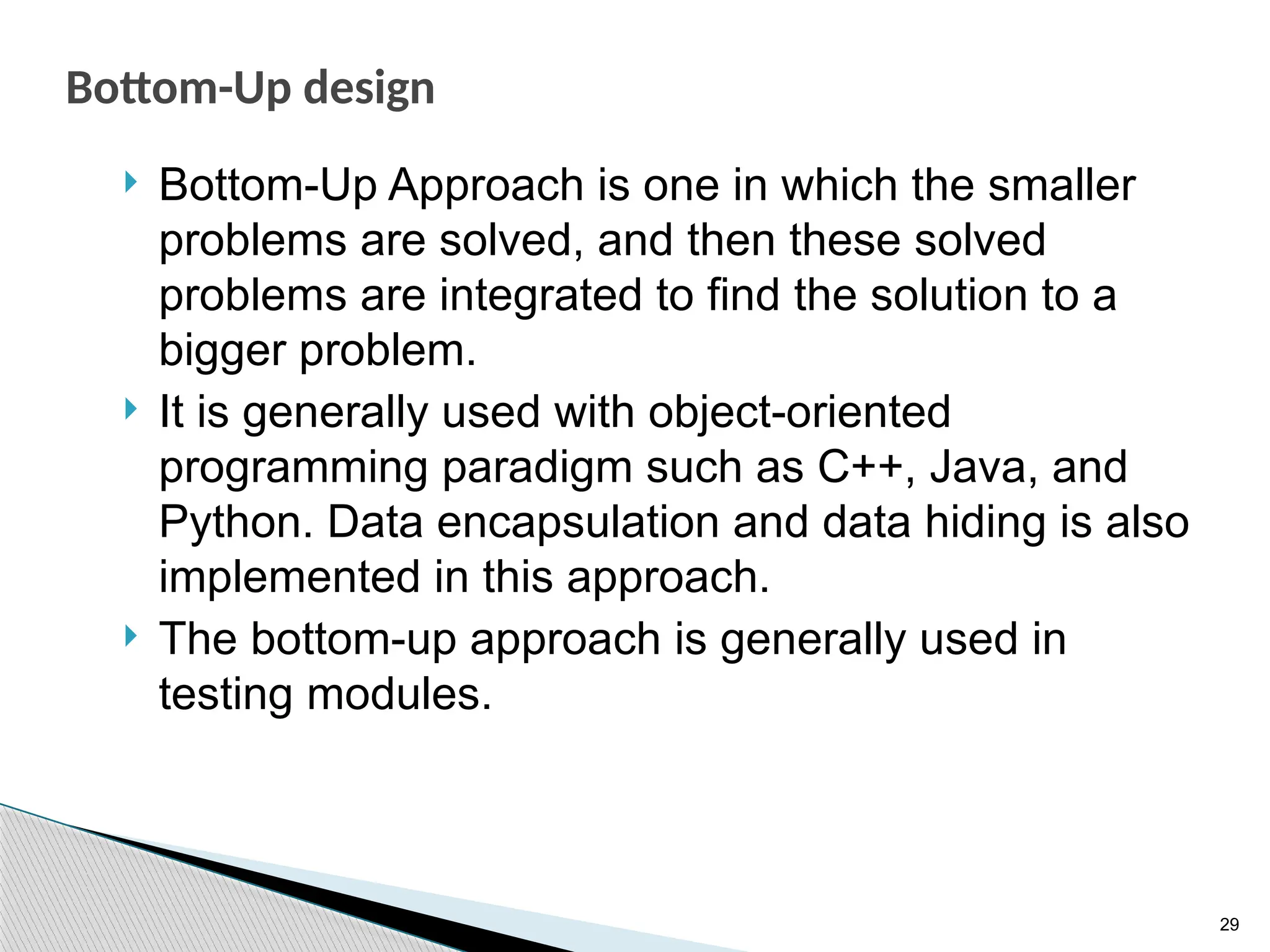

Bottom-Up design
 Bottom-Up Approach is one in which the smaller
problems are solved, and then these solved
problems are integrated to find the solution to a
bigger problem.
 It is generally used with object-oriented
programming paradigm such as C++, Java, and
Python. Data encapsulation and data hiding is also
implemented in this approach.
 The bottom-up approach is generally used in
testing modules.

30

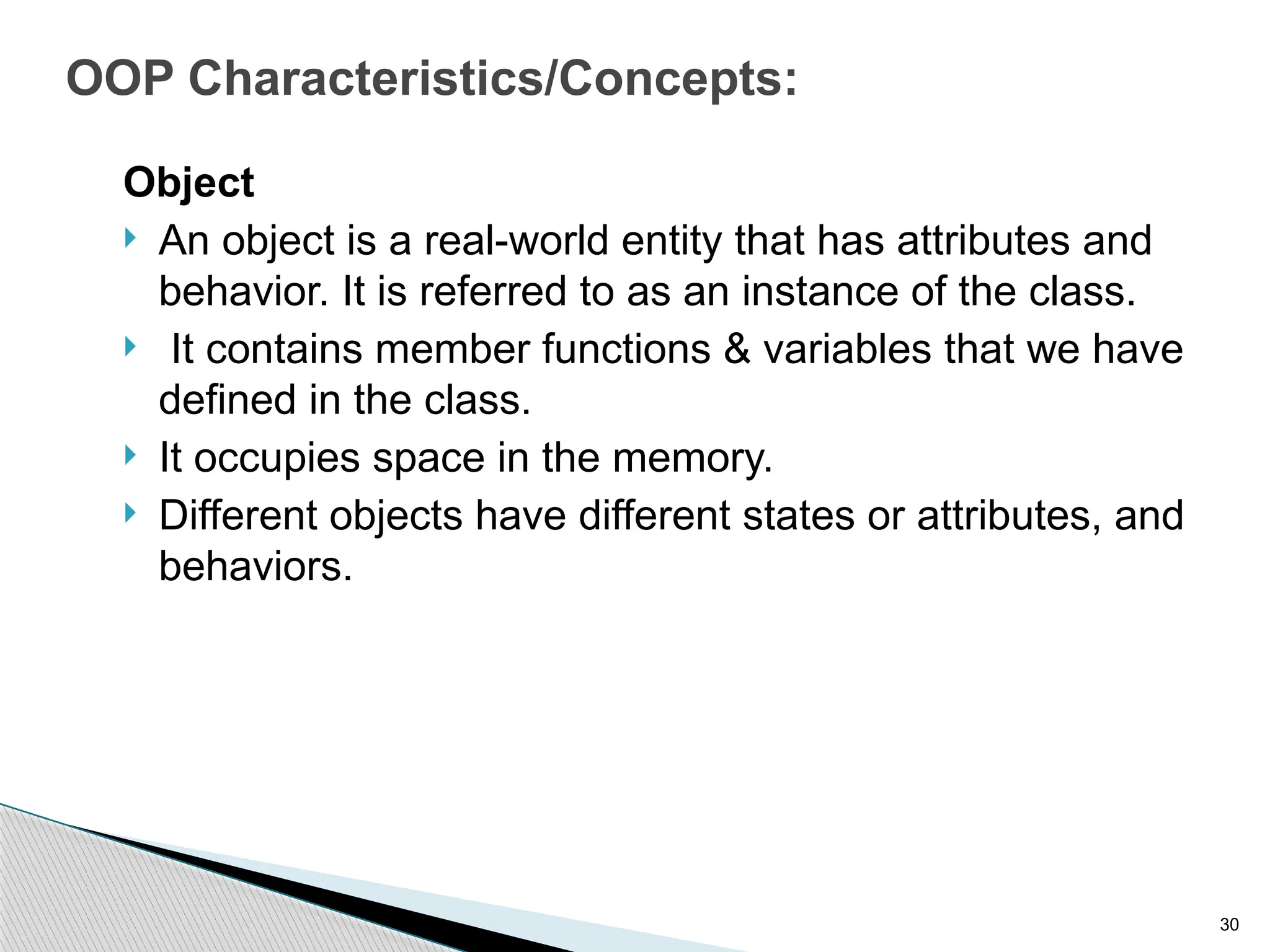

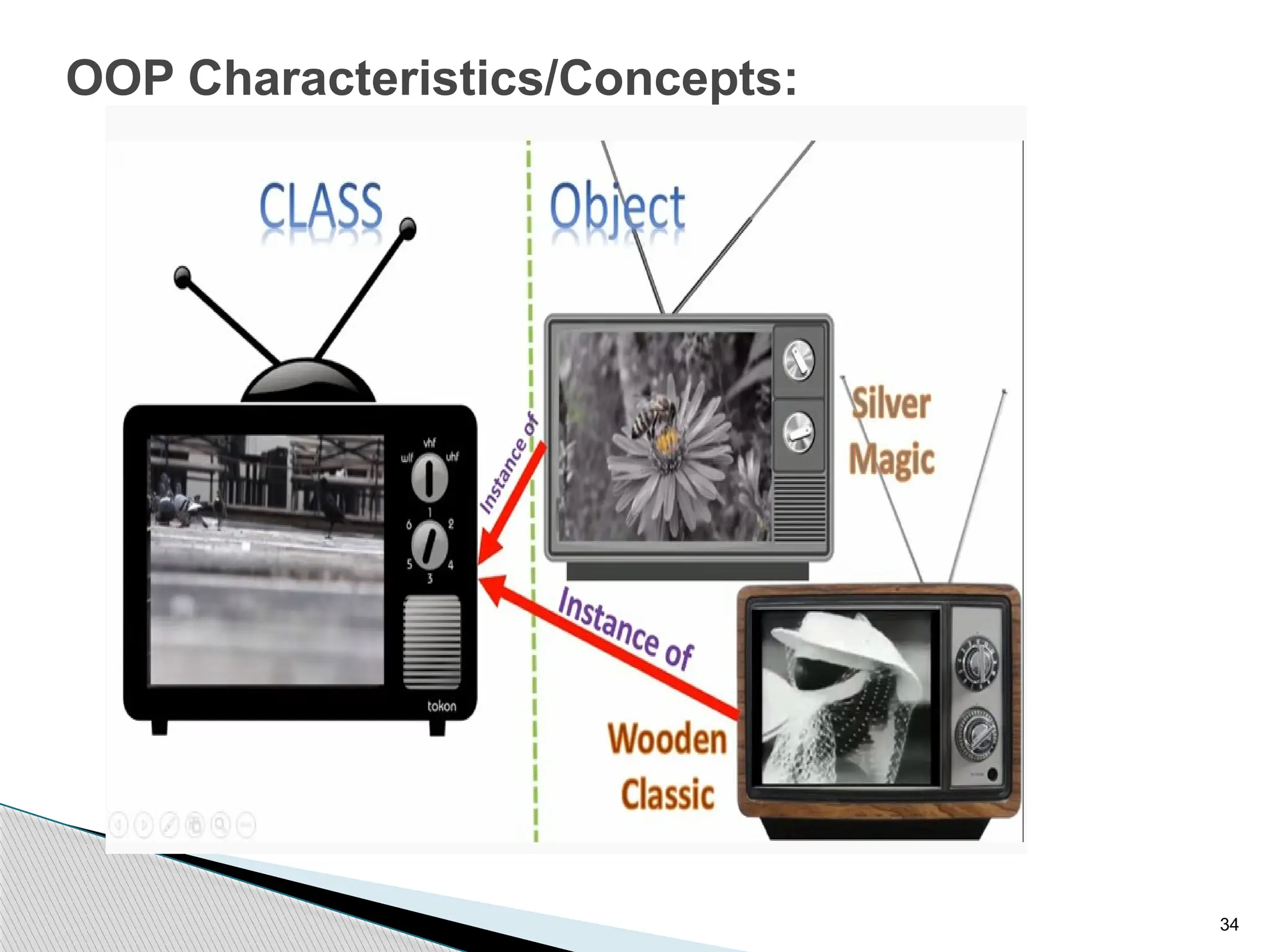

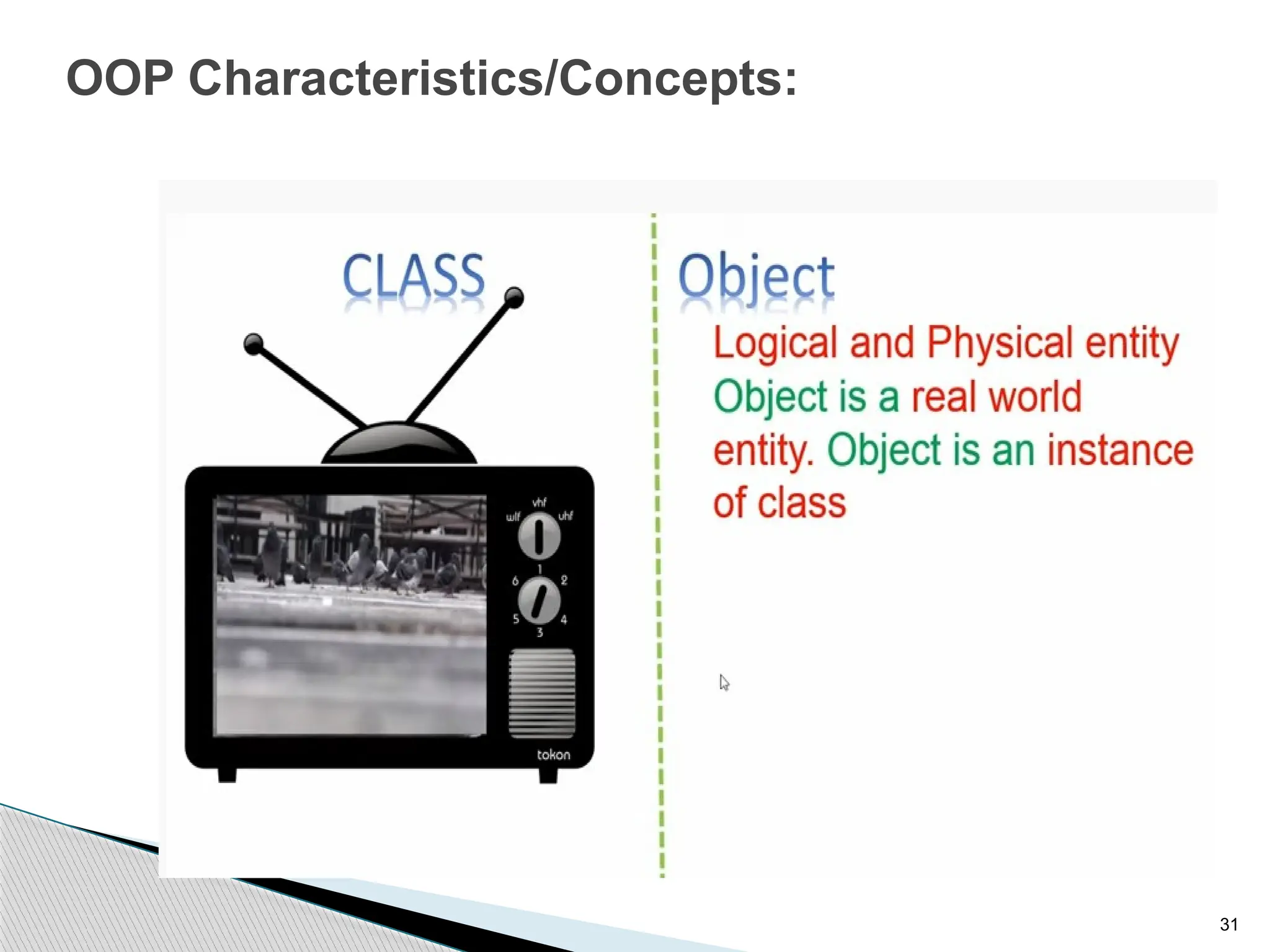

OOP Characteristics/Concepts:
Object
 An object is a real-world entity that has attributes and
behavior. It is referred to as an instance of the class.
 It contains member functions & variables that we have
defined in the class.
 It occupies space in the memory.
 Different objects have different states or attributes, and
behaviors.

31

32

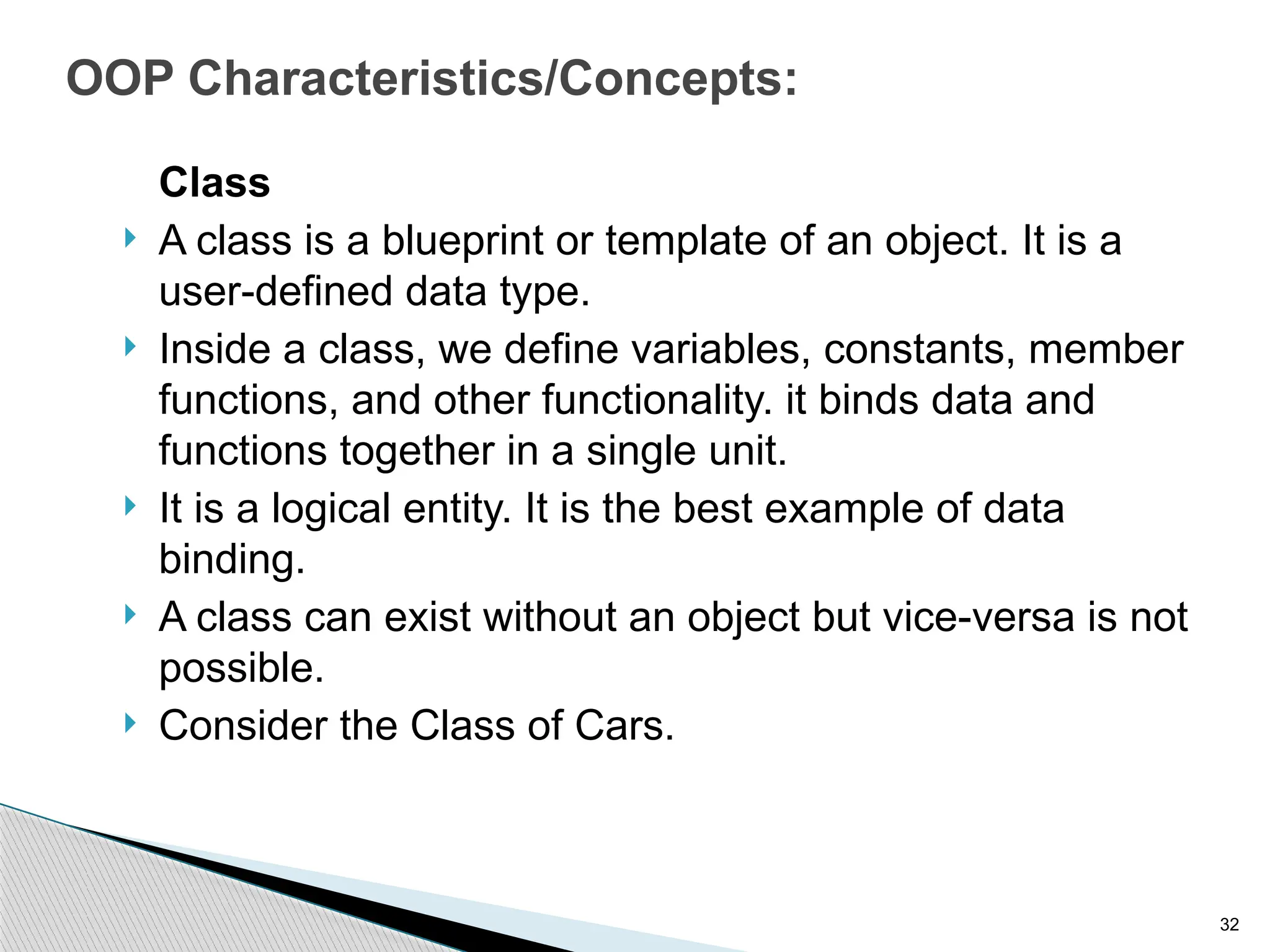

Class
 A class is a blueprint or template of an object. It is a
user-defined data type.
 Inside a class, we define variables, constants, member
functions, and other functionality. it binds data and
functions together in a single unit.
 It is a logical entity. It is the best example of data
binding.
 A class can exist without an object but vice-versa is not
possible.

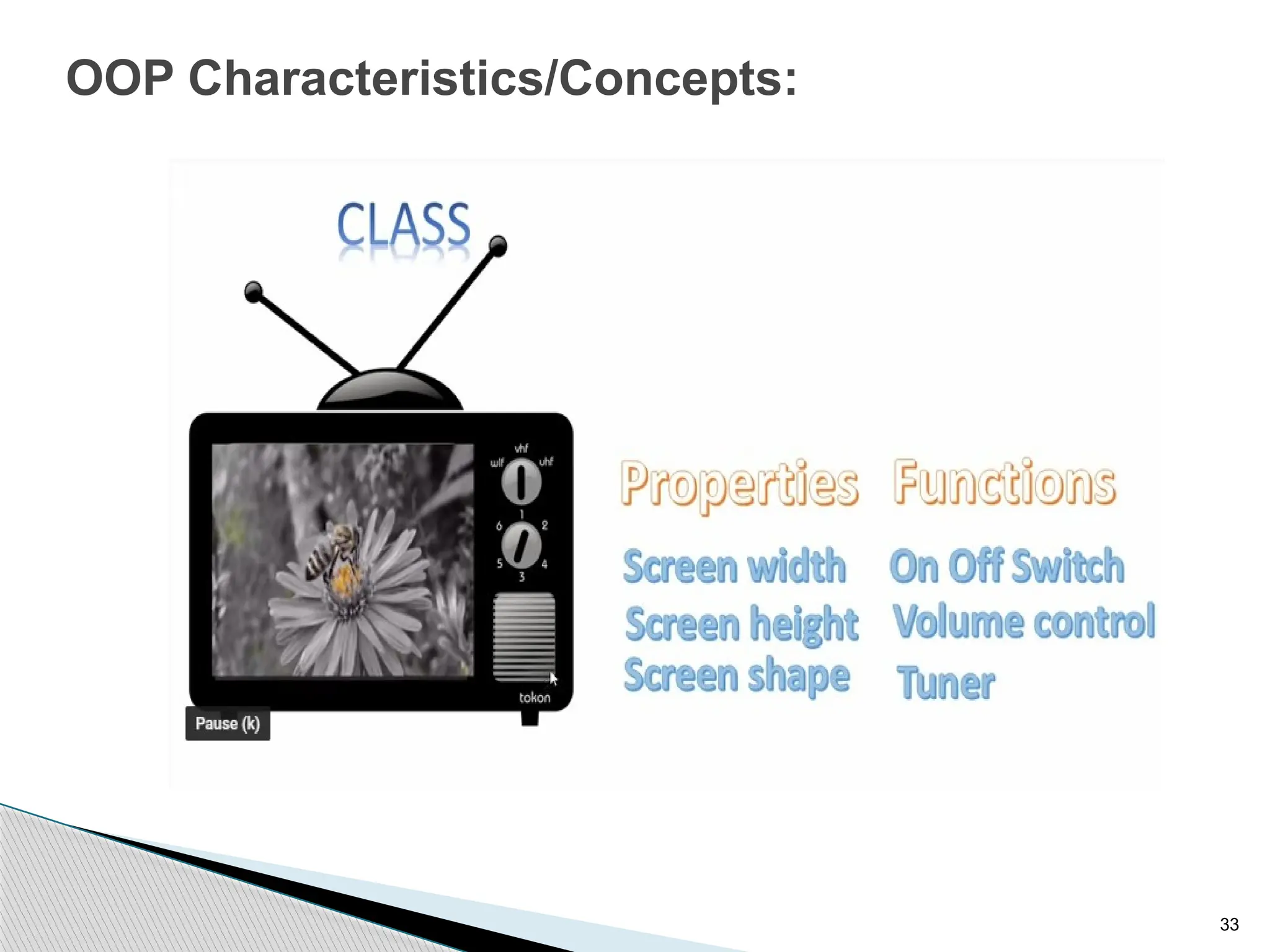

 Consider the Class of Cars.

33

34

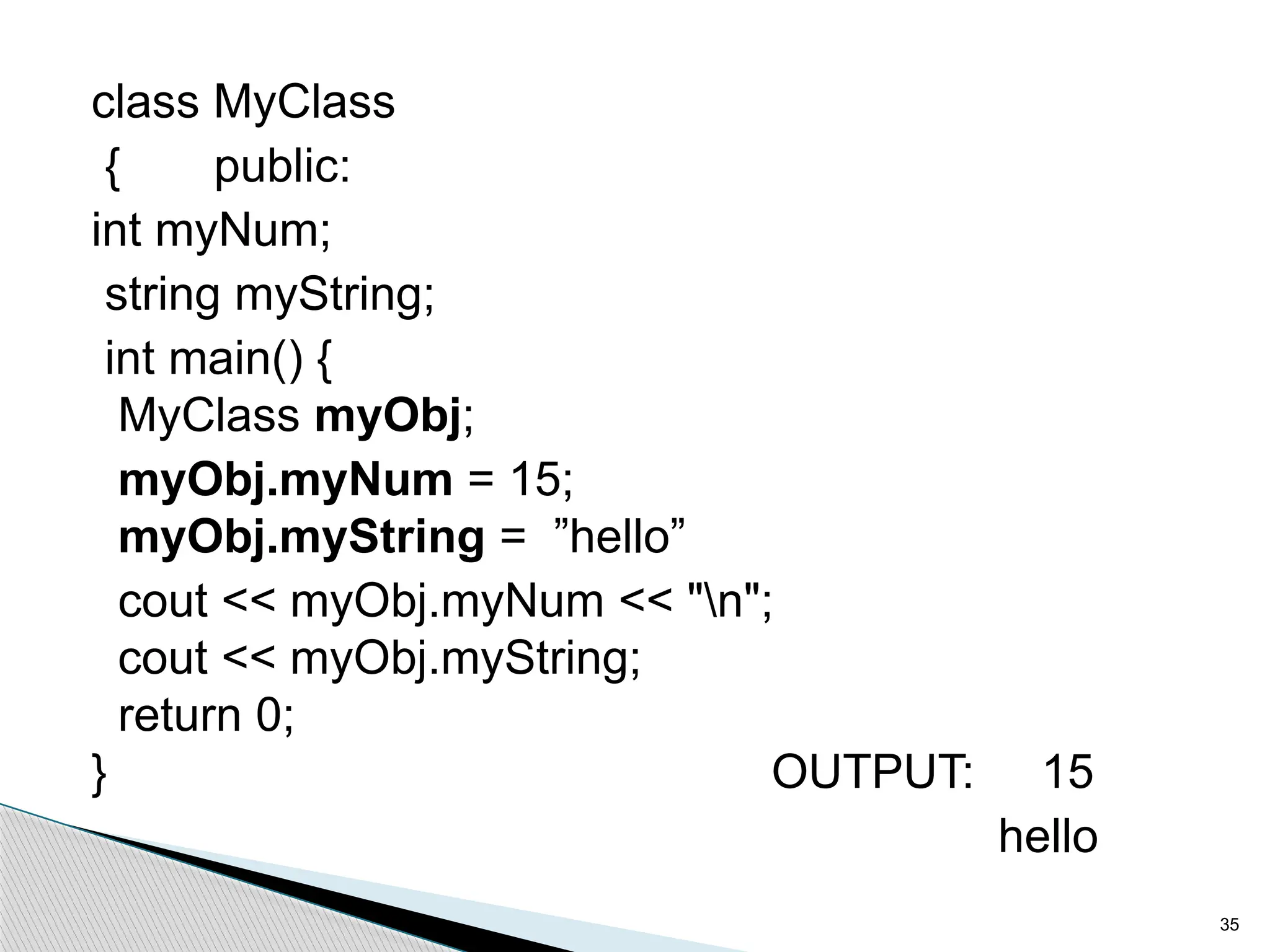

class MyClass
{ public:
int myNum;
string myString;
int main() {
MyClass myObj;
myObj.myNum = 15;
myObj.myString = ”hello”
cout << myObj.myNum << "n";
cout << myObj.myString;
return 0;
} OUTPUT: 15
hello
35

36

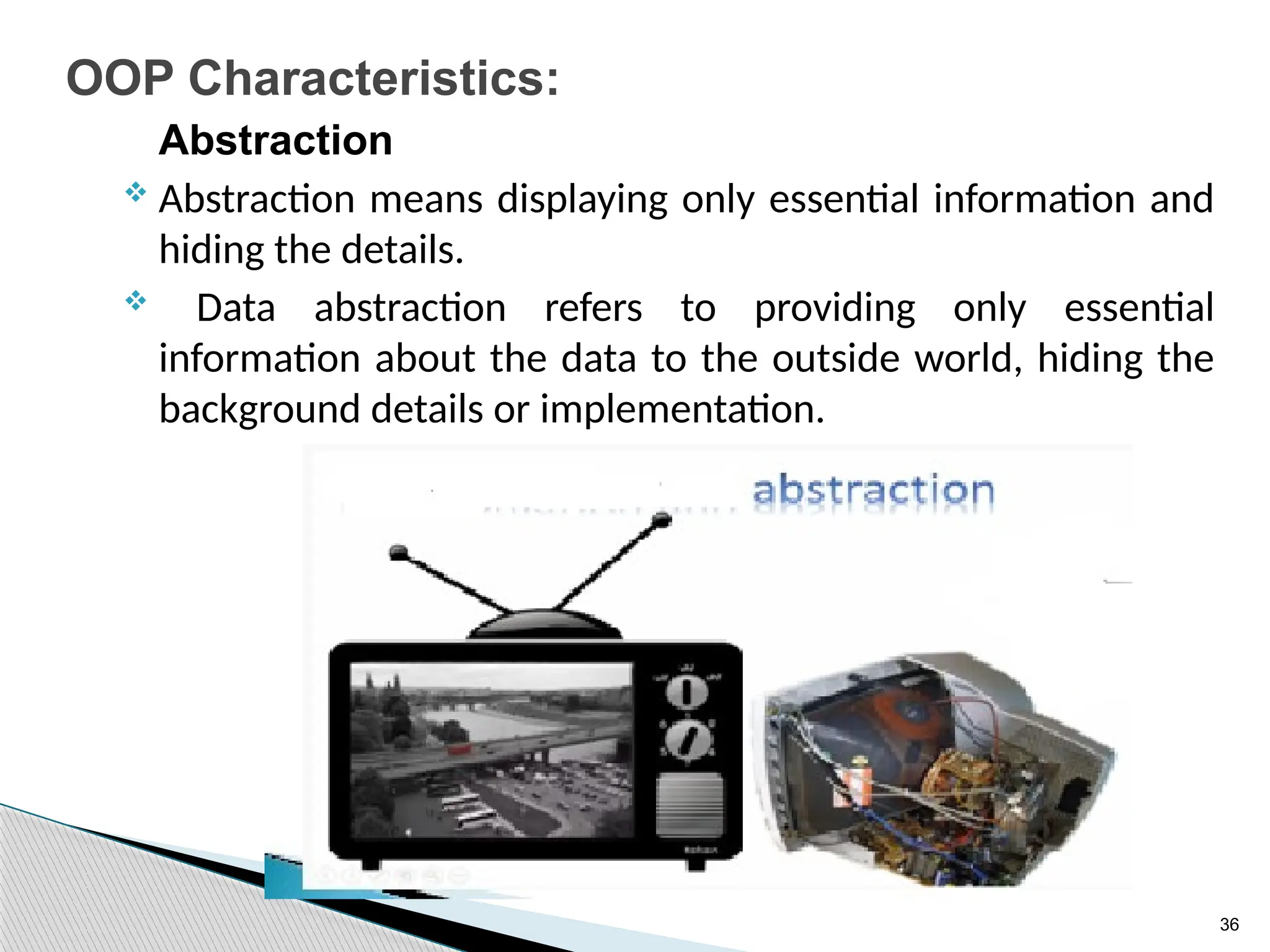

OOP Characteristics:
Abstraction
 Abstraction means displaying only essential information and
hiding the details.
 Data abstraction refers to providing only essential
information about the data to the outside world, hiding the
background details or implementation.

37

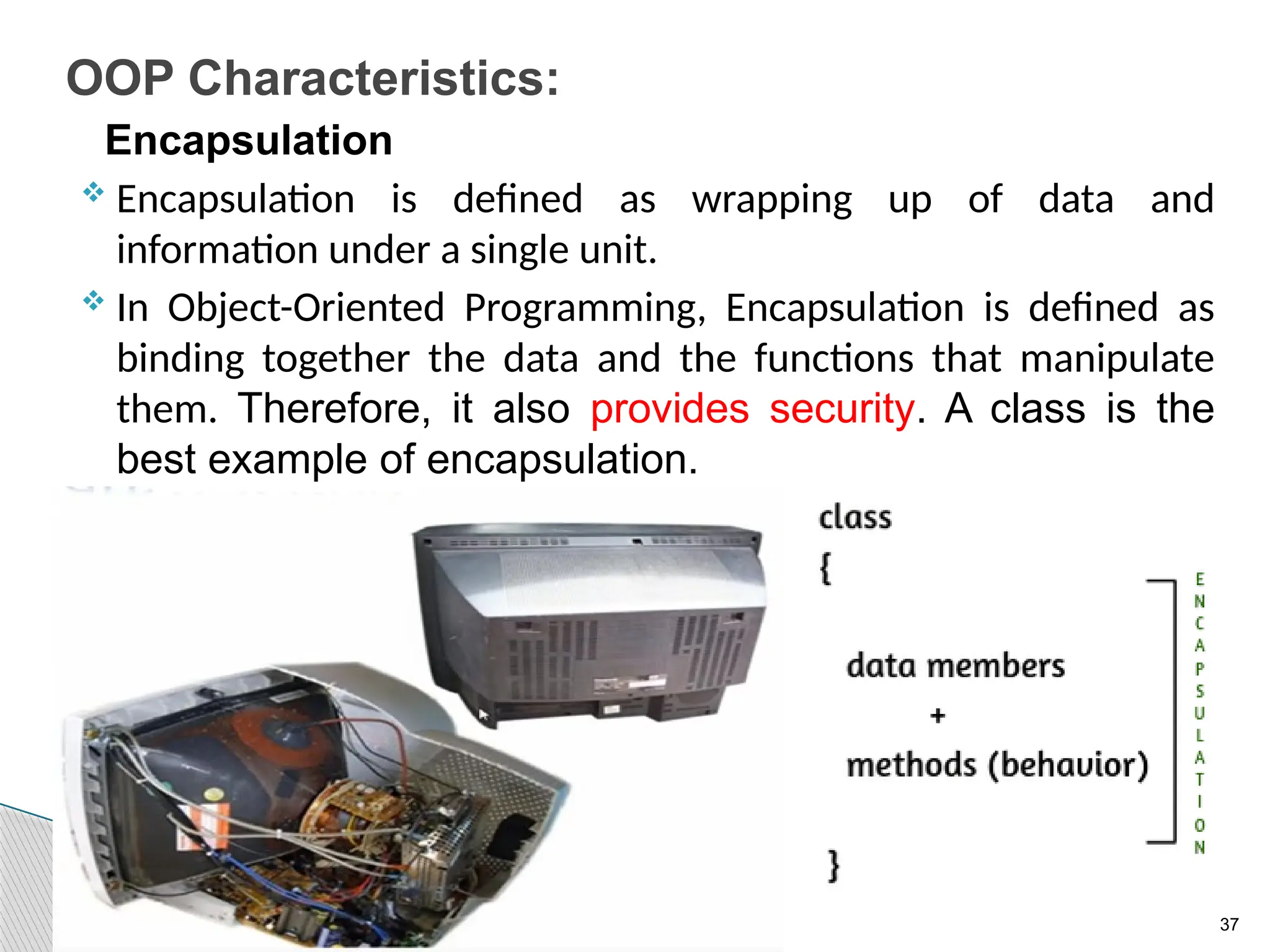

Encapsulation
 Encapsulation is defined as wrapping up of data and
information under a single unit.
 In Object-Oriented Programming, Encapsulation is defined as
binding together the data and the functions that manipulate
them. Therefore, it also provides security. A class is the
best example of encapsulation.

38

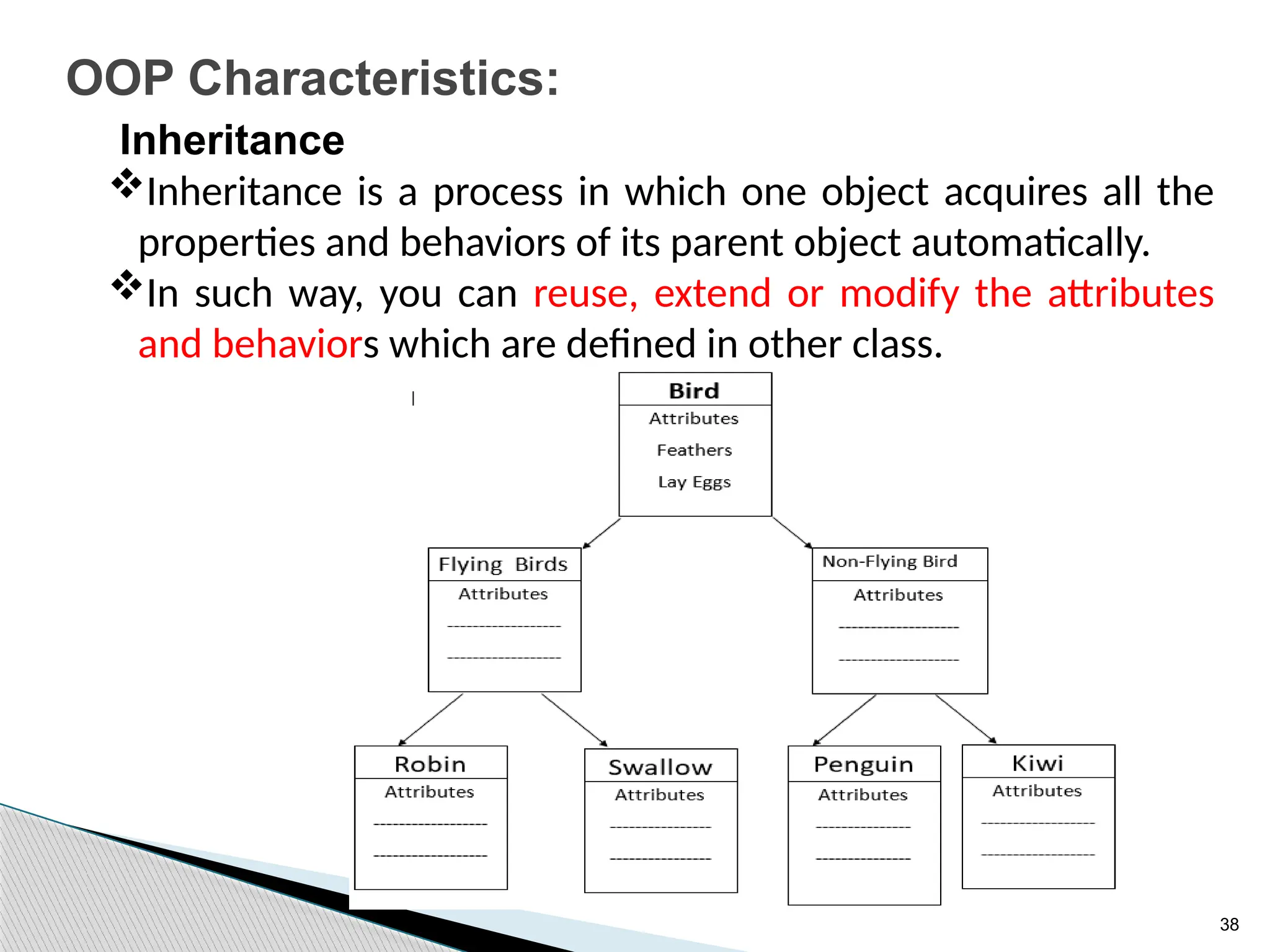

Inheritance
Inheritance is a process in which one object acquires all the
properties and behaviors of its parent object automatically.
In such way, you can reuse, extend or modify the attributes
and behaviors which are defined in other class.

39

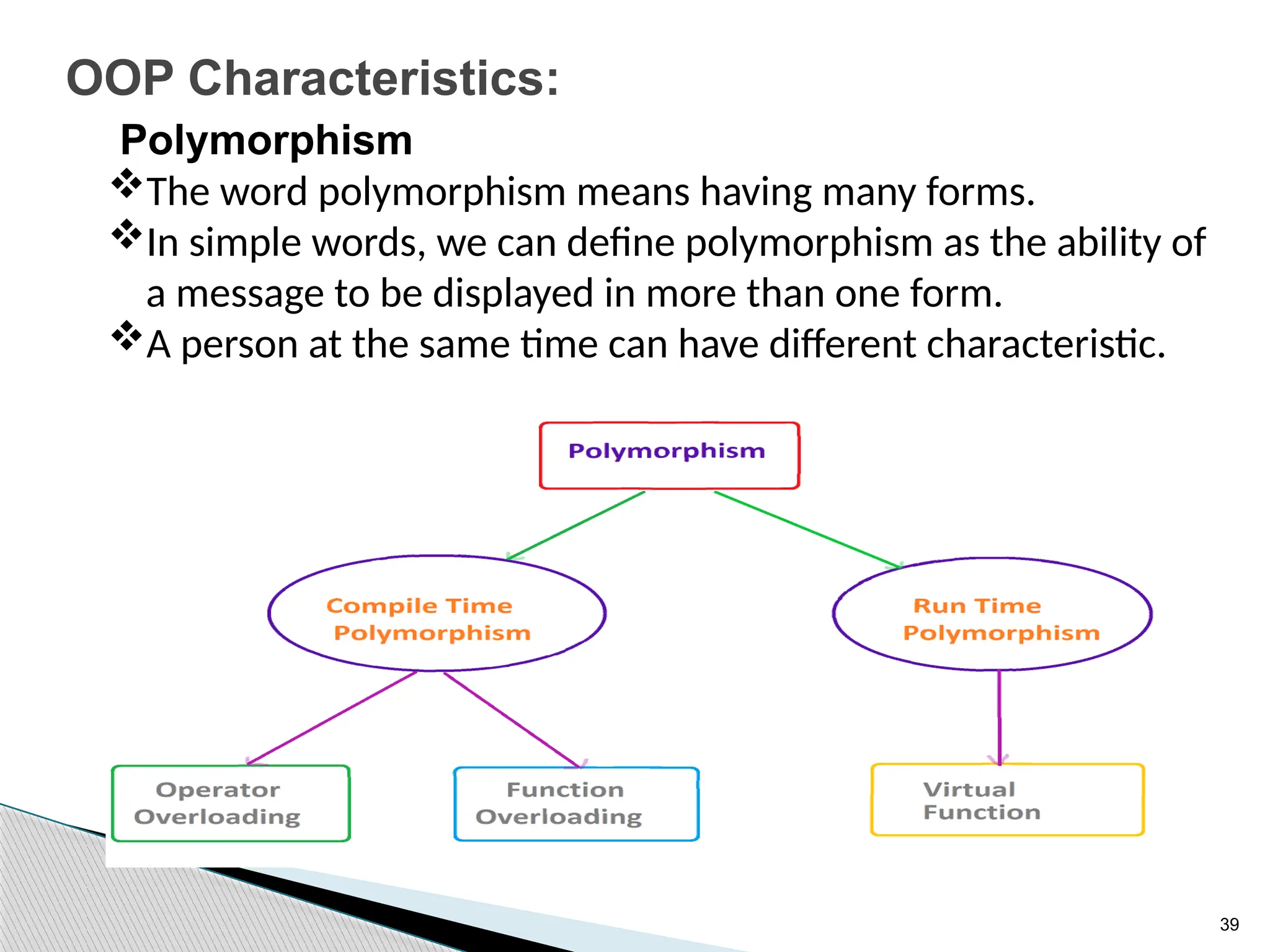

Polymorphism
The word polymorphism means having many forms.
In simple words, we can define polymorphism as the ability of
a message to be displayed in more than one form.
A person at the same time can have different characteristic.

40

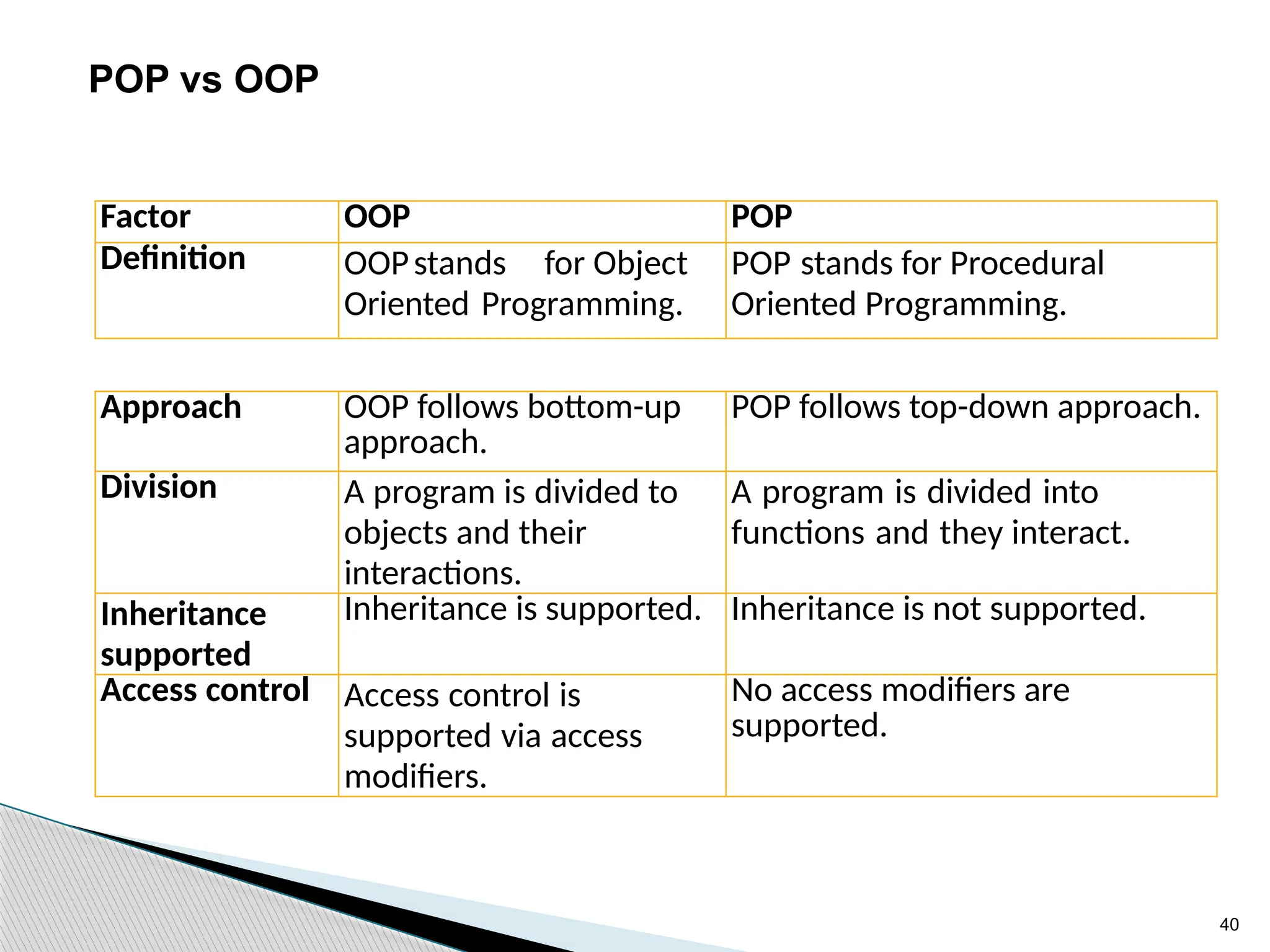

Factor OOP POP
Definition OOPstands for Object
Oriented Programming.
POP stands for Procedural
Oriented Programming.
Approach OOP follows bottom-up
approach.
POP follows top-down approach.
Division A program is divided to
objects and their
interactions.
A program is divided into
functions and they interact.
Inheritance
supported
Inheritance is supported. Inheritance is not supported.
Access control Access control is
supported via access
modifiers.
No access modifiers are
supported.
POP vs OOP

41

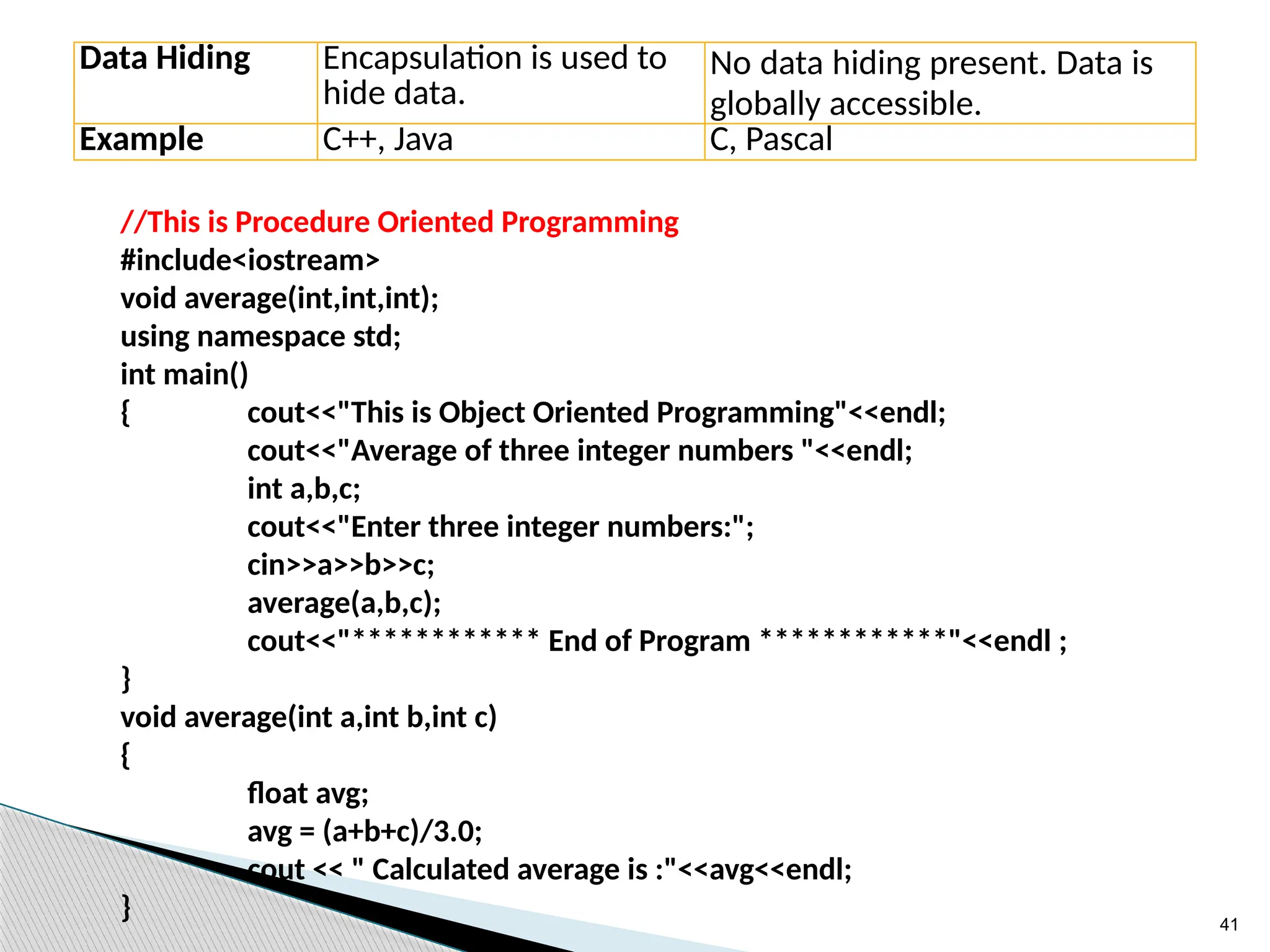

Data Hiding Encapsulation is used to
hide data.
No data hiding present. Data is
globally accessible.
Example C++, Java C, Pascal
//This is Procedure Oriented Programming
#include<iostream>
void average(int,int,int);
using namespace std;
int main()
{ cout<<"This is Object Oriented Programming"<<endl;
cout<<"Average of three integer numbers "<<endl;
int a,b,c;
cout<<"Enter three integer numbers:";
cin>>a>>b>>c;
average(a,b,c);
cout<<"************ End of Program ************"<<endl ;
}
void average(int a,int b,int c)
{
float avg;
avg = (a+b+c)/3.0;
cout << " Calculated average is :"<<avg<<endl;
}

42

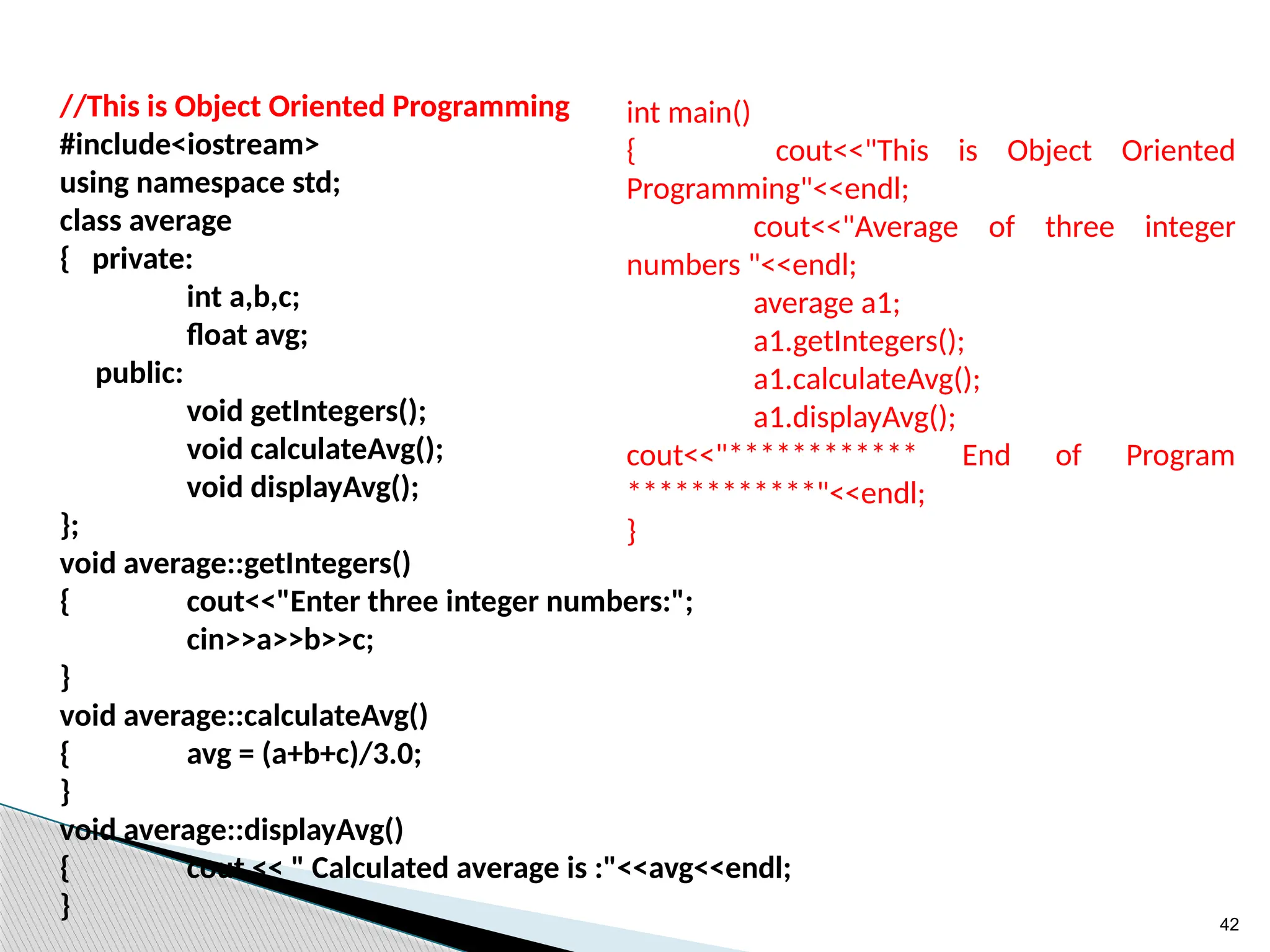

//This is Object Oriented Programming
#include<iostream>
class average
{ private:
int a,b,c;
float avg;
public:
void getIntegers();
void calculateAvg();
void displayAvg();
};
void average::getIntegers()
{ cout<<"Enter three integer numbers:";
cin>>a>>b>>c;
}
void average::calculateAvg()
{ avg = (a+b+c)/3.0;
}
void average::displayAvg()
{ cout << " Calculated average is :"<<avg<<endl;
}
int main()
{ cout<<"This is Object Oriented
Programming"<<endl;
cout<<"Average of three integer
numbers "<<endl;
average a1;
a1.getIntegers();
a1.calculateAvg();
a1.displayAvg();
cout<<"************ End of Program
************"<<endl;
}

44

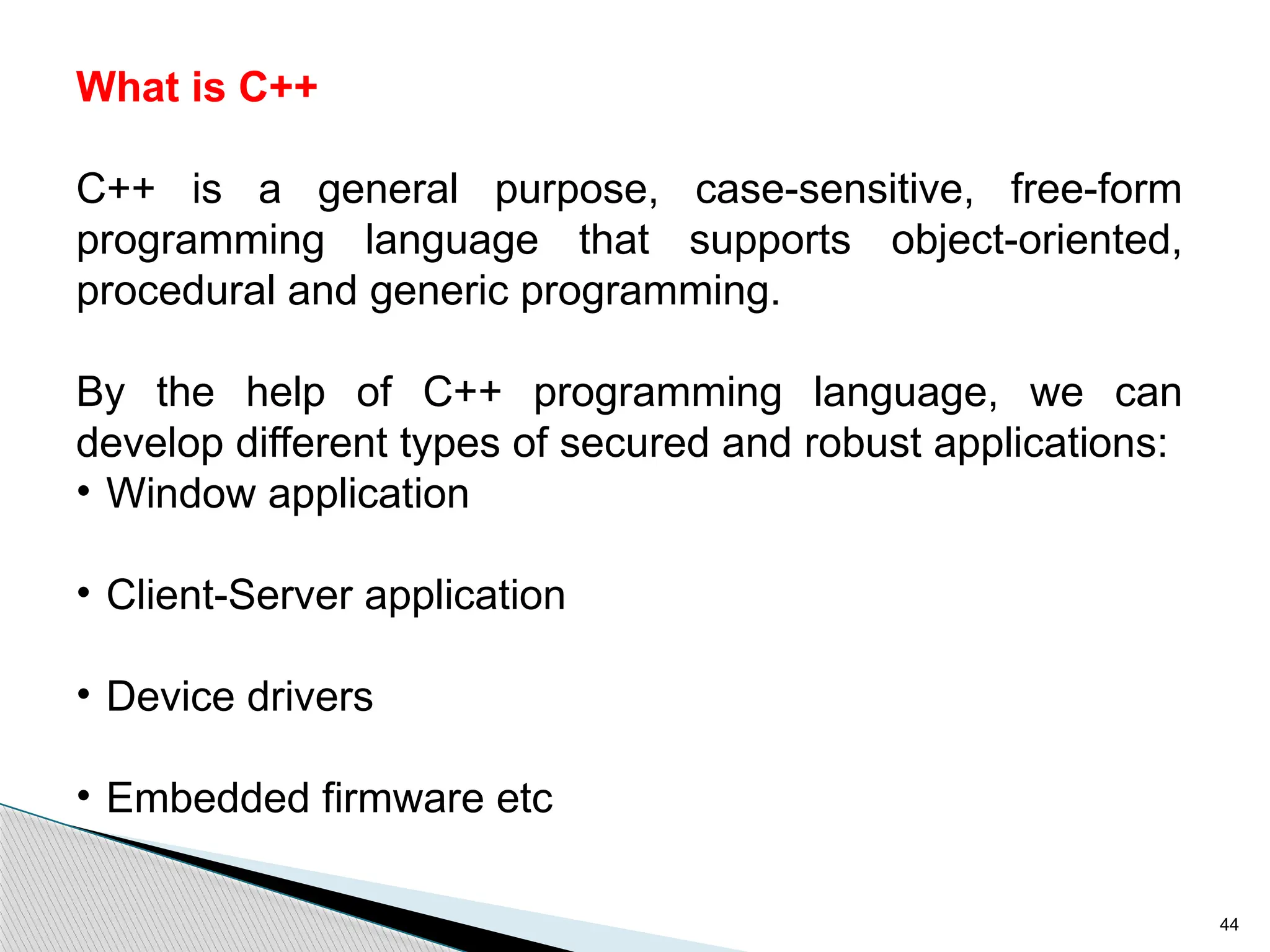

What is C++
C++ is a general purpose, case-sensitive, free-form
programming language that supports object-oriented,
procedural and generic programming.
By the help of C++ programming language, we can
develop different types of secured and robust applications:
• Window application
• Client-Server application
• Device drivers
• Embedded firmware etc

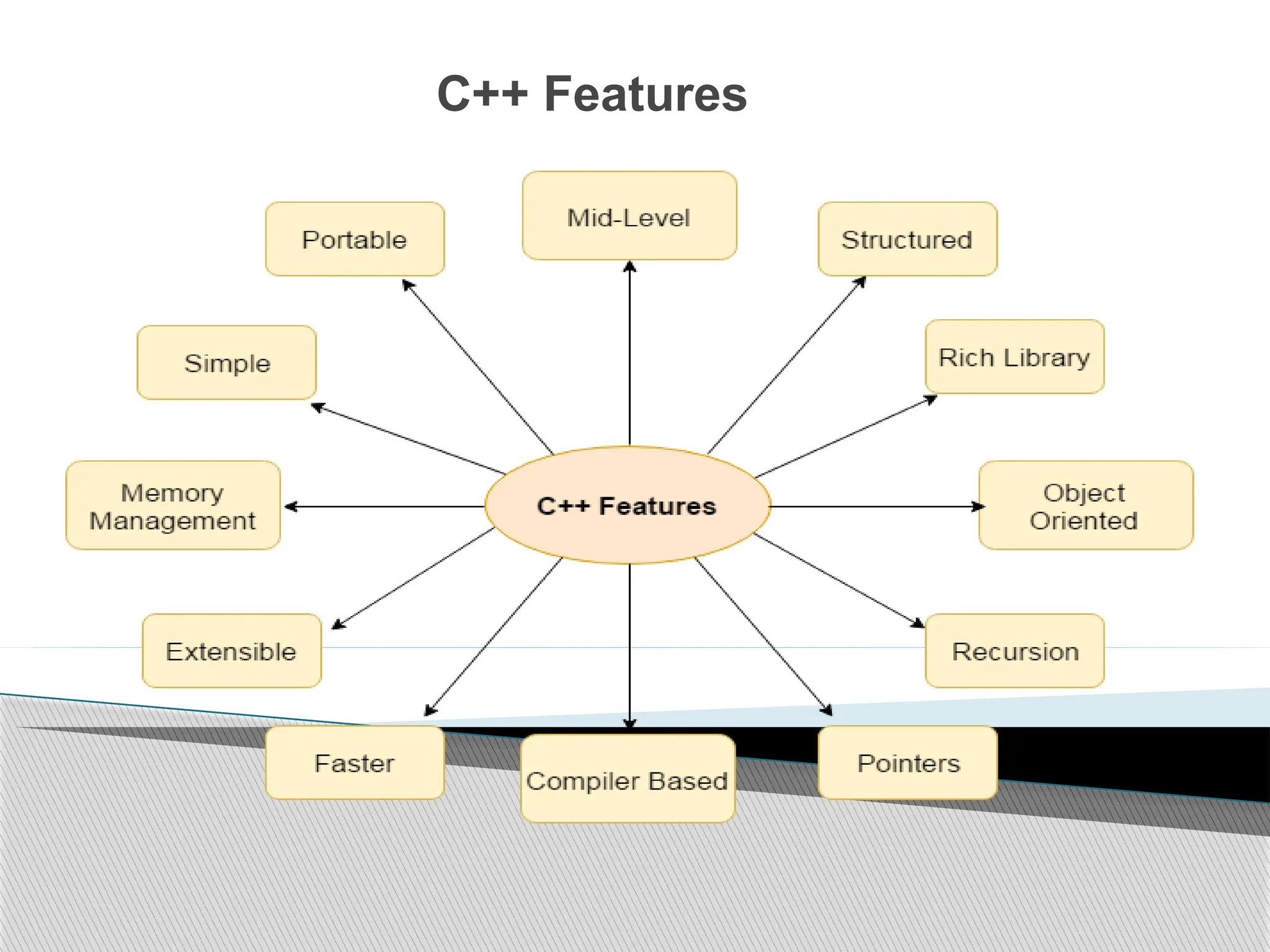

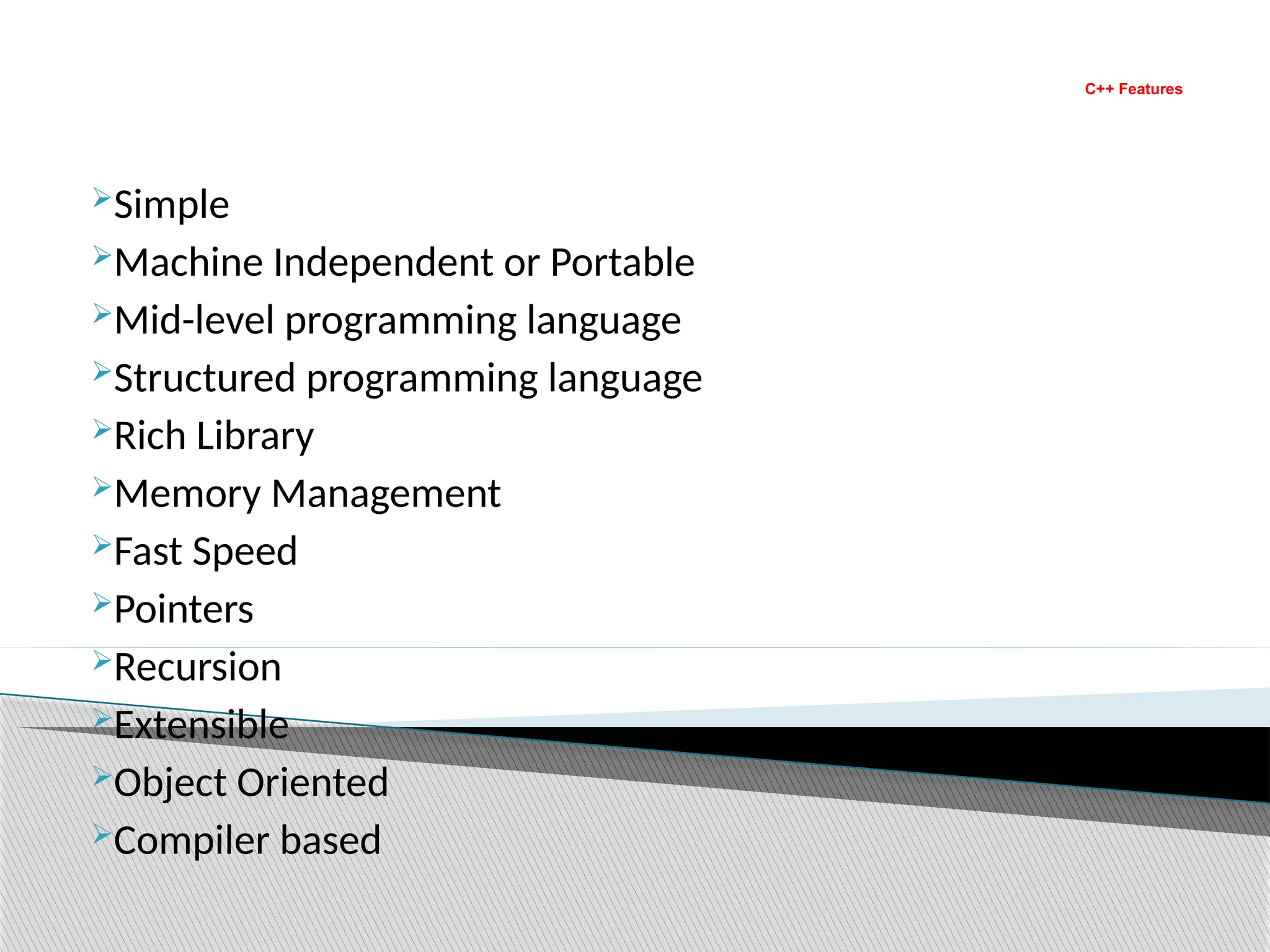

C++ Features
Simple
Machine Independent or Portable
Mid-level programming language
Structured programming language
Rich Library
Memory Management
Fast Speed
Pointers
Recursion
Extensible
Object Oriented
Compiler based

47

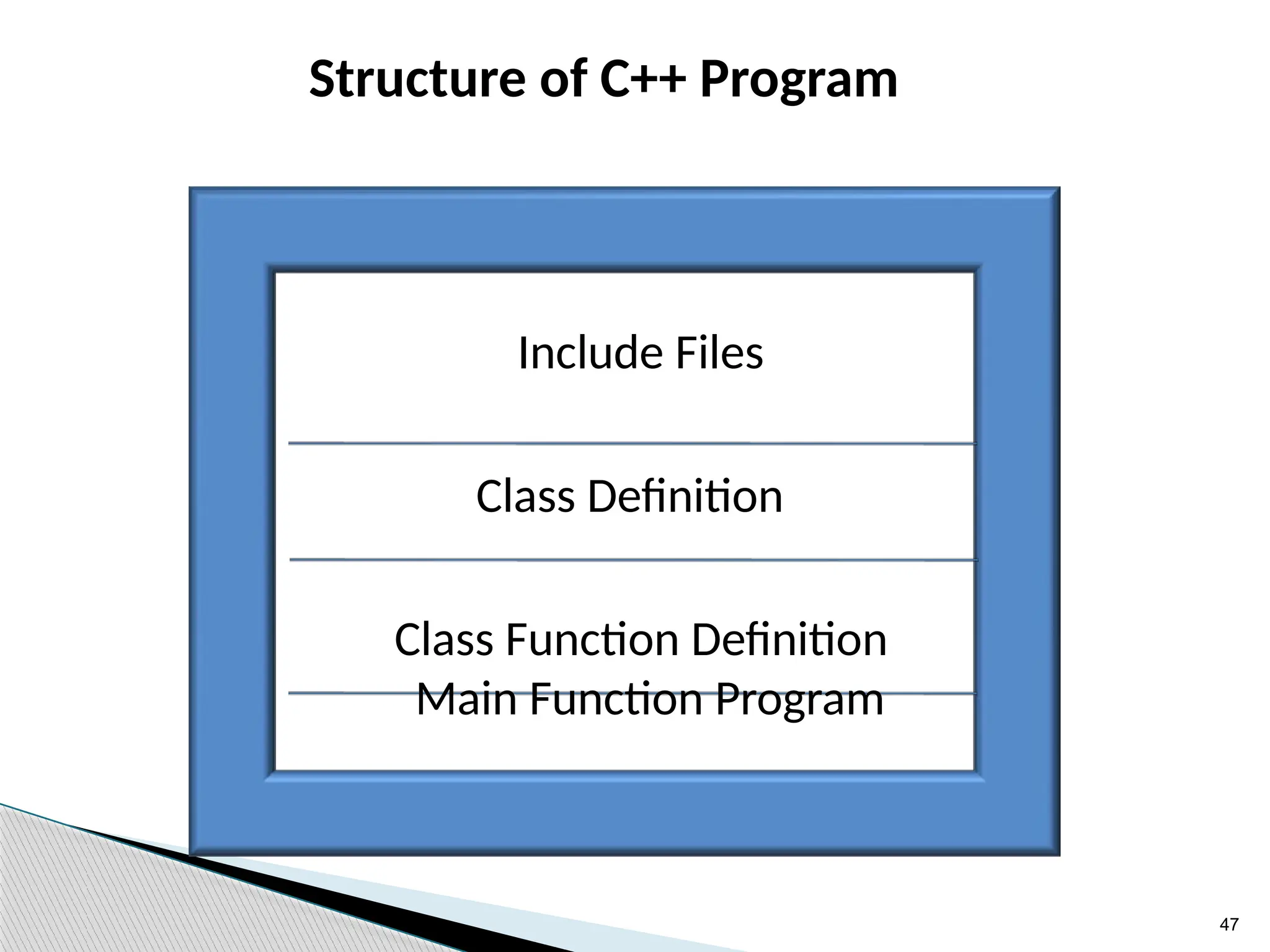

Structure of C++ Program
Include Files
Class Definition
Class Function Definition
Main Function Program

48

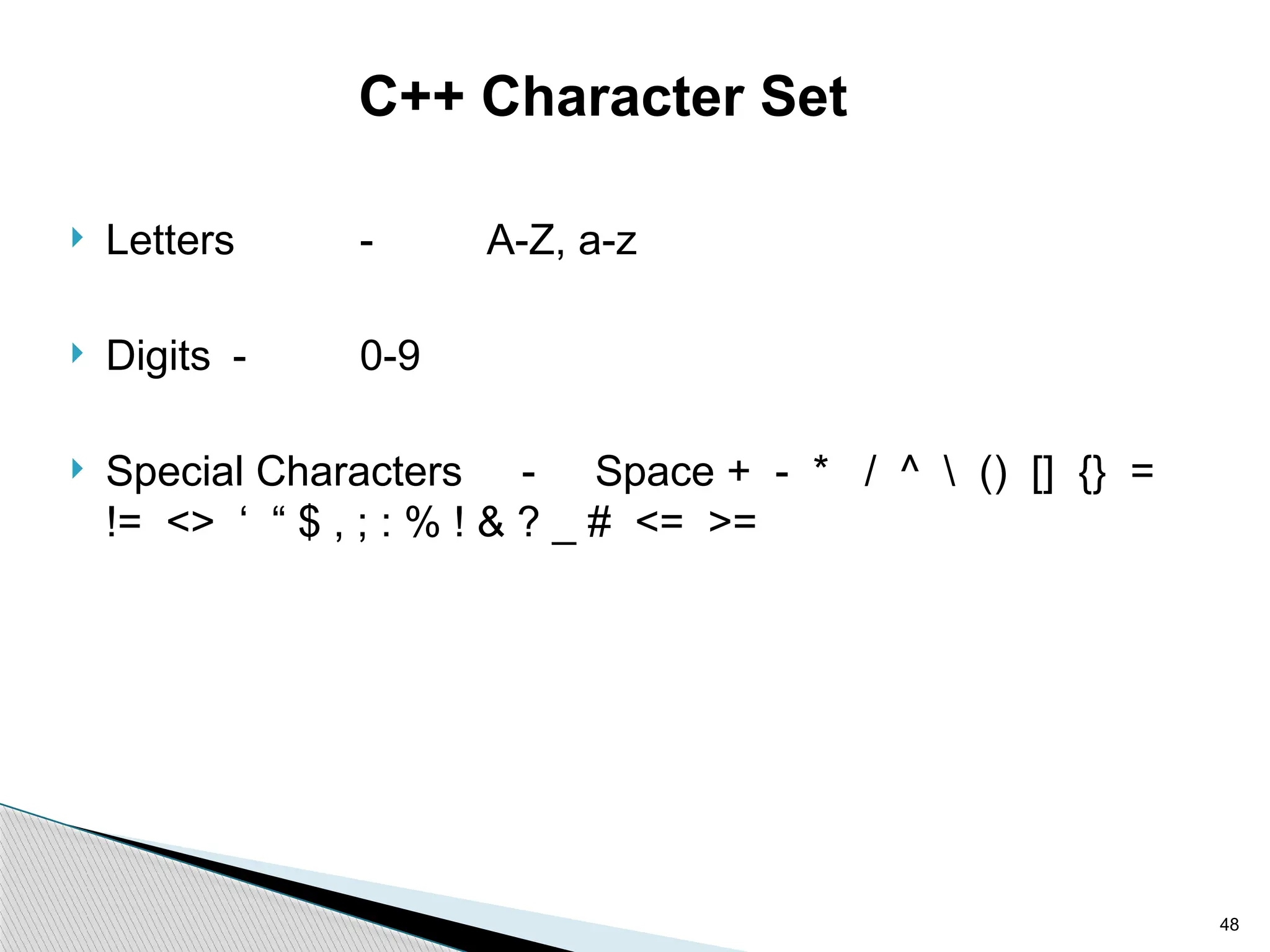

C++ Character Set
 Letters - A-Z, a-z
 Digits - 0-9
 Special Characters - Space + - * / ^ () [] {} =
!= <> ‘ “ $ , ; : % ! & ? _ # <= >=

49

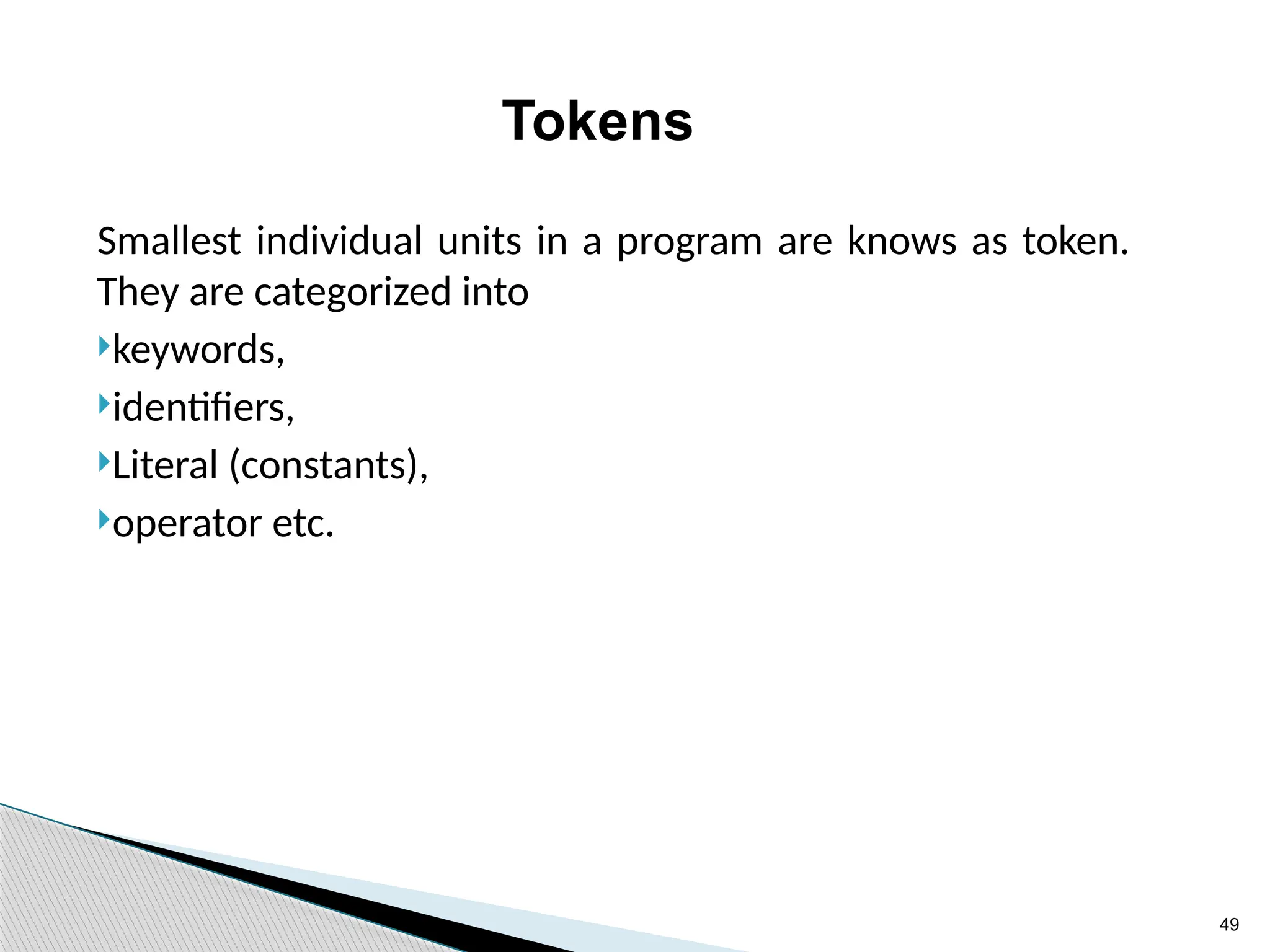

Tokens
Smallest individual units in a program are knows as token.
They are categorized into
keywords,
identifiers,
Literal (constants),
operator etc.

50

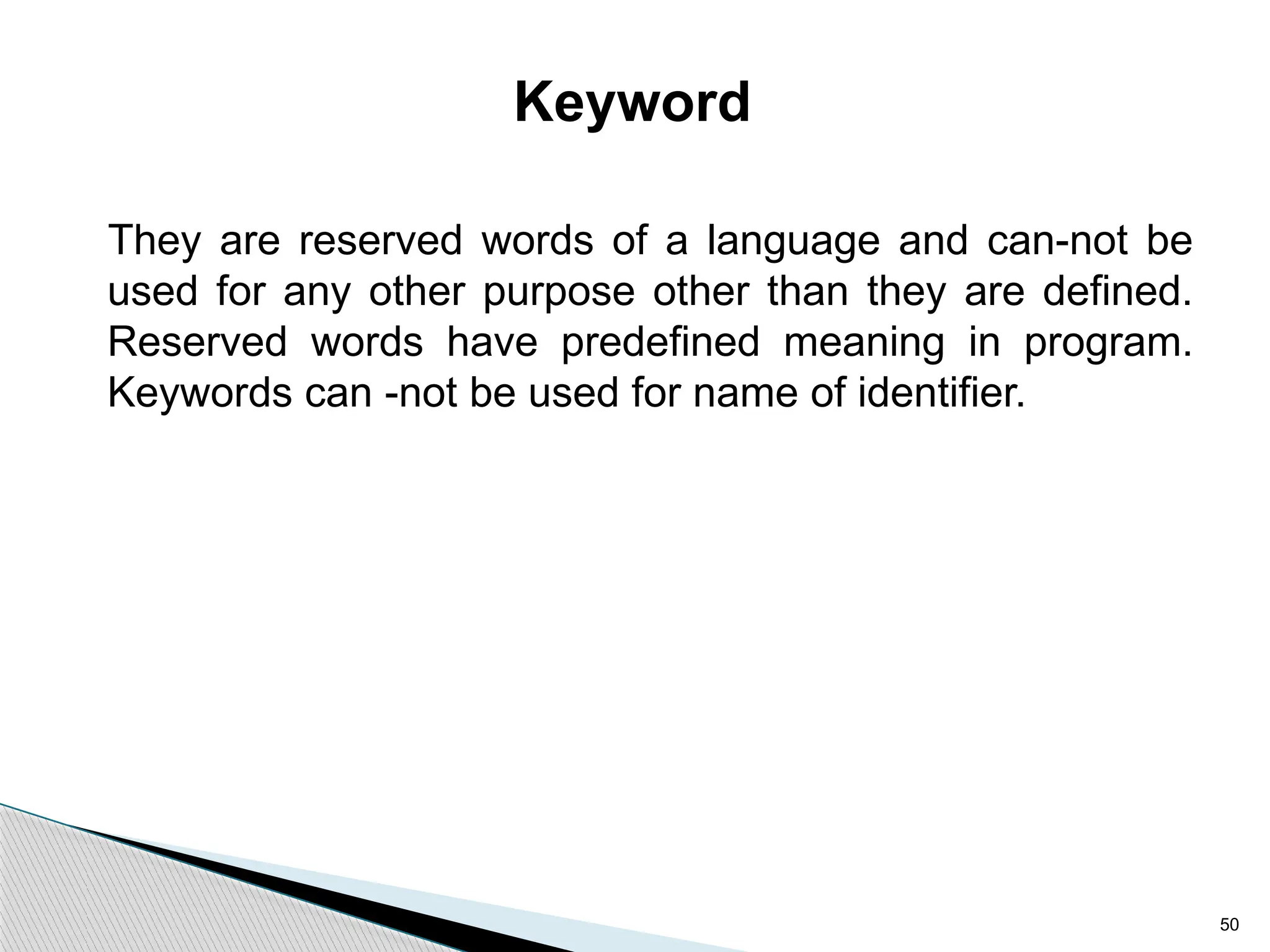

Keyword
They are reserved words of a language and can-not be
used for any other purpose other than they are defined.
Reserved words have predefined meaning in program.
Keywords can -not be used for name of identifier.

52

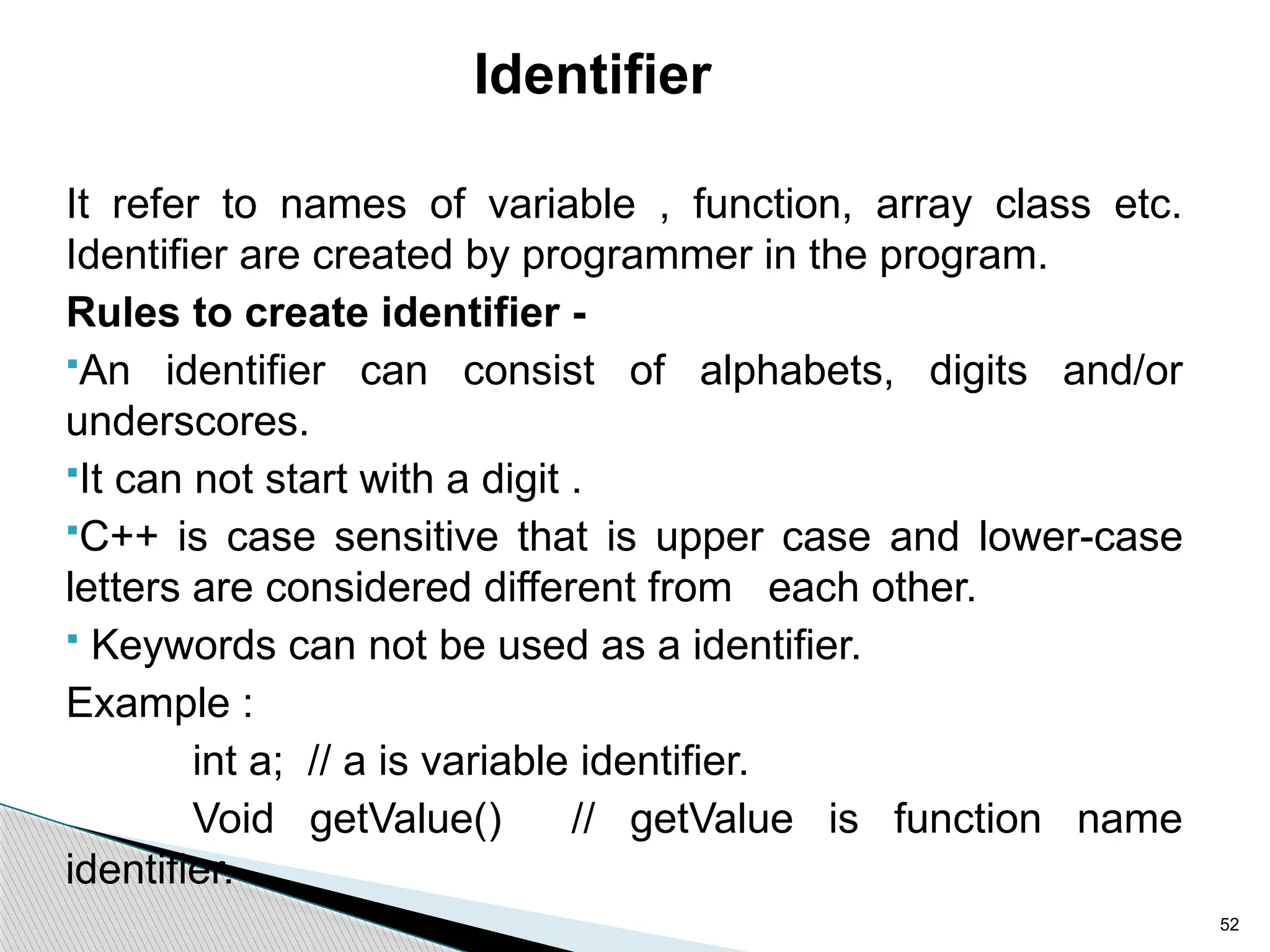

Identifier
It refer to names of variable , function, array class etc.
Identifier are created by programmer in the program.
Rules to create identifier -
An identifier can consist of alphabets, digits and/or
underscores.
It can not start with a digit .
C++ is case sensitive that is upper case and lower-case
letters are considered different from each other.
 Keywords can not be used as a identifier.
Example :
int a; // a is variable identifier.
Void getValue() // getValue is function name
identifier.

53

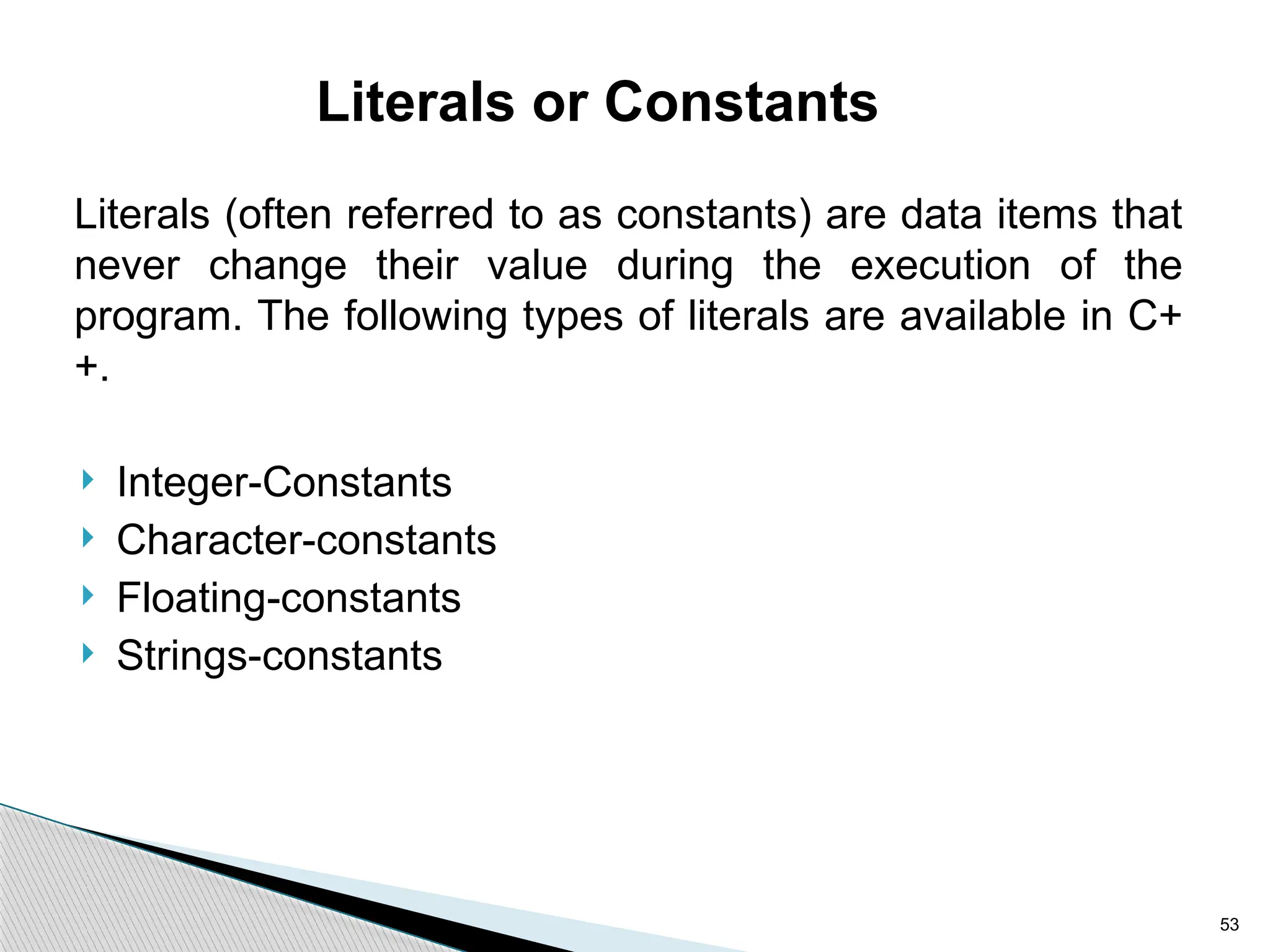

Literals or Constants
Literals (often referred to as constants) are data items that
never change their value during the execution of the
program. The following types of literals are available in C+
+.
 Integer-Constants
 Character-constants
 Floating-constants
 Strings-constants

54

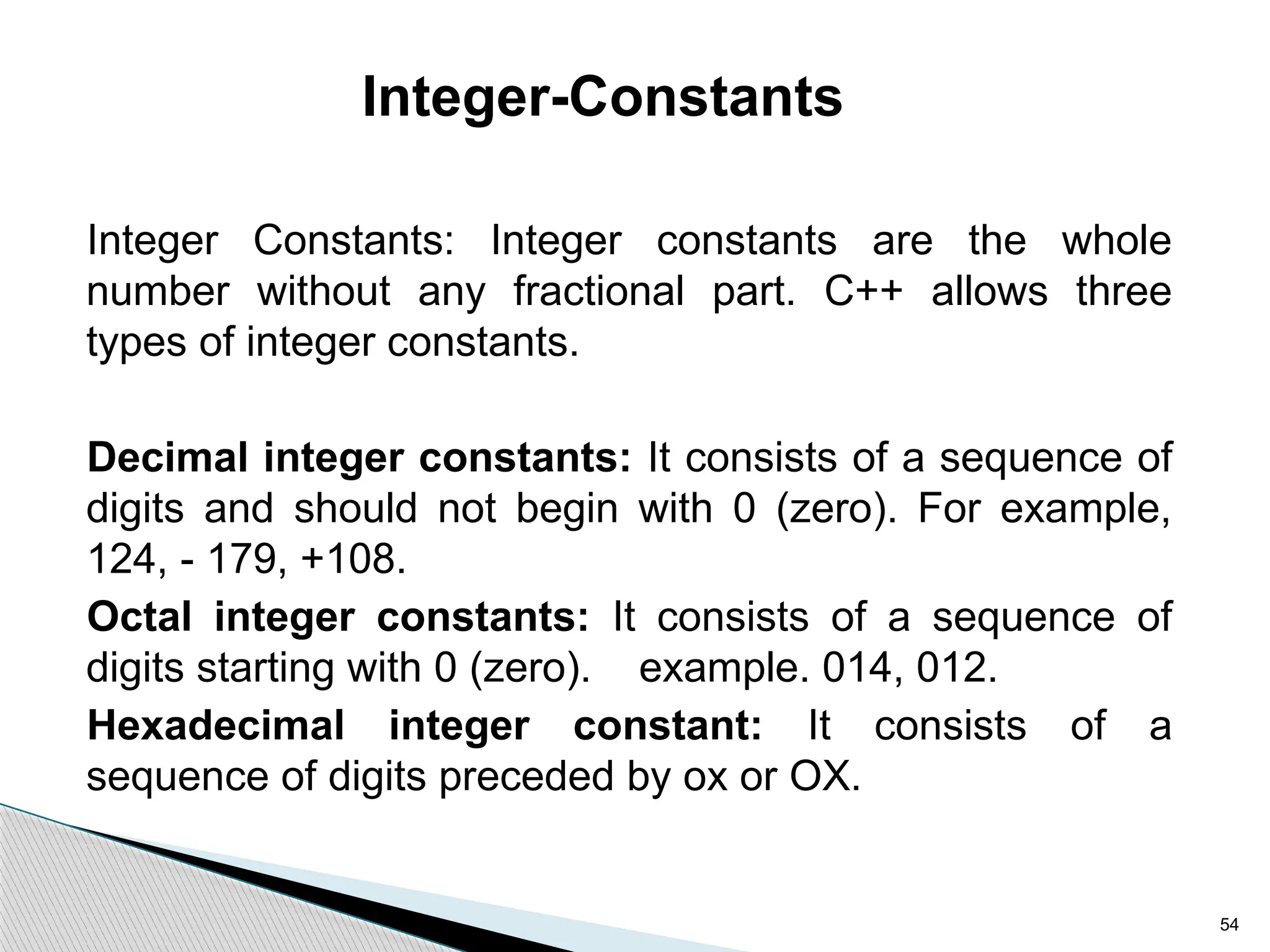

Integer-Constants
Integer Constants: Integer constants are the whole
number without any fractional part. C++ allows three
types of integer constants.
Decimal integer constants: It consists of a sequence of
digits and should not begin with 0 (zero). For example,
124, - 179, +108.
Octal integer constants: It consists of a sequence of
digits starting with 0 (zero). example. 014, 012.
Hexadecimal integer constant: It consists of a
sequence of digits preceded by ox or OX.

55

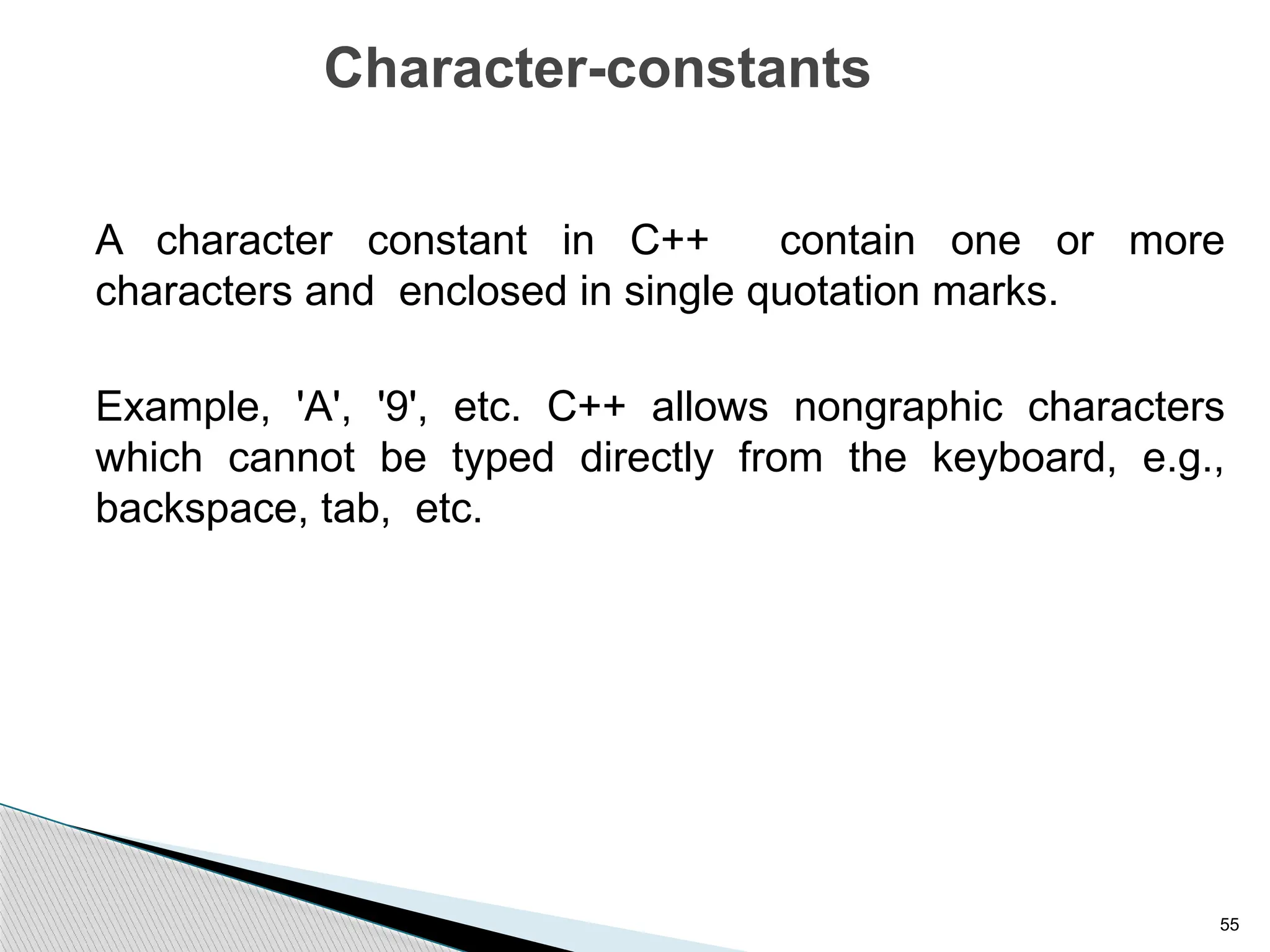

Character-constants
A character constant in C++ contain one or more
characters and enclosed in single quotation marks.
Example, 'A', '9', etc. C++ allows nongraphic characters
which cannot be typed directly from the keyboard, e.g.,
backspace, tab, etc.

56

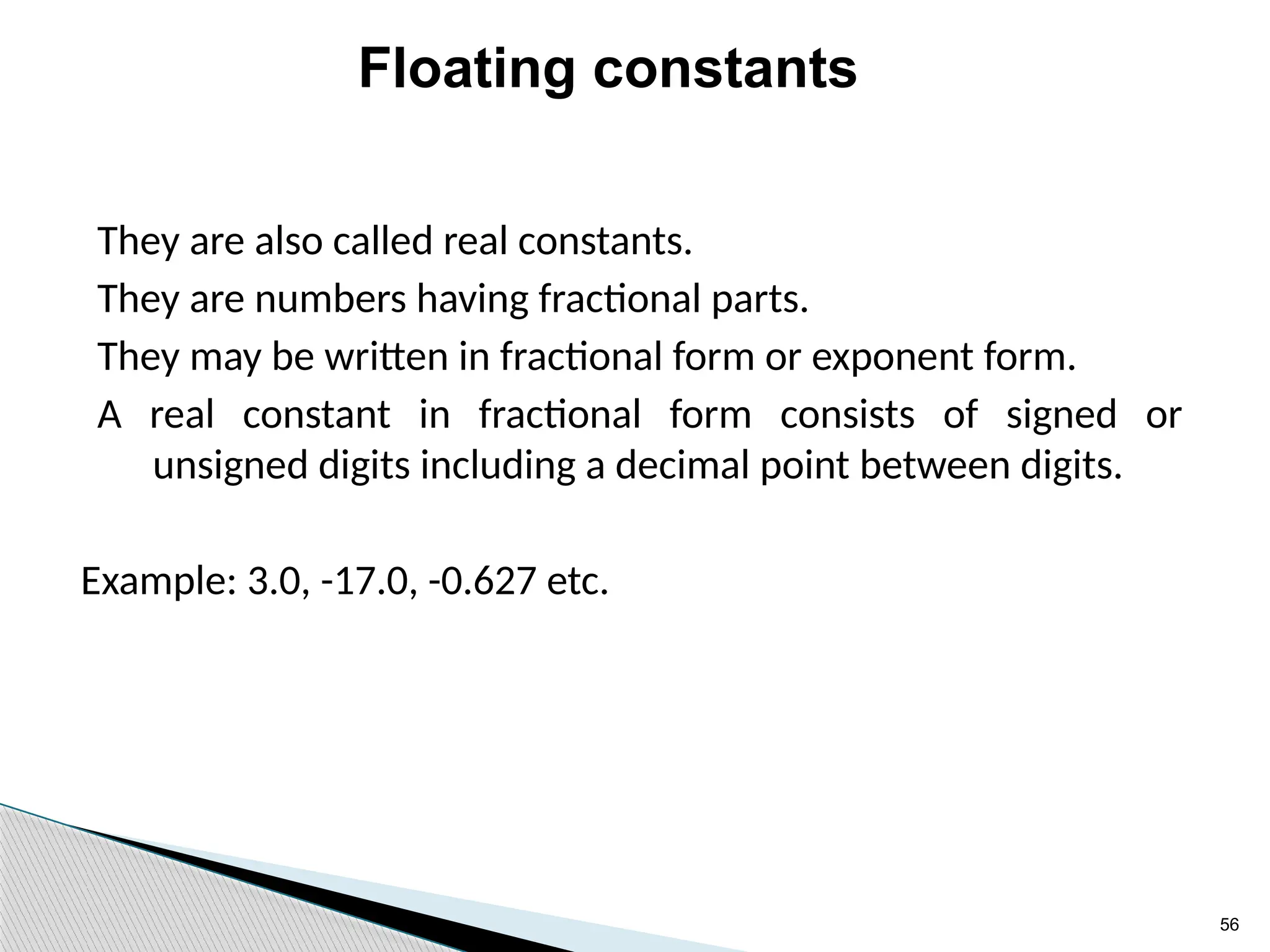

Floating constants
They are also called real constants.
They are numbers having fractional parts.
They may be written in fractional form or exponent form.
A real constant in fractional form consists of signed or
unsigned digits including a decimal point between digits.
Example: 3.0, -17.0, -0.627 etc.

57

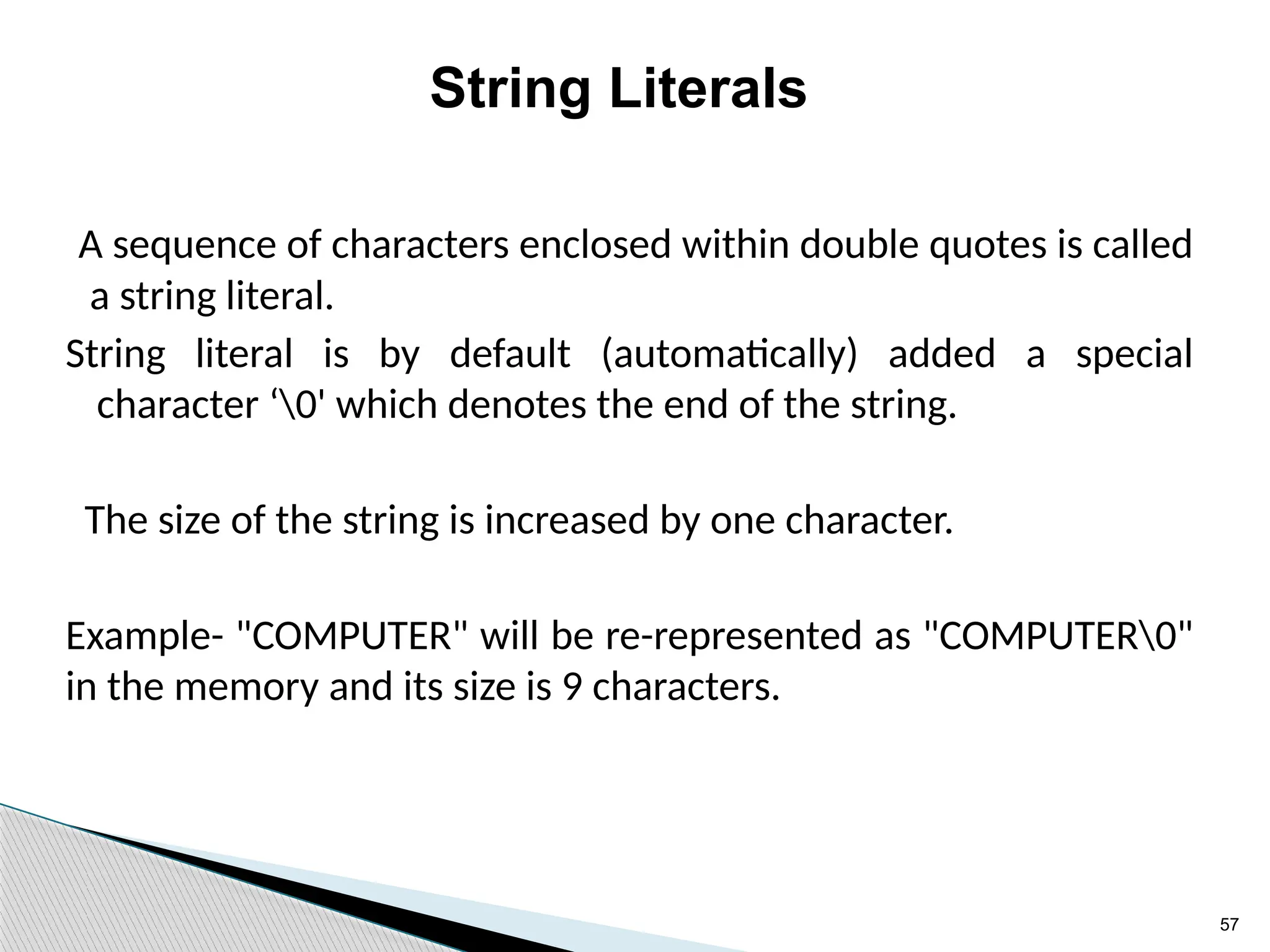

String Literals
A sequence of characters enclosed within double quotes is called
a string literal.
String literal is by default (automatically) added a special
character ‘0' which denotes the end of the string.
The size of the string is increased by one character.
Example- "COMPUTER" will be re-represented as "COMPUTER0"
in the memory and its size is 9 characters.

58

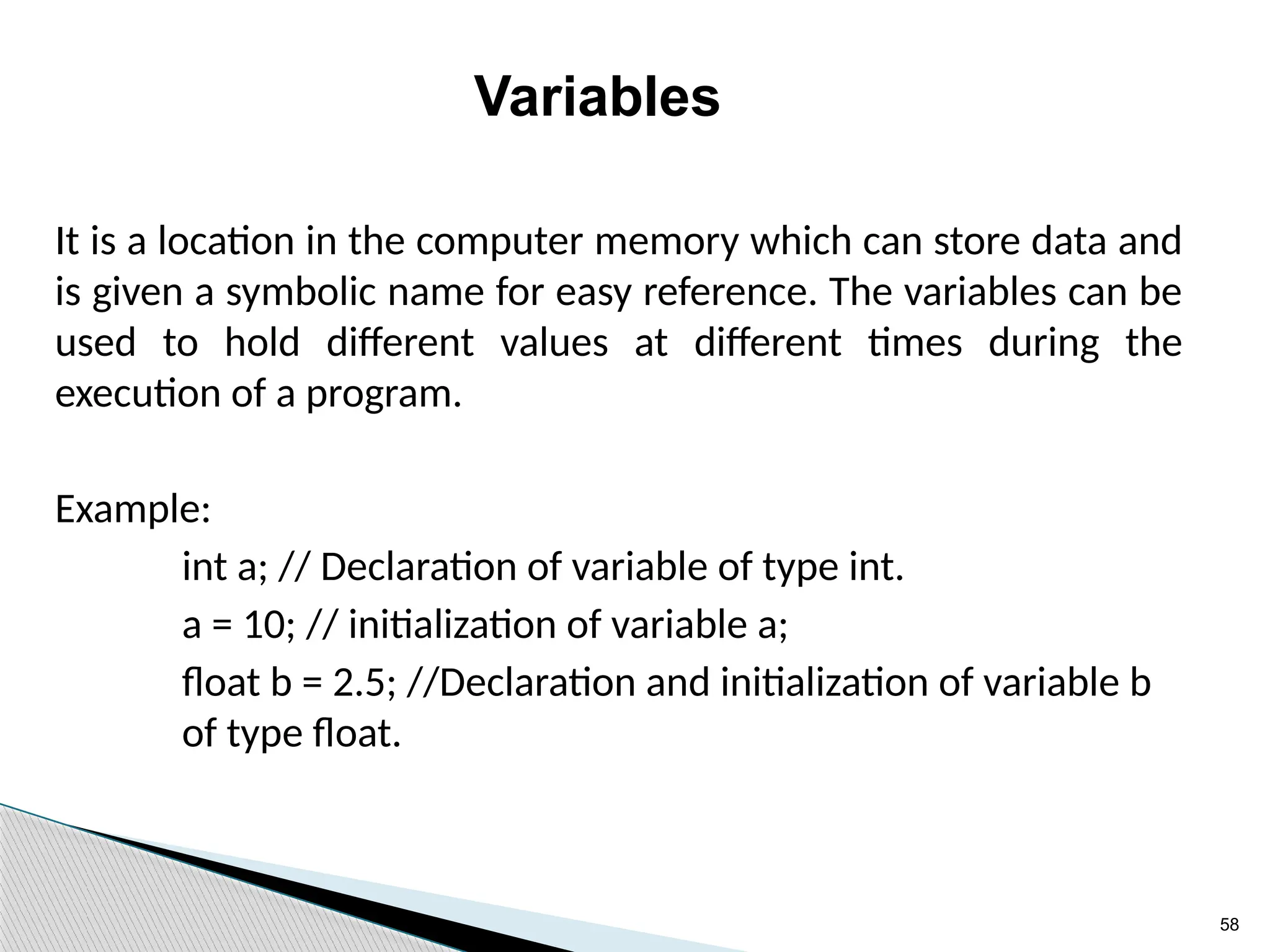

Variables
It is a location in the computer memory which can store data and
is given a symbolic name for easy reference. The variables can be
used to hold different values at different times during the
execution of a program.
Example:
int a; // Declaration of variable of type int.
a = 10; // initialization of variable a;
float b = 2.5; //Declaration and initialization of variable b
of type float.

59

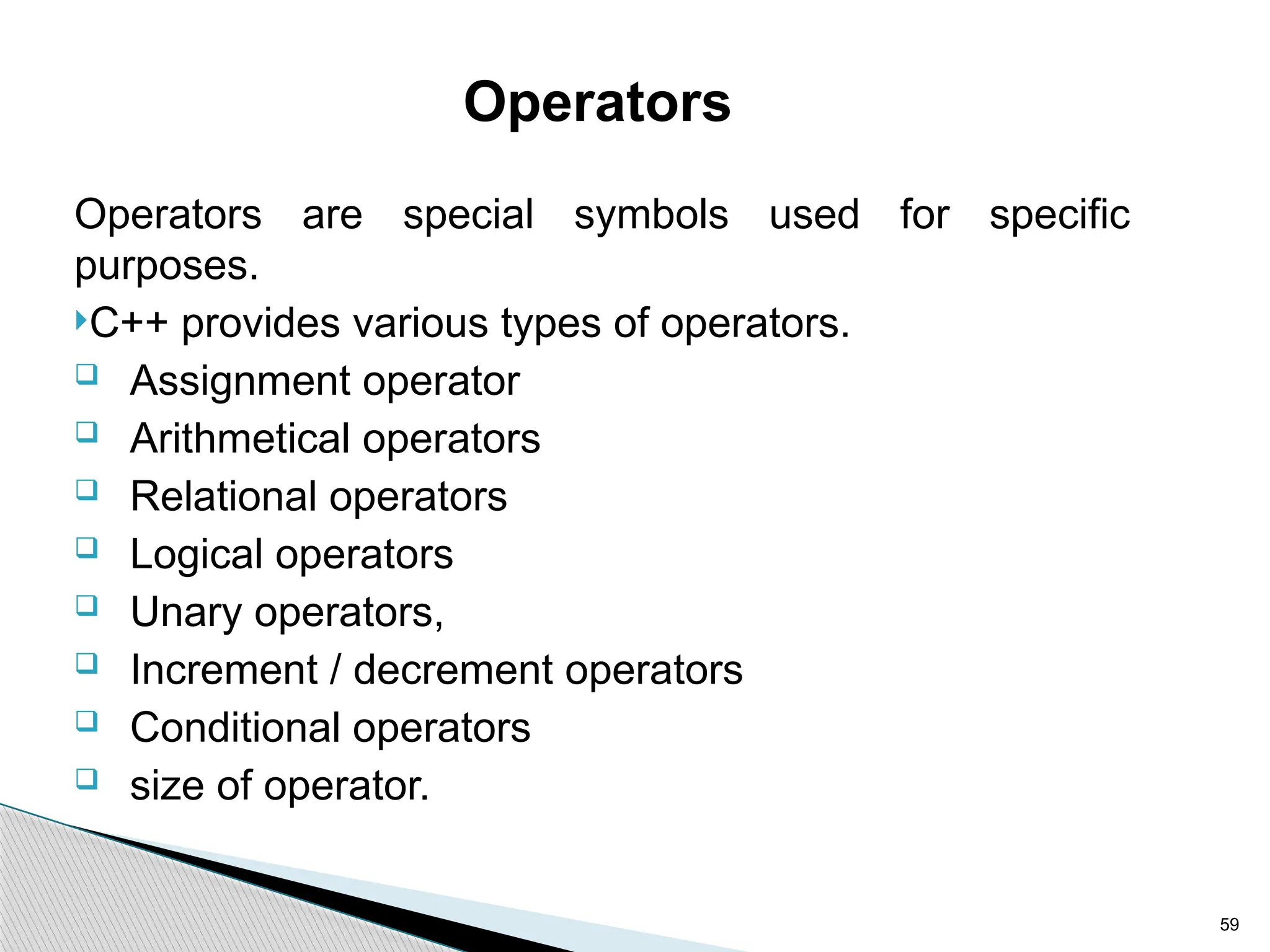

Operators
Operators are special symbols used for specific
purposes.
C++ provides various types of operators.
 Assignment operator
 Arithmetical operators
 Relational operators
 Logical operators
 Unary operators,
 Increment / decrement operators
 Conditional operators
 size of operator.

60

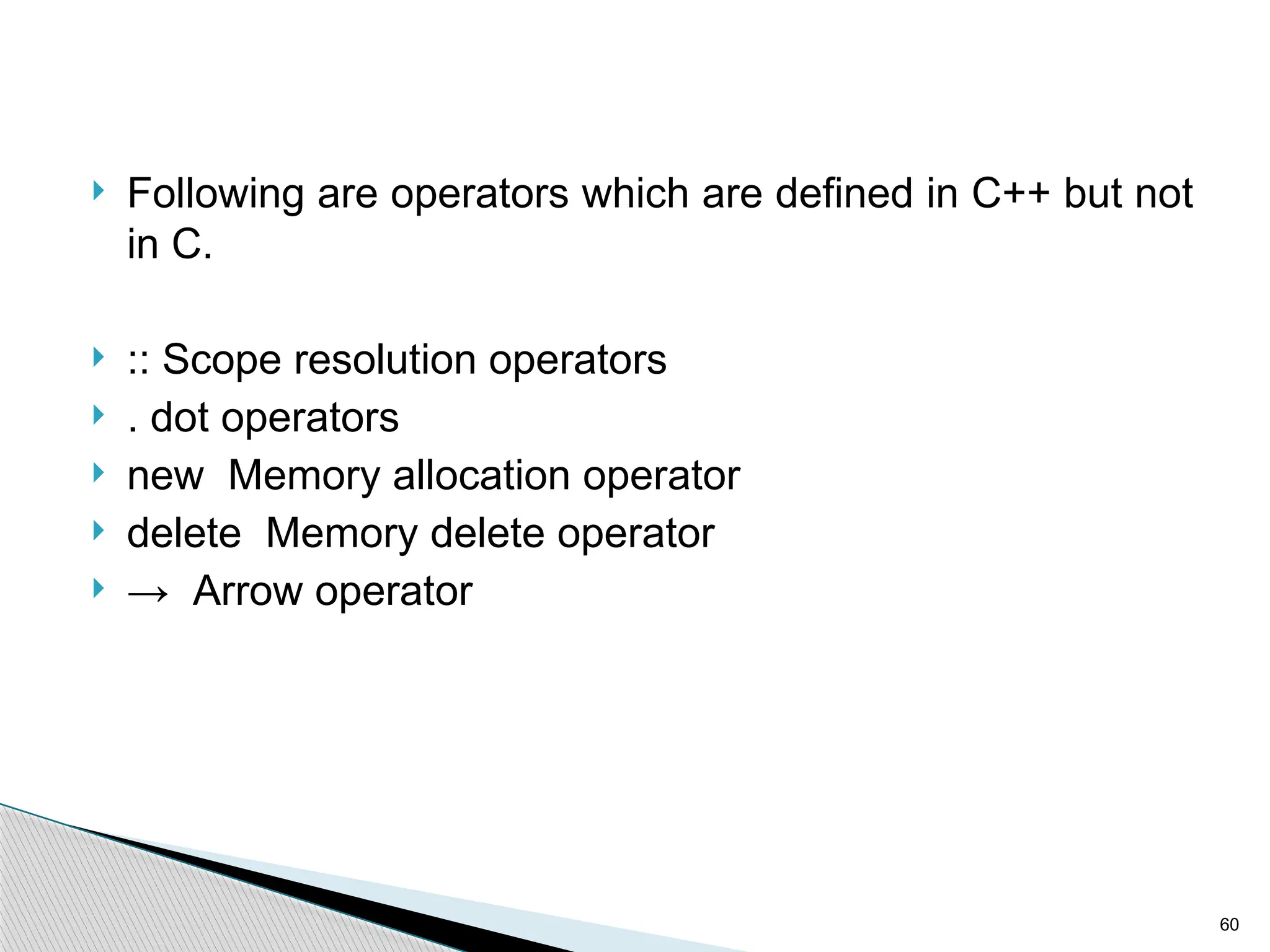

 Following are operators which are defined in C++ but not
in C.
 :: Scope resolution operators
 . dot operators
 new Memory allocation operator
 delete Memory delete operator
 → Arrow operator

61

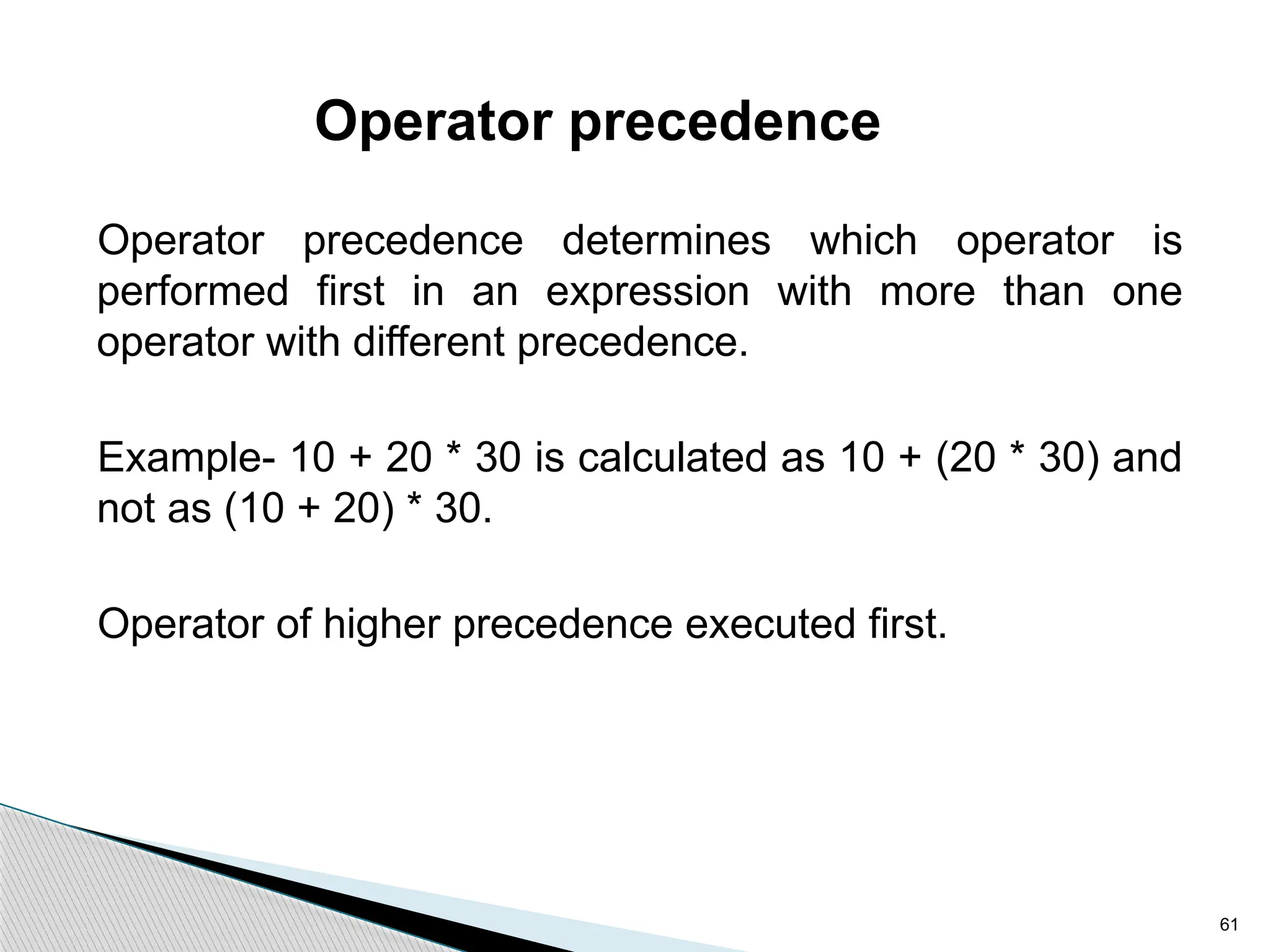

Operator precedence
Operator precedence determines which operator is
performed first in an expression with more than one
operator with different precedence.
Example- 10 + 20 * 30 is calculated as 10 + (20 * 30) and
not as (10 + 20) * 30.
Operator of higher precedence executed first.

62

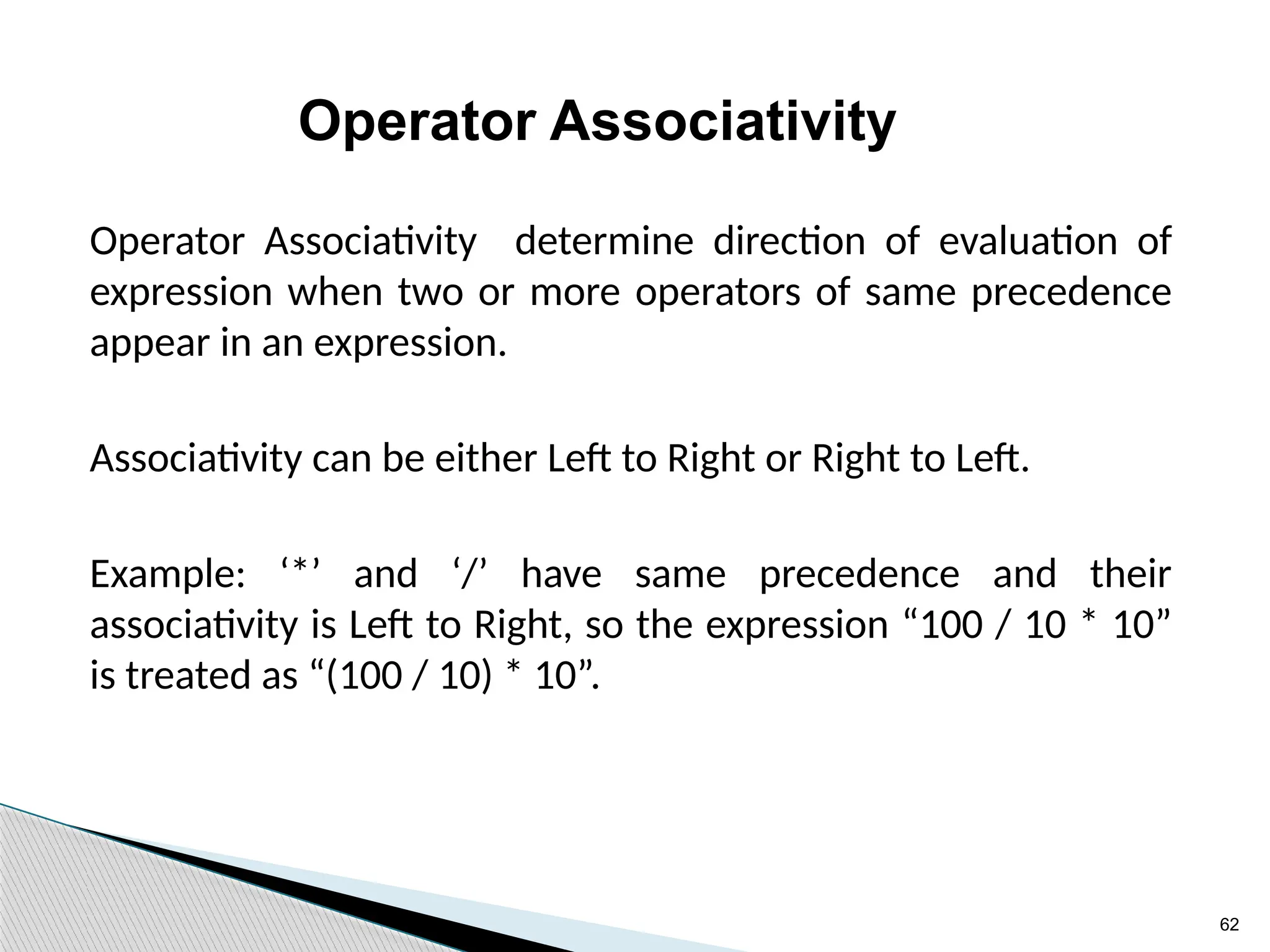

Operator Associativity
Operator Associativity determine direction of evaluation of
expression when two or more operators of same precedence
appear in an expression.
Associativity can be either Left to Right or Right to Left.
Example: ‘*’ and ‘/’ have same precedence and their
associativity is Left to Right, so the expression “100 / 10 * 10”
is treated as “(100 / 10) * 10”.

64

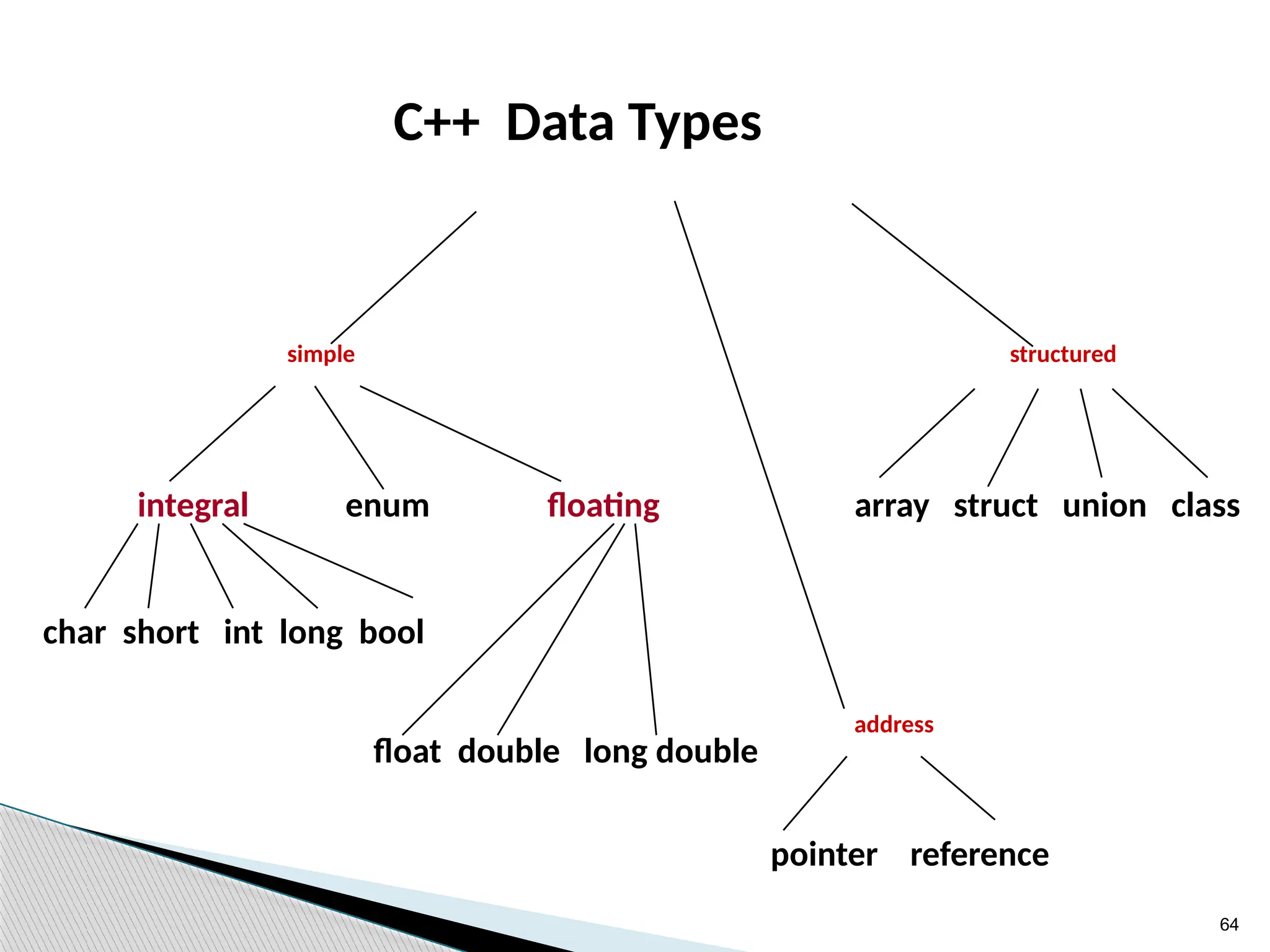

C++ Data Types
structured
address
pointer reference
simple
integral enum floating
float double long double
char short int long bool
array struct union class

65

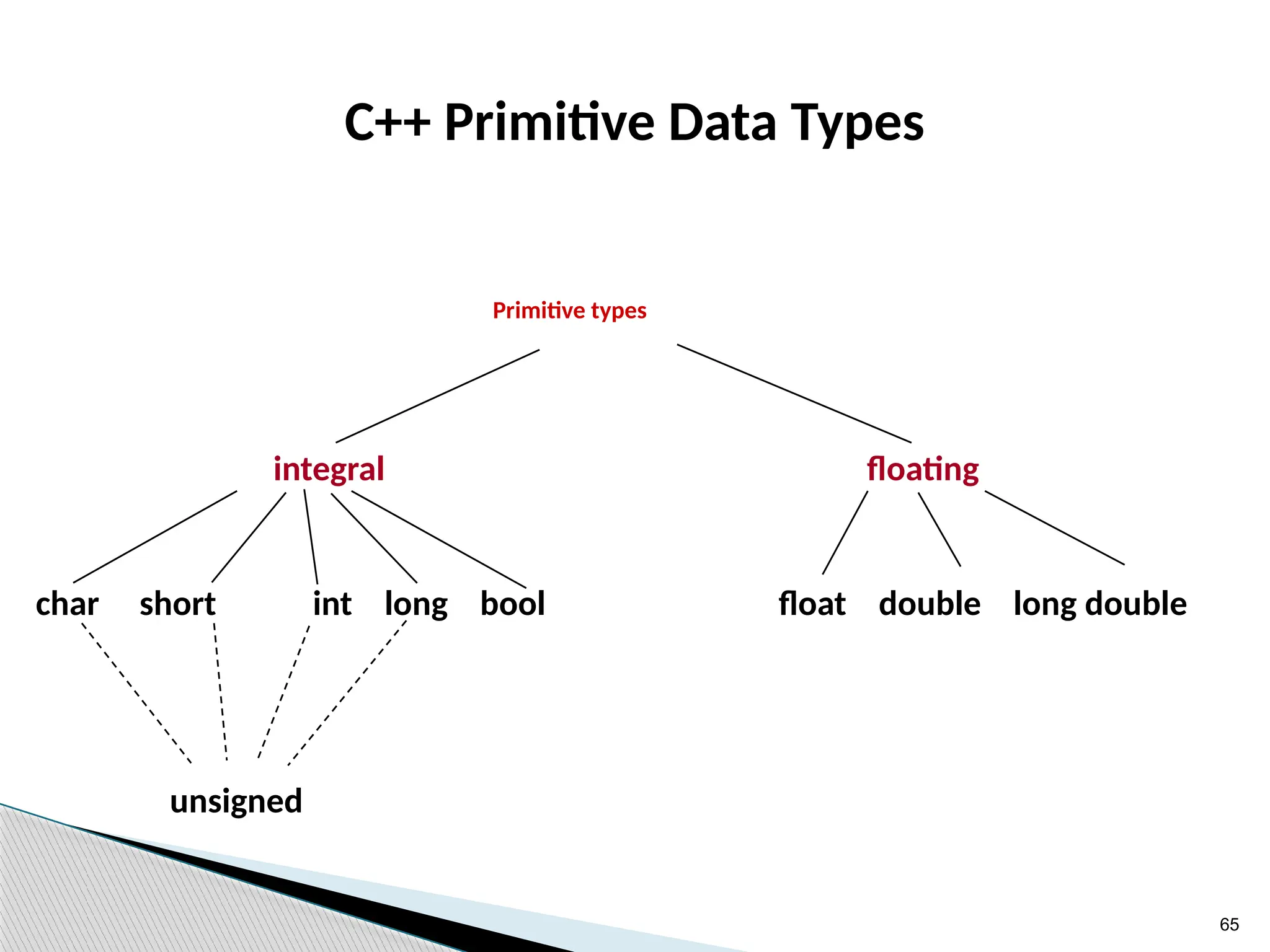

C++ Primitive Data Types
Primitive types
integral floating
char short int long bool float double long double
unsigned

66

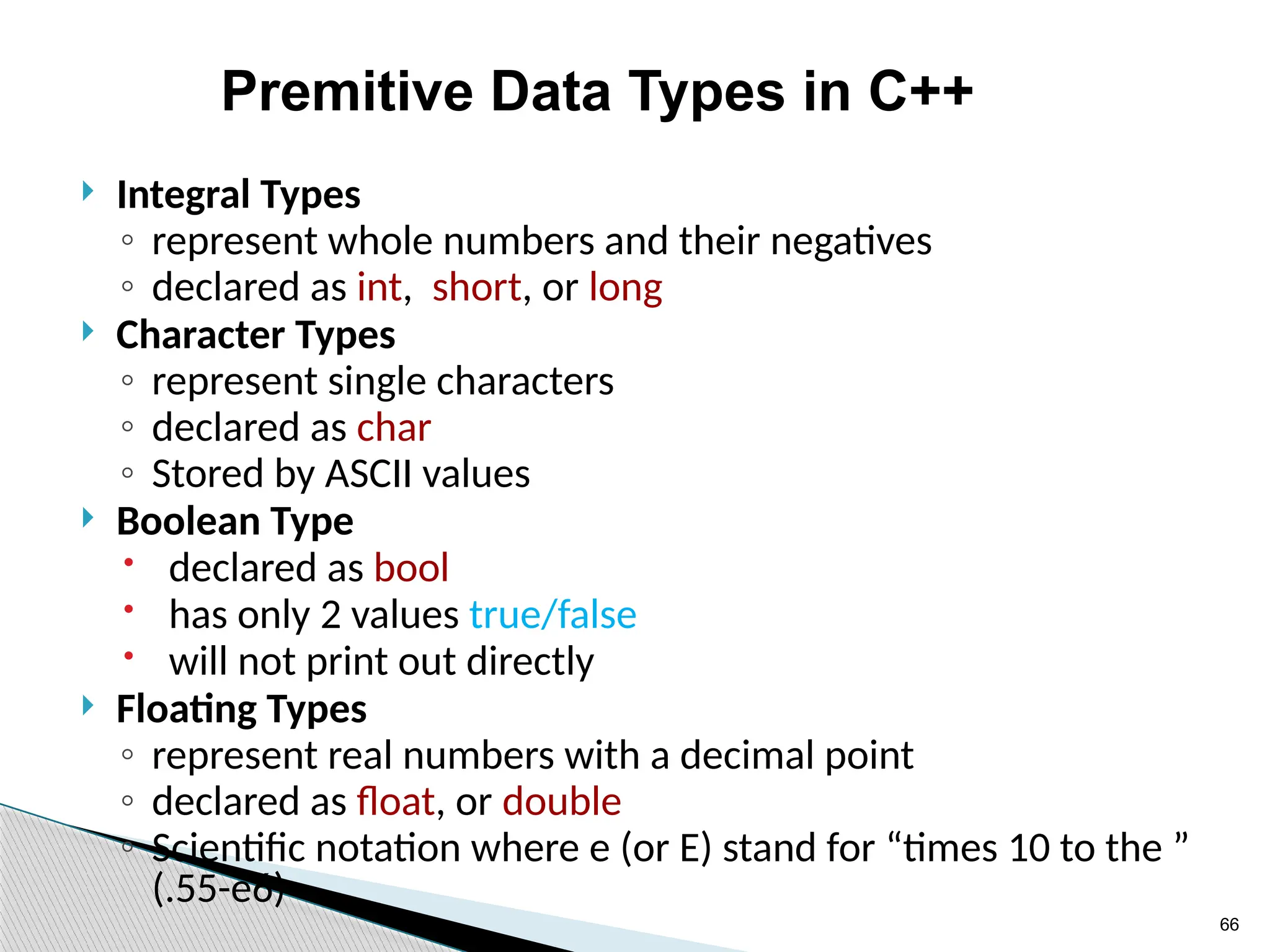

Premitive Data Types in C++
 Integral Types
◦ represent whole numbers and their negatives
◦ declared as int, short, or long
 Character Types
◦ represent single characters
◦ declared as char
◦ Stored by ASCII values
 Boolean Type
 declared as bool
 has only 2 values true/false
 will not print out directly
 Floating Types
◦ represent real numbers with a decimal point
◦ declared as float, or double
◦ Scientific notation where e (or E) stand for “times 10 to the ”
(.55-e6)

68

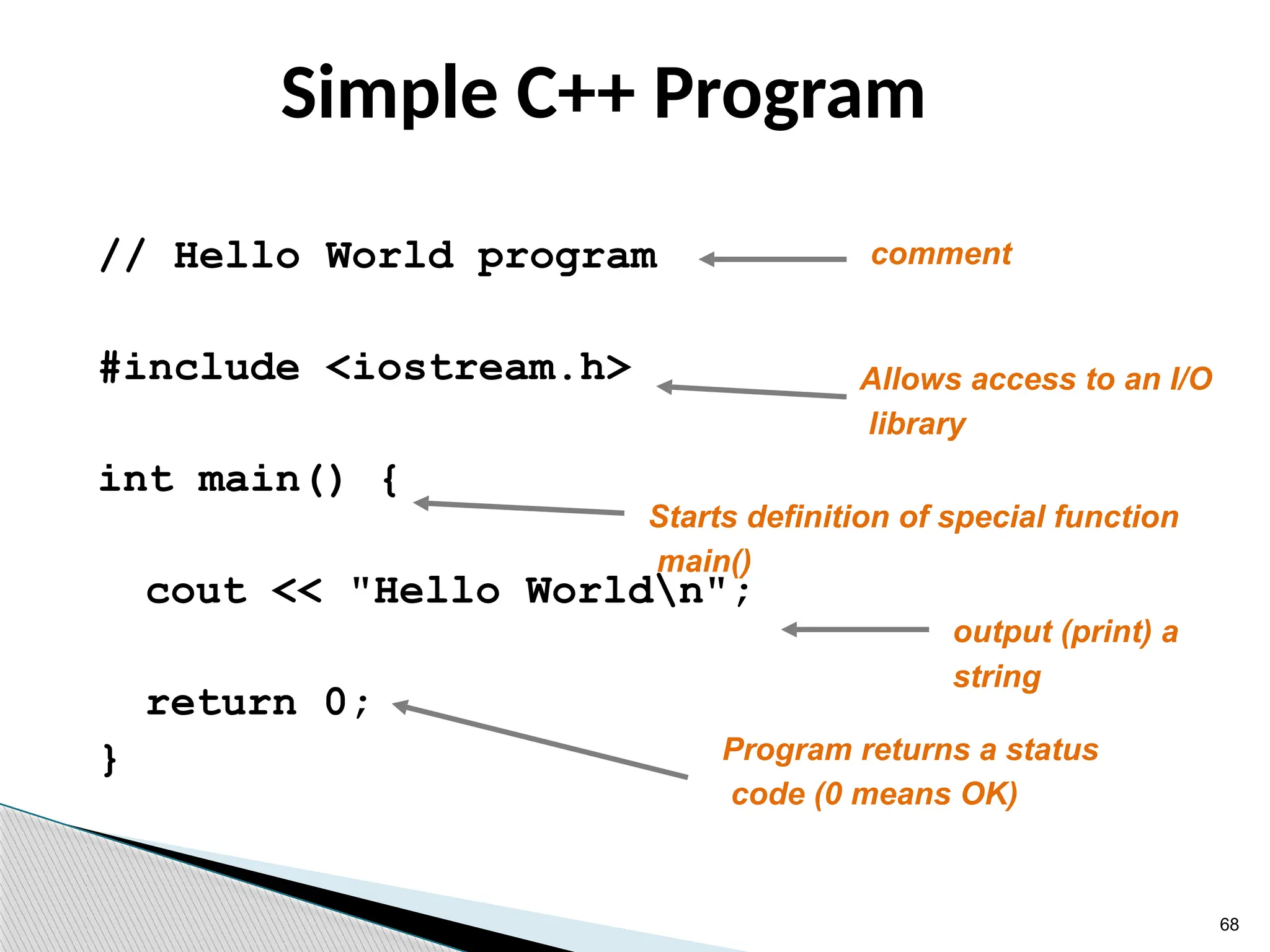

Simple C++ Program
// Hello World program
#include <iostream.h>
int main() {
cout << "Hello Worldn";
return 0;
}
comment
Allows access to an I/O
library
output (print) a
string
Program returns a status
code (0 means OK)
Starts definition of special function
main()

69

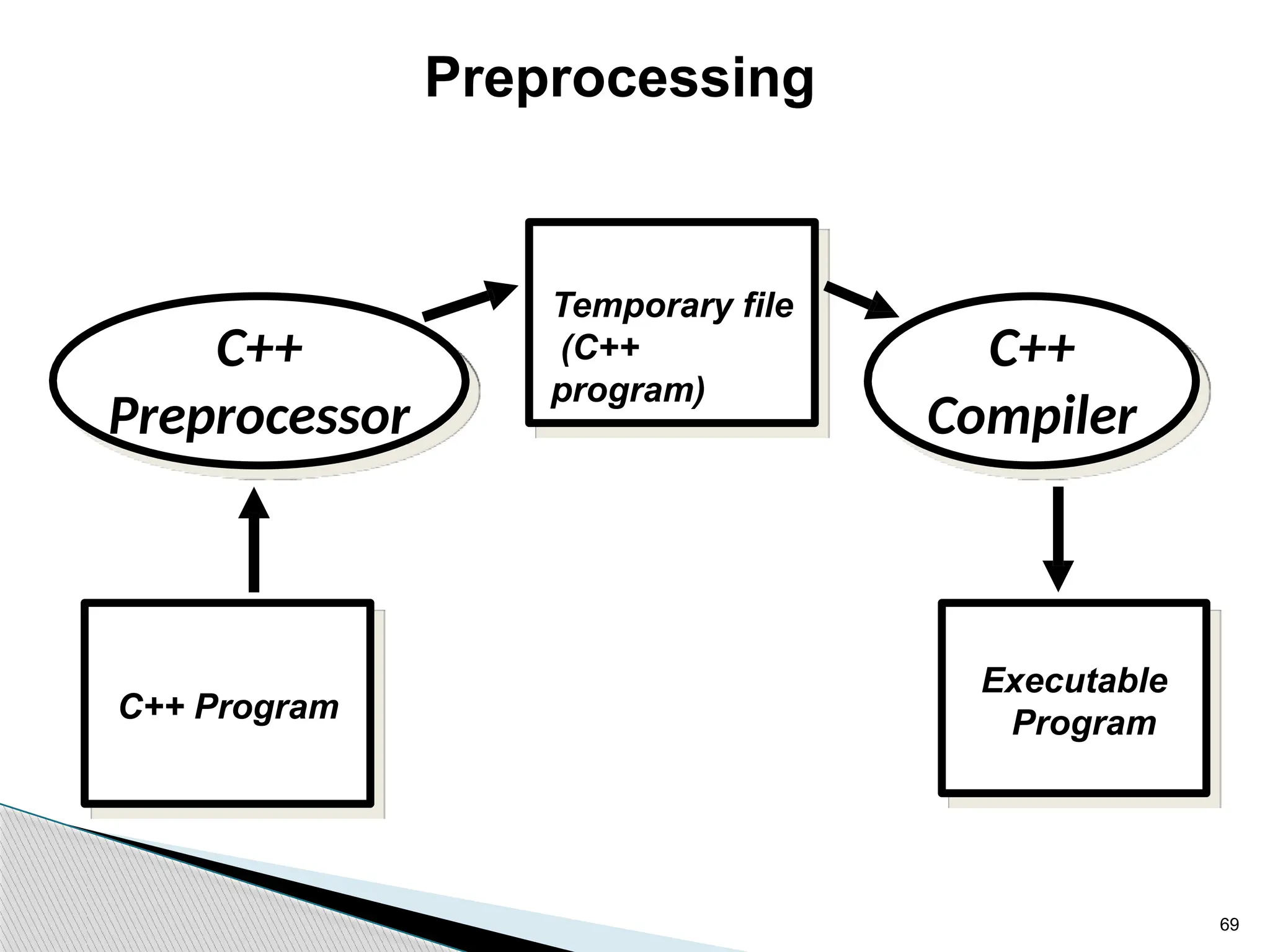

Preprocessing
C++ Program
Executable
Program
C++
Compiler
C++
Preprocessor
Temporary file
(C++
program)

74

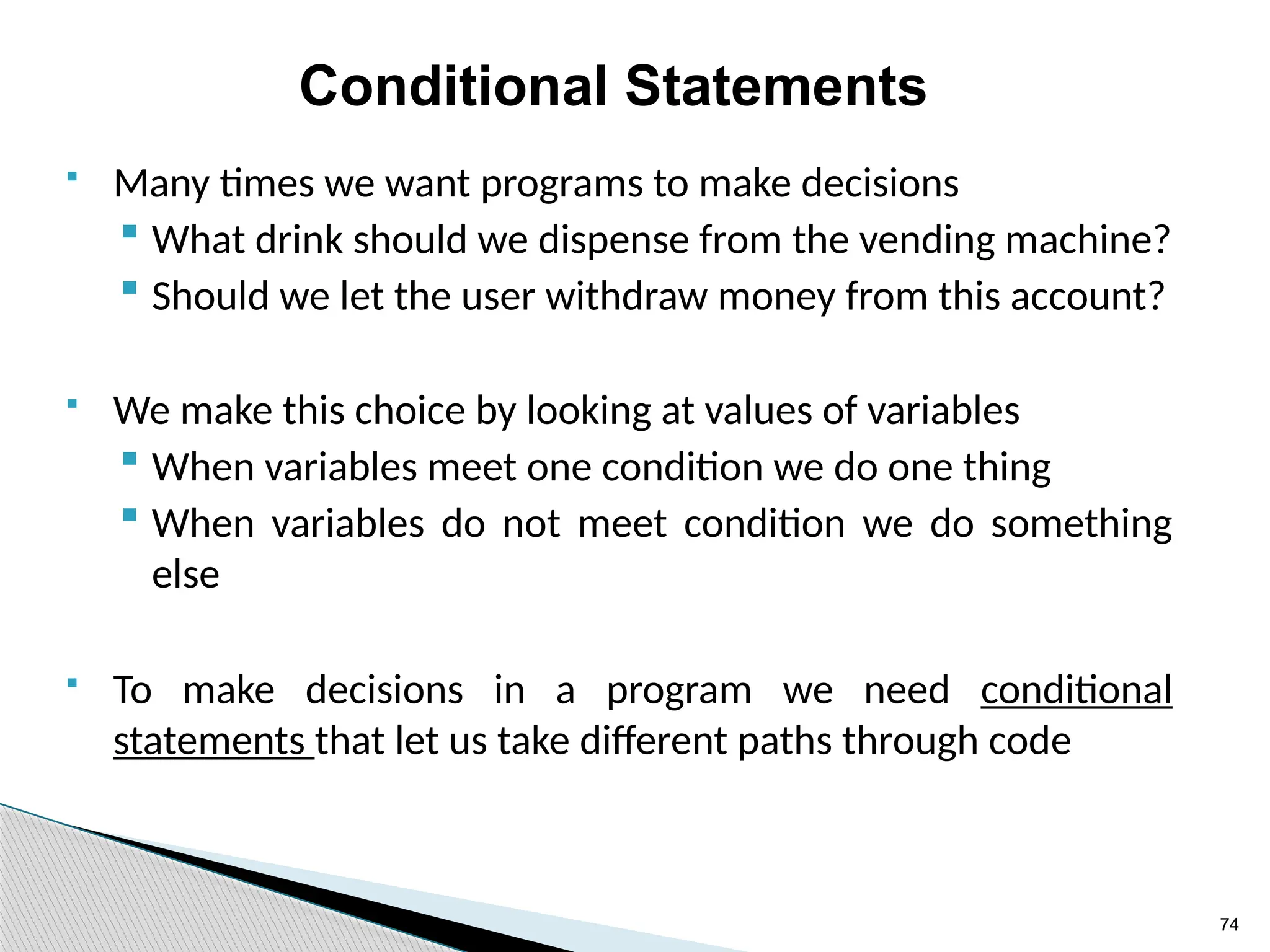

Conditional Statements
 Many times we want programs to make decisions
 What drink should we dispense from the vending machine?
 Should we let the user withdraw money from this account?
 We make this choice by looking at values of variables
 When variables meet one condition we do one thing
 When variables do not meet condition we do something
else
 To make decisions in a program we need conditional
statements that let us take different paths through code

75

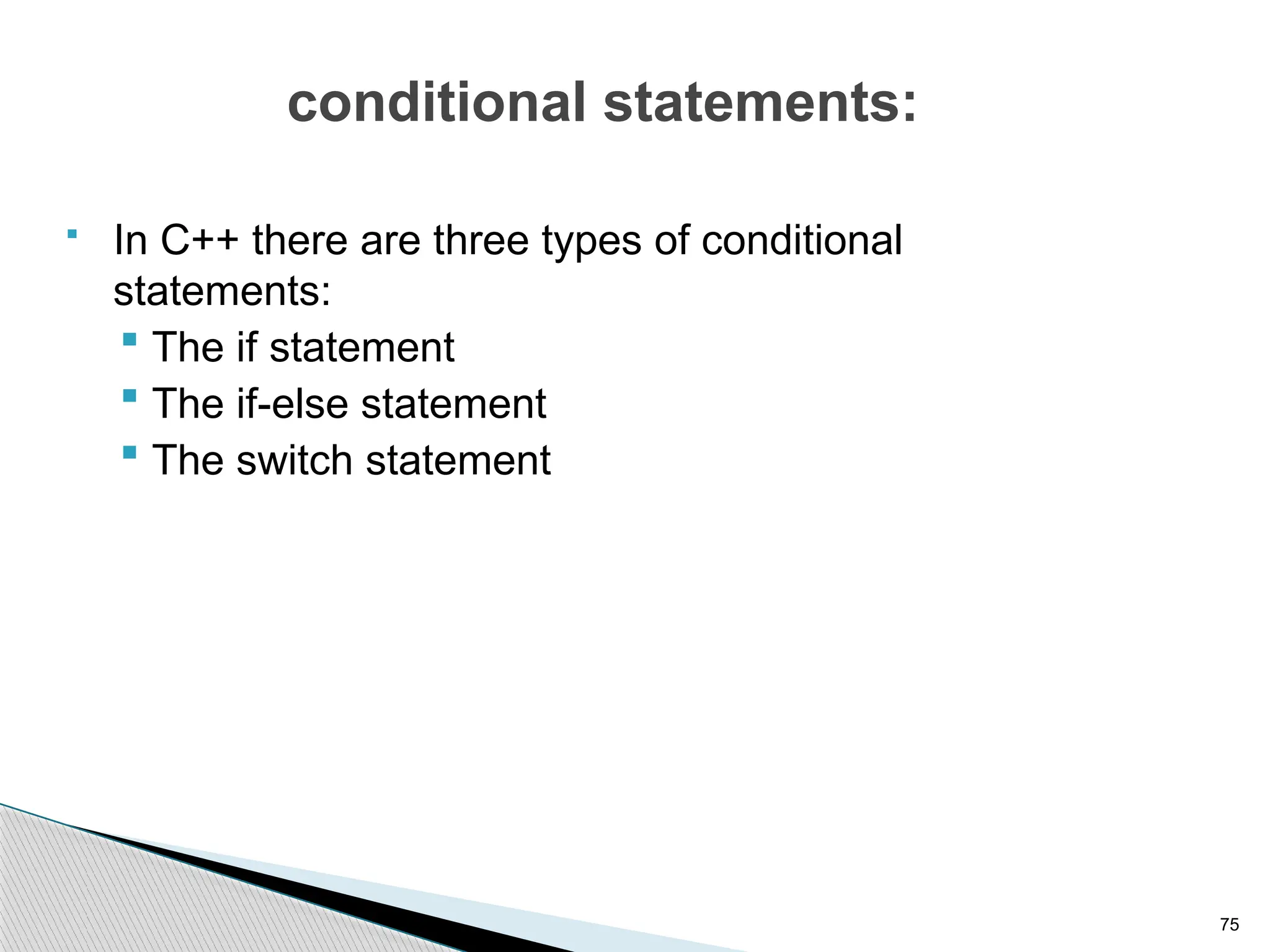

conditional statements:
 In C++ there are three types of conditional
statements:
 The if statement
 The if-else statement
 The switch statement

76

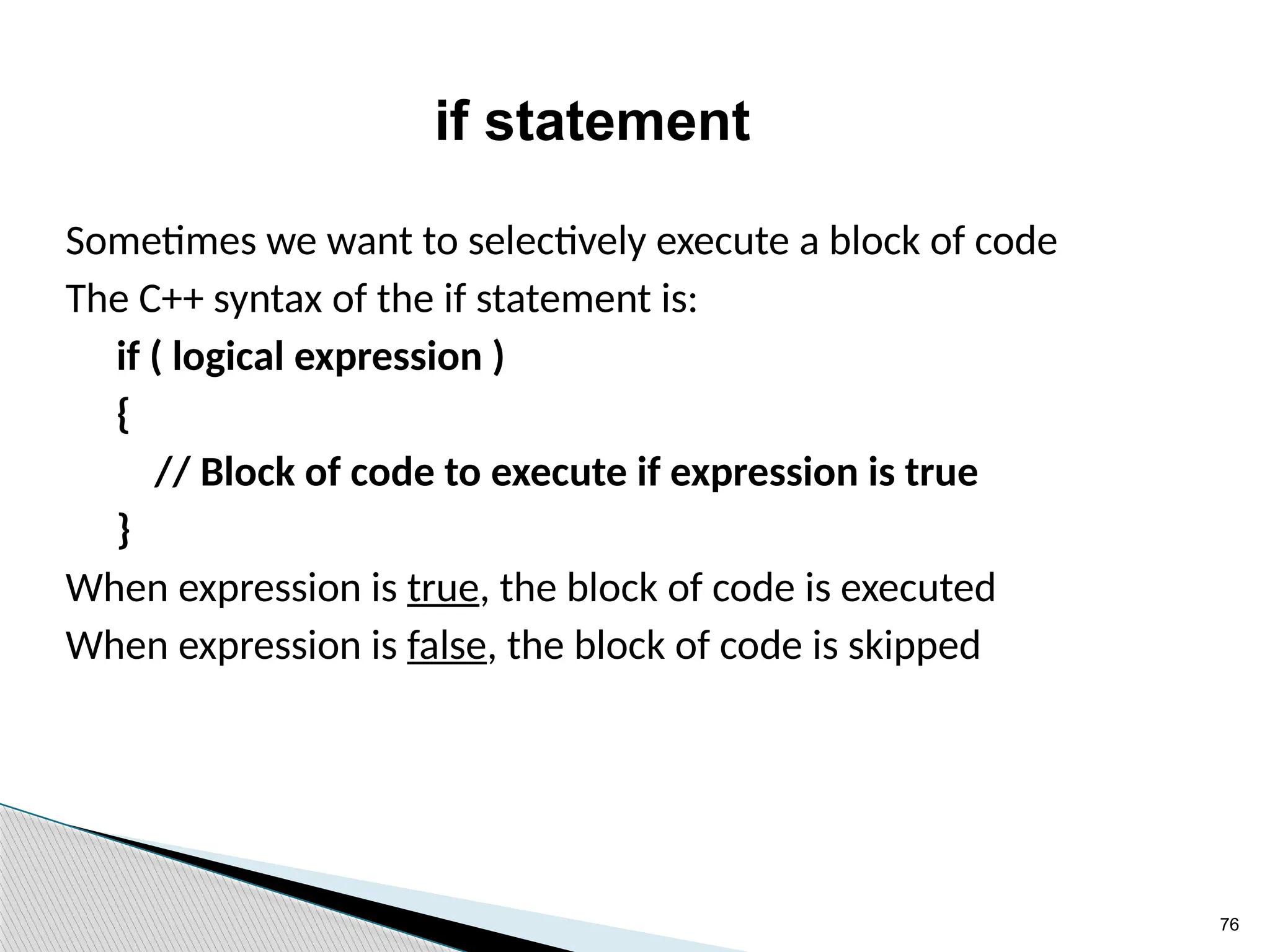

if statement
Sometimes we want to selectively execute a block of code
The C++ syntax of the if statement is:
if ( logical expression )
{
// Block of code to execute if expression is true
}
When expression is true, the block of code is executed
When expression is false, the block of code is skipped

77

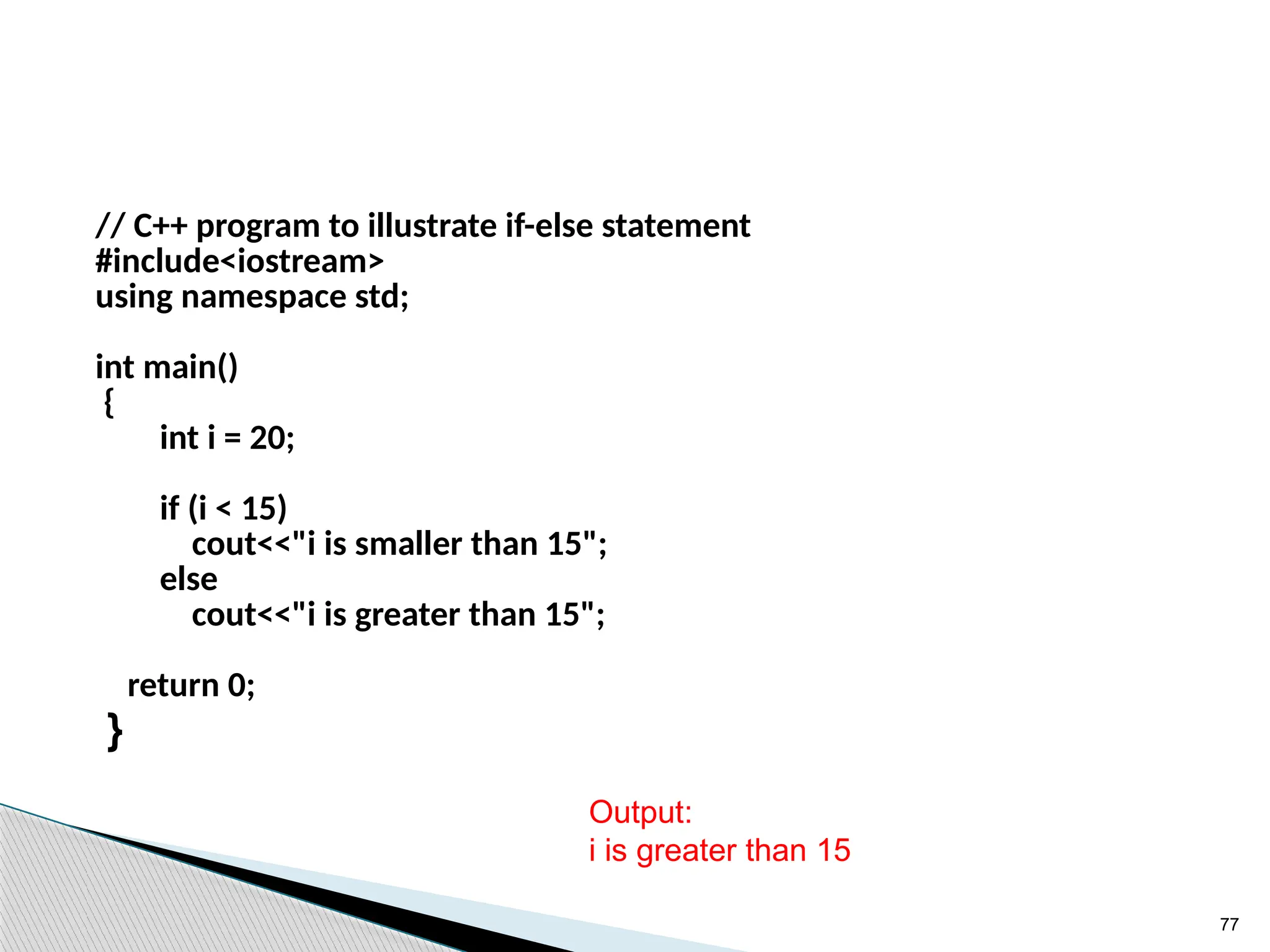

// C++ program to illustrate if-else statement
#include<iostream>
int main()
{
int i = 20;
if (i < 15)
cout<<"i is smaller than 15";
else
cout<<"i is greater than 15";
return 0;
}
Output:
i is greater than 15

79

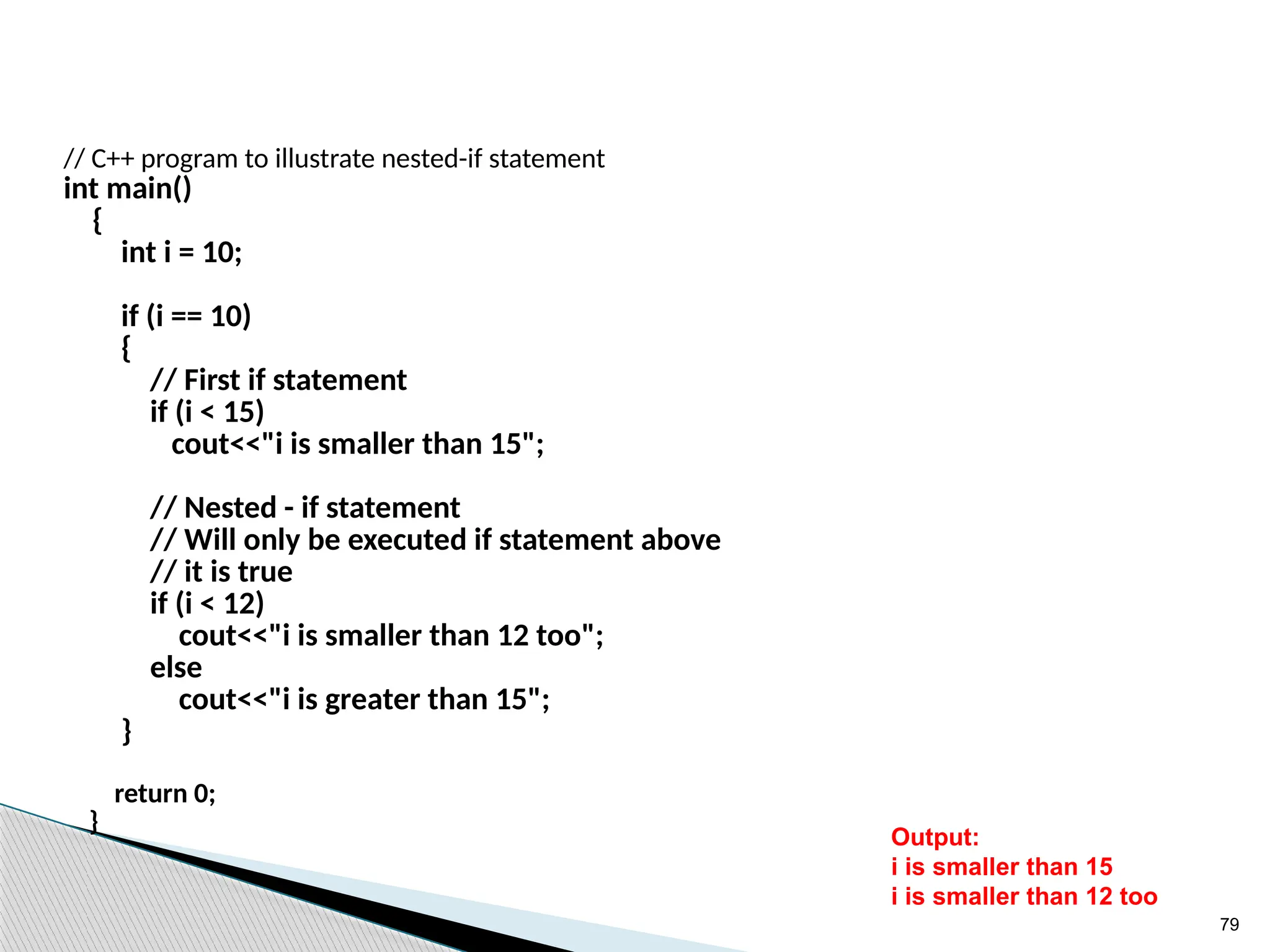

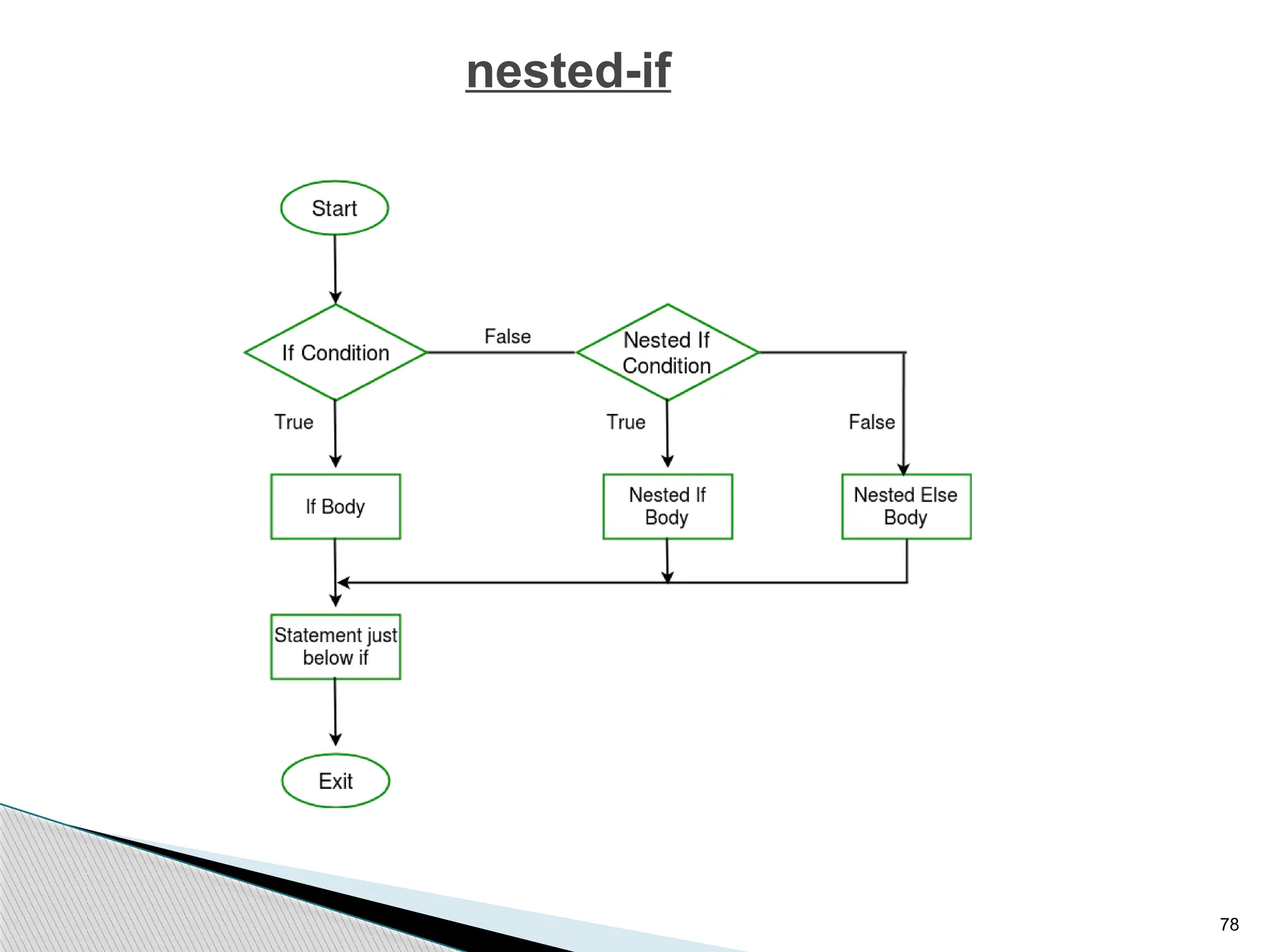

// C++ program to illustrate nested-if statement
int main()
{
int i = 10;
if (i == 10)
{
// First if statement
if (i < 15)
cout<<"i is smaller than 15";
// Nested - if statement
// Will only be executed if statement above
// it is true
if (i < 12)
cout<<"i is smaller than 12 too";
else
cout<<"i is greater than 15";
}
return 0;
}
Output:
i is smaller than 15
i is smaller than 12 too

81

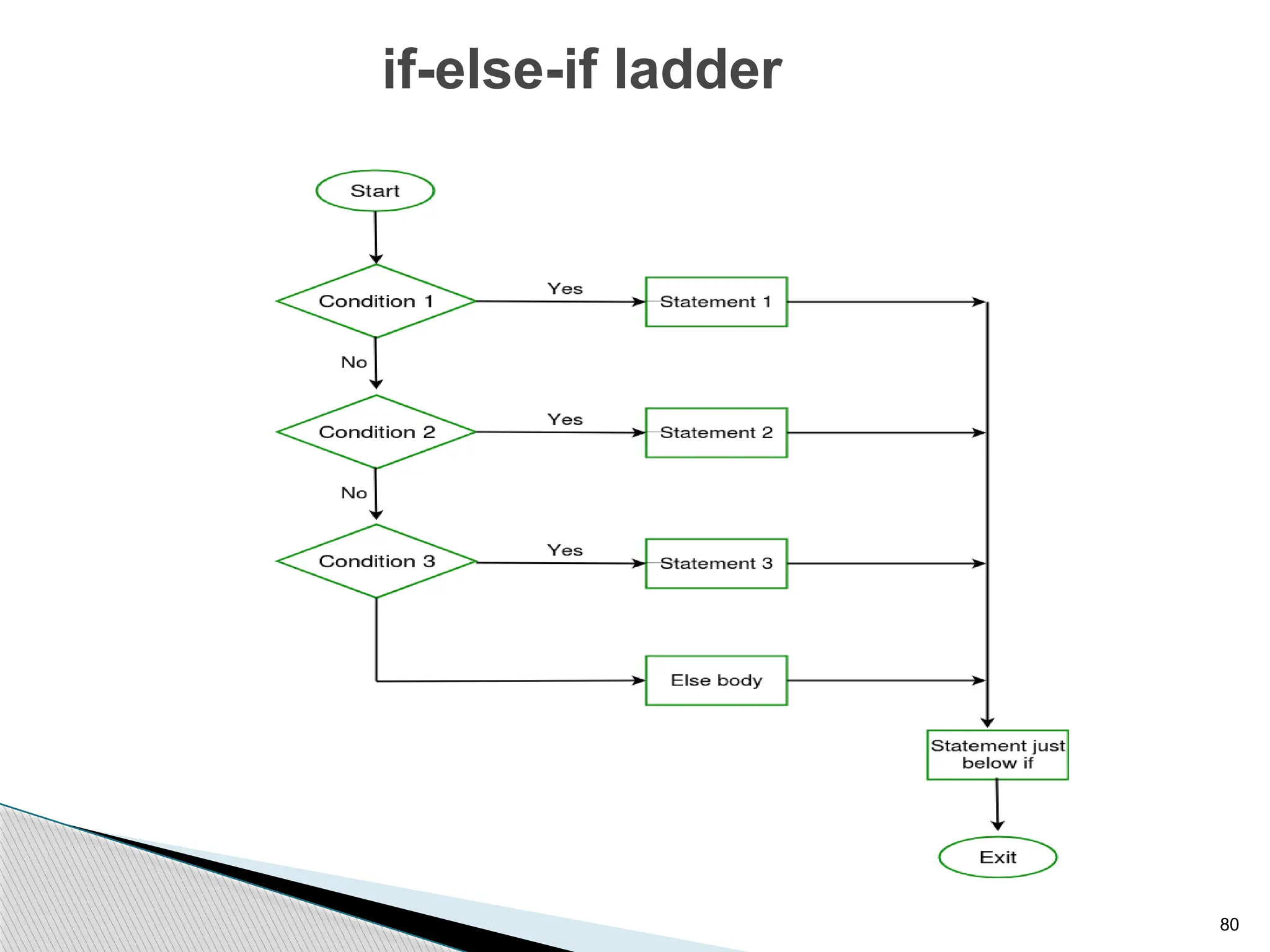

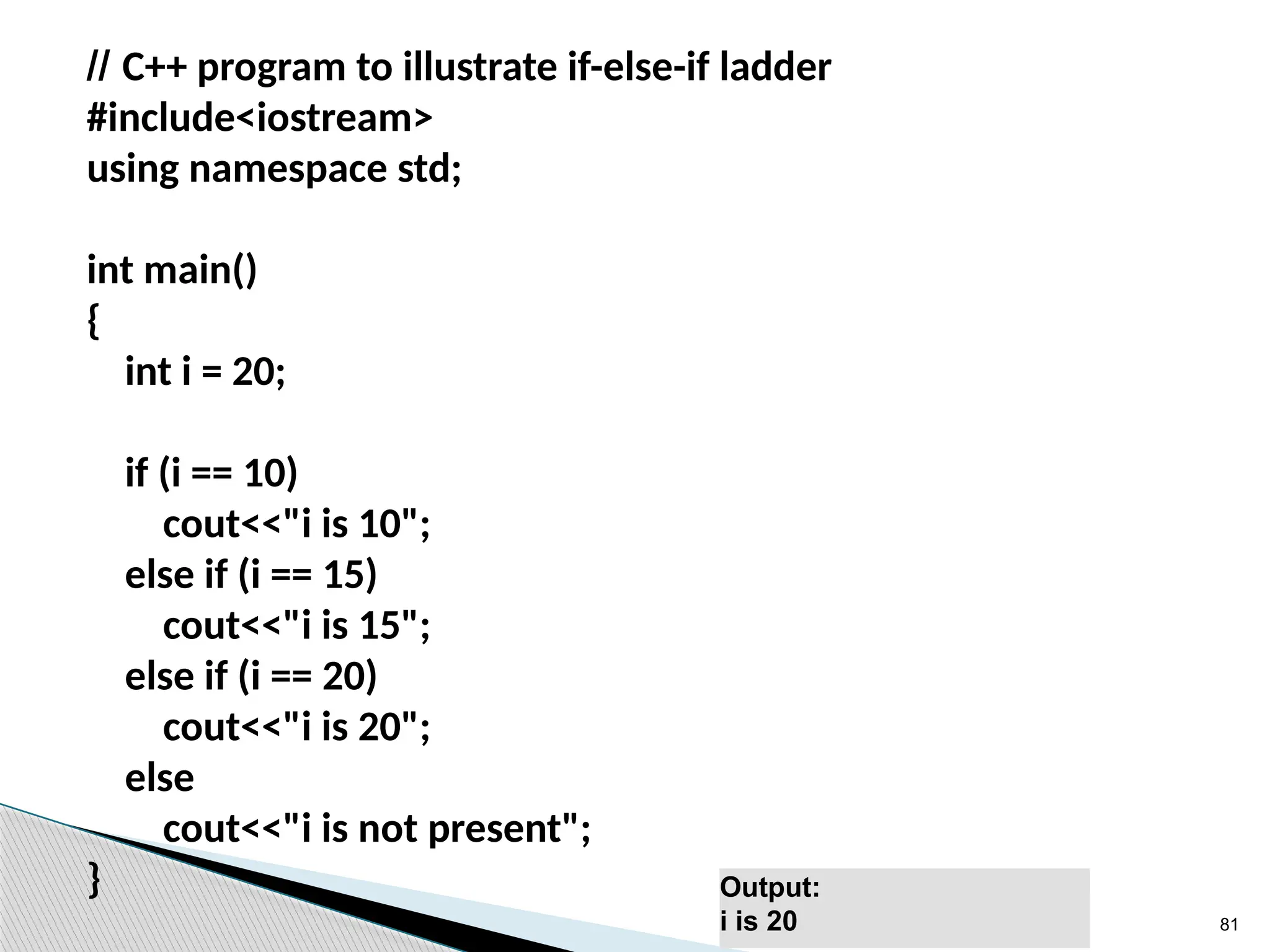

// C++ program to illustrate if-else-if ladder
#include<iostream>
int main()
{
int i = 20;
if (i == 10)
cout<<"i is 10";
else if (i == 15)
cout<<"i is 15";
else if (i == 20)
cout<<"i is 20";
else
cout<<"i is not present";
} Output:
i is 20

82

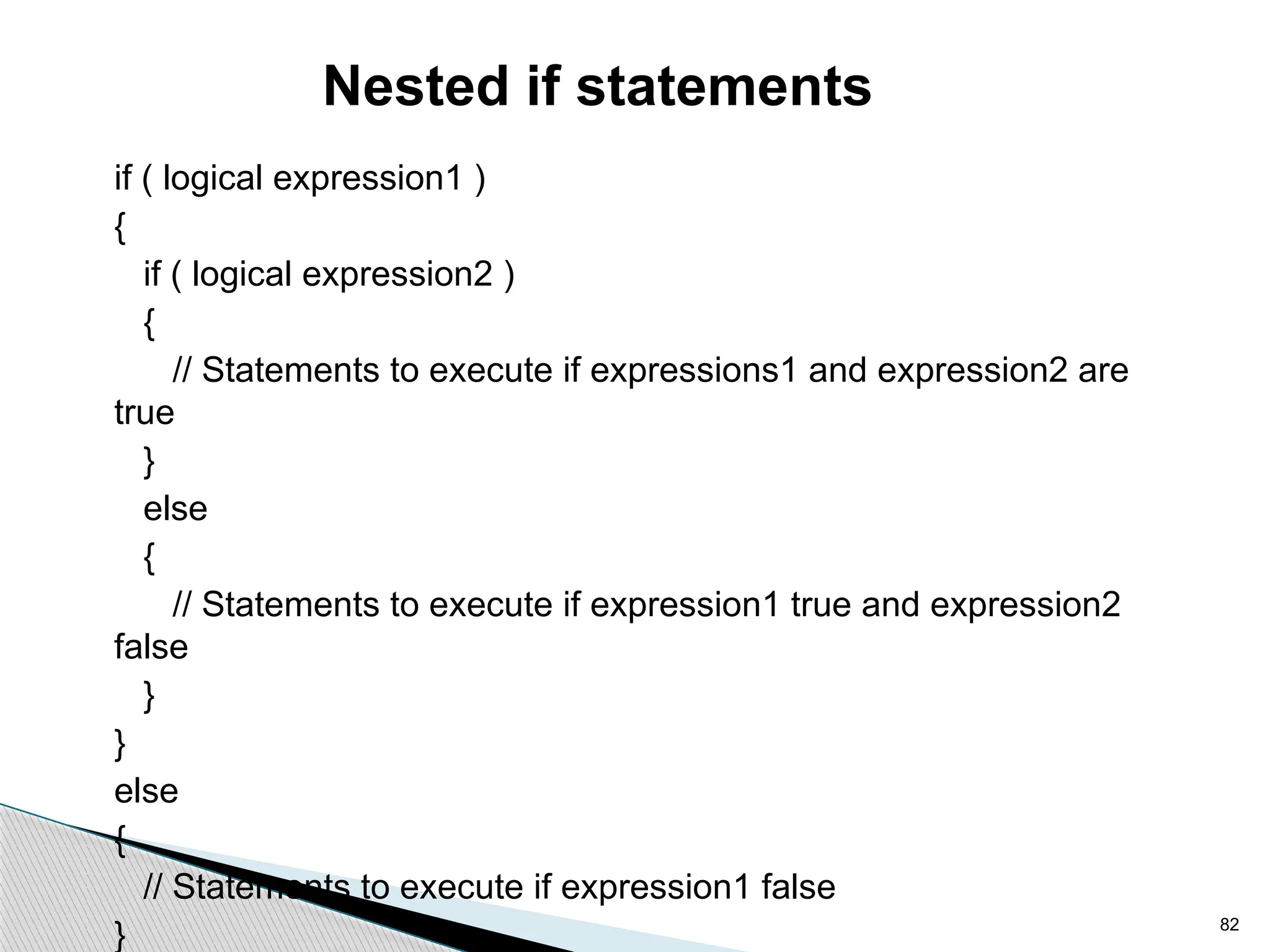

Nested if statements
if ( logical expression1 )
{
if ( logical expression2 )
{
// Statements to execute if expressions1 and expression2 are
true
}
else
{
// Statements to execute if expression1 true and expression2
false
}
}
else
{
// Statements to execute if expression1 false
}

83

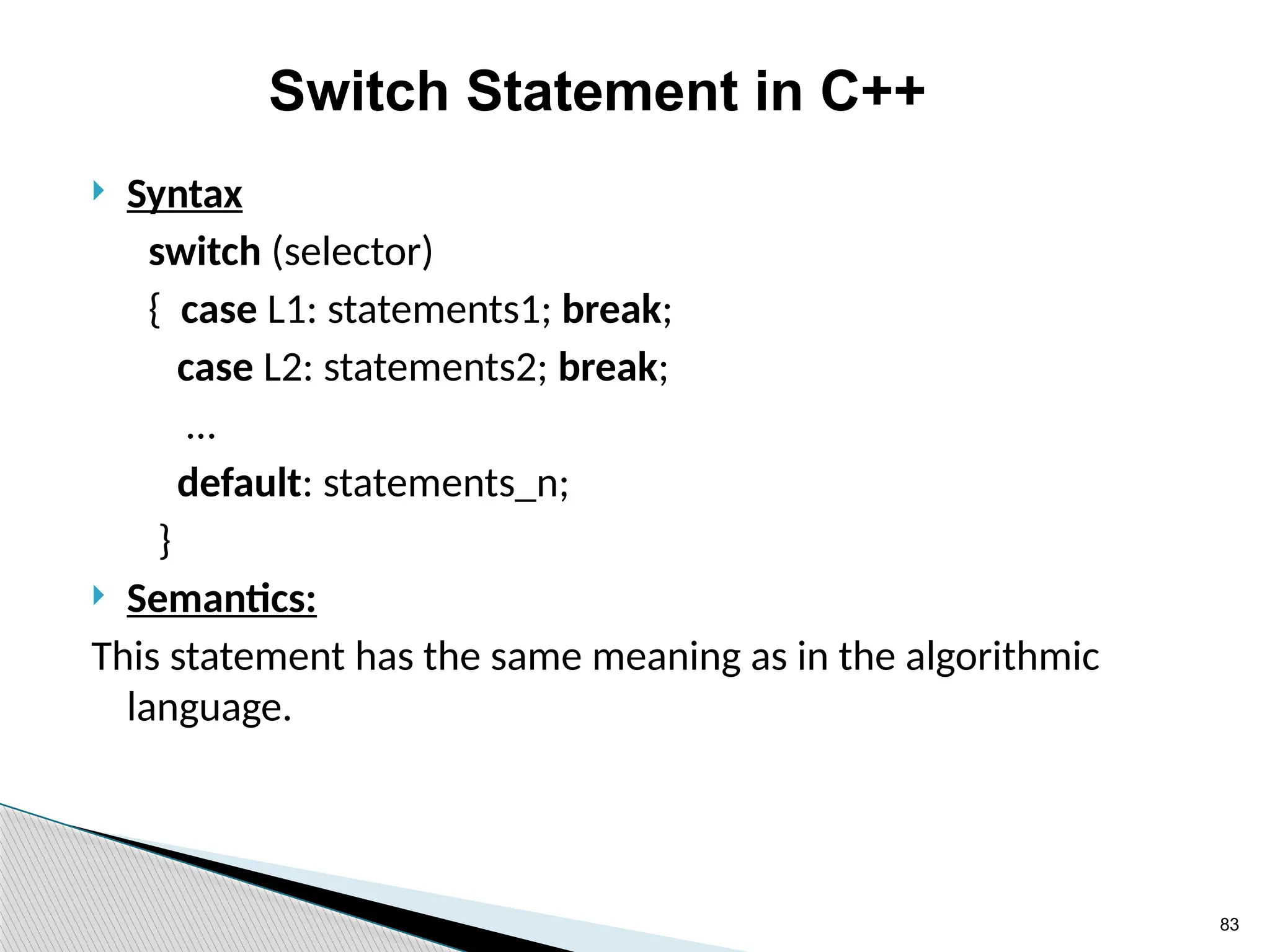

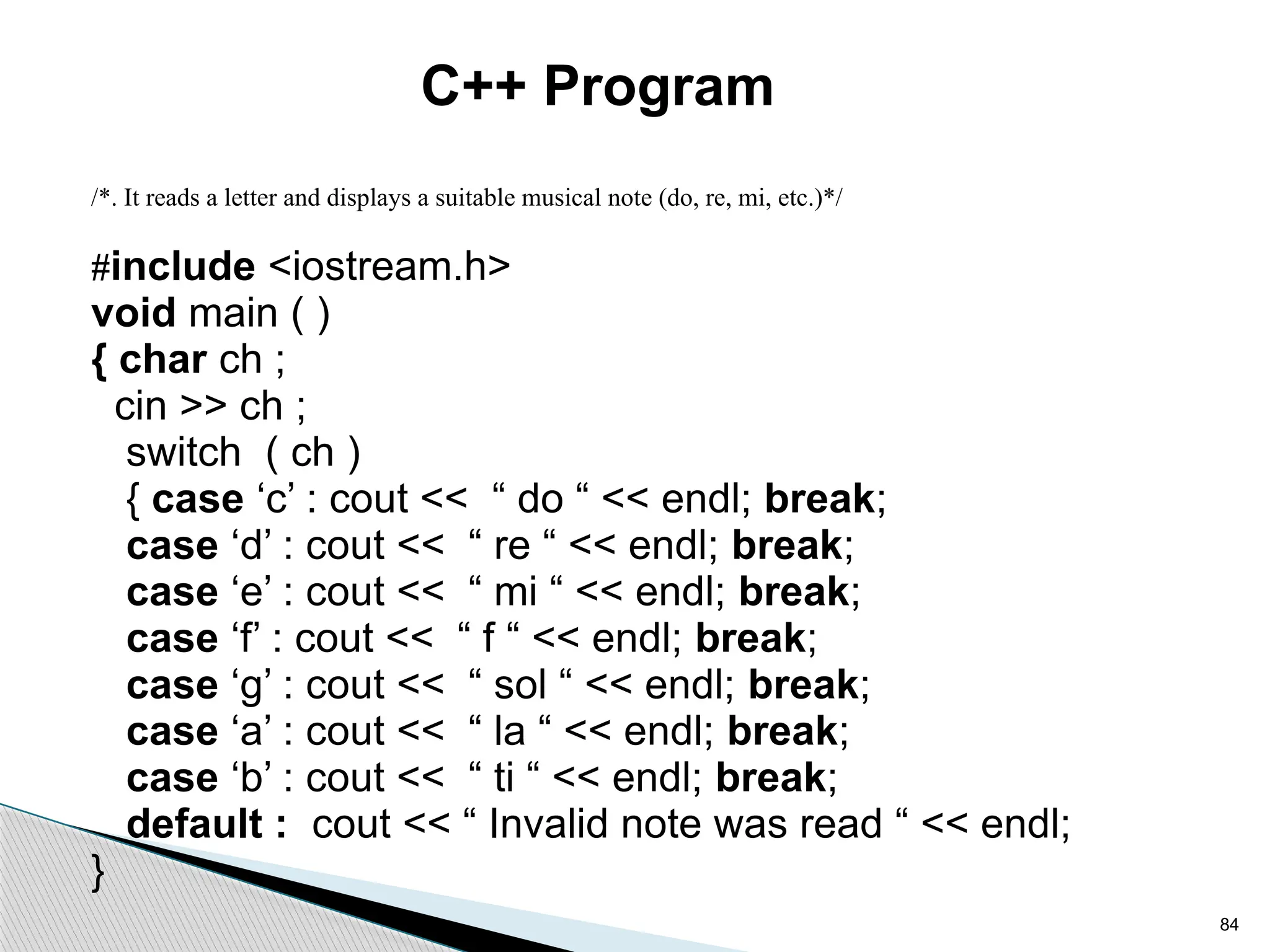

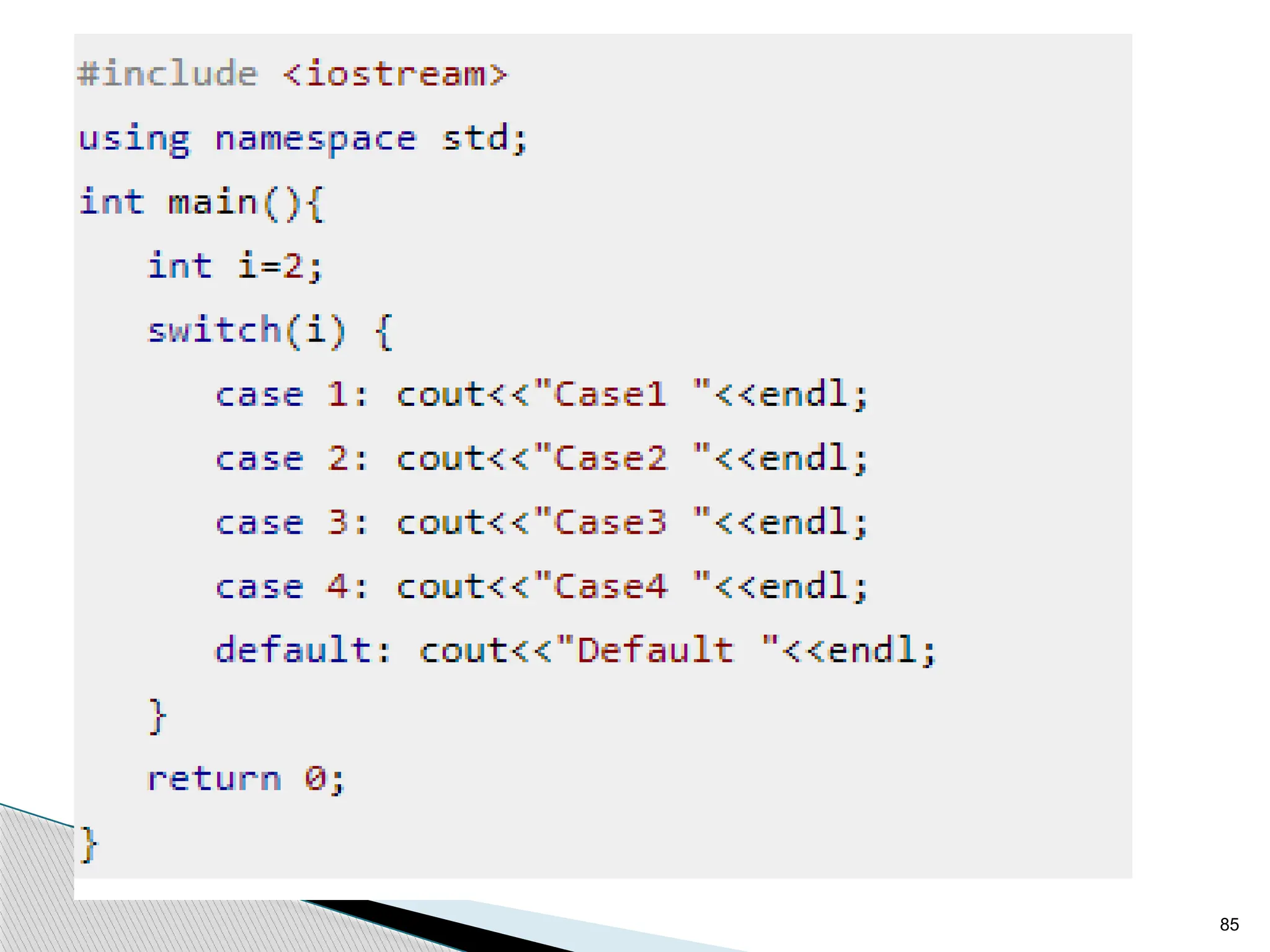

Switch Statement in C++
 Syntax
switch (selector)
{ case L1: statements1; break;
case L2: statements2; break;
…
default: statements_n;
}
 Semantics:
This statement has the same meaning as in the algorithmic
language.

84
C++ Program
/*. It reads a letter and displays a suitable musical note (do, re, mi, etc.)*/
#include <iostream.h>
void main ( )
{ char ch ;
cin >> ch ;
switch ( ch )
{ case ‘c’ : cout << “ do “ << endl; break;
case ‘d’ : cout << “ re “ << endl; break;
case ‘e’ : cout << “ mi “ << endl; break;
case ‘f’ : cout << “ f “ << endl; break;
case ‘g’ : cout << “ sol “ << endl; break;
case ‘a’ : cout << “ la “ << endl; break;
case ‘b’ : cout << “ ti “ << endl; break;
default : cout << “ Invalid note was read “ << endl;
}

87

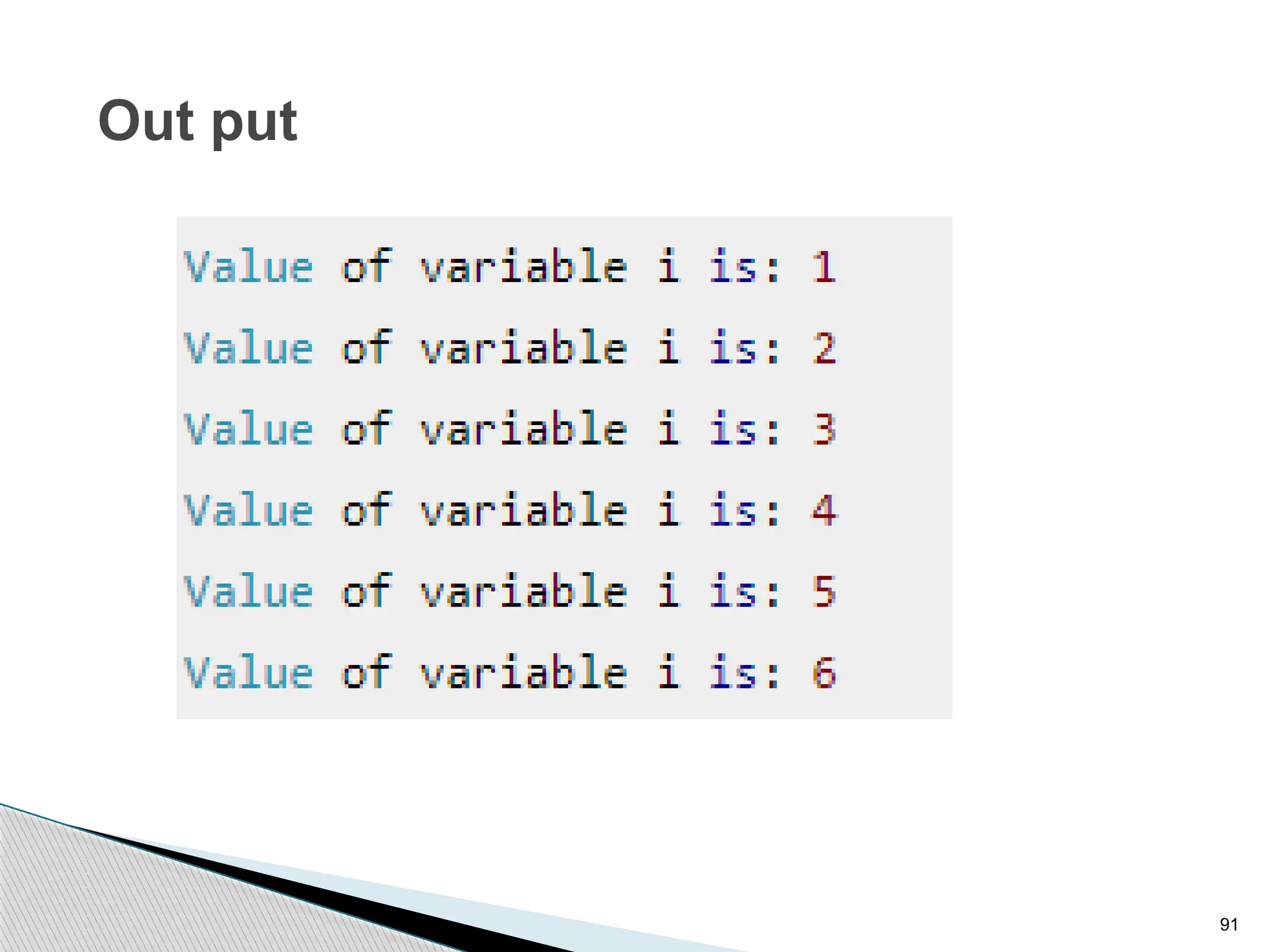

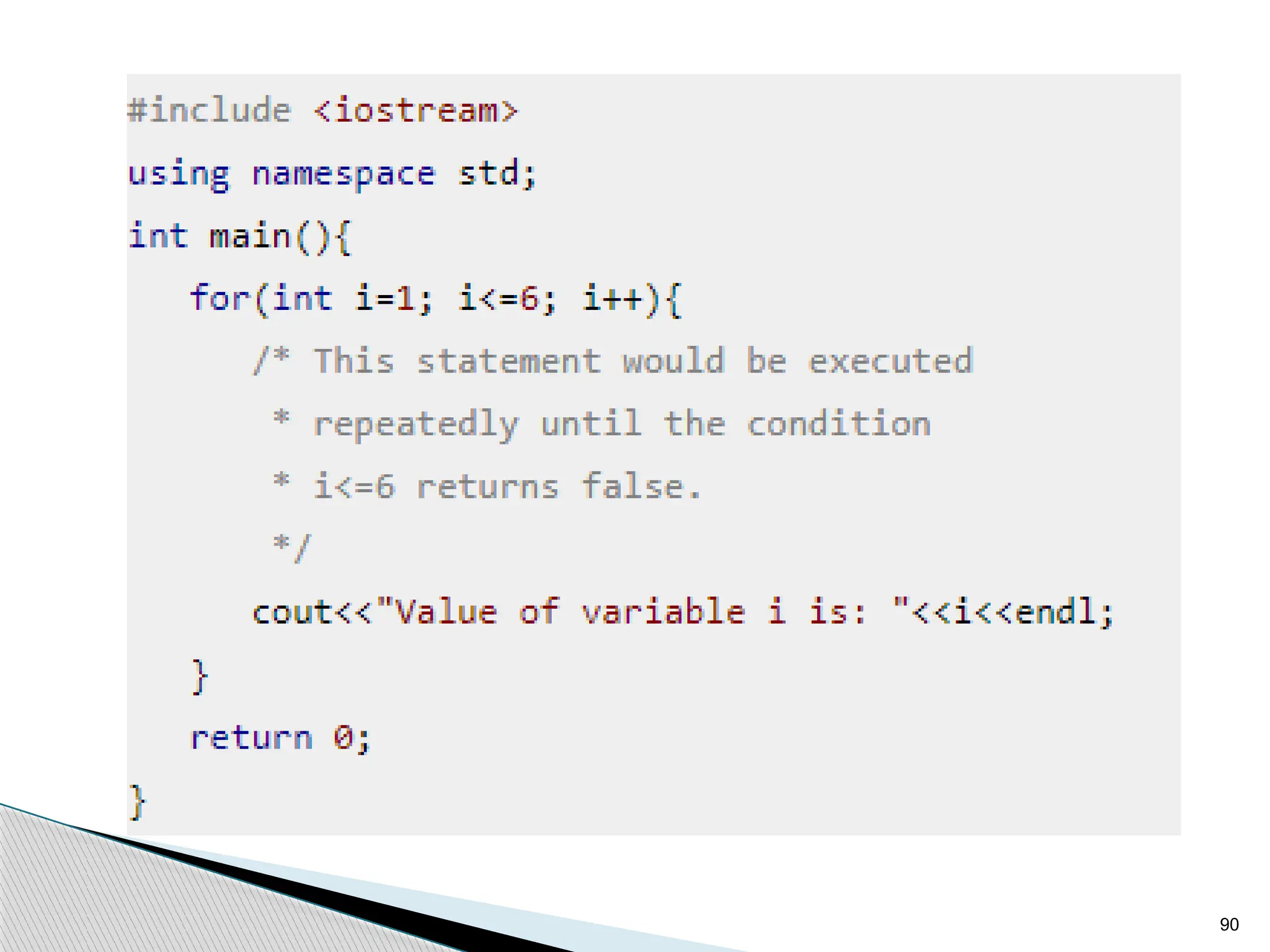

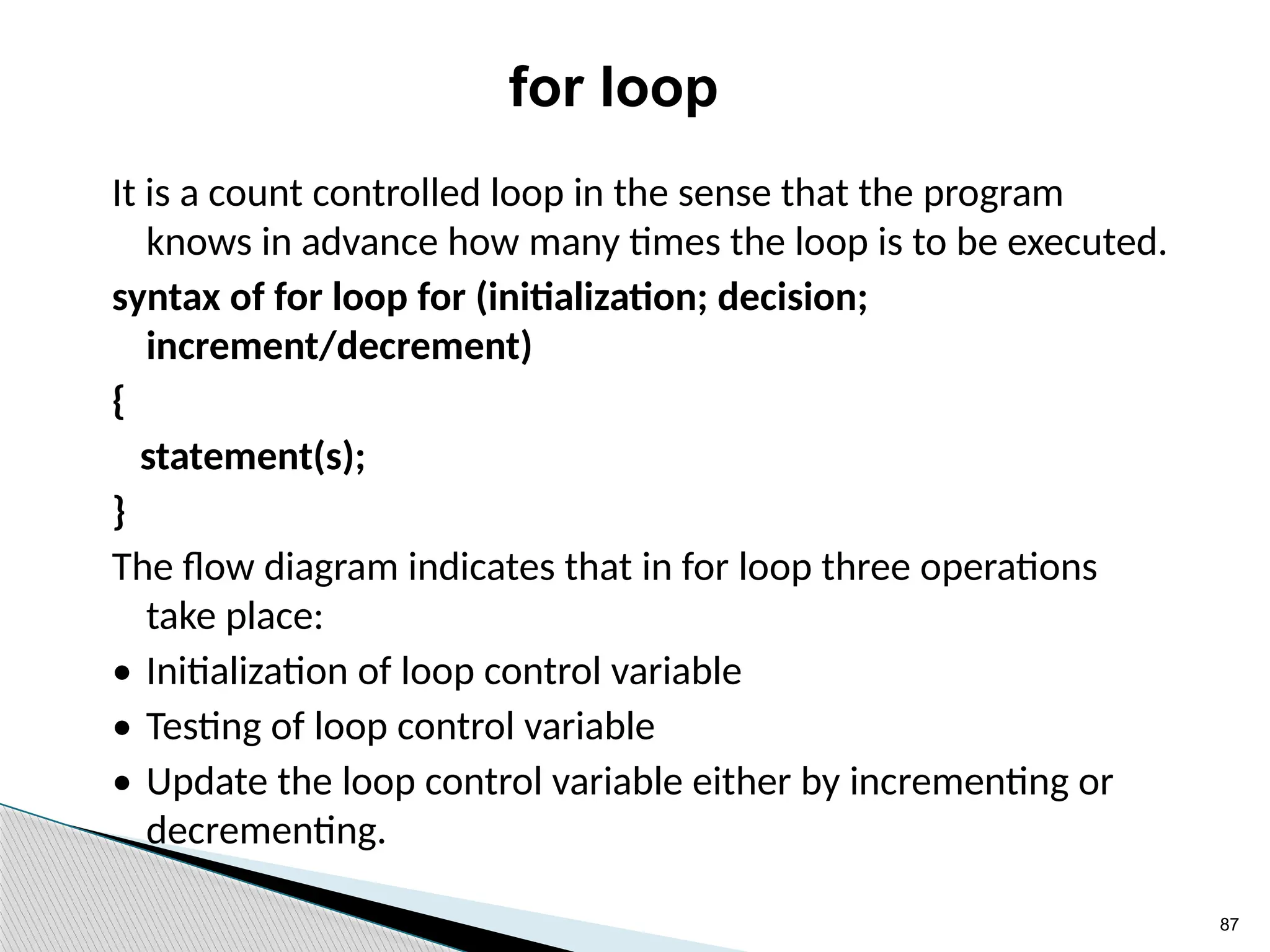

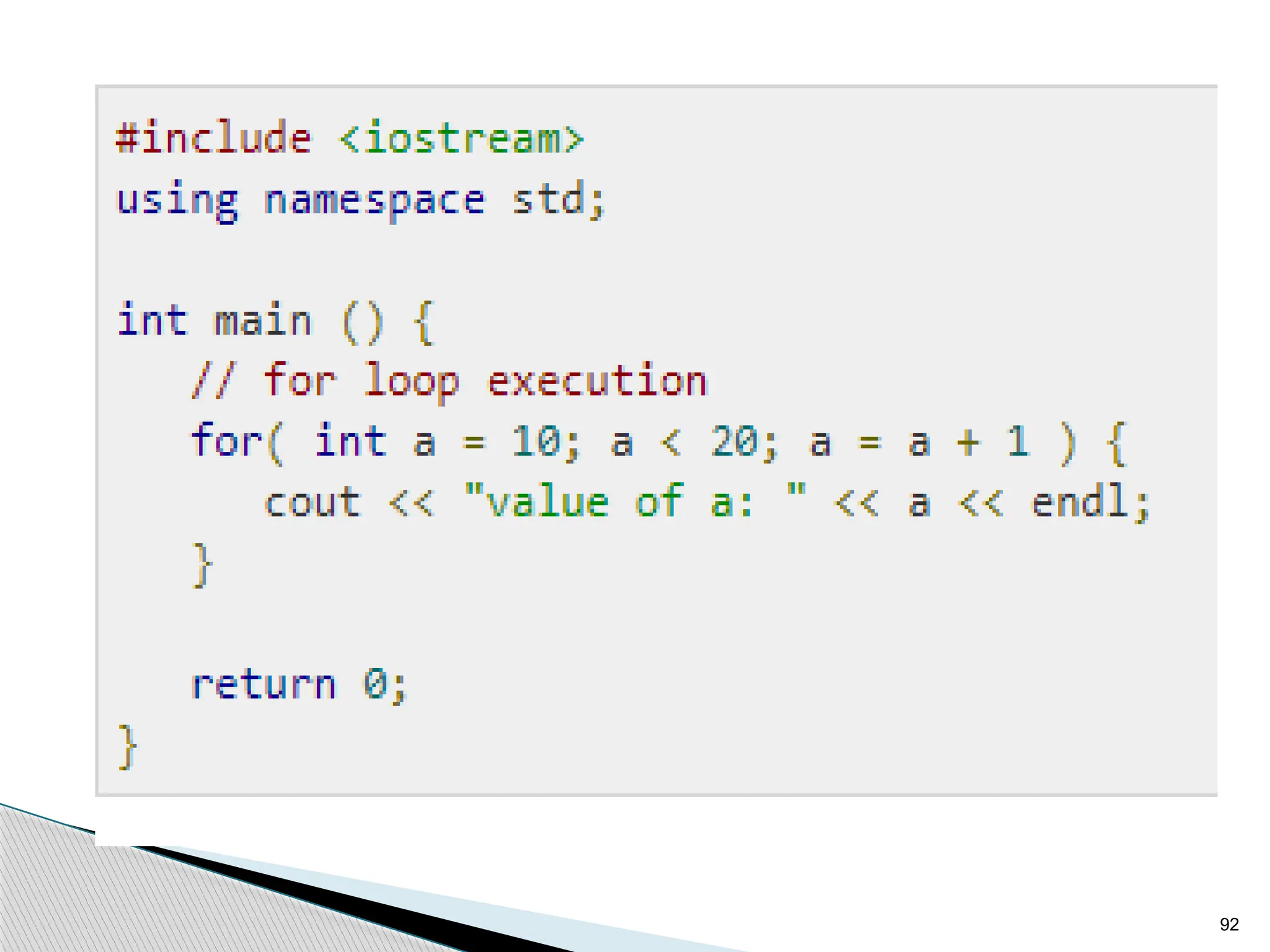

for loop
It is a count controlled loop in the sense that the program
knows in advance how many times the loop is to be executed.
syntax of for loop for (initialization; decision;
increment/decrement)
{
statement(s);
}

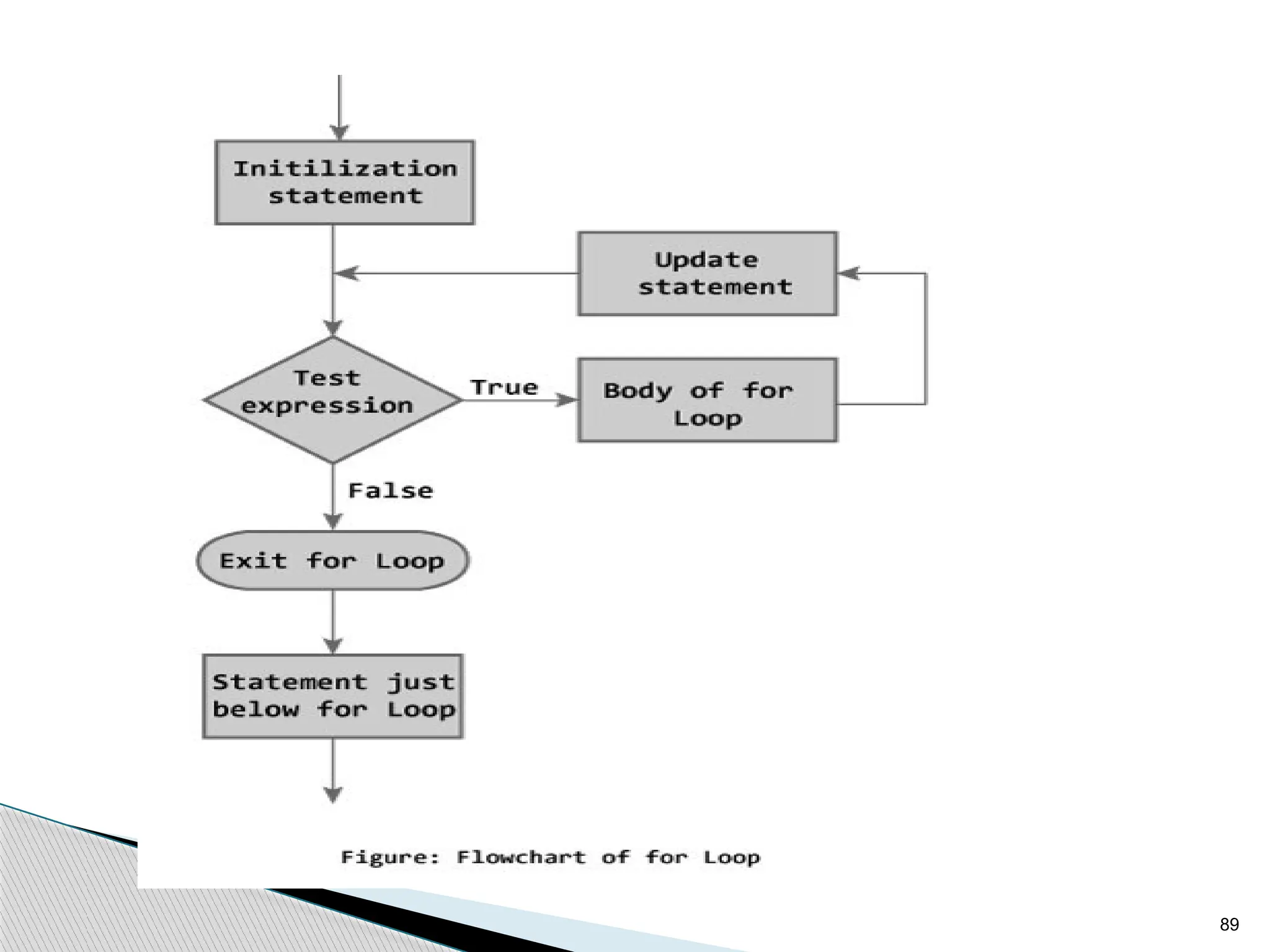

The flow diagram indicates that in for loop three operations
take place:
• Initialization of loop control variable
• Testing of loop control variable
• Update the loop control variable either by incrementing or
decrementing.

88

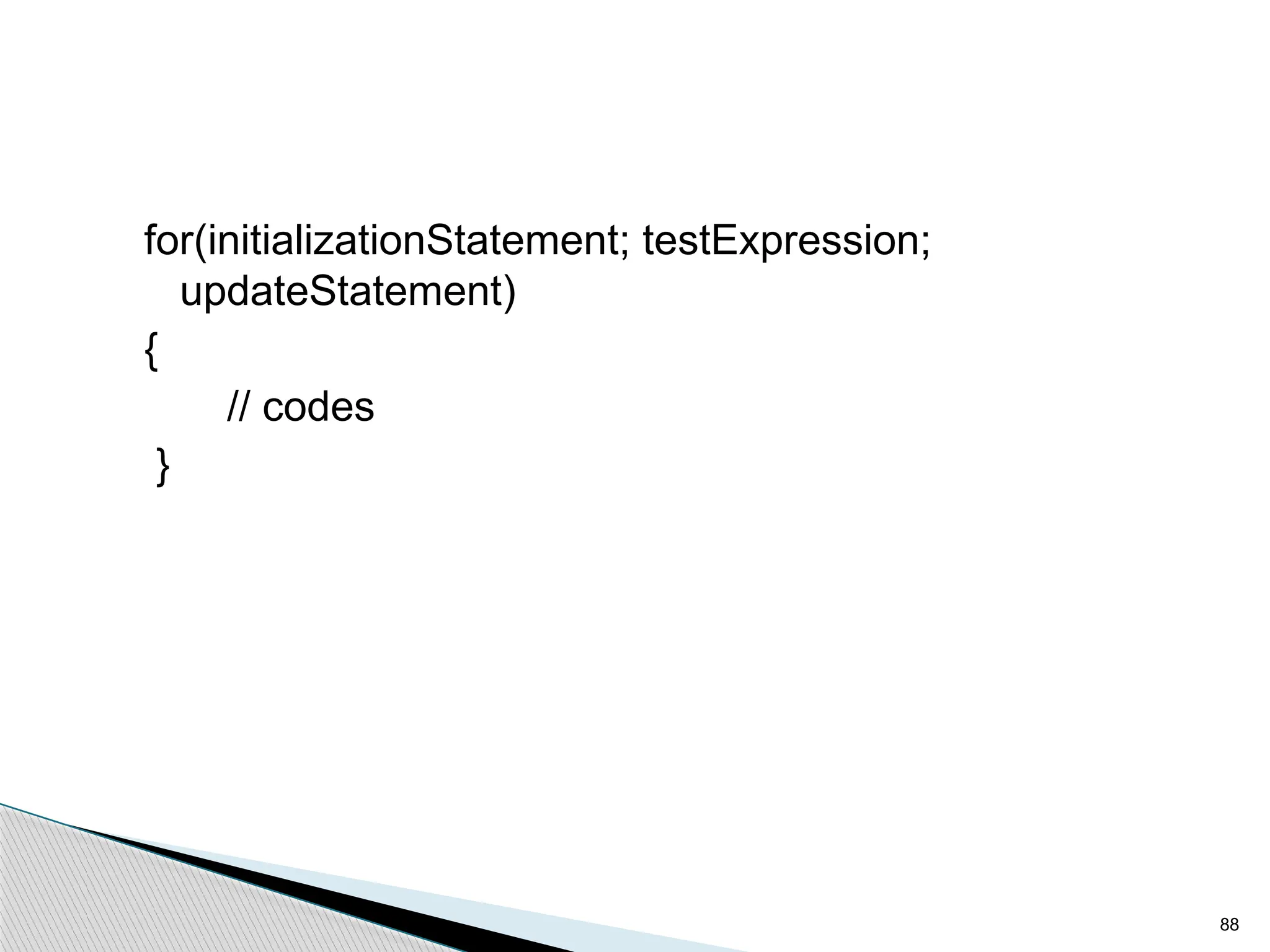

for(initializationStatement; testExpression;
updateStatement)
{
// codes
}

94

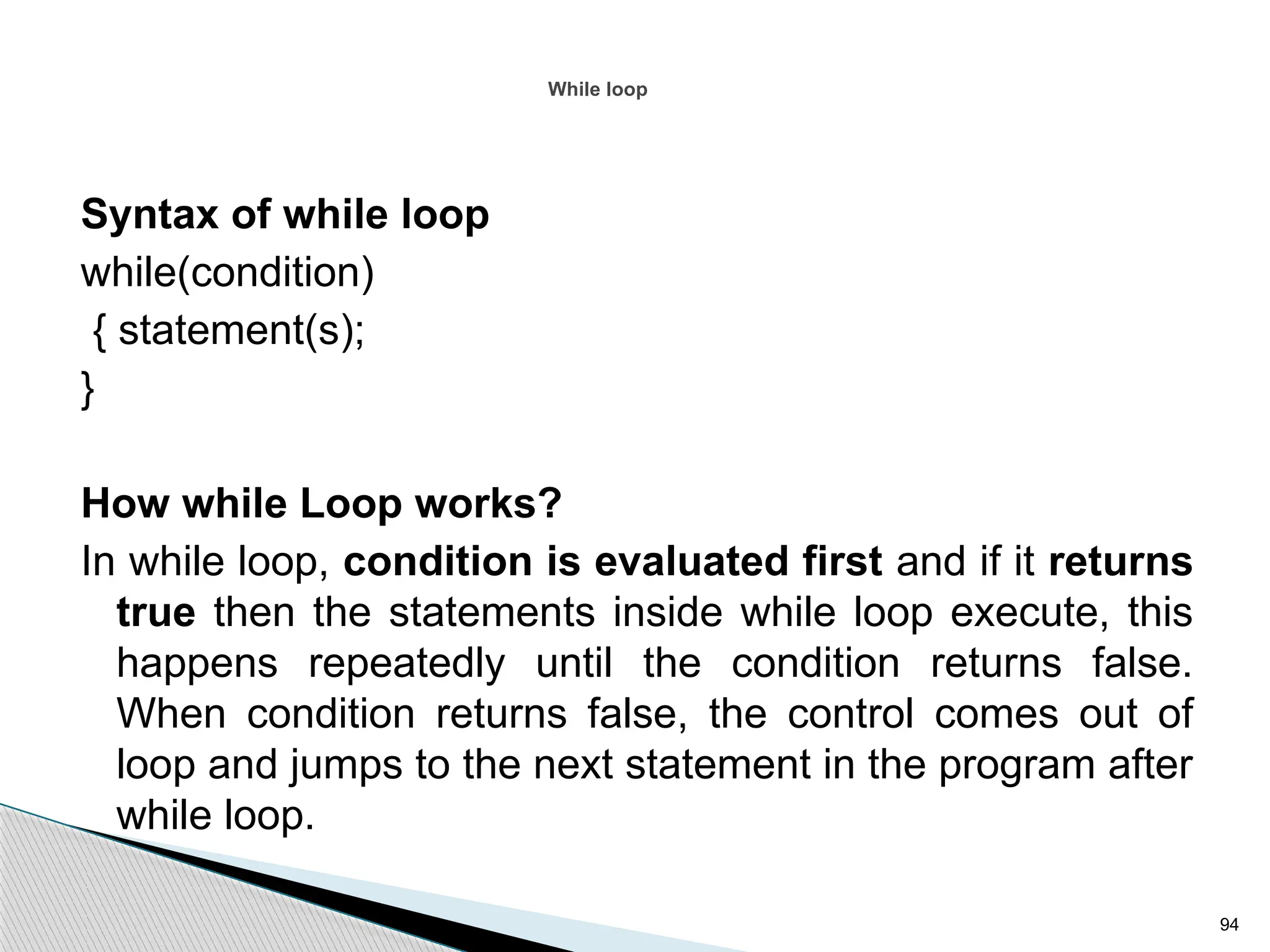

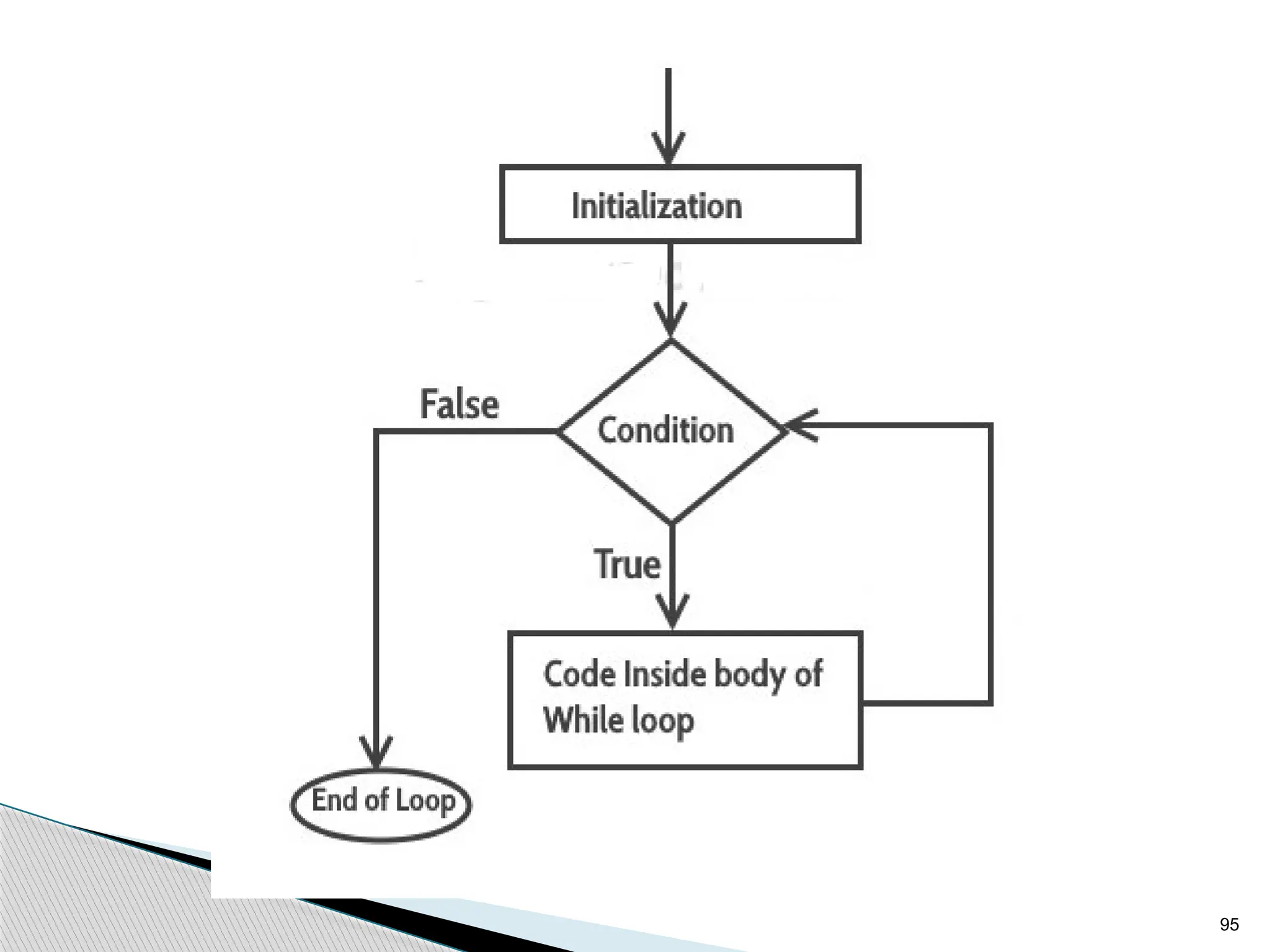

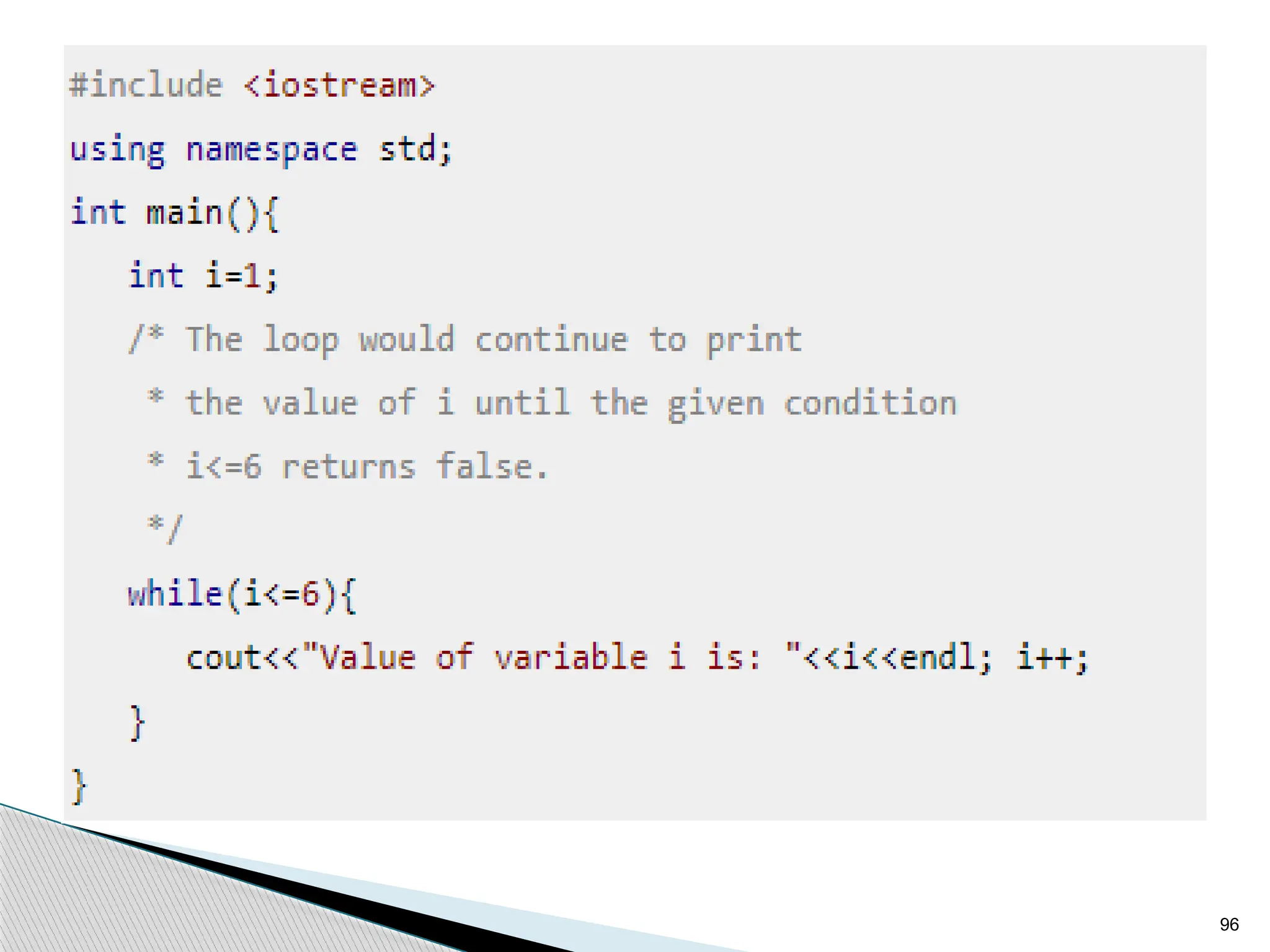

While loop
Syntax of while loop
while(condition)
{ statement(s);
}
How while Loop works?
In while loop, condition is evaluated first and if it returns
true then the statements inside while loop execute, this
happens repeatedly until the condition returns false.
When condition returns false, the control comes out of
loop and jumps to the next statement in the program after
while loop.

98

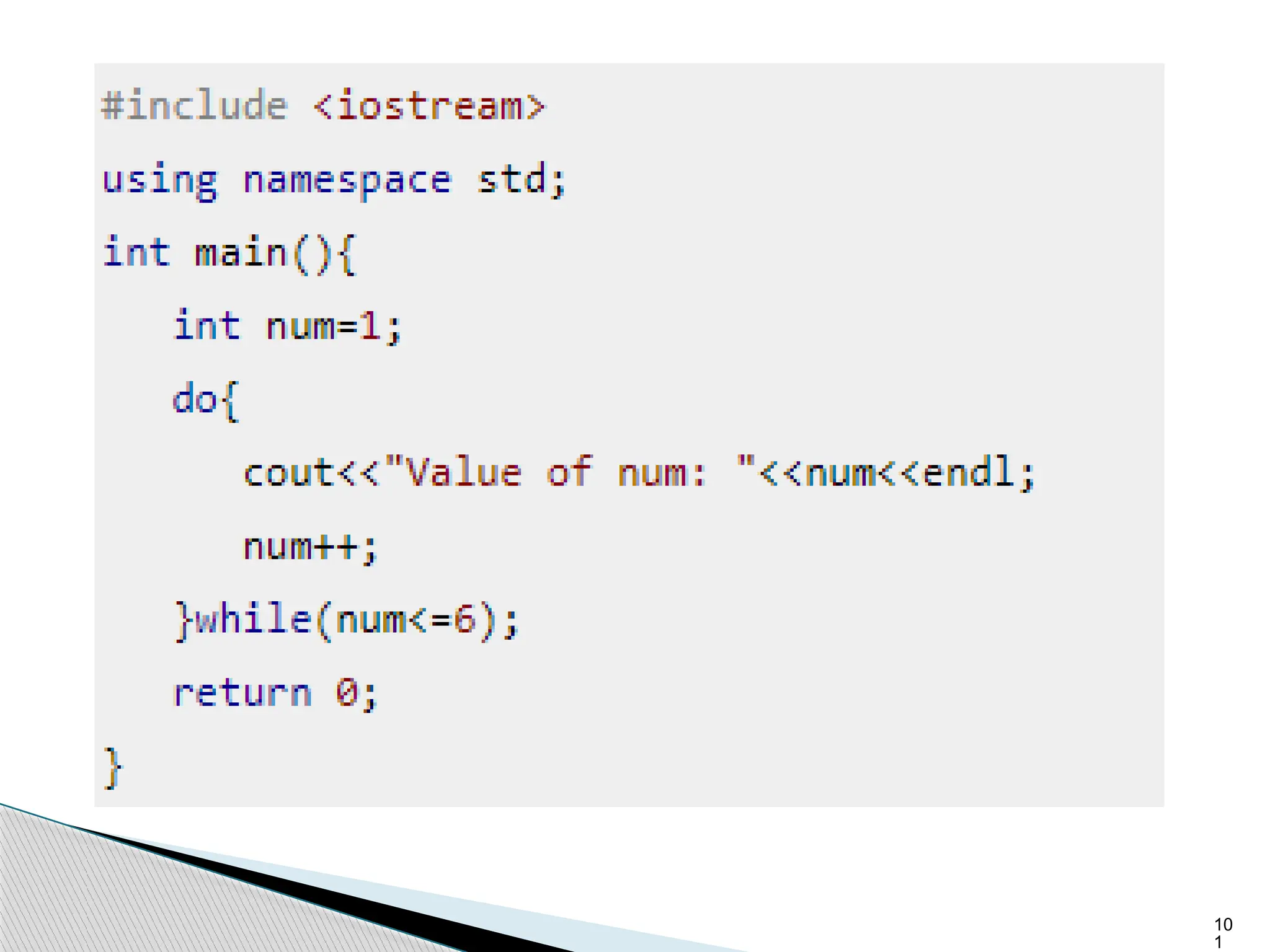

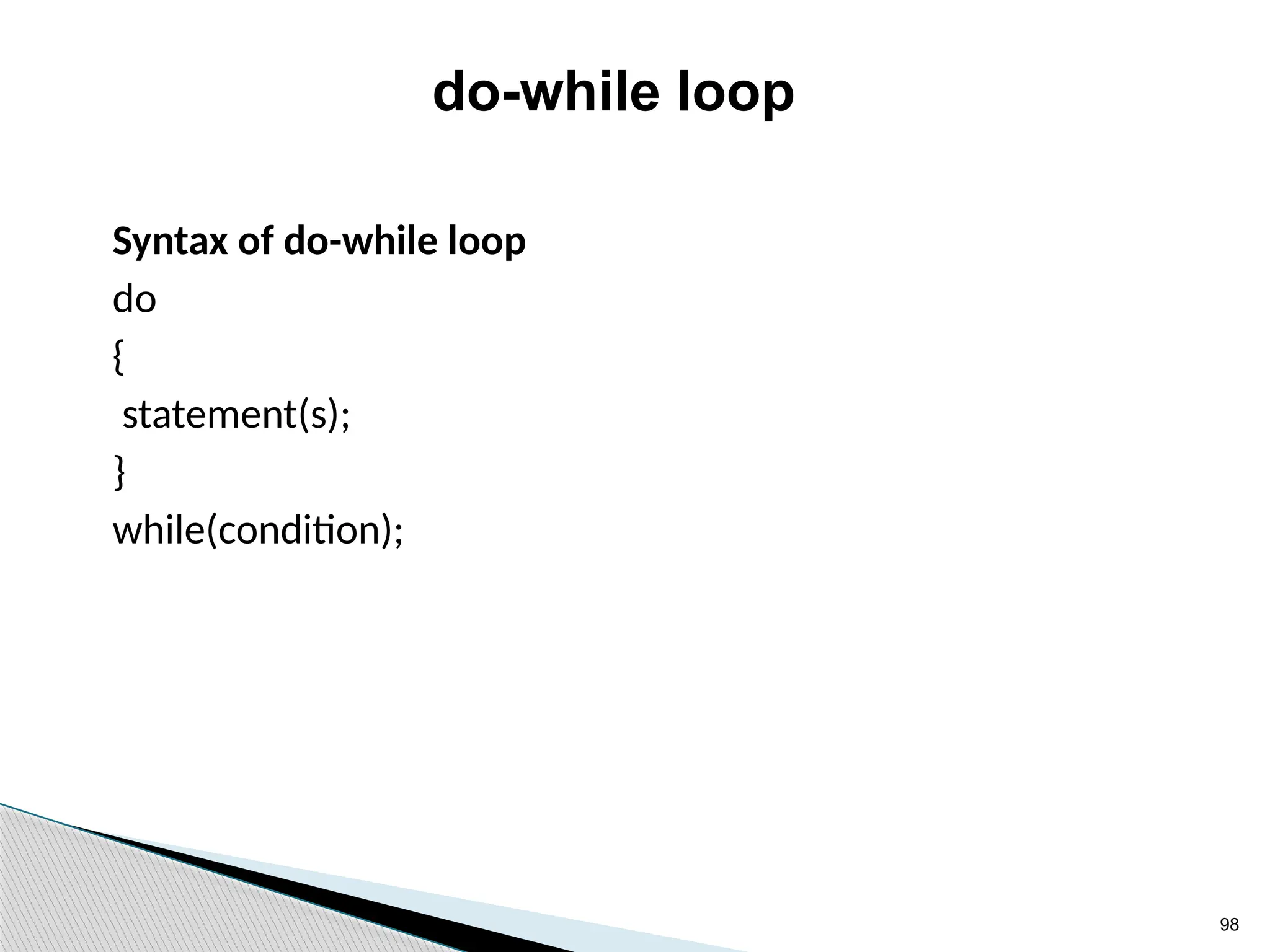

do-while loop
Syntax of do-while loop
do
{
statement(s);
}
while(condition);

99

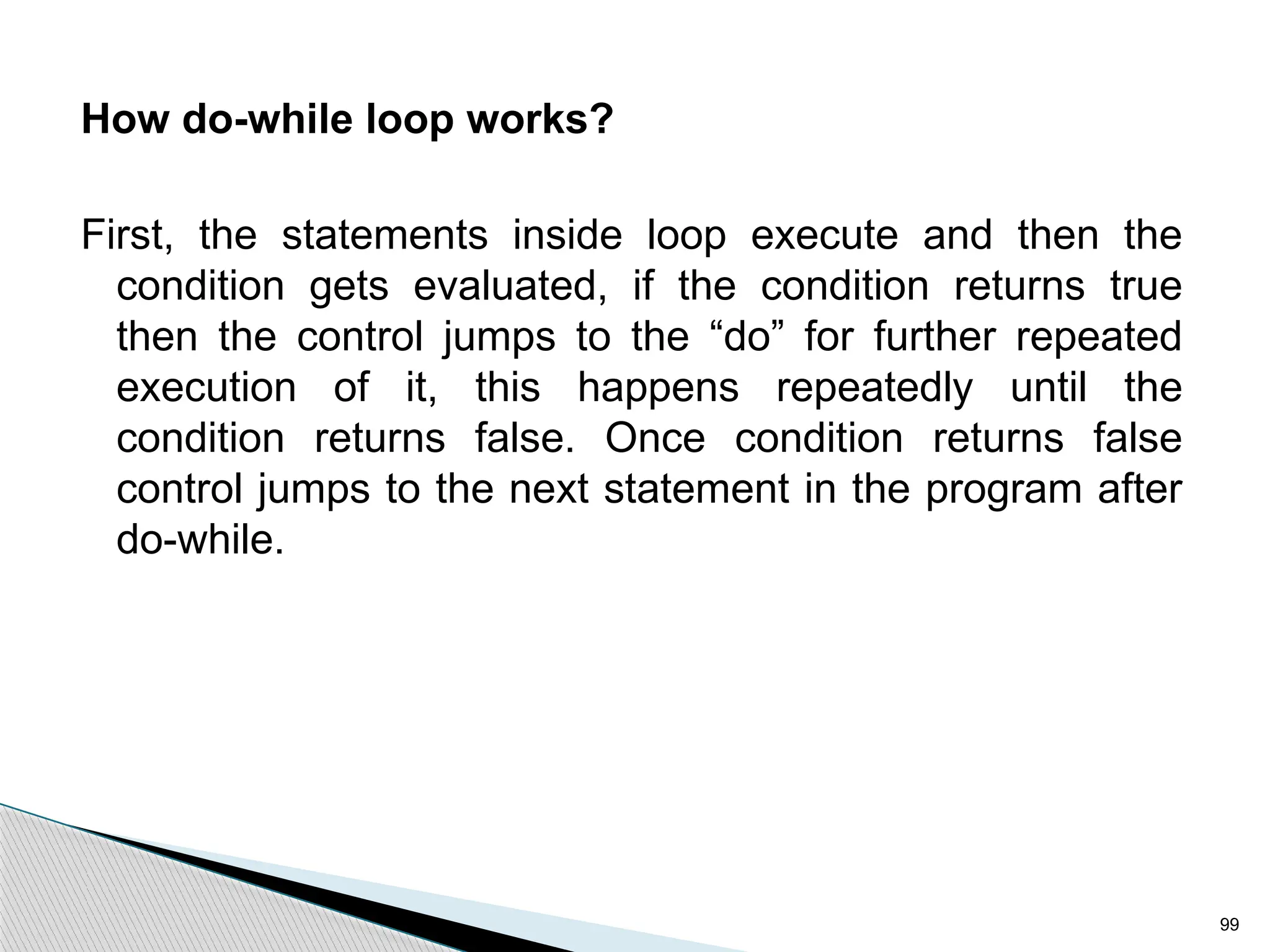

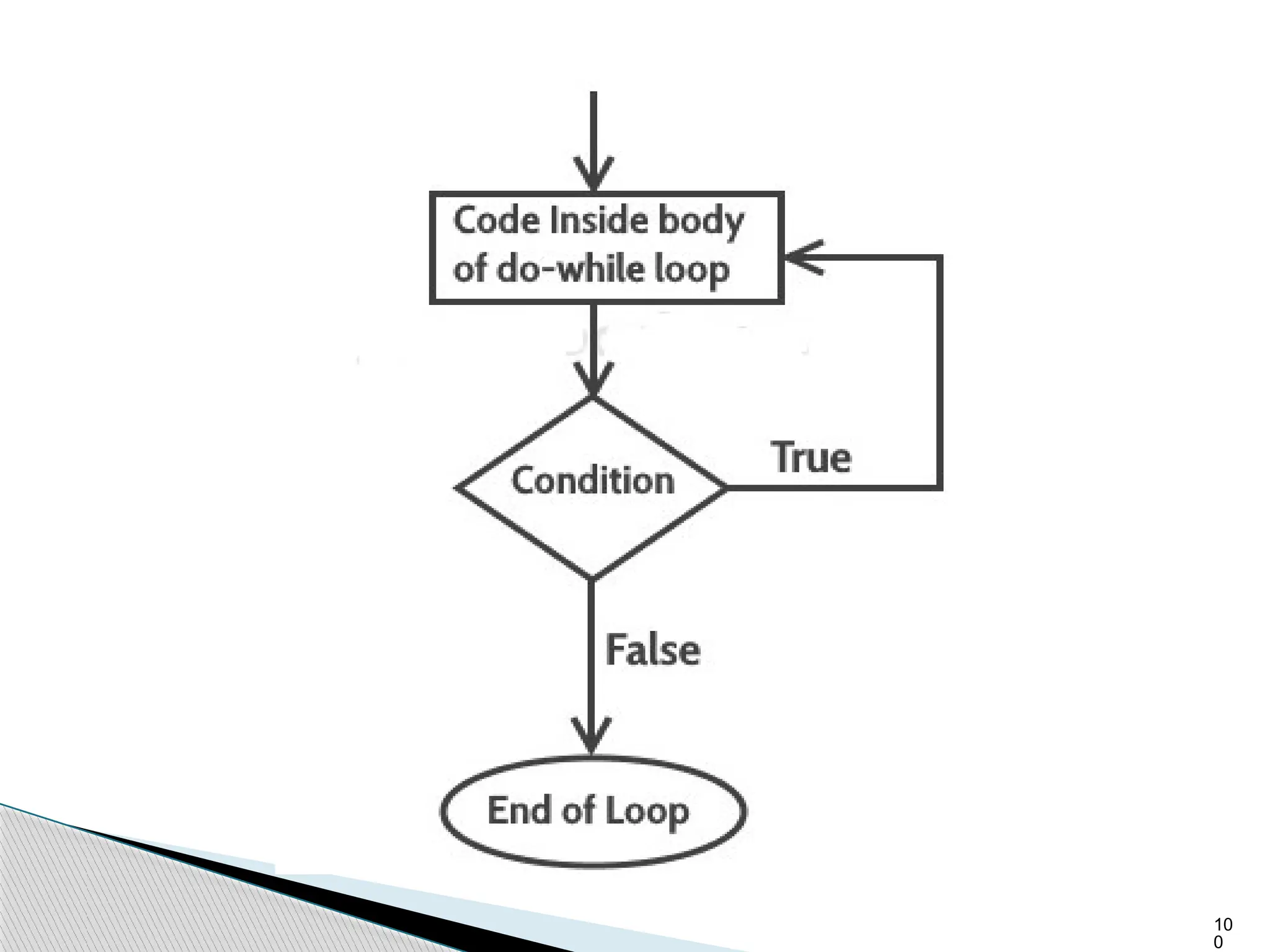

How do-while loop works?
First, the statements inside loop execute and then the
condition gets evaluated, if the condition returns true
then the control jumps to the “do” for further repeated
execution of it, this happens repeatedly until the
condition returns false. Once condition returns false
control jumps to the next statement in the program after
do-while.

10
3

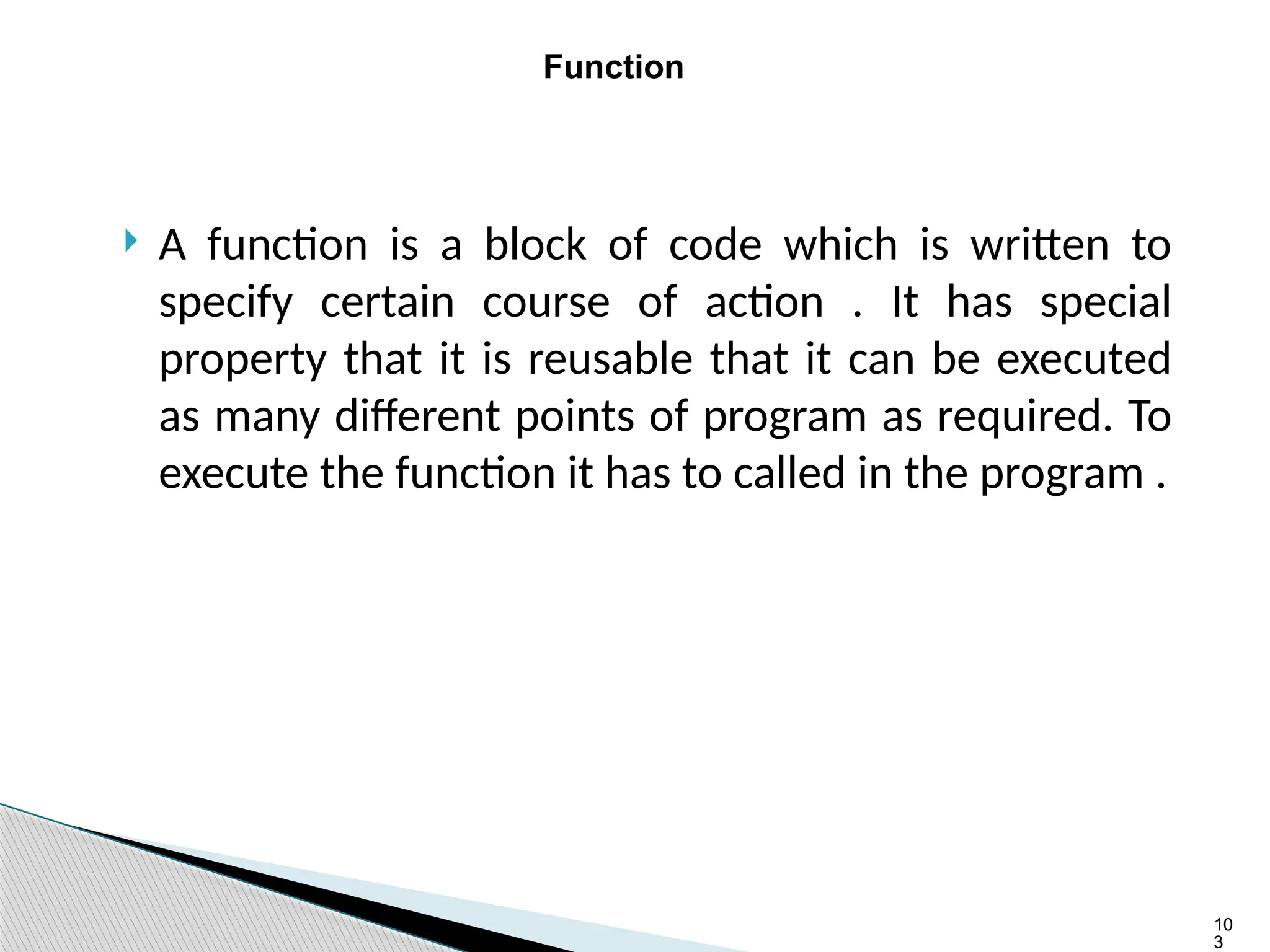

Function
 A function is a block of code which is written to
specify certain course of action . It has special
property that it is reusable that it can be executed
as many different points of program as required. To
execute the function it has to called in the program .

10
4

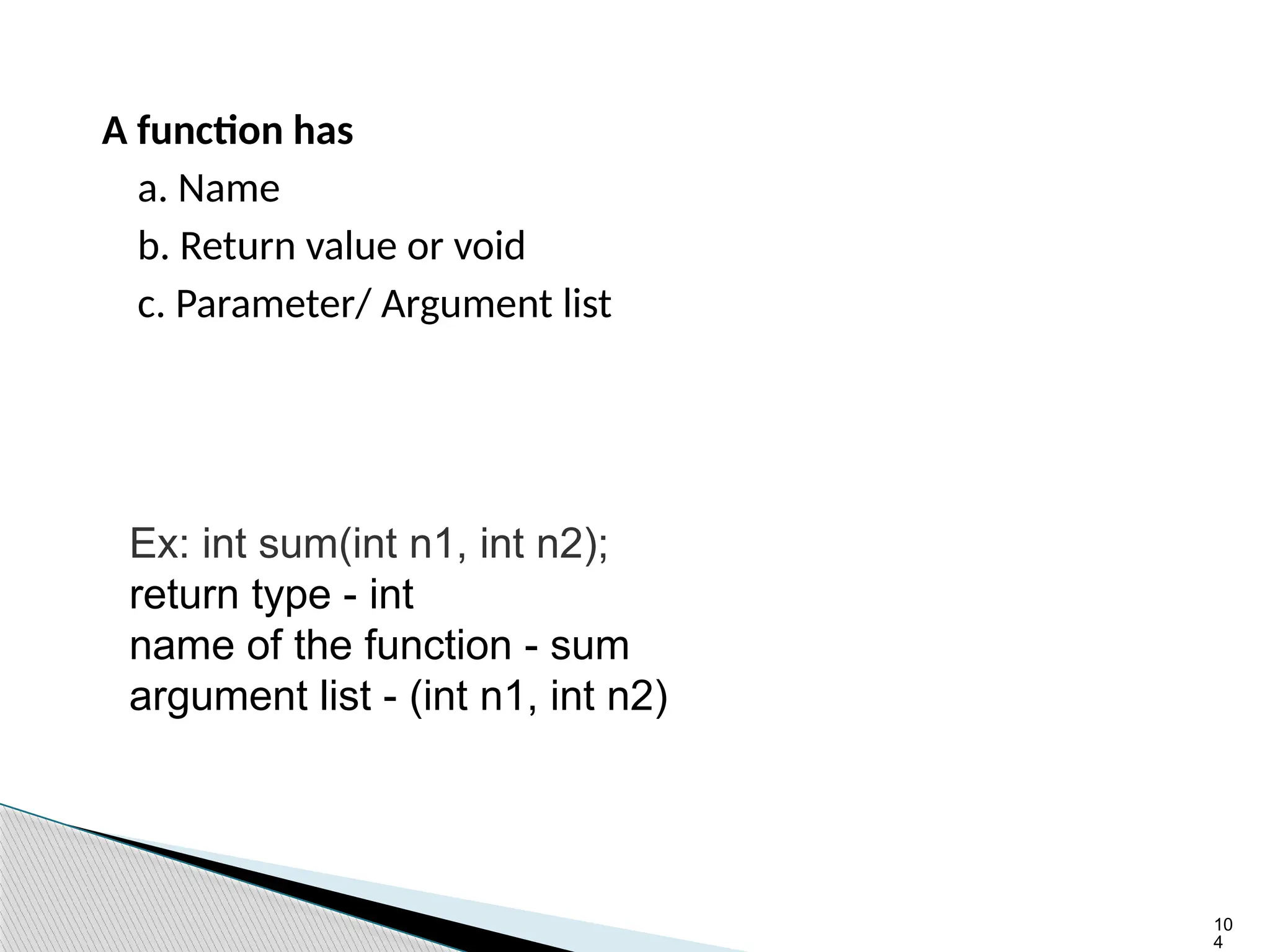

A function has
a. Name
b. Return value or void
c. Parameter/ Argument list
Ex: int sum(int n1, int n2);
return type - int
name of the function - sum
argument list - (int n1, int n2)

10
5

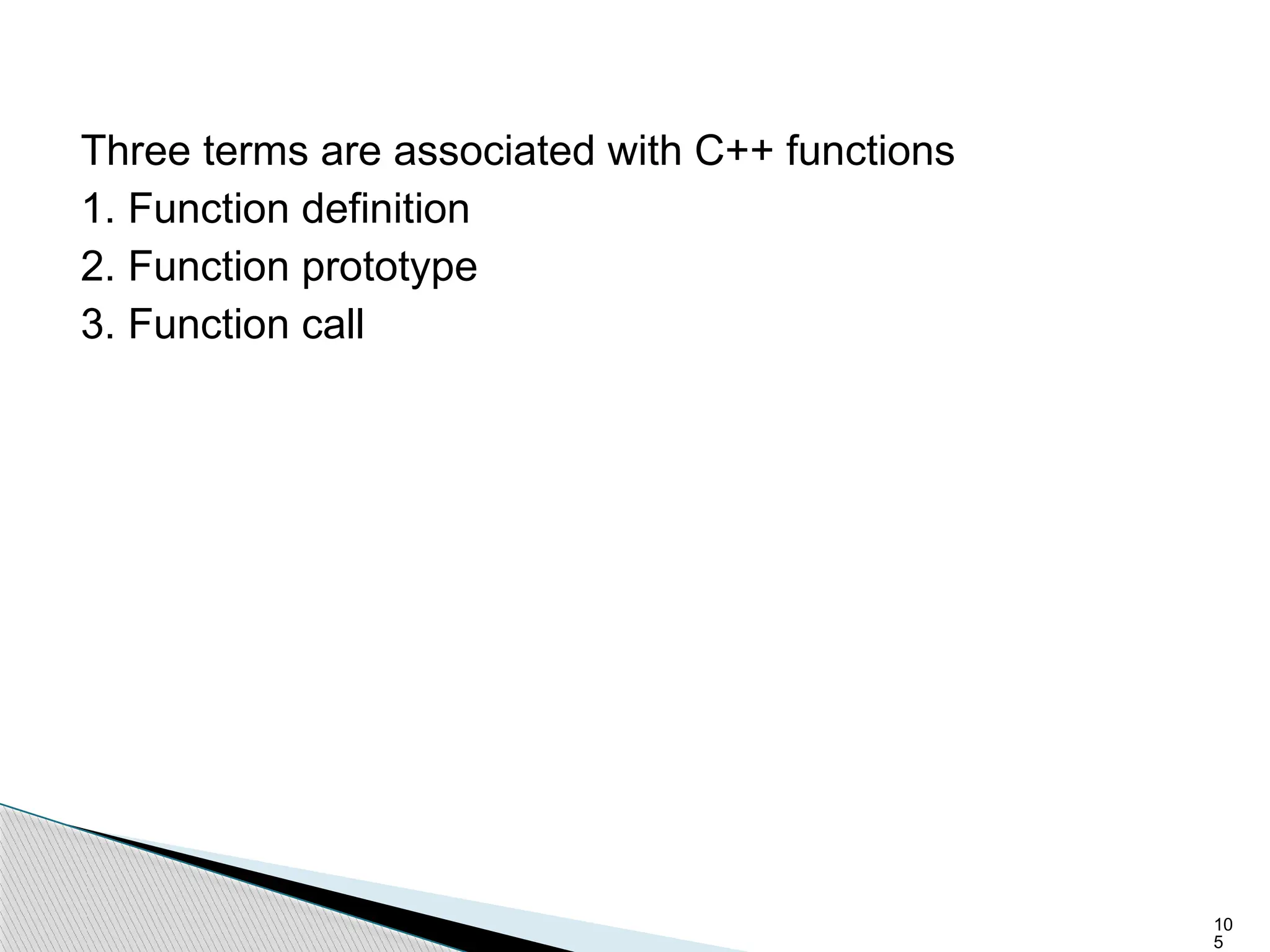

Three terms are associated with C++ functions
1. Function definition
2. Function prototype
3. Function call

10
6

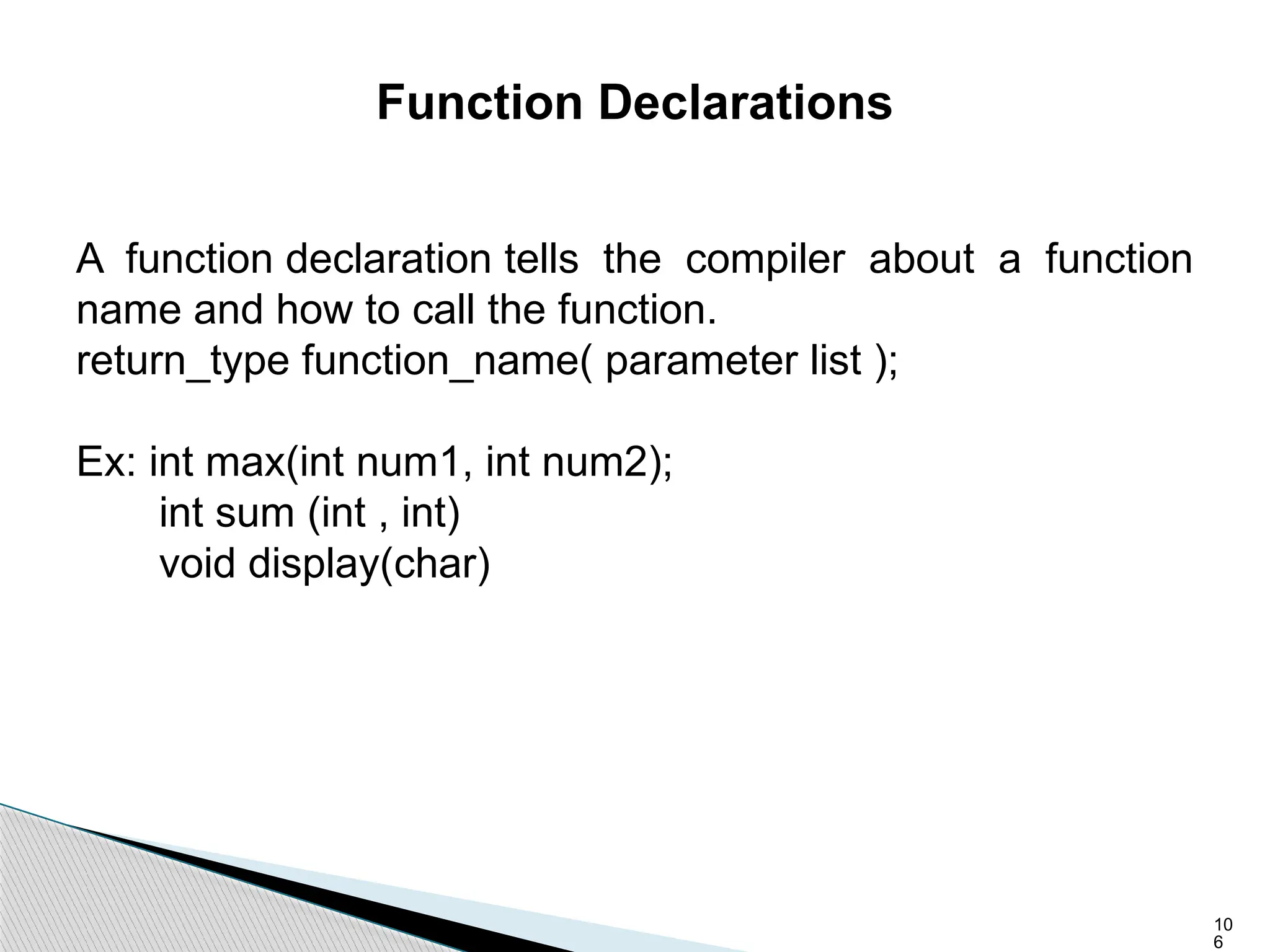

Function Declarations
A function declaration tells the compiler about a function
name and how to call the function.
return_type function_name( parameter list );
Ex: int max(int num1, int num2);
int sum (int , int)
void display(char)

10
7

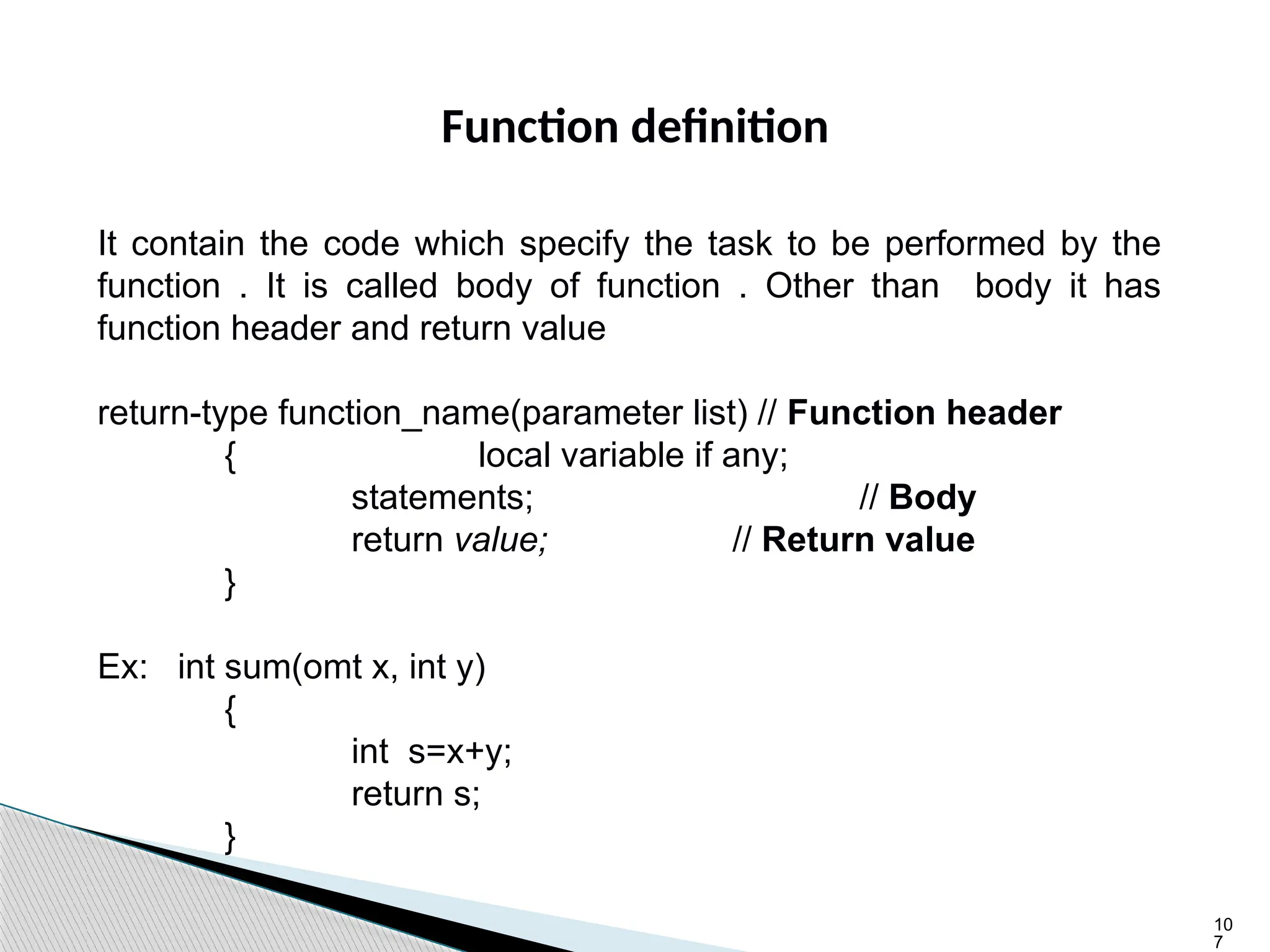

Function definition
It contain the code which specify the task to be performed by the
function . It is called body of function . Other than body it has
function header and return value
return-type function_name(parameter list) // Function header
{ local variable if any;
statements; // Body
return value; // Return value
}
Ex: int sum(omt x, int y)
{
int s=x+y;
return s;
}

10
8

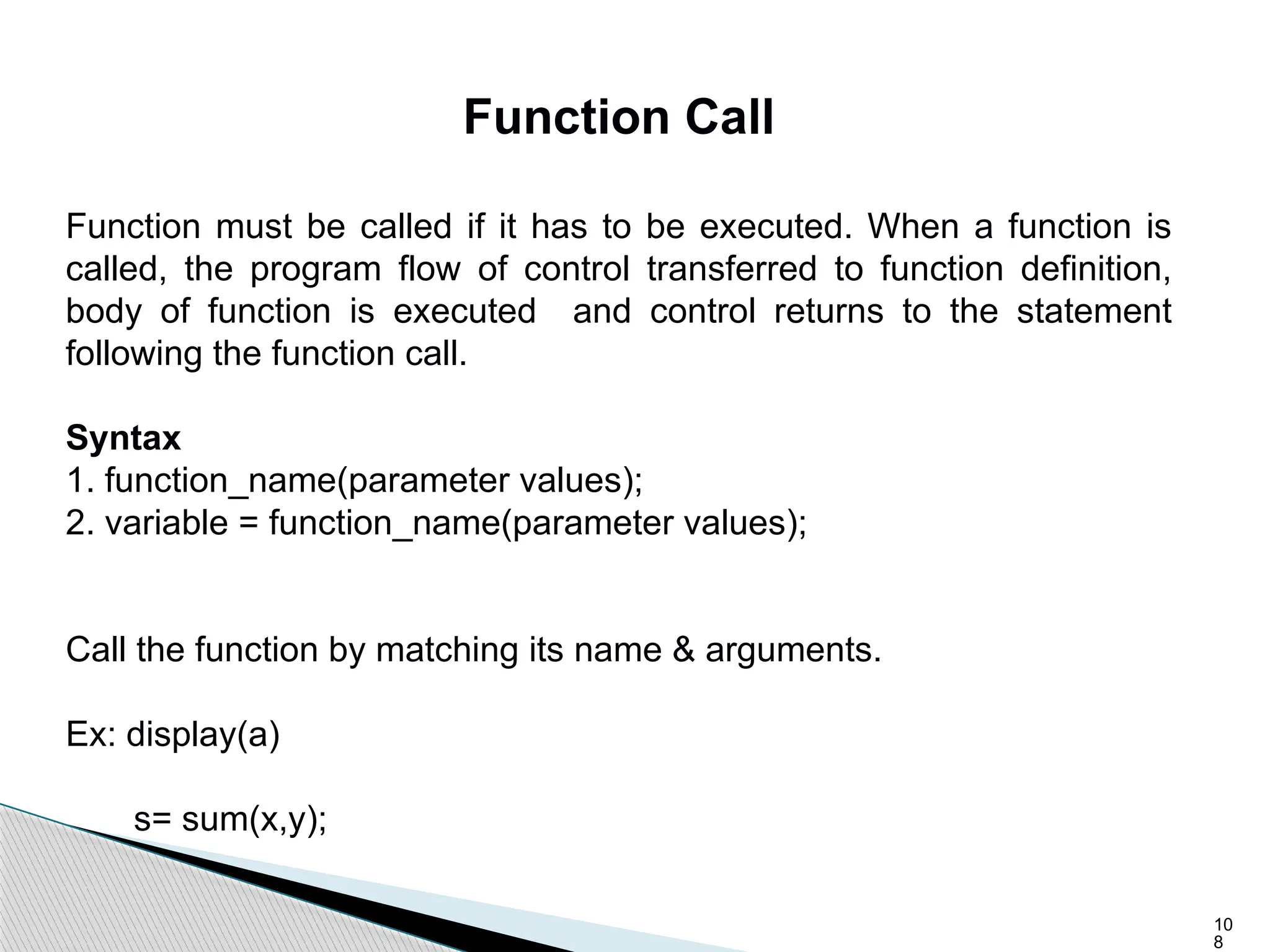

Function Call
Function must be called if it has to be executed. When a function is
called, the program flow of control transferred to function definition,
body of function is executed and control returns to the statement
following the function call.
Syntax
1. function_name(parameter values);
2. variable = function_name(parameter values);
Call the function by matching its name & arguments.
Ex: display(a)
s= sum(x,y);

10
9

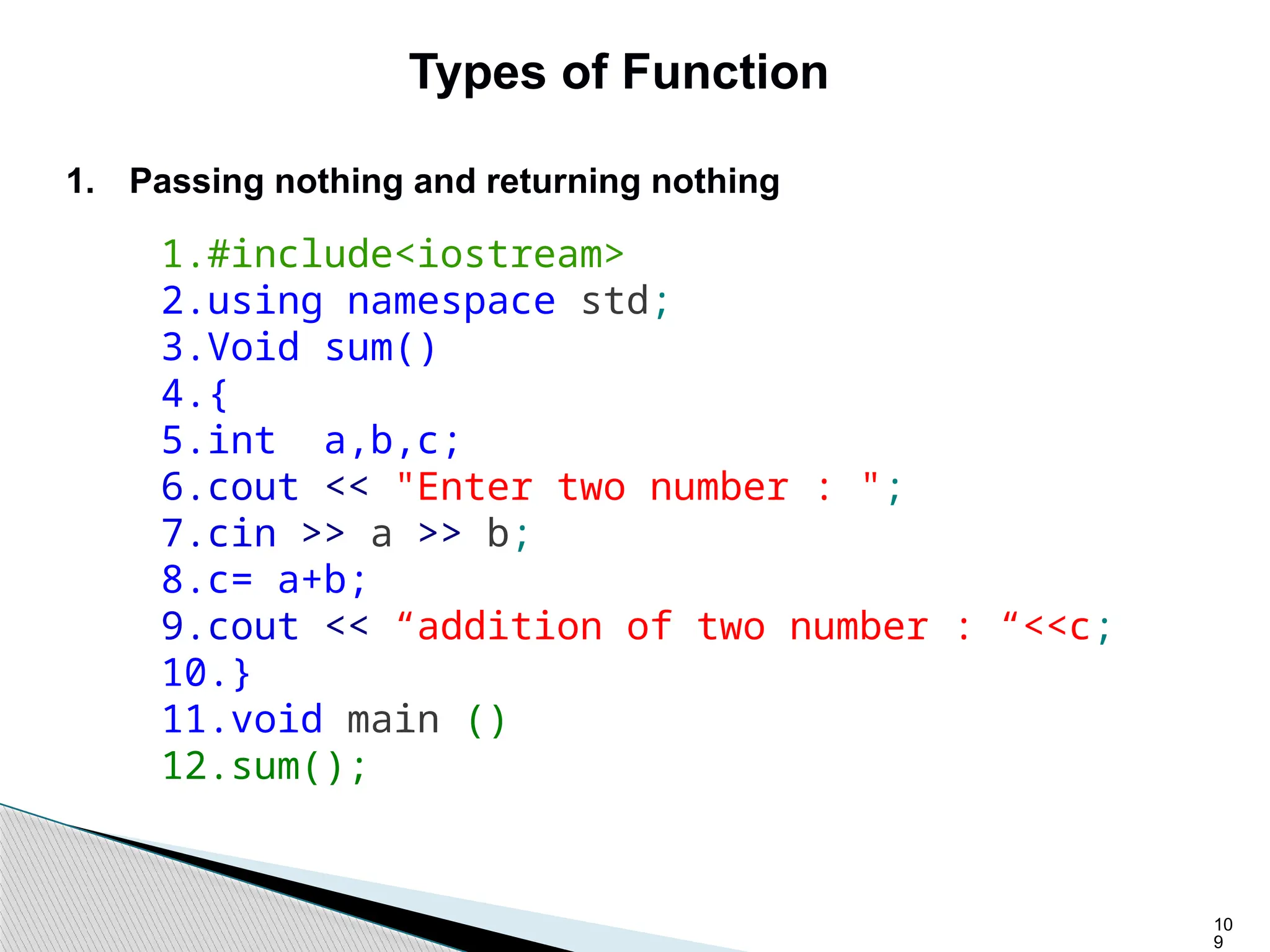

Types of Function
1. Passing nothing and returning nothing
1.#include<iostream>
2.using namespace std;
3.Void sum()
4.{
5.int a,b,c;
6.cout << "Enter two number : ";
7.cin >> a >> b;
8.c= a+b;
9.cout << “addition of two number : “<<c;
10.}
11.void main ()
12.sum();

11
0

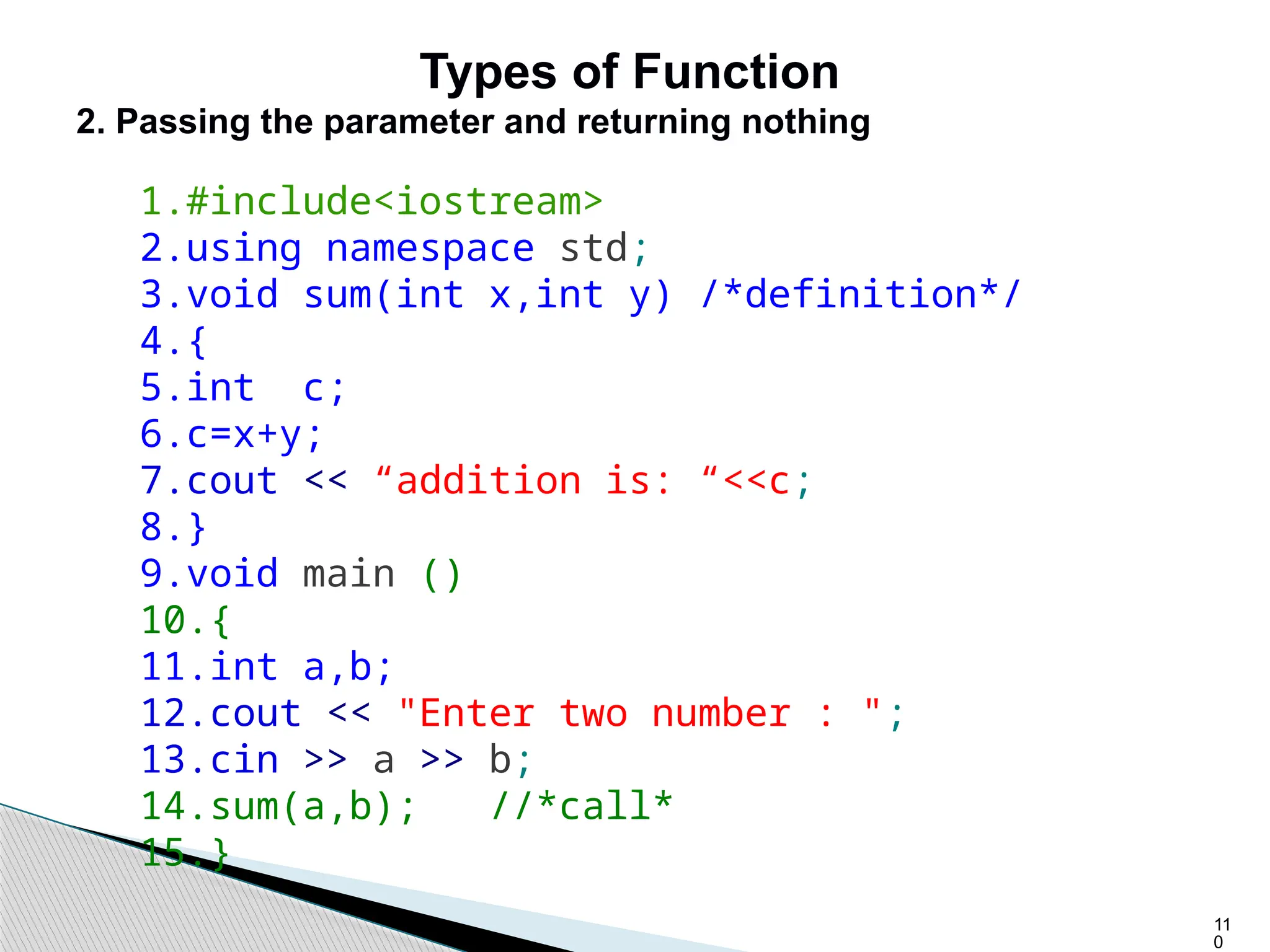

Types of Function
2. Passing the parameter and returning nothing
3.void sum(int x,int y) /*definition*/
4.{
5.int c;
6.c=x+y;
7.cout << “addition is: “<<c;
8.}
9.void main ()
10.{
11.int a,b;
13.cin >> a >> b;
14.sum(a,b); //*call*
15.}

11
1

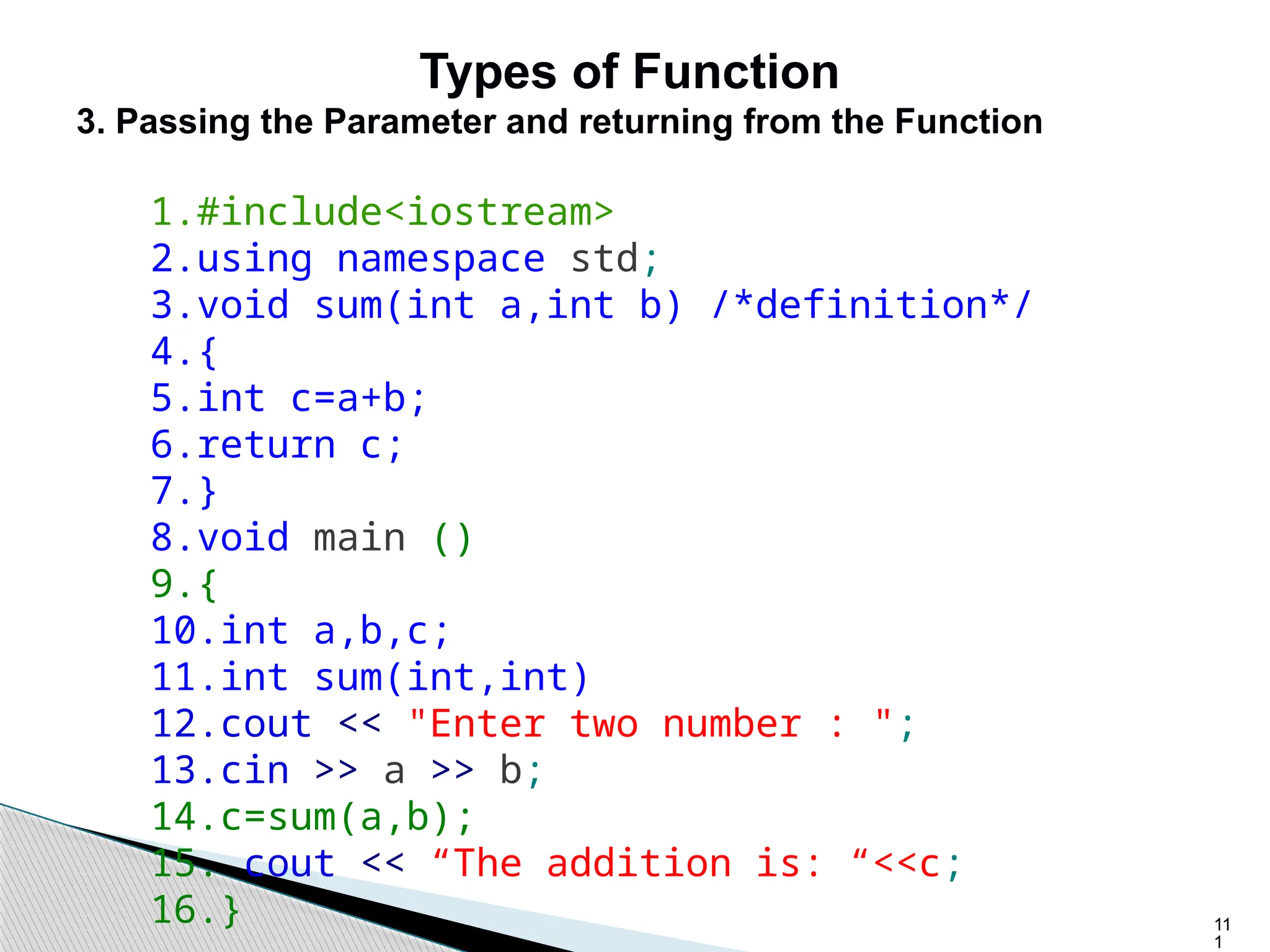

Types of Function
3. Passing the Parameter and returning from the Function
3.void sum(int a,int b) /*definition*/
4.{
5.int c=a+b;
6.return c;
7.}
8.void main ()
9.{
10.int a,b,c;
11.int sum(int,int)
13.cin >> a >> b;
14.c=sum(a,b);
15. cout << “The addition is: “<<c;
16.}

11
2

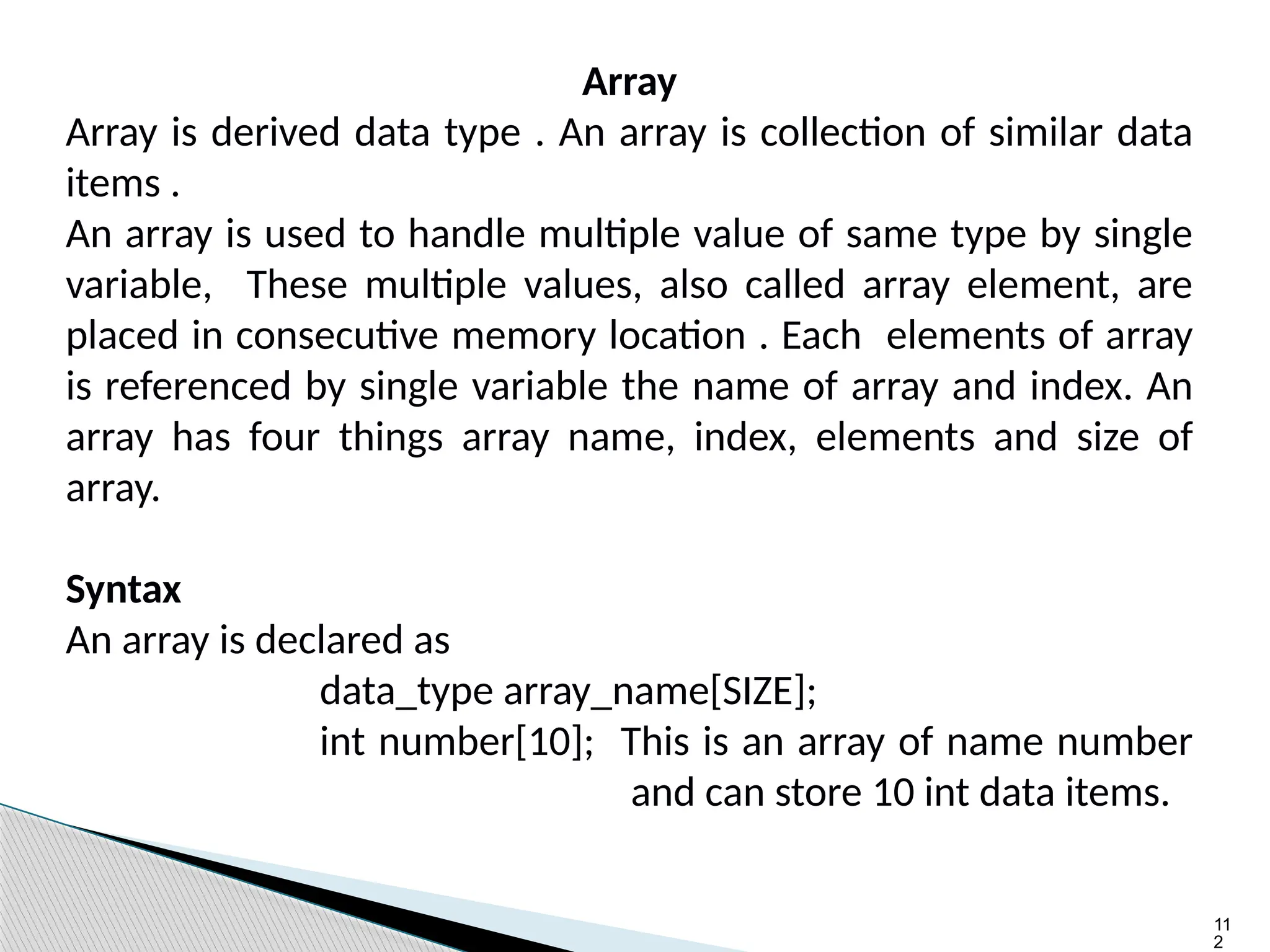

Array
Array is derived data type . An array is collection of similar data
items .
An array is used to handle multiple value of same type by single
variable, These multiple values, also called array element, are
placed in consecutive memory location . Each elements of array
is referenced by single variable the name of array and index. An
array has four things array name, index, elements and size of
array.
Syntax
An array is declared as
data_type array_name[SIZE];
int number[10]; This is an array of name number
and can store 10 int data items.

11
3

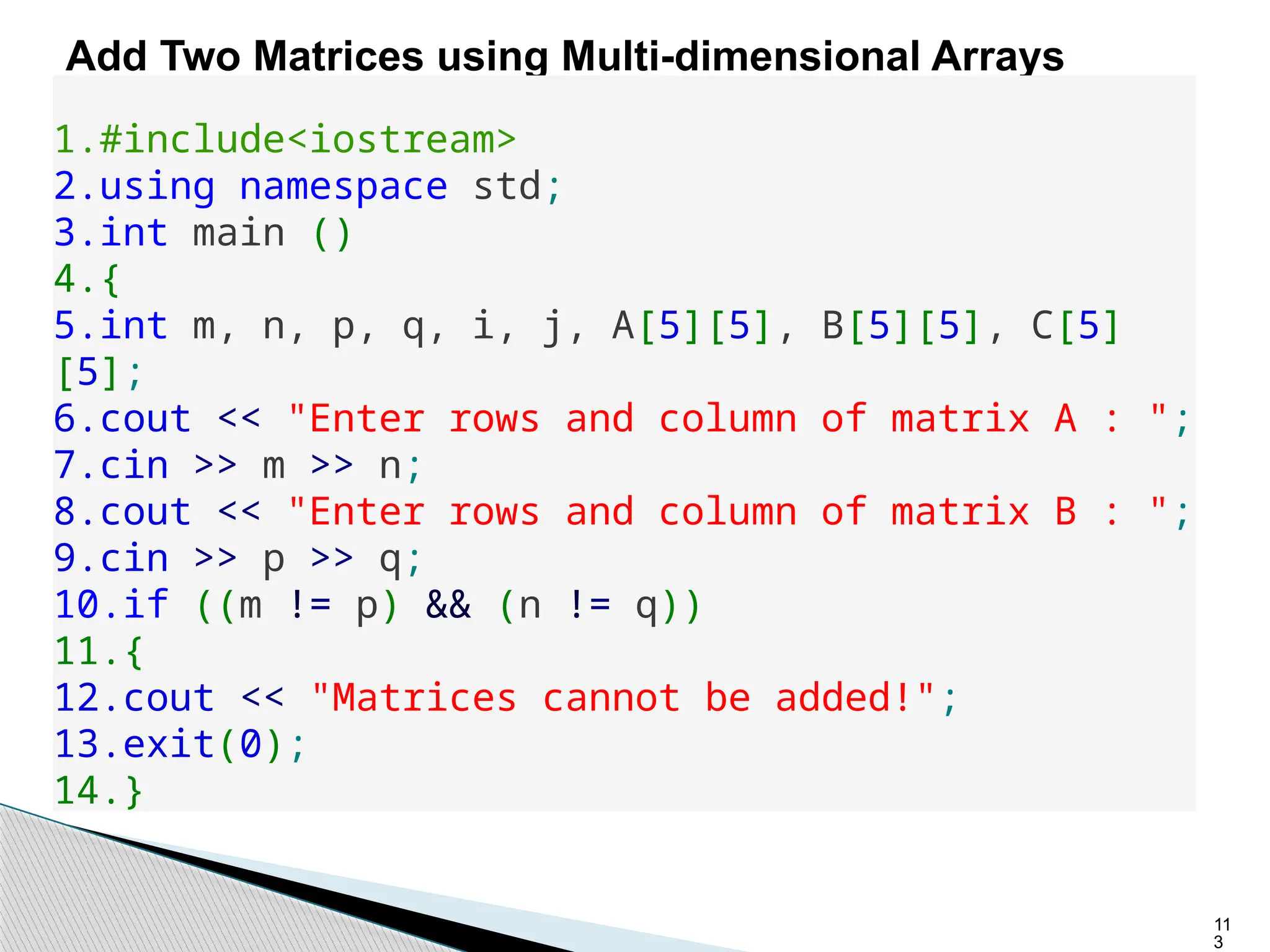

Add Two Matrices using Multi-dimensional Arrays
3.int main ()
4.{
5.int m, n, p, q, i, j, A[5][5], B[5][5], C[5]
[5];
6.cout << "Enter rows and column of matrix A : ";
7.cin >> m >> n;
8.cout << "Enter rows and column of matrix B : ";
9.cin >> p >> q;
10.if ((m != p) && (n != q))
11.{
12.cout << "Matrices cannot be added!";
13.exit(0);
14.}

11
4

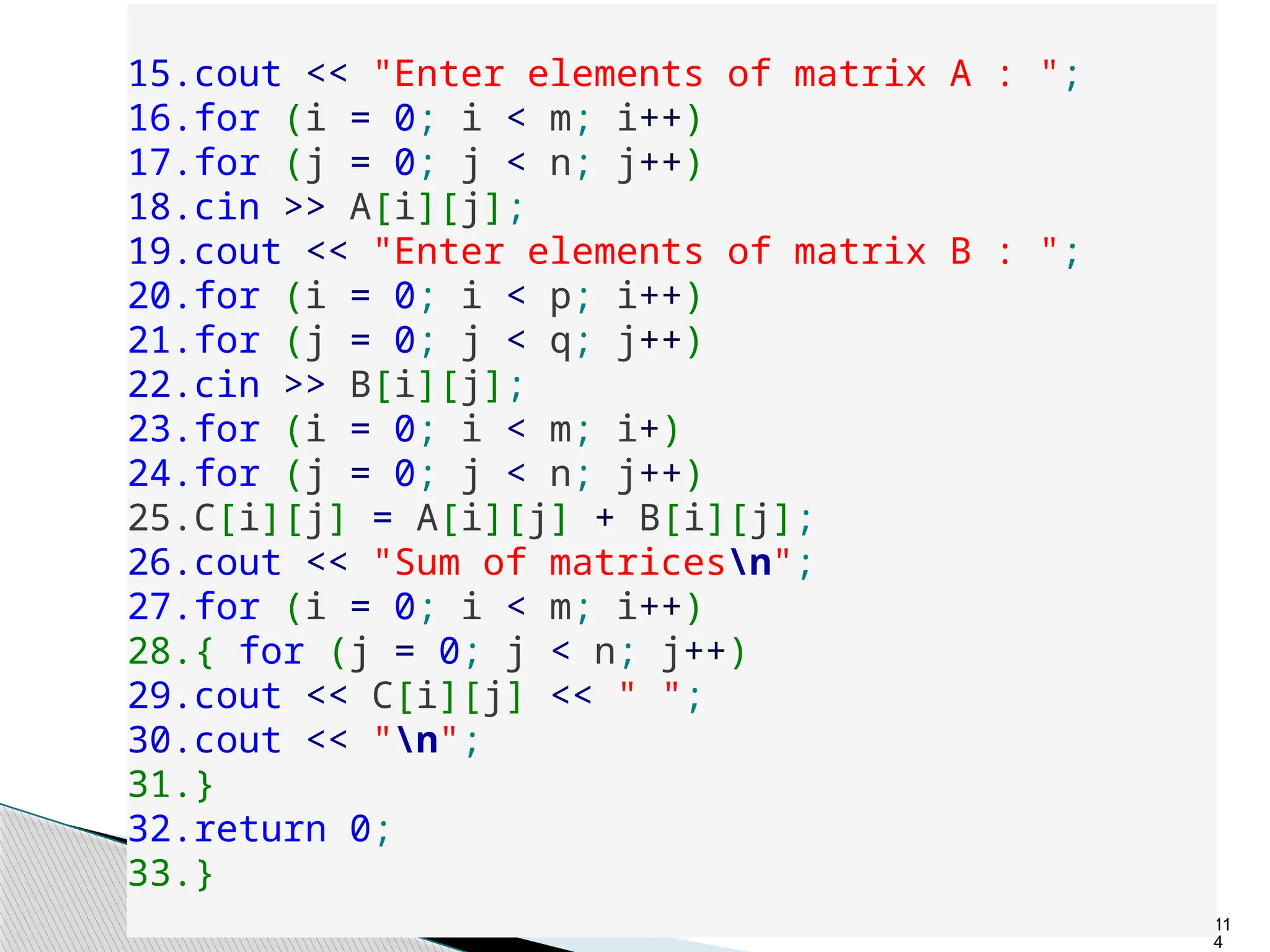

15.cout << "Enter elements of matrix A : ";
16.for (i = 0; i < m; i++)
17.for (j = 0; j < n; j++)
18.cin >> A[i][j];
19.cout << "Enter elements of matrix B : ";
20.for (i = 0; i < p; i++)
21.for (j = 0; j < q; j++)
22.cin >> B[i][j];
23.for (i = 0; i < m; i+)
24.for (j = 0; j < n; j++)
25.C[i][j] = A[i][j] + B[i][j];
26.cout << "Sum of matricesn";
27.for (i = 0; i < m; i++)
28.{ for (j = 0; j < n; j++)
29.cout << C[i][j] << " ";
30.cout << "n";
31.}
32.return 0;
33.}

asic computer is an electronic device that can receive, store, process, and output data.

More Related Content

Similar to asic computer is an electronic device that can receive, store, process, and output data.

Recently uploaded

asic computer is an electronic device that can receive, store, process, and output data.
