- 1. Analog Addressable Fire AlarmSystem E.R.T.L., (North) Tested as per IS : 2189/1999 ASES Security Pvt. Ltd. w w w. a s e s i n d i a . c o mCompatible with all Products
- 2. 2 AN ISO 9001: 2015 Certied Co. Analog Addressable Fire Alarm Panel Main Features : • Advance microprocessor base 1/2 loop Analog Addressable Fire Alarm Control Panel • Panel developed on APOLLO CORE PROTOCOL Support • Panel can support all the devices of - Apollo XP95 series - Apollo Discovery series - Apollo Soteria series • Each Loop can support 252 addressable devices • The panel is having inbuilt RS-485 networking card • Operates on 180 - 265V, 50 Hz, AC Mains power supply • Standby (battery) backup 24V DC power supply with built in-charger • 128*64 character graphics LCD Display • 12 push button Alfa numeric Keypad for easy programming • 3 Level Security Password Protection • Real Time Clock • Events Log Storage Capacity up to 2100 events • Cause & Effect support up to 99 various combinations • Three operand support for developing C&E logics (OR, AND & NOT) 3 Relay outputs for Alarm, Fault & One spare • 1 Digital input for other system interface • Interfaces-Network Port-For connection to Repeater or Printer • RS-485 MODBUS RTU Port for BMS/SCADA interface • RS 232 Port for serial port for direct PC or MODEM connection • USB Host for configuration using Pen Drive or Laptop Loop Wiring Installation : No. of Loop : One / Two Type : Class A Wire Size : 1.5 sq. mm Max. Operating Voltage : 34 VDC Nominal Total No. of Devices: Max. 252 Apollo make devices per loop Fuse Ratting : 1 Amps. Wire Length : 1K meter (From Panel to Last Device) All devices may be configured for general fire alarm applications. Note : Only Apollo addressable Smoke detectors, Sirens, MCP’s and Interface Modules can be connected in the loop circuit. Technical Specification : Power Supply : 180-265VAC, 50/60Hz Operating Voltage : 34VDC/500mA, 24VDC/3A Loop : 1/2 Loop Current Max. : 500mA Devices : 252/504 devices support USB Port : 1 Zones : 97 (95 for Addressable and 2 for conventional) Digital Inputs : 1 Battery : 12VDC/7.2 A x 2 Display : 128*64 character graphics LCD Display Output : Siren Output (1A max) Buzzer 3 PFC Relay (1 Fire+1 Fault+1 Aux) Connectivity : USB Port for Panel Configuration, RS 485 Modbus for SCADA/BMS RS 232 Port Humidity : 5 to 90% Rh Working Temp. : -10°C to 55°C Size : (495x495x200) mm AnalogAddressable FireAlarmActiveRepeaterPanel Main Features : • 128 x 64 Characters LCD display. • Tactile Keypad for easy operation. • Remote silence and evacuate can be done from RP. • Remote control of any main panel in the network/system. • Battery low audio visual warning. • Micro USB for PC Interface. Electrical Specification : • Primary Power • 24V D.C. • Operating temperature 0-49° C/32-120° F. • Relative Humidity 93 + 2% RH (non-condensing) at 32+2°C/90+3°F. Mechanical Specification : • Dimensions : (415 L X 80 W X 300 H) mm • Color : Gray • Construction : 1.2mm CRCA sheet with powder-coated finish • Cable Entry : Knockout at the top of the cabinet • Weight : 3 Kg Product Overview : The ASES Single Repeater - ASES is an active repeater with full indication and controls of main Fire Alarm Panel. This repeater connect to SI-Series panel using RS 485 communication network. Any communication fault or any loss in communication due to cable fault is indicating this repeater panel. Discovery SI-1L/2L Panel developed on Protocol AS-SI-RP Panel developed on Protocol

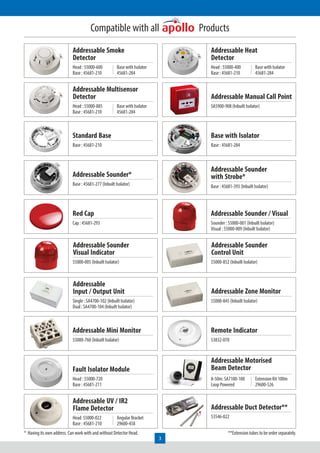

- 3. 3 Addressable Smoke Detector Head :55000-600 Base : 45681-210 Base with Isolator 45681-284 Addressable Multisensor Detector Head : 55000-885 Base : 45681-210 Base with Isolator 45681-284 Base : 45681-210 Standard Base Base : 45681-277 (Inbuilt Isolator) Addressable Sounder* Cap : 45681-293 Red Cap 55000-005 (Inbuilt Isolator) Single : SA4700-102 (Inbuilt Isolator) Dual : SA4700-104 (Inbuilt Isolator) Addressable Input / Output Unit 55000-760 (Inbuilt Isolator) Addressable Mini Monitor Head : 55000-720 Base : 45681-211 Fault Isolator Module Addressable Sounder Visual Indicator Addressable UV / IR2 Flame Detector Head 55000-022 Base : 45681-210 Angular Bracket 29600-458 Addressable Heat Detector Head : 55000-400 Base : 45681-210 Base with Isolator 45681-284 Addressable Manual Call Point SA5900-908 (Inbuilt Isolator) Base : 45681-284 Base with Isolator Base : 45681-393 (Inbuilt Isolator) Addressable Sounder with Strobe* Sounder : 55000-001 (Inbuilt Isolator) Visual : 55000-009 (Inbuilt Isolator) Addressable Sounder / Visual 55000-852 (Inbuilt Isolator) 55000-845 (Inbuilt Isolator) Addressable Zone Monitor 53832-070 Remote Indicator Addressable Motorised Beam Detector Addressable Sounder Control Unit 8-50m: SA7100-100 Loop Powered Extension Kit 100m 29600-526 Addressable Duct Detector** 53546-022 * Having its own address. Can work with and without Detector Head. **Extension tubes to be order separately. Compatible with all Products

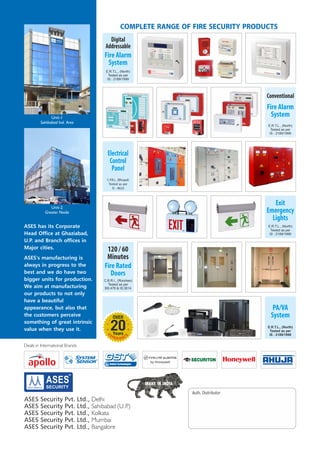

- 4. ASES Security Pvt.Ltd., Delhi ASES Security Pvt. Ltd., Sahibabad (U.P.) ASES Security Pvt. Ltd., Kolkata ASES Security Pvt. Ltd., Mumbai ASES Security Pvt. Ltd., Bangalore Deals in International Brands R R Electrical Control Panel C.P.R.I., (Bhopal) Tested as per IS : 8623 E.R.T.L., (North) Tested as per IS : 2189/1999 Exit Emergency Lights E.R.T.L., (North) Tested as per IS : 2189/1999 Fire Alarm System Conventional Fire Rated Doors C.B.R.I., (Roorkee) Tested as per BS:476 & IS:3614 120 / 60 Minutes COMPLETE RANGE OF FIRE SECURITY PRODUCTS E.R.T.L., (North) Tested as per IS : 2189/1999 Fire Alarm System Digital Addressable PA/VA System E.R.T.L., (North) Tested as per IS : 2189/1999 20 E X E P CE NRIE OVER Years Unit-2 Greater Noida Unit-1 Sahibabad Ind. Area ASES has its Corporate Head Office at Ghaziabad, U.P. and Branch offices in Major cities. ASES's manufacturing is always in progress to the best and we do have two bigger units for production. We aim at manufacturing our products to not only have a beautiful appearance, but also that the customers perceive something of great intrinsic value when they use it.
