Artdm171 Week4 Tags
- 1. ARTDM 171, Week4: HTML Basics Gilbert Guerrero, gguerrero@dvc.edu gilbertguerrero.com/blog/artdm-171/
- 2.

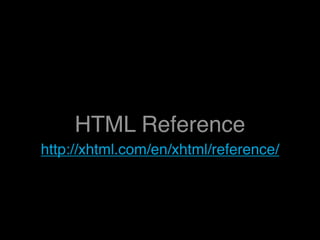

- 3.
- 4. Create a newpage in Dreamweaver
- 5. Working folders forthis week • Create a new folder in your ARTDM171 folder called Week4 • Create a new folder in Week4 called html • Set the html folder as your local root folder • Example: ARTDM171 Week4 html
- 6. Tags used forPage Properties • <!DOCTYPE > - Defines the document type • <html></html> - Starts and ends the document • <head></head> - HTML Header. Comes after the <html> tag and before the <body> tag • <title></title> - HTML Title, the name of the document • <body></body> - Contains your visible content

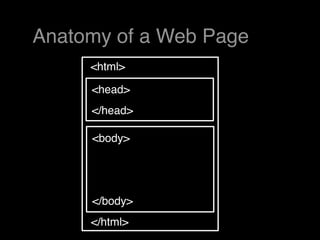

- 7. Anatomy of aWeb Page <html> <head> </head> <body> </body> </html>
- 8. Nesting • Be sureto properly nest your tags • Right: href=”xyz.html”>Xyz</a></em> <em><a • Wrong:href=”xyz.html”>Xyz</em></a> <em><a

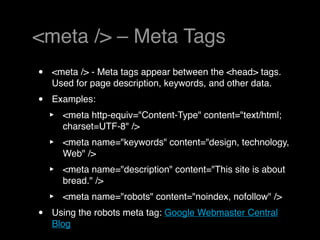

- 9. <meta /> –Meta Tags • <meta /> - Meta tags appear between the <head> tags. Used for page description, keywords, and other data. • Examples: ‣ <meta http-equiv="Content-Type" content="text/html; charset=UTF-8" /> ‣ <meta name="keywords" content="design, technology, Web" /> ‣ <meta name="description" content="This site is about bread." /> ‣ <meta name="robots" content="noindex, nofollow" /> • Using the robots meta tag: Google Webmaster Central Blog
- 10. Basic Tags • <p></p>Paragraph • <br /> Line break ‣ An empty tag, always end with a forward slash • <em></em> Emphasis • <strong></strong> Stronger emphasis • <h1></h1> <h2></h2> <h3></h3> Headers
- 11. Semantic Web • <em></em>and <strong></strong> are known as Idiomatic Elements ‣ They help to convey meaning, which can be interpreted by a browser or device as a visual style, motion, sound volume, etc • <i></i> and <b></b> are Typographic Elements ‣ Add visual style to a page, but do not convey meaning

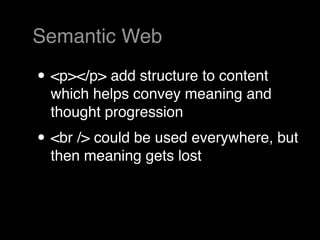

- 12. Semantic Web • <p></p>add structure to content which helps convey meaning and thought progression • <br /> could be used everywhere, but then meaning gets lost

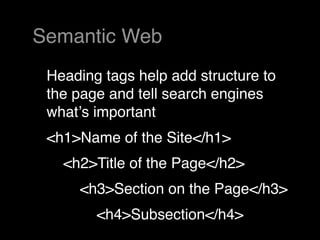

- 13. Semantic Web Headingtags help add structure to the page and tell search engines whatʼs important <h1>Name of the Site</h1> <h2>Title of the Page</h2> <h3>Section on the Page</h3> <h4>Subsection</h4>

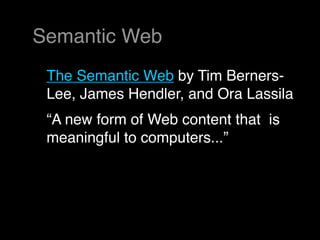

- 14. Semantic Web TheSemantic Web by Tim Berners- Lee, James Hendler, and Ora Lassila “A new form of Web content that is meaningful to computers...”

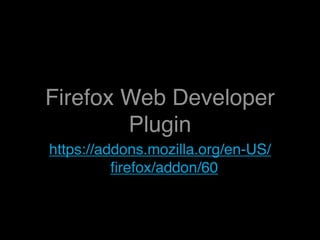

- 15. Firefox Web Developer Plugin https://addons.mozilla.org/en-US/ firefox/addon/60

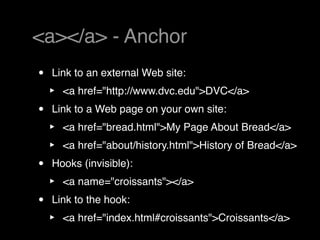

- 16. <a></a> - Anchor • Link to an external Web site: ‣ <a href="http://www.dvc.edu">DVC</a> • Link to a Web page on your own site: ‣ <a href="bread.html">My Page About Bread</a> ‣ <a href="about/history.html">History of Bread</a> • Hooks (invisible): ‣ <a name="croissants"></a> • Link to the hook: ‣ <a href="index.html#croissants">Croissants</a>
- 17. <img /> -Image • <img src="images/file.jpg" border="0" height="10" width="10" /> • Border, Width and Height are optional.
- 18. <ul>, <ol> —Lists • Unordered Lists (Bulleted) • <ul> <li>Eggs</li> <li>Milk</li> <li>Potatoes</li> • </ul> • Ordered Lists (Numbered) • <ol> <li>Eggs</li> <li>Milk</li> <li>Potatoes</li> • </ol>

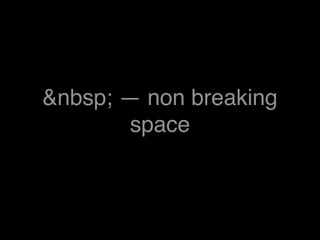

- 19. — nonbreaking space
- 20. <table> – Tabletags <table></table> – Table. Encloses your table. You can set the width (Pixels or Percentage %), border, and cellpadding and cellspacing as attributes. <tr></tr> – Row. Encloses a row in your table. <td></td> – Cell. Encloses what's in each cell of the table. These also create your columns. Make sure you have the same number of cells in each row.

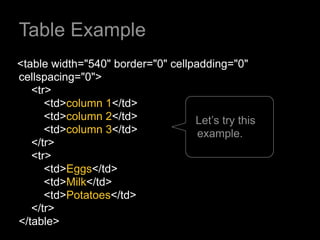

- 21. Table Example <table width="540"border="0" cellpadding="0" cellspacing="0"> <tr> <td>column 1</td> <td>column 2</td> Let’s try this <td>column 3</td> example. </tr> <tr> <td>Eggs</td> <td>Milk</td> <td>Potatoes</td> </tr> </table>
- 22. Table Example <table> <tr> <td> Column 1 </td> <td> Column 2 </td> <td> Column 3 </td> </tr> <tr> <td> Eggs </td> <td> Milk </td> <td> Potatoes </td> </tr> </table>
- 23. Fonts • For fonts,colors, and sizes, use CSS. • Placed between the <head></head> tags • <style type="text/css></style> - Style tags. Enclose your CSS code in these. • Page Elements ‣ CSS uses page elements to specify fonts. You can set a font on any page element, body, h1, p, a,...

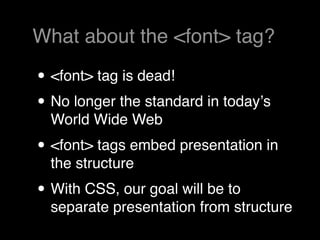

- 24. What about the<font> tag? • <font> tag is dead! • No longer the standard in todayʼs World Wide Web • <font> tags embed presentation in the structure • With CSS, our goal will be to separate presentation from structure

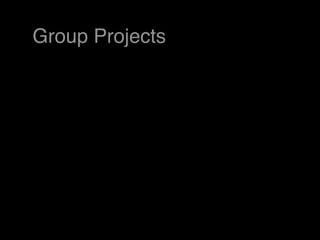

- 25.
- 26. Homework due Feb23 • Read and follow along Chapter 7: Styling Page Content ‣ Use last weekʼs homework and add CSS ‣ Add at least 9 rules 3 style rules for tags 2 custom classes 2 compound styles 2 divs with styles applied to the idʼs • There will be a quiz on Chapter 7 next week! • Next week we'll go deep into CSS
- 27.
Editor's Notes
- #7 &#xA0;&#xA0;
- #10 Dreamweaver automatically generates most of this when you create a new document. 10 lines of code (including a blank line between head and body.) &#xA0; Take a look at these tags in Dreamweaver in a basic HTML document.
- #17 (Notice the attributes.)
- #18 Class Exercise:&#x2192;&#xA0;&#xA0; Add a page heading, paragraph, bold, italics, link, and an image. Use the image saved in the ARTDM-171 folder. (Drag and drop it into the images folder on your USB drive.)
