1. November 2011 Armored Vehicle Solutions, LLC 1
Armored Vehicle Solutions, LLC
Advanced Armored Protection
for Your Vehicle
Overview
Superior Solutions from AVS
Ballistic Protection Levels
Steps to the Process
Pricing

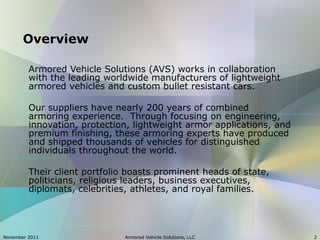

2. November 2011 Armored Vehicle Solutions, LLC 2
Overview
Armored Vehicle Solutions (AVS) works in collaboration
with the leading worldwide manufacturers of lightweight
armored vehicles and custom bullet resistant cars.
Our suppliers have nearly 200 years of combined
armoring experience. Through focusing on engineering,
innovation, protection, lightweight armor applications, and
premium finishing, these armoring experts have produced
and shipped thousands of vehicles for distinguished
individuals throughout the world.
Their client portfolio boasts prominent heads of state,
politicians, religious leaders, business executives,
diplomats, celebrities, athletes, and royal families.

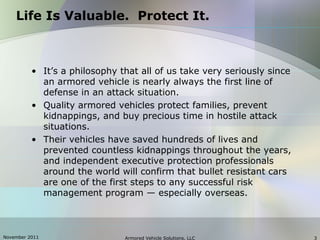

3. November 2011 Armored Vehicle Solutions, LLC 3
Life Is Valuable. Protect It.
• It’s a philosophy that all of us take very seriously since
an armored vehicle is nearly always the first line of
defense in an attack situation.
• Quality armored vehicles protect families, prevent
kidnappings, and buy precious time in hostile attack
situations.
• Their vehicles have saved hundreds of lives and
prevented countless kidnappings throughout the years,
and independent executive protection professionals
around the world will confirm that bullet resistant cars
are one of the first steps to any successful risk
management program — especially overseas.

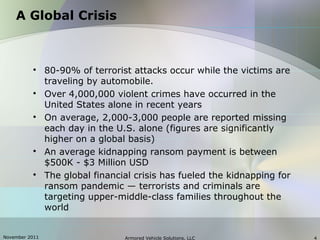

4. November 2011 Armored Vehicle Solutions, LLC 4
A Global Crisis
80-90% of terrorist attacks occur while the victims are
traveling by automobile.
Over 4,000,000 violent crimes have occurred in the
United States alone in recent years
On average, 2,000-3,000 people are reported missing
each day in the U.S. alone (figures are significantly
higher on a global basis)
An average kidnapping ransom payment is between
$500K - $3 Million USD
The global financial crisis has fueled the kidnapping for
ransom pandemic — terrorists and criminals are
targeting upper-middle-class families throughout the
world

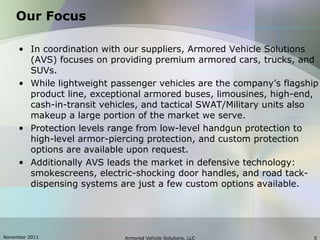

5. November 2011 Armored Vehicle Solutions, LLC 5
Our Focus
• In coordination with our suppliers, Armored Vehicle Solutions
(AVS) focuses on providing premium armored cars, trucks, and
SUVs.
• While lightweight passenger vehicles are the company’s flagship
product line, exceptional armored buses, limousines, high-end,
cash-in-transit vehicles, and tactical SWAT/Military units also
makeup a large portion of the market we serve.
• Protection levels range from low-level handgun protection to
high-level armor-piercing protection, and custom protection
options are available upon request.
• Additionally AVS leads the market in defensive technology:
smokescreens, electric-shocking door handles, and road tack-
dispensing systems are just a few custom options available.

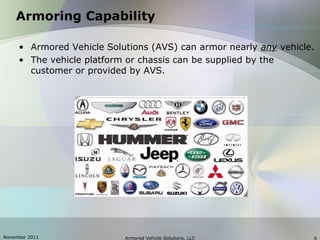

6. November 2011 Armored Vehicle Solutions, LLC 6
Armoring Capability
• Armored Vehicle Solutions (AVS) can armor nearly any vehicle.
• The vehicle platform or chassis can be supplied by the
customer or provided by AVS.

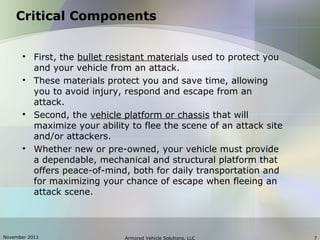

7. November 2011 Armored Vehicle Solutions, LLC 7
Critical Components
First, the bullet resistant materials used to protect you
and your vehicle from an attack.
These materials protect you and save time, allowing
you to avoid injury, respond and escape from an
attack.
Second, the vehicle platform or chassis that will
maximize your ability to flee the scene of an attack site
and/or attackers.
Whether new or pre-owned, your vehicle must provide
a dependable, mechanical and structural platform that
offers peace-of-mind, both for daily transportation and
for maximizing your chance of escape when fleeing an
attack scene.

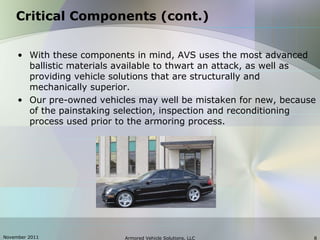

8. November 2011 Armored Vehicle Solutions, LLC 8
Critical Components (cont.)
• With these components in mind, AVS uses the most advanced
ballistic materials available to thwart an attack, as well as
providing vehicle solutions that are structurally and
mechanically superior.
• Our pre-owned vehicles may well be mistaken for new, because
of the painstaking selection, inspection and reconditioning
process used prior to the armoring process.
9. November 2011 Armored Vehicle Solutions, LLC 9
Ballistics
Level Protection Equivalent Munitions
T4 Handgun & Small Arms CEN: B4
ANSI/UL: III
NIJ: III-A
9mmFMJ, .357 Mag SP,
.38 SuperAuto FMJ, 44
Mag SWC, .30 Carbine
12 Gauge Slug
T6 Rifle CEN: B6+
ANSI/UL: 5/8
NIJ: III
.30 Cal SP, 7.62 x 51
NATO, 5.56(.223) FMJ,
7.62 x 39 FMJ, 30.06 SP
T7 Armor Piercing Rifle
(single shot)
CEN: B7(single)
NIJ: IV
5.56 (.223) AP, 7.62 x
51 NATO AP, 30.06 AP,
7.62 x 39 AP
T8 Armor Piercing Rifle
(multi-shot)
CEN: B7(multi)
NIJ: IV+
5.56 (.223) AP, 7.62 x
51 NATO AP, 30.06 AP,
7.62 x 39 AP
Armoring is available in a variety of levels ranging from low-level handgun protection to armor-piercing rifle
protection. Availability may vary depending on the base vehicle selected.
10. November 2011 Armored Vehicle Solutions, LLC 10
T4 Protection (CEN: B4, ANSI/UL: III, NIJ: III-A)
• Munitions Defeated:
– {.44 Magnum; .357 Magnum; .9 MM; .45 Caliber} (12 Gauge Shotgun)
• Transparent Armor:
– Windows – All Curved Glass/Polycarbonate – 22mm
• Opaque Armor:
– Doors – Spectra Shield® (Lightweight armor)
– Pillars and Posts - Spectra Shield® (Lightweight armor)
– Roof and Floor – Ballistic Nylon - Fragmentation Protection
– Gas Tank -Ballistic Nylon
– Battery – Dual Hardened Ballistic Steel
– Firewall – Spectra Shield® (Lightweight armor)
– Rear Lift gate Door – Spectra Shield® (Lightweight armor)
– Explosive Protection Against DM-51 Hand Grenades,
– Anti-tank Mines & Certain IEDs
– Tires – (4) Special Run Flat Tire Inserts
– Nylon door risers on all doors
– Shocks and springs are upgraded and reinforced as necessary
– Braking System is upgraded and reinforced as necessary
– Reinforced Door Hinges
11. November 2011 Armored Vehicle Solutions, LLC 11
T6 Protection(CEN: B6+, ANSI/UL: 5/8, NIJ: III)
• Munitions Defeated:
{7.62 NATO X 51; M80 Ball; 5.56 Caliber (.223); M193; 7.62 X 39}
(30.06 High Power Rifle) (AK-47 And M-16) (12 Gauge Shotgun)
(Plus Handgun Munitions .38 Cal.; 9mm; .357 Cal.; .44 Cal.)
• Transparent Armor:
– Windows –All Curved Glass/Polycarbonate –40mm
• Opaque Armor:
– Doors – Spectra Shield® (Light Weight Armor)
– All Pillars And Posts - High Hardened Ballistic Steel
– Roof And Floor – Ballistic Nylon – Fragmentation Protection
– Gas Tank - Ballistic Nylon – Fragmentation Protection
– Battery, ECM, And Fuse Box – High Hardened Ballistic Steel
– Firewall – High Hardened Ballistic Steel
– Rear Door Lift Gate – High Hardened Ballistic Steel
– Explosive Protection Against DM-51 Hand Grenades,
– Anti-tank Mines & Certain IEDs
– Tires – (4) Special Run Flat Tire Inserts
– Nylon door risers on all doors
– Shocks and springs are upgraded and reinforced as necessary
– Braking System is upgraded and reinforced as necessary
– Reinforced Door Hinges
12. November 2011 Armored Vehicle Solutions, LLC 12
T7 Protection (CEN: B7 (single-shot), NIJ: IV)
• Munitions Defeated:
{7.62 x 39 Armor Piercing; 7.62 NATO x 51 Armor Piercing (1) shot; (Same as European Level
B7) 5.56 Caliber (.223) Armor Piercing} (30.06 High Power Rifle) (AK-47 (Same as NIJ 4) and M-
16) {7.62 x 54 Armor Piercing (1) shot} {7.62 NATOx51; M80 Ball; 5.56 Caliber (.223); M193;
SS109; 7.62 x 39} (30.06 High Power Rifle) (AK-47 and M-16) (12 Gauge Shotgun) (Plus
handgun munitions .38 Cal.; 9MM; .357 Cal.; .44 Cal.)
• Transparent Armor:
Windows –All Curved Glass/Polycarbonate –55mm
• Opaque Armor:
Doors – Spectra Shield® (Light Weight Armor)
All Pillars And Posts - High Hardened Ballistic Steel
Roof And Floor – Ballistic Nylon – Fragmentation Protection
Gas Tank -Ballistic Nylon – Fragmentation Protection
Battery, ECM, And Fuse Box – High Hardened Ballistic Steel
Firewall – High Hardened Ballistic Steel
Rear Door Lift Gate – High Hardened Ballistic Steel
Explosive Protection Against DM-51 Hand Grenades,
Anti-tank Mines & Certain IEDs
Tires – (4) Special Run Flat Tire Inserts
Nylon door risers on all doors
Shocks and springs are upgraded and reinforced as necessary
Braking System is upgraded and reinforced as necessary
Reinforced Door Hinges

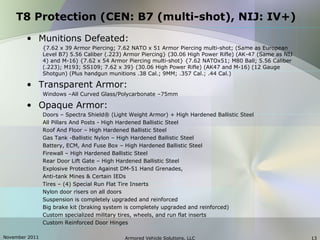

13. November 2011 Armored Vehicle Solutions, LLC 13
T8 Protection (CEN: B7 (multi-shot), NIJ: IV+)
• Munitions Defeated:
{7.62 x 39 Armor Piercing; 7.62 NATO x 51 Armor Piercing multi-shot; (Same as European
Level B7) 5.56 Caliber (.223) Armor Piercing} (30.06 High Power Rifle) (AK-47 (Same as NIJ
4) and M-16) {7.62 x 54 Armor Piercing multi-shot} {7.62 NATOx51; M80 Ball; 5.56 Caliber
(.223); M193; SS109; 7.62 x 39} (30.06 High Power Rifle) (AK47 and M-16) (12 Gauge
Shotgun) (Plus handgun munitions .38 Cal.; 9MM; .357 Cal.; .44 Cal.)
• Transparent Armor:
Windows –All Curved Glass/Polycarbonate –75mm
• Opaque Armor:
Doors – Spectra Shield® (Light Weight Armor) + High Hardened Ballistic Steel
All Pillars And Posts - High Hardened Ballistic Steel
Roof And Floor – High Hardened Ballistic Steel
Gas Tank -Ballistic Nylon – High Hardened Ballistic Steel
Battery, ECM, And Fuse Box – High Hardened Ballistic Steel
Firewall – High Hardened Ballistic Steel
Rear Door Lift Gate – High Hardened Ballistic Steel
Explosive Protection Against DM-51 Hand Grenades,
Anti-tank Mines & Certain IEDs
Tires – (4) Special Run Flat Tire Inserts
Nylon door risers on all doors
Suspension is completely upgraded and reinforced
Big brake kit (braking system is completely upgraded and reinforced)
Custom specialized military tires, wheels, and run flat inserts
Custom Reinforced Door Hinges

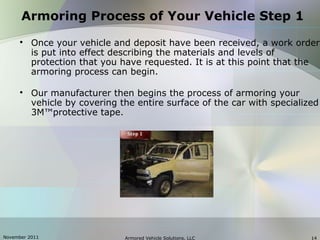

14. November 2011 Armored Vehicle Solutions, LLC 14
Armoring Process of Your Vehicle Step 1
Once your vehicle and deposit have been received, a work order
is put into effect describing the materials and levels of
protection that you have requested. It is at this point that the
armoring process can begin.
Our manufacturer then begins the process of armoring your
vehicle by covering the entire surface of the car with specialized
3M™protective tape.

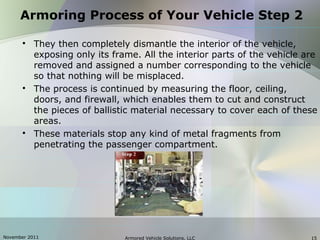

15. November 2011 Armored Vehicle Solutions, LLC 15
Armoring Process of Your Vehicle Step 2
They then completely dismantle the interior of the vehicle,
exposing only its frame. All the interior parts of the vehicle are
removed and assigned a number corresponding to the vehicle
so that nothing will be misplaced.
The process is continued by measuring the floor, ceiling,
doors, and firewall, which enables them to cut and construct
the pieces of ballistic material necessary to cover each of these
areas.
These materials stop any kind of metal fragments from
penetrating the passenger compartment.

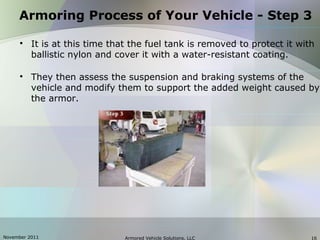

16. November 2011 Armored Vehicle Solutions, LLC 16
It is at this time that the fuel tank is removed to protect it with
ballistic nylon and cover it with a water-resistant coating.
They then assess the suspension and braking systems of the
vehicle and modify them to support the added weight caused by
the armor.
Armoring Process of Your Vehicle - Step 3
17. November 2011 Armored Vehicle Solutions, LLC 17
Armoring Process of Your Vehicle - Step 4
Then they cut the Spectra Shield® that they install within each
door and pillar/post.
They also place it behind the rear seats to give the passengers
of the vehicle maximum protection.
18. November 2011 Armored Vehicle Solutions, LLC 18

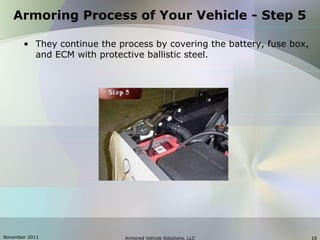

Armoring Process of Your Vehicle - Step 5
• They continue the process by covering the battery, fuse box,
and ECM with protective ballistic steel.
19. November 2011 Armored Vehicle Solutions, LLC 19
Armoring Process of Your Vehicle - Step 6
Next, they install the nearly 2" thick bullet-proof glass
windows.
These are made to fit OEM window channels, giving them a
perfect factory finish.
20. November 2011 Armored Vehicle Solutions, LLC 20

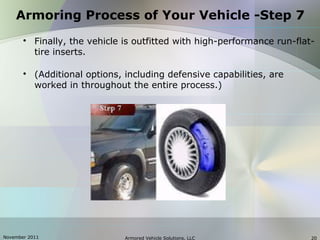

Armoring Process of Your Vehicle -Step 7
Finally, the vehicle is outfitted with high-performance run-flat-
tire inserts.
(Additional options, including defensive capabilities, are
worked in throughout the entire process.)
21. November 2011 Armored Vehicle Solutions, LLC 21

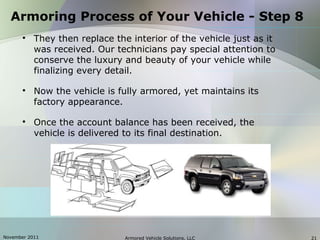

Armoring Process of Your Vehicle - Step 8
They then replace the interior of the vehicle just as it
was received. Our technicians pay special attention to
conserve the luxury and beauty of your vehicle while
finalizing every detail.
Now the vehicle is fully armored, yet maintains its
factory appearance.
Once the account balance has been received, the
vehicle is delivered to its final destination.
22. November 2011 Armored Vehicle Solutions, LLC 22

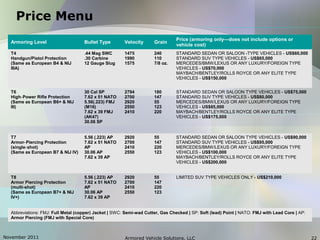

Price Menu
Armoring Level Bullet Type Velocity Grain
Price (armoring only—does not include options or
vehicle cost)
T4
Handgun/Pistol Protection
(Same as European B4 & NIJ
IIIA)
.44 Mag SWC
.30 Carbine
12 Gauge Slug
1475
1990
1575
240
110
7/8 oz.
STANDARD SEDAN OR SALOON -TYPE VEHICLES - US$60,000
STANDARD SUV TYPE VEHICLES - US$65,000
MERCEDES/BMW/LEXUS OR ANY LUXURY/FOREIGN TYPE
VEHICLES - US$70,000
MAYBACH/BENTLEY/ROLLS ROYCE OR ANY ELITE TYPE
VEHICLES - US$150,000
T6
High Power Rifle Protection‐
(Same as European B6+ & NIJ
III)
30 Cal SP
7.62 x 51 NATO
5.56(.223) FMJ
(M16)
7.62 x 39 FMJ
(AK47)
30.06 SP
2794
2700
2920
2550
2410
180
147
55
123
220
STANDARD SEDAN OR SALOON TYPE VEHICLES - US$75,000
STANDARD SUV TYPE VEHICLES - US$80,000
MERCEDES/BMW/LEXUS OR ANY LUXURY/FOREIGN TYPE
VEHICLES - US$85,000
MAYBACH/BENTLEY/ROLLS ROYCE OR ANY ELITE TYPE
VEHICLES - US$175,000
T7
Armor Piercing Protection‐
(single shot)‐
(Same as European B7 & NIJ IV)
5.56 (.223) AP
7.62 x 51 NATO
AP
30.06 AP
7.62 x 39 AP
2920
2700
2410
2550
55
147
220
123
STANDARD SEDAN OR SALOON TYPE VEHICLES - US$90,000
STANDARD SUV TYPE VEHICLES - US$95,000
MERCEDES/BMW/LEXUS OR ANY LUXURY/FOREIGN TYPE
VEHICLES - US$100,000
MAYBACH/BENTLEY/ROLLS ROYCE OR ANY ELITE TYPE
VEHICLES - US$200,000
T8
Armor Piercing Protection
(multi-shot)
(Same as European B7+ & NIJ
IV+)
5.56 (.223) AP
7.62 x 51 NATO
AP
30.06 AP
7.62 x 39 AP
2920
2700
2410
2550
55
147
220
123
LIMITED SUV TYPE VEHICLES ONLY - US$210,000
Abbreviations: FMJ: Full Metal (copper) Jacket | SWC: Semi-wad Cutter, Gas Checked | SP: Soft (lead) Point | NATO: FMJ with Lead Core | AP:
Armor Piercing (FMJ with Special Core)
23. November 2011 Armored Vehicle Solutions, LLC 23

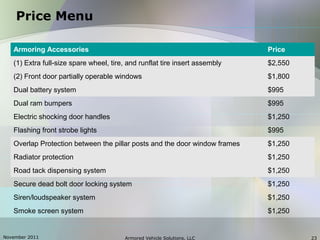

Price Menu
Armoring Accessories Price
(1) Extra full size spare wheel, tire, and runflat tire insert assembly‐ $2,550
(2) Front door partially operable windows $1,800
Dual battery system $995
Dual ram bumpers $995
Electric shocking door handles $1,250
Flashing front strobe lights $995
Overlap Protection between the pillar posts and the door window frames $1,250
Radiator protection $1,250
Road tack dispensing system $1,250
Secure dead bolt door locking system $1,250
Siren/loudspeaker system $1,250
Smoke screen system $1,250
24. November 2011 Armored Vehicle Solutions, LLC 24

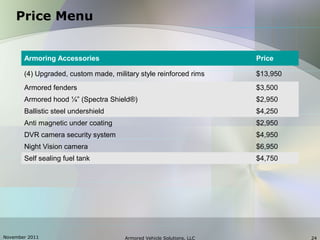

Price Menu
Armoring Accessories Price
(4) Upgraded, custom made, military style reinforced rims $13,950
Armored fenders $3,500
Armored hood ¼” (Spectra Shield®) $2,950
Ballistic steel undershield $4,250
Anti magnetic under coating $2,950
DVR camera security system $4,950
Night Vision camera $6,950
Self sealing fuel tank $4,750
