1. ®
360 protection. All the time

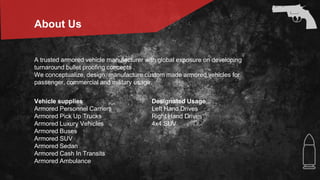

2. About Us
A trusted armored vehicle manufacturer with global exposure on developing
turnaround bullet proofing concepts .
We conceptualize, design, manufacture custom made armored vehicles for
passenger, commercial and military usage.
Vehicle supplies
Armored Personnel Carriers
Armored Pick Up Trucks
Armored Luxury Vehicles
Armored Buses
Armored SUV
Armored Sedan
Armored Cash In Transits
Armored Ambulance
Designated Usage
Left Hand Drives
Right Hand Drives
4x4 SUV

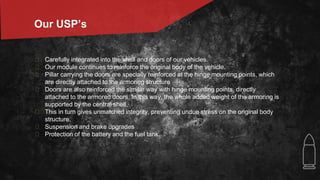

3. � Carefully integrated into the shell and doors of our vehicles.
� Our module continues to reinforce the original body of the vehicle.
� Pillar carrying the doors are specially reinforced at the hinge mounting points, which
are directly attached to the armoring structure
� Doors are also reinforced the similar way with hinge mounting points, directly
attached to the armored doors. In this way, the whole added weight of the armoring is
supported by the central shell.
� This in turn gives unmatched integrity, preventing undue stress on the original body
structure.
� Suspension and brake upgrades
� Protection of the battery and the fuel tank.
Our USP’s

4. OrderManufac
ture
Our process
TestDelivery

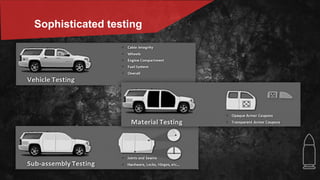

5. Sophisticated testing

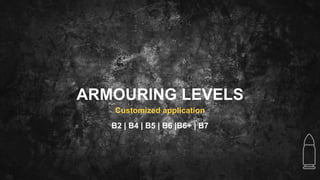

6. ARMOURING LEVELS
Customized application
B2 | B4 | B5 | B6 |B6+ | B7

7. “It started early from ice age.
To survive you ought to be safe.
No matter what”

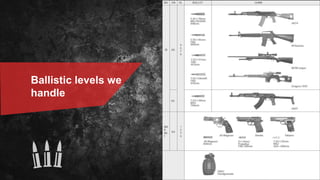

8. Ballistic levels we
handle

9. Harrow Armoring
Our vehicles are customized with top grade
materials to ensure being protected against threats
�Materials
• Armoring glass
• Armoring steel
�Areas
• Transparent
• Covered

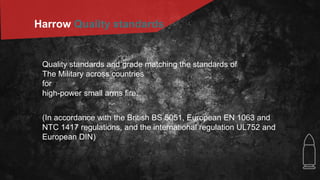

10. Harrow Quality standards
Quality standards and grade matching the standards of
The Military across countries
for
high-power small arms fire.
(In accordance with the British BS 5051, European EN 1063 and
NTC 1417 regulations, and the international regulation UL752 and
European DIN)

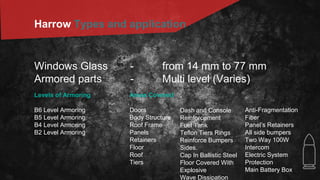

11. Harrow Types and application
Windows Glass - from 14 mm to 77 mm
Armored parts - Multi level (Varies)
Levels of Armoring
B6 Level Armoring
B5 Level Armoring
B4 Level Armoring
B2 Level Armoring
Areas Covered
Doors
Body Structure
Roof Frame
Panels
Retainers
Floor
Roof
Tiers
Anti-Fragmentation
Fiber
Panel’s Retainers
All side bumpers
Two Way 100W
Intercom
Electric System
Protection
Main Battery Box
Dash and Console
Reinforcement
Fuel Tank
Teflon Tiers Rings
Reinforce Bumpers
Sides.
Cap In Ballistic Steel
Floor Covered With
Explosive
Wave Dissipation

12. Categories
Over the time we have distinguished to
cater to certain set of product lines.
The inside pages show it in detail.

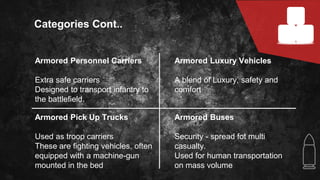

13. Armored Personnel Carriers
Extra safe carriers
Designed to transport infantry to
the battlefield.
Categories Cont..
Armored Pick Up Trucks
Used as troop carriers
These are fighting vehicles, often
equipped with a machine-gun
mounted in the bed
Armored Buses
Security - spread fot multi
casualty.
Used for human transportation
on mass volume
Armored Luxury Vehicles
A blend of Luxury, safety and
comfort

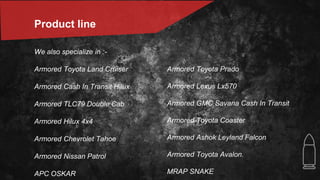

14. Product line
We also specialize in :-
Armored Toyota Land Cruiser
Armored Cash In Transit Hilux
Armored TLC79 Double Cab
Armored Hilux 4x4
Armored Chevrolet Tahoe
Armored Nissan Patrol
APC OSKAR
Armored Toyota Prado
Armored Lexus Lx570
Armored GMC Savana Cash In Transit
Armored Toyota Coaster
Armored Ashok Leyland Falcon
Armored Toyota Avalon.
MRAP SNAKE

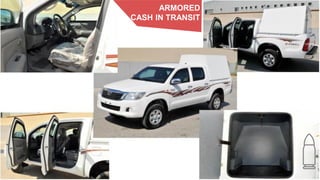

15. ARMORED
CASH IN TRANSIT

16. ARMORED
AMBULANCE

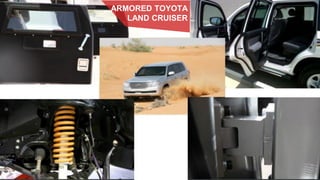

17. ARMORED TOYOTA
LAND CRUISER

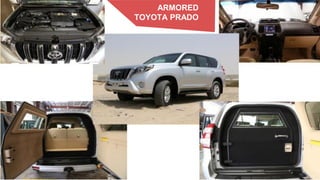

18. ARMORED
TOYOTA PRADO

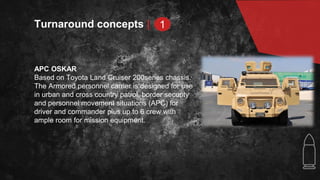

19. 1
APC OSKAR
Based on Toyota Land Cruiser 200series chassis.
The Armored personnel carrier is designed for use
in urban and cross country patrol, border security
and personnel movement situations (APC) for
driver and commander plus up to 6 crew with
ample room for mission equipment.
Turnaround concepts |

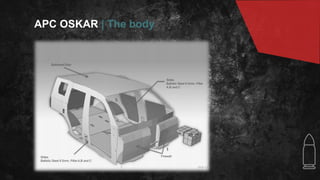

20. APC OSKAR | The body

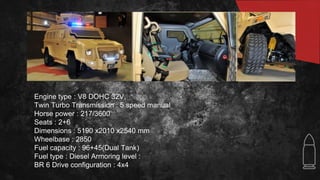

21. Engine type : V8 DOHC 32V,
Twin Turbo Transmission : 5 speed manual
Horse power : 217/3600
Seats : 2+6
Dimensions : 5190 x2010 x2540 mm
Wheelbase : 2850
Fuel capacity : 96+45(Dual Tank)
Fuel type : Diesel Armoring level :
BR 6 Drive configuration : 4x4

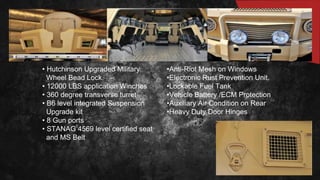

22. • Hutchinson Upgraded Military
Wheel Bead Lock.
• 12000 LBS application Winches
• 360 degree transverse turret
• B6 level integrated Suspension
Upgrade kit
• 8 Gun ports
• STANAG 4569 level certified seat
and MS Belt
•Anti-Riot Mesh on Windows
•Electronic Rust Prevention Unit.
•Lockable Fuel Tank
•Vehicle Battery /ECM Protection
•Auxiliary Air Condition on Rear
•Heavy Duty Door Hinges

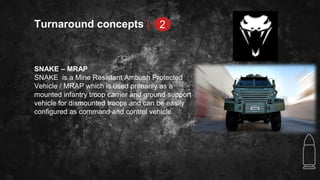

23. Turnaround concepts |
SNAKE – MRAP
SNAKE is a Mine Resistant Ambush Protected
Vehicle / MRAP which is used primarily as a
mounted infantry troop carrier and ground support
vehicle for dismounted troops and can be easily
configured as command and control vehicle
2

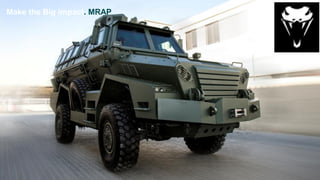

24. Make the Big impact. MRAP

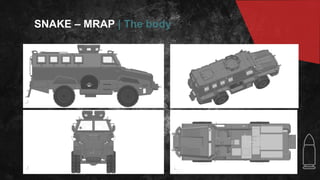

25. SNAKE – MRAP | The body

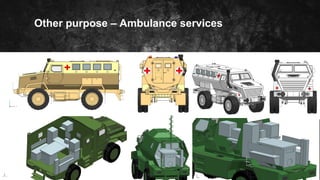

26. Other purpose – Ambulance services

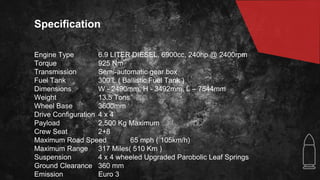

27. Specification
Engine Type 6.9 LITER DIESEL, 6900cc, 240hp @ 2400rpm
Torque 925 Nm
Transmission Semi-automatic gear box
Fuel Tank 300 L ( Ballistic Fuel Tank )
Dimensions W - 2490mm, H - 3492mm, L – 7544mm
Weight 13.5 Tons
Wheel Base 3600mm
Drive Configuration 4 x 4
Payload 2,500 Kg Maximum
Crew Seat 2+8
Maximum Road Speed 65 mph ( 105km/h)
Maximum Range 317 Miles( 510 Km )
Suspension 4 x 4 wheeled Upgraded Parobolic Leaf Springs
Ground Clearance 360 mm
Emission Euro 3

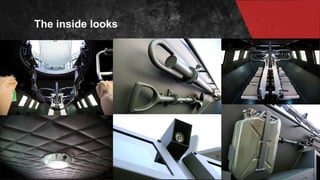

28. The inside looks

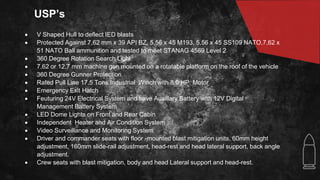

29. USP’s
 V Shaped Hull to deflect IED blasts
 Protected Against 7,62 mm x 39 API BZ, 5,56 x 45 M193, 5,56 x 45 SS109 NATO,7,62 x
51 NATO Ball ammunition and tested to meet STANAG 4569 Level 2
 360 Degree Rotation Search Light
 7.62 or 12.7 mm machine gun mounted on a rotatable platform on the roof of the vehicle
 360 Degree Gunner Protection
 Rated Pull Line 17.5 Tons Industrial Winch with 8.0 HP Motor
 Emergency Exit Hatch
 Feuturing 24V Electrical System and have Auxillary Battery with 12V Digital
Management Battery System
 LED Dome Lights on Front and Rear Cabin
 Independent Heater and Air Condition System
 Video Surveillance and Monitoring System
 Driver and commander seats with floor -mounted blast mitigation units, 60mm height
adjustment, 160mm slide-rail adjustment, head-rest and head lateral support, back angle
adjustment.
 Crew seats with blast mitigation, body and head Lateral support and head-rest.

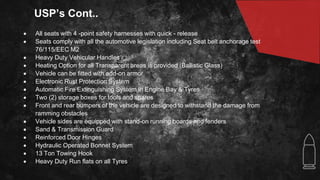

30. USP’s Cont..
 All seats with 4 -point safety harnesses with quick - release
 Seats comply with all the automotive legislation including Seat belt anchorage test
76/115/EEC M2
 Heavy Duty Vehicular Handles
 Heating Option for all Transparent areas is provided (Ballistic Glass)
 Vehicle can be fitted with add-on armor
 Electronic Rust Protection System
 Automatic Fire Extinguishing System in Engine Bay & Tyres
 Two (2) storage boxes for tools and spares
 Front and rear bumpers of the vehicle are designed to withstand the damage from
ramming obstacles
 Vehicle sides are equipped with stand-on running boards and fenders
 Sand & Transmission Guard
 Reinforced Door Hinges
 Hydraulic Operated Bonnet System
 13 Ton Towing Hook
 Heavy Duty Run flats on all Tyres

31. Our Presence

32. 1,500And counting

33. 1,500Vehicles successfully delivered
100%Satisfaction
500+Happy clients in the past 2 years
Launch of APC in the 1st year Launch of MRAP in the 2nd year

34. Thanks!
Any questions?
