This document provides an overview of Augmented Reality Markup Language (ARML) 2.0, an Open Geospatial Consortium standard for describing augmented reality scenes and objects. ARML 2.0 allows virtual objects in an augmented reality scene to be described and located, and offers a programmable interface for interacting with scenes and objects. The standard was developed by a 50-member working group and has been implemented in several augmented reality browsers to enable interoperability. The working group is currently conducting an adoption vote for ARML 2.0 to be approved as an OGC standard.

1. ®
Sponsored by

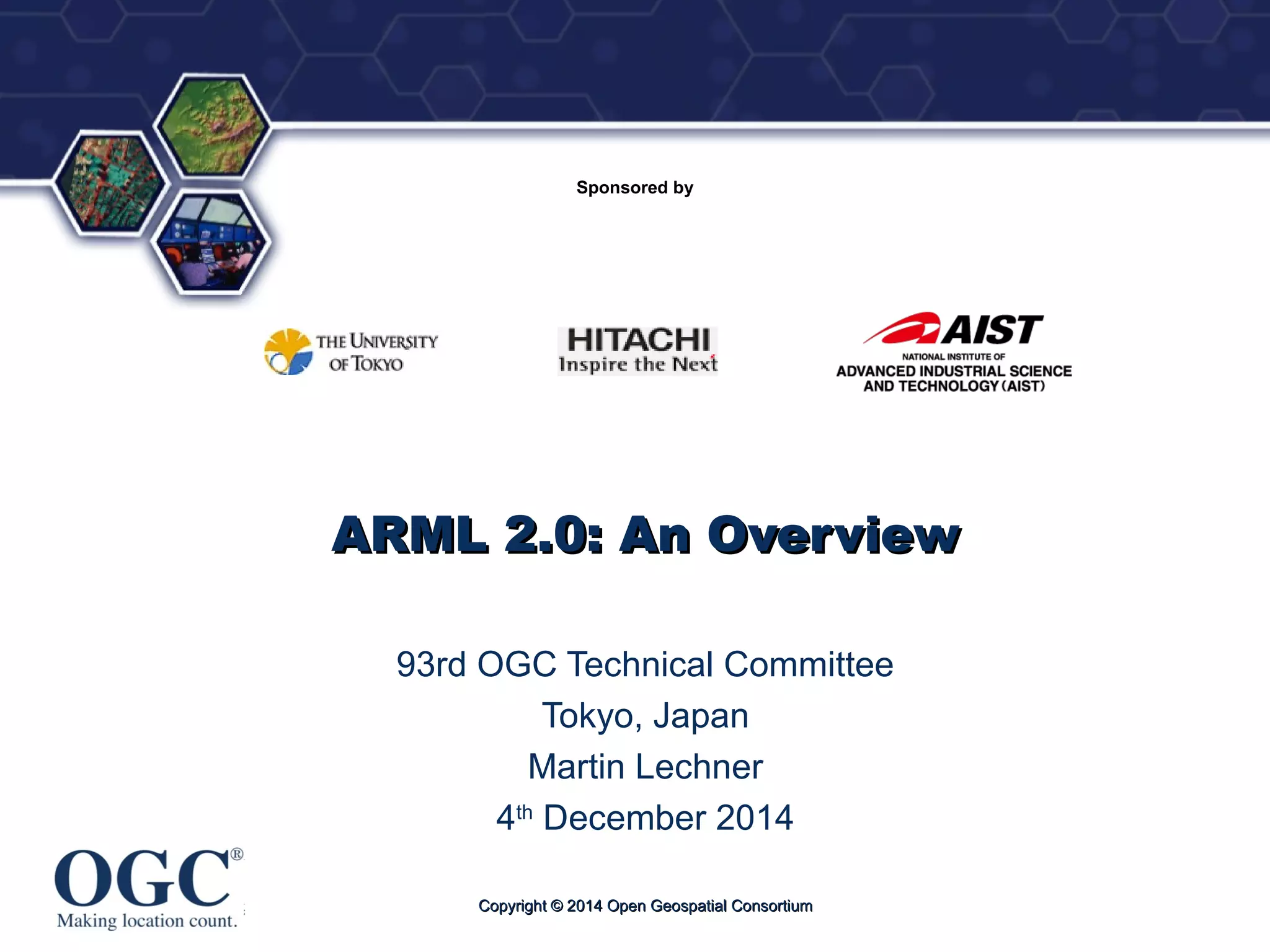

AARRMMLL 22..00:: AAnn OOvveerrvviieeww
93rd OGC Technical Committee
Tokyo, Japan
Martin Lechner
4th December 2014
CCooppyyrriigghhtt © 22001144 OOppeenn GGeeoossppaattiiaall CCoonnssoorrttiiuumm

2. view of real-world
OGC®
WWhhaatt iiss AAuuggmmeenntteedd RReeaalliittyy??
Copyright © 2014 Open Geospatial Consortium
…the technical and
boring answer is:
Augmented reality
(AR) is a live view of
the real-world whose
elements are
augmented by
computer generated
content.
augmented by
computer generated
content.

3. LLooccaattiioonn--bbaasseedd AAuuggmmeenntteedd RReeaalliittyy
OGC®
Copyright © 2014 Open Geospatial Consortium

4. OGC®
b Vision-baasseedd AAuuggmmeenntteedd RReeaalliittyy
Copyright © 2014 Open Geospatial Consortium

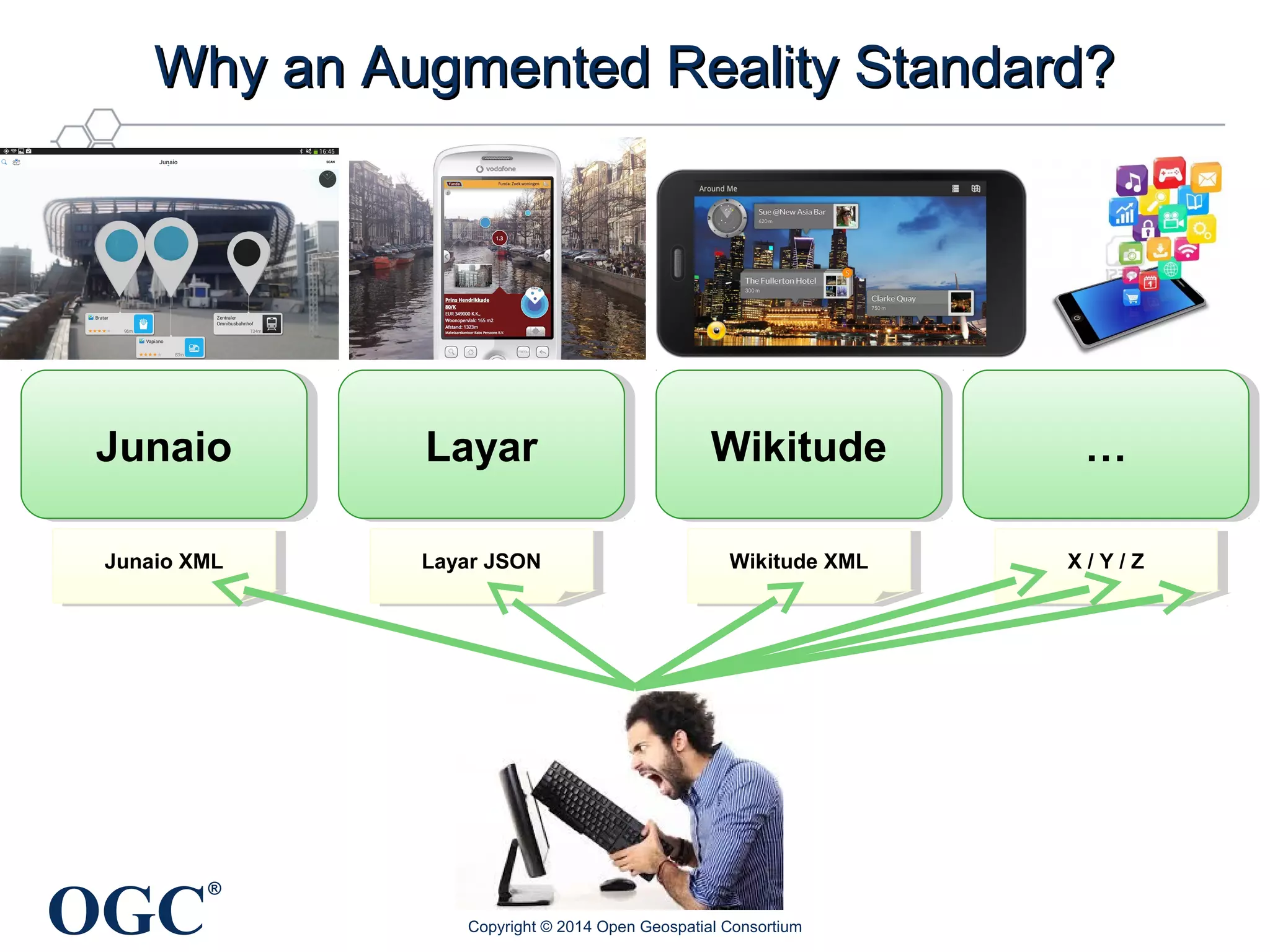

5. WWhhyy aann AAuuggmmeenntteedd RReeaalliittyy SSttaannddaarrdd??
JJuunnaaiioo LLaayyaarr WWiikkiittuuddee ……
JJuunnaaioio X XMMLL LLaayyaar rJ JSSOONN WWikikitiutuddee X XMMLL XX / /Y Y / /Z Z
OGC®
Copyright © 2014 Open Geospatial Consortium

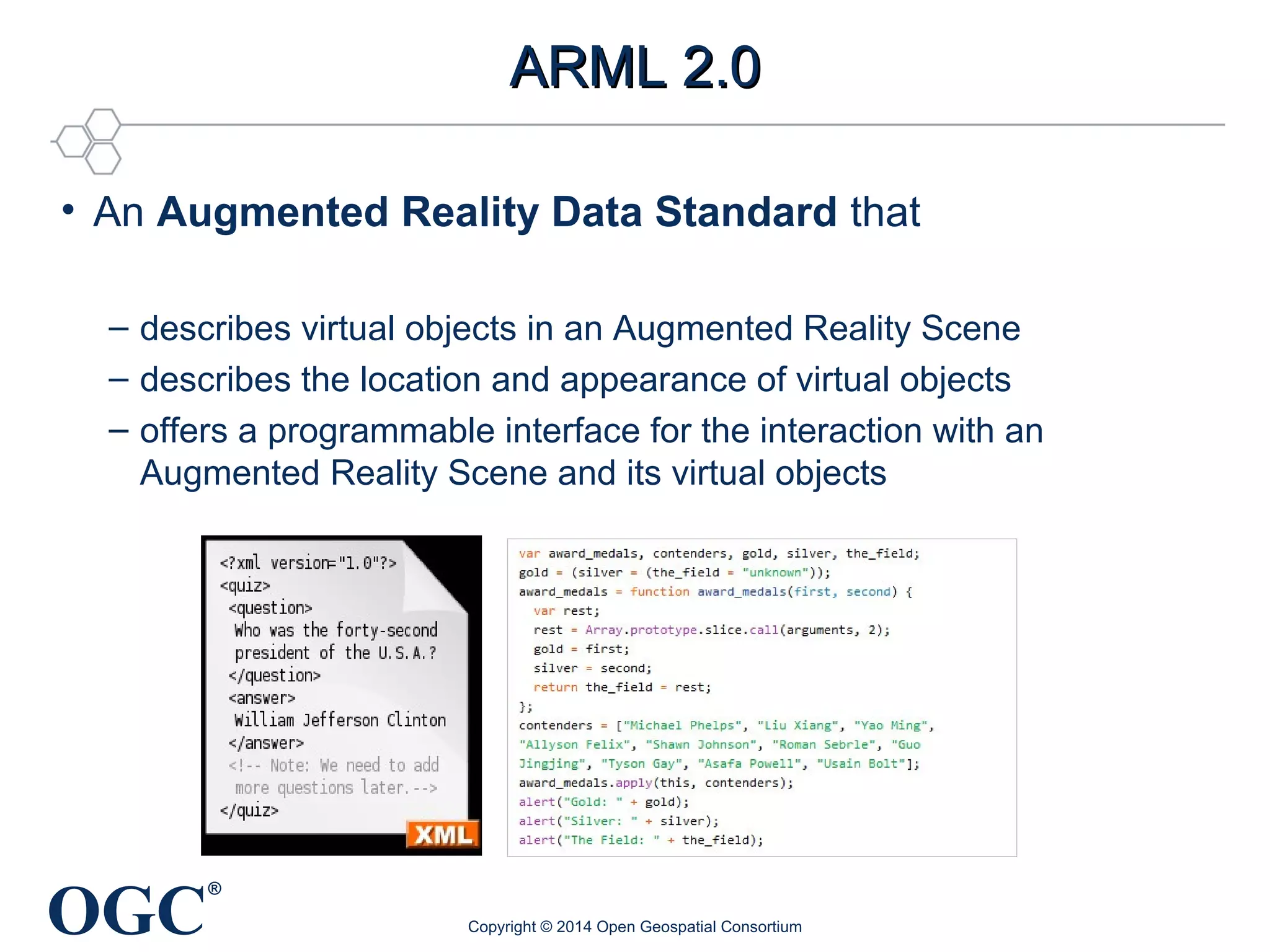

6. • An Augmented Reality Data Standard that
– describes virtual objects in an Augmented Reality Scene
– describes the location and appearance of virtual objects
– offers a programmable interface for the interaction with an
Augmented Reality Scene and its virtual objects
OGC®
AARRMMLL 22..00
Copyright © 2014 Open Geospatial Consortium

7. OGC®

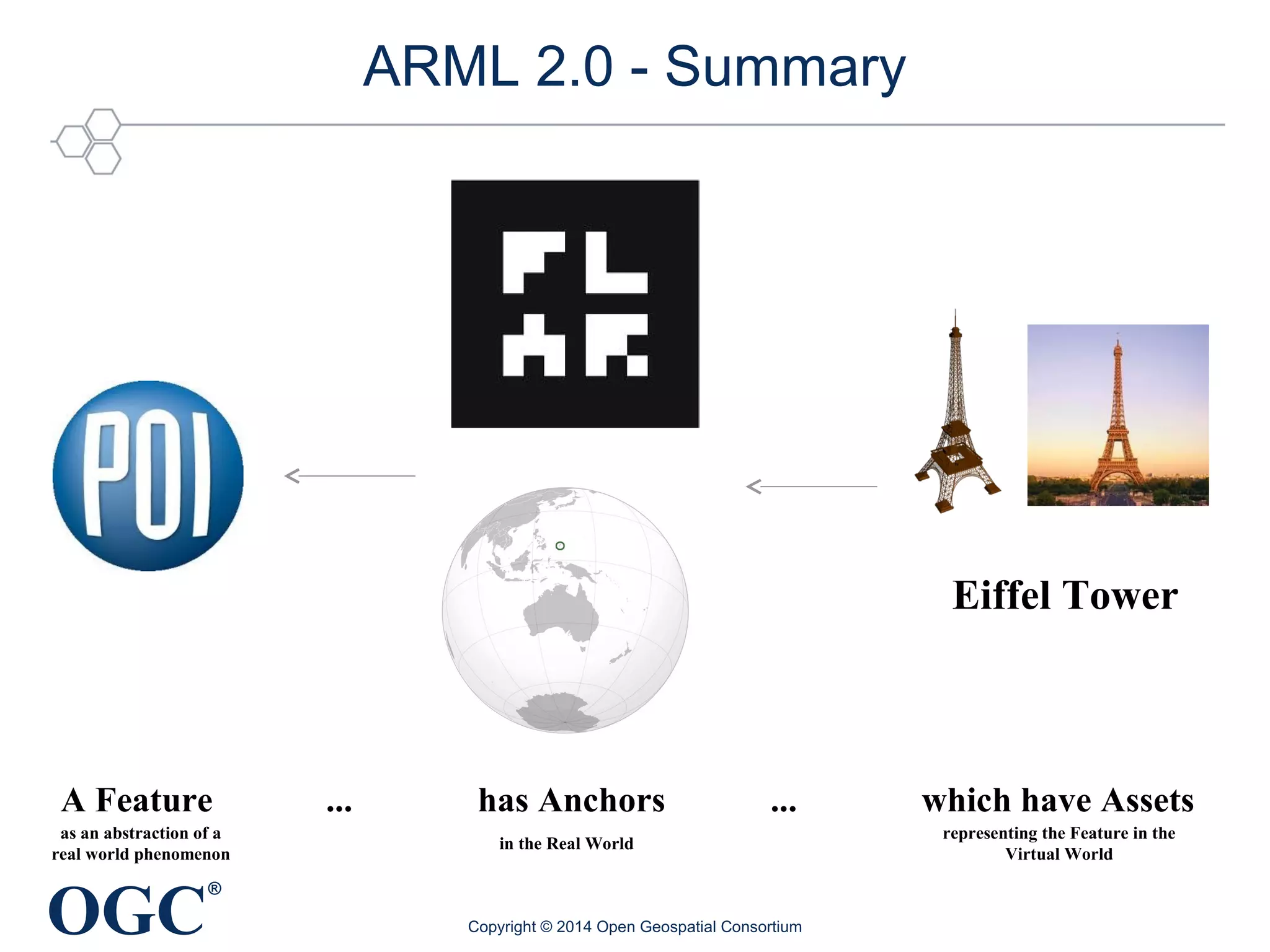

ARML 2.0 - Summary
Eiffel Tower
A Feature ... has Anchors ... which have Assets
as an abstraction of a
real world phenomenon
in the Real World
representing the Feature in the
Virtual World
Copyright © 2014 Open Geospatial Consortium

8. OGC®

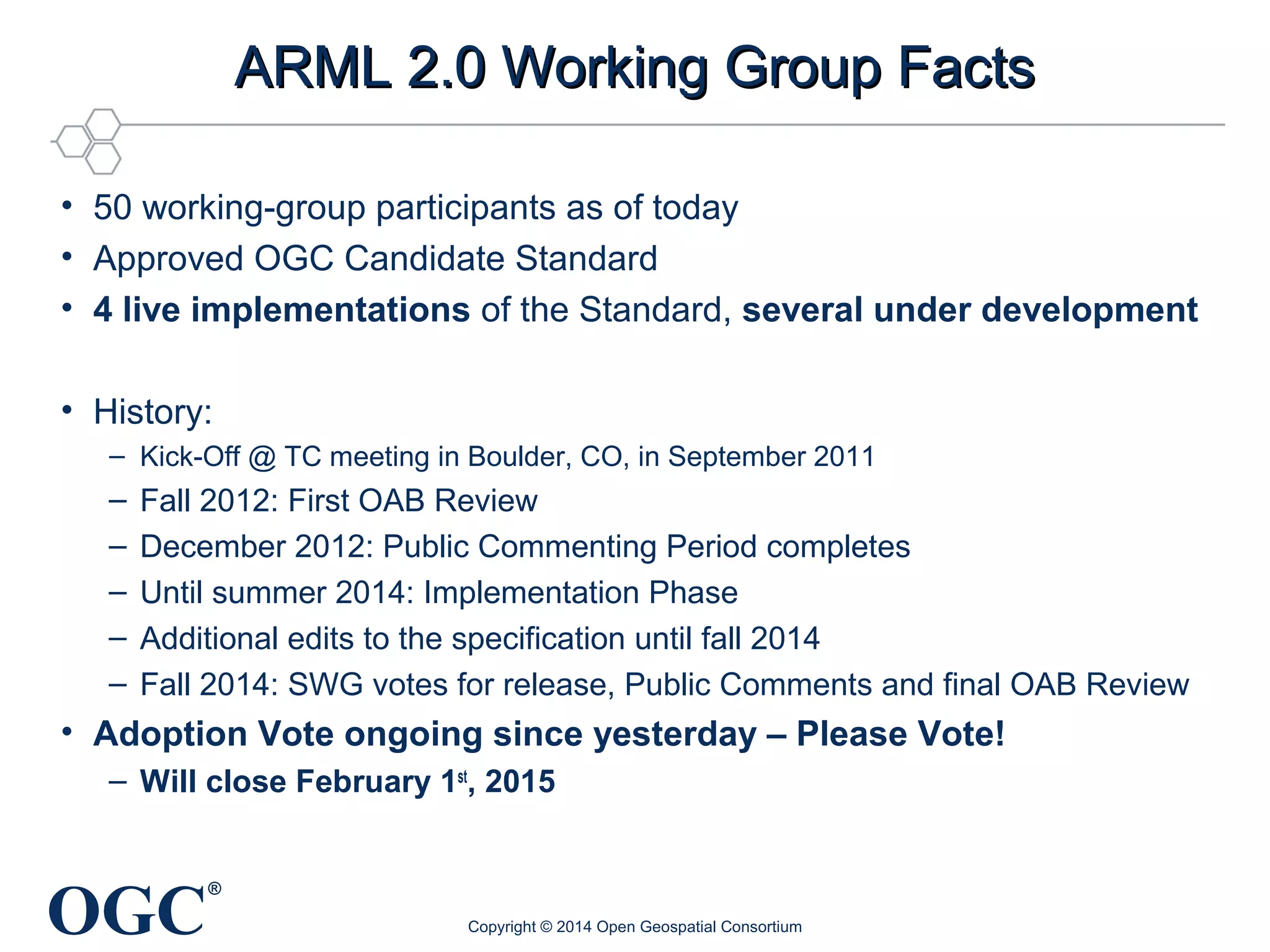

AARRMMLL 22..00 WWoorrkkiinngg GGrroouupp FFaaccttss
• 50 working-group participants as of today
• Approved OGC Candidate Standard
• 4 live implementations of the Standard, several under development
• History:
– Kick-Off @ TC meeting in Boulder, CO, in September 2011
– Fall 2012: First OAB Review
– December 2012: Public Commenting Period completes
– Until summer 2014: Implementation Phase
– Additional edits to the specification until fall 2014
– Fall 2014: SWG votes for release, Public Comments and final OAB Review
• Adoption Vote ongoing since yesterday – Please Vote!
– Will close February 1st, 2015
Copyright © 2014 Open Geospatial Consortium

9. Adoption Vote ongoing since yesterday ...
OGC®
Please vote!
Copyright © 2014 Open Geospatial Consortium

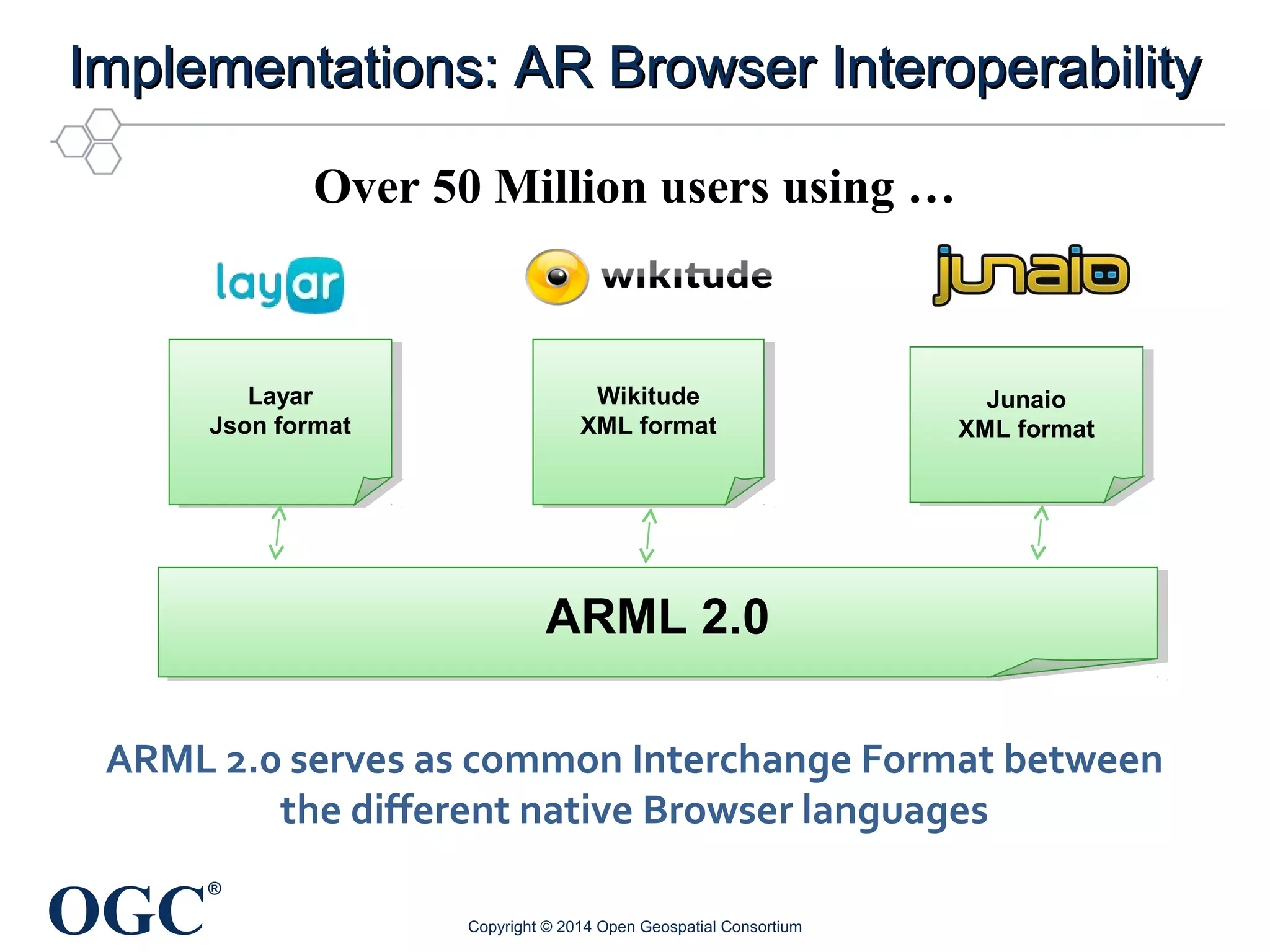

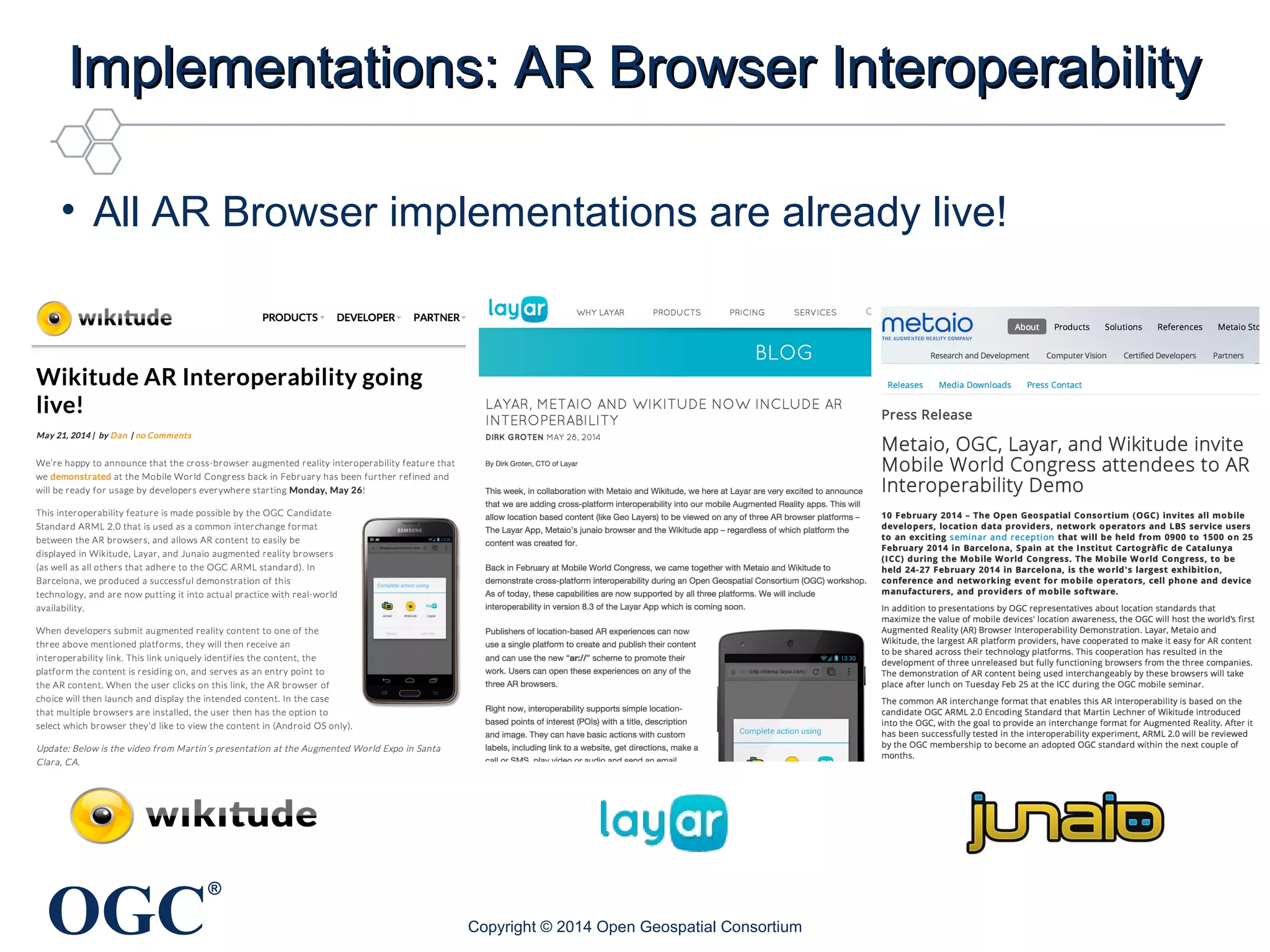

10. Implementations: AARR BBrroowwsseerr IInntteerrooppeerraabbiilliittyy
Over 50 Million users using …
Json format
OGC®
Layar
Layar
Json format
Wikitude
XML format
Wikitude
XML format
Junaio
XML format
Junaio
XML format
AARRMMLL 22..00
ARML 2.0 serves as common Interchange Format between
the different native Browser languages
Copyright © 2014 Open Geospatial Consortium

11. Implementations: AARR BBrroowwsseerr IInntteerrooppeerraabbiilliittyy
• All AR Browser implementations are already live!
OGC®
Copyright © 2014 Open Geospatial Consortium

12. Implementations: TT--AARR BBrroowwsseerr,, SSKK TTeelleeccoomm
OGC®
Copyright © 2014 Open Geospatial Consortium

13. OGC®

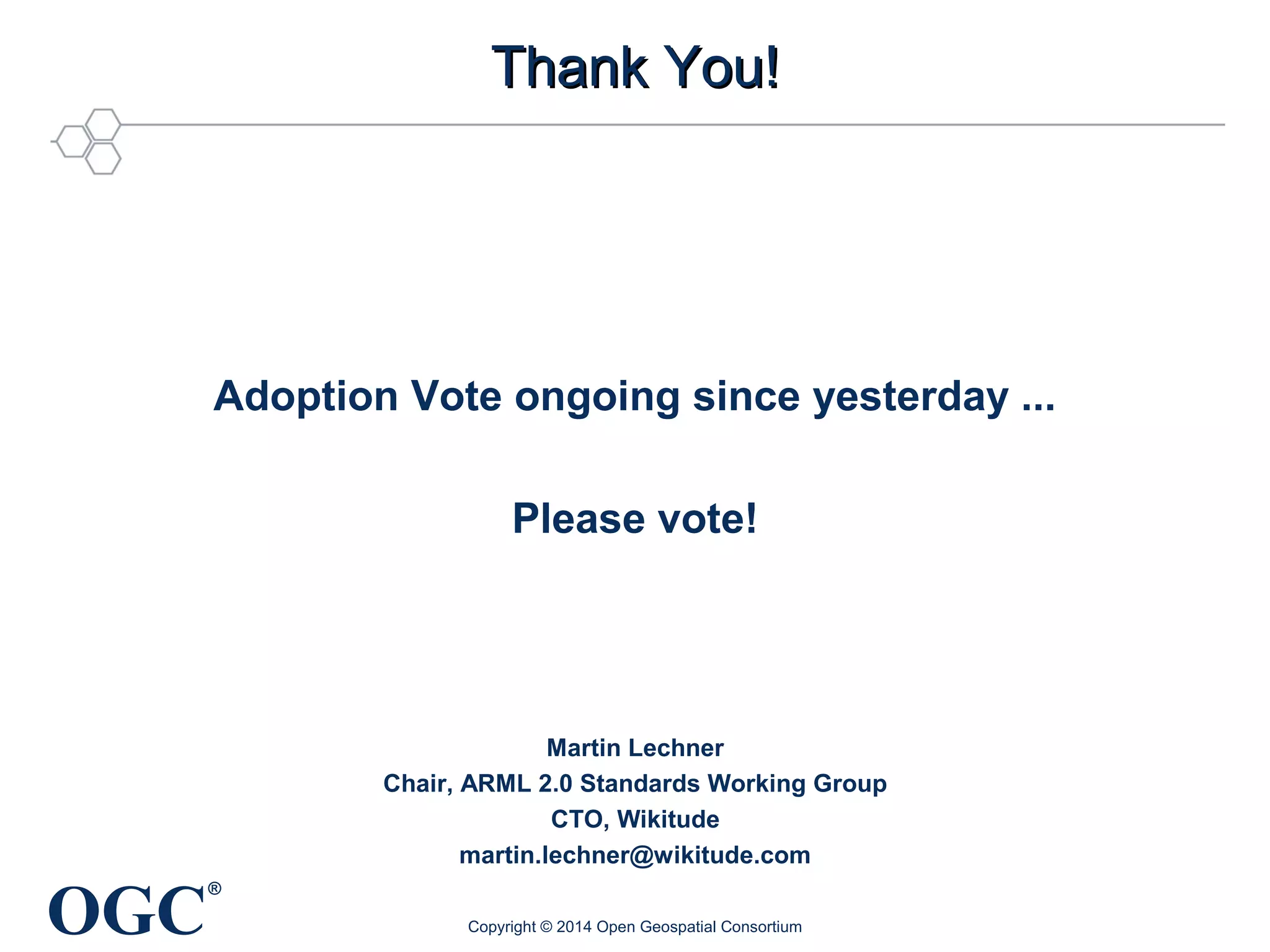

TThhaannkk YYoouu!!
Adoption Vote ongoing since yesterday ...
Please vote!
Martin Lechner
Chair, ARML 2.0 Standards Working Group
CTO, Wikitude
martin.lechner@wikitude.com
Copyright © 2014 Open Geospatial Consortium
