1. Approaching real-time:
Things you can do before going Impala
Chris Huang
SPN Hadoop Architect

2. About – Chris Huang
• Chris Huang
– SPN Hadoop Architect
– SPN Dumbo Team
– Hadoop.TW Active Member
9/28/2013 Confidential | Copyright 2013 TrendMicro Inc. 2

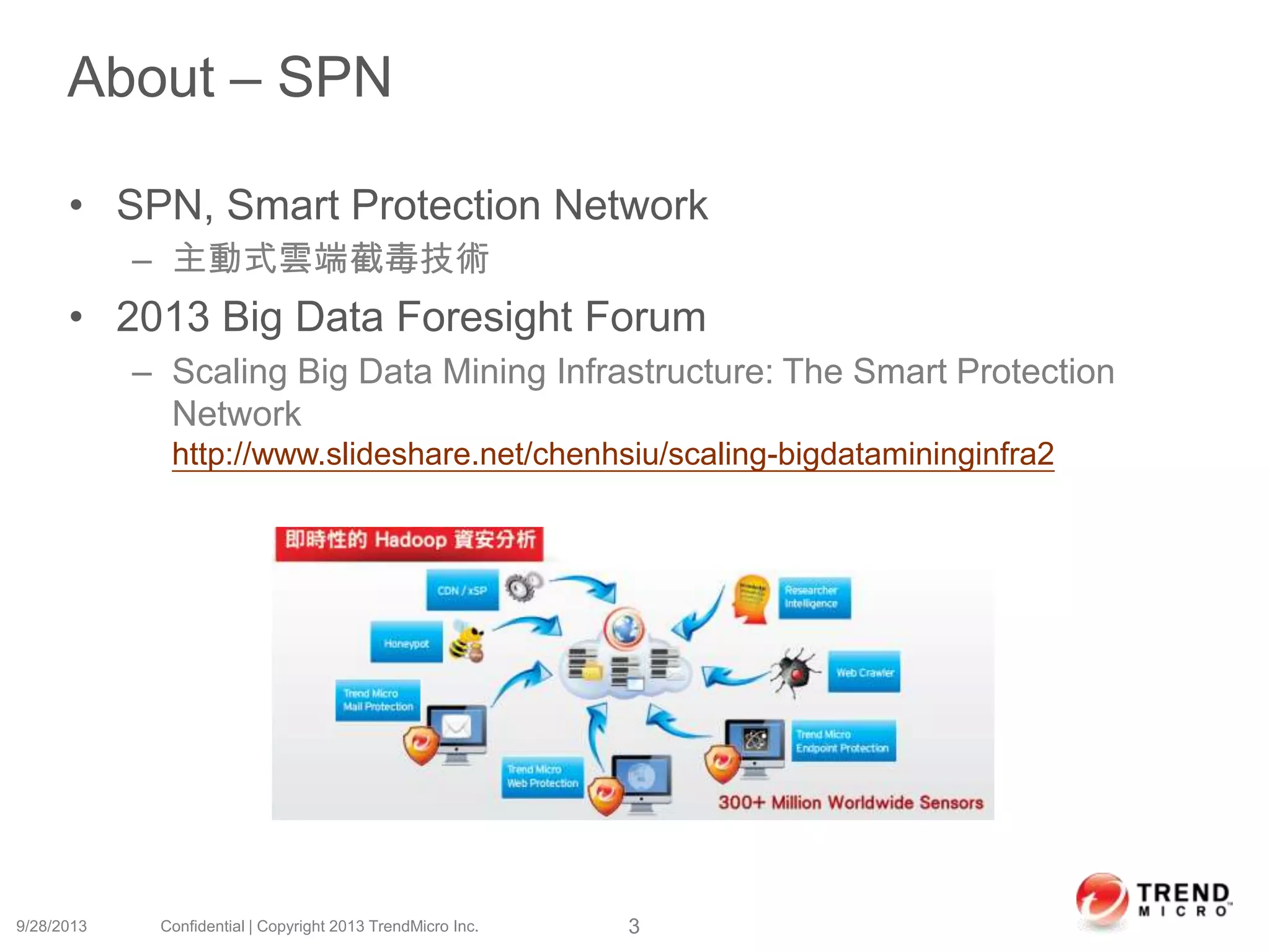

3. About – SPN
• SPN, Smart Protection Network
– 主動式雲端截毒技術
• 2013 Big Data Foresight Forum
– Scaling Big Data Mining Infrastructure: The Smart Protection
Network
http://www.slideshare.net/chenhsiu/scaling-bigdatamininginfra2
9/28/2013 Confidential | Copyright 2013 TrendMicro Inc. 3

4. 9/28/2013 Confidential | Copyright 2013 TrendMicro Inc. 4

5. Batch v.s. Real-time
9/28/2013 Confidential | Copyright 2013 TrendMicro Inc. 5
Batch, High Throughput Real-time, Timely Information
Q: How can I transport 10,000
people from Taipei to Kaohsiung?
Q: What’s the fastest way to Taipei
Train Station?

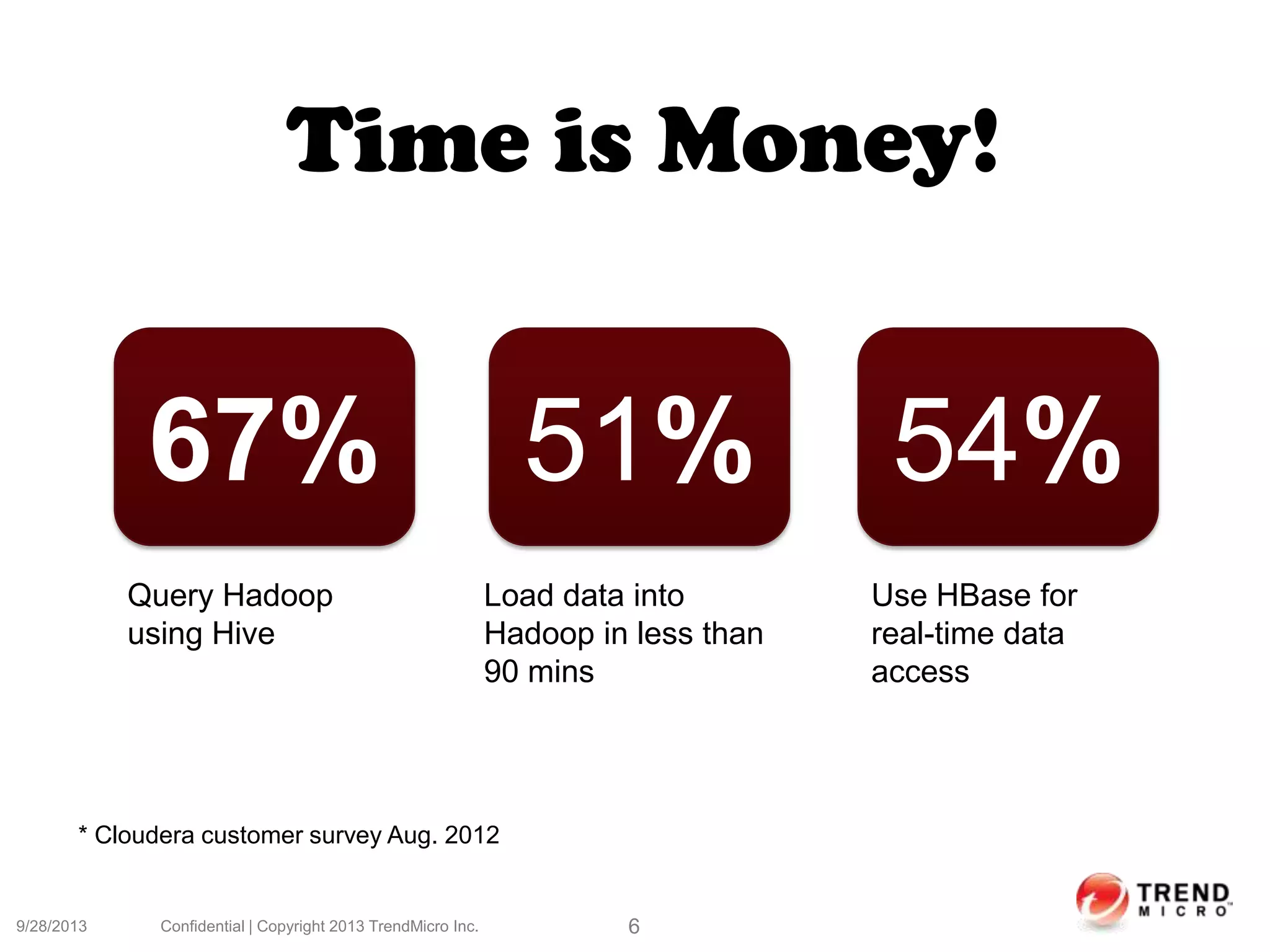

6. 9/28/2013 Confidential | Copyright 2013 TrendMicro Inc. 6
67%
Query Hadoop
using Hive
51%
Load data into
Hadoop in less than
90 mins
54%
Use HBase for
real-time data
access
* Cloudera customer survey Aug. 2012
Time is Money!

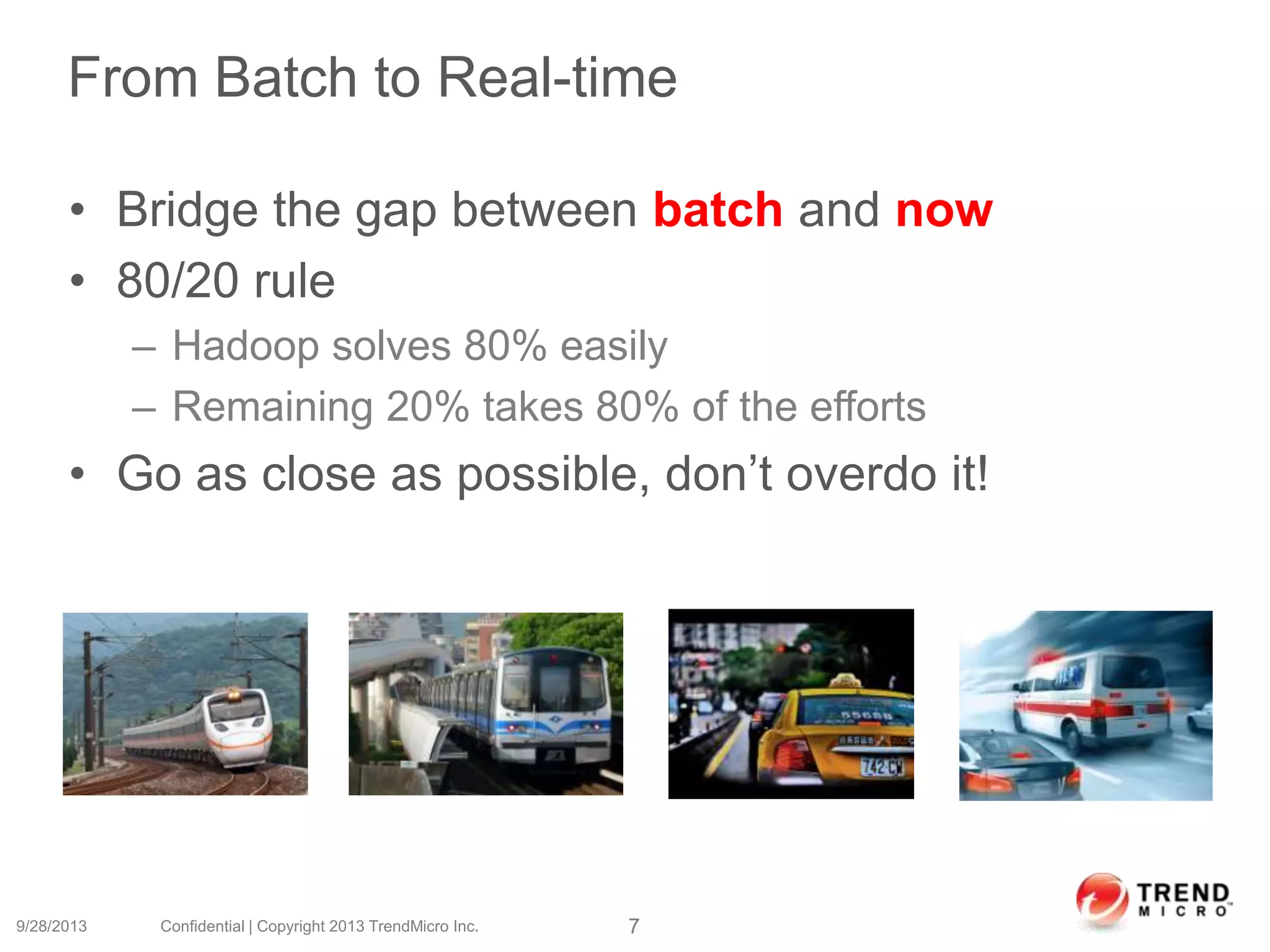

7. From Batch to Real-time
• Bridge the gap between batch and now
• 80/20 rule
– Hadoop solves 80% easily
– Remaining 20% takes 80% of the efforts
• Go as close as possible, don’t overdo it!
9/28/2013 Confidential | Copyright 2013 TrendMicro Inc. 7

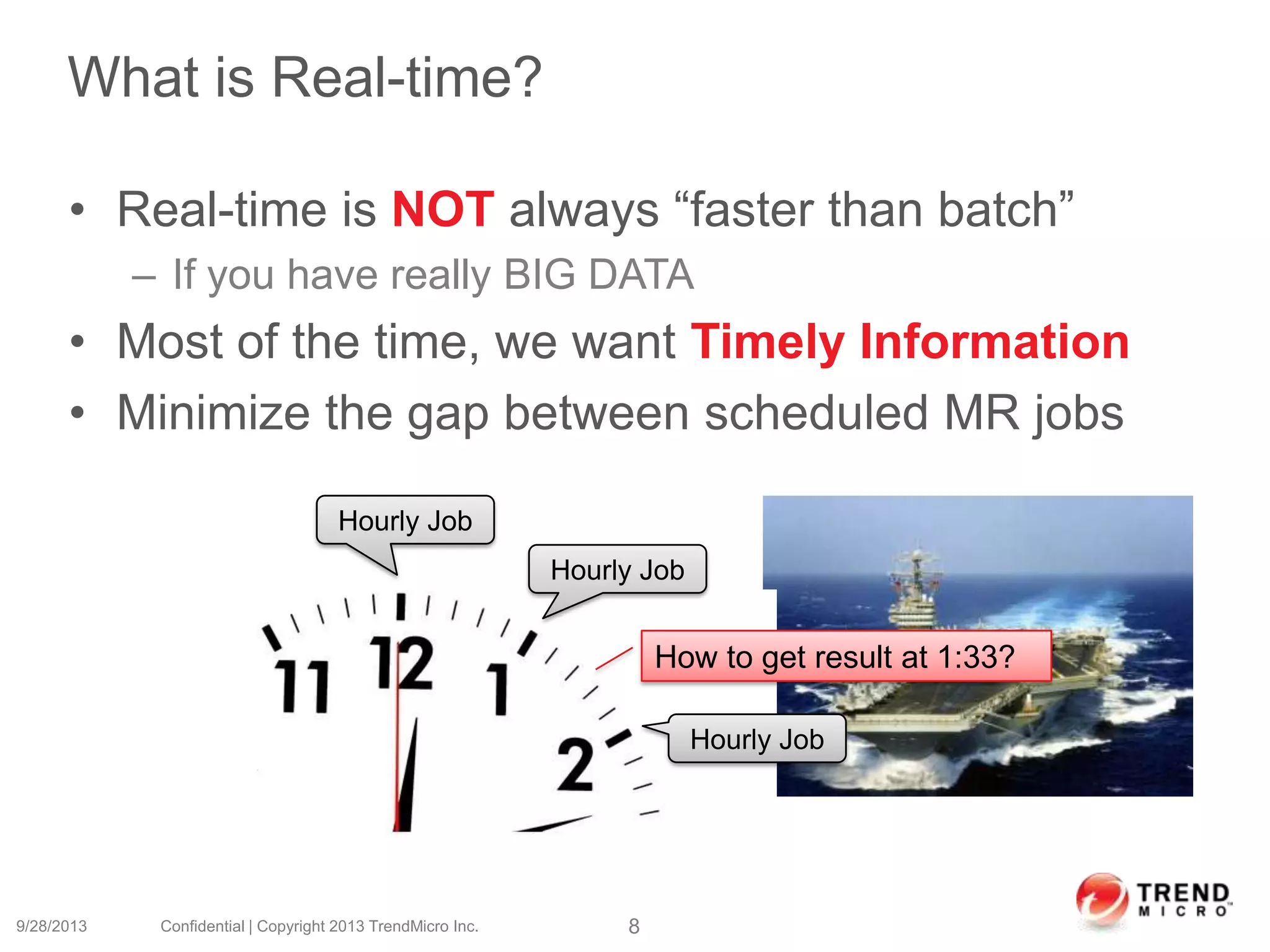

8. What is Real-time?
• Real-time is NOT always “faster than batch”
– If you have really BIG DATA
• Most of the time, we want Timely Information
• Minimize the gap between scheduled MR jobs
9/28/2013 Confidential | Copyright 2013 TrendMicro Inc. 8
Hourly Job
Hourly Job
Hourly Job
How to get result at 1:33?

9. 9/28/2013 Confidential | Copyright 2013 TrendMicro Inc. 9
So, You want
to talk about
Impala?

10. 9/28/2013 Confidential | Copyright 2013 TrendMicro Inc. 10
NO

11. 9/28/2013 Confidential | Copyright 2013 TrendMicro Inc. 11
Impala is not
silver bullet
* Here Impala denotes any interactive query solution, including Apache Drill, Apache Tez + Stinger

12. 9/28/2013 Confidential | Copyright 2013 TrendMicro Inc. 12
You can do a
lot before
using Impala

13. 3 Arrows for Real-time Applications
9/28/2013 Confidential | Copyright 2013 TrendMicro Inc. 13
HBase (20%)
SolrCloud (60%)
Streaming (20%)

14. 9/28/2013 Confidential | Copyright 2013 TrendMicro Inc.
Example Case
14

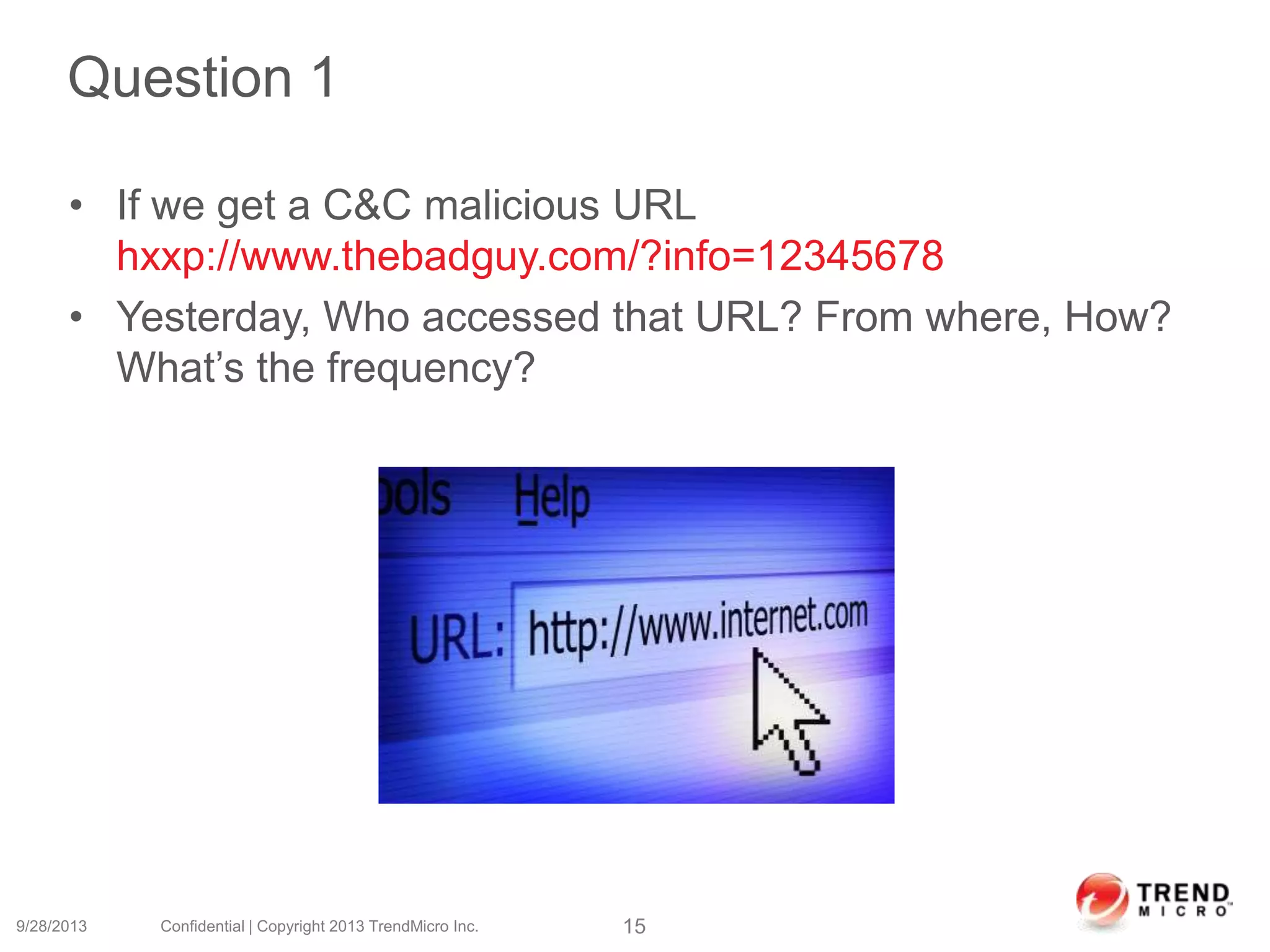

15. Question 1
• If we get a C&C malicious URL
hxxp://www.thebadguy.com/?info=12345678
• Yesterday, Who accessed that URL? From where, How?
What’s the frequency?
9/28/2013 Confidential | Copyright 2013 TrendMicro Inc. 15

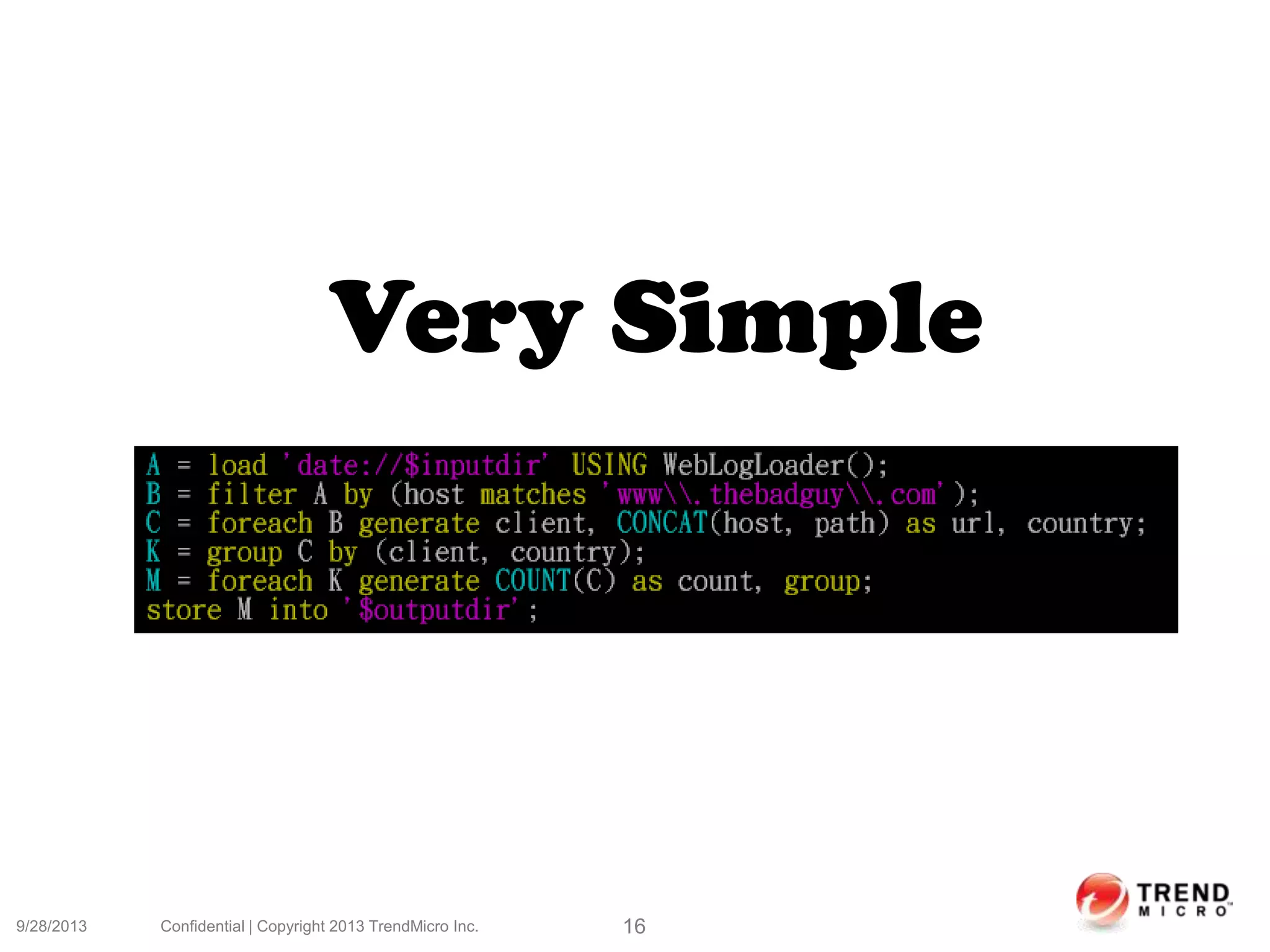

16. 9/28/2013 Confidential | Copyright 2013 TrendMicro Inc. 16
Very Simple

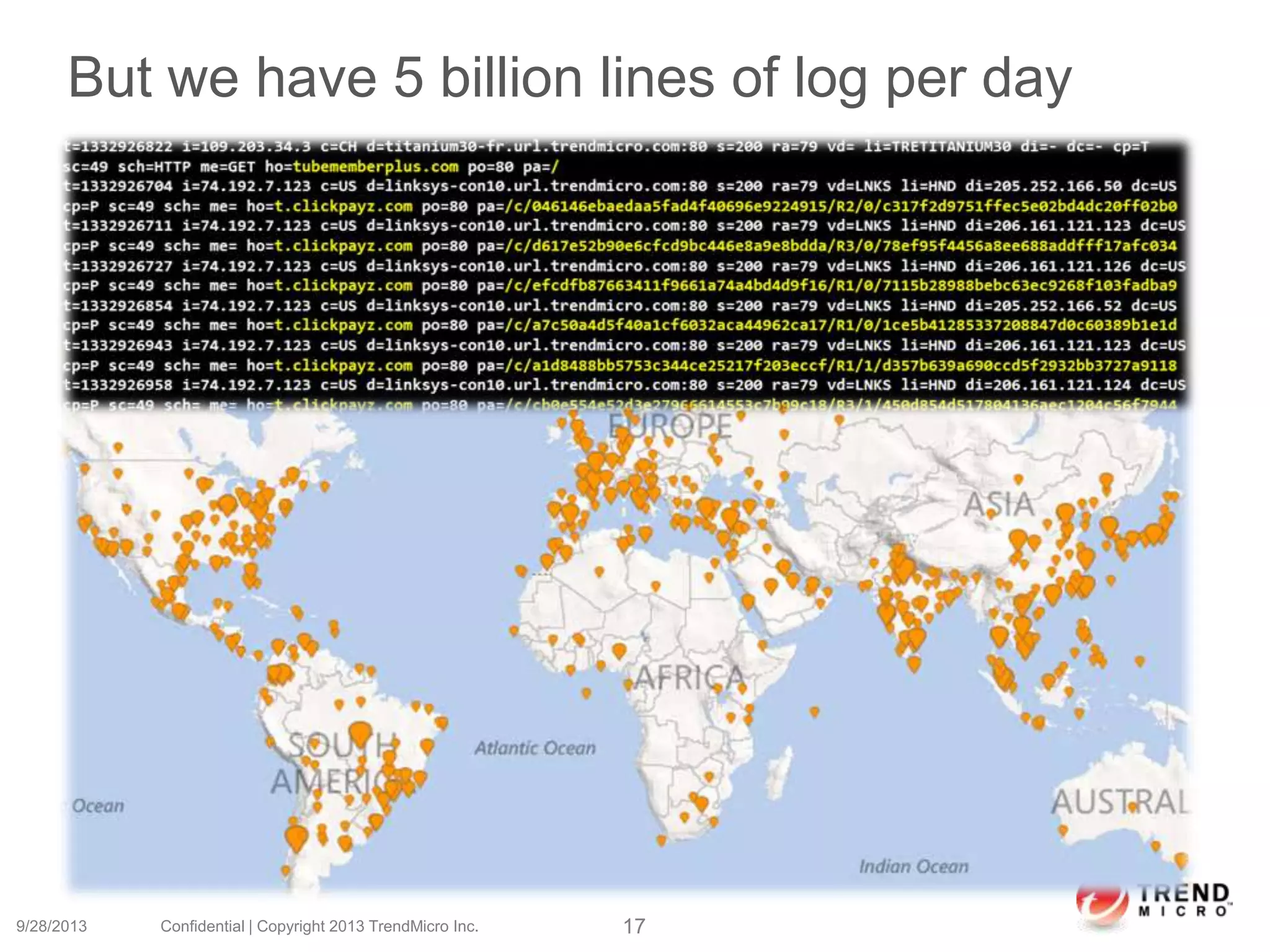

17. But we have 5 billion lines of log per day
9/28/2013 Confidential | Copyright 2013 TrendMicro Inc. 17

18. 9/28/2013 Confidential | Copyright 2013 TrendMicro Inc. 18
It takes about
20 minutes
~1 hour if you’re not lucky

19. 9/28/2013 Confidential | Copyright 2013 TrendMicro Inc. 19
And we may
query 50,000
times a day

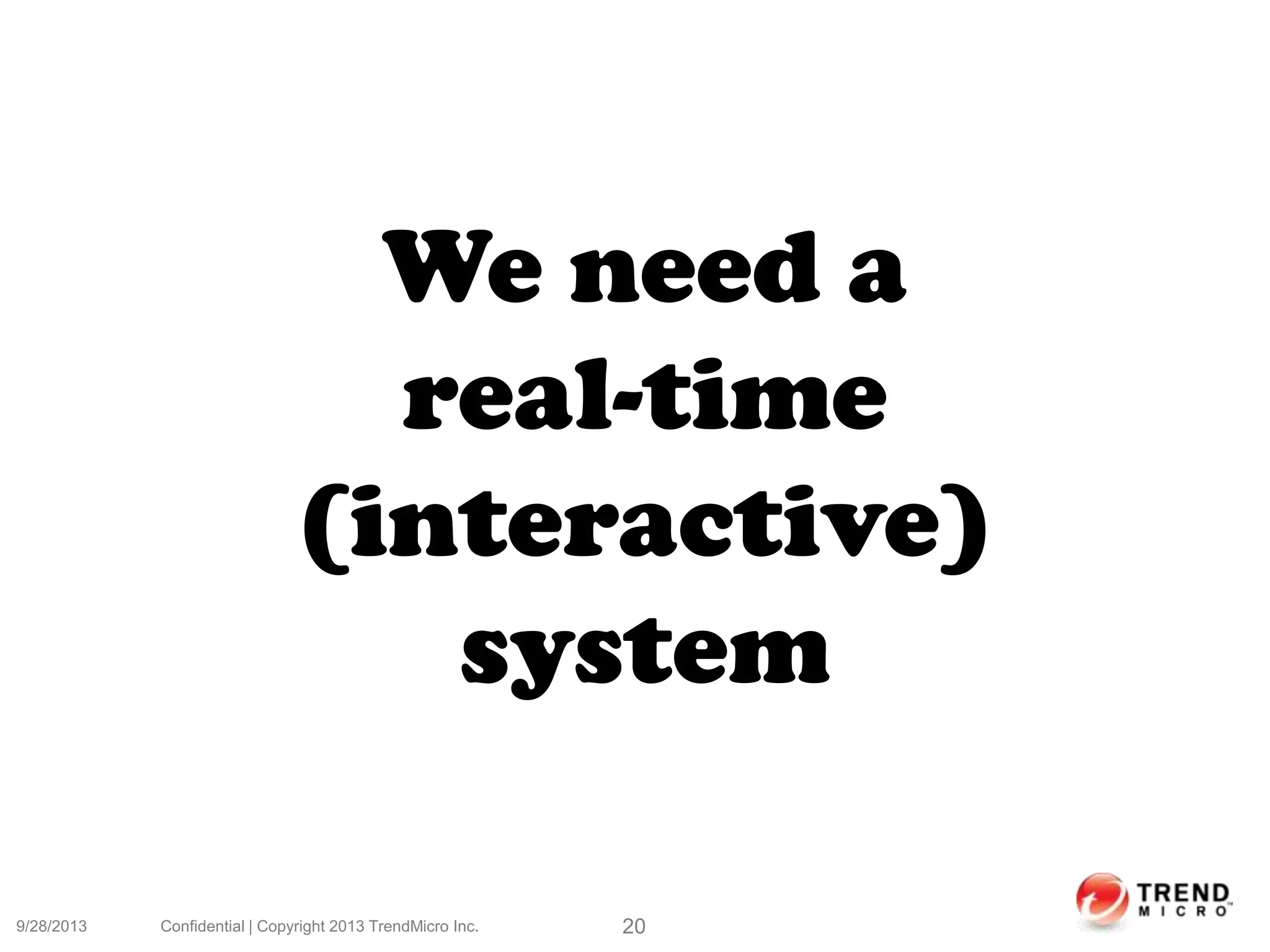

20. 9/28/2013 Confidential | Copyright 2013 TrendMicro Inc. 20
We need a
real-time
(interactive)
system

21. 9/28/2013 Confidential | Copyright 2013 TrendMicro Inc. 21
1st Arrow:
HBase

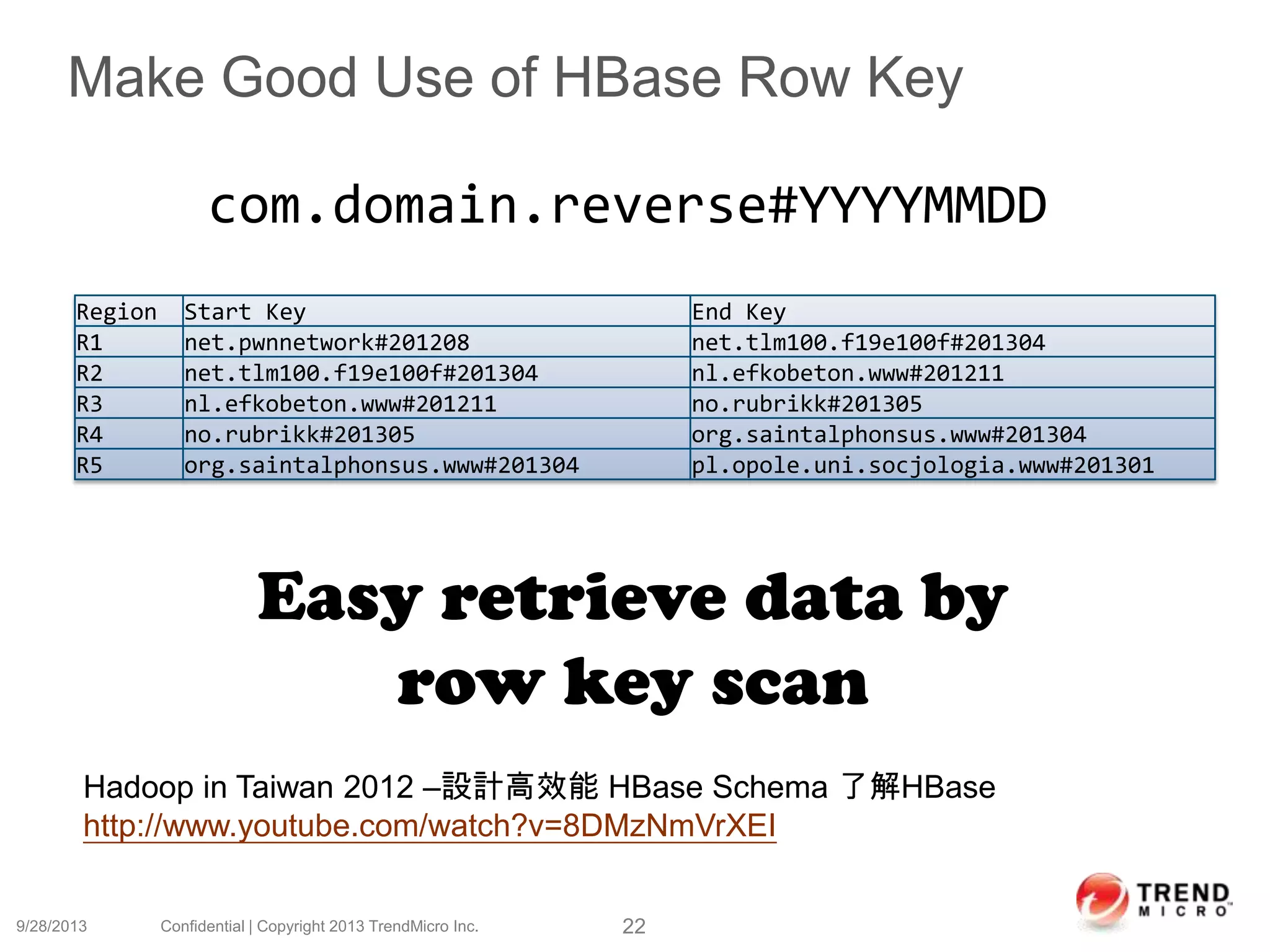

22. Make Good Use of HBase Row Key
9/28/2013 Confidential | Copyright 2013 TrendMicro Inc. 22
Region Start Key End Key
R1 net.pwnnetwork#201208 net.tlm100.f19e100f#201304
R2 net.tlm100.f19e100f#201304 nl.efkobeton.www#201211
R3 nl.efkobeton.www#201211 no.rubrikk#201305
R4 no.rubrikk#201305 org.saintalphonsus.www#201304
R5 org.saintalphonsus.www#201304 pl.opole.uni.socjologia.www#201301
com.domain.reverse#YYYYMMDD
Easy retrieve data by
row key scan
Hadoop in Taiwan 2012 –設計高效能 HBase Schema 了解HBase
http://www.youtube.com/watch?v=8DMzNmVrXEI

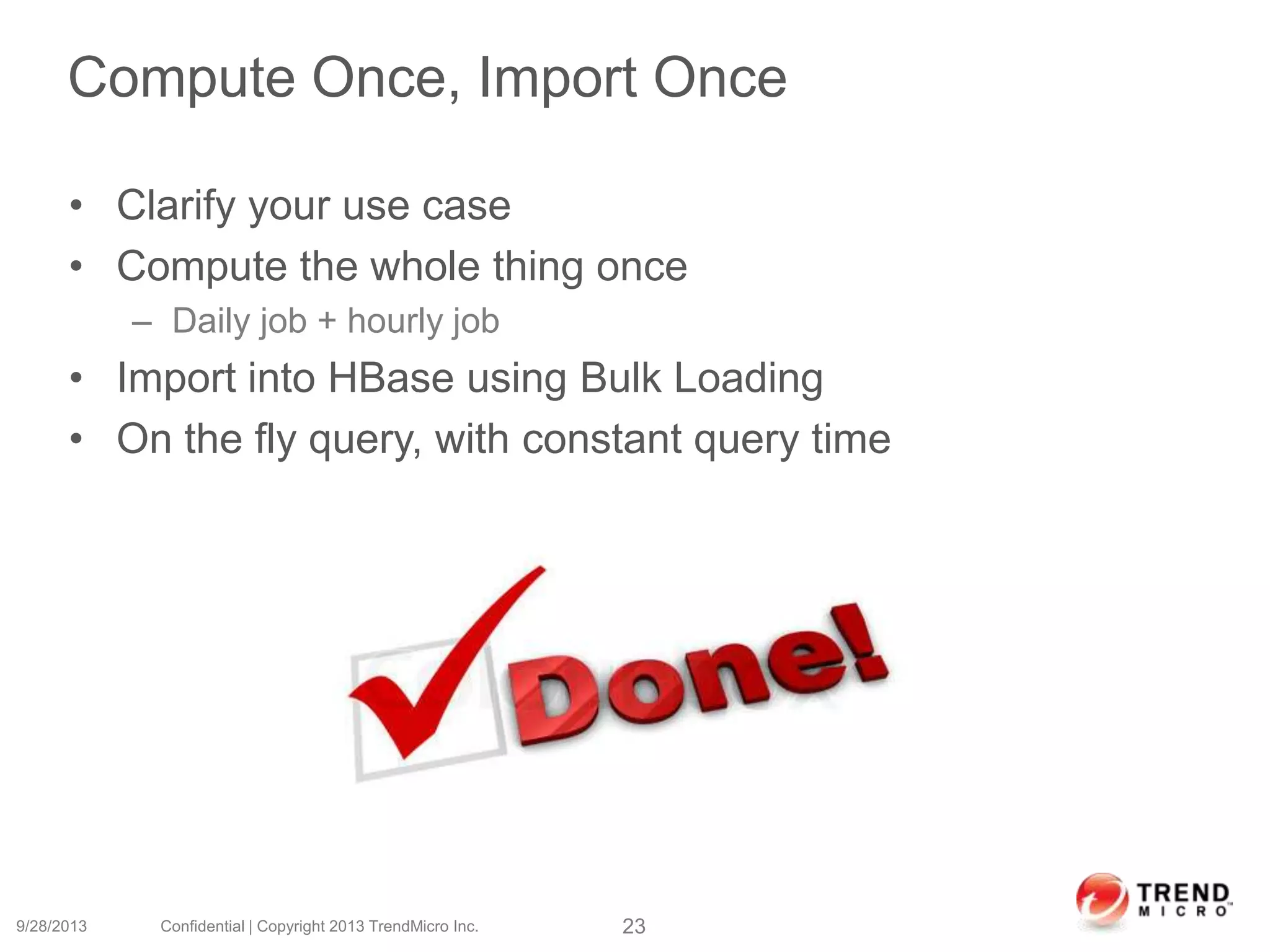

23. Compute Once, Import Once
• Clarify your use case
• Compute the whole thing once
– Daily job + hourly job
• Import into HBase using Bulk Loading
• On the fly query, with constant query time
9/28/2013 Confidential | Copyright 2013 TrendMicro Inc. 23

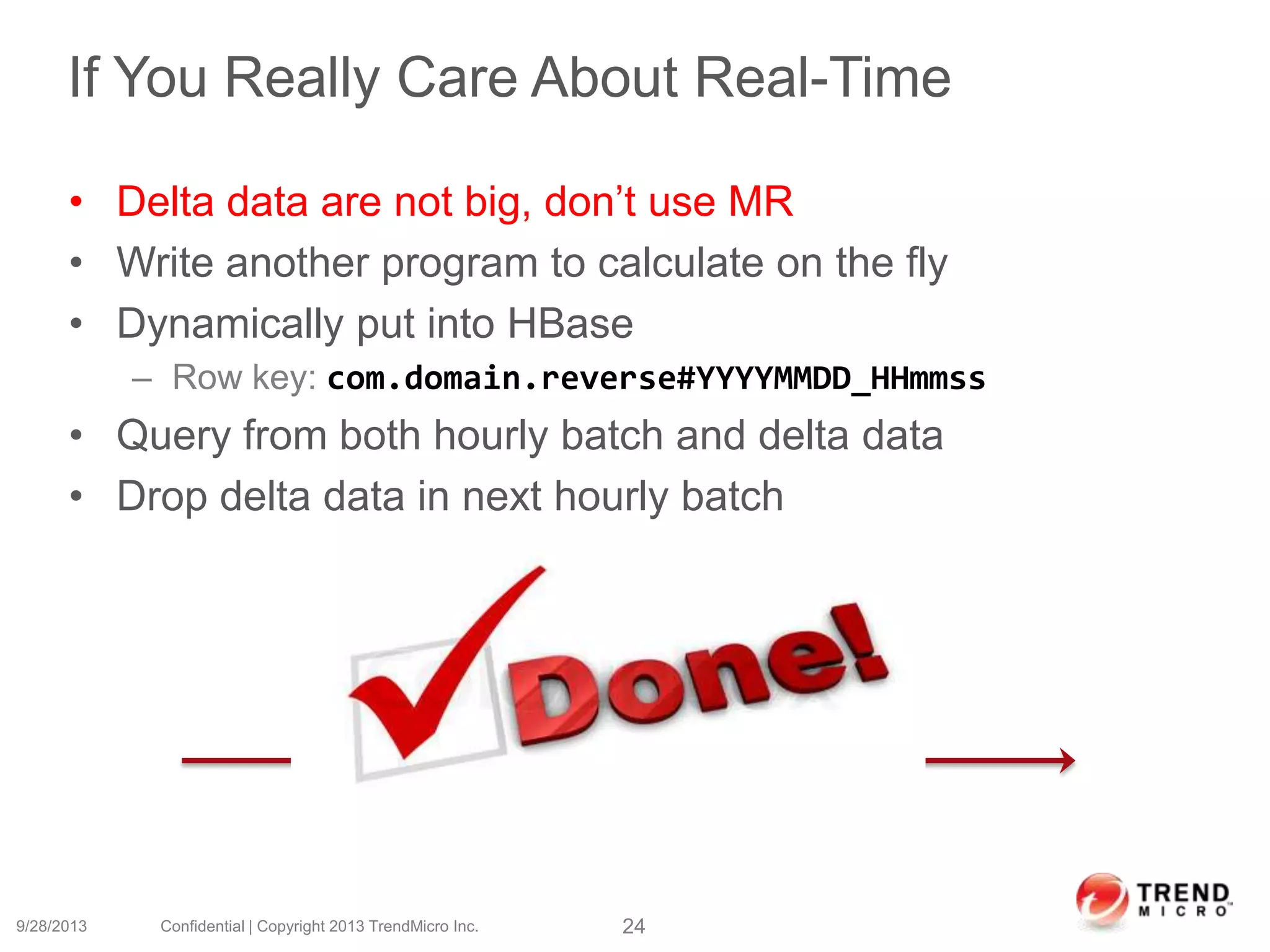

24. If You Really Care About Real-Time
• Delta data are not big, don’t use MR
• Write another program to calculate on the fly
• Dynamically put into HBase
– Row key: com.domain.reverse#YYYYMMDD_HHmmss
• Query from both hourly batch and delta data
• Drop delta data in next hourly batch
9/28/2013 Confidential | Copyright 2013 TrendMicro Inc. 24
2 am 3 am
Delta data

25. 9/28/2013 Confidential | Copyright 2013 TrendMicro Inc. 25
But...
Life suffers because of “but”

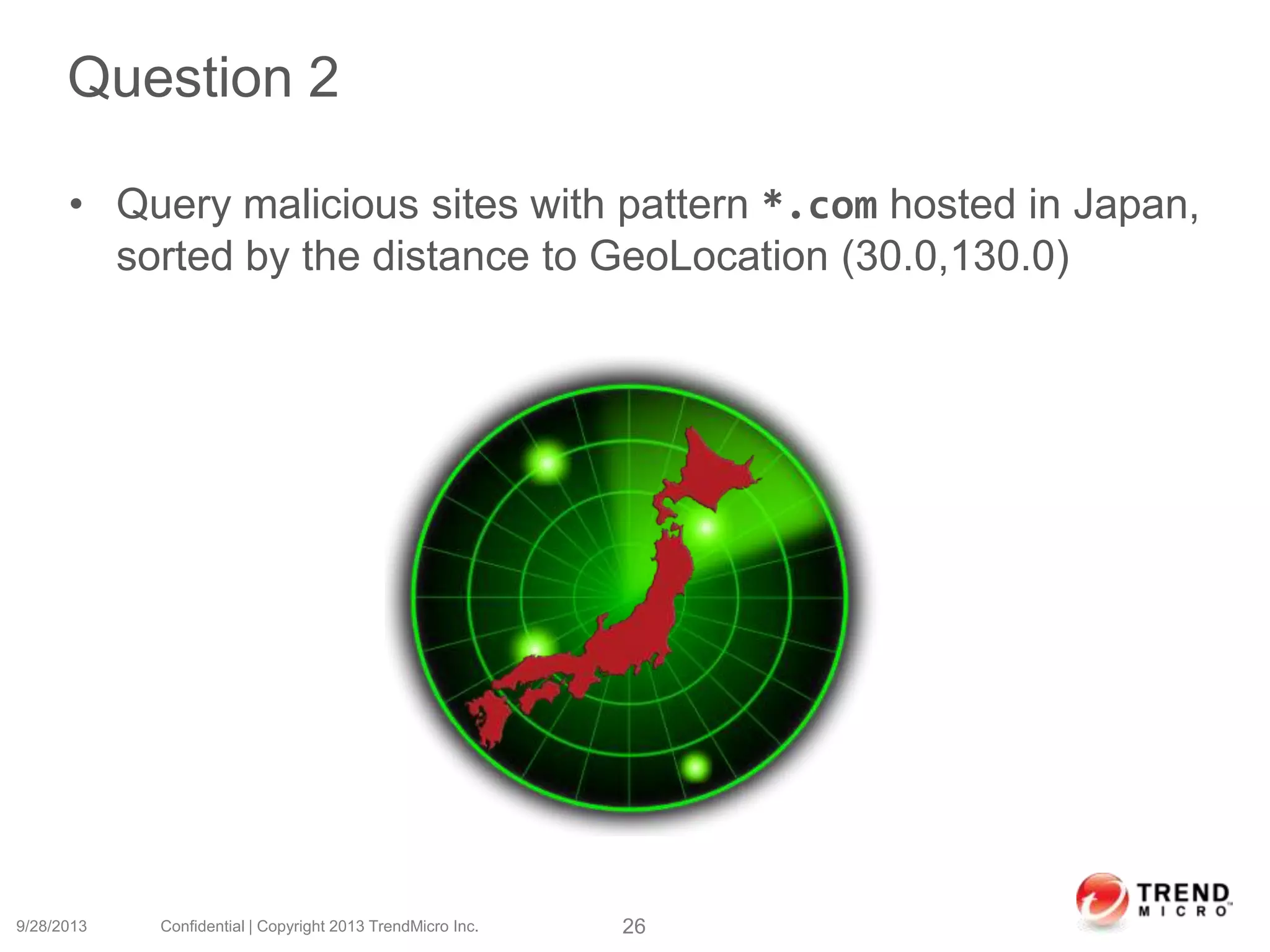

26. Question 2
• Query malicious sites with pattern *.com hosted in Japan,
sorted by the distance to GeoLocation (30.0,130.0)
9/28/2013 Confidential | Copyright 2013 TrendMicro Inc. 26

27. 9/28/2013 Confidential | Copyright 2013 TrendMicro Inc. 27
HBase does
not have 2nd
index (yet)

28. 9/28/2013 Confidential | Copyright 2013 TrendMicro Inc. 28
2nd Arrow:
SolrCloud

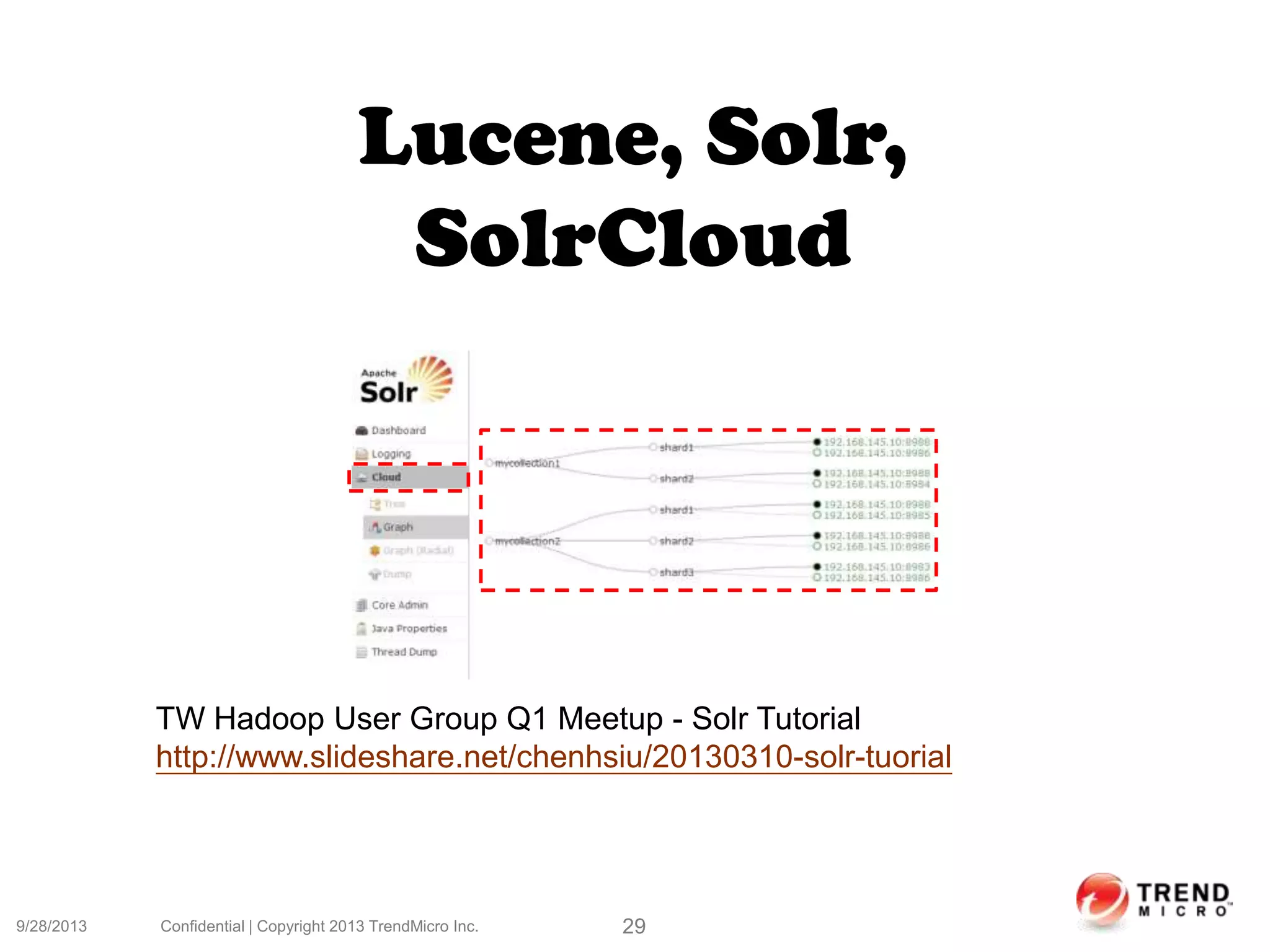

29. 9/28/2013 Confidential | Copyright 2013 TrendMicro Inc. 29
Lucene, Solr,
SolrCloud
TW Hadoop User Group Q1 Meetup - Solr Tutorial
http://www.slideshare.net/chenhsiu/20130310-solr-tuorial

30. What is Lucene?
• Full-text search library
• Written in Java
• Indexing & searching
• One of the top 5 Apache projects
9/28/2013 Confidential | Copyright 2013 TrendMicro Inc. 30

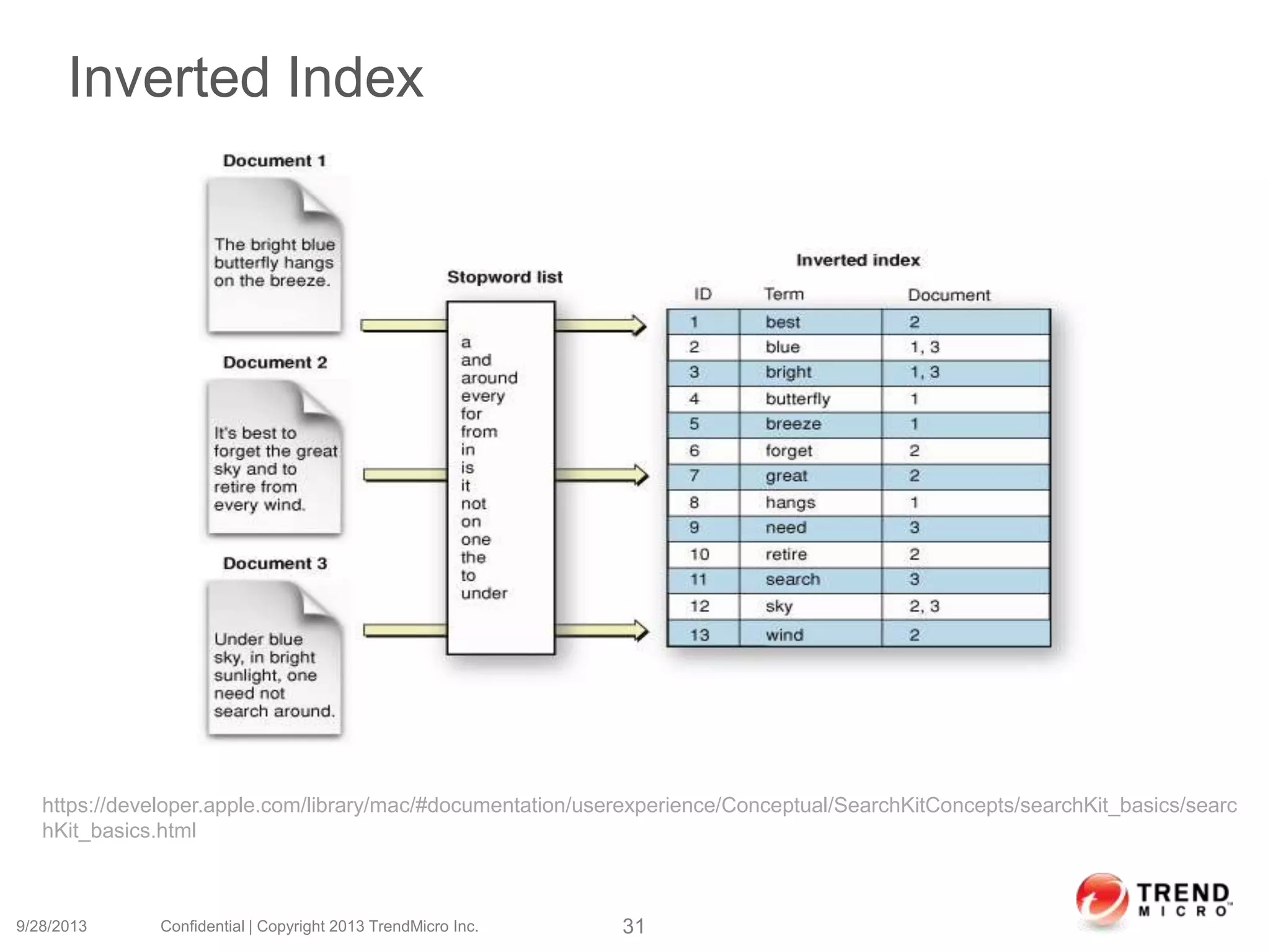

31. Inverted Index
9/28/2013 Confidential | Copyright 2013 TrendMicro Inc. 31
https://developer.apple.com/library/mac/#documentation/userexperience/Conceptual/SearchKitConcepts/searchKit_basics/searc
hKit_basics.html

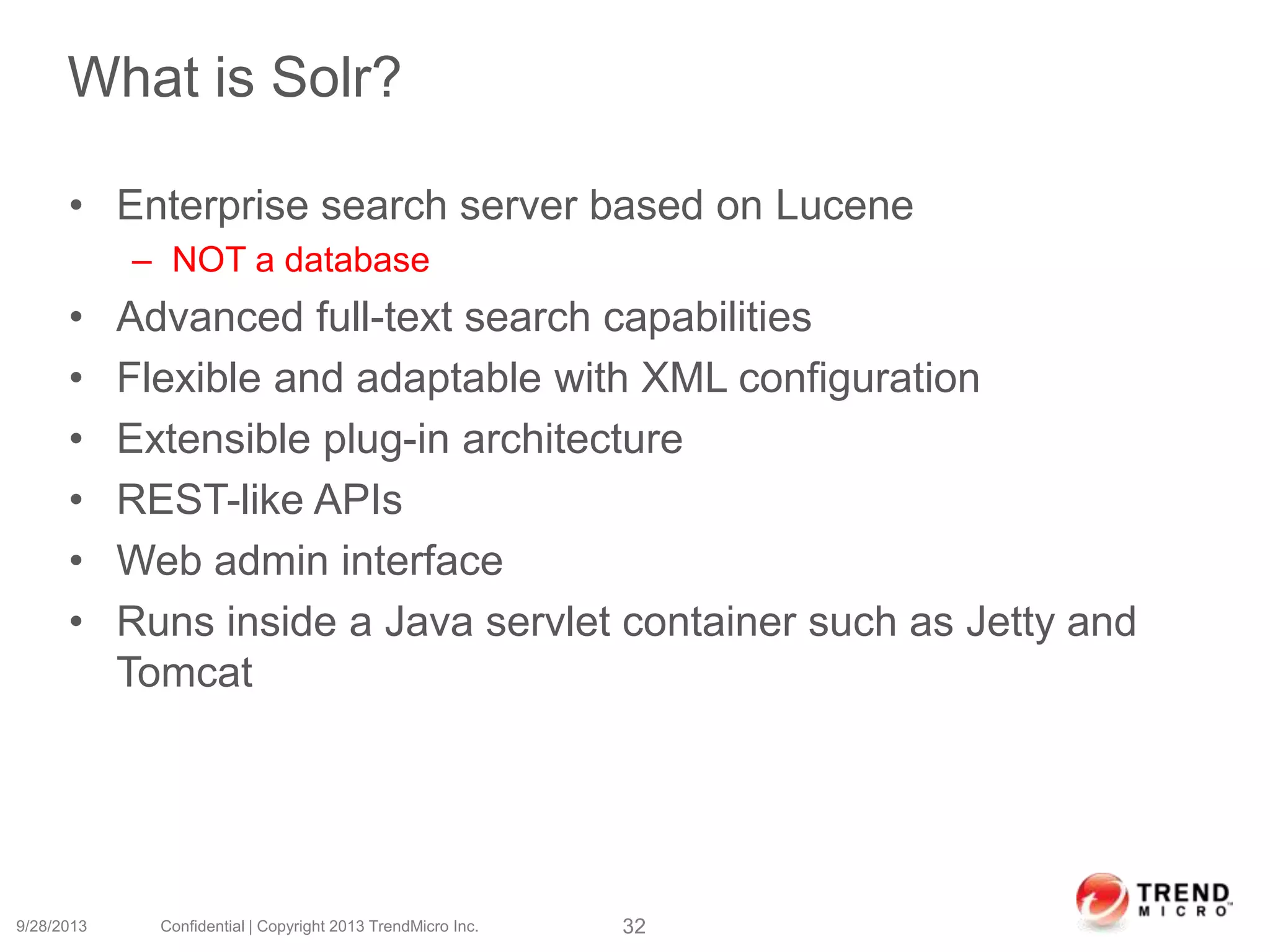

32. What is Solr?
• Enterprise search server based on Lucene
– NOT a database
• Advanced full-text search capabilities
• Flexible and adaptable with XML configuration
• Extensible plug-in architecture
• REST-like APIs
• Web admin interface
• Runs inside a Java servlet container such as Jetty and
Tomcat
9/28/2013 Confidential | Copyright 2013 TrendMicro Inc. 32

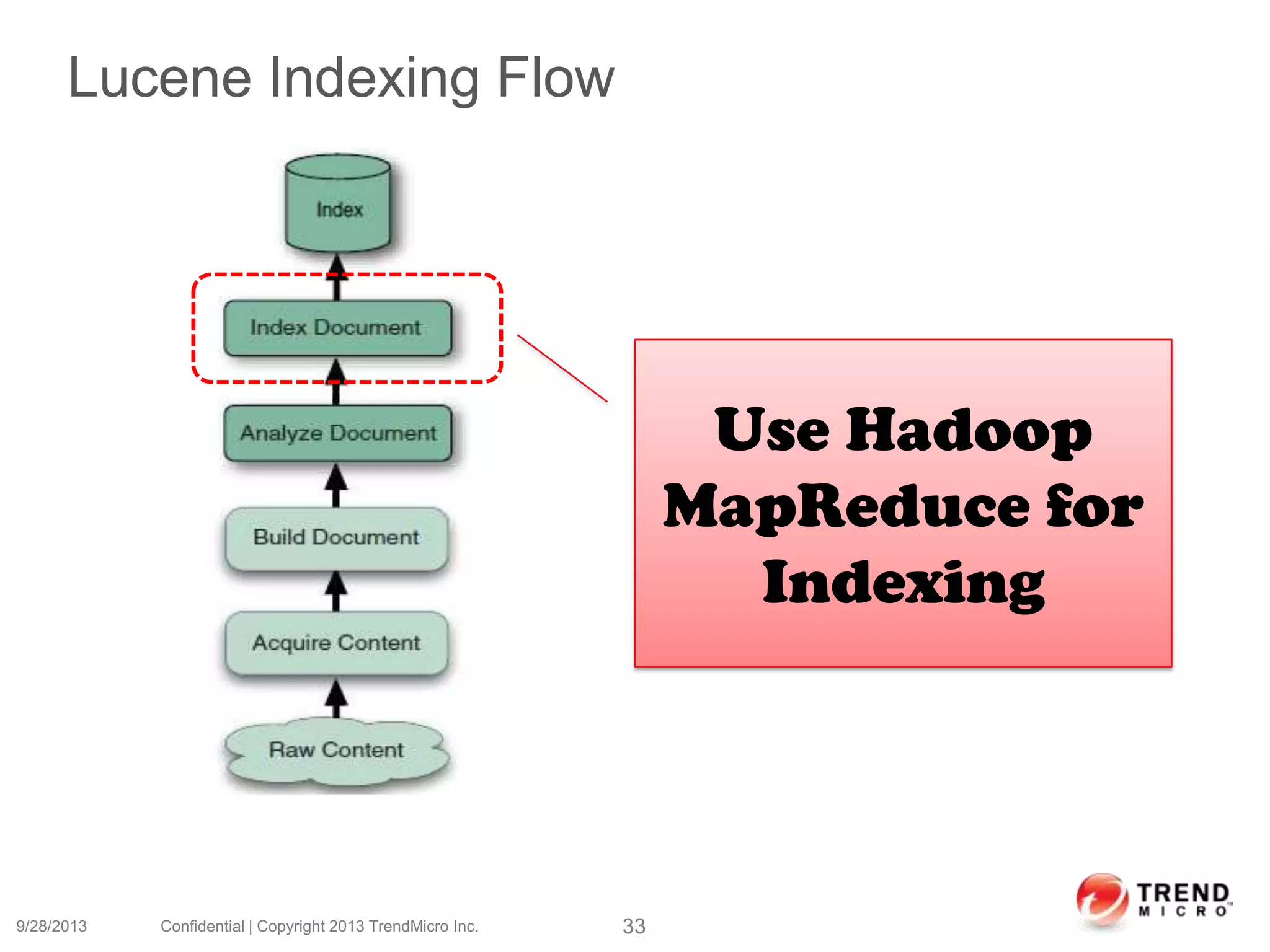

33. 9/28/2013 Confidential | Copyright 2013 TrendMicro Inc. 33
Use Hadoop
MapReduce for
Indexing
Lucene Indexing Flow

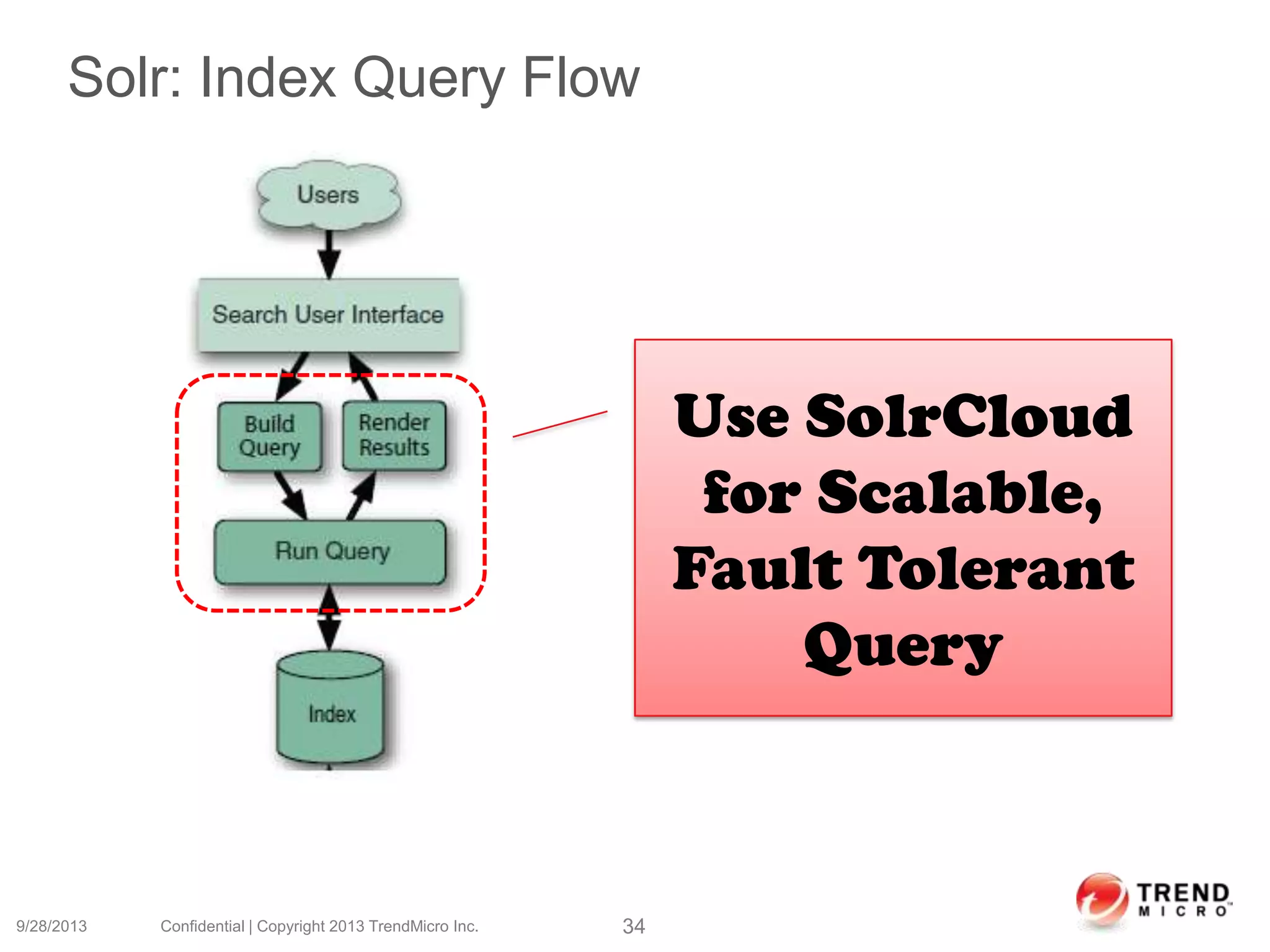

34. 9/28/2013 Confidential | Copyright 2013 TrendMicro Inc. 34
Use SolrCloud
for Scalable,
Fault Tolerant
Query
Solr: Index Query Flow

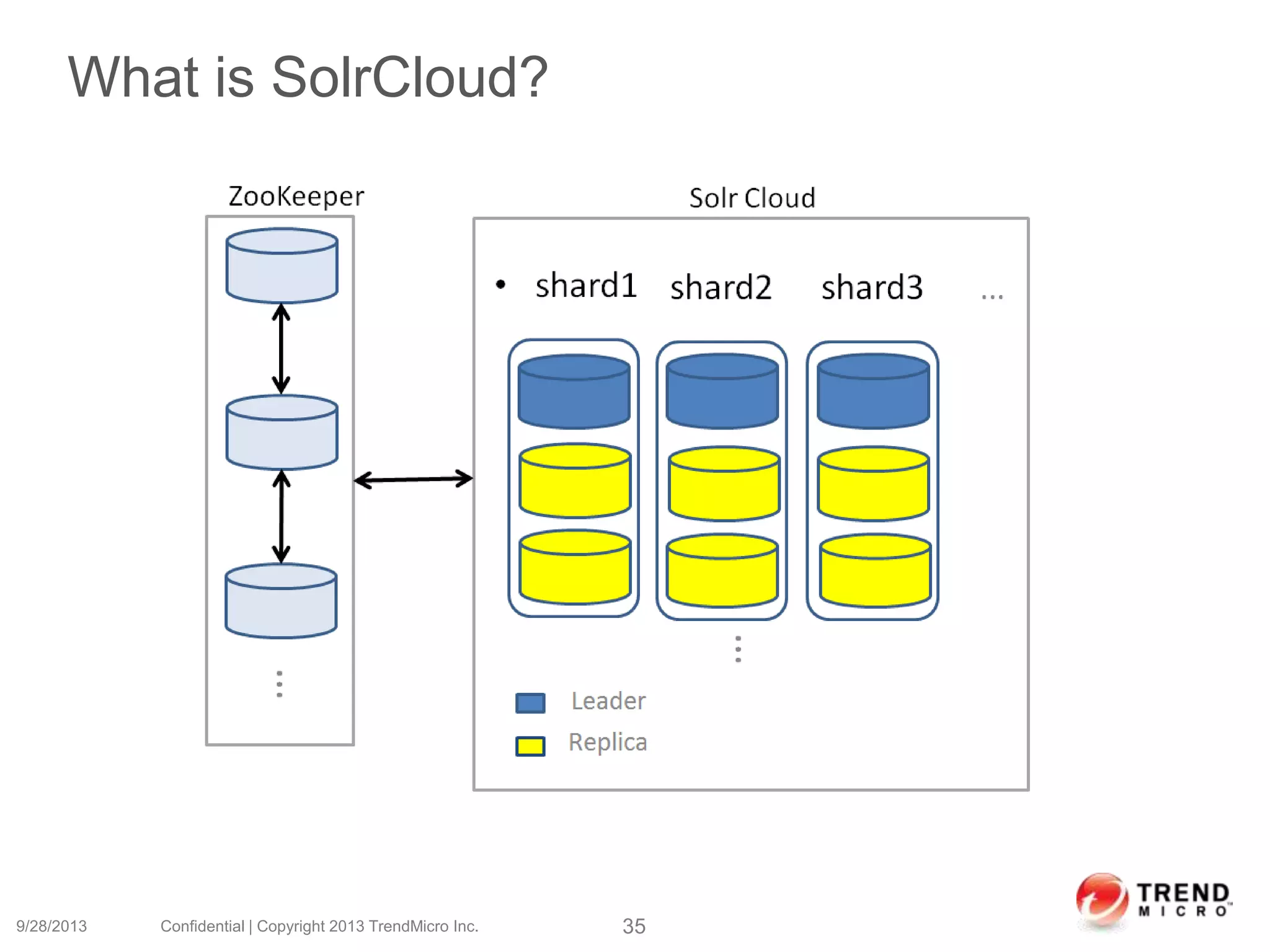

35. What is SolrCloud?
9/28/2013 Confidential | Copyright 2013 TrendMicro Inc. 35

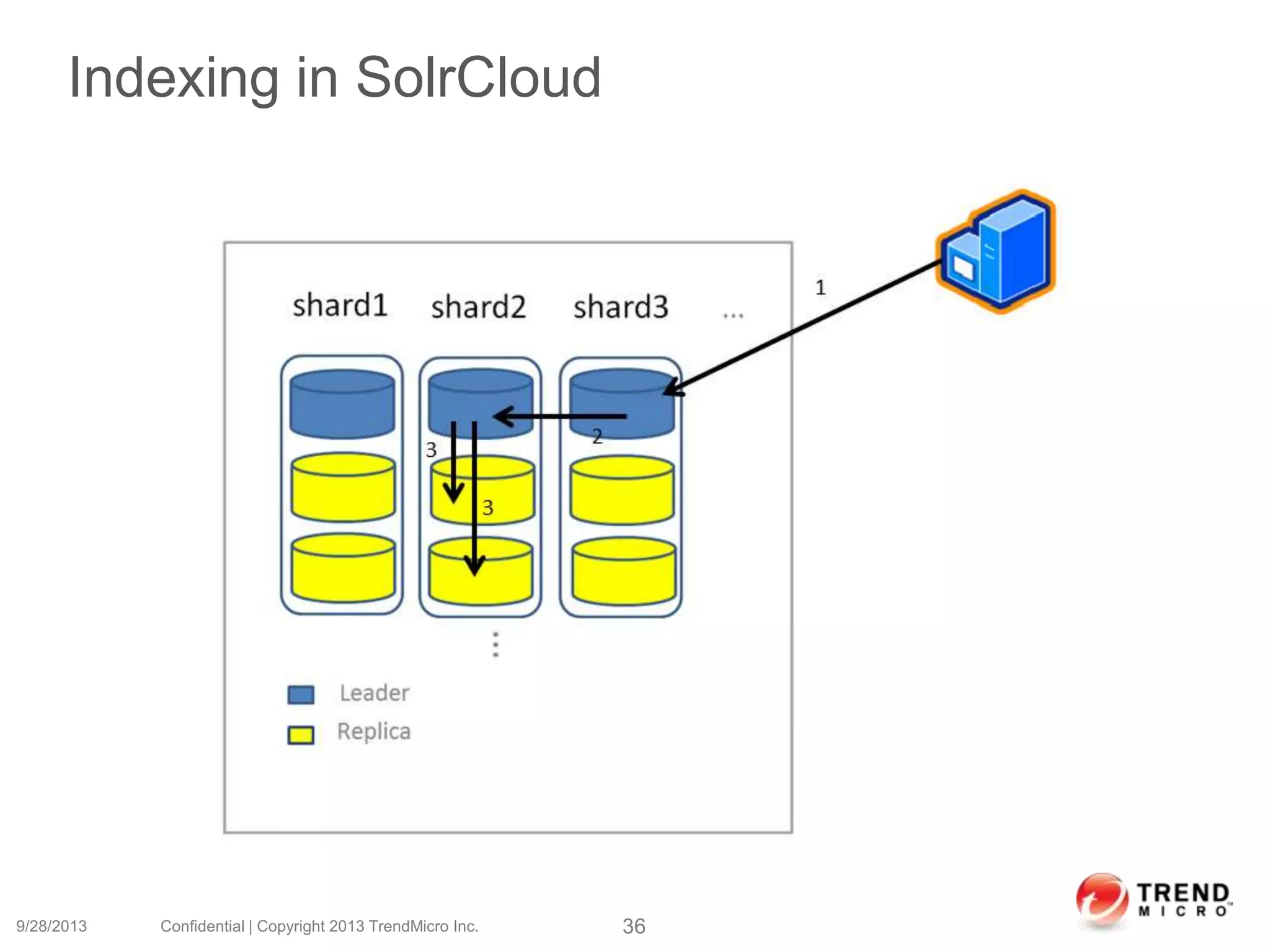

36. Indexing in SolrCloud
9/28/2013 Confidential | Copyright 2013 TrendMicro Inc. 36

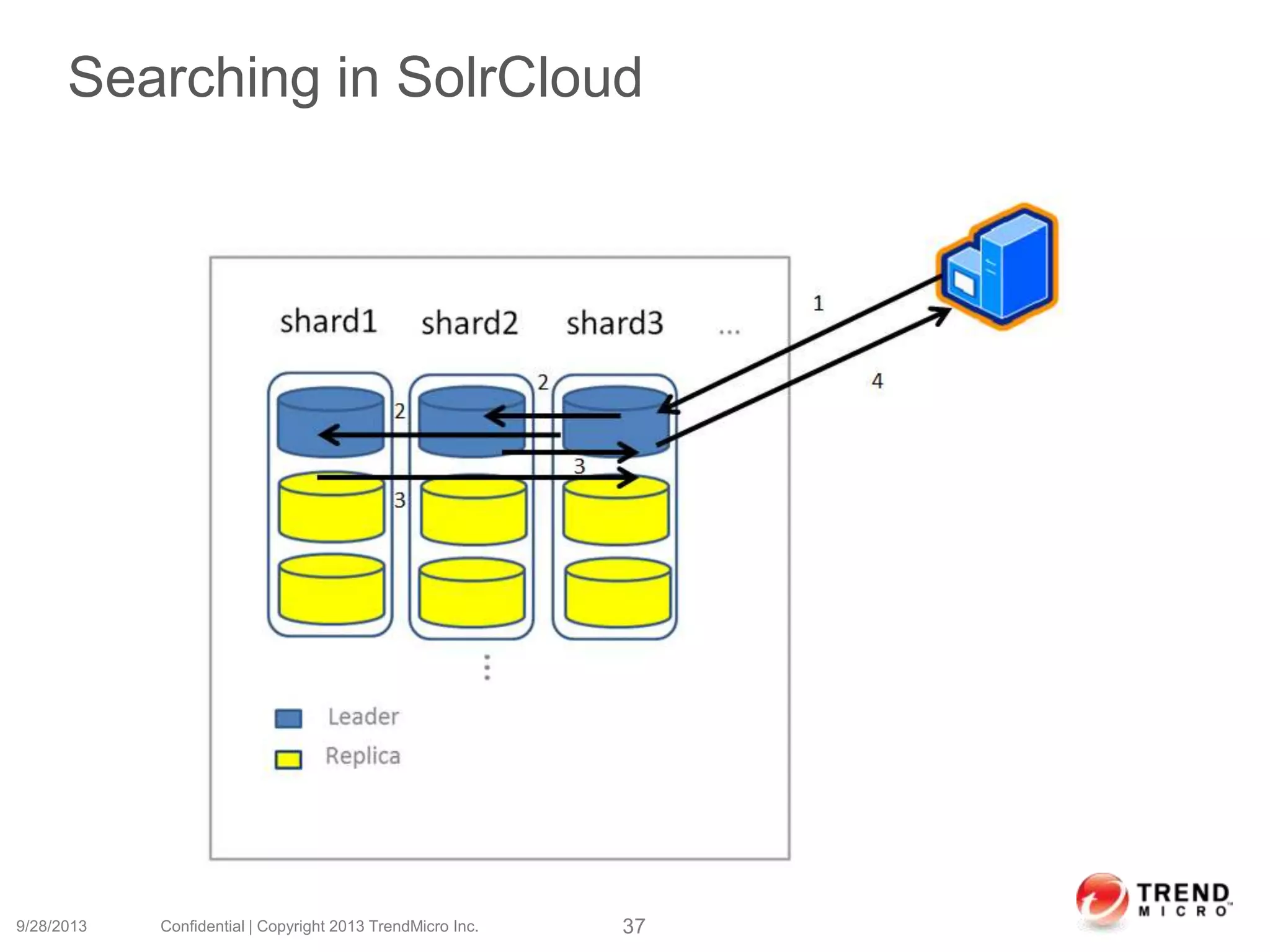

37. Searching in SolrCloud
9/28/2013 Confidential | Copyright 2013 TrendMicro Inc. 37

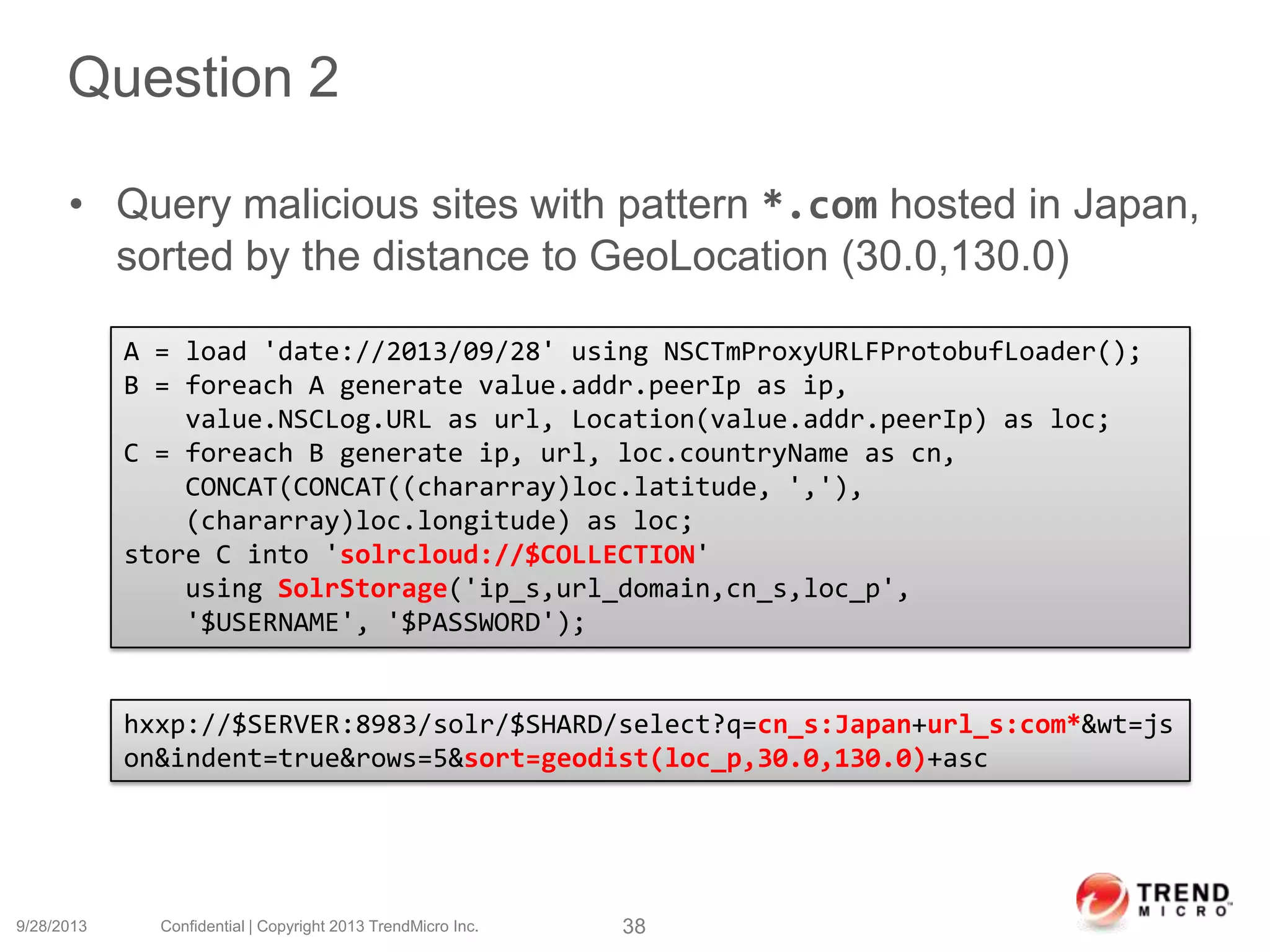

38. Question 2
• Query malicious sites with pattern *.com hosted in Japan,
sorted by the distance to GeoLocation (30.0,130.0)
9/28/2013 Confidential | Copyright 2013 TrendMicro Inc. 38
A = load 'date://2013/09/28' using NSCTmProxyURLFProtobufLoader();
B = foreach A generate value.addr.peerIp as ip,
value.NSCLog.URL as url, Location(value.addr.peerIp) as loc;
C = foreach B generate ip, url, loc.countryName as cn,
CONCAT(CONCAT((chararray)loc.latitude, ','),
(chararray)loc.longitude) as loc;
store C into 'solrcloud://$COLLECTION'
using SolrStorage('ip_s,url_domain,cn_s,loc_p',
'$USERNAME', '$PASSWORD');
hxxp://$SERVER:8983/solr/$SHARD/select?q=cn_s:Japan+url_s:com*&wt=js
on&indent=true&rows=5&sort=geodist(loc_p,30.0,130.0)+asc

39. 9/28/2013 Confidential | Copyright 2013 TrendMicro Inc. 39
That’s it?
YES

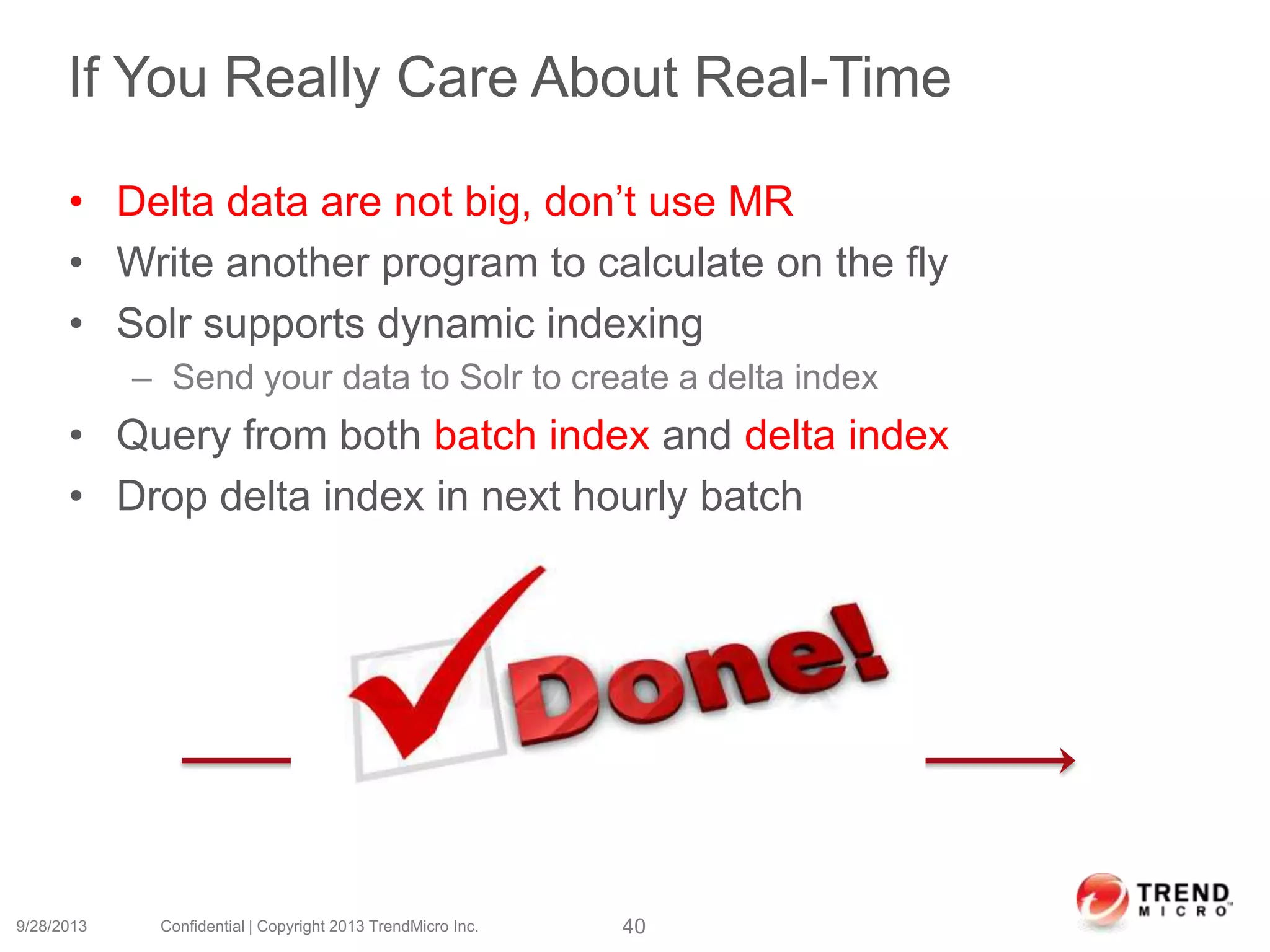

40. If You Really Care About Real-Time
• Delta data are not big, don’t use MR
• Write another program to calculate on the fly
• Solr supports dynamic indexing
– Send your data to Solr to create a delta index
• Query from both batch index and delta index
• Drop delta index in next hourly batch
9/28/2013 Confidential | Copyright 2013 TrendMicro Inc. 40
2 am 3 am
Delta data

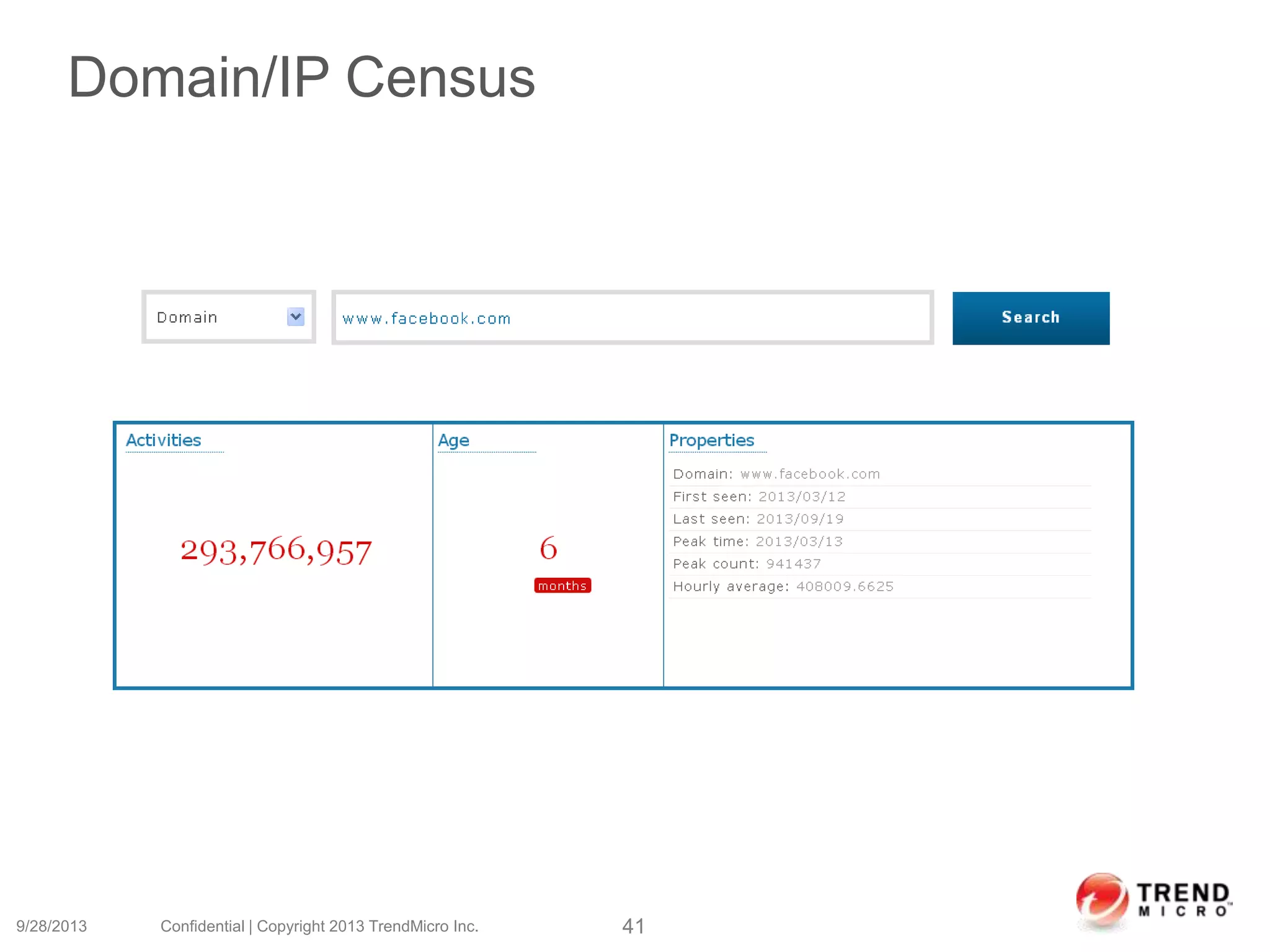

41. Domain/IP Census
9/28/2013 Confidential | Copyright 2013 TrendMicro Inc. 41

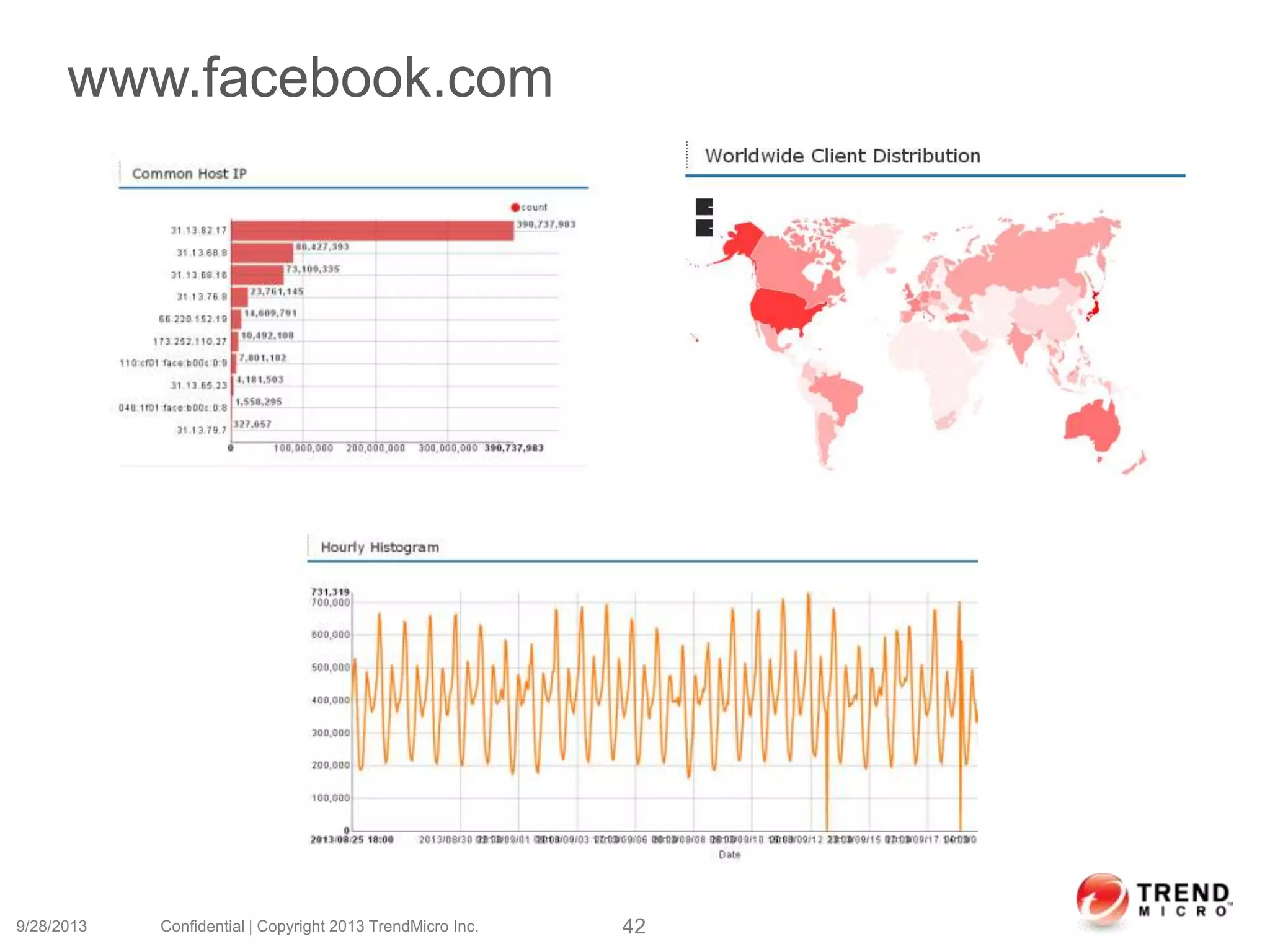

42. www.facebook.com
9/28/2013 Confidential | Copyright 2013 TrendMicro Inc. 42

43. 9/28/2013 Confidential | Copyright 2013 TrendMicro Inc. 43
Excellent!

44. 9/28/2013 Confidential | Copyright 2013 TrendMicro Inc. 44
But...
Life suffers because of “but”

45. 9/28/2013 Confidential | Copyright 2013 TrendMicro Inc. 45
We need to
identify use
case first
Yesterday, Who accessed
hxxp://www.thebadbuy.com?
From where, How? What’s the
frequency?
Query malicious sites with
pattern *.com hosted in Japan,
sorted by the distance to
GeoLocation (30.0,130.0)

46. 9/28/2013 Confidential | Copyright 2013 TrendMicro Inc. 46
3rd Arrow:
Streaming

47. Question 1 Revisited
9/28/2013 Confidential | Copyright 2013 TrendMicro Inc. 47
Yesterday, Who accessed
hxxp://www.thebadbuy.com?
From where, How? What’s the
frequency?
• Can you send email when there is a
contact to specific C&C server?
• Can you monitor a specific client IP to
a list of C&C server?
• I found there is certain pattern in C&C
URL paths, can you give me a hourly
update of top 10 path grouping?
• Report the C&C connect’s parent
process SHA-1 to Virus DB for
sourcing

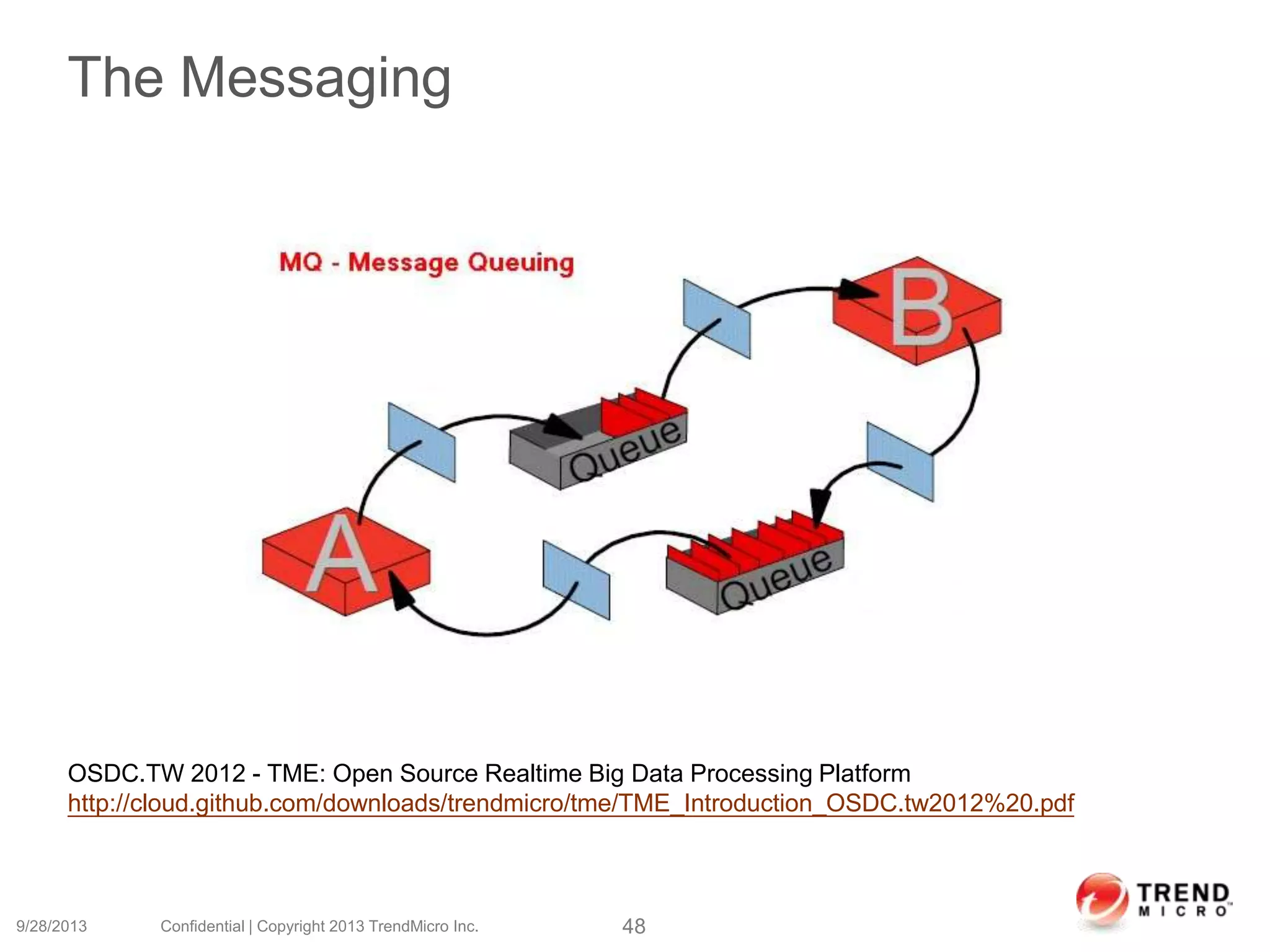

48. The Messaging
9/28/2013 Confidential | Copyright 2013 TrendMicro Inc. 48
OSDC.TW 2012 - TME: Open Source Realtime Big Data Processing Platform
http://cloud.github.com/downloads/trendmicro/tme/TME_Introduction_OSDC.tw2012%20.pdf

49. 9/28/2013 Confidential | Copyright 2013 TrendMicro Inc. 49
Let’s dump
the data

50. 9/28/2013 Confidential | Copyright 2013 TrendMicro Inc. 50
You need lots
of workers!

51. 9/28/2013 Confidential | Copyright 2013 TrendMicro Inc. 51
Your boss
won’t buy you
another 100
servers

52. NextGen MapReduce (YARN)
9/28/2013 Confidential | Copyright 2013 TrendMicro Inc. 52

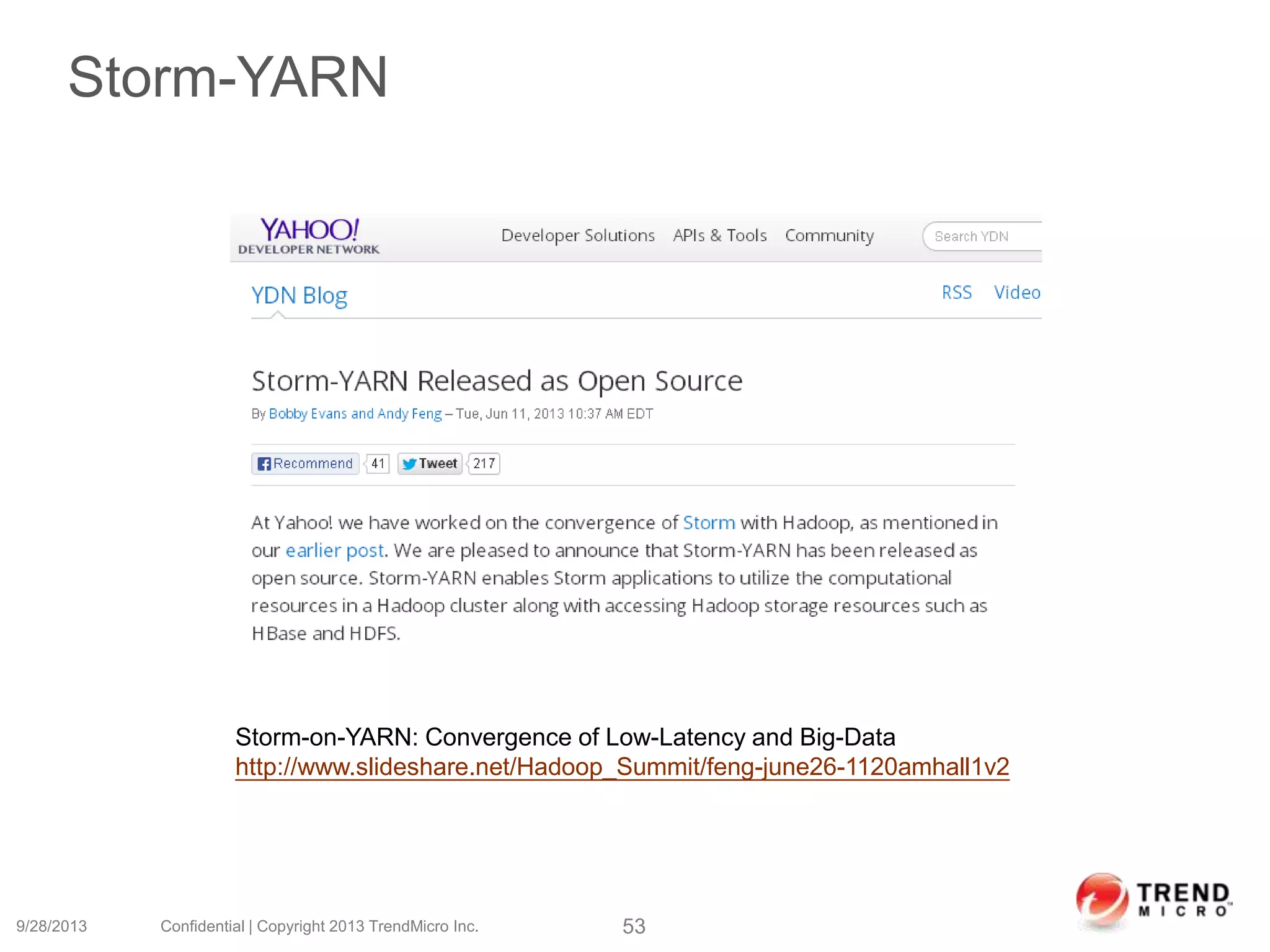

53. Storm-YARN
9/28/2013 Confidential | Copyright 2013 TrendMicro Inc. 53
Storm-on-YARN: Convergence of Low-Latency and Big-Data
http://www.slideshare.net/Hadoop_Summit/feng-june26-1120amhall1v2

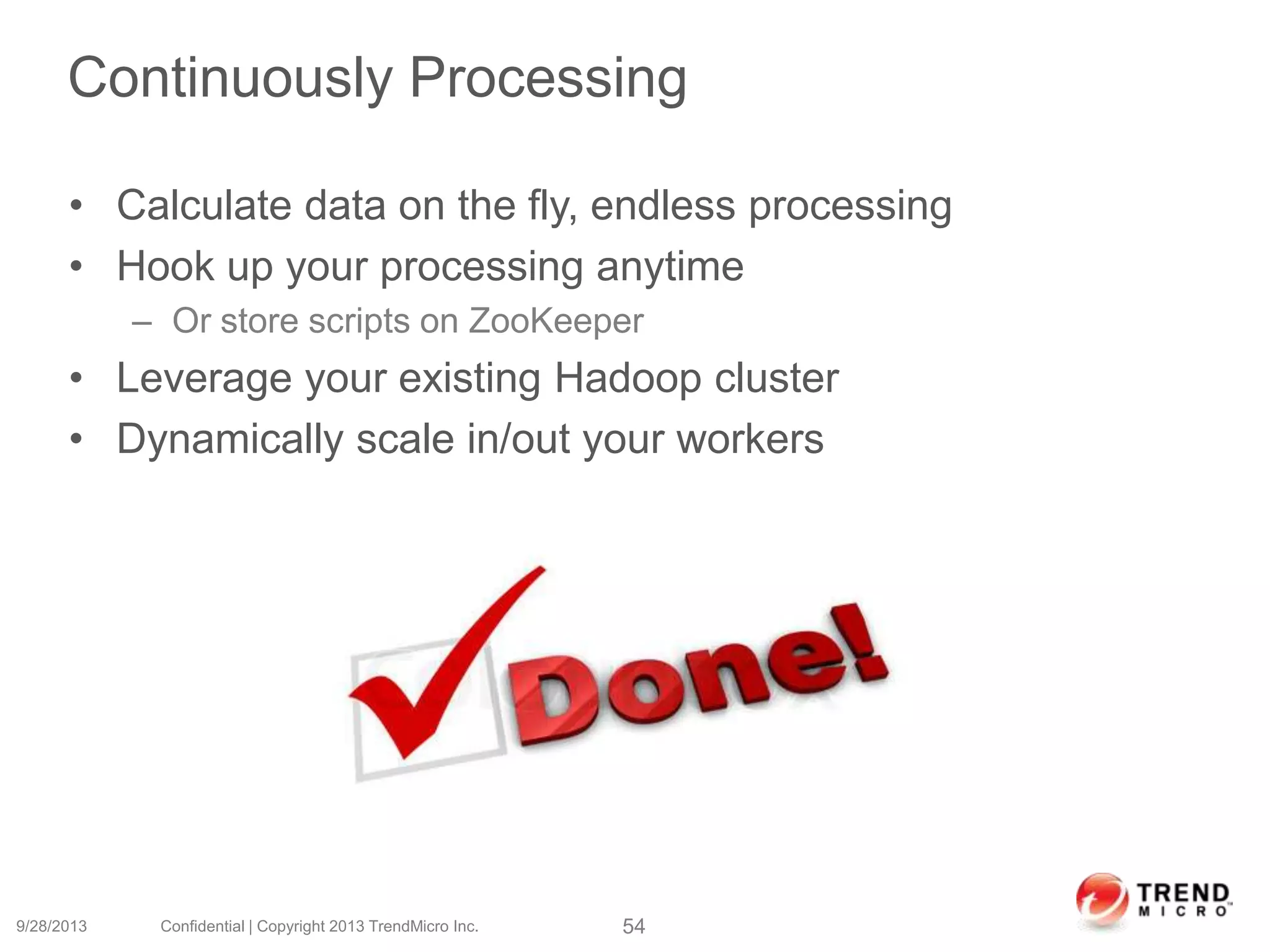

54. Continuously Processing
• Calculate data on the fly, endless processing
• Hook up your processing anytime
– Or store scripts on ZooKeeper
• Leverage your existing Hadoop cluster
• Dynamically scale in/out your workers
9/28/2013 Confidential | Copyright 2013 TrendMicro Inc. 54

55. 9/28/2013 Confidential | Copyright 2013 TrendMicro Inc. 55
Summary

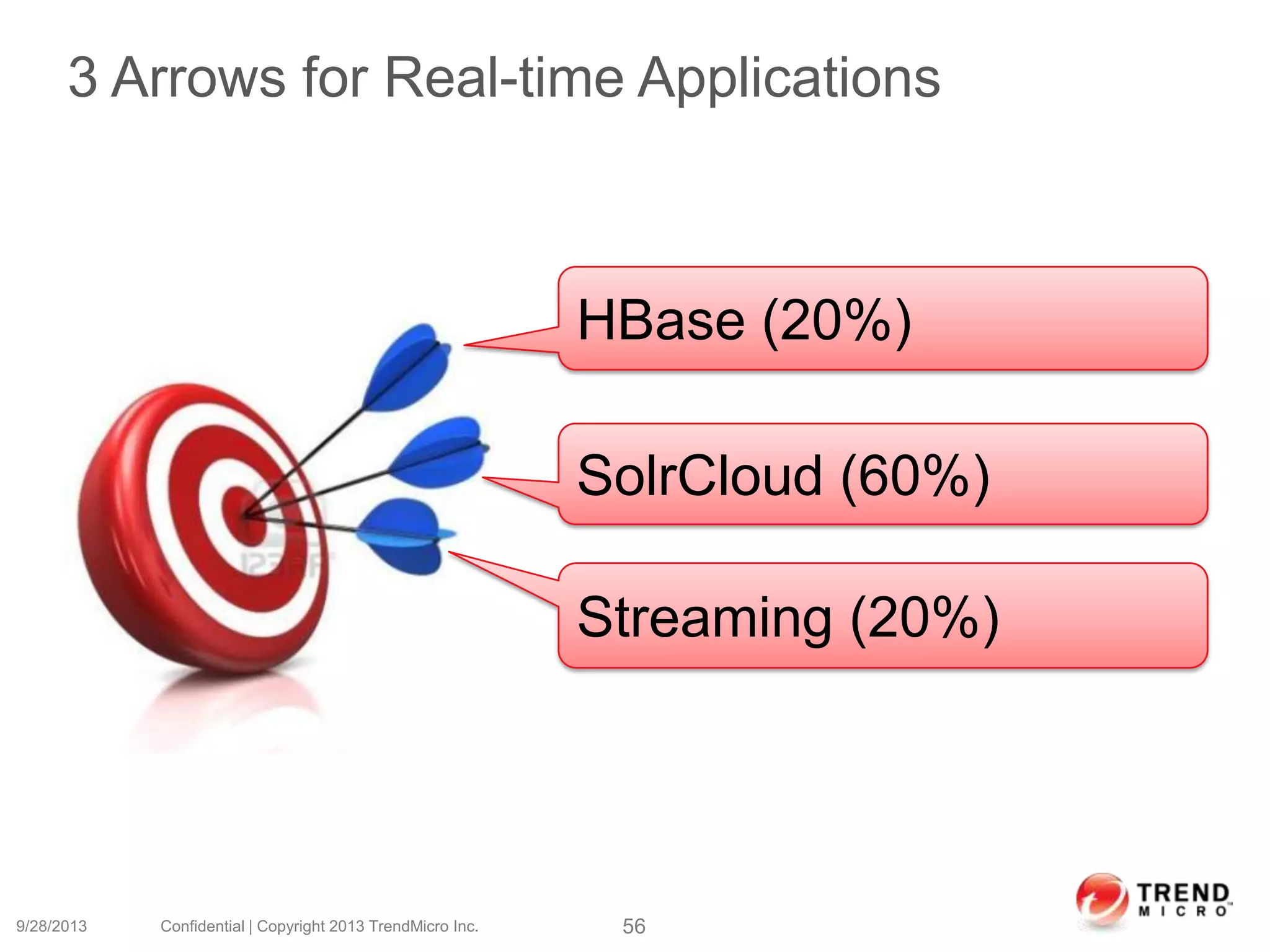

56. 3 Arrows for Real-time Applications
9/28/2013 Confidential | Copyright 2013 TrendMicro Inc. 56
HBase (20%)
SolrCloud (60%)
Streaming (20%)

57. 9/28/2013 Confidential | Copyright 2013 TrendMicro Inc. 57
80/20 Rule
As close as
possible,
don’t overdo

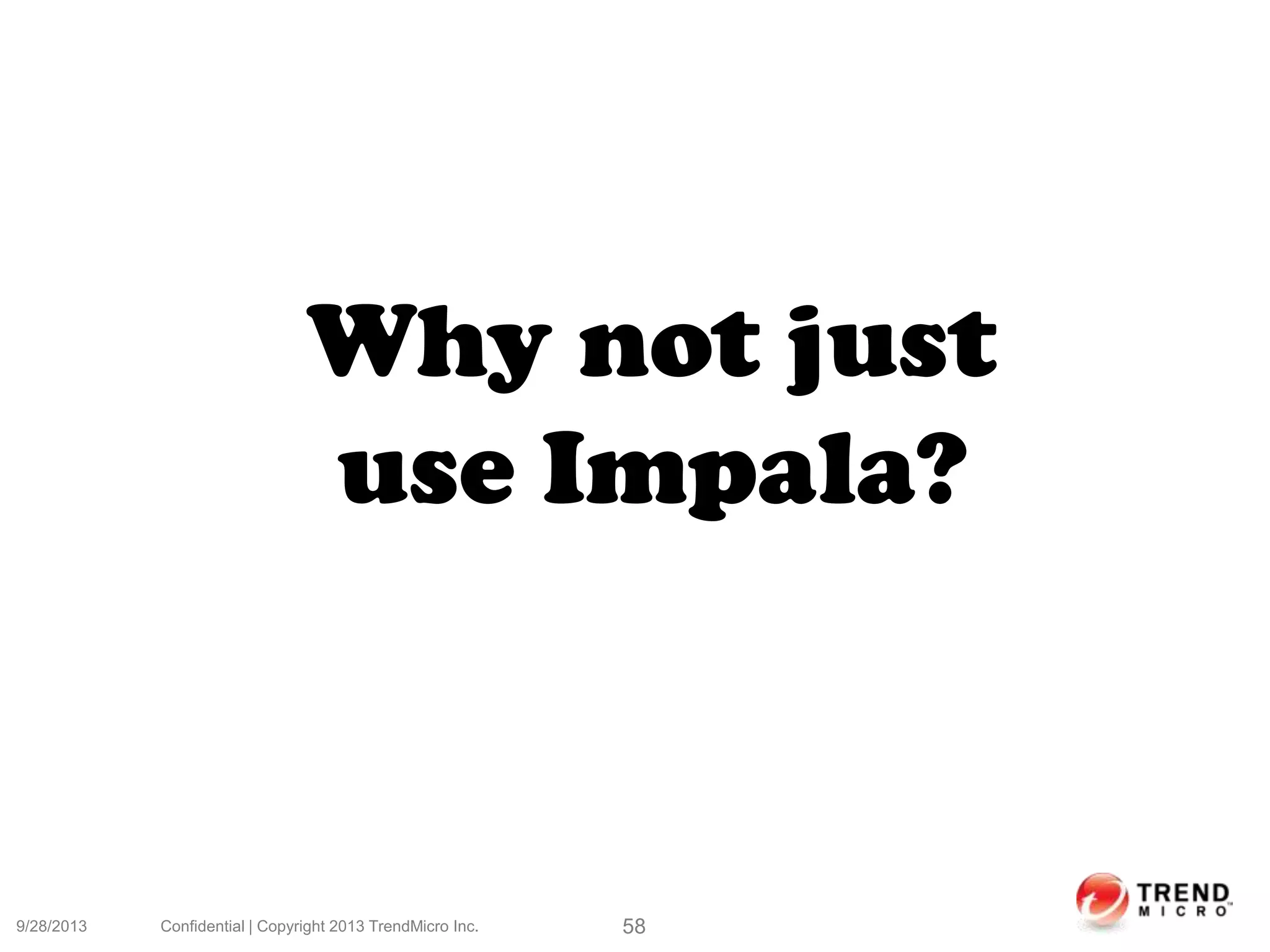

58. 9/28/2013 Confidential | Copyright 2013 TrendMicro Inc. 58
Why not just
use Impala?

59. 9/28/2013 Confidential | Copyright 2013 TrendMicro Inc. 59
The same
problem,
anyway

60. Q&A
9/28/2013 Confidential | Copyright 2013 TrendMicro Inc. 60

61. 9/28/2013 Confidential | Copyright 2013 TrendMicro Inc. 61
You’re Brilliant
We’re hiring!
