The document discusses four approaches to structuring Angular applications within Visualforce pages in Salesforce: 1) Using multiple static resources and Visualforce pages, which allows for rapid prototyping but can be slow and scattered. 2) MavensMate resource bundles, which group files but saves can be slow and conflicts can occur. 3) Aside.io zipped static resources, similar to MavensMate but browser-based and very fast saves. 4) Welkin Suite for Windows users, similar to MavensMate and provides a Visual Studio-like experience. The document provides examples and reviews the pros and cons of each approach.

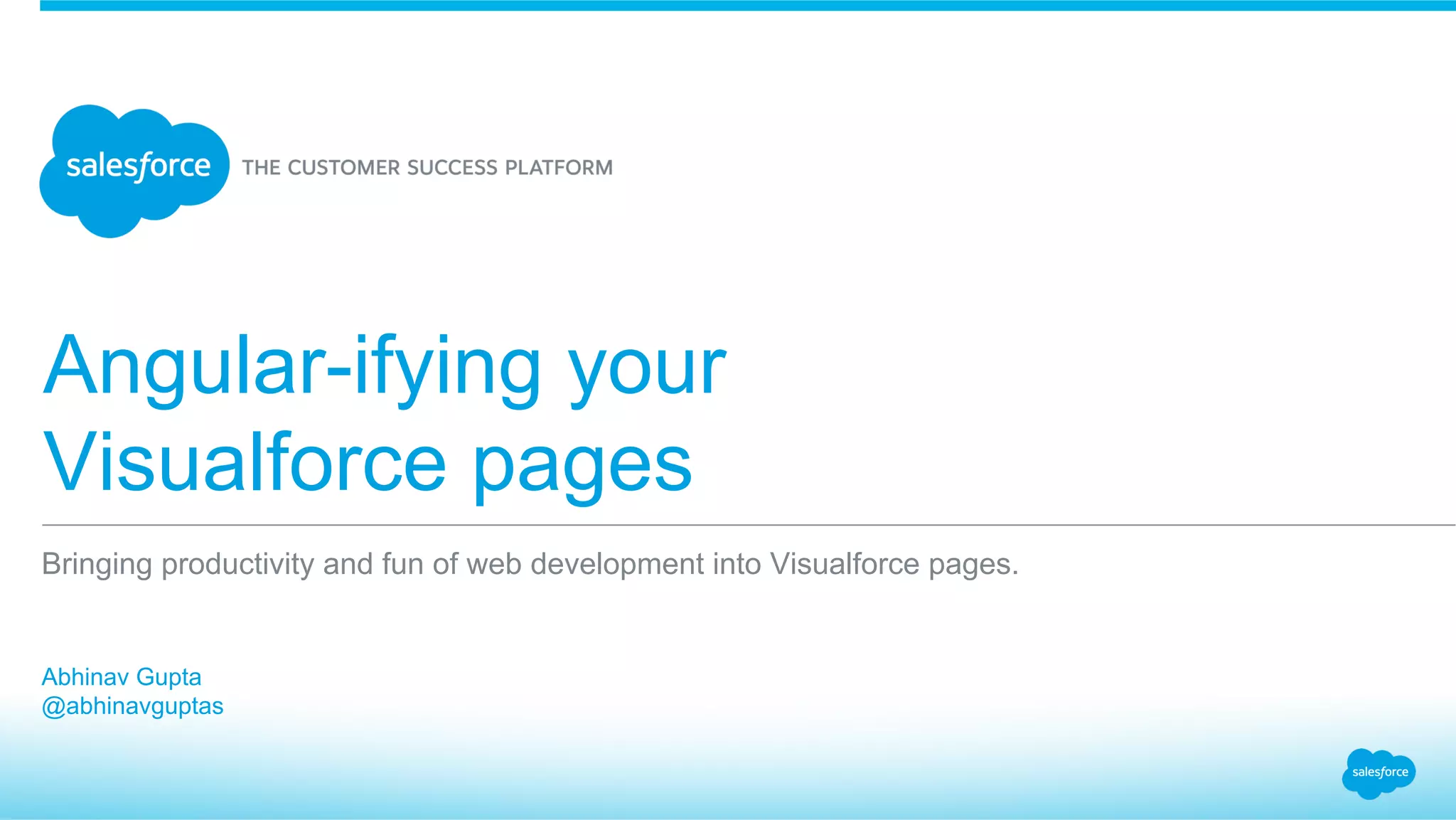

1. Angular-ifying your
Visualforce pages
​ Abhinav Gupta
​ @abhinavguptas
​
Bringing productivity and fun of web development into Visualforce pages.

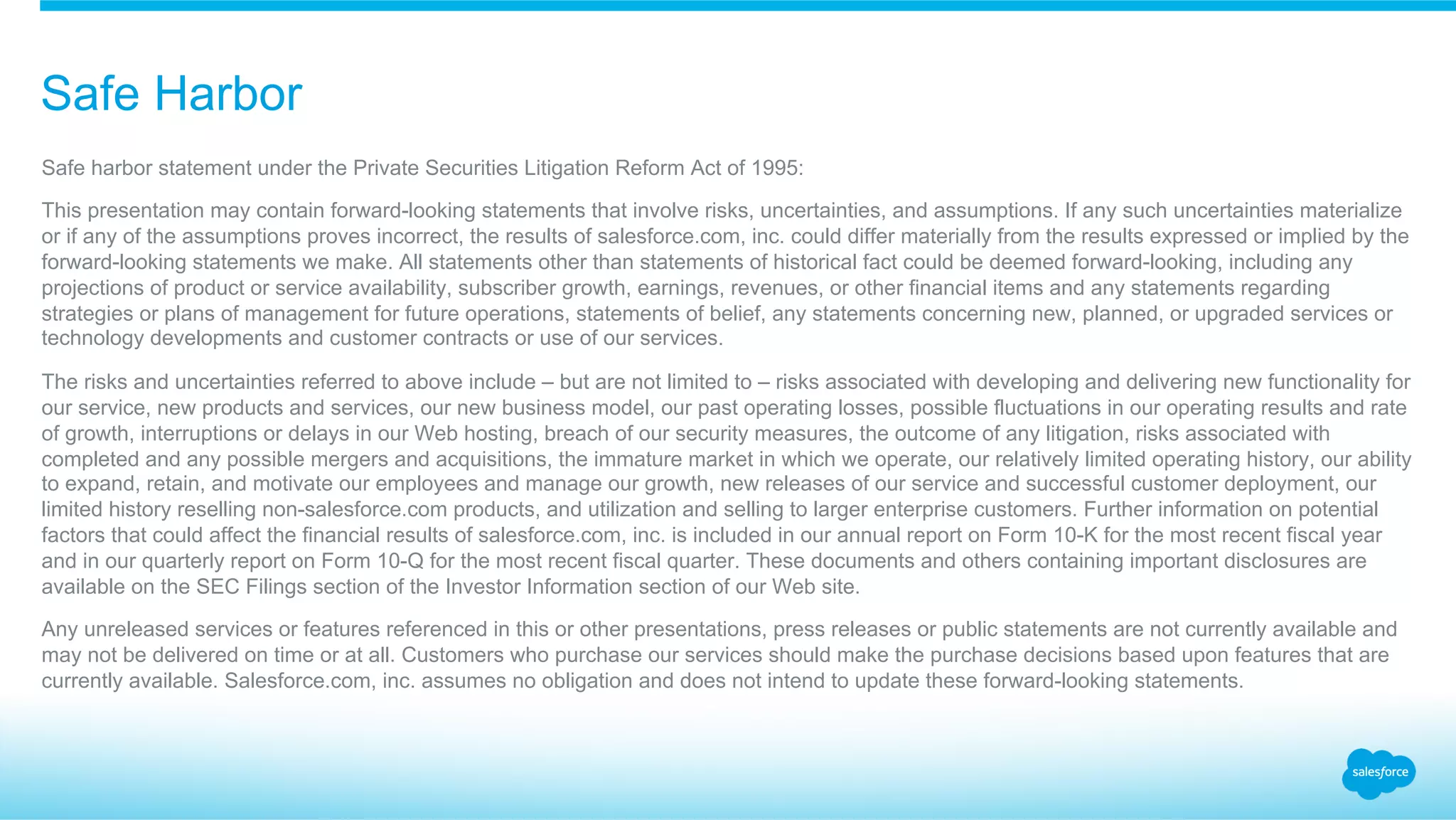

2. ​ Safe harbor statement under the Private Securities Litigation Reform Act of 1995:
​ This presentation may contain forward-looking statements that involve risks, uncertainties, and assumptions. If any such uncertainties materialize
or if any of the assumptions proves incorrect, the results of salesforce.com, inc. could differ materially from the results expressed or implied by the
forward-looking statements we make. All statements other than statements of historical fact could be deemed forward-looking, including any
projections of product or service availability, subscriber growth, earnings, revenues, or other financial items and any statements regarding
strategies or plans of management for future operations, statements of belief, any statements concerning new, planned, or upgraded services or
technology developments and customer contracts or use of our services.
​ The risks and uncertainties referred to above include – but are not limited to – risks associated with developing and delivering new functionality for
our service, new products and services, our new business model, our past operating losses, possible fluctuations in our operating results and rate
of growth, interruptions or delays in our Web hosting, breach of our security measures, the outcome of any litigation, risks associated with
completed and any possible mergers and acquisitions, the immature market in which we operate, our relatively limited operating history, our ability
to expand, retain, and motivate our employees and manage our growth, new releases of our service and successful customer deployment, our
limited history reselling non-salesforce.com products, and utilization and selling to larger enterprise customers. Further information on potential
factors that could affect the financial results of salesforce.com, inc. is included in our annual report on Form 10-K for the most recent fiscal year
and in our quarterly report on Form 10-Q for the most recent fiscal quarter. These documents and others containing important disclosures are
available on the SEC Filings section of the Investor Information section of our Web site.
​ Any unreleased services or features referenced in this or other presentations, press releases or public statements are not currently available and
may not be delivered on time or at all. Customers who purchase our services should make the purchase decisions based upon features that are
currently available. Salesforce.com, inc. assumes no obligation and does not intend to update these forward-looking statements.
Safe Harbor

3. ​ Salesforce MVP (5x) & Architect
​ Founder of Concretio Apps
@abhinavguptas
Speakers

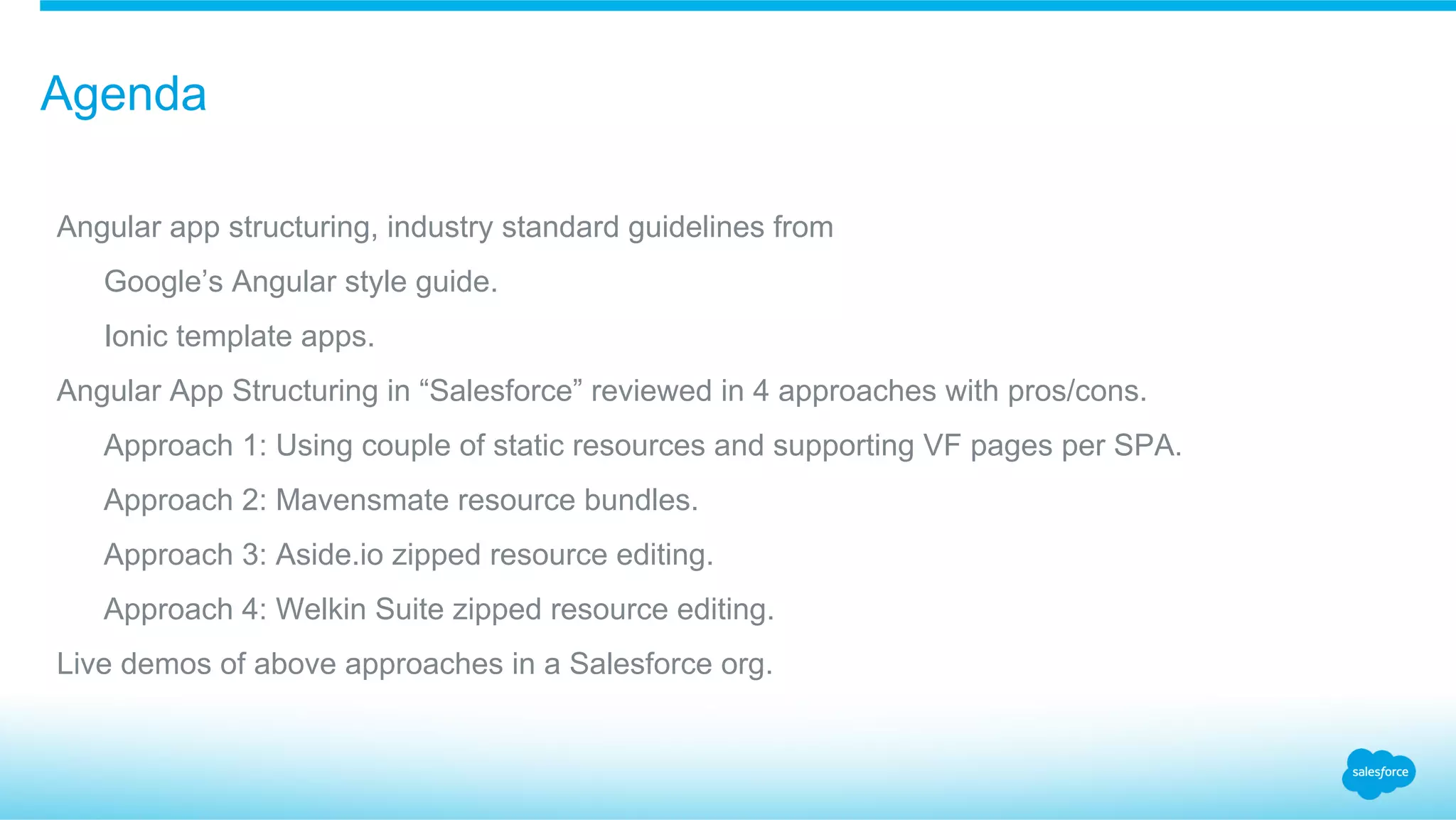

4. ​ Angular app structuring, industry standard guidelines from
​ Google’s Angular style guide.
​ Ionic template apps.
​ Angular App Structuring in “Salesforce” reviewed in 4 approaches with pros/cons.
​ Approach 1: Using couple of static resources and supporting VF pages per SPA.
​ Approach 2: Mavensmate resource bundles.
​ Approach 3: Aside.io zipped resource editing.
​ Approach 4: Welkin Suite zipped resource editing.
​ Live demos of above approaches in a Salesforce org.
Agenda

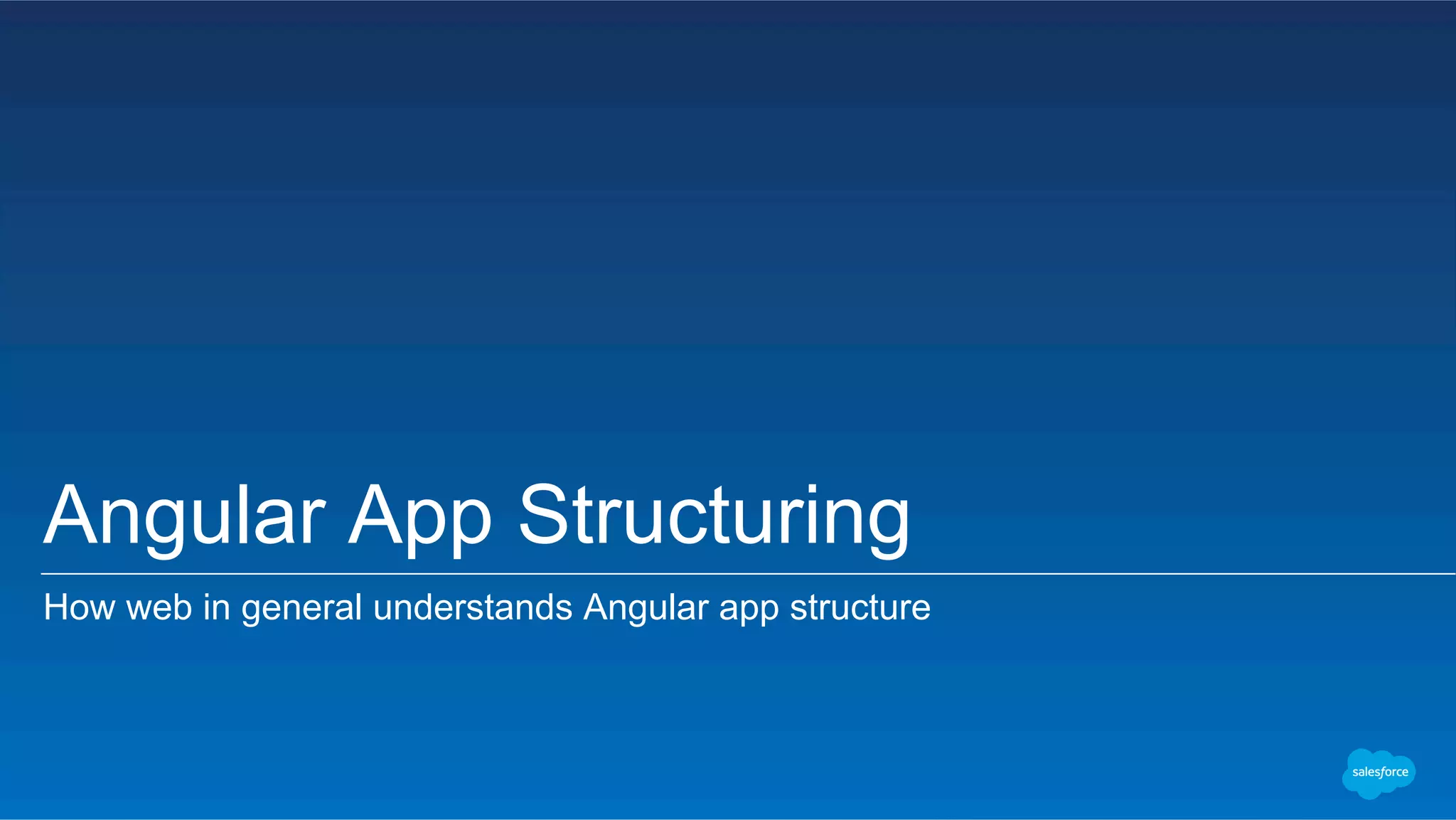

5. Angular App Structuring
How web in general understands Angular app structure

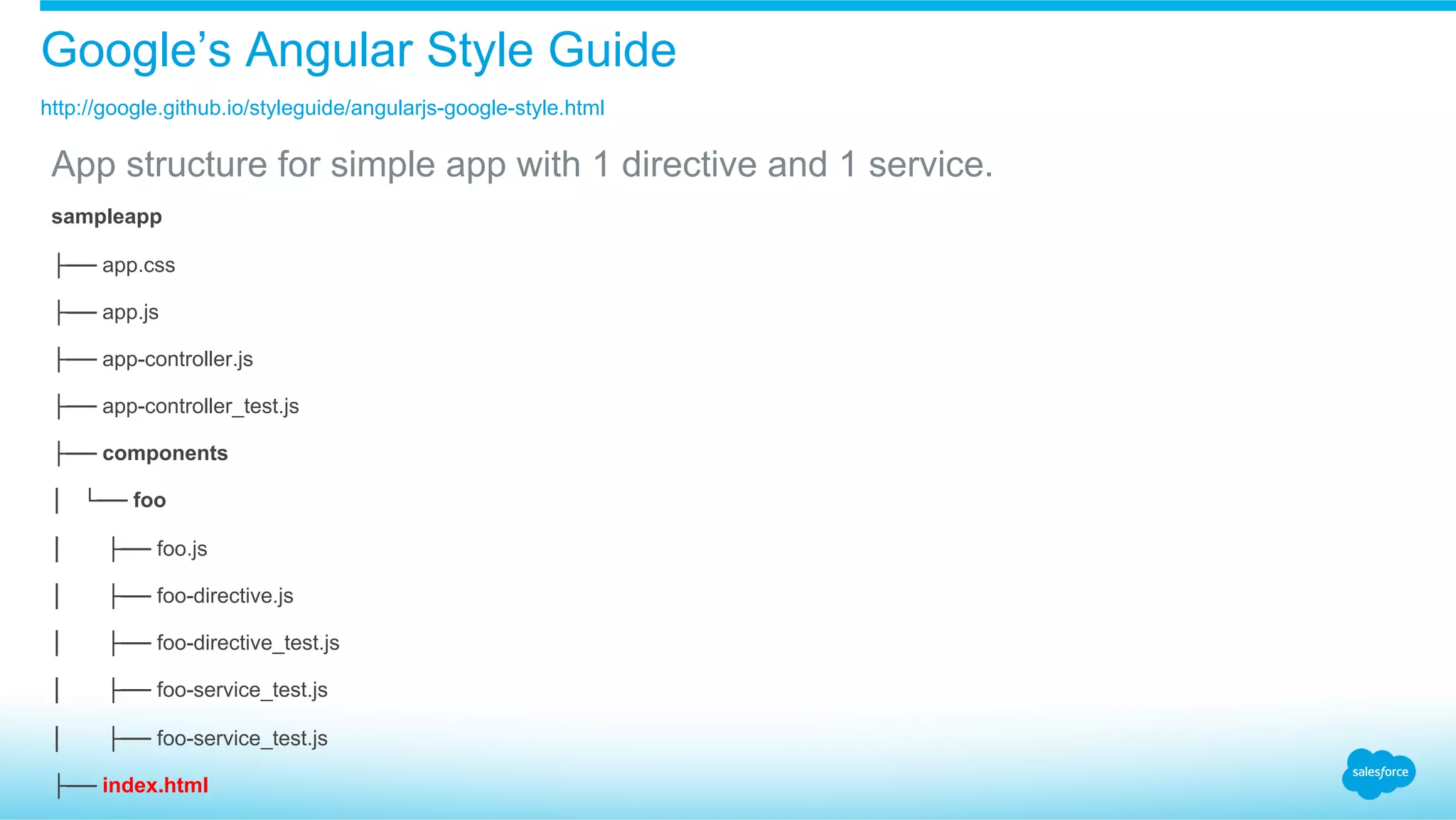

6. App structure for simple app with 1 directive and 1 service.
sampleapp
├── app.css
├── app.js
├── app-controller.js
├── app-controller_test.js
├── components
│ └── foo
│ ├── foo.js
│ ├── foo-directive.js
│ ├── foo-directive_test.js
│ ├── foo-service_test.js
│ ├── foo-service_test.js
├── index.html
Google’s Angular Style Guide
http://google.github.io/styleguide/angularjs-google-style.html

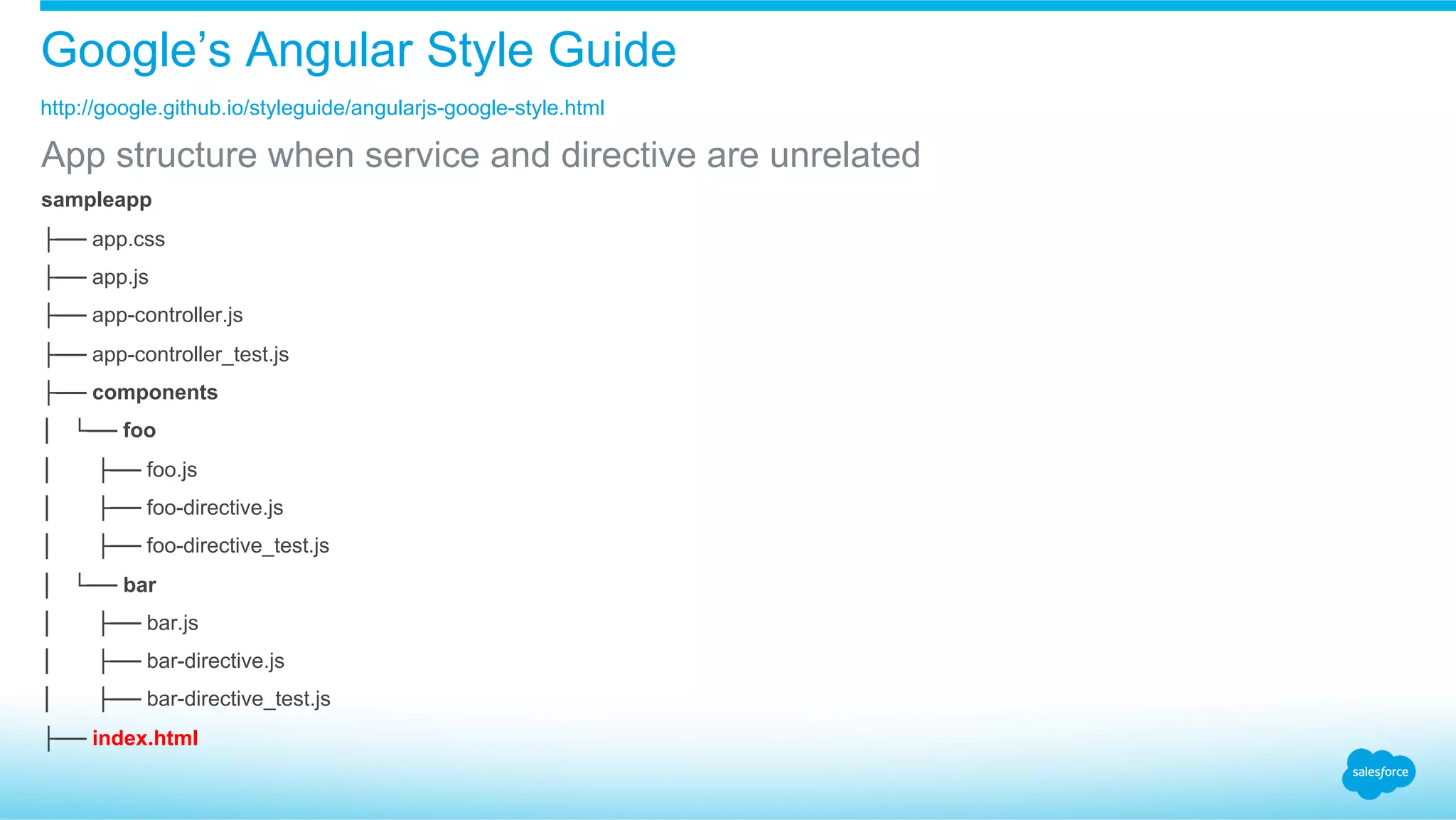

7. App structure when service and directive are unrelated
sampleapp
├── app.css
├── app.js
├── app-controller.js
├── app-controller_test.js
├── components
│ └── foo
│ ├── foo.js
│ ├── foo-directive.js
│ ├── foo-directive_test.js
│ └── bar
│ ├── bar.js
│ ├── bar-directive.js
│ ├── bar-directive_test.js
├── index.html
Google’s Angular Style Guide
http://google.github.io/styleguide/angularjs-google-style.html

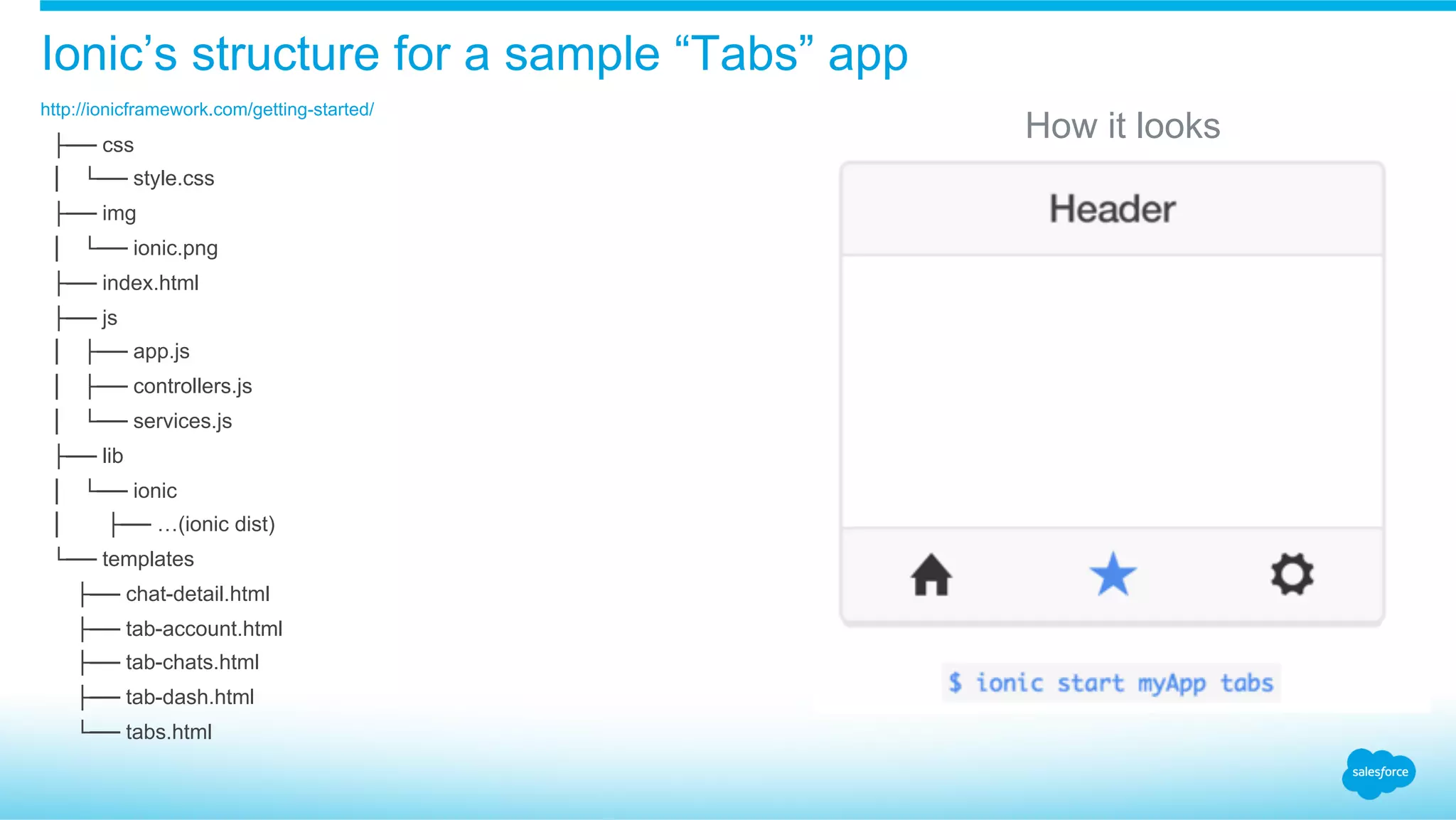

8. Ionic’s structure for a sample “Tabs” app
http://ionicframework.com/getting-started/
How it looks├── css
│ └── style.css
├── img
│ └── ionic.png
├── index.html
├── js
│ ├── app.js
│ ├── controllers.js
│ └── services.js
├── lib
│ └── ionic
│ ├── …(ionic dist)
└── templates
├── chat-detail.html
├── tab-account.html
├── tab-chats.html
├── tab-dash.html
└── tabs.html

9. Angular multi tabs SPA
in
“Salesforce”
A simple tasks and events management app

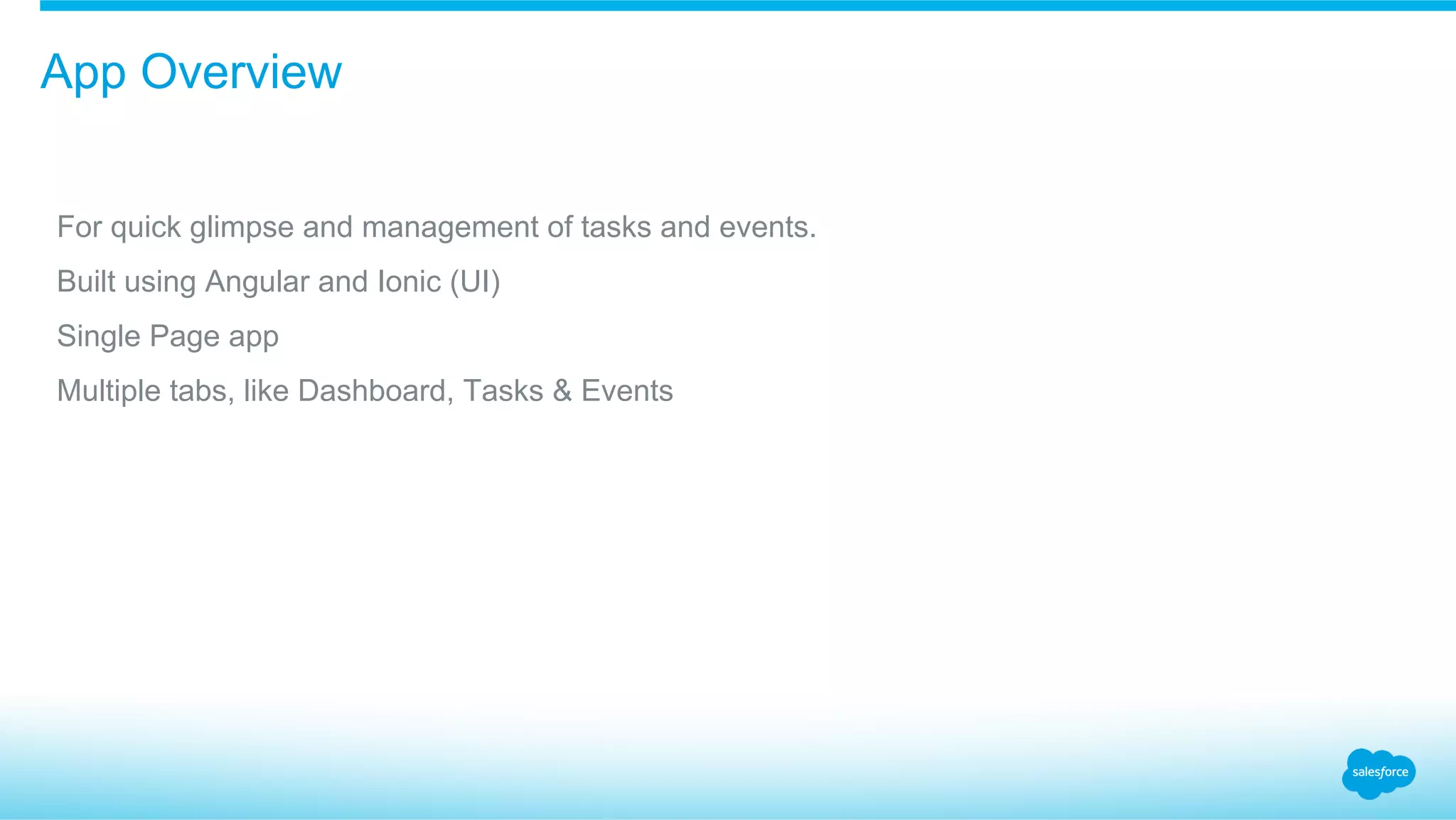

10. ​ For quick glimpse and management of tasks and events.
​ Built using Angular and Ionic (UI)
​ Single Page app
​ Multiple tabs, like Dashboard, Tasks & Events
App Overview

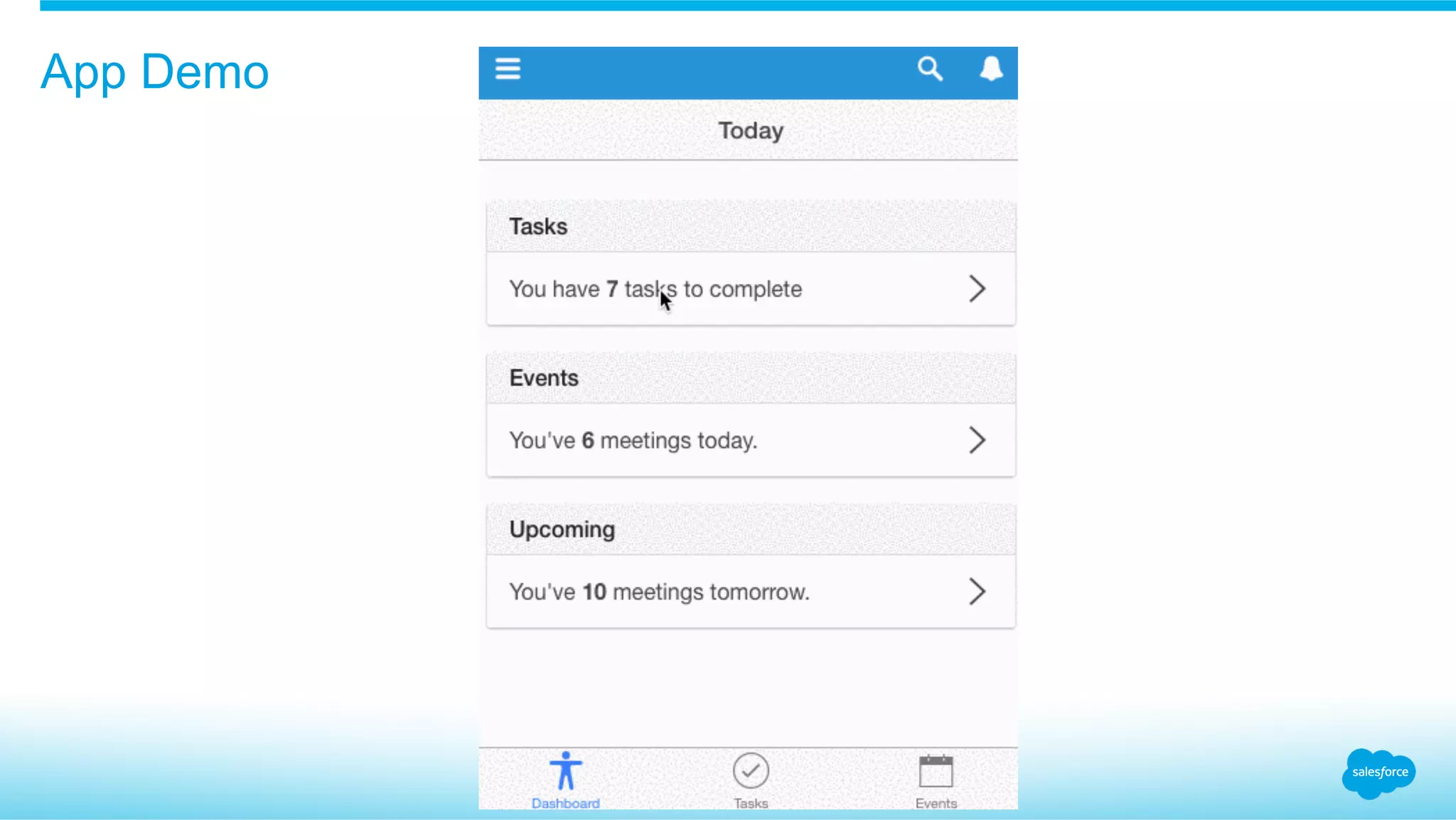

11. App Demo

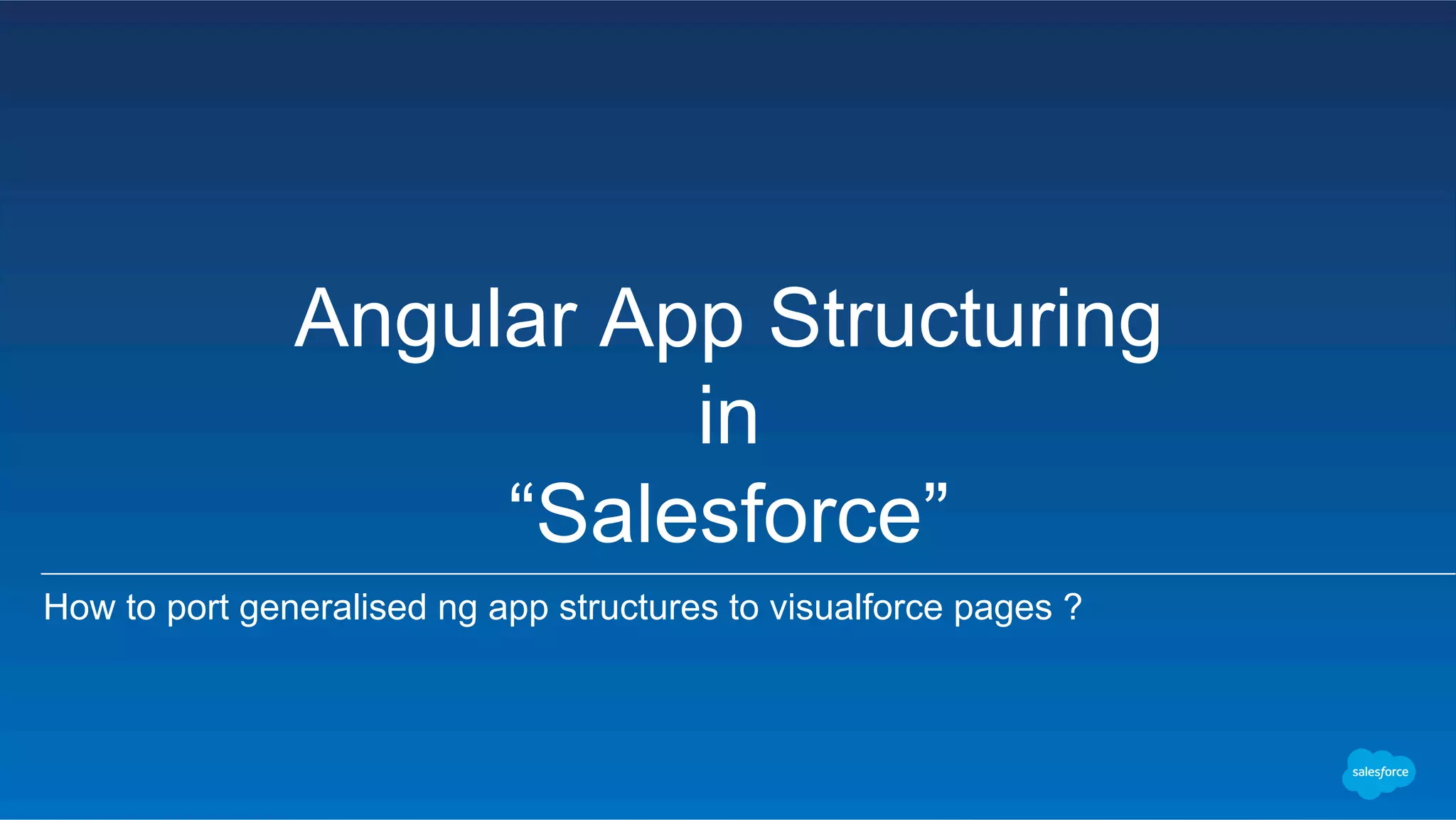

12. Angular App Structuring
in
“Salesforce”
How to port generalised ng app structures to visualforce pages ?

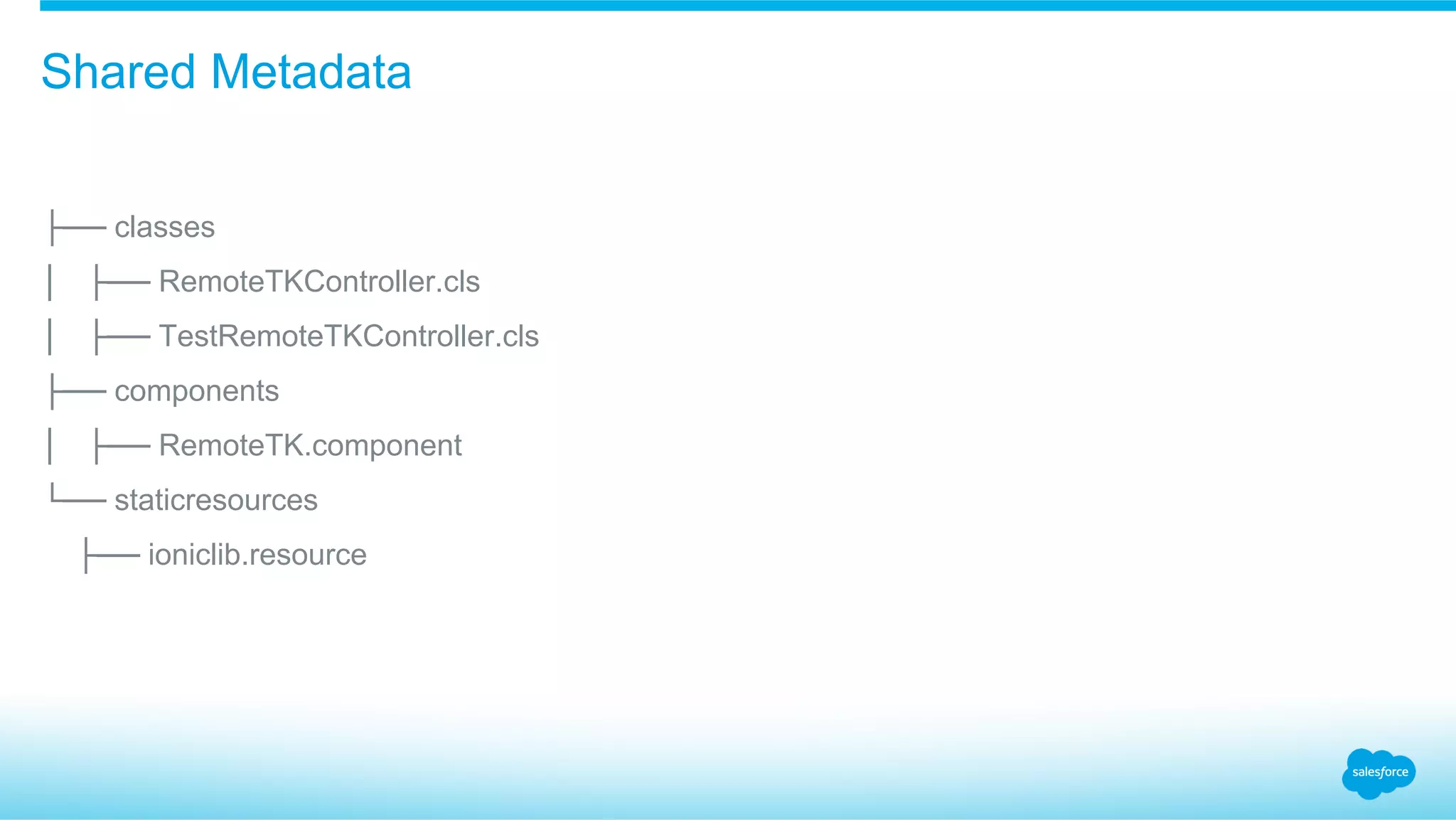

13. ├── classes
│ ├── RemoteTKController.cls
│ ├── TestRemoteTKController.cls
├── components
│ ├── RemoteTK.component
└── staticresources
├── ioniclib.resource
Shared Metadata

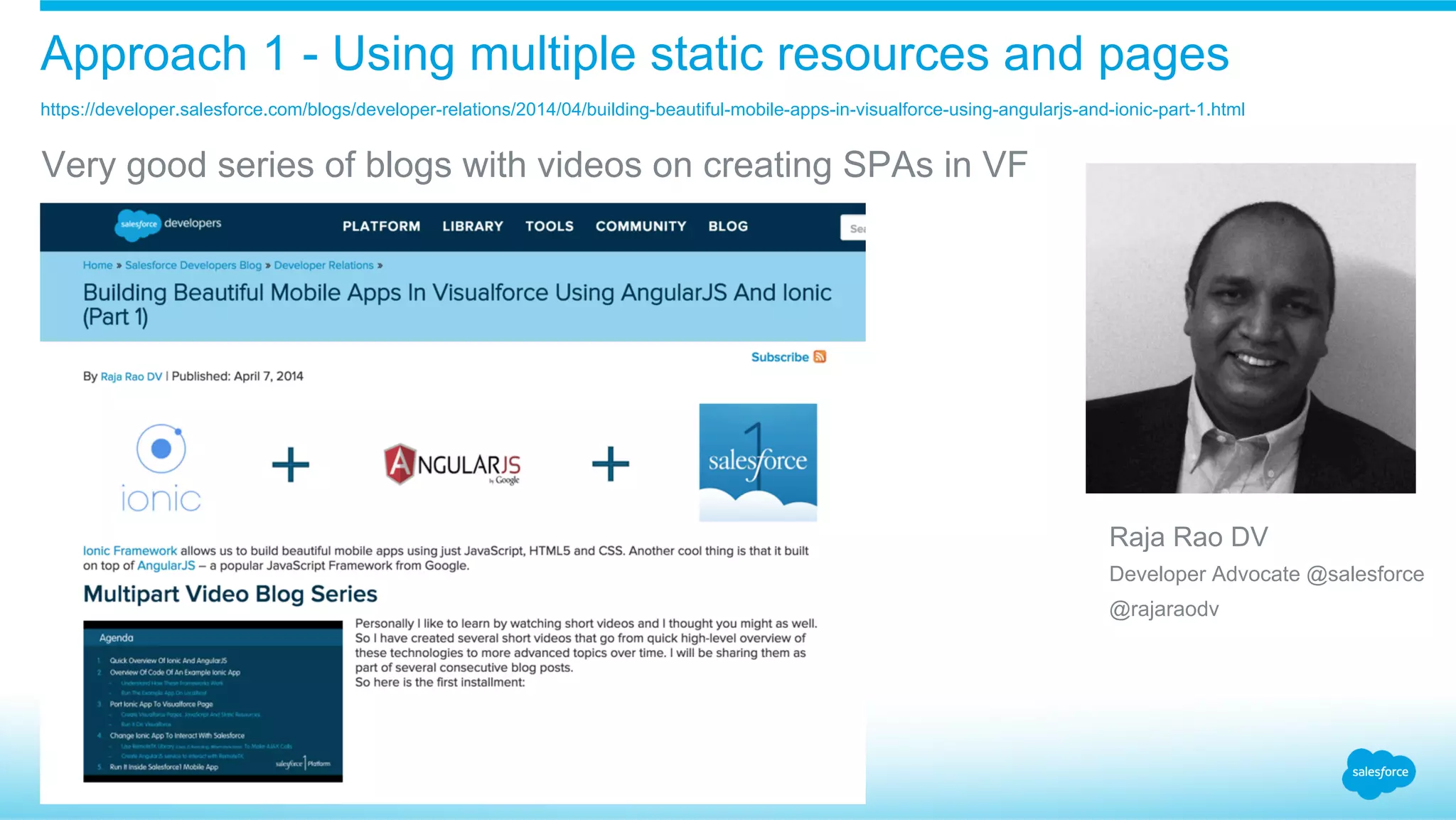

14. Approach 1 - Using multiple static resources and pages
https://developer.salesforce.com/blogs/developer-relations/2014/04/building-beautiful-mobile-apps-in-visualforce-using-angularjs-and-ionic-part-1.html
Raja Rao DV
Developer Advocate @salesforce
@rajaraodv
Very good series of blogs with videos on creating SPAs in VF

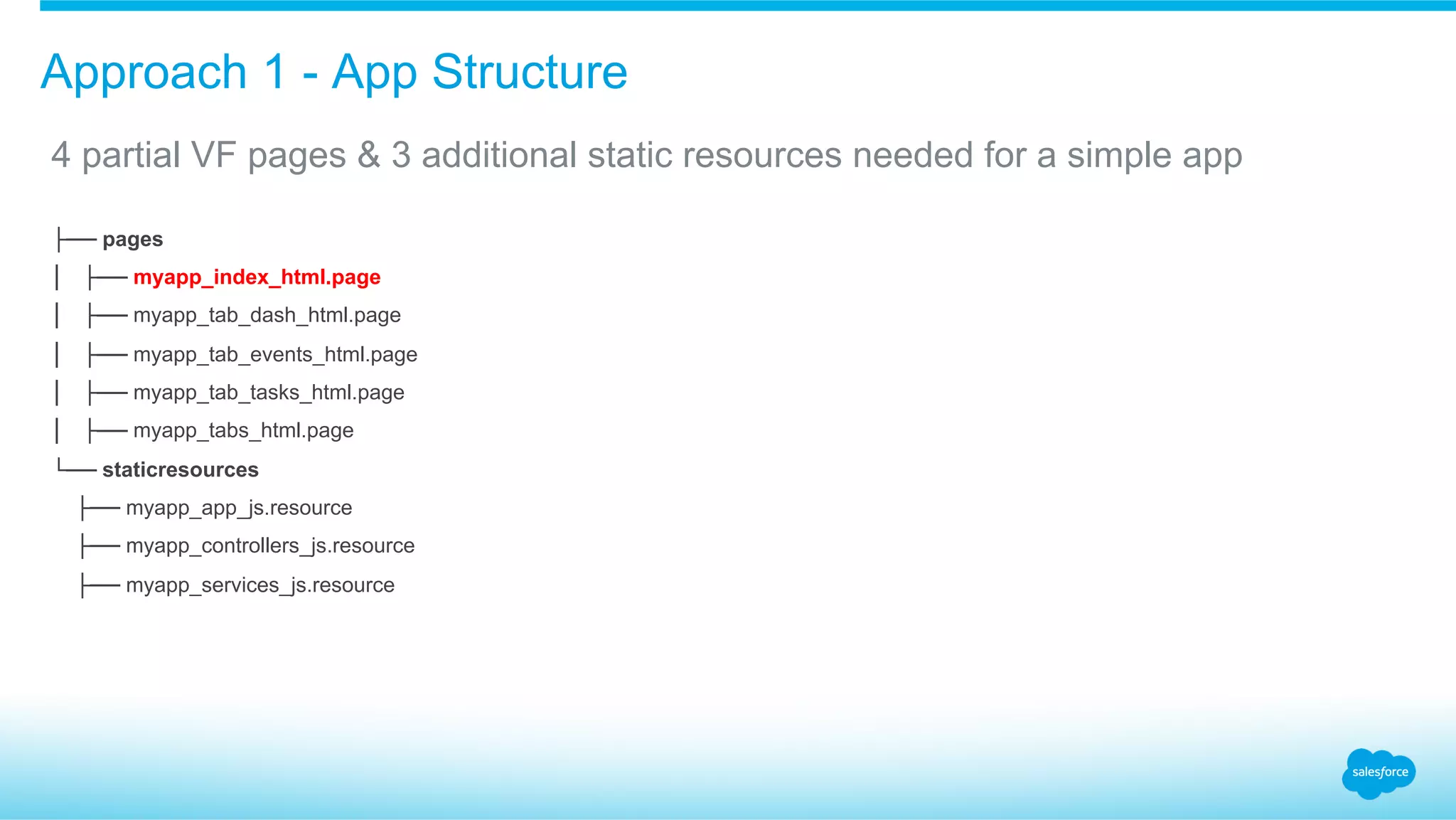

15. 4 partial VF pages & 3 additional static resources needed for a simple app
├── pages
│ ├── myapp_index_html.page
│ ├── myapp_tab_dash_html.page
│ ├── myapp_tab_events_html.page
│ ├── myapp_tab_tasks_html.page
│ ├── myapp_tabs_html.page
└── staticresources
├── myapp_app_js.resource
├── myapp_controllers_js.resource
├── myapp_services_js.resource
Approach 1 - App Structure

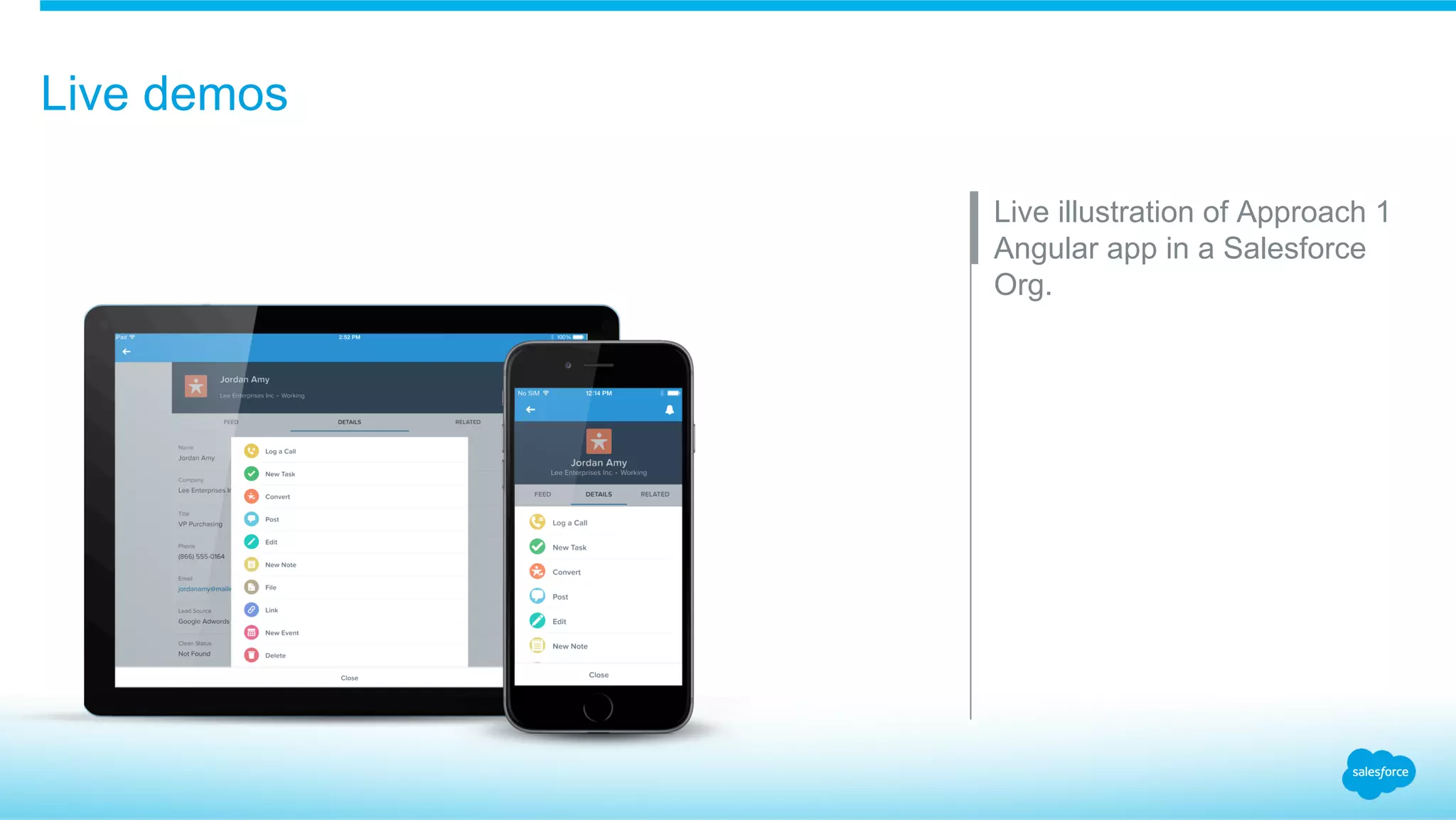

16. Live demos
Live illustration of Approach 1
Angular app in a Salesforce
Org.

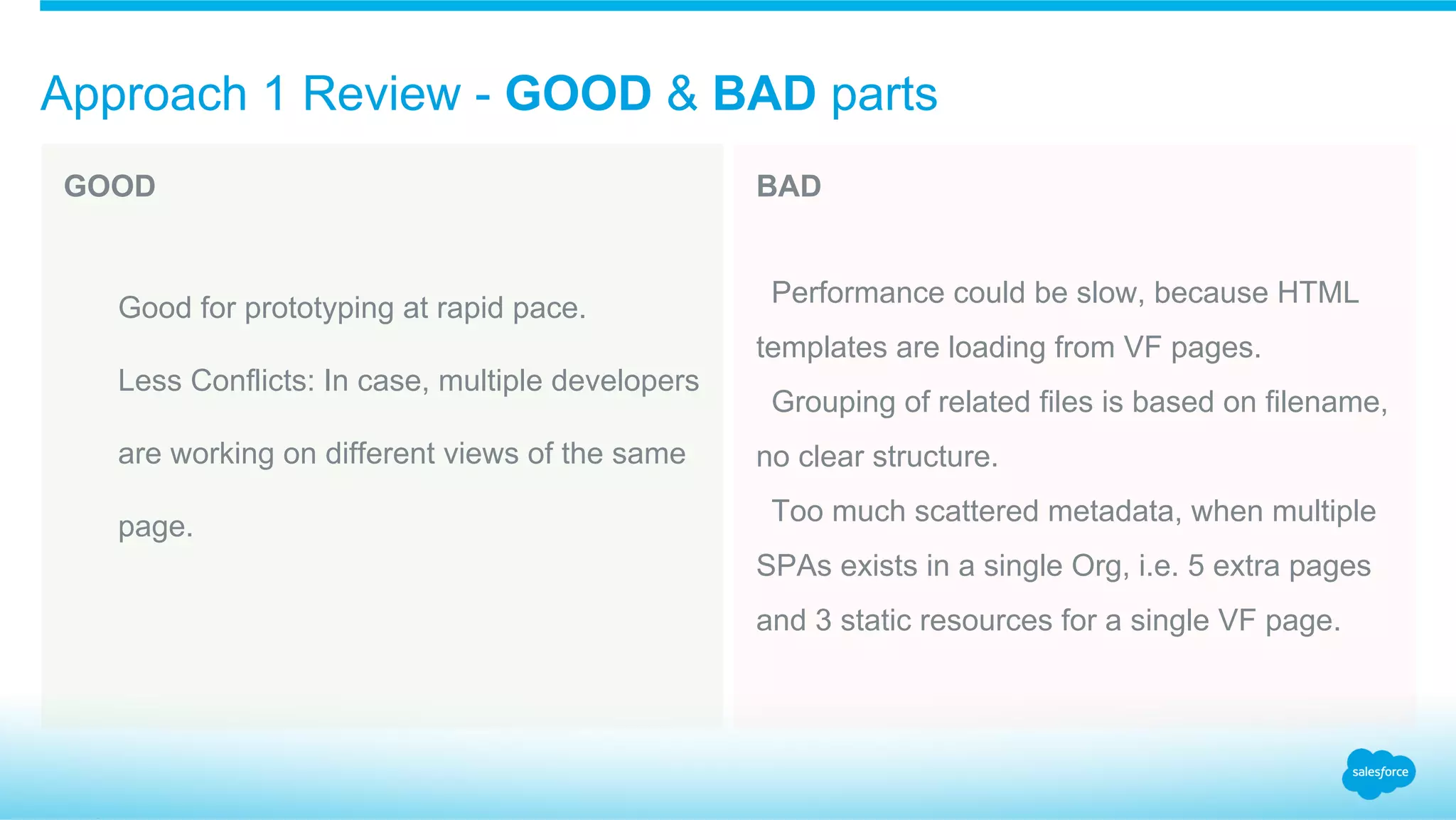

17. Approach 1 Review - GOOD & BAD parts
GOOD
​ Good for prototyping at rapid pace.
​ Less Conflicts: In case, multiple developers
are working on different views of the same
page.
BAD
​ Performance could be slow, because HTML
templates are loading from VF pages.
​ Grouping of related files is based on filename,
no clear structure.
​ Too much scattered metadata, when multiple
SPAs exists in a single Org, i.e. 5 extra pages
and 3 static resources for a single VF page.

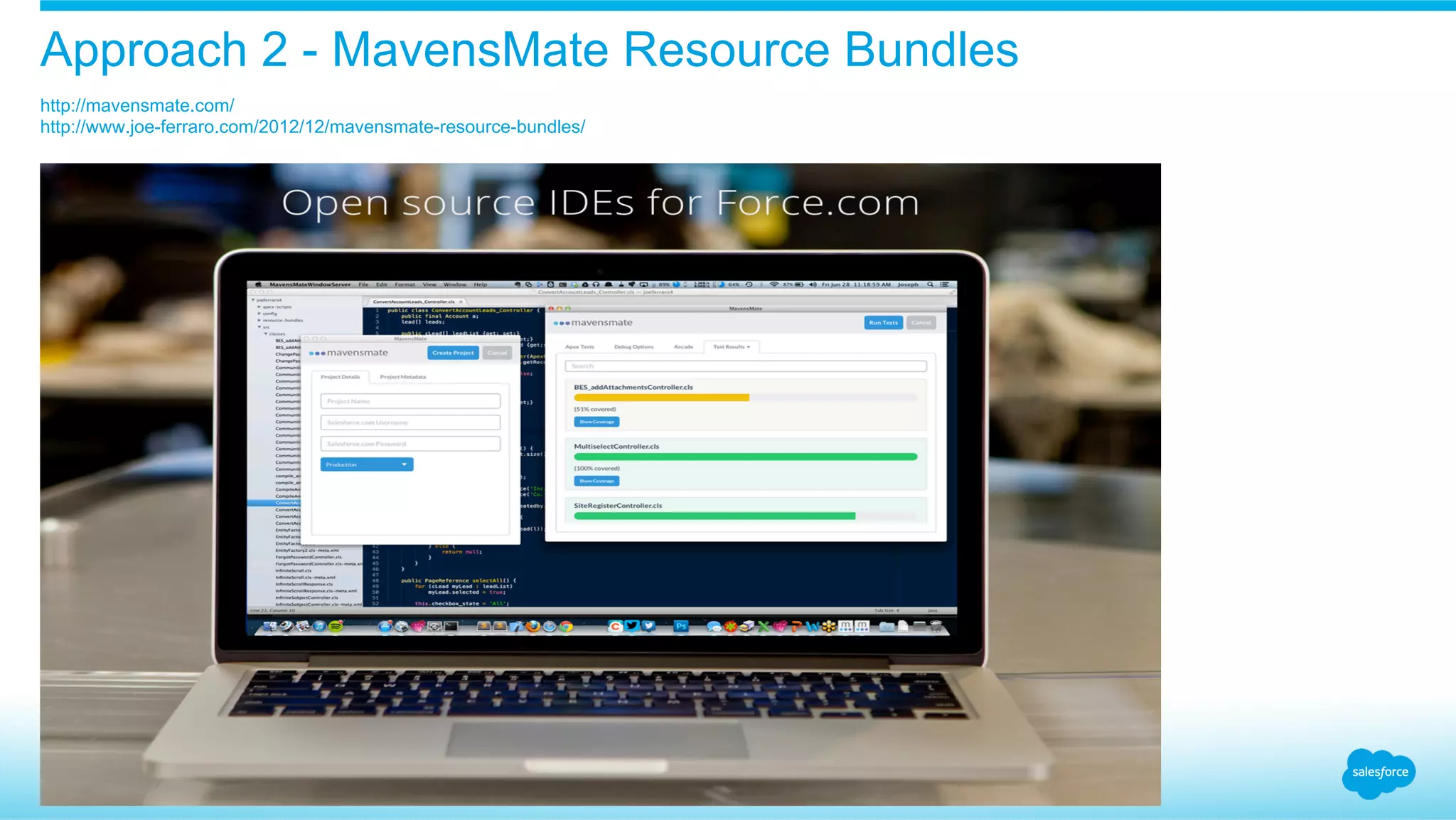

18. Approach 2 - MavensMate Resource Bundles
http://mavensmate.com/
http://www.joe-ferraro.com/2012/12/mavensmate-resource-bundles/

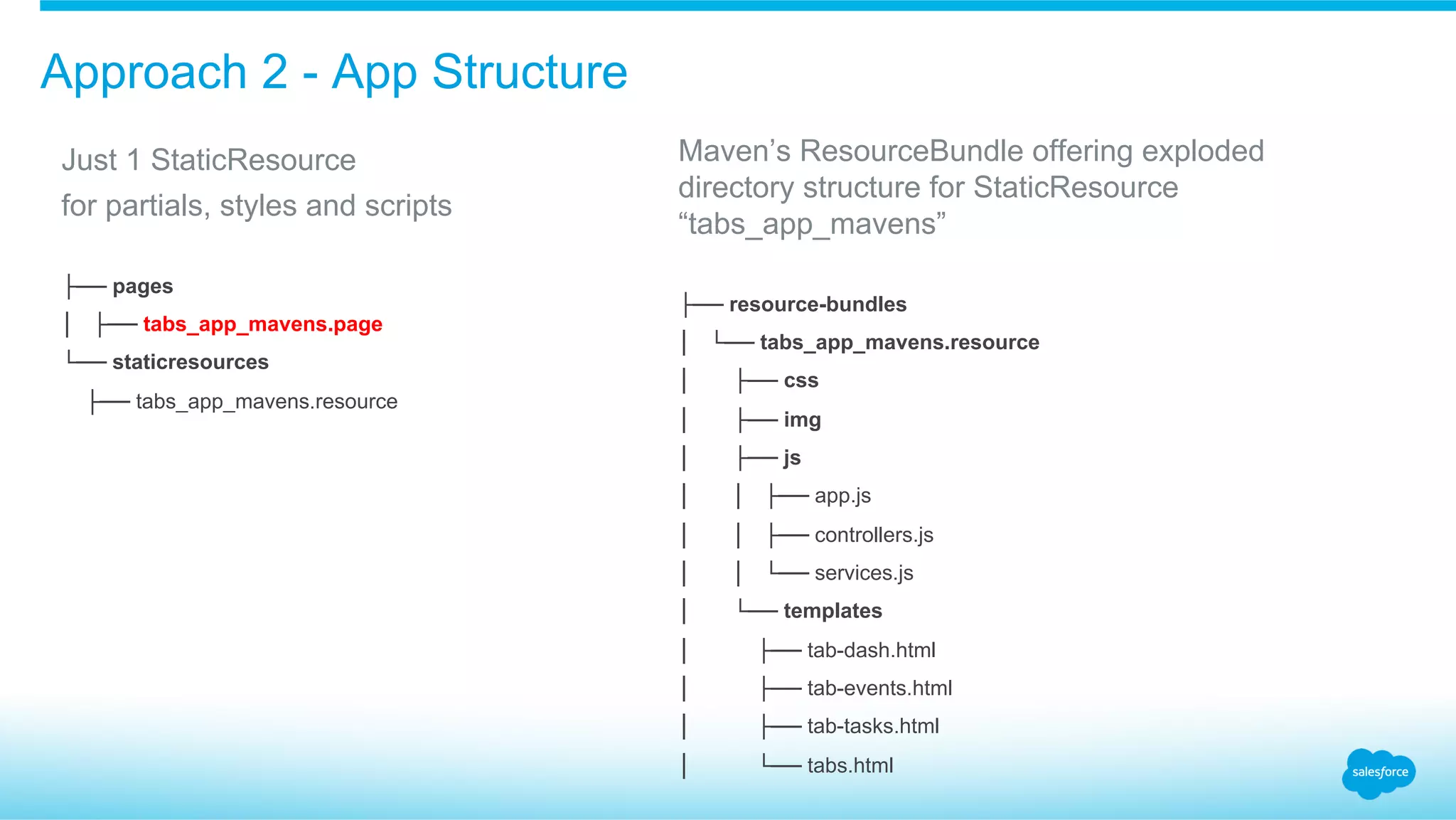

19. Approach 2 - App Structure
Maven’s ResourceBundle offering exploded
directory structure for StaticResource
“tabs_app_mavens”
├── resource-bundles
│ └── tabs_app_mavens.resource
│ ├── css
│ ├── img
│ ├── js
│ │ ├── app.js
│ │ ├── controllers.js
│ │ └── services.js
│ └── templates
│ ├── tab-dash.html
│ ├── tab-events.html
│ ├── tab-tasks.html
│ └── tabs.html
Just 1 StaticResource
for partials, styles and scripts
├── pages
│ ├── tabs_app_mavens.page
└── staticresources
├── tabs_app_mavens.resource

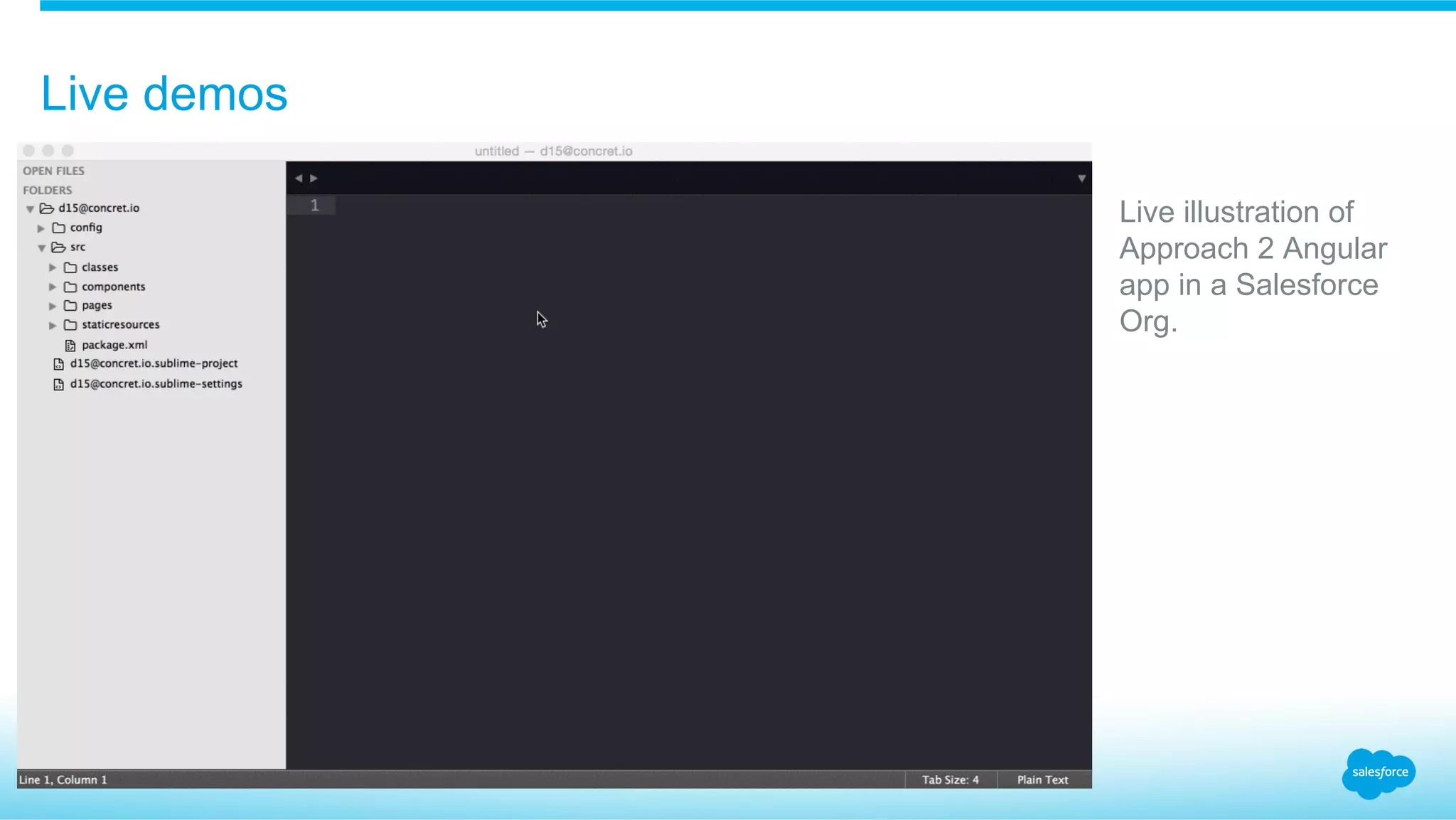

20. Live demos
Live illustration of
Approach 2 Angular
app in a Salesforce
Org.

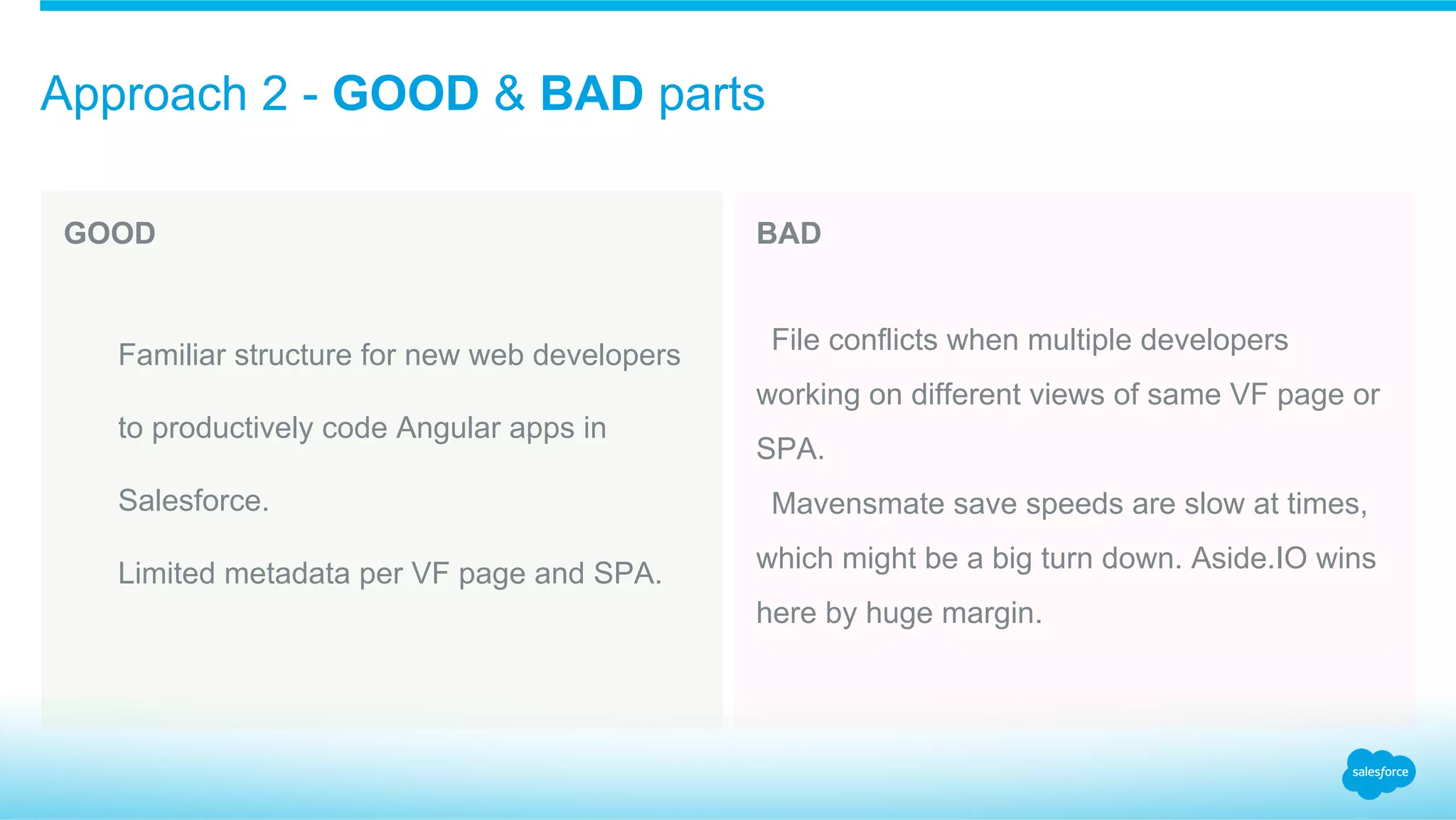

21. Approach 2 - GOOD & BAD parts
GOOD
​ Familiar structure for new web developers
to productively code Angular apps in
Salesforce.
​ Limited metadata per VF page and SPA.
BAD
​ File conflicts when multiple developers
working on different views of same VF page or
SPA.
​ Mavensmate save speeds are slow at times,
which might be a big turn down. Aside.IO wins
here by huge margin.

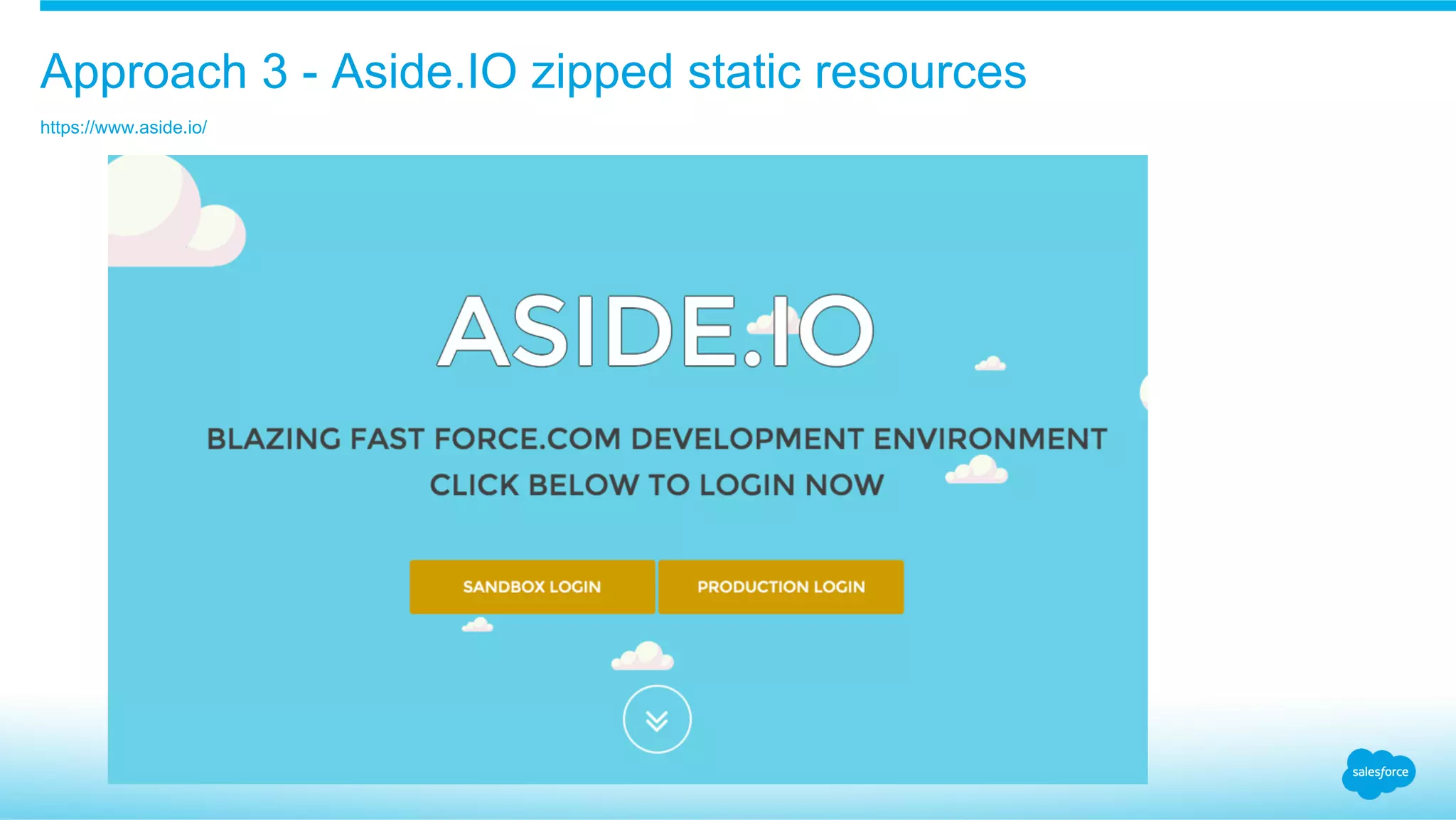

22. Approach 3 - Aside.IO zipped static resources
https://www.aside.io/

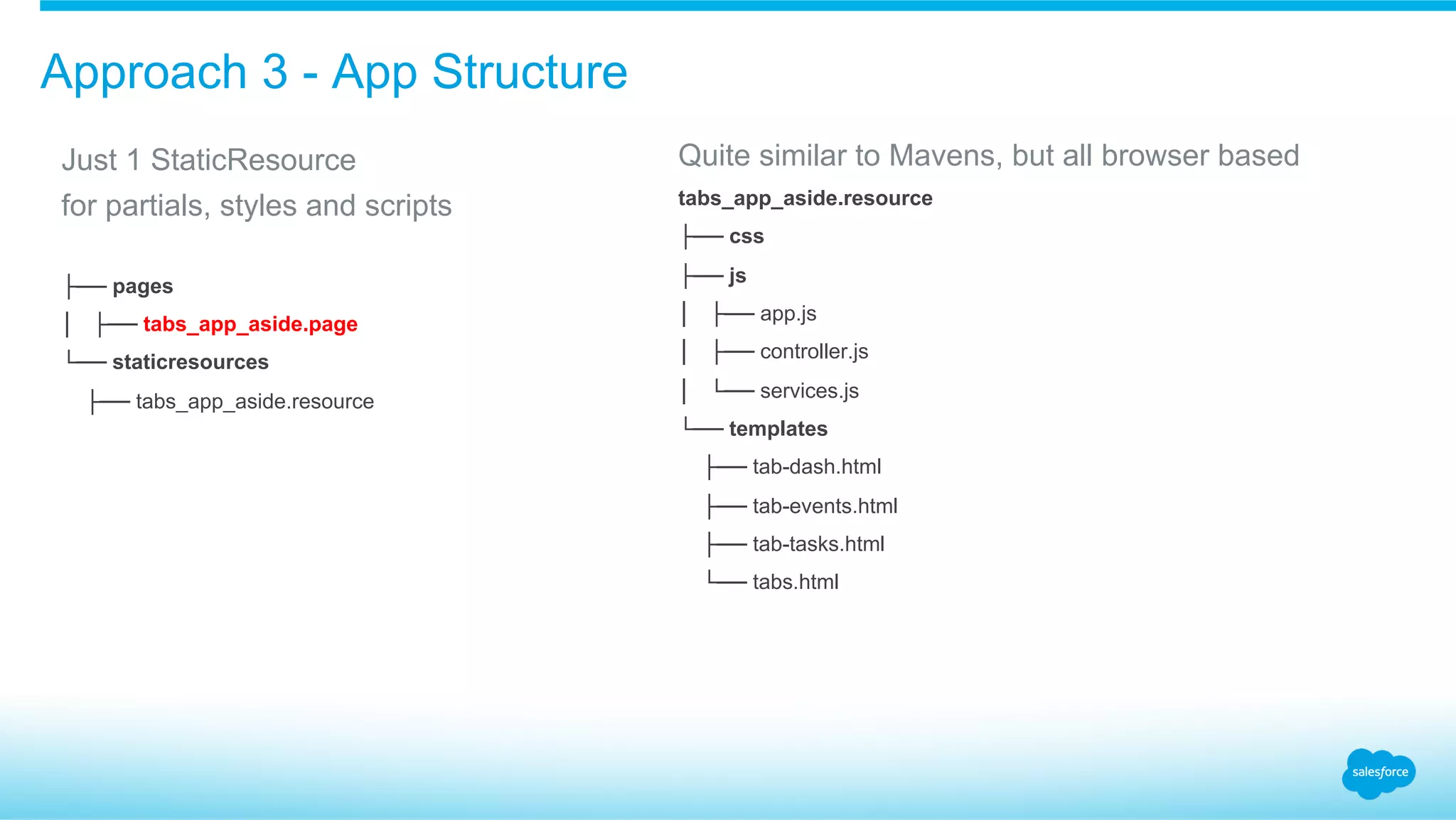

23. Quite similar to Mavens, but all browser based
tabs_app_aside.resource
├── css
├── js
│ ├── app.js
│ ├── controller.js
│ └── services.js
└── templates
├── tab-dash.html
├── tab-events.html
├── tab-tasks.html
└── tabs.html
Approach 3 - App Structure
Just 1 StaticResource
for partials, styles and scripts
├── pages
│ ├── tabs_app_aside.page
└── staticresources
├── tabs_app_aside.resource

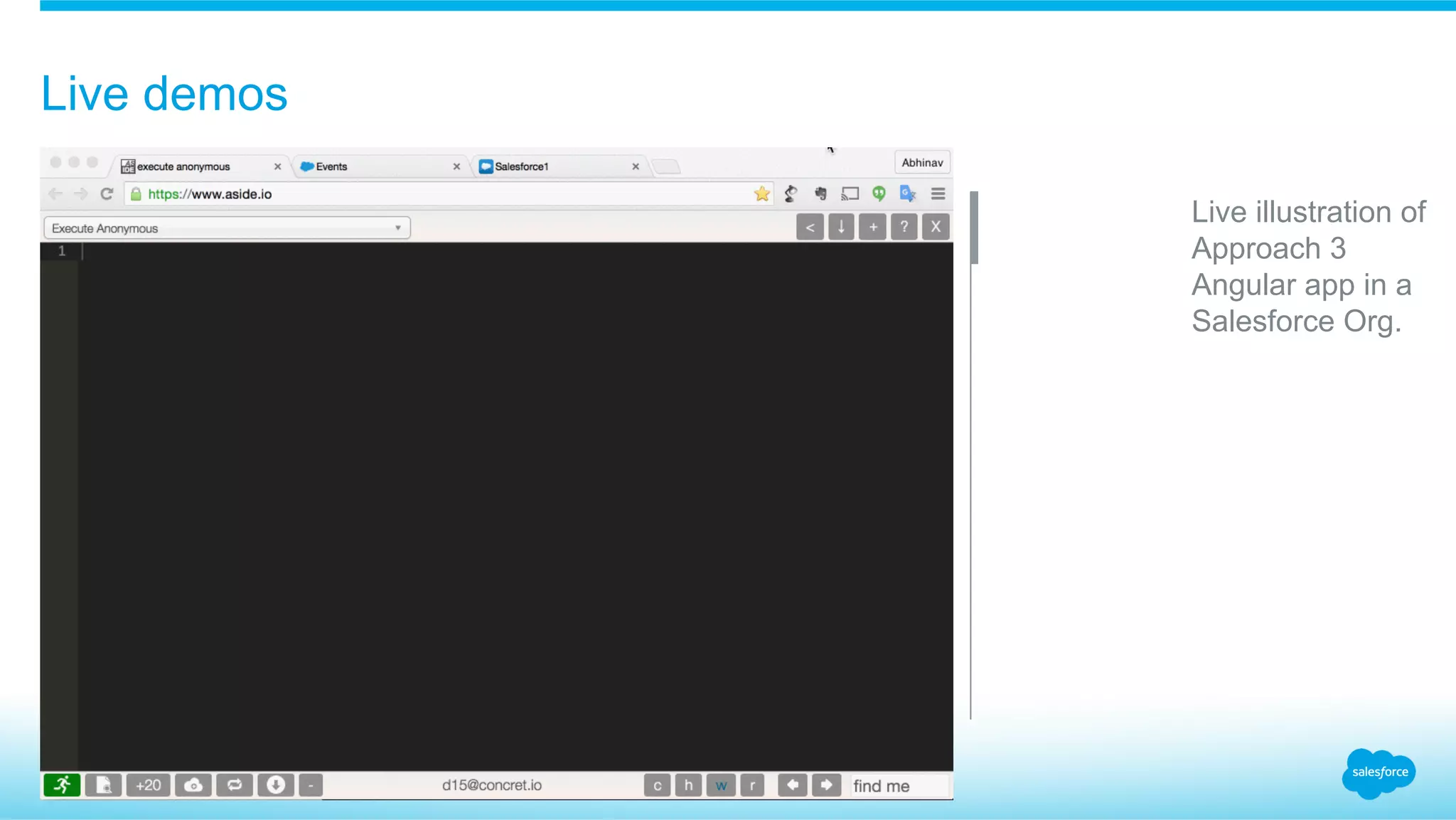

24. Live demos
Live illustration of
Approach 3
Angular app in a
Salesforce Org.

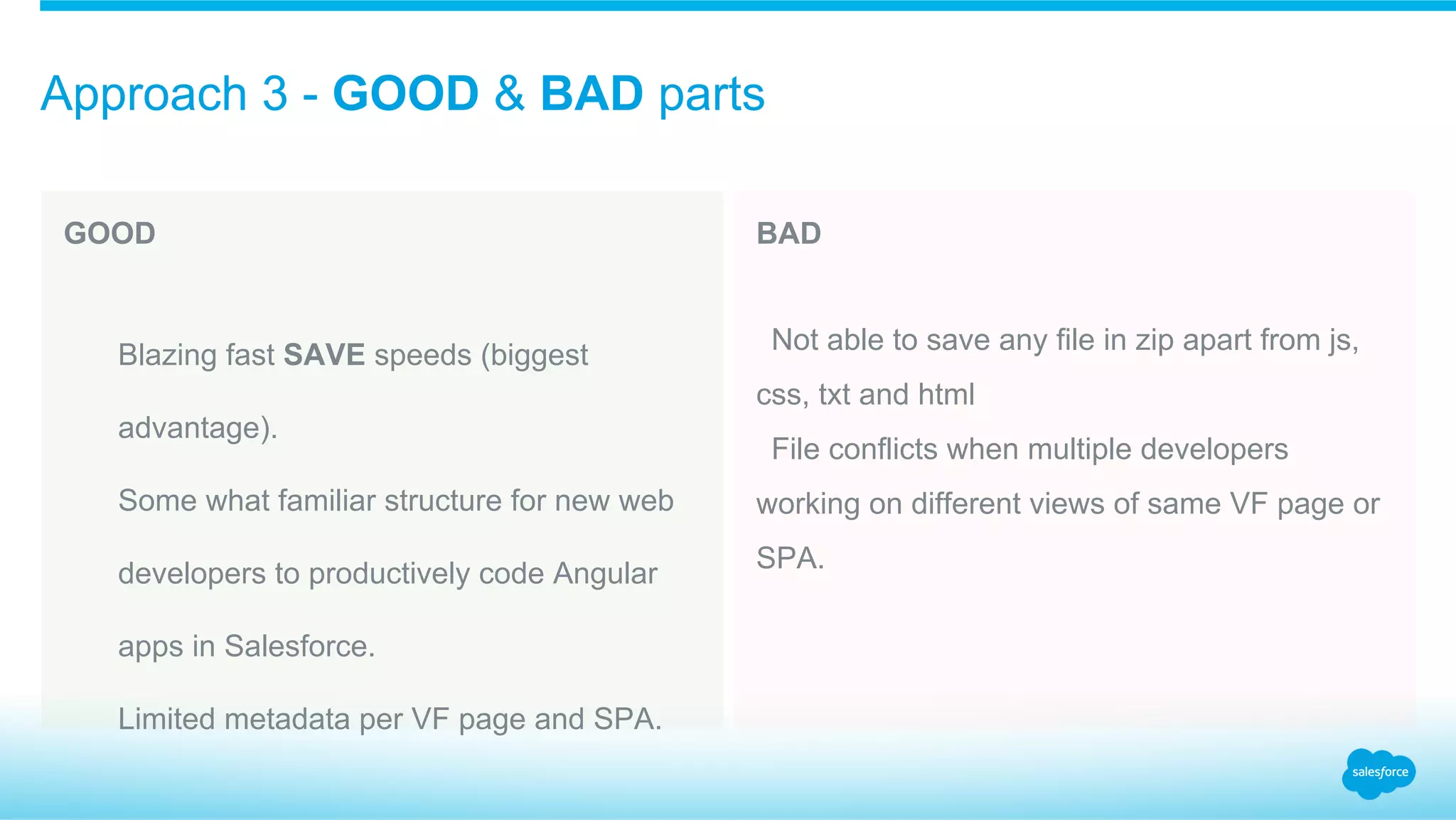

25. BAD
​ Not able to save any file in zip apart from js,
css, txt and html
​ File conflicts when multiple developers
working on different views of same VF page or
SPA.
Approach 3 - GOOD & BAD parts
GOOD
​ Blazing fast SAVE speeds (biggest
advantage).
​ Some what familiar structure for new web
developers to productively code Angular
apps in Salesforce.
​ Limited metadata per VF page and SPA.

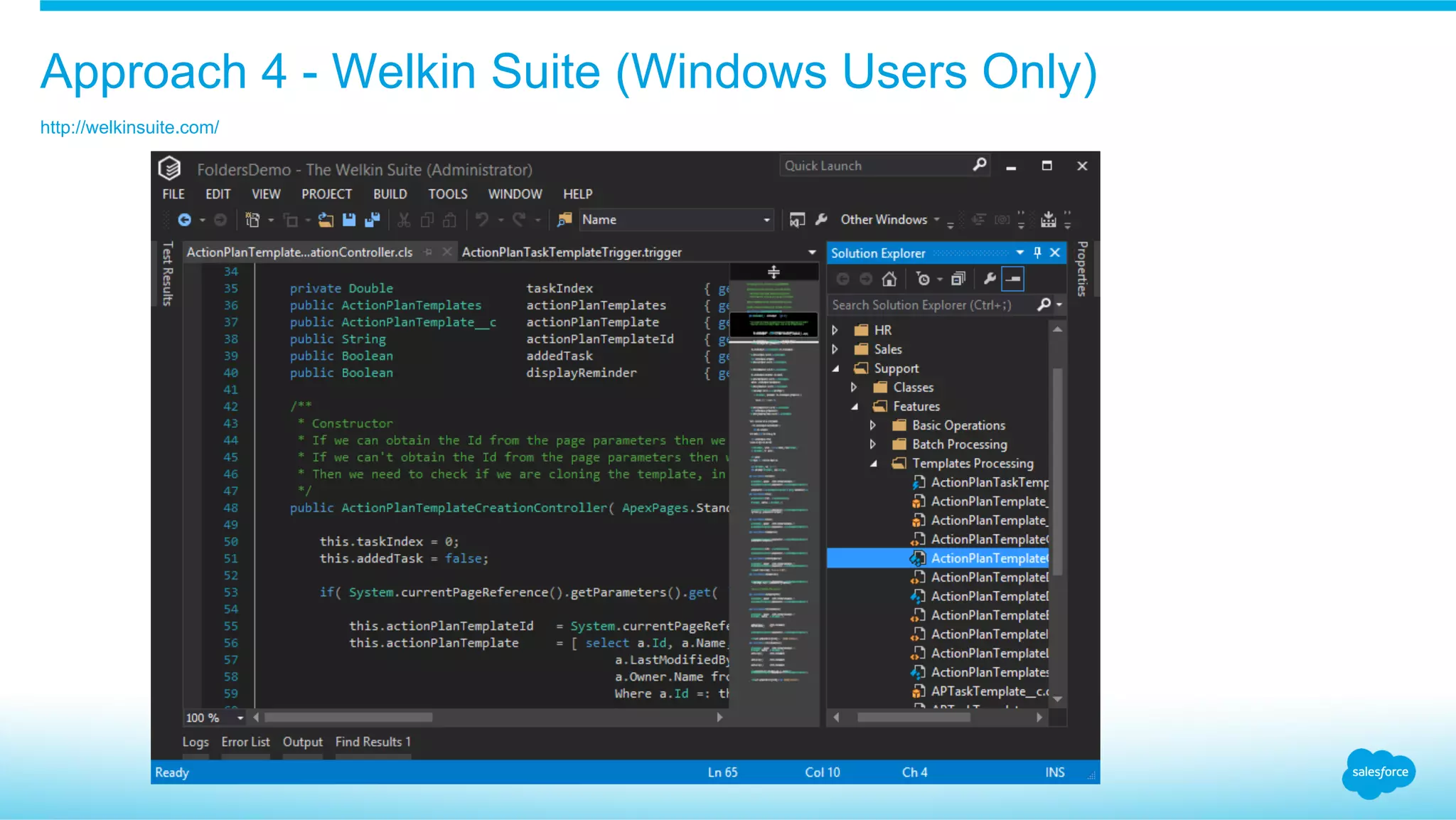

26. Approach 4 - Welkin Suite (Windows Users Only)
http://welkinsuite.com/

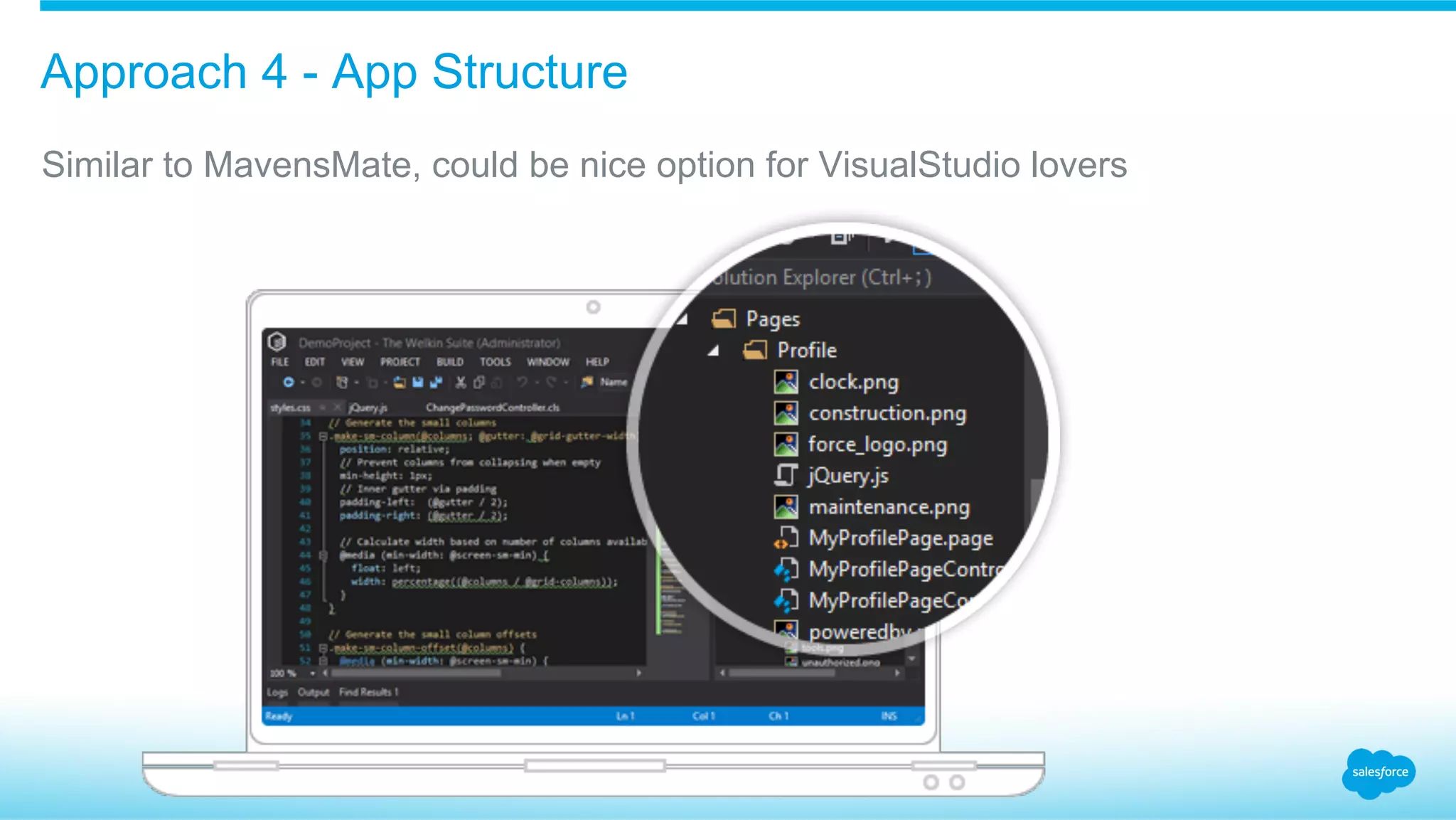

27. Approach 4 - App Structure
Similar to MavensMate, could be nice option for VisualStudio lovers

28. Questions ?
Happy to answer any related queries later via twitter @abhinavguptas

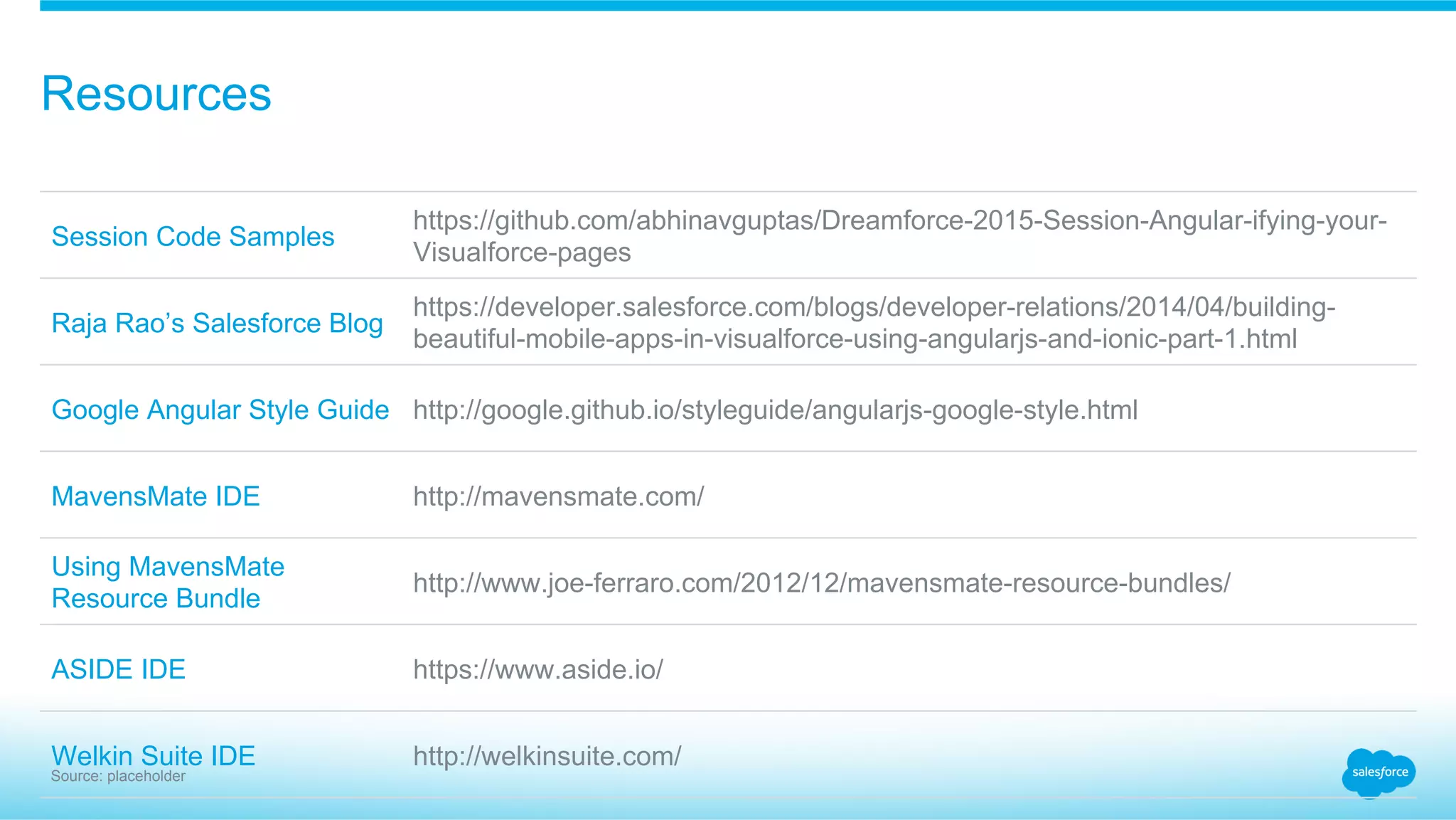

29. Session Code Samples
https://github.com/abhinavguptas/Dreamforce-2015-Session-Angular-ifying-your-
Visualforce-pages
Raja Rao’s Salesforce Blog
https://developer.salesforce.com/blogs/developer-relations/2014/04/building-
beautiful-mobile-apps-in-visualforce-using-angularjs-and-ionic-part-1.html
Google Angular Style Guide http://google.github.io/styleguide/angularjs-google-style.html
MavensMate IDE http://mavensmate.com/
Using MavensMate
Resource Bundle
http://www.joe-ferraro.com/2012/12/mavensmate-resource-bundles/
ASIDE IDE https://www.aside.io/
Welkin Suite IDE http://welkinsuite.com/
Resources
