1. Angular Rebooted:
Components Everywhere
Carlo Bonamico -Sonia Pini
MILAN 25-26 NOVEMBER 2016
sonia.pini@nispro.it
carlo.bonamico@nispro.it - NIS s.r.l. - a DGS company
carlo.bonamico@gmail.com – Genova Java User Group
Twitter: @carlobonamico @nis_srl

2. Abstract
Attracted by AngularJS power and simplicity, you have chosen it for your next project.
Getting started with DataBinding, Scopes and Controllers was relatively quick and
easy...
But what do you need to effectively bring a complex application to Production?
We discuss
● the new Component API,
● lifecycle callbacks - $onChanges
● selecting different ways for components to collaborate
● choosing between Two-Way Binding and One-Way Data Flow,
● "smart" vs "dumb" components,
We ‘ll share recipes from our real world experience so that you can productively &
reliably build a complex application out of reusable Components.

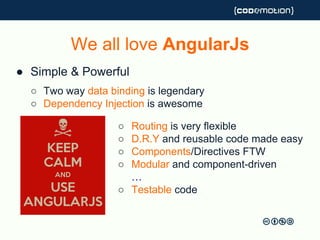

3. We all love AngularJs
● Simple & Powerful
○ Two way data binding is legendary
○ Dependency Injection is awesome
○ Routing is very flexible
○ D.R.Y and reusable code made easy
○ Components/Directives FTW
○ Modular and component-driven
…
○ Testable code
We all love AngularJs

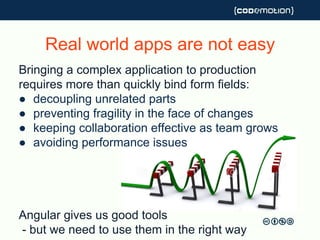

4. Real world apps are not easy
Bringing a complex application to production
requires more than quickly bind form fields:
● decoupling unrelated parts
● preventing fragility in the face of changes
● keeping collaboration effective as team grows
● avoiding performance issues
Angular gives us good tools
- but we need to use them in the right way

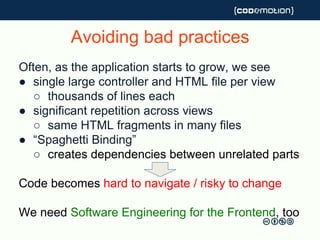

5. Avoiding bad practices
Often, as the application starts to grow, we see
● single large controller and HTML file per view
○ thousands of lines each
● significant repetition across views
○ same HTML fragments in many files
● “Spaghetti Binding”
○ creates dependencies between unrelated parts
Code becomes hard to navigate / risky to change
We need Software Engineering for the Frontend, too

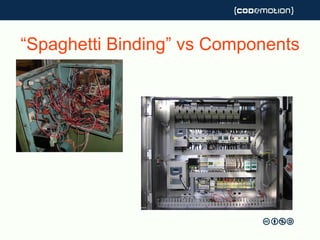

6. “Spaghetti Binding” vs Components

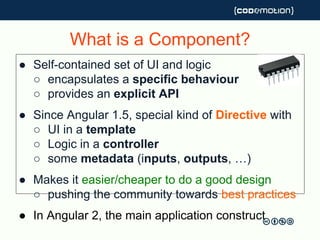

7. What is a Component?
● Self-contained set of UI and logic
○ encapsulates a specific behaviour
○ provides an explicit API
● Since Angular 1.5, special kind of Directive with
○ UI in a template
○ Logic in a controller
○ some metadata (inputs, outputs, …)
● Makes it easier/cheaper to do a good design
○ pushing the community towards best practices
● In Angular 2, the main application construct

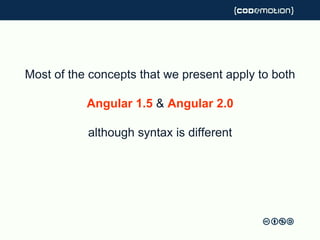

8. Most of the concepts that we present apply to both
Angular 1.5 & Angular 2.0
although syntax is different

9. Example App: NG Component Mail
Full Source in https://github.com/carlobonamico/angular-component-based

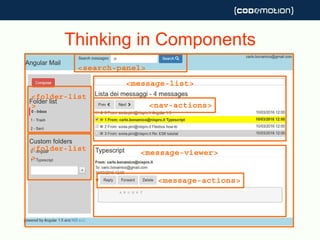

10. Thinking in Components
<message-list>
<folder-list
> <nav-actions>
<message-viewer>
<search-panel>
<folder-list
>
<message-actions>

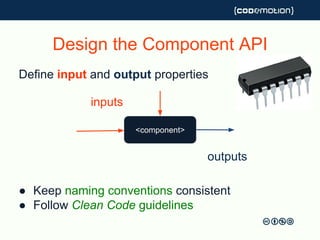

11. Design the Component API
Define input and output properties
● Keep naming conventions consistent
● Follow Clean Code guidelines
<component>
inputs
outputs

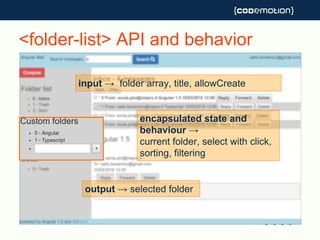

12. <folder-list> API and behavior
input → folder array, title, allowCreate
output → selected folder
encapsulated state and
behaviour →
current folder, select with click,
sorting, filtering

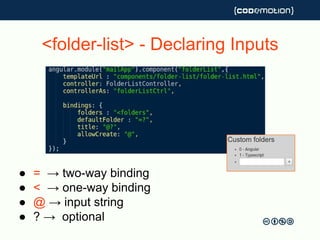

13. ● = → two-way binding
● < → one-way binding
● @ → input string
● ? → optional
<folder-list> - Declaring Inputs

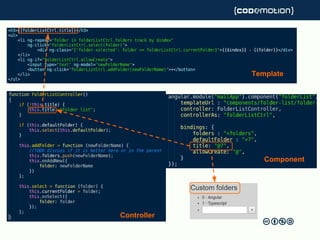

14. Template
Component
Controller

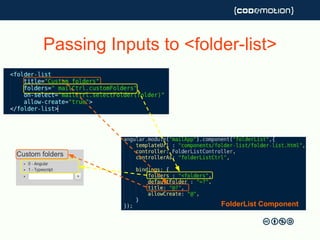

15. Passing Inputs to <folder-list>
FolderList Component

16. Why didn’t we use “=”?
The “=” qualifier means that the binding is two-way
● the <folder-list> component could even replace
the folder array with another one
○ while it’s role is just to display it
● and this change could also immediately affect
various other parts of the page which reference
the folder array in their {{}} expressions and
$watch-es
Guideline: default to “<” for component inputs
● one-way change propagation

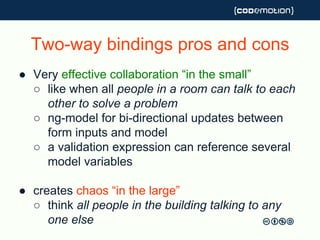

17. Two-way bindings pros and cons
● Very effective collaboration “in the small”
○ like when all people in a room can talk to each
other to solve a problem
○ ng-model for bi-directional updates between
form inputs and model
○ a validation expression can reference several
model variables
● creates chaos “in the large”
○ think all people in the building talking to any
one else

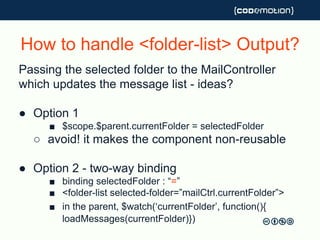

18. How to handle <folder-list> Output?
Passing the selected folder to the MailController
which updates the message list - ideas?
● Option 1
■ $scope.$parent.currentFolder = selectedFolder
○ avoid! it makes the component non-reusable
● Option 2 - two-way binding
■ binding selectedFolder : “=”
■ <folder-list selected-folder=”mailCtrl.currentFolder”>
■ in the parent, $watch(‘currentFolder’, function(){
loadMessages(currentFolder)})

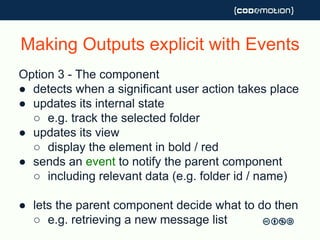

19. Making Outputs explicit with Events
Option 3 - The component
● detects when a significant user action takes place
● updates its internal state
○ e.g. track the selected folder
● updates its view
○ display the element in bold / red
● sends an event to notify the parent component
○ including relevant data (e.g. folder id / name)
● lets the parent component decide what to do then
○ e.g. retrieving a new message list

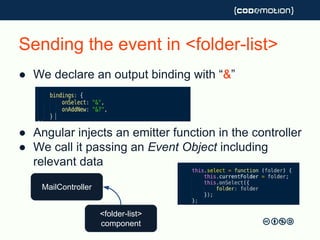

20. Sending the event in <folder-list>
● We declare an output binding with “&”
● Angular injects an emitter function in the controller
● We call it passing an Event Object including
relevant data
MailController
<folder-list>
component

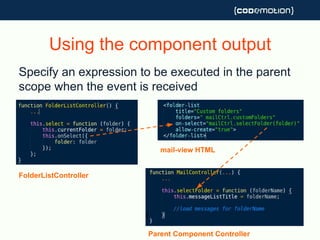

21. Using the component output
Specify an expression to be executed in the parent
scope when the event is received
Parent Component Controller
FolderListController
mail-view HTML

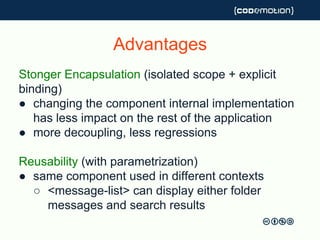

22. Advantages
Stonger Encapsulation (isolated scope + explicit
binding)
● changing the component internal implementation
has less impact on the rest of the application
● more decoupling, less regressions
Reusability (with parametrization)
● same component used in different contexts
○ <message-list> can display either folder
messages and search results

23. Advantages
Better Collaboration
● less conflicts when team grows
● easier to test for regressions
More Clarity and Readability
● I can effectively use a component knowing only
its API (the bindings section)
● the link to other component is very clear and
explict in the HTML

24. Components all the way down
What happens if we consistently apply this pattern
across the entire application?
The application becomes...

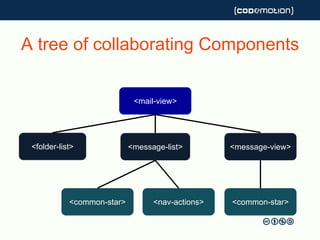

25. A tree of collaborating Components
<mail-view>
<folder-list> <message-list>
<nav-actions><common-star>
<message-view>
<common-star>

26. Types of Components
<mail-view>
<folder-list> <message-list>
<nav-actions><common-star>
<message-view>
<common-star>
more
application - specific
more generic/reusable

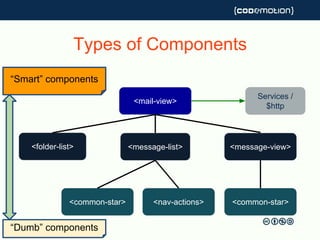

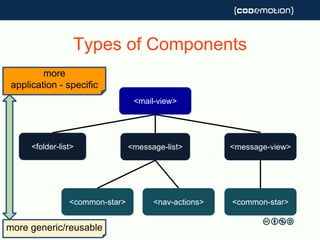

27. Types of Components
<mail-view>
<folder-list> <message-list>
<nav-actions><common-star>
<message-view>
<common-star>
“Smart” components
“Dumb” components
Services /
$http

28. Components: Smart vs Dumb
● Also called stateful
● Provides data - e.g. from http
REST clients
● May receive initial data via
route resolves
● Has knowledge of the
current state
● Is informed by stateless
components when
something needs to change
● Also called stateless
● Like a pure JavaScript
function
● It receives data via property
binding
● it focuses on rendering and
interaction without
managing business logic
● It requests state changes
through explicit events

29. Data Flow “down”: property binding
Component pass a subset of their model to children
<mail-view>
<folder-list> <message-list>
<nav-actions><common-star>
<message-view>
<common-star>
folders
messages
currentMessage

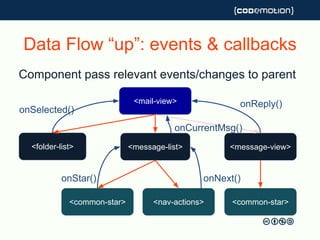

30. Data Flow “up”: events & callbacks
Component pass relevant events/changes to parent
<mail-view>
<folder-list> <message-list>
<nav-actions><common-star>
<message-view>
<common-star>
onSelected()
onCurrentMsg()
onStar()
onReply()
onNext()

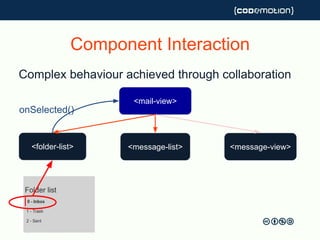

31. Component Interaction
Complex behaviour achieved through collaboration
<mail-view>
<folder-list> <message-list> <message-view>
onSelected()

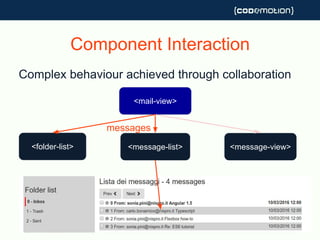

32. Component Interaction
Complex behaviour achieved through collaboration
<mail-view>
<folder-list> <message-list> <message-view>
messages

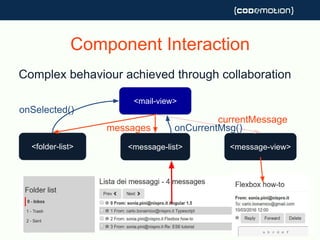

33. Component Interaction
Complex behaviour achieved through collaboration
<mail-view>
<folder-list> <message-list> <message-view>
onSelected()
onCurrentMsg()messages
currentMessage

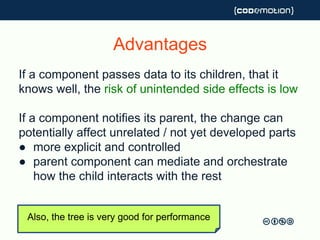

34. Advantages
If a component passes data to its children, that it
knows well, the risk of unintended side effects is low
If a component notifies its parent, the change can
potentially affect unrelated / not yet developed parts
● more explicit and controlled
● parent component can mediate and orchestrate
how the child interacts with the rest
Also, the tree is very good for performance

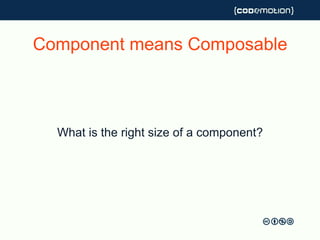

35. Component means Composable
What is the right size of a component?

36. Component means Composable
There is no “right answer”, but...
● if a component becomes too big, split it into
collaborating child components
Basic Design Principles
●Low Coupling - avoid unneeded dependencies
●High Cohesion - Single Responsibility Principle
(SOLID Principle)
− separate things that change for different
reasons or at different times
In short: don’t put your socks in the fridge...

37. Single Responsibility applied
If you need to do 2 things, make 3 components
● A, B
● C that does A + B
Example
● <upload-attachment> does file browsing and calls
the UploadService HTTP client
● <attachment-list> displays the currently attached
messages
● <mail-attachments> groups the first two

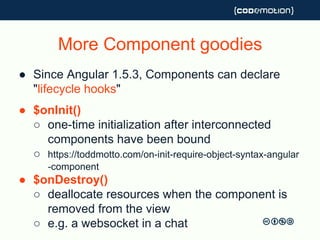

38. More Component goodies
● Since Angular 1.5.3, Components can declare
"lifecycle hooks"
● $onInit()
○ one-time initialization after interconnected
components have been bound
○ https://toddmotto.com/on-init-require-object-syntax-angular
-component
● $onDestroy()
○ deallocate resources when the component is
removed from the view
○ e.g. a websocket in a chat

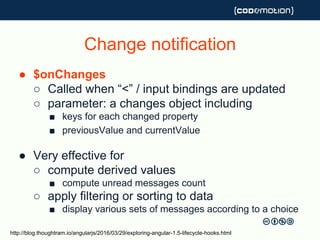

39. Change notification
● $onChanges
○ Called when “<” / input bindings are updated
○ parameter: a changes object including
■ keys for each changed property
■ previousValue and currentValue
● Very effective for
○ compute derived values
■ compute unread messages count
○ apply filtering or sorting to data
■ display various sets of messages according to a choice
http://blog.thoughtram.io/angularjs/2016/03/29/exploring-angular-1.5-lifecycle-hooks.html

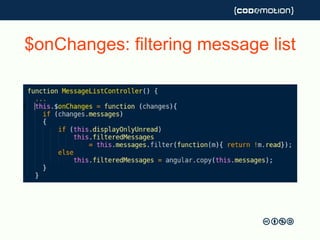

40. $onChanges: filtering message list

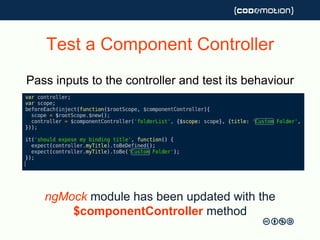

41. Test a Component Controller
Pass inputs to the controller and test its behaviour
ngMock module has been updated with the
$componentController method

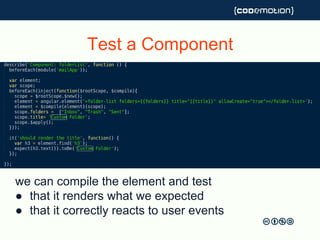

42. Test a Component
we can compile the element and test
● that it renders what we expected
● that it correctly reacts to user events

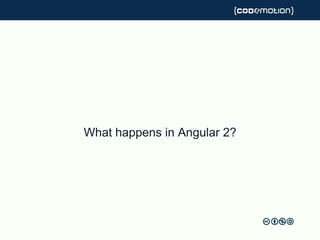

43. What happens in Angular 2?

44. Components in Angular 2
Syntax, some costructs change, but
Component-based Architecture is even stronger
● no more stand-alone controllers
● even application home, first-level views become
components
○ component-based routing
● component metadata + Typescript allow for
○ better tooling support
○ completion, validation
○ more explicit API definition

45. <folder-list> in Angular2

46. Components
are
the future of web apps

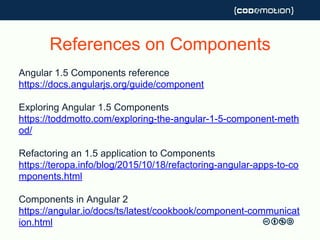

47. References on Components
Angular 1.5 Components reference
https://docs.angularjs.org/guide/component
Exploring Angular 1.5 Components
https://toddmotto.com/exploring-the-angular-1-5-component-meth
od/
Refactoring an 1.5 application to Components
https://teropa.info/blog/2015/10/18/refactoring-angular-apps-to-co
mponents.html
Components in Angular 2
https://angular.io/docs/ts/latest/cookbook/component-communicat
ion.html

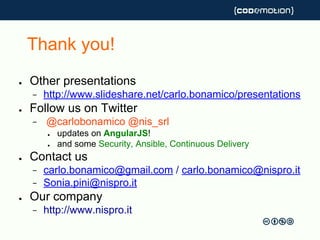

48. Thank you!
● Other presentations
− http://www.slideshare.net/carlo.bonamico/presentations
● Follow us on Twitter
− @carlobonamico @nis_srl
● updates on AngularJS!
● and some Security, Ansible, Continuous Delivery
● Contact us
− carlo.bonamico@gmail.com / carlo.bonamico@nispro.it
− Sonia.pini@nispro.it
● Our company
− http://www.nispro.it
