Angular 2 is the next version of the AngularJS framework. It was released in 2016 after 2 years of development. Some key features of Angular 2 include optimized performance for both desktop and mobile applications, ahead of time compilation for faster loading, and native support for reactive programming. The document then provides examples of core Angular concepts like components, directives, services, dependency injection and change detection. It explains how Angular 2 applications are bootstrapped and discusses some of the internal workings like the change detection engine.

1. Angular 2 - The Next Framework

2. Angular 2 – The Next Framework

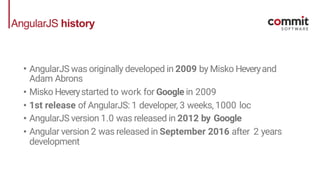

3. AngularJS history
• AngularJS was originally developed in 2009 by Misko Heveryand
Adam Abrons
• Misko Heverystarted to work for Google in 2009
• 1st release of AngularJS: 1 developer, 3 weeks, 1000 loc
• AngularJS version 1.0 was released in 2012 by Google
• Angular version 2 was released in September 2016 after 2 years
development

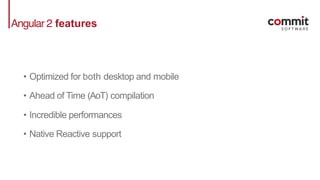

4. Angular 2 features
• Optimized for both desktop and mobile
• Ahead of Time (AoT) compilation
• Incredible performances
• Native Reactive support

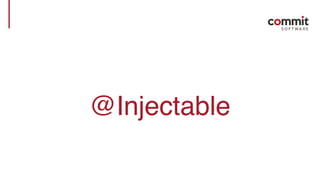

5. @Injectable

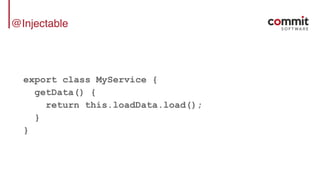

6. @Injectable
export class MyService {
getData() {
return this.loadData.load();
}
}

7. @Injectable
import { Injectable } from 'angular2/core';
@Injectable()
export class MyService {
constructor(private loadData:LoadData) {}
getData() {
return this.loadData.load();
}
}

8. @Component

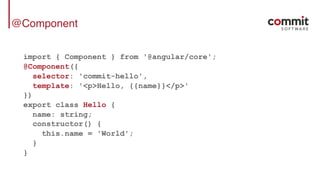

9. @Component
import { Component } from '@angular/core';
@Component({
selector: 'commit-hello',
template: '<p>Hello, {{name}}</p>'
})
export class Hello {
name: string;
constructor() {
this.name = 'World';
}
}

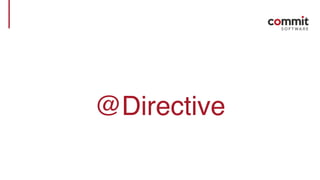

10. @Directive

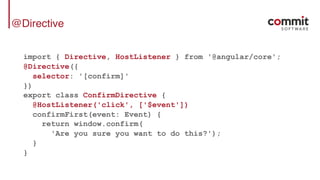

11. @Directive
import { Directive, HostListener } from '@angular/core';
@Directive({
selector: '[confirm]'
})
export class ConfirmDirective {
@HostListener('click', ['$event'])
confirmFirst(event: Event) {
return window.confirm(
'Are you sure you want to do this?');
}
}

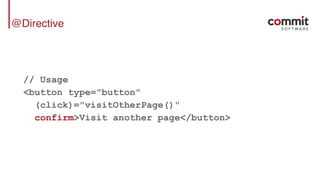

12. @Directive
// Usage
<button type="button"
(click)="visitOtherPage()"
confirm>Visit another page</button>

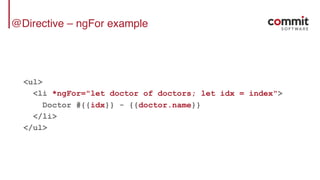

13. @Directive – ngFor example
<ul>
<li *ngFor="let doctor of doctors; let idx = index">
Doctor #{{idx}} - {{doctor.name}}
</li>
</ul>

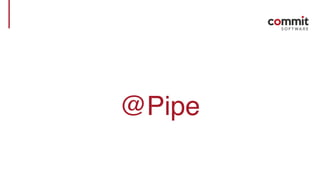

14. @Pipe

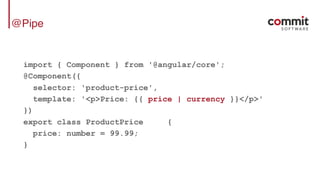

15. @Pipe
import { Component } from '@angular/core';
@Component({
selector: 'product-price',
template: '<p>Price: {{ price | currency }}</p>'
})
export class ProductPrice {
price: number = 99.99;
}

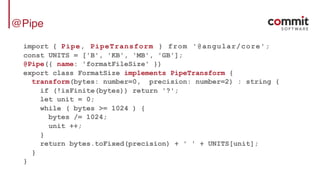

16. @Pipe
import { Pipe, PipeTransform } from '@angular/core';
const UNITS = ['B', 'KB', 'MB', 'GB'];
@Pipe({ name: 'formatFileSize' })
export class FormatSize implements PipeTransform {
transform(bytes: number=0, precision: number=2) : string {
if (!isFinite(bytes)) return '?';
let unit = 0;
while ( bytes >= 1024 ) {
bytes /= 1024;
unit ++;
}
return bytes.toFixed(precision) + ' ' + UNITS[unit];
}
}

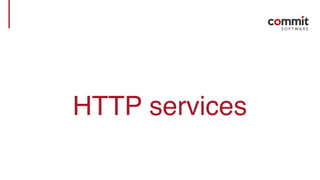

17. HTTP services

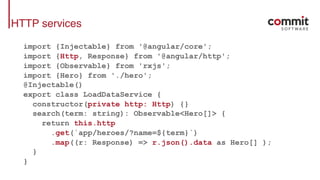

18. HTTP services
import {Injectable} from '@angular/core';
import {Http, Response} from '@angular/http';
import {Observable} from 'rxjs';
import {Hero} from './hero';
@Injectable()
export class LoadDataService {
constructor(private http: Http) {}
search(term: string): Observable<Hero[]> {
return this.http
.get(`app/heroes/?name=${term}`)
.map((r: Response) => r.json().data as Hero[] );
}
}

19. TypeScript

20. Why TypeScript?
• Angular2 Dependency Injection system is based on type
reflection
• Annotations offer a powerful and very expressive way to
describe elements

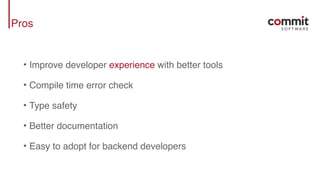

21. Pros
• Improve developer experience with better tools
• Compile time error check
• Type safety
• Better documentation
• Easy to adopt for backend developers

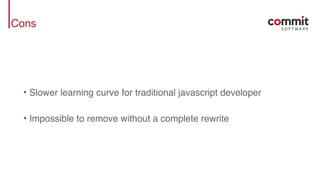

22. Cons
• Slower learning curve for traditional javascript developer
• Impossible to remove without a complete rewrite

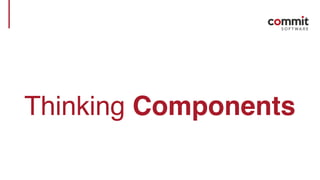

23. Thinking Components

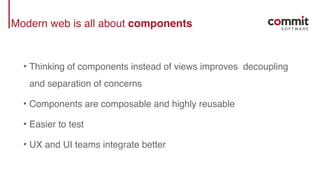

24. Modern web is all about components
• Thinking of components instead of views improves decoupling
and separation of concerns
• Components are composable and highly reusable
• Easier to test
• UX and UI teams integrate better

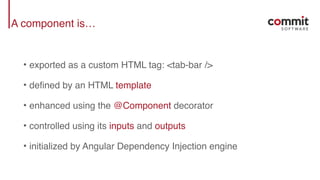

25. A component is…
• exported as a custom HTML tag: <tab-bar />
• defined by an HTML template
• enhanced using the @Component decorator
• controlled using its inputs and outputs
• initialized by Angular Dependency Injection engine

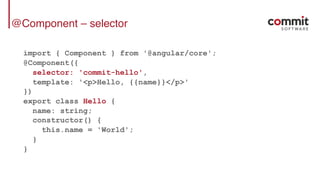

26. @Component – selector
import { Component } from '@angular/core';
@Component({
selector: 'commit-hello',
template: '<p>Hello, {{name}}</p>'
})
export class Hello {
name: string;
constructor() {
this.name = 'World';
}
}

27. @Component – selector
selector is the element property that we use to tell Angular to
create and insert an instance of this component.

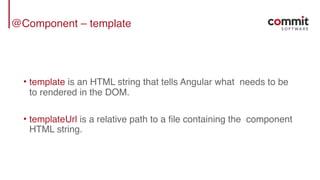

28. @Component – template
• template is an HTML string that tells Angular what needs to be
to rendered in the DOM.
• templateUrl is a relative path to a file containing the component
HTML string.

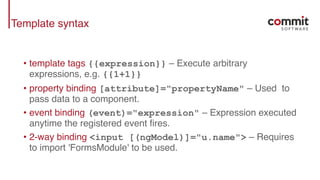

29. Template syntax
• template tags {{expression}} – Execute arbitrary
expressions, e.g. {{1+1}}
• property binding [attribute]="propertyName" – Used to
pass data to a component.
• event binding (event)="expression" – Expression executed
anytime the registered event fires.
• 2-way binding <input [(ngModel)]="u.name"> – Requires
to import 'FormsModule' to be used.

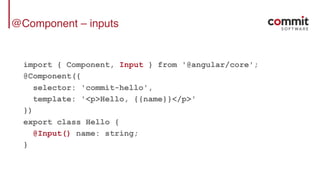

30. @Component – inputs
import { Component, Input } from '@angular/core';
@Component({
selector: 'commit-hello',
template: '<p>Hello, {{name}}</p>'
})
export class Hello {
@Input() name: string;
}

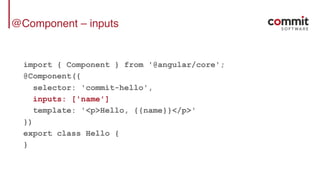

31. @Component – inputs
import { Component } from '@angular/core';
@Component({
selector: 'commit-hello',
inputs: ['name']
template: '<p>Hello, {{name}}</p>'
})
export class Hello {
}

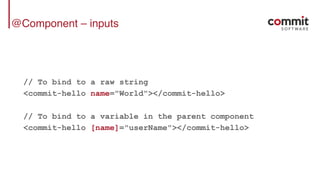

32. @Component – inputs
// To bind to a raw string
<commit-hello name="World"></commit-hello>
// To bind to a variable in the parent component
<commit-hello [name]="userName"></commit-hello>

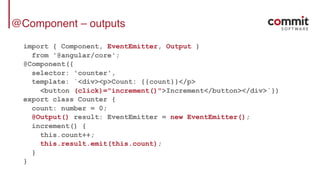

33. @Component – outputs
import { Component, EventEmitter, Output }
from '@angular/core';
@Component({
selector: 'counter',
template: `<div><p>Count: {{count}}</p>
<button (click)="increment()">Increment</button></div>`})
export class Counter {
count: number = 0;
@Output() result: EventEmitter = new EventEmitter();
increment() {
this.count++;
this.result.emit(this.count);
}
}

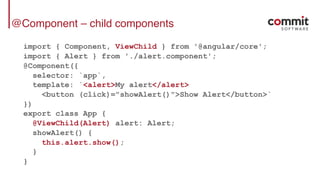

34. @Component – child components
import { Component, ViewChild } from '@angular/core';
import { Alert } from './alert.component';
@Component({
selector: `app`,
template: `<alert>My alert</alert>
<button (click)="showAlert()">Show Alert</button>`
})
export class App {
@ViewChild(Alert) alert: Alert;
showAlert() {
this.alert.show();
}
}

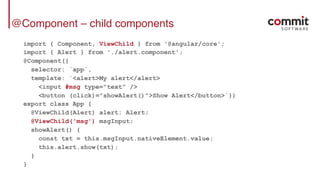

35. @Component – child components
import { Component, ViewChild } from '@angular/core';
import { Alert } from './alert.component';
@Component({
selector: `app`,
template: `<alert>My alert</alert>
<input #msg type="text" />
<button (click)="showAlert()">Show Alert</button>`})
export class App {
@ViewChild(Alert) alert: Alert;
@ViewChild('msg') msgInput;
showAlert() {
const txt = this.msgInput.nativeElement.value;
this.alert.show(txt);
}
}

36. @Component – transclusion
import { Component, Input } from '@angular/core';
@Component({
selector: `commit-hello`,
template: `<div><p>Hello, {{name}}</p>
<ng-content><p>No extra data</p></ng-content>
</div>`})
export class Hello {
@Input() name: string;
}
//Usage
<commit-hello name="Andrea">
<div> <h1>Some other data</h1>
<p>Some text</p> </div>
</commit-hello>

37. Component lifecycle

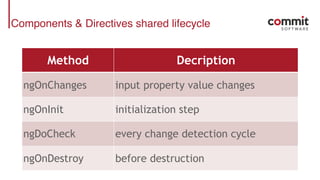

38. Components & Directives shared lifecycle
Method Decription
ngOnChanges input property value changes
ngOnInit initialization step
ngDoCheck every change detection cycle
ngOnDestroy before destruction

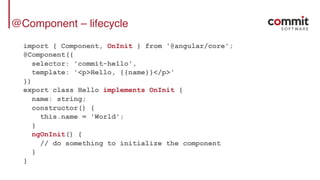

39. @Component – lifecycle
import { Component, OnInit } from '@angular/core';
@Component({
selector: 'commit-hello',
template: '<p>Hello, {{name}}</p>'
})
export class Hello implements OnInit {
name: string;
constructor() {
this.name = 'World';
}
ngOnInit() {
// do something to initialize the component
}
}

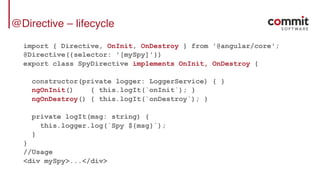

40. @Directive – lifecycle
import { Directive, OnInit, OnDestroy } from '@angular/core';
@Directive({selector: '[mySpy]'})
export class SpyDirective implements OnInit, OnDestroy {
constructor(private logger: LoggerService) { }
ngOnInit() { this.logIt(`onInit`); }
ngOnDestroy() { this.logIt(`onDestroy`); }
private logIt(msg: string) {
this.logger.log(`Spy ${msg}`);
}
}
//Usage
<div mySpy>...</div>

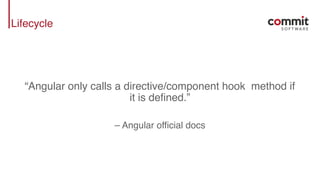

41. Lifecycle
“Angular only calls a directive/component hook method if
it is defined.”
– Angular official docs

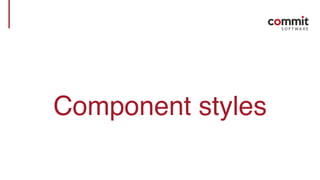

42. Component styles

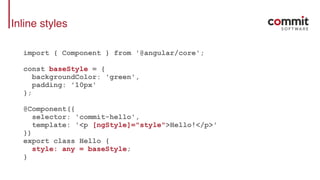

43. Inline styles
import { Component } from '@angular/core';
const baseStyle = {
backgroundColor: 'green',
padding: '10px'
};
@Component({
selector: 'commit-hello',
template: '<p [ngStyle]="style">Hello!</p>'
})
export class Hello {
style: any = baseStyle;
}

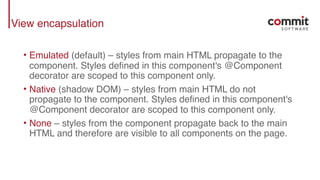

44. View encapsulation
• Emulated (default) – styles from main HTML propagate to the
component. Styles defined in this component's @Component
decorator are scoped to this component only.
• Native (shadow DOM) – styles from main HTML do not
propagate to the component. Styles defined in this component's
@Component decorator are scoped to this component only.
• None – styles from the component propagate back to the main
HTML and therefore are visible to all components on the page.

45. View encapsulation – example (1/2)
import { Component, ViewEncapsulation } from '@angular/core';
@Component({
selector: 'commit-hello',
styles:[`
.main {
background-color: green;
padding: 10px;
}
`],
encapsulation: ViewEncapsulation.Emulated,
template: '<p class="main">Hello!</p>'
})
export class Hello { }

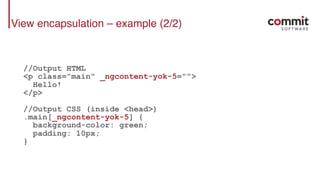

46. View encapsulation – example (2/2)
//Output HTML
<p class="main" _ngcontent-yok-5="">
Hello!
</p>
//Output CSS (inside <head>)
.main[_ngcontent-yok-5] {
background-color: green;
padding: 10px;
}

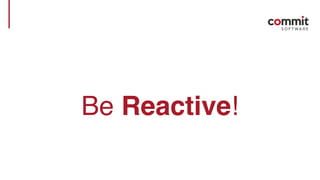

47. Be Reactive!

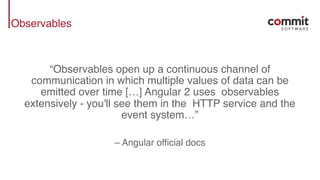

48. Observables
“Observables open up a continuous channel of
communication in which multiple values of data can be
emitted over time […] Angular 2 uses observables
extensively - you'll see them in the HTTP service and the
event system…”
– Angular official docs

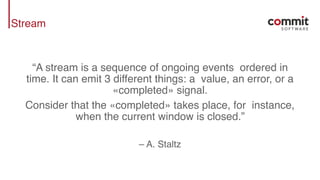

49. Stream
“A stream is a sequence of ongoing events ordered in
time. It can emit 3 different things: a value, an error, or a
«completed» signal.
Consider that the «completed» takes place, for instance,
when the current window is closed.”
– A. Staltz

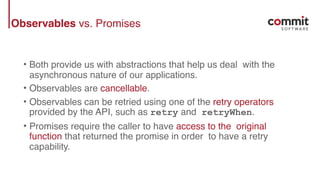

50. Observables vs. Promises
• Both provide us with abstractions that help us deal with the
asynchronous nature of our applications.
• Observables are cancellable.
• Observables can be retried using one of the retry operators
provided by the API, such as retry and retryWhen.
• Promises require the caller to have access to the original
function that returned the promise in order to have a retry
capability.

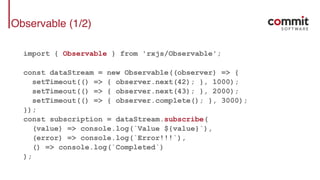

51. Observable (1/2)
import { Observable } from 'rxjs/Observable';
const dataStream = new Observable((observer) => {
setTimeout(() => { observer.next(42); }, 1000);
setTimeout(() => { observer.next(43); }, 2000);
setTimeout(() => { observer.complete(); }, 3000);
});
const subscription = dataStream.subscribe(
(value) => console.log(`Value ${value}`),
(error) => console.log(`Error!!!`),
() => console.log(`Completed`)
);

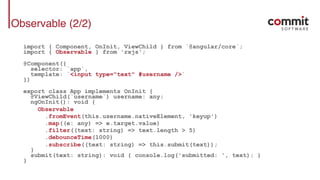

52. Observable (2/2)
import { Component, OnInit, ViewChild } from `@angular/core`;
import { Observable } from 'rxjs';
@Component({
selector: `app`,
template: `<input type="text" #username />`
})
export class App implements OnInit {
@ViewChild(`username`) username: any;
ngOnInit(): void {
Observable
.fromEvent(this.username.nativeElement, 'keyup')
.map((e: any) => e.target.value)
.filter((text: string) => text.length > 5)
.debounceTime(1000)
.subscribe((text: string) => this.submit(text));
}
submit(text: string): void { console.log('submitted: ', text); }
}

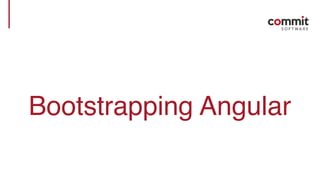

53. Bootstrapping Angular

54. Bootstrapping Angular
• Bootstrapping is an essential process in Angular – it is where
the application is loaded when Angular comes to life.
• Bootstrapping Angular 2 applications is certainly different from
Angular 1.x, but is still a straightforward procedure.

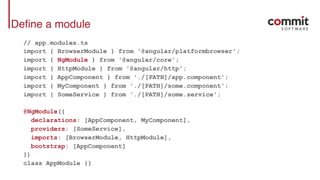

55. Define a module
// app.modules.ts
import { BrowserModule } from '@angular/platformbrowser';
import { NgModule } from '@angular/core';
import { HttpModule } from '@angular/http';
import { AppComponent } from './[PATH]/app.component';
import { MyComponent } from './[PATH]/some.component';
import { SomeService } from './[PATH]/some.service';
@NgModule({
declarations: [AppComponent, MyComponent],
providers: [SomeService],
imports: [BrowserModule, HttpModule],
bootstrap: [AppComponent]
})
class AppModule {}

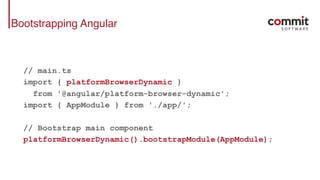

56. Bootstrapping Angular
// main.ts
import { platformBrowserDynamic }
from '@angular/platform-browser-dynamic';
import { AppModule } from './app/';
// Bootstrap main component
platformBrowserDynamic().bootstrapModule(AppModule);

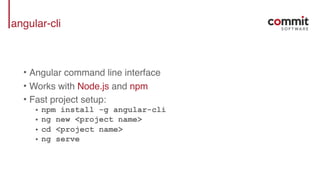

57. angular-cli
• Angular command line interface
• Works with Node.js and npm
• Fast project setup:
• npm install -g angular-cli
• ng new <project name>
• cd <project name>
• ng serve

58. Under the hood

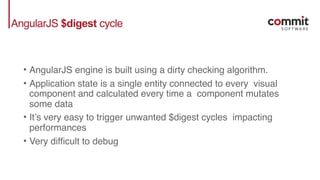

59. AngularJS $digest cycle
• AngularJS engine is built using a dirty checking algorithm.
• Application state is a single entity connected to every visual
component and calculated every time a component mutates
some data
• It’s very easy to trigger unwanted $digest cycles impacting
performances
• Very difficult to debug

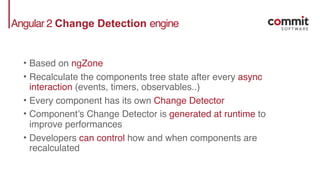

60. Angular 2 Change Detection engine
• Based on ngZone
• Recalculate the components tree state after every async
interaction (events, timers, observables..)
• Every component has its own Change Detector
• Component’s Change Detector is generated at runtime to
improve performances
• Developers can control how and when components are
recalculated

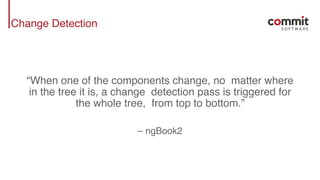

61. Change Detection
“When one of the components change, no matter where
in the tree it is, a change detection pass is triggered for
the whole tree, from top to bottom.”
– ngBook2

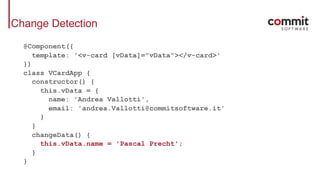

62. Change Detection
@Component({
template: '<v-card [vData]="vData"></v-card>'
})
class VCardApp {
constructor() {
this.vData = {
name: 'Andrea Vallotti',
email: 'andrea.Vallotti@commitsoftware.it'
}
}
changeData() {
this.vData.name = 'Pascal Precht';
}
}

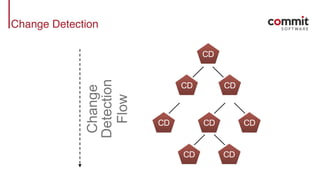

63. Change Detection
CD
CD CD
CD CDCD
CD CD
Change
Detection
Flow

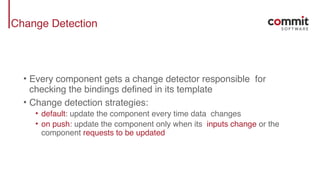

64. Change Detection
• Every component gets a change detector responsible for
checking the bindings defined in its template
• Change detection strategies:
• default: update the component every time data changes
• on push: update the component only when its inputs change or the
component requests to be updated

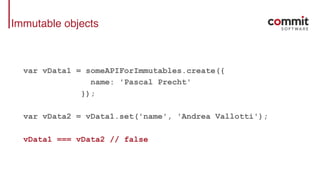

65. Immutable objects
var vData1 = someAPIForImmutables.create({
name: 'Pascal Precht'
});
var vData2 = vData1.set('name', 'Andrea Vallotti');
vData1 === vData2 // false

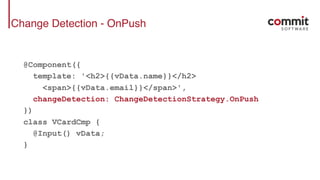

66. Change Detection - OnPush
@Component({
template: '<h2>{{vData.name}}</h2>
<span>{{vData.email}}</span>',
changeDetection: ChangeDetectionStrategy.OnPush
})
class VCardCmp {
@Input() vData;
}

67. Change Detection – OnPush + Immutables
CD
CD
CD CD
CD CD
Change
Detection
Flow

68. Change Detection - OnPush
@Component({template: '{{counter}}',
changeDetection: ChangeDetectionStrategy.OnPush })
class CartBadgeCmp {
@Input() addItemStream:Observable<any>;
counter = 0;
constructor(private cd: ChangeDetectorRef) {}
ngOnInit() {
this.addItemStream.subscribe(() => {
this.counter++; // application state changed
this.cd.markForCheck(); // marks path
});
}
}

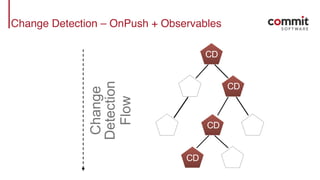

69. Change Detection – OnPush + Observables
CD
CD
CD
CD
Change
Detection
Flow

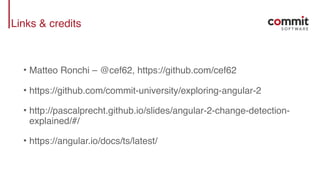

70. Links & credits
• Matteo Ronchi – @cef62, https://github.com/cef62
• https://github.com/commit-university/exploring-angular-2
• http://pascalprecht.github.io/slides/angular-2-change-detection-
explained/#/
• https://angular.io/docs/ts/latest/

71. thank you for your attention
Andrea Vallotti, ph.D
andrea.vallotti@commitsoftware.it
