The document discusses the integration of the MVVM (Model-View-ViewModel) pattern with MEF (Managed Extensibility Framework) in Silverlight applications. It outlines the roles of the view, view model, and model, emphasizing their interactions and highlighting the benefits and variations of MVVM implementations. Additionally, it introduces the MEF framework as a way to build extensible applications and showcases practical examples of applying these concepts in development.

1. MVVM + MEF in SilverlightRicardo Fiel

2. Who’s that guy?xamlpt.com/blogs/rfiel/pontonetpt.com/blogs/rfiel/blogs.fullsix.ptlabs.fullsix.ptRicardo FielSenior EngineerFullsix Portugalricardo.fiel@fullsix.com@theplastictoy

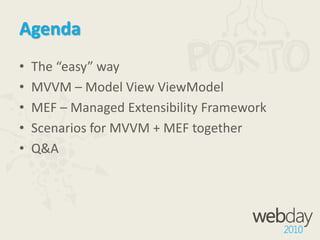

3. AgendaThe “easy” wayMVVM – Model View ViewModelMEF – Managed Extensibility FrameworkScenarios for MVVM + MEF togetherQ&A

4. The “easy” way

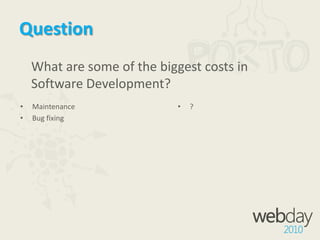

5. Question What are some of the biggest costs in Software Development?Maintenance

6. Bug fixing

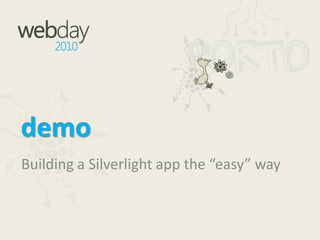

7. ?demoBuilding a Silverlight app the “easy” way

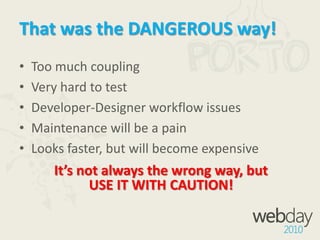

8. That was the DANGEROUS way!Too much couplingVery hard to testDeveloper-Designer workflow issuesMaintenance will be a painLooks faster, but will become expensiveIt’s not always the wrong way, butUSE IT WITH CAUTION!

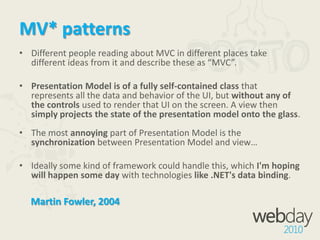

9. MV* patternsDifferent people reading about MVC in different places take different ideas from it and describe these as “MVC”.Presentation Model is of a fully self-contained class that represents all the data and behavior of the UI, but without any of the controls used to render that UI on the screen. A view then simply projects the state of the presentation model onto the glass.The most annoying part of Presentation Model is the synchronization between Presentation Model and view…Ideally some kind of framework could handle this, which I'm hoping will happen some day with technologies like .NET's data binding.Martin Fowler, 2004

10. MVVMModel-View-ViewModelLadies and gentleman, may I introduce you to:

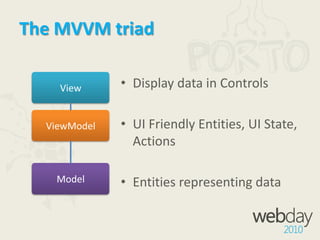

11. The MVVM triadViewDisplay data in ControlsUI Friendly Entities, UI State, ActionsEntities representing dataViewModelModel

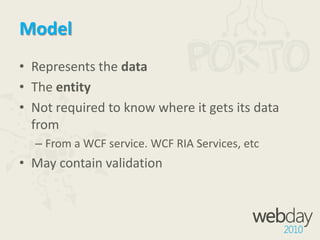

12. ModelRepresents the dataThe entityNot required to know where it gets its data fromFrom a WCF service. WCF RIA Services, etcMay contain validation

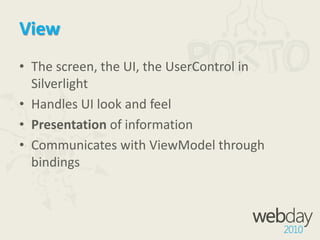

13. ViewThe screen, the UI, the UserControl in SilverlightHandles UI look and feelPresentation of informationCommunicates with ViewModel through bindings

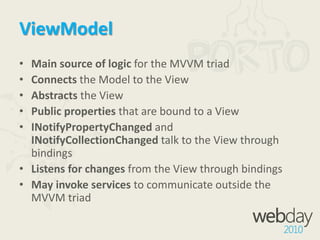

14. ViewModelMain source of logic for the MVVM triadConnects the Model to the ViewAbstracts the ViewPublic properties that are bound to a ViewINotifyPropertyChangedand INotifyCollectionChangedtalk to the View through bindingsListens for changes from the View through bindingsMay invoke services to communicate outside the MVVM triad

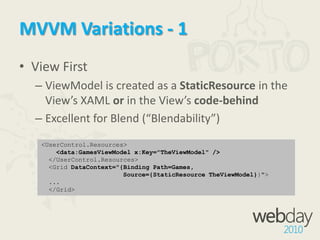

15. MVVM Variations - 1View FirstViewModel is created as a StaticResource in the View’s XAML or in the View’s code-behindExcellent for Blend (“Blendability”)<UserControl.Resources><data:GamesViewModel x:Key="TheViewModel" /> </UserControl.Resources> <Grid DataContext="{Binding Path=Games, Source={StaticResourceTheViewModel}}"> ... </Grid>

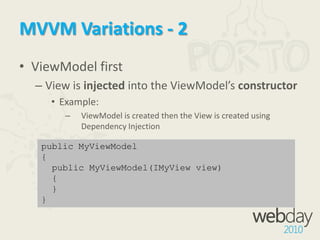

16. MVVM Variations - 2ViewModel firstView is injected into the ViewModel’sconstructorExample:ViewModel is created then the View is created using Dependency Injectionpublic MyViewModel{ public MyViewModel(IMyView view) { }}

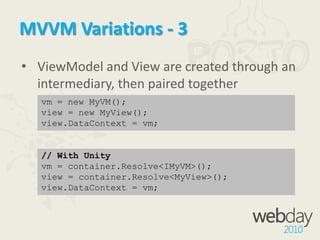

17. MVVM Variations - 3ViewModel and View are created through an intermediary, then paired togethervm = new MyVM();view = new MyView();view.DataContext = vm;// With Unityvm = container.Resolve<IMyVM>();view = container.Resolve<MyView>();view.DataContext = vm;

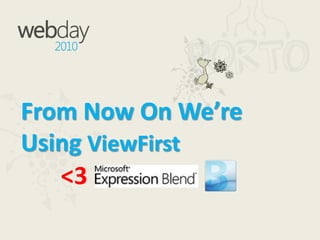

18. From Now On We’re Using ViewFirst<3

19. Don’t look up!View only knows ViewModelViewModel only knows ModelThe Model stands alone

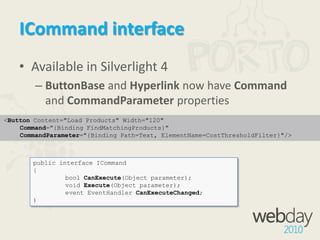

20. ICommand interfaceAvailable in Silverlight 4ButtonBase and Hyperlink now have Command and CommandParameter properties<Button Content="Load Products" Width="120" Command="{Binding FindMatchingProducts}" CommandParameter="{Binding Path=Text, ElementName=CostThresholdFilter}"/>public interface ICommand{boolCanExecute(Object parameter); void Execute(Object parameter); event EventHandlerCanExecuteChanged;)

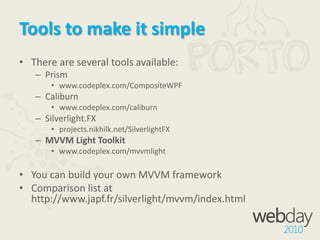

21. Tools to make it simpleThere are several tools available:Prismwww.codeplex.com/CompositeWPFCaliburnwww.codeplex.com/caliburnSilverlight.FXprojects.nikhilk.net/SilverlightFXMVVM Light Toolkitwww.codeplex.com/mvvmlightYou can build your own MVVM frameworkComparison list at http://www.japf.fr/silverlight/mvvm/index.html

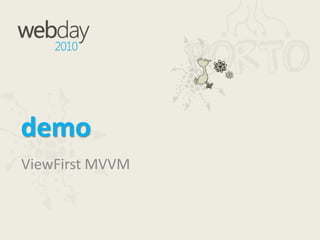

22. demoViewFirst MVVM

23. MEFManaged Extensibility Framework

24. MEF IntroLibrary for building extensible applicationsPart of Silverlight 4Silverlight 3 support mef.codeplex.comPrism supportmefcontrib.codeplex.comOpen source

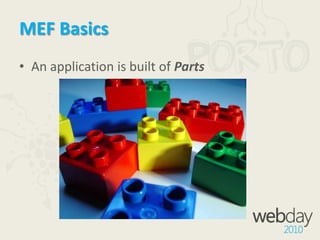

25. MEF BasicsAn application is built of Parts

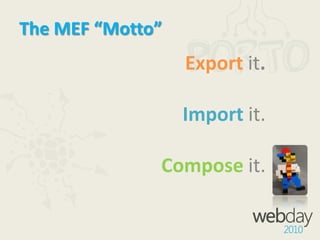

26. The MEF “Motto”Exportit.Import it.Composeit.

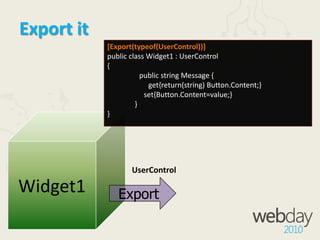

27. Export it[Export(typeof(UserControl))]public class Widget1 : UserControl{ public string Message { get{return(string) Button.Content;} set{Button.Content=value;} }}Widget1UserControlExport

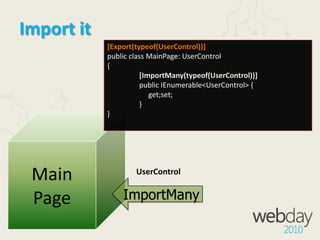

28. Import it[Export(typeof(UserControl))]public class MainPage: UserControl{ [ImportMany(typeof(UserControl))] public IEnumerable<UserControl> {get;set; }}MainPageUserControlImportMany

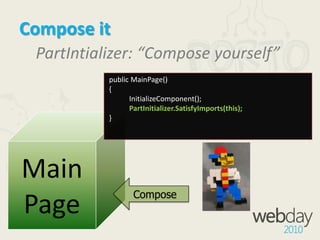

29. Compose itPartIntializer: “Compose yourself” public MainPage() {InitializeComponent();PartInitializer.SatisfyImports(this); }MainPageCompose

30. demoAdding social widgets

31. Scenarios MVVM + MEF together?I, MVVM, take you MEF, to be my wife, to have and to hold from this day forward, for better or for worse, for richer, for poorer, in sickness and in health, to love and to cherish; from this day forward until death do us part.
