AngularJS Overview with MVC model, feature list
Apply AngularJS in Enterprise Application cover most enterprise concerns:
Angular 1 or Angular 2
Style Guide
Application Structure
UI Components
Component communication
Router

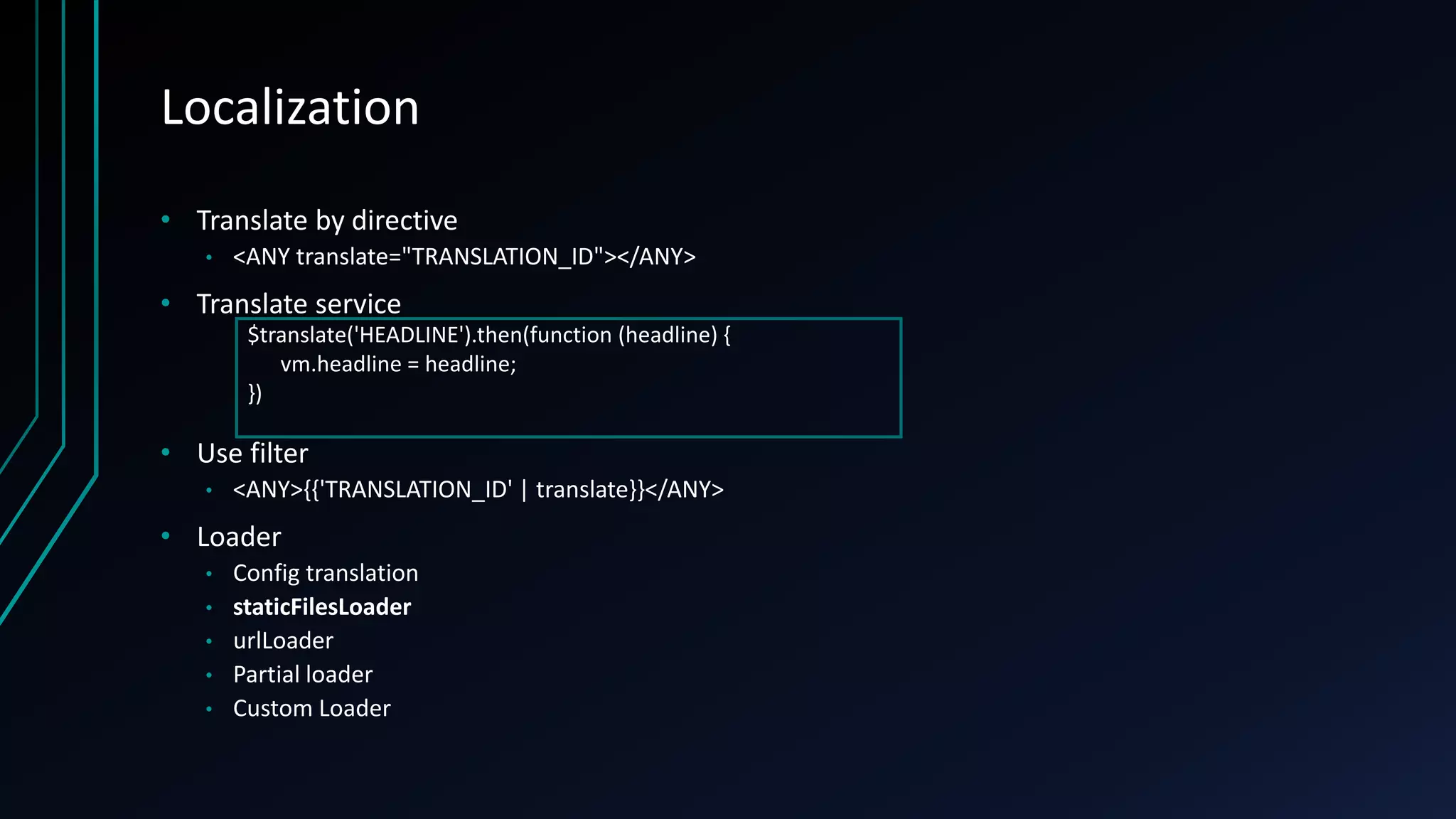

Localization
Validation
Cache, Storage

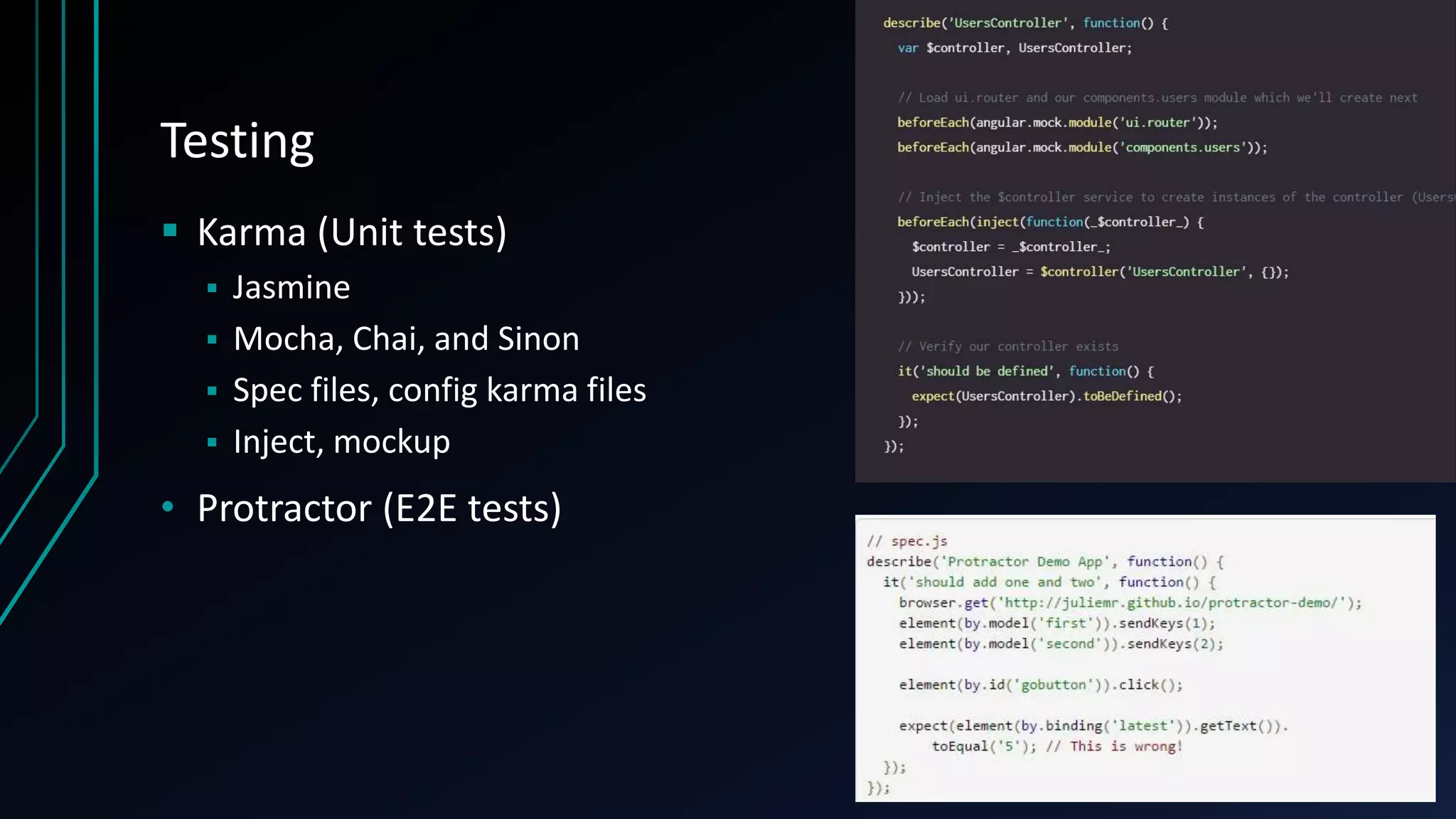

Unit test and E2E testing
Versioning
Minification & Bundle

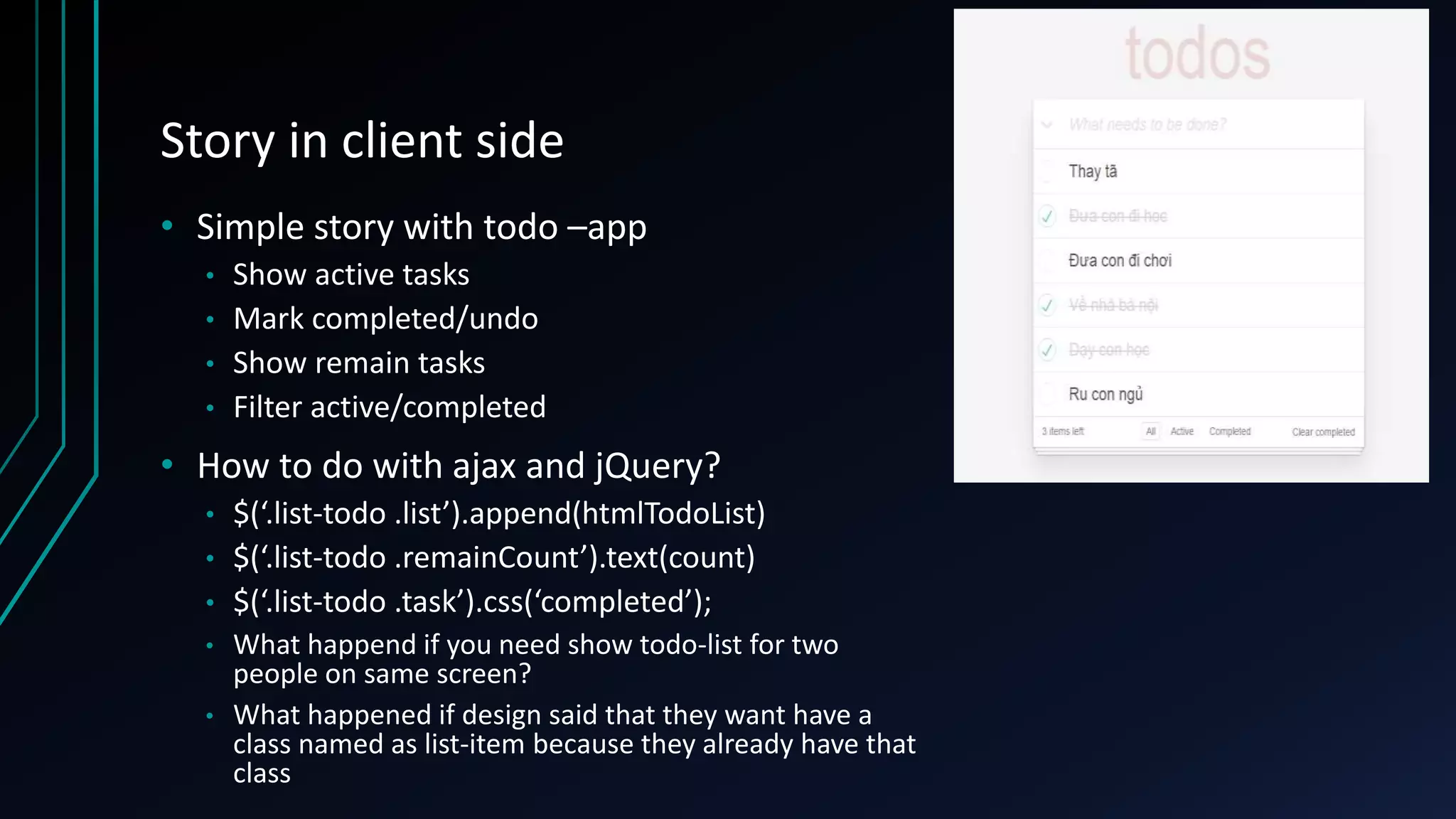

3. Story in client side
• Simple story with todo –app
• Show active tasks
• Mark completed/undo
• Show remain tasks
• Filter active/completed
• How to do with ajax and jQuery?
• $(‘.list-todo .list’).append(htmlTodoList)
• $(‘.list-todo .remainCount’).text(count)
• $(‘.list-todo .task’).css(‘completed’);
• What happend if you need show todo-list for two
people on same screen?
• What happened if design said that they want have a
class named as list-item because they already have that
class

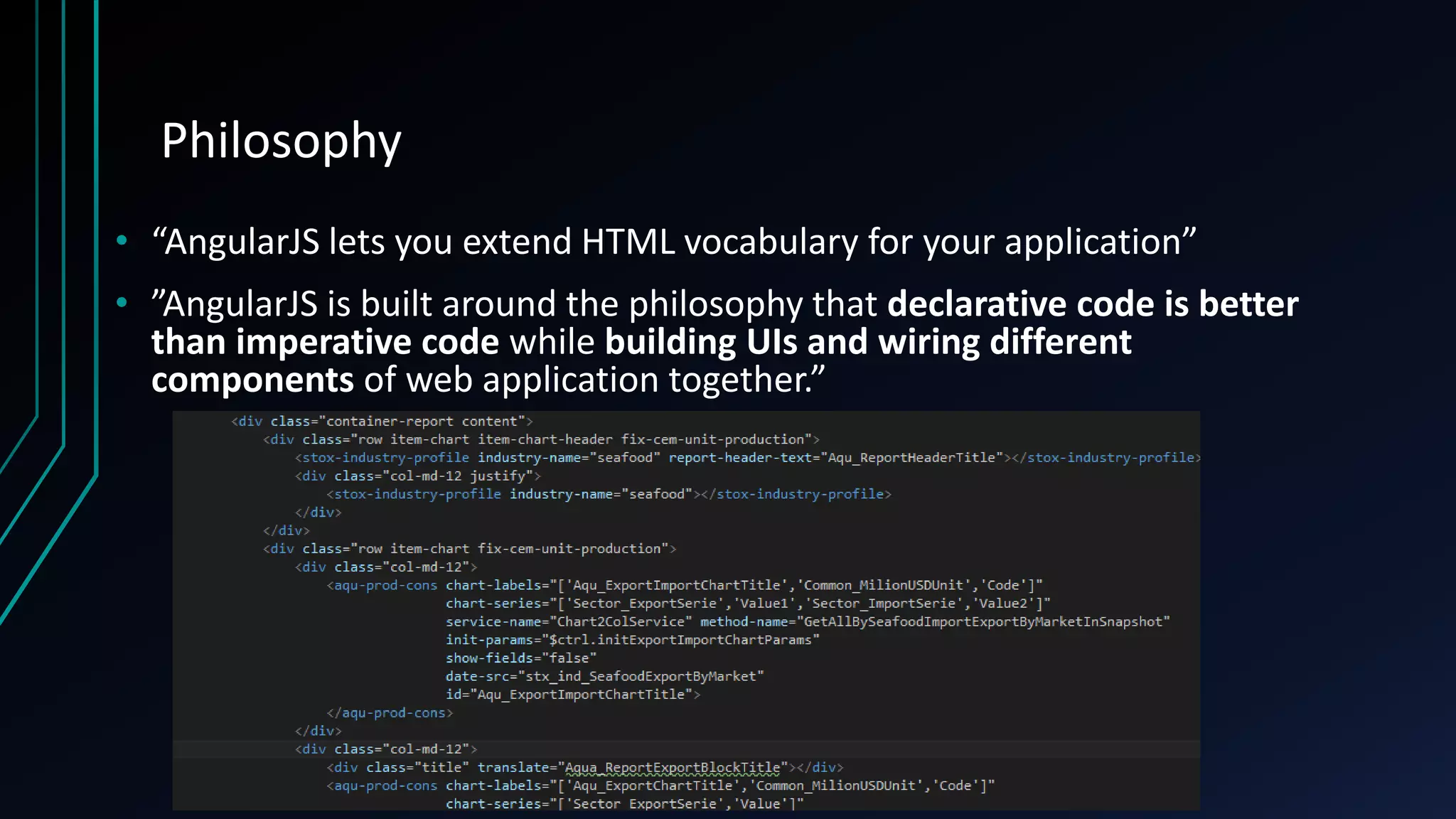

4. Philosophy
• “AngularJS lets you extend HTML vocabulary for your application”
• ”AngularJS is built around the philosophy that declarative code is better
than imperative code while building UIs and wiring different
components of web application together.”

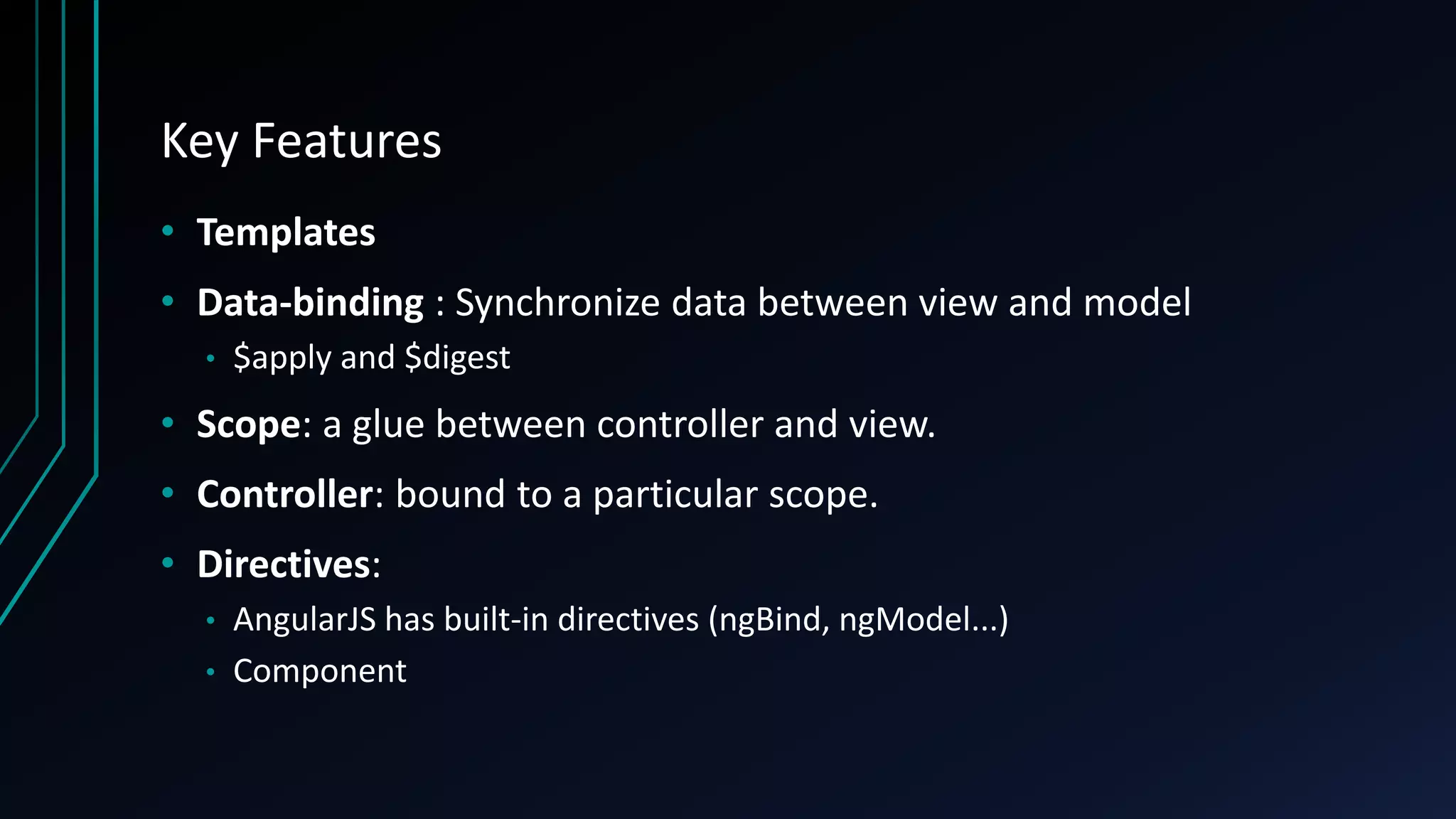

5. Key Features
• Templates
• Data-binding : Synchronize data between view and model
• $apply and $digest
• Scope: a glue between controller and view.
• Controller: bound to a particular scope.
• Directives:
• AngularJS has built-in directives (ngBind, ngModel...)
• Component

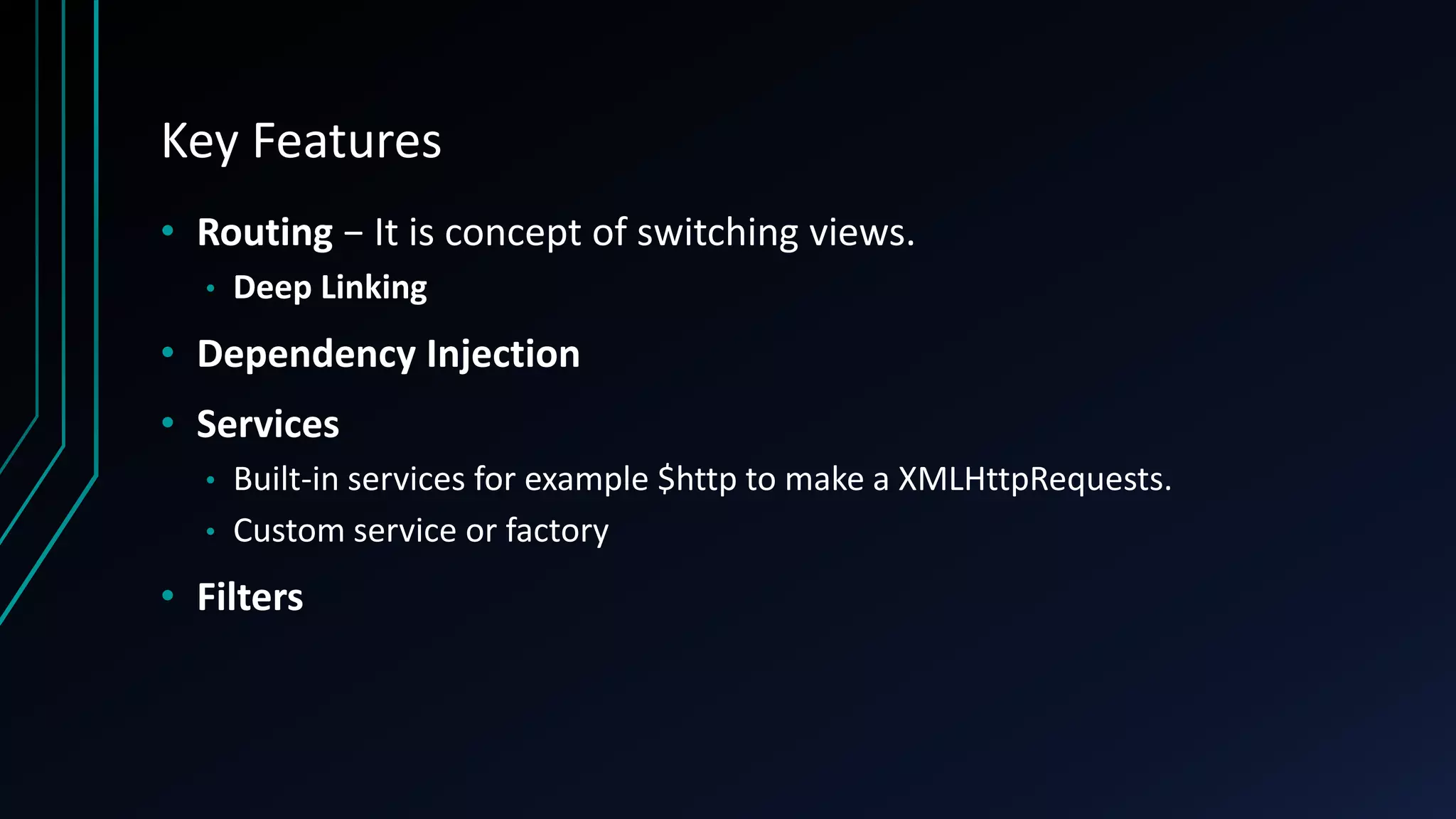

6. Key Features
• Routing − It is concept of switching views.
• Deep Linking
• Dependency Injection
• Services
• Built-in services for example $http to make a XMLHttpRequests.
• Custom service or factory
• Filters

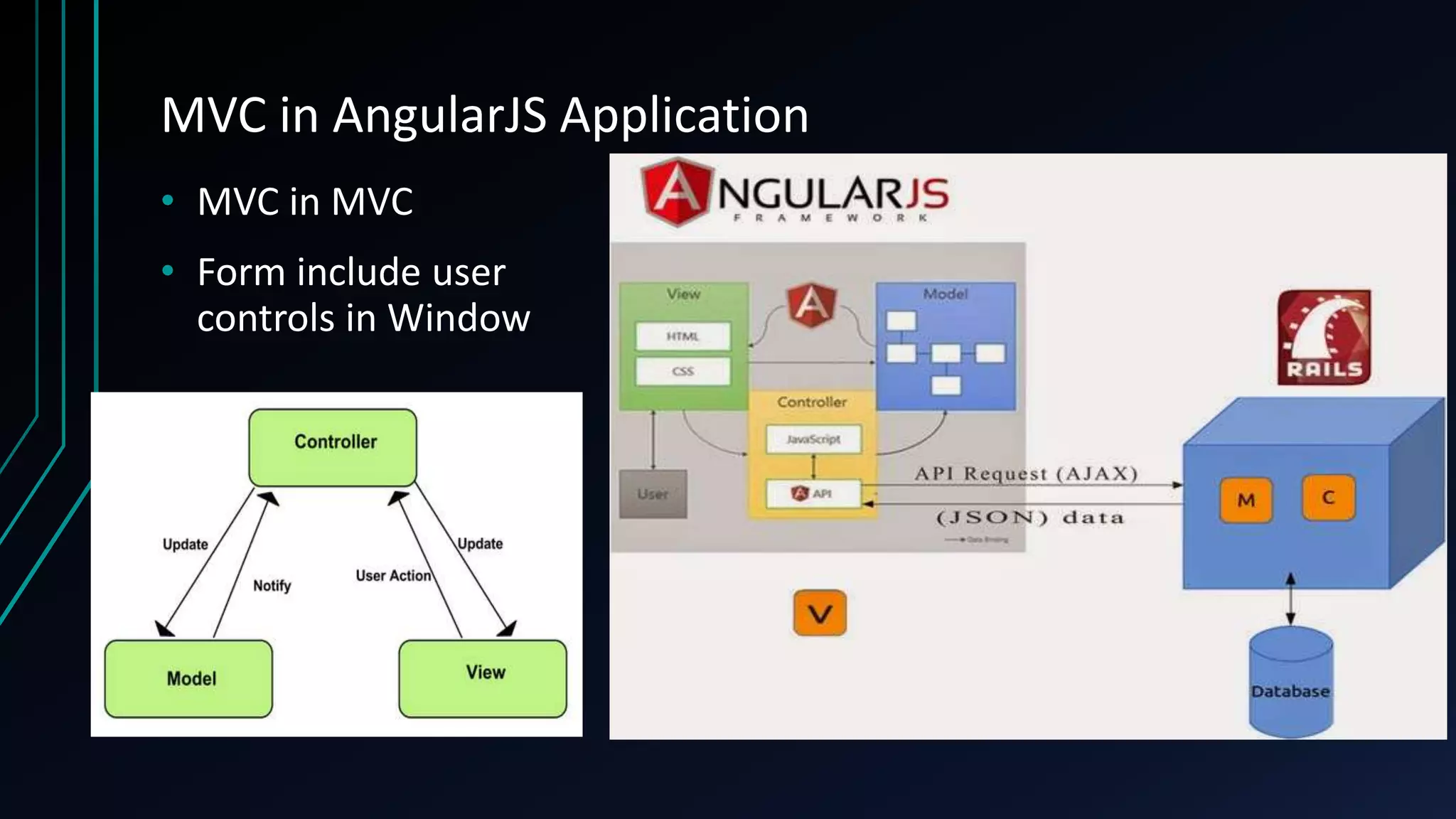

7. MVC in AngularJS Application
• MVC in MVC
• Form include user
controls in Window

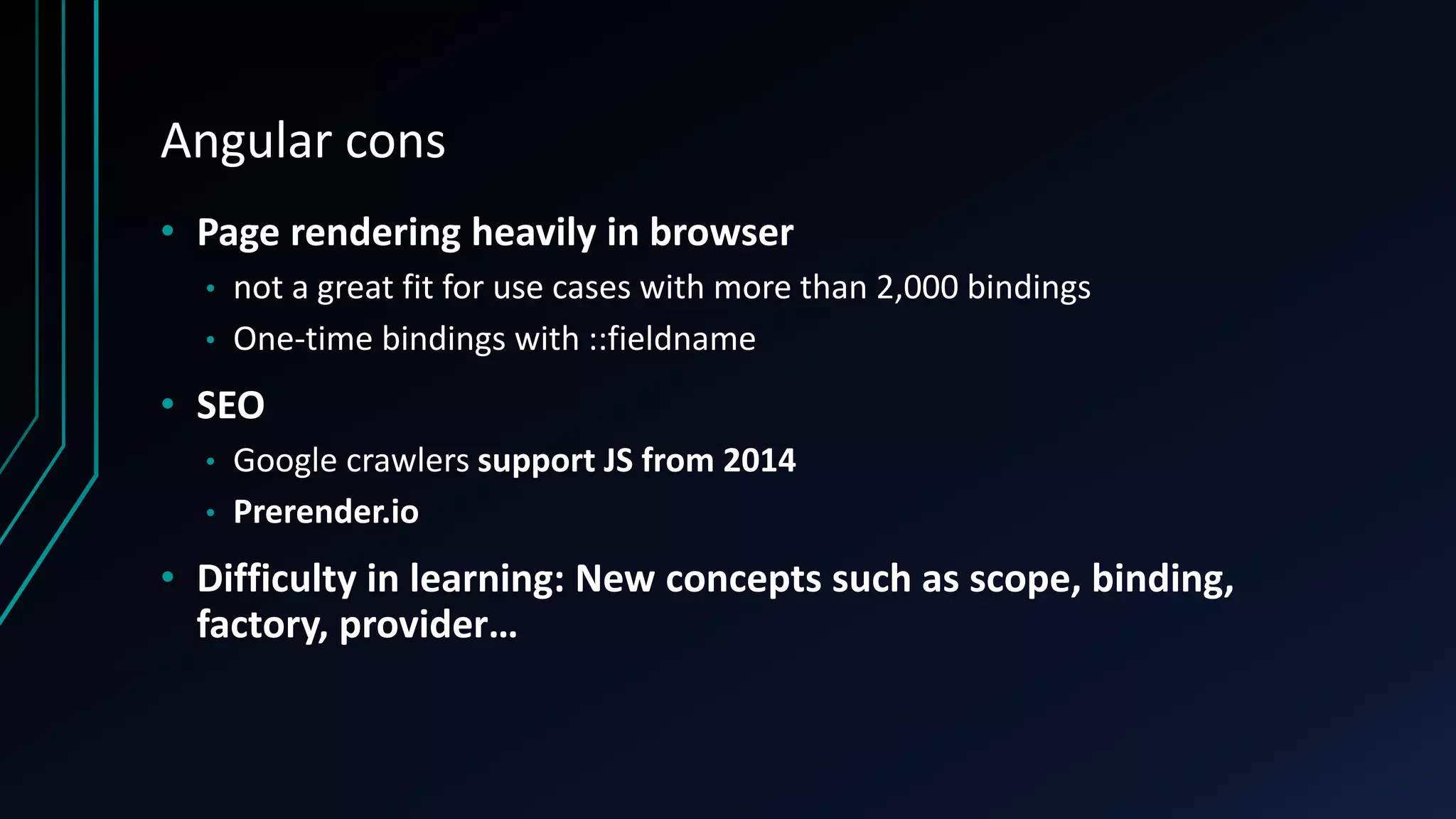

10. Angular cons
• Page rendering heavily in browser
• not a great fit for use cases with more than 2,000 bindings
• One-time bindings with ::fieldname
• SEO
• Google crawlers support JS from 2014
• Prerender.io
• Difficulty in learning: New concepts such as scope, binding,
factory, provider…

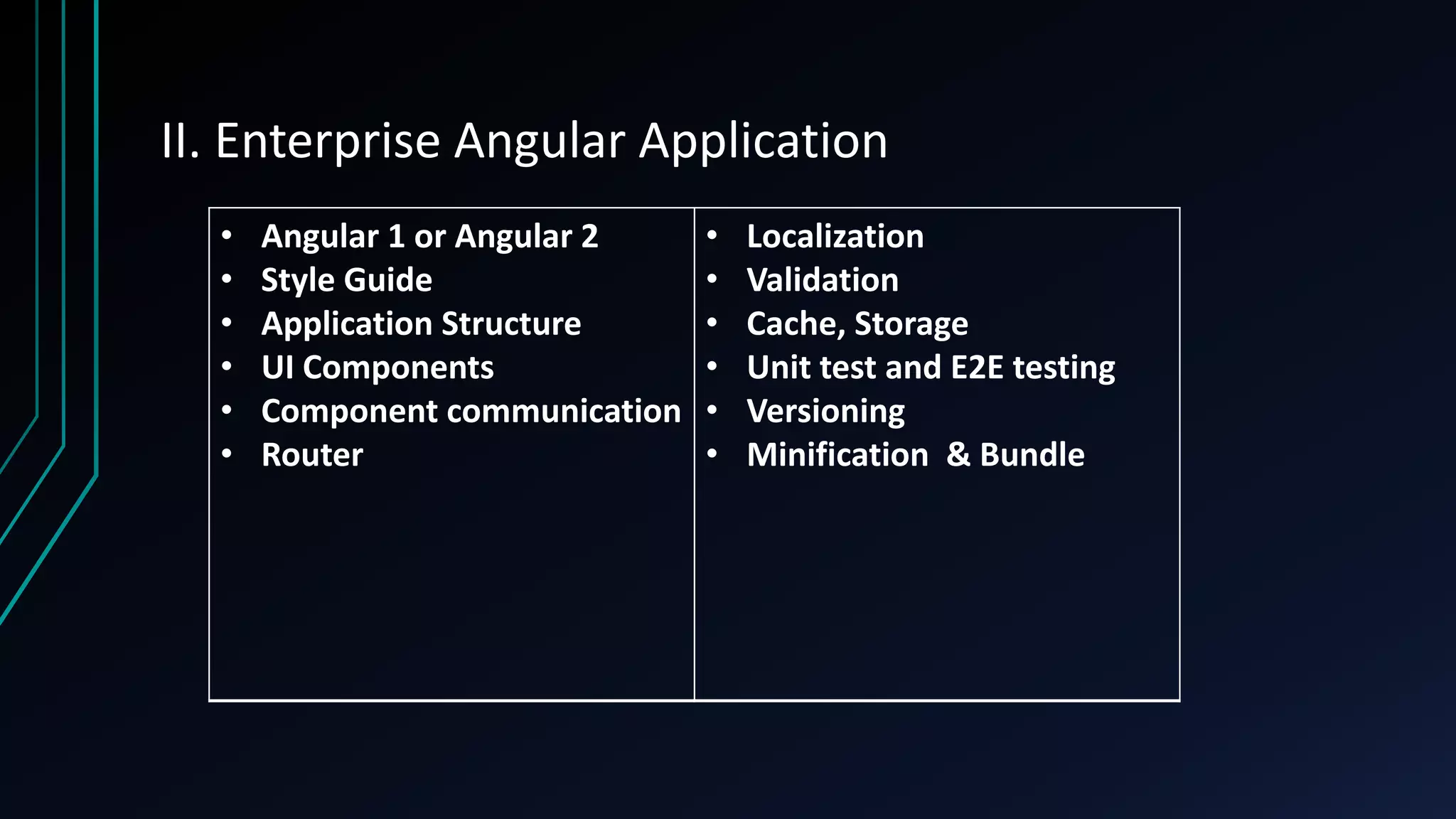

11. II. Enterprise Angular Application
• Angular 1 or Angular 2
• Style Guide
• Application Structure
• UI Components
• Component communication
• Router
• Localization
• Validation
• Cache, Storage
• Unit test and E2E testing
• Versioning
• Minification & Bundle

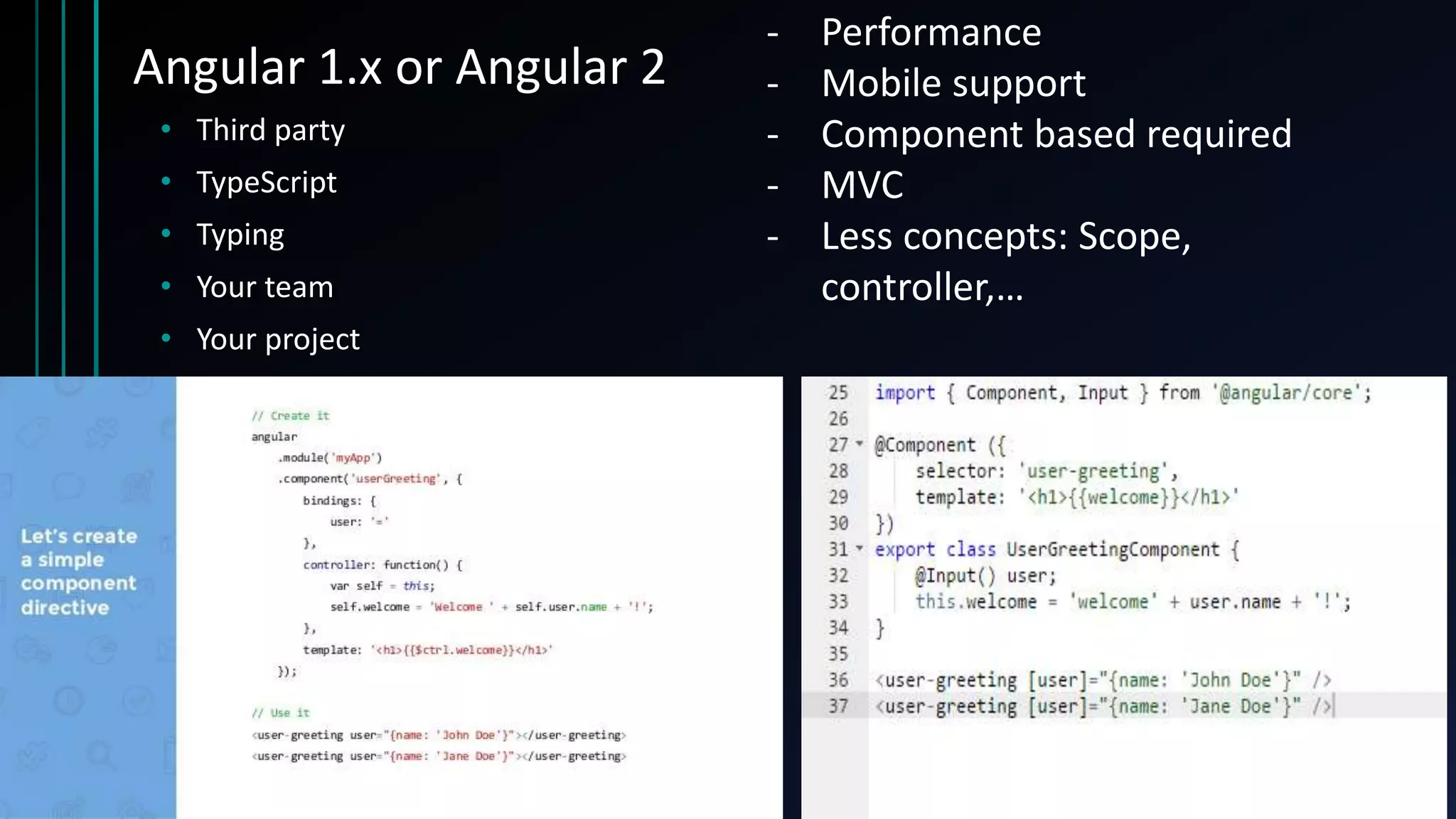

12. Angular 1.x or Angular 2
• Third party
• TypeScript
• Typing
• Your team
• Your project
- Performance
- Mobile support
- Component based required
- MVC
- Less concepts: Scope,
controller,…

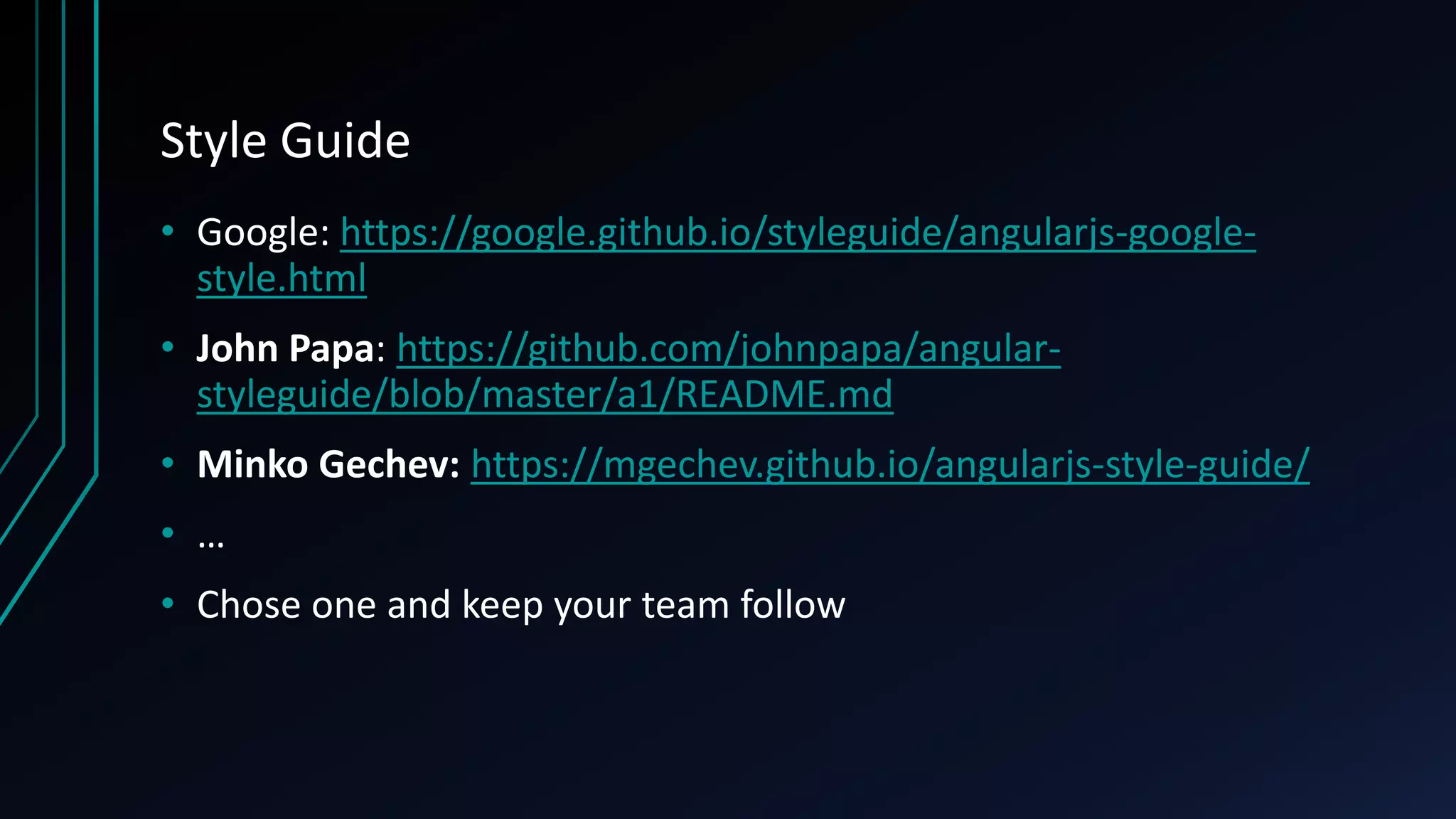

13. Style Guide
• Google: https://google.github.io/styleguide/angularjs-google-
style.html
• John Papa: https://github.com/johnpapa/angular-
styleguide/blob/master/a1/README.md
• Minko Gechev: https://mgechev.github.io/angularjs-style-guide/
• …
• Chose one and keep your team follow

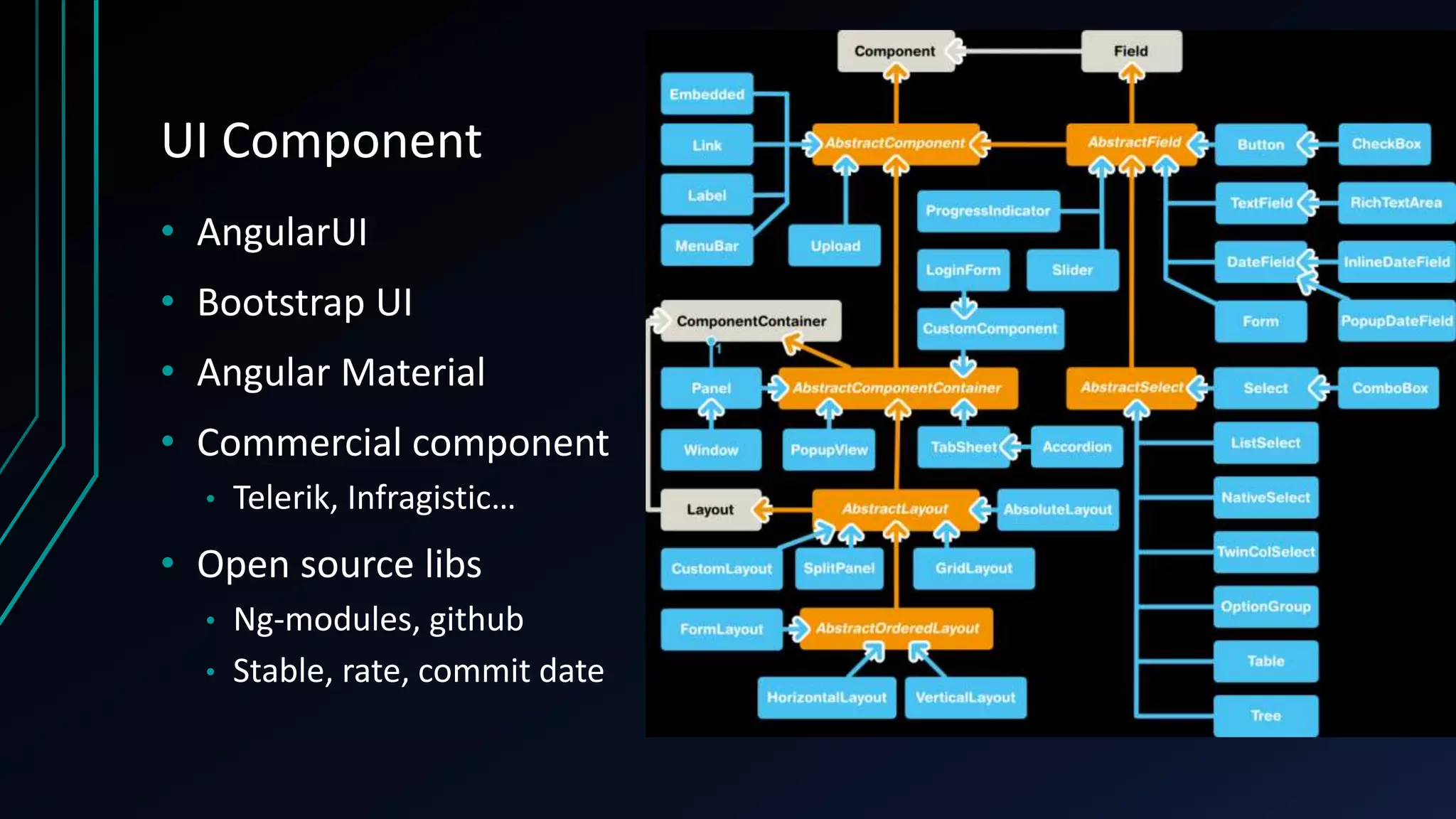

15. UI Component
• AngularUI
• Bootstrap UI
• Angular Material
• Commercial component
• Telerik, Infragistic…
• Open source libs
• Ng-modules, github
• Stable, rate, commit date

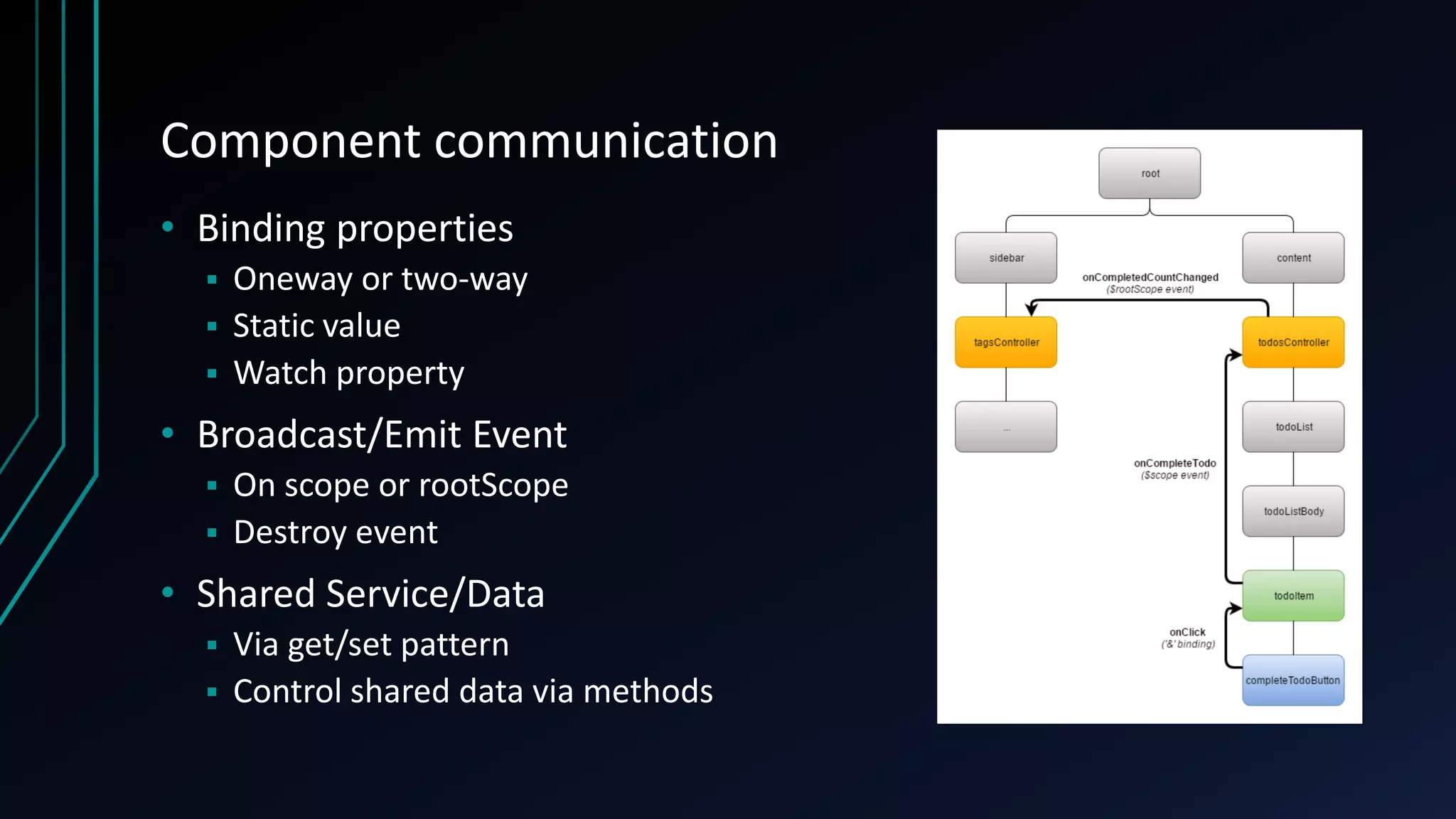

16. Component communication
• Binding properties
Oneway or two-way
Static value
Watch property
• Broadcast/Emit Event
On scope or rootScope
Destroy event
• Shared Service/Data
Via get/set pattern
Control shared data via methods

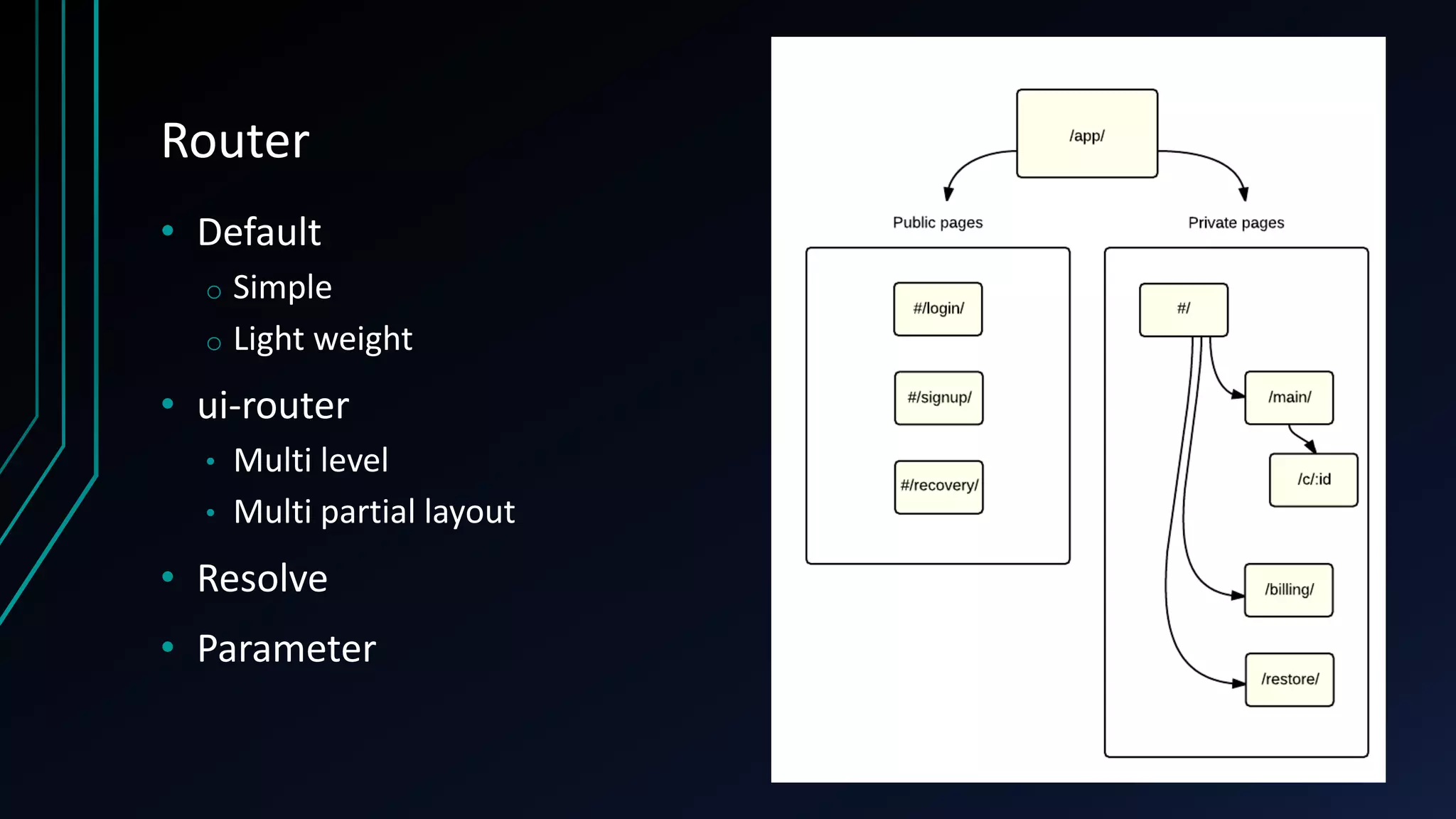

17. Router
• Default
o Simple
o Light weight
• ui-router
• Multi level
• Multi partial layout
• Resolve
• Parameter

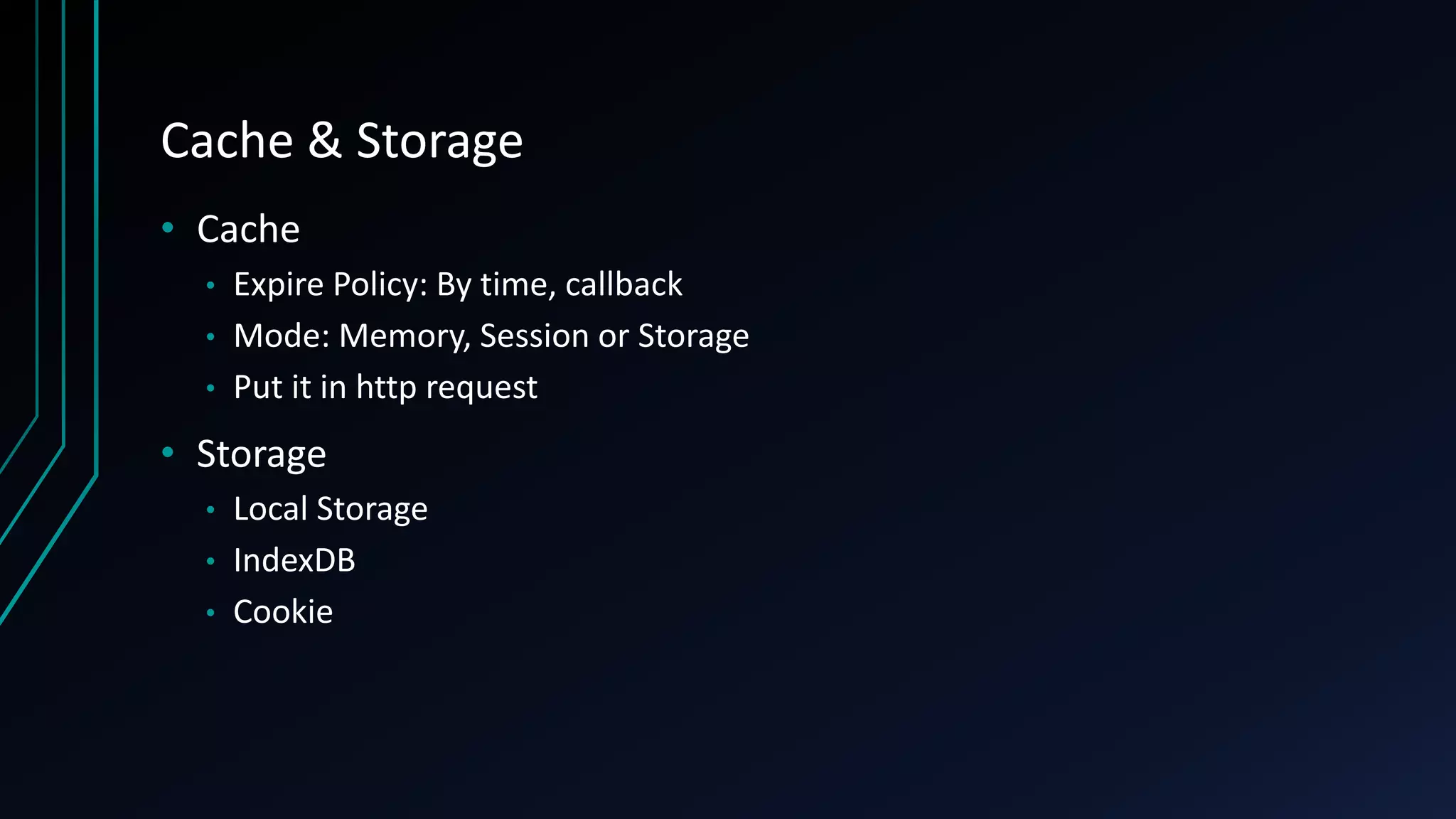

20. Cache & Storage
• Cache
• Expire Policy: By time, callback
• Mode: Memory, Session or Storage
• Put it in http request
• Storage
• Local Storage
• IndexDB
• Cookie

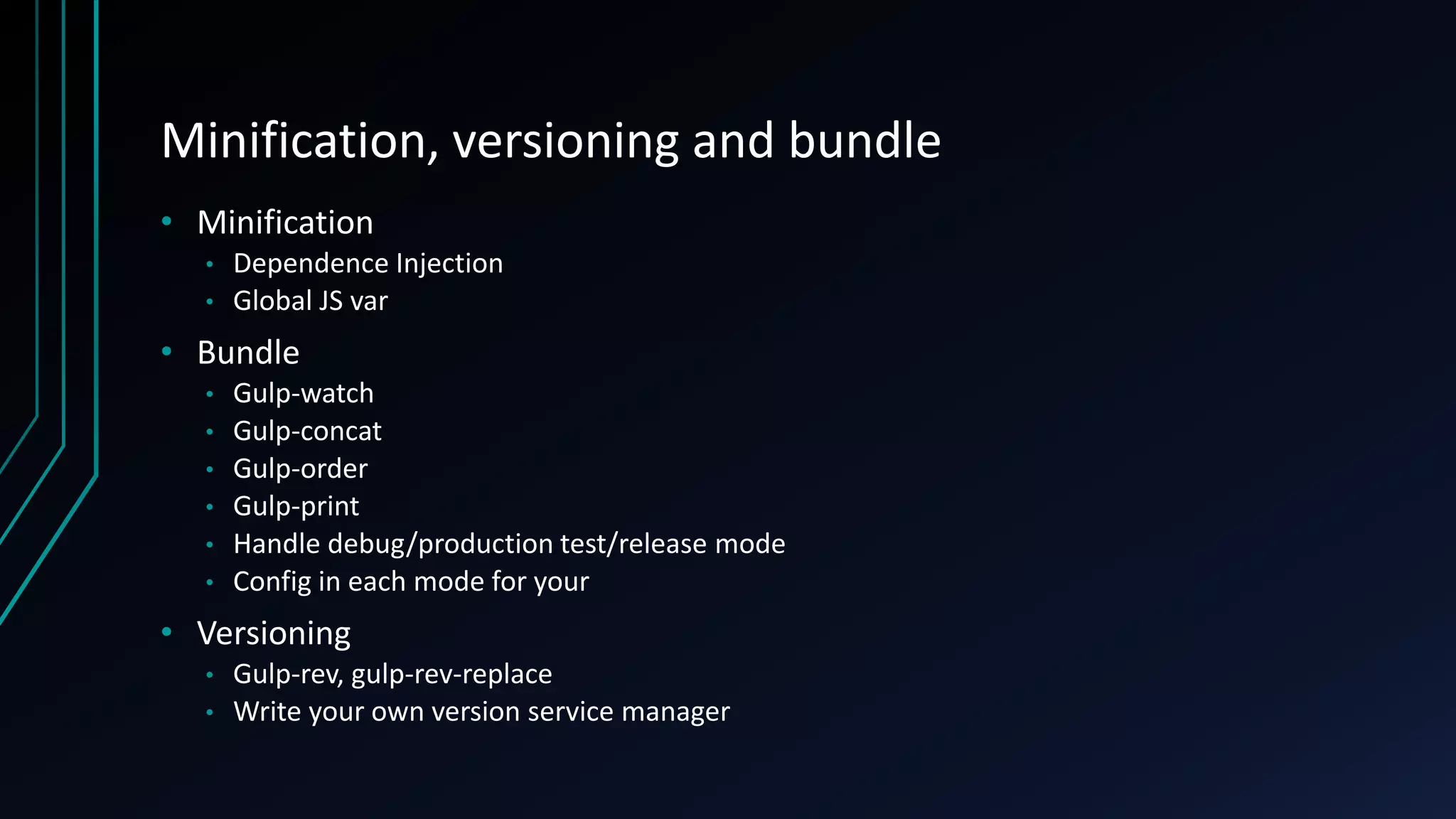

22. Minification, versioning and bundle
• Minification
• Dependence Injection
• Global JS var
• Bundle
• Gulp-watch
• Gulp-concat
• Gulp-order
• Gulp-print
• Handle debug/production test/release mode
• Config in each mode for your
• Versioning
• Gulp-rev, gulp-rev-replace
• Write your own version service manager
What happend if you need show todo-list for two people on same screen?
What happened if design said that they want have a class named as list-item because they already have that class
Imperative programmingA programming language that requires programming discipline such as C/C++, Java, COBOL, FORTRAN, Perl and JavaScript. Programmers writing in such languages must develop a proper order of actions in order to solve the problem, based on a knowledge of data processing and programming.
Declarative programmingA computer language that does not require writing traditional programming logic; Users concentrate on defining the input and output rather than the program steps required in a procedural programming language such as C++ or Java.
Declarative programming examples are CSS, HTML, XML, XSLT, RegX.
Directive: markers on DOM elements (such as elements, attributes, css, and more).

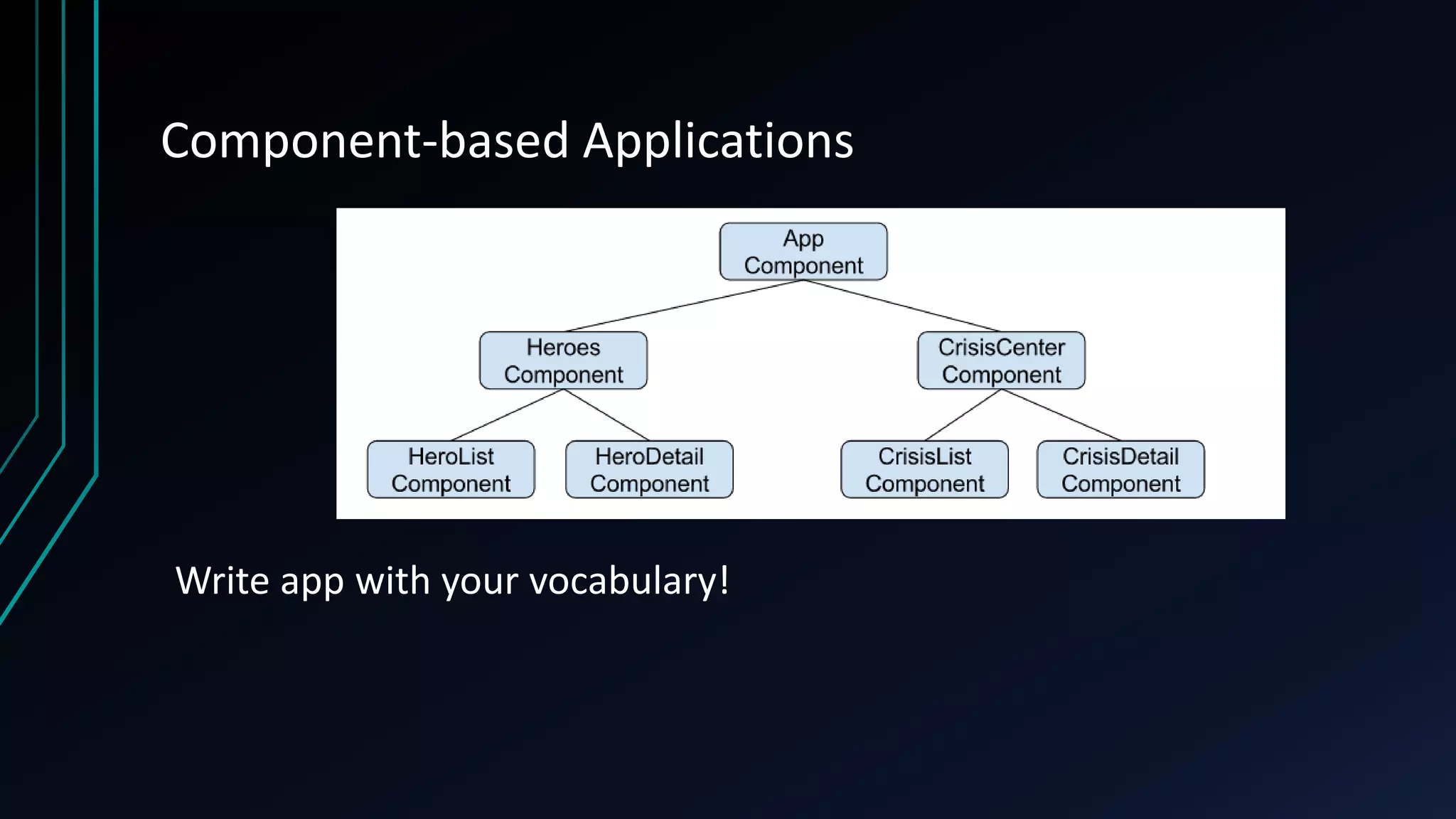

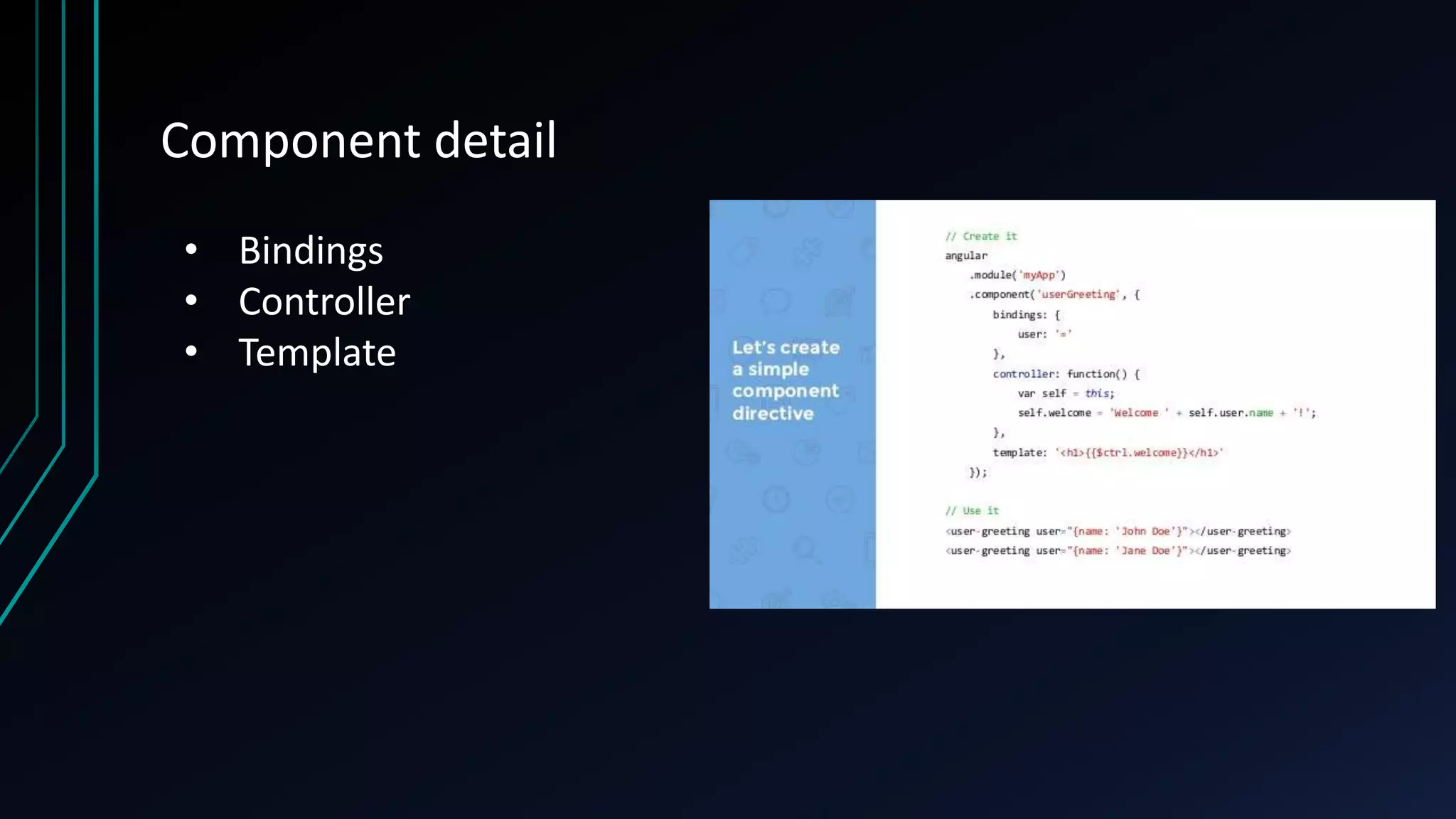

Component: a special kind of directive that uses a simpler configuration which is suitable for a component-based application structure.
Deep Linking − Deep linking allows you to encode the state of application in the URL so that it can be bookmarked. The application can then be restored from the URL to the same state.
Model View Whatever − MVC is a design pattern for dividing an application into different parts (called Model, View and Controller), each with distinct responsibilities. AngularJS does not implement MVC in the traditional sense, but rather something closer to MVVM (Model-View-ViewModel). The Angular JS team refers it humorously as Model View Whatever.
Dependency Injection: AngularJS has a built-in dependency injection subsystem that helps the developer by making the application easier to develop, understand, and test.
Model is where the application’s data objects are stored
Controller is the decision maker and the glue between the model and view.
View: what's presented to the users and how users interact with the app.
Advantages of Components:
simpler configuration than plain directives
promote sane defaults and best practices
optimized for component-based architecture
writing component directives will make it easier to upgrade to Angular 2
When not to use Components:
for directives that need to perform actions in compile and pre-link functions, because they aren't available
when you need advanced directive definition options like priority, terminal, multi-element
when you want a directive that is triggered by an attribute or CSS class, rather than an element
https://docs.angularjs.org/guide/component

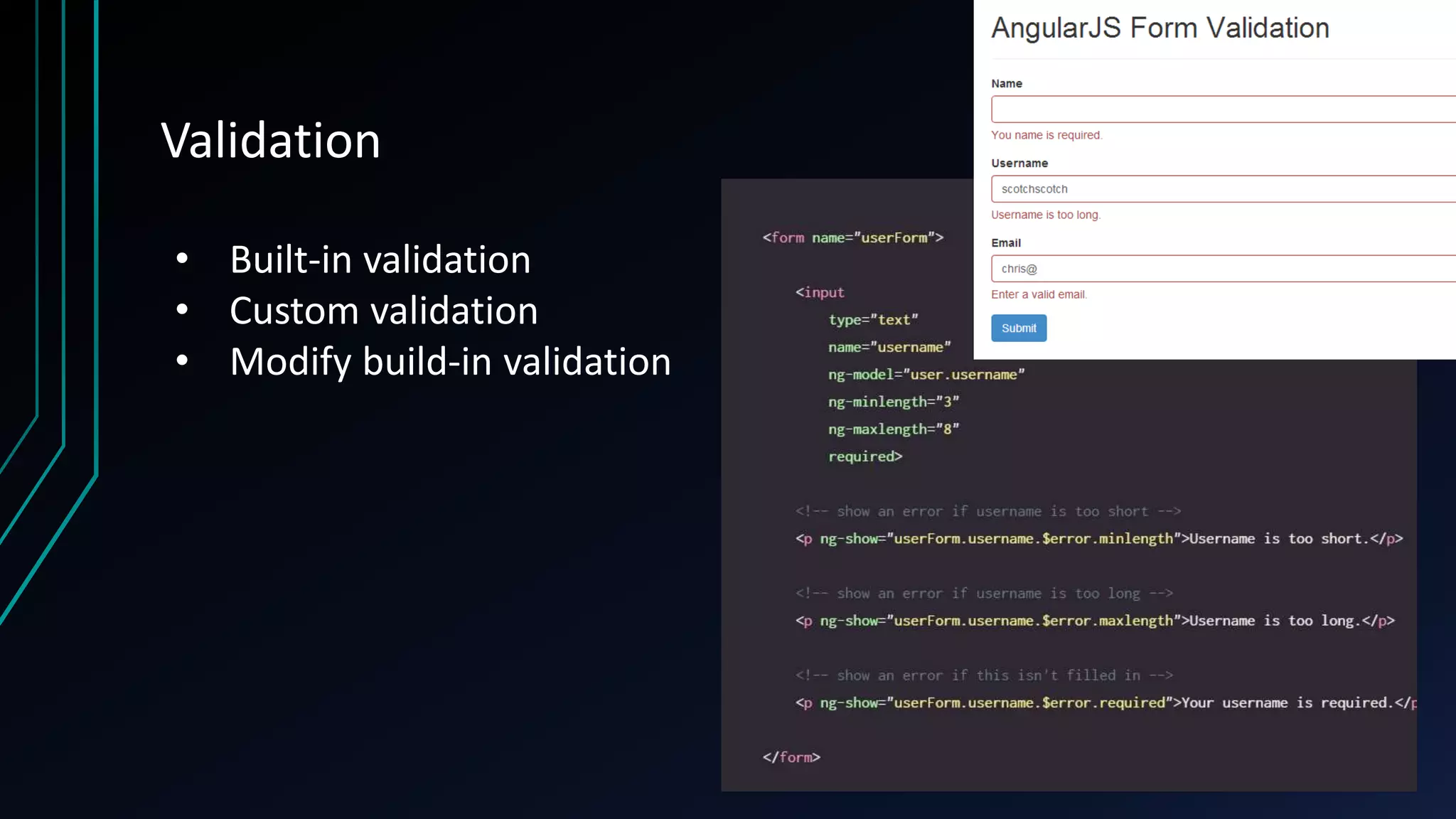

Angular provides basic implementation for most common HTML5 input types: (text, number, url, email, date, radio, checkbox), as well as some directives for validation (required, pattern, minlength, maxlength, min, max).
https://plnkr.co/edit/zNF3ZopeZHiel1TOpHpY?p=info
