This document provides specifications for Applied Motion Products' size 23 "E" series planetary gearheads. It lists available gearhead models with gear ratios ranging from 3:1 to 100:1, along with maximum continuous output torques and backlash specifications. A table shows rated torque capacities and inertias for each gearhead part number at various input speeds. A chart displays the estimated bearing life of a gearhead shaft under different radial and axial load conditions and operating speeds.

1. PLANETARY
GEARHEADS
20 404 WESTRIDGE DR. • WATSONVILLE, CA 95076 • (831) 761-6555 • (800) 525-1609 • FAX (831) 761-6544
http://www.applied-motion.com
APPLIED
MOTION
PRODUCTS
“L”
1.250
0.062
#605 WOODRUFF
0.2750.100 2.250
TYP
Ø3.050
Ø1.500/.1498
45°
Ø.6250/.6245
Ø1.501/1.503
10 – 24 UNC 2B
4 X .50 DEPTH
EQ SPACED ON
A Ø2.625 BC
Ø.203 4X THRU
EQ SPACED ON
A Ø2.625 BC
0.463

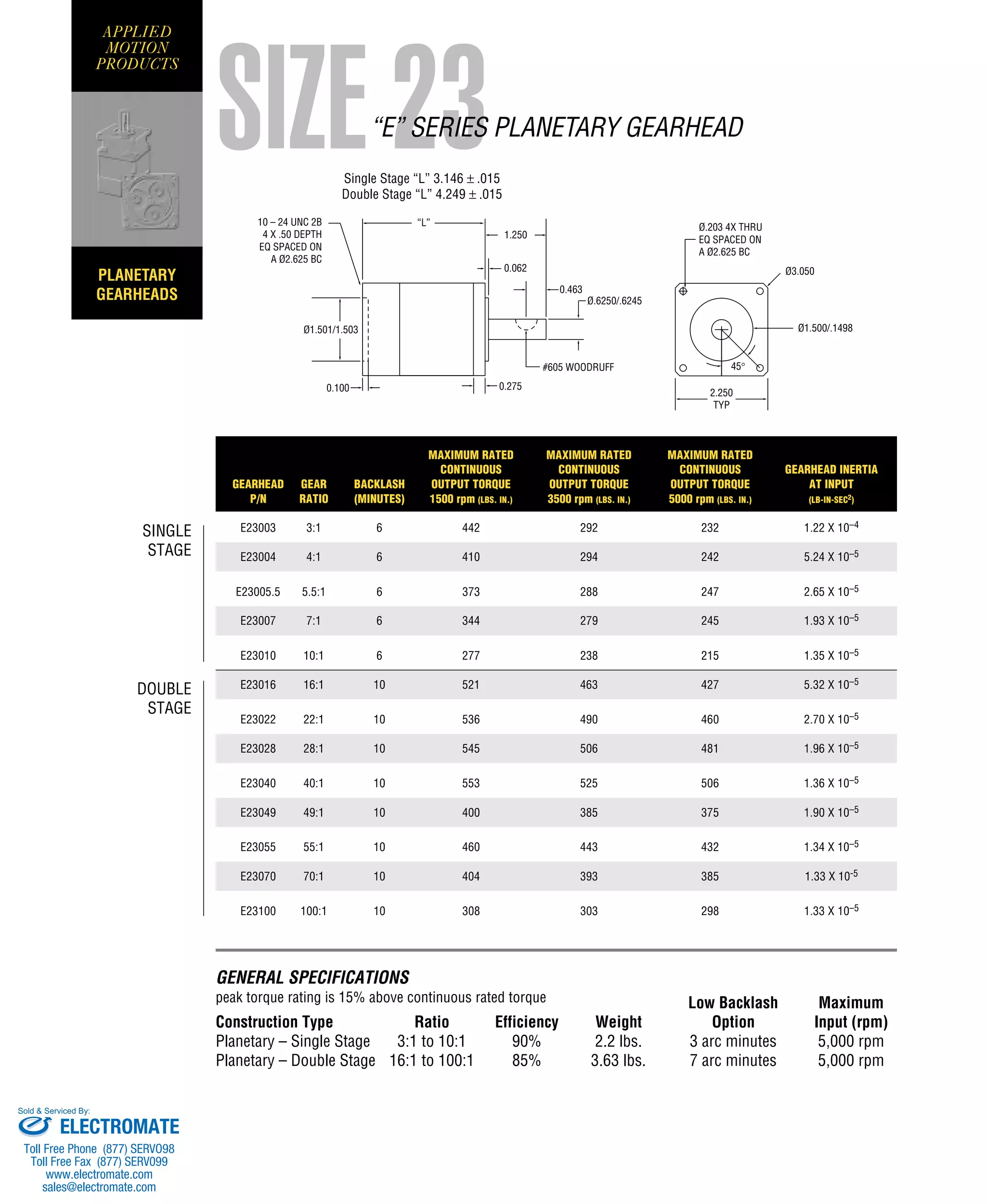

SIZE 23“E” SERIES PLANETARY GEARHEAD
Single Stage “L” 3.146 ± .015
Double Stage “L” 4.249 ± .015
GENERAL SPECIFICATIONS
peak torque rating is 15% above continuous rated torque Low Backlash Maximum
Construction Type Ratio Efficiency Weight Option Input (rpm)
Planetary – Single Stage 3:1 to 10:1 90% 2.2 lbs. 3 arc minutes 5,000 rpm
Planetary – Double Stage 16:1 to 100:1 85% 3.63 lbs. 7 arc minutes 5,000 rpm
SINGLE
STAGE
DOUBLE
STAGE
MAXIMUM RATED MAXIMUM RATED MAXIMUM RATED
CONTINUOUS CONTINUOUS CONTINUOUS GEARHEAD INERTIA
GEARHEAD GEAR BACKLASH OUTPUT TORQUE OUTPUT TORQUE OUTPUT TORQUE AT INPUT
P/N RATIO (MINUTES) 1500 rpm (LBS. IN.) 3500 rpm (LBS. IN.) 5000 rpm (LBS. IN.) (LB-IN-SEC2)
E23003 3:1 6 442 292 232 1.22 X 10–4
E23004 4:1 6 410 294 242 5.24 X 10–5
E23005.5 5.5:1 6 373 288 247 2.65 X 10–5
E23007 7:1 6 344 279 245 1.93 X 10–5
E23010 10:1 6 277 238 215 1.35 X 10–5
E23016 16:1 10 521 463 427 5.32 X 10–5
E23022 22:1 10 536 490 460 2.70 X 10–5
E23028 28:1 10 545 506 481 1.96 X 10–5
E23040 40:1 10 553 525 506 1.36 X 10–5
E23049 49:1 10 400 385 375 1.90 X 10–5
E23055 55:1 10 460 443 432 1.34 X 10–5
E23070 70:1 10 404 393 385 1.33 X 10-5
E23100 100:1 10 308 303 298 1.33 X 10–5
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com
Sold & Serviced By:

2. PLANETARY
GEARHEADS
21404 WESTRIDGE DR. • WATSONVILLE, CA 95076 • (831) 761-6555 • (800) 525-1609 • FAX (831) 761-6544
http://www.applied-motion.com
APPLIED
MOTION
PRODUCTS

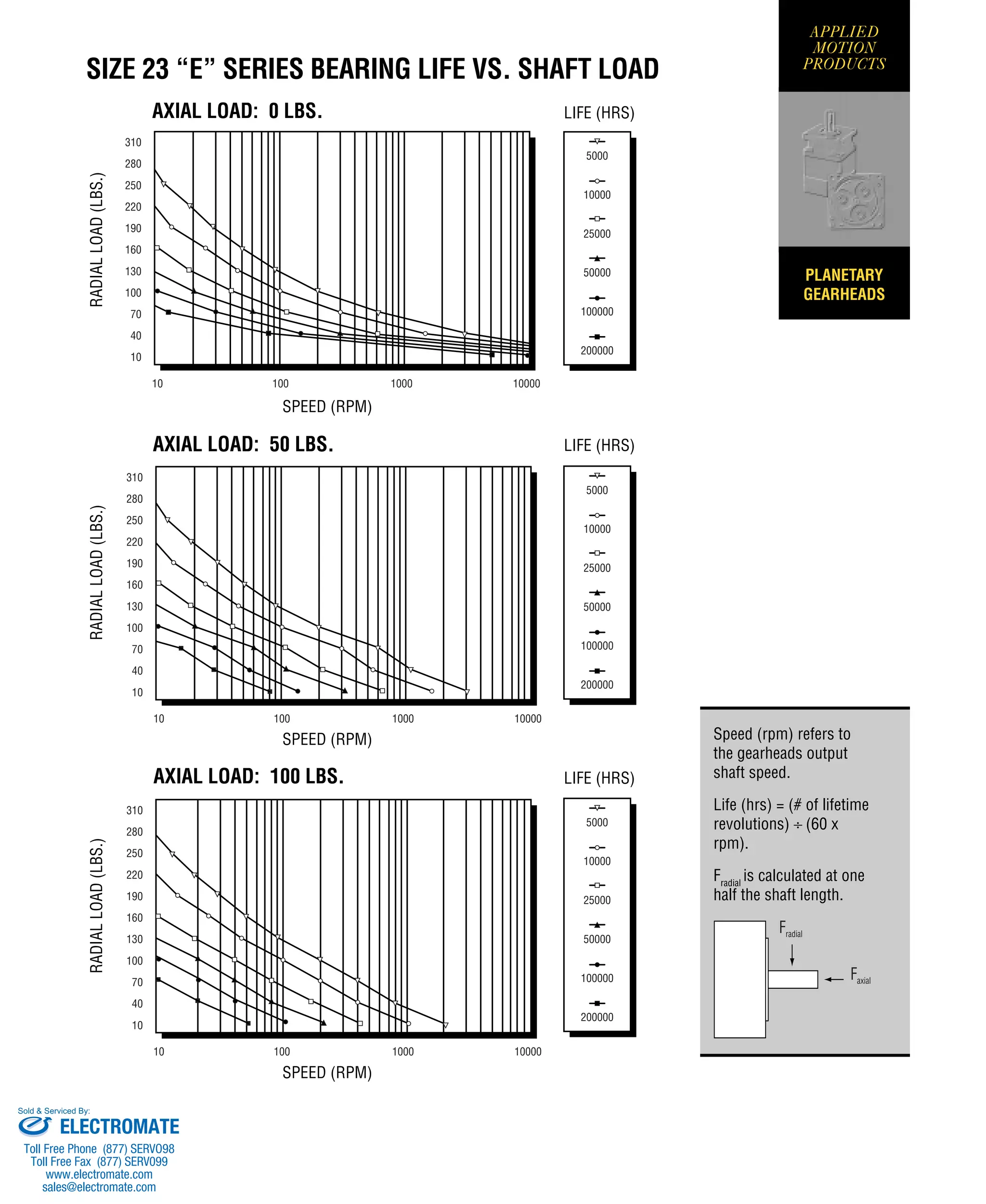

SIZE 23 “E” SERIES BEARING LIFE VS. SHAFT LOAD
