This document provides specifications for Applied Motion Products' 23 series right angle planetary gearheads. It lists general specifications such as construction type, ratio efficiency and weight. It also provides details on single stage and double stage gearhead dimensions and maximum rated inertia. A table lists part numbers, ratios, backlash, output torque and inertia for each gearhead model.

1. PLANETARY
GEARHEADS
35404 WESTRIDGE DR. • WATSONVILLE, CA 95076 • (831) 761-6555 • (800) 525-1609 • FAX (831) 761-6544
http://www.applied-motion.com
APPLIED
MOTION
PRODUCTS
“L”
0.100
Ø1.501
/1.503
10 – 24 UNC 2B
4X EQ SPACED
ON A Ø2.625 BC
.50 TRHD DEPTH
Ø3.050
Ø.201 4X THRU
EQ SPACED ON
A Ø2.625 BC
Ø1.500/.1498
45˚
2.250
TYP
0.062
1.250
2.976
1.658
1.933
3.251
3/16 X .50
KEYWAY
Ø.6250/.6245
0.275 TYP
.281

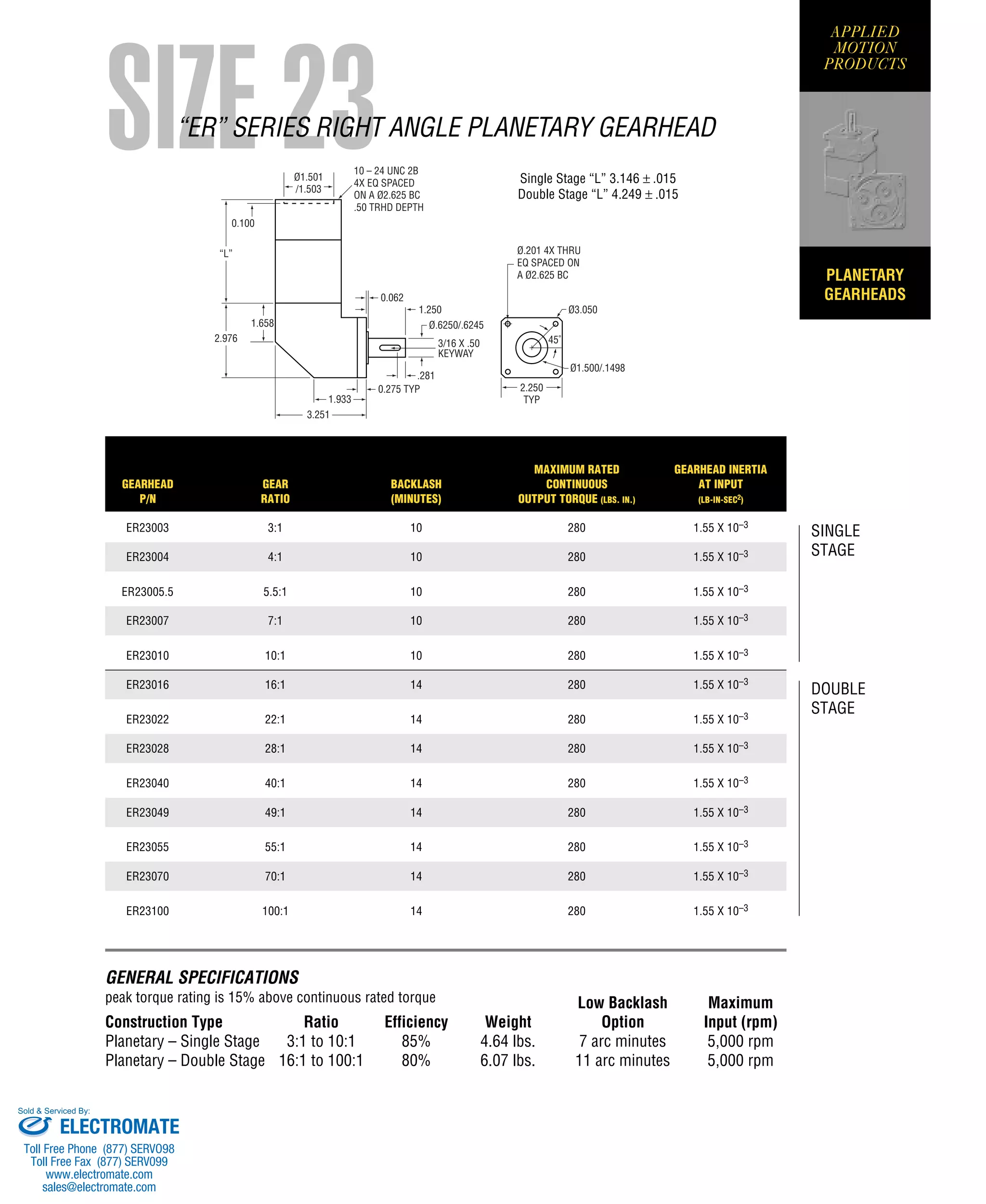

SIZE 23“ER” SERIES RIGHT ANGLE PLANETARY GEARHEAD
GENERAL SPECIFICATIONS
peak torque rating is 15% above continuous rated torque Low Backlash Maximum
Construction Type Ratio Efficiency Weight Option Input (rpm)
Planetary – Single Stage 3:1 to 10:1 85% 4.64 lbs. 7 arc minutes 5,000 rpm
Planetary – Double Stage 16:1 to 100:1 80% 6.07 lbs. 11 arc minutes 5,000 rpm
Single Stage “L” 3.146 ± .015
Double Stage “L” 4.249 ± .015
SINGLE
STAGE
DOUBLE
STAGE
MAXIMUM RATED GEARHEAD INERTIA
GEARHEAD GEAR BACKLASH CONTINUOUS AT INPUT
P/N RATIO (MINUTES) OUTPUT TORQUE (LBS. IN.) (LB-IN-SEC2)
ER23003 3:1 10 280 1.55 X 10–3
ER23004 4:1 10 280 1.55 X 10–3
ER23005.5 5.5:1 10 280 1.55 X 10–3
ER23007 7:1 10 280 1.55 X 10–3
ER23010 10:1 10 280 1.55 X 10–3
ER23016 16:1 14 280 1.55 X 10–3
ER23022 22:1 14 280 1.55 X 10–3
ER23028 28:1 14 280 1.55 X 10–3
ER23040 40:1 14 280 1.55 X 10–3
ER23049 49:1 14 280 1.55 X 10–3
ER23055 55:1 14 280 1.55 X 10–3
ER23070 70:1 14 280 1.55 X 10–3
ER23100 100:1 14 280 1.55 X 10–3
