This document provides specifications for planetary gearheads, including size, torque ratings, backlash, construction types, ratios, efficiencies, weights, input speeds, part numbers, and bearing life calculations for various radial loads, axial loads, and speeds. Planetary gearheads come in single-stage and double-stage models with ratio ranges from 4:1 to 100:1 and maximum input speeds of 5,000 rpm. Tables provide maximum output torques and part numbers for various gearhead ratios. Charts show the estimated bearing life in hours for combinations of radial load, axial load, and gearhead output shaft speed.

1. PLANETARY
GEARHEADS
30
APPLIED
MOTION
PRODUCTS
“L”
1.250
0.062
#404 WOODRUFF
0.250
0.150
3.250
TYP
Ø4.400
Ø2.873/2.875
45°
Ø2.876/2.878
10 – 24 UNC 2B
4 X .50 DEPTH
EQ SPACED ON
A Ø3.875 BC
Ø.201 4 X THRU
EQ SPACED ON
A Ø3.875 BC
0.375
Ø.5000/.4995

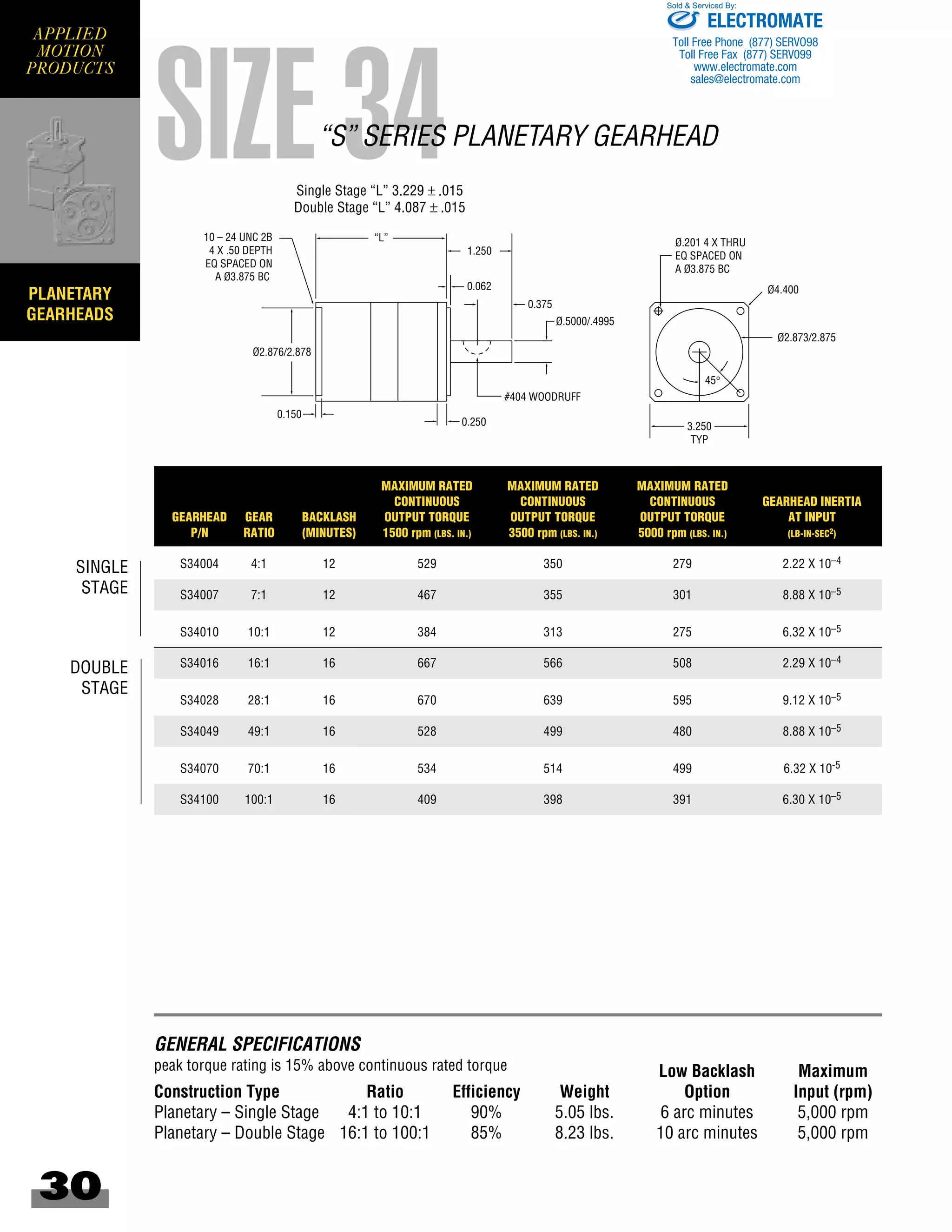

SIZE 34“S” SERIES PLANETARY GEARHEAD
Single Stage “L” 3.229 ± .015
Double Stage “L” 4.087 ± .015
GENERAL SPECIFICATIONS
peak torque rating is 15% above continuous rated torque Low Backlash Maximum
Construction Type Ratio Efficiency Weight Option Input (rpm)
Planetary – Single Stage 4:1 to 10:1 90% 5.05 lbs. 6 arc minutes 5,000 rpm
Planetary – Double Stage 16:1 to 100:1 85% 8.23 lbs. 10 arc minutes 5,000 rpm
SINGLE
STAGE
DOUBLE
STAGE
MAXIMUM RATED MAXIMUM RATED MAXIMUM RATED
CONTINUOUS CONTINUOUS CONTINUOUS GEARHEAD INERTIA
GEARHEAD GEAR BACKLASH OUTPUT TORQUE OUTPUT TORQUE OUTPUT TORQUE AT INPUT
P/N RATIO (MINUTES) 1500 rpm (LBS. IN.) 3500 rpm (LBS. IN.) 5000 rpm (LBS. IN.) (LB-IN-SEC2)
S34004 4:1 12 529 350 279 2.22 X 10–4
S34007 7:1 12 467 355 301 8.88 X 10–5
S34010 10:1 12 384 313 275 6.32 X 10–5
S34016 16:1 16 667 566 508 2.29 X 10–4
S34028 28:1 16 670 639 595 9.12 X 10–5
S34049 49:1 16 528 499 480 8.88 X 10–5
S34070 70:1 16 534 514 499 6.32 X 10-5
S34100 100:1 16 409 398 391 6.30 X 10–5
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com
Sold & Serviced By:

2. PLANETARY
GEARHEADS
31
APPLIED
MOTION
PRODUCTS

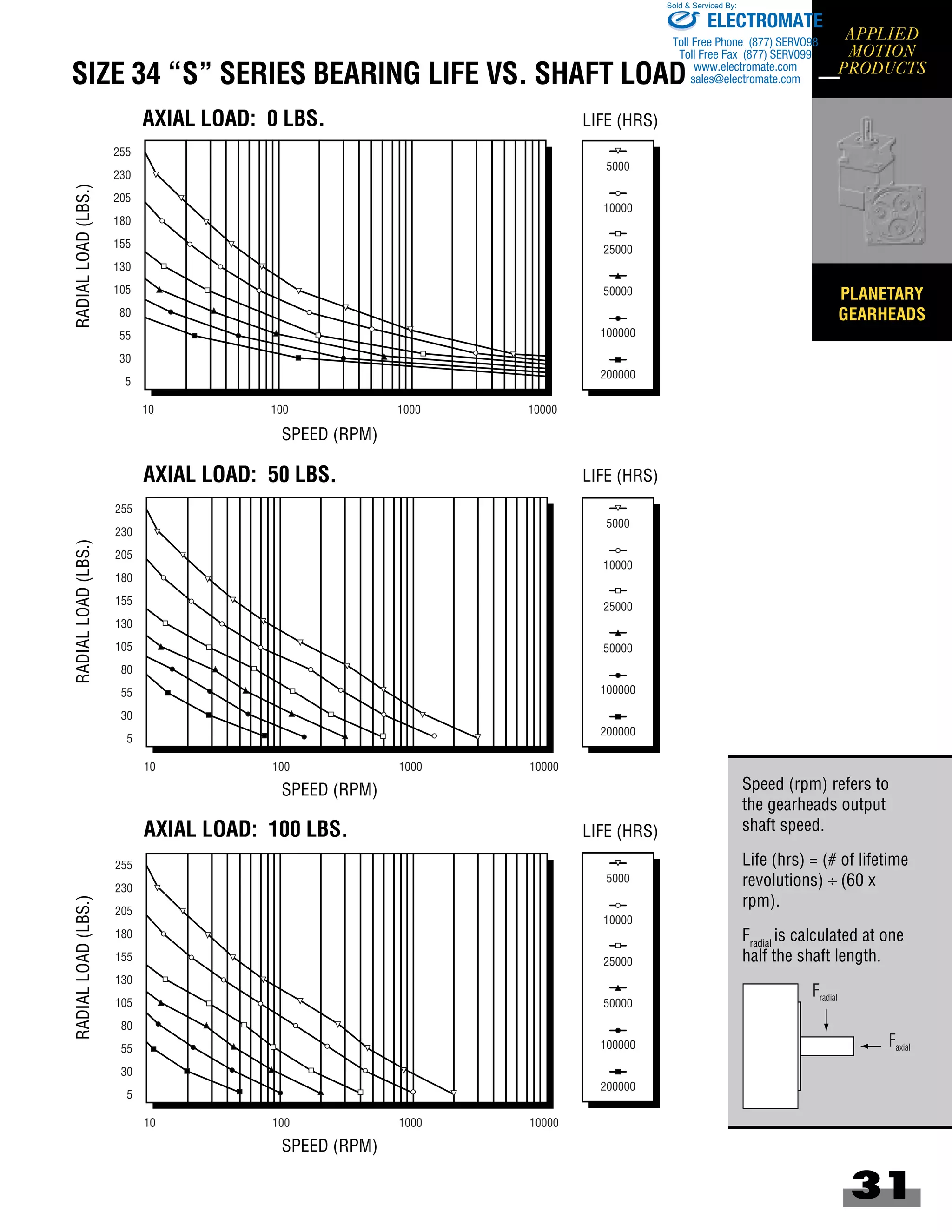

SIZE 34 “S” SERIES BEARING LIFE VS. SHAFT LOAD
AXIAL LOAD: 100 LBS.
SPEED (RPM)
RADIALLOAD(LBS.)
LIFE (HRS)
AXIAL LOAD: 50 LBS.
SPEED (RPM)
RADIALLOAD(LBS.)
LIFE (HRS)
SPEED (RPM)
RADIALLOAD(LBS.)
AXIAL LOAD: 0 LBS. LIFE (HRS)
5000
10000
25000
50000
100000
200000
5000
10000
25000
50000
100000
200000
5000
10000
25000
50000
100000
200000
255
230
205
180
155
130
105
80
55
30
5
10 100 1000 10000
255
230
205
180
155
130
105
80
55
30
5
10 100 1000 10000
255
230
205
180
155
130
105
80
55
30
5
10 100 1000 10000
Fradial
Faxial
Speed (rpm) refers to
the gearheads output
shaft speed.
Life (hrs) = (# of lifetime
revolutions) ÷ (60 x
rpm).
Fradial
is calculated at one
half the shaft length.
