Energy Audits
            &
  Renewable Energy
Potential Assessment

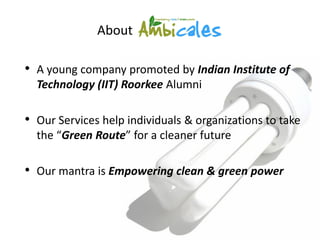

About

• A young company promoted by Indian Institute of
  Technology (IIT) Roorkee Alumni

• Our Services help individuals & organizations to take
  the “Green Route” for a cleaner future

• Our mantra is Empowering clean & green power

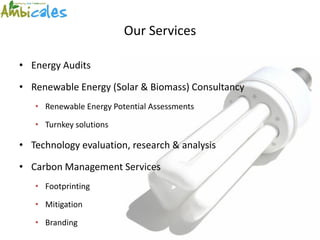

Our Services

• Energy Audits

• Renewable Energy (Solar & Biomass) Consultancy
   • Renewable Energy Potential Assessments

   • Turnkey solutions

• Technology evaluation, research & analysis

• Carbon Management Services
   • Footprinting

   • Mitigation

   • Branding
Energy Audits

Energy audits can be classified as under:
• Walk-through audit: A preliminary inspection of site to observe the
  various processes and identify glaring areas of energy waste or inefficiency

• General audit: A detailed inspection of all energy consuming processes
  backed up by past operating data. Identification of all energy conservation
  measures followed by detailed financial analysis for each measure

• Investment-grade audit: Projected operating savings from the
  implementation of energy projects are developed such that they provide a
  high level of confidence. Extensive attention is given to understanding not
  only the operating characteristics of all energy consuming systems, but
  also situations that cause load profile variations on short and long term
  basis.
Energy Audits

Effective energy management strategy
   • O&M recommendations

   • Adoption of energy efficient equipments

   • Analysis of energy demand growth

   • Consumption Optimization Training (COT)- Training personnel at site
     for good energy use practices
Methodology of energy audit


 Meeting with the
                             Identification of key      Meeting with the           Understanding the
 facility incharge &
                               personnel of the        personnel and their         functioning of the
 defining the scope
                                    facility                interview                    facility
        of work




Reviewing the data           Collection of facility
                                                                                      Collection of
    collected &               blueprints, both         Walk through survey
                                                                                    historical data of
 identifying focus             architectural &         of the whole facility
                                                                                  energy consumption
       areas                      electrical




                                                        Final presentation
Further investigation          Data Analysis &
                                                        about the audit to
   of focus areas            report preparation
                                                        facility incharge(s)




             Methodology followed in General Energy Audit & not in Preliminary Energy Audit
Renewable Energy Potential Assessment
                    (REPA)

Dependence on conventional energy can be greatly reduced with
the use of modern renewable energy systems.

Ambicales has worked extensively & studied about various
renewable energy technologies that can be applied for offsetting
conventional energy demand in buildings, school/college
campus, temples, industries, etc.

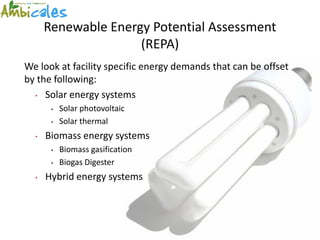

Renewable Energy Potential Assessment
                     (REPA)
We look at facility specific energy demands that can be offset
by the following:
  • Solar energy systems

       •   Solar photovoltaic
       •   Solar thermal
  •   Biomass energy systems
       •   Biomass gasification
       •   Biogas Digester
  •   Hybrid energy systems
Methodology of REPA



 Meeting with the
                          Identification of key    Meeting with the        Understanding the
 facility incharge &
                            personnel of the      personnel and their       various types of
defining the scope of
                                 facility              interview             energy usage
         work




  Reviewing data &
                                                                          Collection of historical
 finding compatible          Collection of
                                                  Walk through survey         data of energy
Renewable Energy &         architectural blue
                                                  of the whole facility   consumption & waste
   Waste to energy               prints
                                                                                generation
       systems




Surveying of potential
                                                   Final presentation
    location(s) for      Data Analysis & report
                                                   about the audit to
 installing RE & W2E          preparation
                                                   facility incharge(s)
        systems

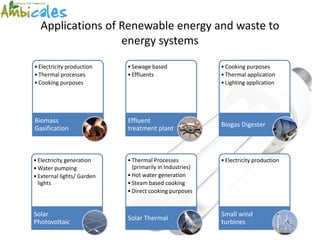

Applications of Renewable energy and waste to
                  energy systems
• Electricity production    • Sewage based                • Cooking purposes
• Thermal processes         • Effluents                   • Thermal application
• Cooking purposes                                        • Lighting application




Biomass                     Effluent
                                                          Biogas Digester
Gasification                treatment plant



• Electricity generation    • Thermal Processes           • Electricity production
• Water pumping               (primarily in Industries)
• External lights/ Garden   • Hot water generation
  lights                    • Steam based cooking
                            • Direct cooking purposes


Solar                                                     Small wind
                            Solar Thermal
Photovoltaic                                              turbines
Why

• Technical Support from IIT Delhi, IIT Roorkee, IIT Madras & IIT
  Kharagpur

• Extensively working in renewable & energy efficient
  technologies

• Field experience for Energy Audits & REPAs strengthen our
  Footprinting & Mitigation service profiles

• Ambicales has been profiled by Economic Times, Hindustan
  Times, JAM Magazine, Deccan Chronicle, etc
Projects served

                          • Pre-Feasibility Study for Energy Efficiency and Renewable Energy
 Yamaha, Faridabad          measures at Faridabad Plant



  The Doon School,        • Walk through audit and Renewable Energy Potential Assessment
                            (REPA) under Special Area Demonstration Project (SADP) by the
     Dehradun               Ministry of New and Renewable Energy (MNRE)

   Gurukul Kangadi        • Renewable Energy Potential Assessment (REPA) under Special
   Vishwavidyalaya,         Area Demonstration Project (SADP) by the Ministry of New and
       Haridwar             Renewable Energy (MNRE)


Winrock International     • Secondary research and analysis of energy saving equipments
                            for the SIDBI Financing Scheme for Energy Saving Projects in
       India                MSME Sector


Ankur Scientific Energy
                          • Marketing Outreach for North India for Biomass Gasifiers
Technologies Pvt. Ltd.
Projects served

    S.R. Corporate         • Uttarakhand Renewable Energy Masterplan Project
  Consultant (P) Ltd.


                           • Marketing Outreach for North India for Arun Solar (Solar
Clique Technologies Pvt.     Thermal system)



                           • Feasibility Study for 1 MW biomass based power plant in
Milestone Gears (P) Ltd.     Haryana



                           • Building Energy Audit; Building energy audit at CISF building,
  Epic Energy Limited        Patna

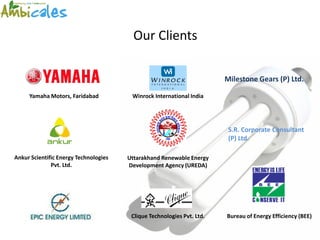

Our Clients

                                                                        Milestone Gears (P) Ltd.

     Yamaha Motors, Faridabad           Winrock International India




                                                                         S.R. Corporate Consultant
                                                                         (P) Ltd.

Ankur Scientific Energy Technologies   Uttarakhand Renewable Energy
              Pvt. Ltd.                Development Agency (UREDA)




                                        Clique Technologies Pvt. Ltd.   Bureau of Energy Efficiency (BEE)

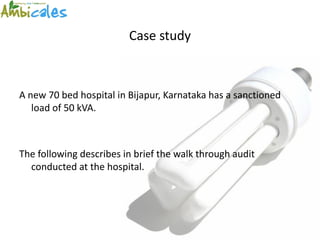

Case study



A new 70 bed hospital in Bijapur, Karnataka has a sanctioned
   load of 50 kVA.



The following describes in brief the walk through audit
  conducted at the hospital.

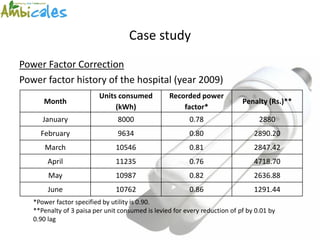

Case study
Power Factor Correction
Power factor history of the hospital (year 2009)
                          Units consumed          Recorded power
      Month                                                                 Penalty (Rs.)**
                               (kWh)                  factor*
      January                   8000                     0.78                     2880
     February                   9634                     0.80                   2890.20
       March                    10546                    0.81                   2847.42
        April                   11235                    0.76                   4718.70
        May                     10987                    0.82                   2636.88
        June                    10762                    0.86                   1291.44
   *Power factor specified by utility is 0.90.
   **Penalty of 3 paisa per unit consumed is levied for every reduction of pf by 0.01 by
   0.90 lag

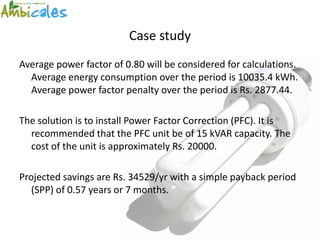

Case study
Average power factor of 0.80 will be considered for calculations.
  Average energy consumption over the period is 10035.4 kWh.
  Average power factor penalty over the period is Rs. 2877.44.

The solution is to install Power Factor Correction (PFC). It is
  recommended that the PFC unit be of 15 kVAR capacity. The
  cost of the unit is approximately Rs. 20000.

Projected savings are Rs. 34529/yr with a simple payback period
   (SPP) of 0.57 years or 7 months.
Case study
Motor Load Test
A detailed motor load study was undertaken on all continuously
   operating motors, with help of clamp on energy meter to
   measure instantaneous parameters.
Star mode operation of under loaded motors (which are loaded
   below 45 % of the rated capacity) results in improved
   operating efficiency.
The following motors at the hospital were under-loaded
                 Rated Power    Actual Power   Power after star   Saving potential
    Motor
                     (kW)           (kW)       connection (kW)         (kW)
Basement water
                    3.72            1.4             0.47               0.93
  pumping 1
Basement water
                     1.5            0.52            0.17               0.35
  pumping 2

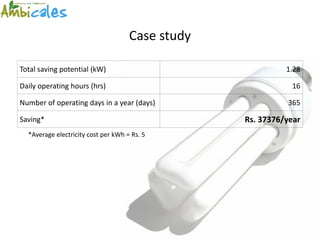

Case study

Total saving potential (kW)                                 1.28

Daily operating hours (hrs)                                  16

Number of operating days in a year (days)                   365

Saving*                                           Rs. 37376/year
  *Average electricity cost per kWh = Rs. 5
Equipments required for Energy Audit
      Lux meter x 2

      Digital power analyser

      Steam and air leak detector

      Vane type Anemometer

      Flow meter x 2

      Clamp-on power meter

      Digital tachometer

      Digital hygrometer
Costs
• Equipment cost for complete building energy audit
  (electrical and HVAC)
   – Rs. 8 lakhs
• Ambicales costs
   – Fixed cost Rs. 20,000/-
   – Rs. 25/m2 – Rs. 30/m2 of built up area
Web:     www.ambicales.com

Email:   info@ambicales.com

Contact: +91-9718800615
         +91-9811708911

Address: H -5/56,
         Near Ryan International School.
         Sector 11,
         Rohini ,
         New Delhi- 85
