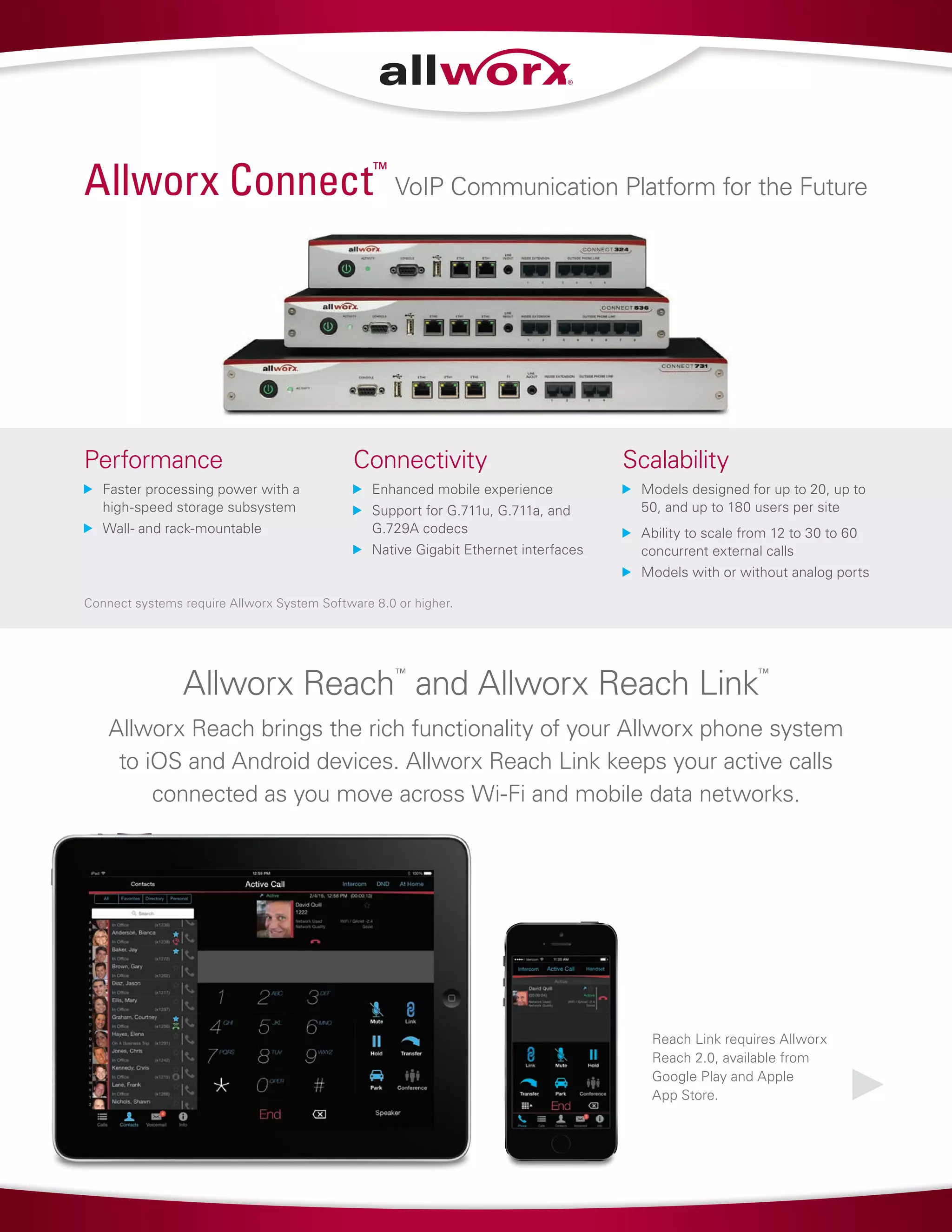

Allworx Reach and Reach Link allow users to access an Allworx phone system from iOS and Android devices. Reach Link keeps calls connected across Wi-Fi and mobile networks. The document also provides specifications for different Allworx Connect systems that are designed for small to large businesses.

1. Allworx Reach
™
and Allworx Reach Link
™
Allworx Reach brings the rich functionality of your Allworx phone system
to iOS and Android devices. Allworx Reach Link keeps your active calls
connected as you move across Wi-Fi and mobile data networks.
Performance
Faster processing power with a
high-speed storage subsystem
Wall- and rack-mountable
Connectivity
Enhanced mobile experience
Support for G.711u, G.711a, and
G.729A codecs
Native Gigabit Ethernet interfaces
Scalability
Models designed for up to 20, up to
50, and up to 180 users per site
Ability to scale from 12 to 30 to 60
concurrent external calls
Models with or without analog ports
Allworx Connect™
VoIP Communication Platform for the Future
Reach Link requires Allworx
Reach 2.0, available from
Google Play and Apple
App Store.
Connect systems require Allworx System Software 8.0 or higher.

2. ©2015AllworxCorp,aWindstreamcompany.Allrightsreserved.Allothernamesmaybetrademarksorregisteredtrademarksoftheirrespectiveowners.
Call us at 1-866-ALLWORX and we’ll help you select the right solution for your business.
1-866-ALLWORXwww.allworx.com
731 536 530 324 320
SYSTEM FEATURES
Maximum Users1
180 50 50 20 20
Base Users 30 30 30 12 12
Concurrent External Calls 60 30 30 12 12
Maximum Handsets 360 100 100 40 40
FXO Ports 2 6 0 4 0
FXS Ports 2 2 2 2 2
T1 Port1
1 0 0 0 0
Network Ports 3 3 3 2 2
Conference Bridges1
4 1 1 1 1
Users per Bridge 30 8 8 8 8
Concurrent Users on All Bridges 30 8 8 8 8
Calls in all Queues 60 30 30 12 12
Calls per Queue 60 30 30 12 12
Number of Queues 10 10 10 10 10
Voicemail Ports 15 8 8 4 4
Unified Messaging Included Included Included Included Included
Auto Attendants 9 9 9 9 9
Auto Attendant Ports 16 8 8 4 4
Presence Settings 7 7 7 7 7
Customized Call Routing Included Included Included Included Included
Remote IP Phones Included Included Included Included Included
Hot Desking Included Included Included Included Included
VoIP with SIP support Included Included Included Included Included
SUPPORTED ADVANCED SOF T WARE OPTIONS
Multi-Site Primary     
Multi-Site Branch     
Call Queuing     
Automatic Call Distribution (ACD)   

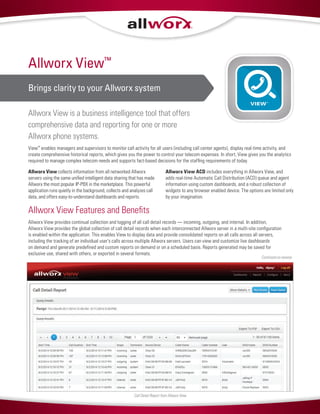

View     
View ACD   
Conference Center     
Dual Language Support     
Mobile VM2
    
Reach 2.0     
Reach Link     
Interact 2.0     
TSP (TAPI) Driver     
Generic SIP Device     

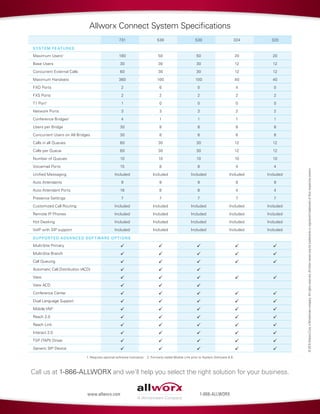

Allworx Connect System Specifications
1. Requires optional software license(s). 2. Formerly called Mobile Link prior to System Software 8.0.

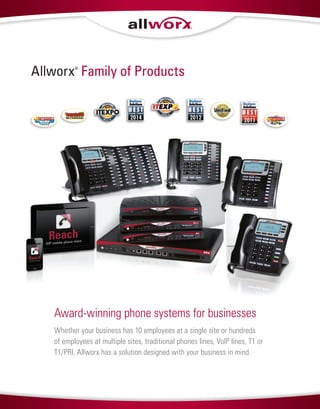

3. Allworx®
Family of Products
Whether your business has 10 employees at a single site or hundreds
of employees at multiple sites, traditional phones lines, VoIP lines, T1 or
T1/PRI, Allworx has a solution designed with your business in mind.
Award-winning phone systems for businesses
2011

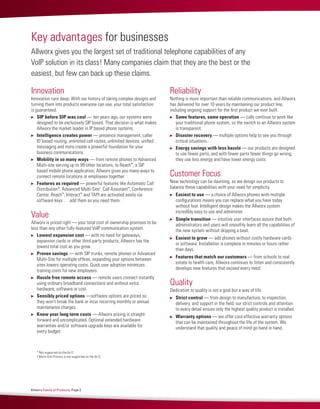

4. Innovation
Innovation runs deep. With our history of taking complex designs and
turning them into products everyone can use, your total satisfaction
is guaranteed.
SIP before SIP was cool — ten years ago, our systems were
designed to be exclusively SIP based. That decision is what makes
Allworx the market leader in IP based phone systems.
Intelligence creates power — presence management, caller
ID based routing, unlimited call routes, unlimited devices, unified
messaging and more create a powerful foundation for your
business communications.
Mobility in so many ways — from remote phones to Advanced
Multi-site serving up to 99 other locations, to Reach™
, a SIP
based mobile phone application, Allworx gives you many ways to
connect remote locations or employees together.
Features as required — powerful features like Automatic Call
Distribution*, Advanced Multi-Site†
, Call Assistant™
, Conference
Center, Reach™
, Interact™
and TAPI are activated easily via
software keys … add them as you need them.
Value
Allworx is priced right — your total cost of ownership promises to be
less than any other fully-featured VoIP communication system.
Lowest expansion cost — with no need for gateways,
expansion cards or other third-party products, Allworx has the
lowest total cost as you grow.
Proven savings — with SIP trunks, remote phones or Advanced
Multi-Site for multiple offices, expanding your options between
sites lowers operating costs. Quick user adoption minimizes
training costs for new employees.
Hassle free remote access — remote users connect instantly
using ordinary broadband connections and without extra
hardware, software or cost.
Sensibly priced options —software options are priced so
they won’t break the bank or incur recurring monthly or annual
maintenance charges.
Know your long term costs — Allworx pricing is straight-
forward and uncomplicated. Optional extended hardware
warranties and/or software upgrade keys are available for
every budget.
Reliability
Nothing is more important than reliable communications, and Allworx
has delivered for over 10 years by maintaining our product line,
including ongoing support for the first product we ever built.
Same features, same operation — calls continue to work like
your traditional phone system, so the switch to an Allworx system
is transparent.
Disaster recovery — multiple options help to see you through
critical situations.
Energy savings with less hassle — our products are designed
to use fewer parts, and with fewer parts fewer things go wrong,
they use less energy and have lower energy costs.
Customer Focus
New technology can be daunting, so we design our products to
balance these capabilities with your need for simplicity.
Easiest to use — a choice of Allworx phones with multiple
configurations means you can replace what you have today
without fear. Intelligent design makes the Allworx system
incredibly easy to use and administer.
Simple transition — intuitive user interfaces assure that both
administrators and users will smoothly learn all the capabilities of
the new system without skipping a beat.
Easiest to grow — add phones without costly hardware cards
or software. Installation is complete in minutes or hours rather
than days.
Features that match our customers — from schools to real
estate to health care, Allworx continues to listen and consistently
develops new features that exceed every need.
Quality
Dedication to quality is not a goal but a way of life.
Strict control — from design to manufacture, to inspection,
delivery, and support in the field, our strict controls and attention
to every detail ensure only the highest quality product is installed.
Warranty options — we offer cost-effective warranty options
that can be maintained throughout the life of the system. We
understand that quality and peace of mind go hand in hand.
Key advantages for businesses
Allworx gives you the largest set of traditional telephone capabilities of any
VoIP solution in its class! Many companies claim that they are the best or the
easiest, but few can back up these claims.
* Not supported on the 6x12
† Multi-Site Primary is not supported on the 6x12
Allworx Family of Products, Page 2

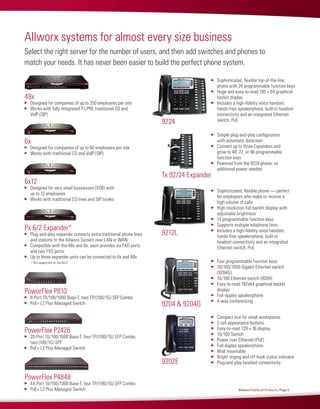

5. Allworx Family of Products, Page 3
48x
Designed for companies of up to 250 employees per site
Works with fully integrated T1/PRI, traditional CO and
VoIP (SIP)
PowerFlex P810
8-Port 10/100/1000 Base-T, two TP/(100/1G) SFP Combo
PoE+ L2 Plus Managed Switch
6x
Designed for companies of up to 60 employees per site
Works with traditional CO and VoIP (SIP)
PowerFlex P2426
20-Port 10/100/1000 Base-T, four TP/(100/1G) SFP Combo,
two (100/1G) SFP
PoE+ L2 Plus Managed Switch
6x12
Designed for very small businesses (VSB) with
up to 12 employees
Works with traditional CO lines and SIP trunks
PowerFlex P4848
44-Port 10/100/1000 Base-T, four TP/(100/1G) SFP Combo
PoE+ L2 Plus Managed Switch
Px 6/2 Expander*
Plug-and-play expander connects extra traditional phone lines
and stations to the Allworx System over LAN or WAN
Compatible with the 48x and 6x, each provides six FXO ports
and two FXS ports
Up to three expander units can be connected to 6x and 48x
* Not supported on the 6x12
Sophisticated, flexible top-of-the-line
phone with 24 programmable function keys
Huge and easy-to-read 192 × 64 graphical
backlit display
Includes a high-fidelity voice handset,
hands-free speakerphone, built-in headset
connectivity and an integrated Ethernet
switch, PoE9224
Simple plug-and-play configuration
with automatic detection
Connect up to three Expanders and
grow to 48, 72, or 96 programmable
function keys
Powered from the 9224 phone, no
additional power needed
Tx 92/24 Expander
Sophisticated, flexible phone — perfect
for employees who make or receive a
high volume of calls
High resolution full backlit display with
adjustable brightness
12 programmable function keys
Supports multiple telephone lines
Includes a high-fidelity voice handset,
hands-free speakerphone, built-in
headset connectivity and an integrated
Ethernet switch, PoE
9212L
Four programmable function keys
10/100/1000 Gigabit Ethernet switch
(9204G)
10/100 Ethernet switch (9204)
Easy-to-read 192x64 graphical backlit
display
Full-duplex speakerphone
4-way conferencing
9204 9204G
Compact size for small workspaces
2 call appearance buttons
Easy-to-read 128 × 36 display
10/100 Switch
Power over Ethernet (PoE)
Full-duplex speakerphone
Wall mountable
Bright ringing and off hook status indicator
Plug-and-play headset connectivity9202E
Allworx systems for almost every size business
Select the right server for the number of users, and then add switches and phones to
match your needs. It has never been easier to build the perfect phone system.

6. Allworx Family of Products, Page 4

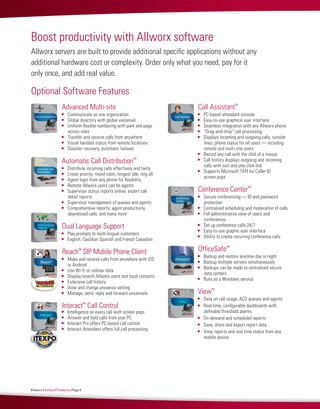

Boost productivity with Allworx software
Allworx servers are built to provide additional specific applications without any
additional hardware cost or complexity. Order only what you need, pay for it
only once, and add real value.
Advanced Multi-site
Communicate as one organization
Global directory with global voicemail
Uniform flexible numbering with park and page
across sites
Transfer and receive calls from anywhere
Visual handset status from remote locations
Disaster recovery, automatic failover
Automatic Call Distribution™
Distribute incoming calls effectively and fairly
Linear priority, round robin, longest idle, ring all
Agent login from any phone for flexibility
Remote Allworx users can be agents
Supervisor status reports online; export call
detail reports
Supervisor management of queues and agents
Comprehensive reports: agent productivity,
abandoned calls, and many more
Dual Language Support
Play prompts to multi-lingual customers
English, Castilian Spanish and French Canadian

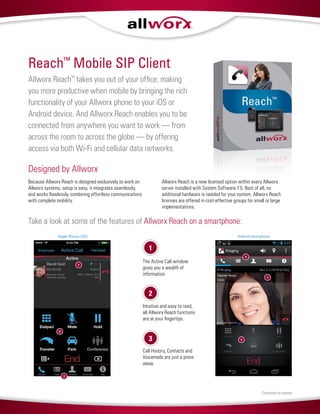

Reach™
SIP Mobile Phone Client
Make and receive calls from anywhere with iOS
or Android
Use Wi-Fi or cellular data
Display/search Allworx users and local contacts
Extensive call history
View and change presence setting
Manage, send, reply and forward voicemails
Interact™
Call Control
Intelligence on every call with screen pops
Answer and hold calls from your PC
Interact Pro offers PC-based call control
Interact Attendant offers full call processing
Call Assistant™
PC-based attendant console
Easy-to-use graphical user interface
Seamless integration with any Allworx phone
“Drag-and-drop” call processing
Displays incoming and outgoing calls, outside
lines, phone status for all users — including
remote and multi-site users
Record any call with the click of a mouse
Call history displays outgoing and incoming
calls with sort and one-click dial
Supports Microsoft TAPI for Caller ID
screen pops
Conference Center™
Secure conferencing — ID and password
protection
Centralized scheduling and moderation of calls
Full administrative view of users and
conferences
Set up conference calls 24/7
Easy-to-use graphic user interface
Ability to create recurring conference calls
OfficeSafe™
Backup and restore anytime day or night
Backup multiple servers simultaneously
Backups can be made to centralized secure
data centers
Runs as a Windows service
View™
Data on call usage, ACD queues and agents
Real-time, configurable dashboards with
definable threshold alarms
On-demand and scheduled reports
Save, share and export report data
View reports and real time status from any
mobile device
Optional Software Features

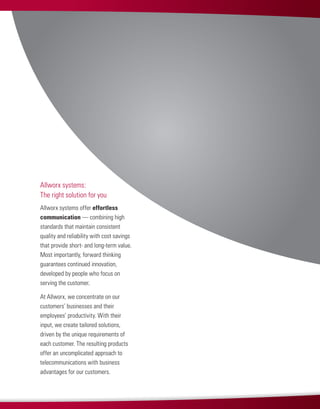

7. Allworx systems offer effortless
communication — combining high
standards that maintain consistent
quality and reliability with cost savings
that provide short- and long-term value.
Most importantly, forward thinking
guarantees continued innovation,
developed by people who focus on
serving the customer.
At Allworx, we concentrate on our
customers’ businesses and their
employees’ productivity. With their
input, we create tailored solutions,
driven by the unique requirements of
each customer. The resulting products
offer an uncomplicated approach to
telecommunications with business
advantages for our customers.
Allworx systems:
The right solution for you

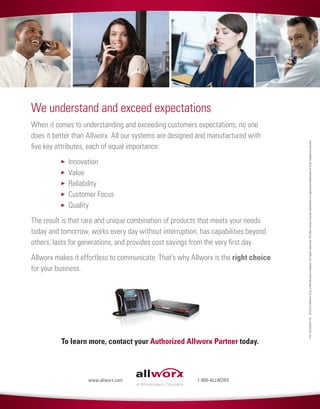

8. We understand and exceed expectations
When it comes to understanding and exceeding customers expectations, no one
does it better than Allworx. All our systems are designed and manufactured with
five key attributes, each of equal importance:
Innovation
Value
Reliability
Customer Focus
Quality
The result is that rare and unique combination of products that meets your needs
today and tomorrow, works every day without interruption, has capabilities beyond
others, lasts for generations, and provides cost savings from the very first day.
Allworx makes it effortless to communicate. That’s why Allworx is the right choice
for your business.
To learn more, contact your Authorized Allworx Partner today.
P/N:8520550-10©2014AllworxCorp,aWindstreamcompany.Allrightsreserved.Allothernamesmaybetrademarksorregisteredtrademarksoftheirrespectiveowners.
1-866-ALLWORXwww.allworx.com

9. Allworx View™
Brings clarity to your Allworx system
Allworx View is a business intelligence tool that offers
comprehensive data and reporting for one or more
Allworx phone systems.
View™
enables managers and supervisors to monitor call activity for all users (including call center agents), display real-time activity, and
create comprehensive historical reports, which gives you the power to control your telecom expenses. In short, View gives you the analytics
required to manage complex telecom needs and supports fact-based decisions for the staffing requirements of today.
Allworx View collects information from all networked Allworx
servers using the same unified intelligent data sharing that has made
Allworx the most popular IP-PBX in the marketplace. This powerful
application runs quietly in the background, collects and analyzes call
data, and offers easy-to-understand dashboards and reports.
Allworx View ACD includes everything in Allworx View, and
adds real-time Automatic Call Distribution (ACD) queue and agent
information using custom dashboards, and a robust collection of
widgets to any browser enabled device. The options are limited only
by your imagination.
Allworx View Features and Benefits
Allworx View provides continual collection and logging of all call detail records — incoming, outgoing, and internal. In addition,
Allworx View provides the global collection of call detail records when each interconnected Allworx server in a multi-site configuration
is enabled within the application. This enables View to display data and provide consolidated reports on all calls across all servers,
including the tracking of an individual user’s calls across multiple Allworx servers. Users can view and customize live dashboards
on demand and generate predefined and custom reports on demand or on a scheduled basis. Reports generated may be saved for
exclusive use, shared with others, or exported in several formats.
Continued on reverse
Call Detail Report from Allworx View
VIEW™

10. P/N:8520594-00©2014AllworxCorp,aWindstreamcompany.Allrightsreserved.Allothernamesmaybetrademarksorregisteredtrademarksoftheirrespectiveowners.
Call us at 1-866-ALLWORX and we’ll help you select the right solution for your business.
1-866-ALLWORXwww.allworx.com

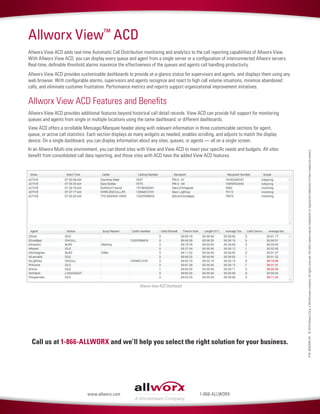

Allworx View™
ACD
Allworx View ACD adds real-time Automatic Call Distribution monitoring and analytics to the call reporting capabilities of Allworx View.
With Allworx View ACD, you can display every queue and agent from a single server or a configuration of interconnected Allworx servers.
Real-time, definable threshold alarms maximize the effectiveness of the queues and agents call handling productivity.
Allworx View ACD provides customizable dashboards to provide at-a-glance status for supervisors and agents, and displays them using any
web browser. With configurable alarms, supervisors and agents recognize and react to high call volume situations, minimize abandoned
calls, and eliminate customer frustration. Performance metrics and reports support organizational improvement initiatives.
Allworx View ACD Features and Benefits
Allworx View ACD provides additional features beyond historical call detail records. View ACD can provide full support for monitoring
queues and agents from single or multiple locations using the same dashboard, or different dashboards.
View ACD offers a scrollable Message/Marquee header along with relevant information in three customizable sections for agent,
queue, or active call statistics. Each section displays as many widgets as needed, enables scrolling, and adjusts to match the display
device. On a single dashboard, you can display information about any sites, queues, or agents — all on a single screen.
In an Allworx Multi-site environment, you can blend sites with View and View ACD to meet your specific needs and budgets. All sites
benefit from consolidated call data reporting, and those sites with ACD have the added View ACD features.
Allworx View ACD Dashboard

11. Allworx Reach™
takes you out of your office, making
you more productive when mobile by bringing the rich
functionality of your Allworx phone to your iOS or
Android device. And Allworx Reach enables you to be
connected from anywhere you want to work — from
across the room to across the globe — by offering
access via both Wi-Fi and cellular data networks.
Designed by Allworx
Because Allworx Reach is designed exclusively to work on
Allworx systems, setup is easy, it integrates seamlessly,
and works flawlessly, combining effortless communications
with complete mobility.
Allworx Reach is a new licensed option within every Allworx
server installed with System Software 7.5. Best of all, no
additional hardware is needed for your system. Allworx Reach
licenses are offered in cost-effective groups for small or large
implementations.
Reach™
Mobile SIP Client
Continued on reverse
The Active Call window
gives you a wealth of
information.
Intuitive and easy to read,
all Allworx Reach functions
are at your fingertips.
Call History, Contacts and
Voicemails are just a press
away.
1
2
3
2
1
3
Apple iPhone (iOS)
3
1
2
Android smartphone
Take a look at some of the features of Allworx Reach on a smartphone:

12. Take a look at some of the cool features of Allworx Reach™
on a tablet:
P/N:8520593-01©2013AllworxCorp,aWindstreamcompany.Allrightsreserved.Allothernamesmaybetrademarksorregisteredtrademarksoftheirrespectiveowners.
Call us at 1-866-ALLWORX and we’ll help you select the right solution for your business.
Achieve new heights
with Allworx Reach™
1-866-ALLWORXwww.allworx.com
Allworx Reach maximizes its smart user
interface to make day-to-day calling
effortless, providing information and
options to simplify your life. Manage your
calls and activities from a single, easy-to-
use intelligent interface.
You can simultaneously make and receive
multiple calls, transfer and conference
them together from the large, visual call
windows. Android users swipe side-to-
side to change windows.
Almost every Allworx function is at your
fingertips, including seamlessly transfer-
ring any call, parking, or holding calls.
You also have separate audio controls.
Call History makes it easy to view and
return any incoming or outgoing call as
well as missed calls.
Allworx Reach allows you to place
calls from the internal Allworx
system contacts list or your local
contacts contained in your phone or
tablet. As you dial a number, Allworx
Reach searches all your contact lists
for any matches, improving your
calling productivity. You can also
see every Allworx system user’s
presence along with the status of
their Allworx phone and Allworx
Reach device.
Manage your voicemails with ease.
Listen to any message in any order
you choose, and forward or create
new messages with effortless
prompts.
1
2
3
4
5
6
1
3
2
5 64
Apple iPad (iOS)
Android tablet
1
3
2
5 64

13. Take control of your communications with a fully
featured conference center that allows real-time
scheduling and managing of conference calls directly
from your desktop via an easy-to-use web portal.
When you need more than 3 or 4 party ad hoc conference calling from your phone, or
the security and privacy that only a managed conference bridge can offer, the Allworx
Conference Center software option allows you to host conference calls with up to 30*
remote colleagues, internal employees, customers and business partners.
Conference Center™
Key features
Secure conferencing — ID and Password protection
Set up conference calls 24/7
Create recurring conference calls with ease
Centralized scheduling means no conflicts
Easy-to-use graphical user interface
Full administrative view of users and their conferences
Integral with every Allworx server, not service based
One time license fee for an unlimited number of users
No software installation required
Conference Center capability by system
48x 4 30
6x, 6x12 1 8
Allworx
System
Conference
Center(s)
Seats/
Conference
In-progress Conference Call screen
Conference schedule flexibility
See reverse side for Dual Language Support
* 48x with adequate trunk or line resources
Administrator and Moderator comparison
Conference
Center Function
ModeratorAdministrator
Ability to remove participants • •
Ability to set up new conference calls • •
Access conference interface via
dedicated Allworx website • •
Authorize users to create new
conference calls •
Modify existing conferences • •
Secure ID and Password • •
View all system-wide conference calls •
View caller ID of attendants • •
View time remaining until next call • •

14. P/N:8520586-00©2013AllworxCorp,aWindstreamcompany.Allrightsreserved.Allothernamesmaybetrademarksorregisteredtrademarksoftheirrespectiveowners.
Call us at 1-866-ALLWORX and we’ll help you select the
right solution for your business.
1-866-ALLWORXwww.allworx.com
Your business doesn’t stop at the border — now Allworx
will actively help boost your international or multicultural
presence. Allowing multiple languages makes the Allworx
system an ideal solution for any business or organization.
Dual Language Support provides voice prompts in two of three offered languages: English,
Castilian Spanish and French Canadian. Simply configure the system based on employees’
and customers’ preferred languages.
When calls arrive in the Allworx system (e.g., Auto Attendants, ACD Call Queues),
prompts can be configured to play in the language to match the call’s origin, or override it
with a specific language. For example, if you need one automated attendant to answer in
English only and another to answer in English with the option to change to Spanish, it is easy.
If allowed, each caller can switch languages. Every time a call reaches the application, in addition to the prompts that are
normally played, a prompt to change language may be played. Each caller is permitted to switch languages by pressing the
pound key twice (##). To allow even more customization, you can select individual CO lines or individual Call Appearances to
play prompts in the secondary language.
Dual Language Support
Dual Language Support screen shots
See reverse side for Conference Center™

15. Interact™
– Telephone Calling Made Easy
Leverage the power of your PC to manage
your phone calls and increase productivity
Interact Professional
Allworx Interact Professional, a per-user licensed application, enhances productivity by giving users total control of their handsets
from their PC screen. A complete list of users from the Allworx Server directory, combined with Microsoft Outlook contacts, empowers
each user with almost unlimited information and rapid one-click dialing.
The integrated search function gives you quick access and a competitive edge. You can build a
combined favorites list for the people you call most often. Once found, a single click is all it takes
to place a call.
If desired, any inbound call can automatically search other applications for additional information
about the caller before you answer the call. The history of every call placed, received, or missed can
also be searched for easy callback.
The ability to see who is on the phone along with their current presence status — combined with the
ability to record any call — makes Interact Professional an invaluable tool.
Allworx Interact Professional main screen with all windows docked. Each window can be moved out of the Interact screen and
placed wherever you like for use when other applications are active. Continued on reverse
While on a call, simply select
the Record button, and the audio
will be stored until you choose to
pause or end the recording.
Interact
Allworx Interact, a free application available to any Allworx user,
improves efficiency by offering an easy way to identify an incoming
caller from your PC screen and allows you to answer
calls without having to look at the phone. Allworx Interact pop-up
banners for Ringing Phone
(above) and Active Call (left).

16. P/N:8520584_01©2014Allworx,adivisionofWindstreamCorporation.Allrightsreserved.AllworxandtheAllworxlogoaretrademarksorregisteredtrademarksofWindstream.Third-
partytrademarksmentionedarethepropertyoftheirrespectiveowners.TheuseofthewordpartnerdoesnotimplyapartnershiprelationshipbetweenAllworxandanyothercompany.
1-866-ALLWORXwww.allworx.com
Professional Control
With Interact Professional you have control over your
Allworx phone in an intuitive and almost limitless way.
Every Allworx user and Microsoft Outlook contact can be
searched effortlessly. You can sort call history any way
you desire: by date, name or number. From any search
result, a call is placed with the simple click of your mouse,
simplifying calling, reducing dialing errors and speeding up
connections. Need to record important calls? It’s a single
click of the call recording button at the top, and recorded
calls can be stored anywhere.
Connecting with your co-workers has never been easier. You
can see the phone and presence status of any Allworx user
before you call them, even across other Allworx connected
sites. Multiple windows can be positioned anywhere on
your screen to enhance your productivity, such as the display
for current calls, parked calls, or the dial pad. From a large
contact display that offers five different densities of contact
information to small, compact call handling windows, you can
re-size and move windows as needed, customizing Interact
Professional to meet your specific needs.
Allworx Interact Professional windows (clockwise from top left): Call History, Dialpad, Contacts and External Application set up.
Need more information about your caller? With the External Program Link you can do a URL search or run an application command script to access your selected application or database.
First point to the search engine or application. Select what you want to search on: caller name, number, company, or any combination. Choose when you want it to search. The result?
A wealth of extra information that will be available on every call.
From information to control,
Interact Professional has what
you need to make your Allworx
phone work for you. Call us at
1-866-ALLWORX and we’ll help
you select the right solution for
your business.
