This document summarizes the features of the ALKcar 4 in 1 Car Remote Control Decoder, which is a wireless remote control detector and duplicator. It can decode various remote controls within 0.1 seconds for 4 fixed frequencies. It has features such as receiving and storing remote control signals, emitting stored signals, deleting stored signals, and displaying information about remote control chips. It is intended for use by car repair services, garages, and workshops to detect and duplicate remote control signals.

1. ALKcar Aliexpress Store No.324381
ALKcar 4 in 1 Car Remote Control Decoder wireless Remote control Detector & Duplicator for
Garage, workshop, car repair service
4 in 1 Remote control decoder is wireless Remote control Detector & Duplicator.
Fixed frequency remote decoding device for 4 fixed frequency 315MHZ, 330MHZ,
430MHZ, 433MHZ. Wireless remote control decoder can decode various kinds of
remote control within 0.1 seconds.
4 in 1 Remote control decoder fixed frequency remote decoding device
4 in 1 Remote control decoder Application
1. 4 in 1 Remote control decoder for 4 fixed frequency 315MHZ, 330MHZ, 430MHZ,
433MHZ.
2. 4 fixed frequency Remote control decoder is LCD shows, Operate simply, visual
and strong sensibility, which can achieve the acception in remote.

2. ALKcar Aliexpress Store No.324381
3. Various kinds of remote control (Car remote control, garage door. Home alarm
series remote control etc ) Decoded within 0.1 seconds.
Fixed frequency remote decoding device features
Through A, B, C, D key to control like the original remote control.
Feature 1: Signal receiving instruction:
Power on - Auto display the existed location at bottom right after receive the signal
-- press B key(query code) -- Press S key(Lock) -- Press A B C D any key that can
emit the current data. Generally A is close, B is Open, C is mute, D is Car locating
If receive the learn signal of CL-2, opening key is B or A+B (Press A, B
simultaneously),
Mute is C or C+D (Press C,D simultaneously). (Note:After press the S key, ABCD
key are the emit key of remote control data this moment, if main engine respond but
no opening key, Just Press ABCD any two key or three key simultaneously .
Feature 2: Data storage(01-35) select emit operation Introduction. (which can store
35 remote control code). Power on -- Press C key(After selected the needed emit
data) -- Press S key(Lock) -- Press ABCD any key to emit.
Feature 3: Delete storage code instruction
1)Delete all: Power on -- Press C key -- Press D key -- Press C key(four times)
-- Press D key (Twice) All storage code can be deleted.
2)Delete in turn: Power on ---Press C key(Choose the code needed delete) -- Press D
key -- Press C key(three times) -- Press D key(Twice).Selected code can be deleted.
Feature 4: Interference function instruction: (disturbance range 30 meters, Effective
for 315MHZ,433MHZ two kinds of emission frequency).
Power on -- Press D key -- Press C key(Twice) -- Press D key(Twice)
Feature 5: Display chip code shows:
1) Showing on machine “CL-1”said remote control chip is fixed code emit,
PT2262/2260 series.
2) Showing on machine “AX5326”said AX5326/VD5026 four state codes.
3) Showing on machine “CL-2”said PT2282eV1527PT2240RT1527FP527 learning
code.

3. ALKcar Aliexpress Store No.324381

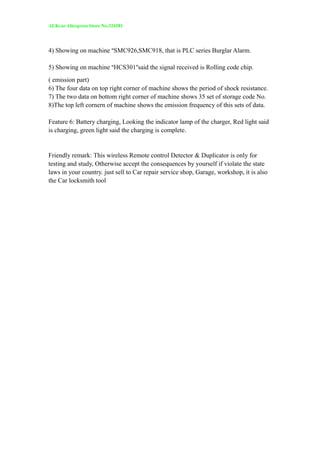

4) Showing on machine “SMC926,SMC918, that is PLC series Burglar Alarm.
5) Showing on machine “HCS301”said the signal received is Rolling code chip.
( emission part)
6) The four data on top right corner of machine shows the period of shock resistance.
7) The two data on bottom right corner of machine shows 35 set of storage code No.
8)The top left cornern of machine shows the emission frequency of this sets of data.
Feature 6: Battery charging, Looking the indicator lamp of the charger, Red light said
is charging, green light said the charging is complete.
Friendly remark: This wireless Remote control Detector & Duplicator is only for
testing and study, Otherwise accept the consequences by yourself if violate the state
laws in your country. just sell to Car repair service shop, Garage, workshop, it is also
the Car locksmith tool
