1. MPLS Case study (Media company)

3. It has 11 publishing centers and15 printing centers

4. With 55 sales offices and over 7000 employees

5. 5 dailies including two of the largest in the country with approx 4.3 million copies circulated daily

6. 2 lead magazines and 29 niche magazines

7. Reaching 2468 cities and towns

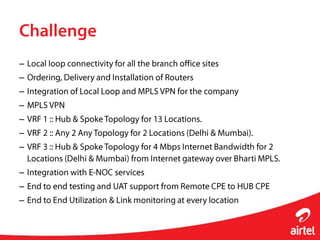

9. Ordering, Delivery and Installation of Routers

10. Integration of Local Loop and MPLS VPN for the company

11. MPLS VPN

12. VRF 1 :: Hub & Spoke Topology for 13 Locations.

13. VRF 2 :: Any 2 Any Topology for 2 Locations (Delhi & Mumbai).

14. VRF 3 :: Hub & Spoke Topology for 4 Mbps Internet Bandwidth for 2 Locations (Delhi & Mumbai) from Internet gateway over Bharti MPLS.

15. Integration with E-NOC services

16. End to end testing and UAT support from Remote CPE to HUB CPE

18. Last Mile in Mumbai on MTNL with a router Co-located in Airtel Malad MPLS PoP. Secondary Last Mile will be on Airtel (FTTB) terminated in Thane PoP

19. Last Mile in Delhi will be Primary on Bharti (FTTB), terminated in Delhi MPLS PoP and secondary Last Mile on RF( backhaul on fibre), terminated in Noida MPLS PoP.

20. Last Mile bandwidth will be 50 Mbps with Ethernet Handover

21. MPLS Port Delivery at all location will be Ethernet

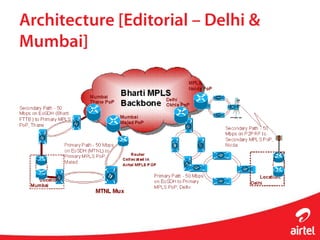

23. Architecture [Editorial – Delhi & Mumbai]
