Learn how to integrate web search function into your mobile app using Bing Search API. #xamarin #cognitiveservice #bingsearch #microsoft #appdevelopment #crossplatform #ios #android #uwp Click here for viewing full tutorial @ www.techconnect.io by Marvin, Heng Twitter: @hmheng Blog: www.techconnect.io

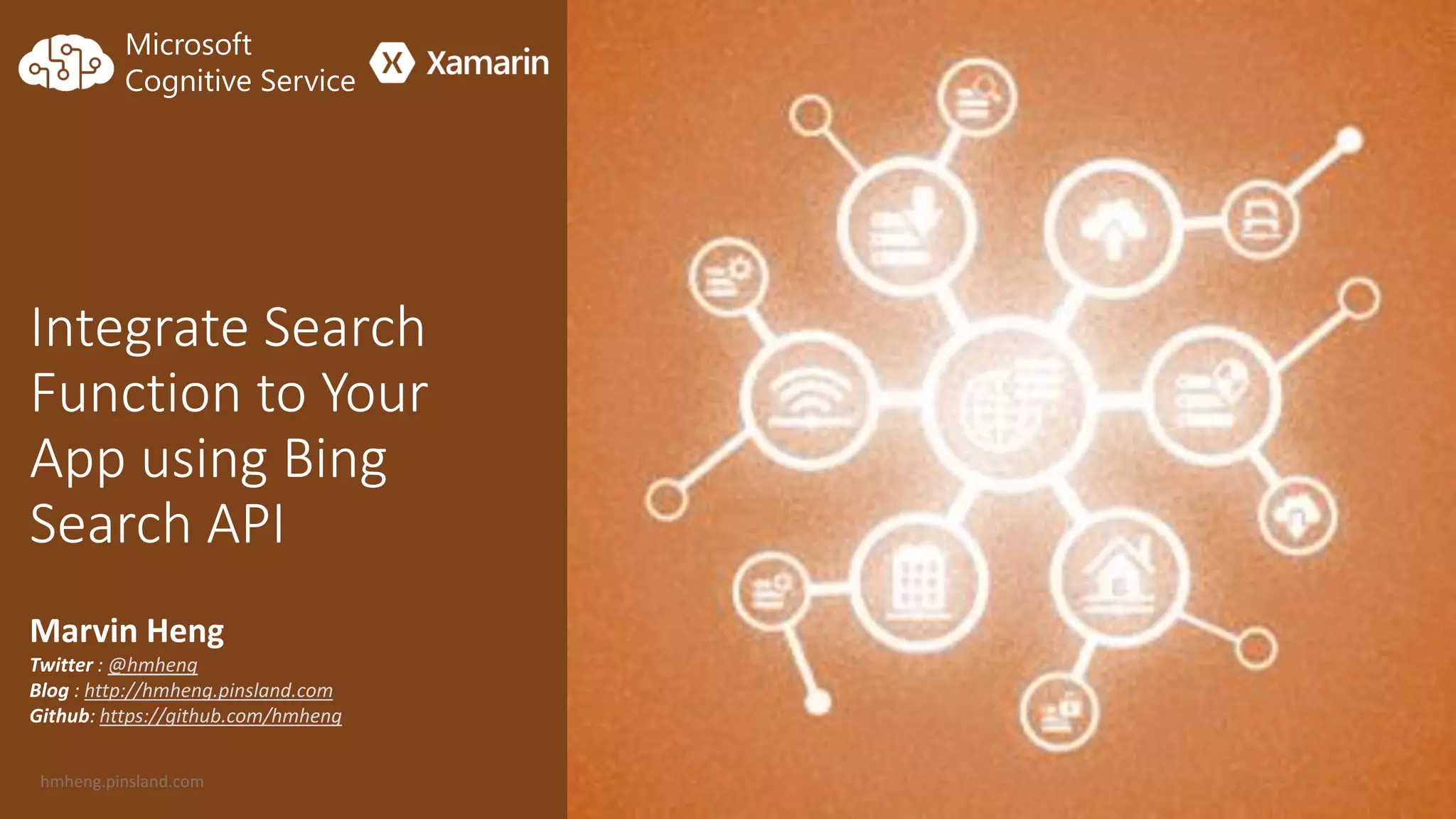

1. Integrate Search
Function to Your
App using Bing
Search API
Marvin Heng
Twitter : @hmheng
Blog : http://hmheng.pinsland.com
Github: https://github.com/hmheng
Microsoft
Cognitive Service

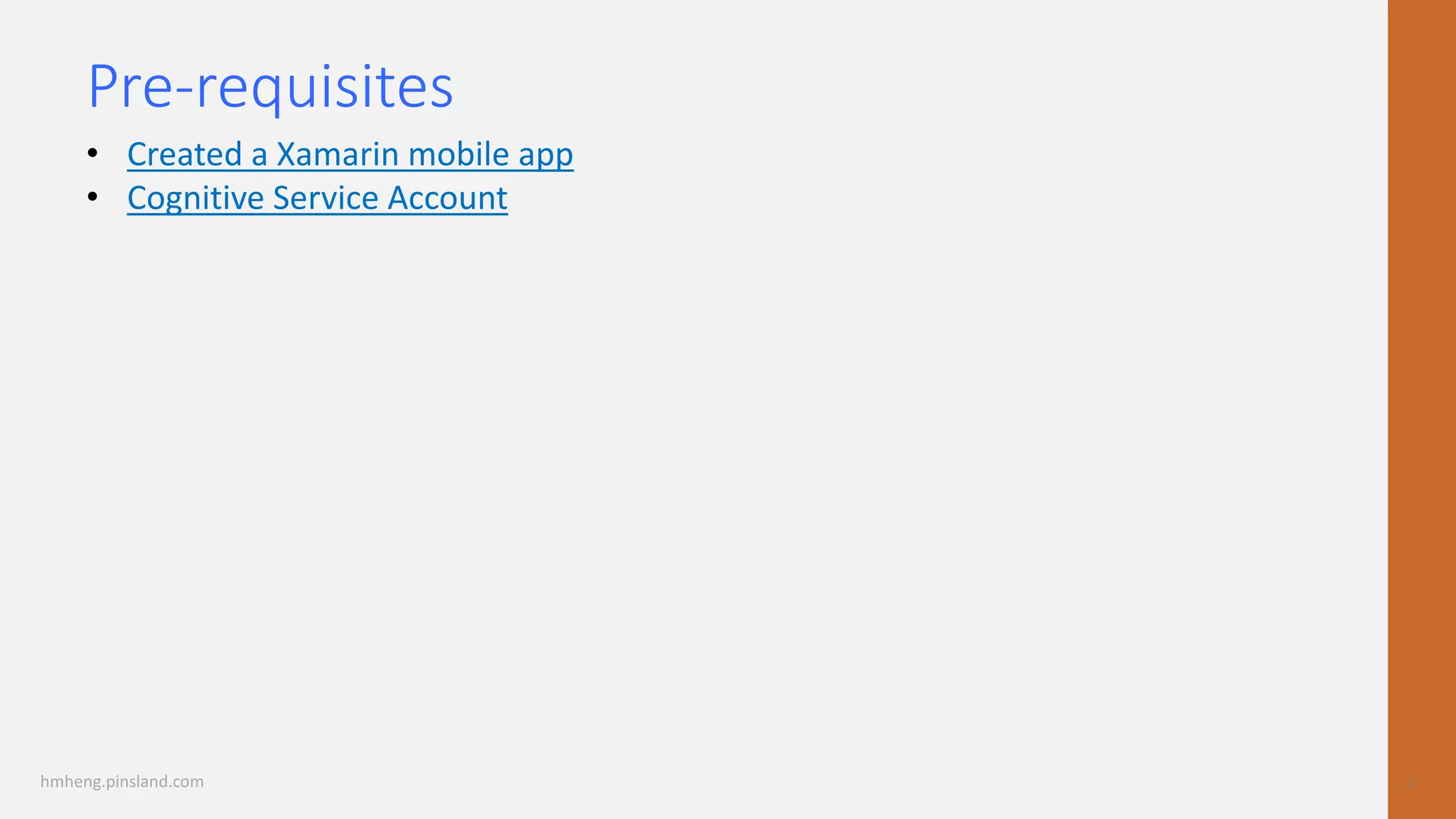

2. Pre-requisites
• Created a Xamarin mobile app
• Cognitive Service Account

3. Integrate Search Function Into Mobile App
1. First, we need to obtain the API key for Bing Search APIs v7. To learn how to get
one, click here.

4. Integrate Search Function Into Mobile App
2. Secondly, we need to create a Xamarin Cross Platform Mobile App. Don’t have one
yet? Click to learn how to create one!

5. Integrate Search Function Into Mobile App
3. Thirdly, we need to add a NuGet Packages – Newtonsoft.Json, right click Solution
in the Solution Explorer -> Manage NuGet Packages for Solution…
3b
3a

6. 4b4a
4c
Integrate Search Function Into Mobile App
4. Let’s search Newtonsoft.Json and install it to all the projects.

7. Integrate Search Function Into Mobile App
5. Now, we need to add some Search Bar components to MainPage.xaml as
specified below.
5

8. Integrate Search Function Into Mobile App
6. Down below the Grid component, let’s add a list view to show the returned
search result.
6

9. Integrate Search Function Into Mobile App
7. Create a folder named Models. We will create few classes under this folder later.
7

10. Integrate Search Function Into Mobile App
8. Right Click “Models” folder -> Add -> select Class from the list. Name the new class
as SearchTagObj.cs.
8a
8b

11. Integrate Search Function Into Mobile App
9. Create two variables for SearchTagsObj class as below.
…
public class SearchTagsObj
{
public string name { get; set; }
public string content { get; set; }
}
…

12. Integrate Search Function Into Mobile App
10. Create another new class and name it as WebResultsList.cs.
10a
10b

13. Integrate Search Function Into Mobile App
11. Create the following variables for WebResultsList class.
…
public class WebResultsList
{
public string name { get; set; }
public string webSearchUrl { get; set; }
public uint totalEstimatedMatches { get; set; }
public ObservableCollection<WebValueObject> value { get;
set; }
public bool someResultsRemoved { get; set; }
}
…

14. Integrate Search Function Into Mobile App
12. Create another new class and name it as WebValueObject.cs.
12a
12b

15. Integrate Search Function Into Mobile App
13. Create the following variables for WebValueObject class.
…
public class WebValueObject
{
public string id { get; set; }
public string name { get; set; }
public string url { get; set; }
public string displayUrl { get; set; }
public string snippet { get; set; }
public string dateLastCrawled { get; set; }
public List<SearchTagsObj> searchTags { get; set; }
}
…

16. Integrate Search Function Into Mobile App
14. Create another class under .Core project, name it as AppConstants.cs and add
three variables as shown below.
…
public class AppConstants
{
public const string OcpApimSubscriptionKey =
"Ocp-Apim-Subscription-Key";
public const string BingWebSearchApiUrl =
"https://api.cognitive.microsoft.com/bing/v7.0/search
public static string BingWebSearchApiKey =
“<YOUR API KEY>";
}
…
14

17. Integrate Search Function Into Mobile App
15. Now, head to MainPage.xaml.cs, we need to declare few variables.
…
ObservableCollection<WebValueObject> values;
string queryTerm;
HttpClient searchApiClient;
…

18. Integrate Search Function Into Mobile App
16. Next, in the MainPage constructor, add click event handler for btnSearch &
HttpClient to call WebApi later. Also, create the event handling function.
…
public MainPage()
{
InitializeComponent();
btnSearch.Clicked += BtnSearch_Clicked;
searchApiClient = new HttpClient();
searchApiClient.DefaultRequestHeaders.Add(AppConstants.OcpApimSubscript
ionKey, AppConstants.BingWebSearchApiKey);
}
private async void BtnSearch_Clicked(object sender, EventArgs e)
{
this.queryTerm = txtKeyword.Text;
await LoadData();
}
…

19. Integrate Search Function Into Mobile App
17. Then, create LoadData function with following codes.
…
protected async Task LoadData()
{
LoadingIndicator.IsVisible = true;
LoadingIndicator.IsRunning = true;
WebResultsList webResults = null;
Boolean error = false;
try{
webResults = await GetQueryResults();
} catch {
error = true;
}
LoadingIndicator.IsVisible = false;
LoadingIndicator.IsRunning = false;
DataTable.IsVisible = true;
if (error) {
await ErrorAndPop("Error", "Error
fetching results", "OK");
}else if
(webResults?.totalEstimatedMatches>0)
{
values = webResults.value;
DataTable.ItemsSource = values;
}else{
await ErrorAndPop("Error", "No
results found", "OK");
}
}
…

20. Integrate Search Function Into Mobile App
18. After that, create ErrorAndPop function with following codes.
…
protected async Task ErrorAndPop(string title, string text, string button)
{
await DisplayAlert(title, text, button);
Console.WriteLine($"ERROR: {text}");
await Task.Delay(TimeSpan.FromSeconds(0.1d));
await Navigation.PopAsync(true);
}
…

21. Integrate Search Function Into Mobile App
19. Followed by, create a function GetQueryResults() to call the Bing Search API and
returned the search results.
…
async Task<WebResultsList> GetQueryResults(){
var queryString = System.Net.WebUtility.UrlEncode(queryTerm);
string uri = AppConstants.BingWebSearchApiUrl + $"count=20&mkt=en-
US&q={queryString}&responseFilter=Webpages&setLang=en";
WebResultsList webResults = null;
HttpResponseMessage httpResponseMessage = await
searchApiClient.GetAsync(uri); var responseContentString = await
httpResponseMessage.Content.ReadAsStringAsync();
JObject json = JObject.Parse(responseContentString);
JToken resultBlock = json.SelectToken("$.webPages");
if (resultBlock != null){
webResults =
JsonConvert.DeserializeObject<WebResultsList>(resultBlock.ToString());
}
return webResults;
}
…

22. Integrate Search Function Into Mobile App
20. Last but not least, create an event handler - ItemSelectedEventHandler for
showing the selected web result when user clicked the result item.
…
async void ItemSelectedEventHandler(object sender,
SelectedItemChangedEventArgs e){
if (e.SelectedItem == null) { return; }
WebView webView = new WebView
{
Source = new UrlWebViewSource{Url = ((WebValueObject)e.SelectedItem).url },
VerticalOptions = LayoutOptions.FillAndExpand
};
// Display the WebView
await Navigation.PushAsync(new ContentPage{
Content = webView, Title = ((WebValueObject)e.SelectedItem).name
});
// Deselect Item
((ListView)sender).SelectedItem = null;
}
…

23. Integrate Search Function Into Mobile App
21. Let’s compile and run it on your mobile device. Try to see what would happen
when enter some keywords to search!

24. It’s so easy!
Integrating Search function to Your App is So Easy!
