This document discusses the examination of the abdomen through inspection, auscultation, palpation, and percussion to identify abnormalities. It describes dividing the abdomen into four quadrants and locating structures within each quadrant. Specific techniques are provided to examine organs like the liver, spleen, kidneys, bladder and to assess for issues like ascites, appendicitis, hernias, and masses. The goal of abdominal examination is to identify abnormalities, enlargement, masses, fluid accumulation, peritoneal irritation and hernias.

1. Anatomy and HA of Abdomen
2/21/2023 1

3. 2/21/2023 3

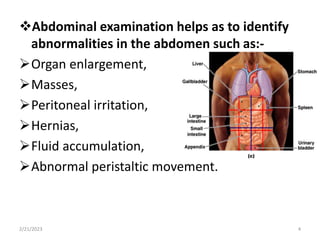

4. Abdominal examination helps as to identify
abnormalities in the abdomen such as:-
Organ enlargement,
Masses,
Peritoneal irritation,
Hernias,
Fluid accumulation,
Abnormal peristaltic movement.
2/21/2023 4

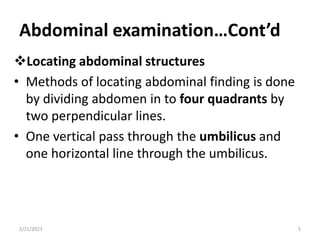

5. Abdominal examination…Cont’d
Locating abdominal structures
• Methods of locating abdominal finding is done
by dividing abdomen in to four quadrants by
two perpendicular lines.
• One vertical pass through the umbilicus and
one horizontal line through the umbilicus.
2/21/2023 5

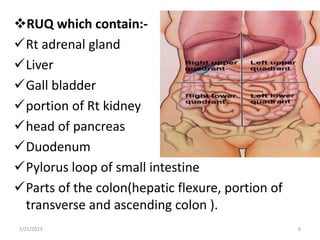

6. RUQ which contain:-
Rt adrenal gland
Liver
Gall bladder
portion of Rt kidney
head of pancreas
Duodenum
Pylorus loop of small intestine
Parts of the colon(hepatic flexure, portion of
transverse and ascending colon ).
2/21/2023 6

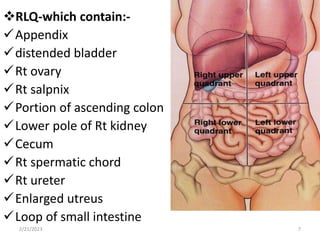

7. RLQ-which contain:-
Appendix
distended bladder
Rt ovary
Rt salpnix
Portion of ascending colon
Lower pole of Rt kidney
Cecum
Rt spermatic chord
Rt ureter
Enlarged utreus
Loop of small intestine
2/21/2023 7

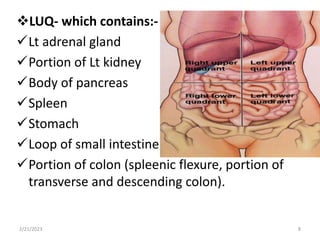

8. LUQ- which contains:-
Lt adrenal gland
Portion of Lt kidney
Body of pancreas
Spleen
Stomach
Loop of small intestine
Portion of colon (spleenic flexure, portion of
transverse and descending colon).
2/21/2023 8

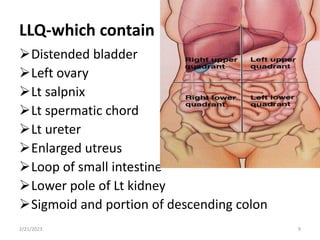

9. LLQ-which contain
Distended bladder
Left ovary
Lt salpnix
Lt spermatic chord
Lt ureter
Enlarged utreus
Loop of small intestine
Lower pole of Lt kidney
Sigmoid and portion of descending colon
2/21/2023 9

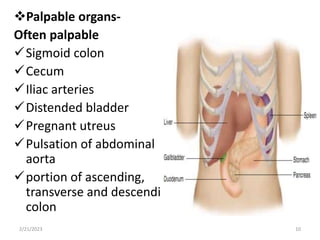

10. Palpable organs-
Often palpable
Sigmoid colon
Cecum
Iliac arteries
Distended bladder
Pregnant utreus
Pulsation of abdominal
aorta
portion of ascending,
transverse and descending
colon
2/21/2023 10

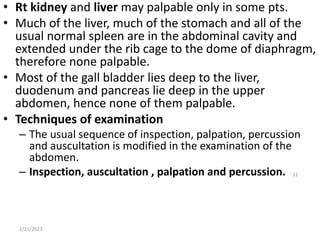

11. • Rt kidney and liver may palpable only in some pts.
• Much of the liver, much of the stomach and all of the
usual normal spleen are in the abdominal cavity and
extended under the rib cage to the dome of diaphragm,
therefore none palpable.
• Most of the gall bladder lies deep to the liver,
duodenum and pancreas lie deep in the upper
abdomen, hence none of them palpable.
• Techniques of examination
– The usual sequence of inspection, palpation, percussion
and auscultation is modified in the examination of the
abdomen.
– Inspection, auscultation , palpation and percussion.
2/21/2023
11

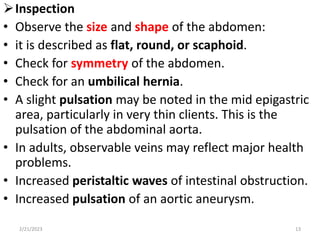

13. Inspection
• Observe the size and shape of the abdomen:
• it is described as flat, round, or scaphoid.
• Check for symmetry of the abdomen.
• Check for an umbilical hernia.
• A slight pulsation may be noted in the mid epigastric
area, particularly in very thin clients. This is the
pulsation of the abdominal aorta.
• In adults, observable veins may reflect major health
problems.
• Increased peristaltic waves of intestinal obstruction.
• Increased pulsation of an aortic aneurysm.
2/21/2023 13

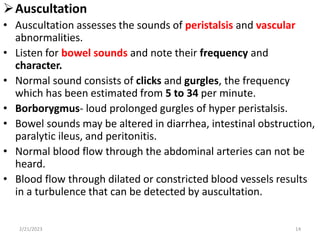

14. Auscultation
• Auscultation assesses the sounds of peristalsis and vascular
abnormalities.
• Listen for bowel sounds and note their frequency and
character.
• Normal sound consists of clicks and gurgles, the frequency
which has been estimated from 5 to 34 per minute.
• Borborygmus- loud prolonged gurgles of hyper peristalsis.
• Bowel sounds may be altered in diarrhea, intestinal obstruction,
paralytic ileus, and peritonitis.
• Normal blood flow through the abdominal arteries can not be
heard.
• Blood flow through dilated or constricted blood vessels results
in a turbulence that can be detected by auscultation.
2/21/2023 14

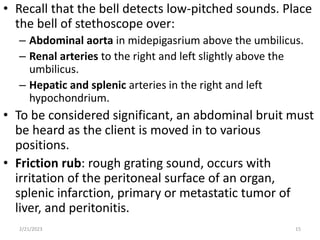

15. • Recall that the bell detects low-pitched sounds. Place
the bell of stethoscope over:
– Abdominal aorta in midepigasrium above the umbilicus.
– Renal arteries to the right and left slightly above the
umbilicus.
– Hepatic and splenic arteries in the right and left
hypochondrium.
• To be considered significant, an abdominal bruit must
be heard as the client is moved in to various
positions.
• Friction rub: rough grating sound, occurs with
irritation of the peritoneal surface of an organ,
splenic infarction, primary or metastatic tumor of
liver, and peritonitis.
2/21/2023 15

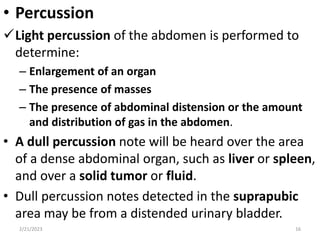

16. • Percussion
Light percussion of the abdomen is performed to
determine:
– Enlargement of an organ
– The presence of masses
– The presence of abdominal distension or the amount
and distribution of gas in the abdomen.
• A dull percussion note will be heard over the area
of a dense abdominal organ, such as liver or spleen,
and over a solid tumor or fluid.
• Dull percussion notes detected in the suprapubic
area may be from a distended urinary bladder.
2/21/2023 16

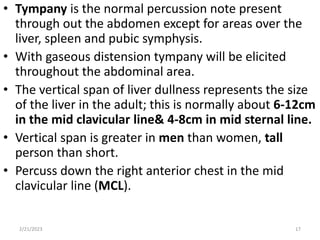

17. • Tympany is the normal percussion note present
through out the abdomen except for areas over the
liver, spleen and pubic symphysis.
• With gaseous distension tympany will be elicited
throughout the abdominal area.
• The vertical span of liver dullness represents the size
of the liver in the adult; this is normally about 6-12cm
in the mid clavicular line& 4-8cm in mid sternal line.
• Vertical span is greater in men than women, tall
person than short.
• Percuss down the right anterior chest in the mid
clavicular line (MCL).
2/21/2023 17

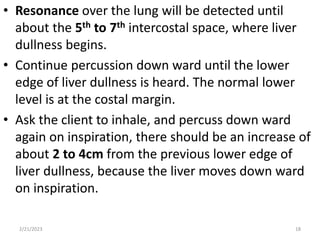

18. • Resonance over the lung will be detected until
about the 5th to 7th intercostal space, where liver
dullness begins.
• Continue percussion down ward until the lower
edge of liver dullness is heard. The normal lower
level is at the costal margin.
• Ask the client to inhale, and percuss down ward
again on inspiration, there should be an increase of
about 2 to 4cm from the previous lower edge of
liver dullness, because the liver moves down ward
on inspiration.
2/21/2023 18

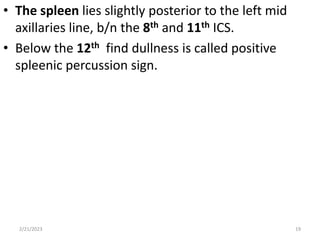

19. • The spleen lies slightly posterior to the left mid
axillaries line, b/n the 8th and 11th ICS.
• Below the 12th find dullness is called positive
spleenic percussion sign.
2/21/2023 19

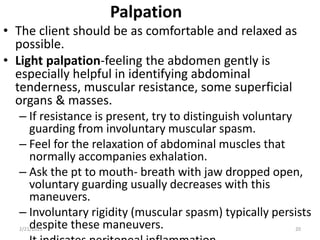

20. Palpation
• The client should be as comfortable and relaxed as
possible.
• Light palpation-feeling the abdomen gently is
especially helpful in identifying abdominal
tenderness, muscular resistance, some superficial
organs & masses.
– If resistance is present, try to distinguish voluntary
guarding from involuntary muscular spasm.
– Feel for the relaxation of abdominal muscles that
normally accompanies exhalation.
– Ask the pt to mouth- breath with jaw dropped open,
voluntary guarding usually decreases with this
maneuvers.
– Involuntary rigidity (muscular spasm) typically persists
despite these maneuvers.
2/21/2023 20

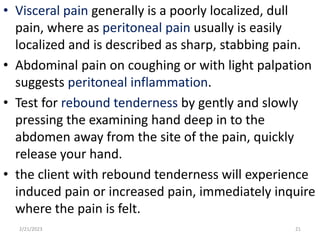

21. • Visceral pain generally is a poorly localized, dull
pain, where as peritoneal pain usually is easily
localized and is described as sharp, stabbing pain.
• Abdominal pain on coughing or with light palpation
suggests peritoneal inflammation.
• Test for rebound tenderness by gently and slowly
pressing the examining hand deep in to the
abdomen away from the site of the pain, quickly
release your hand.
• the client with rebound tenderness will experience
induced pain or increased pain, immediately inquire
where the pain is felt.
2/21/2023 21

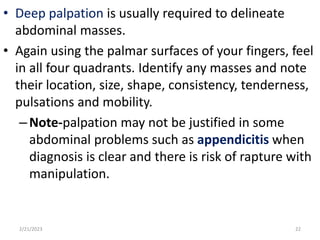

22. • Deep palpation is usually required to delineate
abdominal masses.
• Again using the palmar surfaces of your fingers, feel
in all four quadrants. Identify any masses and note
their location, size, shape, consistency, tenderness,
pulsations and mobility.
–Note-palpation may not be justified in some
abdominal problems such as appendicitis when
diagnosis is clear and there is risk of rapture with
manipulation.
2/21/2023 22

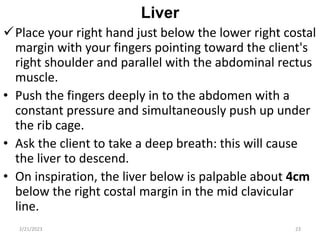

23. Liver
Place your right hand just below the lower right costal
margin with your fingers pointing toward the client's
right shoulder and parallel with the abdominal rectus
muscle.
• Push the fingers deeply in to the abdomen with a
constant pressure and simultaneously push up under
the rib cage.
• Ask the client to take a deep breath: this will cause
the liver to descend.
• On inspiration, the liver below is palpable about 4cm
below the right costal margin in the mid clavicular
line.
2/21/2023 23

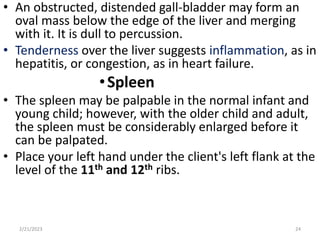

24. • An obstructed, distended gall-bladder may form an
oval mass below the edge of the liver and merging
with it. It is dull to percussion.
• Tenderness over the liver suggests inflammation, as in
hepatitis, or congestion, as in heart failure.
•Spleen
• The spleen may be palpable in the normal infant and
young child; however, with the older child and adult,
the spleen must be considerably enlarged before it
can be palpated.
• Place your left hand under the client's left flank at the
level of the 11th and 12th ribs.
2/21/2023 24

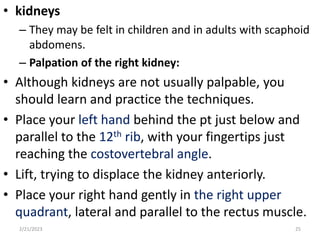

25. • kidneys
– They may be felt in children and in adults with scaphoid
abdomens.
– Palpation of the right kidney:
• Although kidneys are not usually palpable, you
should learn and practice the techniques.
• Place your left hand behind the pt just below and
parallel to the 12th rib, with your fingertips just
reaching the costovertebral angle.
• Lift, trying to displace the kidney anteriorly.
• Place your right hand gently in the right upper
quadrant, lateral and parallel to the rectus muscle.
2/21/2023 25

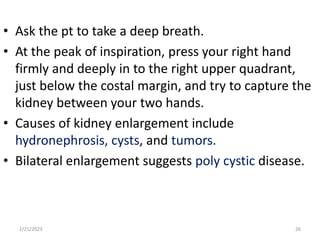

26. • Ask the pt to take a deep breath.
• At the peak of inspiration, press your right hand
firmly and deeply in to the right upper quadrant,
just below the costal margin, and try to capture the
kidney between your two hands.
• Causes of kidney enlargement include
hydronephrosis, cysts, and tumors.
• Bilateral enlargement suggests poly cystic disease.
2/21/2023 26

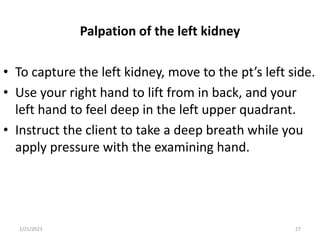

27. Palpation of the left kidney
• To capture the left kidney, move to the pt’s left side.
• Use your right hand to lift from in back, and your
left hand to feel deep in the left upper quadrant.
• Instruct the client to take a deep breath while you
apply pressure with the examining hand.
2/21/2023 27

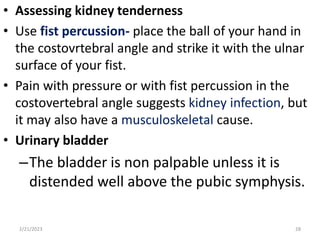

28. • Assessing kidney tenderness
• Use fist percussion- place the ball of your hand in
the costovrtebral angle and strike it with the ulnar
surface of your fist.
• Pain with pressure or with fist percussion in the
costovertebral angle suggests kidney infection, but
it may also have a musculoskeletal cause.
• Urinary bladder
–The bladder is non palpable unless it is
distended well above the pubic symphysis.
2/21/2023 28

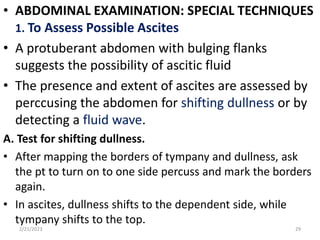

29. • ABDOMINAL EXAMINATION: SPECIAL TECHNIQUES
1. To Assess Possible Ascites
• A protuberant abdomen with bulging flanks
suggests the possibility of ascitic fluid
• The presence and extent of ascites are assessed by
perccusing the abdomen for shifting dullness or by
detecting a fluid wave.
A. Test for shifting dullness.
• After mapping the borders of tympany and dullness, ask
the pt to turn on to one side percuss and mark the borders
again.
• In ascites, dullness shifts to the dependent side, while
tympany shifts to the top.
2/21/2023 29

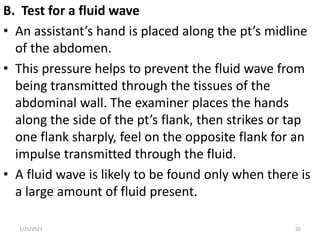

30. B. Test for a fluid wave
• An assistant’s hand is placed along the pt’s midline
of the abdomen.
• This pressure helps to prevent the fluid wave from
being transmitted through the tissues of the
abdominal wall. The examiner places the hands
along the side of the pt’s flank, then strikes or tap
one flank sharply, feel on the opposite flank for an
impulse transmitted through the fluid.
• A fluid wave is likely to be found only when there is
a large amount of fluid present.
2/21/2023 30

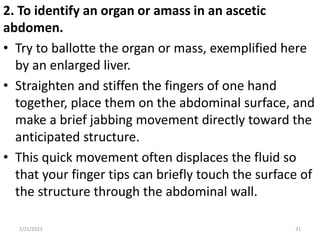

31. 2. To identify an organ or amass in an ascetic
abdomen.
• Try to ballotte the organ or mass, exemplified here
by an enlarged liver.
• Straighten and stiffen the fingers of one hand
together, place them on the abdominal surface, and
make a brief jabbing movement directly toward the
anticipated structure.
• This quick movement often displaces the fluid so
that your finger tips can briefly touch the surface of
the structure through the abdominal wall.
2/21/2023 31

32. 3. To assess possible appendicitis
• Ask the patient to point to where the pain
began and where it is now.
• Ask the patient to cough.
• Determine whether and where pain results.
• The pain of appendicitis classically begins near
the umbilicus and then shifts to the right
lower quadrant, where coughing increases it.
2/21/2023 32

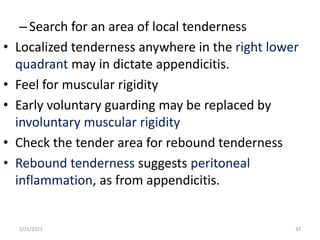

33. –Search for an area of local tenderness
• Localized tenderness anywhere in the right lower
quadrant may in dictate appendicitis.
• Feel for muscular rigidity
• Early voluntary guarding may be replaced by
involuntary muscular rigidity
• Check the tender area for rebound tenderness
• Rebound tenderness suggests peritoneal
inflammation, as from appendicitis.
2/21/2023 33

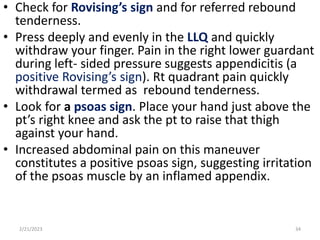

34. • Check for Rovising’s sign and for referred rebound
tenderness.
• Press deeply and evenly in the LLQ and quickly
withdraw your finger. Pain in the right lower guardant
during left- sided pressure suggests appendicitis (a
positive Rovising’s sign). Rt quadrant pain quickly
withdrawal termed as rebound tenderness.
• Look for a psoas sign. Place your hand just above the
pt’s right knee and ask the pt to raise that thigh
against your hand.
• Increased abdominal pain on this maneuver
constitutes a positive psoas sign, suggesting irritation
of the psoas muscle by an inflamed appendix.
2/21/2023 34

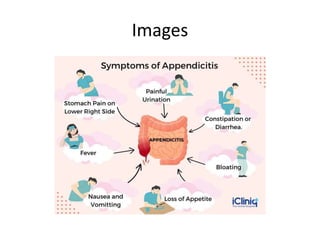

35. Images

38. 4. To assess possible acute cholecystitis
• Cholecystitis may be detected by pressing the fingers
gently in to the right hypochondrium as the patient
takes a deep breath in, a sudden catch of breath when
the gallbladder touches your fingers indicates
inflammation (a positive Murphy’s sing).
5. To assess ventral hernias
– If you suspect this type of hernia but do not see an
umbilical or incisional hernia, ask the patient to raise both
head and shoulders off the examination coach.
– The bulge of a hernia which usually appear with this
action.
2/21/2023 38

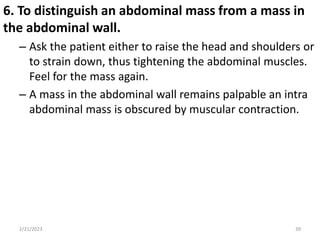

39. 6. To distinguish an abdominal mass from a mass in
the abdominal wall.
– Ask the patient either to raise the head and shoulders or
to strain down, thus tightening the abdominal muscles.
Feel for the mass again.
– A mass in the abdominal wall remains palpable an intra
abdominal mass is obscured by muscular contraction.
2/21/2023 39

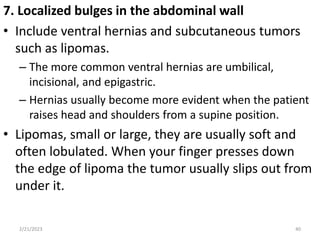

40. 7. Localized bulges in the abdominal wall
• Include ventral hernias and subcutaneous tumors
such as lipomas.
– The more common ventral hernias are umbilical,
incisional, and epigastric.
– Hernias usually become more evident when the patient
raises head and shoulders from a supine position.
• Lipomas, small or large, they are usually soft and
often lobulated. When your finger presses down
the edge of lipoma the tumor usually slips out from
under it.
2/21/2023 40

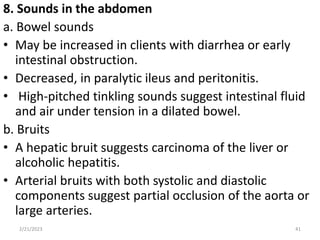

41. 8. Sounds in the abdomen
a. Bowel sounds
• May be increased in clients with diarrhea or early
intestinal obstruction.
• Decreased, in paralytic ileus and peritonitis.
• High-pitched tinkling sounds suggest intestinal fluid
and air under tension in a dilated bowel.
b. Bruits
• A hepatic bruit suggests carcinoma of the liver or
alcoholic hepatitis.
• Arterial bruits with both systolic and diastolic
components suggest partial occlusion of the aorta or
large arteries.
2/21/2023 41

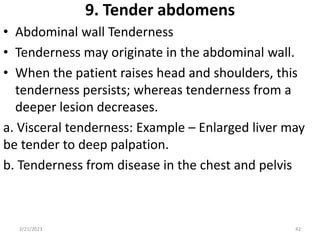

42. 9. Tender abdomens
• Abdominal wall Tenderness
• Tenderness may originate in the abdominal wall.
• When the patient raises head and shoulders, this
tenderness persists; whereas tenderness from a
deeper lesion decreases.
a. Visceral tenderness: Example – Enlarged liver may
be tender to deep palpation.
b. Tenderness from disease in the chest and pelvis
2/21/2023 42

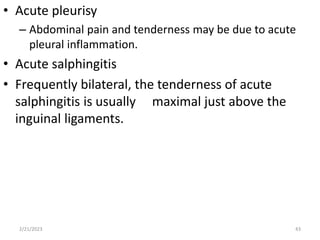

43. • Acute pleurisy
– Abdominal pain and tenderness may be due to acute
pleural inflammation.
• Acute salphingitis
• Frequently bilateral, the tenderness of acute
salphingitis is usually maximal just above the
inguinal ligaments.
2/21/2023 43

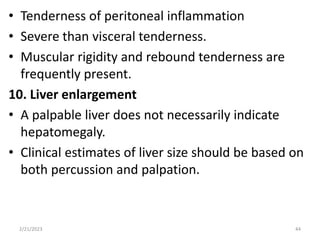

44. • Tenderness of peritoneal inflammation
• Severe than visceral tenderness.
• Muscular rigidity and rebound tenderness are
frequently present.
10. Liver enlargement
• A palpable liver does not necessarily indicate
hepatomegaly.
• Clinical estimates of liver size should be based on
both percussion and palpation.
2/21/2023 44

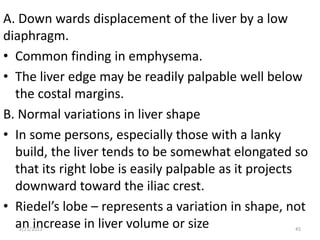

45. A. Down wards displacement of the liver by a low
diaphragm.
• Common finding in emphysema.
• The liver edge may be readily palpable well below
the costal margins.
B. Normal variations in liver shape
• In some persons, especially those with a lanky
build, the liver tends to be somewhat elongated so
that its right lobe is easily palpable as it projects
downward toward the iliac crest.
• Riedel’s lobe – represents a variation in shape, not
an increase in liver volume or size
2/21/2023 45

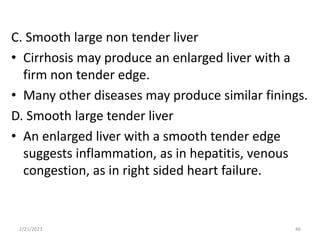

46. C. Smooth large non tender liver
• Cirrhosis may produce an enlarged liver with a
firm non tender edge.
• Many other diseases may produce similar finings.
D. Smooth large tender liver
• An enlarged liver with a smooth tender edge
suggests inflammation, as in hepatitis, venous
congestion, as in right sided heart failure.
2/21/2023 46

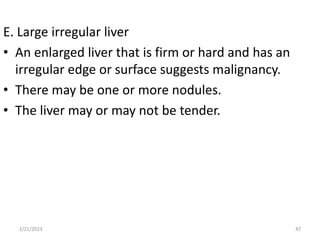

47. E. Large irregular liver
• An enlarged liver that is firm or hard and has an
irregular edge or surface suggests malignancy.
• There may be one or more nodules.
• The liver may or may not be tender.
2/21/2023 47

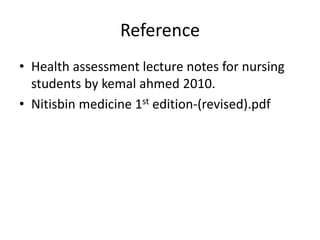

48. Reference
• Health assessment lecture notes for nursing
students by kemal ahmed 2010.
• Nitisbin medicine 1st edition-(revised).pdf

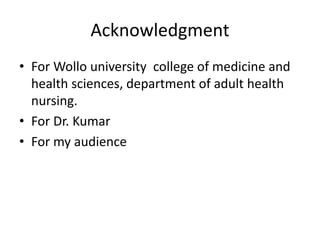

49. Acknowledgment
• For Wollo university college of medicine and
health sciences, department of adult health
nursing.
• For Dr. Kumar
• For my audience
