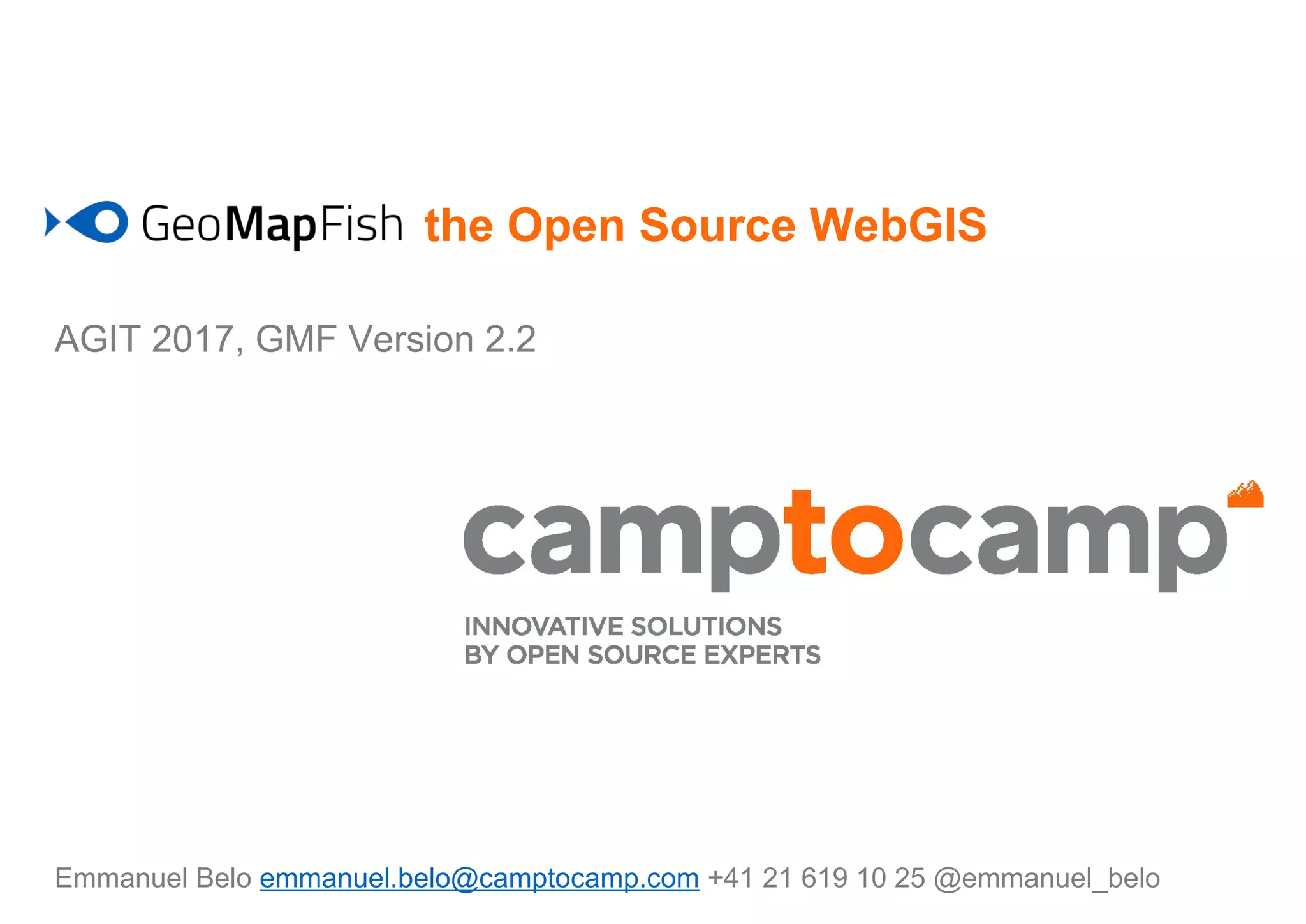

1. the Open Source WebGIS
AGIT 2017, GMF Version 2.2
Emmanuel Belo emmanuel.belo@camptocamp.com +41 21 619 10 25 @emmanuel_belo

2. www.camptocamp.com

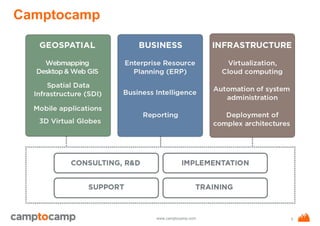

Camptocamp
2

3. www.camptocamp.com
Camptocamp
3

4. www.camptocamp.com
GeoMapFish
Rich WebGIS, community driven development, interoperable
4

5. www.camptocamp.com

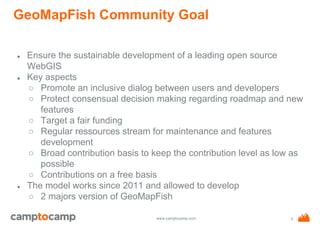

GeoMapFish Community Goal
● Ensure the sustainable development of a leading open source
WebGIS
● Key aspects
○ Promote an inclusive dialog between users and developers
○ Protect consensual decision making regarding roadmap and new
features
○ Target a fair funding
○ Regular ressources stream for maintenance and features
development
○ Broad contribution basis to keep the contribution level as low as
possible
○ Contributions on a free basis
● The model works since 2011 and allowed to develop
○ 2 majors version of GeoMapFish
5

6. www.camptocamp.com

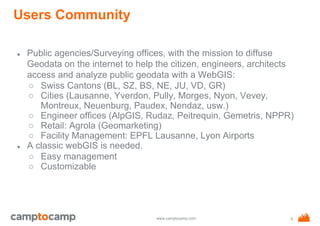

Users Community
● Public agencies/Surveying offices, with the mission to diffuse
Geodata on the internet to help the citizen, engineers, architects
access and analyze public geodata with a WebGIS:
○ Swiss Cantons (BL, SZ, BS, NE, JU, VD, GR)
○ Cities (Lausanne, Yverdon, Pully, Morges, Nyon, Vevey,
Montreux, Neuenburg, Paudex, Nendaz, usw.)
○ Engineer offices (AlpGIS, Rudaz, Peitrequin, Gemetris, NPPR)
○ Retail: Agrola (Geomarketing)
○ Facility Management: EPFL Lausanne, Lyon Airports
● A classic webGIS is needed.
○ Easy management
○ Customizable
6

7. www.camptocamp.com

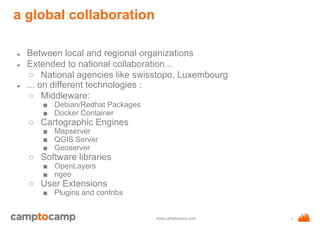

a global collaboration
● Between local and regional organizations
● Extended to national collaboration…
○ National agencies like swisstopo, Luxembourg
● ... on different technologies :
○ Middleware:
■ Debian/Redhat Packages
■ Docker Container
○ Cartographic Engines
■ Mapserver
■ QGIS Server
■ Geoserver
○ Software libraries
■ OpenLayers
■ ngeo
○ User Extensions
■ Plugins and contribs
7

8. www.camptocamp.com
Software architecture concepts
● Focus : architecture coherence
○ Mapservice configuration : Layers, Queries, Legend =>
WMS/WFS
○ 1 PostgreSQL table for the full text search
○ Administration GUI: layer tree and security configuration
● Freedom
○ Code organization for seamless updates
○ Layout, Functionalities and customizing without forking the
application
● Security
○ Feature, layer, multipolygon, attribute
○ All webservices types secured
● End to End data production/integration and publication
○ QGIS Desktop and QGIS Server
8

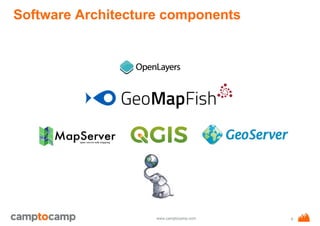

9. www.camptocamp.com
Software Architecture components
9

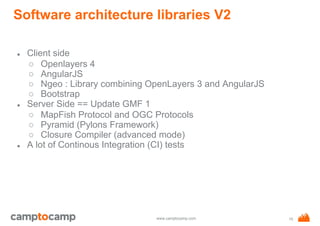

10. www.camptocamp.com
Software architecture libraries V2
● Client side
○ Openlayers 4
○ AngularJS
○ Ngeo : Library combining OpenLayers 3 and AngularJS
○ Bootstrap
● Server Side == Update GMF 1
○ MapFish Protocol and OGC Protocols
○ Pyramid (Pylons Framework)
○ Closure Compiler (advanced mode)
● A lot of Continous Integration (CI) tests
10

11. www.camptocamp.com
ngeo - design principles
● Provide atomic components that can be combined in many different
ways
○ https://github.com/camptocamp/ngeo
● /src Directives, controllers, modules, externs
/test Tests des composants (karma, jasmine, phantomJs)
/examples compiled examples
/contribs specific contributions (gmf)
/jsdoc Documentation
● Usage
○ GMF
○ GeoNetwork
○ Swisstopo,Luxembourg
○ Swiss Alpine Club, c2corg
11

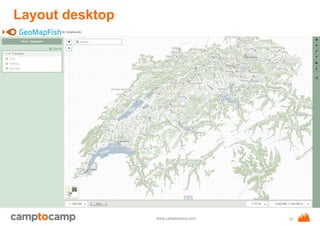

12. www.camptocamp.com
Layout desktop
12

13. www.camptocamp.com

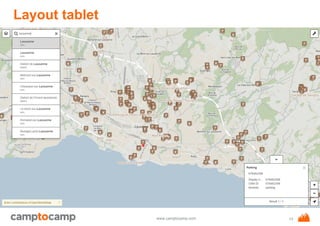

Layout tablet
13

14. www.camptocamp.com
Layout smartphone
14

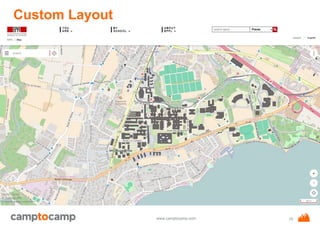

15. www.camptocamp.com
Custom Layout
15

16. www.camptocamp.com
Multilingual
16

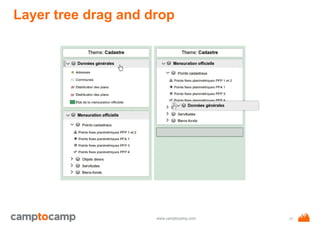

17. www.camptocamp.com
Layer tree drag and drop
17

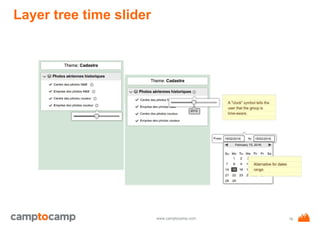

18. www.camptocamp.com
Layer tree time slider
18

19. www.camptocamp.com
Thematic cartography and dynamic legends
19

20. www.camptocamp.com

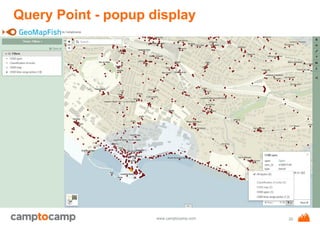

Query Point - popup display
20

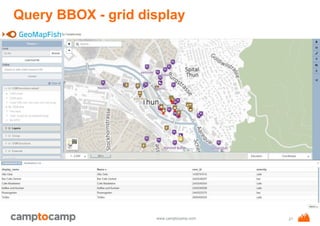

21. www.camptocamp.com
Query BBOX - grid display
21

22. www.camptocamp.com

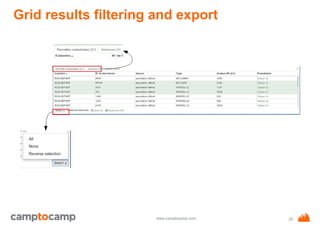

Grid results filtering and export
22

23. www.camptocamp.com
Live raster & coordinate interrogation
23

24. www.camptocamp.com

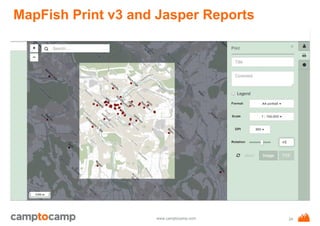

MapFish Print v3 and Jasper Reports
24

25. www.camptocamp.com

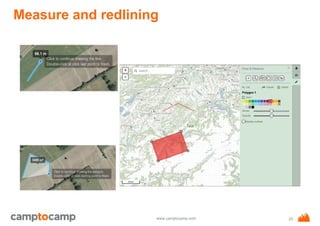

Measure and redlining
25

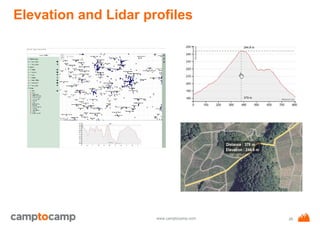

26. www.camptocamp.com
Elevation and Lidar profiles
26

27. www.camptocamp.com

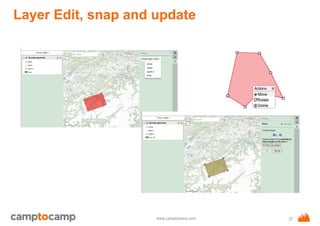

Layer Edit, snap and update
27

28. www.camptocamp.com

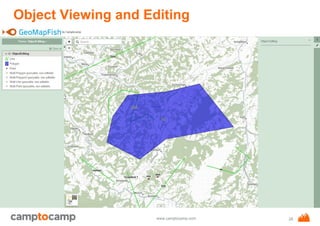

Object Viewing and Editing
28

29. www.camptocamp.com

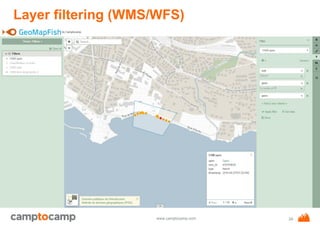

Layer filtering (WMS/WFS)
29

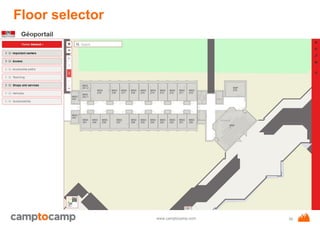

30. www.camptocamp.com
Floor selector
30

31. www.camptocamp.com

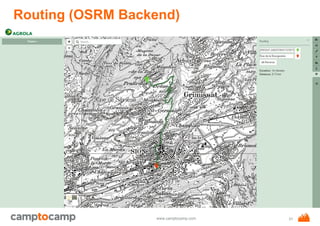

Routing (OSRM Backend)
31

32. www.camptocamp.com

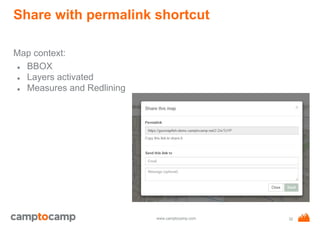

Share with permalink shortcut
Map context:
● BBOX
● Layers activated
● Measures and Redlining
32

33. www.camptocamp.com
iFrame integration
33

34. www.camptocamp.com

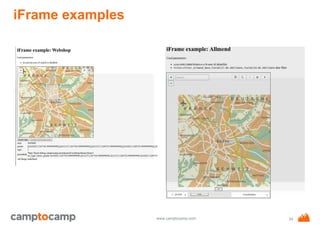

iFrame examples
34

35. www.camptocamp.com

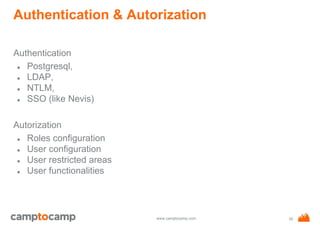

Authentication & Autorization
Authentication
● Postgresql,
● LDAP,
● NTLM,
● SSO (like Nevis)
Autorization
● Roles configuration
● User configuration
● User restricted areas
● User functionalities
35

36. www.camptocamp.com

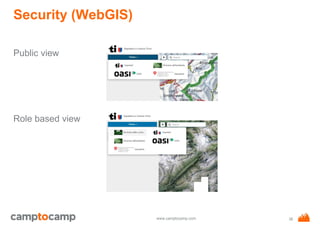

Security (WebGIS)
Public view
Role based view
36

37. www.camptocamp.com

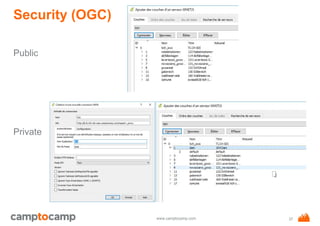

Security (OGC)
Public
Private
37

38. www.camptocamp.com

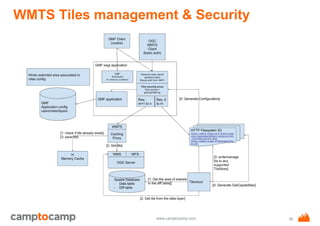

WMTS Tiles management & Security
38

39. www.camptocamp.com
Database model
39

40. www.camptocamp.com

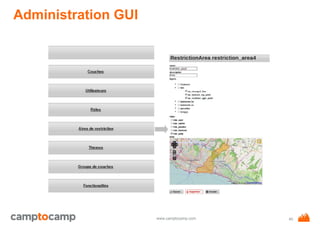

Administration GUI
40

41. www.camptocamp.com
External WMS integration
41

42. www.camptocamp.com

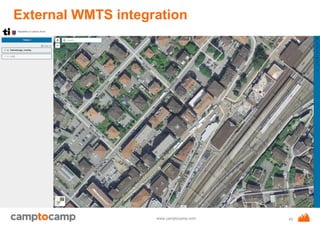

External WMTS integration
42

43. www.camptocamp.com

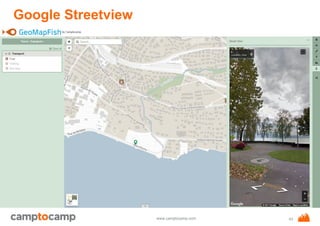

Google Streetview
43

44. www.camptocamp.com

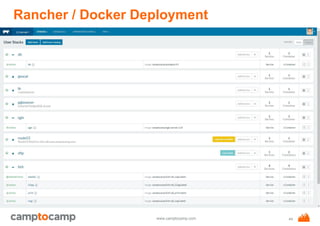

Rancher / Docker Deployment
44

45. www.camptocamp.com
Roadmap version 2.3
Functions for this version are now frozen and will enter the development
process.
Release date for this bundle will be November-December 2017.
Function n° Description
2.3.1 WMS / KML browser integration + permalink
2.3.2 Map rotation
2.3.3 Moving Window & query result / resizing
2.3.4 Administration interface
2.3.5 Result window optimization
2.3.6 Layertree flush / no flush in mobile version
2.3.7 Opacity for layers in mobile version
45

46. www.camptocamp.com

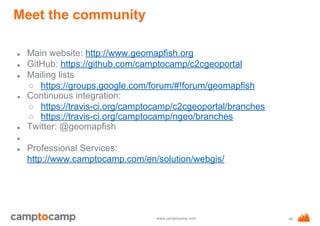

Meet the community
● Main website: http://www.geomapfish.org
● GitHub: https://github.com/camptocamp/c2cgeoportal
● Mailing lists
○ https://groups.google.com/forum/#!forum/geomapfish
● Continuous integration:
○ https://travis-ci.org/camptocamp/c2cgeoportal/branches
○ https://travis-ci.org/camptocamp/ngeo/branches
● Twitter: @geomapfish
●
● Professional Services:
http://www.camptocamp.com/en/solution/webgis/
