1. Data Processing with QGIS 3

2. 2/30www.camptocamp.com /
About me
■ Name: Yves Jacolin
■ Company: Camptocamp (training and support)
■ Twitter: @yjacolin
■ Community:
○ GeoRezo.net moderator and administrator
○ OSGeo-Fr : funding member, president, contributor
○ OSGeo charter member
○ QGIS Documentation Leader

3. 3/30www.camptocamp.com /
Introduction
■ Data processing could help you for:
○ managing and processing your data
○ industrializing your process
■ Processing in QGIS is a light ETL

4. 4/30www.camptocamp.com /
Summary
■ Description of QGIS Processing Feature (in QGIS
2.x)
○ What it is
○ Data source
■ Geoalgorithms
■ Graphical modeler
■ Scripts
■ Tips & Tricks
■ What’s new: QGIS 3.0 and beyond

5. 5/30www.camptocamp.com /
Short description

6. 6/30www.camptocamp.com /
What is Processing in QGIS?
■ Python plugin for data processing
○ Created by Victor Olaya
○ A lot of new feature and improvment since its creation
■ Several providers
○ GDAL-OGR
○ SAGA
○ Orfeo Tools Box
○ GRASS
○ R-Script
○ TauDEM
○ LAStools

7. 7/30www.camptocamp.com /
What is Processing in QGIS?
■ Panels and windows:
○ Options
○ Toolbox
○ Graphical modeler
○ Results viewer
○ Commander

8. 8/30www.camptocamp.com /
Overall Processing features and
configuration

9. 9/30www.camptocamp.com /
Configuration
■ Path to providers
■ Activate features
■ Default styling configuration
for layers
■ Default extension

10. 10/30www.camptocamp.com /
Data source
■ Read and write all data source from QGIS
■ Internal temporary data source: shapefile
○ Break field name to 10 characters
○ ...

11. 11/30www.camptocamp.com /
Geoalgorithms

12. 12/30www.camptocamp.com /
Finding geoalgorithms
■ By providers:
○ GRASS
○ SAGA
○ GDAL/OGR
■ More from plugin
○ QuickOSM
■ Scripts repository

13. 13/30www.camptocamp.com /
Run an algorithm
■ Refactoring fields algorithm

14. 14/30www.camptocamp.com /
Graphical modeler
■ Build your own custom models from existing algorithms

15. 15/30www.camptocamp.com /

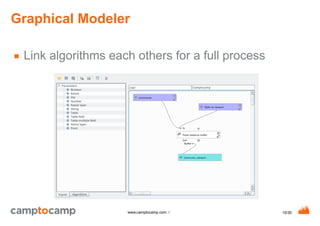

Graphical Modeler
■ Link algorithms each others for a full process

16. 16/30www.camptocamp.com /

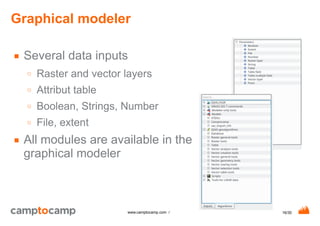

Graphical modeler
■ Several data inputs
○ Raster and vector layers
○ Attribut table
○ Boolean, Strings, Number
○ File, extent
■ All modules are available in the
graphical modeler

17. 17/30www.camptocamp.com /
Graphical modeler
■ Run your algorithm!

18. 18/30www.camptocamp.com /
Graphical modeler
■ Contextual menu for field:
○ Vector/raster layers: Open an external file
○ Number/string: use of an expression
○ Resulting field: export to a temporary file, a file or use
expression
■ Iterating on features

19. 19/30www.camptocamp.com /
Scripts
■ Do you feels limited by the graphical modeler?

20. 20/30www.camptocamp.com /
Custom scripts
■ All same features than before
■ QGIS Python API
■ Just a simple script

21. 21/30www.camptocamp.com /
Custom scripts
■ Iterating
■ Specific action on field
○ Expression
○ Export to a tmp file
○ Batch
○ Log management
○ Help

22. 22/30www.camptocamp.com /
I want more!
■ Tips and tricks
■ The futur!

23. 23/30www.camptocamp.com /
Tips & Tricks
■ Use your scripts and custom algorithms in another
algorithm
■ Export scripts
■ Create a menu in QGIS maint interface from models
■ Batch processing

24. 24/30www.camptocamp.com /
Tips & Tricks
■ Download new scripts from public or private git
repository

25. 25/30www.camptocamp.com /

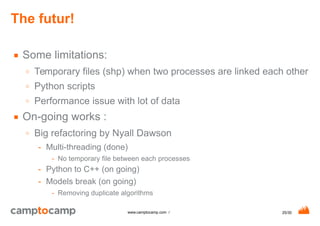

The futur!
■ Some limitations:
○ Temporary files (shp) when two processes are linked each other
○ Python scripts
○ Performance issue with lot of data
■ On-going works :
○ Big refactoring by Nyall Dawson
- Multi-threading (done)
- No temporary file between each processes
- Python to C++ (on going)
- Models break (on going)
- Removing duplicate algorithms

26. 26/30www.camptocamp.com /

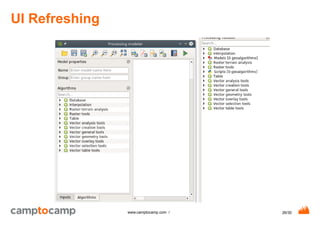

UI Refreshing

27. 27/30www.camptocamp.com /
Move Processing options to QGIS settings

28. 28/30www.camptocamp.com /
Huge thanks to all contributors!

29. 29/30www.camptocamp.com /
Thanks!
■ Twitter: @yjacolin
■ Email: yves.jacolin@camptocamp.com
