Geo mapfish 2_foss4g-eu_2017
- 1. the Open SourceWebGIS FOSS4G-Eu 2017, GMF Version 2.2 Yves Bolognini yves.bolognini@camptocamp.com +41 21 619 10 24 @ybc2c
- 2. 2/44 www.camptocamp.com / About me ■Name: Yves Jacolin ■ Company: Camptocamp (training and support) ■ Twitter: @yjacolin ■ Community: ○ GeoRezo.net moderator and administrator ○ OSGeo-Fr : funding member, president, contributor ○ OSGeo charter member ○ QGIS Documentation Leader
- 3. www.camptocamp.com GeoMapFish Rich WebGIS, communitydriven development, interoperable 3
- 4. 4/44 www.camptocamp.com / GeoMapFish CommunityGoal ●Ensure the sustainable development of a leading open source WebGIS ●Key aspects • Promote an inclusive dialog between users and developers • Protect consensual decision making regarding roadmap and new features • Target a fair funding • Regular ressources stream for maintenance and features development • Broad contribution basis to keep the contribution level as low as possible • Contributions on a free basis ●The model works since 2011 and allowed to develop • 2 majors version of GeoMapFish 4
- 5. www.camptocamp.com Users Community ●Public agencies/Surveyingoffices, with the mission to diffuse Geodata on the internet to help the citizen, engineers, architects access and analyze public geodata with a WebGIS: • Swiss Cantons (BL, SZ, BS, NE, JU, VD, GR) • Cities (Lausanne, Yverdon, Pully, Morges, Nyon, Vevey, Montreux, Neuenburg, Paudex, Nendaz, usw.) • Engineer offices (AlpGIS, Rudaz, Peitrequin, Gemetris, NPPR) • Retail: Agrola (Geomarketing) • Facility Management: EPFL Lausanne, Lyon Airports ●A classic webGIS is needed. • Easy management • Customizable 5
- 6. www.camptocamp.com A global collaboration ●Betweenlocal and regional organizations ●Extended to national collaboration… • National agencies like swisstopo, Luxembourg ●... on different technologies : • Middleware: • Debian/Redhat Packages • Docker Container • Cartographic Engines • Mapserver • QGIS Server • Geoserver • Software libraries • OpenLayers • ngeo • User Extensions • Plugins and contribs 6
- 7. www.camptocamp.com Software architecture concepts ●Focus:architecture coherence • Mapservice configuration : Layers, Queries, Legend => WMS/WFS • 1 PostgreSQL table for the full text search • Administration GUI: layer tree and security configuration ●Freedom • Code organization for seamless updates • Layout, Functionalities and customizing without forking the application ●Security • Feature, layer, multipolygon, attribute • All webservices types secured ●End to End data production/integration and publication • QGIS Desktop and QGIS Server 7
- 8.

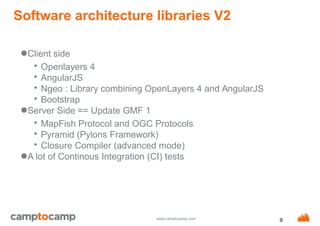

- 9. www.camptocamp.com Software architecture librariesV2 ●Client side • Openlayers 4 • AngularJS • Ngeo : Library combining OpenLayers 4 and AngularJS • Bootstrap ●Server Side == Update GMF 1 • MapFish Protocol and OGC Protocols • Pyramid (Pylons Framework) • Closure Compiler (advanced mode) ●A lot of Continous Integration (CI) tests 9

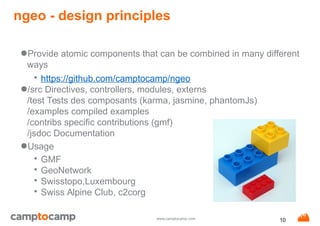

- 10. www.camptocamp.com ngeo - designprinciples ●Provide atomic components that can be combined in many different ways • https://github.com/camptocamp/ngeo ●/src Directives, controllers, modules, externs /test Tests des composants (karma, jasmine, phantomJs) /examples compiled examples /contribs specific contributions (gmf) /jsdoc Documentation ●Usage • GMF • GeoNetwork • Swisstopo,Luxembourg • Swiss Alpine Club, c2corg 10
- 11.
- 12.
- 13.
- 14.
- 15.
- 16. www.camptocamp.com Layer tree dragand drop 16

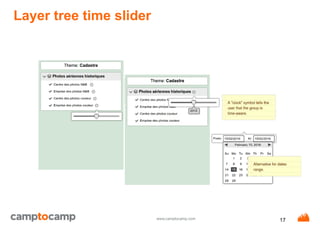

- 17. www.camptocamp.com Layer tree timeslider 17
- 18. www.camptocamp.com Thematic cartography anddynamic legends 18
- 19. www.camptocamp.com Query Point -popup display 19
- 20. www.camptocamp.com Query BBOX -grid display 20
- 21. www.camptocamp.com Grid results filteringand export 21
- 22. www.camptocamp.com Live raster &coordinate interrogation 22
- 23. www.camptocamp.com MapFish Print v3and Jasper Reports 23
- 24.
- 25. www.camptocamp.com Elevation and Lidarprofiles 25
- 26. www.camptocamp.com Layer Edit, snapand update 26
- 27. www.camptocamp.com Object Viewing andEditing 27
- 28.
- 29.
- 30.
- 31. www.camptocamp.com Share with permalinkshortcut Map context: ●BBOX ●Layers activated ●Measures and Redlining 31
- 32.
- 33.
- 34. www.camptocamp.com Authentication & Autorization Authentication ●Postgresql, ●LDAP, ●NTLM, ●SSO(like Nevis) Autorization ●Roles configuration ●User configuration ●User restricted areas ●User functionalities 34
- 35.
- 36.
- 37.
- 38.
- 39. www.camptocamp.com External (secure) WMTSintegration 41
- 40.
- 41. www.camptocamp.com Rancher / DockerDeployment 43
- 42. www.camptocamp.com Roadmap version 2.3 Functionsfor this version are now frozen and will enter the development process. Release date for this bundle will be December 2017. # Description 2.3.1 WMS / KML browser integration + permalink 2.3.2 Map rotation 2.3.3 Moving Window & query result / resizing 2.3.4 Administration interface 2.3.5 Result window optimization 2.3.6 Layertree flush / no flush in mobile version 2.3.7 Opacity for layers in mobile version 44
- 43. www.camptocamp.com Meet the community ●Mainwebsite: http://www.geomapfish.org ●GitHub: https://github.com/camptocamp/c2cgeoportal ●Mailing lists • https://groups.google.com/forum/#!forum/geomapfish ●Continuous integration: • https://travis-ci.org/camptocamp/c2cgeoportal/branches • https://travis-ci.org/camptocamp/ngeo/branches ●Twitter: @geomapfish ●Professional Services: http://www.camptocamp.com/en/solution/webgis/ 45
