1. Agile Induction -Priyank [email_address]

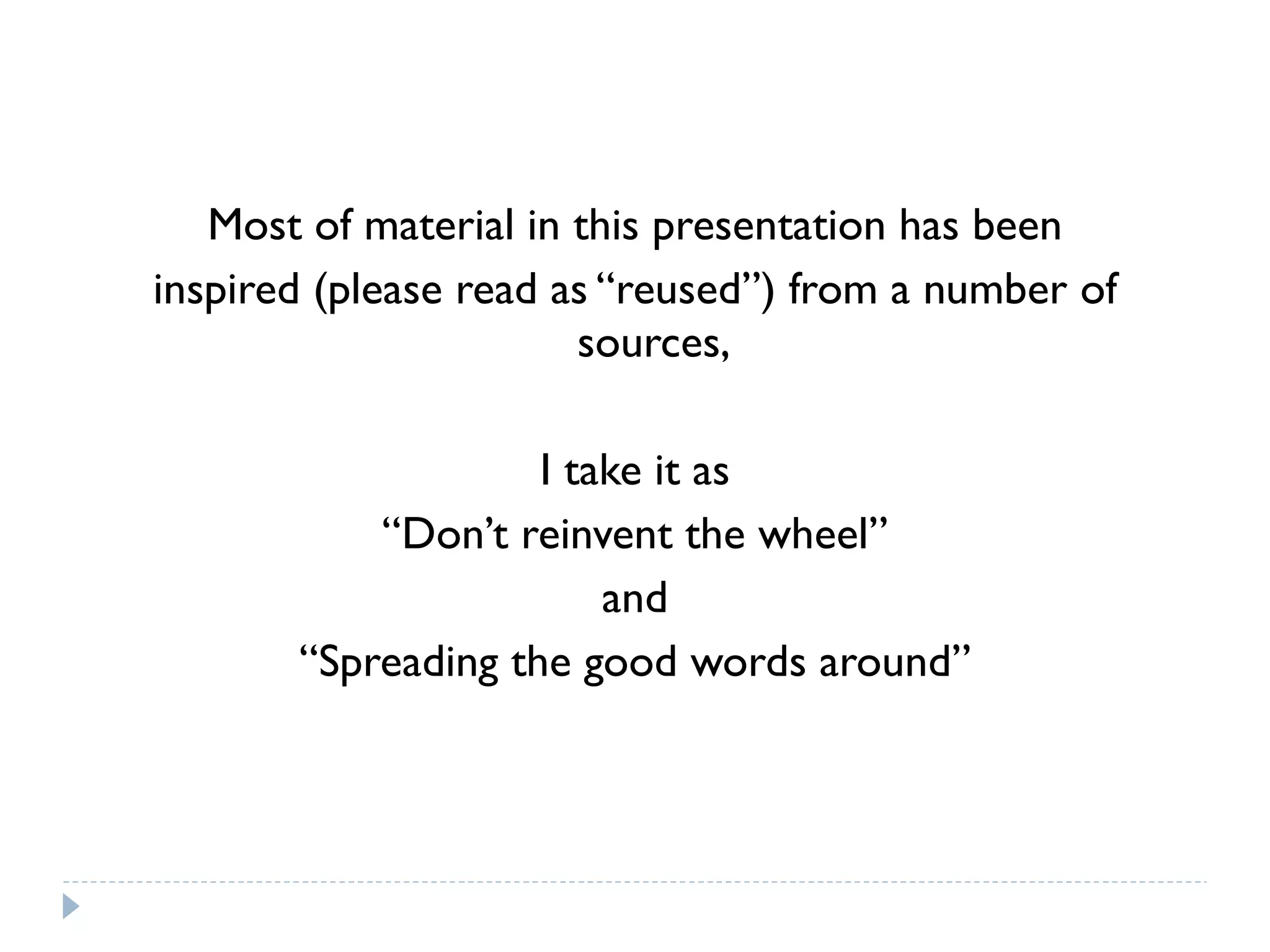

2. Most of material in this presentation has been inspired (please read as “reused”) from a number of sources, I take it as “ Don’t reinvent the wheel” and “ Spreading the good words around”

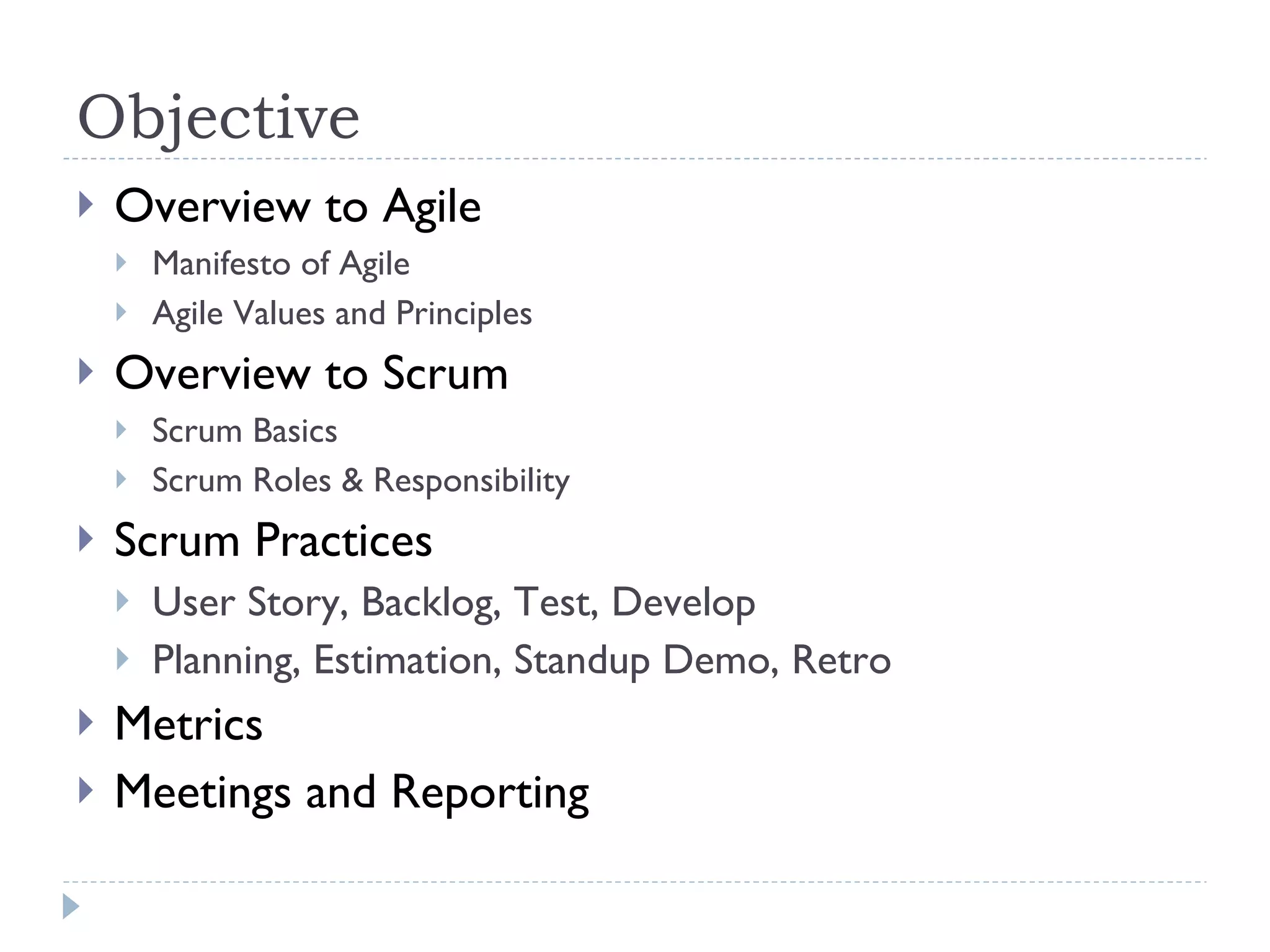

3. Objective Overview to Agile Manifesto of Agile Agile Values and Principles Overview to Scrum Scrum Basics Scrum Roles & Responsibility Scrum Practices User Story, Backlog, Test, Develop Planning, Estimation, Standup Demo, Retro Metrics Meetings and Reporting

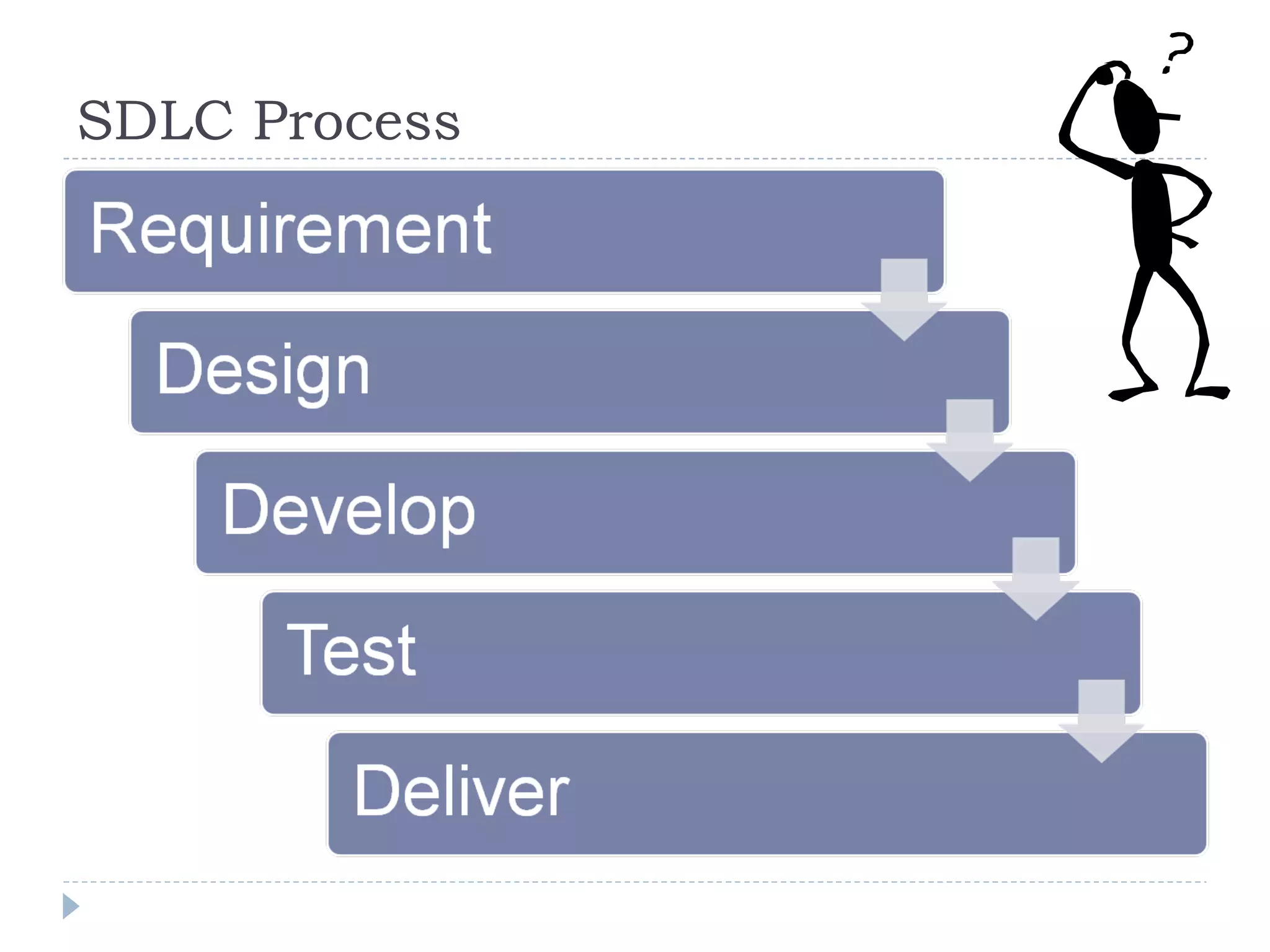

4. SDLC Process

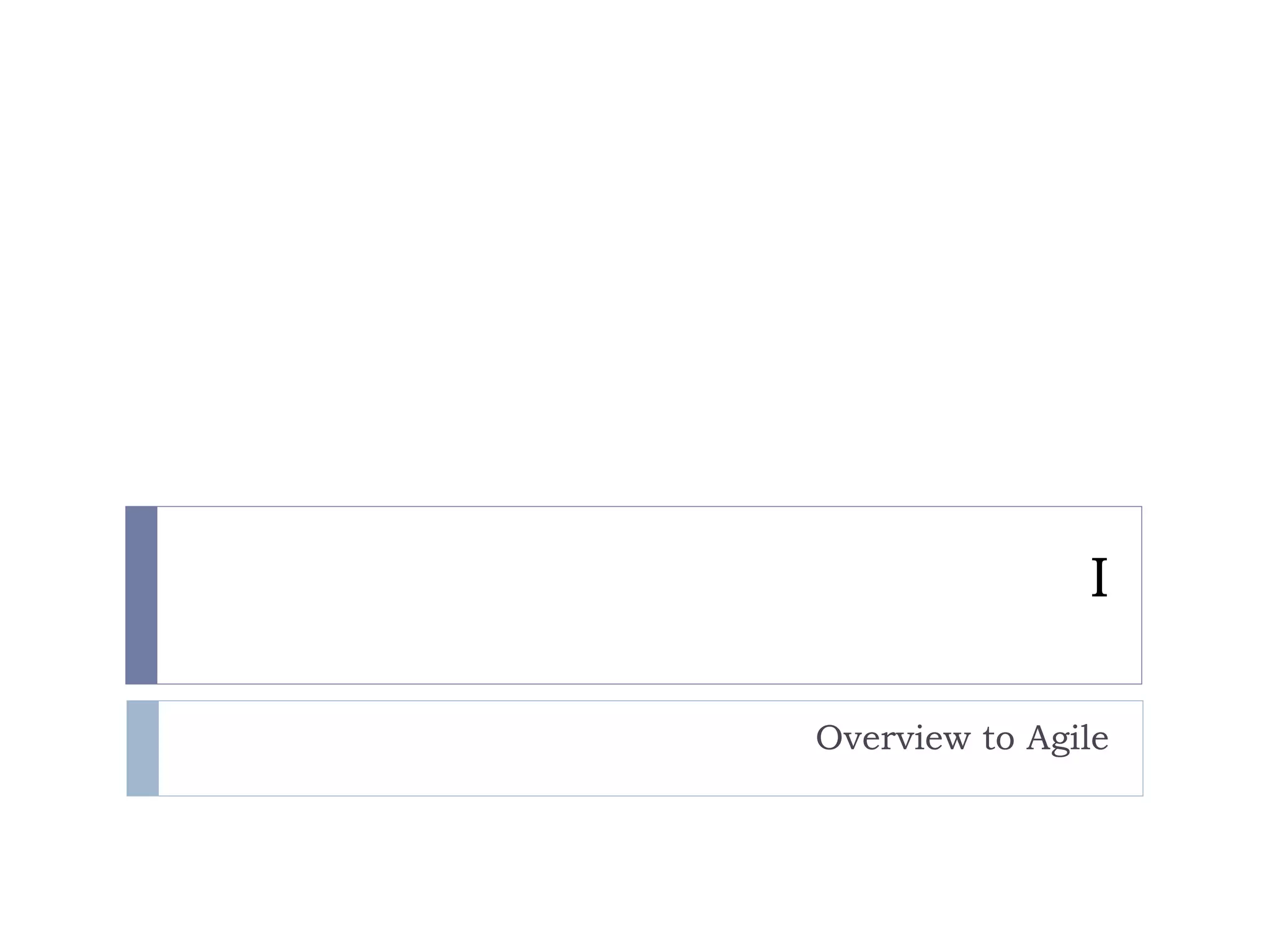

5. I Overview to Agile

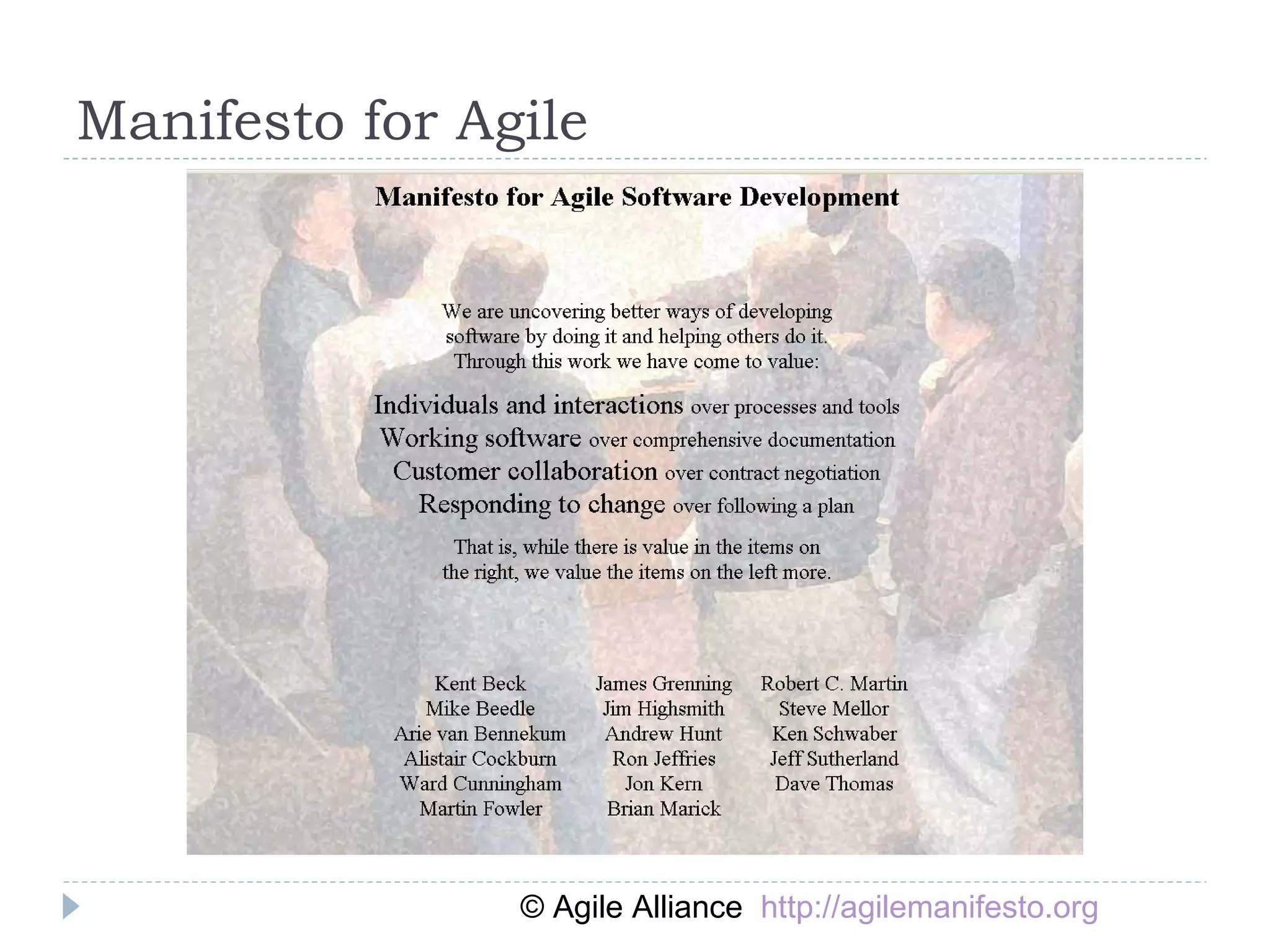

6. Manifesto for Agile © Agile Alliance http://agilemanifesto.org

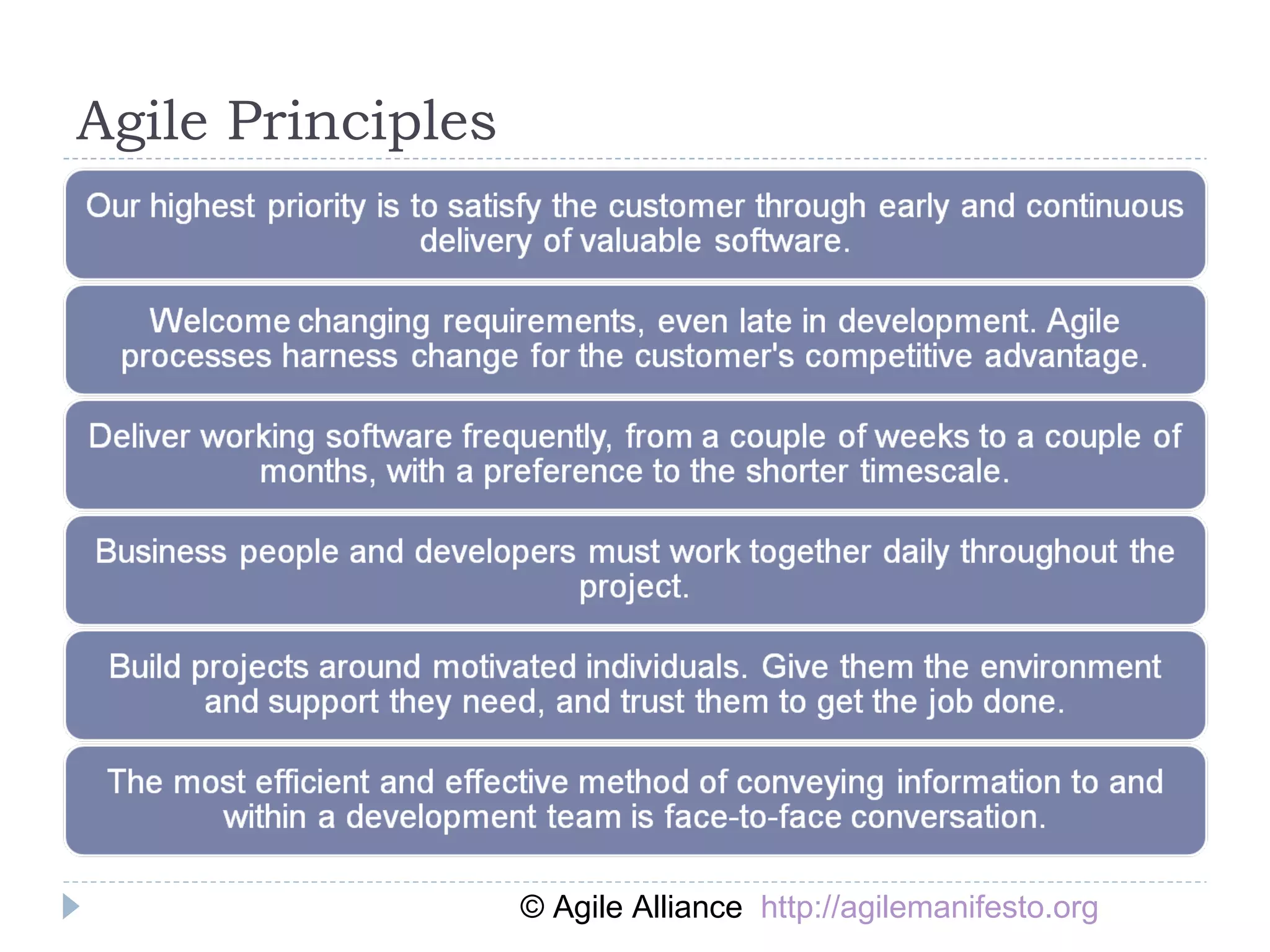

7. Agile Principles © Agile Alliance http://agilemanifesto.org

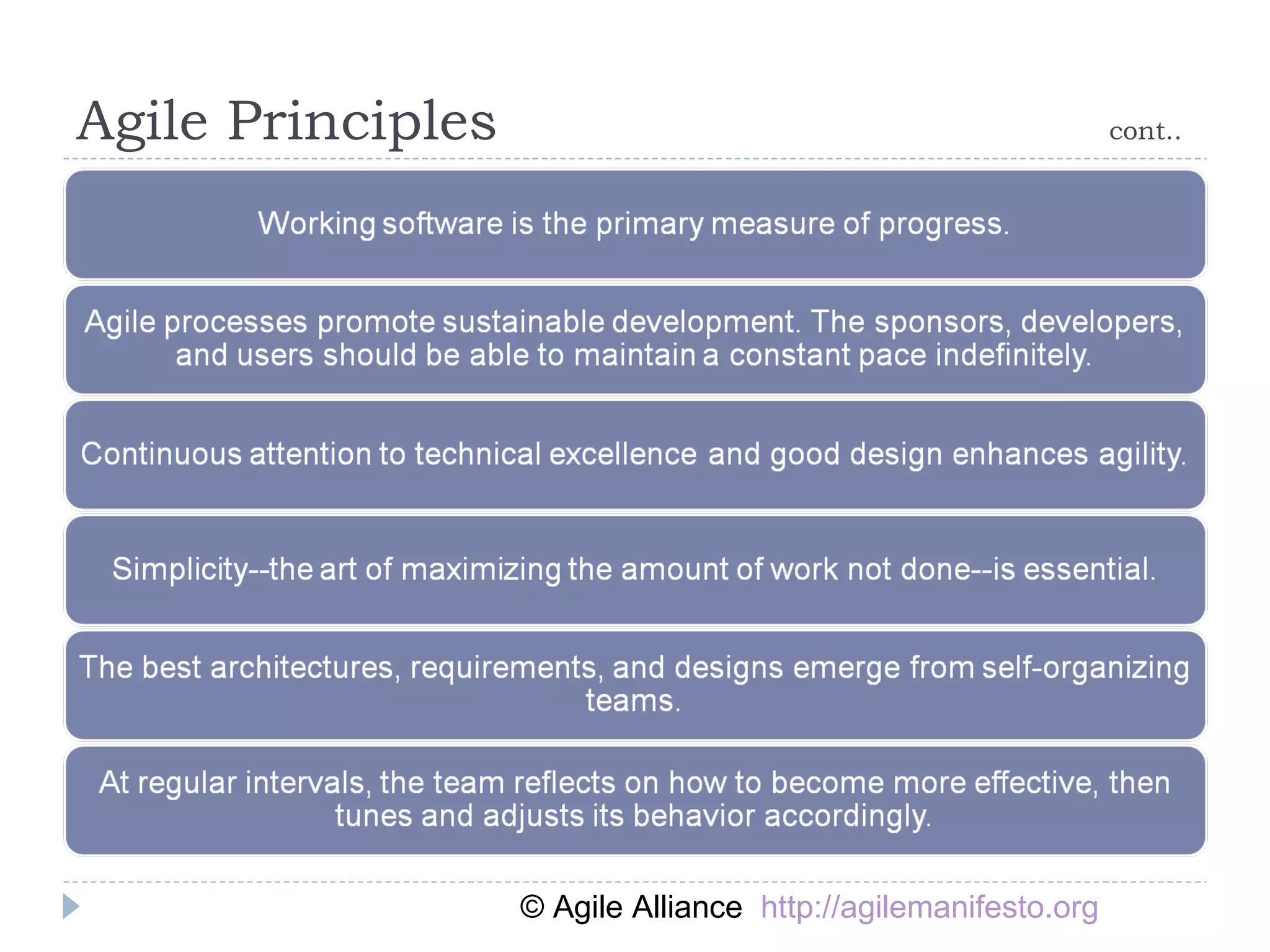

8. Agile Principles cont.. © Agile Alliance http://agilemanifesto.org

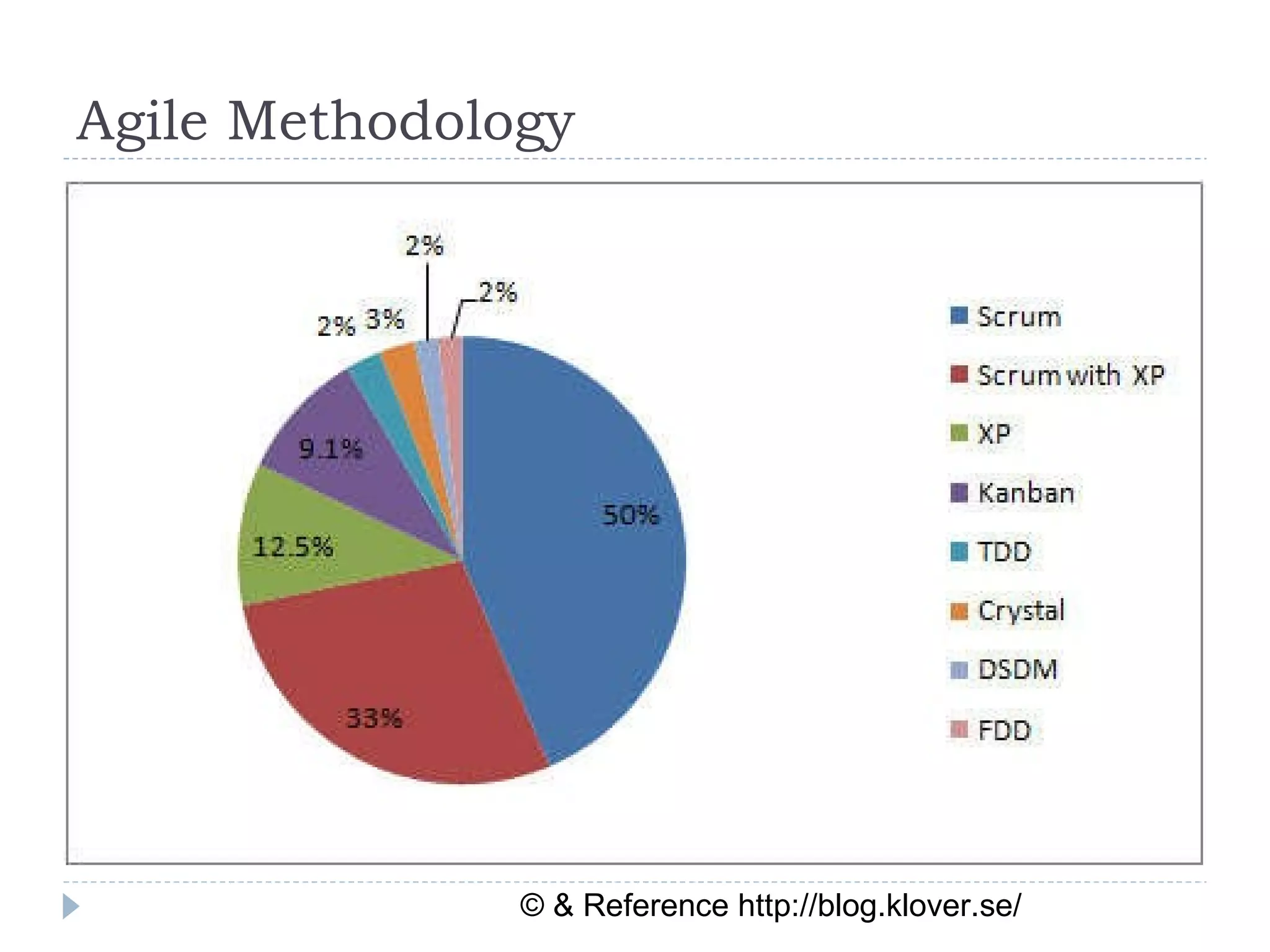

9. Agile Methodology © & Reference http://blog.klover.se/

10. II Overview to Scrum

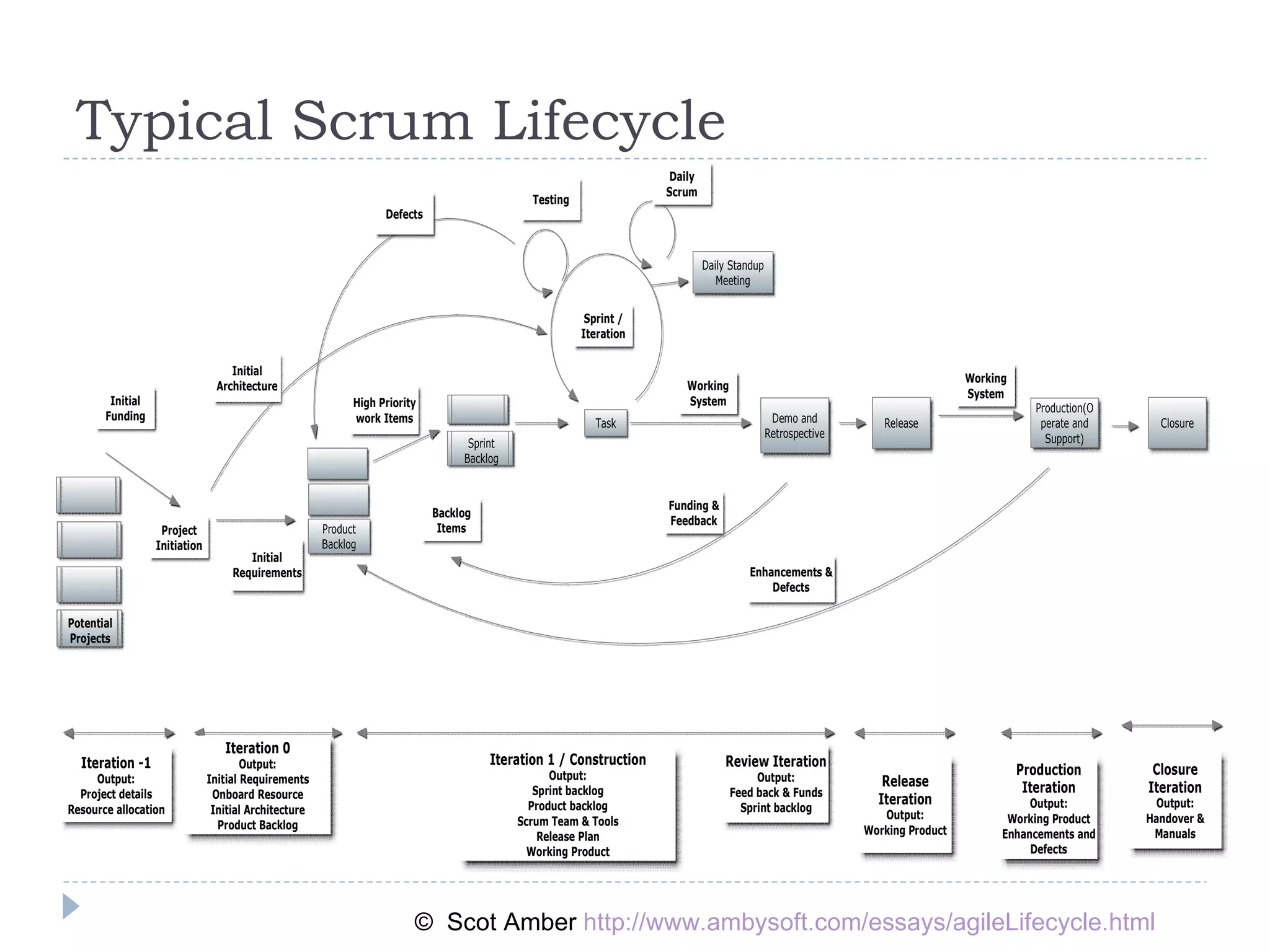

11. Typical Scrum Lifecycle © Scot Amber http://www.ambysoft.com/essays/agileLifecycle.html

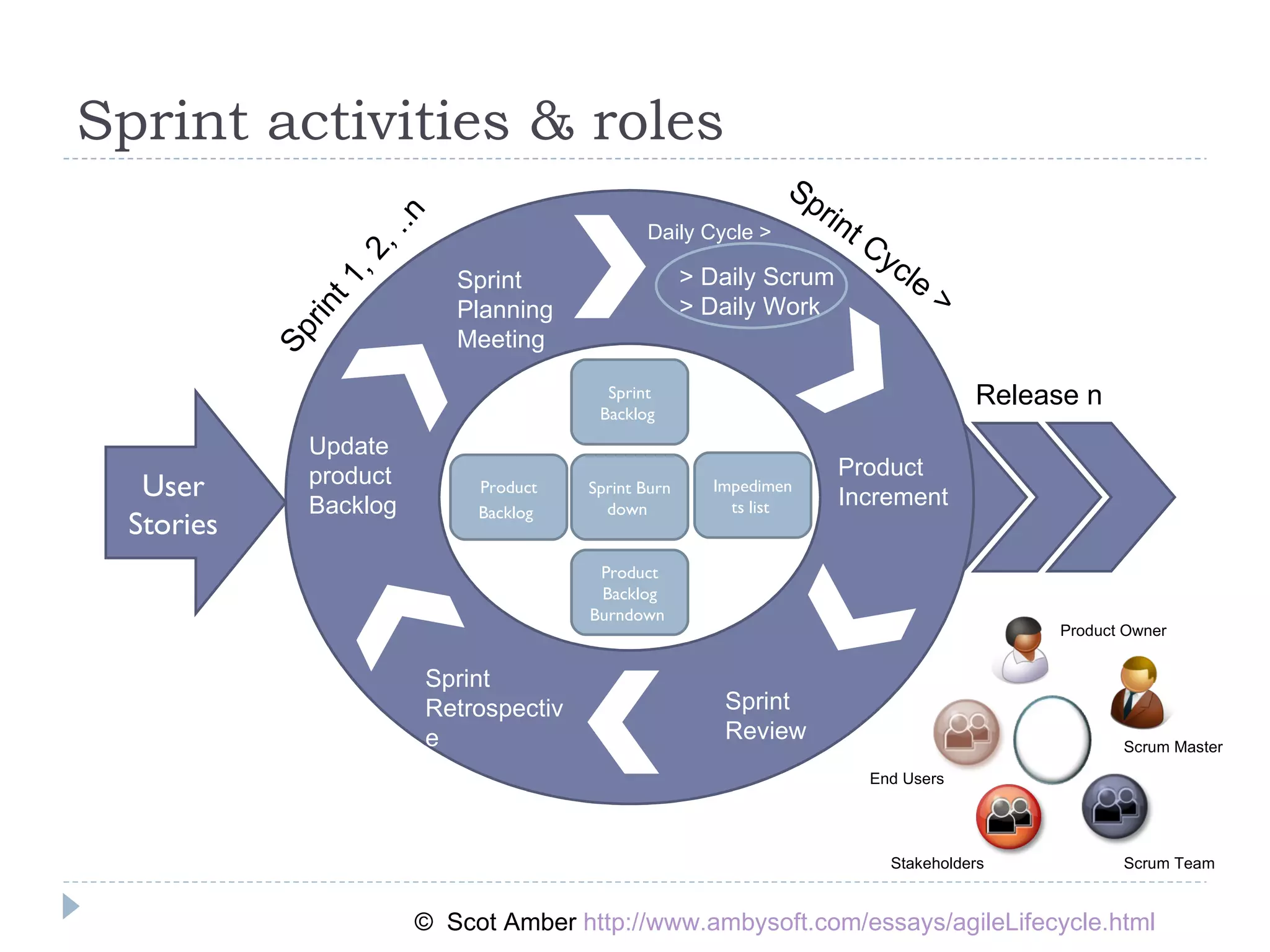

12. Sprint activities & roles Release n User Stories Sprint 1, 2, ..n Update product Backlog Sprint Planning Meeting > Daily Scrum > Daily Work Product Backlog Product Backlog Burndown Sprint Backlog Sprint Burn down Impediments list Sprint Retrospective Sprint Review Product Increment Sprint Cycle > Daily Cycle > Product Owner Scrum Master Stakeholders Scrum Team End Users © Scot Amber http://www.ambysoft.com/essays/agileLifecycle.html

13. Scrum Size: Scrum team is of 8-10 team members while few of the team cab be small in size and have only 3-4 team members

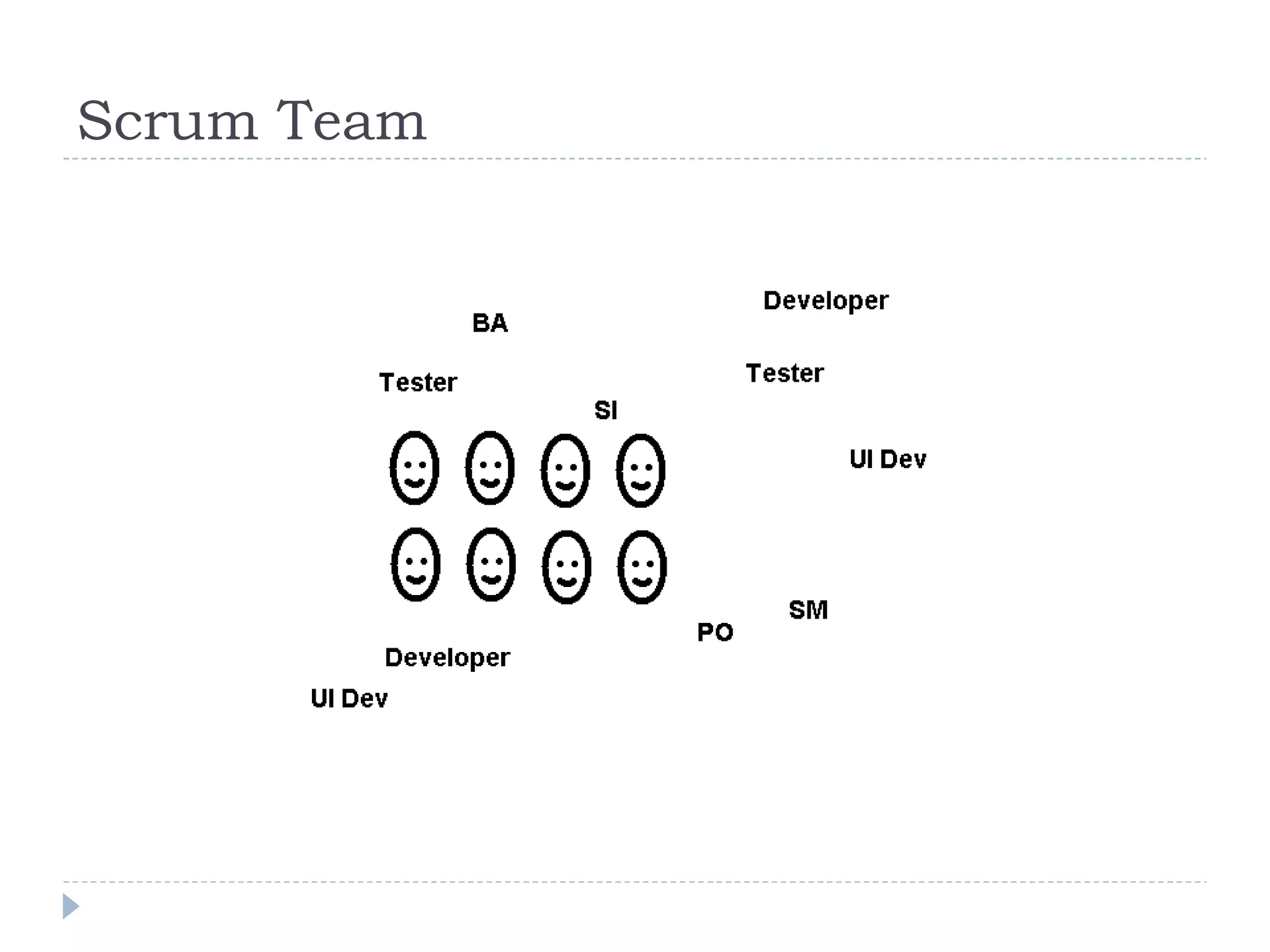

14. Scrum Team

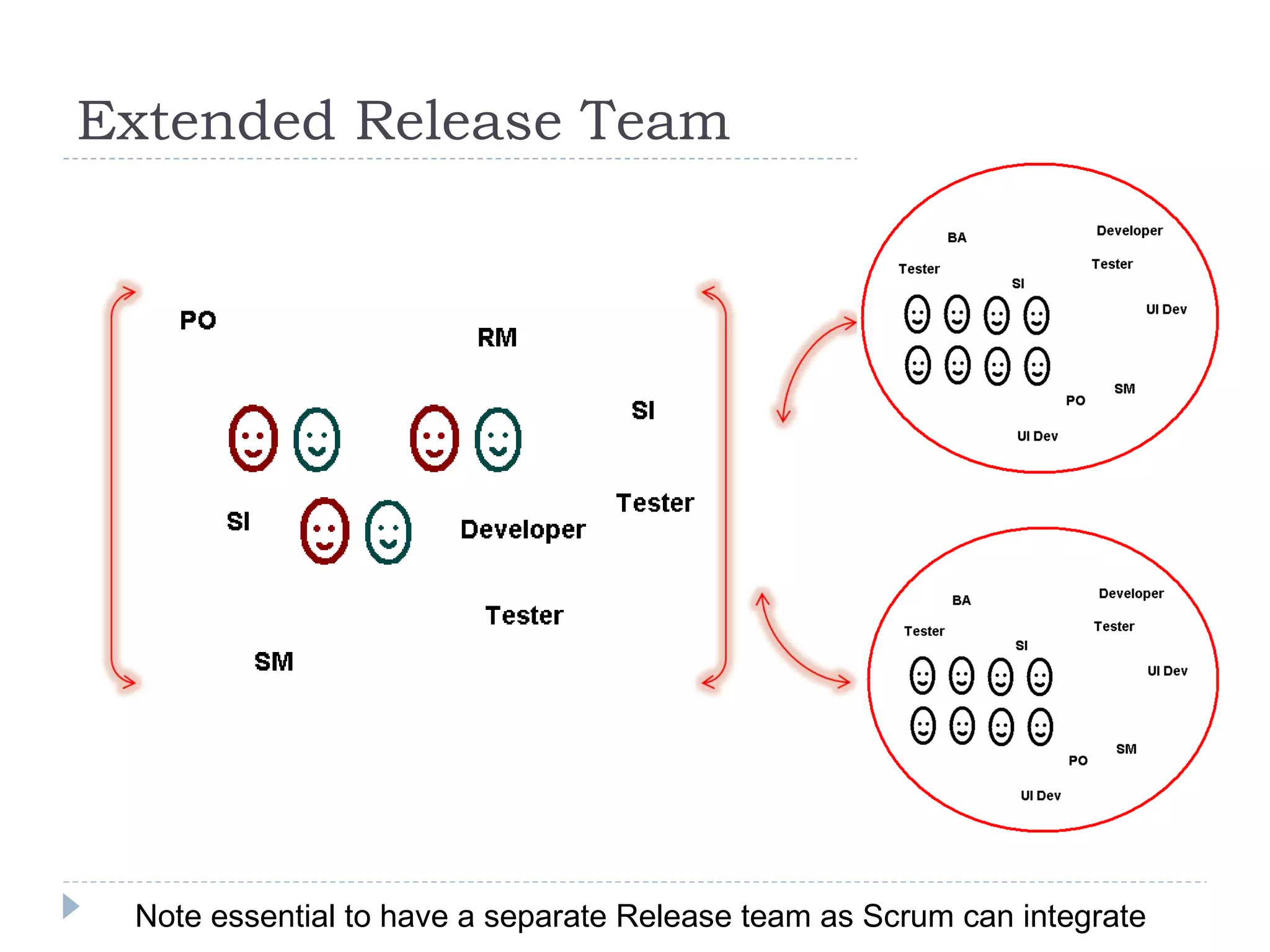

15. Extended Release Team Note essential to have a separate Release team as Scrum can integrate

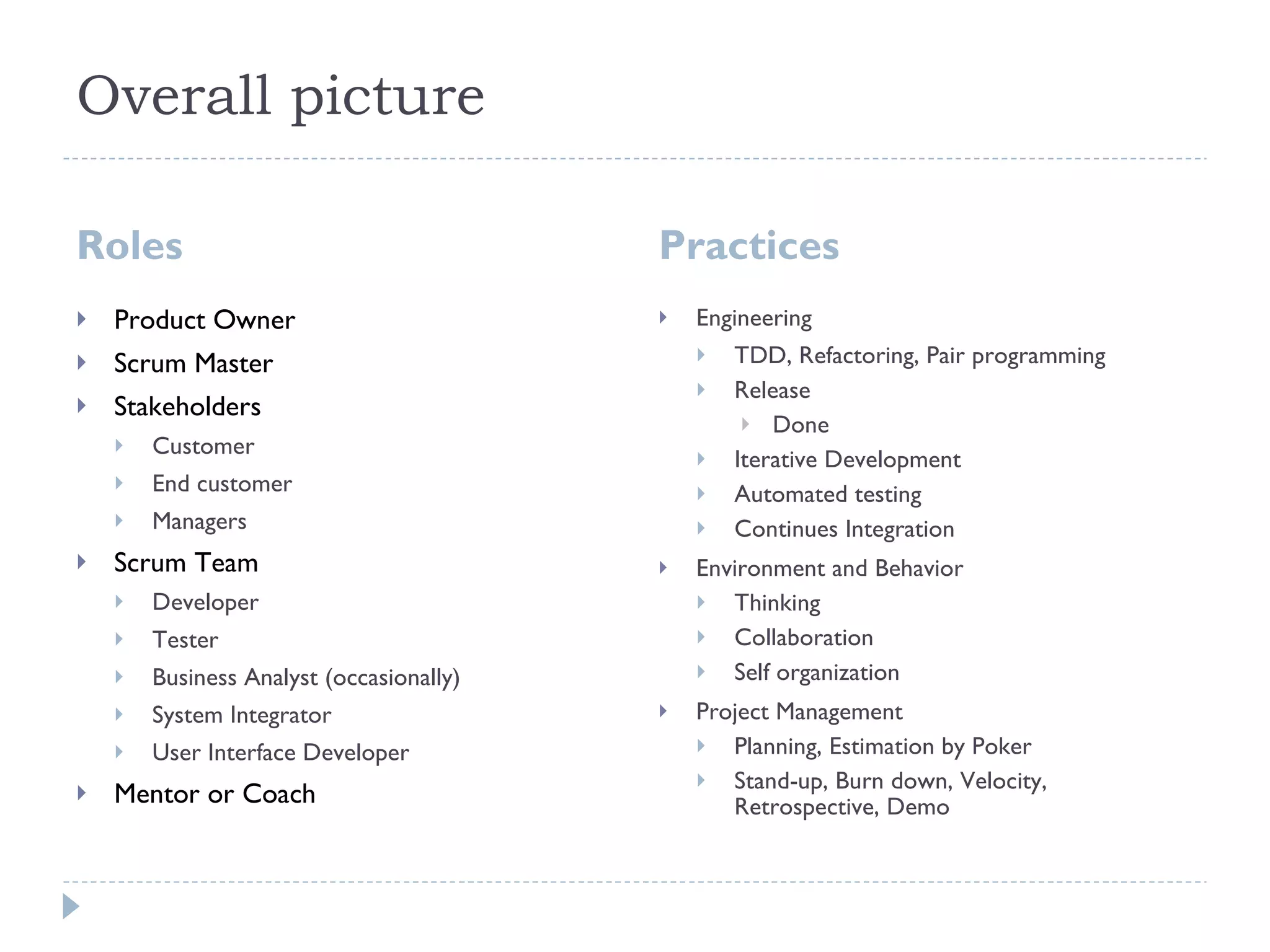

16. Overall picture Roles Practices Product Owner Scrum Master Stakeholders Customer End customer Managers Scrum Team Developer Tester Business Analyst (occasionally) System Integrator User Interface Developer Mentor or Coach Engineering TDD, Refactoring, Pair programming Release Done Iterative Development Automated testing Continues Integration Environment and Behavior Thinking Collaboration Self organization Project Management Planning, Estimation by Poker Stand-up, Burn down, Velocity, Retrospective, Demo

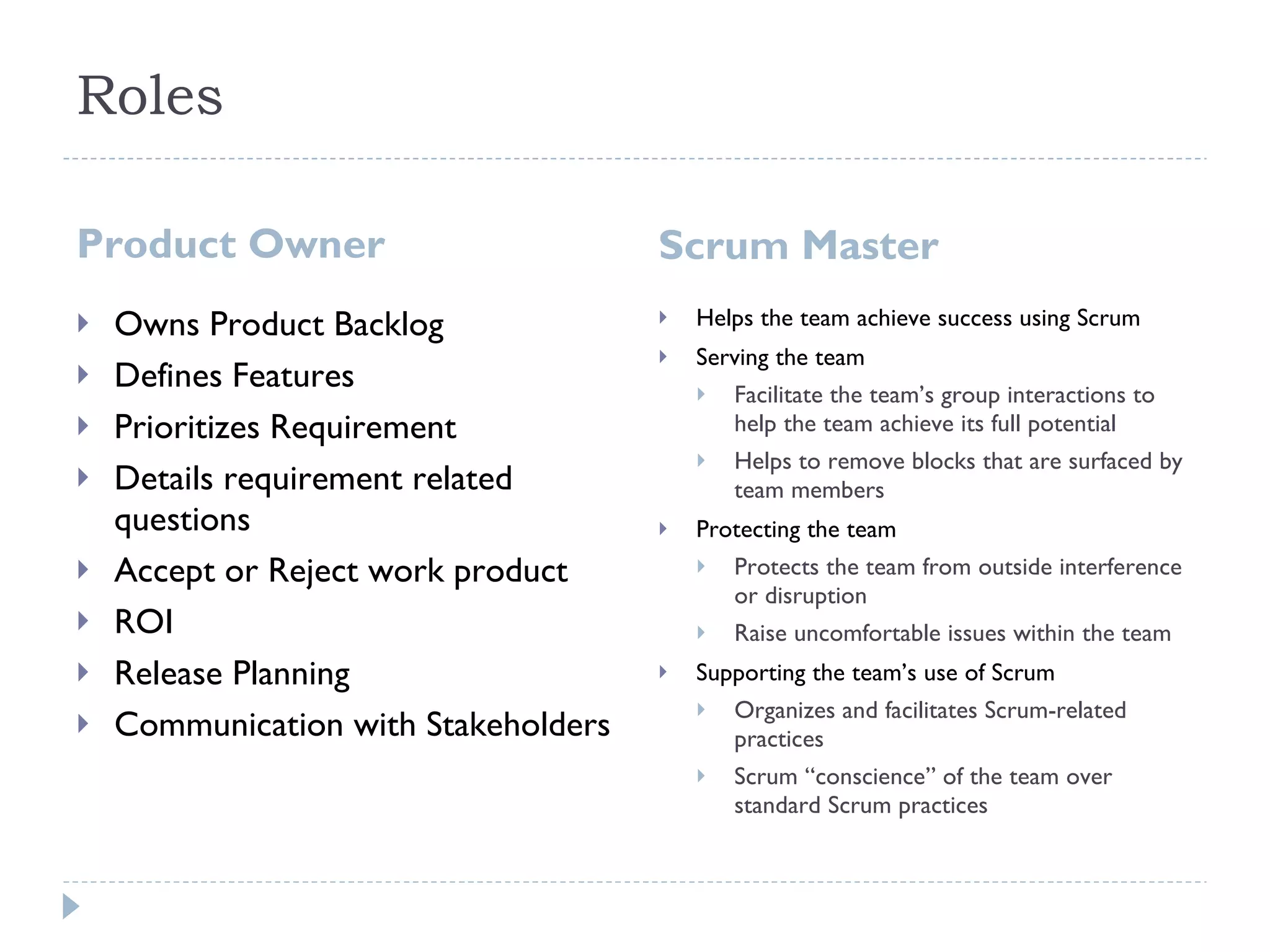

17. Roles Product Owner Scrum Master Owns Product Backlog Defines Features Prioritizes Requirement Details requirement related questions Accept or Reject work product ROI Release Planning Communication with Stakeholders Helps the team achieve success using Scrum Serving the team Facilitate the team’s group interactions to help the team achieve its full potential Helps to remove blocks that are surfaced by team members Protecting the team Protects the team from outside interference or disruption Raise uncomfortable issues within the team Supporting the team’s use of Scrum Organizes and facilitates Scrum-related practices Scrum “conscience” of the team over standard Scrum practices

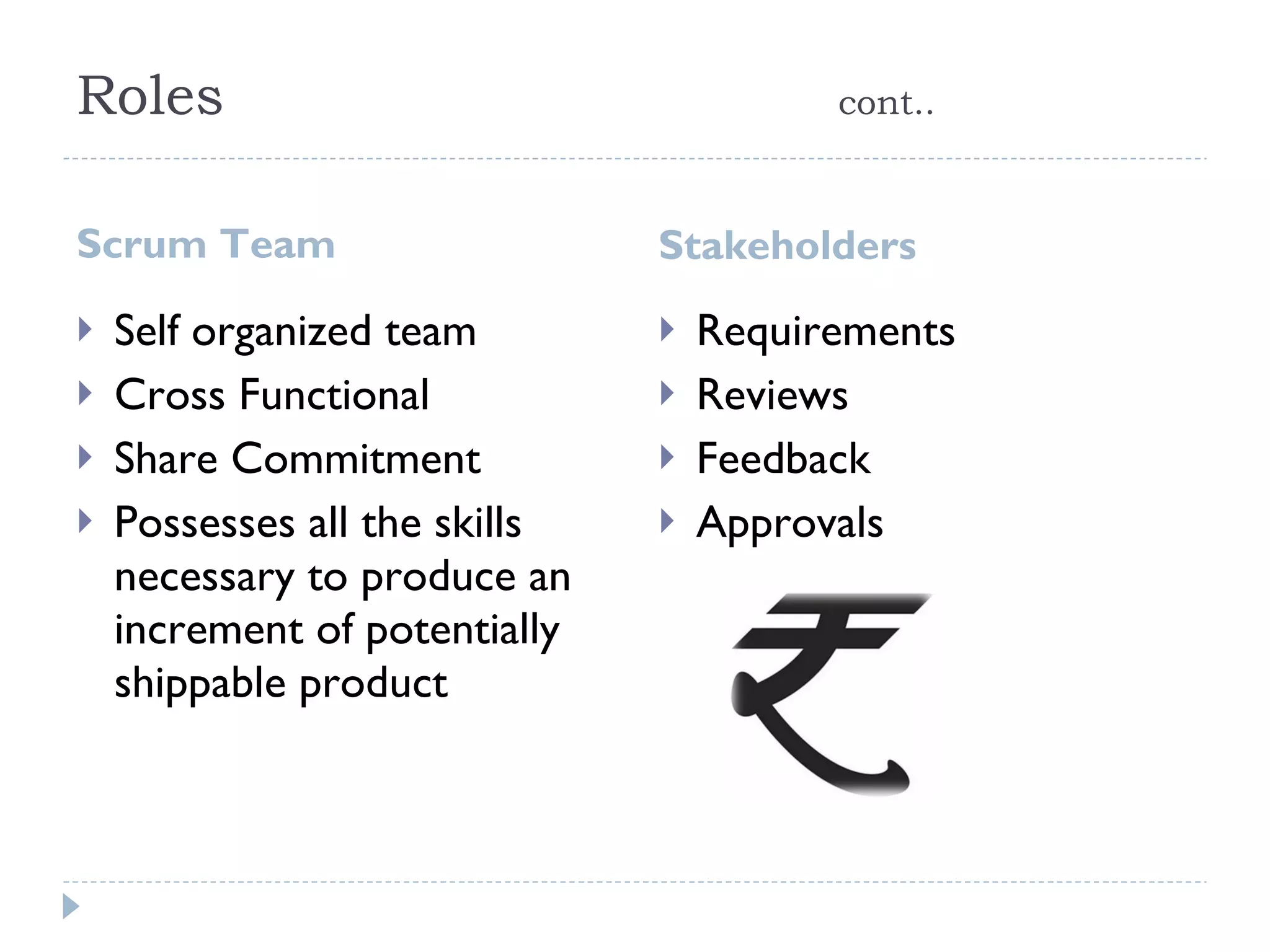

18. Roles cont.. Scrum Team Stakeholders Self organized team Cross Functional Share Commitment Possesses all the skills necessary to produce an increment of potentially shippable product Requirements Reviews Feedback Approvals

19. III Scrum Practices

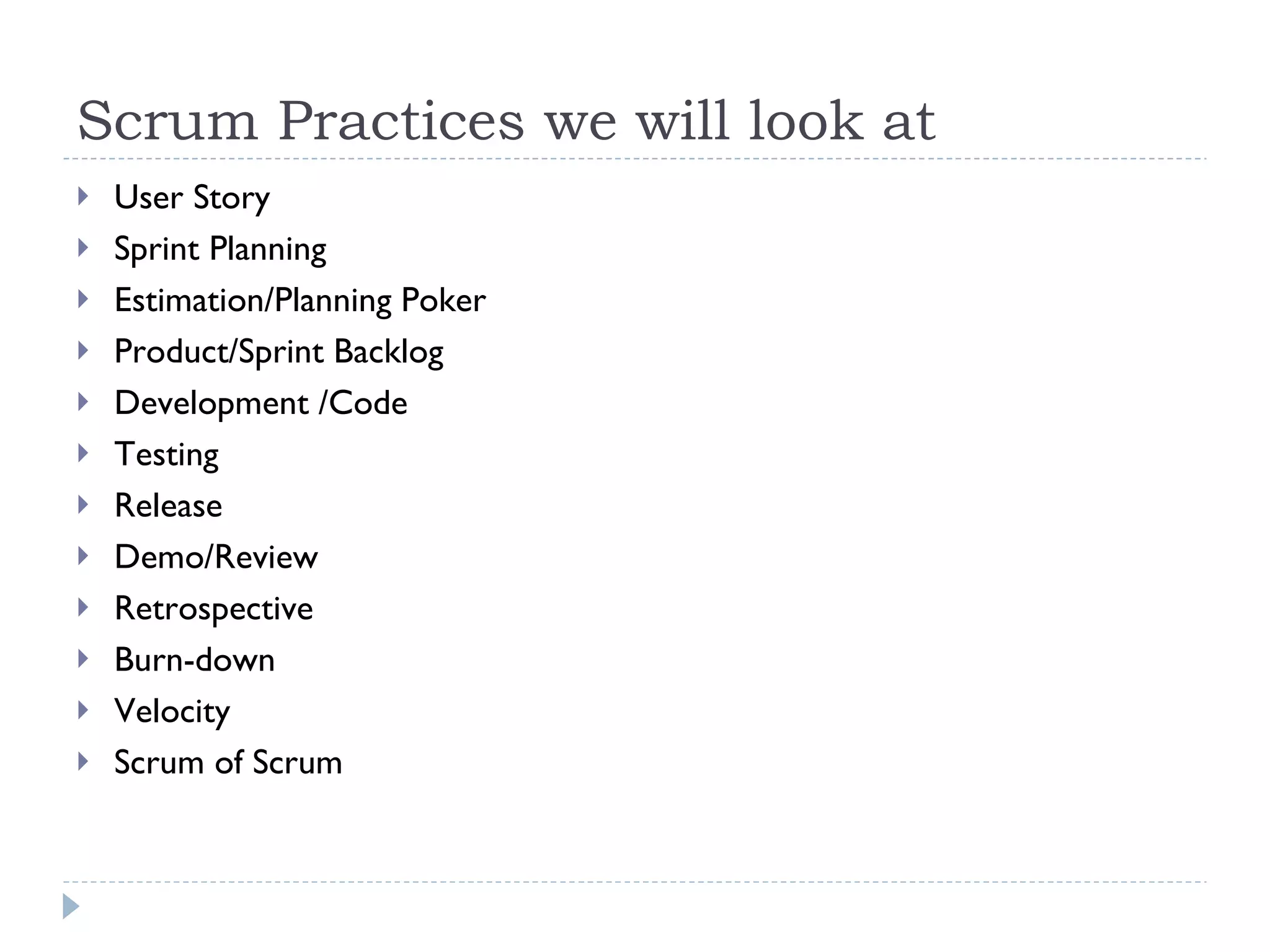

20. Scrum Practices we will look at User Story Sprint Planning Estimation/Planning Poker Product/Sprint Backlog Development /Code Testing Release Demo/Review Retrospective Burn-down Velocity Scrum of Scrum

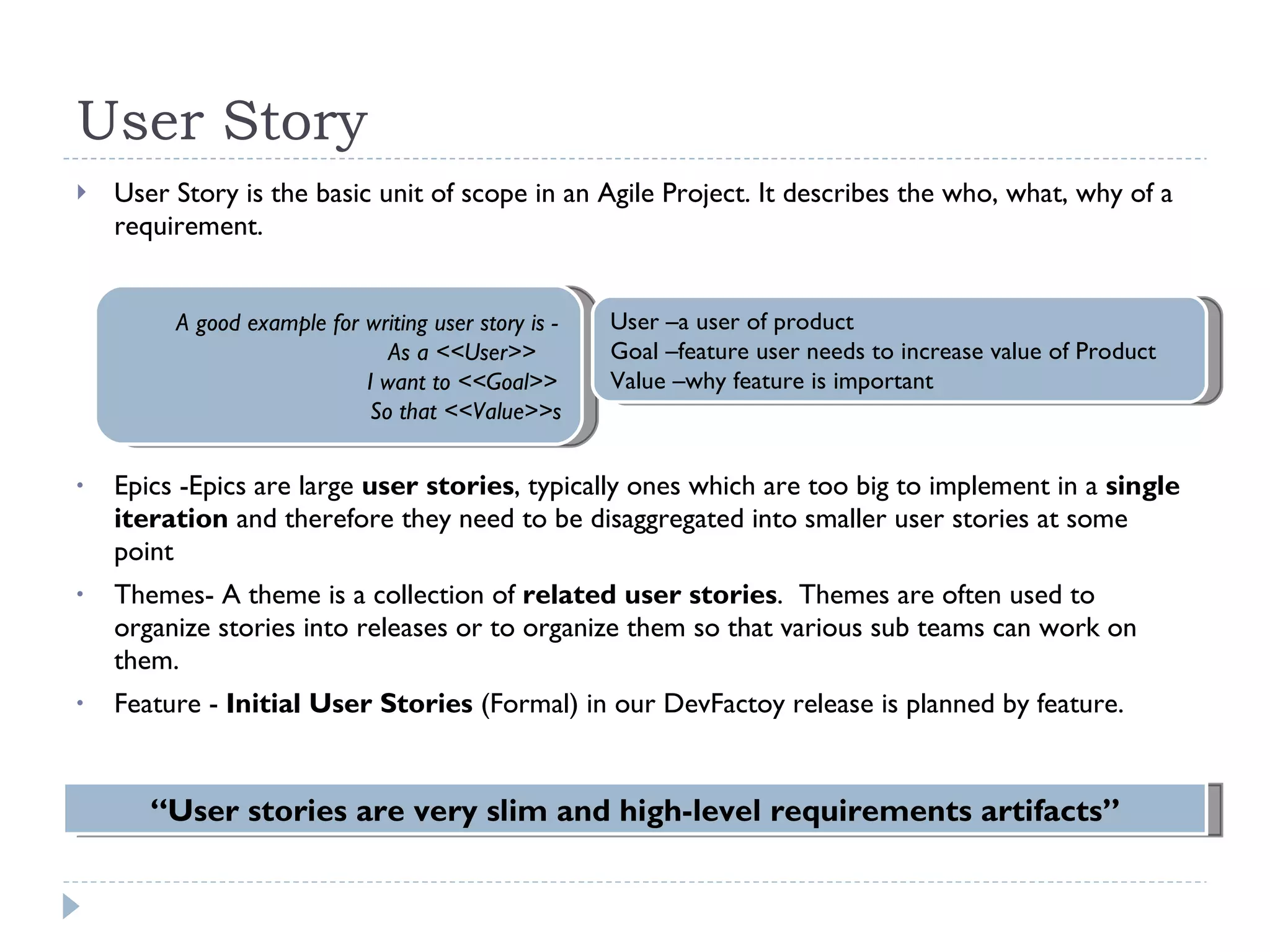

21. User Story User Story is the basic unit of scope in an Agile Project. It describes the who, what, why of a requirement. Epics -Epics are large user stories , typically ones which are too big to implement in a single iteration and therefore they need to be disaggregated into smaller user stories at some point Themes- A theme is a collection of related user stories . Themes are often used to organize stories into releases or to organize them so that various sub teams can work on them. Feature - Initial User Stories (Formal) in our DevFactoy release is planned by feature. “ User stories are very slim and high-level requirements artifacts” A good example for writing user story is - As a <<User>> I want to <<Goal>> So that <<Value>>s User –a user of product Goal –feature user needs to increase value of Product Value –why feature is important

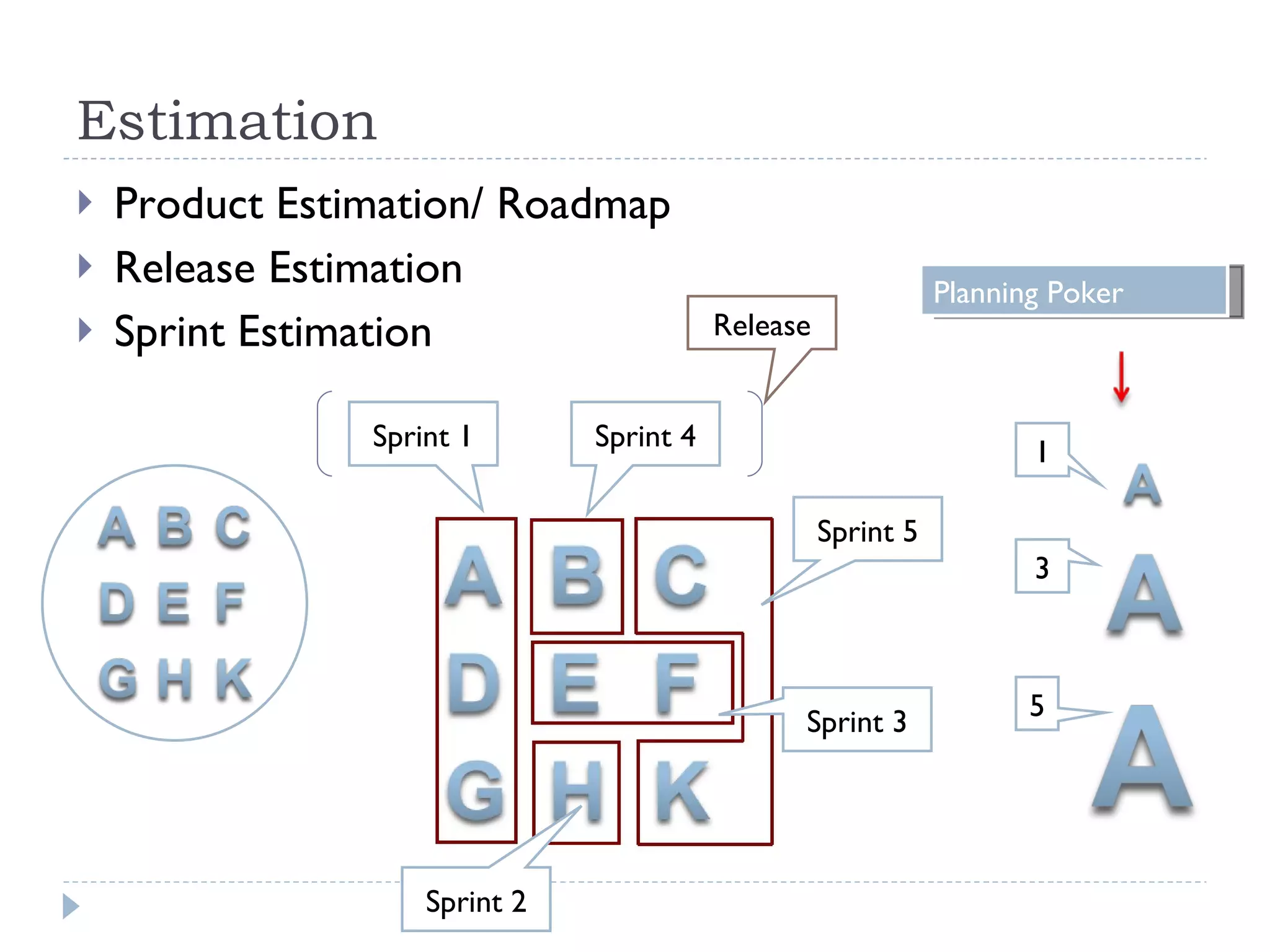

22. Estimation Product Estimation/ Roadmap Release Estimation Sprint Estimation Sprint 1 Sprint 5 Sprint 2 Sprint 3 Sprint 4 1 3 5 Planning Poker Release

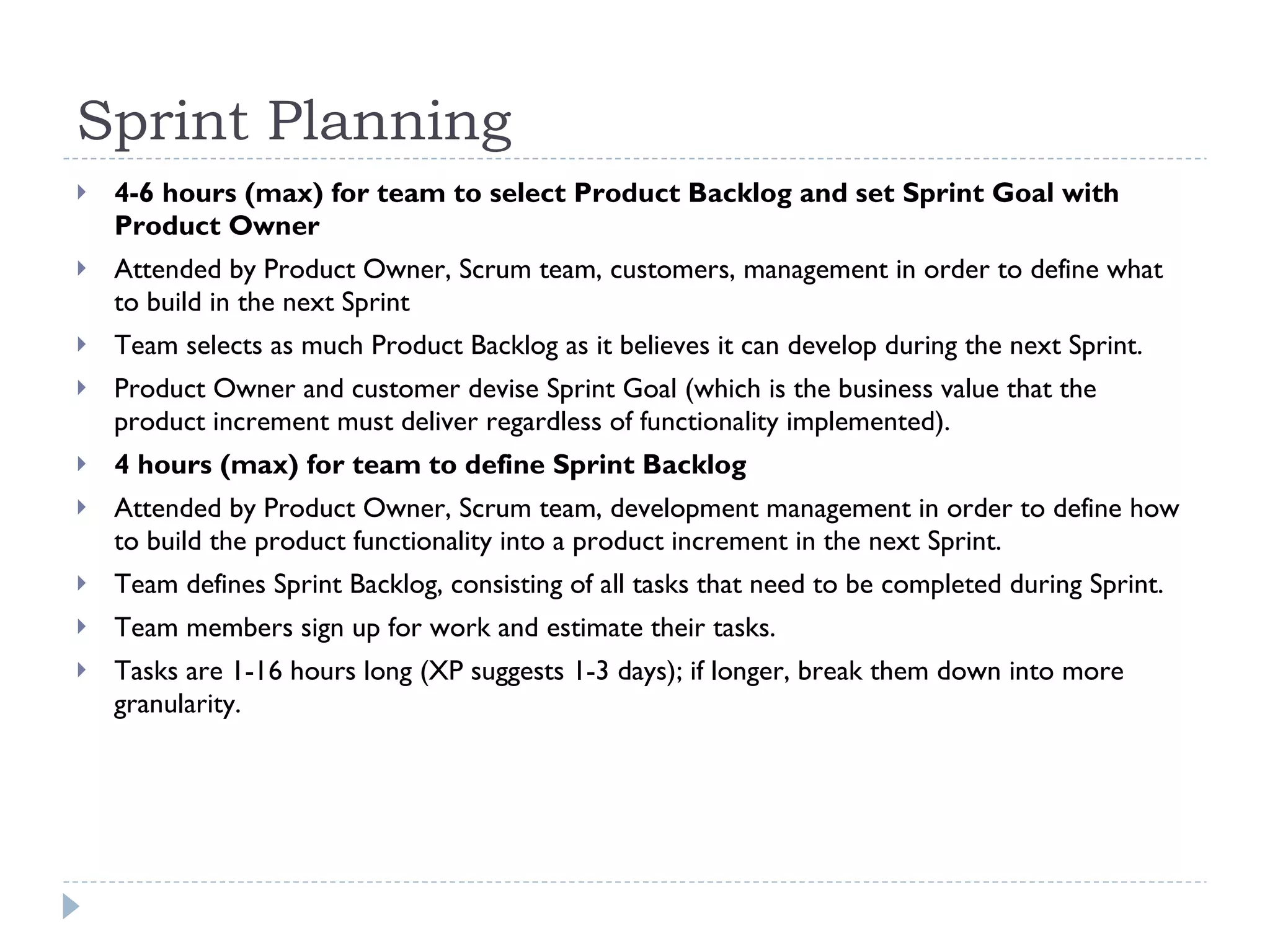

23. Sprint Planning 4-6 hours (max) for team to select Product Backlog and set Sprint Goal with Product Owner Attended by Product Owner, Scrum team, customers, management in order to define what to build in the next Sprint Team selects as much Product Backlog as it believes it can develop during the next Sprint. Product Owner and customer devise Sprint Goal (which is the business value that the product increment must deliver regardless of functionality implemented). 4 hours (max) for team to define Sprint Backlog Attended by Product Owner, Scrum team, development management in order to define how to build the product functionality into a product increment in the next Sprint. Team defines Sprint Backlog, consisting of all tasks that need to be completed during Sprint. Team members sign up for work and estimate their tasks. Tasks are 1-16 hours long (XP suggests 1-3 days); if longer, break them down into more granularity.

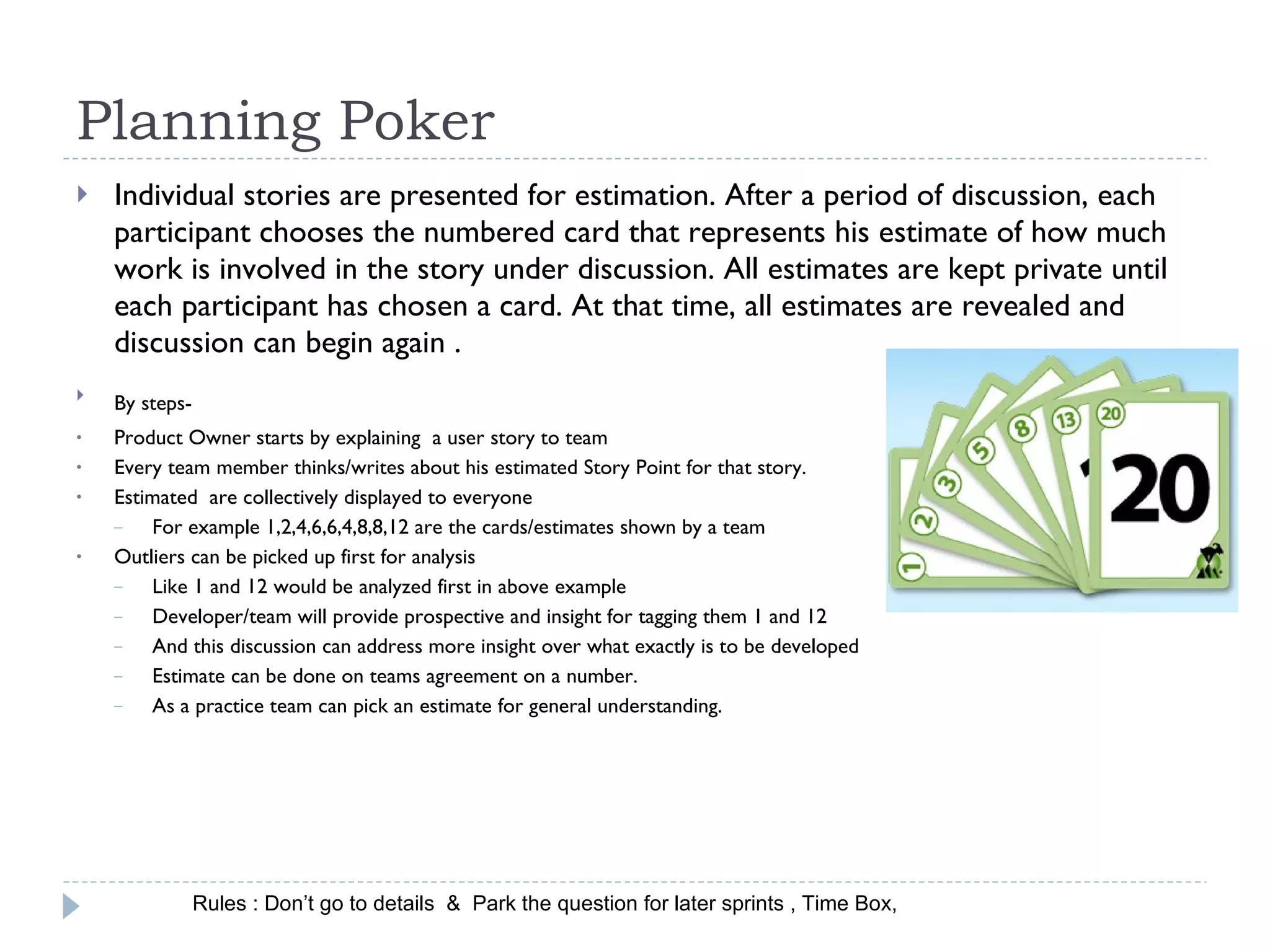

24. Planning Poker Individual stories are presented for estimation. After a period of discussion, each participant chooses the numbered card that represents his estimate of how much work is involved in the story under discussion. All estimates are kept private until each participant has chosen a card. At that time, all estimates are revealed and discussion can begin again . By steps- Product Owner starts by explaining a user story to team Every team member thinks/writes about his estimated Story Point for that story. Estimated are collectively displayed to everyone For example 1,2,4,6,6,4,8,8,12 are the cards/estimates shown by a team Outliers can be picked up first for analysis Like 1 and 12 would be analyzed first in above example Developer/team will provide prospective and insight for tagging them 1 and 12 And this discussion can address more insight over what exactly is to be developed Estimate can be done on teams agreement on a number. As a practice team can pick an estimate for general understanding. Rules : Don’t go to details & Park the question for later sprints , Time Box,

25. Planning Poker cont Clarity ? Tester Coder UI Dev Tester Coder Coder 4 8 3 2 4 1 User Story Planning Poker Outliers Discussion Estimates

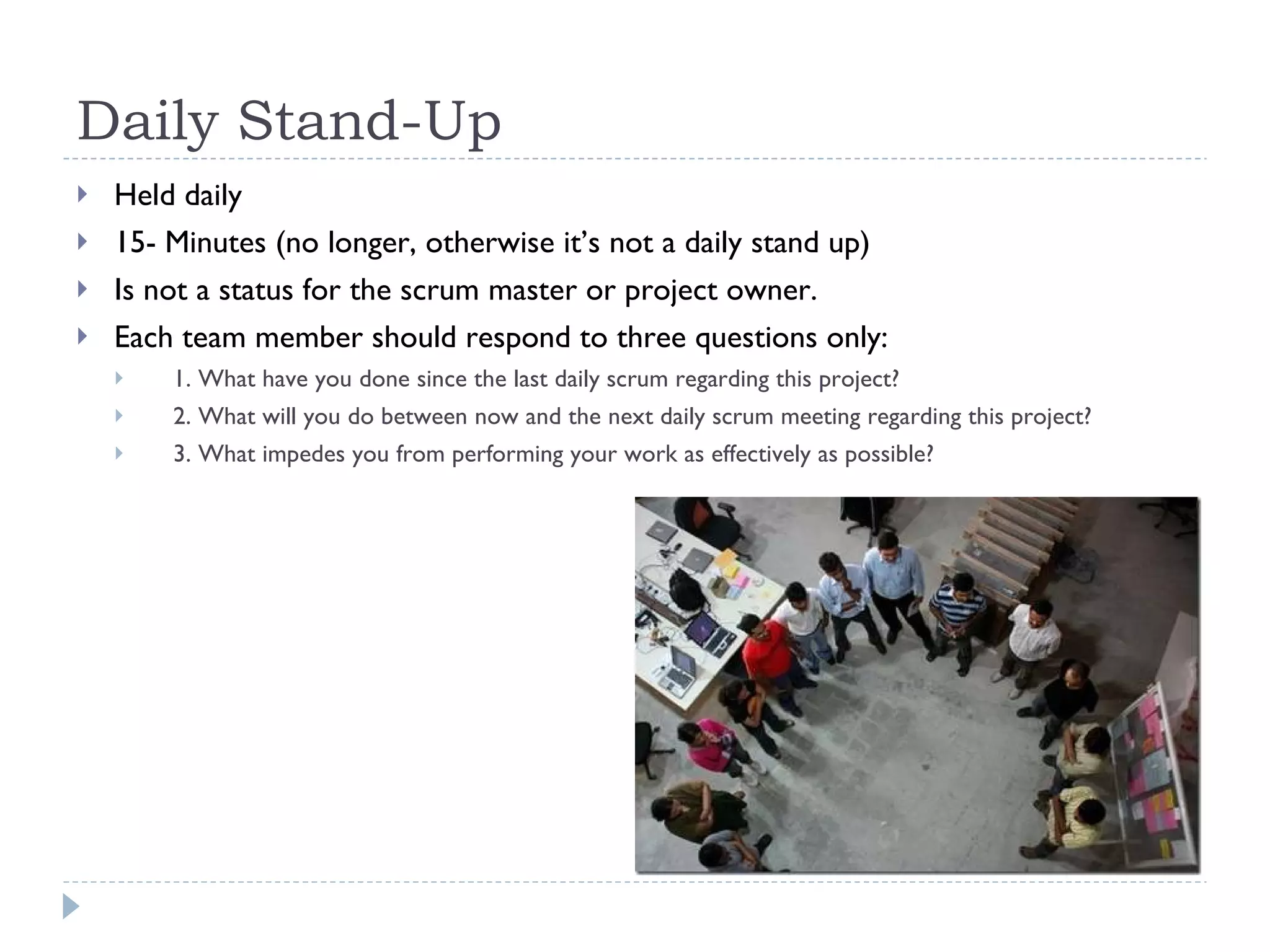

26. Daily Stand-Up Held daily 15- Minutes (no longer, otherwise it’s not a daily stand up) Is not a status for the scrum master or project owner. Each team member should respond to three questions only: 1. What have you done since the last daily scrum regarding this project? 2. What will you do between now and the next daily scrum meeting regarding this project? 3. What impedes you from performing your work as effectively as possible?

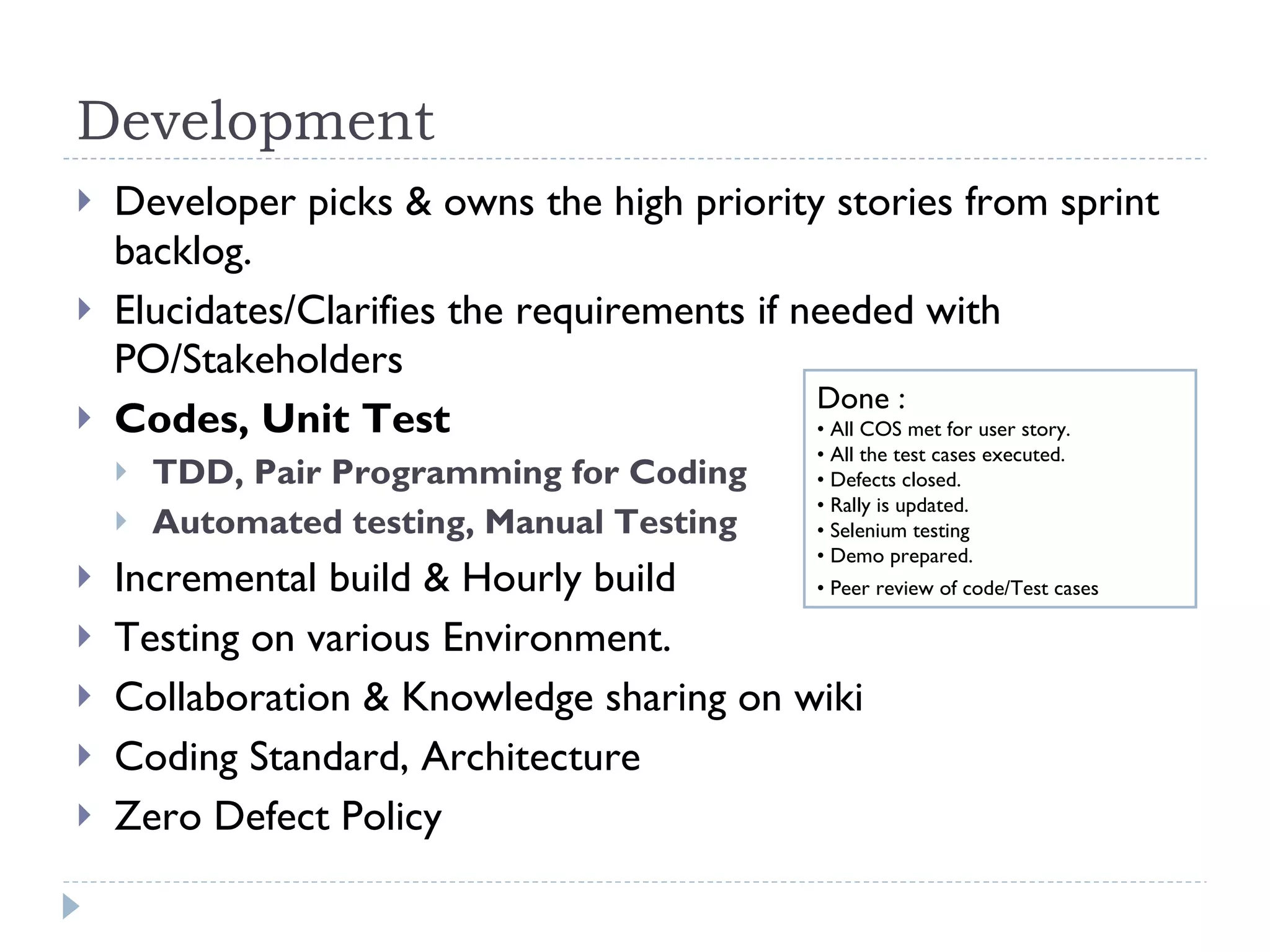

27. Development Developer picks & owns the high priority stories from sprint backlog. Elucidates/Clarifies the requirements if needed with PO/Stakeholders Codes, Unit Test TDD, Pair Programming for Coding Automated testing, Manual Testing Incremental build & Hourly build Testing on various Environment. Collaboration & Knowledge sharing on wiki Coding Standard, Architecture Zero Defect Policy Done : • All COS met for user story. • All the test cases executed. • Defects closed. • Rally is updated. • Selenium testing • Demo prepared. • Peer review of code/Test cases

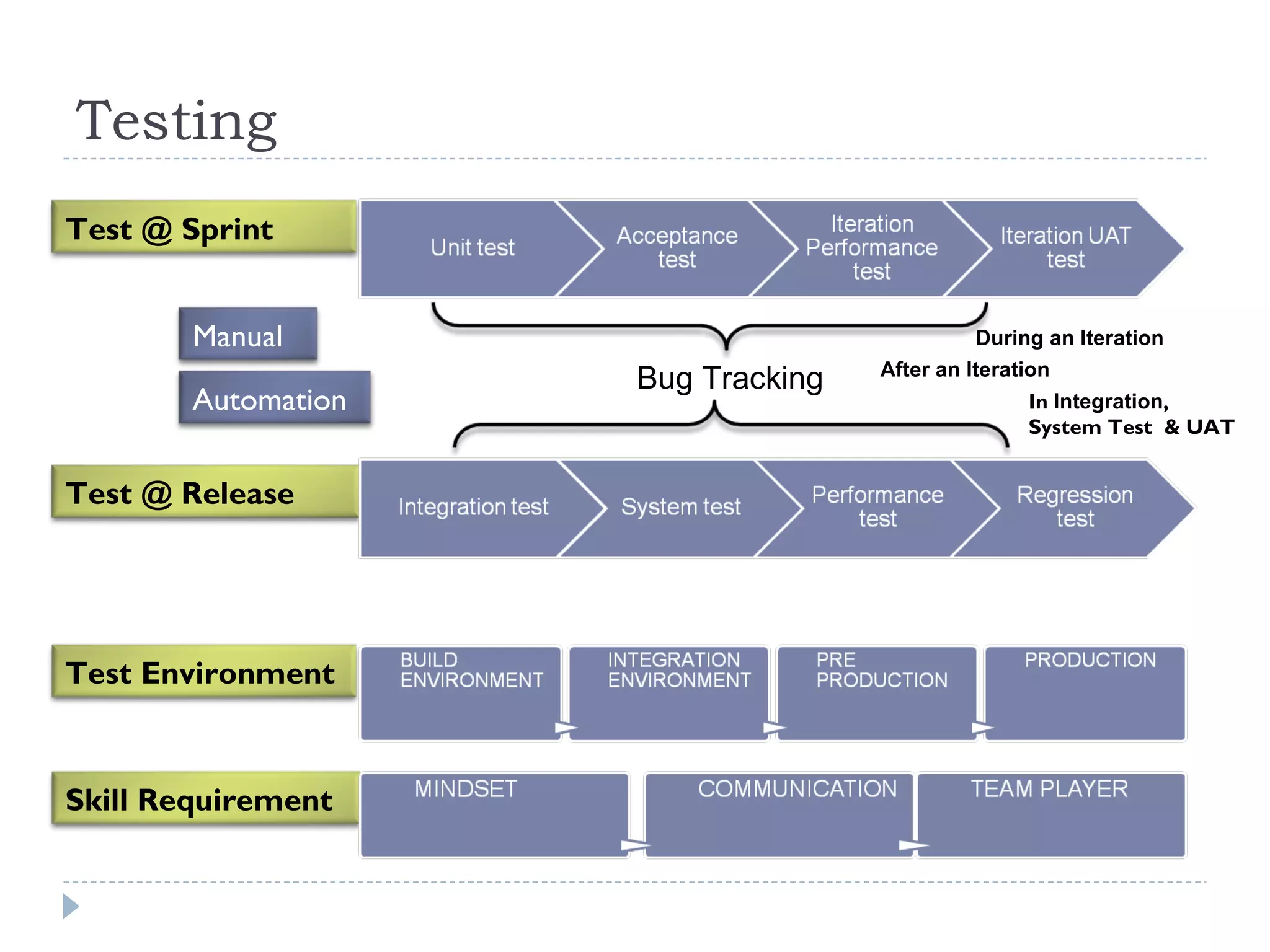

28. Testing During an Iteration After an Iteration In Integration , System Test & UAT Bug Tracking Test @ Sprint Test @ Release Test Environment Skill Requirement Automation Manual

29. Sprint Demo or Review Show for stakeholder about what we did in the current sprint ? Team prepare for demo using Completed story Acceptance criteria Backlog Open defects Benefits Its for frequent and early reviews Get feedback on design and requirements Hints Focus on acceptance criteria. Start with the demo in mind. Prepare. Practice. Tell a story. Keep it short

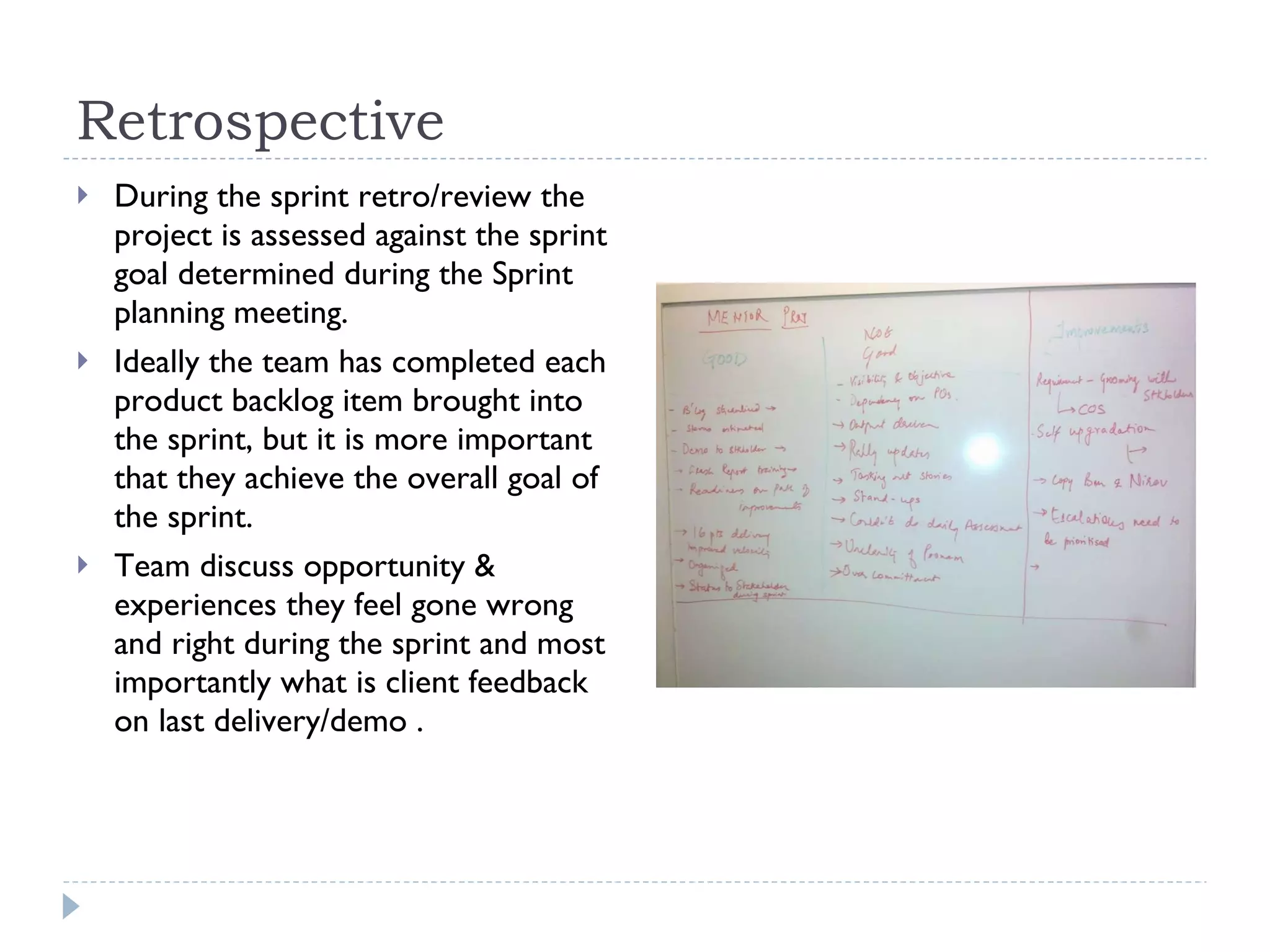

30. Retrospective During the sprint retro/review the project is assessed against the sprint goal determined during the Sprint planning meeting. Ideally the team has completed each product backlog item brought into the sprint, but it is more important that they achieve the overall goal of the sprint. Team discuss opportunity & experiences they feel gone wrong and right during the sprint and most importantly what is client feedback on last delivery/demo .

31. Release Schedule Go Live Regression Test, Pre Integration Test, Code Freeze Test. Monitor check-in deadlines, Commit, Monitor Sprints Integration Benchmark current production release for performance Code Freeze Go no Go meeting Running Tested Feature Test Integrate Code Freeze Done

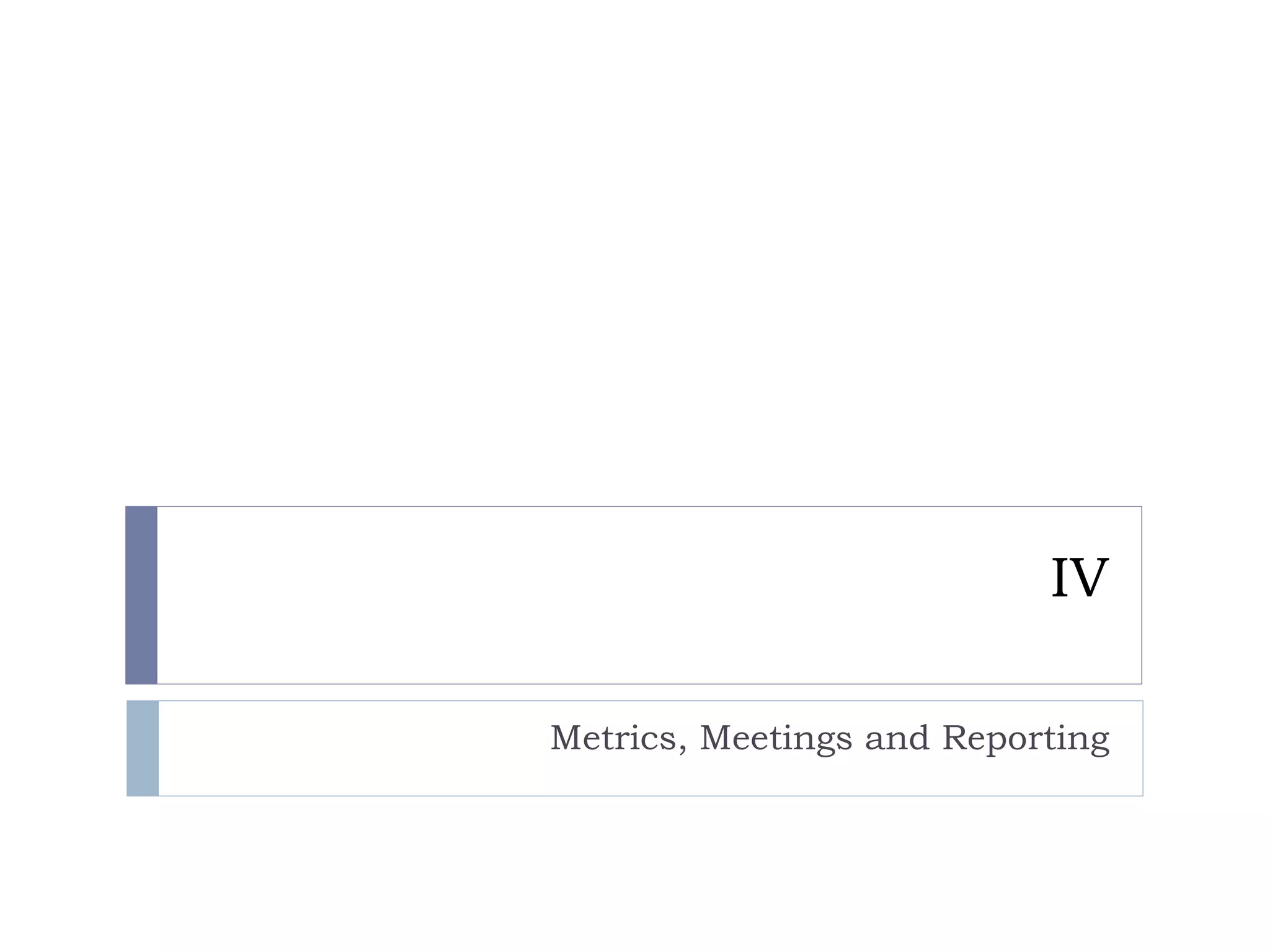

32. IV Metrics, Meetings and Reporting

33. Burn-Down Burn-down Chart shows the estimated number of hours required to complete the tasks of the Sprint. It shows both the status and rate of progress (“velocity”) in a way that is both clear and easy to discuss. Posted visibly. Similar to earned-value chart if you count the delivered functionality (instead of development effort) over time. Blue = Task to do and Green = Accepted Points

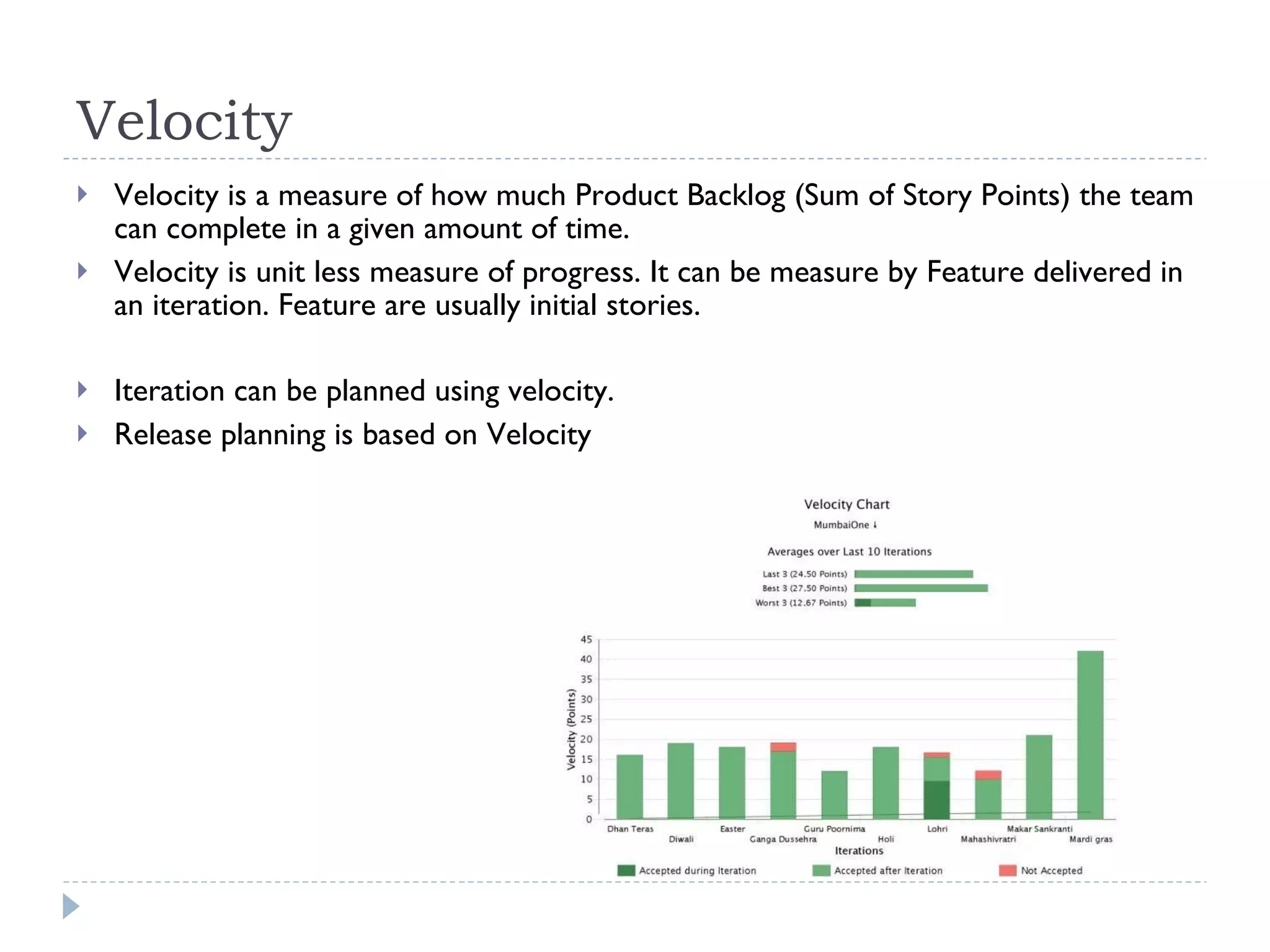

34. Velocity Velocity is a measure of how much Product Backlog (Sum of Story Points) the team can complete in a given amount of time. Velocity is unit less measure of progress. It can be measure by Feature delivered in an iteration. Feature are usually initial stories. Iteration can be planned using velocity. Release planning is based on Velocity

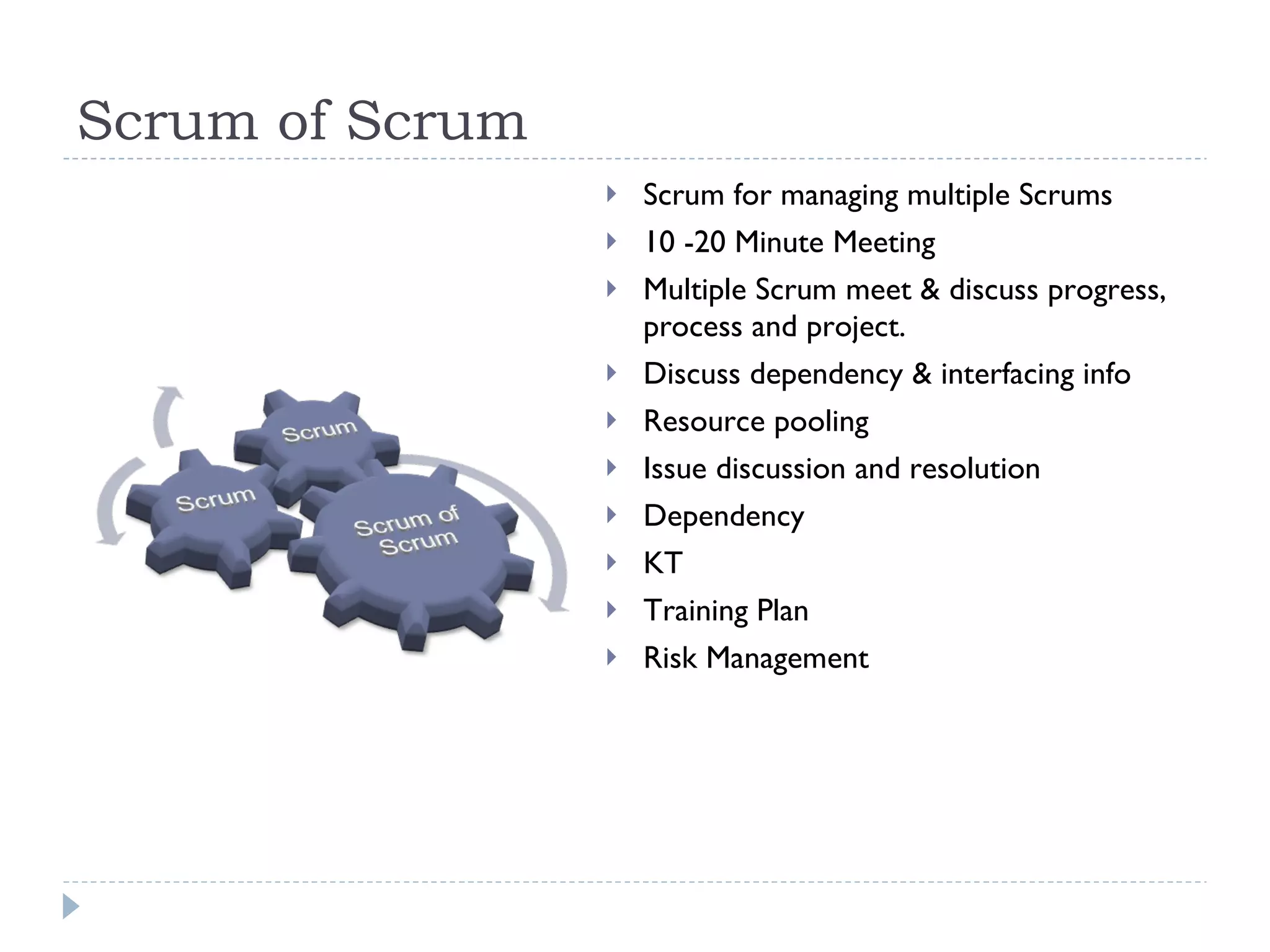

35. Scrum of Scrum Scrum for managing multiple Scrums 10 -20 Minute Meeting Multiple Scrum meet & discuss progress, process and project. Discuss dependency & interfacing info Resource pooling Issue discussion and resolution Dependency KT Training Plan Risk Management

36. Weekly Sync Sync is a weekly activity. Each Team presents its progress to Stakeholders based on set indicators like Features planned and delivered Open defects Defect reported in production Preproduction defect Utilization Billability You can think of creating simple excel charts

37. Question ? Retrospective

38. Contact Priyank Phone: +91-8108894236 Email & Chat [email_address]
