1. Recent Advances in
Interventional Pediatric
Cardiology
BHADRA TRIVEDI
CONSULTANT PEDIATRIC CARDIOLOGIST
B & M PATEL CARDIAC CENTRE, SHREE KRISHNA HOSPITAL, KARAMSAD

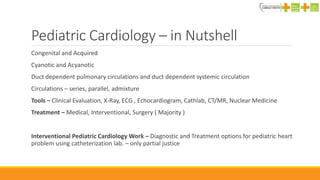

2. Pediatric Cardiology – in Nutshell
Congenital and Acquired
Cyanotic and Acyanotic
Duct dependent pulmonary circulations and duct dependent systemic circulation
Circulations – series, parallel, admixture
Tools – Clinical Evaluation, X-Ray, ECG , Echocardiogram, Cathlab, CT/MR, Nuclear Medicine
Treatment – Medical, Interventional, Surgery ( Majority )
Interventional Pediatric Cardiology Work – Diagnostic and Treatment options for pediatric heart
problem using catheterization lab. – only partial justice

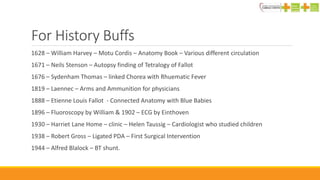

3. For History Buffs
1628 – William Harvey – Motu Cordis – Anatomy Book – Various different circulation
1671 – Neils Stenson – Autopsy finding of Tetralogy of Fallot
1676 – Sydenham Thomas – linked Chorea with Rhuematic Fever
1819 – Laennec – Arms and Ammunition for physicians
1888 – Etienne Louis Fallot - Connected Anatomy with Blue Babies
1896 – Fluoroscopy by William & 1902 – ECG by Einthoven
1930 – Harriet Lane Home – clinic – Helen Taussig – Cardiologist who studied children
1938 – Robert Gross – Ligated PDA – First Surgical Intervention
1944 – Alfred Blalock – BT shunt.

4. Roots of Interventional Pediatric Cardiology
1929 - Werner Forssmann – Performed Cardiac
Catheterization on HIMSELF. Under LA
1947 – Dexter – Catheterization to study CHD
1950 – Echocardiography
1966- Rashkind and Miller - BAS
1967 – Porstmann – PDA closure
1974 – Kings and Mills – ASD Device
1844 – Claude Bernard – Performed Cardiac Catheterization on Horse – Jugular vein and carotid
Artery

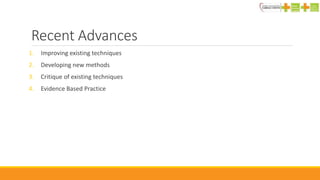

5. Recent Advances
1. Improving existing techniques
2. Developing new methods
3. Critique of existing techniques
4. Evidence Based Practice

6. Topics
1. Atrial Septal Defect Closure
2. Patent Ductus Arteriosus Closure
3. Ventricular Septal Defect Closure
4. Other Vascular Occlusion – Collaterals and Fistulas
5. Balloon Valvuloplasty
a) Aortic Valve
b) Pulmonary Valve
c) Mitral Valve
d) Coarctation
6. Stenting
7. Pulmonary Valve Replacement
8. Hybrid Intervention
9. `Fetal Intervention

7. Atrial Septal Defect Device Closure
Kings and Miller - 1976
US FDA Approved - 1997
1. Amplatz Septal Occluder
2. Helex Septal Occluder
Helex Septal Occluder
Amplatz Septal Occluder

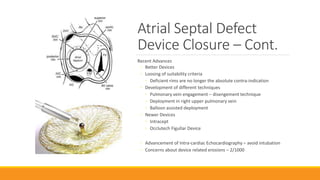

8. Atrial Septal Defect
Device Closure – Cont.
Recent Advances
◦ Better Devices
◦ Loosing of suitability criteria
◦ Deficient rims are no longer the absolute contra-indication
◦ Development of different techniques
◦ Pulmonary vein engagement – disengement technique
◦ Deployment in right upper pulmonary vein
◦ Balloon assisted deployment
◦ Newer Devices
◦ Intracept
◦ Occlutech Figullar Device
◦ Advancement of Intra-cardiac Echocardiography – avoid intubation
◦ Concerns about device related erosions – 2/1000

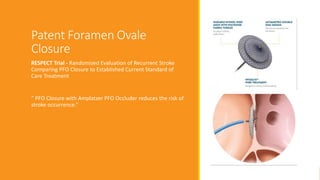

9. Patent Foramen Ovale
Closure
RESPECT Trial - Randomized Evaluation of Recurrent Stroke
Comparing PFO Closure to Established Current Standard of
Care Treatment
“ PFO Closure with Amplatzer PFO Occluder reduces the risk of
stroke occurrence.”

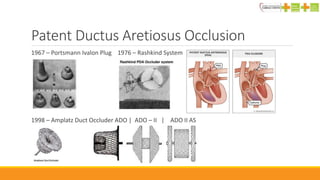

10. Patent Ductus Aretiosus Occlusion
1967 – Portsmann Ivalon Plug 1976 – Rashkind System
1998 – Amplatz Duct Occluder ADO | ADO – II | ADO II AS

11. Recent Advances – PDA Device Closure
•Gradually narrowing of sheath size for the device of same
calibre
•Devices with smaller profile
•Aortic approach
•Devices catering to difference anatomy
•Concerns – Variation in anatomy. Embolization. Severe PAH

12. Vascular Plugs
Aorto-pulmonary Collaterals
◦ Abnormal blood flow
◦ Desaturation
◦ Changes in pulmonary blood pressure
◦ Embolization
◦ Complicate cardiac surgery
Benefits
◦ 3-22 mm in diameter
◦ Can be delivered using 4F catheter ( 1.35mm)
◦ Better stabilization

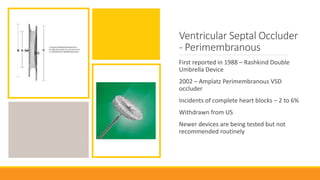

13. Ventricular Septal Occluder
- Perimembranous
First reported in 1988 – Rashkind Double
Umbrella Device
2002 – Amplatz Perimembranous VSD
occluder
Incidents of complete heart blocks – 2 to 6%
Withdrawn from US
Newer devices are being tested but not
recommended routinely

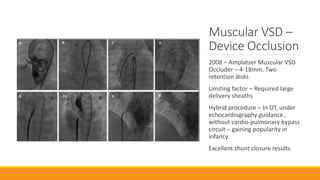

14. Muscular VSD –
Device Occlusion
2008 – Amplatzer Muscular VSD
Occluder – 4-18mm. Two
retention disks
Limiting factor – Required large
delivery sheaths
Hybrid procedure – In OT, under
echocardiography guidance ,
without cardio-pulmonary bypass
circuit – gaining popularity in
infancy.
Excellent shunt closure results

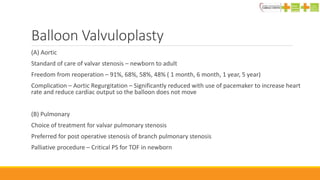

15. Balloon Valvuloplasty
(A) Aortic
Standard of care of valvar stenosis – newborn to adult
Freedom from reoperation – 91%, 68%, 58%, 48% ( 1 month, 6 month, 1 year, 5 year)
Complication – Aortic Regurgitation – Significantly reduced with use of pacemaker to increase heart
rate and reduce cardiac output so the balloon does not move
(B) Pulmonary
Choice of treatment for valvar pulmonary stenosis
Preferred for post operative stenosis of branch pulmonary stenosis
Palliative procedure – Critical PS for TOF in newborn

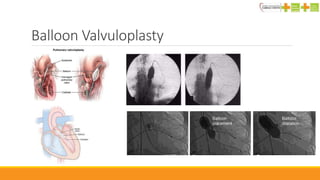

16. Balloon Valvuloplasty

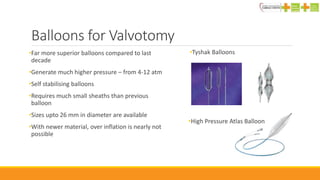

17. Balloons for Valvotomy
•Far more superior balloons compared to last
decade
•Generate much higher pressure – from 4-12 atm
•Self stabilising balloons
•Requires much small sheaths than previous
balloon
•Sizes upto 26 mm in diameter are available
•With newer material, over inflation is nearly not
possible
•Tyshak Balloons
•High Pressure Atlas Balloon

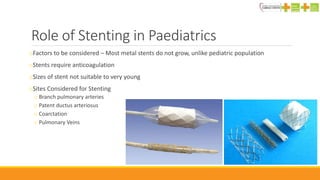

18. Role of Stenting in Paediatrics
oFactors to be considered – Most metal stents do not grow, unlike pediatric population
oStents require anticoagulation
oSizes of stent not suitable to very young
oSites Considered for Stenting
o Branch pulmonary arteries
o Patent ductus arteriosus
o Coarctation
o Pulmonary Veins

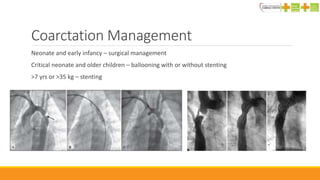

19. Coarctation Management
Neonate and early infancy – surgical management
Critical neonate and older children – ballooning with or without stenting
>7 yrs or >35 kg – stenting

20. HIGH TECH STUFF

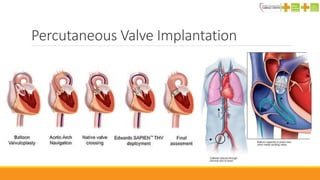

21. Percutaneous Valve Implantation

22. Hybrid Procedure

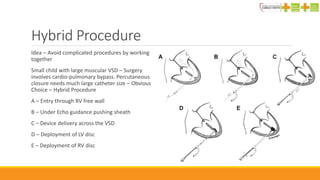

Idea – Avoid complicated procedures by working
together
Small child with large muscular VSD – Surgery
involves cardio-pulmonary bypass. Percutaneous
closure needs much large catheter size – Obvious
Choice – Hybrid Procedure
A – Entry through RV free wall
B – Under Echo guidance pushing sheath
C – Device delivery across the VSD
D – Deployment of LV disc
E – Deployment of RV disc

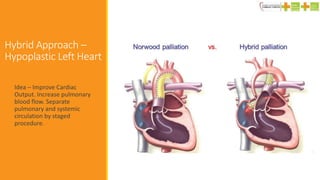

23. Hybrid Approach –
Hypoplastic Left Heart
Idea – Improve Cardiac
Output. Increase pulmonary
blood flow. Separate
pulmonary and systemic
circulation by staged
procedure.

24. Fontan Completion
SURGICAL HYBRID

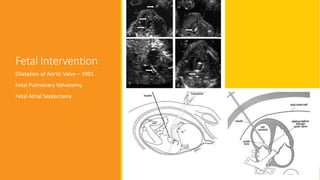

25. Fetal Intervention
Dilatation of Aortic Valve – 1991
Fetal Pulmonary Valvotomy
Fetal Atrial Septectomy
