Whiptail : Administration and Configuration guide 4.3

INVICTA ADMINISTRATION AND
CONFIGURATION GUIDE
Version 4.3.1
5 August 2013

WHIPTAIL INVICTA Administration and Configuration Guide v4.3.1 2

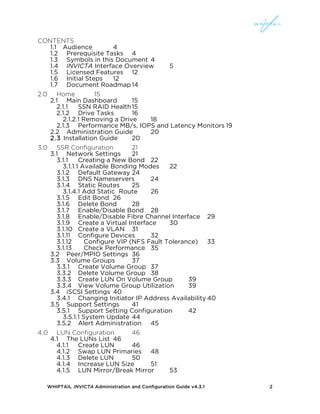

CONTENTS
1.1
Audience 4

1.2
Prerequisite Tasks 4

1.3
Symbols in this Document 4

1.4
INVICTA Interface Overview 5

1.5

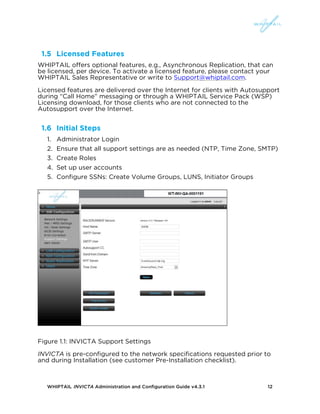

Licensed Features 12

1.6
Initial Steps 12

1.7
Document Roadmap14

2.0
Home 15

2.1
Main Dashboard 15

2.1.1
SSN RAID Health15

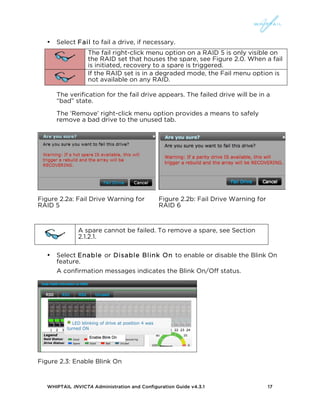

2.1.2
Drive Tasks 16

2.1.2.1 Removing a Drive 18

2.1.3

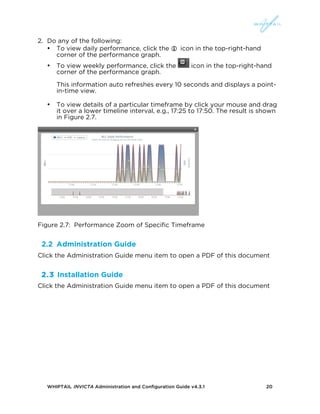

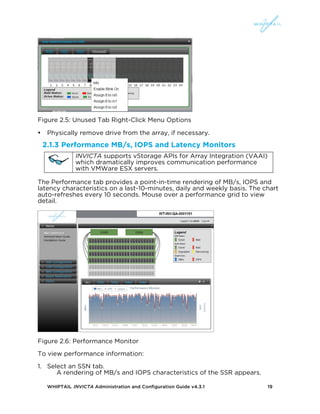

Performance MB/s, IOPS and Latency Monitors 19

2.2
Administration Guide 20

2.3 Installation Guide 20

3.0
SSR Configuration 21

3.1
Network Settings 21

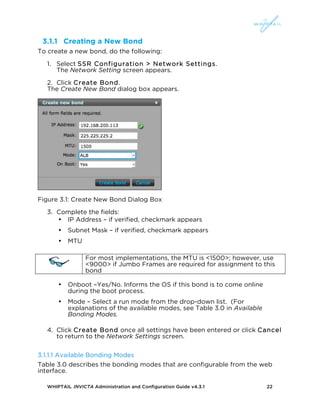

3.1.1
Creating a New Bond 22

3.1.1.1 Available Bonding Modes 22

3.1.2

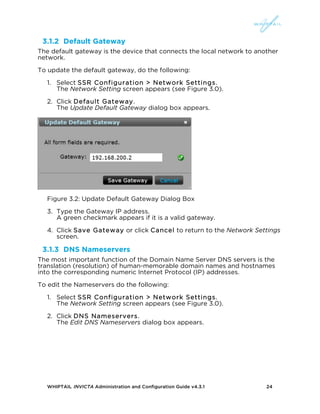

Default Gateway 24

3.1.3

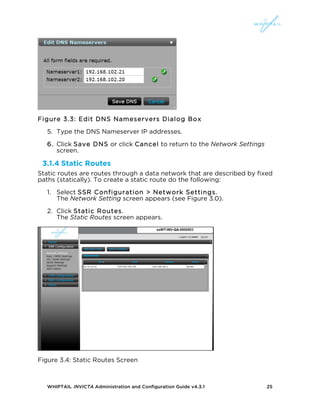

DNS Nameservers 24

3.1.4
Static Routes 25

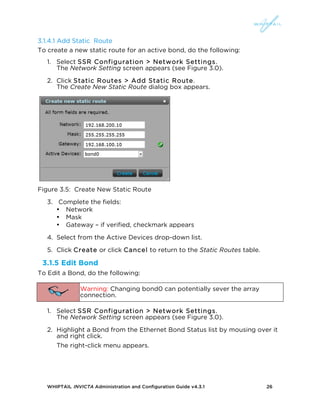

3.1.4.1 Add Static Route 26

3.1.5

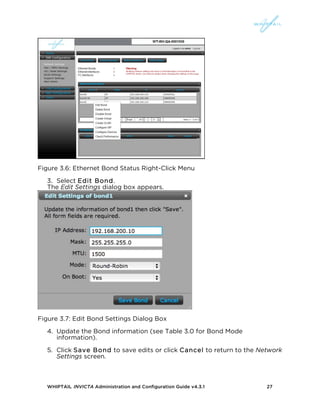

Edit Bond 26

3.1.6
Delete Bond 28

3.1.7
Enable/Disable Bond 28

3.1.8

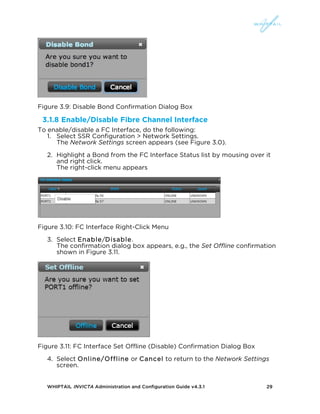

Enable/Disable Fibre Channel Interface 29

3.1.9
Create a Virtual Interface 30

3.1.10

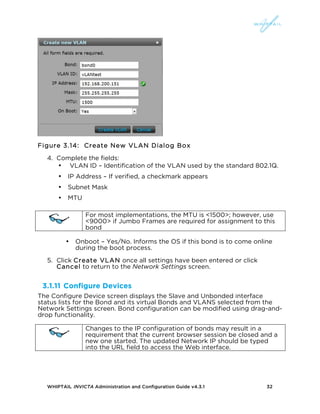

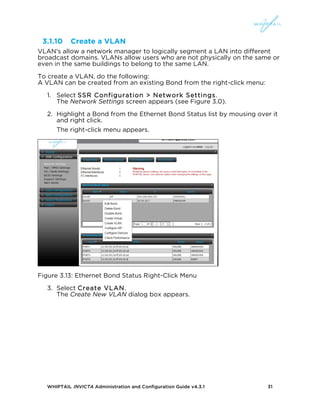

Create a VLAN 31

3.1.11

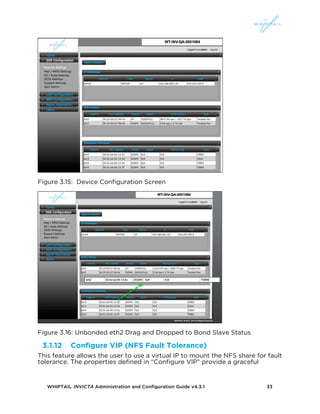

Configure Devices 32

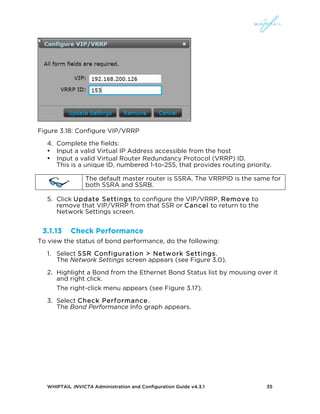

3.1.12
Configure VIP (NFS Fault Tolerance) 33

3.1.13
Check Performance 35

3.2
Peer/MPIO Settings 36

3.3

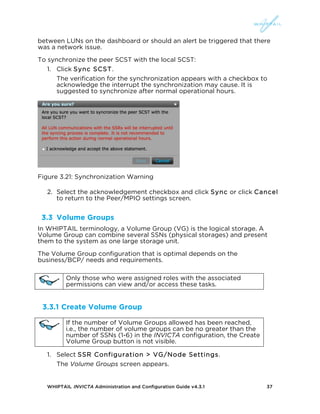

Volume Groups 37

3.3.1

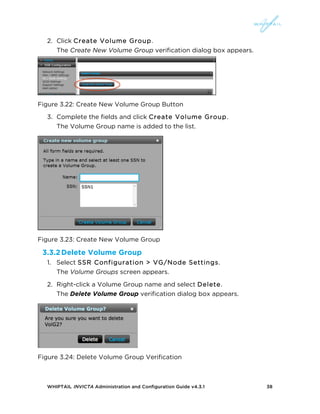

Create Volume Group 37

3.3.2

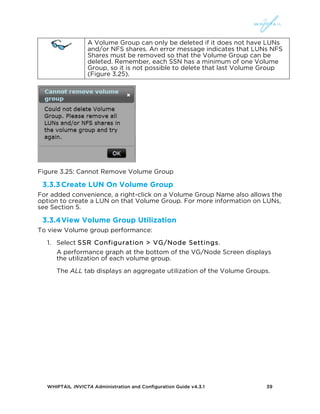

Delete Volume Group 38

3.3.3
Create LUN On Volume Group 39

3.3.4
View Volume Group Utilization 39

3.4
iSCSI Settings 40

3.4.1
Changing Initiator IP Address Availability 40

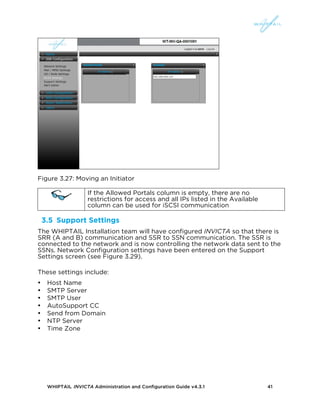

3.5
Support Settings 41

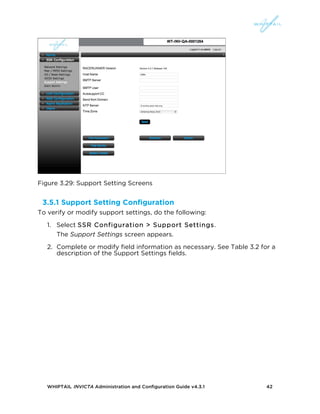

3.5.1
Support Setting Configuration 42

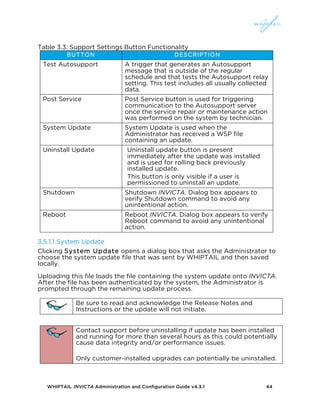

3.5.1.1 System Update 44

3.5.2

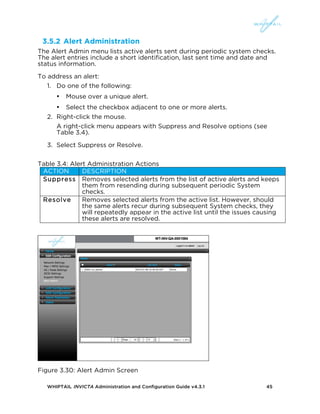

Alert Administration 45

4.0

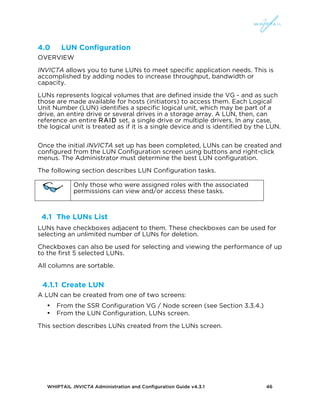

LUN Configuration 46

4.1

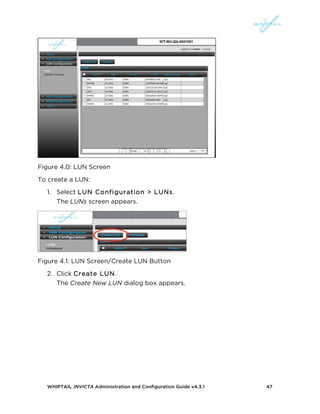

The LUNs List 46

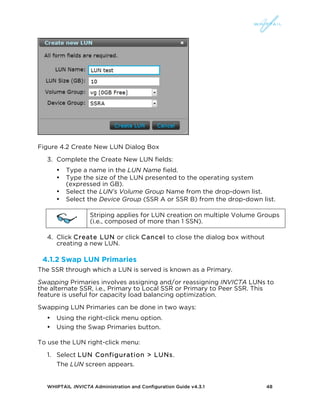

4.1.1
Create LUN 46

4.1.2
Swap LUN Primaries 48

4.1.3
Delete LUN 50

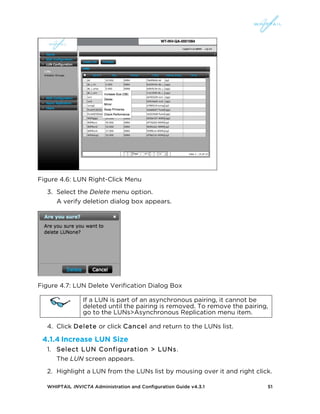

4.1.4
Increase LUN Size 51

4.1.5

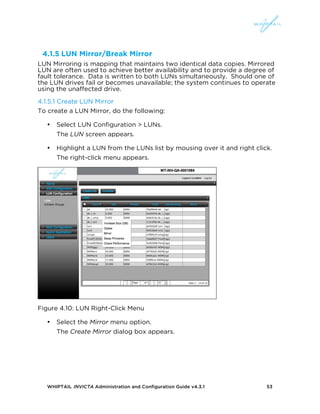

LUN Mirror/Break Mirror 53

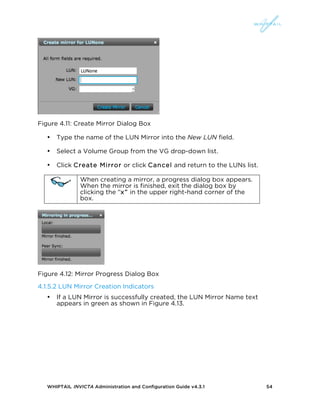

4.1.5.1 Create LUN Mirror 53

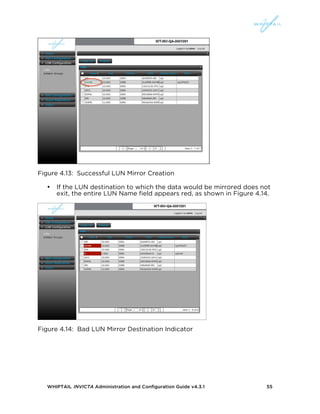

4.1.5.2 LUN Mirror Creation Indicators 54

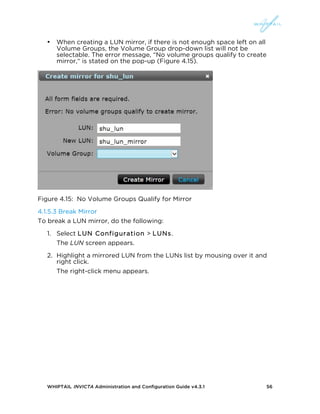

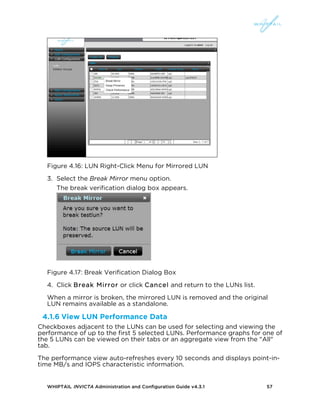

4.1.5.3 Break Mirror 56

4.1.6

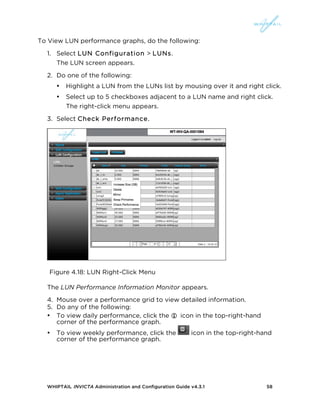

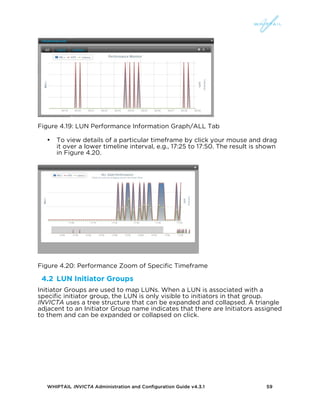

View LUN Performance Data 57

4.2
LUN Initiator Groups 59

4.2.1

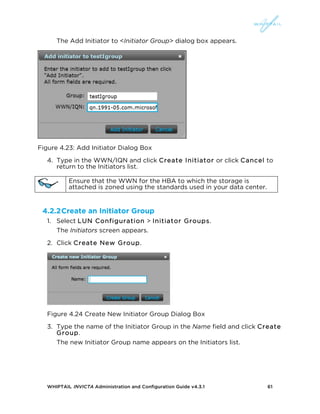

Add an Initiator to an Initiator Group 60

4.2.2
Create an Initiator Group 61

4.2.3

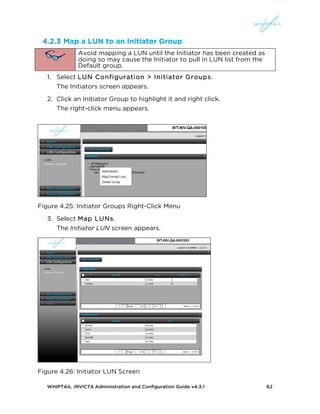

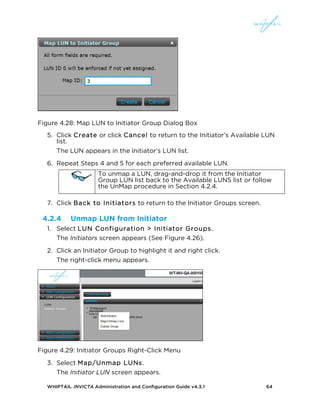

Map a LUN to an Initiator Group 62

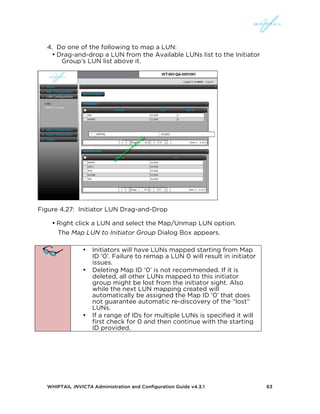

4.2.4

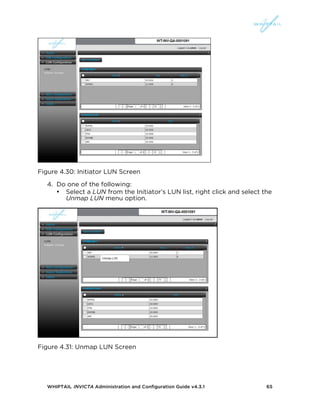

Unmap LUN from Initiator 64

4.2.5

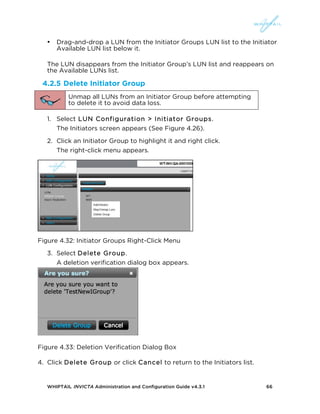

Delete Initiator Group 66

5.0

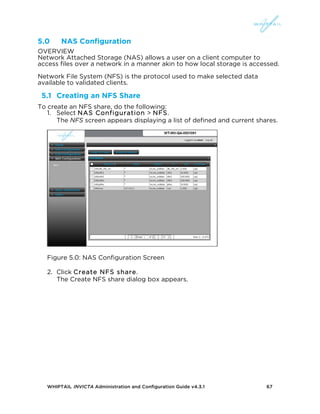

NAS Configuration 67

5.1
Creating an NFS Share 67

5.2

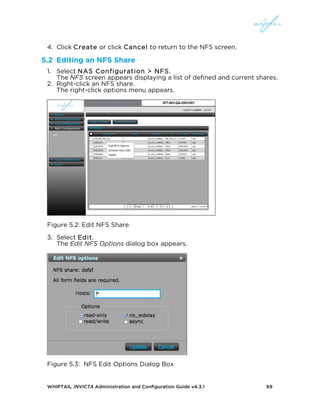

Editing an NFS Share 69

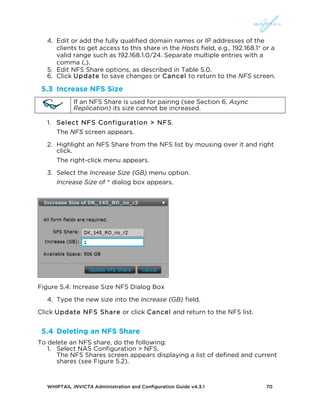

5.3
Increase NFS Size 70

5.4
Deleting an NFS Share 70

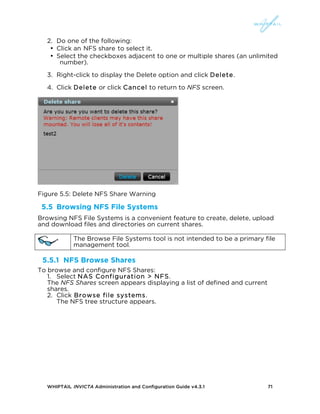

5.5
Browsing NFS File Systems 71

5.5.1

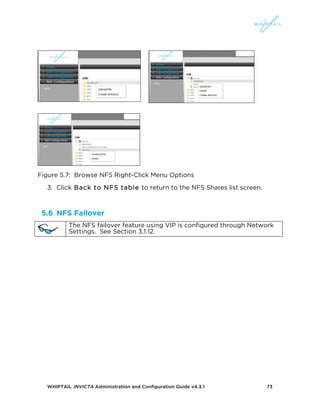

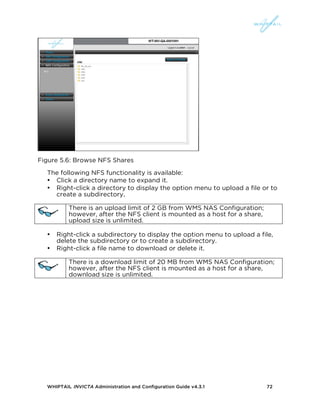

NFS Browse Shares 71

5.6
NFS Failover 73

6.0
Asynchronous Replication 74

6.1
Communicating with a Partner Host 75

6.1.1
WHIPTAIL to WHIPTAIL 76

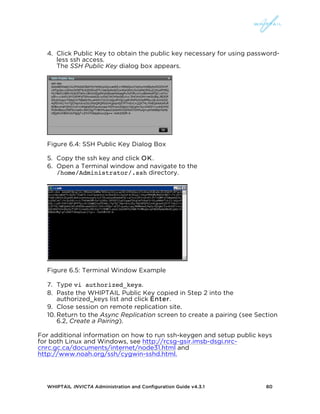

6.1.2

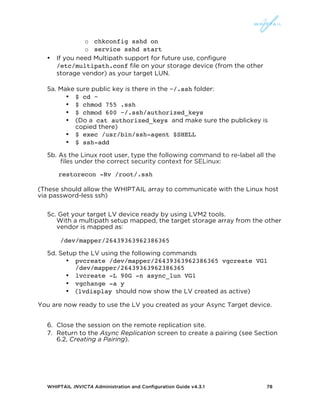

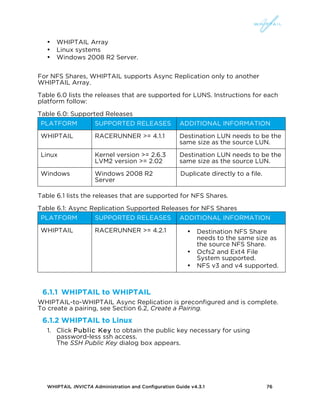

WHIPTAIL to Linux 76

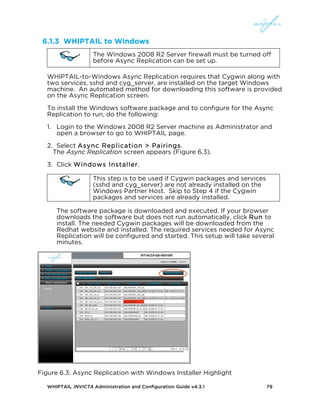

6.1.3
WHIPTAIL to Windows79

6.2

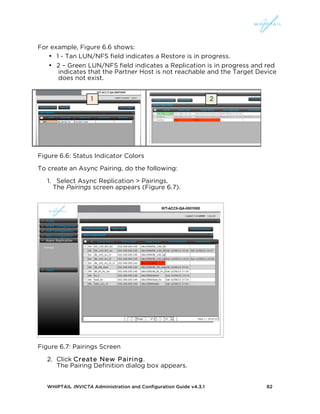

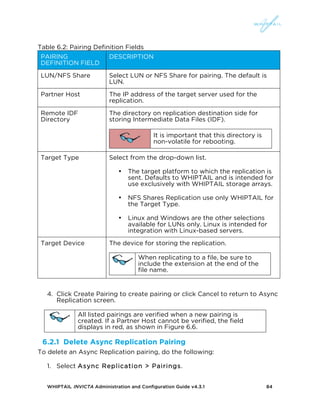

Create a Pairing 81

6.2.1
Delete Async Replication Pairing 84

6.2.2

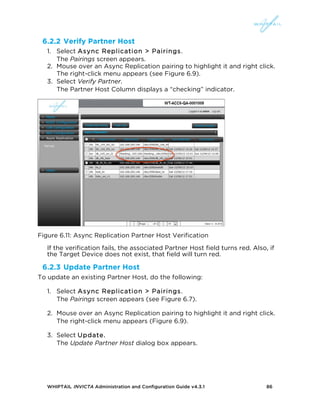

Verify Partner Host 86

6.2.3
Update Partner Host 86

6.2.4

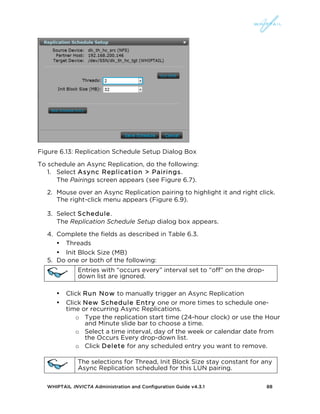

Async Replication Scheduling 87

6.2.5
Restore 89

6.2.6

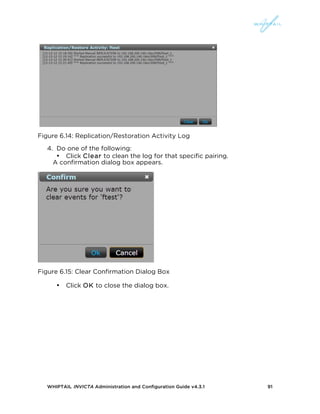

View Log File 90

7.0

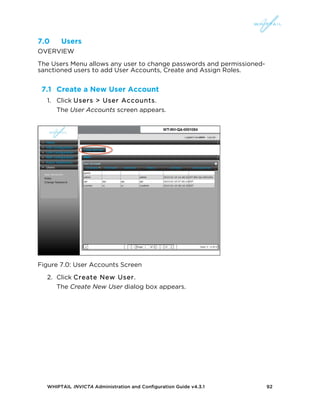

Users 92

7.1

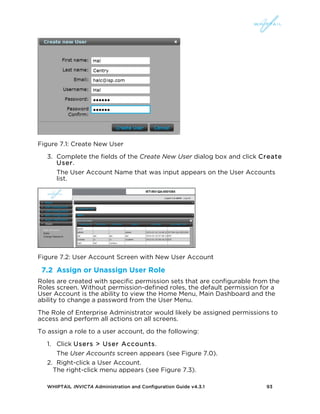

Create a New User Account 92

7.2

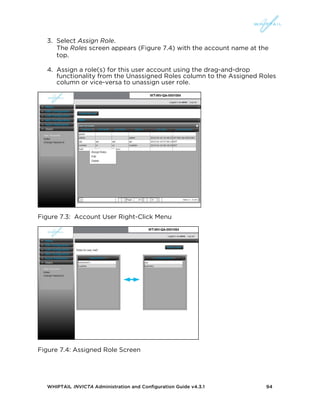

Assign or Unassign User Role 93

7.3

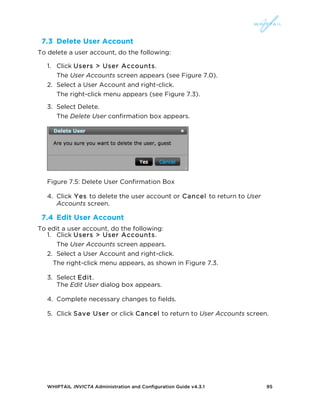

Delete User Account95

7.4
Edit User Account 95

7.5

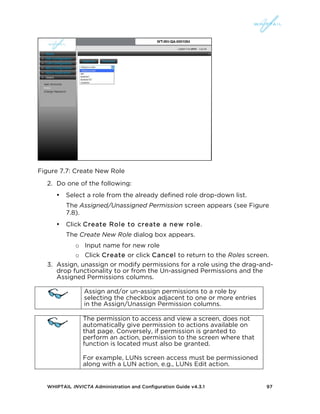

Create or Modify a Role 96

7.6

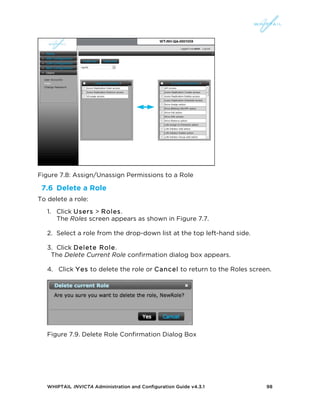

Delete a Role 98

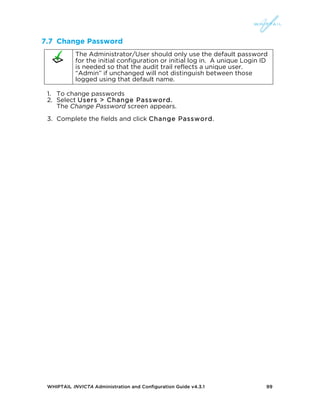

7.7
Change Password 99

© 2013 WHIPTAIL
All Rights Reserved.

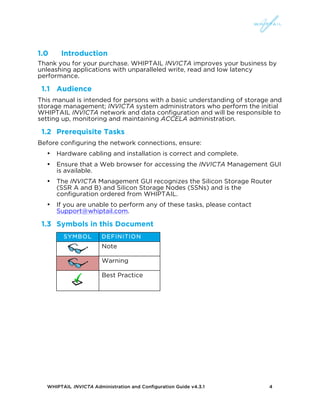

1.0 Introduction
Thank you for your purchase. WHIPTAIL INVICTA improves your business by
unleashing applications with unparalleled write, read and low latency
performance.
1.1 Audience
This manual is intended for persons with a basic understanding of storage and
storage management; INVICTA system administrators who perform the initial
WHIPTAIL INVICTA network and data configuration and will be responsible to
setting up, monitoring and maintaining ACCELA administration.
1.2 Prerequisite Tasks
Before configuring the network connections, ensure:
• Hardware cabling and installation is correct and complete.
• Ensure that a Web browser for accessing the INVICTA Management GUI
is available.
• The INVICTA Management GUI recognizes the Silicon Storage Router
(SSR A and B) and Silicon Storage Nodes (SSNs) and is the
configuration ordered from WHIPTAIL.
• If you are unable to perform any of these tasks, please contact
Support@whiptail.com.
1.3 Symbols in this Document
SYMBOL DEFINITION
Note
Warning
Best Practice

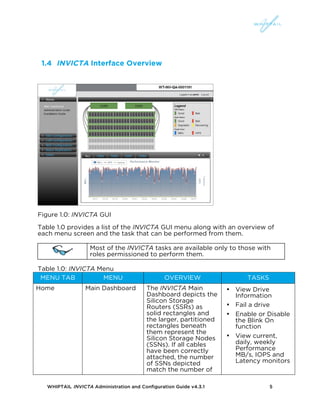

1.4 INVICTA Interface Overview
Figure 1.0: INVICTA GUI
Table 1.0 provides a list of the INVICTA GUI menu along with an overview of
each menu screen and the task that can be performed from them.
Most of the INVICTA tasks are available only to those with
roles permissioned to perform them.
Table 1.0: INVICTA Menu
MENU TAB MENU OVERVIEW TASKS
Home Main Dashboard The INVICTA Main
Dashboard depicts the
Silicon Storage
Routers (SSRs) as
solid rectangles and
the larger, partitioned
rectangles beneath
them represent the
Silicon Storage Nodes
(SSNs). If all cables
have been correctly
attached, the number
of SSNs depicted
match the number of
• View Drive
Information
• Fail a drive
• Enable or Disable
the Blink On
function
• View current,
daily, weekly
Performance
MB/s, IOPS and
Latency monitors

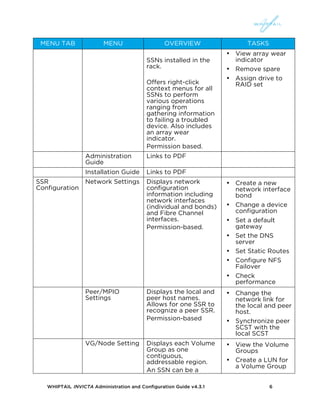

SSNs installed in the
rack.
Offers right-click
context menus for all
SSNs to perform
various operations
ranging from
gathering information
to failing a troubled
device. Also includes
an array wear
indicator.
Permission based.
• View array wear
indicator
• Remove spare
• Assign drive to
RAID set
Administration
Guide
Links to PDF
Installation Guide Links to PDF
SSR
Configuration
Network Settings Displays network
configuration
information including
network interfaces
(individual and bonds)
and Fibre Channel
interfaces.
Permission-based.
• Create a new
network interface
bond
• Change a device
configuration
• Set a default
gateway
• Set the DNS
server
• Set Static Routes
• Configure NFS
Failover
• Check
performance
Peer/MPIO
Settings
Displays the local and
peer host names.
Allows for one SSR to
recognize a peer SSR.
Permission-based
• Change the
network link for
the local and peer
host.
• Synchronize peer
SCST with the
local SCST
VG/Node Setting Displays each Volume
Group as one
contiguous,
addressable region.
An SSN can be a
• View the Volume
Groups
• Create a LUN for
a Volume Group

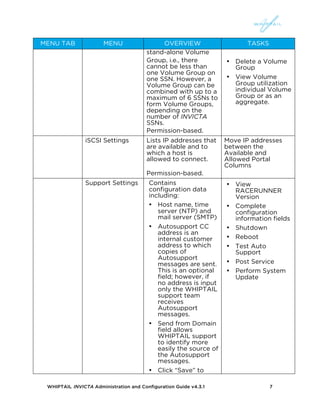

stand-alone Volume
Group, i.e., there
cannot be less than
one Volume Group on
one SSN. However, a
Volume Group can be
combined with up to a
maximum of 6 SSNs to
form Volume Groups,
depending on the
number of INVICTA
SSNs.
Permission-based.
• Delete a Volume
Group
• View Volume
Group utilization
individual Volume
Group or as an
aggregate.
iSCSI Settings Lists IP addresses that
are available and to
which a host is
allowed to connect.
Permission-based.
Move IP addresses
between the
Available and
Allowed Portal
Columns
Support Settings Contains
configuration data
including:
• Host name, time
server (NTP) and
mail server (SMTP)
• Autosupport CC
address is an
internal customer
address to which
copies of
Autosupport
messages are sent.
This is an optional
field; however, if
no address is input
only the WHIPTAIL
support team
receives
Autosupport
messages.
• Send from Domain
field allows
WHIPTAIL support
to identify more
easily the source of
the Autosupport
messages.
• Click “Save” to
• View
RACERUNNER
Version
• Complete
configuration
information fields
• Shutdown
• Reboot
• Test Auto
Support
• Post Service
• Perform System
Update

save any changes
made to these
fields.
• “Test Autosupport”
triggers the
generation of an
Autosupport
message that is
outside of the
regular schedule
and tests the
Autosupport relay
setting. This test
includes collected
data but does not
include
performance
graphs.
• Post Service
button is used for
triggering
communication to
the Autosupport
server once the
service repair or
maintenance
action was
performed on the
system by
technician.
• “System Update” is
used by the
Administrator for
starting a WSP
update package
application process
when available.
• Clicking "System
Update" opens a
dialog box that
asks the
Administrator to
choose the WSP
system update file
that was sent by
WHIPTAIL and
then saved locally.
Uploading this file
loads the file
containing the

system update
onto INVICTA.
After the file has
been authenticated
by the system, the
Administrator is
prompted through
the remaining
update process.
• An Uninstall
Update button
displays
immediately after
an update is
installed and can
be used to
uninstall this last
update.
• "Shutdown" and
"Reboot"
commands are
verified to prevent
any unintentional
action.
Permission-based.
Alert
Administration
Lists short
identification and
notification timestamp
of all active alerts sent
during periodic
System checks.
Permission-based.
Check and/or set
alerts' status to
Resolved or Suppress
LUN
Configuration
LUNs Once the initial setup
has been completed,
LUNs can be created
and configured from
this screen using
buttons and right-click
menus. Checkboxes
adjacent to LUNs can
be used for selecting
an unlimited number
of LUNs for deletion.
Checkboxes can also
be used for selecting
and viewing the
performance of up to
the first 5 selected
LUNs
• Create LUNs
• Increase LUN Size
• Delete LUNs
• Mirror/Break
Mirror LUNS
• Swap Primaries
(Assign LUNs)
• Check
Performance

Permission-based.

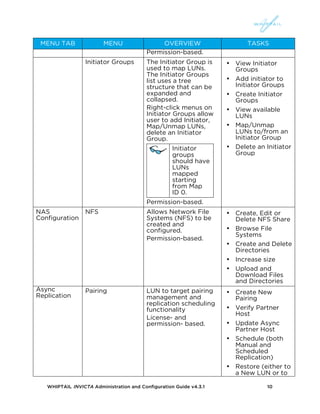

Initiator Groups The Initiator Group is
used to map LUNs.
The Initiator Groups
list uses a tree
structure that can be
expanded and
collapsed.
Right-click menus on
Initiator Groups allow
user to add Initiator,
Map/Unmap LUNs,
delete an Initiator
Group.
Initiator
groups
should have
LUNs
mapped
starting
from Map
ID 0.
Permission-based.
• View Initiator
Groups
• Add initiator to
Initiator Groups
• Create Initiator
Groups
• View available
LUNs
• Map/Unmap
LUNs to/from an
Initiator Group
• Delete an Initiator
Group
NAS
Configuration
NFS Allows Network File
Systems (NFS) to be
created and
configured.
Permission-based.
• Create, Edit or
Delete NFS Share
• Browse File
Systems
• Create and Delete
Directories
• Increase size
• Upload and
Download Files
and Directories
Async
Replication
Pairing LUN to target pairing
management and
replication scheduling
functionality
License- and
permission- based.
• Create New
Pairing
• Verify Partner
Host
• Update Async
Partner Host
• Schedule (both
Manual and
Scheduled
Replication)

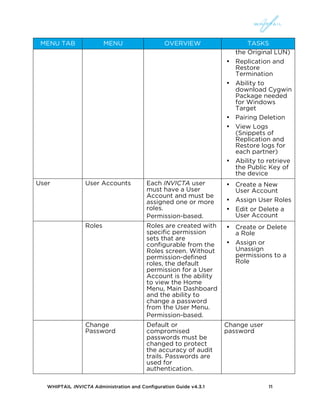

• Restore (either to
a New LUN or to

the Original LUN)
• Replication and
Restore
Termination
• Ability to
download Cygwin
Package needed
for Windows
Target
• Pairing Deletion
• View Logs
(Snippets of
Replication and
Restore logs for
each partner)
• Ability to retrieve
the Public Key of
the device
User User Accounts Each INVICTA user
must have a User
Account and must be
assigned one or more
roles.
Permission-based.
• Create a New
User Account
• Assign User Roles
• Edit or Delete a
User Account
Roles Roles are created with
specific permission
sets that are
configurable from the
Roles screen. Without
permission-defined
roles, the default
permission for a User
Account is the ability
to view the Home
Menu, Main Dashboard
and the ability to
change a password
from the User Menu.
Permission-based.
• Create or Delete
a Role
• Assign or
Unassign
permissions to a
Role
Change
Password
Default or
compromised
passwords must be
changed to protect
the accuracy of audit
trails. Passwords are
used for
authentication.
Change user
password

1.5 Licensed Features
WHIPTAIL offers optional features, e.g., Asynchronous Replication, that can
be licensed, per device. To activate a licensed feature, please contact your
WHIPTAIL Sales Representative or write to Support@whiptail.com.
Licensed features are delivered over the Internet for clients with Autosupport
during “Call Home” messaging or through a WHIPTAIL Service Pack (WSP)
Licensing download, for those clients who are not connected to the
Autosupport over the Internet.
1.6 Initial Steps
1. Administrator Login
2. Ensure that all support settings are as needed (NTP, Time Zone, SMTP)
3. Create Roles
4. Set up user accounts
5. Configure SSNs: Create Volume Groups, LUNS, Initiator Groups
Figure 1.1: INVICTA Support Settings
INVICTA is pre-configured to the network specifications requested prior to
and during Installation (see customer Pre-Installation checklist).

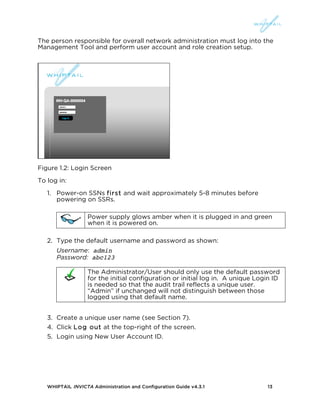

The person responsible for overall network administration must log into the
Management Tool and perform user account and role creation setup.
Figure 1.2: Login Screen
To log in:
1. Power-on SSNs first and wait approximately 5-8 minutes before
powering on SSRs.
Power supply glows amber when it is plugged in and green
when it is powered on.
2. Type the default username and password as shown:
Username: admin
Password: abc123
The Administrator/User should only use the default password
for the initial configuration or initial log in. A unique Login ID
is needed so that the audit trail reflects a unique user.
“Admin” if unchanged will not distinguish between those
logged using that default name.
3. Create a unique user name (see Section 7).
4. Click Log out at the top-right of the screen.
5. Login using New User Account ID.

1.7 Document Roadmap
The remaining sections of this document provide information on each
INVICTA menu item and the tasks associated with them (see Table 1.0).

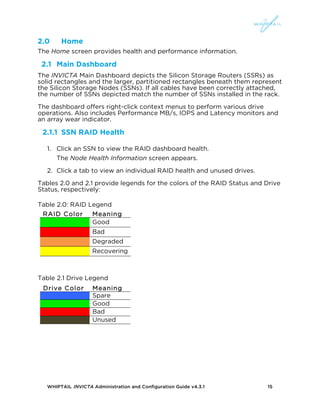

2.0 Home
The Home screen provides health and performance information.
2.1 Main Dashboard
The INVICTA Main Dashboard depicts the Silicon Storage Routers (SSRs) as
solid rectangles and the larger, partitioned rectangles beneath them represent
the Silicon Storage Nodes (SSNs). If all cables have been correctly attached,
the number of SSNs depicted match the number of SSNs installed in the rack.
The dashboard offers right-click context menus to perform various drive
operations. Also includes Performance MB/s, IOPS and Latency monitors and
an array wear indicator.
2.1.1 SSN RAID Health
1. Click an SSN to view the RAID dashboard health.
The Node Health Information screen appears.
2. Click a tab to view an individual RAID health and unused drives.
Tables 2.0 and 2.1 provide legends for the colors of the RAID Status and Drive
Status, respectively:
Table 2.0: RAID Legend
RAID Color Meaning
Good
Bad
Degraded
Recovering
Table 2.1 Drive Legend
Drive Color Meaning
Spare
Good
Bad
Unused

2.1.2 Drive Tasks
It is important to identify your system as a RAID 5 or RAID 6 before
attempting to perform drive tasks:
• A system is configured with RAID 5 if it is configured with one or more
RAID sets, an Unused tab and has a spare drive.
• A system is configured with RAID 6 if it has only one RAID set and an
Unused tab. It does not include a spare drive.
To perform drive tasks:
1. Right-click a drive in the Node Health Information window.
The drive tasks right-click menu appears.
Figure 2.0: Drive Tasks Options Menu
1. Do any of the following:
• If you want to view drive information, select Info.
The Node Health Information window displays specific drive
information, including drive position, device model, serial number,
firmware version and LU WWN Device Id.
Figure 2.1: Node Health Information Window

• Select Fail to fail a drive, if necessary.
The fail right-click menu option on a RAID 5 is only visible on
the RAID set that houses the spare, see Figure 2.0. When a fail
is initiated, recovery to a spare is triggered.
If the RAID set is in a degraded mode, the Fail menu option is
not available on any RAID.
The verification for the fail drive appears. The failed drive will be in a
“bad” state.
The ‘Remove’ right-click menu option provides a means to safely
remove a bad drive to the unused tab.
Figure 2.2a: Fail Drive Warning for
RAID 5
Figure 2.2b: Fail Drive Warning for
RAID 6
A spare cannot be failed. To remove a spare, see Section
2.1.2.1.
• Select Enable or Disable Blink On to enable or disable the Blink On
feature.
A confirmation messages indicates the Blink On/Off status.
Figure 2.3: Enable Blink On

2.1.2.1 Removing a Drive
The ‘Remove’ right-click menu option provides a means to safely remove a
drive without causing data corruption.
While not encouraged, a drive other than a spare from a
RAID set may be removed using the Fail menu option and
procedure described in 2.1.2.
To remove a drive, do the following:
1. Right-click the drive.
The right-click menu appears.
Figure 2.4: Right-Click Menu
2. Select Remove.
The drive is removed and placed in the Unused Tab. From the Unused Tab
do any of the following:
• Get drive information
• Enable/Disable Blink On
• Assign drive to a RAID set
Warning: For drives pulled from the drive slot or failed using
the ‘Fail’ menu, please contact support before reassigning
the drive.

Figure 2.5: Unused Tab Right-Click Menu Options
• Physically remove drive from the array, if necessary.
2.1.3 Performance MB/s, IOPS and Latency Monitors
INVICTA supports vStorage APIs for Array Integration (VAAI)
which dramatically improves communication performance
with VMWare ESX servers.
The Performance tab provides a point-in-time rendering of MB/s, IOPS and
latency characteristics on a last-10-minutes, daily and weekly basis. The chart
auto-refreshes every 10 seconds. Mouse over a performance grid to view
detail.
Figure 2.6: Performance Monitor
To view performance information:
1. Select an SSN tab.
A rendering of MB/s and IOPS characteristics of the SSR appears.

• To view daily performance, click the  icon in the top-right-hand
corner of the performance graph.
• To view weekly performance, click the icon in the top-right-hand
This information auto refreshes every 10 seconds and displays a point-
in-time view.
• To view details of a particular timeframe by click your mouse and drag
it over a lower timeline interval, e.g., 17:25 to 17:50. The result is shown
in Figure 2.7.
Figure 2.7: Performance Zoom of Specific Timeframe
2.2 Administration Guide
Click the Administration Guide menu item to open a PDF of this document
2.3 Installation Guide
Click the Administration Guide menu item to open a PDF of this document

3.0 SSR Configuration
OVERVIEW
This section covers the INVICTA configuration tasks that are available to users
who have appropriate permissions.
3.1 Network Settings
Warning: Modifying network settings will cause a brief
interruption of connectivity to the WHIPTAIL array. Use
extreme caution when changing the settings on this screen.
The Network Settings menu screen displays the Ethernet Bond Status table.
This is a sortable list of all bonds currently available on this array. It also
displays a sortable list of Fibre Channel interfaces. Right clicking an interface
presents menu options, e.g., enable/disable, etc.
The top buttons on this screen can be clicked to create a new network
interface bond, set a default gateway, set the DNS servers and set static
routes.
This section describes how to create, edit and remove a bond and explains
the available bonding modes.
Figure 3.0 Network Settings Screen
Warning: Bond0 must not be deleted. Changing bond0 can
potentially sever the array connection.

3.1.1 Creating a New Bond
To create a new bond, do the following:
1. Select SSR Configuration > Network Settings.
The Network Setting screen appears.
2. Click Create Bond.
The Create New Bond dialog box appears.
Figure 3.1: Create New Bond Dialog Box
3. Complete the fields:
• IP Address – if verified, checkmark appears
• Subnet Mask – if verified, checkmark appears
• MTU
For most implementations, the MTU is <1500>; however, use
<9000> if Jumbo Frames are required for assignment to this
bond
• Onboot –Yes/No. Informs the OS if this bond is to come online
during the boot process.
• Mode – Select a run mode from the drop-down list. (For
explanations of the available modes, see Table 3.0 in Available
Bonding Modes.
4. Click Create Bond once all settings have been entered or click Cancel
to return to the Network Settings screen.
3.1.1.1 Available Bonding Modes
Table 3.0 describes the bonding modes that are configurable from the web
interface.

Table 3.0 Bonding Modes
MODE
NAME
DESCRIPTION ADDITIONAL
INFORMATION
mode=0
(balance-rr)
Round-robin policy: Transmit
packets in sequential order
from the first available slave
through the last. This mode
provides load balancing and
fault tolerance.
mode=1
(active-
backup)
Active-backup policy: Only one
slave in the bond is active. A
different slave becomes active
if and only if the active slave
fails. The bond’s MAC address
is externally visible on only one
port (network adapter) to
avoid confusing the switch. This
mode provides fault tolerance.
mode=4
(802.3ad)
Link
Aggregation
Control
Protocol
(LACP)
IEEE 802.3ad Dynamic link
aggregation creates
aggregation groups that share
the same speed and duplex
settings. This utilizes all slaves
in the active aggregator
according to the 802.3ad
specification. Most switches
require some type of
configuration to enable
802.3ad mode.
Pre-requisites:
• Ethtool support in the
base drivers for
retrieving the speed
and duplex of each
slave.
• A switch that supports
IEEE 802.3ad Dynamic
link aggregation.
mode=6
(balance-
alb) [Default
setting on
WHIPTAIL
Arrays]
Adaptive load balancing:
includes balance-tlb plus
receive load balancing (rlb) for
IPV4 traffic and does not
require any special switch
support.
The receive load balancing is
achieved by ARP negotiation.
The bonding driver intercepts
the ARP Replies sent by the
local system on their way out
and overwrites the source
hardware address with the
unique hardware address of
one of the slaves in the bond,
such that different peers use
different hardware addresses
for the server.
ALB (mode 6) is the default
mode.

3.1.2 Default Gateway
The default gateway is the device that connects the local network to another
network.
To update the default gateway, do the following:
The Network Setting screen appears (see Figure 3.0).
2. Click Default Gateway.
The Update Default Gateway dialog box appears.
Figure 3.2: Update Default Gateway Dialog Box
3. Type the Gateway IP address.
A green checkmark appears if it is a valid gateway.
4. Click Save Gateway or click Cancel to return to the Network Settings
screen.
3.1.3 DNS Nameservers
The most important function of the Domain Name Server DNS servers is the
translation (resolution) of human-memorable domain names and hostnames
into the corresponding numeric Internet Protocol (IP) addresses.
To edit the Nameservers do the following:
2. Click DNS Nameservers.
The Edit DNS Nameservers dialog box appears.

Figure 3.3: Edit DNS Nameservers Dialog Box
5. Type the DNS Nameserver IP addresses.
6. Click Save DNS or click Cancel to return to the Network Settings
screen.
3.1.4 Static Routes
Static routes are routes through a data network that are described by fixed
paths (statically). To create a static route do the following:
2. Click Static Routes.
The Static Routes screen appears.
Figure 3.4: Static Routes Screen

3.1.4.1 Add Static Route
To create a new static route for an active bond, do the following:
2. Click Static Routes > Add Static Route.
The Create New Static Route dialog box appears.
Figure 3.5: Create New Static Route
• Network
• Mask
• Gateway – if verified, checkmark appears
4. Select from the Active Devices drop-down list.
5. Click Create or click Cancel to return to the Static Routes table.
3.1.5 Edit Bond
To Edit a Bond, do the following:
Warning: Changing bond0 can potentially sever the array
connection.
2. Highlight a Bond from the Ethernet Bond Status list by mousing over it
and right click.

Figure 3.6: Ethernet Bond Status Right-Click Menu
3. Select Edit Bond.
The Edit Settings dialog box appears.
Figure 3.7: Edit Bond Settings Dialog Box
4. Update the Bond information (see Table 3.0 for Bond Mode
information).
5. Click Save Bond to save edits or click Cancel to return to the Network
Settings screen.

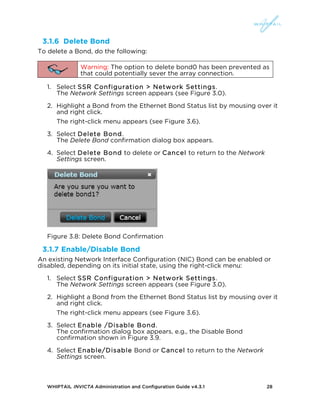

3.1.6 Delete Bond
To delete a Bond, do the following:
Warning: The option to delete bond0 has been prevented as
that could potentially sever the array connection.
The Network Settings screen appears (see Figure 3.0).
and right click.
The right-click menu appears (see Figure 3.6).
3. Select Delete Bond.
The Delete Bond confirmation dialog box appears.
4. Select Delete Bond to delete or Cancel to return to the Network
Settings screen.
Figure 3.8: Delete Bond Confirmation
3.1.7 Enable/Disable Bond
An existing Network Interface Configuration (NIC) Bond can be enabled or
disabled, depending on its initial state, using the right-click menu:
and right click.
3. Select Enable /Disable Bond.
The confirmation dialog box appears, e.g., the Disable Bond
confirmation shown in Figure 3.9.
4. Select Enable/Disable Bond or Cancel to return to the Network
Settings screen.

Figure 3.9: Disable Bond Confirmation Dialog Box
3.1.8 Enable/Disable Fibre Channel Interface
To enable/disable a FC Interface, do the following:
2. Highlight a Bond from the FC Interface Status list by mousing over it
and right click.
The right-click menu appears
Figure 3.10: FC Interface Right-Click Menu
3. Select Enable/Disable.
The confirmation dialog box appears, e.g., the Set Offline confirmation
shown in Figure 3.11.
Figure 3.11: FC Interface Set Offline (Disable) Confirmation Dialog Box
4. Select Online/Offline or Cancel to return to the Network Settings
screen.

3.1.9 Create a Virtual Interface
A virtual interface can be created from an existing Network Interface
Configuration (NIC) Bond from the right-click menu:
and right click.
3. Select Create Virtual.
The Create New Virtual dialog box appears.
Figure 3.12: Create New Virtual Dialog Box
• IP Address – If verified, a checkmark appears
• Subnet Mask
• MTU
bond
• Onboot – Yes/No. Informs the OS if this bond is to come online
during the boot process
5. Click Create Virtual once all settings have been entered or click
Cancel to return to the Network Settings screen.

3.1.10 Create a VLAN
VLAN's allow a network manager to logically segment a LAN into different
broadcast domains. VLANs allow users who are not physically on the same or
even in the same buildings to belong to the same LAN.
To create a VLAN, do the following:
A VLAN can be created from an existing Bond from the right-click menu:
and right click.
3. Select Create VLAN.
The Create New VLAN dialog box appears.

Figure 3.14: Create New VLAN Dialog Box
• VLAN ID – Identification of the VLAN used by the standard 802.1Q.
• IP Address – If verified, a checkmark appears
• Subnet Mask
• MTU
bond
• Onboot – Yes/No. Informs the OS if this bond is to come online
during the boot process.
5. Click Create VLAN once all settings have been entered or click
Cancel to return to the Network Settings screen.
3.1.11 Configure Devices
The Configure Device screen displays the Slave and Unbonded interface
status lists for the Bond and its virtual Bonds and VLANS selected from the
Network Settings screen. Bond configuration can be modified using drag-and-
drop functionality.
Changes to the IP configuration of bonds may result in a
requirement that the current browser session be closed and a
new one started. The updated Network IP should be typed
into the URL field to access the Web interface.

Figure 3.15: Device Configuration Screen
Figure 3.16: Unbonded eth2 Drag and Dropped to Bond Slave Status
3.1.12 Configure VIP (NFS Fault Tolerance)
This feature allows the user to use a virtual IP to mount the NFS share for fault
tolerance. The properties defined in “Configure VIP” provide a graceful

failover so that share access is not interrupted when SSRA or SSRB is
unavailable.
To configure the Virtual IP, do the following:
The Virtual IP must be configured with the same IP Address on
both SSRA and SSRB. If the VIP is edited on one, the other is
automatically synchronized with that same IP Address.
and right click.
3. Select Configure VIP
The Configure VIP/VRRP dialog box appears.

Figure 3.18: Configure VIP/VRRP
• Input a valid Virtual IP Address accessible from the host
• Input a valid Virtual Router Redundancy Protocol (VRRP) ID.
This is a unique ID, numbered 1-to-255, that provides routing priority.
The default master router is SSRA. The VRRPID is the same for
both SSRA and SSRB.
5. Click Update Settings to configure the VIP/VRRP, Remove to
remove that VIP/VRRP from that SSR or Cancel to return to the
Network Settings screen.
3.1.13 Check Performance
To view the status of bond performance, do the following:
and right click.
3. Select Check Performance.
The Bond Performance Info graph appears.

Figure 3.19: Bond Performance Information Graph
Table 3.1: Bond Performance Legend
Packets Definition
Rxpck Number of received packets
Txpck Number of transmitted packets
RxkB Reception bandwidth in KB
TxkB Transmission bandwidth in KB
4. Mouse over graph to see specific point-in-time information as shown in
Figure 3.20.
Figure 3.20: Point-in-Time Bond Performance
3.2 Peer/MPIO Settings
Displays the local and peer host names. Allows for one SSR to recognize a
peer SSR. Also provides the capability to change the network link for the local
and peer host.
This screen also provides the capability to synchronize the local to the peer
SCSTS in the event that the administrator notices that there are discrepancies

between LUNs on the dashboard or should an alert be triggered that there
was a network issue.
To synchronize the peer SCST with the local SCST:
1. Click Sync SCST.
The verification for the synchronization appears with a checkbox to
acknowledge the interrupt the synchronization may cause. It is
suggested to synchronize after normal operational hours.
Figure 3.21: Synchronization Warning
2. Select the acknowledgement checkbox and click Sync or click Cancel
to return to the Peer/MPIO settings screen.
3.3 Volume Groups
In WHIPTAIL terminology, a Volume Group (VG) is the logical storage. A
Volume Group can combine several SSNs (physical storages) and present
them to the system as one large storage unit.
The Volume Group configuration that is optimal depends on the
business/BCP/ needs and requirements.
3.3.1 Create Volume Group
1. Select SSR Configuration > VG/Node Settings.
The Volume Groups screen appears.
Only those who were assigned roles with the associated
permissions can view and/or access these tasks.
If the number of Volume Groups allowed has been reached,
i.e., the number of volume groups can be no greater than the
number of SSNs (1-6) in the INVICTA configuration, the Create
Volume Group button is not visible.

2. Click Create Volume Group.
The Create New Volume Group verification dialog box appears.
Figure 3.22: Create New Volume Group Button
3. Complete the fields and click Create Volume Group.
The Volume Group name is added to the list.
Figure 3.23: Create New Volume Group
3.3.2Delete Volume Group
The Volume Groups screen appears.
2. Right-click a Volume Group name and select Delete.
The Delete Volume Group verification dialog box appears.
Figure 3.24: Delete Volume Group Verification

A Volume Group can only be deleted if it does not have LUNs
and/or NFS shares. An error message indicates that LUNs NFS
Shares must be removed so that the Volume Group can be
deleted. Remember, each SSN has a minimum of one Volume
Group, so it is not possible to delete that last Volume Group
(Figure 3.25).
Figure 3.25: Cannot Remove Volume Group
3.3.3Create LUN On Volume Group
For added convenience, a right-click on a Volume Group Name also allows the
option to create a LUN on that Volume Group. For more information on LUNs,
see Section 5.
3.3.4View Volume Group Utilization
To view Volume group performance:
A performance graph at the bottom of the VG/Node Screen displays
the utilization of each volume group.
The ALL tab displays an aggregate utilization of the Volume Groups.

Figure 3.26: ALL Tab
3.4 iSCSI Settings
The iSCSI Screen Lists the IP addresses by which an Initiator (a host) is
allowed to access an SSR. The two columns represented on the screen are:
• Allowed Portal: Lists IP addresses to which a host is allowed to connect.
• Available Portal: Lists all available IP addresses of hosts that can used to
initiate a session.
3.4.1 Changing Initiator IP Address Availability
1. Select SSR Configuration > iSCSI Settings.
2. Use drag-and-drop functionality to move an Initiator to or from the
Available to the Allowed Portal IPs columns.

Figure 3.27: Moving an Initiator
If the Allowed Portals column is empty, there are no
restrictions for access and all IPs listed in the Available
column can be used for iSCSI communication
3.5 Support Settings
The WHIPTAIL Installation team will have configured INVICTA so that there is
SRR (A and B) communication and SSR to SSN communication. The SSR is
connected to the network and is now controlling the network data sent to the
SSNs. Network Configuration settings have been entered on the Support
Settings screen (see Figure 3.29).
These settings include:
• Host Name
• SMTP Server
• SMTP User
• AutoSupport CC
• Send from Domain
• NTP Server
• Time Zone

Figure 3.29: Support Setting Screens
3.5.1 Support Setting Configuration
To verify or modify support settings, do the following:
1. Select SSR Configuration > Support Settings.
The Support Settings screen appears.
2. Complete or modify field information as necessary. See Table 3.2 for a
description of the Support Settings fields.

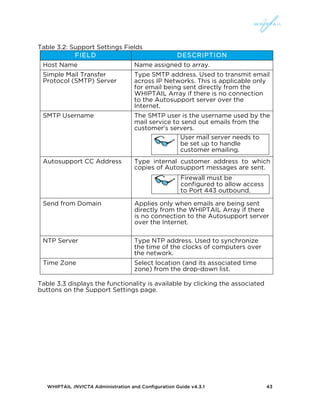

Table 3.2: Support Settings Fields
FIELD DESCRIPTION
Host Name Name assigned to array.
Simple Mail Transfer
Protocol (SMTP) Server
Type SMTP address. Used to transmit email
across IP Networks. This is applicable only
for email being sent directly from the
WHIPTAIL Array if there is no connection
to the Autosupport server over the
Internet.
SMTP Username The SMTP user is the username used by the
mail service to send out emails from the
customer's servers.
User mail server needs to
be set up to handle
customer emailing.
Autosupport CC Address Type internal customer address to which
copies of Autosupport messages are sent.
Firewall must be
configured to allow access
to Port 443 outbound.
Send from Domain Applies only when emails are being sent
directly from the WHIPTAIL Array if there
is no connection to the Autosupport server
over the Internet.
NTP Server Type NTP address. Used to synchronize
the time of the clocks of computers over
the network.
Time Zone Select location (and its associated time
zone) from the drop-down list.
Table 3.3 displays the functionality is available by clicking the associated
buttons on the Support Settings page.

Table 3.3: Support Settings Button Functionality
BUTTON DESCRIPTION
Test Autosupport A trigger that generates an Autosupport
message that is outside of the regular
schedule and that tests the Autosupport relay
setting. This test includes all usually collected
data.
Post Service Post Service button is used for triggering
communication to the Autosupport server
once the service repair or maintenance action
was performed on the system by technician.
System Update System Update is used when the
Administrator has received a WSP file
containing an update.
Uninstall Update Uninstall update button is present
immediately after the update was installed
and is used for rolling back previously
installed update.
This button is only visible if a user is
permissioned to uninstall an update.
Shutdown Shutdown INVICTA. Dialog box appears to
verify Shutdown command to avoid any
unintentional action.
Reboot Reboot INVICTA. Dialog box appears to verify
Reboot command to avoid any unintentional
action.
3.5.1.1 System Update
Clicking System Update opens a dialog box that asks the Administrator to
choose the system update file that was sent by WHIPTAIL and then saved
locally.
Uploading this file loads the file containing the system update onto INVICTA.
After the file has been authenticated by the system, the Administrator is
prompted through the remaining update process.
Be sure to read and acknowledge the Release Notes and
Instructions or the update will not initiate.
Contact support before uninstalling if update has been installed
and running for more than several hours as this could potentially
cause data integrity and/or performance issues.
Only customer-installed upgrades can potentially be uninstalled.

3.5.2 Alert Administration
The Alert Admin menu lists active alerts sent during periodic system checks.
The alert entries include a short identification, last sent time and date and
status information.
To address an alert:
1. Do one of the following:
• Mouse over a unique alert.
• Select the checkbox adjacent to one or more alerts.
2. Right-click the mouse.
A right-click menu appears with Suppress and Resolve options (see
Table 3.4).
3. Select Suppress or Resolve.
Table 3.4: Alert Administration Actions
ACTION DESCRIPTION
Suppress Removes selected alerts from the list of active alerts and keeps
them from resending during subsequent periodic System
checks.
Resolve Removes selected alerts from the active list. However, should
the same alerts recur during subsequent System checks, they
will repeatedly appear in the active list until the issues causing
these alerts are resolved.
Figure 3.30: Alert Admin Screen

4.0 LUN Configuration
OVERVIEW
INVICTA allows you to tune LUNs to meet specific application needs. This is
accomplished by adding nodes to increase throughput, bandwidth or
capacity.
LUNs represents logical volumes that are defined inside the VG - and as such
those are made available for hosts (initiators) to access them. Each Logical
Unit Number (LUN) identifies a specific logical unit, which may be part of a
drive, an entire drive or several drives in a storage array. A LUN, then, can
reference an entire RAID set, a single drive or multiple drivers. In any case,
the logical unit is treated as if it is a single device and is identified by the LUN.
Once the initial INVICTA set up has been completed, LUNs can be created and
configured from the LUN Configuration screen using buttons and right-click
menus. The Administrator must determine the best LUN configuration.
The following section describes LUN Configuration tasks.
Only those who were assigned roles with the associated
permissions can view and/or access these tasks.
4.1 The LUNs List
LUNs have checkboxes adjacent to them. These checkboxes can be used for
selecting an unlimited number of LUNs for deletion.
Checkboxes can also be used for selecting and viewing the performance of up
to the first 5 selected LUNs.
All columns are sortable.
4.1.1 Create LUN
A LUN can be created from one of two screens:
• From the SSR Configuration VG / Node screen (see Section 3.3.4.)
• From the LUN Configuration, LUNs screen.
This section describes LUNs created from the LUNs screen.

Figure 4.0: LUN Screen
To create a LUN:
1. Select LUN Configuration > LUNs.
The LUNs screen appears.
Figure 4.1: LUN Screen/Create LUN Button
2. Click Create LUN.
The Create New LUN dialog box appears.

Figure 4.2 Create New LUN Dialog Box
3. Complete the Create New LUN fields:
• Type a name in the LUN Name field.
• Type the size of the LUN presented to the operating system
(expressed in GB).
• Select the LUN’s Volume Group Name from the drop-down list.
• Select the Device Group (SSR A or SSR B) from the drop-down list.
Striping applies for LUN creation on multiple Volume Groups
(i.e., composed of more than 1 SSN).
4. Click Create LUN or click Cancel to close the dialog box without
creating a new LUN.
4.1.2 Swap LUN Primaries
The SSR through which a LUN is served is known as a Primary.
Swapping Primaries involves assigning and/or reassigning INVICTA LUNs to
the alternate SSR, i.e., Primary to Local SSR or Primary to Peer SSR. This
feature is useful for capacity load balancing optimization.
Swapping LUN Primaries can be done in two ways:
• Using the right-click menu option.
• Using the Swap Primaries button.
To use the LUN right-click menu:
The LUN screen appears.

2. Highlight a LUN from the LUNs list by mousing over it and right click.
Figure 4.3: LUN Right-Click Menu
3. Select the Swap Primaries menu option.
The Primary on which the LUN is listed changes to the alternate
Primary, i.e., from SSRB to SSRA.
To use the Primaries button:
2. Click Primaries.
Figure 4.4: LUN Screen Primaries Button

The Local and Peer SSR LUN lists appear. These lists are sortable by
Name and by Size.
Figure 4.5: Local and Peer SSR LUN Lists
3. Drag-and-drop a LUN from an SSR to the other SSR. In Figure 4.5,
testlun was drag and dropped from the Local to Peer SSR.
4.1.3 Delete LUN

3. Select the Delete menu option.
A verify deletion dialog box appears.
Figure 4.7: LUN Delete Verification Dialog Box
If a LUN is part of an asynchronous pairing, it cannot be
deleted until the pairing is removed. To remove the pairing,
go to the LUNs>Asynchronous Replication menu item.
4. Click Delete or click Cancel and return to the LUNs list.
4.1.4 Increase LUN Size

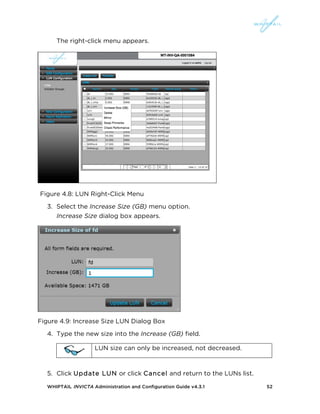

3. Select the Increase Size (GB) menu option.
Increase Size dialog box appears.
Figure 4.9: Increase Size LUN Dialog Box
4. Type the new size into the Increase (GB) field.
LUN size can only be increased, not decreased.
5. Click Update LUN or click Cancel and return to the LUNs list.

4.1.5 LUN Mirror/Break Mirror
LUN Mirroring is mapping that maintains two identical data copies. Mirrored
LUN are often used to achieve better availability and to provide a degree of
fault tolerance. Data is written to both LUNs simultaneously. Should one of
the LUN drives fail or becomes unavailable; the system continues to operate
using the unaffected drive.
4.1.5.1 Create LUN Mirror
To create a LUN Mirror, do the following:
• Select LUN Configuration > LUNs.
• Highlight a LUN from the LUNs list by mousing over it and right click.
• Select the Mirror menu option.
The Create Mirror dialog box appears.

Figure 4.11: Create Mirror Dialog Box
• Type the name of the LUN Mirror into the New LUN field.
• Select a Volume Group from the VG drop-down list.
• Click Create Mirror or click Cancel and return to the LUNs list.
When creating a mirror, a progress dialog box appears.
When the mirror is finished, exit the dialog box by
clicking the “x” in the upper right-hand corner of the
box.
Figure 4.12: Mirror Progress Dialog Box
4.1.5.2 LUN Mirror Creation Indicators
• If a LUN Mirror is successfully created, the LUN Mirror Name text
appears in green as shown in Figure 4.13.

Figure 4.13: Successful LUN Mirror Creation
• If the LUN destination to which the data would be mirrored does not
exit, the entire LUN Name field appears red, as shown in Figure 4.14.
Figure 4.14: Bad LUN Mirror Destination Indicator

• When creating a LUN mirror, if there is not enough space left on all
Volume Groups, the Volume Group drop-down list will not be
selectable. The error message, “No volume groups qualify to create
mirror,“ is stated on the pop-up (Figure 4.15).
Figure 4.15: No Volume Groups Qualify for Mirror
4.1.5.3 Break Mirror
To break a LUN mirror, do the following:
2. Highlight a mirrored LUN from the LUNs list by mousing over it and
right click.

Figure 4.16: LUN Right-Click Menu for Mirrored LUN
3. Select the Break Mirror menu option.
The break verification dialog box appears.
Figure 4.17: Break Verification Dialog Box
4. Click Break Mirror or click Cancel and return to the LUNs list.
When a mirror is broken, the mirrored LUN is removed and the original
LUN remains available as a standalone.
4.1.6 View LUN Performance Data
Checkboxes adjacent to the LUNs can be used for selecting and viewing the
performance of up to the first 5 selected LUNs. Performance graphs for one of
the 5 LUNs can be viewed on their tabs or an aggregate view from the "All"
tab.
The performance view auto-refreshes every 10 seconds and displays point-in-
time MB/s and IOPS characteristic information.

To View LUN performance graphs, do the following:
• Highlight a LUN from the LUNs list by mousing over it and right click.
• Select up to 5 checkboxes adjacent to a LUN name and right click.
3. Select Check Performance.
The LUN Performance Information Monitor appears.
4. Mouse over a performance grid to view detailed information.
• To view daily performance, click the  icon in the top-right-hand
• To view weekly performance, click the icon in the top-right-hand

Figure 4.19: LUN Performance Information Graph/ALL Tab
• To view details of a particular timeframe by click your mouse and drag
it over a lower timeline interval, e.g., 17:25 to 17:50. The result is shown
in Figure 4.20.
Figure 4.20: Performance Zoom of Specific Timeframe
4.2 LUN Initiator Groups
Initiator Groups are used to map LUNs. When a LUN is associated with a
specific initiator group, the LUN is only visible to initiators in that group.
INVICTA uses a tree structure that can be expanded and collapsed. A triangle
adjacent to an Initiator Group name indicates that there are Initiators assigned
to them and can be expanded or collapsed on click.

Figure 4.21: Initiator Groups
A LUN may be mapped to multiple Initiator Groups while an
Initiator cannot be listed as a member of more than one
Initiator Group.
4.2.1 Add an Initiator to an Initiator Group
1. Select LUN Configuration > Initiator Groups.
The Initiators screen appears (See Figure 4.21).
2. Click an Initiator Group to highlight it and right click.
The right-click options menu appears.
Figure 4.22: Initiator Groups Right-Click Menu
3. Select Add Initiator.

The Add Initiator to <Initiator Group> dialog box appears.
Figure 4.23: Add Initiator Dialog Box
4. Type in the WWN/IQN and click Create Initiator or click Cancel to
return to the Initiators list.
Ensure that the WWN for the HBA to which the storage is
attached is zoned using the standards used in your data center.
4.2.2Create an Initiator Group
The Initiators screen appears.
2. Click Create New Group.
Figure 4.24 Create New Initiator Group Dialog Box
3. Type the name of the Initiator Group in the Name field and click Create
Group.
The new Initiator Group name appears on the Initiators list.

4.2.3 Map a LUN to an Initiator Group
Avoid mapping a LUN until the Initiator has been created as
doing so may cause the Initiator to pull in LUN list from the
Default group.
The Initiators screen appears.
3. Select Map LUNs.
The Initiator LUN screen appears.
Figure 4.26: Initiator LUN Screen

4. Do one of the following to map a LUN:
• Drag-and-drop a LUN from the Available LUNs list to the Initiator
Group’s LUN list above it.
Figure 4.27: Initiator LUN Drag-and-Drop
• Right click a LUN and select the Map/Unmap LUN option.
The Map LUN to Initiator Group Dialog Box appears.
• Initiators will have LUNs mapped starting from Map
ID ‘0’. Failure to remap a LUN 0 will result in initiator
issues.
• Deleting Map ID ‘0’ is not recommended. If it is
deleted, all other LUNs mapped to this initiator
group might be lost from the initiator sight. Also
while the next LUN mapping created will
automatically be assigned the Map ID ‘0’ that does
not guarantee automatic re-discovery of the “lost”
LUNs.
• If a range of IDs for multiple LUNs is specified it will
first check for 0 and then continue with the starting
ID provided.

Figure 4.28: Map LUN to Initiator Group Dialog Box
5. Click Create or click Cancel to return to the Initiator’s Available LUN
list.
The LUN appears in the Initiator’s LUN list.
6. Repeat Steps 4 and 5 for each preferred available LUN.
To unmap a LUN, drag-and-drop it from the Initiator
Group LUN list back to the Available LUNS list or follow
the UnMap procedure in Section 4.2.4.
7. Click Back to Initiators to return to the Initiator Groups screen.
4.2.4 Unmap LUN from Initiator
3. Select Map/Unmap LUNs.
The Initiator LUN screen appears.

Figure 4.30: Initiator LUN Screen
• Select a LUN from the Initiator’s LUN list, right click and select the
Unmap LUN menu option.
Figure 4.31: Unmap LUN Screen

• Drag-and-drop a LUN from the Initiator Groups LUN list to the Initiator
Available LUN list below it.
The LUN disappears from the Initiator Group’s LUN list and reappears on
the Available LUNs list.
4.2.5 Delete Initiator Group
Unmap all LUNs from an Initiator Group before attempting
to delete it to avoid data loss.
3. Select Delete Group.
A deletion verification dialog box appears.
Figure 4.33: Deletion Verification Dialog Box
4. Click Delete Group or click Cancel to return to the Initiators list.

5.0 NAS Configuration
OVERVIEW
Network Attached Storage (NAS) allows a user on a client computer to
access files over a network in a manner akin to how local storage is accessed.
Network File System (NFS) is the protocol used to make selected data
available to validated clients.
5.1 Creating an NFS Share
To create an NFS share, do the following:
1. Select NAS Configuration > NFS.
The NFS screen appears displaying a list of defined and current shares.
Figure 5.0: NAS Configuration Screen
2. Click Create NFS share.
The Create NFS share dialog box appears.

Figure 5.1: Create NFS Share Dialog Box
3. Complete the NFS share fields:
• Type a name of the share in the Name field.
• Type the fully qualified domain names or IP addresses of the clients
to get access to this share in the Hosts field, e.g., 192.168.1* or a valid
range such as 192.168.1.0/24. Separate multiple entries with a
comma (,).
• Type the size of the share in the Size (GB) field.
• Select a Volume Group from the drop-down list.
• Select NFS Share options in the Options box, as described in Table
5.0.
Table 5.0: NFS Share Options
OPTION
NAME
DESCRIPTION COMMENT
read-only The share cannot be written.
This is the default.
read-write The share can be written.
no_wdelay Write disk as soon as
possible.
Warning:
Disabling
no_wdelay may
cause write
performance
degradation.
async Reply before disk write. Warning: Cache
coherence
between SSRs is
not guaranteed
with Async
option enabled.

4. Click Create or click Cancel to return to the NFS screen.
5.2 Editing an NFS Share
The NFS screen appears displaying a list of defined and current shares.
2. Right-click an NFS share.
The right-click options menu appears.
Figure 5.2: Edit NFS Share
3. Select Edit.
The Edit NFS Options dialog box appears.
Figure 5.3: NFS Edit Options Dialog Box

4. Edit or add the fully qualified domain names or IP addresses of the
clients to get access to this share in the Hosts field, e.g., 192.168.1* or a
valid range such as 192.168.1.0/24. Separate multiple entries with a
comma (,).
5. Edit NFS Share options, as described in Table 5.0.
6. Click Update to save changes or Cancel to return to the NFS screen.
5.3 Increase NFS Size
If an NFS Share is used for pairing (see Section 6, Async
Replication) its size cannot be increased.
1. Select NFS Configuration > NFS.
The NFS screen appears.
2. Highlight an NFS Share from the NFS list by mousing over it and right
click.
3. Select the Increase Size (GB) menu option.
Increase Size of * dialog box appears.
Figure 5.4: Increase Size NFS Dialog Box
4. Type the new size into the Increase (GB) field.
Click Update NFS Share or click Cancel and return to the NFS list.
5.4 Deleting an NFS Share
To delete an NFS share, do the following:
The NFS Shares screen appears displaying a list of defined and current
shares (see Figure 5.2).

• Click an NFS share to select it.
• Select the checkboxes adjacent to one or multiple shares (an unlimited
number).
3. Right-click to display the Delete option and click Delete.
4. Click Delete or click Cancel to return to NFS screen.
Figure 5.5: Delete NFS Share Warning
5.5 Browsing NFS File Systems
Browsing NFS File Systems is a convenient feature to create, delete, upload
and download files and directories on current shares.
The Browse File Systems tool is not intended to be a primary file
management tool.
5.5.1 NFS Browse Shares
To browse and configure NFS Shares:
The NFS Shares screen appears displaying a list of defined and current
shares.
2. Click Browse file systems.
The NFS tree structure appears.

Figure 5.6: Browse NFS Shares
The following NFS functionality is available:
• Click a directory name to expand it.
• Right-click a directory to display the option menu to upload a file or to
create a subdirectory.
There is an upload limit of 2 GB from WMS NAS Configuration;
however, after the NFS client is mounted as a host for a share,
upload size is unlimited.
• Right-click a subdirectory to display the option menu to upload a file,
delete the subdirectory or to create a subdirectory.
• Right-click a file name to download or delete it.
There is a download limit of 20 MB from WMS NAS Configuration;
however, after the NFS client is mounted as a host for a share,
download size is unlimited.

Figure 5.7: Browse NFS Right-Click Menu Options
3. Click Back to NFS table to return to the NFS Shares list screen.
5.6 NFS Failover
The NFS failover feature using VIP is configured through Network
Settings. See Section 3.1.12.

6.0 Asynchronous Replication
OVERVIEW
Asynchronous replication (hereafter referred to as Async Replication) is an
optional and separately licensed feature. It provides a permission-based
mechanism to create a duplicate version of a LUN or NFS Share on a device
attached to a partner host.
If you do not have the Asynchronous Replication feature
activated but would like to use it, please contact your
WHIPTAIL Sales Representative or write to
Support@whiptail.com.
WHIPTAIL uses block-level Async Replication and incorporates an Async
snapshot feature to capture a point-in-time state that allows applications to
continue writing their data. These features help to prevent damage from
failures or disasters that may occur in one location and improves the ability to
recover a copy of the data in another location.
• During Async Replication pairing creation, if the
source device is a LUN then the target device must
also be a LUN. Similarly, if the source device is an NFS
Share then the target device must also be an NFS
Share.
• Using target entities is not recommended in Read-
Write mode as this poses a risk to the accuracy of
the data replication and may corrupt data recovery.
• Before using the Asynchronous Replication
feature, make sure that no LUN/NFS Share names use
either "Snapdiff1_xyz, "xyz_Snap” to the LUN or NFS
share name (where ‘xyz’ is the original or target LUN
or NFS share name). Using these naming conventions
will delete user data during the replication process.
• During the replication process, the target LUN/NFS
Share will be unmapped/unmounted and is therefore
inaccessible. This prevents possible corruption of
source data. The replication process will automatically
re-map and remount at its completion. The source
SSR will have access throughout the replication
process.
• When restoring to the original source LUN/NFS
Share, the Restore process will unexport and unmount
the LUN/Share and will not be accessible. The
Restore process will automatically re-mount and re-
export at its completion.
• Once Async Replication pairing is setup, the
following operations are prevented on the source LUN
or NFS Share used for the pairing:
o Increase in size
o Delete operation

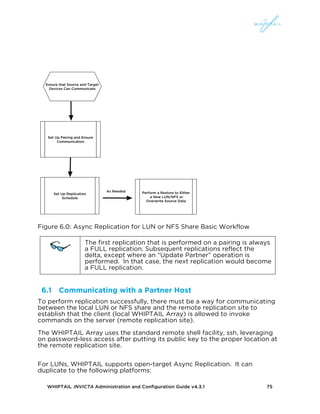

Ensure that Source and Target
Devices Can Communicate
Set Up Pairing and Ensure
Communication
Set Up Replication
Schedule
As Needed Perform a Restore to Either
a New LUN/NFS or
Overwrite Source Data
Figure 6.0: Async Replication for LUN or NFS Share Basic Workflow
The first replication that is performed on a pairing is always
a FULL replication. Subsequent replications reflect the
delta, except where an “Update Partner” operation is
performed. In that case, the next replication would become
a FULL replication.
6.1 Communicating with a Partner Host
To perform replication successfully, there must be a way for communicating
between the local LUN or NFS share and the remote replication site to
establish that the client (local WHIPTAIL Array) is allowed to invoke
commands on the server (remote replication site).
The WHIPTAIL Array uses the standard remote shell facility, ssh, leveraging
on password-less access after putting its public key to the proper location at
the remote replication site.
For LUNs, WHIPTAIL supports open-target Async Replication. It can
duplicate to the following platforms:

• WHIPTAIL Array
• Linux systems
• Windows 2008 R2 Server.
For NFS Shares, WHIPTAIL supports Async Replication only to another
WHIPTAIL Array.
Table 6.0 lists the releases that are supported for LUNS. Instructions for each
platform follow:
Table 6.0: Supported Releases
PLATFORM SUPPORTED RELEASES ADDITIONAL INFORMATION
WHIPTAIL RACERUNNER >= 4.1.1 Destination LUN needs to be the
same size as the source LUN.
Linux Kernel version >= 2.6.3
LVM2 version >= 2.02
Destination LUN needs to be the
same size as the source LUN.
Windows Windows 2008 R2
Server
Duplicate directly to a file.
Table 6.1 lists the releases that are supported for NFS Shares.
Table 6.1: Async Replication Supported Releases for NFS Shares
PLATFORM SUPPORTED RELEASES ADDITIONAL INFORMATION
WHIPTAIL RACERUNNER >= 4.2.1 • Destination NFS Share
needs to the same size as
the source NFS Share.
• Ocfs2 and Ext4 File
System supported.
• NFS v3 and v4 supported.
6.1.1 WHIPTAIL to WHIPTAIL
WHIPTAIL-to-WHIPTAIL Async Replication is preconfigured and is complete.
To create a pairing, see Section 6.2, Create a Pairing.
6.1.2 WHIPTAIL to Linux
1. Click Public Key to obtain the public key necessary for using
password-less ssh access.
The SSH Public Key dialog box appears.

Figure 6.1: SSH Public Key Dialog Box
2. Copy the ssh key and click OK.
3. Open a Terminal window and navigate to the /root/.ssh directory.
4. Type vi authorized_keys.
5. Paste the WHIPTAIL Public Key copied in Step 2 into the
authorized_keys list and click Enter.
Figure 6.2: Terminal Window Example
See the following sample
procedure to configure a Linux Host to be used as a
Linux ‘Open Target’ partner for Async Replication.
Sample Procedure:
This example uses CentOS 6.2
You need the following:
• LVM 2.0.2:
yum –y install lvm2
• Install Openssh server and clients:
yum -y install openssh-server openssh-clients
• Add and start sshd service daemon:

o chkconfig sshd on
o service sshd start
• If you need Multipath support for future use, configure
/etc/multipath.conf file on your storage device (from the other
storage vendor) as your target LUN.
5a. Make sure public key is there in the ~/.ssh folder:
• $ cd ~
• $ chmod 755 .ssh
• $ chmod 600 ~/.ssh/authorized_keys
• (Do a cat authorized_keys and make sure the publickey is
copied there)
• $ exec /usr/bin/ssh-agent $SHELL
• $ ssh-add
5b. As the Linux root user, type the following command to re-label all the
files under the correct security context for SELinux:
restorecon -Rv /root/.ssh
(These should allow the WHIPTAIL array to communicate with the Linux host
via password-less ssh)
5c. Get your target LV device ready by using LVM2 tools.
With a multipath setup mapped, the target storage array from the other
vendor is mapped as:
/dev/mapper/26439363962386365
5d. Setup the LV using the following commands
• pvcreate /dev/mapper/26439363962386365 vgcreate VG1
/dev/mapper/26439363962386365
• lvcreate -L 90G -n async_lun VG1
• vgchange -a y
• (lvdisplay should now show the LV created as active)
You are now ready to use the LV you created as your Async Target device.
6. Close the session on the remote replication site.
7. Return to the Async Replication screen to create a pairing (see Section
6.2, Creating a Pairing).

6.1.3 WHIPTAIL to Windows
The Windows 2008 R2 Server firewall must be turned off
before Async Replication can be set up.
WHIPTAIL-to-Windows Async Replication requires that Cygwin along with
two services, sshd and cyg_server, are installed on the target Windows
machine. An automated method for downloading this software is provided
on the Async Replication screen.
To install the Windows software package and to configure for the Async
Replication to run, do the following:
1. Login to the Windows 2008 R2 Server machine as Administrator and
open a browser to go to WHIPTAIL page.
2. Select Async Replication > Pairings.
The Async Replication screen appears (Figure 6.3).
3. Click Windows Installer.
This step is to be used if Cygwin packages and services
(sshd and cyg_server) are not already installed on the
Windows Partner Host. Skip to Step 4 if the Cygwin
packages and services are already installed.
The software package is downloaded and executed. If your browser
downloads the software but does not run automatically, click Run to
install. The needed Cygwin packages will be downloaded from the
Redhat website and installed. The required services needed for Async
Replication will be configured and started. This setup will take several
minutes.
Figure 6.3: Async Replication with Windows Installer Highlight

4. Click Public Key to obtain the public key necessary for using password-
less ssh access.
The SSH Public Key dialog box appears.
Figure 6.4: SSH Public Key Dialog Box
5. Copy the ssh key and click OK.
6. Open a Terminal window and navigate to the
/home/Administrator/.ssh directory.
Figure 6.5: Terminal Window Example
7. Type vi authorized_keys.
8. Paste the WHIPTAIL Public Key copied in Step 2 into the
authorized_keys list and click Enter.
9. Close session on remote replication site.
10. Return to the Async Replication screen to create a pairing (see Section
6.2, Create a Pairing).
For additional information on how to run ssh-keygen and setup public keys
for both Linux and Windows, see http://rcsg-gsir.imsb-dsgi.nrc-
cnrc.gc.ca/documents/internet/node31.html and
http://www.noah.org/ssh/cygwin-sshd.html.

6.2 Create a Pairing
A LUN or NFS Share must be present before a pairing can be
created.
• It is not recommended to use target entities in Read-
Write mode as this poses a risk to the accuracy of the
data replication and may corrupt data recovery.
• Once Async Replication pairing is setup, the following
operations are prevented on the Source LUN or NFS
Share used for the pairing:
o Increase in size
o Delete operation
o LUN Mirroring
The Async Replication Pairings screen displays a table of LUNs and NFS
Shares and their host pairings. Information about and the date and time of the
last replication and the last restore is also displayed. From this screen, create
new pairings using the top left-hand screen button. On mouse hover over
each pairing, the replication schedule, and the source and target device info
for that pairing appears in a pop-up box.
On right-click, an options menu appears for the selected pairing for the
following:
• Delete
• Verify Partner Host
• Update Partner
• Schedule
• Restore
• View Log File
If a host and/or device is/are not detected when checked, the respective
fields turn red. The following triggers checks:
• Async Replication screen refresh
• New Host Pairing creation
• Pairing Deletion
• Pairing Host Update (check is performed on specific update entry)
• Manual replication scheduling
• Replication Termination
Additionally, LUN/NFS column is green for replication in progress and tan
when a restore is in progress.

For example, Figure 6.6 shows:
• 1 - Tan LUN/NFS field indicates a Restore is in progress.
• 2 – Green LUN/NFS field indicates a Replication is in progress and red
indicates that the Partner Host is not reachable and the Target Device
does not exist.
Figure 6.6: Status Indicator Colors
To create an Async Pairing, do the following:
The Pairings screen appears (Figure 6.7).
Figure 6.7: Pairings Screen
2. Click Create New Pairing.
The Pairing Definition dialog box appears.
21

LUN Pairing to WHIPTAIL Device LUN Pairing to Linux Device
LUN Pairing with Windows NFS Pairing (WHIPTAIL Only)
Figure 6.8: Pairing Definition Dialog Box Examples
3. Complete the Pairing Definition fields. (See Table 6.2 for field
descriptions.)

Table 6.2: Pairing Definition Fields
PAIRING
DEFINITION FIELD
DESCRIPTION
LUN/NFS Share Select LUN or NFS Share for pairing. The default is
LUN.
Partner Host The IP address of the target server used for the
replication.
Remote IDF
Directory
The directory on replication destination side for
storing Intermediate Data Files (IDF).
It is important that this directory is
non-volatile for rebooting.
Target Type Select from the drop-down list.
• The target platform to which the replication is
sent. Defaults to WHIPTAIL and is intended for
use exclusively with WHIPTAIL storage arrays.
• NFS Shares Replication use only WHIPTAIL for
the Target Type.
• Linux and Windows are the other selections
available for LUNs only. Linux is intended for
integration with Linux-based servers.
Target Device The device for storing the replication.
When replicating to a file, be sure to
include the extension at the end of the
file name.
4. Click Create Pairing to create pairing or click Cancel to return to Async
Replication screen.
All listed pairings are verified when a new pairing is
created. If a Partner Host cannot be verified, the field
displays in red, as shown in Figure 6.6.
6.2.1 Delete Async Replication Pairing
To delete an Async Replication pairing, do the following:

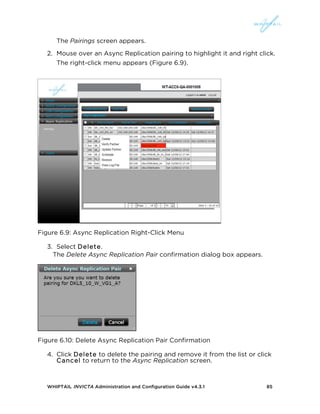

The Pairings screen appears.
2. Mouse over an Async Replication pairing to highlight it and right click.
The right-click menu appears (Figure 6.9).
Figure 6.9: Async Replication Right-Click Menu
3. Select Delete.
The Delete Async Replication Pair confirmation dialog box appears.
Figure 6.10: Delete Async Replication Pair Confirmation
4. Click Delete to delete the pairing and remove it from the list or click
Cancel to return to the Async Replication screen.

6.2.2 Verify Partner Host
The Pairings screen appears.
3. Select Verify Partner.
The Partner Host Column displays a “checking” indicator.
Figure 6.11: Async Replication Partner Host Verification
If the verification fails, the associated Partner Host field turns red. Also, if
the Target Device does not exist, that field will turn red.
6.2.3 Update Partner Host
To update an existing Partner Host, do the following:
The Pairings screen appears (see Figure 6.7).
3. Select Update.
The Update Partner Host dialog box appears.

Figure 6.12: Update Partner Host Dialog Box
4. Update the field or fields as necessary.
5. Click Update to update the pairing or click Cancel to return to the
Async Replication screen.

When updating a partner host, a full replication is triggered.
6.2.4Async Replication Scheduling

• During the occurrence of each scheduled replication the
target LUN/NFS share will be unmapped/dismounted and,
therefore inaccessible.
• During the replication process, the source LUN/NFS share
will be unmapped/unmounted on the peer SSR and is
therefore inaccessible from the peer SSR. This prevents
possible corruption of source data. The replication process
will automatically re-map and re-mount at

The Async Replication function can be set at scheduled intervals or may be
triggered for immediate replication.

Figure 6.13: Replication Schedule Setup Dialog Box
To schedule an Async Replication, do the following:
3. Select Schedule.
The Replication Schedule Setup dialog box appears.
4. Complete the fields as described in Table 6.3.
• Threads
• Init Block Size (MB)
5. Do one or both of the following:
Entries with “occurs every” interval set to “off” on the drop-
down list are ignored.
• Click Run Now to manually trigger an Async Replication
• Click New Schedule Entry one or more times to schedule one-
time or recurring Async Replications.
o Type the replication start time (24-hour clock) or use the Hour
and Minute slide bar to choose a time.
o Select a time interval, day of the week or calendar date from
the Occurs Every drop-down list.
o Click Delete for any scheduled entry you want to remove.
The selections for Thread, Init Block Size stay constant for any
Async Replication scheduled for this LUN pairing.

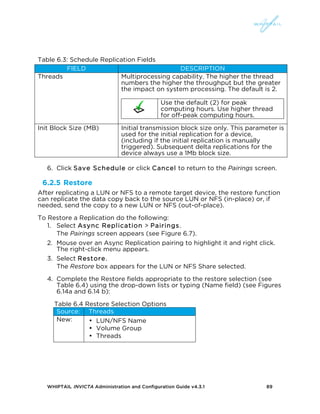

Table 6.3: Schedule Replication Fields
6. Click Save Schedule or click Cancel to return to the Pairings screen.
6.2.5 Restore
After replicating a LUN or NFS to a remote target device, the restore function
can replicate the data copy back to the source LUN or NFS (in-place) or, if
needed, send the copy to a new LUN or NFS (out-of-place).
To Restore a Replication do the following:
3. Select Restore.
The Restore box appears for the LUN or NFS Share selected.
4. Complete the Restore fields appropriate to the restore selection (see
Table 6.4) using the drop-down lists or typing (Name field) (see Figures
6.14a and 6.14 b):
Table 6.4 Restore Selection Options
Source: Threads
New: • LUN/NFS Name
• Volume Group
• Threads
FIELD DESCRIPTION
Threads Multiprocessing capability. The higher the thread
numbers the higher the throughput but the greater
the impact on system processing. The default is 2.
Use the default (2) for peak
computing hours. Use higher thread
for off-peak computing hours.
Init Block Size (MB) Initial transmission block size only. This parameter is
used for the initial replication for a device,
(including if the initial replication is manually
triggered). Subsequent delta replications for the
device always use a 1Mb block size.

Figure 6.14a: Restore Dialog Box for LUN Source (Left) and New (Right)
Figure 6.14b: Restore Dialog Box for NFS Source (Left) and New (Right)
5. Click Restore or click Cancel to return to the Async Replication
screen.
A Restore to a new NFS Share will restore the new NFS Share
in READ ONLY mode with Host IP as 127.0.0.1.
6.2.6 View Log File
To view replication and restoration log files, do the following:
The Pairing screen appears (see Figure 6.7)
3. Select View Log File.
The Replication/Restoration Activity dialog box appears.

Figure 6.14: Replication/Restoration Activity Log
• Click Clear to clean the log for that specific pairing.
A confirmation dialog box appears.
Figure 6.15: Clear Confirmation Dialog Box
• Click OK to close the dialog box.

7.0 Users
OVERVIEW
The Users Menu allows any user to change passwords and permissioned-
sanctioned users to add User Accounts, Create and Assign Roles.
7.1 Create a New User Account
1. Click Users > User Accounts.
The User Accounts screen appears.
Figure 7.0: User Accounts Screen
2. Click Create New User.
The Create New User dialog box appears.

Figure 7.1: Create New User
3. Complete the fields of the Create New User dialog box and click Create
User.
The User Account Name that was input appears on the User Accounts
list.
Figure 7.2: User Account Screen with New User Account
7.2 Assign or Unassign User Role
Roles are created with specific permission sets that are configurable from the
Roles screen. Without permission-defined roles, the default permission for a
User Account is the ability to view the Home Menu, Main Dashboard and the
ability to change a password from the User Menu.
The Role of Enterprise Administrator would likely be assigned permissions to
access and perform all actions on all screens.
To assign a role to a user account, do the following:
The User Accounts screen appears (see Figure 7.0).
2. Right-click a User Account.

3. Select Assign Role.
The Roles screen appears (Figure 7.4) with the account name at the
top.
4. Assign a role(s) for this user account using the drag-and-drop
functionality from the Unassigned Roles column to the Assigned Roles
column or vice-versa to unassign user role.
Figure 7.3: Account User Right-Click Menu
Figure 7.4: Assigned Role Screen

7.3 Delete User Account
To delete a user account, do the following:
The User Accounts screen appears (see Figure 7.0).
2. Select a User Account and right-click.
3. Select Delete.
The Delete User confirmation box appears.
Figure 7.5: Delete User Confirmation Box
4. Click Yes to delete the user account or Cancel to return to User
Accounts screen.
7.4 Edit User Account
To edit a user account, do the following:
The User Accounts screen appears.
2. Select a User Account and right-click.
The right-click menu appears, as shown in Figure 7.3.
3. Select Edit.
The Edit User dialog box appears.
4. Complete necessary changes to fields.
5. Click Save User or click Cancel to return to User Accounts screen.

Figure 7.6: Edit User Dialog Box
7.5 Create or Modify a Role
A Role is required for each User. Roles are a descriptive name given to a pre-
defined set of permissions that are assigned using the Roles Menu. To create a
role, do the following:
1. Click Users > Roles.
The Role screen appears.

Figure 7.7: Create New Role
• Select a role from the already defined role drop-down list.
The Assigned/Unassigned Permission screen appears (see Figure
7.8).
• Click Create Role to create a new role.
The Create New Role dialog box appears.
o Input name for new role
o Click Create or click Cancel to return to the Roles screen.
3. Assign, unassign or modify permissions for a role using the drag-and-
drop functionality to or from the Un-assigned Permissions and the
Assigned Permissions columns.
Assign and/or un-assign permissions to a role by
selecting the checkbox adjacent to one or more entries
in the Assign/Unassign Permission columns.
The permission to access and view a screen, does not
automatically give permission to actions available on
that page. Conversely, if permission is granted to
perform an action, permission to the screen where that
function is located must also be granted.
For example, LUNs screen access must be permissioned
along with a LUN action, e.g., LUNs Edit action.

Figure 7.8: Assign/Unassign Permissions to a Role
7.6 Delete a Role
To delete a role:
1. Click Users > Roles.
The Roles screen appears as shown in Figure 7.7.
2. Select a role from the drop-down list at the top left-hand side.
3. Click Delete Role.
The Delete Current Role confirmation dialog box appears.
4. Click Yes to delete the role or Cancel to return to the Roles screen.
Figure 7.9. Delete Role Confirmation Dialog Box

7.7 Change Password
The Administrator/User should only use the default password
for the initial configuration or initial log in. A unique Login ID
is needed so that the audit trail reflects a unique user.
“Admin” if unchanged will not distinguish between those
logged using that default name.
1. To change passwords
2. Select Users > Change Password.
The Change Password screen appears.
3. Complete the fields and click Change Password.

8.0 Support
WHIPTAIL Support is available to assist with any WHIPTAIL product
questions, concerns or issues. Please contact Support@whiptail.com.

Whiptail : Administration and Configuration guide 4.3

More Related Content

What's hot

Similar to Whiptail : Administration and Configuration guide 4.3

More from Kumaran Balachandran

Recently uploaded

Whiptail : Administration and Configuration guide 4.3
