The slim profile, comprehensive functionality, high brightness LCD, flat-bezel, and user-friendly touchscreens make the industrial Panel PC ideal solution for factory automation, production control point, warehouse, transportation control center, station and even refrigerated environment.

2. • Size: 7” wide screen, 8” and 10.4”
• Flat-bezel LCD with LED backlight
• Intel Atom N2600 (7” & 8”)/ N2800 (10.4”) Processor
• One 800 MHz 204-pin DDR3 SO-DIMM slot with 2GB memory
• EM or Mifare RFID reader
• IP 64 compliant front panel

3. • 15” ~ 21.5” with Intel Core i7/i5/i3 and Pentium Processor
• EM or Mifare RFID reader
• Programmable colourful LED light bar
• Light fanless design
• Wide range 9~36 VDC input

4. • 4th Generation Intel Bay Trail J1900 with 8 GB of on-board memory
• Resistive and projected capacitive touchscreen (optional)
• 15.6”/18.5” LCD 16:9 display, 1366 x 768 resolution
• Low power consumption and fanless design with dust-resistant features
• Removable panel frame for mounting/installation flexibility

5. • 15.6″ & 21.5″ and 32” Ubiquitous Touch Computer with Intel Atom D2550/
AMD G- Series T40E/ Intel Core i7 Processor
• Attachable peripherals include: Barcode Reader, RFID Reader, Magnetic Strip
Card Reader, Smart Card Reader and Camera Module

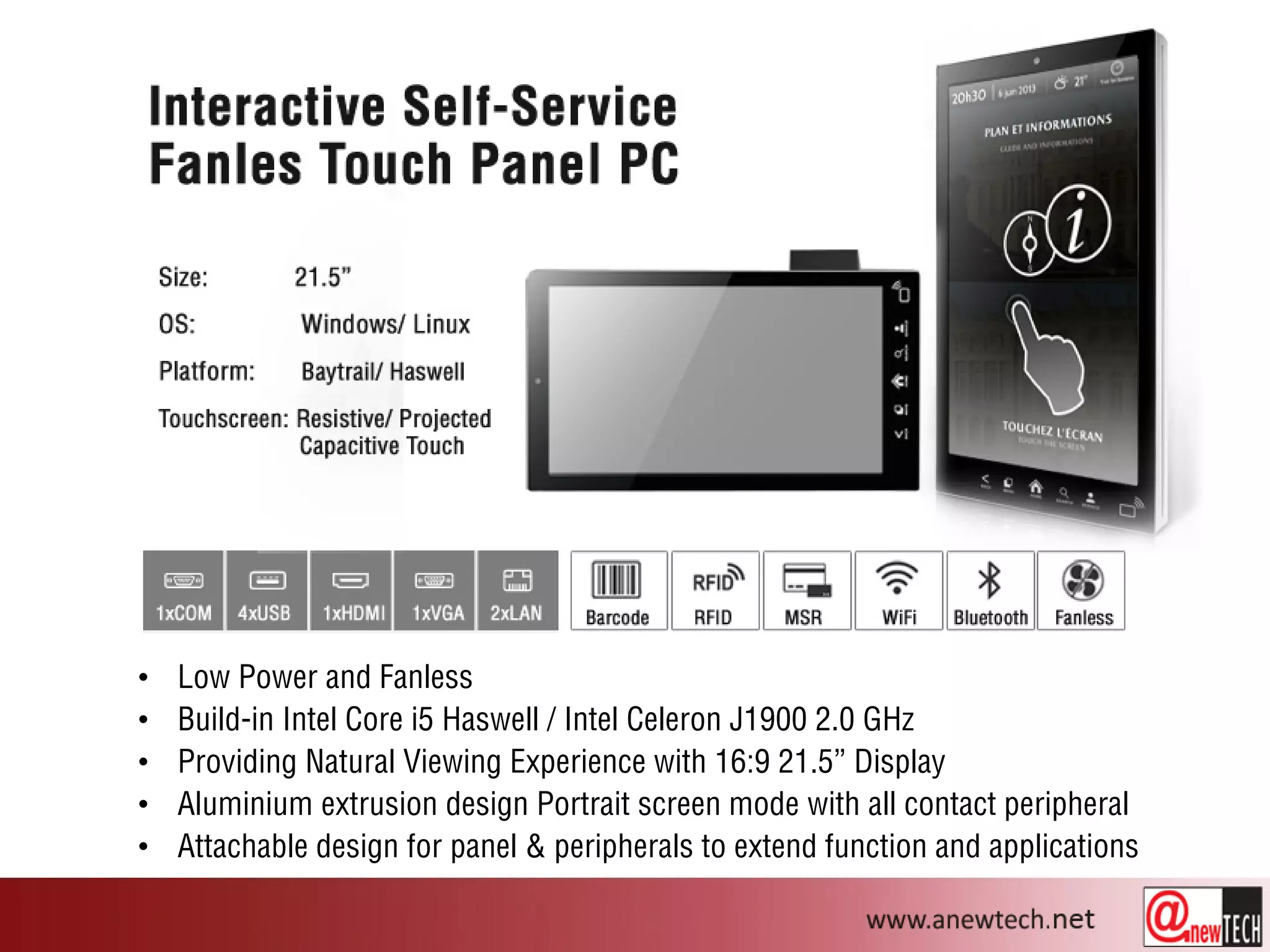

6. • Low Power and Fanless
• Build-in Intel Core i5 Haswell / Intel Celeron J1900 2.0 GHz
• Providing Natural Viewing Experience with 16:9 21.5” Display
• Aluminium extrusion design Portrait screen mode with all contact peripheral
• Attachable design for panel & peripherals to extend function and applications

7. • 18.5” / 21.5” TFT LED LCD wide screen display
• Truly-flat touch screen with IP65 compliance
• Supports industrial 24VDC power input
• Supports panel, wall, desktop and VESA arm mounting
• Robust design with SECC chassis and Magnesium alloy front panel

8. • Fully Flat Resistive Touch Panel
provides easy cleaning and all-new natural view experience to user
• LED Backlight Panel
20~ 30% power reductions, inverter FREE with less EMI, wide dimming range
• Wide Temperature Support
-20°C ~ 60°C wide operating temperature for industrial applications

9. • Intel Dual Core Atom N2600 Platform
• Fanless Design
• Dimming knob control backlight brightness from nearly 0% to 100%
• Transflective film technology enhance visibility
• 9~36V DC power input

10. • Intel Atom Dual Core D2550 1.86 GHz
• Stainless steel housing, Full IP67 protection
• Screen sizes available in 10.4″, 15″, or 19″
• Options for Windows Embedded 7 or 8
• I/O includes USB 2.0, RS232 serial port and RJ45-10/100/1000 LAN ports

11. • 18.5” & 21.5” FHD wide-screen display
• Intel Core i7 processor with a fanless, high peformance profile
• Optional Bluetooth, RFID, Blu-ray RW, inner WLAN module, Li-ion battery pack
• UL60601-1/EN60601-1 third edition certified
• IPX1 /IP54 and fanless for well infection control

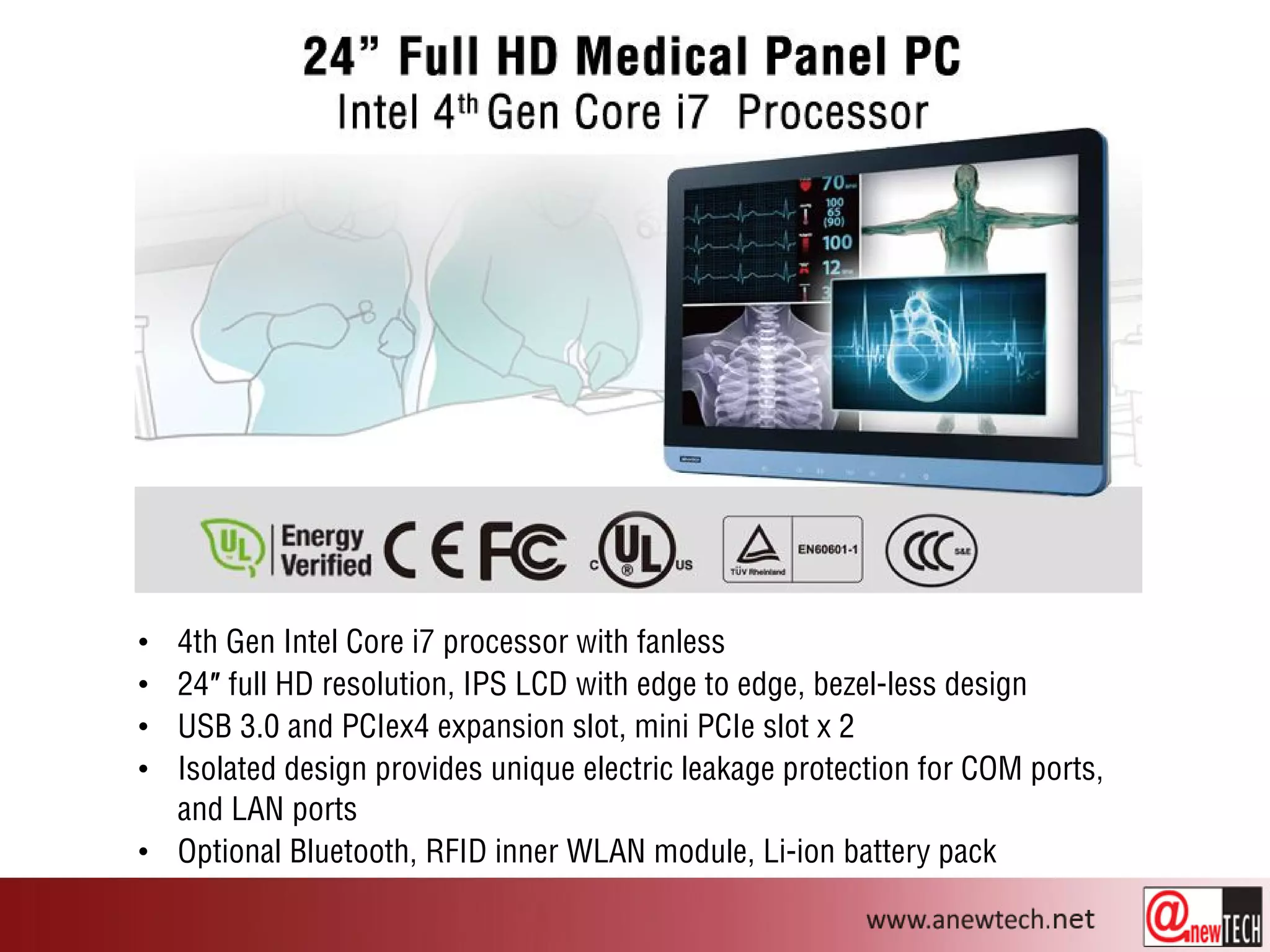

12. • 4th Gen Intel Core i7 processor with fanless
• 24″ full HD resolution, IPS LCD with edge to edge, bezel-less design
• USB 3.0 and PCIex4 expansion slot, mini PCIe slot x 2
• Isolated design provides unique electric leakage protection for COM ports,
and LAN ports
• Optional Bluetooth, RFID inner WLAN module, Li-ion battery pack

13. • TI Cortex A8 AM3354 Processor, 720MHz
• Support LVDS 1366 x 768 resolution
• LAN with PoE function
• Micro SD card Expansion slot, Max 32 GB
• Various OS Offerings: Android 4.1.2/ Windows CE 7.0 Pro Runtime/ Linux
Kernel 3.2.0, QT 4.7.3 w/ browser

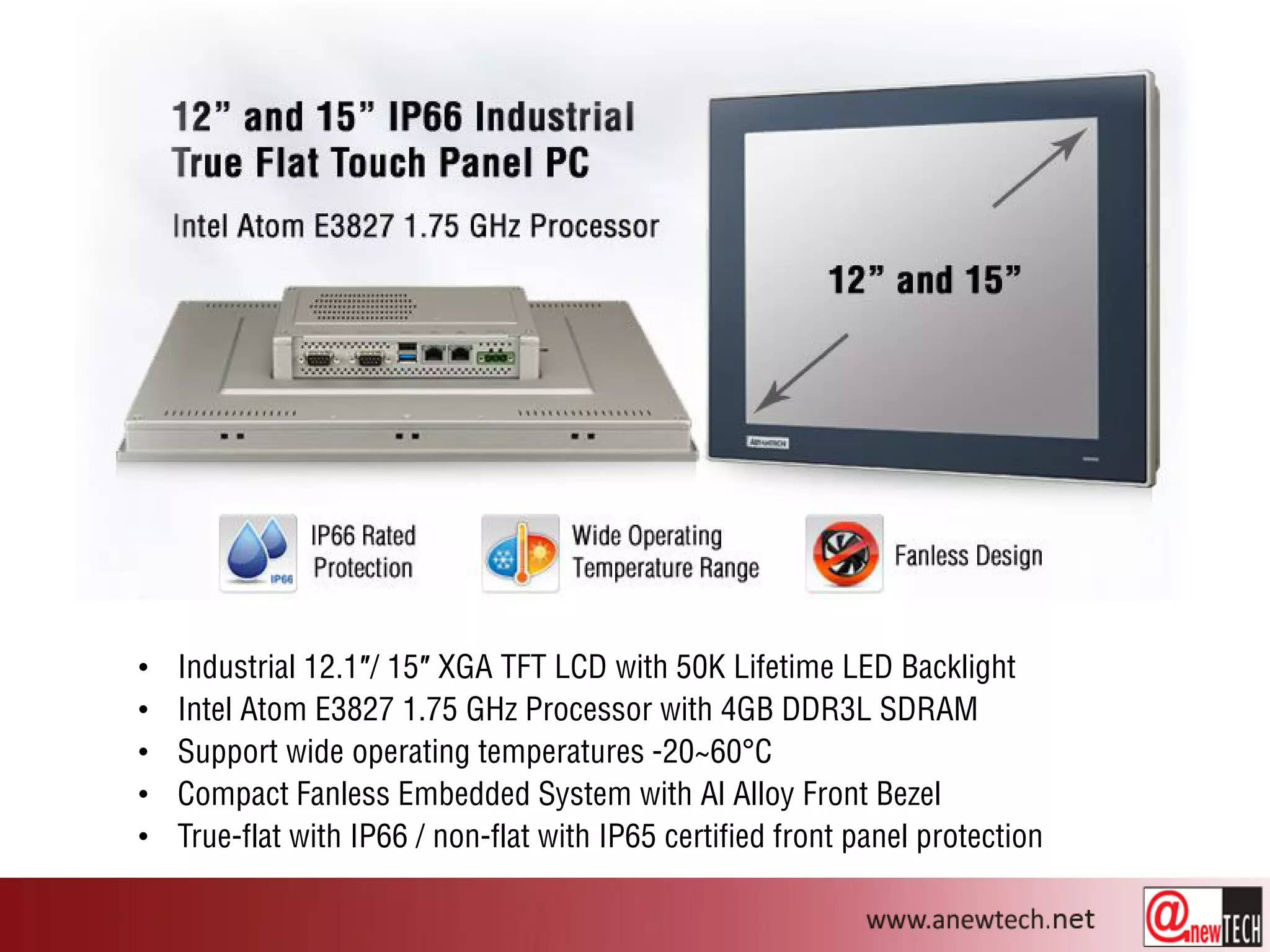

14. • Industrial 12.1″/ 15″ XGA TFT LCD with 50K Lifetime LED Backlight
• Intel Atom E3827 1.75 GHz Processor with 4GB DDR3L SDRAM
• Support wide operating temperatures -20~60°C
• Compact Fanless Embedded System with Al Alloy Front Bezel
• True-flat with IP66 / non-flat with IP65 certified front panel protection

16. • Scalable Intel H81 chipset supports LGA1150 Intel 4th generation Core
i7/i5/i3, Pentium or Celeron processor with up to 65W TDP
• IP65 aluminum ultra-thin front bezel
• Projected capacitive multi-touch/ resistive single touch options
• Dual full-size PCIe Mini card expansion
• AC/ DC power input options
