2. TouchPanelComputers
1

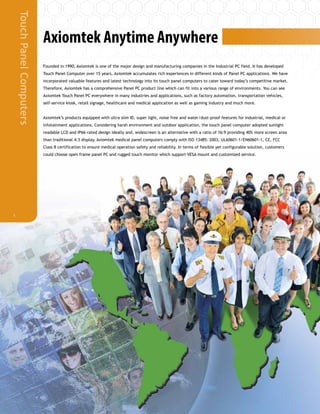

Axiomtek Anytime Anywhere
Founded in 1990, Axiomtek is one of the major design and manufacturing companies in the Industrial PC field. It has developed
Touch Panel Computer over 15 years. Axiomtek accumulates rich experiences in different kinds of Panel PC applications. We have
incorporated valuable features and latest technology into its touch panel computers to cater toward today’s competitive market.
Therefore, Axiomtek has a comprehensive Panel PC product line which can fit into a various range of environments. You can see
Axiomtek Touch Panel PC everywhere in many industries and applications, such as factory automation, transportation vehicles,
self-service kiosk, retail signage, healthcare and medical application as well as gaming industry and much more.
Axiomtek’s products equipped with ultra slim ID, super light, noise free and water/dust-proof features for industrial, medical or
infotainment applications. Considering harsh environment and outdoor application, the touch panel computer adopted sunlight
readable LCD and IP66-rated design ideally and, widescreen is an alternative with a ratio of 16:9 providing 40% more screen area
than traditional 4:3 display. Axiomtek medical panel computers comply with ISO 13485: 2003, UL60601-1/EN60601-1, CE, FCC
Class B certification to ensure medical operation safety and reliability. In terms of flexible yet configurable solution, customers
could choose open frame panel PC and rugged touch monitor which support VESA mount and customized service.

3. 22
Product Overview
Slim-Type Fanless Touch Panel Computers
GOT5000 Series
The GOT5000 series is extremely light weight, has fanless operation,
ultra slim and modern ID features for small-size infotainment application.
Having adopt Intel®
Atom™ processor N2600 1.6 GHz or J1900 2.0GHz, this
series delivers superior computing capabilities and energy efficiency.
Wide-Temperature Fanless Touch Panel Computers
GOT3000 Series
The GOT3000 series delivers solution that is capable of meeting the needs
of the industrial automation market. It features wide operating
temperatures of -20°C to +55°C, low power Intel®
or AMD processor,
anti-vibration design, high brightness display, NEMA 4X front bezel and
multi-touch widescreen for new products.
Industrial Grade Panel Monitors
P6000 Series
Axiomtek’s P6000 industrial flat monitors comes in 10.4", 12.1", 15",15.6",
17", 18.5" and 19" with glass, resistive or projective capacitive touch
solution to fulfill your different requirements. P6000 series supports
multi-signal interface including HDMI, DP, DVI, VGA, S-video and Video and
features screwtype adaptor plug design and 12/24V DC-IN. With various
options, it is suitable for POI/POS and the control center in automation
system.
Healthcare & Medical Solutions
MPC & MMT Series
Axiomtek’s medical touch panel computers/monitors (MPC/MMT series),
are well-suited for applications like medical image processing, medical
measuring instrument and mobile nursing cart. They deliver features such
as power efficiency, water/dust-proof seal, low noise and safety
certifications.
Heavy-Duty Fanless Touch Panel Computers
GOT800 Series
The GOT800 series is specifically designed to operate under severe
conditions such as outdoor environments under extreme sunny or rainy
day, and dusty or wet spaces. It highlights an IP66-rated housing, sunlight
readable technology and wide operating temperature range from -20°C to
+55°C.
Performance-Driven Touch Panel Computers
P1000 Series
The P1000 series helps customers reduce time-to-market for the
automation indus-try by featuring extremely light weight, flexibility with
CPU selection, cost effective-ness, slim/expandable designs,
anti-corro-sion front bezel, vibration resistance up to 1Grms and new
fashionable ID for new products.
TouchPanelComputers

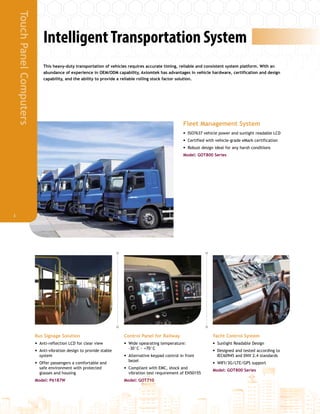

4. IntelligentTransportation System
This heavy-duty transportation of vehicles requires accurate timing, reliable and consistent system platform. With an
abundance of experience in OEM/ODM capability, Axiomtek has advantages in vehicle hardware, certification and design
capability, and the ability to provide a reliable rolling stock factor solution.
Bus Signage Solution
•• Anti-reflection LCD for clear view
•• Anti-vibration design to provide stable
system
•• Offer passengers a comfortable and
safe environment with protected
glasses and housing
Model: P6187W
Control Panel for Railway
•• Wide opearating temperature:
-30°C ~ +70°C
•• Alternative keypad control in front
bezel
•• Compliant with EMC, shock and
vibration test requirement of EN50155
Model: GOT710
Yacht Control System
•• Sunlight Readable Design
•• Designed and tested according to
IEC60945 and DNV 2.4 standards
•• WIFI/3G/LTE/GPS support
Model: GOT800 Series
Fleet Management System
•• ISO7637 vehicle power and sunlight readable LCD
•• Certified with vehicle-grade eMark certification
•• Robust design ideal for any harsh conditions
Model: GOT800 Series
TouchPanelComputers
3

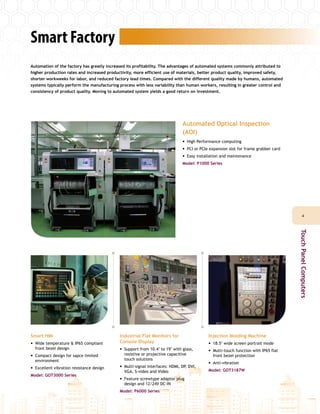

5. Smart Factory
Automation of the factory has greatly increased its profitability. The advantages of automated systems commonly attributed to
higher production rates and increased productivity, more efficient use of materials, better product quality, improved safety,
shorter workweeks for labor, and reduced factory lead times. Compared with the different quality made by humans, automated
systems typically perform the manufacturing process with less variability than human workers, resulting in greater control and
consistency of product quality. Moving to automated system yields a good return on investment.
Smart HMI
•• Wide temperature & IP65 compliant
front bezel design
•• Compact design for sapce limited
environment
•• Excellent vibration resistance design
Model: GOT3000 Series
Industrial Flat Monitors for
Console Display
•• Support from 10.4" to 19" with glass,
resistive or projective capacitive
touch solutions
•• Multi-signal interfaces: HDMI, DP, DVI,
VGA, S-video and Video
•• Feature screwtype adaptor plug
design and 12/24V DC-IN
Model: P6000 Series
Injection Molding Machine
•• 18.5" wide screen portrait mode
•• Multi-touch function with IP65 flat
front bezel protection
•• Anti-vibration
Model: GOT3187W
Automated Optical Inspection
(AOI)
•• High Performance computing
•• PCI or PCIe expansion slot for frame grabber card
•• Easy installation and maintenance
Model: P1000 Series
44
TouchPanelComputers

6. Self-Service
Axiomtek develops fanless touch computers to save operator cost & time, and further increases the possibility of additional
function extension, offering an excellent balance between high graphics performance and low power consumption. With a
sleek ID and advanced touch experience is ideal for using in a variety of commercial and industrial applications such as the
self-service kiosk in retail and control panel of machine in automation field.
Hotel Self Check-in System in
Lobby
•• Elegant ID design
•• 22" large size LCD
•• Variarity I/O support for peripheral
devices
Model: IFO Series
Access Control System
•• Slim & ultra light design
•• Built-in WLAN/RFID antenna
•• Fanless and noiseless operation design
Model: GOT5000 Series
Self Check-in System in Airport
•• Cost-effective and power-saving
solution
•• Flexible configuration for many ways
•• Customized your own PC with your
housing
Model: FDK Series
Panel PC for Parking Access
•• IP65/NEMA Water/dust-proof Design
•• Anti-scratch surface design
•• Wide range temperature support
Model: GOT3157W
TouchPanelComputers
5

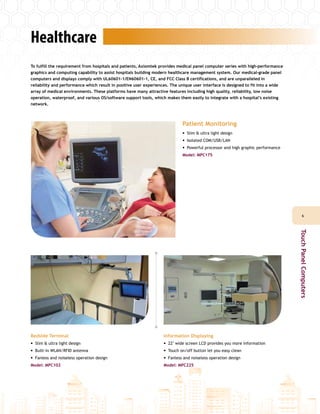

7. Healthcare
To fulfill the requirement from hospitals and patients, Axiomtek provides medical panel computer series with high-performance
graphics and computing capability to assist hospitals building modern healthcare management system. Our medical-grade panel
computers and displays comply with UL60601-1/EN60601-1, CE, and FCC Class B certifications, and are unparalleled in
reliability and performance which result in positive user experiences. The unique user interface is designed to fit into a wide
array of medical environments. These platforms have many attractive features including high quality, reliability, low noise
operation, waterproof, and various OS/software support tools, which makes them easily to integrate with a hospital’s existing
network.
Bedside Terminal
•• Slim & ultra light design
•• Built-in WLAN/RFID antenna
•• Fanless and noiseless operation design
Model: MPC102
Information Displaying
•• 22" wide screen LCD provides you more information
•• Touch on/off button let you easy clean
•• Fanless and noiseless operation design
Model: MPC225
Patient Monitoring
•• Slim & ultra light design
•• Isolated COM/USB/LAN
•• Powerful processor and high graphic performance
Model: MPC175
66
TouchPanelComputers

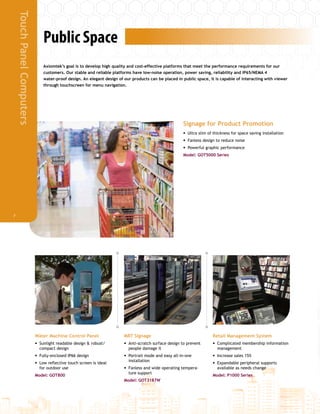

8. Public Space
Water Machine Control Panel
•• Sunlight readable design & robust/
compact design
•• Fully-enclosed IP66 design
•• Low reflective touch screen is ideal
for outdoor use
Model: GOT800
MRT Signage
•• Anti-scratch surface design to prevent
people damage it
•• Portrait mode and easy all-in-one
installation
•• Fanless and wide operating tempera-
ture support
Model: GOT3187W
Retail Management System
•• Complicated membership information
management
•• Increase sales 15%
•• Expandable peripheral supports
available as needs change
Model: P1000 Series
Axiomtek’s goal is to develop high quality and cost-effective platforms that meet the performance requirements for our
customers. Our stable and reliable platforms have low-noise operation, power saving, reliability and IP65/NEMA 4
water-proof design. An elegant design of our products can be placed in public space, it is capable of interacting with viewer
through touchscreen for menu navigation.
Signage for Product Promotion
•• Ultra slim of thickness for space saving installation
•• Fanless design to reduce noise
•• Powerful graphic performance
Model: GOT5000 Series
TouchPanelComputers
7

9. ODM/OEM Service
Axiomtek provides high-quality and quick ODM/OEM service to all our custom-
ers. We continuously enhance our core technology to provide the best solution
possible to our customers. Axiomtek has developed five core competencies
based upon years of experience with ODM/OEM projects.
Welcome OEM & ODM Projects
Software
BIOS
Driver
Embedded OS Porting
Remote Management Tools
Strict Verification
Process
EMI Lab
Vibration
Wide Temperature
Signal Inspection
Device Compatibility
Integrated Service
Consultant Time-to-MarketHigh Quality Manufacturing System
Factory Manufacturing Process
Hardware
Advanced Technology
Rich CPU Boards Supported
Multiple LCD/TS Selection
Peripheral Board Design
IP66 & IP65 Full Mechanism
Wide Temperature Patent
3’rd Party Device Integration
RFID / Bluetooth
Card Reader / Scanner
Finger Print / Printer
88
TouchPanelComputers

10. TouchPanelComputers
9
FeaturesModels GOT5153W-834 GOT5152T-834 GOT5152T-832 GOT5120T-834
CPU Level Intel®
Bay Trail-D
Celeron®
J1900 4C@2.0GHz
Intel®
Bay Trail-D
Celeron®
J1900 4C@2.0GHz
Intel®
Atom™ D2550
1.86 GHz
Intel®
Bay Trail-D
Celeron®
J1900 4C@2.0GHz
Chipset N/A N/A Intel®
NM10 N/A
System Memory 1 x 204-pin DDR3L-1333 MHz
SO-DIMM up to 8 GB
1 x 204-pin DDR3L-1333 MHz
SO-DIMM up to 8 GB
1 x 204-pin DDR3 SO-DIMM
max. up to 4 GB
1 x 204-pin DDR3L-1333 MHz
SO-DIMM up to 8 GB
CPU FSB Frequency N/A N/A N/A N/A
Display 15.6" TFT, WXGA,
1366 x 768, 300 nits
15" TFT, XGA, 400 nits 15" TFT, XGA, 400 nits 12.1" TFT, XGA 500 nits
12.1" TFT, SVGA 450 nits
I/O 2 x RS-232/422/485
2 x 10/100/1000Mbps Ethernet
2 x USB 2.0
2 x USB 3.0
1 x Audio (Line out)
1 x Mic-in
3 x RS-232/422/485
2 x 10/100/1000Mbps
Ethernet
2 x USB 2.0
2 x USB 3.0
1 x Audio (Line out)
1 x VGA
2 x RS-232 (COM 2/3)
1 x RS-232/422/485
(COM 1)
4 x USB 2.0
1 x Audio (Line-out)
1 x VGA
2 x 10/100/1000Mbps
Ethernet
2 x RS-232/422/485
2 x 10/100/1000Mbps
Ethernet
2 x USB 2.0
2 x USB 3.0
1 x Audio (Line out)
1 x VGA
Storage 1 x 2.5" HDD
1 x CFast™ or mSATA
1 x 2.5" HDD
1 x CFast™ or mSATA
1 x 2.5" HDD
1 x CompactFlash™
1 x 2.5" HDD
1 x CFast™ or mSATA
FDD N/A N/A N/A N/A
CD-ROM N/A N/A N/A N/A
Expansion Interface 2 x PCIe Mini Card 2 x PCIe Mini Card 1 x PCIe Mini Card 2 x PCIe Mini Card
Touchscreen Capacitive multi-touch
flat resistive touch
5-wire resistive type 5-wire resistive type 5-wire resistive type
Operating System Windows 8, WE8S,
Windows 7, WES 7
Windows 8, WE8S,
Windows 7, WES 7
Windows®
XP, WES
Windows®
7, WES 7
Windows 8, WE8S,
Windows 7, WES 7
Power Supply 12VDC,
100~240VAC, 60W adapter (TBD)
9~36VDC
100~240VAC, 60W adapter
(TBD)
10~30VDC
100~240VAC, 60W adapter
9~36VDC
100~240VAC, 60W adapter
(TBD)
Power Consumption TBD TBD 30W TBD
Watchdog Timer 255 levels, 0~255 sec. 255 levels, 0~255 sec. 255 levels, 0~255 sec. 255 levels, 0~255 sec.
Dimensions
(W x D x H)
TBD 387.9 x 54.6 x 307.7 mm
(15.27" x 2.14" x 12.11")
387.9 x 54.6 x 307.7 mm
(15.27" x 2.14" x 12.11")
327.5 x 52.5 x 261.8 mm
(12.9" x 2.07" x 10.3")
Weight (net/gross) TBD TBD 3.2 kg (7.05 lb)/
5.1 kg (11.24 lb)
TBD
Operating
Temperature
0 ~ +45°C
(32°F ~ 113°F)
0° ~ +50°C
(32°F ~ 122°F)
0° ~ +50°C
(+32°F ~ +122°F)
0° ~ +50°C
(+32°F ~ +122°F)
Certification CE CE CE CE
Slim-Type FanlessTouch Panel Computers
Selection Guide
coming soon
2014, Q4
2014, Q4coming soon
2014, Q3coming soon
2014, Q3coming soon
2014, Q3coming soon
2014, Q3coming soon

11. 1010
TouchPanelComputers
FeaturesModels GOT5120T-832 GOT5100T-834 GOT5100T-832 GOT5840T-834
CPU Level Intel®
Atom™ N2600 1.6 GHz Intel®
Bay Trail-D
Celeron®
J1900 4C@2.0GHz
Intel®
Atom™ N2600 1.6 GHz Intel®
Bay Trail-D
Celeron®
J1900 4C@2.0GHz
Chipset Intel®
NM10 N/A Intel®
NM10 N/A
System Memory 1 x 204-pin DDR3 SO-DIMM
max. up to 2 GB
1 x 204-pin DDR3L-1333 MHz
SO-DIMM up to 8 GB
1 x 204-pin DDR3 SO-DIMM
max. up to 2 GB
1 x 204-pin DDR3L-1333 MHz
SO-DIMM up to 8 GB
CPU FSB Frequency N/A N/A N/A N/A
Display 12.1" TFT, XGA/SVGA,
450/ 500 nits
10.4" TFT, SVGA, 400 nits 10.4" TFT, SVGA, 400 nits 8.4" TFT, SVGA, 400 nits
I/O 1 x RS-232/422/485
(COM 1)
1 x RS-232 (COM 2)
2 x 10/100/1000Mbps
Ethernet
4 x USB 2.0
1 x Audio (Lint-out)
1 x VGA
2 x RS-232/422/485
2 x 10/100/1000Mbps
Ethernet
2 x USB 2.0
2 x USB 3.0
1 x Audio (Line out)
1 x RS-232/422/485
(COM 1)
1 x RS-232 (COM 2)
2 x 10/100/1000Mbps
Ethernet
4 x USB 2.0
1 x Audio (Line-out)
2 x RS-232/422/485
2 x 10/100/1000Mbps
Ethernet
2 x USB 3.0
1 x Audio (Line out)
Storage 1 x 2.5" HDD
1 x CompactFlash™
1 x 2.5" HDD
1 x CFast™ or mSATA
1 x 2.5" HDD
1 x CompactFlash™
1 x CFast™ or mSATA
FDD N/A N/A N/A N/A
CD-ROM N/A N/A N/A N/A
Expansion Interface 1 x PCIe Mini Card 2 x PCIe Mini Card 1 x PCIe Mini Card 2 x PCIe Mini Card
Touchscreen 5-wire resistive type 5-wire resistive type 5-wire resistive type 5-wire resistive type
Operating System Windows®
XP, WES
Windows®
7, WES 7
Windows 8, WE8S,
Windows 7, WES 7
Windows®
XP, WES
Windows®
7, WES 7
Windows 8, WE8S,
Windows 7, WES 7
Power Supply 10~30VDC
100~240VAC, 60W adapter
9~36VDC
100~240VAC, 60W adapter
(TBD)
10~30VDC
100~240VAC, 60W adapter
9~36VDC
100~240VAC, 60W adapter
(TBD)
Power Consumption 30W TBD 30W TBD
Watchdog Timer 255 levels, 0~255 sec. 255 levels, 0~255 sec. 255 levels, 0~255 sec. 255 levels, 0~255 sec.
Dimensions
(W x D x H)
327.5 x 52.5 x 262 mm
(12.9" x 2.07" x 10.3")
292.5 x 45.8 x 235.8 mm
(11.52" x 1.80" x 9.28")
292.5 x 45.8 x 235.8 mm
(11.52" x 1.8" x 9.28")
250.7 x 45.8 x 204.7 mm
(9.87" x 1.80" x 8.06")
Weight (net/gross) 2.48 kg (5.46 lb)/
3.84 kg (8.46 lb)
TBD 1.8 kg (3.96 lb)/
3 kg (6.61 lb)
TBD
Operating
Temperature
0° ~ +50°C
(+32°F ~ +122°F)
0° ~ +50°C
(+32°F ~ +122°F)
0° ~ +50°C
(+32°F ~ +122°F)
0° ~ +50°C
(+32°F ~ +122°F)
Certification CE CE CE CE
2014, Q3coming soon
2014, Q3coming soon
2014, Q3coming soon
2014, Q3coming soon

12. TouchPanelComputers
11
Flat Bezel FanlessTouch Panel Computers
Selection Guide
NEW
FeaturesModels GOT3187W-111 GOT3187W-832 GOT3187W-834 GOT3177T-834
CPU Level AMD T56N 1.65 GHz Intel®
Atom™ D2550 1.86 GHz Intel®
Bay Trail-D
Celeron®
J1900 4C@2.0GHz
Intel®
Bay Trail-D
Celeron®
J1900 4C@2.0GHz
Chipset AMD A50M FCH Intel®
NM10 N/A N/A
System Memory 1 x 204-pin DDR3 SO-DIMM
max. up to 4 GB
1 x 204-pin DDR3 SO-DIMM
max. up to 4 GB
1 x 204-pin DDR3L-1333 MHz
SO-DIMM up to 8 GB
1 x 204-pin DDR3L-1333 MHz
SO-DIMM up to 8 GB
CPU FSB Frequency N/A N/A N/A N/A
Display 18.5" TFT, WXGA, 300 nits 18.5" TFT, WXGA, 300 nits 18.5" TFT, WXGA, 300 nits 17" TFT, SXGA, 350 nits
I/O 1 x RS-232/422/485 (COM1)
1 x RS232(COM2)
2 x10/100/1000Mbps
Ethernet
1 x VGA
4 x USB 2.0
1 x Line-out
1 x RS-232/422/485 (COM 1)
1 x RS-232 (COM 2)
2 x 10/100/1000Mbps
Ethernet
4 x USB 2.0
1 x Audio (Lint-out)
2 x RS-232/422/485
2 x 10/100/1000Mbps
Ethernet
2 x USB 2.0
2 x USB 3.0
1 x Audio (Line out)
2 x RS-232/422/485
2 x 10/100/1000Mbps
Ethernet
2 x USB 2.0
2 x USB 3.0
1 x Audio (Line-out)
Storage 1 x 2.5" HDD
1 x CompactFlash™
1 x 2.5" HDD
1 x CompactFlash™
1 x 2.5" HDD
1 x CFast™ or mSATA
1 x 2.5" HDD
1 x CFast™ or mSATA
FDD N/A N/A N/A N/A
CD-ROM N/A N/A N/A N/A
Expansion Interface 1 x PCIe Mini Card 1 x PCIe Mini Card 2 x PCIe Mini Card 2 x PCIe Mini Card
Touchscreen Capacitive multi-touch Capacitive multi-touch Capacitive multi-touch Capacitive multi-touch
Flat resistive type
Operating System Windows®
XP, WES,
Windows®
7, WES 7,
Windows®
8, WES 8, Linux
Windows®
XP, WES,
Windows®
7, WES 7
Windows 8, WE8S,
Windows 7, WES 7
Windows 8, WE8S,
Windows 7, WES 7
Power Supply 10~30VDC
12VDC with adapter
10~30VDC 9~36VDC 9~36VDC
Power Consumption 63W 47W TBD TBD
Watchdog Timer 255 levels, 0~255 sec. 255 levels, 0~255 sec. 255 levels, 0~255 sec. 255 levels, 0~255 sec.
Dimensions
(W x D x H)
460.8 x 58.5 x 285 mm
(18.11" x 2.3" x 11.22")
460.8 x 58.5 x 285 mm
(18.11" x 2.3" x 11.22")
460.8 x 58.5 x 235.8 mm
(11.52" x 1.80" x 9.28")
TBD
Weight (net/gross) 5.4 kg (11.9 lb)/
7.8 kg (17.2 lb)
5.8 kg (12.8 lb)/
8.2 kg (18.1 lb)
TBD TBD
Operating
Temperature
-10°C ~ +45°C
(+14°F ~ +113°F)
-10°C ~ +50°C
(+14°F ~ +122°F)
-10°C ~ +50°C
(+14°F ~ +122°F)
-10°C ~ +50°C
(+14°F ~ +122°F)
Wide Temperature Yes Yes Yes Yes
Certification CE CE CE CE
2014, Q3coming soon
2014, Q3coming soon
2014, Q3coming soon
2014, Q3coming soon

13. 1212
TouchPanelComputers
NEW
FeaturesModels GOT3157W-111 GOT3157W-832 GOT3157W-834
CPU Level AMD G series T56N 1.65GHz Intel®
Atom™ D2550 1.86 GHz Intel®
Bay Trail-D Celeron®
J1900
4C@2.0GHz
Chipset AMD A50M FCH Intel®
NM10 N/A
System Memory 1x 204-pin DDR3 SO-DIMM
max. up to 4 GB
1 x 204-pin DDR3 SO-DIMM
max. up to 4 GB
1 x 204-pin DDR3L-1333 MHz
SO-DIMM up to 8GB
CPU FSB Frequency N/A N/A N/A
Display 15.6" TFT, WXGA, 300 nits 15.6" TFT, WXGA, 300 nits 15.6" TFT, WXGA, 300 nits
I/O 1 x RS-232/422/485 (COM1)
1 x RS232(COM2)
2 x10/100/1000Mbps Ethernet
1 x VGA
4 x USB 2.0
1 x Line-out
1 x RS-232/422/485 (COM 1)
1 x RS-232 (COM 2)
2 x 10/100/1000Mbps Ethernet
4 x USB 2.0
1 x Audio (Lint-out)
2 x RS-232/422/485
2 x 10/100/1000Mbps Ethernet
2 x USB 2.0
2 x USB 3.0
1 x Audio (Line out)
Storage 1 x 2.5" HDD
1 x CompactFlash™
1 x 2.5" HDD
1 x CompactFlash™
1 x 2.5" HDD
1 x CFast™ or mSATA
FDD N/A N/A N/A
CD-ROM N/A N/A N/A
Expansion Interface 1 x PCIe Mini Card 1 x PCIe Mini Card 2 x PCIe Mini Card
Touchscreen Capacitive multi-touch
Flat resistive type
Capacitive multi-touch
Flat resistive type
Capacitive multi-touch
Flat resistive type
Operating System Windows®
XP, WES, Windows®
7,
WES 7, Windows®
8, WES 8, Linux
Windows®
XP, WES, Windows®
7, WES 7 Windows 8, WE8S, Windows 7, WES 7
Power Supply 10~30VDC
12VDC with adapter
10~30VDC 9~36VDC
Power Consumption TBD 37W TBD
Watchdog Timer 255 levels, 0~255 sec. 255 levels, 0~255 sec. 255 levels, 0~255 sec.
Dimensions
(W x D x H)
396 x 53.9 x 247.1mm
(15.6" x 2.12" x 9.73")
396 x 53.9 x 247.1 mm
(15.6" x 2.12" x 9.73")
396 x 53.9 x 247.1 mm
(15.6" x 2.12" x 9.73")
Weight (net/gross) TBD 5.0 kg (11.02 lb)/7.0 kg (15.43 lb) TBD
Operating Temperature -10°C ~ +45°C
(+14°F ~ +113°F)
-10°C ~ +50°C
(+14°F ~ +122°F)
-10°C ~ +50°C
(+14°F ~ +122°F)
Wide Temperature Yes Yes Yes
Certification CE CE CE
2014, Q3coming soon
2014, Q3coming soon

14. TouchPanelComputers
13
Wide-Temperature FanlessTouch Panel
Computers
Selection Guide
FeaturesModels GOT3156T-834 GOT3126T-834 GOT3106T-834 GOT3846T-834
CPU Level Intel®
Bay Trail-I Atom™ E3827
2C@1.75GHz
Intel®
Bay Trail-I Atom™ E3827
2C@1.75GHz
Intel®
Bay Trail-I Atom™ E3827
2C@1.75GHz
Intel®
Bay Trail-I Atom™ E3827
2C@1.75GHz
Chipset N/A N/A N/A N/A
System Memory 1 x 204-pin DDR3L-1333 MHz
SO-DIMM up to 8 GB
1 x 204-pin DDR3L-1333 MHz
SO-DIMM up to 8 GB
1 x 204-pin DDR3L-1333 MHz
SO-DIMM up to 8 GB
1 x 204-pin DDR3L-1333 MHz
SO-DIMM up to 8 GB
CPU FSB Frequency N/A N/A N/A N/A
Display 15" TFT, XGA, 400 nits 12.1" TFT, SVGA, 500 nits 10.4" TFT, SVGA, 400 nits 8.4" TFT, SVGA, 450 nits
I/O 4 x RS-232/422/485
2 x 10/100/1000Mbps
Ethernet
2 x USB 2.0
2 x USB 3.0
1 x Audio (line out)
1 x VGA
3 x RS-232/422/485
2 x 10/100/1000Mbps
Ethernet
2 x USB 2.0
2 x USB 3.0
1 x Audio (line out)
1 x VGA
3 x RS-232/422/485
2 x 10/100/1000Mbps
Ethernet
2 x USB 2.0
2 x USB 3.0
1 x Audio (line out)
1 x VGA
4 x RS-232/422/485
2 x 10/100/1000Mbps
Ethernet
2 x USB 2.0
2 x USB 3.0
1 x Audio (line out)
1 x VGA
Storage 1 x 2.5" HDD
1 x CFast™ or mSATA
1 x 2.5" HDD
1 x CFast™ or mSATA
1 x 2.5" HDD
1 x CFast™ or mSATA
1 x 2.5" HDD
1 x CFast™ or mSATA
FDD N/A N/A N/A N/A
CD-ROM N/A N/A N/A N/A
Expansion Interface 2 x PCIe Mini Card 2 x PCIe Mini Card 2 x PCIe Mini Card 2 x PCIe Mini Card
Touchscreen 5-wire resistive type 5-wire resistive type 5-wire resistive type 5-wire resistive type
Operating System Windows 8, WE8S,
Windows 7, WES 7
Windows 8, WE8S,
Windows 7, WES 7
Windows 8, WE8S,
Windows 7, WES 7
Windows 8, WE8S,
Windows 7, WES 7
Power Supply 9~36VDC 9~36VDC 9~36VDC 9~36VDC
Power Consumption TBD TBD TBD TBD
Watchdog Timer 255 levels, 0~255 sec. 255 levels, 0~255 sec. 255 levels, 0~255 sec. 255 levels, 0~255 sec.
Dimensions
(W x D x H)
378 x 60.7 x 309 mm
(14.89" x 2.39" x 12.17")
311.5 x 56.9 x 250 mm
(12.21" x 2.23" x 9.8")
223.55 x 63.09 x 277 mm
(8.76" x 2.47" x 10.86")
248 x 58.3 x 183 mm
(9.76" x 2.29" x 7.2")
Weight (net/gross) TBD TBD TBD TBD
Operating
Temperature
-20 ~ +55°C
(-4°F ~ 131°F)
-20 ~ +55°C
(-4°F ~ 131°F)
-20 ~ +55°C
(-4°F ~ 131°F)
-20 ~ +55°C
(-4°F ~ 131°F)
Wide Temperature Yes Yes Yes Yes
Certification CE CE CE CE
coming soon
2014, Q4
2014, Q4coming soon
coming soon
2014, Q4
2014, Q4coming soon
coming soon
2014, Q4
2014, Q4coming soon
coming soon
2014, Q4
2014, Q4coming soon

15. 1414
TouchPanelComputers
FeaturesModels GOT3156T-832 GOT3126T-832 GOT3106T-832 GOT3846T-832
CPU Level Intel®
Atom™ N2600 1.6 GHz Intel®
Atom™ N2600 1.6 GHz Intel®
Atom™ N2600 1.6 GHz Intel®
Atom™ N2600 1.6 GHz
Chipset Intel®
NM10 Intel®
NM10 Intel®
NM10 Intel®
NM10
System Memory 1 x 204-pin DDR3 SO-DIMM
max. up to 2 GB
1 x 204-pin DDR3 SO-DIMM
max. up to 2 GB
1 x 204-pin DDR3 SO-DIMM
max. up to 2 GB
1 x 204-pin DDR3 SO-DIMM
max. up to 2 GB
CPU FSB Frequency N/A N/A N/A N/A
Display 15" TFT, XGA, 400 nits 12.1" TFT, SVGA, 500 nits 10.4" TFT, SVGA, 400 nits 8.4" TFT, SVGA, 450nits
I/O 3 x R-232 (COM 2/3/4)
1 x RS-232/422/485 (COM 1)
2 x 10/100/1000Mbps
Ethernet
4 x USB 2.0
1 x Audio (Line-out)
1 x VGA
2 x RS-232 (COM 2/3)
1 x RS-232/422/485 (COM 1)
2 x 10/100/1000Mbps
Ethernet
4 x USB 2.0
1 x Audio (Line-out)
1 x VGA
2 x RS-232 (COM 2/3)
1 x RS-232/422/485 (COM 1)
2 x 10/100/1000Mbps
Ethernet
4 x USB 2.0
1 x Audio (Line-out)
1 x VGA
1 x RS-232/422/485 (COM 1)
3 x RS-232 (COM 2/3/4)
2 x 10/100/1000Mbps
Ethernet
4 x USB 2.0
1 x Audio (Line-out)
1 x VGA
Storage 1 x 2.5" SATA HDD
1 x CompactFlash™
1 x 2.5" HDD
1 x CompactFlash™
1 x 2.5"" SATA HDD
1 x CompactFlash™
1 x 2.5" HDD
1 x CompactFlash™
FDD N/A N/A N/A N/A
CD-ROM N/A N/A N/A N/A
Expansion Interface 1 x PCIe Mini Card 1 x PCIe Mini Card 1 x PCIe Mini Card 1 x PCIe Mini Card
Touchscreen 5-wire resistive type 5-wire resistive type 5-wire resistive type 5-wire resistive type
Operating System Windows®
XP, WES,
Windows®
7, WES 7
Windows®
XP, WES,
Windows®
7, WES 7
Windows®
XP, WES,
Windows®
7, WES 7
Windows®
XP, WES,
Windows®
7, WES 7
Power Supply 10~30VDC 10~30VDC 10~30VDC 10~30VDC
Power Consumption 39W 36W 35W 42W
Watchdog Timer 255 levels, 0~255 sec. 255 levels, 0~255 sec. 255 levels, 0~255 sec. 255 levels, 0~255 sec.
Dimensions
(W x D x H)
378 x 60.7 x 309 mm
(14.89" x 2.39" x 12.17")
311.5 x 56.9 x 250 mm
(12.21" x 2.23" x 9.8")
223.55 x 63.09 x 277 mm
(8.76" x 2.47" x 10.86")
248 x 58.3 x 183 mm
(9.76" x 2.29" x 7.2")
Weight (net/gross) 4.2 kg (9.26 lb)/
6.8 kg (14.99 lb)
2.8 kg (6.17 lb)/
5 kg (11.02 lb)
2.4 kg (5.29 lb)/
3.8 kg (8.38 lb)
3.4 kg (7.49 lb)/
5.8 kg (12.78 lb)
Operating
Temperature
-20°C ~ +55°C
(-4°F ~ +131°F)
-20°C ~ +55°C
(-4°F ~ +131°F)
-20°C ~ +55°C
(-4°F ~ +131°F)
-20°C ~ +55°C
(-4°F ~ +131°F)
Wide Temperature Yes Yes Yes Yes
Certification CE CE CE CE

16. TouchPanelComputers
15
Heavy-duty FanlessTouch Panel
Computers
Selection Guide
FeaturesModels GOT815R-834 GOT812LR-834 GOT812L-834
CPU Level Intel®
Bay Trail-I Atom™
Processor E3827 2C@1.75GHz
Intel®
Bay Trail-I Atom™
Processor E3827 2C@1.75GHz
Intel®
Bay Trail-I Atom™
Processor E3827 2C@1.75GHz
Chipset N/A N/A N/A
System Memory 1 x 204-pin DDR3L-1333 MHz
SO-DIMM up to 8 GB
1 x 204-pin DDR3L-1333 MHz
SO-DIMM up to 8 GB
1 x 204-pin DDR3L-1333 MHz
SO-DIMM up to 8 GB
CPU FSB Frequency N/A N/A N/A
Display 15" TFT, XGA, 800 nits 12.1" TFT, XGA, 1000 nits 12.1" TFT, SVGA, 450 nits
I/O 2 x RS-232/422/485
1 x 10/100/1000Mbps Ethernet
2 x USB 2.0
1 x USB 3.0
1 x VGA
2 x RS-232/422/485
1 x 10/100/1000Mbps Ethernet
2 x USB 2.0
2 x RS-232/422/485
1 x 10/100/1000Mbps Ethernet
2 x USB 2.0
Storage 1 x 2.5" HDD
1 x CFast™ or mSATA
1 x 2.5" HDD
1 x CFast™ or mSATA
1 x 2.5" HDD
1 x CFast™ or mSATA
FDD N/A N/A N/A
CD-ROM N/A N/A N/A
Expansion Interface 2 x PCIe Mini Card 2 x PCIe Mini Card 2 x PCIe Mini Card
Touchscreen 5-wire resistive type 5-wire low relective
resistive type
5-wire resistive type
Operating System Windows 8, WE8S,
Windows 7, WES 7
Windows 8, WE8S,
Windows 7, WES 7
Windows 8, WE8S,
Windows 7, WES 7
Power Supply 9~36VDC 9~36VDC 9~36VDC
Power Consumption TBD TBD TBD
Watchdog Timer 255 levels, 0~255 sec. 255 levels, 0~255 sec. 255 levels, 0~255 sec.
Dimensions (W x D x H) 387 x 63 x 306 mm
(15.23" x 2.48" x 12.04")
296 x 59 x 240 mm
(11.65" x 2.32" x 9.45")
296 x 59 x 240 mm
(11.65" x 2.32" x 9.45")
Weight (net/gross) TBD TBD TBD
Operating Temperature -20°C ~ +55°C
(-4°F ~ +131°F)
-20°C ~ +55°C
(-4°F ~ +131°F)
-20°C ~ +55°C
(-4°F ~ +131°F)
Wide Temperature Yes Yes Yes
Certification CE CE CE
coming soon
2014, Q4
2014, Q4coming soon
coming soon
2014, Q4
2014, Q4coming soon
2014, Q3coming soon
2014, Q3coming soon

17. 1616
TouchPanelComputers
FeaturesModels GOT812L-832 GOT812LR-832
CPU Level Intel®
Atom™ N2600 1.6GHz Intel®
Atom™ N2600 1.6GHz
Chipset Intel®
NM10 Intel®
NM10
System Memory 1 x 204-pin DDR3 SO-DIMM
max. up 2 GB
1 x 204-pin DDR3 SO-DIMM
max. up 2 GB
CPU FSB Frequency N/A N/A
Display 12.1" TFT, SVGA, 450 nits 12.1" TFT, XGA, 1000 nits
I/O 1 x RS-232/422/485
1 x RS-232(COM2)
1 x 10/100/1000Mbps Ethernet
2 x USB 2.0
1 x RS-232/422/485
1 x RS-232(COM2)
1 x 10/100/1000Mbps Ethernet
2 x USB 2.0
Storage 1 x 2.5" SSD
1 x CompactFlash™
1 x 2.5" SSD
1 x CompactFlash™
FDD N/A N/A
CD-ROM N/A N/A
Expansion Interface 1 x PCIe Mini Card 1 x PCIe Mini Card
Touchscreen 5-wire resistive type 5-wire low reflective resistive type
Operating System Windows®
7, WES 7, Windows®
XP, WES Windows®
7, WES 7, Windows®
XP, WES
Power Supply 10~30VDC 10~30VDC
Power Consumption 30W 30W
Watchdog Timer 255 levels, 0~255 sec. 255 levels, 0~255 sec.
Dimensions (W x D x H) 296 x 59 x 24 0mm
(11.65" x 2.32"x 9.45")
296 x 59 x 24 0mm
(11.65" x 2.32"x 9.45")
Weight (net/gross) 4.5 kg (9.92 lb)/ 6.5 kg (14.33 lb) 4.5 kg (9.92 lb)/ 6.5 kg (14.33 lb)
Operating Temperature -20°C ~ +55°C (-4°F ~ +131°F) -20°C ~ +55°C (-4°F ~ +131°F)
Wide Temperature Yes Yes
Certification CE CE/IEC60945/DNV2.4 (compliant)
2014, Q3coming soon
2014, Q3coming soon

18. TouchPanelComputers
17
Performance-DrivenTouch Panel
Computers
Selection Guide
FeaturesModels P1197E-861 P1177S-871 P1177E-871
CPU Level LGA1155 socket 3rd Generation Intel®
Core™ i7/ i5/ i3/ Pentium®
/ Celeron®
LGA1155 socket 3rd Generation Intel®
Core™ i7/ i5/ i3/ Pentium®
/ Celeron®
LGA1155 socket 3rd Generation Intel®
Core™ i7/ i5/ i3/ Pentium®
/ Celeron®
/
Xeon®
Chipset Intel®
H61 Intel®
Q77 Intel®
C216
System Memory 2 x 204-pin DDR3 SO-DIMM
max. up to 16 GB
2 x 204-pin DDR3 SO-DIMM
max. up to 16 GB
2 x 204-pin DDR3 SO-DIMM
max. up to 16 GB
CPU FSB Frequency N/A N/A N/A
Display 19" TFT SXGA, 350 nits 17" TFT SXGA, 380 nits 17" TFT SXGA, 380 nits
I/O 3 x RS-232 (COM 2-4)
1 x RS-232/422/485 (COM 1)
1 x DVI-D
1 x VGA
6 x USB 2.0 (Back)
2 x USB 2.0 (Front)
2 x 10/100/1000 Mbps Ethernet
1 x PS/2 keyboard/mouse combo
1 x Audio (Mic-in/Line-out)
2 x RS-232 (COM 2 & COM 4)
1 x RS-232/422/485
with 5V & 12V (COM 1)
1 x RS-232 with 5V & 12V (COM 3)
1 x DVI-I
1 x HDMI
4 x USB 3.0
2 x USB 2.0
2 x 10/100/1000 Mbps Ethernet
1 x Audio (Mic-in/Line-out)
2 x RS-232 (COM 2 & COM 4)
1 x RS-232/422/485
with 5V & 12V (COM 1)
1 x RS-232 with 5V & 12V (COM 3)
1 x DVI-I
1 x HDMI
4 x USB 3.0
2 x USB 2.0
2 x 10/100/1000 Mbps Ethernet
1 x Audio (Mic-in/Line-out)
Storage 2 x 2.5" HDD 1 x 3.5" or 2 x 2.5" HDD 1 x 3.5" or 2 x 2.5" HDD
FDD N/A N/A N/A
DVD-RW 1 x built-in slim type (optional) N/A 1 x built-in slim type (optional)
Expansion Interface 1 x PCIe x4 or 1 x PCI N/A 2 x PCIe x8 or 2 x PCI
Touchscreen 5-wire resistive type 5-wire resistive type 5-wire resistive type
Operation System Windows®
XP/Win 7/Embedded 8 Windows®
XP/Win 7/Embedded 8 Windows®
XP/Win 7/Embedded 8
Power Supply 270W, 100 ~ 240VAC 270W, 100 ~ 240VAC 270W, 100 ~ 240VAC
Power Consumption 162W 178W 180W
Watchdog Timer 255 levels, 1 ~ 255 sec. 255 levels, 1 ~ 255 sec. 255 levels, 1 ~ 255 sec.
Dimensions
(W x D x H)
469 x 94.7 x 380.8 mm
(18.46" x 3.73" x 14.99")
410 x 80 x 338 mm
(16.14" x 3.15" x 13.3")
410 x 309 x 378 mm
(16.14" x 12.16" x 14.88")
Weight (net/gross) 8 kg (17.64 lb)/ 10.4 kg (22.93 lb) 7 kg (15.43 lb)/ 10.8 kg (23.8 lb) 8.2 kg (18.08 lb)/ 12 kg (26.46 lb)
Operating Temperature 0° ~ +45°C (+32°F ~ +113°F) 0° ~ +45°C (+32°F ~ +113°F) 0° ~ +45°C (+32°F ~ +113°F)
Certification CE CE CE

19. 1818
TouchPanelComputers
FeaturesModels P1157S-871 P1157E-871 P1127E-871
CPU Level LGA1155 socket 3rd Generation Intel®
Core™ i7/ i5/ i3/ Pentium®
/ Celeron®
LGA1155 socket 3rd Generation Intel®
Core™ i7/ i5/ i3/ Pentium®
/ Celeron®
/
Xeon®
LGA1155 socket 3rd Generation Intel®
Core™ i7/ i5/ i3/ Pentium®
/ Celeron®
/
Xeon®
Chipset Intel®
Q77 Intel®
C216 Intel®
C216
System Memory 2 x 204-pin DDR3 SO-DIMM
max. up to 16 GB
2 x 204-pin DDR3 SO-DIMM
max. up to 16 GB
2 x 204-pin DDR3 SO-DIMM
max. up to 16 GB
CPU FSB Frequency N/A N/A N/A
Display 15" TFT XGA, 350 nits 15" TFT XGA, 350 nits 12.1" TFT XGA, 500 nits
I/O 2 x RS-232 (COM 2 & 4)
1 x RS-232/422/485
with 5V & 12V (COM 1)
1 x RS-232 with 5V & 12V (COM 3)
1 x DVI-I
1 x HDMI
4 x USB 3.0
2 x USB 2.0
2 x 10/100/1000 Mbps Ethernet
1 x Audio (Mic-in/Line-out)
2 x RS-232 (COM 2 & 4)
1 x RS-232/422/485
with 5V & 12V (COM 1)
1 x RS-232 with 5V & 12V (COM 3)
1 x DVI-I
1 x HDMI
4 x USB 3.0
2 x USB 2.0
2 x 10/100/1000 Mbps Ethernet
1 x Audio (Mic-in/Line-out)
1 x RS-232 (COM 2)
1 x RS-232/422/485 with 5V & 12V
(COM 1)
1 x RS-232 with 5V & 12V (COM 3)
1 x DVI-I
1 x HDMI
4 x USB 3.0
2 x USB 2.0
2 x 10/100/1000 Mbps Ethernet
1 x Audio (Mic-in/Line-out)
Storage 1 x 3.5" or 2 x 2.5" HDD 1 x 3.5" or 2 x 2.5" HDD 1 x 2.5" HDD
FDD N/A N/A N/A
DVD-RW N/A 1 x built-in slim type (optional) N/A
Expansion Interface N/A 2 x PCIe x8 or 2 x PCI 2 x PCIe x8 or 2 x PCI
Touchscreen 5-wire resistive type 5-wire resistive type 5-wire resisitve type
Operation System Windows®
XP/Win 7/Embedded 8 Windows®
XP/Win 7/Embedded 8 Windows®
XP/Win 7/Embedded 8
Power Supply 270W, 100 ~ 240VAC 270W, 100 ~ 240VAC 270W, 100 ~ 240VAC
Power Consumption 165W 167W 160W
Watchdog Timer 255 levels, 1 ~ 255 sec. 255 levels, 1 ~ 255 sec. 255 levels, 1 ~ 255 sec.
Dimensions
(W x D x H)
378 x 309 x 72.2 mm
(14.88" x 12.17" x 2.84")
378 x 125.5 x 309 mm
(14.88" x 4.94" x 12.17")
311.5 x 250 x 111.85 mm
(12.26" x 9.84" x 4.4")
Weight (net/gross) 5.2 kg (11.46 lb)/ 7.5 kg (16.53 lb) 6.2 kg (13.67 lb)/ 9.6 kg (21.16 lb) 5 kg (11.02 lb)/ 7.1 kg (15.65 lb)
Operating Temperature 0° ~ +45°C (+32°F ~ +113°F) 0° ~ +45°C (+32°F ~ +113°F) 0° ~ +45°C (+32°F ~ +113°F)
Certification CE CE CE

20. IndustrialTouch Panel Monitor
Selection Guide
NEW NEW
FeaturesModels P6187W P6157W P6171
Display Type Flat front bezel (NEMA 4/12)
18.5" TFT WXGA
Plat front bezel (NEMA 4/12)
15.6" TFT WXGA
Aluminium
17" TFT SXGA
Max. Colors 16.2M 16.7M 16.7M
Active Area (mm) 409.8 x 230.4 344.23 x 193.54 337.92 x 270.33
Max. Resolution 1366 x 768 1366 x 768 1280 x 1024
Display Mode
VGA 640 x 350 (70Hz)
VGA 720 x 400 (70Hz)
VGA 640 x 480 (60/72/75Hz)
SVGA 800 x 600 (60/72/75Hz)
XGA 1024 x 768 (60/70/75Hz)
WXGA 1366 x 768 (60Hz)
VGA 640 x 350 (70Hz)
VGA 720 x 400 (70Hz)
VGA 640 x 480 (60/72/75Hz)
SVGA 800 x 600 (60/72/75Hz)
XGA 1024 x 768 (60/70/75Hz)
WXGA 1366 x 768 (60Hz)
VGA 640 x 480 (60/72/75Hz)
VGA 640 x 350 (70Hz)
VGA 720 x 400 (70Hz)
XGA 1024 x 768 (60/72/75Hz)
SVGA 800 x 600 (60/72/75Hz)
SXGA 1280 x 1024 (60/72/75Hz)
Pixel Pitch (mm) 0.3 x 0.3 0.252 x 0.252 0.264 x 0.264
Backlight LED LED LED
Backlight MTBF (hrs) 50,000 50,000 30,000
Viewing Angle (H/V) 170°/160° 170°/160° 170°/160°
Response Time 5ms 8ms 5ms
Contrast Ratio 1000 (TYP) 500 (TYP) 1000 (TYP.)
Brightness (cd/m2) 300 nits 300 nits 250 nits
Display Control OSD OSD OSD
I/O Connectors VGA
DVI
S-Video/Video
DC power input
USB
VGA
DVI
S-Video/Video
DC power input
USB
DVI
DisplayPort
HDMI
Touchscreen Capacitive
Multi-touch
Capacitive
Multi-touch
DC power input
RS-232 or USB for touch
Power Consumption 12V, 22W 12V, 19W TBD
Power Adapter Screw-type external
AC/DC power adapter
Screw-type external
AC/DC power adapter
Screw-type external
AC/DC power adaptor
Dimensions
(W x D x H)
460 x 57 x 285 mm
(18.11 x 2.44 x 11.22)
396.8 x 57.6 x 247.1 mm
(15.62 x 2.68 x 9.73)
TBD
Weight (net/gross) TBD TBD TBD
Operating Temperature 0° ~ +55°C (+32°F ~ +131°F) 0° ~ +55°C (+32°F ~ +131°F) 0° ~ +50°C (+32°F ~ +122°F)
Certification CE CE CE
TouchPanelComputers
19
NEW

21. Fanless InfotainmentTouch Panel
Computers
Selection Guide
NEW
FeaturesModels IFO2225-873 IFO2175-873 GOT615-801
CPU Level Socket G2 (rPGA 988B) for 3rd
Generation Intel®
Core™ i7/i5/i3/
Celeron®
processors (Ivy Bridge),
TDP up to 35W
Socket G2 (rPGA 988B) for 3rd
Generation Intel®
Core™ i7/i5/i3/
Celeron®
processors (Ivy Bridge),
TDP up to 35W
Intel®
Atom™ D525 1.8 GHz
Chipset Intel®
QM77 Intel®
QM77 Intel®
ICH8M
System Memory 2 x 204-pin DDR3 SO-DIMM
max. up to 16 GB
2 x 204-pin DDR3 SO-DIMM
max. up to 16 GB
1 x 204-pin DDR3 SO-DIMM
max. up to 4 GB
CPU FSB Frequency N/A N/A 800 MHz
Display 22 TFT, WSXGA+, 250nits 17 TFT, SXGA, 350nits 15.6 TFT, HD (1366 x 768), 220 nits
I/O 2 x RS-232 (COM 2/3)
1 x RS-232/422/485
2 x 10/100/1000Mbps
4 x USB 2.0
2 x USB 3.0
1 x Audio Line-out
1 x Mic-in
1 x DP
2 x 2W speakers
1 x RS-232/422/485
2 x 10/100/1000Mbps
2 x USB 3.0
1 x Audio Line-out
1 x Mic-in
1 x DP
2 x 2W speakers
2 x RS-232 (COM 2/3)
1 x RS-232/422/485 (COM 1)
2 x 10/100/1000Mbps Ethernet
4 x USB 2.0
1 x Audio (Line-out)
1 x VGA
Storage 1 x 2.5 SATA HDD
1 x mSATA SSD(optional)
1 x 2.5 SATA HDD
1 x mSATA SSD(optional)
1 x 2.5 HDD
1 x CompactFlash™
FDD N/A N/A N/A
DVD-RW 1 x Super Multi drive 1 x Super Multi drive N/A
Expansion Interface 1 x PCI or 1 x PCIe x4
2 x PCIe Mini Card
1 x PCI or 1 x PCIe x4
2 x PCIe Mini Card
1 x PCIe Mini Card
Touchscreen 5-wire Resistive Type 5-wire Resistive Type 5-wire resistive type
Operating System Windows®
XP, 7, 8 Windows®
XP, 7, 8 Windows®
XPE, 7, Linux
Power Supply 24VDC with AC-DC adapter 24VDC with AC-DC adapter 12/24VDC input
Power Consumption TBD TBD 31W
Watchdog Timer 255 levels, 0~255 sec. 255 levels, 0~255 sec. 255 levels, 0~255 sec.
Dimensions
(W x D x H)
573.5 x 75.9 x 398.9 mm
(22.57 x 2.98 x 15.7)
438 x 76.5 x 376.4mm
(17.24 x 3.01 x 14.81)
390 x 59.5 x 240 mm
(15.35 x 2.34 x 9.44)
Weight (net/gross) TBD TBD 3.38 kg (7.45 lb)
Operating Temperature 0° ~ +40°C (+32°F ~ +104°F) 0° ~ +40°C (+32°F ~ +104°F) -5°C ~ +45°C (+23°F ~ +113°F)
Certification CE CE CE
2020
TouchPanelComputers
2014, Q3coming soon
2014, Q3coming soon

22. TouchPanelComputers
21
FeaturesModels MPC225-873 MPC175-873 MPC152-832 MPC102-832
CPU Level Socket rPGA988B 3rd
Generation Intel®
Core™
Socket rPGA988B 3rd
Generation Intel®
Core™
Intel®
Atom™ D2550 1.86GHz Intel®
Atom™ N2600 1.6GHz
Chipset Intel®
QM77 Intel®
QM77 Intel®
NM10 Intel®
NM10
System Memory 2 x 204-pin DDR3
SO-DIMM max. up to
16 GB
2 x 204-pin DDR3
SO-DIMM max.
up to 16 GB
1 x 204-pin DDR3
SO-DIMM max.
up to 4GB
1 x 204-pin DDR3
SO-DIMM max.
up to 2GB
CPU FSB Frequency N/A N/A N/A N/A
Display 22 TFT, WSXGA+, 250 nits 17 TFT, SXGA, 350 nits 15 TFT LCD, XGA, 400nits 10.4 TFT LCD, SVGA, 400nits
I/O 2 x RS-232 (COM 2/3)
1 x RS-232/422/485
(isolated 4KV)
2 x 10/100/1000Mbps
Ethernet (isolated 4KV)
2 x USB 2.0 (isolated 4KV)
2 x USB 2.0
2 x USB 3.0
1 x Audio (Line-out)
1 x Audio (Mic-in)
1 x DisplayPort
2 x 2W speakers
1 x RS-232/422/485
(isolated 4KV)
2 x 10/100/1000Mbps
Ethernet (isolated 4KV)
2 x USB 2.0 (isolated 4KV)
2 x USB 3.0
1 x Audio (Line-out)
1 x Audio (Mic-in)
1 x DisplayPort
2 x 2W speakers
1 x isolated RS-232
(COM 3) with 4KV
1 x RS-232/422/485 (COM1)
2 x 10/100/1000Mbps
4 x USB 2.0
1 x Audio Line-out
1 x DP
1 x isolated RS-232
(COM 3) with 4KV
1 x RS-232/422/485 (COM1)
2 x 10/100/1000Mbps
2 x USB 2.0
1 x Audio Line-out
1 x DP
Storage 1 x 2.5 SATA HDD
1 x mSATA SSD (optional)
1 x 2.5 SATA HDD
1 x mSATA SSD (optional)
1 x 2.5 SATA HDD
1 x CompactFlash™
1 x Half-Slim SATA SSD
1 x CompactFlash™
FDD N/A N/A N/A N/A
DVD-RW 1 x Super Multi drive 1 x Super Multi drive
(optional)
N/A N/A
Expansion
Interface
1 x PCI or 1 x PCIe x4
2 x PCIe Mini Card
1 x PCI or 1 x PCIe x4
(optional)
2 x PCIe Mini Card
N/A N/A
Touchscreen 5-wire resistive type 5-wire resistive type 5-wire Resistive Type 5-wire Resistive Type
Power Supply External 24VDC with
AC/DC medical grade power
adapter
External 24VDC with
AC/DC medical grade power
adapter
12/24VDC
100~240VAC, 60W medical
grade power adapter
12/24VDC
100~240VAC, 60W medical
grade power adapter
Watchdog Timer 255 levels, 0~255 sec. 255 levels, 0~255 sec. 255 levels, 0~255 sec. 255 levels, 0~255 sec.
Dimensions
(W x D x H)
573.5 x 75.9 x 398.9 mm
(22.57 x 2.98 x 15.7)
438 x 76.5 x 376.4 mm
(17.24 x 3.01 x 14.81)
387.9 x 54.6 x 307.7 mm
(15.27 x 2.14 x 12.11)
292.5 x 45.8 x 235.8 mm
(11.52 x 1.8 x 9.28)
Weight (net/gross) TBD TBD 3.2 kg (7.05 lb)/
4.5 kg (9.91 lb)
1.8 kg (3.96 lb)/
3 kg (6.61 lb)
Operating
Temperature
0° ~ +40°C
(+32°F ~ +104°F)
0° ~ +40°C
(+32°F ~ +104°F)
0° ~ +40°C
(+32°F ~ +104°F)
0° ~ +40°C
(+32°F ~ +104°F)
Certification CE class B, EN60601-1,
UL60601-1
CE class B, EN60601-1,
UL60601-1
CE class B, EN60601-1,
UL60601-1
CE class B, EN60601-1,
UL60601-1
Healthcare Medical Solutions
Selection Guide
NEW

23. 2222
TouchPanelComputers
FeaturesModels MMT225
CPU Level Plastic front bezel
(Front panel: IP65, whole enclosure: IPX1)
22 TFT, WSXGA+, 16:10
Mar. Colors 16.7M
Active Area (mm) 473.76 x 296.1
Mar. Resolution 1680 x 1050
Display Mode VGA 640 x 350 (70 Hz)
VGA 720 x 400 (70Hz)
VGA 640 x 480 (60/72/75 Hz)
SVGA 800 x 600 (60/72/75 Hz)
XGA 1024 x 768 (60/72/75 Hz)
SXGA 1280 x 1024 (60/72/75 Hz)
WSXGA 1680 x 1050 (60/72/75 Hz)
Pixel Pitch 0.282 x 0.282
Backlight CCFL
View Angle (H/V) 178°/178°
Response Time 20ms
Contrast Ratio 1000 (TYP.)
Brightness (cd/m2) 300 nits
Display Control OSD
I/O Connectors 1 x Audio (Line-out/Mic-in)
1 x VGA
1 x Video
1 x S-Video
1 x DVI
3 x USB (1 slave, 2 host)
Touchscreen Resistive type
Power Adapter Lock type external 24VDC with AC/DC
medical grade power adapter
Dimensions (W x D x H) 573.5 x 68.5 x 399 mm
(22.58 x 2.69 x 15.71)
Weight (net/gross) 8.48 kg (18.69 lb)/13.02 kg (28.7 lb)
Operating Temperature 0° ~ +45°C (+32°F ~ +104°F)
Certification CE, FCC classB, EN60601-1, UL60601-1
