ACI Multicast 구성 가이드
- 1. ACI Multicast 구성가이드 2017.04.08 (version 1.0) Cisco Systems Korea / 최우형(whchoi@cisco.com)

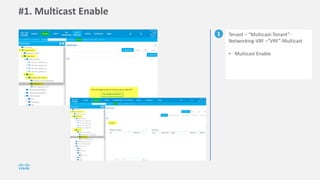

- 2. #1. Multicast Enable 1Tenant – “Multicast-Tenant”- Networking-VRF –”VRF”-Multicast • Multicast Enable

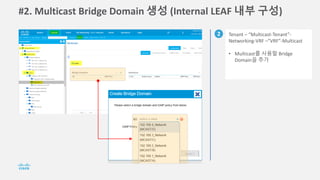

- 3. #2. Multicast BridgeDomain 생성 (Internal LEAF 내부 구성) 2 Tenant – “Multicast-Tenant”- Networking-VRF –”VRF”-Multicast • Multicast를 사용할 Bridge Domain을 추가
- 4. #3. Multicast IGMPPolicy 생성 3 Tenant – “Multicast-Tenant”- Networking-VRF –”VRF”-Multicast • IGMP Policy 생성 Control Parameter 선택 IGMPv2 또는 IGMPv3 선택 기타 Parameter 선택
- 5. #4. Multicast IGMPPolicy 생성 4 Tenant – “Multicast-Tenant”- Networking-VRF –”VRF”-Multicast • IGMP Policy 생성 Control Parameter 선택 IGMPv2 또는 IGMPv3 선택 기타 Parameter 선택

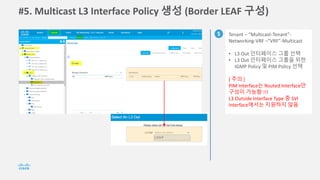

- 6. #5. Multicast L3Interface Policy 생성 (Border LEAF 구성) 5 Tenant – “Multicast-Tenant”- Networking-VRF –”VRF”-Multicast • L3 Out 인터페이스 그룹 선택 • L3 Out 인터페이스 그룹을 위한 IGMP Policy 및 PIM Policy 선택 [ 주의 ] PIM Interface는 Routed Interface만 구성이 가능함 !!! L3 Outside Interface Type 중 SVI Interface에서는 지원하지 않음
- 7. #6. Multicast IGMPPolicy 생성 (Border LEAF 구성) 6 Tenant – “Multicast-Tenant”- Networking-VRF –”VRF”-Multicast • L3 Out 인터페이스 그룹 선택 • L3 Out 인터페이스 그룹을 위한 IGMP Policy 및 PIM Policy 선택 • IGMP Policy 생성 IGMP Interface Policy Name 생성 Control Parameter 구성 IGMP version 선택 기타 Parameters 구성
- 8. #7. Multicast PIMPolicy 생성 (Border LEAF 구성) 7 Tenant – “Multicast-Tenant”- Networking-VRF –”VRF”-Multicast • L3 Out 인터페이스 그룹 선택 • L3 Out 인터페이스 그룹을 위한 IGMP Policy 및 PIM Policy 선택 • PIM Policy 생성 PIM Policy Name 생성 Control Parameter 구성 기타 Parameters 구성
- 9. #8. Multicast RP구성 8 Tenant – “Multicast-Tenant”- Networking-VRF –”VRF”-Multicast • RP 구성 Static RP 또는 Auto-RP 구성

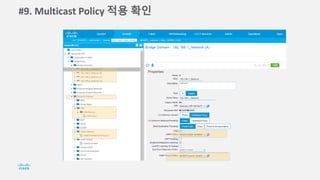

- 10. #9. Multicast Policy적용 확인
- 11. Multicast Routing 제약사항 1 EX만 PIM Routing 지원 (Non EX 모델은 지원하지 않음) 2 L3 Outside Interface에서 SVI Interface는 PIM Routing을 지원하지 않음 3 PIM을 사용하는 BD를 위해 IGMP Snooping을 반드시 설정해야 함. 4 Multicast 제어를 위한 Contract 구성은 불가

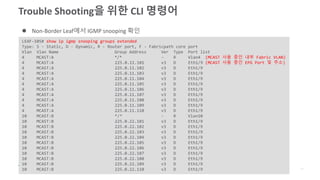

- 12. Trouble Shooting을 위한CLI 명령어 LEAF-105# show ip igmp snooping groups extended Type: S - Static, D - Dynamic, R - Router port, F - Fabricpath core port Vlan Vlan Name Group Address Ver Type Port list 4 MCAST:A */* - R Vlan4 (MCAST 사용 중인 내부 Fabric VLAN) 4 MCAST:A 225.0.11.101 v3 D Eth1/9 (MCAST 사용 중인 EPG Port 및 주소) 4 MCAST:A 225.0.11.102 v3 D Eth1/9 4 MCAST:A 225.0.11.103 v3 D Eth1/9 4 MCAST:A 225.0.11.104 v3 D Eth1/9 4 MCAST:A 225.0.11.105 v3 D Eth1/9 4 MCAST:A 225.0.11.106 v3 D Eth1/9 4 MCAST:A 225.0.11.107 v3 D Eth1/9 4 MCAST:A 225.0.11.108 v3 D Eth1/9 4 MCAST:A 225.0.11.109 v3 D Eth1/9 4 MCAST:A 225.0.11.110 v3 D Eth1/9 10 MCAST:B */* - R Vlan10 10 MCAST:B 225.0.22.101 v3 D Eth1/9 10 MCAST:B 225.0.22.102 v3 D Eth1/9 10 MCAST:B 225.0.22.103 v3 D Eth1/9 10 MCAST:B 225.0.22.104 v3 D Eth1/9 10 MCAST:B 225.0.22.105 v3 D Eth1/9 10 MCAST:B 225.0.22.106 v3 D Eth1/9 10 MCAST:B 225.0.22.107 v3 D Eth1/9 10 MCAST:B 225.0.22.108 v3 D Eth1/9 10 MCAST:B 225.0.22.109 v3 D Eth1/9 10 MCAST:B 225.0.22.110 v3 D Eth1/9 Non-Border Leaf에서 IGMP snooping 확인

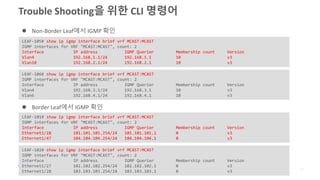

- 13. Trouble Shooting을 위한CLI 명령어 LEAF-105# show ip igmp interface brief vrf MCAST:MCAST IGMP interfaces for VRF "MCAST:MCAST", count: 2 Interface IP address IGMP Querier Membership count Version Vlan4 192.168.1.1/24 192.168.1.1 10 v3 Vlan10 192.168.2.1/24 192.168.2.1 10 v3 LEAF-106# show ip igmp interface brief vrf MCAST:MCAST IGMP interfaces for VRF "MCAST:MCAST", count: 2 Interface IP address IGMP Querier Membership count Version Vlan4 192.168.3.1/24 192.168.3.1 10 v3 Vlan6 192.168.4.1/24 192.168.4.1 10 v3 Non-Border Leaf에서 IGMP 확인 LEAF-101# show ip igmp interface brief vrf MCAST:MCAST IGMP interfaces for VRF "MCAST:MCAST", count: 2 Interface IP address IGMP Querier Membership count Version Ethernet1/28 101.101.101.254/24 101.101.101.1 0 v3 Ethernet1/47 104.104.104.254/24 104.104.104.1 0 v3 Border Leaf에서 IGMP 확인 LEAF-102# show ip igmp interface brief vrf MCAST:MCAST IGMP interfaces for VRF "MCAST:MCAST", count: 2 Interface IP address IGMP Querier Membership count Version Ethernet1/27 102.102.102.254/24 102.102.102.1 0 v3 Ethernet1/28 103.103.103.254/24 103.103.103.1 0 v3

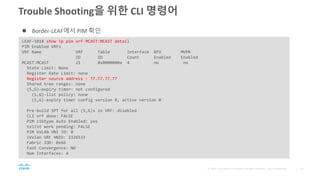

- 14. Trouble Shooting을 위한CLI 명령어 LEAF-101# show ip pim vrf MCAST:MCAST detail PIM Enabled VRFs VRF Name VRF Table Interface BFD MVPN ID ID Count Enabled Enabled MCAST:MCAST 21 0x0000000a 4 no no State Limit: None Register Rate Limit: none Register source address : 77.77.77.77 Shared tree ranges: none (S,G)-expiry timer: not configured (S,G)-list policy: none (S,G)-expiry timer config version 0, active version 0 Pre-build SPT for all (S,G)s in VRF: disabled CLI vrf done: FALSE PIM cibtype Auto Enabled: yes txlist work pending: FALSE PIM VxLAN VNI ID: 0 iVxlan VRF VNID: 2326533 Fabric IOD: 0x66 Fast Convergence: NO Num Interfaces: 4 Border-LEAF에서 PIM 확인

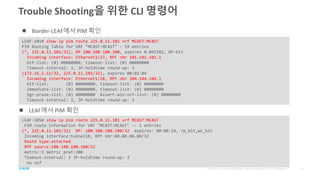

- 15. Trouble Shooting을 위한CLI 명령어 LEAF-101# show ip pim route 225.0.11.101 vrf MCAST:MCAST PIM Routing Table for VRF "MCAST:MCAST" - 59 entries (*, 225.0.11.101/32), RP 100.100.100.100, expires 0.865382, RP-bit Incoming interface: Ethernet1/27, RPF nbr 101.101.101.1 Oif-list: (0) 00000000, timeout-list: (0) 00000000 Timeout-interval: 3, JP-holdtime round-up: 3 (172.16.1.11/32, 225.0.11.101/32), expires 00:02:04 Incoming interface: Ethernet1/28, RPF nbr 104.104.104.1 Oif-list: (0) 00000000, timeout-list: (0) 00000000 Immediate-list: (0) 00000000, timeout-list: (0) 00000000 Sgr-prune-list: (0) 00000000 Assert-win-oif-list: (0) 00000000 Timeout-interval: 3, JP-holdtime round-up: 3 Border-LEAF에서 PIM 확인 LEAF-105# show ip pim route 225.0.11.101 vrf MCAST:MCAST PIM route information for VRF "MCAST:MCAST" -- 1 entries (*, 225.0.11.101/32) RP: 100.100.100.100/32 expires: 00:00:24, rp_bit,wc_bit Incoming interface:tunnel18, RPF nbr:88.88.88.88/32 Route type:attached RPF source:100.100.100.100/32 metric:5 metric pref:200 Timeout-interval: 3 JP-holdtime round-up: 3 no oif LEAF에서 PIM 확인
- 16. Trouble Shooting을 위한CLI 명령어 LEAF-101# show ip pim route 225.0.11.101 vrf MCAST:MCAST PIM route information for VRF "MCAST:MCAST" -- 2 entries (*, 225.0.11.101/32) RP: 100.100.100.100/32 expires: 00:02:41, rp_bit,wc_bit Incoming interface:eth1/27, RPF nbr:101.101.101.1/32 (MCAST 수신 Interface 및 Peer Interface 주소) Route type:fabricFwder,stripeWinner RPF source:100.100.100.100/32 (외부 MCAST RP Address) metric:5 metric pref:110 Timeout-interval: 1 JP-holdtime round-up: 3 no oif (172.16.1.11, 225.0.11.101/32) expires: 00:02:41, Incoming interface:eth1/28, RPF nbr:104.104.104.1/32 (MCAST 수신 Interface 및 Peer Interface 주소) Route type:dataTrig,fabricFwder,stripeWinner RPF source:172.16.1.11/32 metric:85 metric pref:110 Timeout-interval: 1 JP-holdtime round-up: 3 no oif Border-LEAF에서 PIM 확인 (Sender가 외부에 있는 경우)

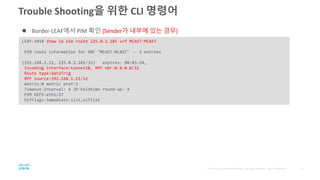

- 17. Trouble Shooting을 위한CLI 명령어 LEAF-101# show ip pim route 225.0.1.101 vrf MCAST:MCAST PIM route information for VRF "MCAST:MCAST" -- 1 entries (192.168.1.11, 225.0.1.101/32) expires: 00:03:24, Incoming interface:tunnel18, RPF nbr:0.0.0.0/32 Route type:dataTrig RPF source:192.168.1.11/32 metric:0 metric pref:1 Timeout-interval: 4 JP-holdtime round-up: 4 PIM OIFS:eth1/27 OifFlags:immediate-list,oiflist Border-LEAF에서 PIM 확인 (Sender가 내부에 있는 경우)
- 18. Trouble Shooting을 위한CLI 명령어 LEAF에서 PIM 확인 (Sender가 외부에 있는 경우) LEAF-105# show ip pim route 225.0.11.101 vrf MCAST:MCAST PIM route information for VRF "MCAST:MCAST" -- 1 entries (*, 225.0.11.101/32) RP: 100.100.100.100/32 expires: N/A, rp_bit,wc_bit (MCAST 수신 Interface 및 Peer Interface 주소) Incoming interface:tunnel18, RPF nbr:88.88.88.88/32 Route type:attached RPF source:100.100.100.100/32 metric:5 metric pref:200 Timeout-interval: 2 JP-holdtime round-up: 3 no oif LEAF-105# show ip pim route 225.0.1.101 vrf MCAST:MCAST PIM route information for VRF "MCAST:MCAST" -- 1 entries (192.168.1.11, 225.0.1.101/32) expires: 00:02:09, Incoming interface:tunnel18, RPF nbr:0.0.0.0/32 (MCAST 수신 Interface 및 Peer Interface 주소) Route type:dataTrig RPF source:192.168.1.11/32 metric:0 metric pref:1 Timeout-interval: 2 JP-holdtime round-up: 3 no oif LEAF에서 PIM 확인 (Sender가 내부에 있는 경우)

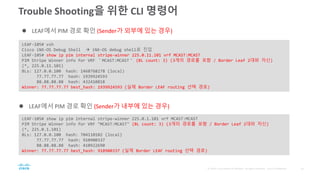

- 19. Trouble Shooting을 위한CLI 명령어 LEAF에서 PIM 경로 확인 (Sender가 외부에 있는 경우) LEAF-105# vsh Cisco iNX-OS Debug Shell iNX-OS debug shell로 진입 LEAF-105# show ip pim internal stripe-winner 225.0.11.101 vrf MCAST:MCAST PIM Stripe Winner info for VRF ＂MCAST:MCAST＂ (BL count: 3) (3개의 경로를 포함 / Border Leaf 2대와 자신) (*, 225.0.11.101) BLs: 127.0.0.100 hash: 1468768278 (local) 77.77.77.77 hash: 1939924593 88.88.88.88 hash: 432410818 Winner: 77.77.77.77 best_hash: 1939924593 (실제 Border LEAF routing 선택 경로) LEAF-105# show ip pim internal stripe-winner 225.0.1.101 vrf MCAST:MCAST PIM Stripe Winner info for VRF "MCAST:MCAST" (BL count: 3) (3개의 경로를 포함 / Border Leaf 2대와 자신) (*, 225.0.1.101) BLs: 127.0.0.100 hash: 704110102 (local) 77.77.77.77 hash: 910900337 88.88.88.88 hash: 410922690 Winner: 77.77.77.77 best_hash: 910900337 (실제 Border LEAF routing 선택 경로) LEAF에서 PIM 경로 확인 (Sender가 내부에 있는 경우)
