OpenStack DVR_What is DVR?
- 1. What is OpenStackDVR (Distribute Virtual Router) 내것인듯 내것아닌 내것같은 Neutron/DVR Yongyoon SHIN. SDN section, ETRI
- 2. Let’s Talk • OpenStackand Distribute Virtual Router – OpenStack – What is DVR • DVR Case – East/West Traffic – SNAT – Floating IP

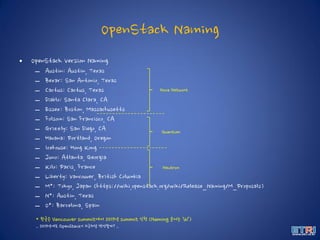

- 3. OpenStack Naming • OpenStackVersion Naming – Austin: Austin, Texas – Bexar: San Antonio, Texas – Cactus: Cactus, Texas – Diablo: Santa Clara, CA – Essex: Boston, Massachusetts – Folsom: San Francisco, CA – Grizzly: San Diego, CA – Havana: Portland, Oregon – Icehouse: Hong Kong – Juno: Atlanta, Georgia – Kilo: Paris, France – Liberty: Vancouver, British Columbia – M*: Tokyo, Japan (https://wiki.openstack.org/wiki/Release_Naming/M_Proposals) – N*: Austin, Texas – O*: Barcelona, Spain Quantum Neutron Nova Network * 한국은 Vancouver summit에서 2019년 summit 신청 (Naming 순서는 ‘W’) .. 2019년에도 OpenStack이 지금처럼 번성할까? ..
- 4. OpenStack Release • MainSchedule (Neutron)

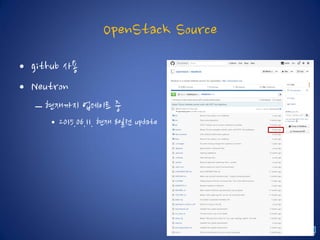

- 5. OpenStack Source • github사용 • Neutron – 현재까지 업데이트 중 • 2015.06.11. 현재 8일전 update

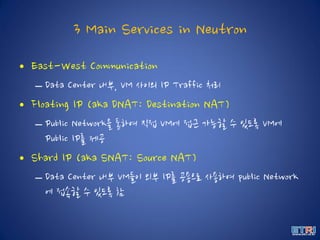

- 6. 3 Main Servicesin Neutron • East-West Communication – Data Center 내부, VM 사이의 IP Traffic 처리 • Floating IP (aka DNAT: Destination NAT) – Public Network을 통하여 직접 VM에 접근 가능할 수 있도록 VM에 Public IP를 제공 • Shard IP (aka SNAT: Source NAT) – Data Center 내부 VM들이 외부 IP를 공용으로 사용하여 public Network 에 접속할 수 있도록 함

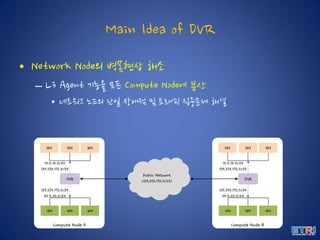

- 7. Main Idea ofDVR • Network Node의 병목현상 해소 – L3 Agent 기능을 모든 Compute Node에 분산 • 네트워크 노드의 단일 장애점 및 트래픽 집중문제 해결 Compute Node A VM VM VM VM VM VM 10.0.10.0/24 129.254.172.0/24 129.254.172.0/24 20.0.20.0/24 DVR Public Network (129.254.172.0/24) Compute Node B VM VM VM VM VM VM 10.0.10.0/24 129.254.172.0/24 129.254.172.0/24 20.0.20.0/24 DVR

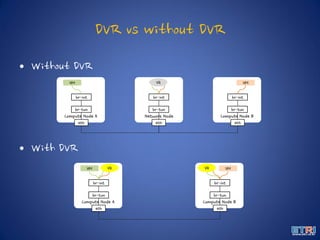

- 8. DVR vs withoutDVR • Without DVR • With DVR Compute Node A VM Network Node Compute Node B br-int br-tun VM br-int br-tun br-int br-tun eth eth eth VR Compute Node A VM Compute Node B br-int br-tun VM br-int br-tun eth eth VR VR

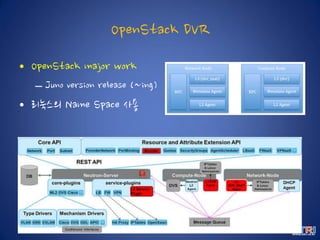

- 9. OpenStack DVR • OpenStackmajor work – Juno version release (~ing) • 리눅스의 Name Space 사용
- 10. OpenStack DVR • Network/ComputeNode NameSpace Network Node Compute Node VM01 (Network A) VM02 (Network B) br-int br-ex br-tun dnsmasq dnsmasq br-int br-ex br-tun dhcp NameSpacedhcp NameSpace Router NameSpace Router NameSpace SNAT NameSpace patch-tun patch-int patch-tun patch-int eth0 eth0 vxlan-xxxx vxlan-yyyyvxlan-xxxx vxlan-yyyy FIP NameSpace qvoVM1 qvoVM2 qrouter-xxx fip-xxx qr-aaa qr-bbb rfp-xxx fpr-xxx fg-yyy qdhcp-kkk qdhcp-qqq tap123abc tap456def int-br-ex phy-br-ex qrouter-xxx snat-xxx qr-aaa qr-bbbsg-123aaa sg-456bbb qg-789abc External

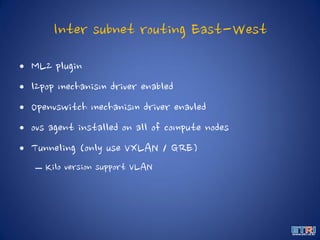

- 11. Inter subnet routingEast-West • ML2 plugin • l2pop mechanism driver enabled • Openvswitch mechanism driver enavled • ovs agent installed on all of compute nodes • Tunneling (only use VXLAN / GRE) – Kilo version support VLAN

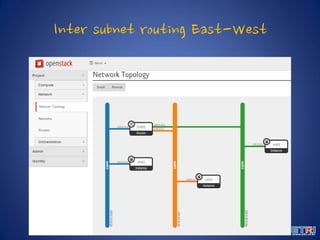

- 12. Inter subnet routingEast-West

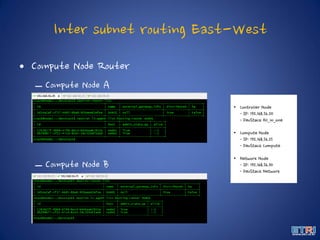

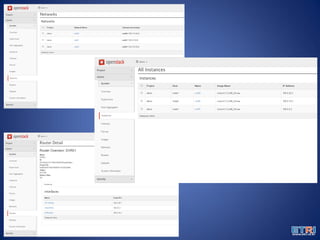

- 14. Inter subnet routingEast-West • Compute Node Router – Compute Node A – Compute Node B • Controller Node - IP: 192.168.56.20 - DevStack All_in_one • Compute Node - IP: 192.168.56.25 - DevStack Compute • Network Node - IP: 192.168.56.30 - DevStack Network

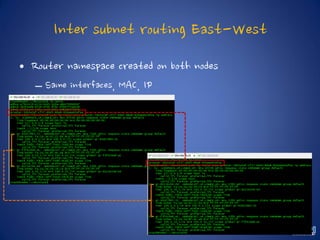

- 15. Inter subnet routingEast-West • Router namespace created on both nodes – Same interfaces, MAC, IP

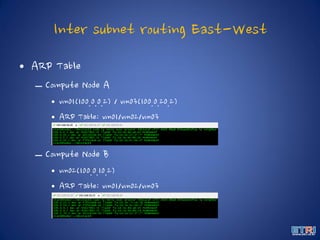

- 16. Inter subnet routingEast-West • ARP Table – Compute Node A • vm01(100.0.0.2) / vm03(100.0.20.2) • ARP Table: vm01/vm02/vm03 – Compute Node B • vm02(100.0.10.2) • ARP Table: vm01/vm02/vm03
- 17. Inter subnet routingEast-West • Flows Compute Node A VM Compute Node B br-int br-tun VM br-int br-tun eth eth VR VR ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ src MAC dst MAC src IP dest IP Blue VM Blue Router Interface Blue VM Red VM

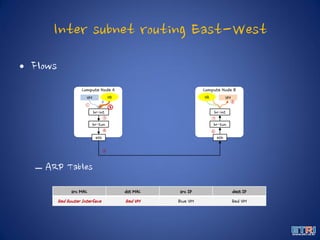

- 18. Inter subnet routingEast-West • Flows – ARP Tables Compute Node A VM Compute Node B br-int br-tun VM br-int br-tun eth eth VR VR ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ src MAC dst MAC src IP dest IP Red Router Interface Red VM Blue VM Red VM

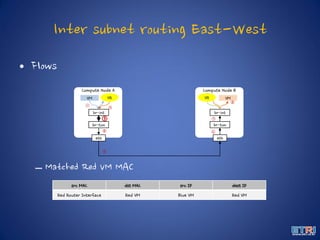

- 19. Inter subnet routingEast-West • Flows – Matched Red VM MAC Compute Node A VM Compute Node B br-int br-tun VM br-int br-tun eth eth VR VR ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ src MAC dst MAC src IP dest IP Red Router Interface Red VM Blue VM Red VM

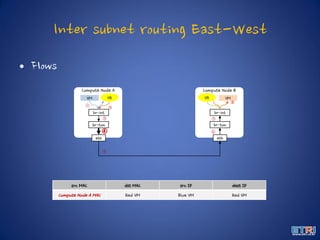

- 20. Inter subnet routingEast-West • Flows Compute Node A VM Compute Node B br-int br-tun VM br-int br-tun eth eth VR VR ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ src MAC dst MAC src IP dest IP Compute Node A MAC Red VM Blue VM Red VM

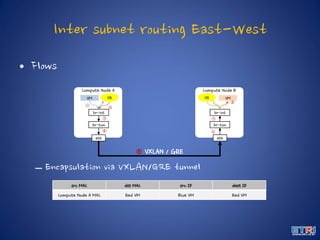

- 21. Inter subnet routingEast-West • Flows – Encapsulation via VXLAN/GRE tunnel Compute Node A VM Compute Node B br-int br-tun VM br-int br-tun eth eth VR VR ① ② ③ ④ ⑤ VXLAN / GRE ⑥ ⑦ ⑧ src MAC dst MAC src IP dest IP Compute Node A MAC Red VM Blue VM Red VM

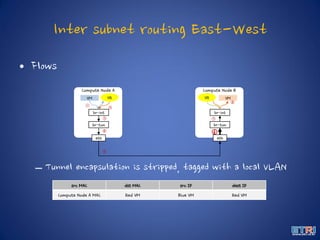

- 22. Inter subnet routingEast-West • Flows – Tunnel encapsulation is stripped, tagged with a local VLAN Compute Node A VM Compute Node B br-int br-tun VM br-int br-tun eth eth VR VR ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ src MAC dst MAC src IP dest IP Compute Node A MAC Red VM Blue VM Red VM
- 23. Inter subnet routingEast-West • Flows – Traffic matched remote host MAC Compute Node A VM Compute Node B br-int br-tun VM br-int br-tun eth eth VR VR ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ src MAC dst MAC src IP dest IP Compute Node A MAC Red VM Blue VM Red VM

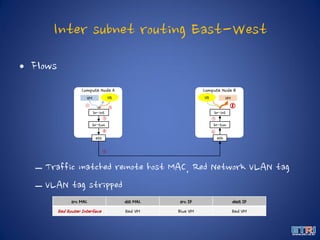

- 24. Inter subnet routingEast-West • Flows – Traffic matched remote host MAC, Red Network VLAN tag – VLAN tag stripped Compute Node A VM Compute Node B br-int br-tun VM br-int br-tun eth eth VR VR ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ src MAC dst MAC src IP dest IP Red Router Interface Red VM Blue VM Red VM

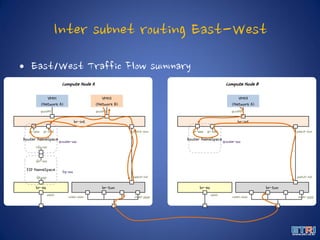

- 25. Inter subnet routingEast-West • East/West Traffic Flow summary Compute Node B VM03 (Network A) br-int br-ex br-tun Router NameSpace patch-tun patch-int eth0 vxlan-xxxx vxlan-yyyy qvoVM3 qrouter-xxx qr-aaa qr-bbb Compute Node A VM01 (Network A) VM02 (Network B) br-int br-ex br-tun Router NameSpace patch-tun patch-int eth0 vxlan-xxxx vxlan-yyyy FIP NameSpace qvoVM1 qvoVM2 qrouter-xxx fip-xxx qr-aaa qr-bbb rfp-xxx fpr-xxx fg-yyy

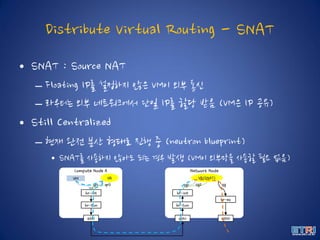

- 26. Distribute Virtual Routing- SNAT • SNAT : Source NAT – Floating IP를 설정하지 않은 VM이 외부 통신 – 라우터는 외부 네트워크에서 단일 IP를 할당 받음 (VM은 IP 공유) • Still Centralized – 현재 완전 분산 형태로 진행 중 (neutron blueprint) • SNAT를 사용하지 않아도 되는 경우 발생 (VM이 외부망을 사용할 필요 없음) Compute Node A VM Network Node br-int br-tun br-int br-tun eth1 eth0 VR VR(SNAT) eth1 br-ex qr1 qr2 sg1 sg2 qg

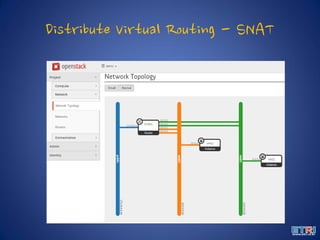

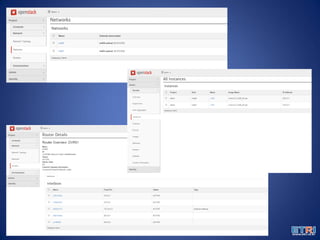

- 27.

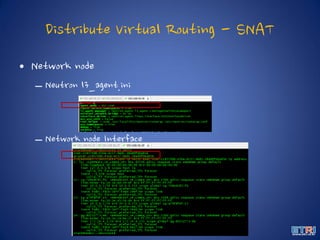

- 29. Distribute Virtual Routing- SNAT • Network node – Neutron l3_agent.ini – Network node Interface

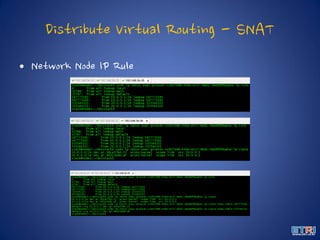

- 30. Distribute Virtual Routing- SNAT • Network Node IP Rule

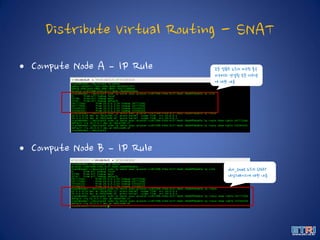

- 31. Distribute Virtual Routing- SNAT • Compute Node A – IP Rule • Compute Node B – IP Rule 모든 컴퓨트 노드의 라우팅 룰은 라우터와 연결된 모든 서브넷 에 대한 내용 dvr_snat 노드의 SNAT 네임스페이스에 대한 내용
- 32. Distribute Virtual Routing- SNAT • Flows Compute Node A VM Network Node br-int br-tun br-int br-tun eth1 eth0 VR VR(SNAT) ① ② ③ ④ ⑤ ⑥ ⑦ src MAC dst MAC src IP dest IP Blue VM Blue qr Interface Blue VM ex) Google IP eth1 br-ex qr1 qr2 sg1 sg2 qg ⑧

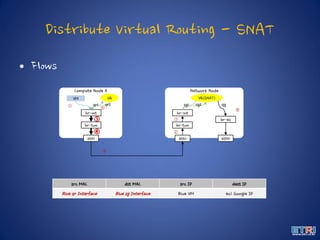

- 33. Distribute Virtual Routing- SNAT • Flows Compute Node A VM Network Node br-int br-tun br-int br-tun eth1 eth0 VR VR(SNAT) ① ② ③ ④ ⑤ ⑥ ⑦ src MAC dst MAC src IP dest IP Blue VM Blue qr Interface Blue VM ex) Google IP eth1 br-ex qr1 qr2 sg1 sg2 qg ⑧
- 34. Distribute Virtual Routing- SNAT • Flows Compute Node A VM Network Node br-int br-tun br-int br-tun eth1 eth0 VR VR(SNAT) ① ② ③ ④ ⑤ ⑥ ⑦ src MAC dst MAC src IP dest IP Blue qr Interface Blue sg Interface Blue VM ex) Google IP eth1 br-ex qr1 qr2 sg1 sg2 qg ⑧
- 35. Distribute Virtual Routing- SNAT • Flows Compute Node A VM Network Node br-int br-tun br-int br-tun eth1 eth0 VR VR(SNAT) ① ② ③ ④ ⑤ ⑥ ⑦ src MAC dst MAC src IP dest IP Compute Node A MAC Blue sg Interface Blue VM ex) Google IP eth1 br-ex qr1 qr2 sg1 sg2 qg ⑧

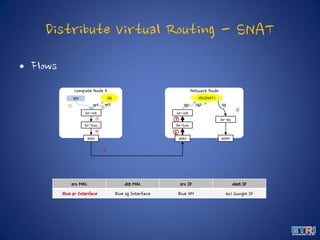

- 36. Distribute Virtual Routing- SNAT • Flows Compute Node A VM Network Node br-int br-tun br-int br-tun eth1 eth0 VR VR(SNAT) ① ② ③ ④ ⑤ ⑥ ⑦ src MAC dst MAC src IP dest IP Blue qr Interface Blue sg Interface Blue VM ex) Google IP eth1 br-ex qr1 qr2 sg1 sg2 qg ⑧

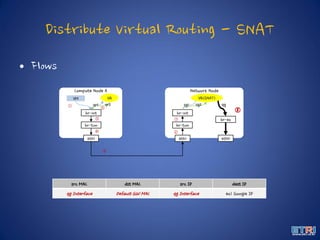

- 37. Distribute Virtual Routing- SNAT • Flows Compute Node A VM Network Node br-int br-tun br-int br-tun eth1 eth0 VR VR(SNAT) ① ② ③ ④ ⑤ ⑥ ⑦ src MAC dst MAC src IP dest IP qg Interface Default GW MAC qg Interface ex) Google IP eth1 br-ex qr1 qr2 sg1 sg2 qg ⑧
- 38. Distribute Virtual Routing- SNAT • SNAT Traffic Flow summary Network Node Compute Node VM01 (Network A) VM02 (Network B) br-int br-ex br-tun dnsmasq dnsmasq br-int br-ex br-tun dhcp NameSpacedhcp NameSpace Router NameSpace Router NameSpace SNAT NameSpace patch-tun patch-int patch-tun patch-int eth0 eth0 vxlan-xxxx vxlan-yyyyvxlan-xxxx vxlan-yyyy FIP NameSpace qvoVM1 qvoVM2 qrouter-xxx fip-xxx qr-aaa qr-bbb rfp-xxx fpr-xxx fg-yyy qdhcp-kkk qdhcp-qqq tap123abc tap456def int-br-ex phy-br-ex qrouter-xxx snat-xxx qr-aaa qr-bbbsg-123aaa sg-456bbb qg-789abc

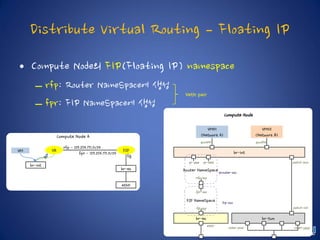

- 39. Distribute Virtual Routing– Floating IP • Compute Node의 FIP(Floating IP) namespace – rfp: Router NameSpace에 생성 – fpr: FIP NameSpace에 생성 Compute Node VM01 (Network A) VM02 (Network B) br-int br-ex br-tun Router NameSpace patch-tun patch-int eth0 vxlan-xxxx vxlan-yyyy FIP NameSpace qvoVM1 qvoVM2 qrouter-xxx fip-xxx qr-aaa qr-bbb rfp-xxx fpr-xxx fg-yyy Veth pair Compute Node A VM br-int VR qr FIP br-ex eth0 rfp - 129.254.171.0/24 fpr - 129.254.171.0/24 fg

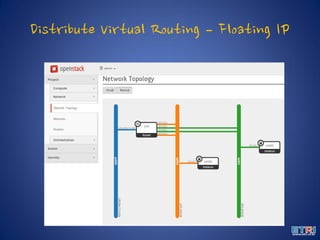

- 40. Distribute Virtual Routing– Floating IP

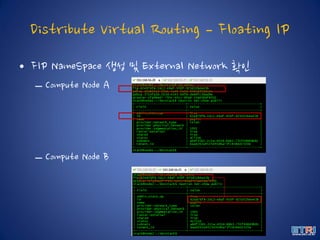

- 42. Distribute Virtual Routing– Floating IP • FIP NameSpace 생성 및 External Network 확인 – Compute Node A – Compute Node B

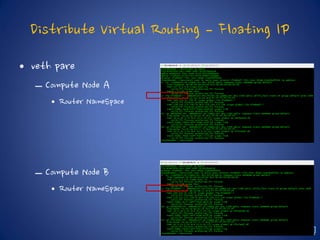

- 43. Distribute Virtual Routing– Floating IP • veth pare – Compute Node A • Router NameSpace – Compute Node B • Router NameSpace

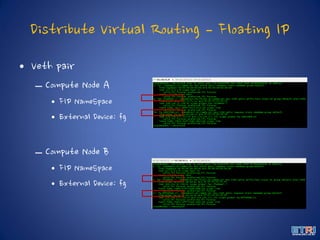

- 44. Distribute Virtual Routing– Floating IP • Veth pair – Compute Node A • FIP NameSpace • External Device: fg – Compute Node B • FIP NameSpace • External Device: fg
- 45. Distribute Virtual Routing– Floating IP • Routing Rule – Compute Node A – Compute Node B

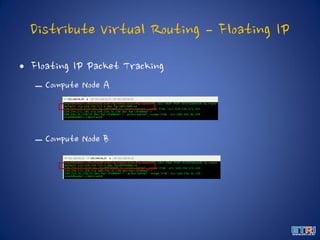

- 46. Distribute Virtual Routing– Floating IP • Floating IP Packet Tracking – Compute Node A – Compute Node B
- 47. Distribute Virtual Routing– Floating IP Compute Node A VM br-int VR ① qr FIP br-ex eth0 rfp - 129.254.171.0/24 fpr - 129.254.171.0/24 fg src MAC dst MAC src IP dest IP Blue VM Blue qr Interface Blue VM fixed IP ex) Google IP ④ ⑤ ② ③

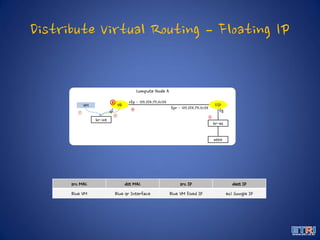

- 48. Distribute Virtual Routing– Floating IP Compute Node A VM br-int VR ① qr FIP br-ex eth0 rfp - 129.254.171.0/24 fpr - 129.254.171.0/24 fg src MAC dst MAC src IP dest IP Blue VM Blue qr Interface Blue VM fixed IP ex) Google IP ④ ⑤ ② ③
- 49. Distribute Virtual Routing– Floating IP Compute Node A VM br-int VR ① ② qr FIP br-ex eth0 rfp - 129.254.171.0/24 fpr - 129.254.171.0/24 fg src MAC dst MAC src IP dest IP Blue VM Blue qr Interface Blue VM fixed IP ex) Google IP ③ ④ ⑤

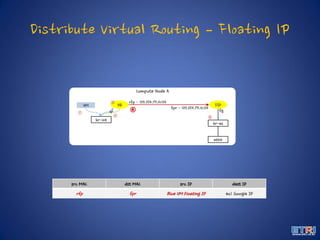

- 50. Distribute Virtual Routing– Floating IP Compute Node A VM br-int VR ① qr FIP br-ex eth0 rfp - 129.254.171.0/24 fpr - 129.254.171.0/24 fg src MAC dst MAC src IP dest IP rfp fpr Blue VM Floating IP ex) Google IP ④ ⑤ ② ③
- 51. Distribute Virtual Routing– Floating IP Compute Node A VM br-int VR ① qr FIP br-ex eth0 rfp - 129.254.171.0/24 fpr - 129.254.171.0/24 fg src MAC dst MAC src IP dest IP fg default GW Blue VM Floating IP ex) Google IP ⑤ ④ ② ③

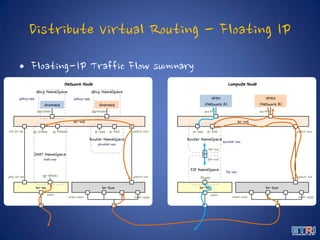

- 52. Distribute Virtual Routing- Floating IP • Floating-IP Traffic Flow summary Network Node Compute Node VM01 (Network A) VM02 (Network B) br-int br-ex br-tun dnsmasq dnsmasq br-int br-ex br-tun dhcp NameSpacedhcp NameSpace Router NameSpace Router NameSpace SNAT NameSpace patch-tun patch-int patch-tun patch-int eth0 eth0 vxlan-xxxx vxlan-yyyyvxlan-xxxx vxlan-yyyy FIP NameSpace qvoVM1 qvoVM2 qrouter-xxx fip-xxx qr-aaa qr-bbb rfp-xxx fpr-xxx fg-yyy qdhcp-kkk qdhcp-qqq tap123abc tap456def int-br-ex phy-br-ex qrouter-xxx snat-xxx qr-aaa qr-bbbsg-123aaa sg-456bbb qg-789abc

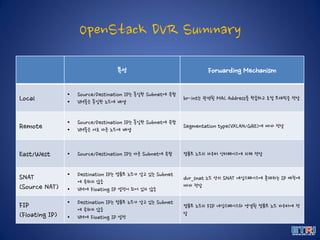

- 53. OpenStack DVR Summary 특성Forwarding Mechanism Local • Source/Destination IP는 동일한 Subnet에 속함 • VM들은 동일한 노드에 배열 br-int는 관련된 MAC Address를 학습하고 로컬 트래픽을 전달 Remote • Source/Destination IP는 동일한 Subnet에 속함 • VM들은 서로 다른 노드에 배열 Segmentation type(VXLAN/GRE)에 따라 전달 East/West • Source/Destination IP는 다른 Subnet에 속함 컴퓨트 노드의 라우터 인터페이스에 의해 전달 SNAT (Source NAT) • Destination IP는 컴퓨트 노드가 알고 있는 Subnet 에 속하지 않음 • VM에 Floating IP 설정이 되어 있지 않음 dvr_snat 노드 상의 SNAT 네임스페이스에 존재하는 IP 매칭에 따라 전달 FIP (Floating IP) • Destination IP는 컴퓨트 노드가 알고 있는 Subnet 에 속하지 않음 • VM에 Floating IP 설정 컴퓨트 노드의 FIP 네임스페이스와 연결된 컴퓨트 노드 라우터에 전 달

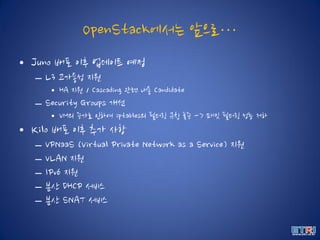

- 54. OpenStack에서는 앞으로… • Juno배포 이후 업데이트 예정 – L3 고가용성 지원 • HA 지원 / Cascading 관련 내용 Candidate – Security Groups 개선 • VM의 증가로 인하여 iptables의 필터링 규칙 폭증 -> 패킷 필터링 성능 저하 • Kilo 배포 이후 추가 사항 – VPNaaS (Virtual Private Network as a Service) 지원 – VLAN 지원 – IPv6 지원 – 분산 DHCP 서비스 – 분산 SNAT 서비스
